This document summarizes key points about application compatibility between Windows versions. Most software that runs on Windows Vista will also run on Windows 7, with some exceptions for low-level code. Hardware compatible with Vista will also generally work with 7. While there are few surface-level changes, under the hood there are deeper changes to security, drivers, deployment and networking. The document outlines specific compatibility issues applications may face when moving from XP to 7 or Vista to 7, such as new folder locations and changes due to User Account Control. It provides recommendations on using new Windows 7 APIs and features to enhance applications.

1. Windows 7 AppCompatLynn Langithttp://blogs.msdn.com/SoCalDevGalMicrosoft – Developer Evangelist

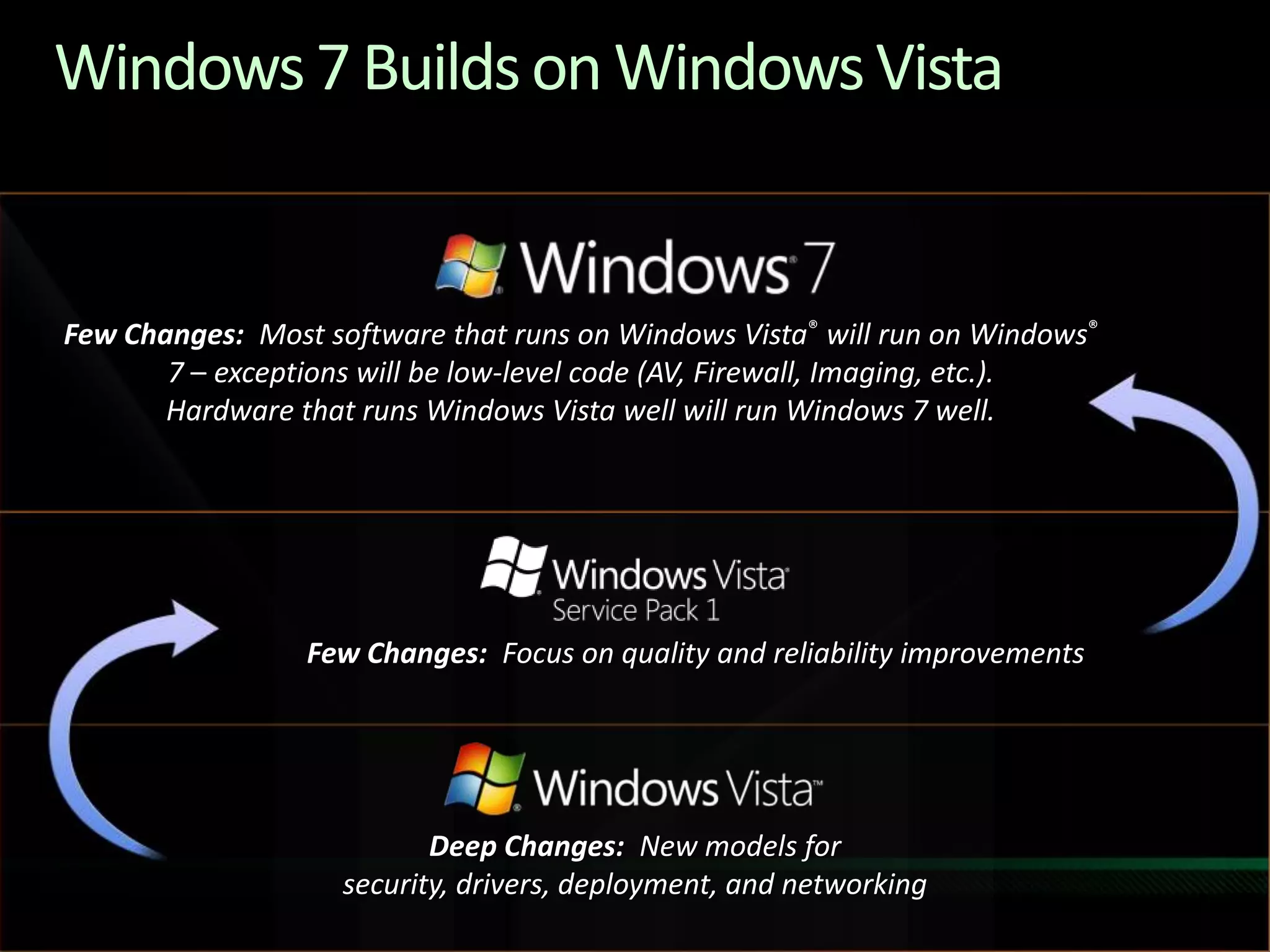

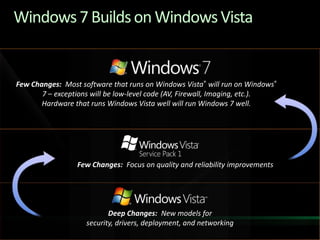

2. Windows 7 Builds on Windows VistaFew Changes: Most software that runs on Windows Vista® will run on Windows® 7 – exceptions will be low-level code (AV, Firewall, Imaging, etc.). Hardware that runs Windows Vista well will run Windows 7 well.Few Changes: Focus on quality and reliability improvementsDeep Changes: New models for security, drivers, deployment, and networking

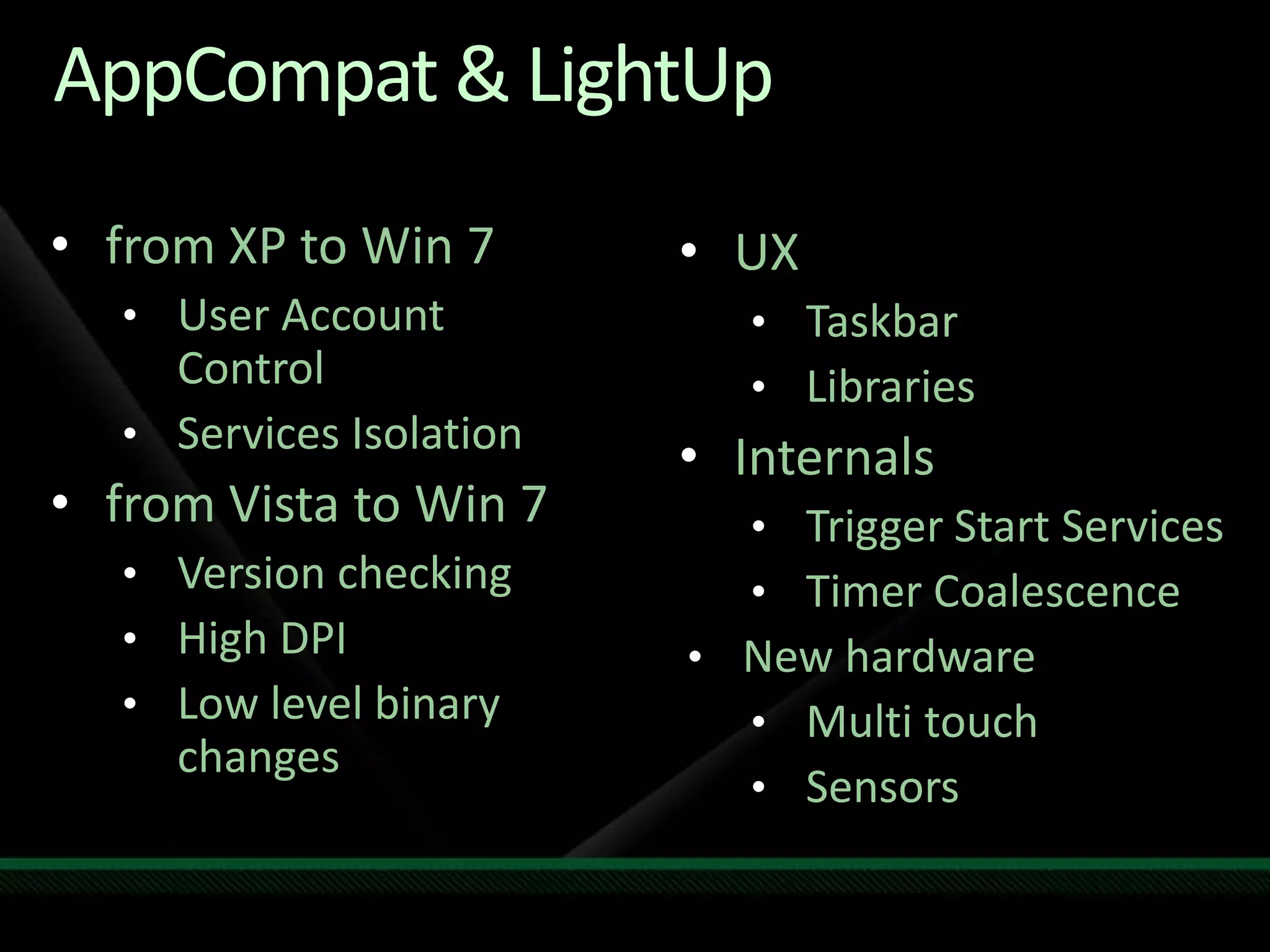

3. AppCompat & LightUpfrom XP to Win 7

4. User Account Control

5. Services Isolation

6. from Vista to Win 7

7. Version checking

8. High DPI

9. Low level binary changes

10. UX

11. Taskbar

12. Libraries

13. Internals

14. Trigger Start Services

15. Timer Coalescence

16. New hardware

17. Multi touch

18. SensorsFrom XP to Windows 7http://code.msdn.microsoft.com/XP2Win7

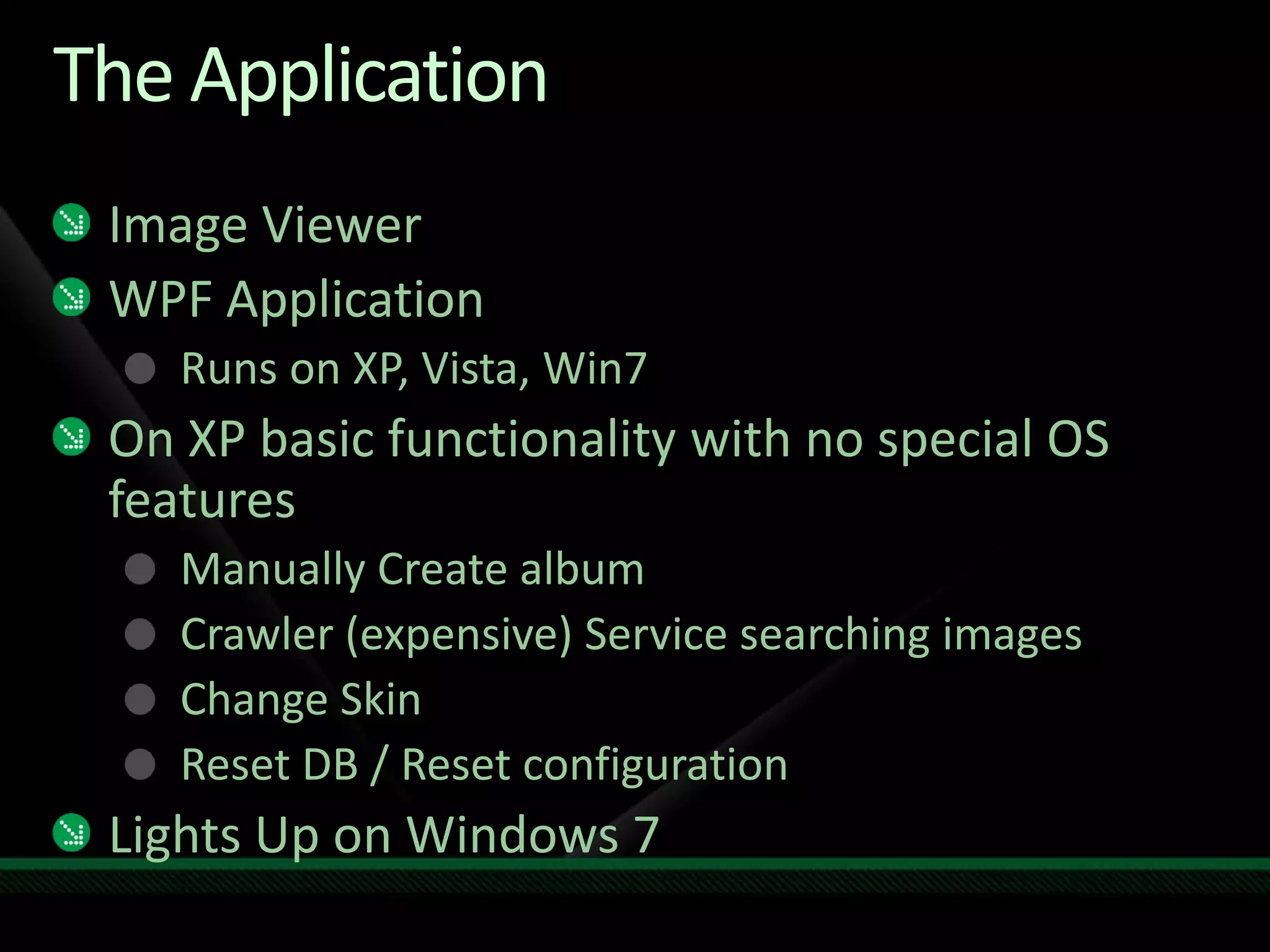

19. The ApplicationImage ViewerWPF Application Runs on XP, Vista, Win7On XP basic functionality with no special OS featuresManually Create albumCrawler (expensive) Service searching imagesChange SkinReset DB / Reset configurationLights Up on Windows 7

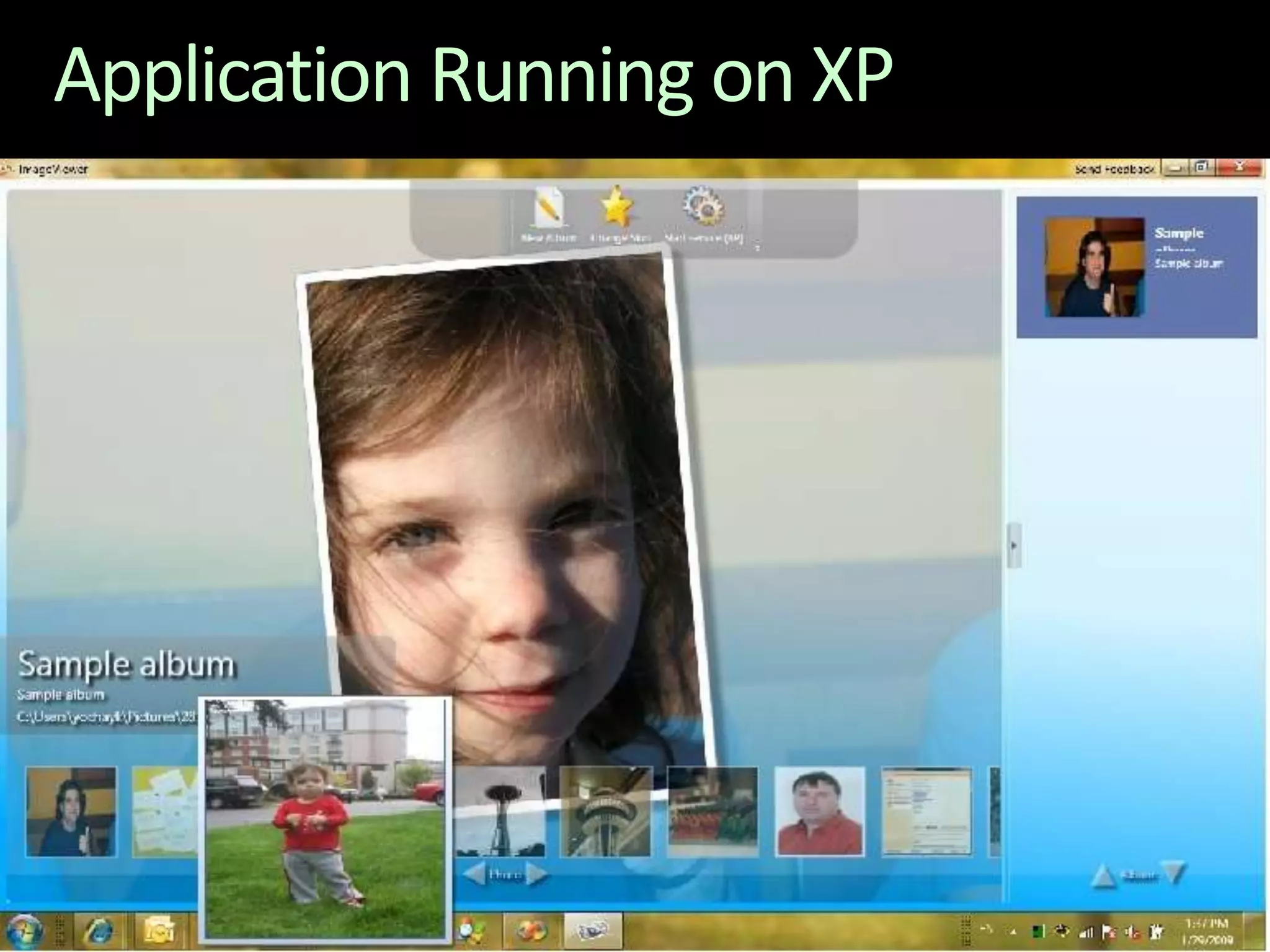

20. Application Running on XP

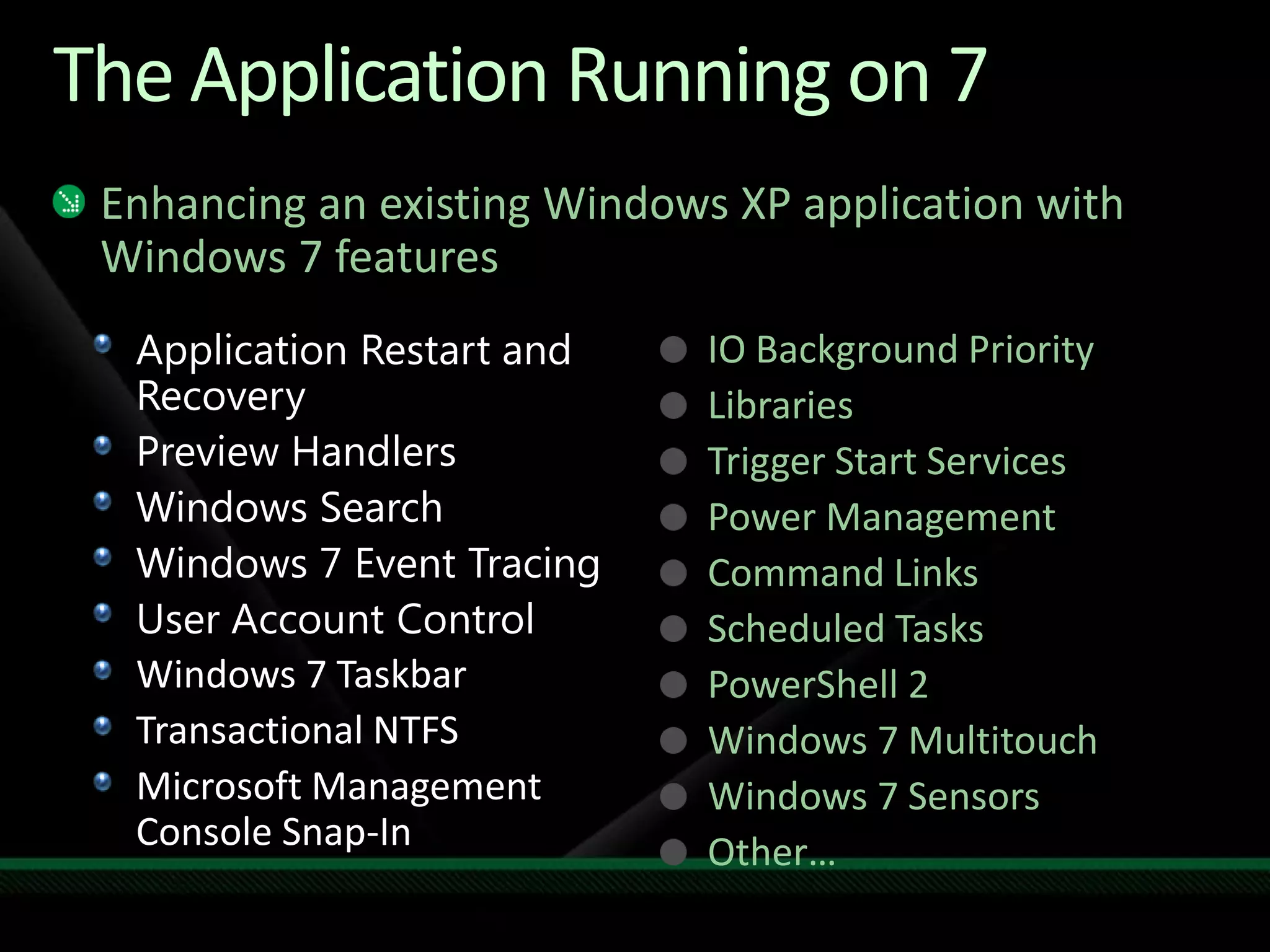

21. The Application Running on 7Enhancing an existing Windows XP application with Windows 7 featuresIO Background PriorityLibraries Trigger Start ServicesPower ManagementCommand Links Scheduled TasksPowerShell 2Windows 7 MultitouchWindows 7 SensorsOther…Application Restart and RecoveryPreview HandlersWindows SearchWindows 7 Event TracingUser Account ControlWindows 7 TaskbarTransactional NTFSMicrosoft Management Console Snap-In

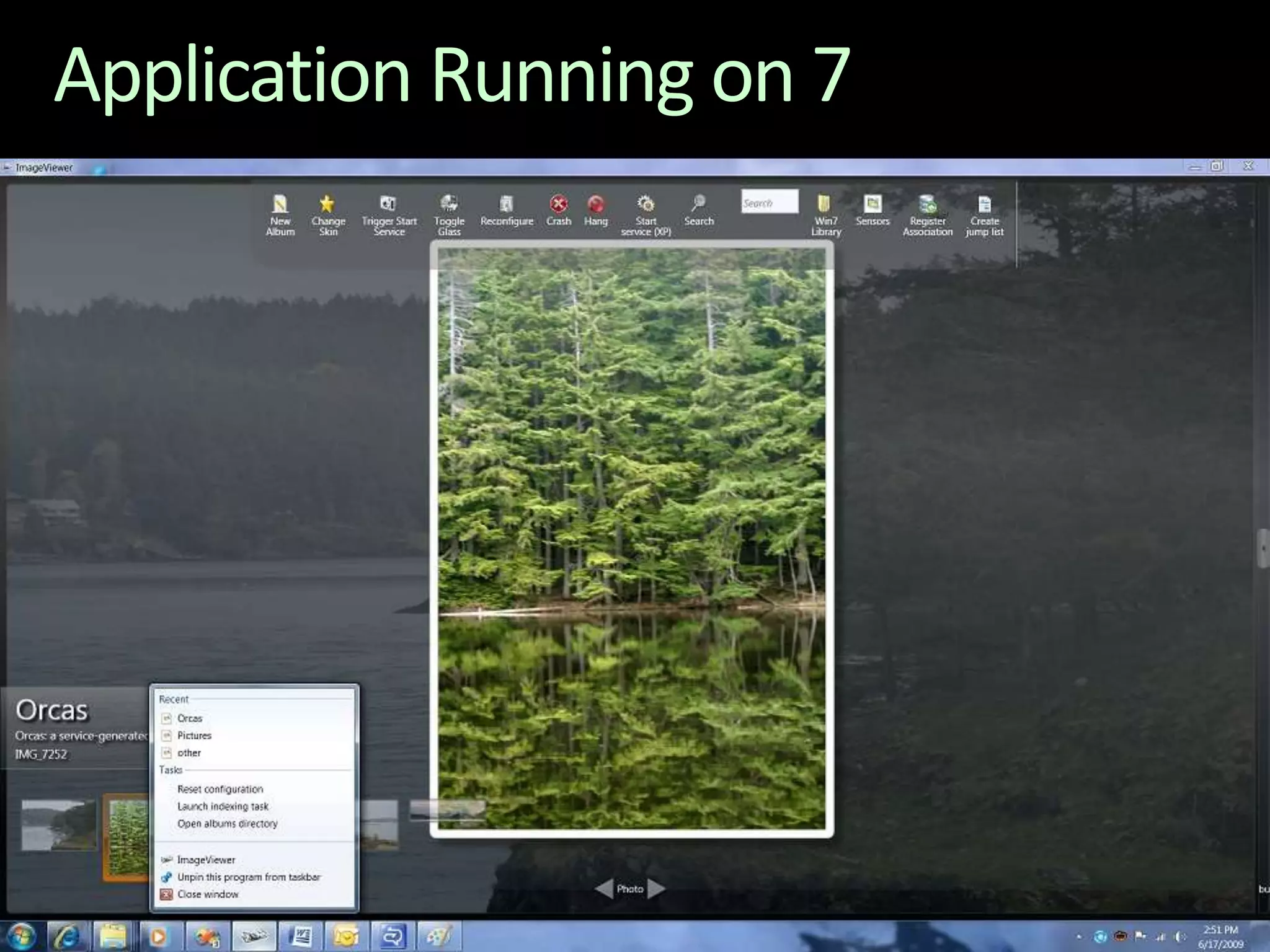

22. Application Running on 7

23. DemoPhoto Viewer on Windows 7

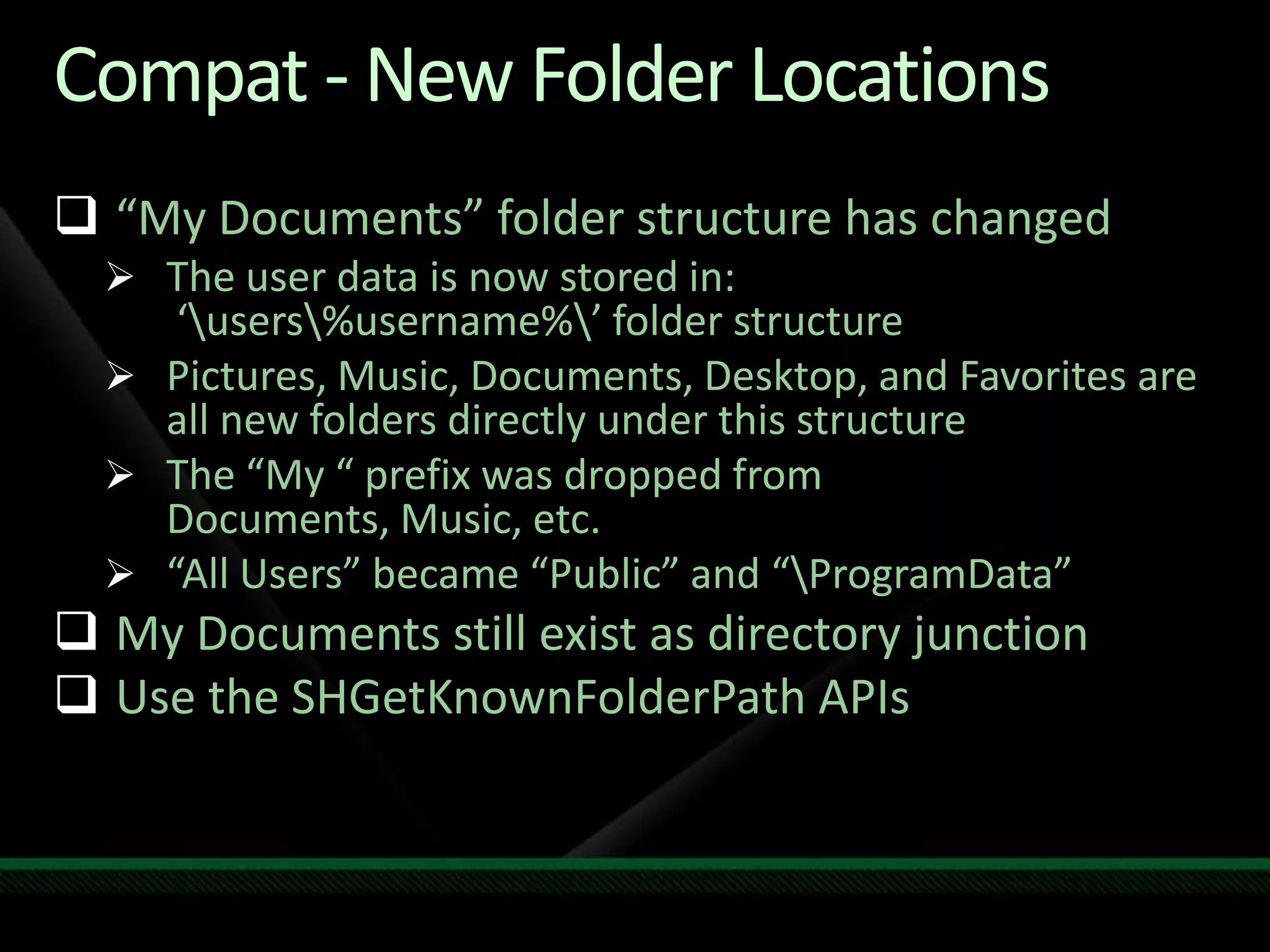

24. Compat - New Folder Locations“My Documents” folder structure has changed The user data is now stored in: ‘\users\%username%\’ folder structurePictures, Music, Documents, Desktop, and Favorites are all new folders directly under this structureThe “My “ prefix was dropped from Documents, Music, etc.“All Users” became “Public” and “\ProgramData”My Documents still exist as directory junctionUse the SHGetKnownFolderPath APIs

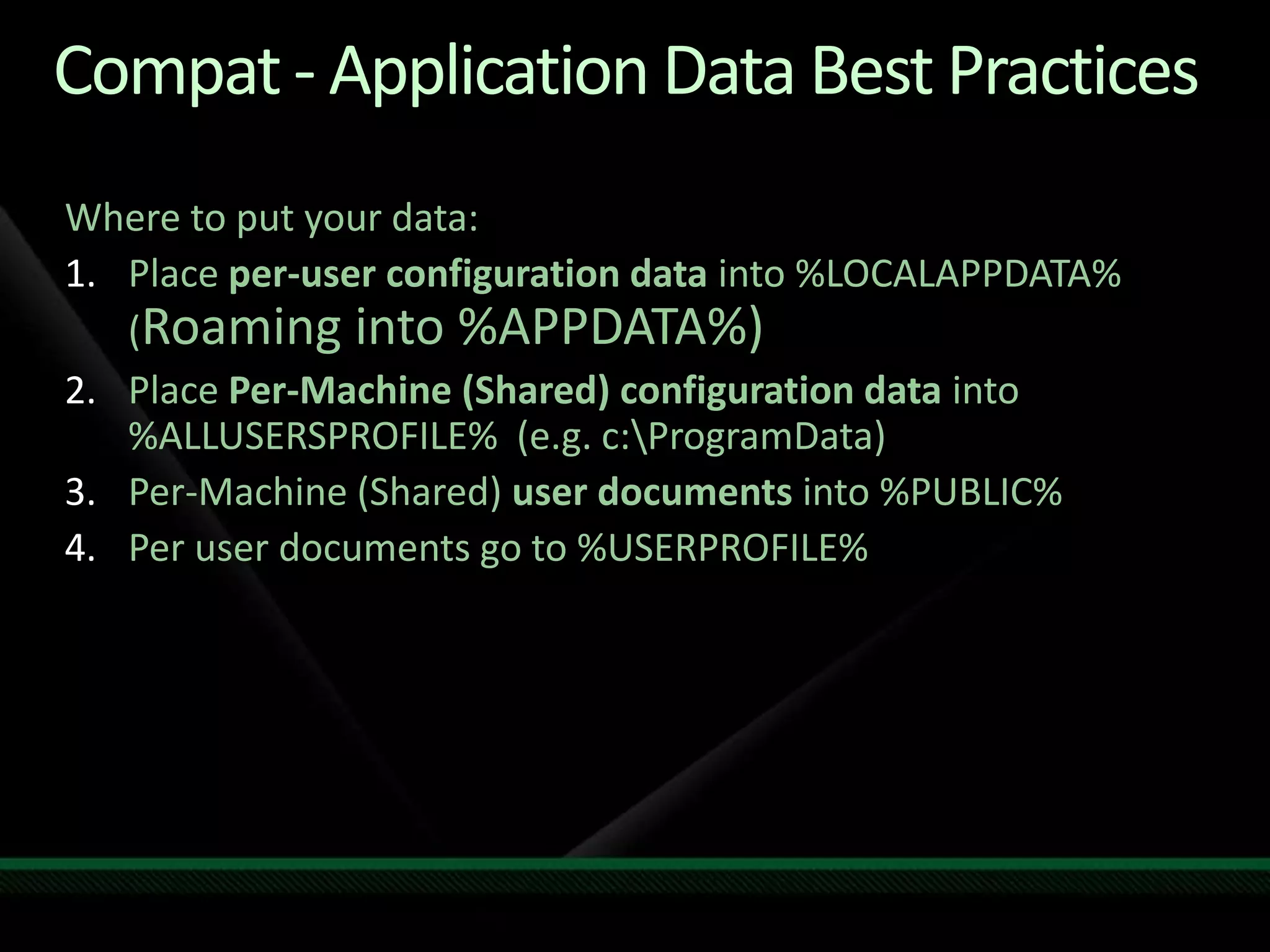

25. Compat - Application Data Best PracticesWhere to put your data:Place per-user configuration data into %LOCALAPPDATA% (Roaming into %APPDATA%)Place Per-Machine (Shared) configuration data into %ALLUSERSPROFILE% (e.g. c:\ProgramData)Per-Machine (Shared) user documents into %PUBLIC%Per user documents go to %USERPROFILE%

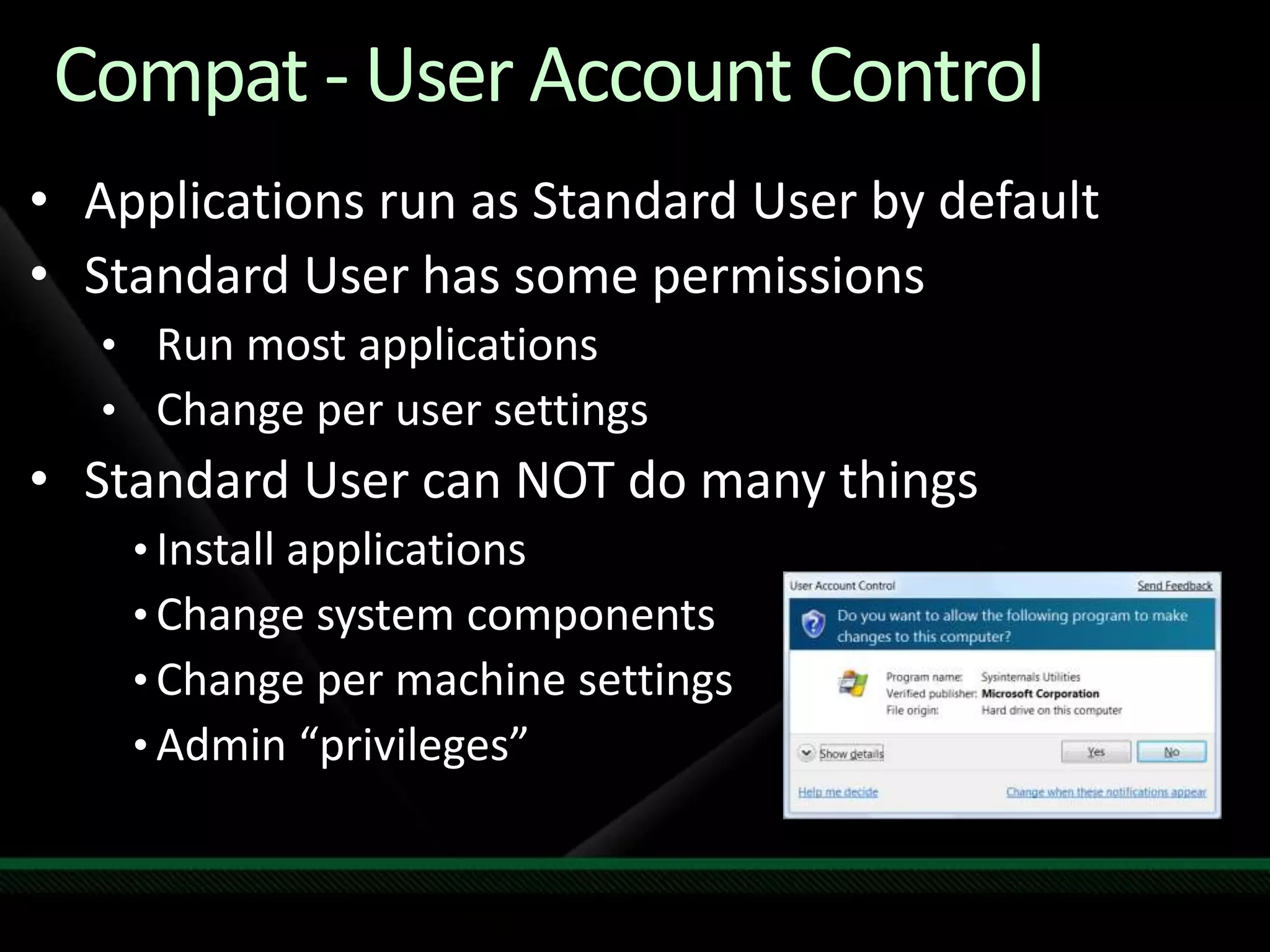

26. Compat - User Account Control Applications run as Standard User by default

27. Standard User has some permissions

28. Run most applications

29. Change per user settings

30. Standard User can NOT do many things

31. Install applications

32. Change system components

33. Change per machine settings

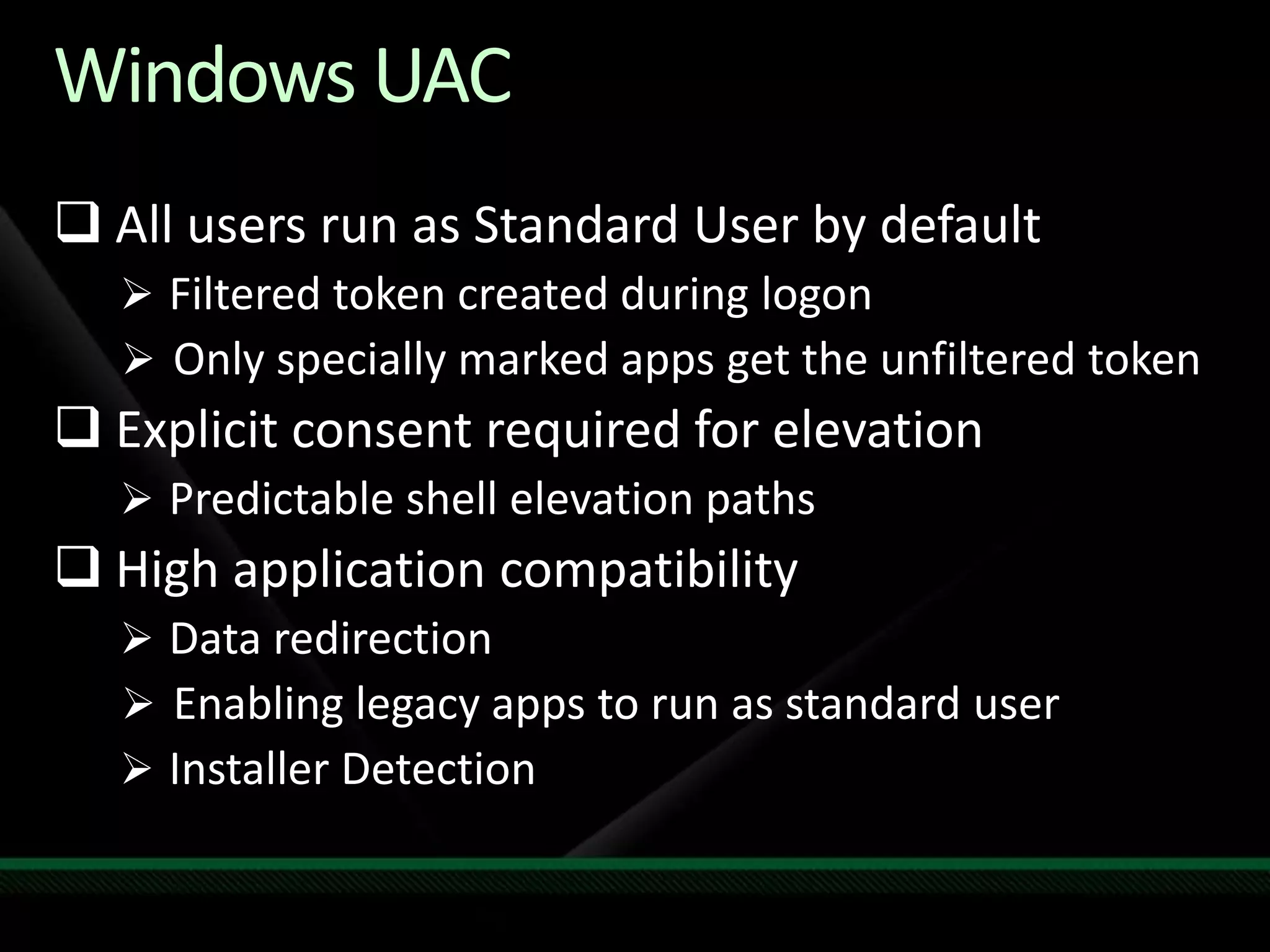

34. Admin “privileges”Windows UACAll users run as Standard User by defaultFiltered token created during logonOnly specially marked apps get the unfiltered tokenExplicit consent required for elevationPredictable shell elevation pathsHigh application compatibilityData redirectionEnabling legacy apps to run as standard userInstaller DetectionUAC ArchitectureAbbyStandard User RightsAdministrative RightsAdmin logonAdmin Token“Standard User” Token

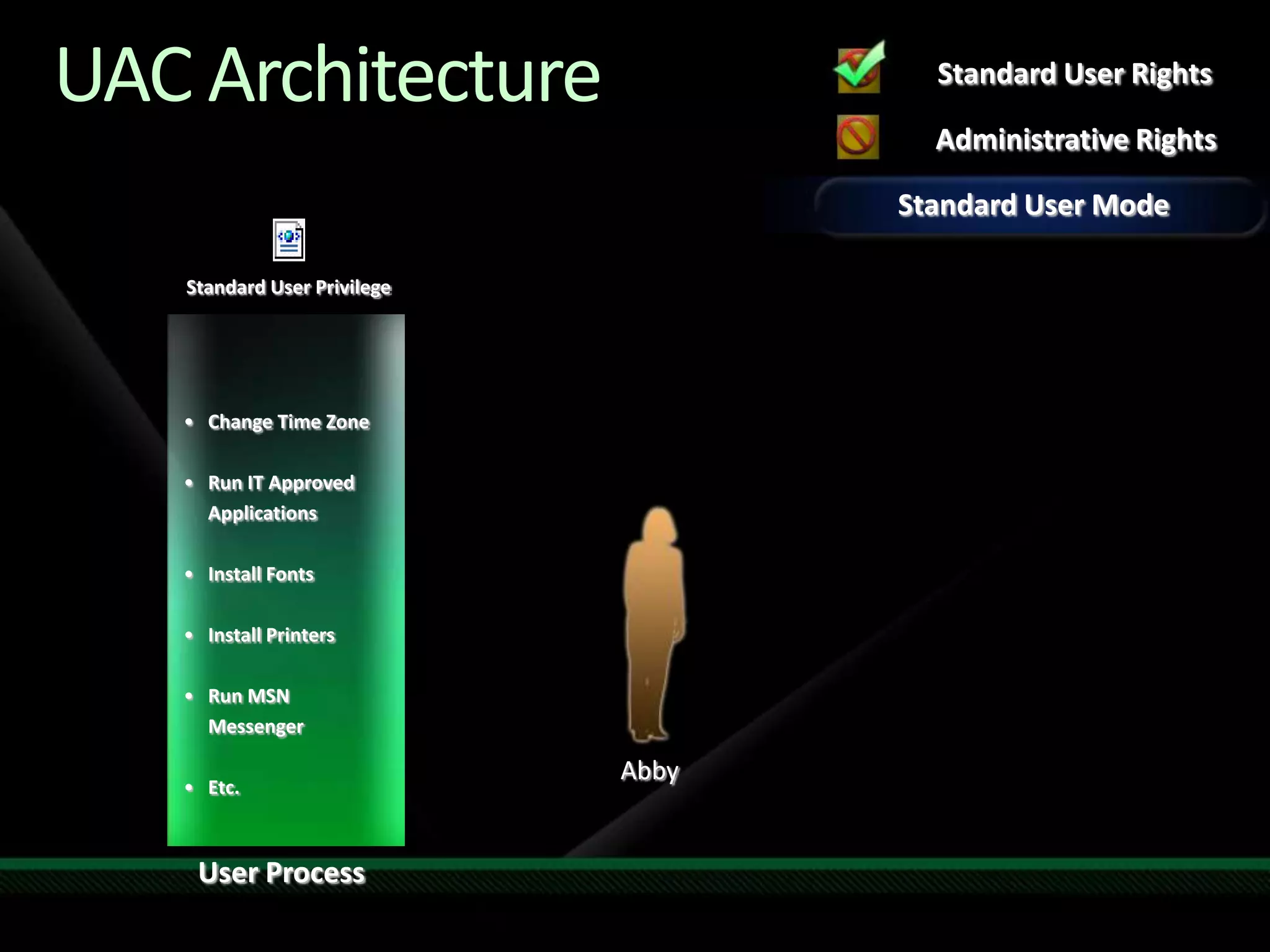

35. UAC ArchitectureChange Time Zone

36. Run IT Approved Applications

37. Install Fonts

38. Install Printers

39. Run MSN Messenger

40. Etc.AbbyUser ProcessStandard User PrivilegeStandard User RightsAdministrative RightsStandard User Mode

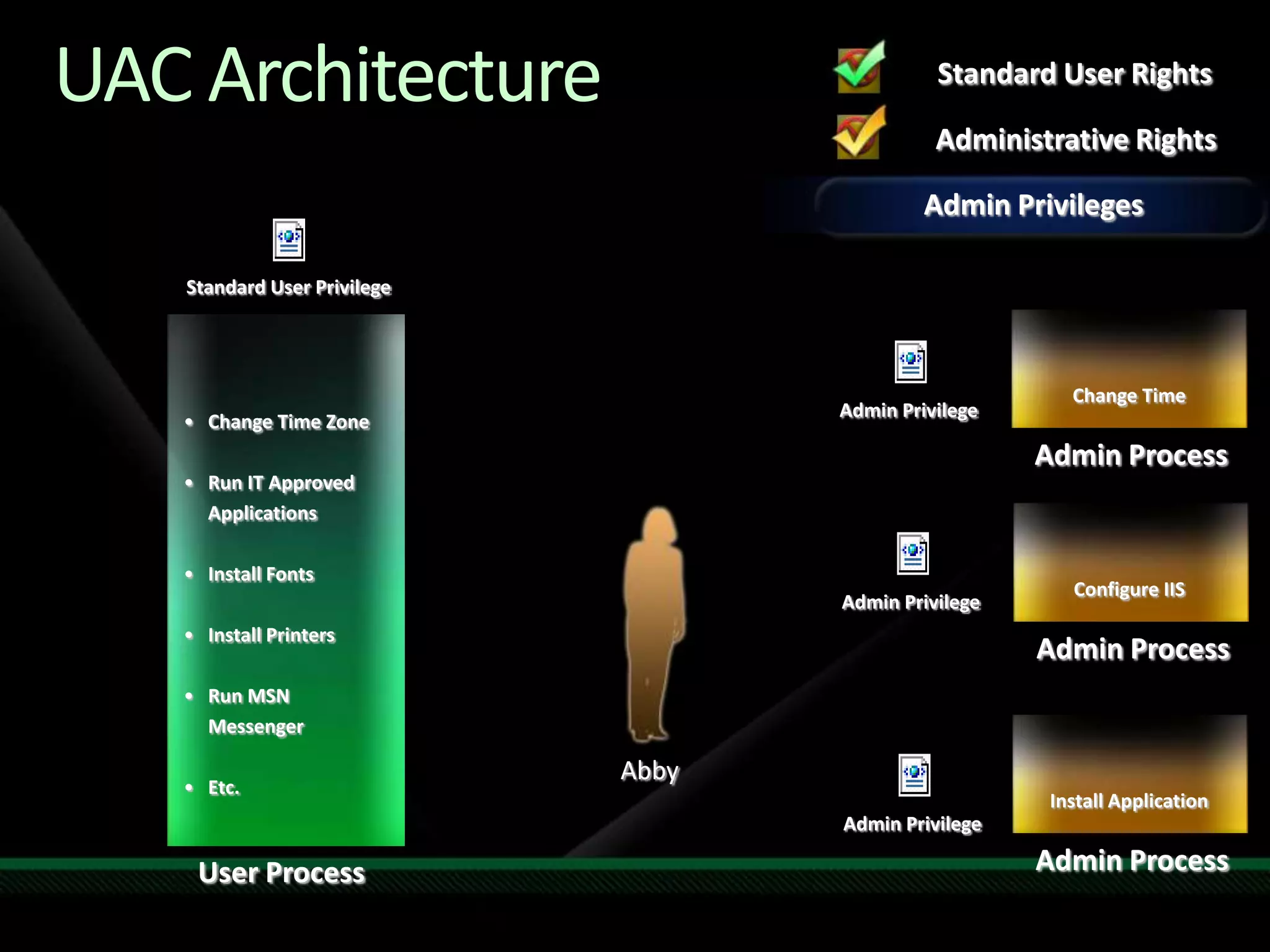

41. UAC ArchitectureChange Time Zone

42. Run IT Approved Applications

43. Install Fonts

44. Install Printers

45. Run MSN Messenger

46. Etc.AbbyUser ProcessChange TimeStandard User PrivilegeAdmin PrivilegeAdmin PrivilegeAdmin PrivilegeAdmin ProcessConfigure IISAdmin ProcessInstall ApplicationAdmin ProcessStandard User RightsAdministrative RightsAdmin Privileges

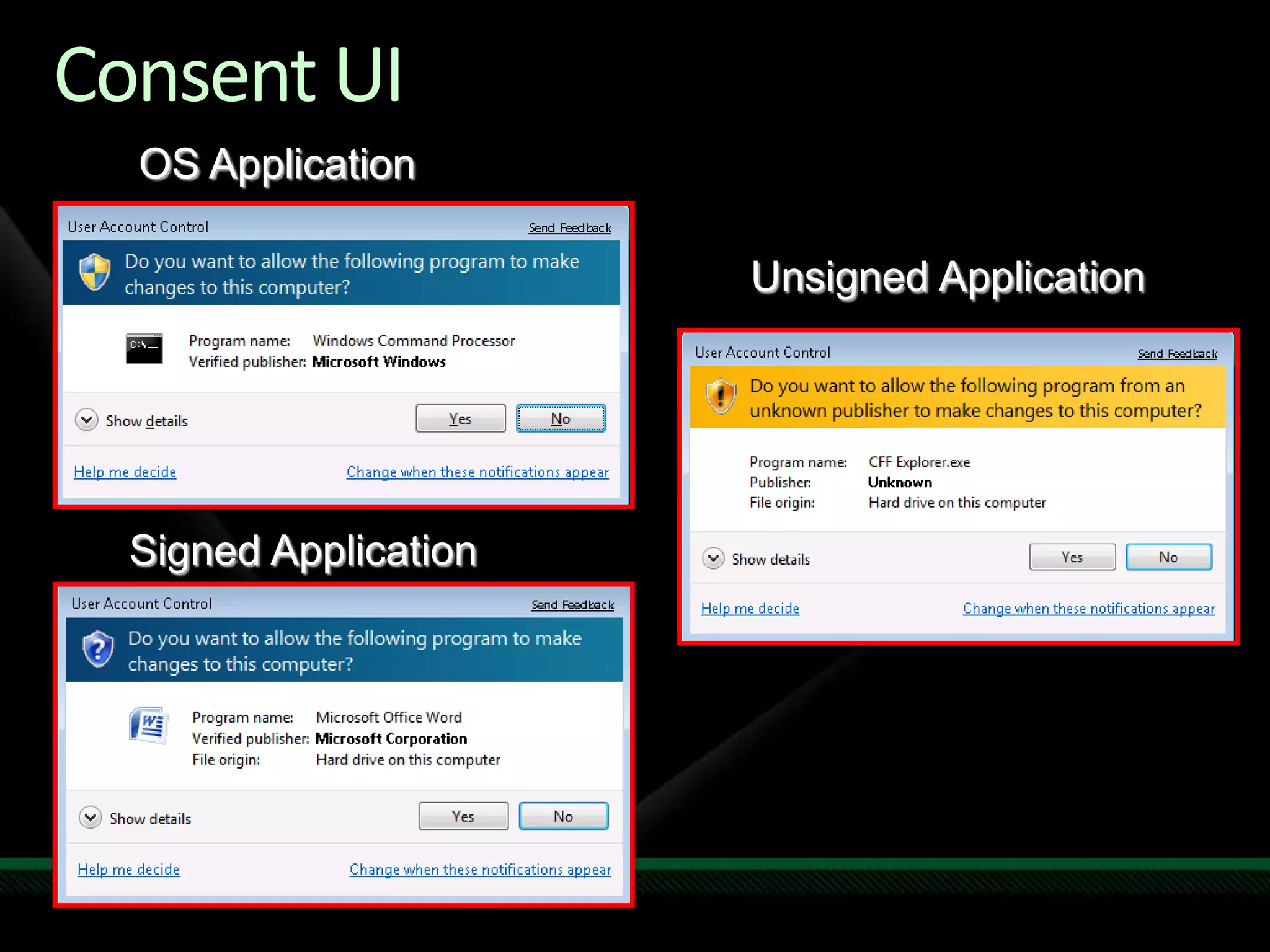

47. Consent UIOS ApplicationUnsigned ApplicationSigned Application

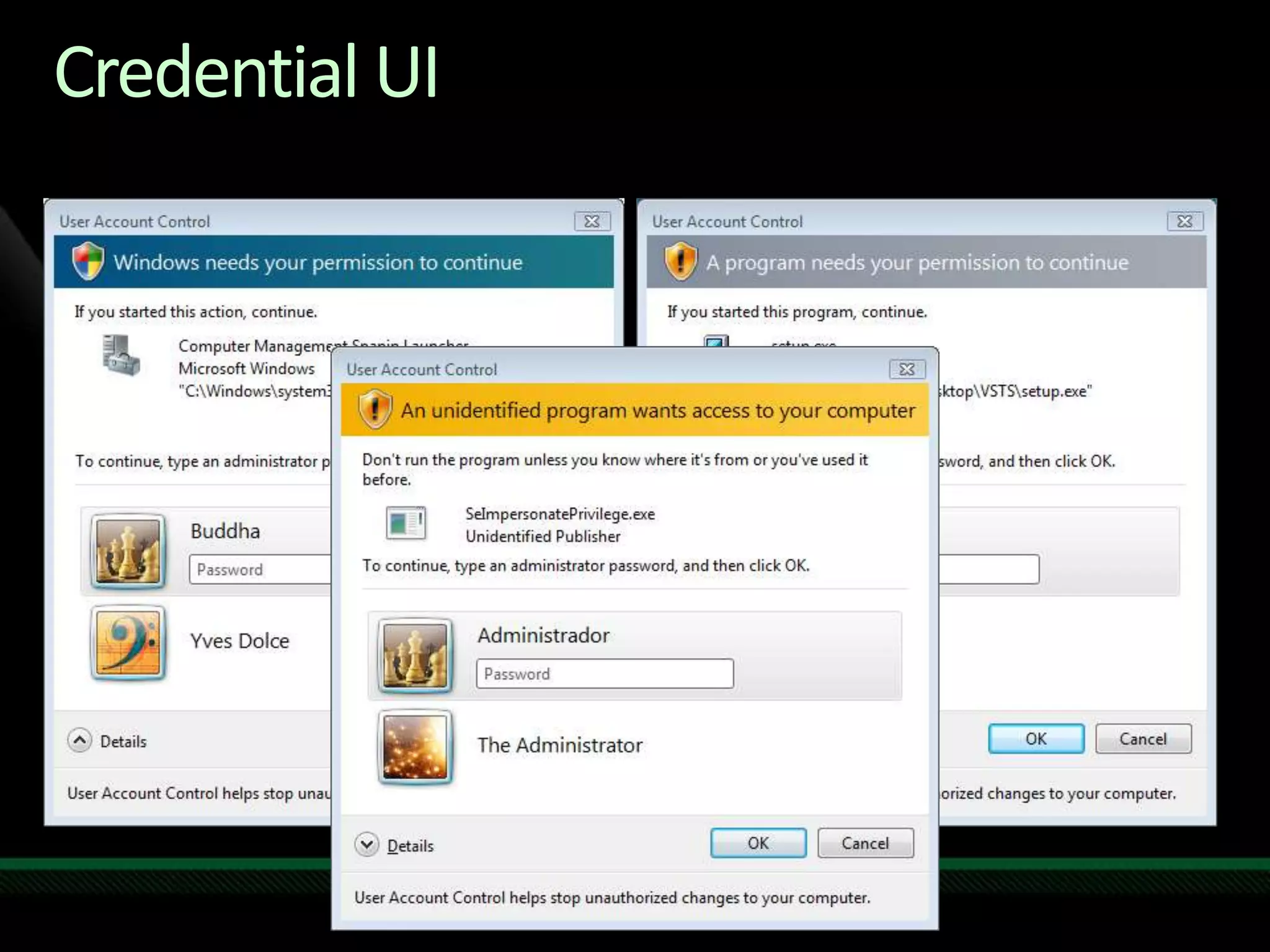

48. Credential UI

49. UAC Split Tokens Demo

50. Designing for UAC1st Choice: Make application run as Standard User only2nd Choice: Clearly identify Administrative tasksEnsure Standard users can be fully productiveIdentify tasks that need elevation with a “shield”

51. UX: The ShieldAttached to controls to indicate that elevation is required to use their associated featureHas only one state (i.e. no hover, disabled etc.)Does not remember elevated stateNot an unlock operationCan be programmatically set:HICON shieldIcon = LoadIcon(NULL, IDI_SHIELD)SendMessage(button, BCM_SETSHIELD, 0, TRUE) or using the macro in Commctrl.h:Button_SetElevationRequiredState(commandLink, TRUE)

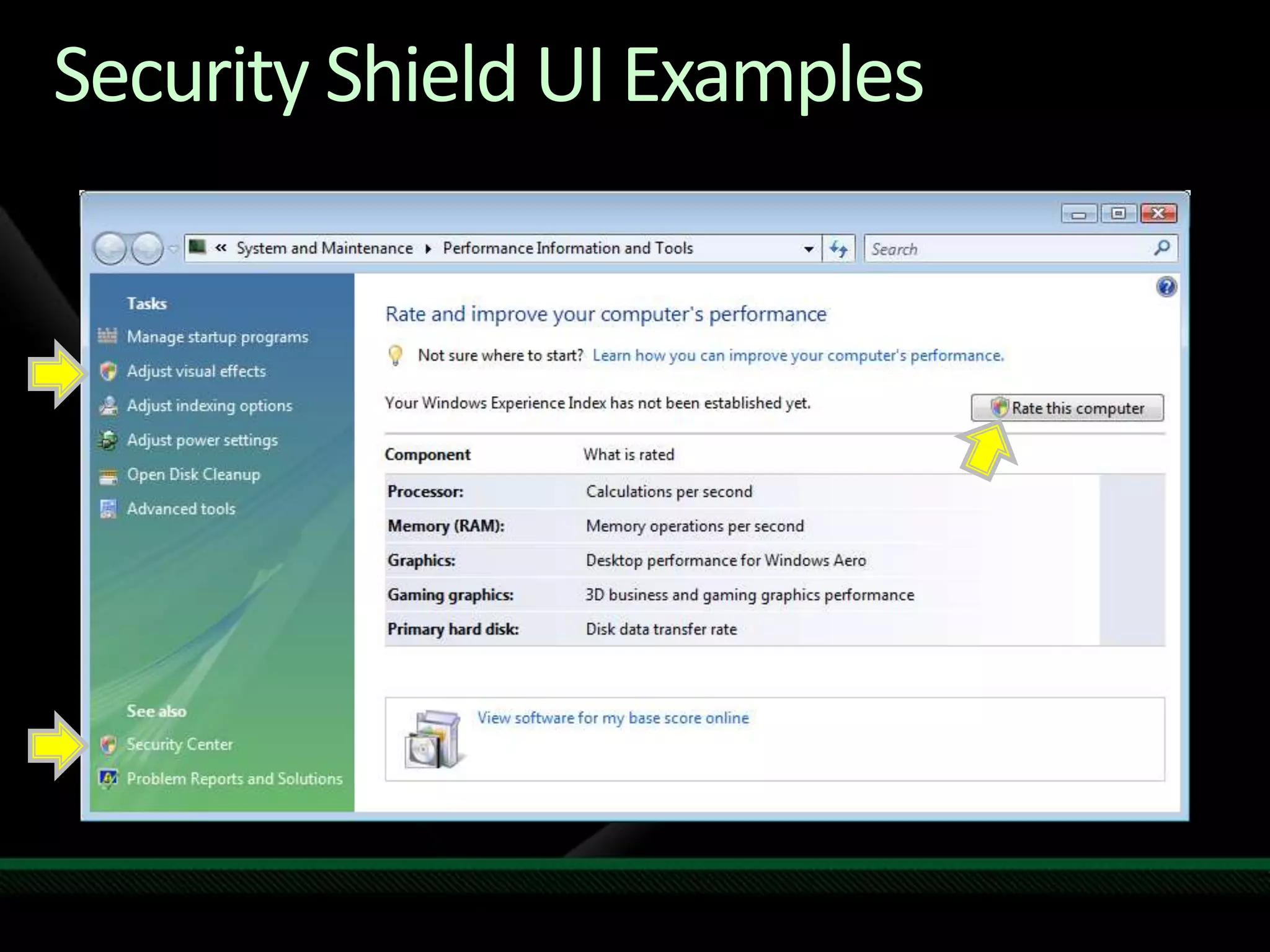

52. Security Shield UI Examples

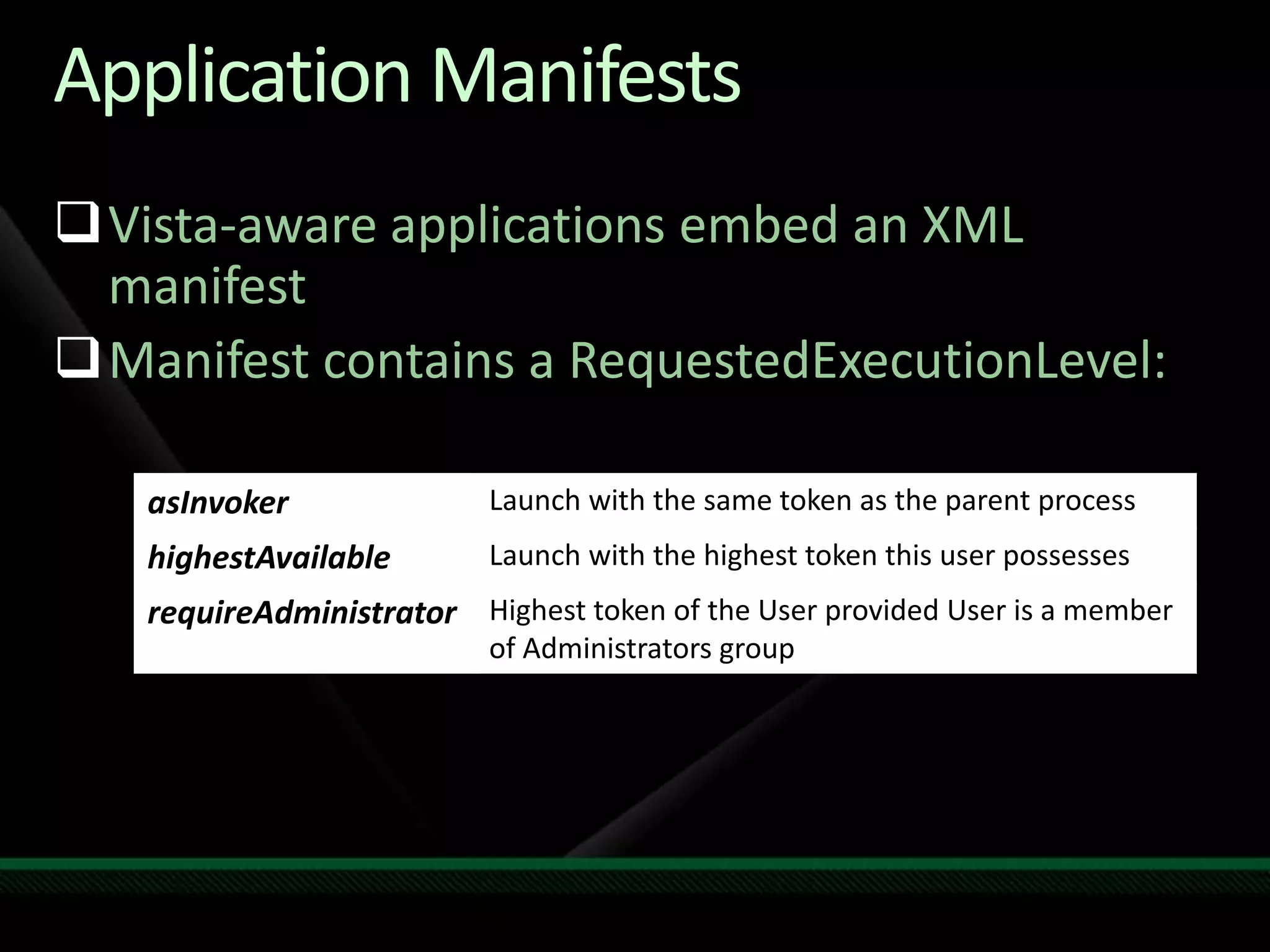

53. Application ManifestsVista-aware applications embed an XML manifestManifest contains a RequestedExecutionLevel:

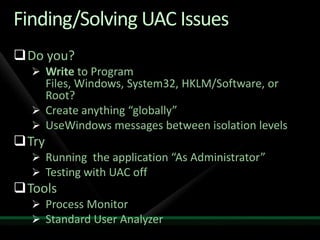

54. Finding/Solving UAC IssuesDo you?Write to Program Files, Windows, System32, HKLM/Software, or Root?Create anything “globally”UseWindows messages between isolation levelsTryRunning the application “As Administrator”Testing with UAC offToolsProcess MonitorStandard User Analyzer

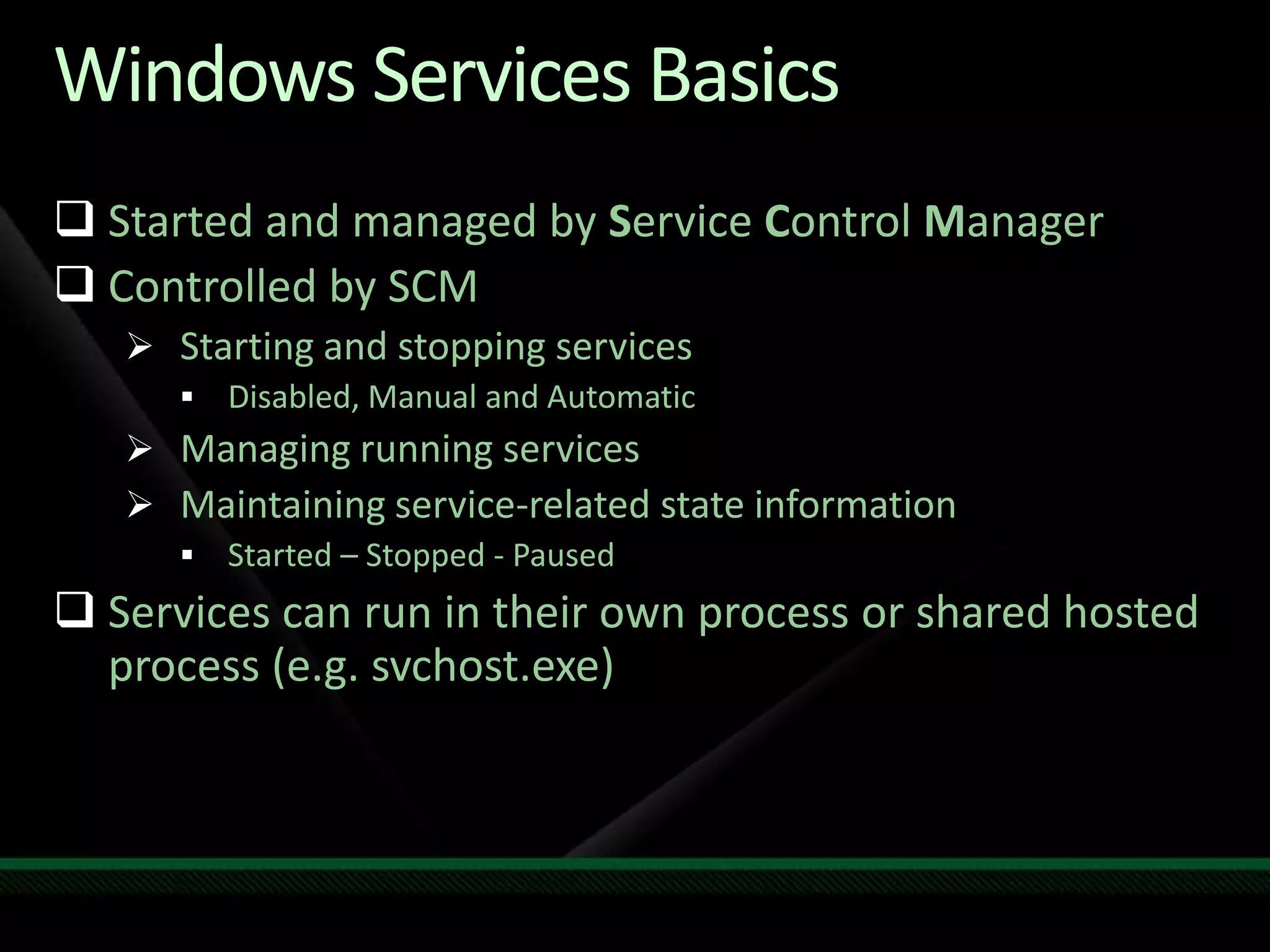

55. Windows Services BasicsStarted and managed by Service Control ManagerControlled by SCMStarting and stopping servicesDisabled, Manual and AutomaticManaging running servicesMaintaining service-related state informationStarted – Stopped - PausedServices can run in their own process or shared hosted process (e.g. svchost.exe)

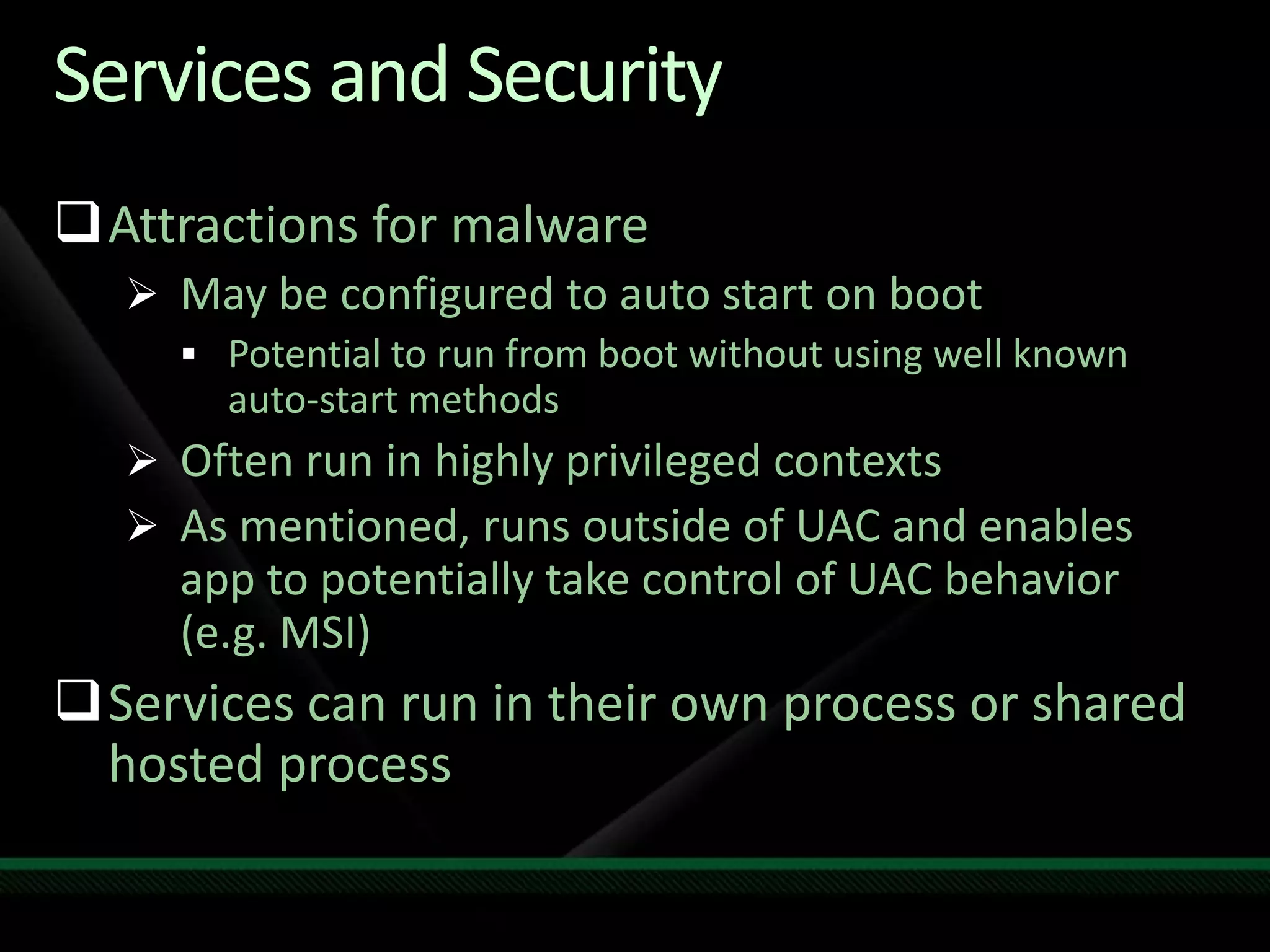

56. Services and SecurityAttractions for malwareMay be configured to auto start on bootPotential to run from boot without using well known auto-start methodsOften run in highly privileged contextsAs mentioned, runs outside of UAC and enables app to potentially take control of UAC behavior (e.g. MSI)Services can run in their own process or shared hosted process

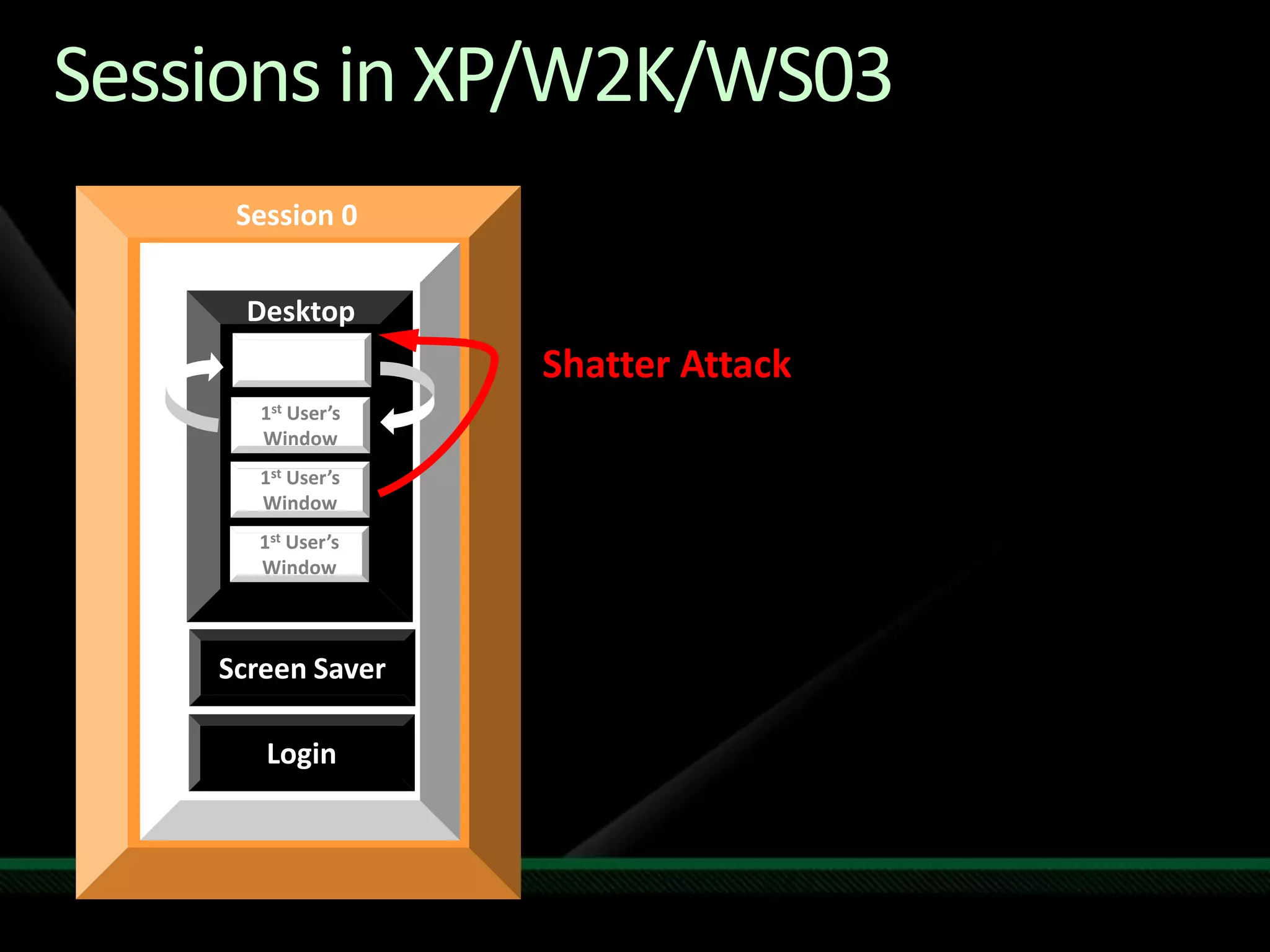

57. Sessions in XP/W2K/WS03Session 0Window StationDesktopServicesShatter Attack1st User’sWindow1st User’sWindow1st User’sWindowScreen SaverLogin

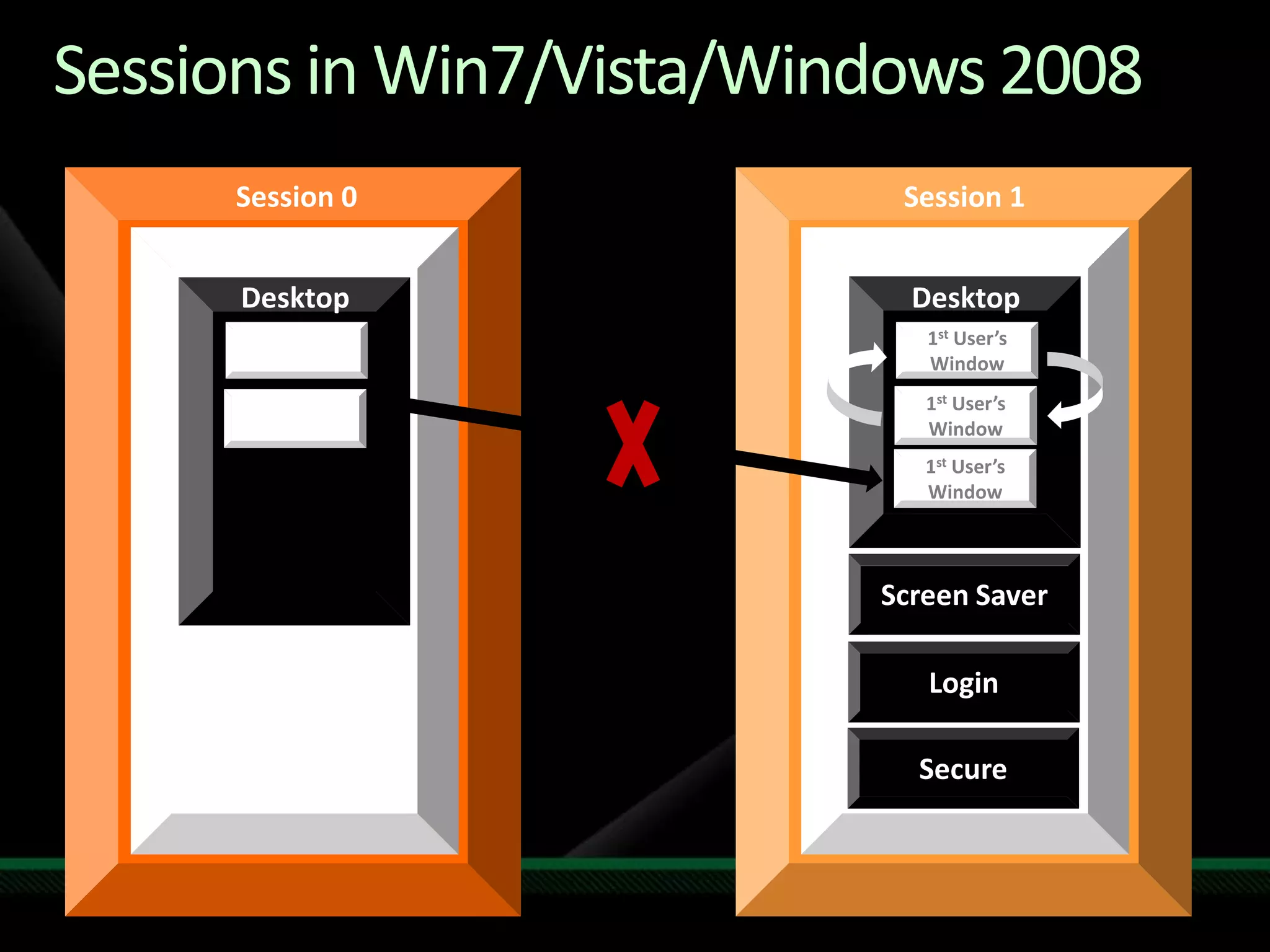

58. Sessions in Win7/Vista/Windows 2008Session 0Session 1Window StationWindow StationDesktopDesktopService1st User’sWindow1st User’sWindowService1st User’sWindowScreen SaverLoginSecure

59. Session 0 Isolationdemo

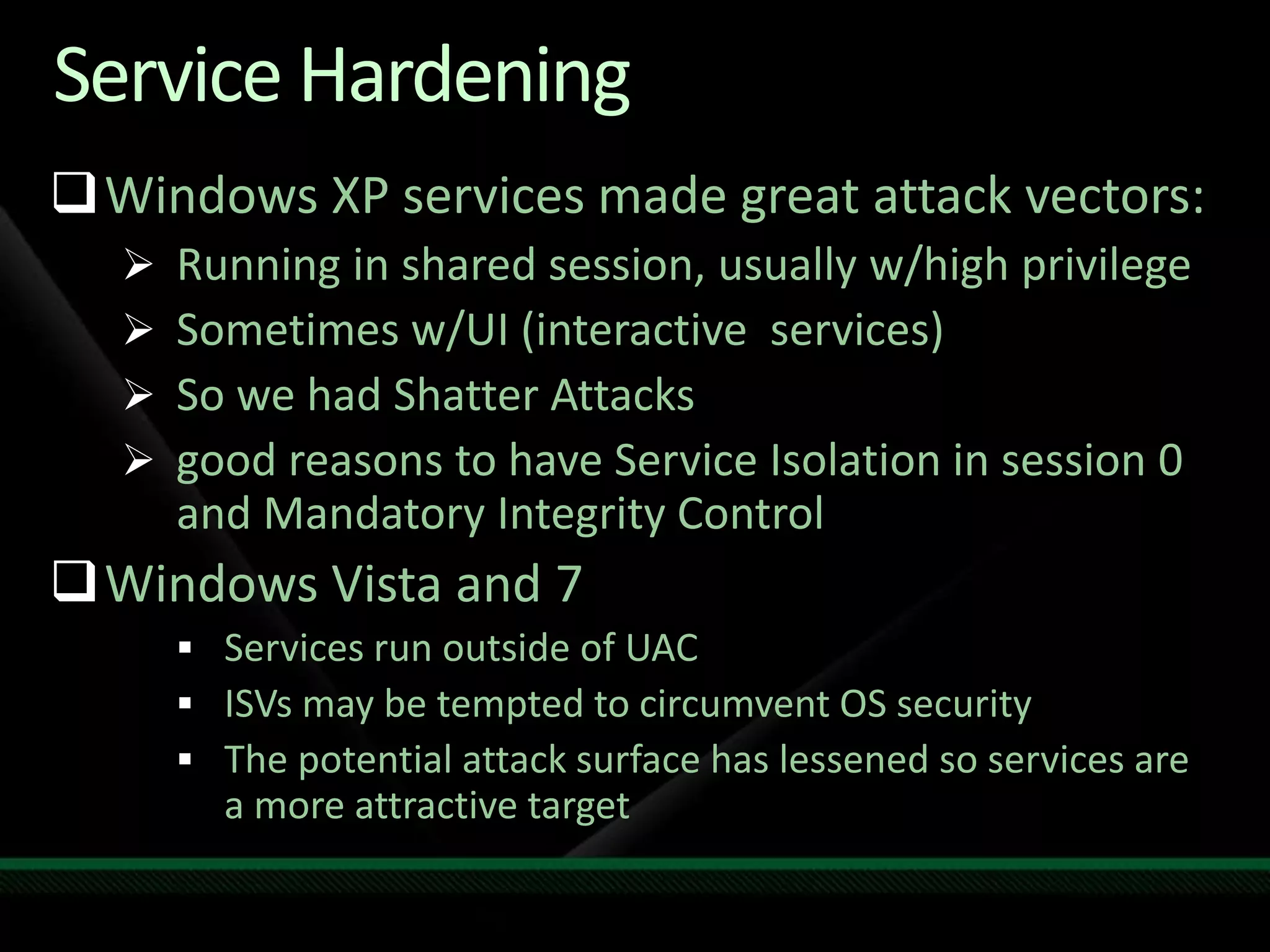

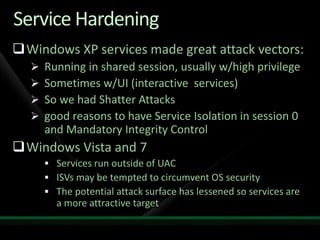

60. Service HardeningWindows XP services made great attack vectors:Running in shared session, usually w/high privilegeSometimes w/UI (interactive services)So we had Shatter Attacksgood reasons to have Service Isolation in session 0 and Mandatory Integrity ControlWindows Vista and 7Services run outside of UACISVs may be tempted to circumvent OS securityThe potential attack surface has lessened so services are a more attractive target

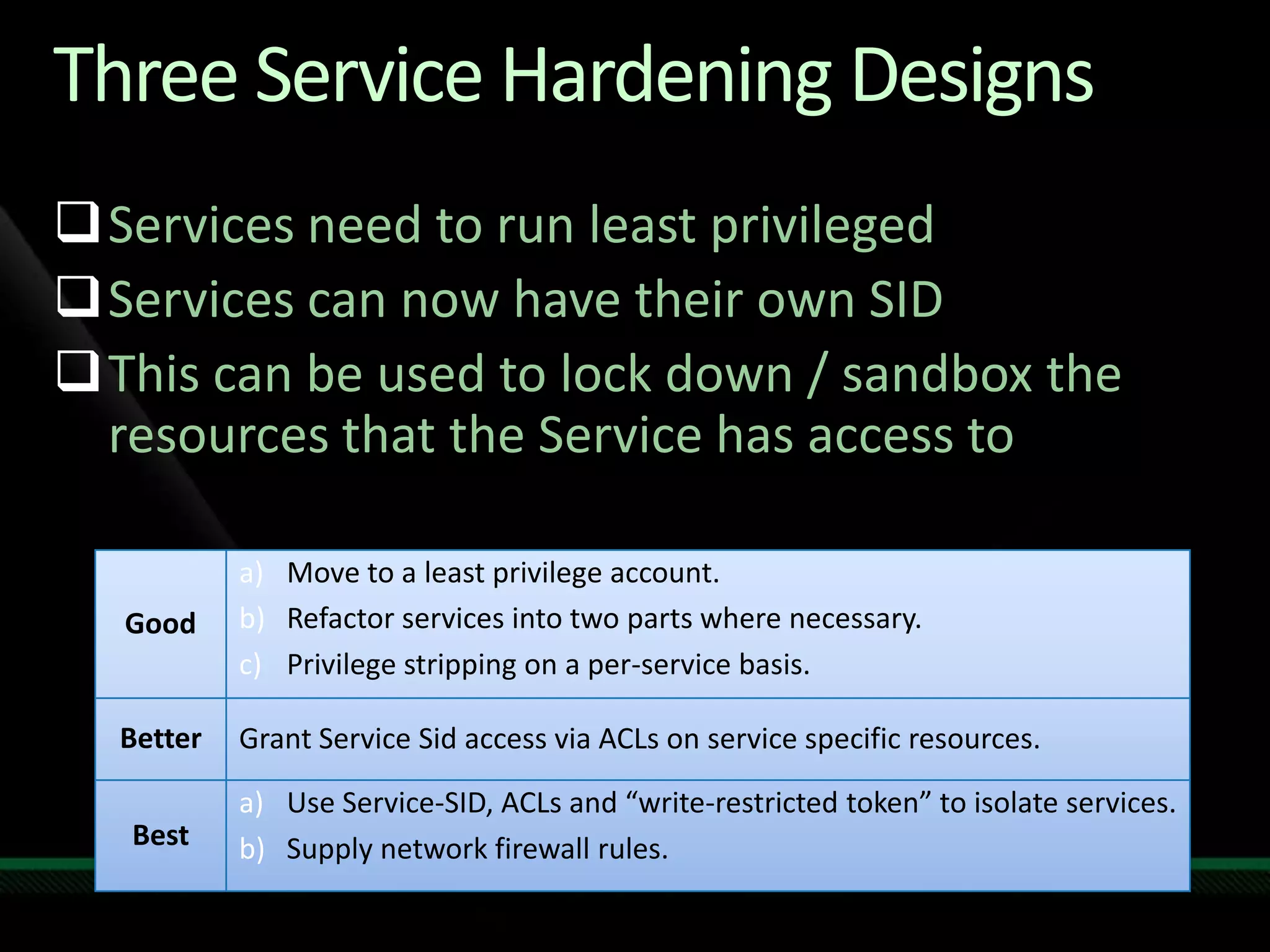

61. Three Service Hardening DesignsServices need to run least privilegedServices can now have their own SIDThis can be used to lock down / sandbox the resources that the Service has access to

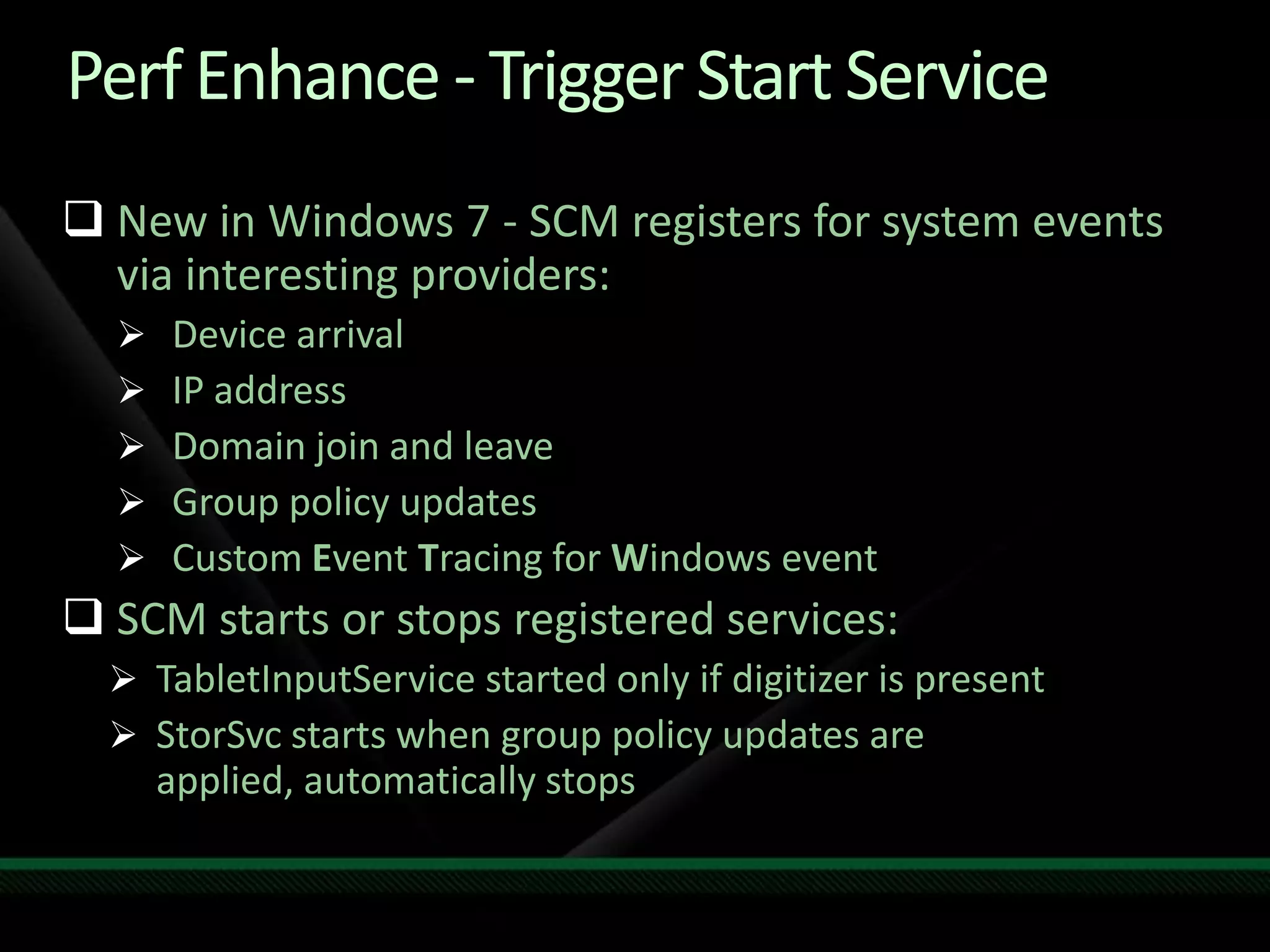

62. Perf Enhance - Trigger Start ServiceNew in Windows 7 - SCM registers for system events via interesting providers:Device arrivalIP addressDomain join and leaveGroup policy updatesCustom Event Tracing for Windows eventSCM starts or stops registered services:TabletInputService started only if digitizer is presentStorSvc starts when group policy updates are applied, automatically stops

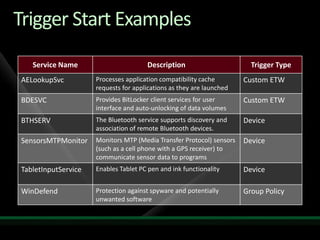

63. Trigger Start Examples

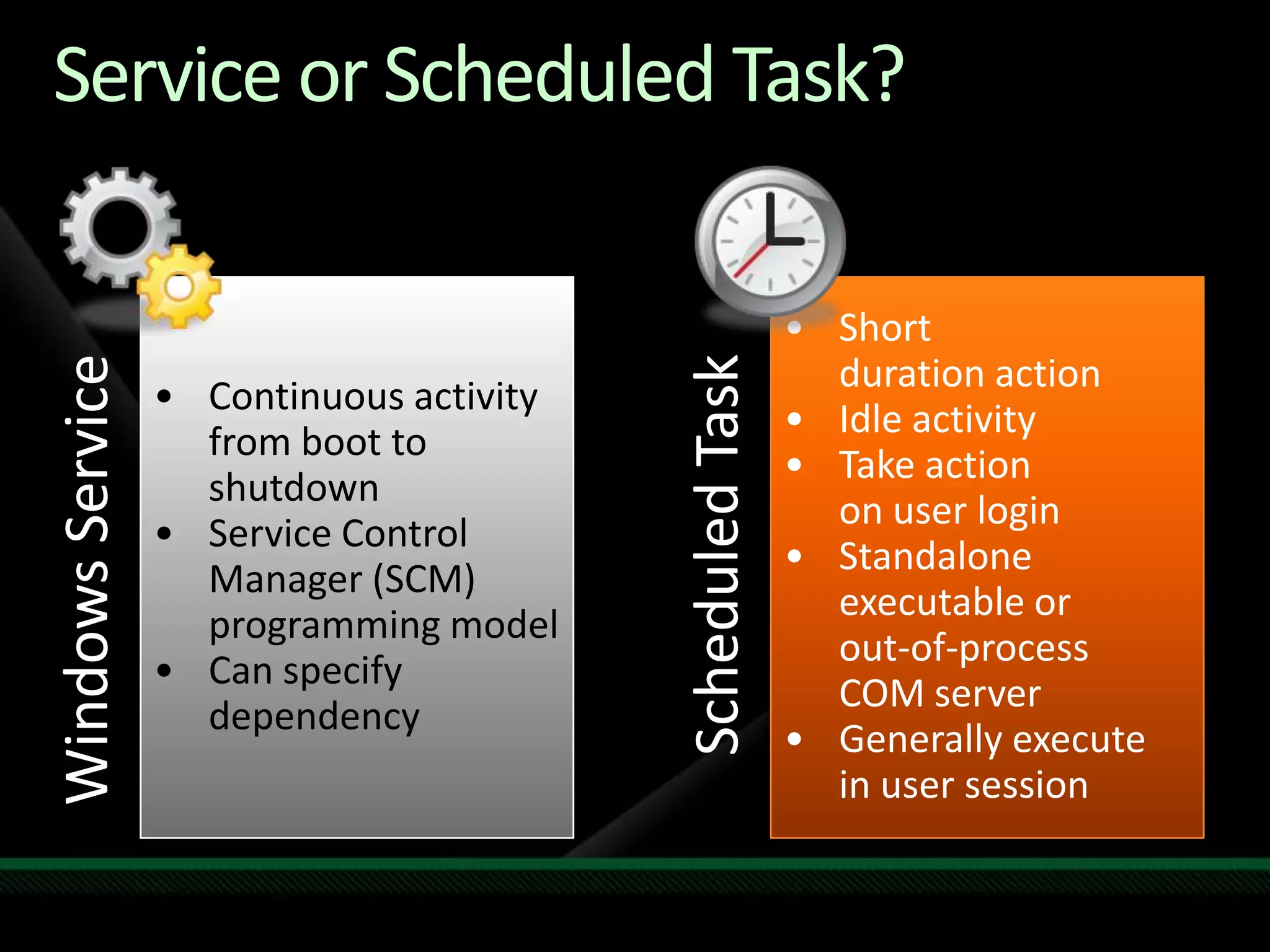

64. Service or Scheduled Task?Continuous activity from boot to shutdown

65. Service Control Manager (SCM) programming model

66. Can specify dependency

67. Short duration action

68. Idle activity

69. Take action on user login

70. Standalone executable or out-of-process COM server

71. Generally execute in user sessionWindows ServiceScheduled Task

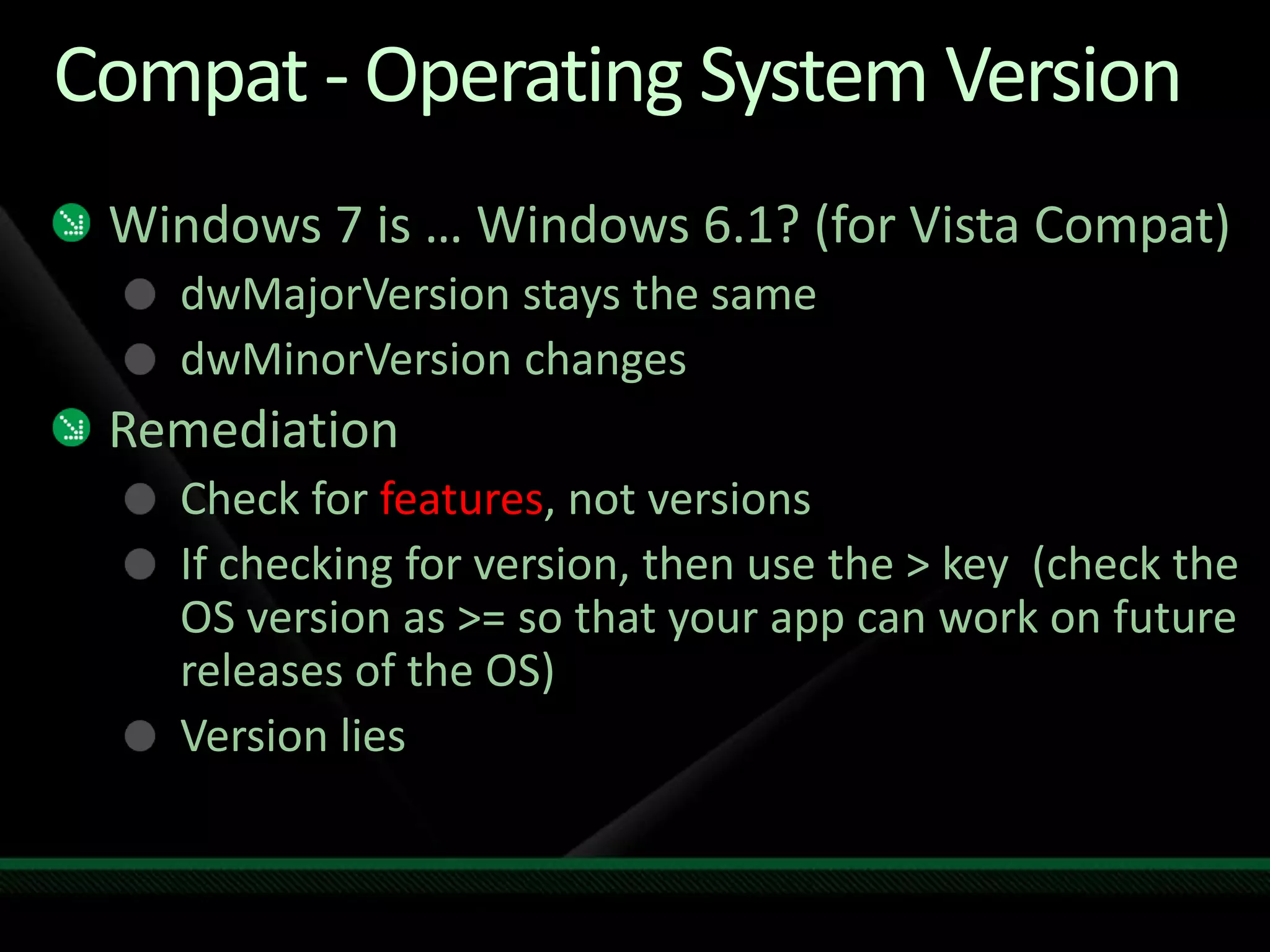

72. Compat - Operating System VersionWindows 7 is … Windows 6.1? (for Vista Compat)dwMajorVersion stays the samedwMinorVersion changesRemediationCheck for features, not versionsIf checking for version, then use the > key (check the OS version as >= so that your app can work on future releases of the OS)Version lies

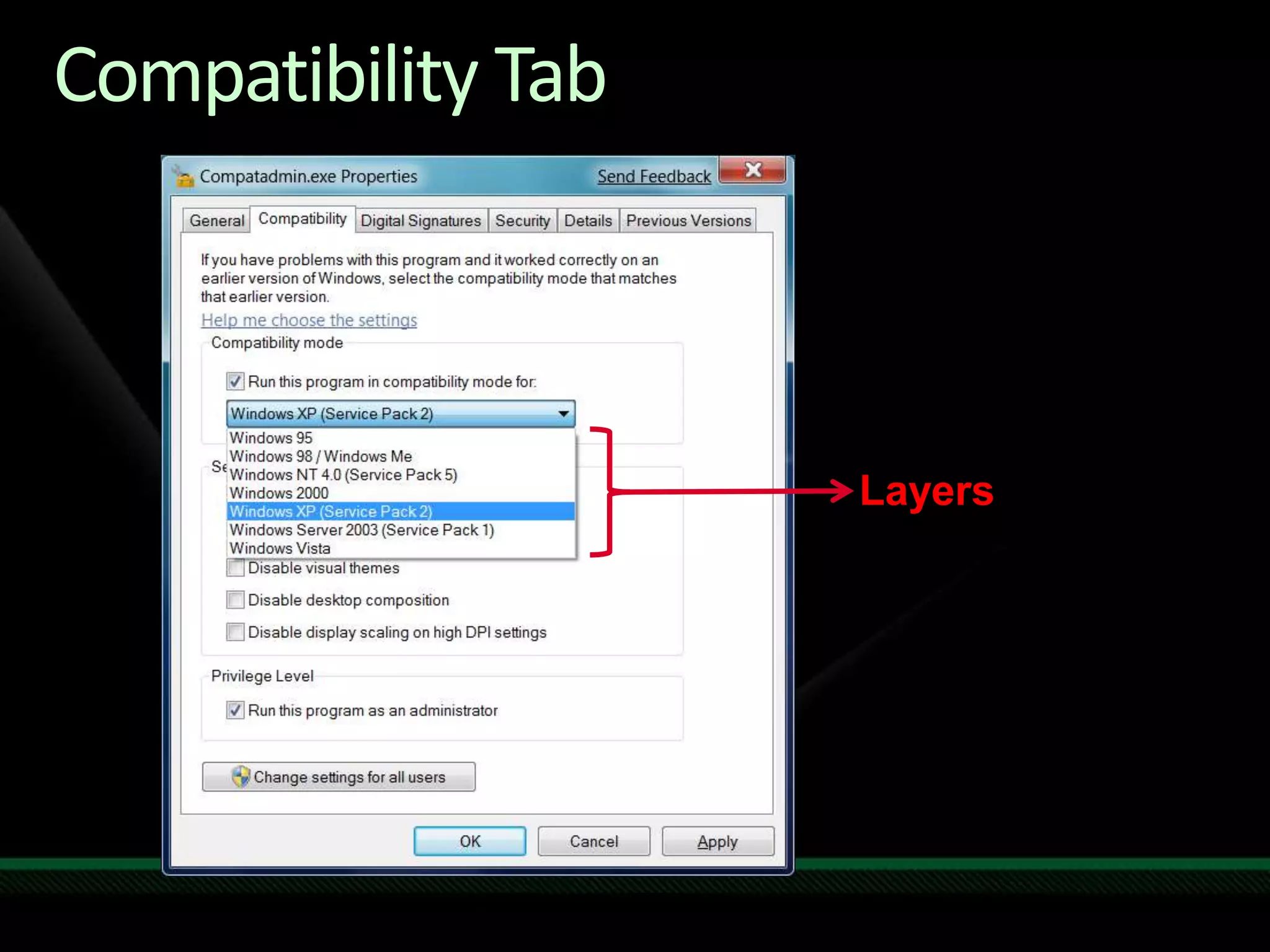

73. Compatibility TabLayers

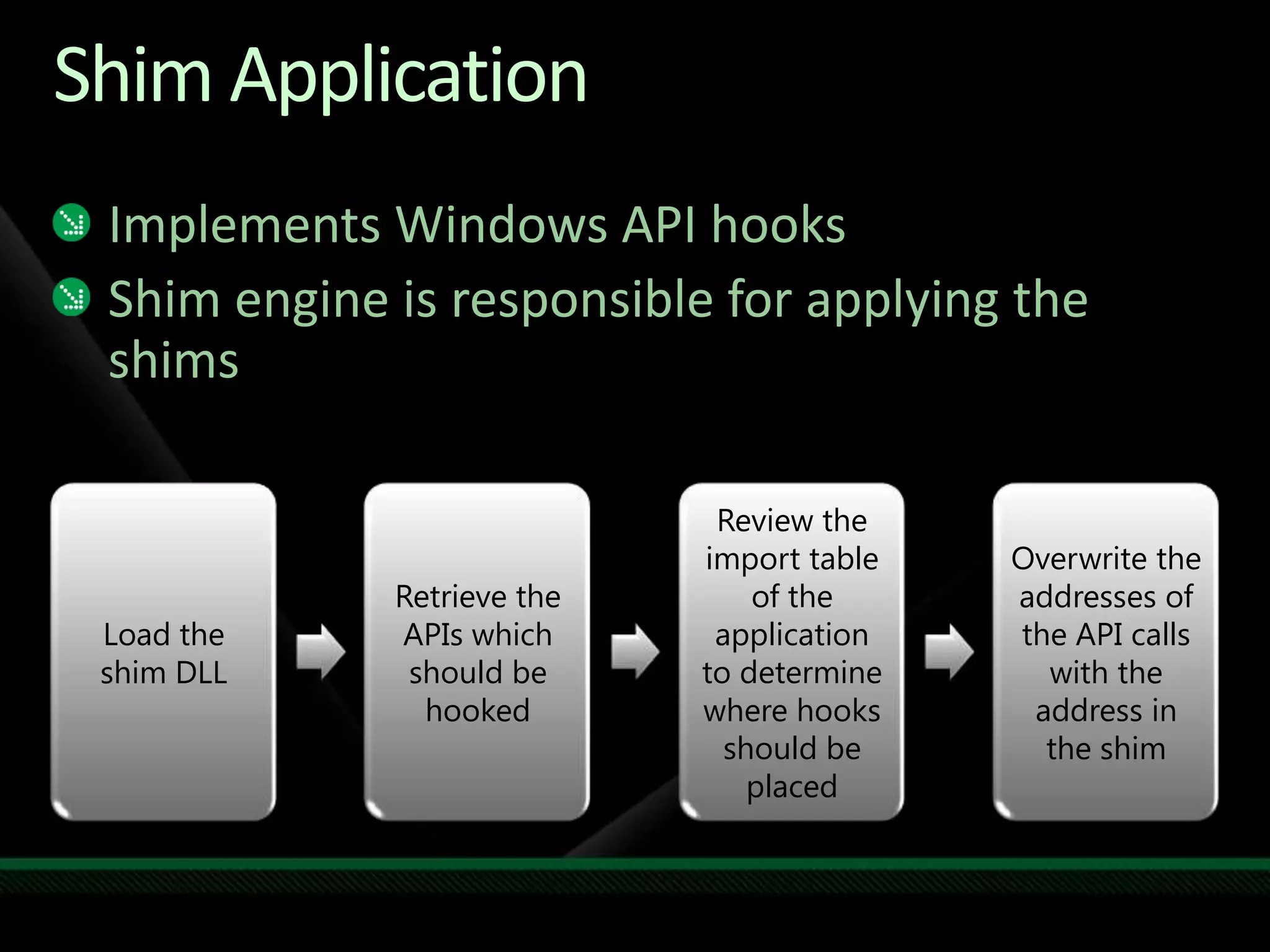

74. Shim ApplicationImplements Windows API hooksShim engine is responsible for applying the shims

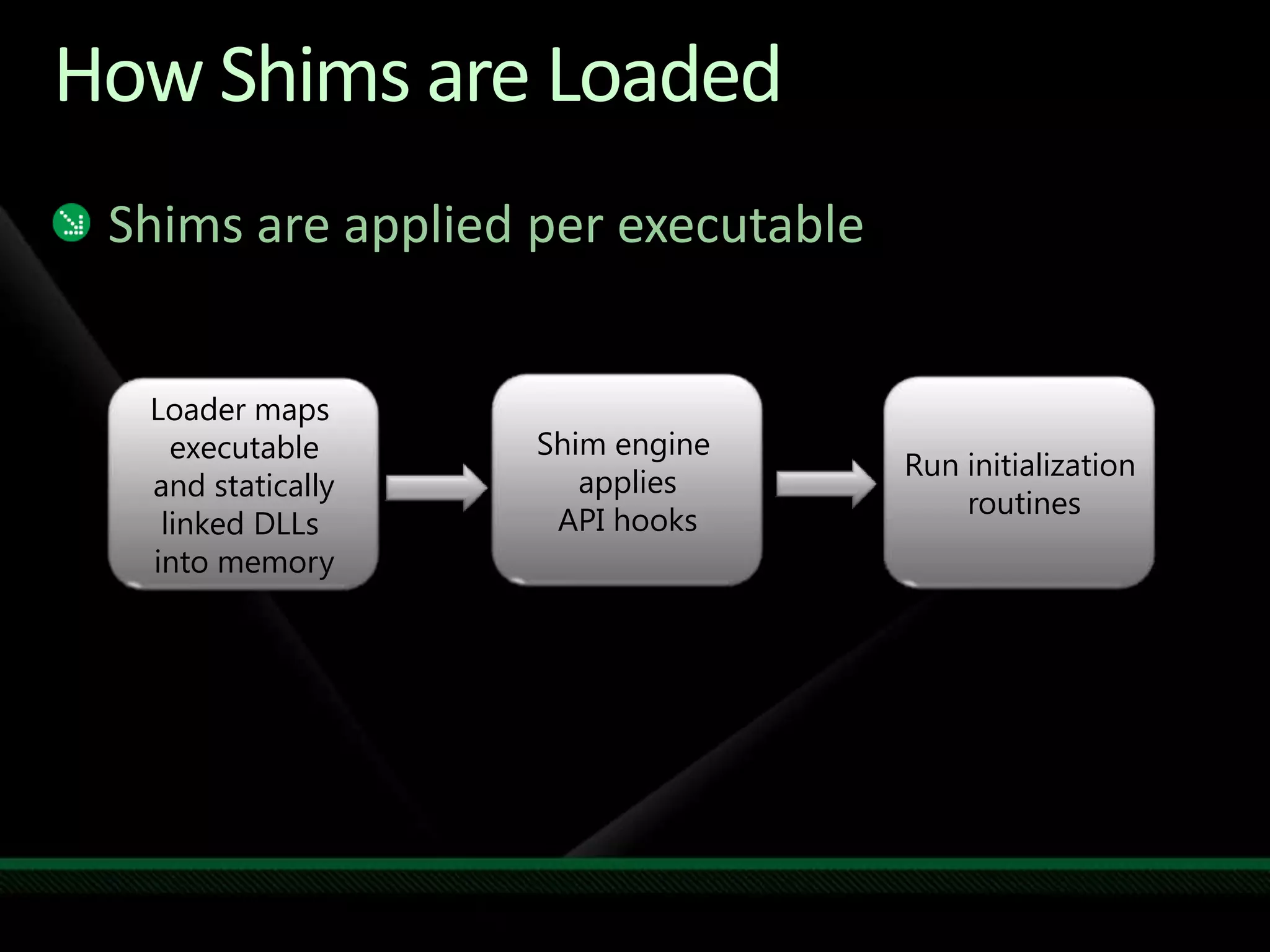

75. How Shims are LoadedShims are applied per executableShim engine applies API hooks Run initialization routinesLoader maps executable and statically linked DLLs into memory

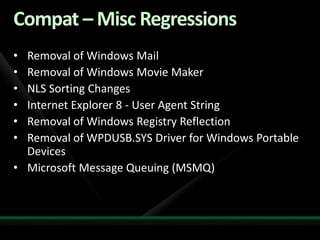

76. Compat – Misc RegressionsRemoval of Windows Mail

77. Removal of Windows Movie Maker

78. NLS Sorting Changes

79. Internet Explorer 8 - User Agent String

80. Removal of Windows Registry Reflection

81. Removal of WPDUSB.SYS Driver for Windows Portable Devices

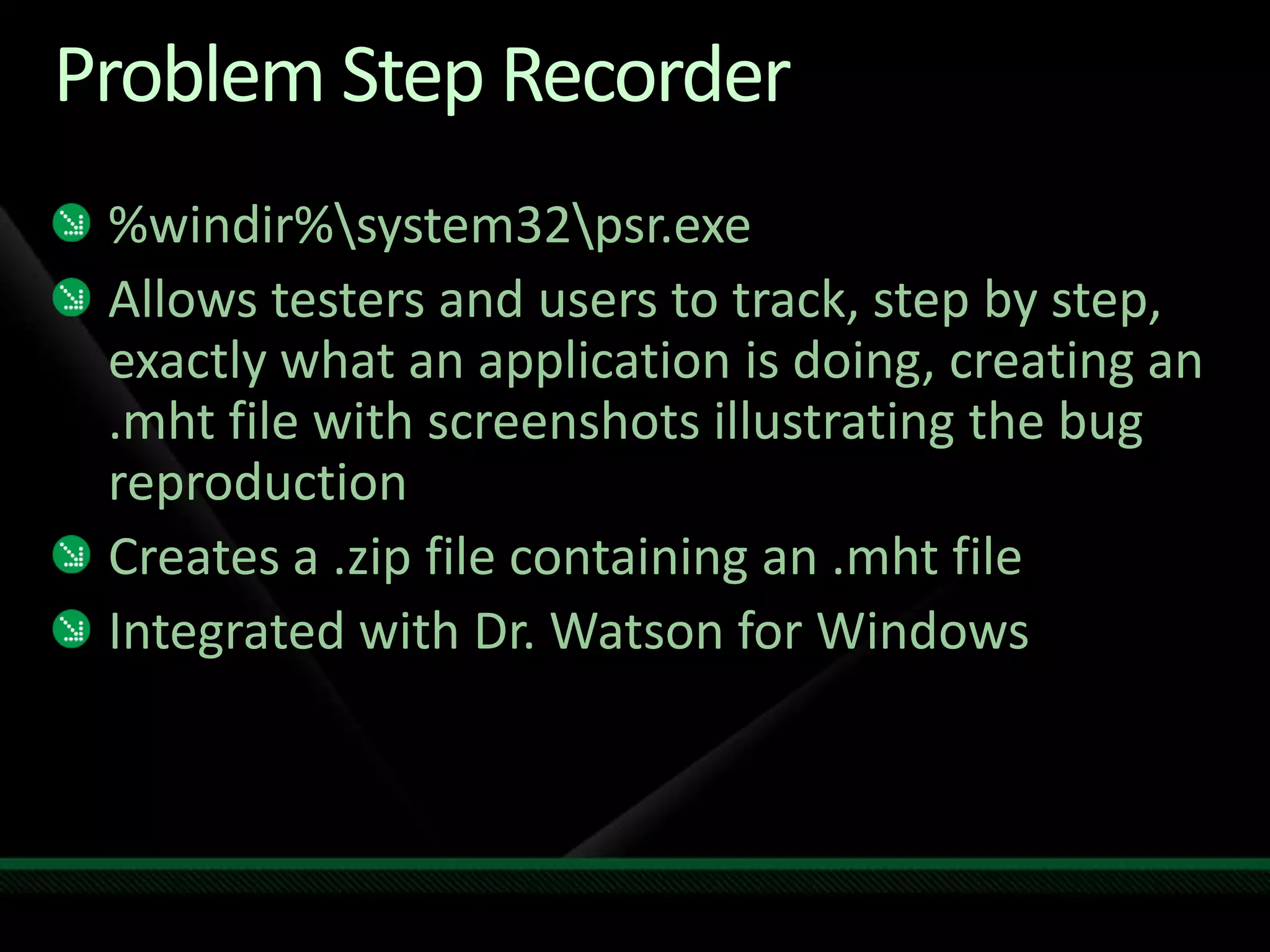

82. Microsoft Message Queuing (MSMQ)Problem Step Recorder%windir%\system32\psr.exeAllows testers and users to track, step by step, exactly what an application is doing, creating an .mht file with screenshots illustrating the bug reproductionCreates a .zip file containing an .mht fileIntegrated with Dr. Watson for Windows

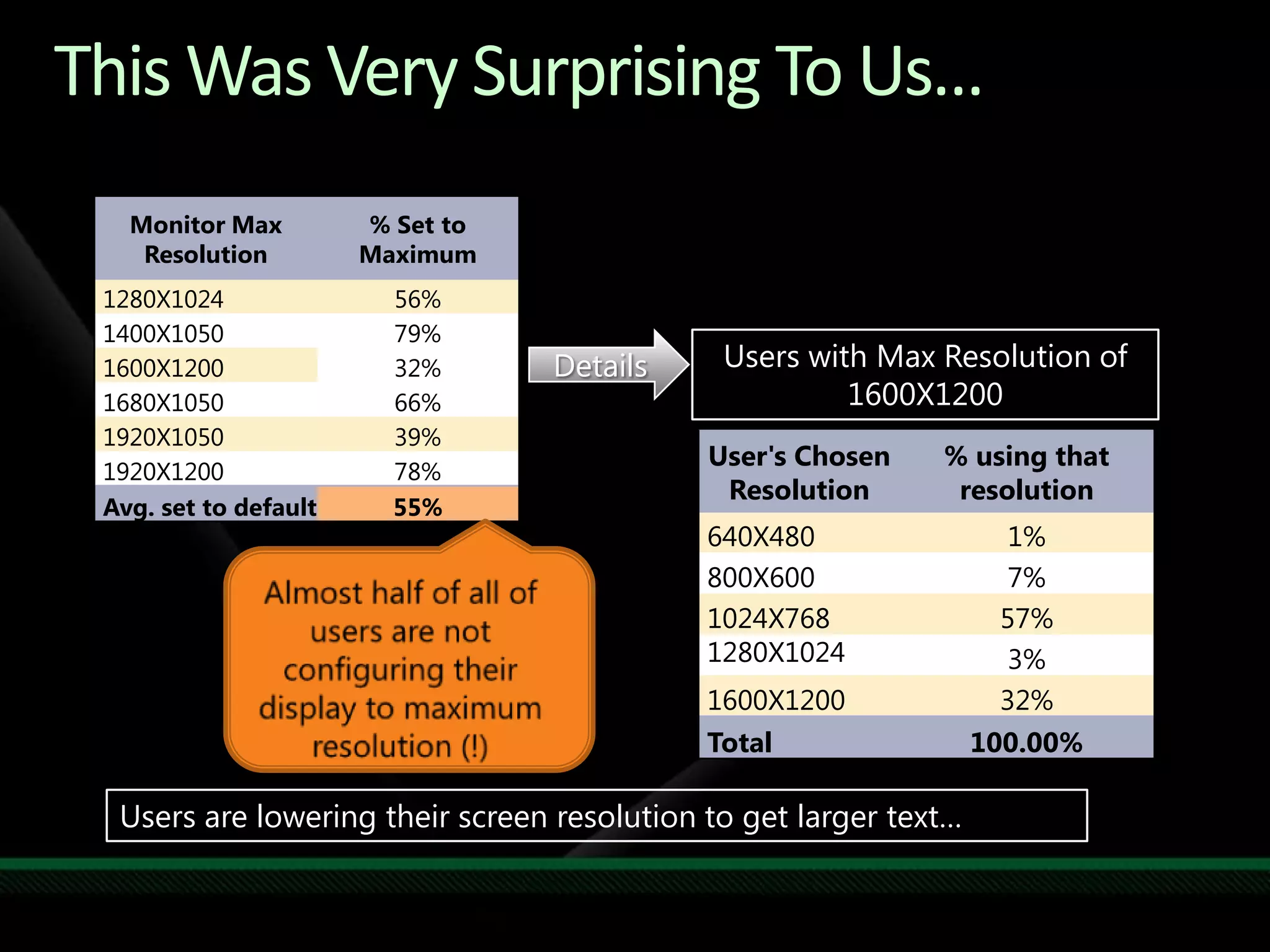

83. This Was Very Surprising To Us…Users with Max Resolution of 1600X1200DetailsAlmost half of all of users are not configuring their display to maximum resolution (!)Users are lowering their screen resolution to get larger text…

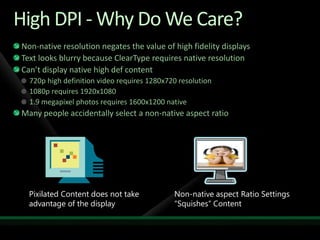

84. High DPI - Why Do We Care?Non-native resolution negates the value of high fidelity displaysText looks blurry because ClearType requires native resolutionCan’t display native high def content720p high definition video requires 1280x720 resolution1080p requires 1920x10801.9 megapixel photos requires 1600x1200 nativeMany people accidentally select a non-native aspect ratioPixilated Content does not take advantage of the displayNon-native aspect Ratio Settings “Squishes” Content

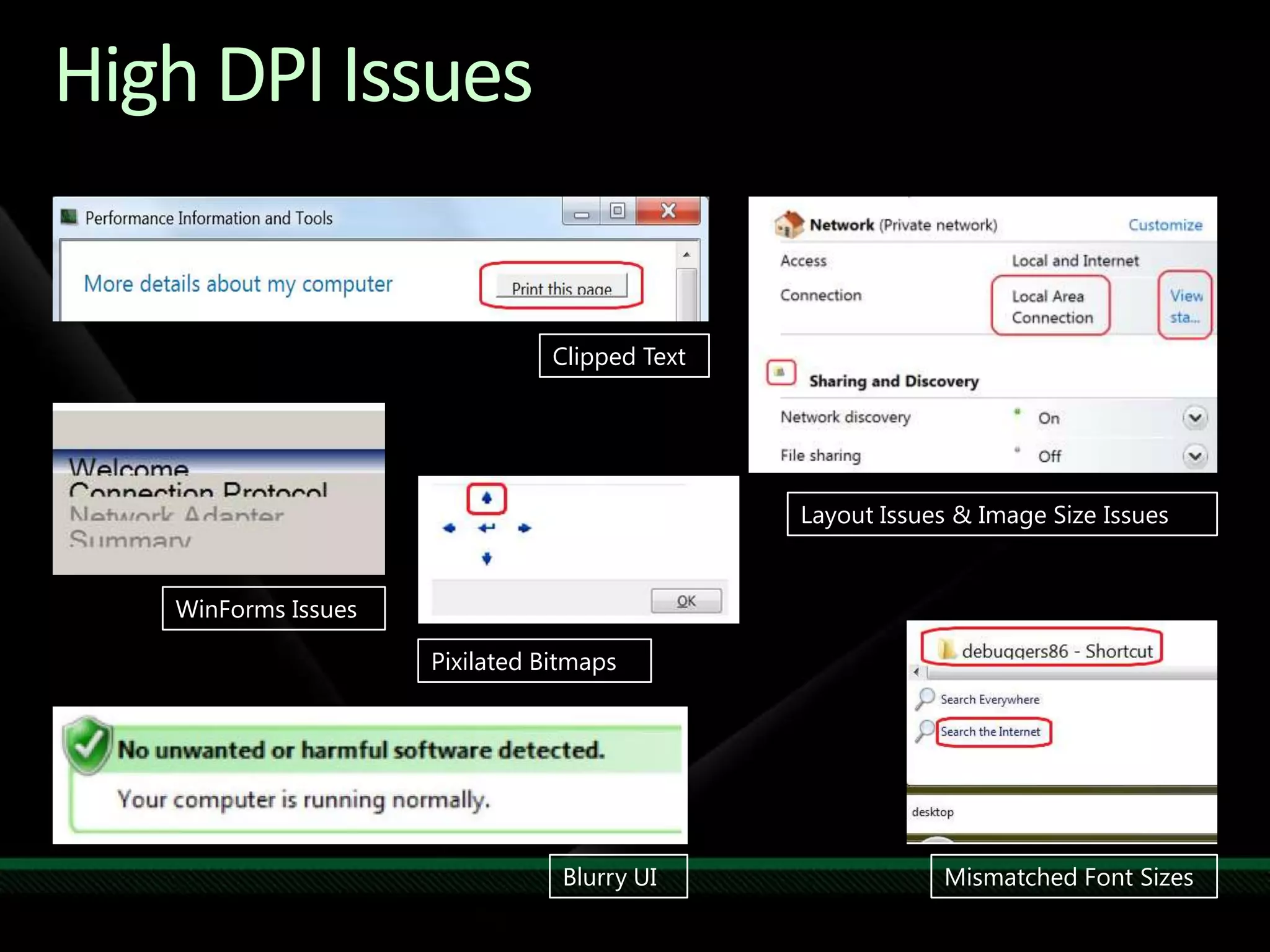

85. High DPI IssuesClipped TextLayout Issues & Image Size IssuesWinForms IssuesPixilated BitmapsBlurry UIMismatched Font Sizes

86. Graphics Improvements in Windows 7New

87. Graphics APIs for Rich Client Applications

88. DirectX: When the application needs control over features and performanceWPF: When the application needs richness but needs to be built quickly and there is no need for fine grained control over hw performance and featuresGDI: When the application needs to work on all Microsoft OSs and the lowest common denominator functionality is sufficientWhen to use which APIIncreasing HW Exploitiveness

89. Advancing the platform

90. Direct3DSegoe UIDirectWriteDirect2DWindows 7 DWM memory consumption is cut by 50% per windowTake advantage of the GPU’s computation powerHigh-DPI support & High ColorWindows 7 DWM uses Direct3D10.1 APIDXVA & WICGraphic Improvements

91. Direct2D And DirectWriteNew APIs in Windows 7 Win32 developersInteroperabilityUsable in service contextDirect2D2D graphics rendering tasks Increased performance and visual qualityDirectWriteVertical stack for text servicesFonts, Script Processing, Layout

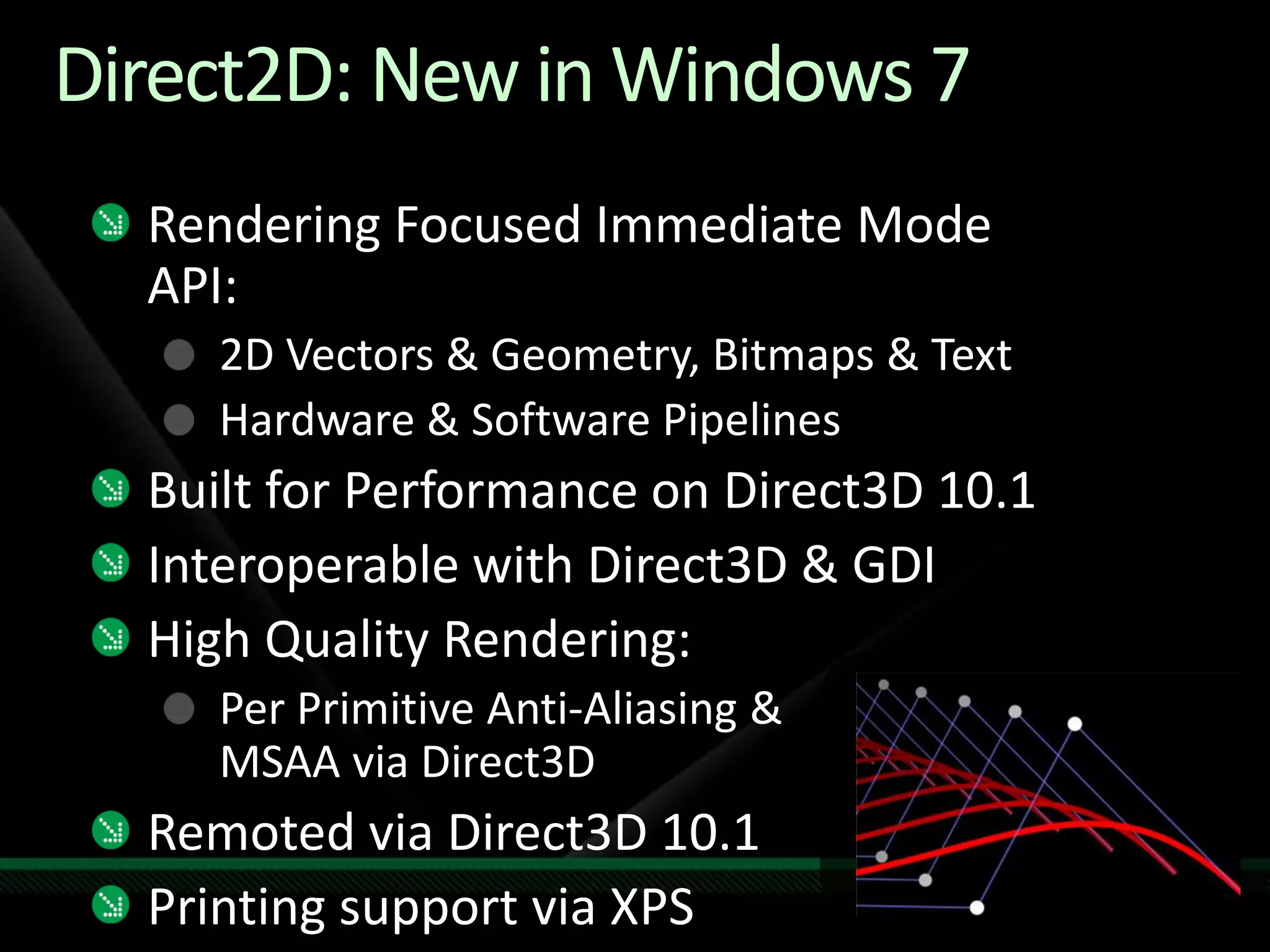

92. Direct2D: New in Windows 7Rendering Focused Immediate Mode API: 2D Vectors & Geometry, Bitmaps & TextHardware & Software PipelinesBuilt for Performance on Direct3D 10.1Interoperable with Direct3D & GDIHigh Quality Rendering:Per Primitive Anti-Aliasing & MSAA via Direct3DRemoted via Direct3D 10.1Printing support via XPS

93. Direct2D Performancedemo

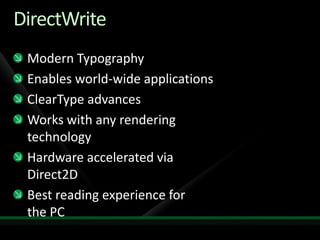

94. DirectWriteModern TypographyEnables world-wide applicationsClearType advancesWorks with any rendering technologyHardware accelerated via Direct2DBest reading experience for the PC

95. Gabriola

96. DirectWritedemo

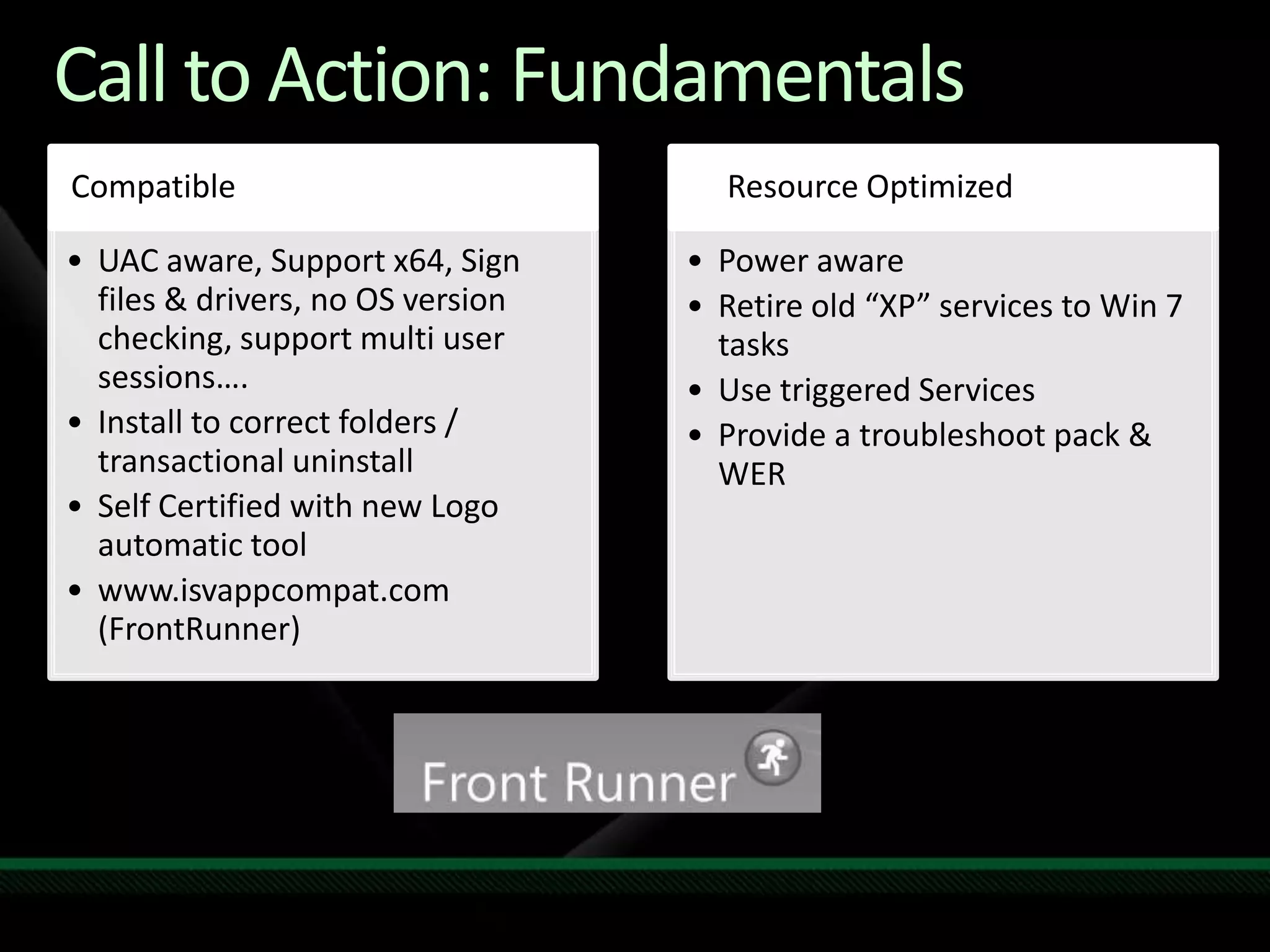

97. Call to Action: Fundamentals

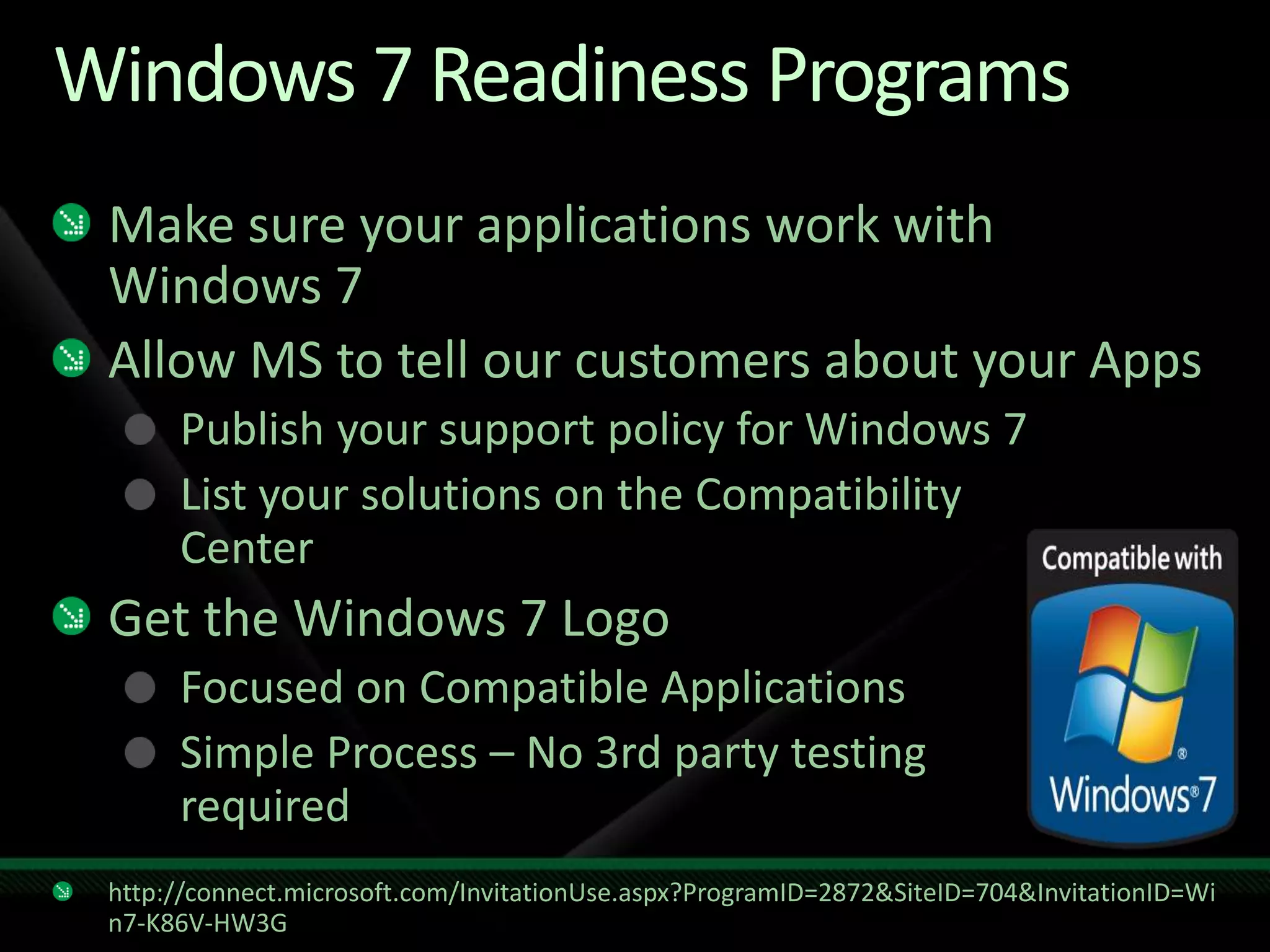

98. Windows 7 Readiness ProgramsMake sure your applications work with Windows 7Allow MS to tell our customers about your AppsPublish your support policy for Windows 7List your solutions on the Compatibility CenterGet the Windows 7 LogoFocused on Compatible ApplicationsSimple Process – No 3rd party testing requiredhttp://connect.microsoft.com/InvitationUse.aspx?ProgramID=2872&SiteID=704&InvitationID=Win7-K86V-HW3G

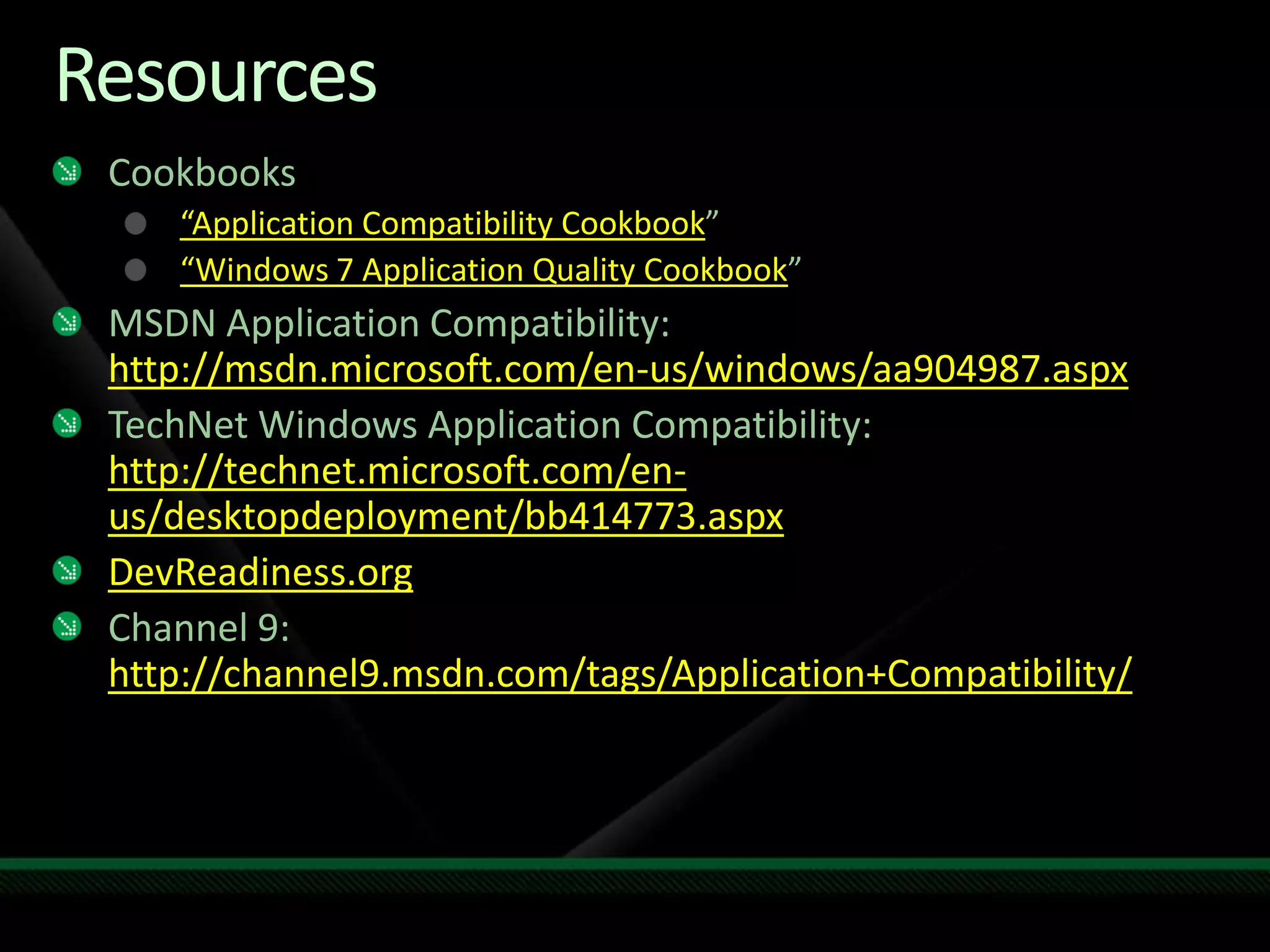

99. ResourcesCookbooks“Application Compatibility Cookbook”“Windows 7 Application Quality Cookbook” MSDN Application Compatibility: http://msdn.microsoft.com/en-us/windows/aa904987.aspxTechNet Windows Application Compatibility: http://technet.microsoft.com/en-us/desktopdeployment/bb414773.aspxDevReadiness.orgChannel 9: http://channel9.msdn.com/tags/Application+Compatibility/

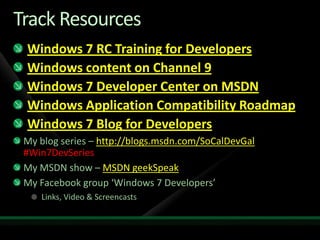

100. Track ResourcesWindows 7 RC Training for DevelopersWindows content on Channel 9 Windows 7 Developer Center on MSDNWindows Application Compatibility RoadmapWindows 7 Blog for DevelopersMy blog series – http://blogs.msdn.com/SoCalDevGal#Win7DevSeriesMy MSDN show – MSDN geekSpeakMy Facebook group ‘Windows 7 Developers’Links, Video & Screencasts

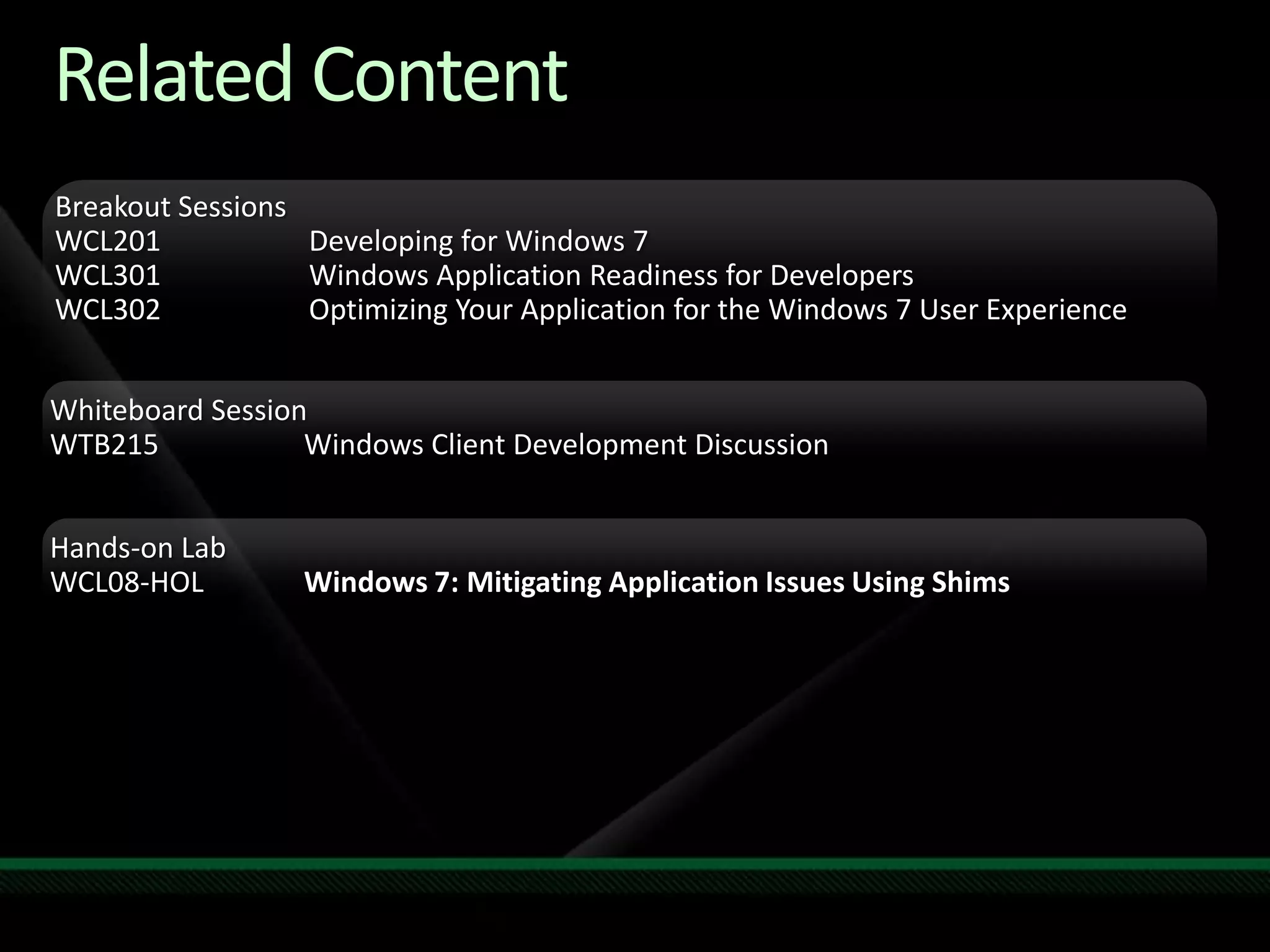

101. Related ContentBreakout Sessions WCL201 Developing for Windows 7 WCL301 Windows Application Readiness for Developers WCL302 Optimizing Your Application for the Windows 7 User ExperienceWhiteboard SessionWTB215 Windows Client Development DiscussionHands-on LabWCL08-HOL Windows 7: Mitigating Application Issues Using Shims
