2.3.2 improvised stretchers
- 1.

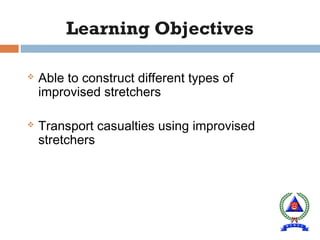

- 2. Learning Objectives Ableto construct different types of improvised stretchers Transport casualties using improvised stretchers

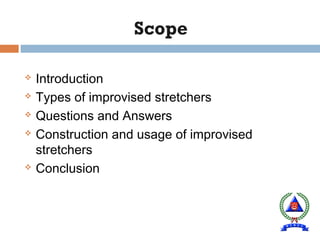

- 3. Introduction Typesof improvised stretchers Questions and Answers Construction and usage of improvised stretchers Conclusion

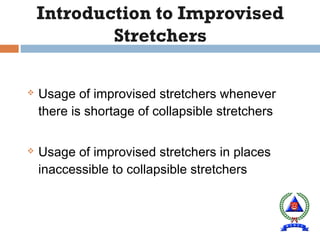

- 4. Usage ofimprovised stretchers whenever there is shortage of collapsible stretchers Usage of improvised stretchers in places inaccessible to collapsible stretchers
- 5. Rolled blanketstretcher Blanket and 2 poles stretcher Belt or shirt and 2 poles stretcher Chair Stretcher Hammock Stretcher

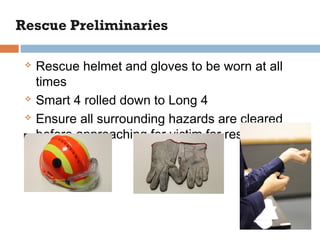

- 6. Rescue helmetand gloves to be worn at all times Smart 4 rolled down to Long 4 Ensure all surrounding hazards are cleared before approaching for victim for rescue
- 7. Make surehands are tucked into the belt and legs are crossed

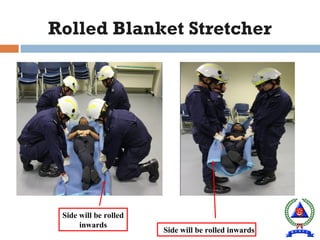

- 8. Side will berolled inwards Side will be rolled inwards Rolled Blanket Stretcher
- 9. Fold the blanket overthe pole on one side Blanket and 2 Poles Stretcher Ensure that the width of the stretcher is able to accommodate the casualty and there is maximum overlapping of the blanket to ensure strength and stability of the improvised stretcher. Side to be rolled over the poles inwards
- 10. Blanket and 2Poles Stretcher End product

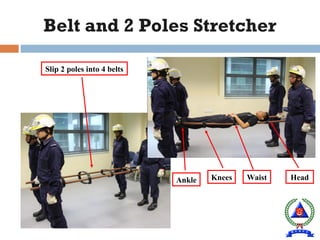

- 11. Belt and 2Poles Stretcher Slip 2 poles into 4 belts HeadWaistKneesAnkle

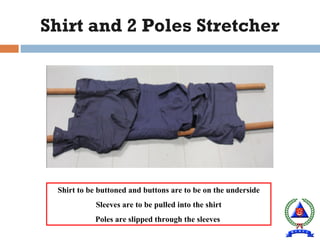

- 12. Shirt and 2Poles Stretcher Shirt to be buttoned and buttons are to be on the underside Sleeves are to be pulled into the shirt Poles are slipped through the sleeves
- 13. Shirt and 2Poles Stretcher End product

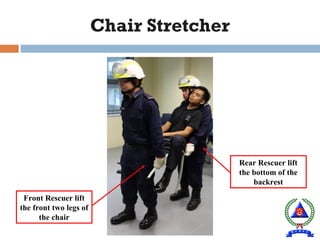

- 14. Chair Stretcher Front Rescuerlift the front two legs of the chair Rear Rescuer lift the bottom of the backrest
- 15.
- 16.
- 17.

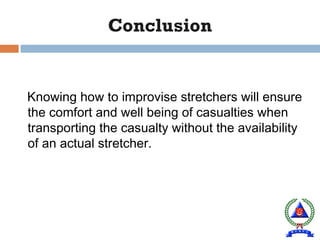

- 18. Conclusion Knowing how toimprovise stretchers will ensure the comfort and well being of casualties when transporting the casualty without the availability of an actual stretcher.
