The document discusses how the Oracle optimizer can sometimes choose suboptimal execution plans, leading to performance deterioration. It presents a scenario where the same query runs much slower when bind variables are used. The document then shows how SQL profiles can be used to enforce a better execution plan. It argues that manually creating profiles is not ideal for 24/7 environments. The document proposes using machine learning for outlier detection to identify performance issues and then automatically generate SQL profiles to address the issues. Code examples are provided for outlier detection and generating profiles through the Oracle API to allow automating the process.

1. Beating Oracle‘s Optimizer at
its own game
by
Rainer Schuettengruber
Raiffeisen Informatik Centre Steiermark

2. about me
• IT employee since 1998
• main focus on Oracle databases
• various positions as Oracle DBA(DMA), developer, devops
• currently employed as Exadata Administrator
• active member of pyGRAZ

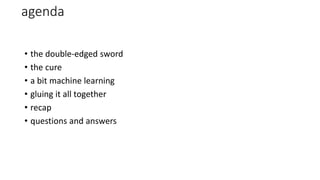

3. agenda
• the double-edged sword
• the cure
• a bit machine learning
• gluing it all together
• recap
• questions and answers

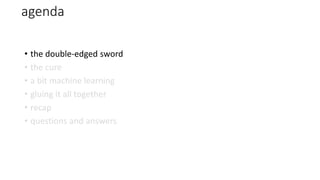

4. agenda
• the double-edged sword
• the cure
• a bit machine learning
• gluing it all together
• recap
• questions and answers

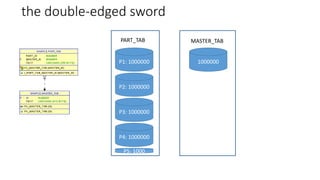

5. the double-edged sword
1000000P1: 1000000
P2: 1000000
P3: 1000000
P4: 1000000
P5: 1000
PART_TAB MASTER_TAB

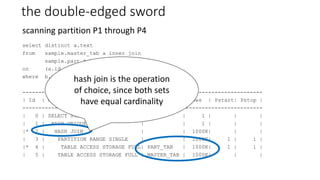

6. the double-edged sword
select distinct a.text
from sample.master_tab a inner join
sample.part_tab b
on (a.id = b.master_id)
where b.part_id = 1;
---------------------------------------------------------------------------
| Id | Operation | Name | Rows | Pstart| Pstop |
---------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | | |
| 1 | HASH UNIQUE | | 1 | | |
|* 2 | HASH JOIN | | 1000K| | |
| 3 | PARTITION RANGE SINGLE | | 1000K| 1 | 1 |
|* 4 | TABLE ACCESS STORAGE FULL| PART_TAB | 1000K| 1 | 1 |
| 5 | TABLE ACCESS STORAGE FULL | MASTER_TAB | 1000K| | |
scanning partition P1 through P4
hash join is the operation
of choice, since both sets
have equal cardinality

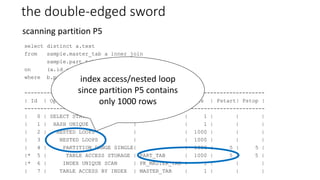

7. the double-edged sword
select distinct a.text
from sample.master_tab a inner join
sample.part_tab b
on (a.id = b.master_id)
where b.part_id = 5;
---------------------------------------------------------------------------
| Id | Operation | Name | Rows | Pstart| Pstop |
---------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | | |
| 1 | HASH UNIQUE | | 1 | | |
| 2 | NESTED LOOPS | | 1000 | | |
| 3 | NESTED LOOPS | | 1000 | | |
| 4 | PARTITION RANGE SINGLE| | 1000 | 5 | 5 |
|* 5 | TABLE ACCESS STORAGE | PART_TAB | 1000 | 5 | 5 |
|* 6 | INDEX UNIQUE SCAN | PK_MASTER_TAB | 1 | | |
| 7 | TABLE ACCESS BY INDEX | MASTER_TAB | 1 | | |
scanning partition P5
index access/nested loop
since partition P5 contains
only 1000 rows

8. the double-edged sword
select distinct a.text
from sample.master_tab a inner join
sample.part_tab b
on (a.id = b.master_id)
where b.part_id = :1;
---------------------------------------------------------------------------
| Id | Operation | Name | Rows | Pstart| Pstop |
---------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | | |
| 1 | HASH UNIQUE | | 1 | | |
|* 2 | HASH JOIN | | 800K| | |
| 3 | PARTITION RANGE SINGLE | | 800K| KEY | KEY |
|* 4 | TABLE ACCESS STORAGE FULL| PART_TAB | 800K| KEY | KEY |
| 5 | TABLE ACCESS STORAGE FULL | MASTER_TAB | 1000K| | |
bind variables
hash join since the
optimizer can not
determine which partitions
are scanned

9. the double-edged sword
• 2 different execution plans for the same query
• does harm when bind variables appear on the scene
• addressed with Adaptive Cursor Sharing
• however, the optimizer might stick to a wrong execution plan, leading
to performance deterioration

10. the double-edged sword
create or replace procedure sample.batch as
cursor cur_part_scan (p_part_id number) is
select distinct a.text
from master_tab a inner join
part_tab b
on (a.id = b.master_id)
where b.part_id = p_part_id;
result master_tab.text%type;
start_time timestamp;
end_time timestamp;
begin
start_time := current_timestamp;
for i in reverse 1 .. 5 loop
open cur_part_scan(i);
fetch cur_part_scan into result;
close cur_part_scan;
end loop;
end_time := current_timestamp;
dbms_output.put_line('duration of the batch run : ' || to_char(end_time - start_time));
end batch;
scans partition P1 to P5 in
reverse order

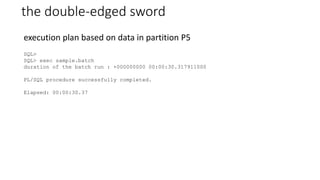

11. the double-edged sword
SQL>
SQL> exec sample.batch
duration of the batch run : +000000000 00:00:30.317911000
PL/SQL procedure successfully completed.
Elapsed: 00:00:30.37
execution plan based on data in partition P5

12. the double-edged sword
create or replace procedure sample.batch as
cursor cur_part_scan (p_part_id number) is
select distinct a.text
from master_tab a inner join
part_tab b
on (a.id = b.master_id)
where b.part_id = p_part_id;
result master_tab.text%type;
start_time timestamp;
end_time timestamp;
begin
start_time := current_timestamp;
for i in 1 .. 5 loop
open cur_part_scan(i);
fetch cur_part_scan into result;
close cur_part_scan;
end loop;
end_time := current_timestamp;
dbms_output.put_line('duration of the batch run : ' || to_char(end_time - start_time));
end batch;
scans partition P1 to P5,
starting with P1

13. the double-edged sword
SQL>
SQL> exec sample.batch
duration of the batch run : +000000000 00:00:14.356114000
PL/SQL procedure successfully completed.
Elapsed: 00:00:14.38
execution plan based on data in partition P1
considering the total batch duration, an execution plan based on
partition P1 is acceptable

14. agenda
• the double-edged sword
• the cure
• a bit machine learning
• gluing it all together
• recap
• questions and answers

15. the cure
• a particular execution plan can be enforced by means of SQL Profiles
• usually created with GUI based Cloud Control
• however, dealing with the issue in an automatic fashion requires a
programmable API

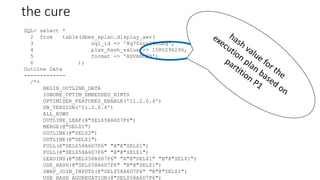

16. the cure
SQL> select *
2 from table(dbms_xplan.display_awr(
3 sql_id => '8q70znr29nubg',
4 plan_hash_value => 1580296296,
5 format => 'ADVANCED')
6 );
Outline Data
-------------
/*+
BEGIN_OUTLINE_DATA
IGNORE_OPTIM_EMBEDDED_HINTS
OPTIMIZER_FEATURES_ENABLE('11.2.0.4')
DB_VERSION('11.2.0.4')
ALL_ROWS
OUTLINE_LEAF(@"SEL$58A6D7F6")
MERGE(@"SEL$1")
OUTLINE(@"SEL$2")
OUTLINE(@"SEL$1")
FULL(@"SEL$58A6D7F6" "A"@"SEL$1")
FULL(@"SEL$58A6D7F6" "B"@"SEL$1")
LEADING(@"SEL$58A6D7F6" "A"@"SEL$1" "B"@"SEL$1")
USE_HASH(@"SEL$58A6D7F6" "B"@"SEL$1")
SWAP_JOIN_INPUTS(@"SEL$58A6D7F6" "B"@"SEL$1")
USE_HASH_AGGREGATION(@"SEL$58A6D7F6")

17. the cure
SQL> declare
2 l_sql_text clob;
3 begin
4 select sql_text into l_sql_text
5 from dba_hist_sqltext
6 where sql_id = '8q70znr29nubg';
7
8 dbms_sqltune.import_sql_profile(
9 sql_text => l_sql_text,
10 name => 'SAMPLE_PROFILE',
11 profile => sqlprof_attr(
12 q'!BEGIN_OUTLINE_DATA!',
13 q'!IGNORE_OPTIM_EMBEDDED_HINTS!',
14 q'!OPTIMIZER_FEATURES_ENABLE('11.2.0.4')!',
15 q'!DB_VERSION('11.2.0.4')!',
16 q'!ALL_ROWS!',
17 q'!OUTLINE_LEAF(@"SEL$58A6D7F6")!',
18 q'!MERGE(@"SEL$1")!',
19 q'!OUTLINE(@"SEL$2")!',
20 q'!OUTLINE(@"SEL$1")!',
outline data, extracted
with dbms_xplan

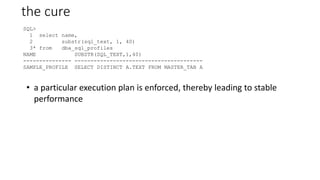

18. the cure
SQL>
1 select name,
2 substr(sql_text, 1, 40)
3* from dba_sql_profiles
NAME SUBSTR(SQL_TEXT,1,40)
--------------- ----------------------------------------
SAMPLE_PROFILE SELECT DISTINCT A.TEXT FROM MASTER_TAB A
• a particular execution plan is enforced, thereby leading to stable
performance

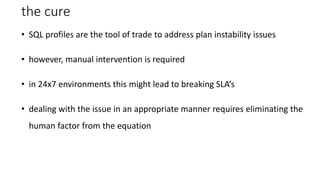

19. the cure
• SQL profiles are the tool of trade to address plan instability issues
• however, manual intervention is required
• in 24x7 environments this might lead to breaking SLA‘s
• dealing with the issue in an appropriate manner requires eliminating the
human factor from the equation

20. agenda
• the double-edged sword
• the cure
• a bit machine learning
• gluing it all together
• recap
• questions and answers

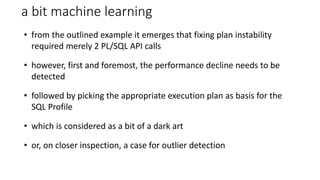

21. a bit machine learning
• from the outlined example it emerges that fixing plan instability
required merely 2 PL/SQL API calls
• however, first and foremost, the performance decline needs to be
detected
• followed by picking the appropriate execution plan as basis for the
SQL Profile
• which is considered as a bit of a dark art
• or, on closer inspection, a case for outlier detection

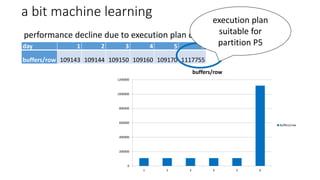

22. a bit machine learning
performance decline due to execution plan change in figures
day 1 2 3 4 5 6
buffers/row 109143 109144 109150 109160 109170 1117755
0
200000
400000
600000
800000
1000000
1200000
1 2 3 4 5 6
buffers/row
buffers/row
execution plan
suitable for
partition P5

23. a bit machine learning
Outlier detection by means of the Modified Z-Score
𝑀𝐴𝐷 = 𝑚𝑒𝑑𝑖𝑎𝑛( 𝑥𝑖 − 𝑥 )
𝑀𝑖 =
0.6745 𝑥𝑖 − 𝑥
𝑀𝐴𝐷

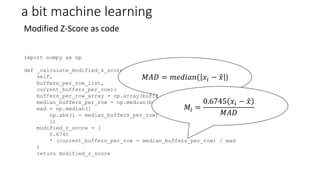

24. a bit machine learning
Modified Z-Score as code
import numpy as np
def _calculate_modified_z_score(
self,
buffers_per_row_list,
current_buffers_per_row):
buffers_per_row_array = np.array(buffers_per_row_list, dtype=np.float)
median_buffers_per_row = np.median(buffers_per_row_array)
mad = np.median([
np.abs(i - median_buffers_per_row) for i in buffers_per_row_array
])
modified_z_score = (
0.6745
* (current_buffers_per_row - median_buffers_per_row) / mad
)
return modified_z_score
𝑀𝐴𝐷 = 𝑚𝑒𝑑𝑖𝑎𝑛( 𝑥𝑖 − 𝑥 )
𝑀𝑖 =
0.6745 𝑥𝑖 − 𝑥
𝑀𝐴𝐷

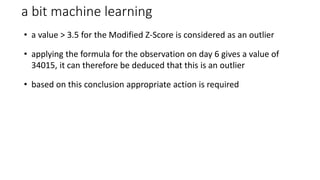

25. a bit machine learning
• a value > 3.5 for the Modified Z-Score is considered as an outlier
• applying the formula for the observation on day 6 gives a value of
34015, it can therefore be deduced that this is an outlier
• based on this conclusion appropriate action is required

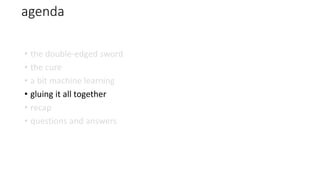

26. agenda
• the double-edged sword
• the cure
• a bit machine learning
• gluing it all together
• recap
• questions and answers

27. gluing it all together
• there is a clearly formulated problem
• it is known how to detect it, this is the machine learning bit
• it is known how to fix it by means of programmable API’s
• consequently a piece of software can tackle the issue

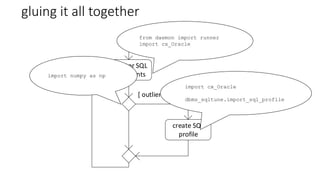

28. gluing it all together
monitor SQL
statements
[ outlier detected ]
create SQL
profile
import cx_Oracle
dbms_sqltune.import_sql_profile
import numpy as np
from daemon import runner
import cx_Oracle

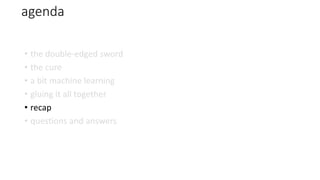

29. agenda
• the double-edged sword
• the cure
• a bit machine learning
• gluing it all together
• recap
• questions and answers

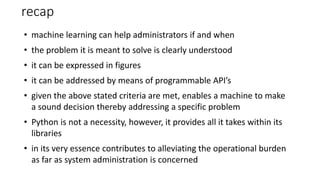

30. recap
• machine learning can help administrators if and when
• the problem it is meant to solve is clearly understood
• it can be expressed in figures
• it can be addressed by means of programmable API’s
• given the above stated criteria are met, enables a machine to make
a sound decision thereby addressing a specific problem
• Python is not a necessity, however, it provides all it takes within its
libraries
• in its very essence contributes to alleviating the operational burden
as far as system administration is concerned

31. agenda
• the double-edged sword
• the cure
• a bit machine learning
• gluing it all together
• recap
• questions and answers

32. questions and answers
