1. SQL Plan Directives Explained

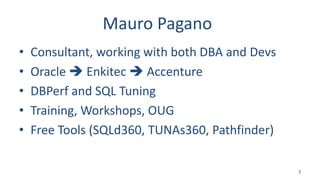

Mauro Pagano

2. Mauro Pagano
• Consultant, working with both DBA and Devs
• Oracle  Enkitec  Accenture
• DBPerf and SQL Tuning
• Training, Workshops, OUG
• Free Tools (SQLd360, TUNAs360, Pathfinder)
2

3. Some background
• CBO makes mistakes
– Complex code with challenging job
– Based on
• Statistical formula, not perfect in 100% cases
• Partial knowledge of the data (stats)
• Mistakes can translate into poor plans
• Poor plans usually lead to poor performance
3

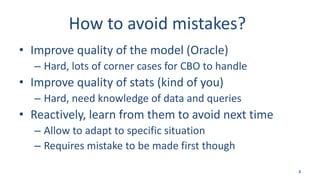

4. How to avoid mistakes?
• Improve quality of the model (Oracle)
– Hard, lots of corner cases for CBO to handle
• Improve quality of stats (kind of you)
– Hard, need knowledge of data and queries
• Reactively, learn from them to avoid next time
– Allow to adapt to specific situation
– Requires mistake to be made first though
4

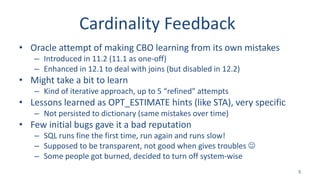

5. Cardinality Feedback
• Oracle attempt of making CBO learning from its own mistakes
– Introduced in 11.2 (11.1 as one-off)
– Enhanced in 12.1 to deal with joins (but disabled in 12.2)
• Might take a bit to learn
– Kind of iterative approach, up to 5 “refined” attempts
• Lessons learned as OPT_ESTIMATE hints (like STA), very specific
– Not persisted to dictionary (same mistakes over time)
• Few initial bugs gave it a bad reputation
– SQL runs fine the first time, run again and runs slow!
– Supposed to be transparent, not good when gives troubles 
– Some people got burned, decided to turn off system-wise
5

6. Table TAB1
drop table tab1;
create table tab1 (n1 number, n2 number, n3 number);
-- the data is strongly correlated
insert into tab1
select mod(rownum, 100),
mod(rownum, 100),
mod(rownum, 100)
from dual
connect by rownum <= 100000;
commit;
exec dbms_stats.gather_table_stats(user,'TAB1');
6

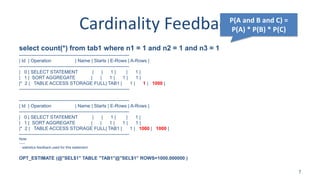

7. Cardinality Feedback
select count(*) from tab1 where n1 = 1 and n2 = 1 and n3 = 1
----------------------------------------------------------------------
| Id | Operation | Name | Starts | E-Rows | A-Rows |
----------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | | 1 |
| 1 | SORT AGGREGATE | | 1 | 1 | 1 |
|* 2 | TABLE ACCESS STORAGE FULL| TAB1 | 1 | 1 | 1000 |
----------------------------------------------------------------------
----------------------------------------------------------------------
| Id | Operation | Name | Starts | E-Rows | A-Rows |
----------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | | 1 |
| 1 | SORT AGGREGATE | | 1 | 1 | 1 |
|* 2 | TABLE ACCESS STORAGE FULL| TAB1 | 1 | 1000 | 1000 |
----------------------------------------------------------------------
Note
-----
- statistics feedback used for this statement
OPT_ESTIMATE (@"SEL$1" TABLE "TAB1"@"SEL$1" ROWS=1000.000000 )
7
P(A and B and C) =
P(A) * P(B) * P(C)

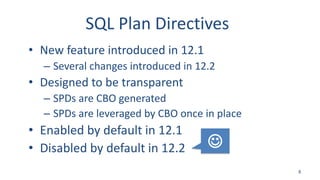

8. SQL Plan Directives
• New feature introduced in 12.1
– Several changes introduced in 12.2
• Designed to be transparent
– SPDs are CBO generated
– SPDs are leveraged by CBO once in place
• Enabled by default in 12.1
• Disabled by default in 12.2
8


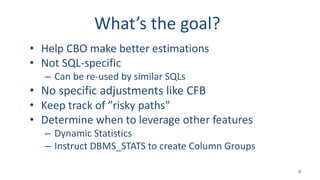

9. What’s the goal?
• Help CBO make better estimations
• Not SQL-specific
– Can be re-used by similar SQLs
• No specific adjustments like CFB
• Keep track of ”risky paths”
• Determine when to leverage other features
– Dynamic Statistics
– Instruct DBMS_STATS to create Column Groups
9

10. What does SPD track?
• Cardinality misestimates (usually underestimates)
• “Risky paths” are
– Data correlation on multi-column filter predicates
– Uncommon join correlation
– Data correlation on columns in GROUP BY
• Potentially other paths can be tracked
– For example, cardinality estimation at query block level
• Many TYPEs could be supported
– As of today, only existing TYPE is DYNAMIC_SAMPLING (*)
10

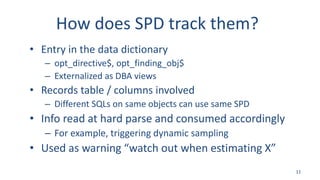

11. How does SPD track them?
• Entry in the data dictionary
– opt_directive$, opt_finding_obj$
– Externalized as DBA views
• Records table / columns involved
– Different SQLs on same objects can use same SPD
• Info read at hard parse and consumed accordingly
– For example, triggering dynamic sampling
• Used as warning “watch out when estimating X”
11

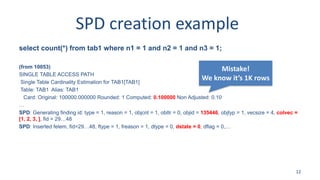

12. SPD creation example
select count(*) from tab1 where n1 = 1 and n2 = 1 and n3 = 1;
(from 10053)
SINGLE TABLE ACCESS PATH
Single Table Cardinality Estimation for TAB1[TAB1]
Table: TAB1 Alias: TAB1
Card: Original: 100000.000000 Rounded: 1 Computed: 0.100000 Non Adjusted: 0.10
…
SPD: Generating finding id: type = 1, reason = 1, objcnt = 1, obItr = 0, objid = 135446, objtyp = 1, vecsize = 4, colvec =
[1, 2, 3, ], fid = 29…48
SPD: Inserted felem, fid=29…48, ftype = 1, freason = 1, dtype = 0, dstate = 0, dflag = 0,…
12
Mistake!
We know it’s 1K rows

13. SPD creation example
select directive_id, type, reason, notes
from dba_sql_plan_directives
where directive_id in (select directive_id
from dba_sql_plan_dir_objects
where owner = sys_context('userenv', 'session_user')
and object_name = 'TAB1');
DIRECTIVE_ID TYPE REASON
-------------------------- ---------------- ------------------------------------
1149064327055029475 DYNAMIC_SAMPLING SINGLE TABLE CARDINALITY MISESTIMATE
NOTES
-----------------------------------------------------
<spd_note>
<internal_state>NEW</internal_state>
<redundant>NO</redundant>
<spd_text>{EC(MPAGANO.TAB1)[N1, N2, N3]}</spd_text>
</spd_note>
13

14. SPD creation example
select *
from dba_sql_plan_dir_objects
where owner = sys_context('userenv', 'session_user')
and object_name = 'TAB1';
SUBOBJECT_NAME OBJECT
---------------- ------
N1 COLUMN
N2 COLUMN
N3 COLUMN
TABLE  NOTES is at the TABLE level
NOTES
--------------------------------------------------------------------------
<obj_note>
<equality_predicates_only>YES</equality_predicates_only>
<simple_column_predicates_only>YES</simple_column_predicates_only>
<index_access_by_join_predicates>NO</index_access_by_join_predicates>
<filter_on_joining_object>NO</filter_on_joining_object>
</obj_note>
14

15. SPD creation (another) example

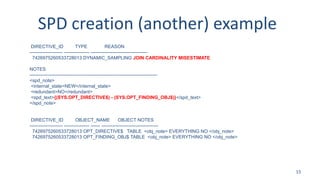

DIRECTIVE_ID TYPE REASON
--------------------- ---------------- ------------------------------------
7426975260533728013 DYNAMIC_SAMPLING JOIN CARDINALITY MISESTIMATE
NOTES
---------------------------------------------------------------------------------
<spd_note>
<internal_state>NEW</internal_state>
<redundant>NO</redundant>
<spd_text>{(SYS.OPT_DIRECTIVE$) - (SYS.OPT_FINDING_OBJ$)}</spd_text>
</spd_note>
DIRECTIVE_ID OBJECT_NAME OBJECT NOTES
--------------------- ---------------- ------ ------------------------------------
7426975260533728013 OPT_DIRECTIVE$ TABLE <obj_note> EVERYTHING NO </obj_note>
7426975260533728013 OPT_FINDING_OBJ$ TABLE <obj_note> EVERYTHING NO </obj_note>
15

16. SPD creation example

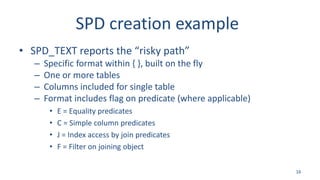

• SPD_TEXT reports the “risky path”
– Specific format within { }, built on the fly
– One or more tables
– Columns included for single table
– Format includes flag on predicate (where applicable)
• E = Equality predicates
• C = Simple column predicates
• J = Index access by join predicates
• F = Filter on joining object
16

17. SPD creation example
• INTERNAL_STATE shows where in the lifecycle SPD is
– NEW – SPD just created (flushed to disk), not used by SQLs yet
– MISSING_STATS – CBO used to help estimations, likely used ADS
– HAS_STATS – Stats (likely Column Group) helped CBO, SPD “off”
– PERMANENT – Stats not enough, SPD will stay “on” (ADS)
• First two states are transitory
• Last two states are definitive
– HAS_STATS -> PERMANENT if stats don’t help “enough”
– SPD goes trough HAS_STATS before PERMANENT
17

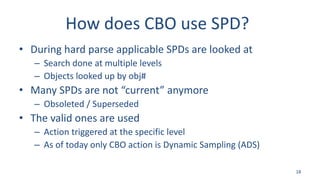

18. How does CBO use SPD?
• During hard parse applicable SPDs are looked at
– Search done at multiple levels
– Objects looked up by obj#
• Many SPDs are not “current” anymore
– Obsoleted / Superseded
• The valid ones are used
– Action triggered at the specific level
– As of today only CBO action is Dynamic Sampling (ADS)
18

19. SPD usage example – single table

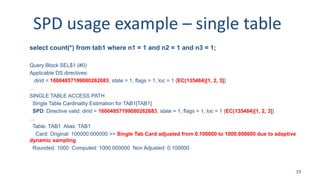

select count(*) from tab1 where n1 = 1 and n2 = 1 and n3 = 1;
Query Block SEL$1 (#0)
Applicable DS directives:
dirid = 16004857199080262683, state = 1, flags = 1, loc = 1 {EC(135484)[1, 2, 3]}
…
SINGLE TABLE ACCESS PATH
Single Table Cardinality Estimation for TAB1[TAB1]
SPD: Directive valid: dirid = 16004857199080262683, state = 1, flags = 1, loc = 1 {EC(135484)[1, 2, 3]}
…
Table: TAB1 Alias: TAB1
Card: Original: 100000.000000 >> Single Tab Card adjusted from 0.100000 to 1000.000000 due to adaptive
dynamic sampling
Rounded: 1000 Computed: 1000.000000 Non Adjusted: 0.100000
19

20. SPD usage example – single table
select count(*) from tab1 where n1 = 1 and n2 = 1 and n3 = 1;
(from 10046 during hard parse)
PARSING IN CURSOR #140175694530408 …
SELECT /* DS_SVC */ /*+ … result_cache(snapshot=3600) */ SUM(C1)
FROM (SELECT /*+ qb_name("innerQuery") NO_INDEX_FFS( "TAB1")*/ 1 AS C1
FROM "TAB1" "TAB1"
WHERE ("TAB1"."N1"=1)
AND ("TAB1"."N2"=1)
AND ("TAB1"."N3"=1)
) InnerQuery
STAT #140175694530408 id=1 cnt=1 op='RESULT CACHE 145cmpkvg18at78z0dz8ptfwfw STAT
#140175694530408 id=2 cnt=1 op='SORT AGGREGATE
STAT #140175694530408 id=3 cnt=1000 op='TABLE ACCESS FULL TAB1
20

21. Use of SPD – single table conclusions
• Allows CBO to get better estimation on the fly
• Cool but not the best approach in the long run
– ADS even if fast still takes some time (overhead)
– Longer parses cause most of the troubles in real-life
• Same result achieved with Column Group (often)
• Real goal is
– Put a band-aid until Column Group in place
– Instruct DBMS_STATS to collect Column Groups
– Verify if Column Group helped, if not keep SPD active
21

22. SPD usage example – join

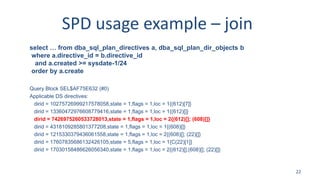

select … from dba_sql_plan_directives a, dba_sql_plan_dir_objects b
where a.directive_id = b.directive_id
and a.created >= sysdate-1/24
order by a.create
Query Block SEL$AF75E632 (#0)
Applicable DS directives:
dirid = 10275726999217578058,state = 1,flags = 1,loc = 1{(612)[7]}
dirid = 13360472976608779416,state = 1,flags = 1,loc = 1{(612)[]}
dirid = 7426975260533728013,state = 1,flags = 1,loc = 2{(612)[]; (608)[]}
dirid = 4318109285801377208,state = 1,flags = 1,loc = 1{(608)[]}
dirid = 1215330379436061558,state = 1,flags = 1,loc = 2{(608)[]; (22)[]}
dirid = 17607835686132426105,state = 5,flags = 1,loc = 1{C(22)[1]}
dirid = 17030158486626056340,state = 1,flags = 1,loc = 2{(612)[];(608)[]; (22)[]}
22

23. SPD usage example – join
(from 10053)
SPD: Directive valid: dirid = 7426975260533728013,…,loc = 2 {(612)[]; (608)[]}
…
Join Card: 13.000000 = outer (9.000000) * inner (13.000000) * sel (0.111111)
>> Join Card adjusted from 13.000000 to 16.000000 due to adaptive dynamic sampling, prelen=2
Adjusted Join Cards: adjRatio=1.230769 cardHjSmj=16.000000 …
Join Card - Rounded: 16 Computed: 16.000000
(from 10046)
PARSING IN CURSOR #139704599064112
SELECT /* DS_SVC */ /*+ … result_cache(snapshot=3600) */ SUM(C1)
FROM (SELECT /*+ qb_name("innerQuery") NO_INDEX_FFS( "F#0") */ 1 AS C1
FROM "SYS"."OPT_FINDING$" "F#0",
"SYS"."OPT_DIRECTIVE$" "D#1"
WHERE ("D#1"."F_ID"="F#0"."F_ID")
) innerQuery
23

24. Use of SPD – join conclusions

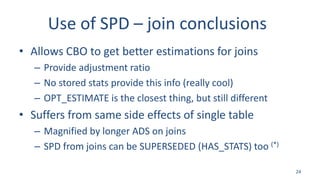

• Allows CBO to get better estimations for joins
– Provide adjustment ratio
– No stored stats provide this info (really cool)
– OPT_ESTIMATE is the closest thing, but still different
• Suffers from same side effects of single table
– Magnified by longer ADS on joins
– SPD from joins can be SUPERSEDED (HAS_STATS) too (*)
24

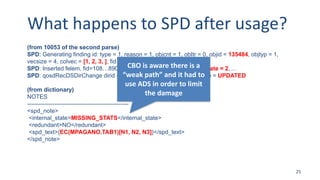

25. What happens to SPD after usage?
(from 10053 of the second parse)
SPD: Generating finding id: type = 1, reason = 1, objcnt = 1, obItr = 0, objid = 135484, objtyp = 1,
vecsize = 4, colvec = [1, 2, 3, ], fid = 108…890
SPD: Inserted felem, fid=108…890,ftype = 0,freason = 0,dtype = 1,dstate = 2,…
SPD: qosdRecDSDirChange dirid = 16004857199080262683, retCode = UPDATED
(from dictionary)
NOTES
----------------------------------------------------
<spd_note>
<internal_state>MISSING_STATS</internal_state>
<redundant>NO</redundant>
<spd_text>{EC(MPAGANO.TAB1)[N1, N2, N3]}</spd_text>
</spd_note>
25
CBO is aware there is a
“weak path” and it had to
use ADS in order to limit
the damage

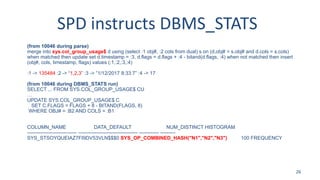

26. SPD instructs DBMS_STATS
(from 10046 during parse)
merge into sys.col_group_usage$ d using (select :1 obj#, :2 cols from dual) s on (d.obj# = s.obj# and d.cols = s.cols)
when matched then update set d.timestamp = :3, d.flags = d.flags + :4 - bitand(d.flags, :4) when not matched then insert
(obj#, cols, timestamp, flags) values (:1,:2,:3,:4)
:1 -> 135484 :2 -> “1,2,3” :3 -> ”1/12/2017 8:33:7” :4 -> 17
(from 10046 during DBMS_STATS run)
SELECT ... FROM SYS.COL_GROUP_USAGE$ CU
…
UPDATE SYS.COL_GROUP_USAGE$ C
SET C.FLAGS = FLAGS + 8 - BITAND(FLAGS, 8)
WHERE OBJ# = :B2 AND COLS = :B1
COLUMN_NAME DATA_DEFAULT NUM_DISTINCT HISTOGRAM
------------------------------ ------------------------------------ ------------ ---------
SYS_STSOYQUEIAZ7FI9DV53VLN$$$0 SYS_OP_COMBINED_HASH("N1","N2","N3") 100 FREQUENCY
26

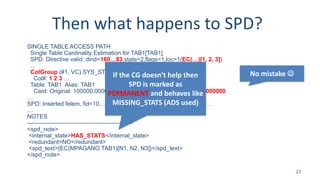

27. Then what happens to SPD?
SINGLE TABLE ACCESS PATH
Single Table Cardinality Estimation for TAB1[TAB1]
SPD: Directive valid: dirid=160…83,state=2,flags=1,loc=1{EC(…)[1, 2, 3]}
...
ColGroup (#1, VC) SYS_STSOYQUEIAZ7FI9DV53VLN$$$0
Col#: 1 2 3 …
Table: TAB1 Alias: TAB1
Card: Original: 100000.000000 Rounded: 1000 Computed: 1000.000000
…
SPD: Inserted felem, fid=10…890,…,dtype = 1, dstate = 3, dflag = 1,…
…
NOTES
------------------------------------------------------
<spd_note>
<internal_state>HAS_STATS</internal_state>
<redundant>NO</redundant>
<spd_text>{EC(MPAGANO.TAB1)[N1, N2, N3]}</spd_text>
</spd_note>
27
If the CG doesn’t help then
SPD is marked as
PERMANENT and behaves like
MISSING_STATS (ADS used)
No mistake 

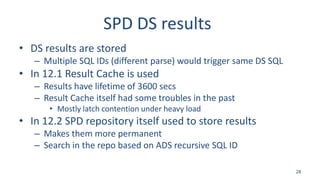

28. SPD DS results
• DS results are stored
– Multiple SQL IDs (different parse) would trigger same DS SQL
• In 12.1 Result Cache is used
– Results have lifetime of 3600 secs
– Result Cache itself had some troubles in the past
• Mostly latch contention under heavy load
• In 12.2 SPD repository itself used to store results
– Makes them more permanent
– Search in the repo based on ADS recursive SQL ID
28

29. Is my SQL using SPD?
• Many SPDs can reference just a few objects
– Even simple SQL can use many SPDs
• CBO looks into them and pick up valid
– A subset of Valid are Used
• OTHER_XML reports #valid/#used
• DBMS_XPLAN to show if SQL is using SPDs
– DISPLAY (explain plan) reports which ones
– DISPLAY_CURSOR (execution) reports just #used
29

30. DBMS_SPD
• Oracle seeded package to manage SPDs
• Move via pack/unpack in stgtab like baselines
– Base 12.1.0.2 has bugs that impact xfr of SPDs
• Allow to manually flush SPDs to disk
– Instead of waiting 15 minutes
• Can set basic preferences
– For example, retention period before auto drop
30

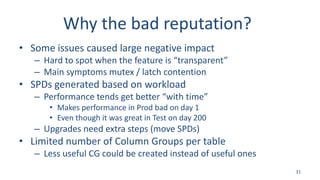

31. Why the bad reputation?
• Some issues caused large negative impact
– Hard to spot when the feature is “transparent”
– Main symptoms mutex / latch contention
• SPDs generated based on workload
– Performance tends get better “with time”
• Makes performance in Prod bad on day 1
• Even though it was great in Test on day 200
– Upgrades need extra steps (move SPDs)
• Limited number of Column Groups per table
– Less useful CG could be created instead of useful ones
31

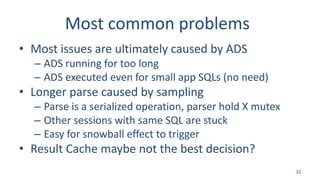

32. Most common problems
• Most issues are ultimately caused by ADS
– ADS running for too long
– ADS executed even for small app SQLs (no need)
• Longer parse caused by sampling
– Parse is a serialized operation, parser hold X mutex
– Other sessions with same SQL are stuck
– Easy for snowball effect to trigger
• Result Cache maybe not the best decision?
32

33. Solutions?
• I’m personally a big fan of SPD
– But I’m not a Production DBA 
• Many products require to turn it off in 12.1
– Bad habit was to turn off all Adaptive Features via parameter
– Oracle patch split parameter in two (AdaptPlans vs AdaptStats)
• So just SPD and ADS can be disabled, Adaptive Plans stay ON
• Oracle recommended solution in 12.1, SPD OFF with patch+param
• Disabled by default in 12.2
– When enabled it seems a bit more conservative
– Too early to judge how it will behave in 12.2 prod
33

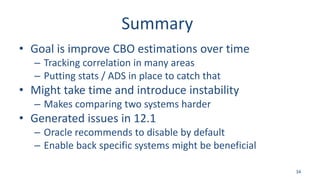

34. Summary
• Goal is improve CBO estimations over time
– Tracking correlation in many areas
– Putting stats / ADS in place to catch that
• Might take time and introduce instability
– Makes comparing two systems harder
• Generated issues in 12.1
– Oracle recommends to disable by default
– Enable back specific systems might be beneficial
34

35. 35

36. Contact Information
• http://mauro-pagano.com
– Email
• mauro.pagano@gmail.com
– Free tools to download
• SQLd360
• TUNAs360
• PAthfinder
36
