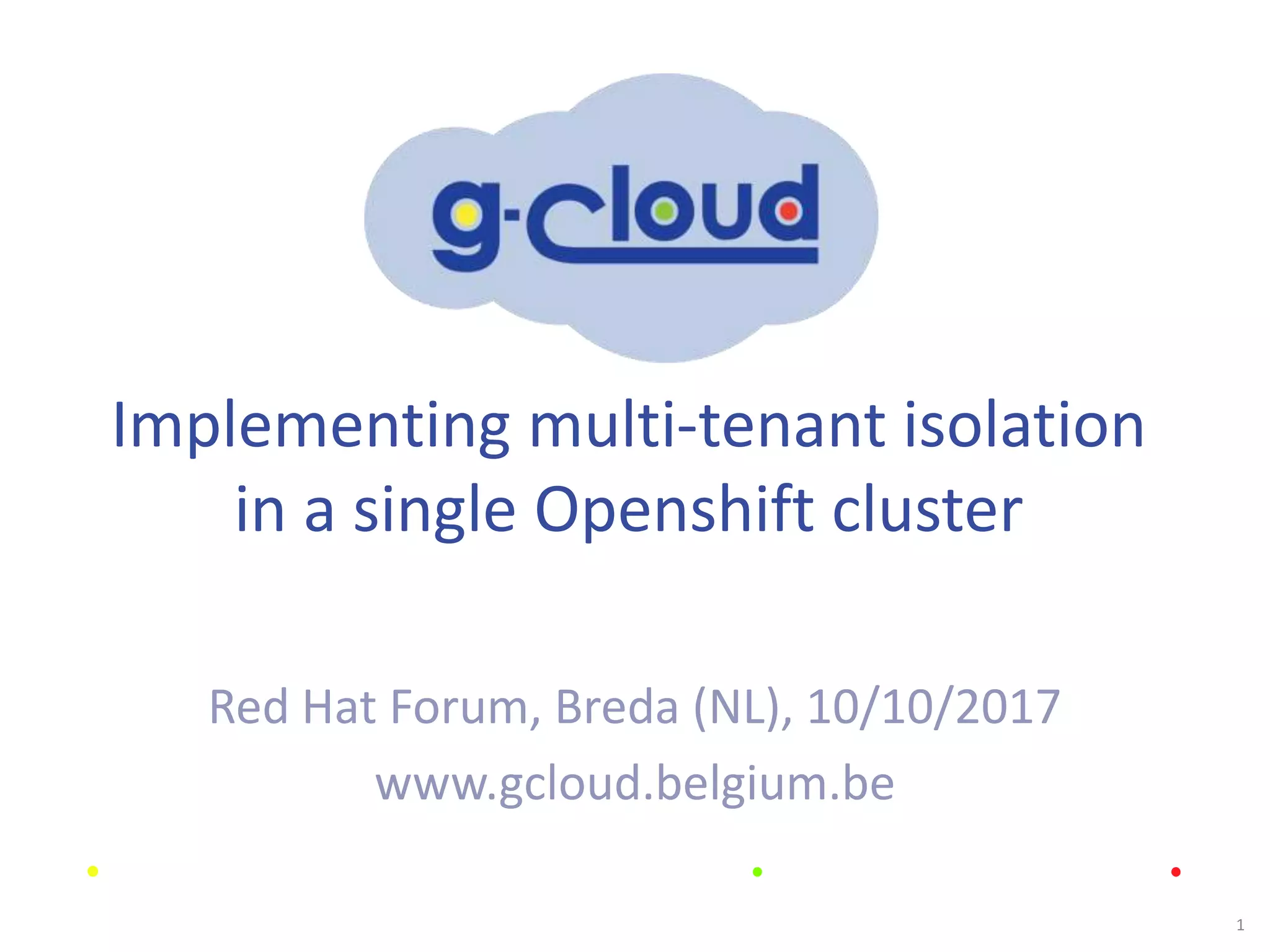

1. Implementing multi-tenant isolation
in a single Openshift cluster
Red Hat Forum, Breda (NL), 10/10/2017
www.gcloud.belgium.be
1

2. Introducing G-Cloud
2

3. • Focus = Synergy in ICT-services
• Services provided by different institutions /
service owners
• In close collaboration with private sector
G-Cloud = Belgian government Cloud
3
www.gcloud.belgium.be

4. Business applications
Hard infrastructure
Soft infrastructure
Platform
Standard components & applications
Housing LAN/WAN
Network
Storage
BabelFed
ITSM
Service desk
Web Content
Management
BeConnected
Unified Communications &
Collaboration
Internet Access ProtectionBackup Archiving IAM / ShaD
G-Cloud-projects
4
GreenShift
Open Source
YellowShift
Microsoft
BlueShift
IBM
RedShift
Oracle
Business Intelligence & Big
Data Analytics
Sharepoint
Virtual Machine
Hypervisor
Bare Metal
Preparation Realization Service On hold

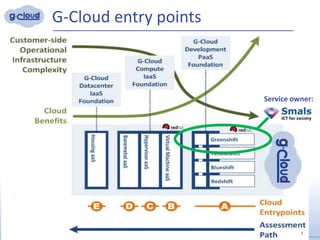

5. G-Cloud entry points
5
Service owner:

6. Shared ICT services in social security & e-health since… 1939

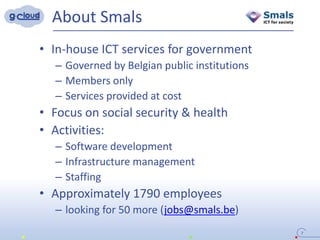

7. About Smals
7
• In-house ICT services for government
– Governed by Belgian public institutions
– Members only
– Services provided at cost
• Focus on social security & health
• Activities:
– Software development
– Infrastructure management
– Staffing
• Approximately 1790 employees
– looking for 50 more (jobs@smals.be)

8. Over 200 member institutions
Federal – Regional – Local

9. Timeline
9

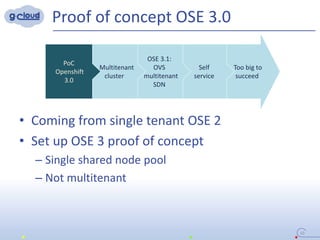

10. Proof of concept OSE 3.0
10
• Coming from single tenant OSE 2
• Set up OSE 3 proof of concept
– Single shared node pool
– Not multitenant
Too big to
succeed
Self
service
OSE 3.1:
OVS
multitenant
SDN
Multitenant
cluster
PoC
Openshift
3.0

11. Multitenant cluster
11
• Multiple partners:
– organization or government institution
• Multiple tenants per partner
Too big to
succeed
Self
service
OSE 3.1:
OVS
multitenant
SDN
Multitenant
cluster
PoC
Openshift
3.0

12. Define: tenant
• Tenant has
– Multiple teams
– Different access
rights per team
– Multiple
applications
12

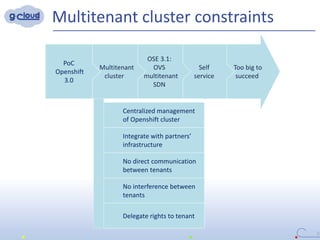

13. Too big to
succeed
Self
service
OSE 3.1:
OVS
multitenant
SDN
Multitenant
cluster
Multitenant cluster constraints
13
PoC
Openshift
3.0
Centralized management
of Openshift cluster
No direct communication
between tenants
Integrate with partners’
infrastructure
No interference between
tenants
Delegate rights to tenant

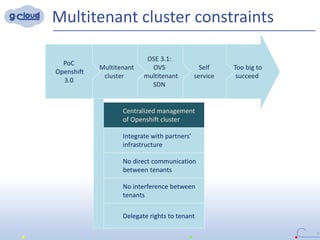

14. Too big to
succeed
Self
service
OSE 3.1:
OVS
multitenant
SDN
Multitenant
cluster
Multitenant cluster constraints
14
PoC
Openshift
3.0
Centralized management
of Openshift cluster
No direct communication
between tenants
Integrate with partners’
infrastructure
No interference between
tenants
Delegate rights to tenant

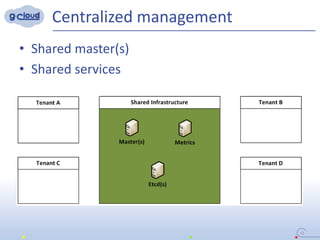

15. Centralized management
• Shared master(s)
• Shared services
15

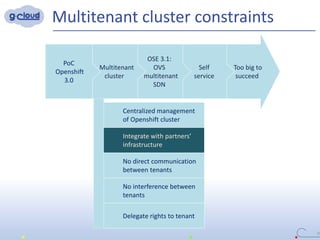

16. Too big to
succeed
Self
service
OSE 3.1:
OVS
multitenant
SDN
Multitenant
cluster
Multitenant cluster constraints
16
PoC
Openshift
3.0
Centralized management
of Openshift cluster
No direct communication
between tenants
Integrate with partners’
infrastructure
No interference between
tenants
Delegate rights to tenant

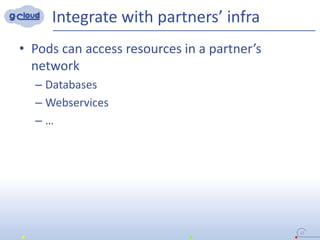

17. Integrate with partners’ infra
• Pods can access resources in a partner’s
network
– Databases
– Webservices
– …
17

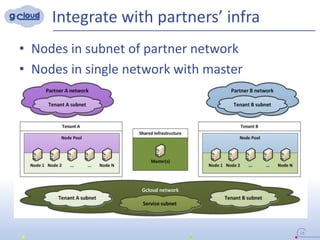

18. Integrate with partners’ infra
• Nodes in subnet of partner network
• Nodes in single network with master
18

19. Too big to
succeed
Self
service
OSE 3.1:
OVS
multitenant
SDN
Multitenant
cluster
Multitenant cluster constraints
19
PoC
Openshift
3.0
Centralized management
of Openshift cluster
No direct communication
between tenants
Integrate with partners’
infrastructure
No interference between
tenants
Delegate rights to tenant

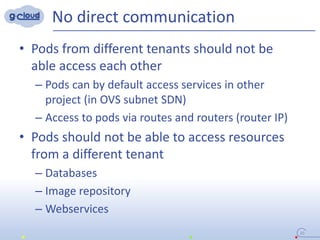

20. No direct communication
• Pods from different tenants should not be
able access each other
– Pods can by default access services in other
project (in OVS subnet SDN)
– Access to pods via routes and routers (router IP)
• Pods should not be able to access resources
from a different tenant
– Databases
– Image repository
– Webservices
20

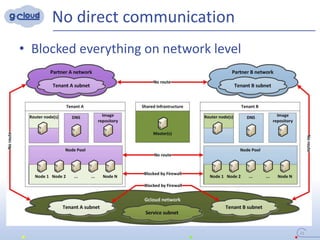

21. No direct communication
• Blocked everything on network level
21

22. Too big to
succeed
Self
service
OSE 3.1:
OVS
multitenant
SDN
Multitenant
cluster
Multitenant cluster constraints
22
PoC
Openshift
3.0
Centralized management
of Openshift cluster
No direct communication
between tenants
Integrate with partners’
infrastructure
No interference between
tenants
Delegate rights to tenant

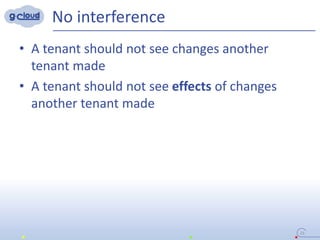

23. No interference
• A tenant should not see changes another
tenant made
• A tenant should not see effects of changes
another tenant made
23

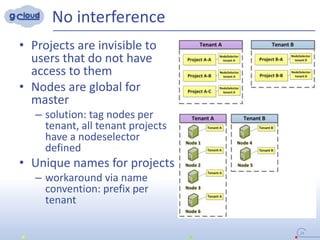

24. No interference
• Projects are invisible to
users that do not have
access to them
• Nodes are global for
master
– solution: tag nodes per
tenant, all tenant projects
have a nodeselector
defined
• Unique names for projects
– workaround via name
convention: prefix per
tenant
24

25. Too big to
succeed
Self
service
OSE 3.1:
OVS
multitenant
SDN
Multitenant
cluster

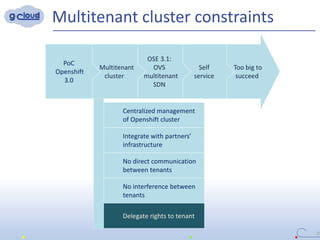

Multitenant cluster constraints
25
PoC
Openshift
3.0
Centralized management
of Openshift cluster
No direct communication
between tenants
Integrate with partners’
infrastructure
No interference between
tenants
Delegate rights to tenant

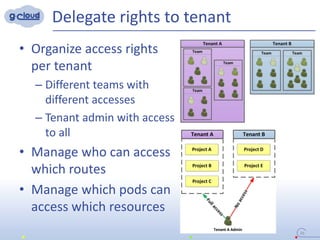

26. Delegate rights to tenant
• Organize access rights
per tenant
– Different teams with
different accesses
– Tenant admin with access
to all
• Manage who can access
which routes
• Manage which pods can
access which resources
26

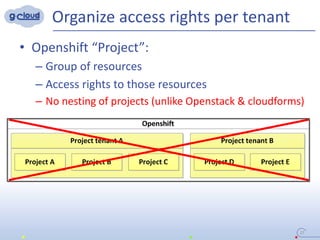

27. Organize access rights per tenant
27
• Openshift “Project”:
– Group of resources
– Access rights to those resources
– No nesting of projects (unlike Openstack & cloudforms)

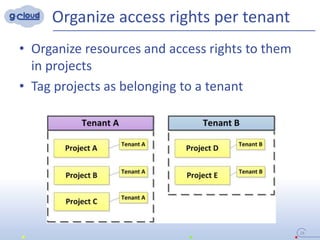

28. Organize access rights per tenant
• Organize resources and access rights to them
in projects
• Tag projects as belonging to a tenant
28

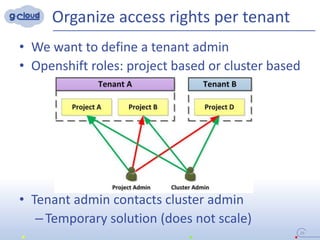

29. Organize access rights per tenant
• We want to define a tenant admin
• Openshift roles: project based or cluster based
• Tenant admin contacts cluster admin
–Temporary solution (does not scale)
29

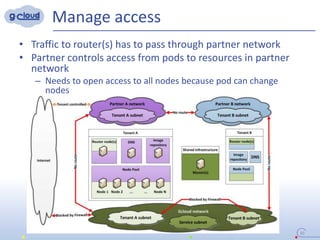

30. Manage access
• Traffic to router(s) has to pass through partner network
• Partner controls access from pods to resources in partner
network
– Needs to open access to all nodes because pod can change
nodes
30

31. OVS Multitenant SDN
31
• Use new feature “OVS multitenant SDN”?
– Would partially solve No direct communication
– We can only limit access to router based on IP
address, we still have to limit access based on node
instead of on pod
• Large impact if implemented
• Decided to wait for other solutions
Too big to
succeed
Self
service
OSE 3.1:
OVS
multitenant
SDN
Multitenant
cluster
PoC
Openshift
3.0

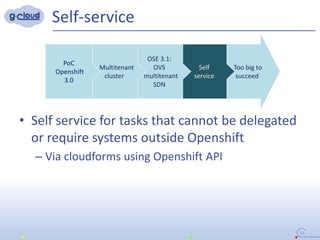

32. Self-service
33
• Self service for tasks that cannot be delegated
or require systems outside Openshift
– Via cloudforms using Openshift API
Too big to
succeed
Self
service
OSE 3.1:
OVS
multitenant
SDN
Multitenant
cluster
PoC
Openshift
3.0

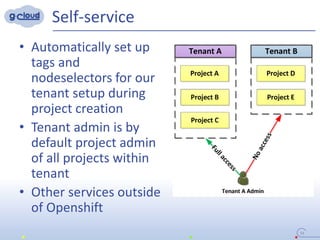

33. Self-service
• Automatically set up
tags and
nodeselectors for our
tenant setup during
project creation
• Tenant admin is by
default project admin
of all projects within
tenant
• Other services outside
of Openshift
34

34. Too big to
succeed
Self
service
OSE 3.1:
OVS
multitenant
SDN
Multitenant
cluster

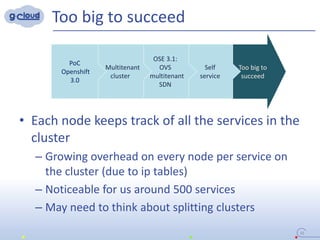

Too big to succeed
35
PoC
Openshift
3.0
• Each node keeps track of all the services in the
cluster
– Growing overhead on every node per service on
the cluster (due to ip tables)
– Noticeable for us around 500 services
– May need to think about splitting clusters

35. Wrapping up
36

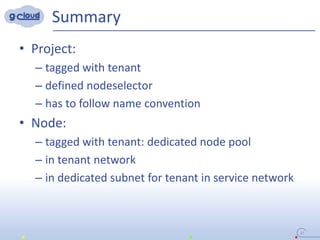

36. Summary
• Project:
– tagged with tenant
– defined nodeselector
– has to follow name convention
• Node:
– tagged with tenant: dedicated node pool
– in tenant network
– in dedicated subnet for tenant in service network
37

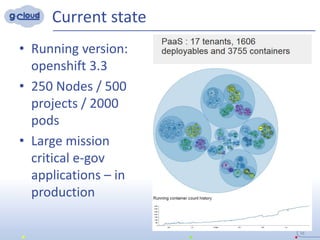

37. Current state
• Running version:
openshift 3.3
• 250 Nodes / 500
projects / 2000
pods
• Large mission
critical e-gov
applications – in
production
38

38. Evaluation of the design
• Good
– Pods are blocked from other tenants' resources
– Pods of one tenant cannot access pods from other tenant
– Integration with existing customer resources
– Standardized framework facilitates scheduling, capacity
planning and reporting
– Single cluster to manage
• Bad
– Dedicated node pools
• Need a buffer per node pool
• Use more nodes compared to a single shared node pool
– Standardized framework: tenant cannot deviate
– Single large cluster: unforeseen overhead (e.g IPtables)
39

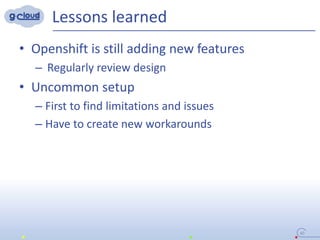

39. Lessons learned
• Openshift is still adding new features
– Regularly review design
• Uncommon setup
– First to find limitations and issues
– Have to create new workarounds
40

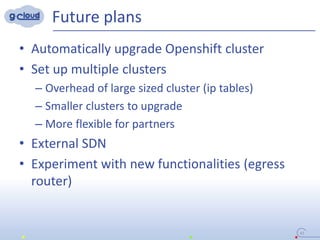

40. Future plans
• Automatically upgrade Openshift cluster
• Set up multiple clusters
– Overhead of large sized cluster (ip tables)
– Smaller clusters to upgrade
– More flexible for partners
• External SDN
• Experiment with new functionalities (egress
router)
41

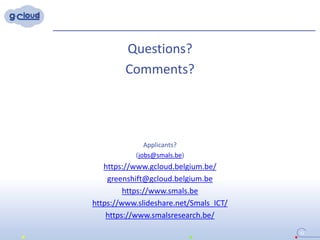

41. Questions?
Comments?
Applicants?
(jobs@smals.be)
https://www.gcloud.belgium.be/
greenshift@gcloud.belgium.be
https://www.smals.be
https://www.slideshare.net/Smals_ICT/
https://www.smalsresearch.be/
42
