Multicluster Kubernetes and Service Mesh Patterns

1. Multi-Cluster Kubernetes and Service Mesh Patterns Christian Posta Field CTO – Solo.io

3. 3 | Copyright © 2020 Challenges • Improve velocity of teams building and delivering code • Decentralized implementations vs centralized operations • Connect and include existing systems and investments • Improve security posture • Stay within regulations and compliance

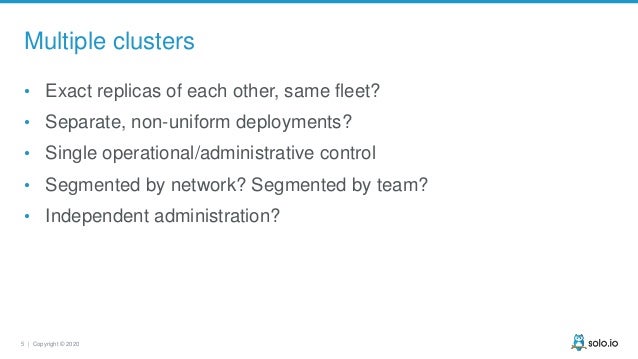

5. 5 | Copyright © 2020 Multiple clusters • Exact replicas of each other, same fleet? • Separate, non-uniform deployments? • Single operational/administrative control • Segmented by network? Segmented by team? • Independent administration?

6. 6 | Copyright © 2020 Cluster federation • Autonomous clusters • Different organizational/network/administrative boundaries • Share pieces of configuration • For those shared pieces, treat union as a single unit • Uses an orchestrator to stitch together policies for federation

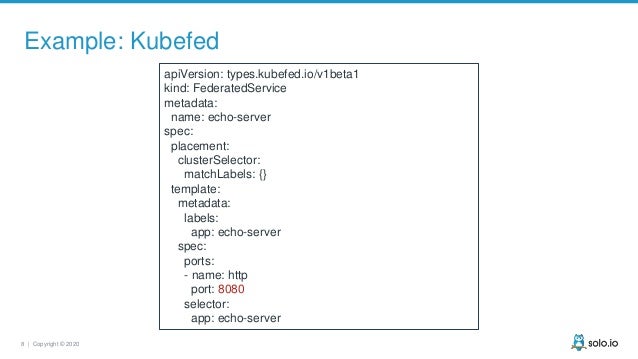

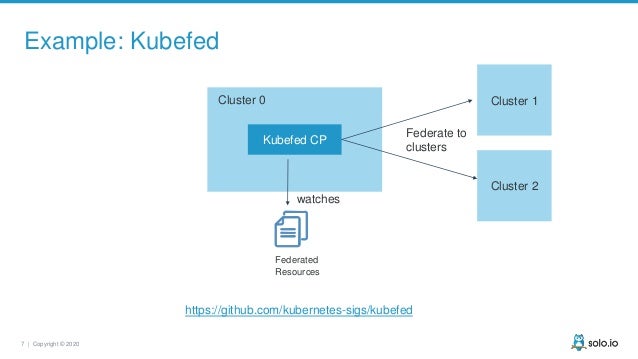

8. 8 | Copyright © 2020 Example: Kubefed apiVersion: types.kubefed.io/v1beta1 kind: FederatedService metadata: name: echo-server spec: placement: clusterSelector: matchLabels: {} template: metadata: labels: app: echo-server spec: ports: - name: http port: 8080 selector: app: echo-server

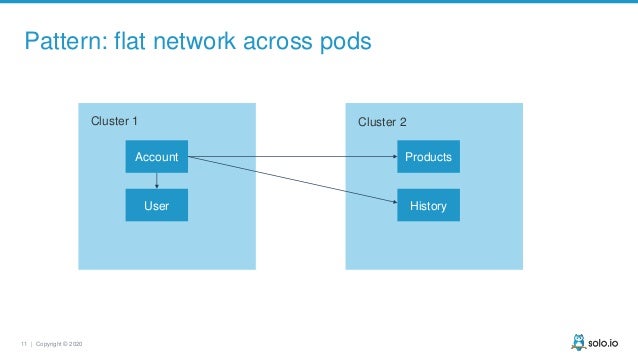

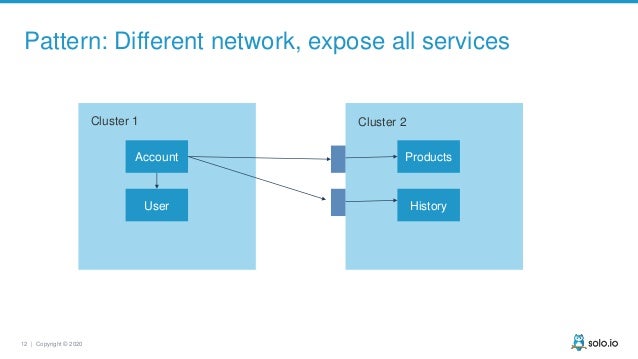

14. 14 | Copyright © 2020 Forces to balance • Security (authz/authn/encryption/identity) • Service discovery • Failover / traffic shifting / transparent routing • Observability • Separate networks • Well-defined fault domains • Building for scale

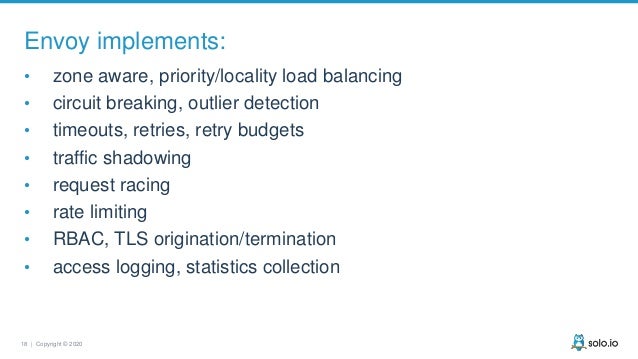

18. 18 | Copyright © 2020 Envoy implements: • zone aware, priority/locality load balancing • circuit breaking, outlier detection • timeouts, retries, retry budgets • traffic shadowing • request racing • rate limiting • RBAC, TLS origination/termination • access logging, statistics collection

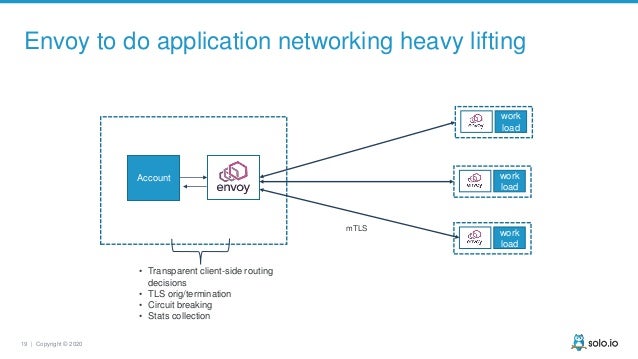

19. 19 | Copyright © 2020 Envoy to do application networking heavy lifting Account work load work load work load mTLS • Transparent client-side routing decisions • TLS orig/termination • Circuit breaking • Stats collection

21. 21 | Copyright © 2020 Other key Envoy proxying features • Request hedging • Retry Budgets • Load balancing priorities • Locality weighted load balancing • Zone aware routing • Degraded endpoints (fallback) • Aggregated clusters

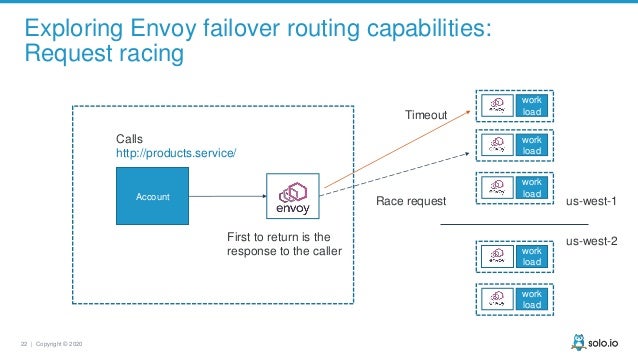

22. 22 | Copyright © 2020 Exploring Envoy failover routing capabilities: Request racing Account work load work load work load Calls http://products.service/ work load work load us-west-1 us-west-2 Timeout Race request First to return is the response to the caller

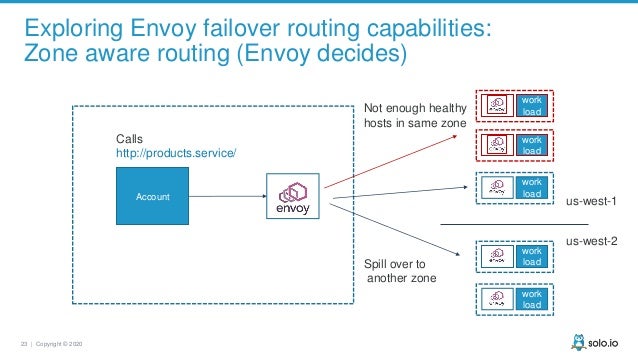

23. 23 | Copyright © 2020 Exploring Envoy failover routing capabilities: Zone aware routing (Envoy decides) Account work load work load work load Calls http://products.service/ work load work load us-west-1 us-west-2 Not enough healthy hosts in same zone Spill over to another zone

24. 24 | Copyright © 2020 Exploring Envoy failover routing capabilities: Locality aware (Control plane decides) Account work load work load work load Calls http://products.service/ work load work load us-west-1 us-west-2 Not enough healthy hosts in same zone Spill over to another zone W=1 W=1 W=1 W=5 W=5

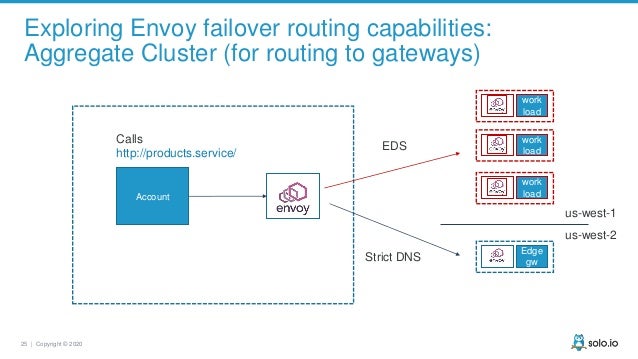

25. 25 | Copyright © 2020 Exploring Envoy failover routing capabilities: Aggregate Cluster (for routing to gateways) Account work load work load work load Calls http://products.service/ Edge gw us-west-1 us-west-2 EDS Strict DNS

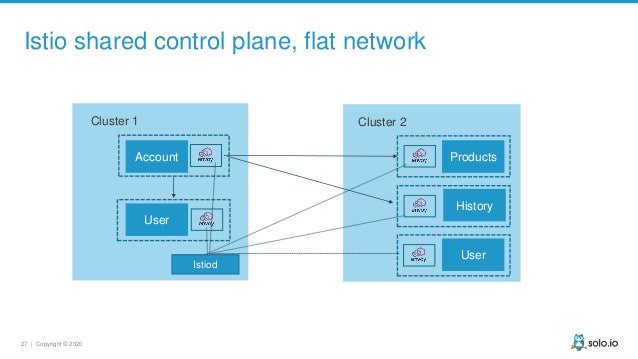

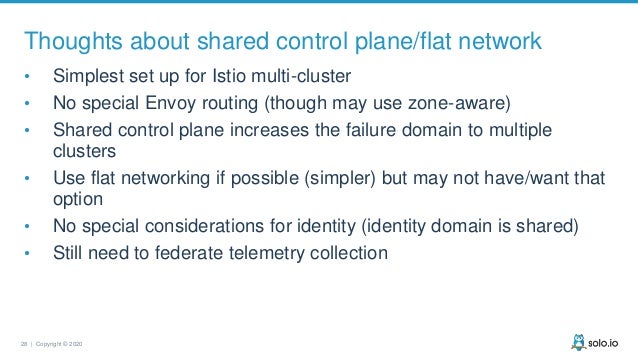

28. 28 | Copyright © 2020 Thoughts about shared control plane/flat network • Simplest set up for Istio multi-cluster • No special Envoy routing (though may use zone-aware) • Shared control plane increases the failure domain to multiple clusters • Use flat networking if possible (simpler) but may not have/want that option • No special considerations for identity (identity domain is shared) • Still need to federate telemetry collection

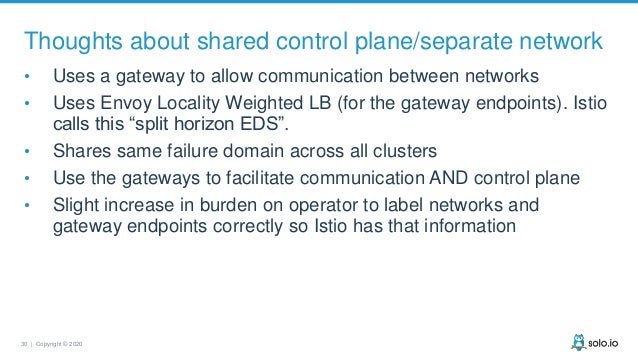

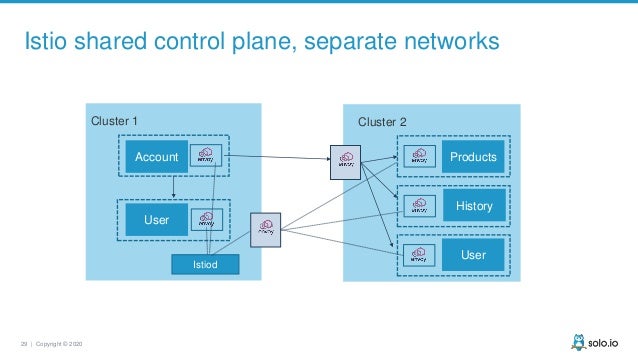

30. 30 | Copyright © 2020 Thoughts about shared control plane/separate network • Uses a gateway to allow communication between networks • Uses Envoy Locality Weighted LB (for the gateway endpoints). Istio calls this “split horizon EDS”. • Shares same failure domain across all clusters • Use the gateways to facilitate communication AND control plane • Slight increase in burden on operator to label networks and gateway endpoints correctly so Istio has that information

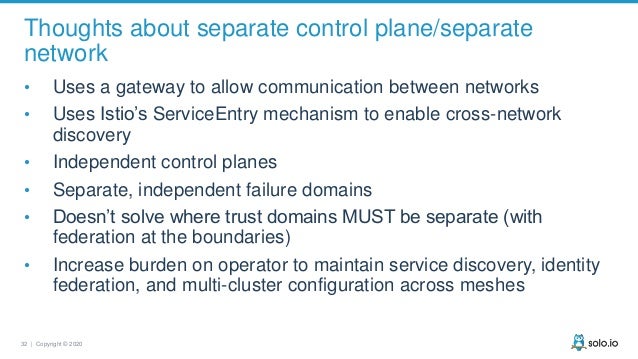

32. 32 | Copyright © 2020 Thoughts about separate control plane/separate network • Uses a gateway to allow communication between networks • Uses Istio’s ServiceEntry mechanism to enable cross-network discovery • Independent control planes • Separate, independent failure domains • Doesn’t solve where trust domains MUST be separate (with federation at the boundaries) • Increase burden on operator to maintain service discovery, identity federation, and multi-cluster configuration across meshes

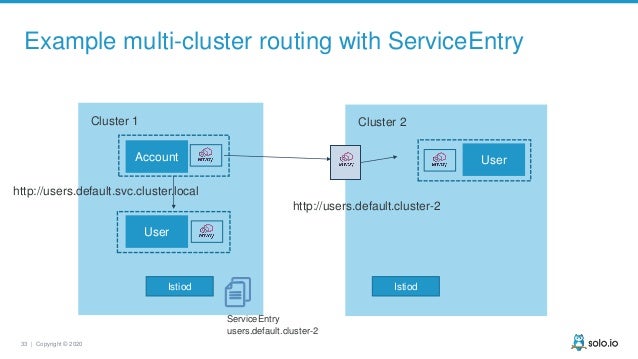

33. 33 | Copyright © 2020 Account Cluster 1 Cluster 2 User User Istiod Example multi-cluster routing with ServiceEntry Istiod http://users.default.svc.cluster.local http://users.default.cluster-2 ServiceEntry users.default.cluster-2

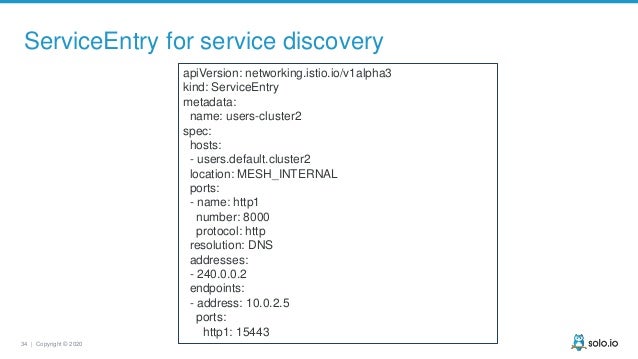

34. 34 | Copyright © 2020 ServiceEntry for service discovery apiVersion: networking.istio.io/v1alpha3 kind: ServiceEntry metadata: name: users-cluster2 spec: hosts: - users.default.cluster2 location: MESH_INTERNAL ports: - name: http1 number: 8000 protocol: http resolution: DNS addresses: - 240.0.0.2 endpoints: - address: 10.0.2.5 ports: http1: 15443

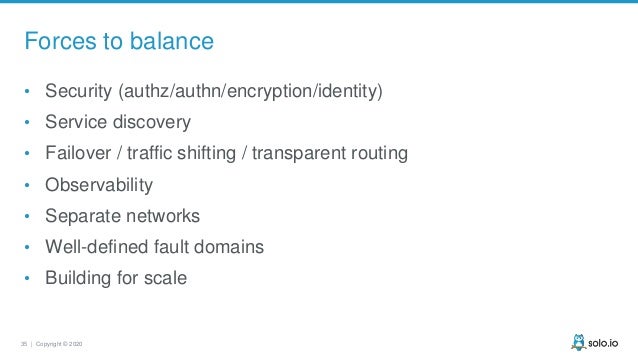

35. 35 | Copyright © 2020 Forces to balance • Security (authz/authn/encryption/identity) • Service discovery • Failover / traffic shifting / transparent routing • Observability • Separate networks • Well-defined fault domains • Building for scale

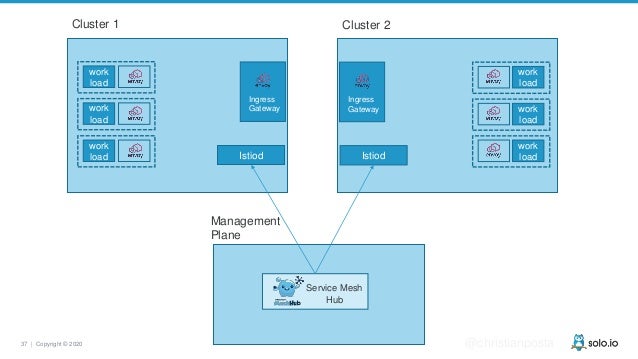

37. 37 | Copyright © 2020 @christianposta Cluster 1 Cluster 2 Istiod work load Ingress Gateway Istiod work load work load work load work load work load Service Mesh Hub Ingress Gateway Management Plane

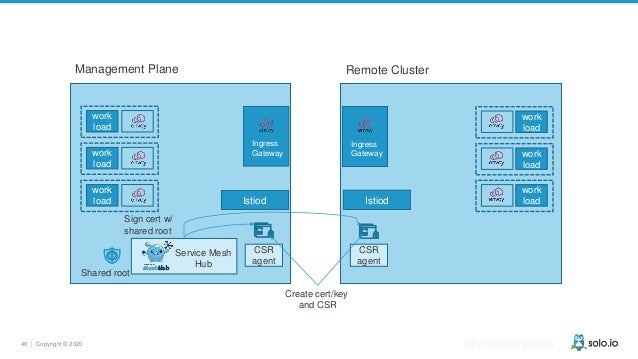

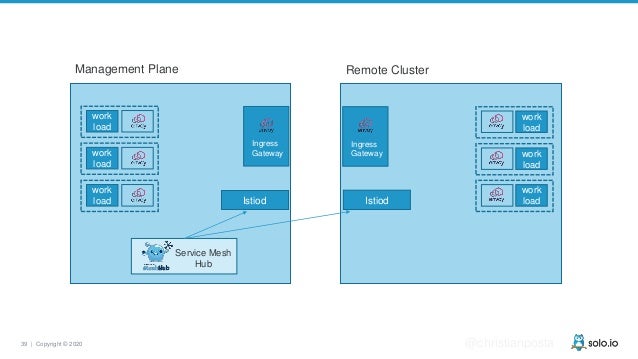

40. 40 | Copyright © 2020 @christianposta Istiod work load Ingress Gateway Istiod work load work load work load work load work load Service Mesh Hub CSR agent CSR agent Create cert/key and CSR Sign cert w/ shared root Shared root Ingress Gateway Management Plane Remote Cluster

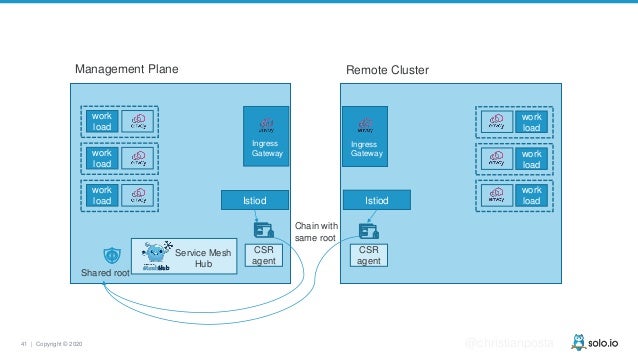

41. 41 | Copyright © 2020 @christianposta Istiod work load Ingress Gateway Istiod work load work load work load work load work load Service Mesh Hub CSR agent CSR agent Shared root Ingress Gateway Chain with same root Management Plane Remote Cluster
