201404 Multimodal Detection of Affective States: A Roadmap Through Diverse Technologies

Multimodal Detection of Affective States:
A Roadmap Through Diverse Technologies
Javier Gonzalez-Sanchez, Maria-Elena Chavez-Echeagaray
Robert Atkinson, Winslow Burleson
!
!
School of Computing, Informatics, and Decision Systems Engineering
Arizona State University
Tempe, Arizona, USA
Permission to make digital or hard copies of part or all of this work for personal or classroom use is granted without fee provided that copies are not made or
distributed for profit or commercial advantage and that copies bear this notice and the full citation on the first page. Copyrights for third-party components of this work
must be honored. For all other uses, contact the owner/author(s). Copyright is held by the author/owner(s).
CHI 2014, April 26–May 1, 2014, Toronto, Ontario, Canada. ACM 14/04
1

Advancing Next Generation Learning Environments Lab
&
Motivational Environments Group
!
School of Computing, Informatics, and Decision Systems Engineering
Arizona State University
2
About Us

This work was supported by Ofﬁce of Naval Research under

Grant N00014-10-1-0143

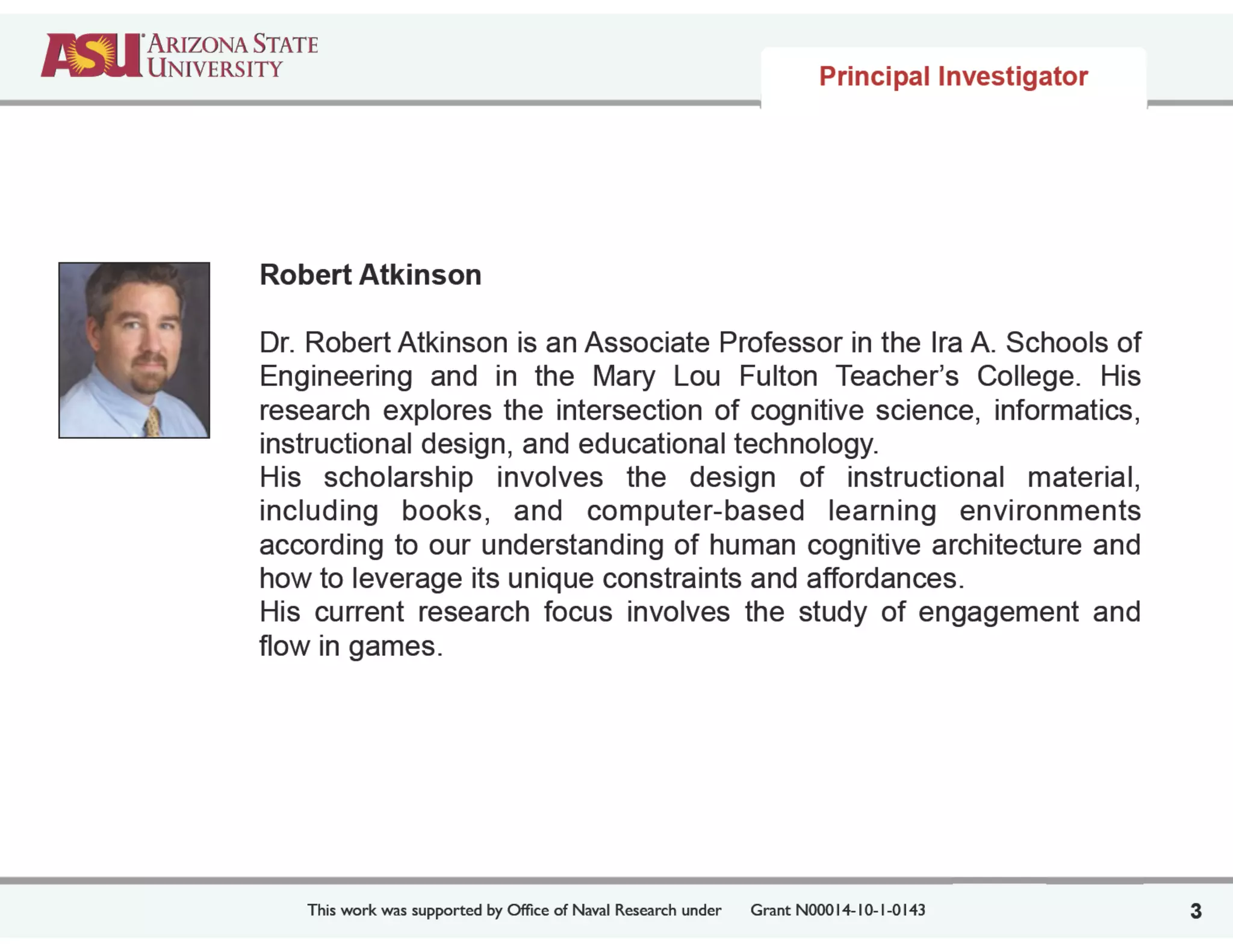

Robert Atkinson
!
Dr. Robert Atkinson is an Associate Professor in the Ira A. Schools of
Engineering and in the Mary Lou Fulton Teacher’s College. His
research explores the intersection of cognitive science, informatics,
instructional design, and educational technology.
His scholarship involves the design of instructional material,
including books, and computer-based learning environments
according to our understanding of human cognitive architecture and
how to leverage its unique constraints and affordances.
His current research focus involves the study of engagement and
flow in games.
3
Principal Investigator


Grant N00014-10-1-0143
Winslow Burleson
!
Dr. Winslow Burleson received his PhD from the MIT Media Lab,
Affective Computing Group.
He joined ASU's School of Computing and Informatics and the Arts,
Media, and Engineering graduate program at ASU in 2006. He has
worked with the Entrepreneurial Management Unit at the Harvard
Business School, Deutsche Telekom Laboratories, SETI Institute,
and IBM's Almaden Research Center where he was awarded ten
patents.
He holds an MSE from Stanford University's Mechanical Engineering
Product Design Program and a BA in Bio-Physics from Rice
University. He has been a co-Principal Investigator on the Hubble
Space Telescope's Investigation of Binary Asteroids and consultant
to UNICEF and the World Scout Bureau.
4
Principal Investigator


Grant N00014-10-1-0143

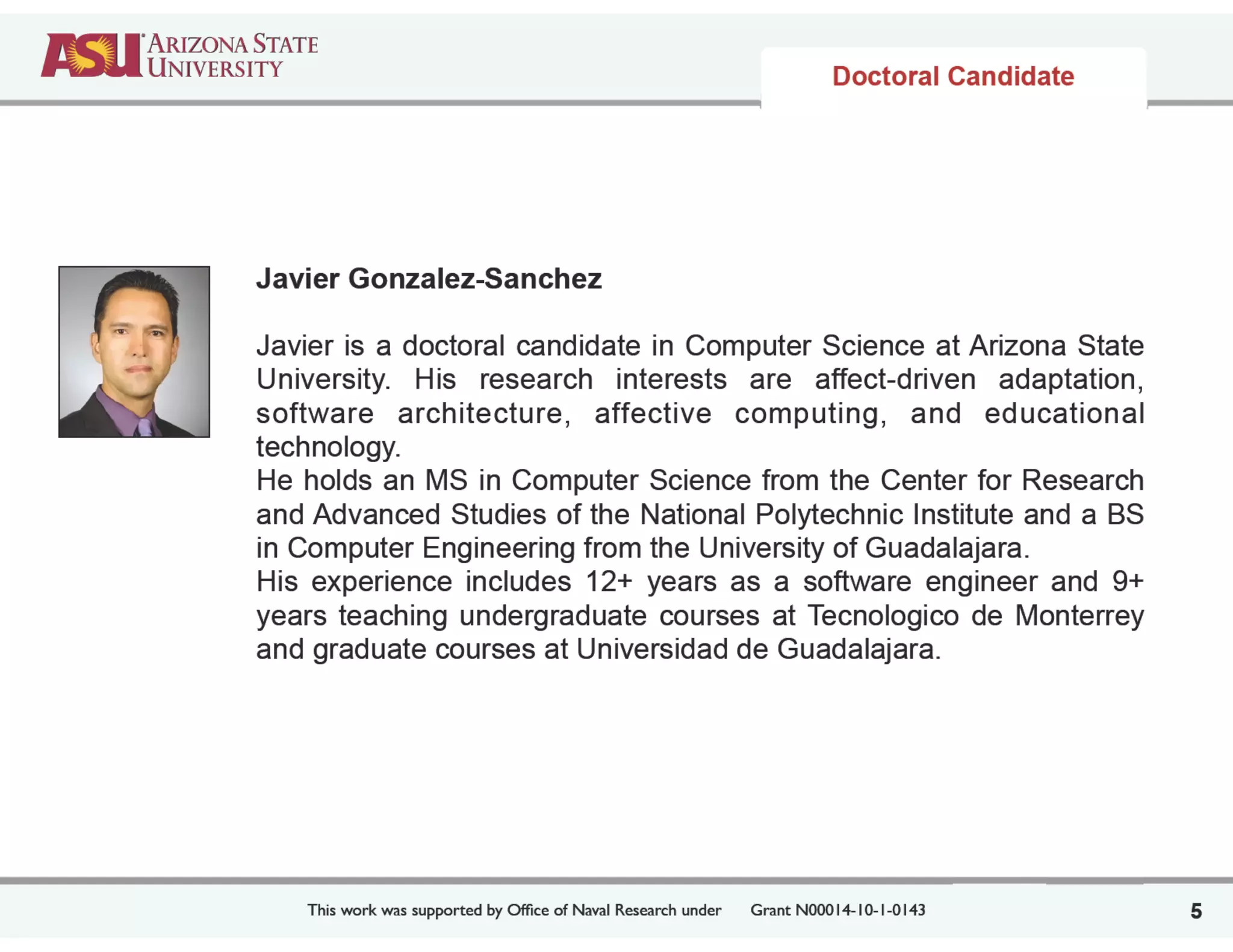

Javier Gonzalez-Sanchez
!
Javier is a doctoral candidate in Computer Science at Arizona State
University. His research interests are affect-driven adaptation,
software architecture, affective computing, and educational
technology.
He holds an MS in Computer Science from the Center for Research
and Advanced Studies of the National Polytechnic Institute and a BS
in Computer Engineering from the University of Guadalajara.
His experience includes 12+ years as a software engineer and 9+
years teaching undergraduate courses at Tecnologico de Monterrey
and graduate courses at Universidad de Guadalajara.
5
Doctoral Candidate


Grant N00014-10-1-0143
Helen Chavez-Echeagaray
!
Helen is a doctoral candidate in Computer Science at Arizona State
University. Her interests are in the areas of affective computing,
educational technology (including robotics), and learning processes.
The Tecnológico de Monterrey campus Guadalajara conferred upon
her the degree of MS in Computer Science and the degree of BS in
Computer Systems Engineering.
Before starting her PhD program she was a faculty member for 8+
years at Tecnologico de Monterrey. Her experience includes an
administrative position and software development.
6
Doctoral Candidate

Outline of the Course
7
Preface

Javier Gonzalez-Sanchez | Maria-Elena Chavez-Echeagaray

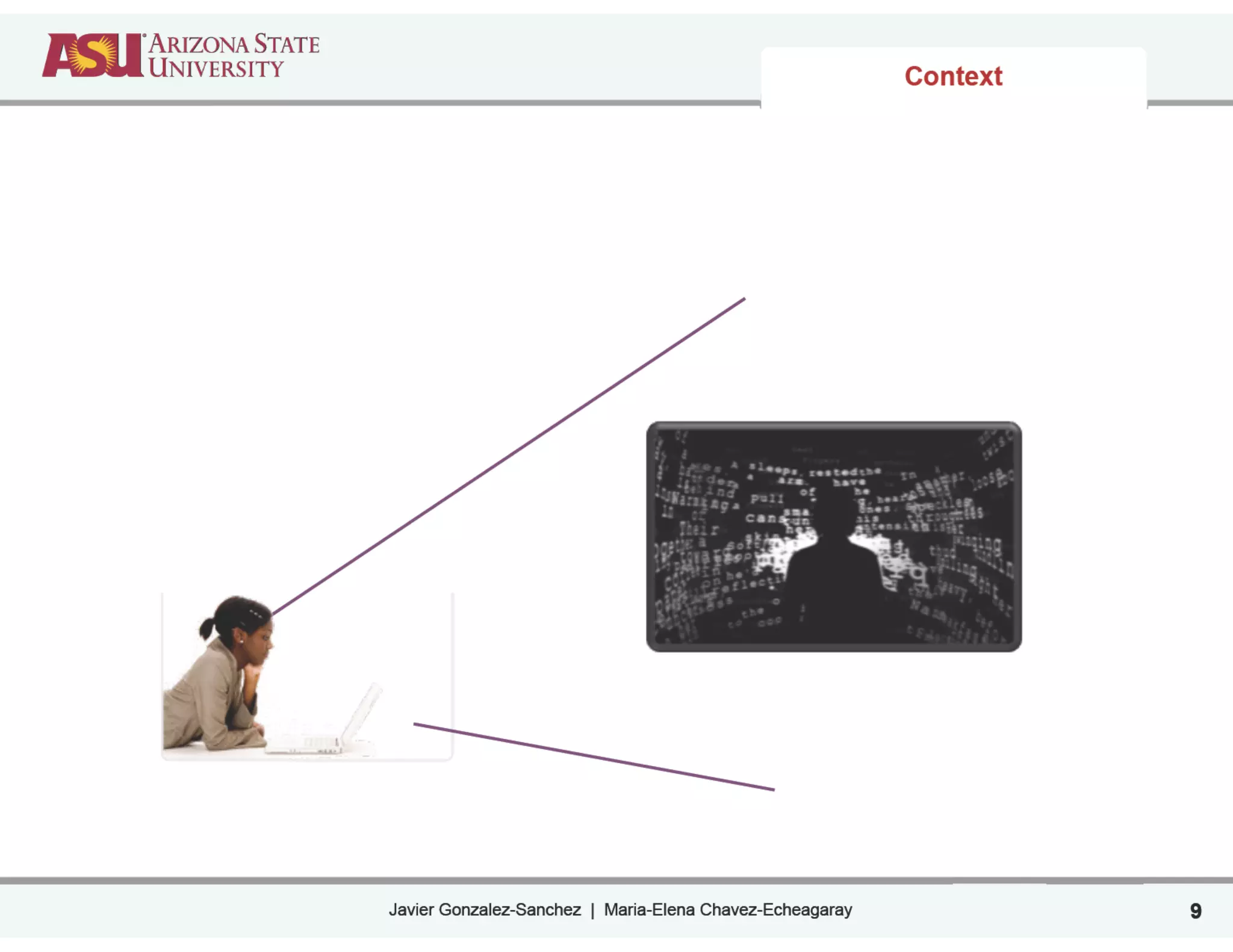

Context
8

Context
9

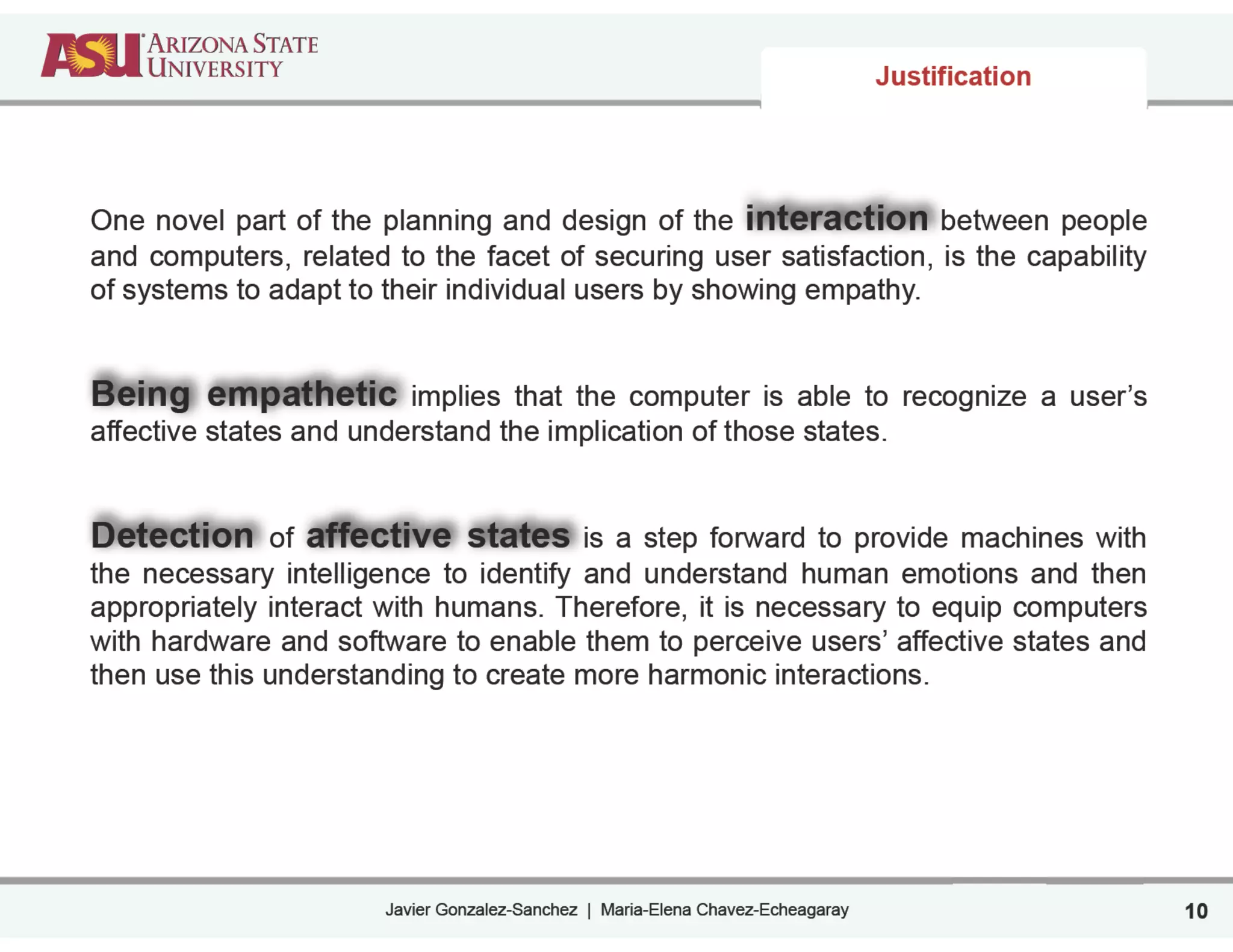

Justification
One novel part of the planning and design of the interaction between people
and computers, related to the facet of securing user satisfaction, is the capability
of systems to adapt to their individual users by showing empathy.
!
!
Being empathetic implies that the computer is able to recognize a user’s
affective states and understand the implication of those states.
!
!
Detection of affective states is a step forward to provide machines with
the necessary intelligence to identify and understand human emotions and then
appropriately interact with humans. Therefore, it is necessary to equip computers
with hardware and software to enable them to perceive users’ affective states and
then use this understanding to create more harmonic interactions.
10

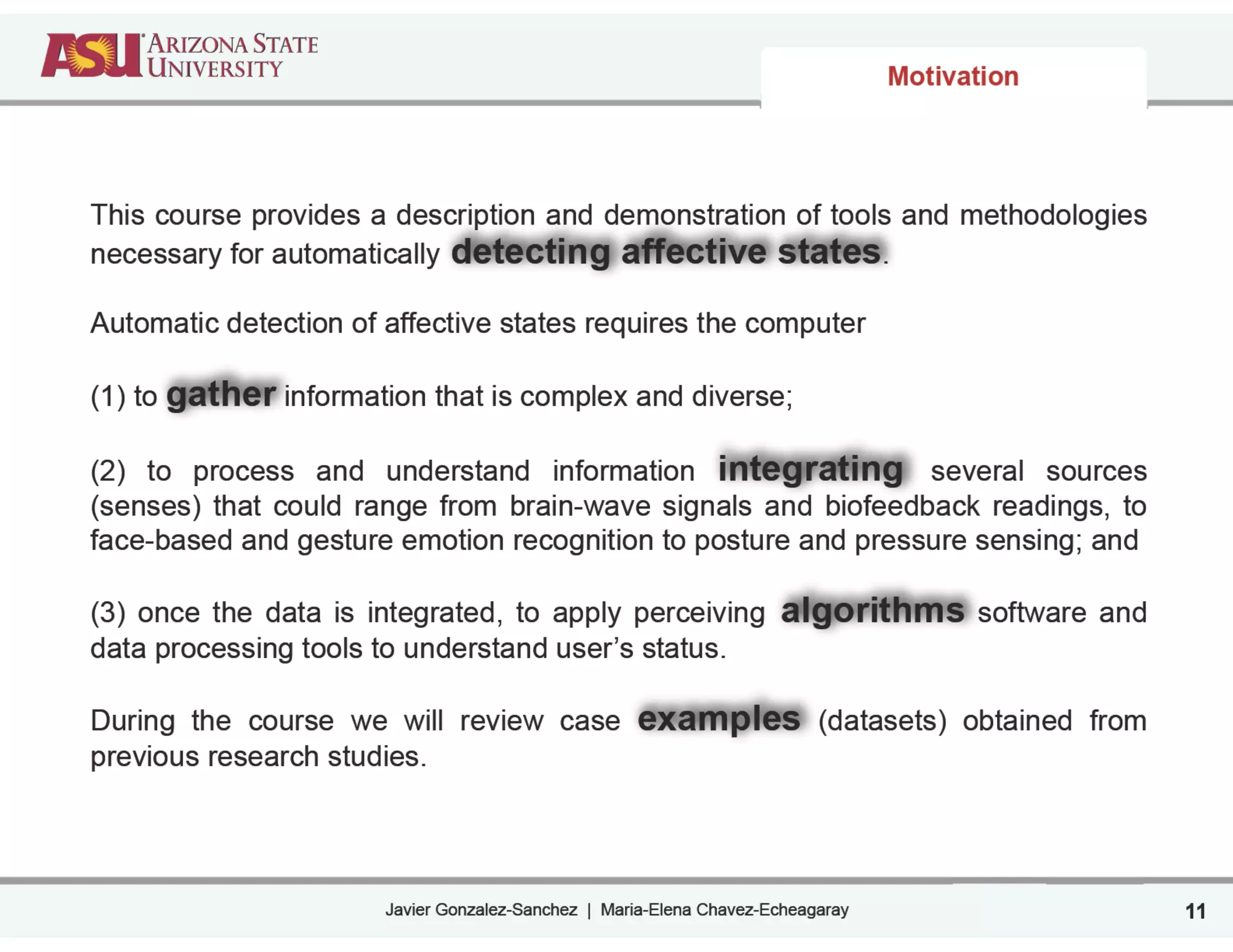

Motivation
This course provides a description and demonstration of tools and methodologies
necessary for automatically detecting affective states.
!
Automatic detection of affective states requires the computer
!
(1) to gather information that is complex and diverse;
!
(2) to process and understand information integrating several sources
(senses) that could range from brain-wave signals and biofeedback readings, to
face-based and gesture emotion recognition to posture and pressure sensing; and
!
(3) once the data is integrated, to apply perceiving algorithms software and
data processing tools to understand user’s status.
!
During the course we will review case examples (datasets) obtained from
previous research studies.
11

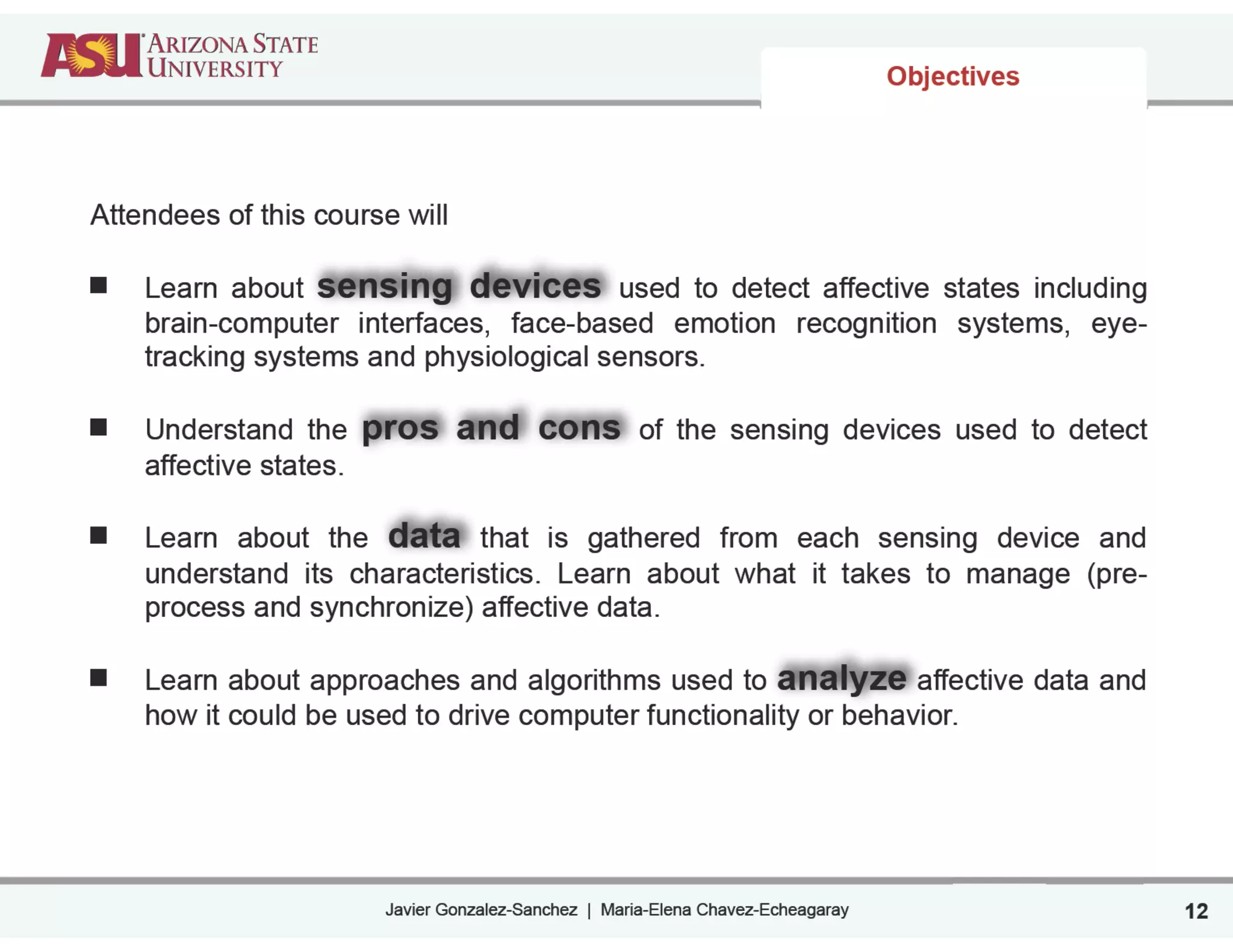

Objectives
Attendees of this course will
!
Learn about sensing devices used to detect affective states including
brain-computer interfaces, face-based emotion recognition systems, eye-
tracking systems and physiological sensors.
!
Understand the pros and cons of the sensing devices used to detect
affective states.
!
Learn about the data that is gathered from each sensing device and
understand its characteristics. Learn about what it takes to manage (pre-
process and synchronize) affective data.
!
Learn about approaches and algorithms used to analyze affective data and
how it could be used to drive computer functionality or behavior.
12

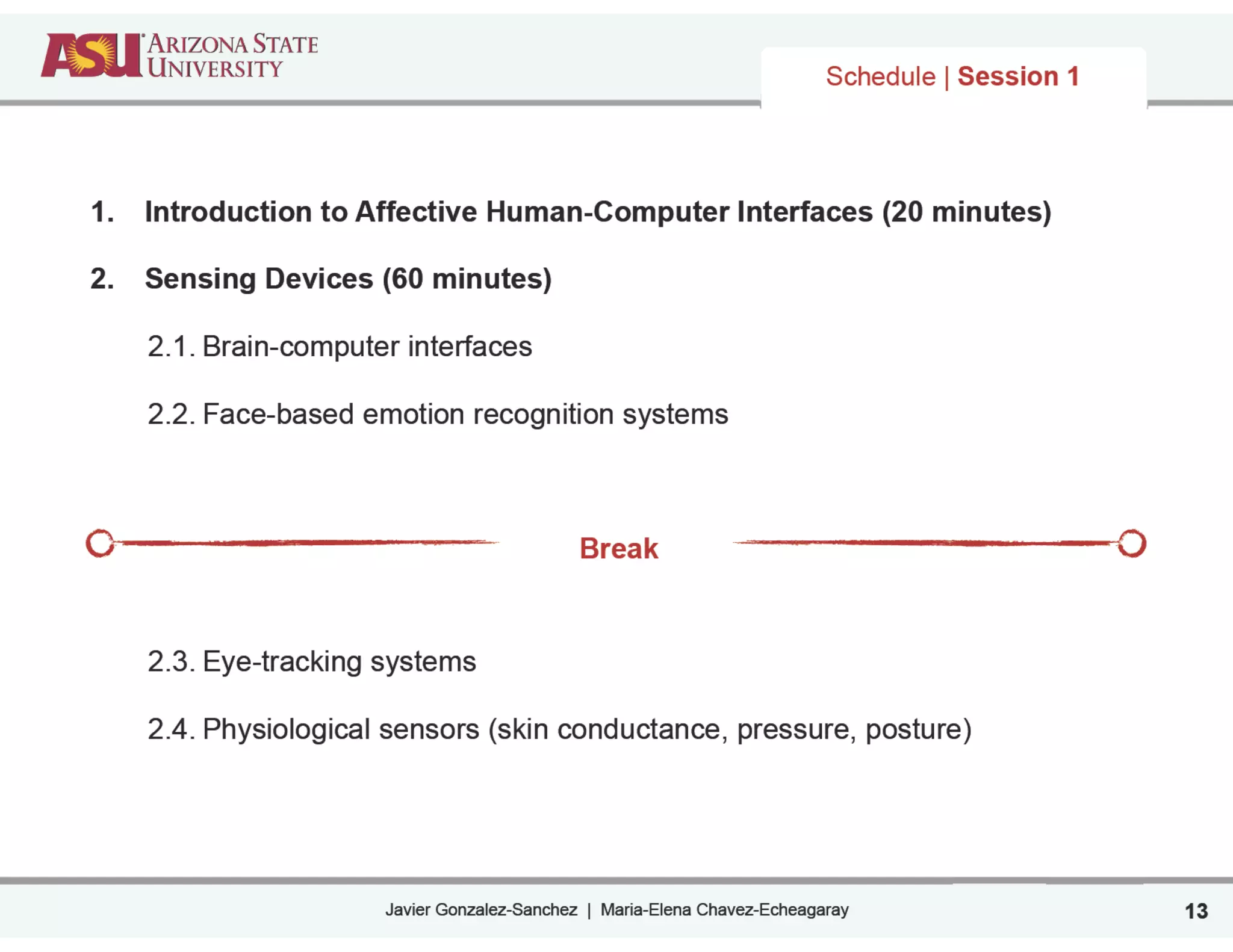

Schedule | Session 1
1. Introduction to Affective Human-Computer Interfaces (20 minutes)
!
2. Sensing Devices (60 minutes)
!
2.1. Brain-computer interfaces
!
2.2. Face-based emotion recognition systems
!
!
Break
!
!
!

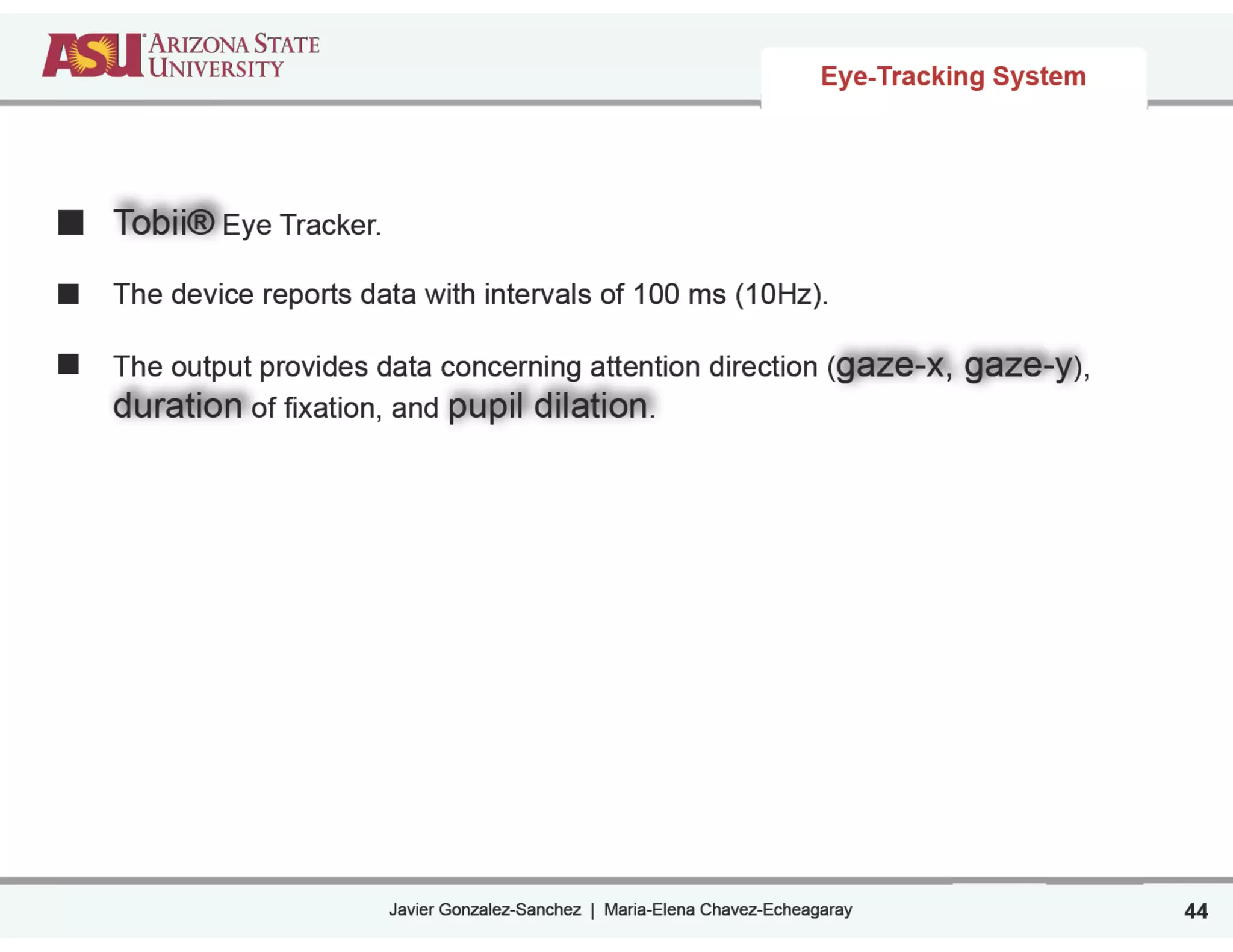

2.3. Eye-tracking systems
!

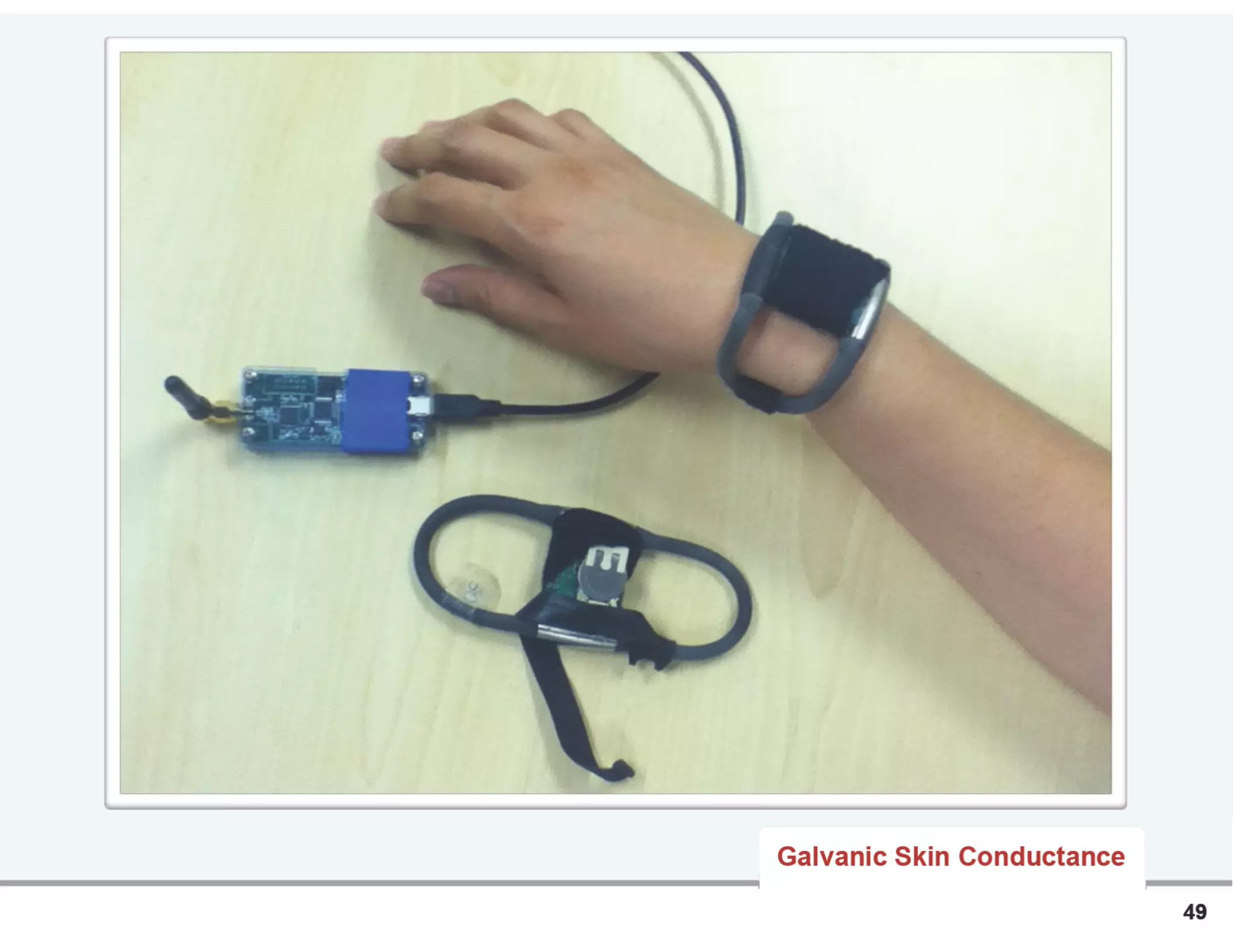

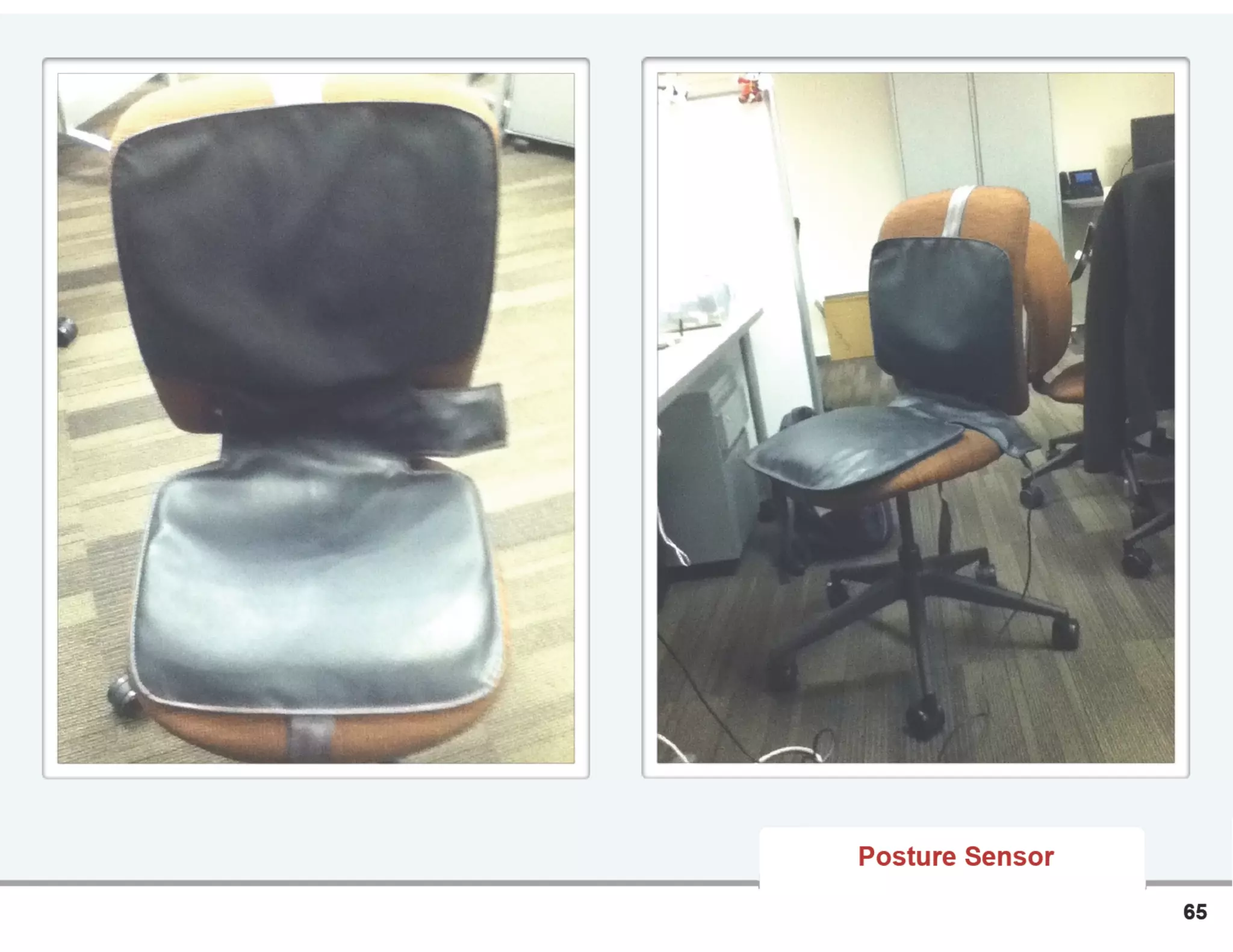

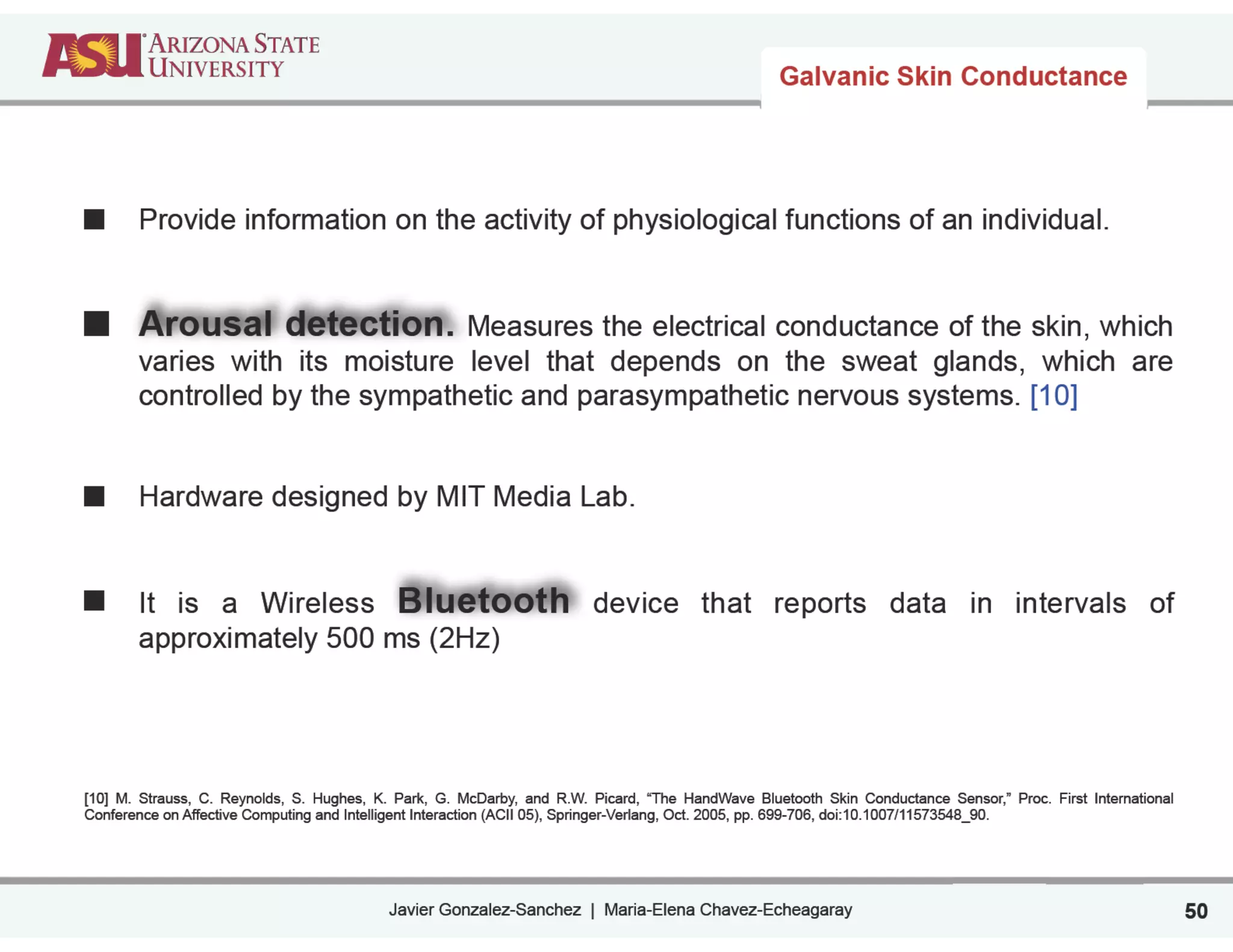

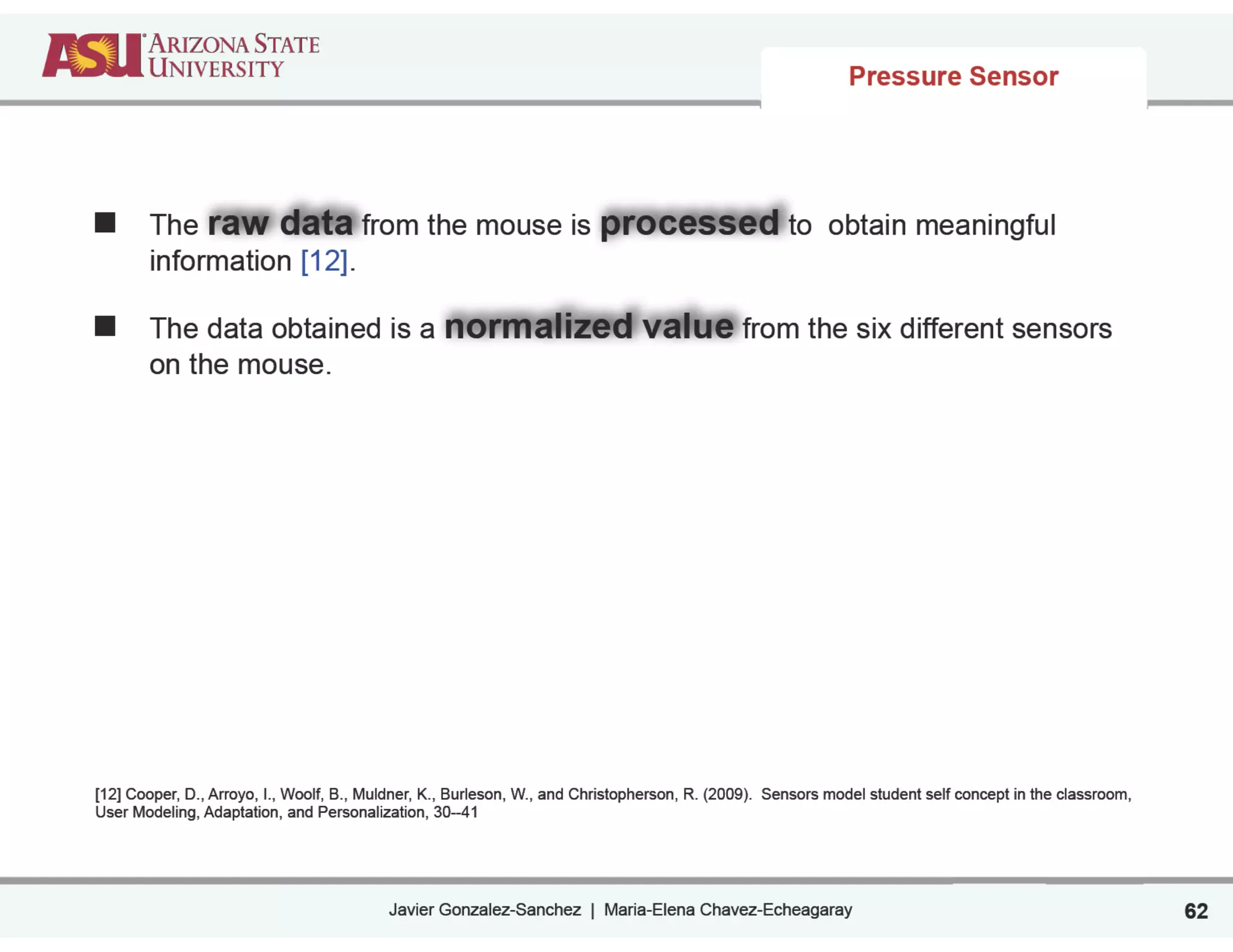

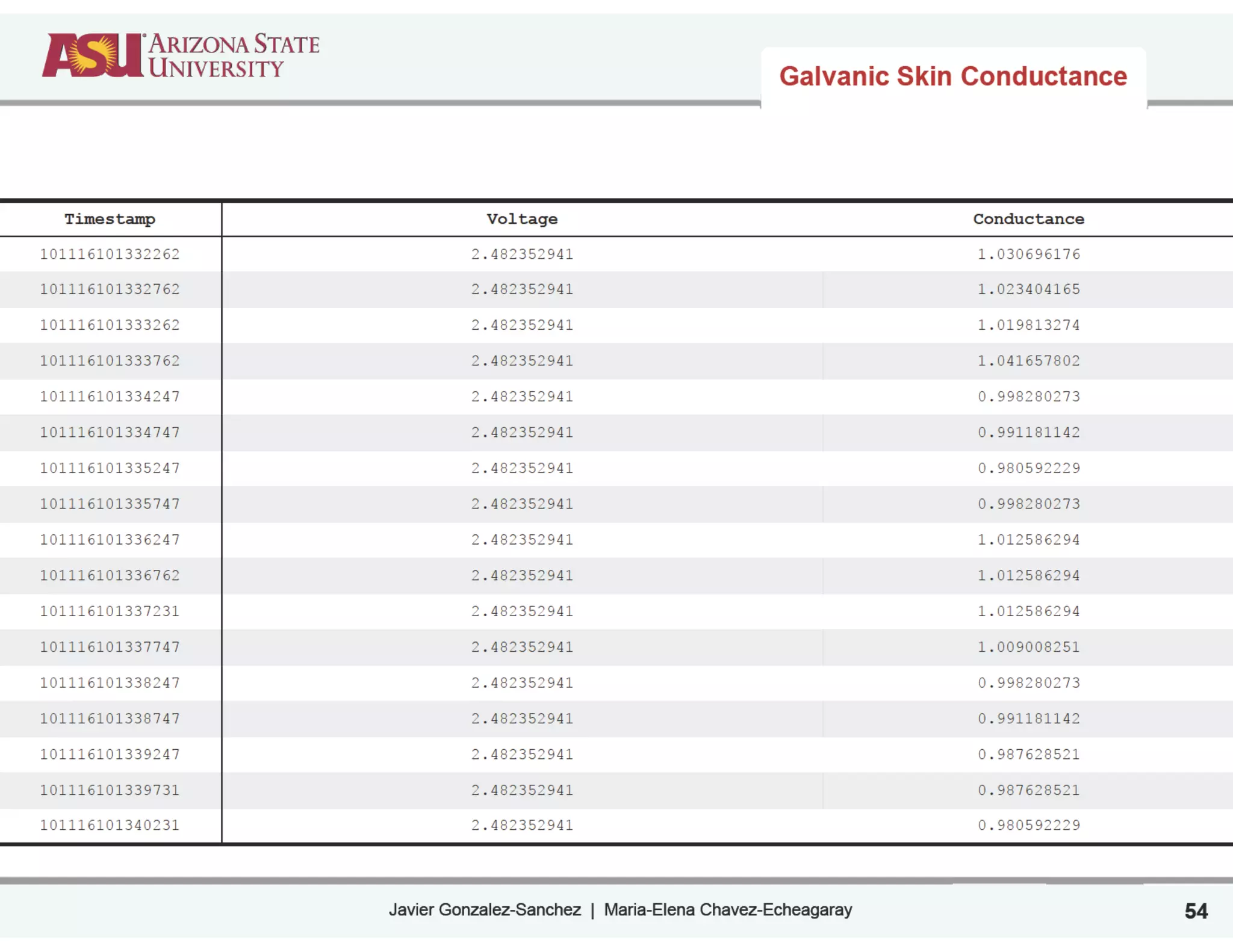

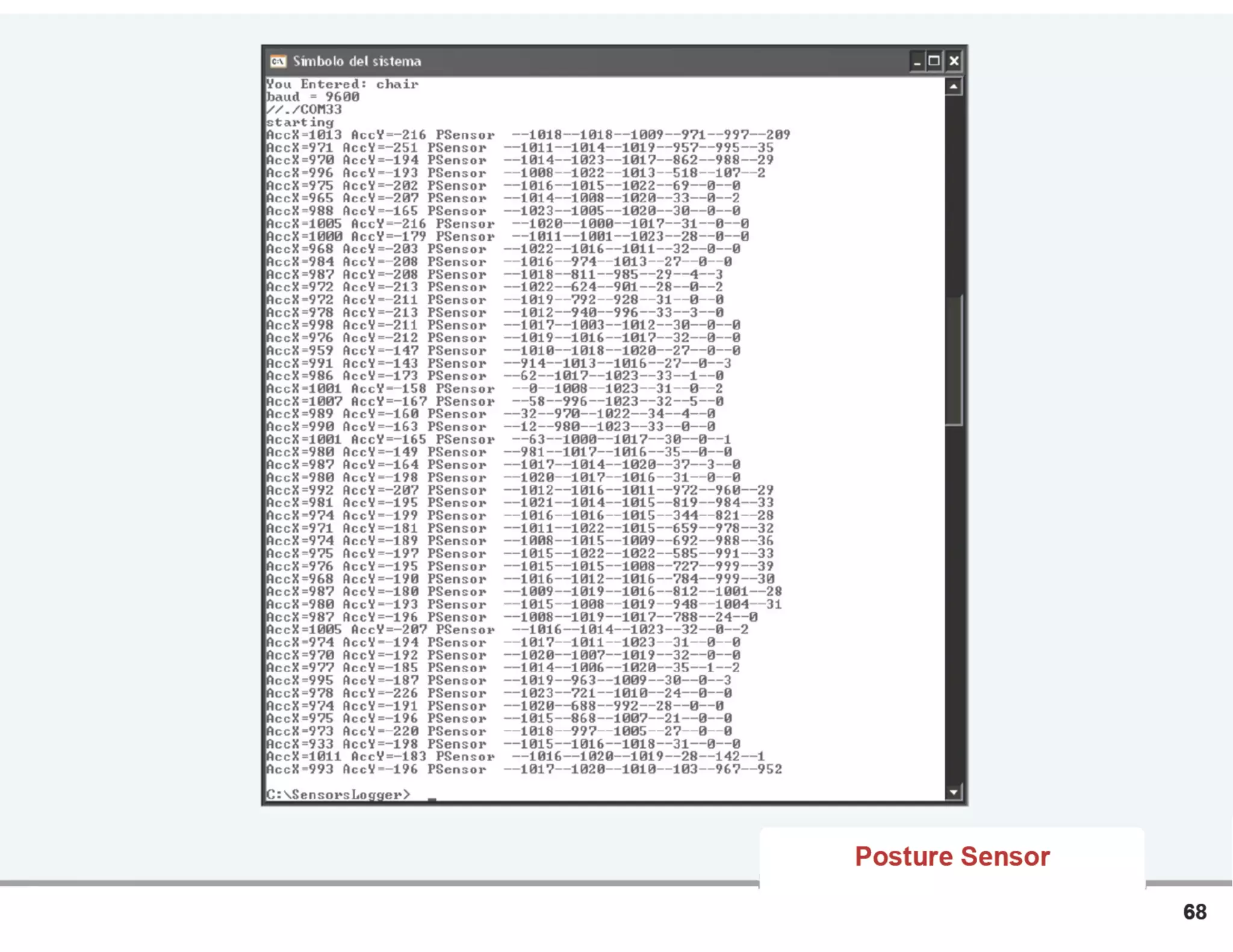

2.4. Physiological sensors (skin conductance, pressure, posture)
13

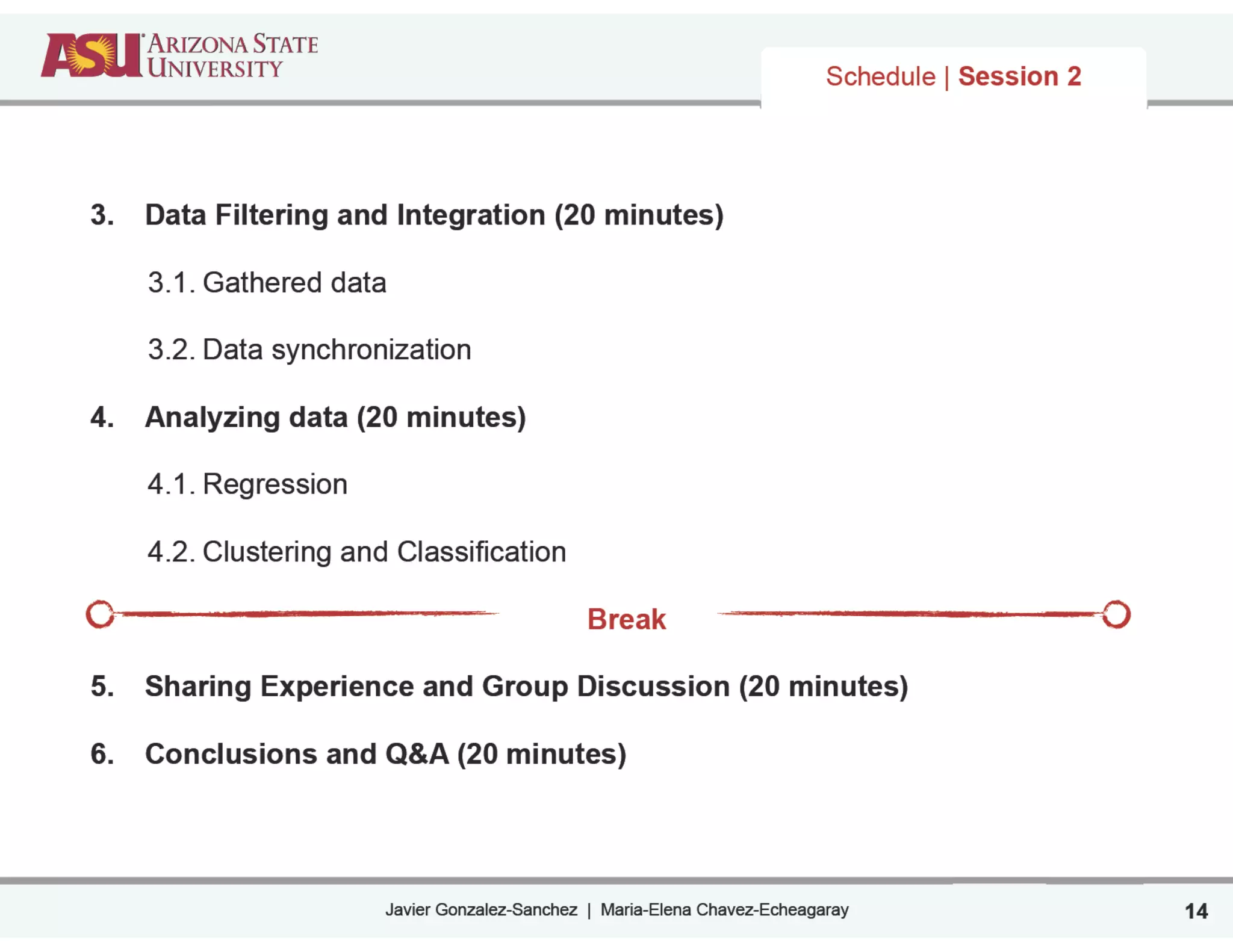

Schedule | Session 2

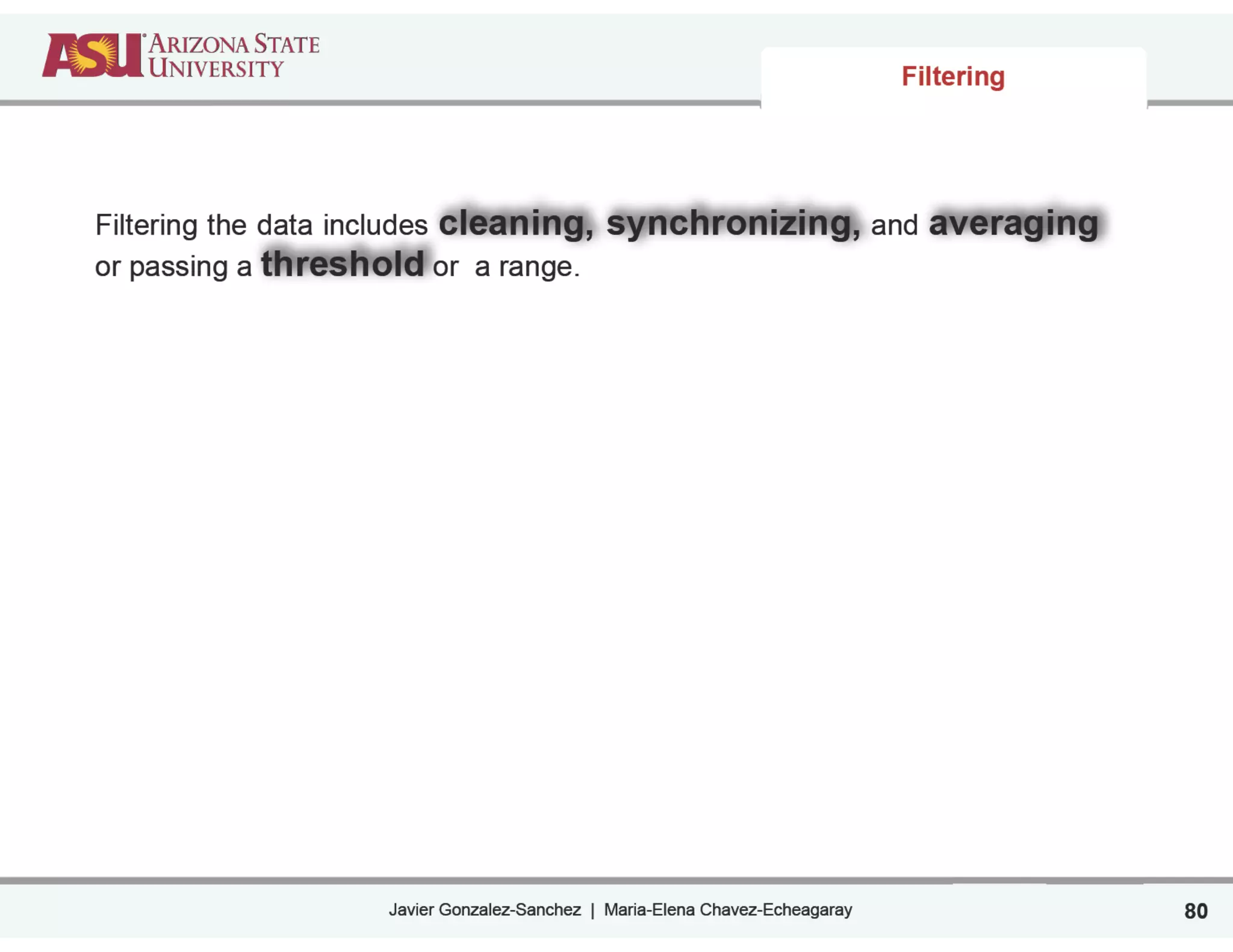

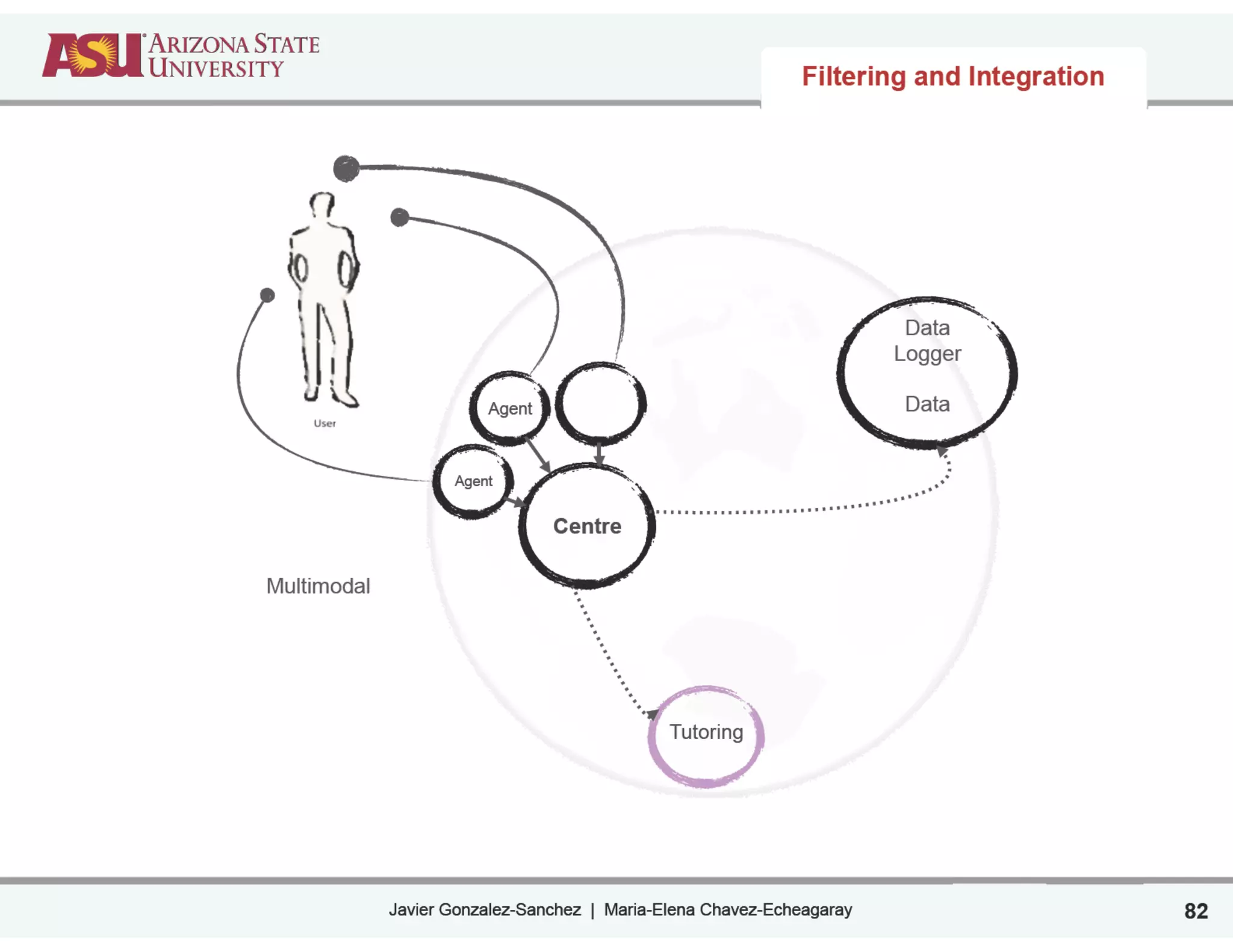

3. Data Filtering and Integration (20 minutes)
!
3.1. Gathered data
!
3.2. Data synchronization
!
4. Analyzing data (20 minutes)
!
4.1. Regression
!

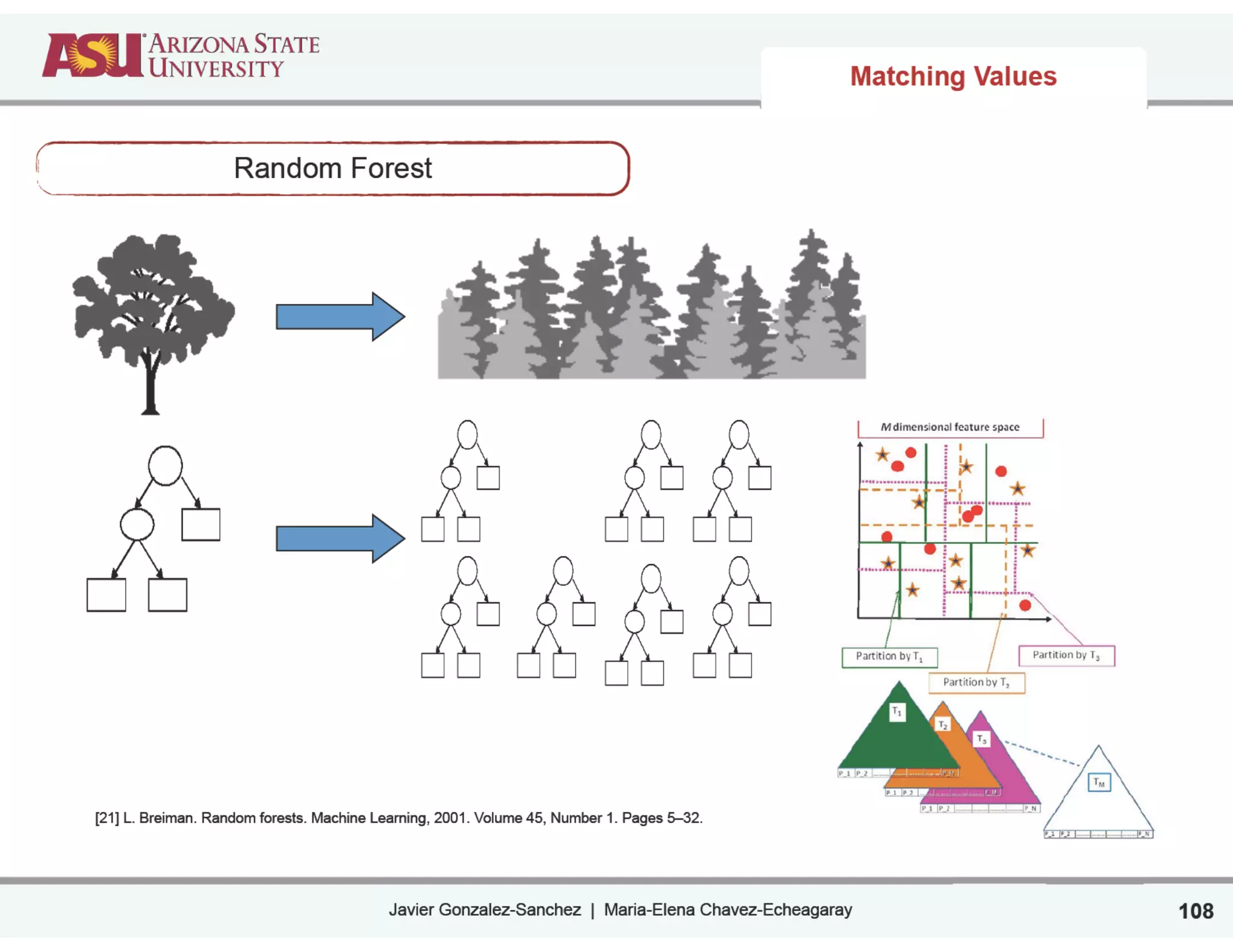

4.2. Clustering and Classification
!
Break
!

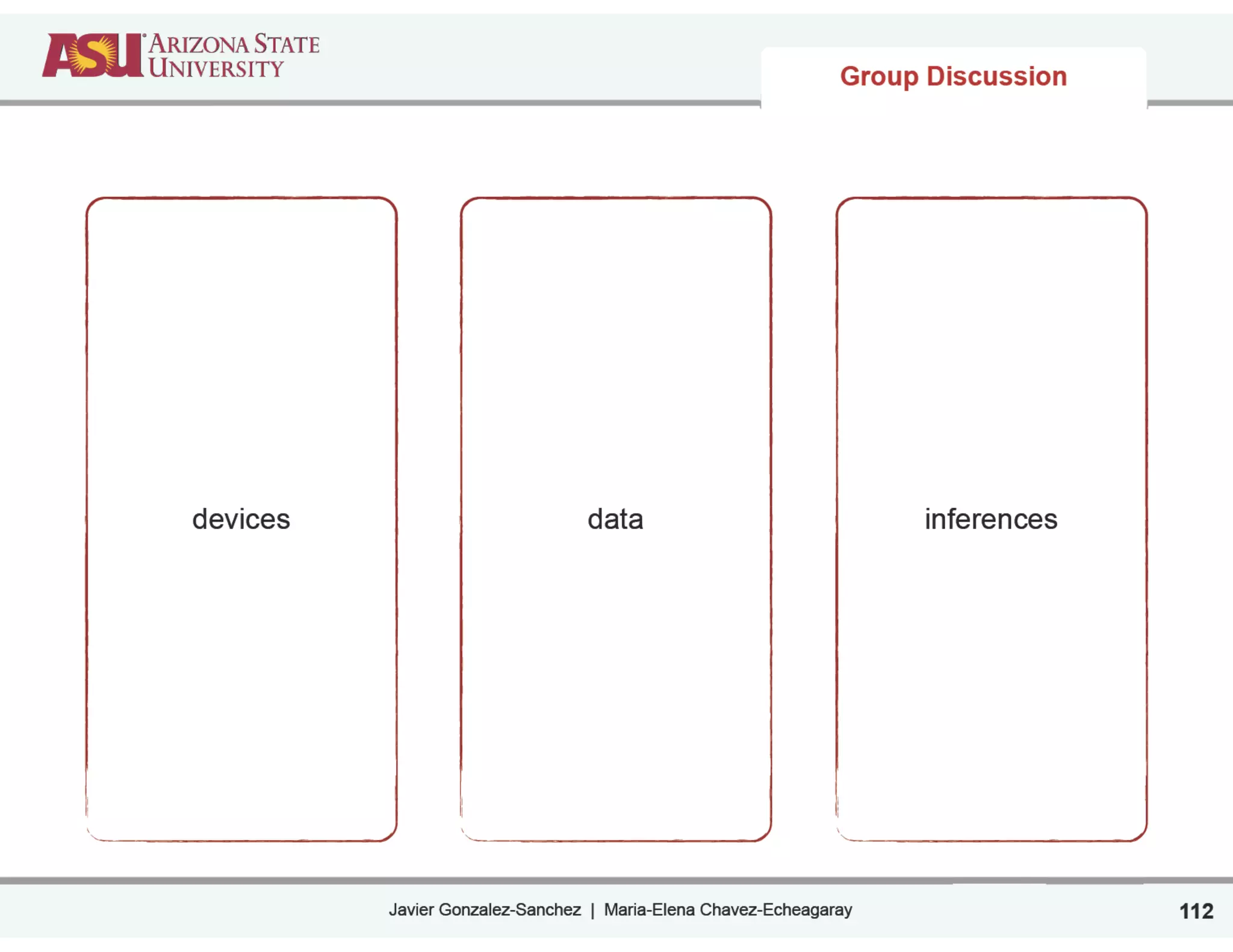

5. Sharing Experience and Group Discussion (20 minutes)
!
6. Conclusions and Q&A (20 minutes)
14

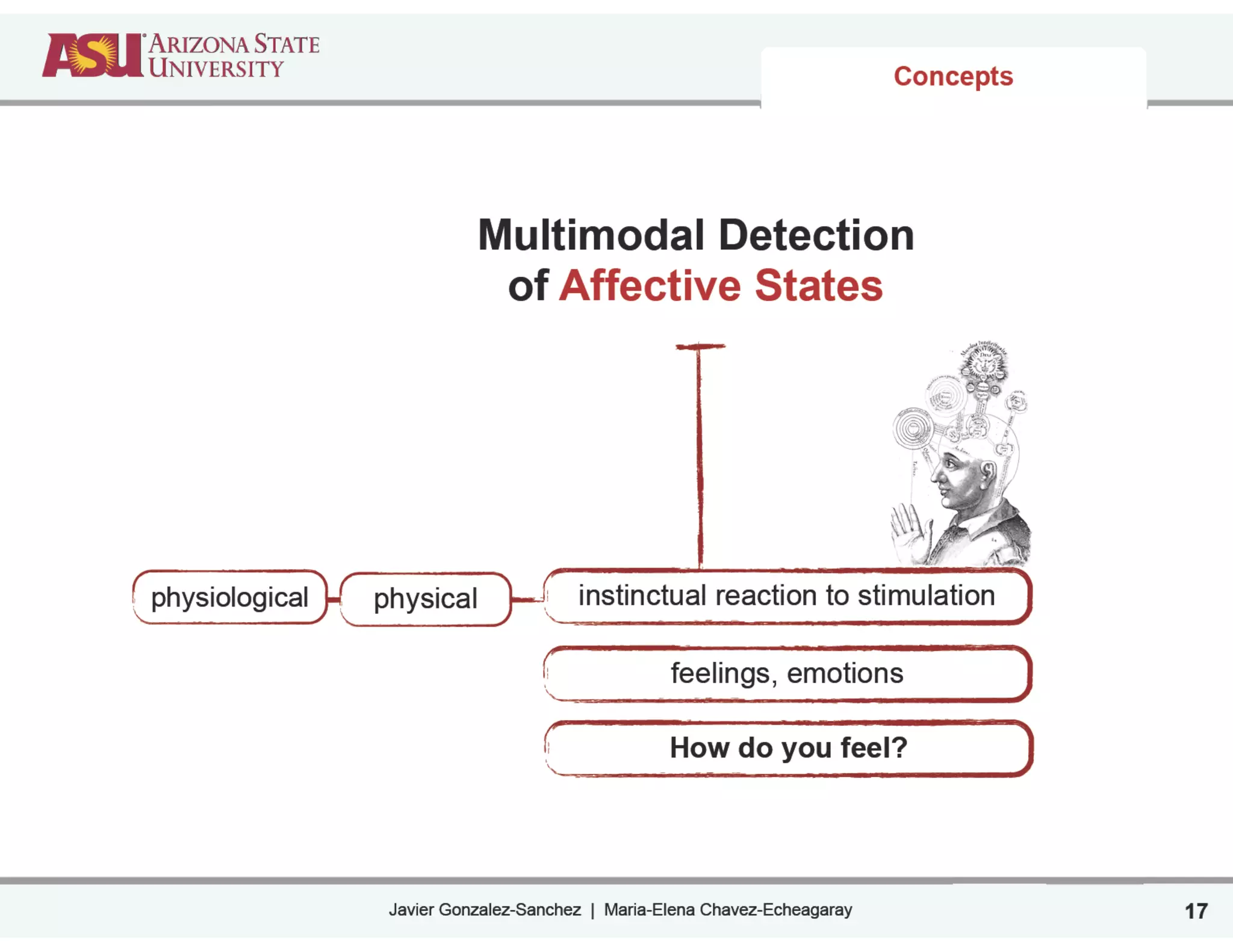

Concepts
Multimodal Detection
of Affective States
instinctual reaction to stimulation
feelings, emotions
How do you feel?
physiological physical
17

Concepts
18

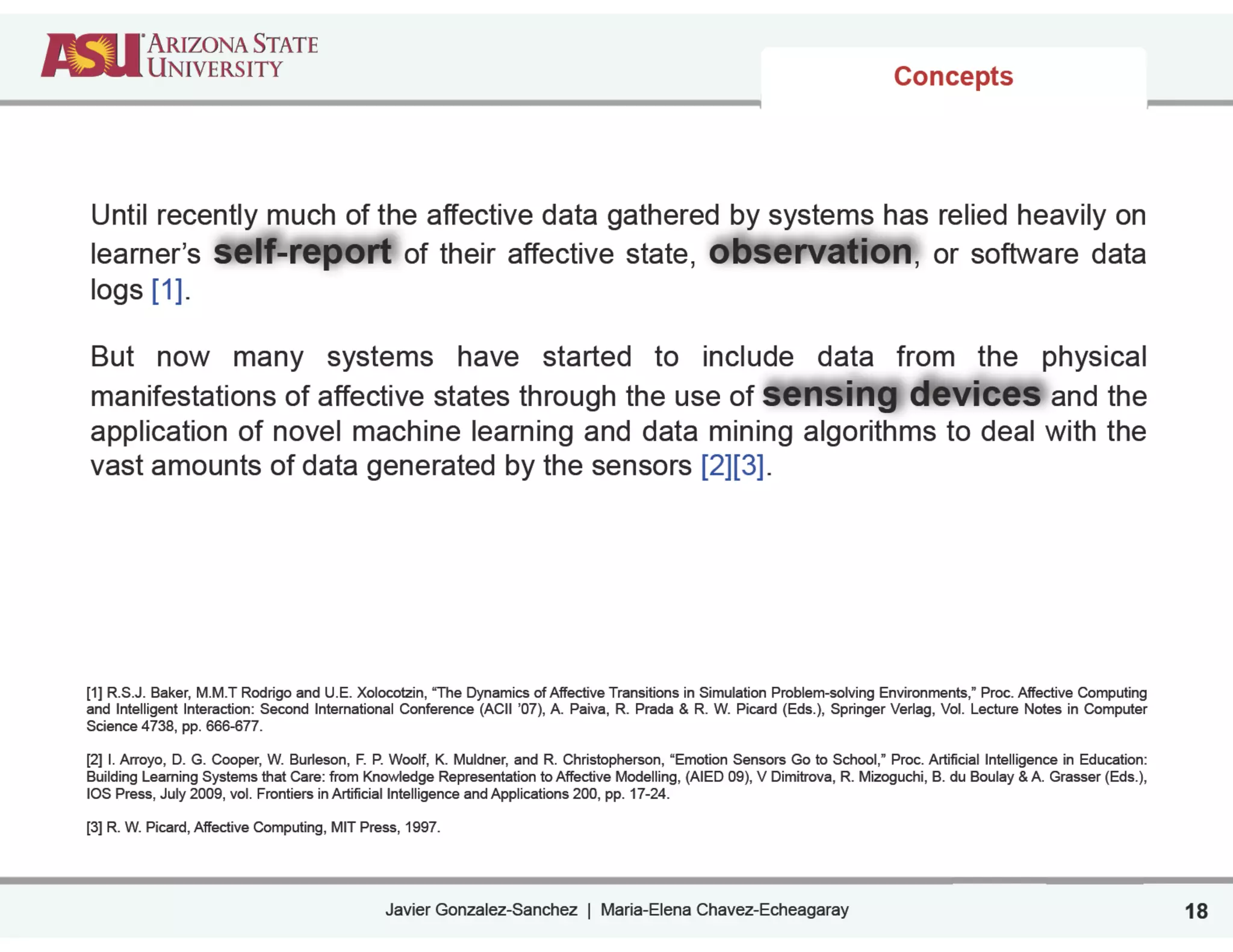

Until recently much of the affective data gathered by systems has relied heavily on
learner’s self-report of their affective state, observation, or software data
logs [1].
!
But now many systems have started to include data from the physical
manifestations of affective states through the use of sensing devices and the
application of novel machine learning and data mining algorithms to deal with the
vast amounts of data generated by the sensors [2][3].
!
!
!
!
!
!
!
!
!

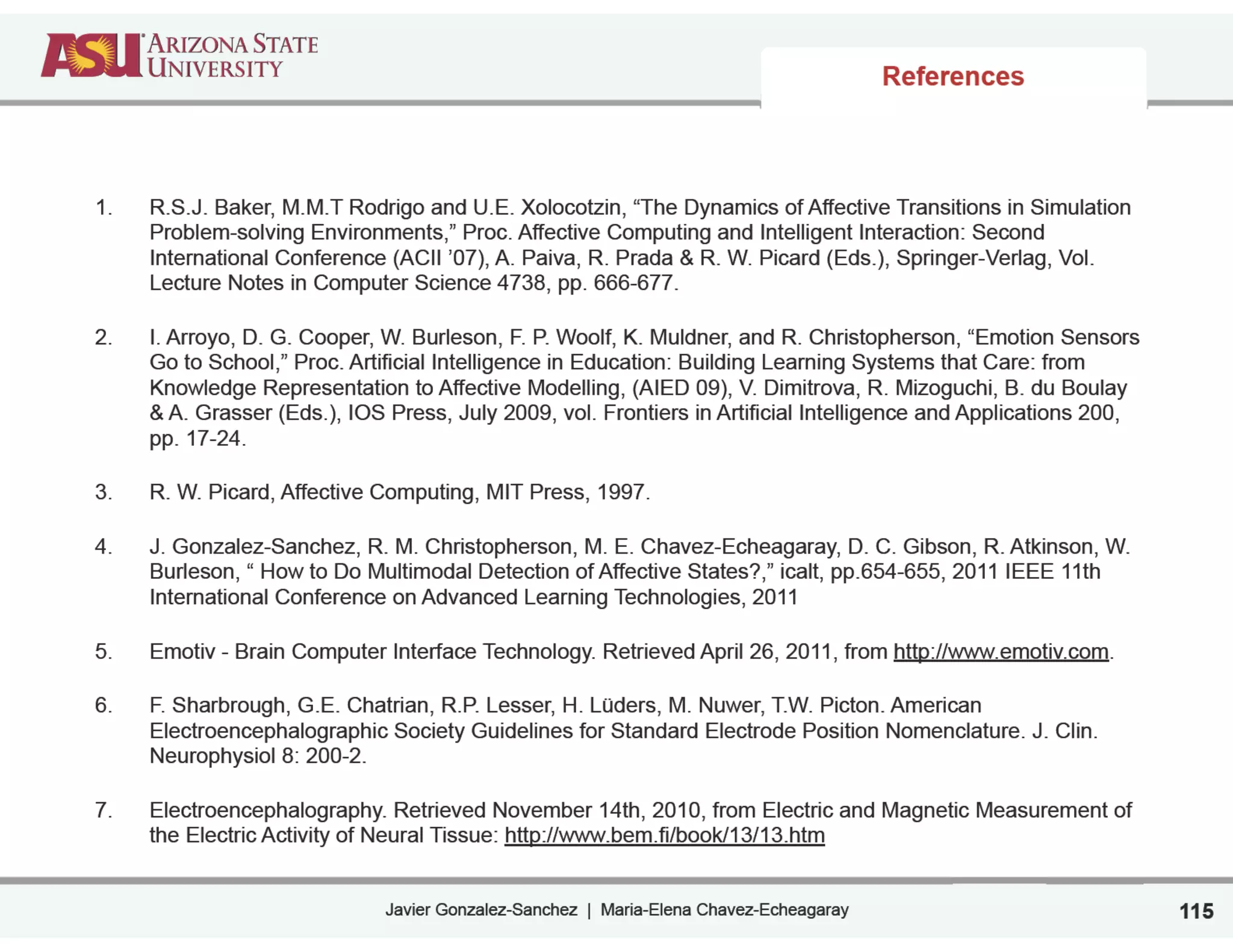

[1] R.S.J. Baker, M.M.T Rodrigo and U.E. Xolocotzin, “The Dynamics of Affective Transitions in Simulation Problem-solving Environments,” Proc. Affective Computing
and Intelligent Interaction: Second International Conference (ACII ’07), A. Paiva, R. Prada & R. W. Picard (Eds.), Springer Verlag, Vol. Lecture Notes in Computer
Science 4738, pp. 666-677.
!
[2] I. Arroyo, D. G. Cooper, W. Burleson, F. P. Woolf, K. Muldner, and R. Christopherson, “Emotion Sensors Go to School,” Proc. Artificial Intelligence in Education:
Building Learning Systems that Care: from Knowledge Representation to Affective Modelling, (AIED 09), V Dimitrova, R. Mizoguchi, B. du Boulay & A. Grasser (Eds.),
IOS Press, July 2009, vol. Frontiers in Artificial Intelligence and Applications 200, pp. 17-24.
!
[3] R. W. Picard, Affective Computing, MIT Press, 1997.

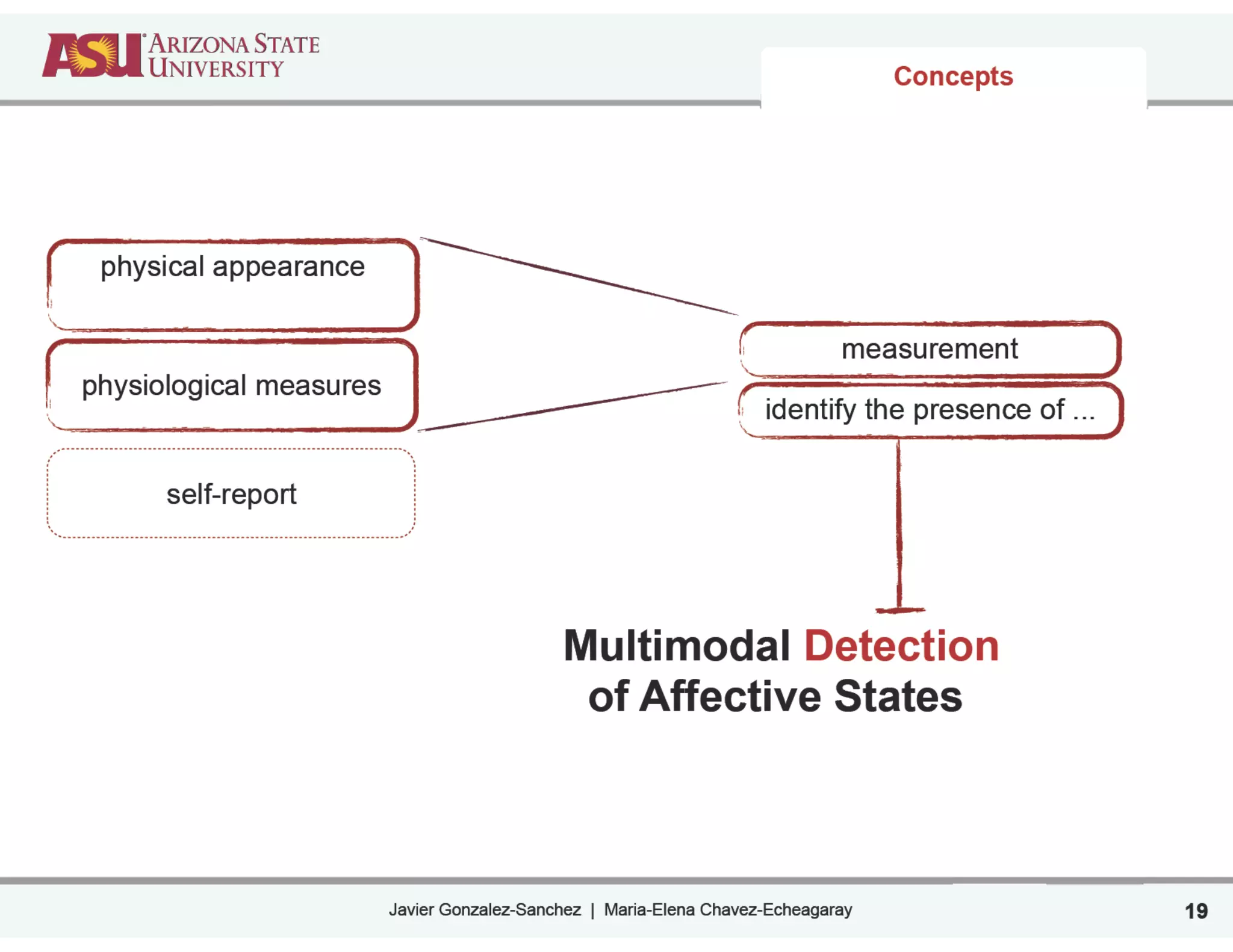

Concepts
Multimodal Detection
of Affective States
measurement
identify the presence of ...
physiological measures
physical appearance
self-report
19

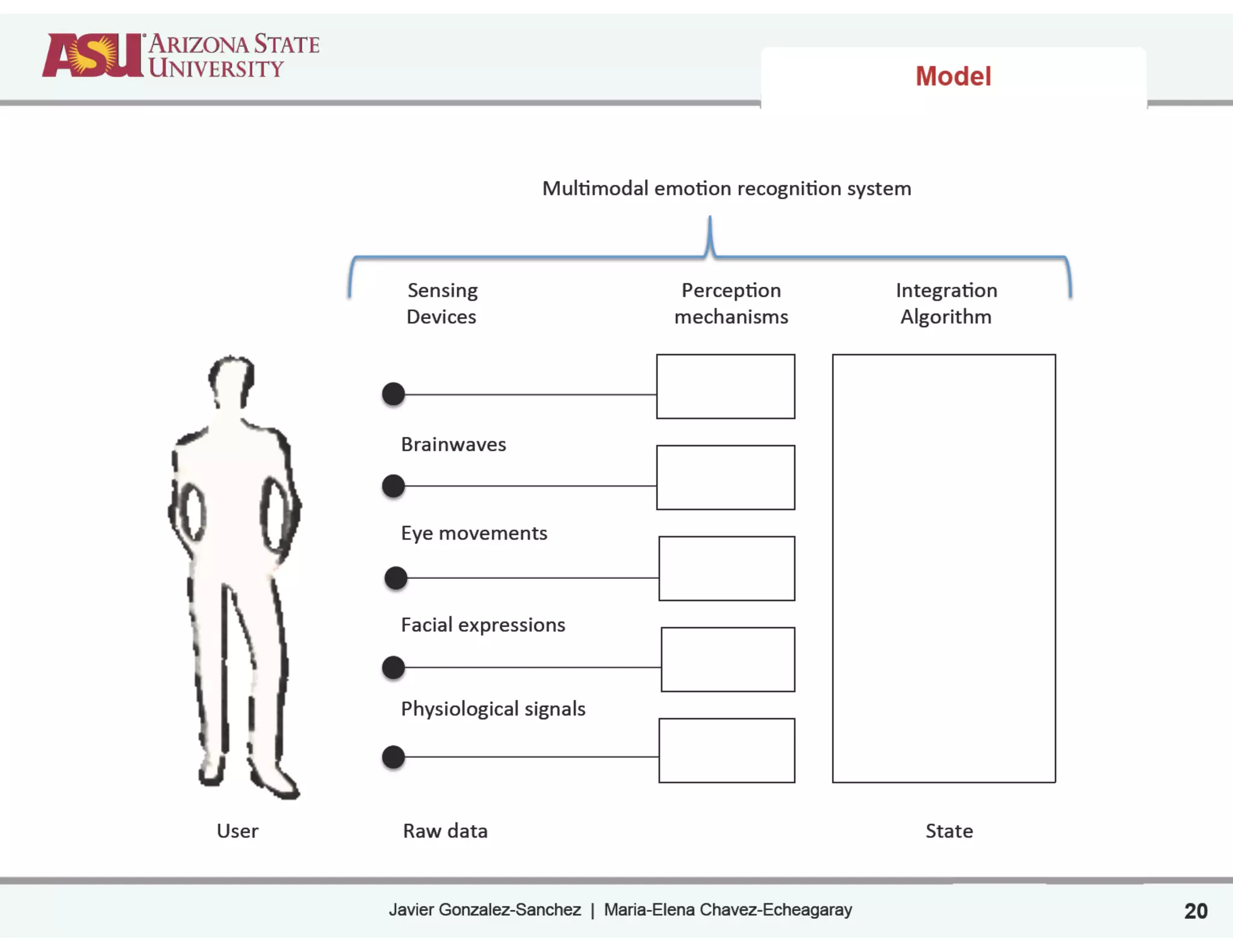

Model
Mul$modal)emo$on)recogni$on)system)
User)
Brainwaves)
Eye)movements)
Facial)expressions)
Physiological)signals)
Sensing))
Devices)
Percep$on)
mechanisms)
Integra$on)
Algorithm)
Raw)data) Beliefs) State)
20

Sensing Devices
21

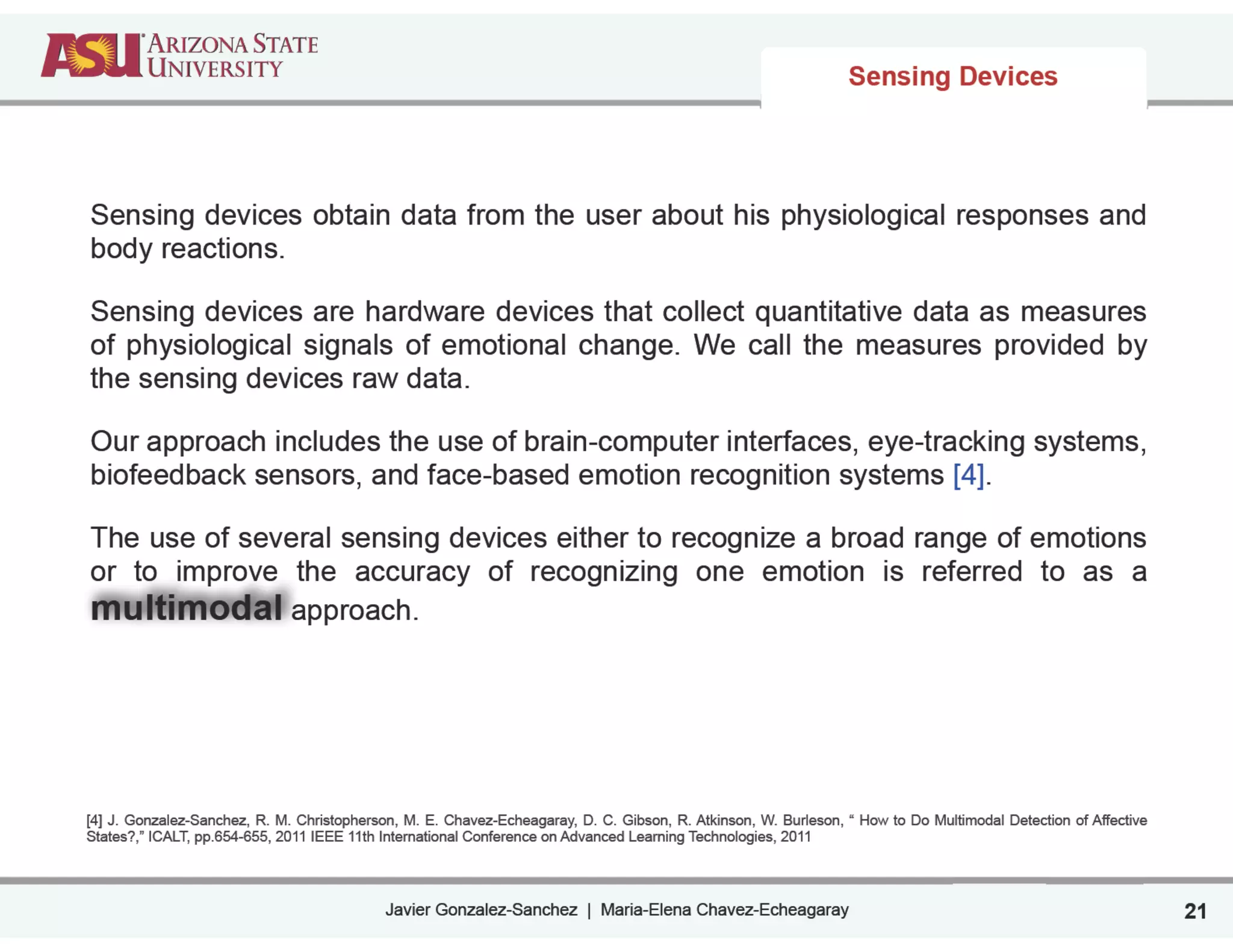

Sensing devices obtain data from the user about his physiological responses and
body reactions.
Sensing devices are hardware devices that collect quantitative data as measures
of physiological signals of emotional change. We call the measures provided by
the sensing devices raw data.
Our approach includes the use of brain-computer interfaces, eye-tracking systems,
biofeedback sensors, and face-based emotion recognition systems [4].
The use of several sensing devices either to recognize a broad range of emotions
or to improve the accuracy of recognizing one emotion is referred to as a
multimodal approach.
!
!
!
!
[4] J. Gonzalez-Sanchez, R. M. Christopherson, M. E. Chavez-Echeagaray, D. C. Gibson, R. Atkinson, W. Burleson, “ How to Do Multimodal Detection of Affective
States?,” ICALT, pp.654-655, 2011 IEEE 11th International Conference on Advanced Learning Technologies, 2011

2. Sensing Devices | Brain-Computer Interfaces
22
Session I

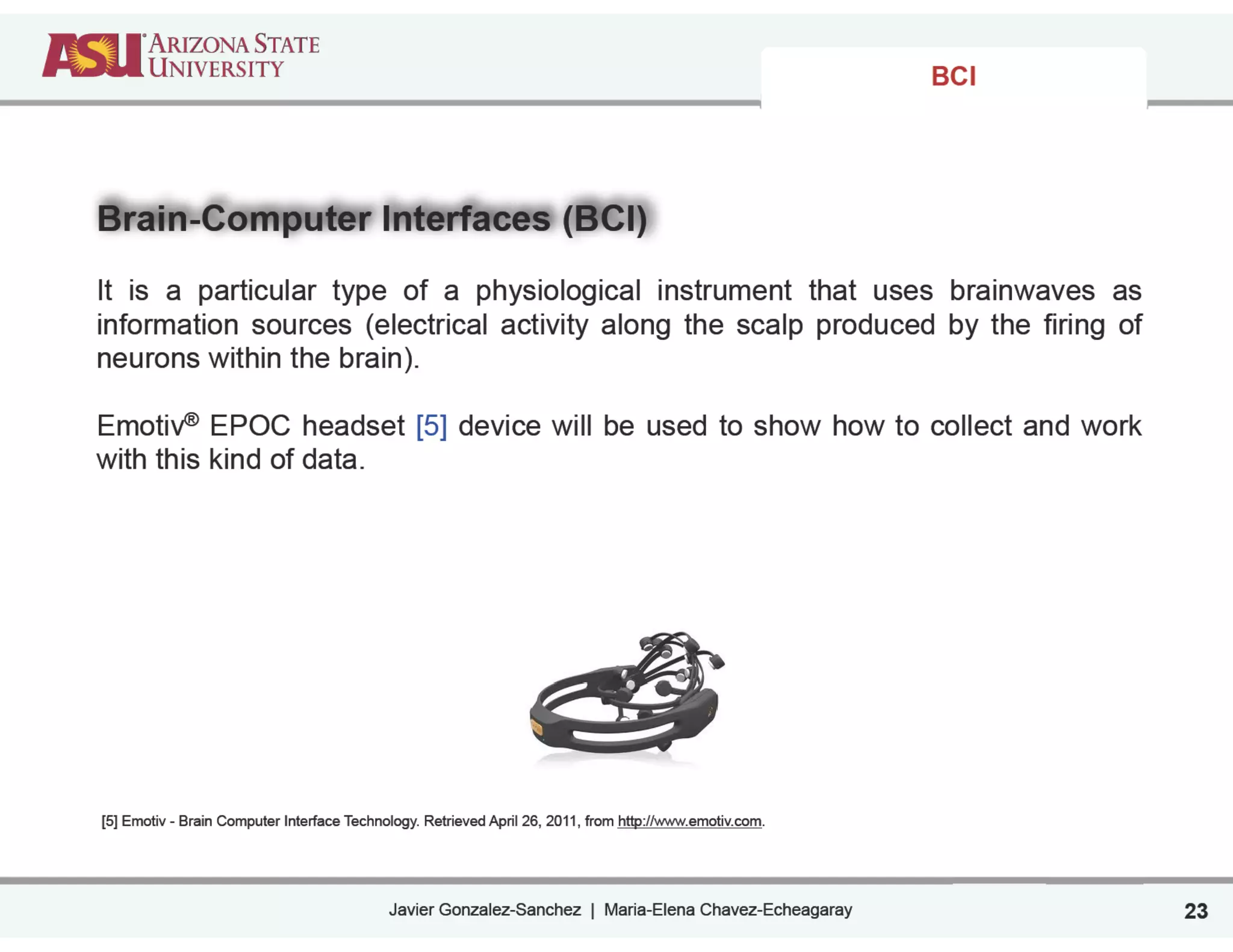

BCI
Brain-Computer Interfaces (BCI)
!
It is a particular type of a physiological instrument that uses brainwaves as
information sources (electrical activity along the scalp produced by the firing of
neurons within the brain).
!
Emotiv® EPOC headset [5] device will be used to show how to collect and work
with this kind of data.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
[5] Emotiv - Brain Computer Interface Technology. Retrieved April 26, 2011, from http://www.emotiv.com.
23

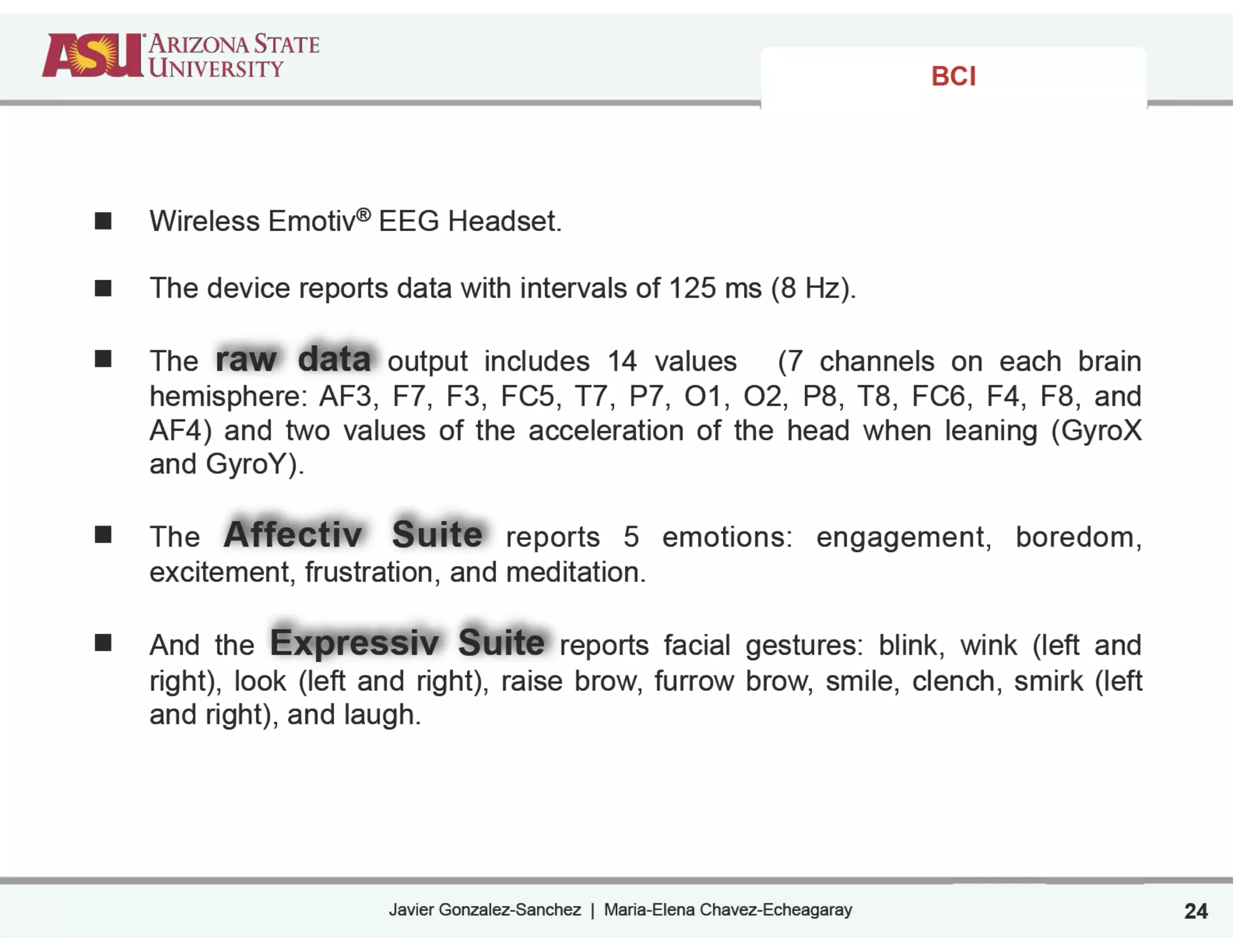

BCI
Wireless Emotiv® EEG Headset.
!
The device reports data with intervals of 125 ms (8 Hz).
!
The raw data output includes 14 values (7 channels on each brain
hemisphere: AF3, F7, F3, FC5, T7, P7, O1, O2, P8, T8, FC6, F4, F8, and
AF4) and two values of the acceleration of the head when leaning (GyroX
and GyroY).
!

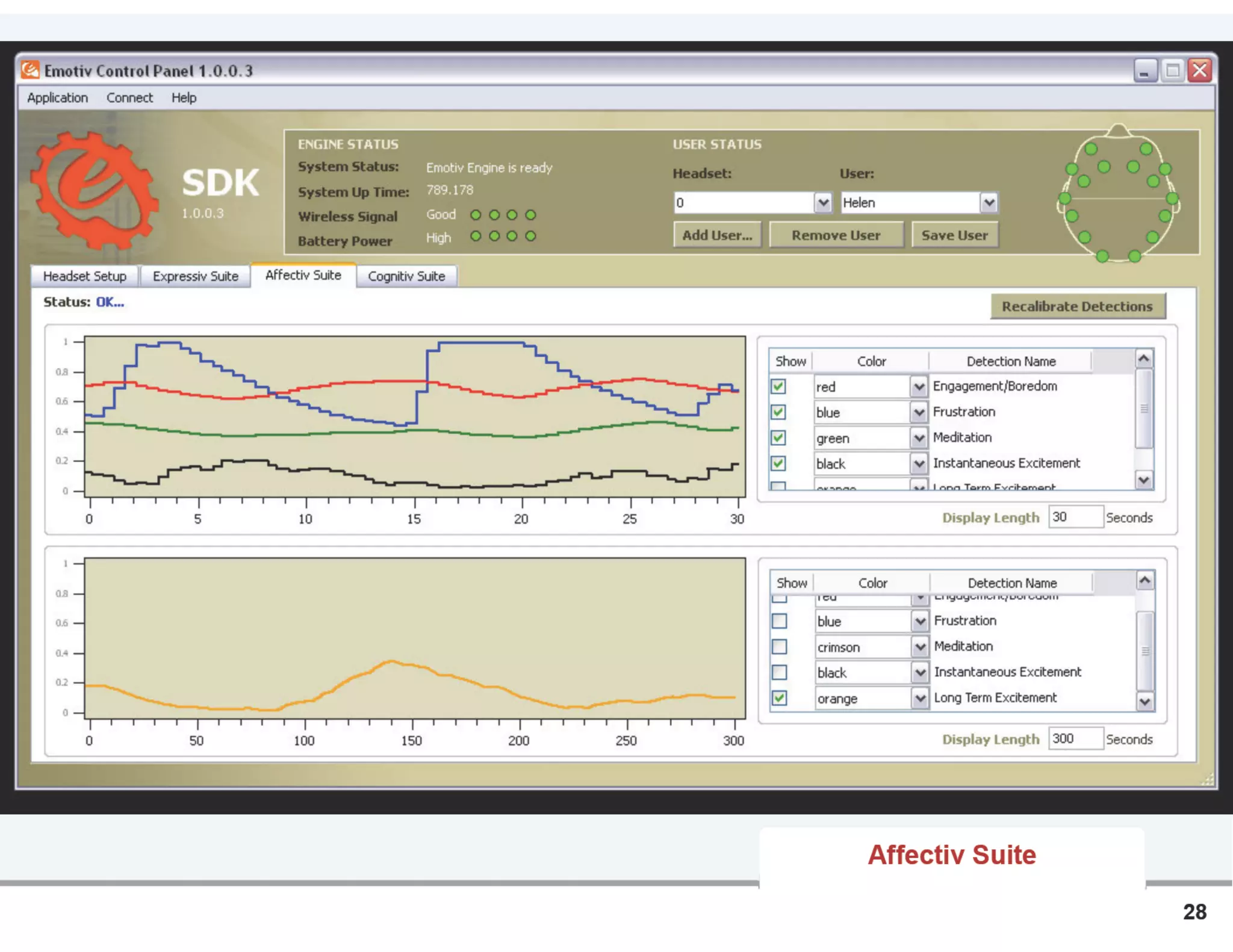

The Affectiv Suite reports 5 emotions: engagement, boredom,
excitement, frustration, and meditation.
!

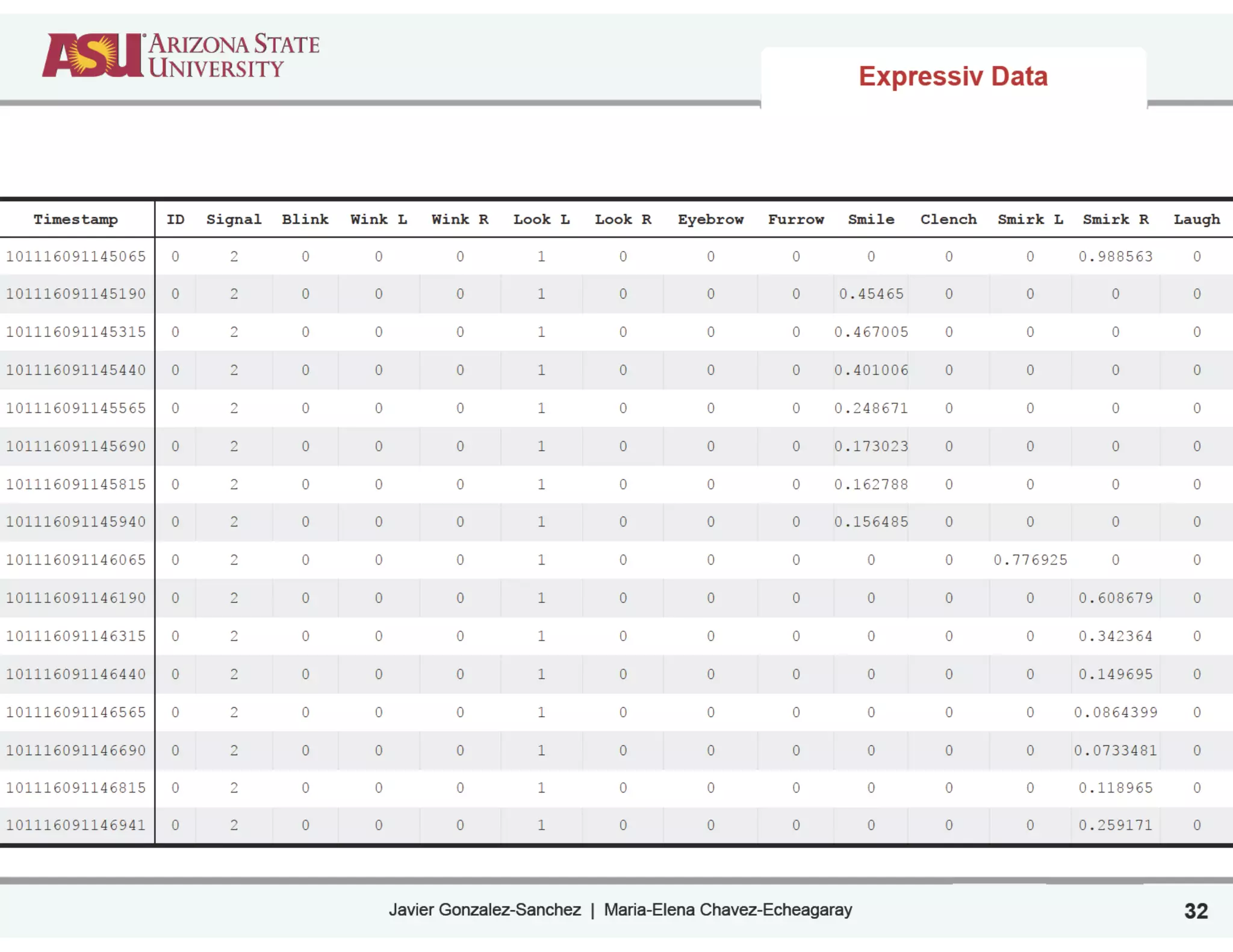

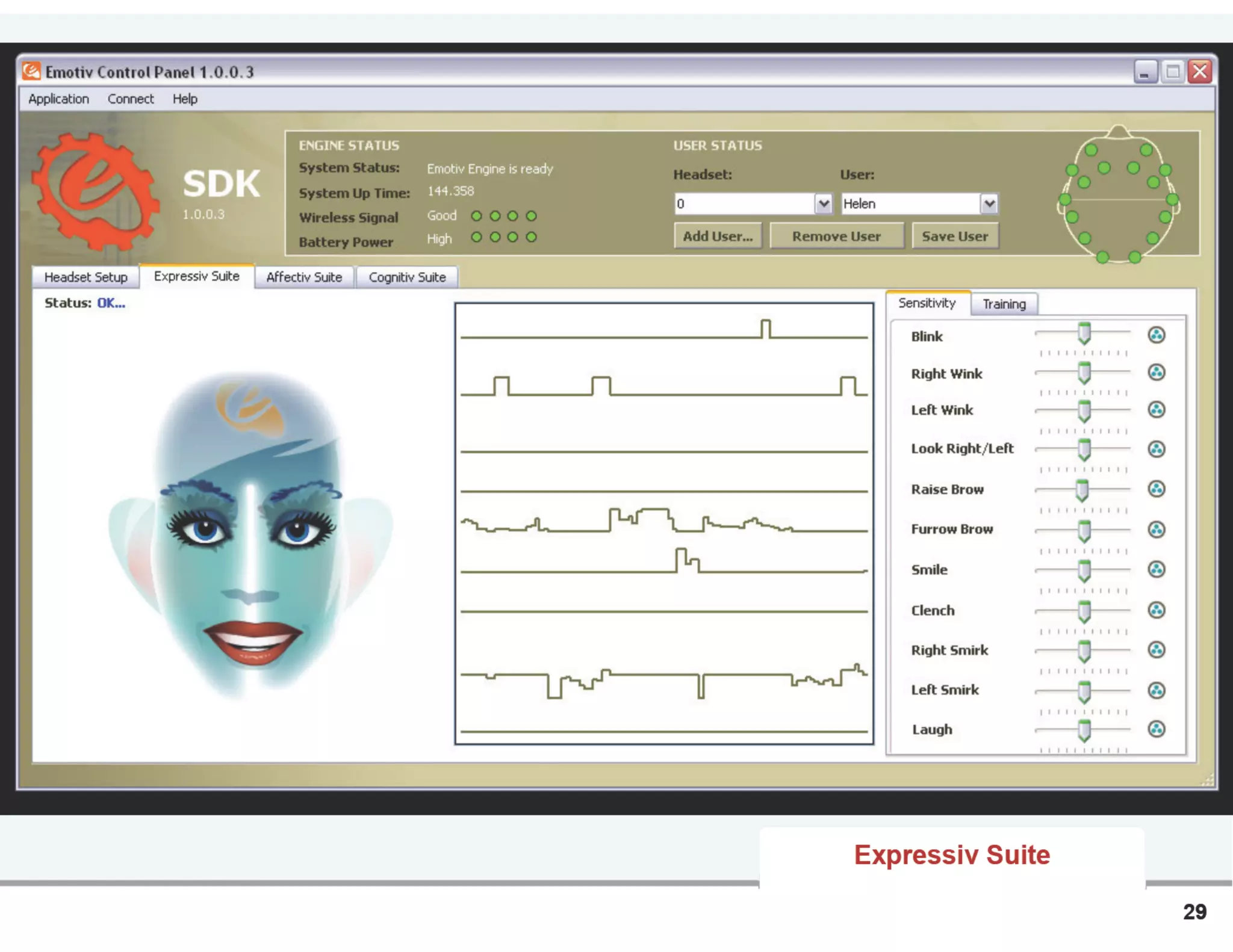

And the Expressiv Suite reports facial gestures: blink, wink (left and
right), look (left and right), raise brow, furrow brow, smile, clench, smirk (left
and right), and laugh.
!
!
24

Javier Gonzalez-Sanchez | Maria-Elena Chavez-Echeagaray 25

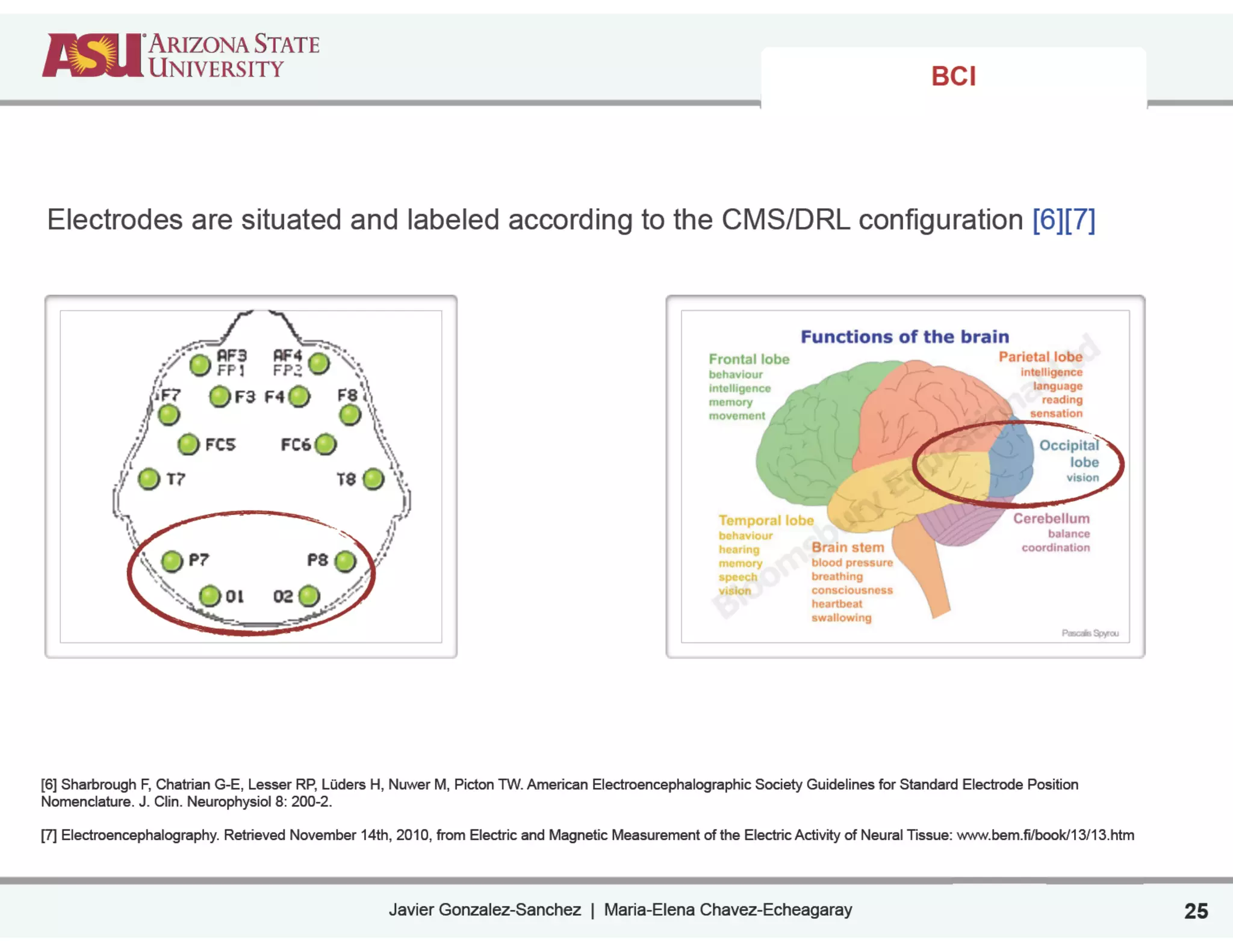

Electrodes are situated and labeled according to the CMS/DRL configuration [6][7]
BCI
[6] Sharbrough F, Chatrian G-E, Lesser RP, Lüders H, Nuwer M, Picton TW. American Electroencephalographic Society Guidelines for Standard Electrode Position
Nomenclature. J. Clin. Neurophysiol 8: 200-2.
!
[7] Electroencephalography. Retrieved November 14th, 2010, from Electric and Magnetic Measurement of the Electric Activity of Neural Tissue: www.bem.fi/book/13/13.htm

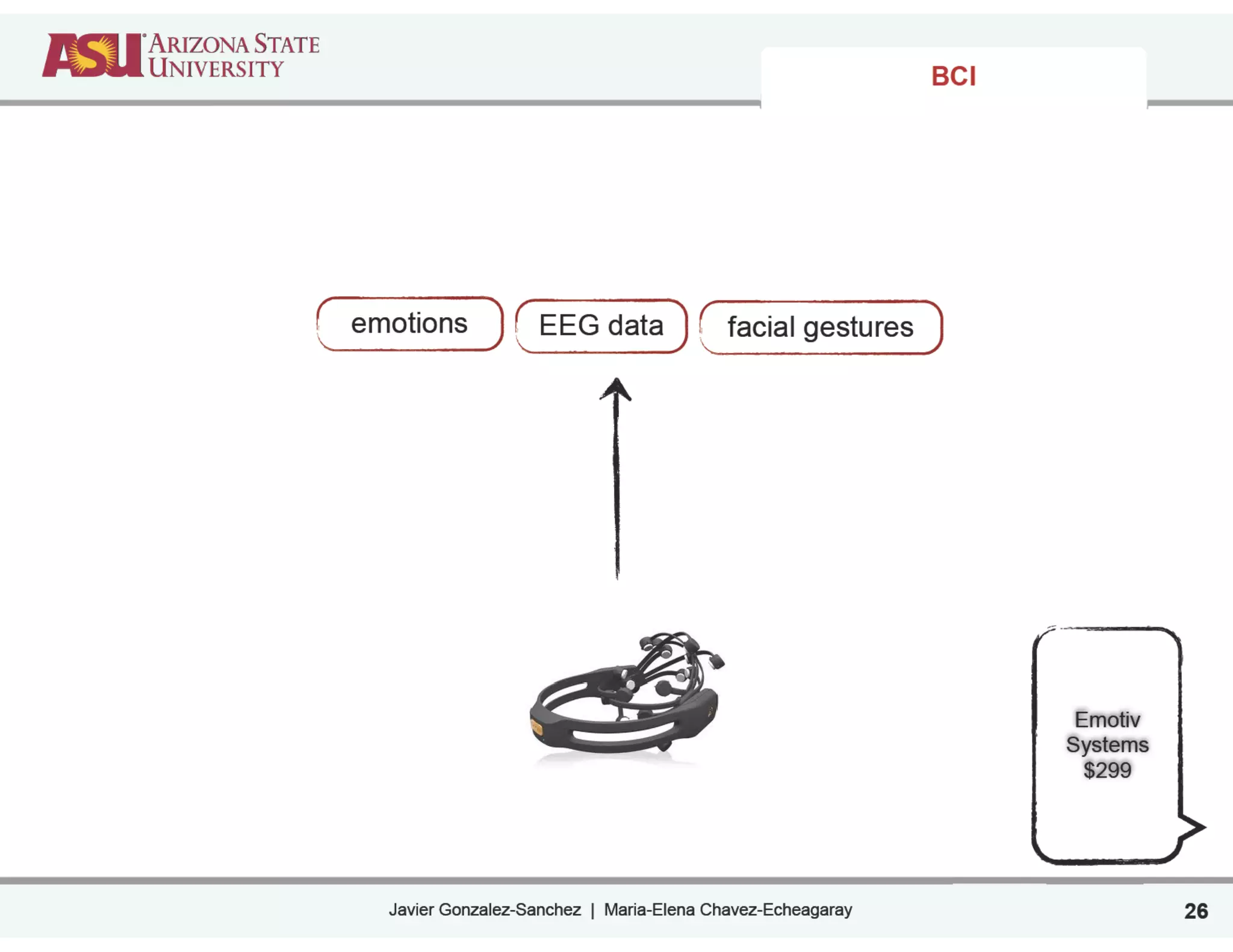

Emotiv
Systems
$299
emotions EEG data facial gestures
26
BCI

Demo
Wireless Emotiv® EEG Headset
27
BCI

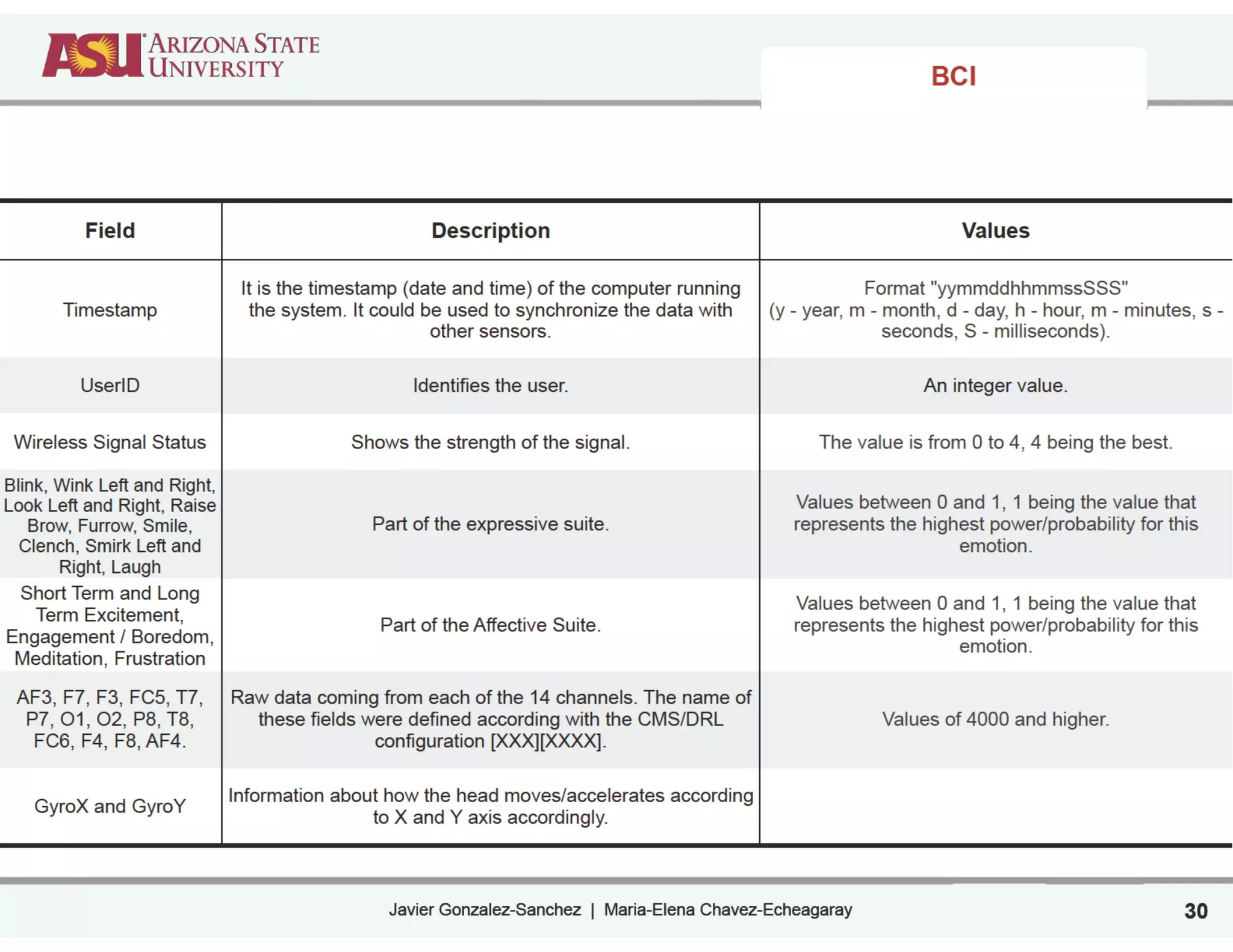

Field Description Values
Timestamp
It is the timestamp (date and time) of the computer running
the system. It could be used to synchronize the data with
other sensors.
Format "yymmddhhmmssSSS"
(y - year, m - month, d - day, h - hour, m - minutes, s -
seconds, S - milliseconds).
UserID Identifies the user. An integer value.
Wireless Signal Status Shows the strength of the signal. The value is from 0 to 4, 4 being the best.
Blink, Wink Left and Right,
Look Left and Right, Raise
Brow, Furrow, Smile,
Clench, Smirk Left and
Right, Laugh
Part of the expressive suite.
Values between 0 and 1, 1 being the value that
represents the highest power/probability for this
emotion.
Short Term and Long
Term Excitement,
Engagement / Boredom,
Meditation, Frustration
Part of the Affective Suite.
Values between 0 and 1, 1 being the value that
represents the highest power/probability for this
emotion.
AF3, F7, F3, FC5, T7,
P7, O1, O2, P8, T8,
FC6, F4, F8, AF4.
Raw data coming from each of the 14 channels. The name of
these fields were defined according with the CMS/DRL
configuration [XXX][XXXX].
Values of 4000 and higher.
GyroX and GyroY
Information about how the head moves/accelerates according
to X and Y axis accordingly.
BCI

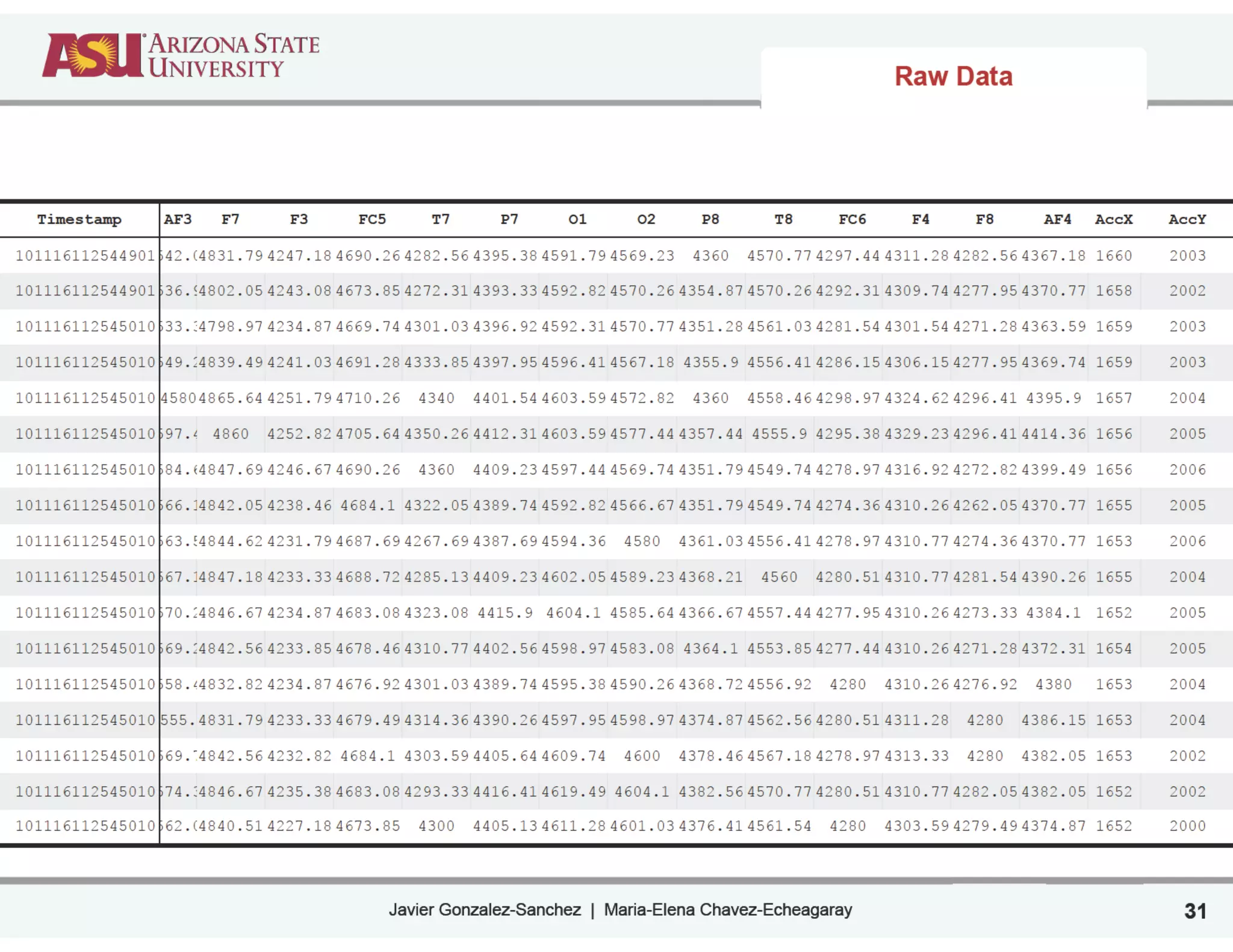

Timestamp AF3 F7 F3 FC5 T7 P7 O1 O2 P8 T8 FC6 F4 F8 AF4 AccX AccY
1011161125449014542.054831.79 4247.18 4690.26 4282.56 4395.38 4591.79 4569.23 4360 4570.77 4297.44 4311.28 4282.56 4367.18 1660 2003
1011161125449014536.924802.05 4243.08 4673.85 4272.31 4393.33 4592.82 4570.26 4354.87 4570.26 4292.31 4309.74 4277.95 4370.77 1658 2002
1011161125450104533.334798.97 4234.87 4669.74 4301.03 4396.92 4592.31 4570.77 4351.28 4561.03 4281.54 4301.54 4271.28 4363.59 1659 2003
1011161125450104549.234839.49 4241.03 4691.28 4333.85 4397.95 4596.41 4567.18 4355.9 4556.41 4286.15 4306.15 4277.95 4369.74 1659 2003
101116112545010 45804865.64 4251.79 4710.26 4340 4401.54 4603.59 4572.82 4360 4558.46 4298.97 4324.62 4296.41 4395.9 1657 2004
1011161125450104597.444860 4252.82 4705.64 4350.26 4412.31 4603.59 4577.44 4357.44 4555.9 4295.38 4329.23 4296.41 4414.36 1656 2005
1011161125450104584.624847.69 4246.67 4690.26 4360 4409.23 4597.44 4569.74 4351.79 4549.74 4278.97 4316.92 4272.82 4399.49 1656 2006
1011161125450104566.154842.05 4238.46 4684.1 4322.05 4389.74 4592.82 4566.67 4351.79 4549.74 4274.36 4310.26 4262.05 4370.77 1655 2005
1011161125450104563.594844.62 4231.79 4687.69 4267.69 4387.69 4594.36 4580 4361.03 4556.41 4278.97 4310.77 4274.36 4370.77 1653 2006
1011161125450104567.184847.18 4233.33 4688.72 4285.13 4409.23 4602.05 4589.23 4368.21 4560 4280.51 4310.77 4281.54 4390.26 1655 2004
1011161125450104570.264846.67 4234.87 4683.08 4323.08 4415.9 4604.1 4585.64 4366.67 4557.44 4277.95 4310.26 4273.33 4384.1 1652 2005
1011161125450104569.234842.56 4233.85 4678.46 4310.77 4402.56 4598.97 4583.08 4364.1 4553.85 4277.44 4310.26 4271.28 4372.31 1654 2005
1011161125450104558.464832.82 4234.87 4676.92 4301.03 4389.74 4595.38 4590.26 4368.72 4556.92 4280 4310.26 4276.92 4380 1653 2004
1011161125450104555.94831.79 4233.33 4679.49 4314.36 4390.26 4597.95 4598.97 4374.87 4562.56 4280.51 4311.28 4280 4386.15 1653 2004
1011161125450104569.744842.56 4232.82 4684.1 4303.59 4405.64 4609.74 4600 4378.46 4567.18 4278.97 4313.33 4280 4382.05 1653 2002
1011161125450104574.364846.67 4235.38 4683.08 4293.33 4416.41 4619.49 4604.1 4382.56 4570.77 4280.51 4310.77 4282.05 4382.05 1652 2002
1011161125450104562.054840.51 4227.18 4673.85 4300 4405.13 4611.28 4601.03 4376.41 4561.54 4280 4303.59 4279.49 4374.87 1652 2000
Raw Data

Timestamp ID Signal Blink Wink L Wink R Look L Look R Eyebrow Furrow Smile Clench Smirk L Smirk R Laugh
101116091145065 0 2 0 0 0 1 0 0 0 0 0 0 0.988563 0
101116091145190 0 2 0 0 0 1 0 0 0 0.45465 0 0 0 0
101116091145315 0 2 0 0 0 1 0 0 0 0.467005 0 0 0 0
101116091145440 0 2 0 0 0 1 0 0 0 0.401006 0 0 0 0
101116091145565 0 2 0 0 0 1 0 0 0 0.248671 0 0 0 0
101116091145690 0 2 0 0 0 1 0 0 0 0.173023 0 0 0 0
101116091145815 0 2 0 0 0 1 0 0 0 0.162788 0 0 0 0
101116091145940 0 2 0 0 0 1 0 0 0 0.156485 0 0 0 0
101116091146065 0 2 0 0 0 1 0 0 0 0 0 0.776925 0 0
101116091146190 0 2 0 0 0 1 0 0 0 0 0 0 0.608679 0
101116091146315 0 2 0 0 0 1 0 0 0 0 0 0 0.342364 0
101116091146440 0 2 0 0 0 1 0 0 0 0 0 0 0.149695 0
101116091146565 0 2 0 0 0 1 0 0 0 0 0 0 0.0864399 0
101116091146690 0 2 0 0 0 1 0 0 0 0 0 0 0.0733481 0
101116091146815 0 2 0 0 0 1 0 0 0 0 0 0 0.118965 0
101116091146941 0 2 0 0 0 1 0 0 0 0 0 0 0.259171 0
Expressiv Data

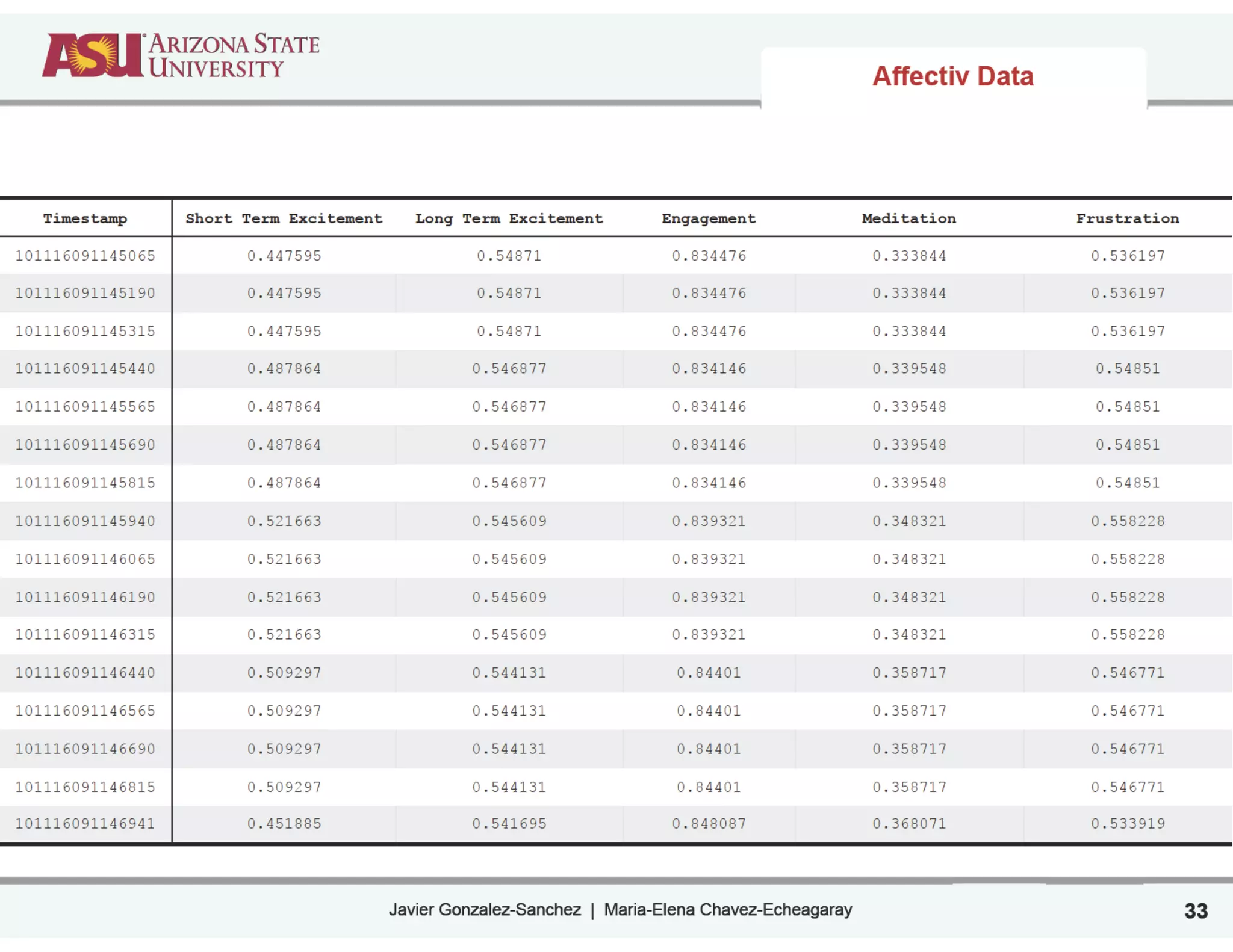

Timestamp Short Term Excitement Long Term Excitement Engagement Meditation Frustration
101116091145065 0.447595 0.54871 0.834476 0.333844 0.536197
101116091145190 0.447595 0.54871 0.834476 0.333844 0.536197
101116091145315 0.447595 0.54871 0.834476 0.333844 0.536197
101116091145440 0.487864 0.546877 0.834146 0.339548 0.54851
101116091145565 0.487864 0.546877 0.834146 0.339548 0.54851
101116091145690 0.487864 0.546877 0.834146 0.339548 0.54851
101116091145815 0.487864 0.546877 0.834146 0.339548 0.54851
101116091145940 0.521663 0.545609 0.839321 0.348321 0.558228
101116091146065 0.521663 0.545609 0.839321 0.348321 0.558228
101116091146190 0.521663 0.545609 0.839321 0.348321 0.558228
101116091146315 0.521663 0.545609 0.839321 0.348321 0.558228
101116091146440 0.509297 0.544131 0.84401 0.358717 0.546771
101116091146565 0.509297 0.544131 0.84401 0.358717 0.546771
101116091146690 0.509297 0.544131 0.84401 0.358717 0.546771
101116091146815 0.509297 0.544131 0.84401 0.358717 0.546771
101116091146941 0.451885 0.541695 0.848087 0.368071 0.533919
Affectiv Data

2. Sensing Devices | Face-Based Emotion Recognition
34
Session I

Face-Based Recognition

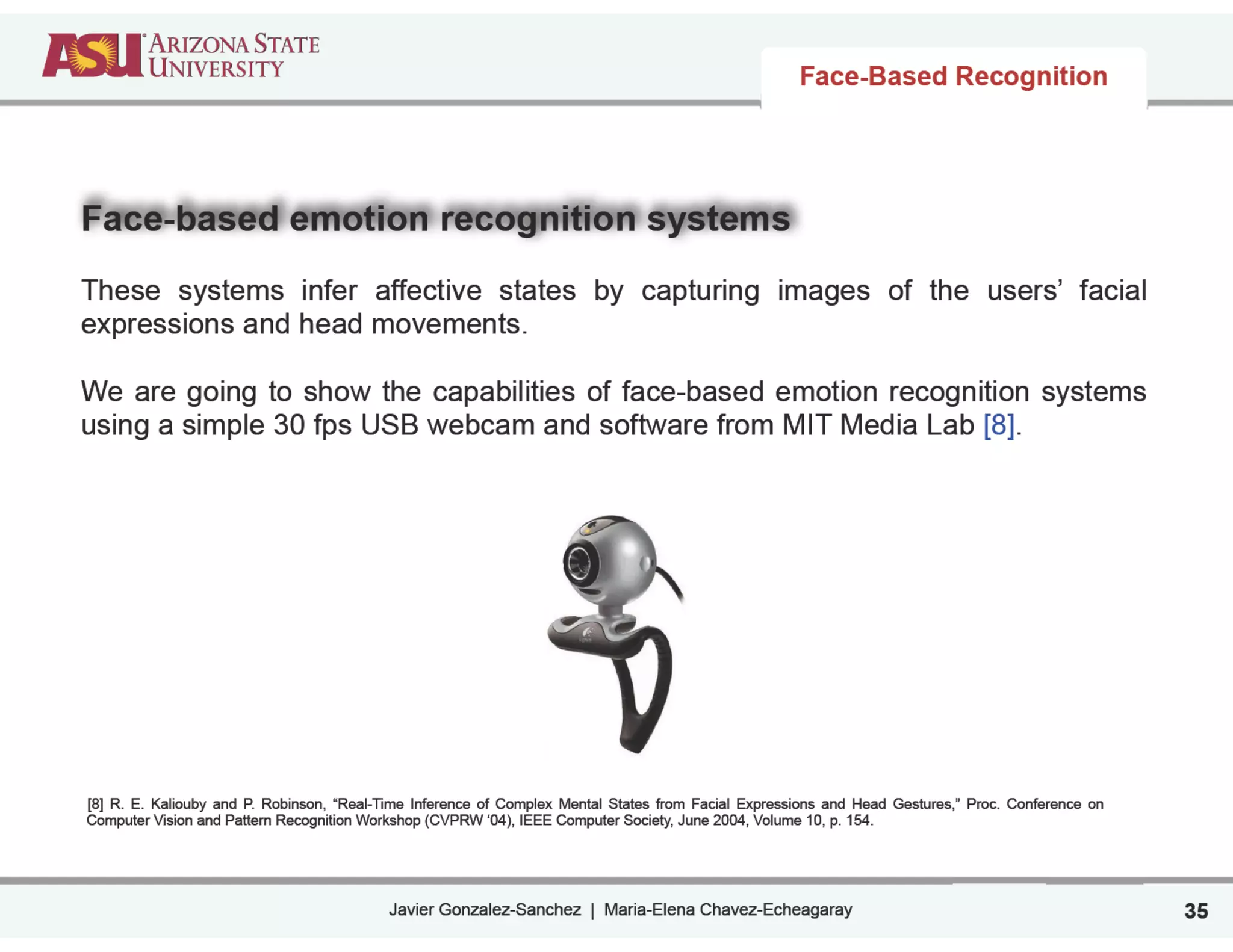

Face-based emotion recognition systems
!
These systems infer affective states by capturing images of the users’ facial
expressions and head movements.
!
We are going to show the capabilities of face-based emotion recognition systems
using a simple 30 fps USB webcam and software from MIT Media Lab [8].
!
!
!
!
!
!
!
!
!
!
!
!
[8] R. E. Kaliouby and P. Robinson, “Real-Time Inference of Complex Mental States from Facial Expressions and Head Gestures,” Proc. Conference on
Computer Vision and Pattern Recognition Workshop (CVPRW ‘04), IEEE Computer Society, June 2004, Volume 10, p. 154.
35

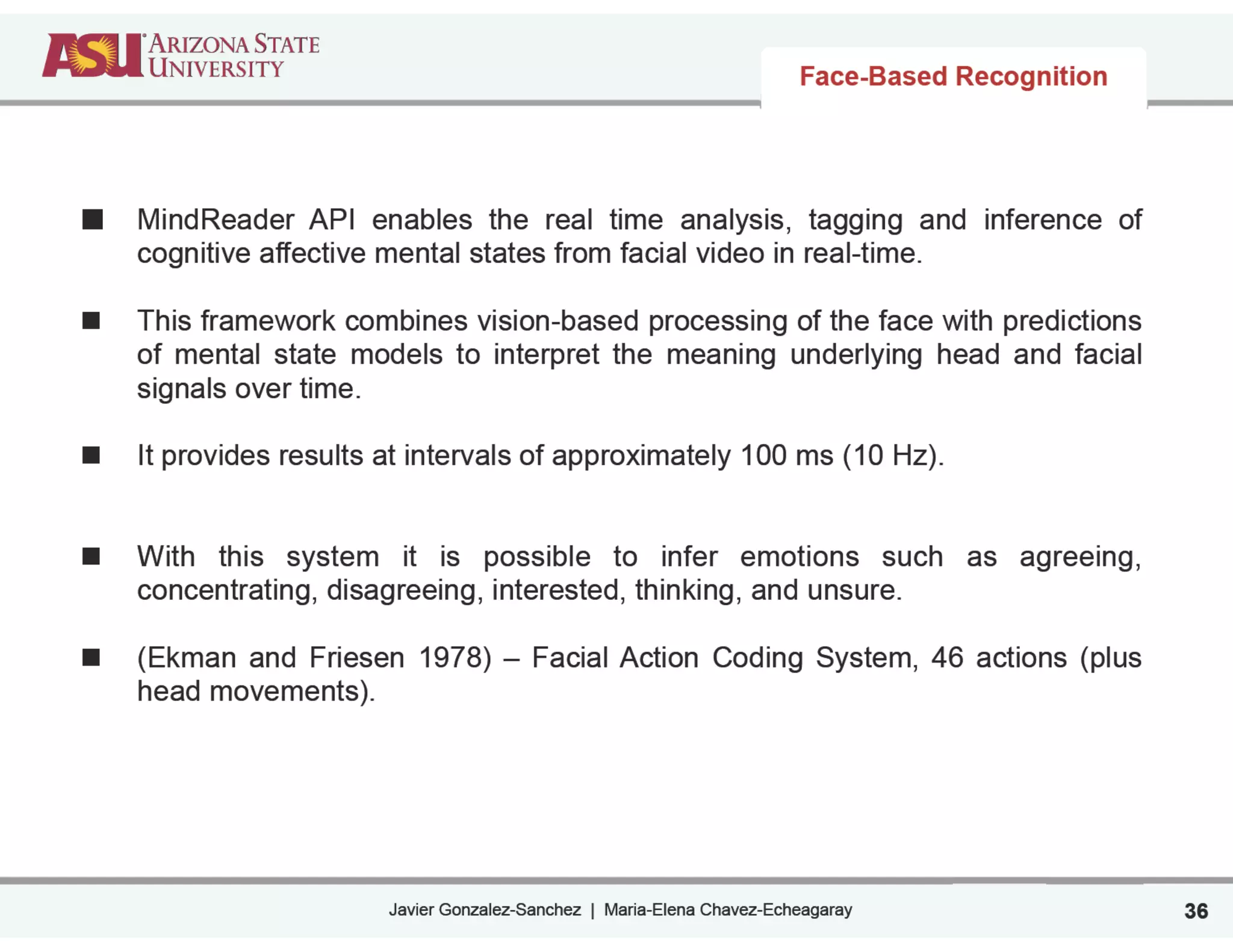

MindReader API enables the real time analysis, tagging and inference of
cognitive affective mental states from facial video in real-time.
!
This framework combines vision-based processing of the face with predictions
of mental state models to interpret the meaning underlying head and facial
signals over time.
!
It provides results at intervals of approximately 100 ms (10 Hz).
!
!
With this system it is possible to infer emotions such as agreeing,
concentrating, disagreeing, interested, thinking, and unsure.
!
(Ekman and Friesen 1978) – Facial Action Coding System, 46 actions (plus
head movements).
36

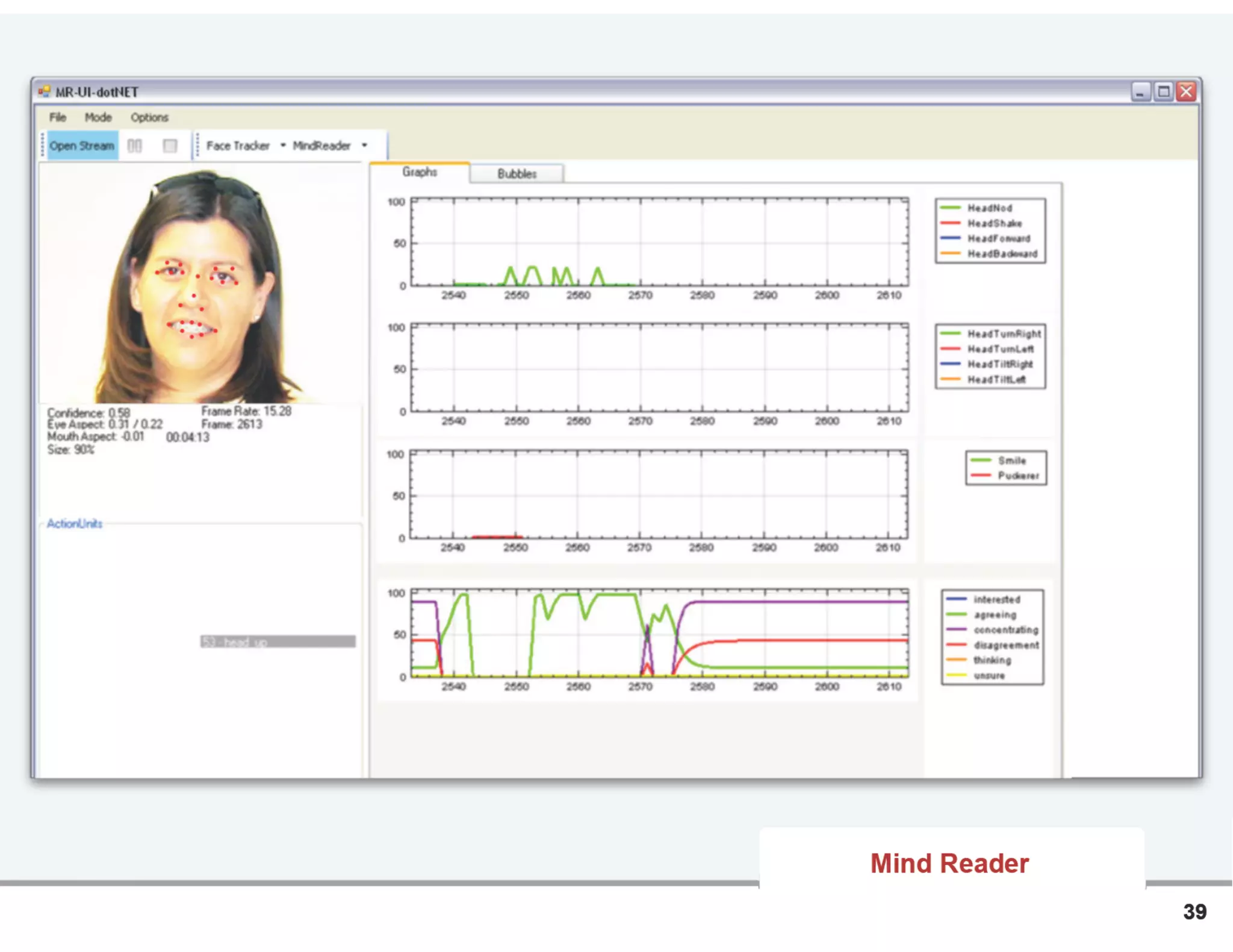

Demo
MindReader Software from MIT Media Lab
37

!

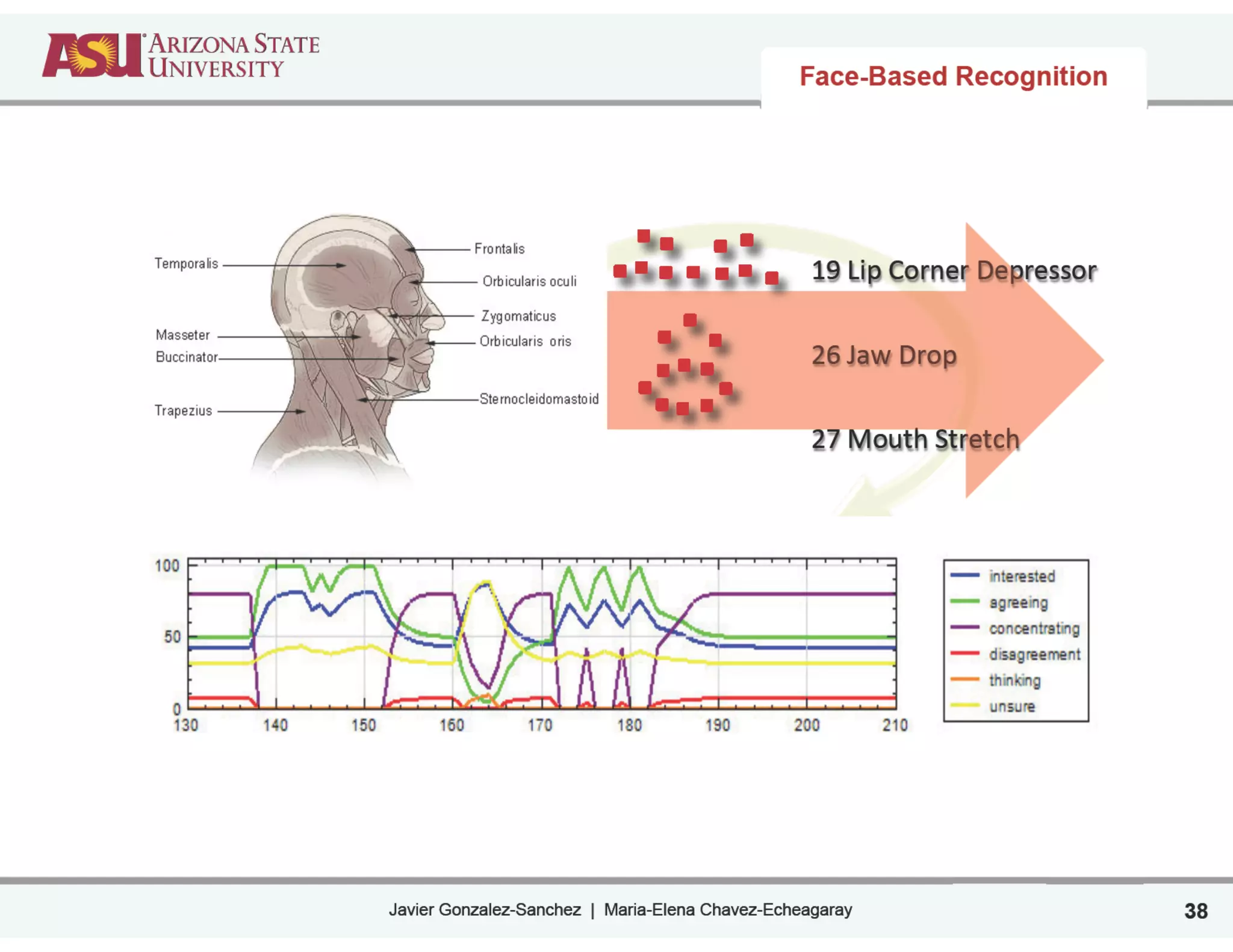

19!Lip!Corner!Depressor!
!
26!Jaw!Drop!
!
27!Mouth!Stretch!
Enero!22,!2010! Javier!González!!Sánchez!|!María!E.!Chávez!Echeagaray! 22!

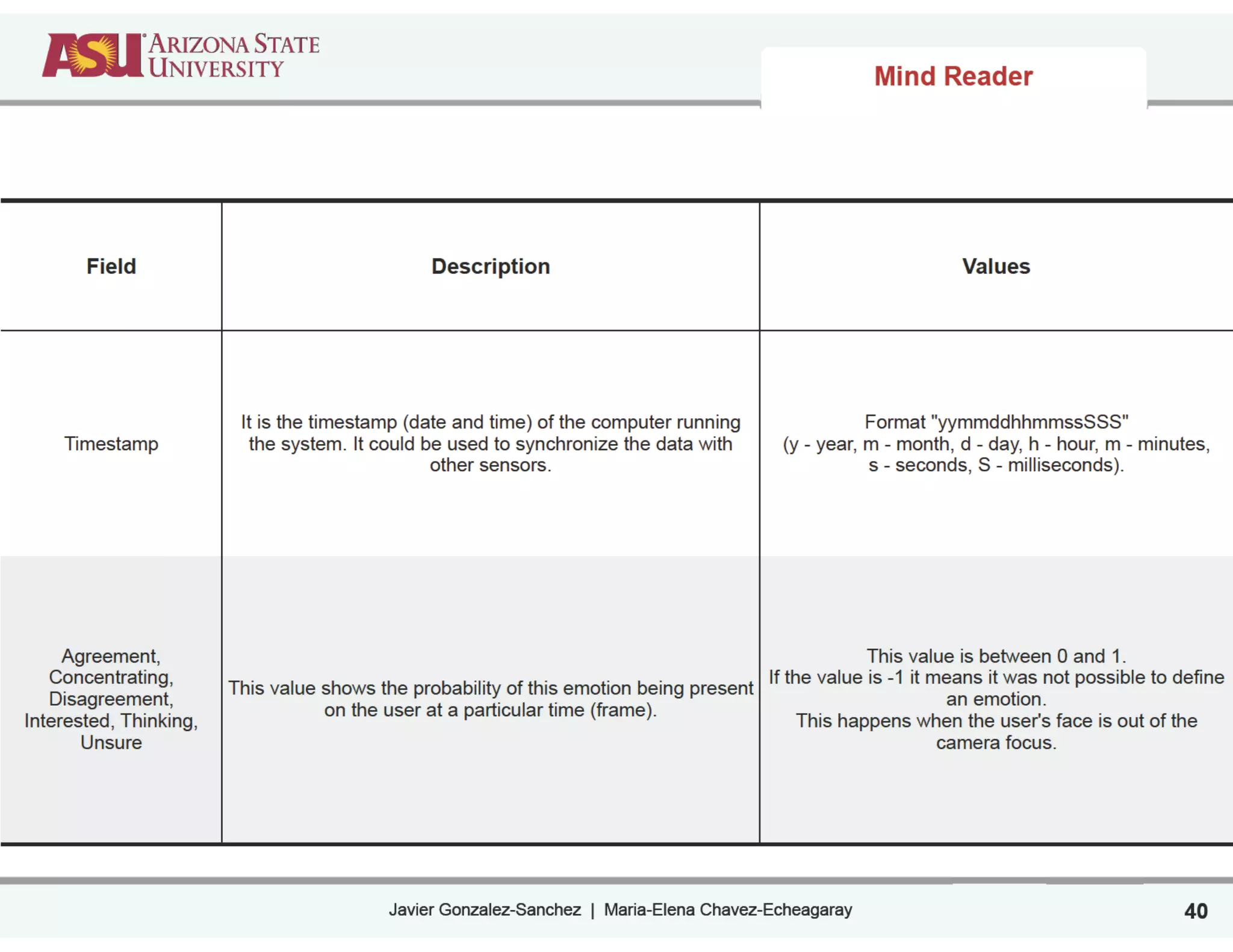

Timestamp
other sensors.
(y - year, m - month, d - day, h - hour, m - minutes,
s - seconds, S - milliseconds).
Agreement,
Concentrating,
Disagreement,
Interested, Thinking,
Unsure
This value shows the probability of this emotion being present
on the user at a particular time (frame).
This value is between 0 and 1.
If the value is -1 it means it was not possible to define
an emotion.
This happens when the user's face is out of the
camera focus.

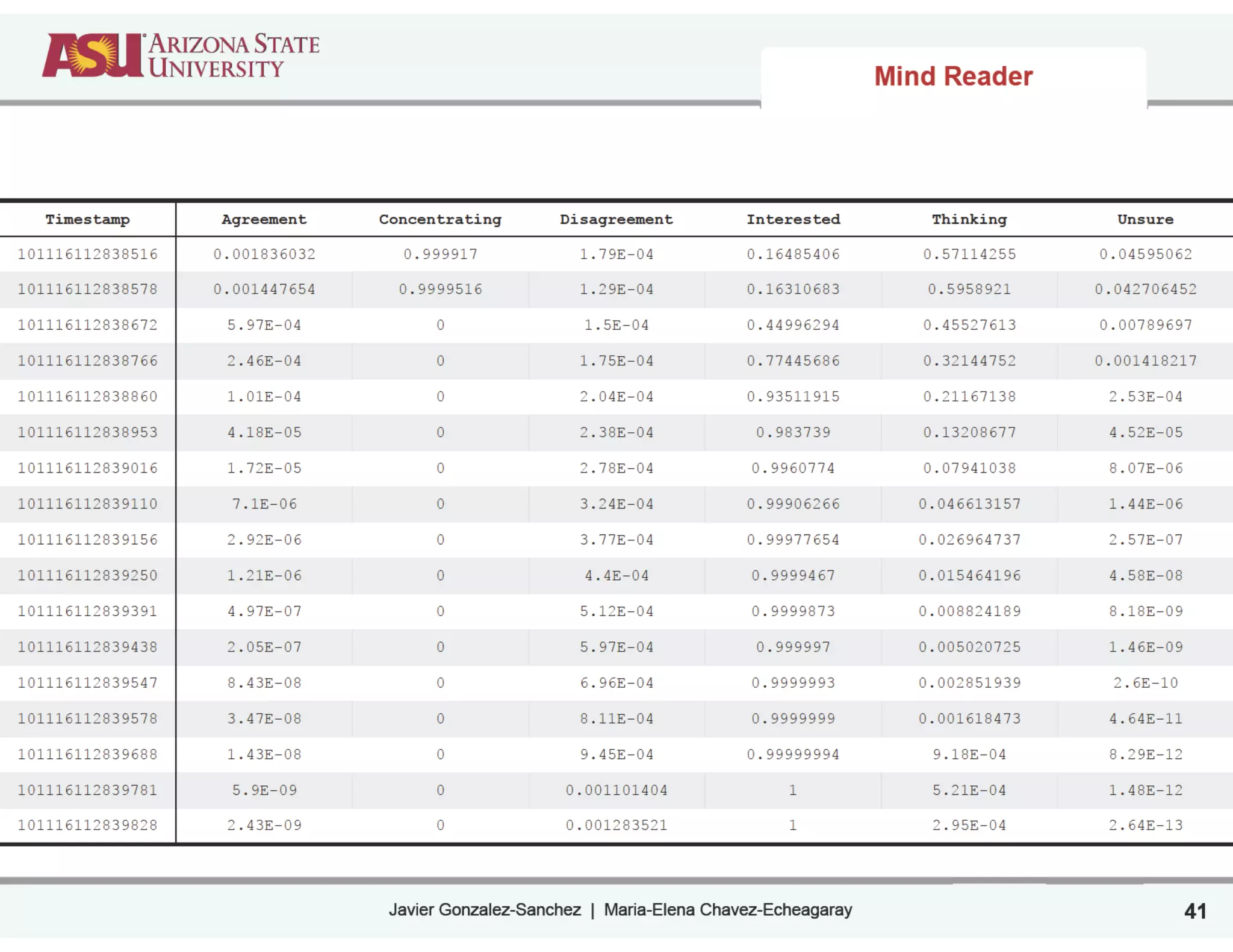

Mind Reader

Timestamp Agreement Concentrating Disagreement Interested Thinking Unsure
101116112838516 0.001836032 0.999917 1.79E-04 0.16485406 0.57114255 0.04595062
101116112838578 0.001447654 0.9999516 1.29E-04 0.16310683 0.5958921 0.042706452
101116112838672 5.97E-04 0 1.5E-04 0.44996294 0.45527613 0.00789697
101116112838766 2.46E-04 0 1.75E-04 0.77445686 0.32144752 0.001418217
101116112838860 1.01E-04 0 2.04E-04 0.93511915 0.21167138 2.53E-04
101116112838953 4.18E-05 0 2.38E-04 0.983739 0.13208677 4.52E-05
101116112839016 1.72E-05 0 2.78E-04 0.9960774 0.07941038 8.07E-06
101116112839110 7.1E-06 0 3.24E-04 0.99906266 0.046613157 1.44E-06
101116112839156 2.92E-06 0 3.77E-04 0.99977654 0.026964737 2.57E-07
101116112839250 1.21E-06 0 4.4E-04 0.9999467 0.015464196 4.58E-08
101116112839391 4.97E-07 0 5.12E-04 0.9999873 0.008824189 8.18E-09
101116112839438 2.05E-07 0 5.97E-04 0.999997 0.005020725 1.46E-09
101116112839547 8.43E-08 0 6.96E-04 0.9999993 0.002851939 2.6E-10
101116112839578 3.47E-08 0 8.11E-04 0.9999999 0.001618473 4.64E-11
101116112839688 1.43E-08 0 9.45E-04 0.99999994 9.18E-04 8.29E-12
101116112839781 5.9E-09 0 0.001101404 1 5.21E-04 1.48E-12
101116112839828 2.43E-09 0 0.001283521 1 2.95E-04 2.64E-13
Mind Reader

2. Sensing Devices | Eye-Tracking Systems
42
Session I

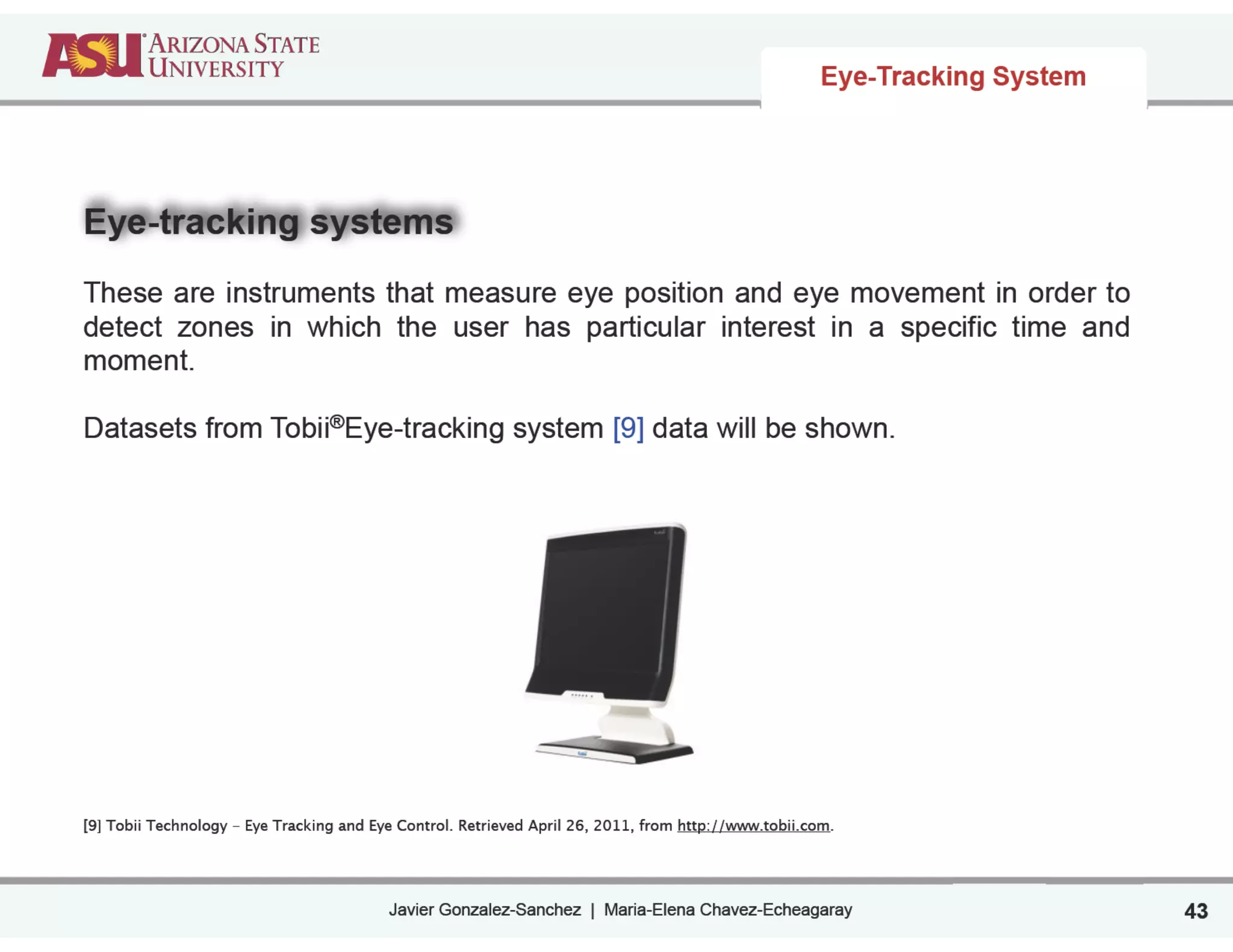

Eye-tracking systems
!
These are instruments that measure eye position and eye movement in order to
detect zones in which the user has particular interest in a specific time and
moment.
!
Datasets from Tobii®Eye-tracking system [9] data will be shown.
!
!
!
!
!
!
!
!
!
!
!
[9] Tobii Technology - Eye Tracking and Eye Control. Retrieved April 26, 2011, from http://www.tobii.com.
Eye-Tracking System
43

Eye-Tracking System
Tobii® Eye Tracker.
!
The device reports data with intervals of 100 ms (10Hz).
!
The output provides data concerning attention direction (gaze-x, gaze-y),
duration of fixation, and pupil dilation.
44

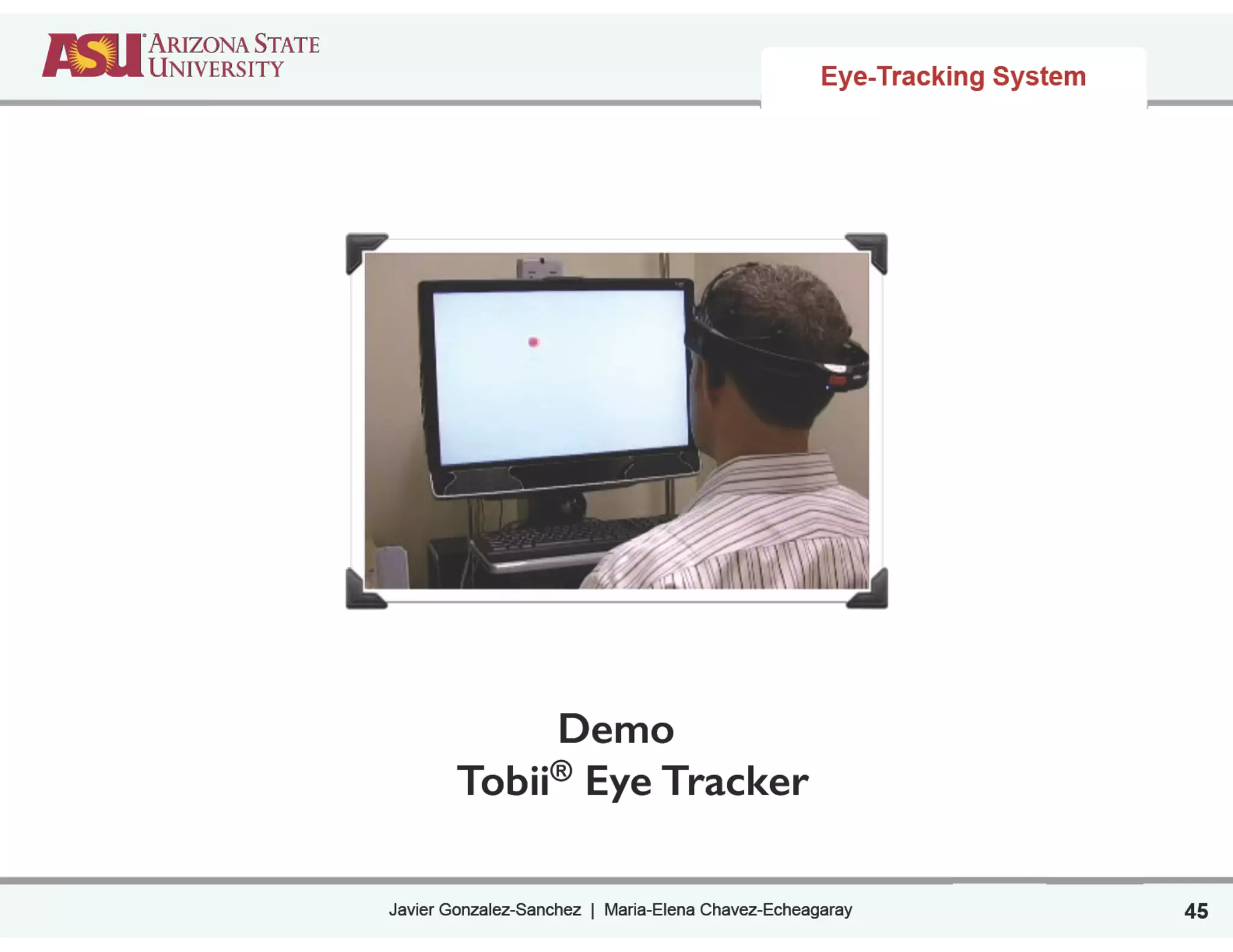

Demo
Tobii® Eye Tracker
45

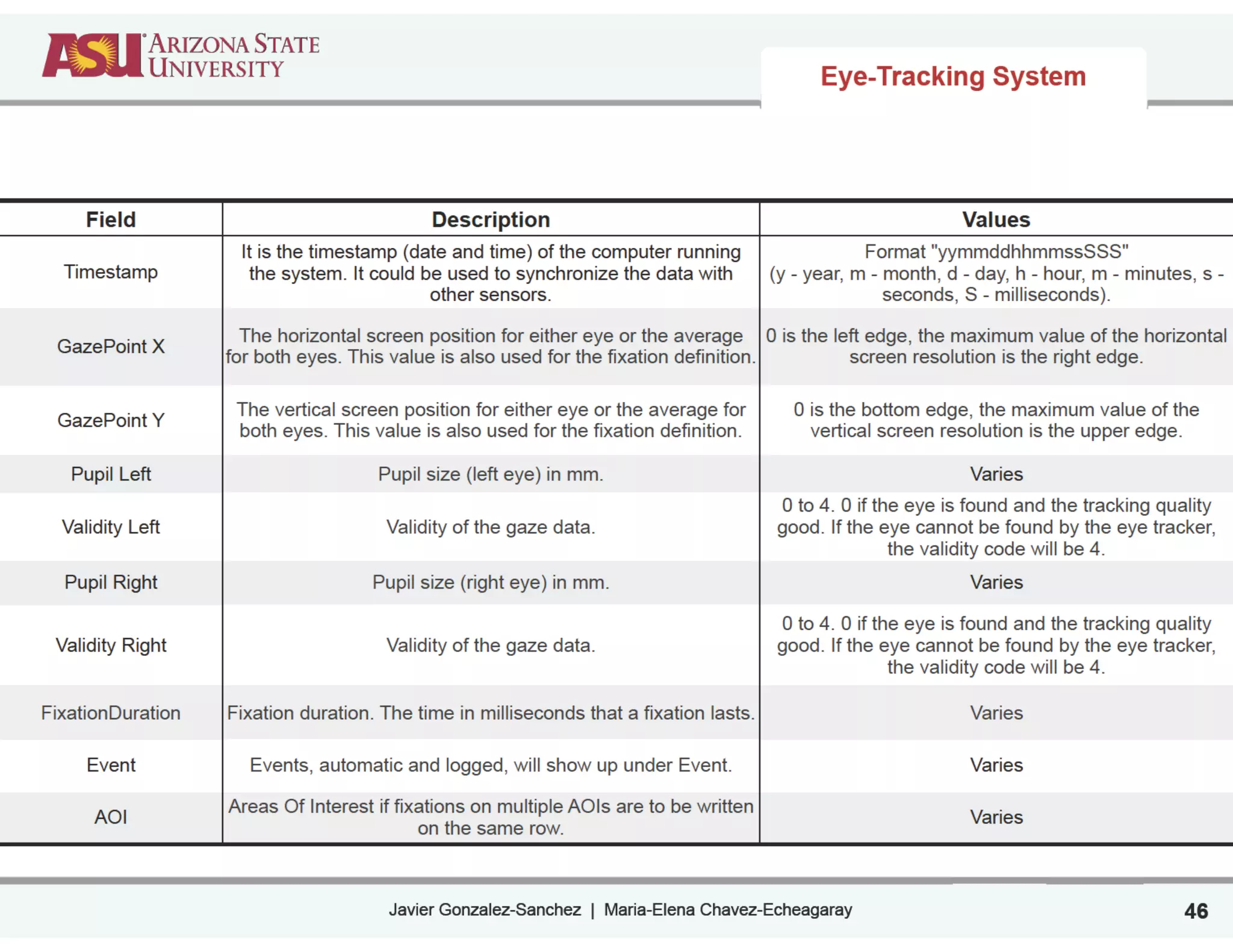

Eye-Tracking System

Timestamp
other sensors.
GazePoint X
The horizontal screen position for either eye or the average
for both eyes. This value is also used for the fixation definition.
0 is the left edge, the maximum value of the horizontal
screen resolution is the right edge.
GazePoint Y
The vertical screen position for either eye or the average for
both eyes. This value is also used for the fixation definition.
0 is the bottom edge, the maximum value of the
vertical screen resolution is the upper edge.
Pupil Left Pupil size (left eye) in mm. Varies
Validity Left Validity of the gaze data.
0 to 4. 0 if the eye is found and the tracking quality
good. If the eye cannot be found by the eye tracker,
the validity code will be 4.
Pupil Right Pupil size (right eye) in mm. Varies
Validity Right Validity of the gaze data.
0 to 4. 0 if the eye is found and the tracking quality
good. If the eye cannot be found by the eye tracker,
the validity code will be 4.
FixationDuration Fixation duration. The time in milliseconds that a fixation lasts. Varies
Event Events, automatic and logged, will show up under Event. Varies
AOI
Areas Of Interest if fixations on multiple AOIs are to be written
on the same row.
Varies
Eye-Tracking System

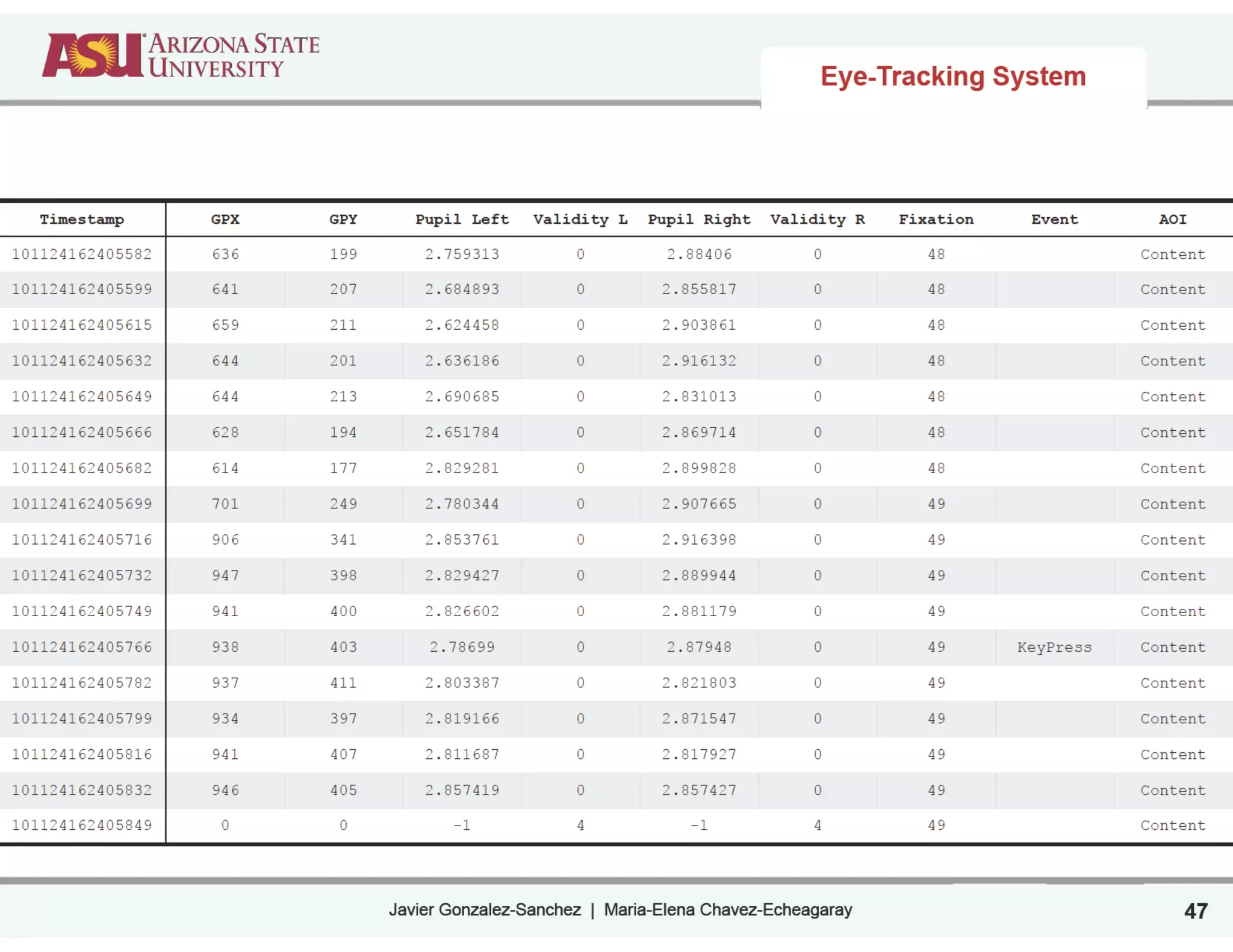

Timestamp GPX GPY Pupil Left Validity L Pupil Right Validity R Fixation Event AOI
101124162405582 636 199 2.759313 0 2.88406 0 48 Content
101124162405599 641 207 2.684893 0 2.855817 0 48 Content
101124162405615 659 211 2.624458 0 2.903861 0 48 Content
101124162405632 644 201 2.636186 0 2.916132 0 48 Content
101124162405649 644 213 2.690685 0 2.831013 0 48 Content
101124162405666 628 194 2.651784 0 2.869714 0 48 Content
101124162405682 614 177 2.829281 0 2.899828 0 48 Content
101124162405699 701 249 2.780344 0 2.907665 0 49 Content
101124162405716 906 341 2.853761 0 2.916398 0 49 Content
101124162405732 947 398 2.829427 0 2.889944 0 49 Content
101124162405749 941 400 2.826602 0 2.881179 0 49 Content
101124162405766 938 403 2.78699 0 2.87948 0 49 KeyPress Content
101124162405782 937 411 2.803387 0 2.821803 0 49 Content
101124162405799 934 397 2.819166 0 2.871547 0 49 Content
101124162405816 941 407 2.811687 0 2.817927 0 49 Content
101124162405832 946 405 2.857419 0 2.857427 0 49 Content
101124162405849 0 0 -1 4 -1 4 49 Content
Eye-Tracking System

2. Sensing Devices | Galvanic Skin Conductance Sensor
48
Session I

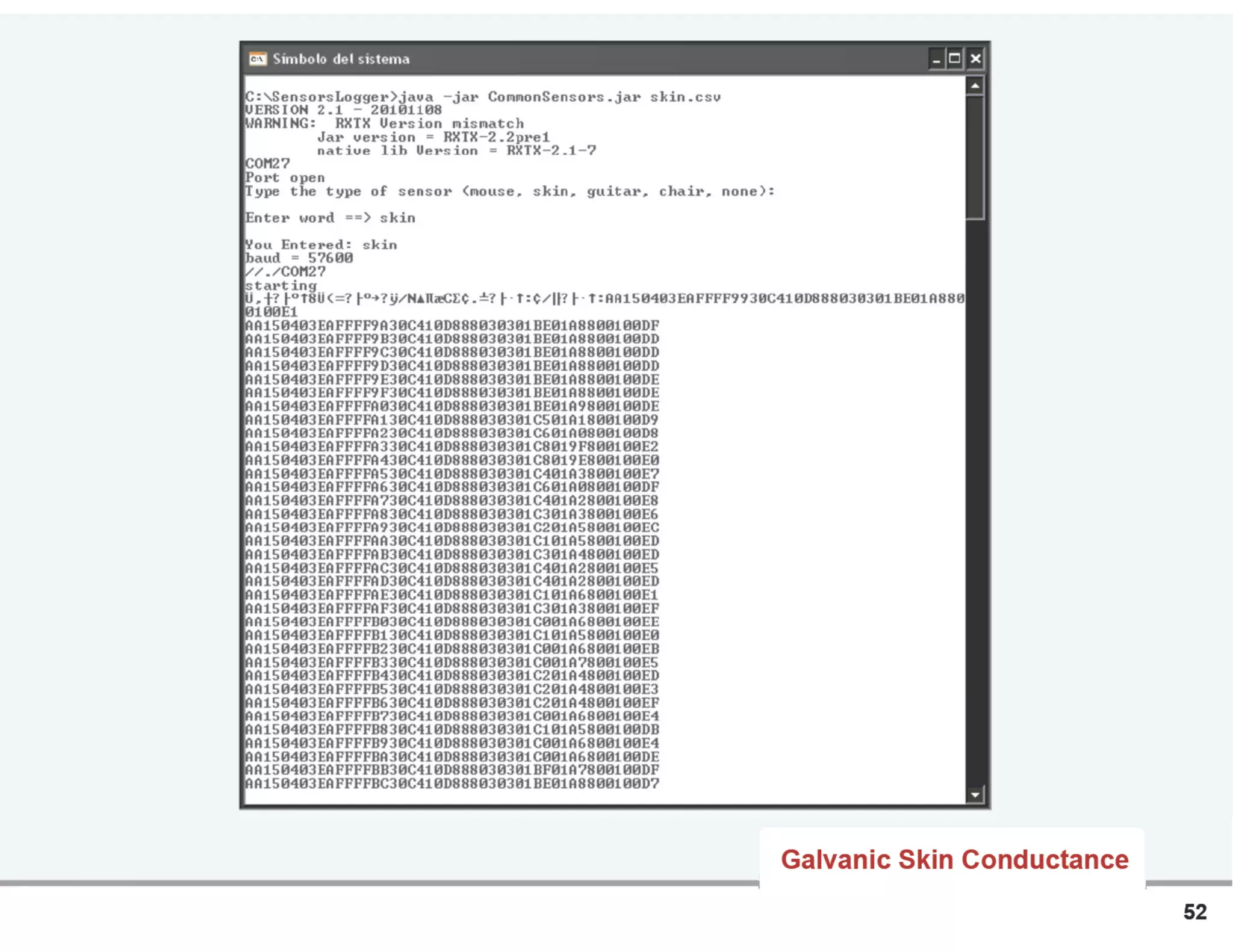

Galvanic Skin Conductance
Provide information on the activity of physiological functions of an individual.
!
!
Arousal detection. Measures the electrical conductance of the skin, which
varies with its moisture level that depends on the sweat glands, which are
controlled by the sympathetic and parasympathetic nervous systems. [10]
!
!
Hardware designed by MIT Media Lab.
!
!
It is a Wireless Bluetooth device that reports data in intervals of
approximately 500 ms (2Hz)
!
!
!
!
[10] M. Strauss, C. Reynolds, S. Hughes, K. Park, G. McDarby, and R.W. Picard, “The HandWave Bluetooth Skin Conductance Sensor,” Proc. First International
Conference on Affective Computing and Intelligent Interaction (ACII 05), Springer-Verlang, Oct. 2005, pp. 699-706, doi:10.1007/11573548_90.
50

Demo
Skin Electrical Conductance Sensor
51

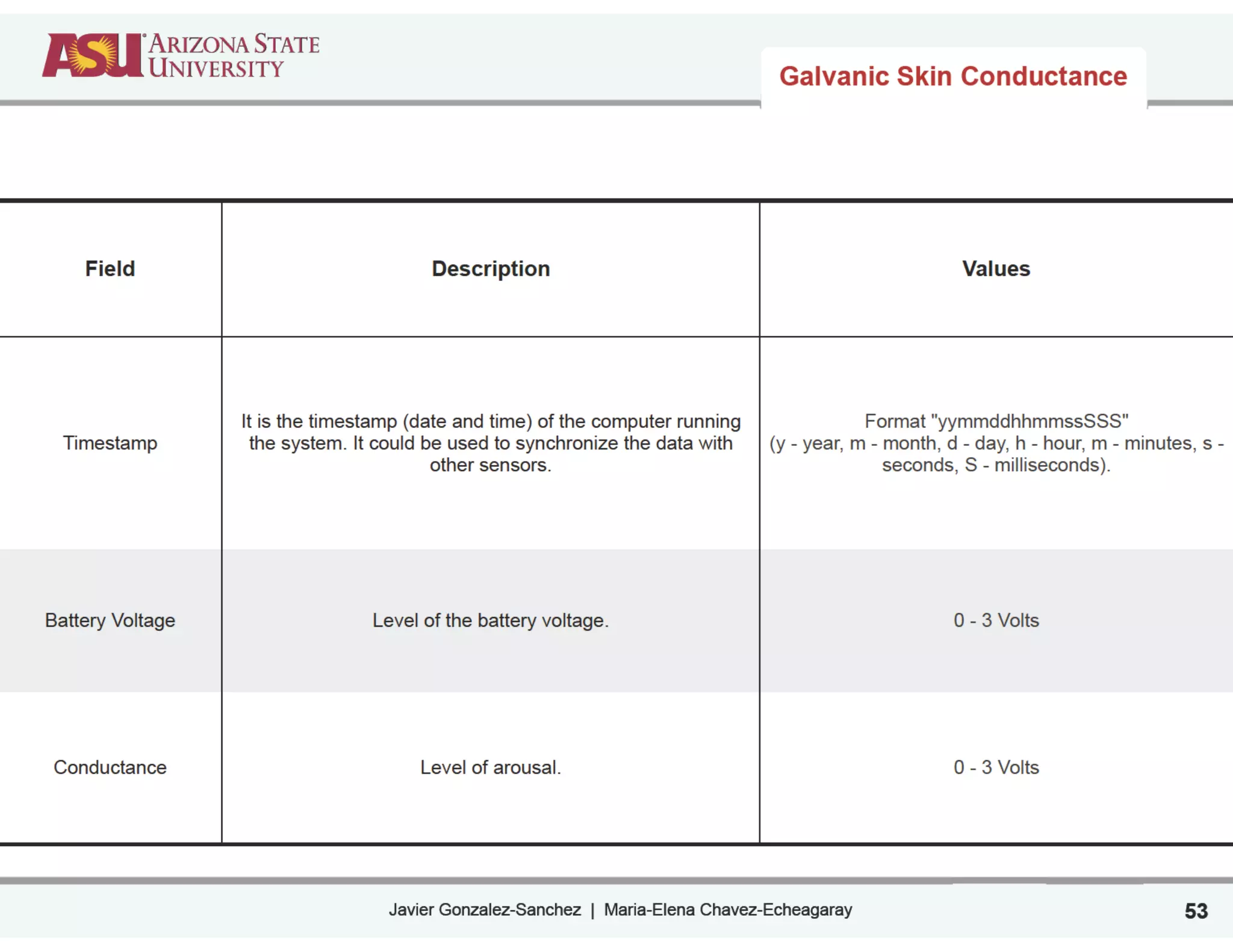

Timestamp
other sensors.
Battery Voltage Level of the battery voltage. 0 - 3 Volts
Conductance Level of arousal. 0 - 3 Volts

Timestamp Voltage Conductance
101116101332262 2.482352941 1.030696176
101116101332762 2.482352941 1.023404165
101116101333262 2.482352941 1.019813274
101116101333762 2.482352941 1.041657802
101116101334247 2.482352941 0.998280273
101116101334747 2.482352941 0.991181142
101116101335247 2.482352941 0.980592229
101116101335747 2.482352941 0.998280273
101116101336247 2.482352941 1.012586294
101116101336762 2.482352941 1.012586294
101116101337231 2.482352941 1.012586294
101116101337747 2.482352941 1.009008251
101116101338247 2.482352941 0.998280273
101116101338747 2.482352941 0.991181142
101116101339247 2.482352941 0.987628521
101116101339731 2.482352941 0.987628521
101116101340231 2.482352941 0.980592229

2. Sensing Devices | Pressure Sensor
55
Session I

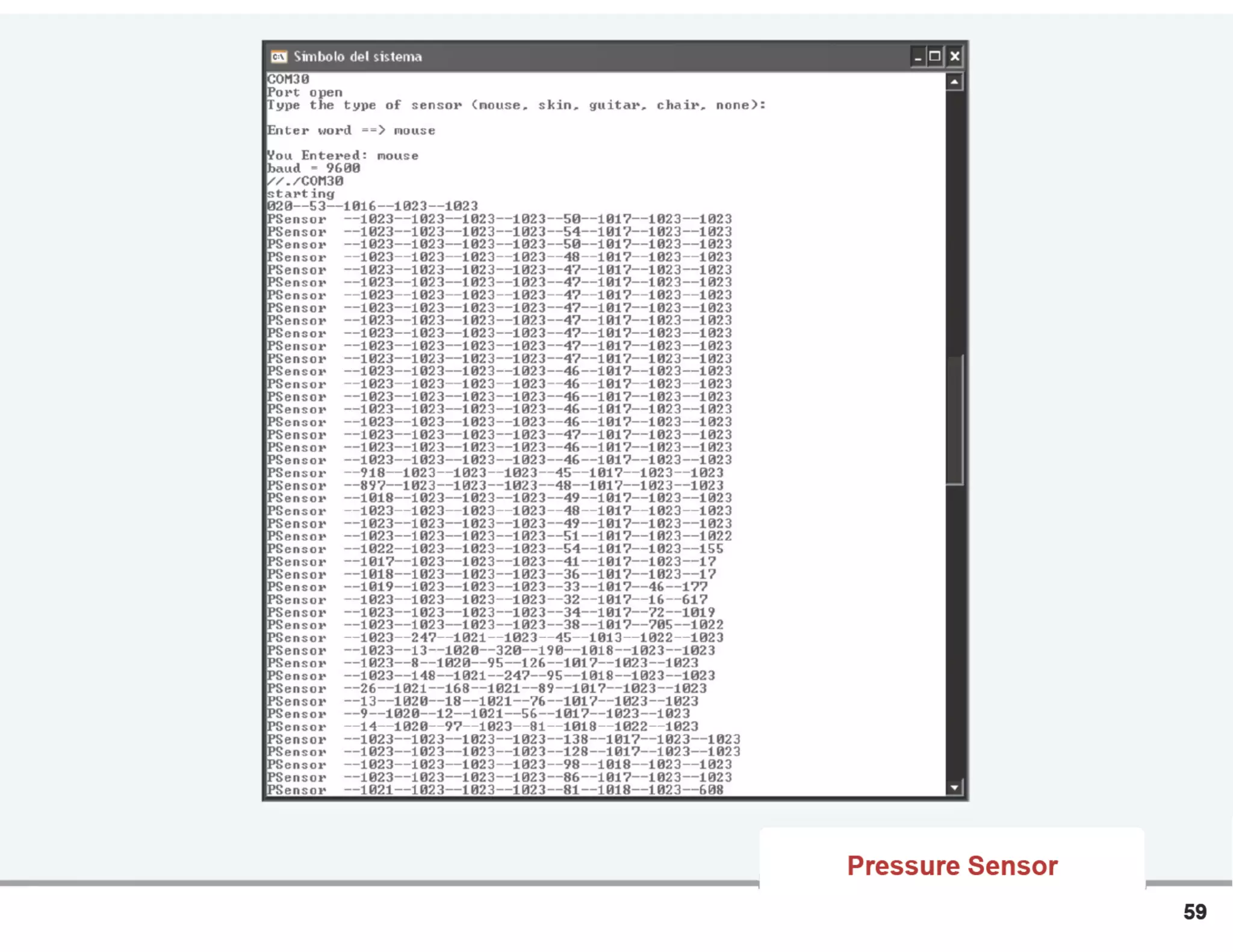

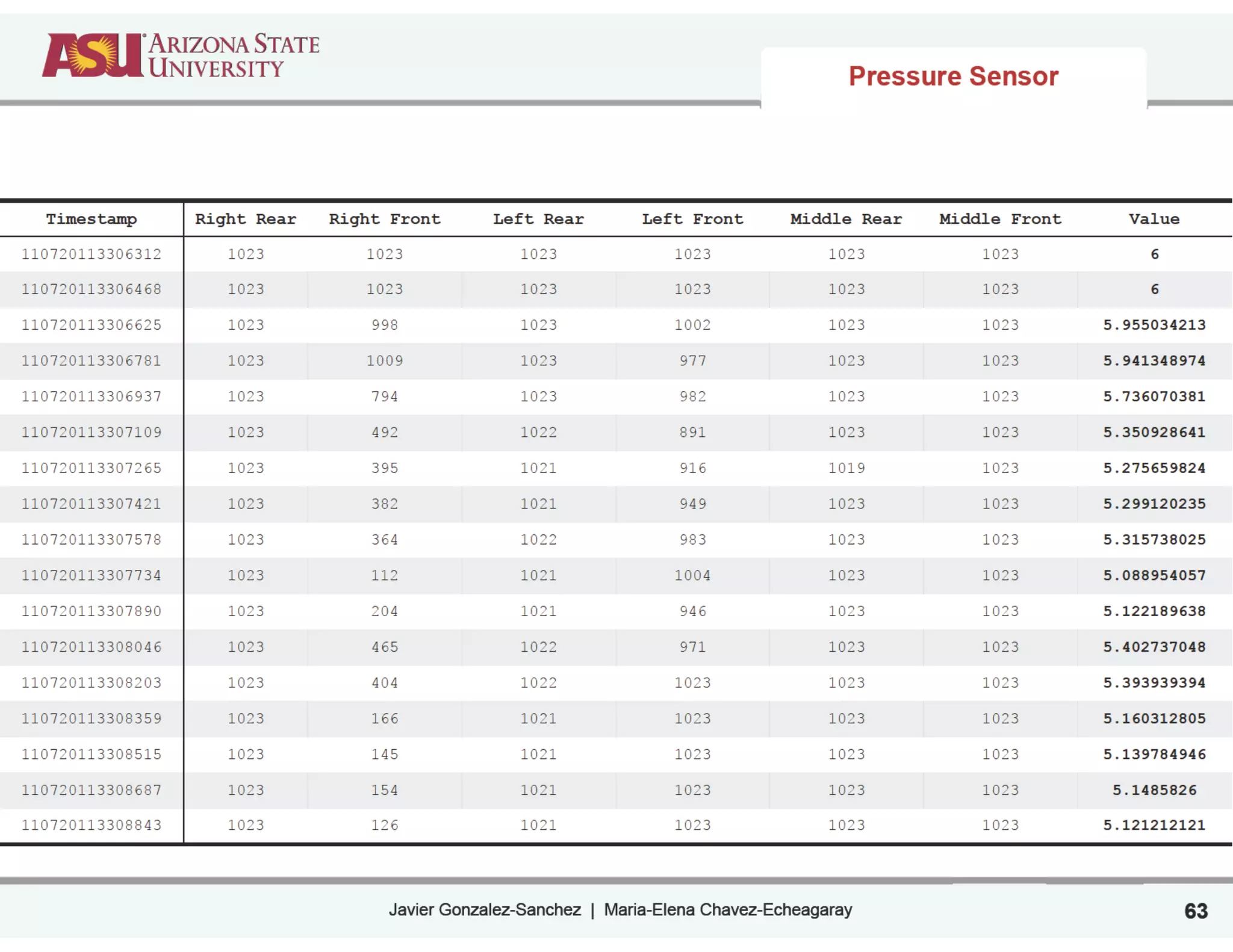

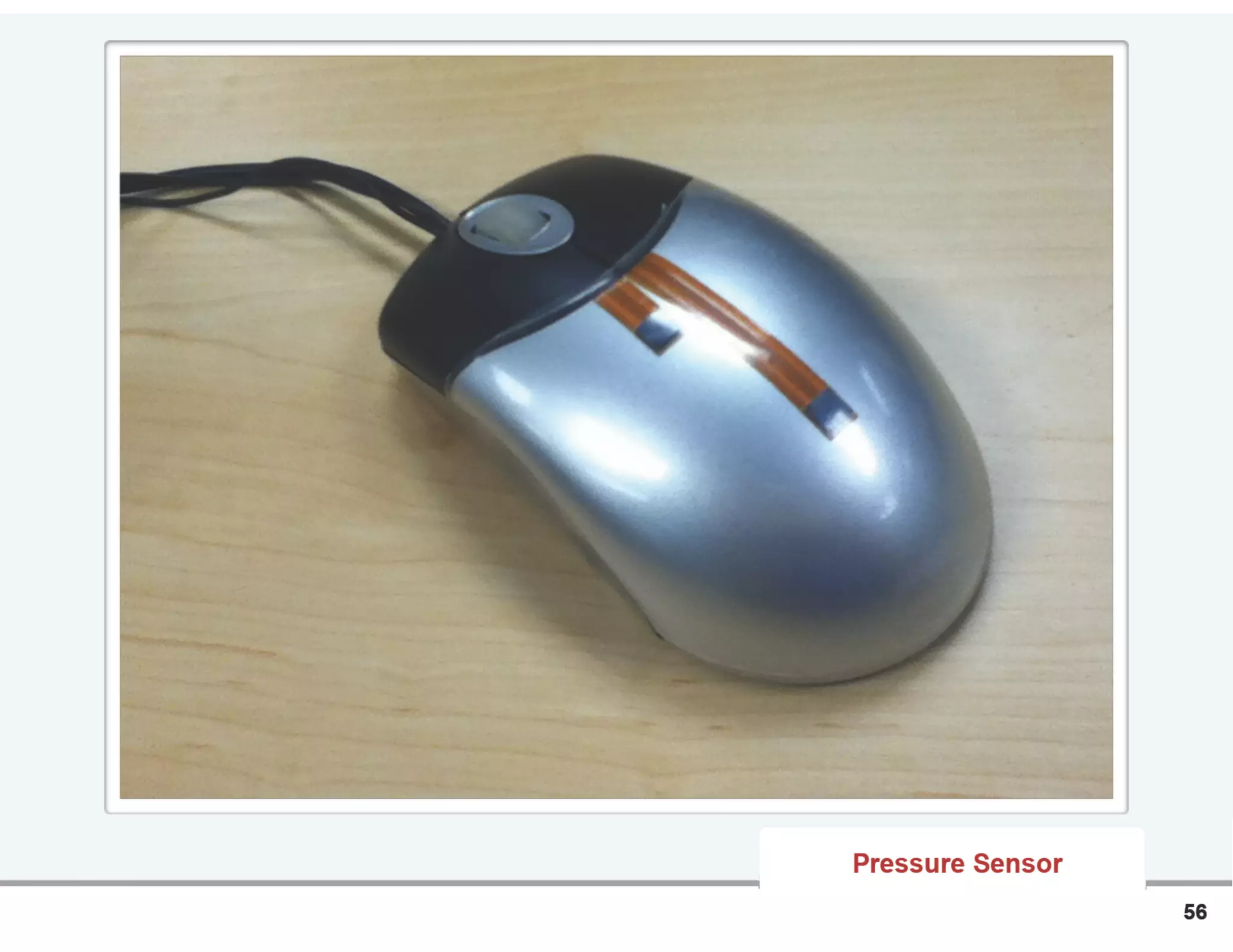

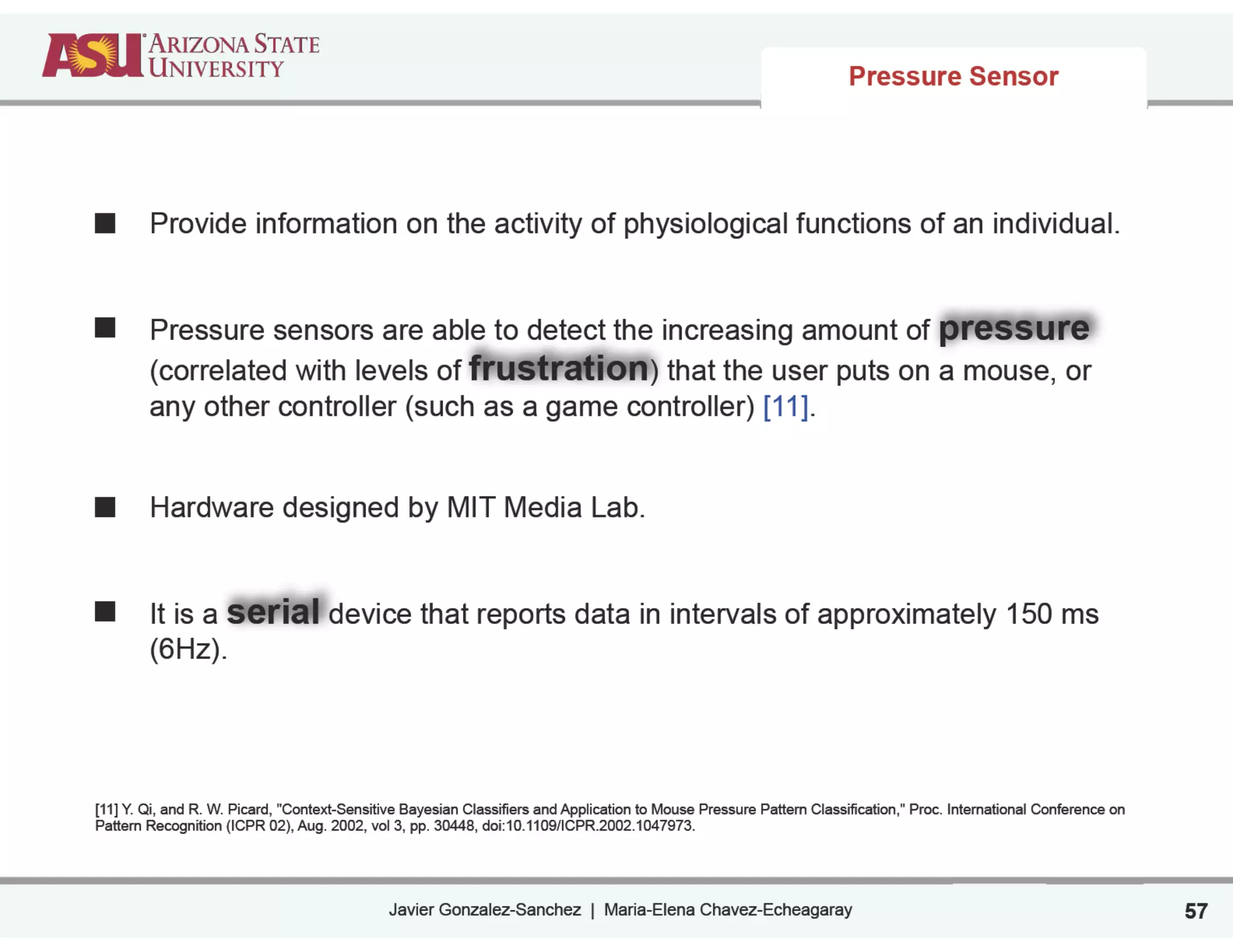

Pressure Sensor
Provide information on the activity of physiological functions of an individual.
!
!
Pressure sensors are able to detect the increasing amount of pressure
(correlated with levels of frustration) that the user puts on a mouse, or
any other controller (such as a game controller) [11].
!
!
Hardware designed by MIT Media Lab.
!
!
It is a serial device that reports data in intervals of approximately 150 ms
(6Hz).
!
!
!
!
[11] Y. Qi, and R. W. Picard, "Context-Sensitive Bayesian Classifiers and Application to Mouse Pressure Pattern Classification," Proc. International Conference on
Pattern Recognition (ICPR 02), Aug. 2002, vol 3, pp. 30448, doi:10.1109/ICPR.2002.1047973.
57

Demo
Mouse Pressure Sensor
58

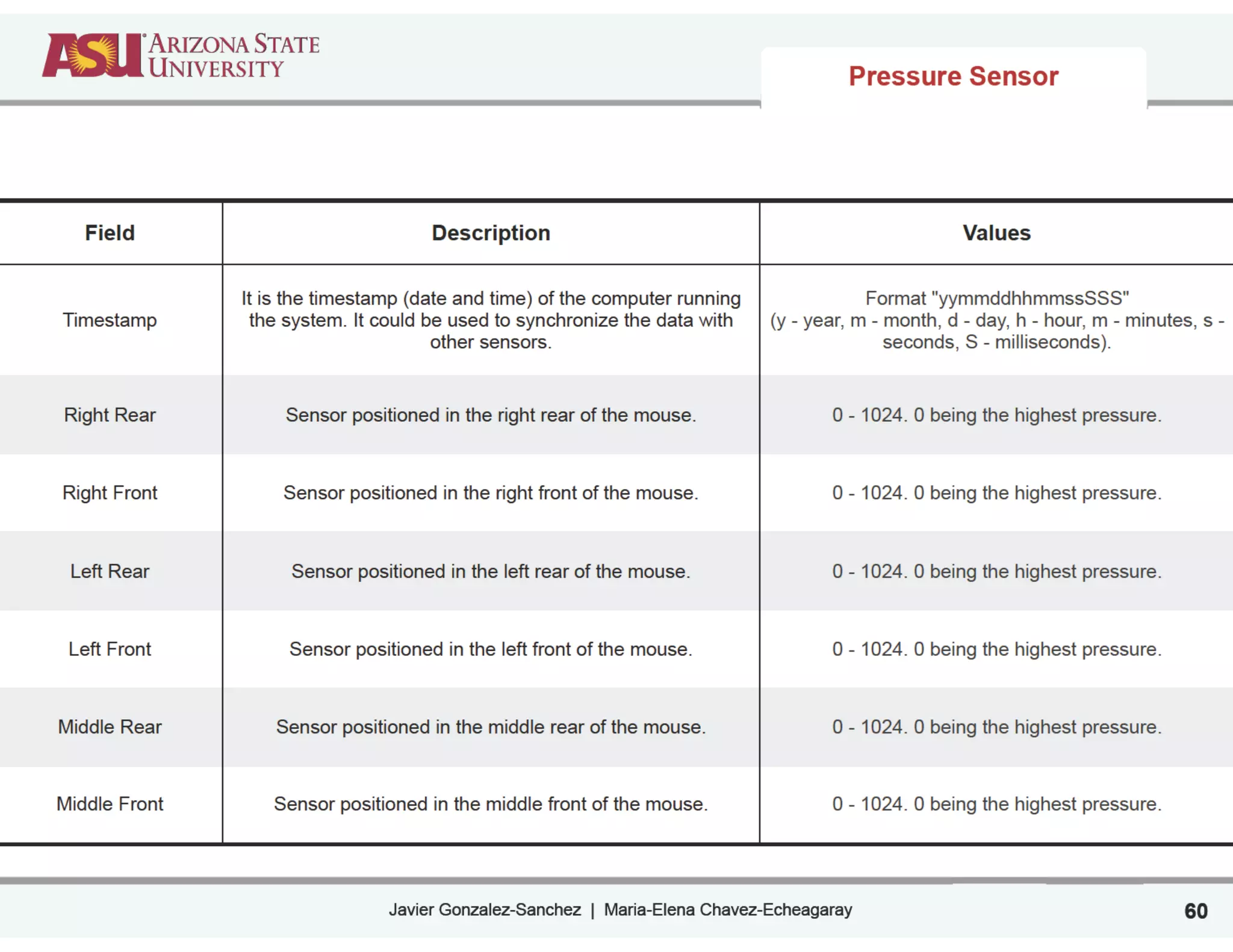

Pressure Sensor

Timestamp
other sensors.
Right Rear Sensor positioned in the right rear of the mouse. 0 - 1024. 0 being the highest pressure.
Right Front Sensor positioned in the right front of the mouse. 0 - 1024. 0 being the highest pressure.
Left Rear Sensor positioned in the left rear of the mouse. 0 - 1024. 0 being the highest pressure.
Left Front Sensor positioned in the left front of the mouse. 0 - 1024. 0 being the highest pressure.
Middle Rear Sensor positioned in the middle rear of the mouse. 0 - 1024. 0 being the highest pressure.
Middle Front Sensor positioned in the middle front of the mouse. 0 - 1024. 0 being the highest pressure.

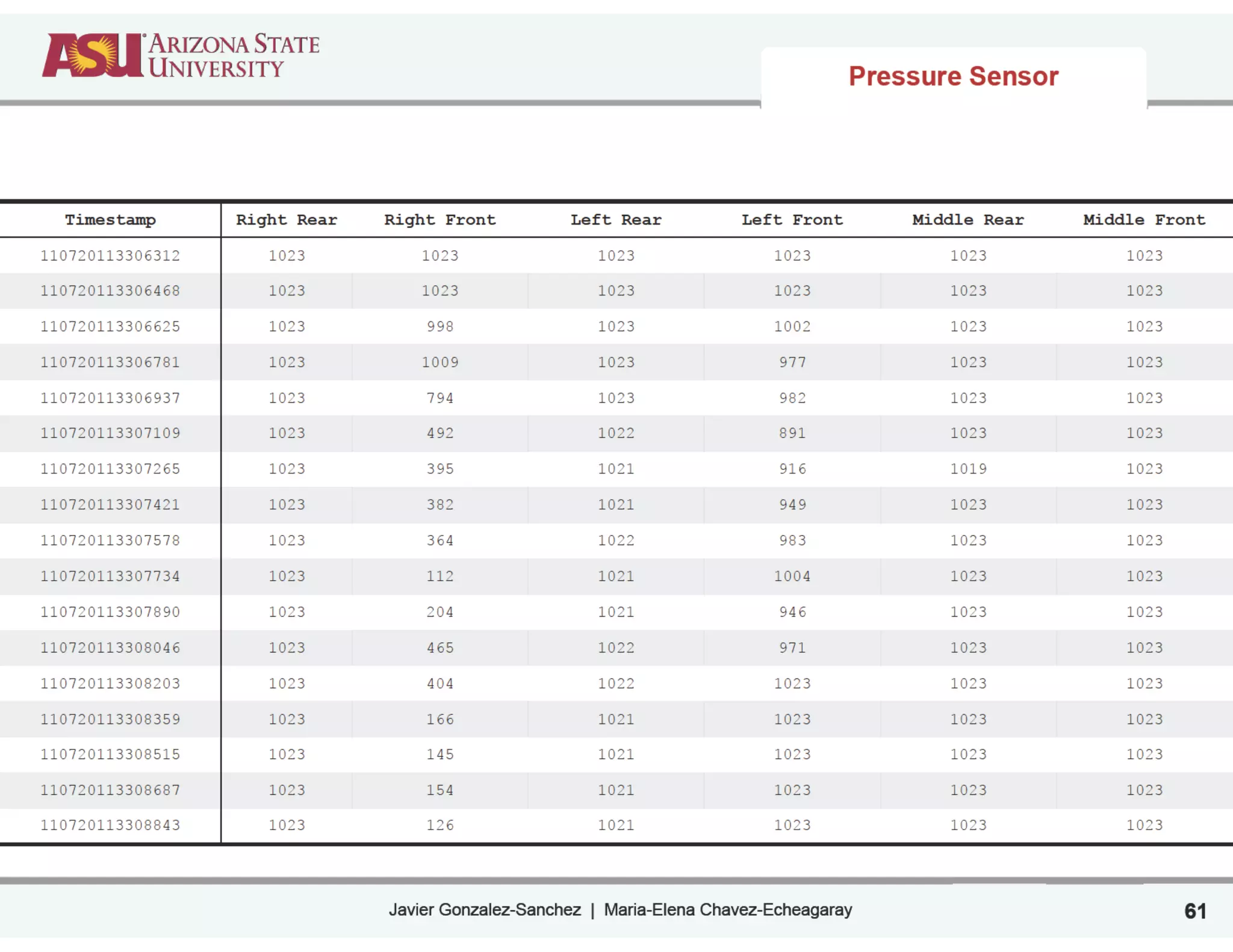

Pressure Sensor

Timestamp Right Rear Right Front Left Rear Left Front Middle Rear Middle Front
110720113306312 1023 1023 1023 1023 1023 1023
110720113306468 1023 1023 1023 1023 1023 1023
110720113306625 1023 998 1023 1002 1023 1023
110720113306781 1023 1009 1023 977 1023 1023
110720113306937 1023 794 1023 982 1023 1023
110720113307109 1023 492 1022 891 1023 1023
110720113307265 1023 395 1021 916 1019 1023
110720113307421 1023 382 1021 949 1023 1023
110720113307578 1023 364 1022 983 1023 1023
110720113307734 1023 112 1021 1004 1023 1023
110720113307890 1023 204 1021 946 1023 1023
110720113308046 1023 465 1022 971 1023 1023
110720113308203 1023 404 1022 1023 1023 1023
110720113308359 1023 166 1021 1023 1023 1023
110720113308515 1023 145 1021 1023 1023 1023
110720113308687 1023 154 1021 1023 1023 1023
110720113308843 1023 126 1021 1023 1023 1023
Pressure Sensor

Pressure Sensor
The raw data from the mouse is processed to obtain meaningful
information [12].
The data obtained is a normalized value from the six different sensors
on the mouse.
!
!
!
!
!
!
[12] Cooper, D., Arroyo, I., Woolf, B., Muldner, K., Burleson, W., and Christopherson, R. (2009). Sensors model student self concept in the classroom,
User Modeling, Adaptation, and Personalization, 30--41

Timestamp Right Rear Right Front Left Rear Left Front Middle Rear Middle Front Value
110720113306312 1023 1023 1023 1023 1023 1023 6
110720113306468 1023 1023 1023 1023 1023 1023 6
110720113306625 1023 998 1023 1002 1023 1023 5.955034213
110720113306781 1023 1009 1023 977 1023 1023 5.941348974
110720113306937 1023 794 1023 982 1023 1023 5.736070381
110720113307109 1023 492 1022 891 1023 1023 5.350928641
110720113307265 1023 395 1021 916 1019 1023 5.275659824
110720113307421 1023 382 1021 949 1023 1023 5.299120235
110720113307578 1023 364 1022 983 1023 1023 5.315738025
110720113307734 1023 112 1021 1004 1023 1023 5.088954057
110720113307890 1023 204 1021 946 1023 1023 5.122189638
110720113308046 1023 465 1022 971 1023 1023 5.402737048
110720113308203 1023 404 1022 1023 1023 1023 5.393939394
110720113308359 1023 166 1021 1023 1023 1023 5.160312805
110720113308515 1023 145 1021 1023 1023 1023 5.139784946
110720113308687 1023 154 1021 1023 1023 1023 5.1485826
110720113308843 1023 126 1021 1023 1023 1023 5.121212121
Pressure Sensor

2. Sensing Devices | Posture Sensor
64
Session I

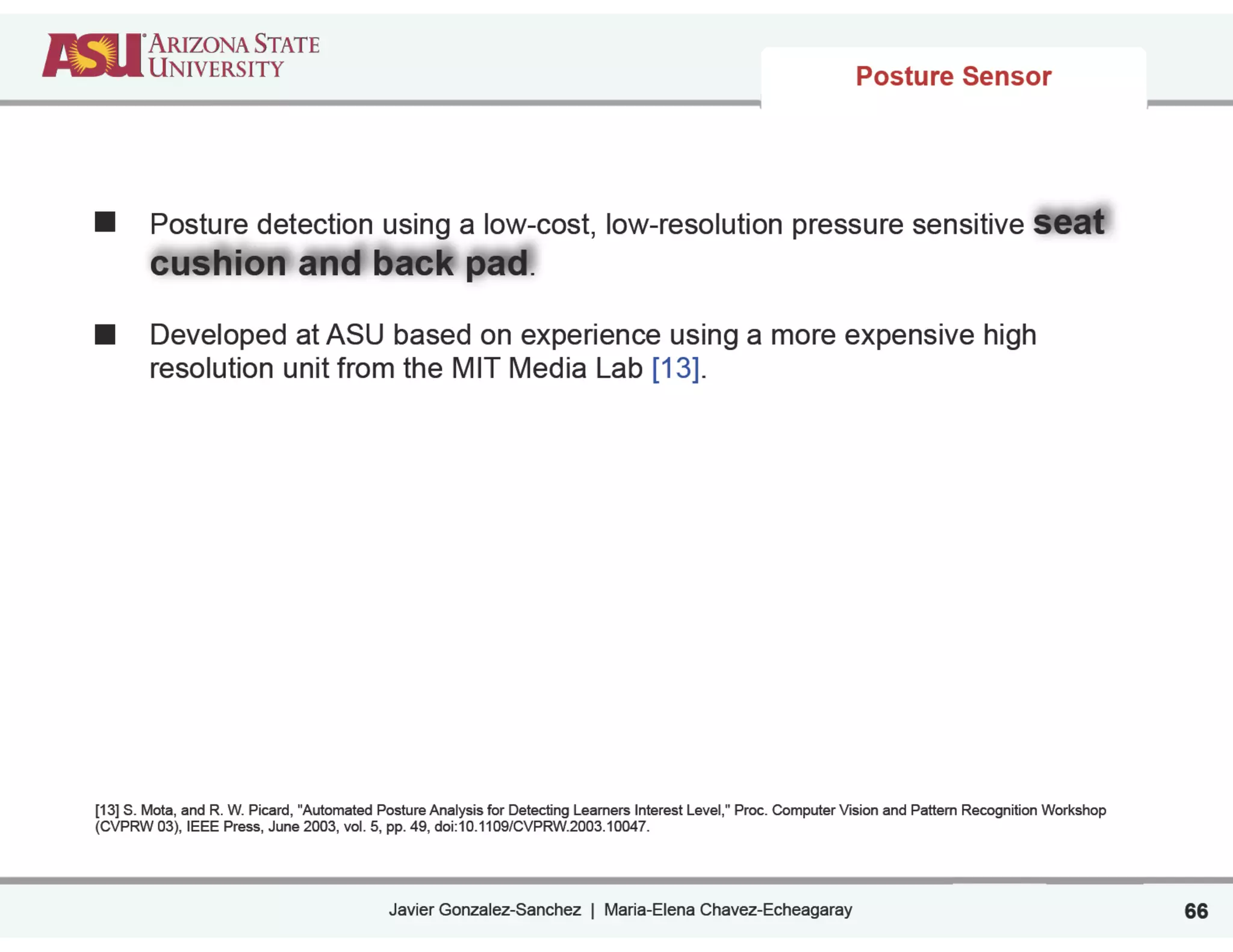

Posture detection using a low-cost, low-resolution pressure sensitive seat
cushion and back pad.
!
Developed at ASU based on experience using a more expensive high
resolution unit from the MIT Media Lab [13].
!
!
!
!
!
!
!
!
!
[13] S. Mota, and R. W. Picard, "Automated Posture Analysis for Detecting Learners Interest Level," Proc. Computer Vision and Pattern Recognition Workshop
(CVPRW 03), IEEE Press, June 2003, vol. 5, pp. 49, doi:10.1109/CVPRW.2003.10047.
Posture Sensor
66

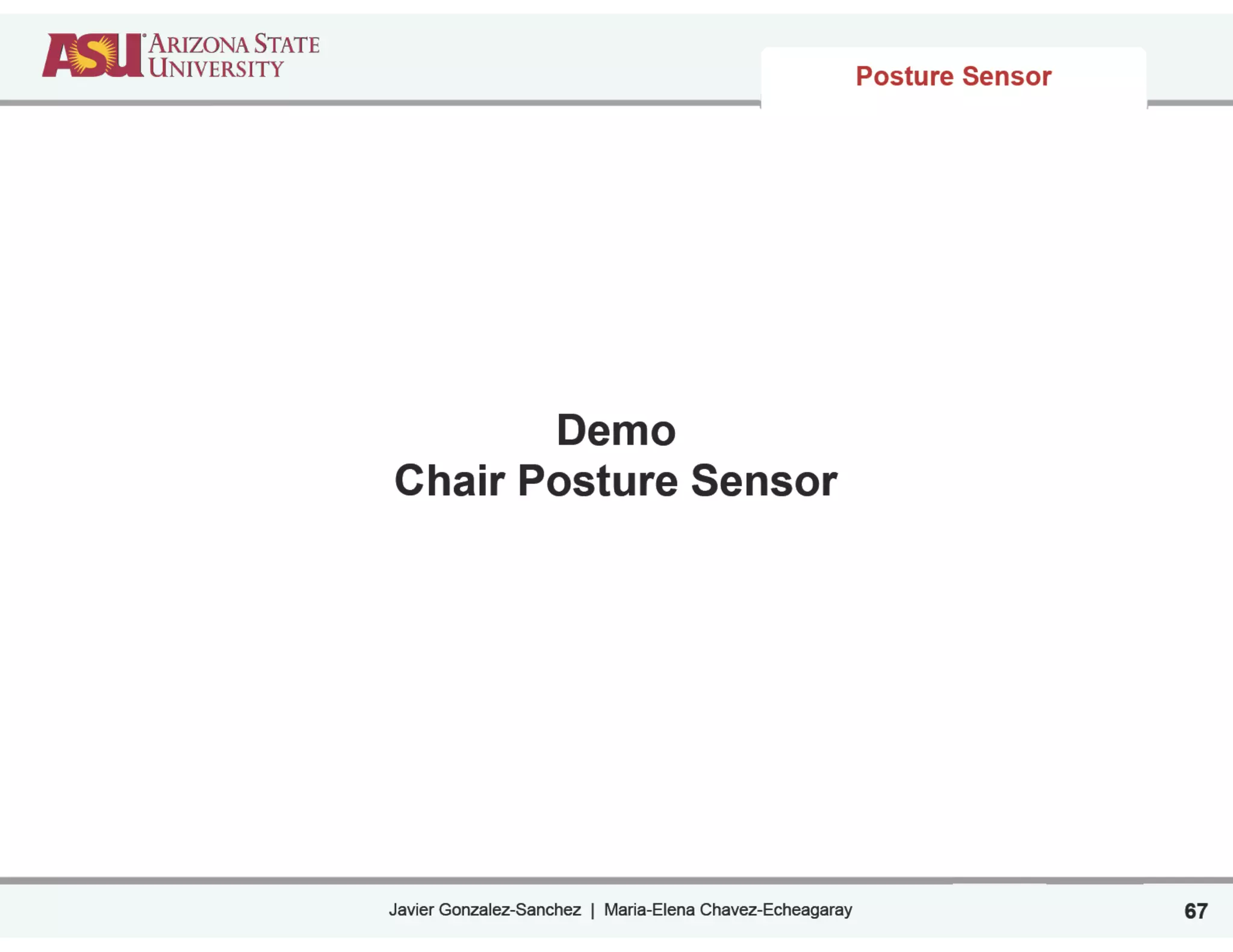

Demo
Chair Posture Sensor
67
Posture Sensor

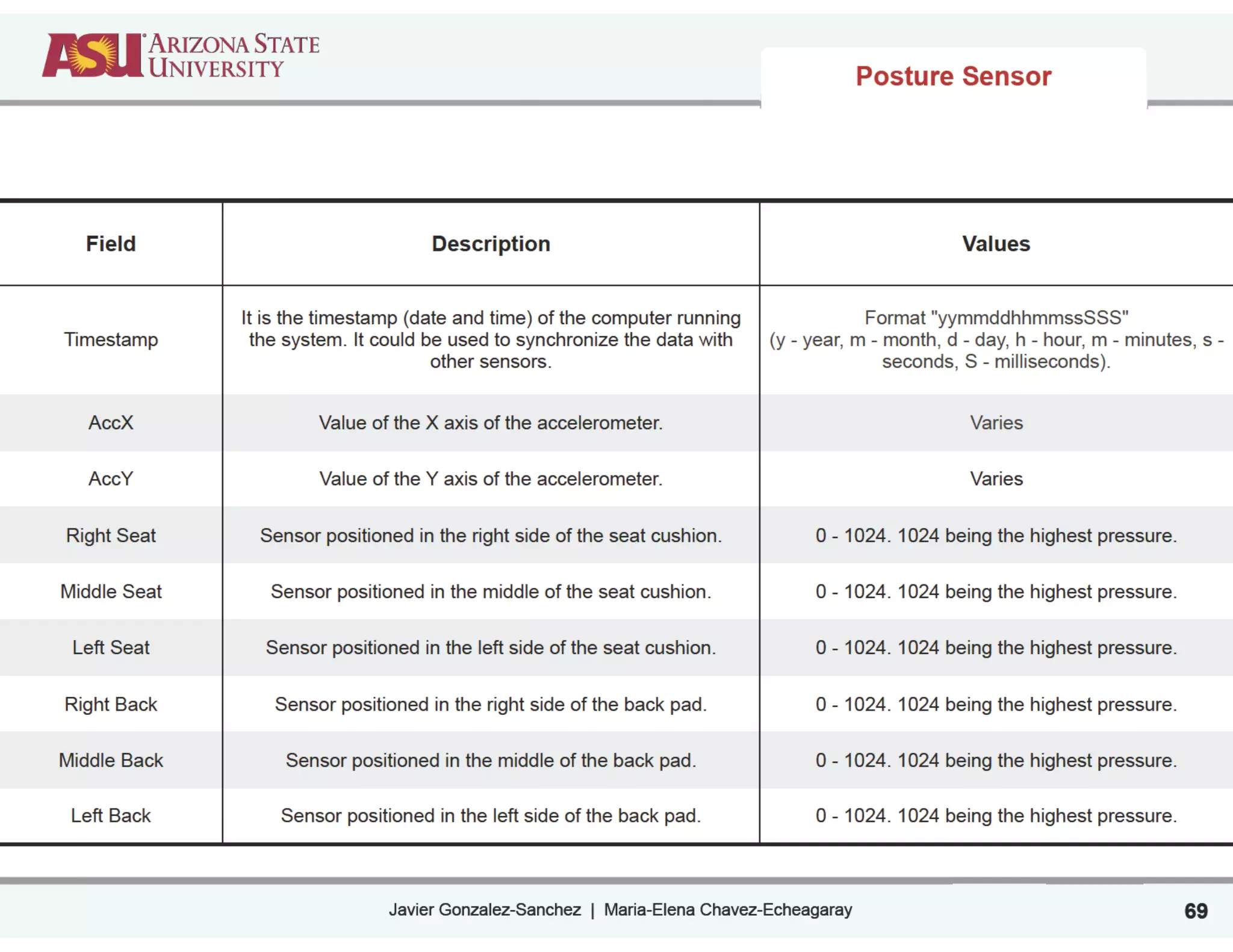

Timestamp
other sensors.
AccX Value of the X axis of the accelerometer. Varies
AccY Value of the Y axis of the accelerometer. Varies
Right Seat Sensor positioned in the right side of the seat cushion. 0 - 1024. 1024 being the highest pressure.
Middle Seat Sensor positioned in the middle of the seat cushion. 0 - 1024. 1024 being the highest pressure.
Left Seat Sensor positioned in the left side of the seat cushion. 0 - 1024. 1024 being the highest pressure.
Right Back Sensor positioned in the right side of the back pad. 0 - 1024. 1024 being the highest pressure.
Middle Back Sensor positioned in the middle of the back pad. 0 - 1024. 1024 being the highest pressure.
Left Back Sensor positioned in the left side of the back pad. 0 - 1024. 1024 being the highest pressure.
Posture Sensor

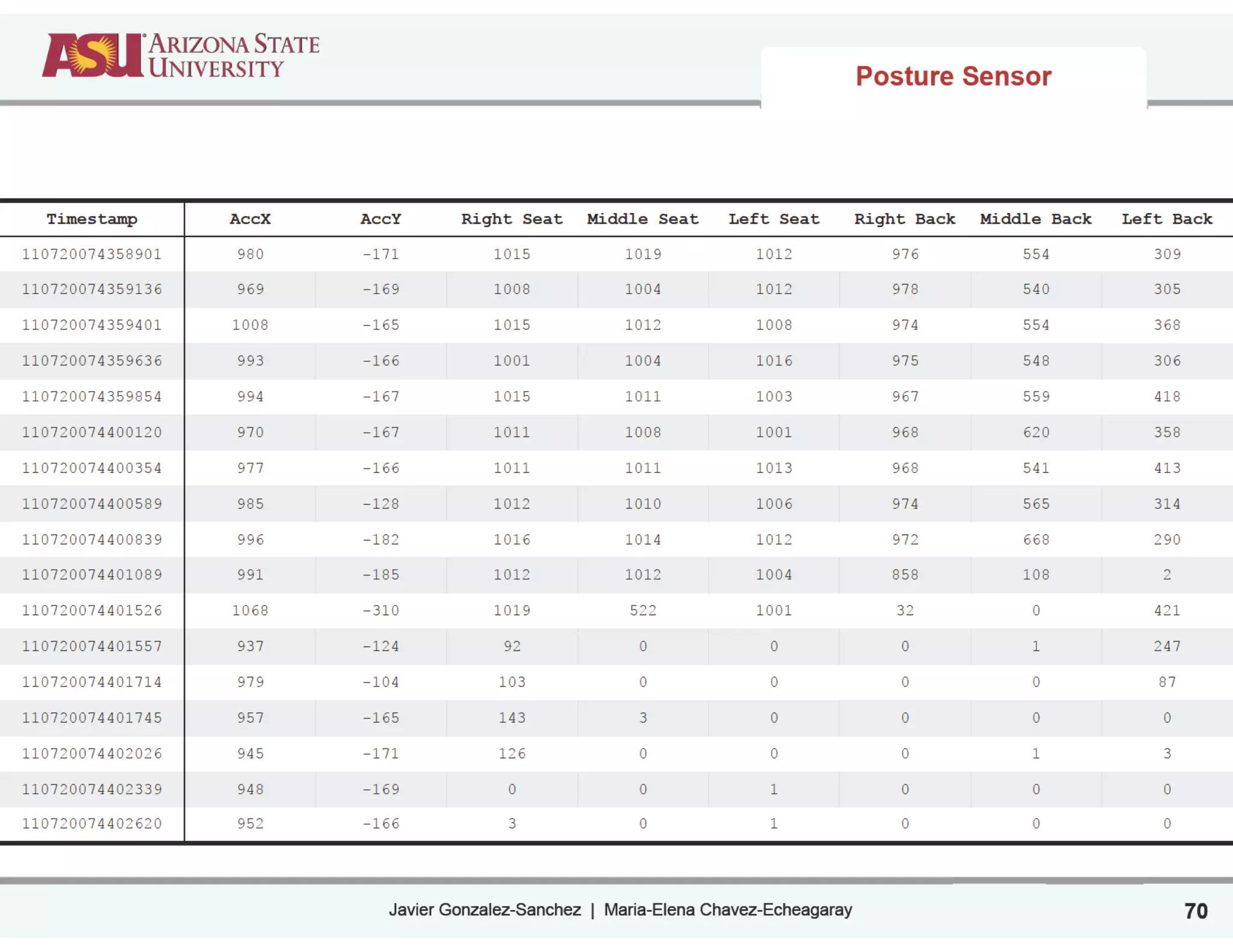

Timestamp AccX AccY Right Seat Middle Seat Left Seat Right Back Middle Back Left Back
110720074358901 980 -171 1015 1019 1012 976 554 309
110720074359136 969 -169 1008 1004 1012 978 540 305
110720074359401 1008 -165 1015 1012 1008 974 554 368
110720074359636 993 -166 1001 1004 1016 975 548 306
110720074359854 994 -167 1015 1011 1003 967 559 418
110720074400120 970 -167 1011 1008 1001 968 620 358
110720074400354 977 -166 1011 1011 1013 968 541 413
110720074400589 985 -128 1012 1010 1006 974 565 314
110720074400839 996 -182 1016 1014 1012 972 668 290
110720074401089 991 -185 1012 1012 1004 858 108 2
110720074401526 1068 -310 1019 522 1001 32 0 421
110720074401557 937 -124 92 0 0 0 1 247
110720074401714 979 -104 103 0 0 0 0 87
110720074401745 957 -165 143 3 0 0 0 0
110720074402026 945 -171 126 0 0 0 1 3
110720074402339 948 -169 0 0 1 0 0 0
110720074402620 952 -166 3 0 1 0 0 0
Posture Sensor

Posture Sensor

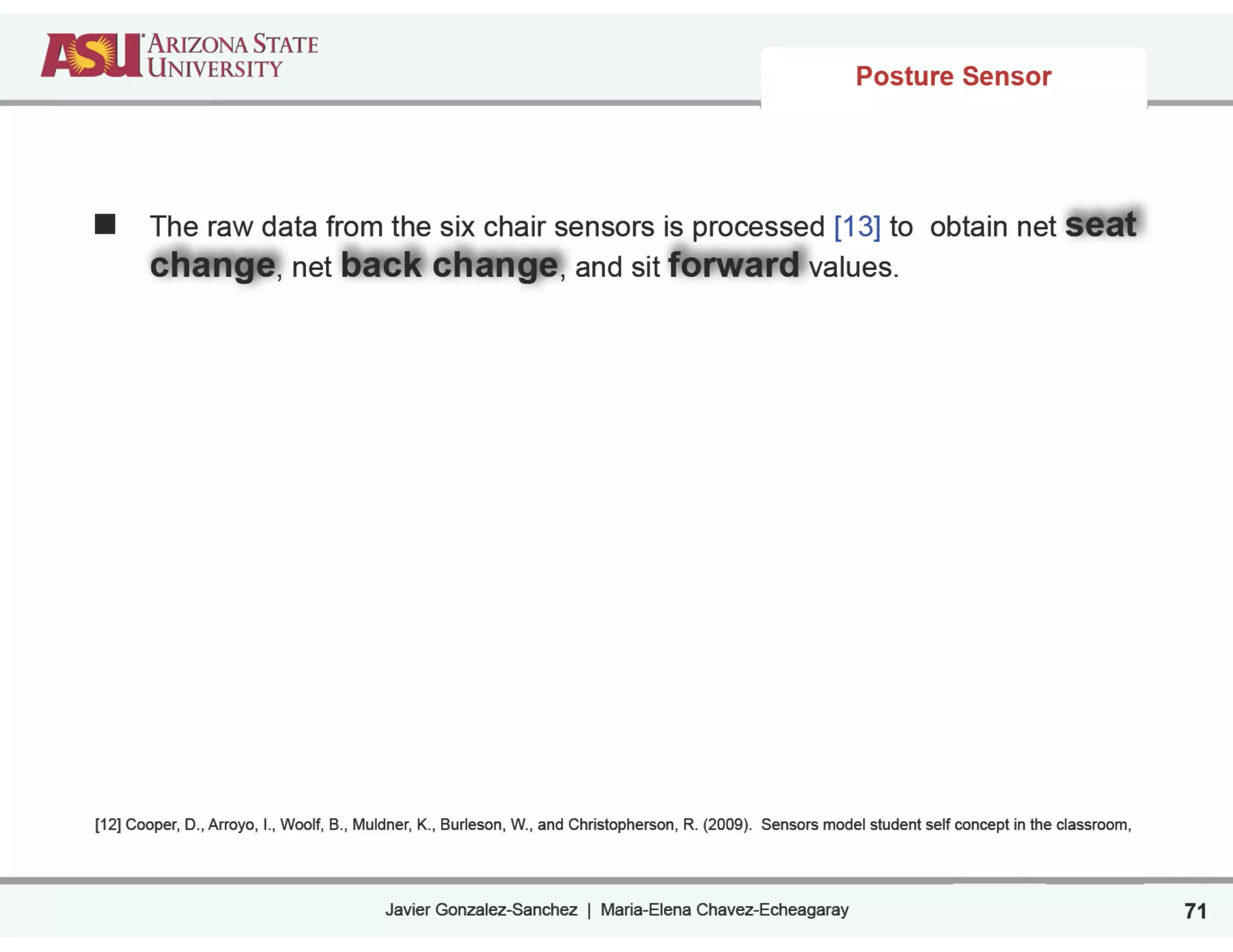

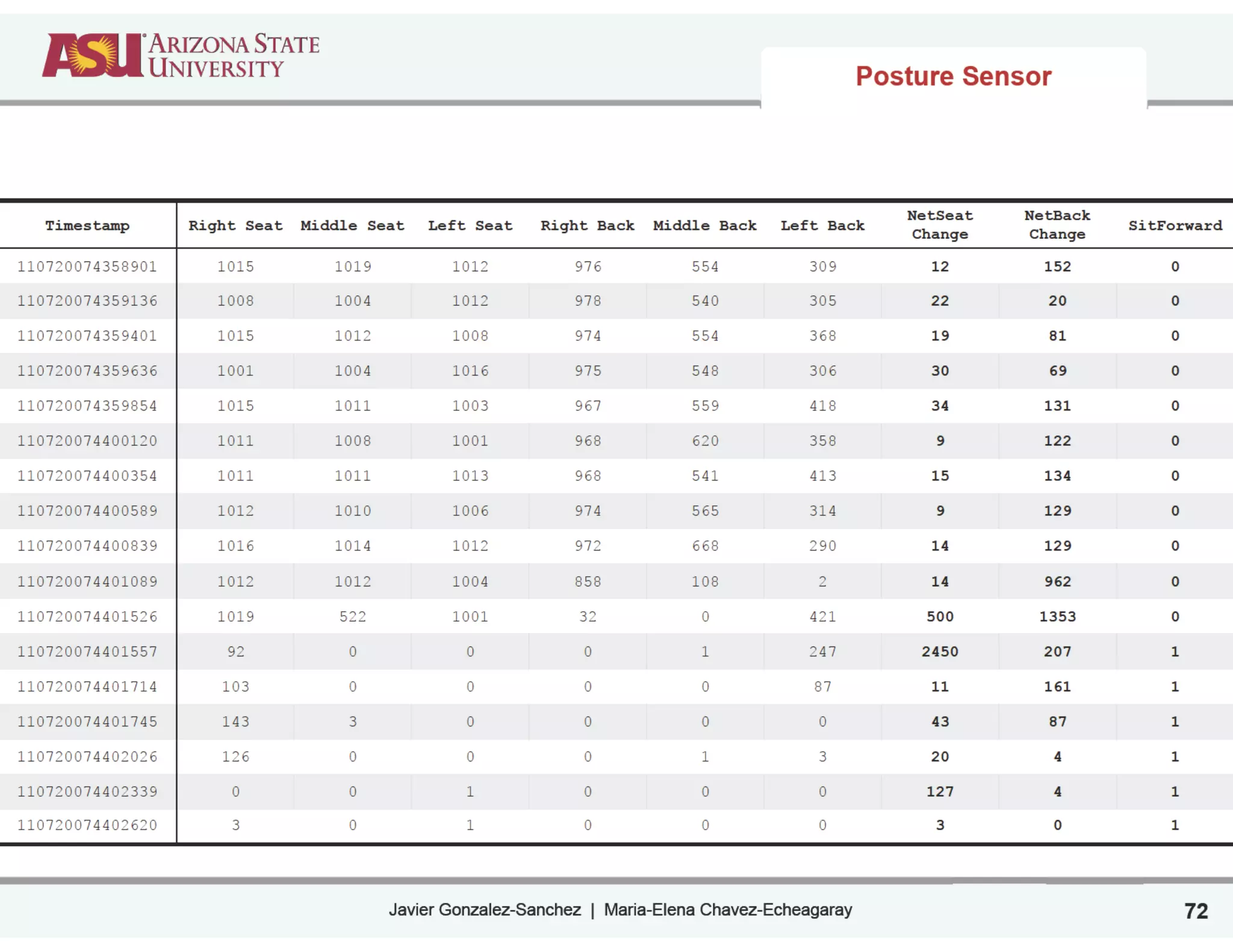

The raw data from the six chair sensors is processed [13] to obtain net seat
change, net back change, and sit forward values.
!
!
!
!
!
!
!
!
[12] Cooper, D., Arroyo, I., Woolf, B., Muldner, K., Burleson, W., and Christopherson, R. (2009). Sensors model student self concept in the classroom,

Timestamp Right Seat Middle Seat Left Seat Right Back Middle Back Left Back
NetSeat
Change
NetBack
Change
SitForward
110720074358901 1015 1019 1012 976 554 309 12 152 0
110720074359136 1008 1004 1012 978 540 305 22 20 0
110720074359401 1015 1012 1008 974 554 368 19 81 0
110720074359636 1001 1004 1016 975 548 306 30 69 0
110720074359854 1015 1011 1003 967 559 418 34 131 0
110720074400120 1011 1008 1001 968 620 358 9 122 0
110720074400354 1011 1011 1013 968 541 413 15 134 0
110720074400589 1012 1010 1006 974 565 314 9 129 0
110720074400839 1016 1014 1012 972 668 290 14 129 0
110720074401089 1012 1012 1004 858 108 2 14 962 0
110720074401526 1019 522 1001 32 0 421 500 1353 0
110720074401557 92 0 0 0 1 247 2450 207 1
110720074401714 103 0 0 0 0 87 11 161 1
110720074401745 143 3 0 0 0 0 43 87 1
110720074402026 126 0 0 0 1 3 20 4 1
110720074402339 0 0 1 0 0 0 127 4 1
110720074402620 3 0 1 0 0 0 3 0 1
Posture Sensor

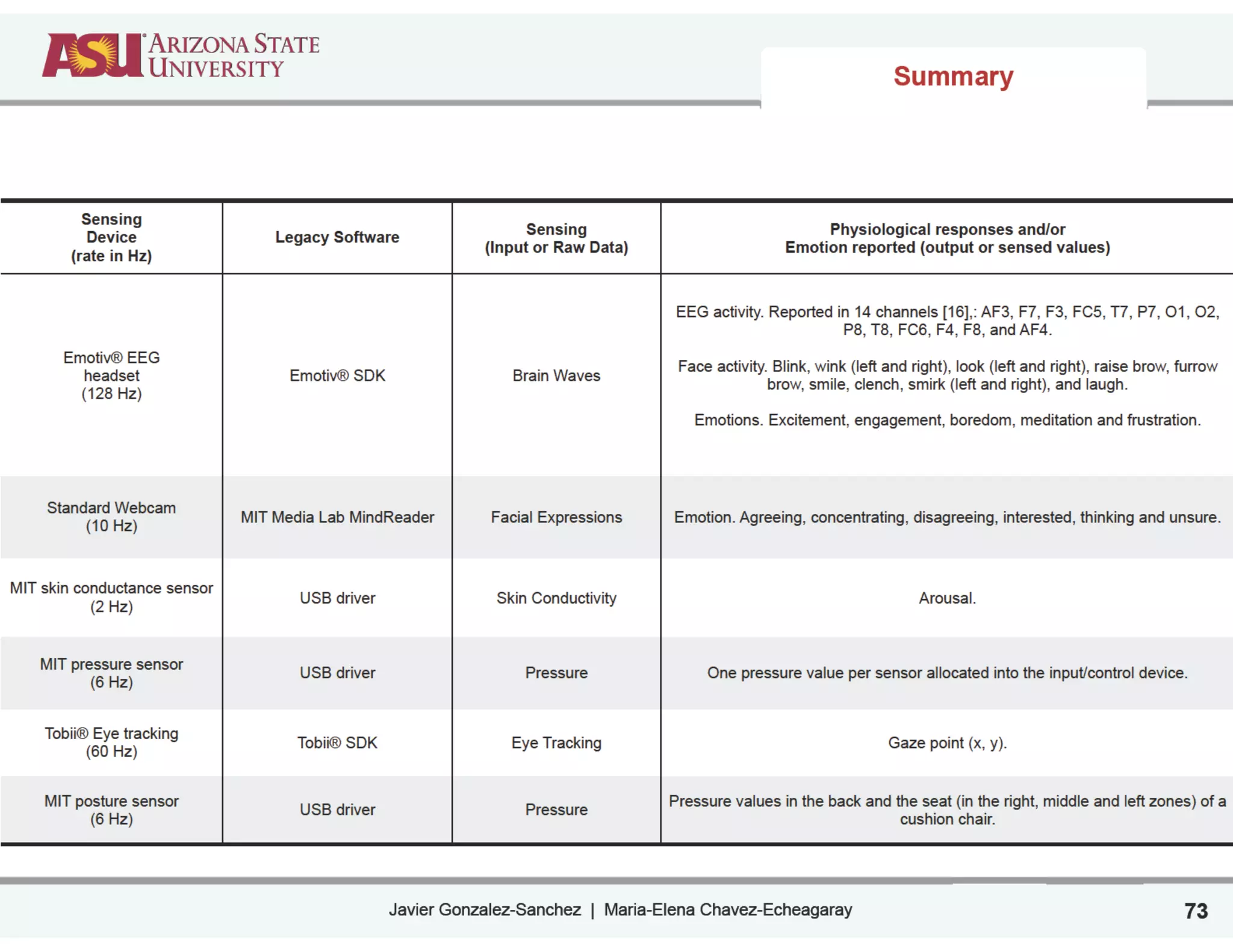

Sensing
Device
(rate in Hz)
Legacy Software
Sensing
(Input or Raw Data)
Physiological responses and/or
Emotion reported (output or sensed values)
Emotiv® EEG
headset
(128 Hz)
Emotiv® SDK Brain Waves
EEG activity. Reported in 14 channels [16],: AF3, F7, F3, FC5, T7, P7, O1, O2,
P8, T8, FC6, F4, F8, and AF4.
Face activity. Blink, wink (left and right), look (left and right), raise brow, furrow
brow, smile, clench, smirk (left and right), and laugh.
!
Emotions. Excitement, engagement, boredom, meditation and frustration.
Standard Webcam
(10 Hz)
MIT Media Lab MindReader Facial Expressions Emotion. Agreeing, concentrating, disagreeing, interested, thinking and unsure.
MIT skin conductance sensor
(2 Hz)
USB driver Skin Conductivity Arousal.
MIT pressure sensor
(6 Hz)
USB driver Pressure One pressure value per sensor allocated into the input/control device.
Tobii® Eye tracking
(60 Hz)
Tobii® SDK Eye Tracking Gaze point (x, y).
MIT posture sensor
(6 Hz)
USB driver Pressure
Pressure values in the back and the seat (in the right, middle and left zones) of a
cushion chair.
Summary

Session 2
working with data and research experiences
74

Background
75

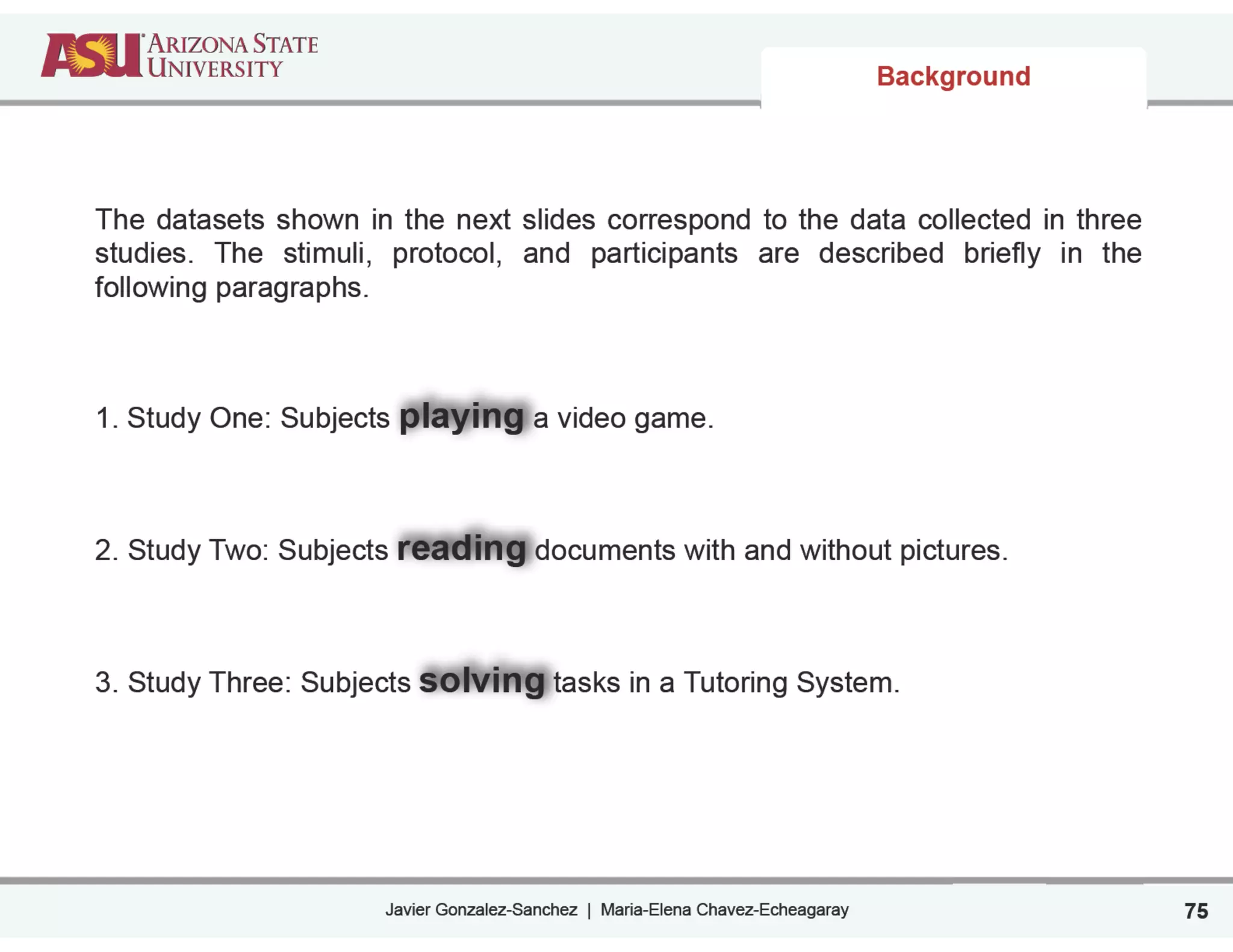

The datasets shown in the next slides correspond to the data collected in three
studies. The stimuli, protocol, and participants are described briefly in the
following paragraphs.
!
1. Study One: Subjects playing a video game.
!
2. Study Two: Subjects reading documents with and without pictures.
!
3. Study Three: Subjects solving tasks in a Tutoring System.

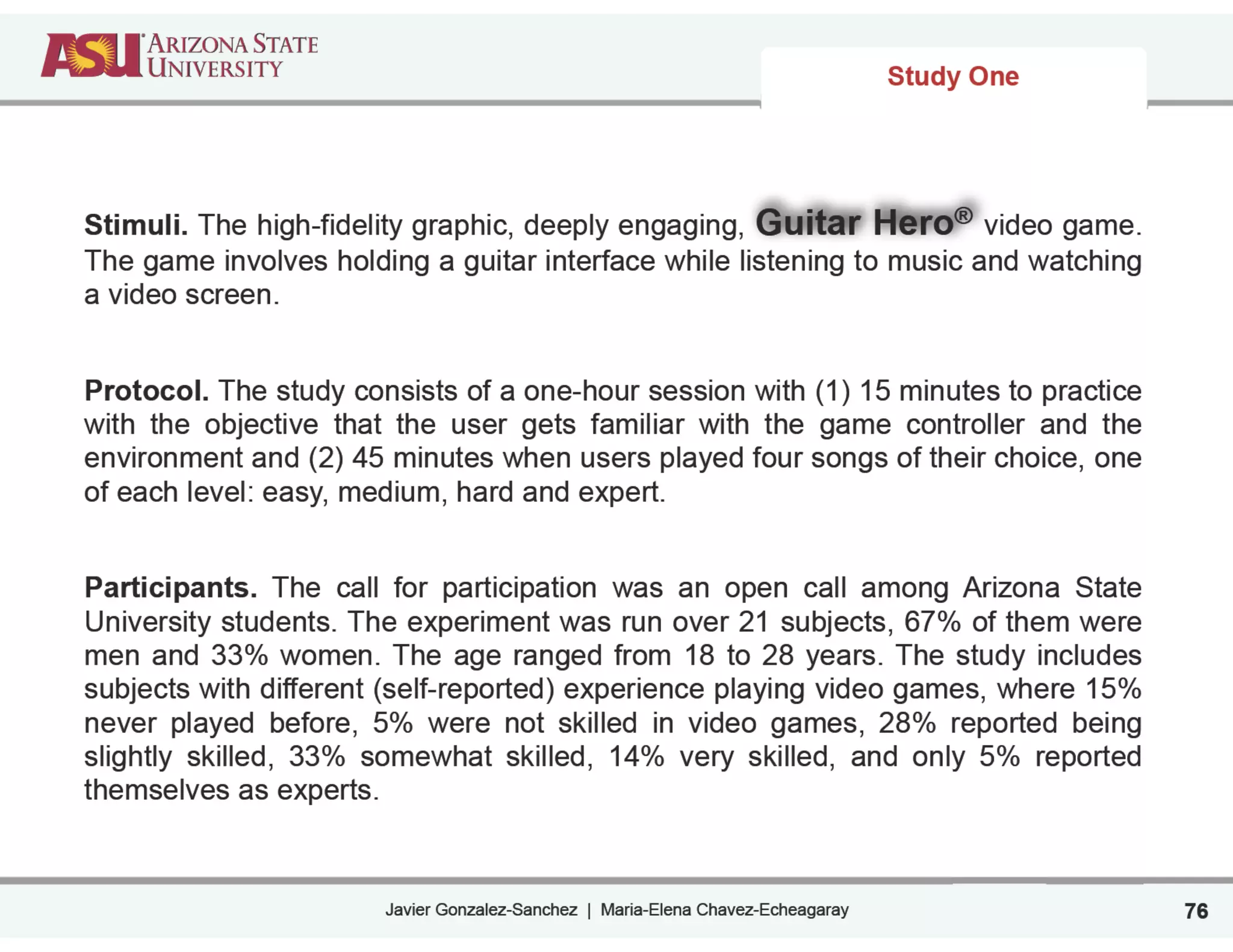

Study One
76
Stimuli. The high-fidelity graphic, deeply engaging, Guitar Hero® video game.
The game involves holding a guitar interface while listening to music and watching
a video screen.
!
Protocol. The study consists of a one-hour session with (1) 15 minutes to practice
with the objective that the user gets familiar with the game controller and the
environment and (2) 45 minutes when users played four songs of their choice, one
of each level: easy, medium, hard and expert.
!
Participants. The call for participation was an open call among Arizona State
University students. The experiment was run over 21 subjects, 67% of them were
men and 33% women. The age ranged from 18 to 28 years. The study includes
subjects with different (self-reported) experience playing video games, where 15%
never played before, 5% were not skilled in video games, 28% reported being
slightly skilled, 33% somewhat skilled, 14% very skilled, and only 5% reported
themselves as experts.

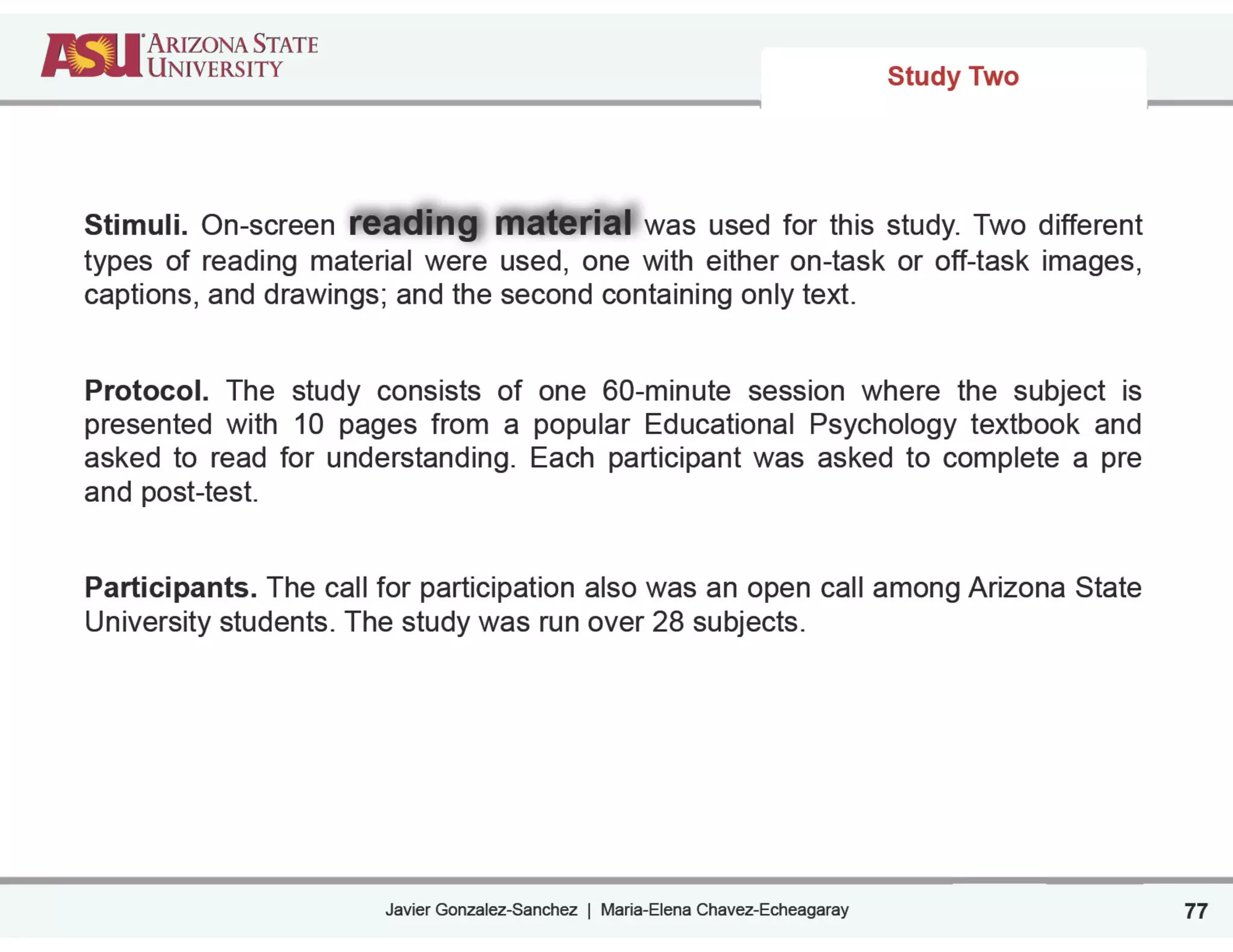

Study Two
77
Stimuli. On-screen reading material was used for this study. Two different
types of reading material were used, one with either on-task or off-task images,
captions, and drawings; and the second containing only text.
!
Protocol. The study consists of one 60-minute session where the subject is
presented with 10 pages from a popular Educational Psychology textbook and
asked to read for understanding. Each participant was asked to complete a pre
and post-test.
!
Participants. The call for participation also was an open call among Arizona State
University students. The study was run over 28 subjects.
!

Study Three
78

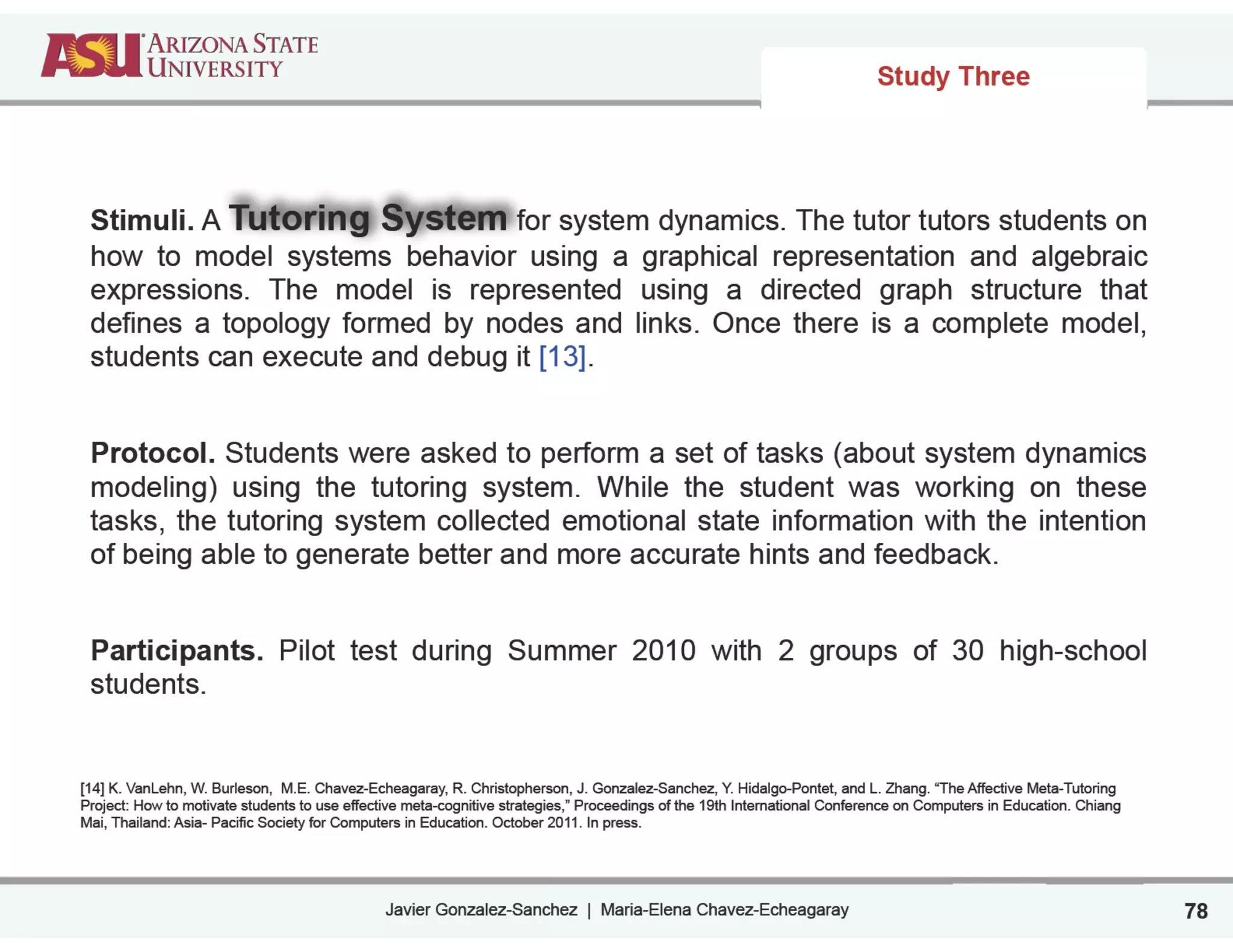

Stimuli. A Tutoring System for system dynamics. The tutor tutors students on
how to model systems behavior using a graphical representation and algebraic
expressions. The model is represented using a directed graph structure that
defines a topology formed by nodes and links. Once there is a complete model,
students can execute and debug it [13].
!
Protocol. Students were asked to perform a set of tasks (about system dynamics
modeling) using the tutoring system. While the student was working on these
tasks, the tutoring system collected emotional state information with the intention
of being able to generate better and more accurate hints and feedback.
!
Participants. Pilot test during Summer 2010 with 2 groups of 30 high-school
students.
!
!
[14] K. VanLehn, W. Burleson, M.E. Chavez-Echeagaray, R. Christopherson, J. Gonzalez-Sanchez, Y. Hidalgo-Pontet, and L. Zhang. “The Affective Meta-Tutoring
Project: How to motivate students to use effective meta-cognitive strategies,” Proceedings of the 19th International Conference on Computers in Education. Chiang
Mai, Thailand: Asia- Pacific Society for Computers in Education. October 2011. In press.

3. Data Filtering and Integration
79
Session 2

Filtering
80
Filtering the data includes cleaning, synchronizing, and averaging
or passing a threshold or a range.

Filtering and Integration
81

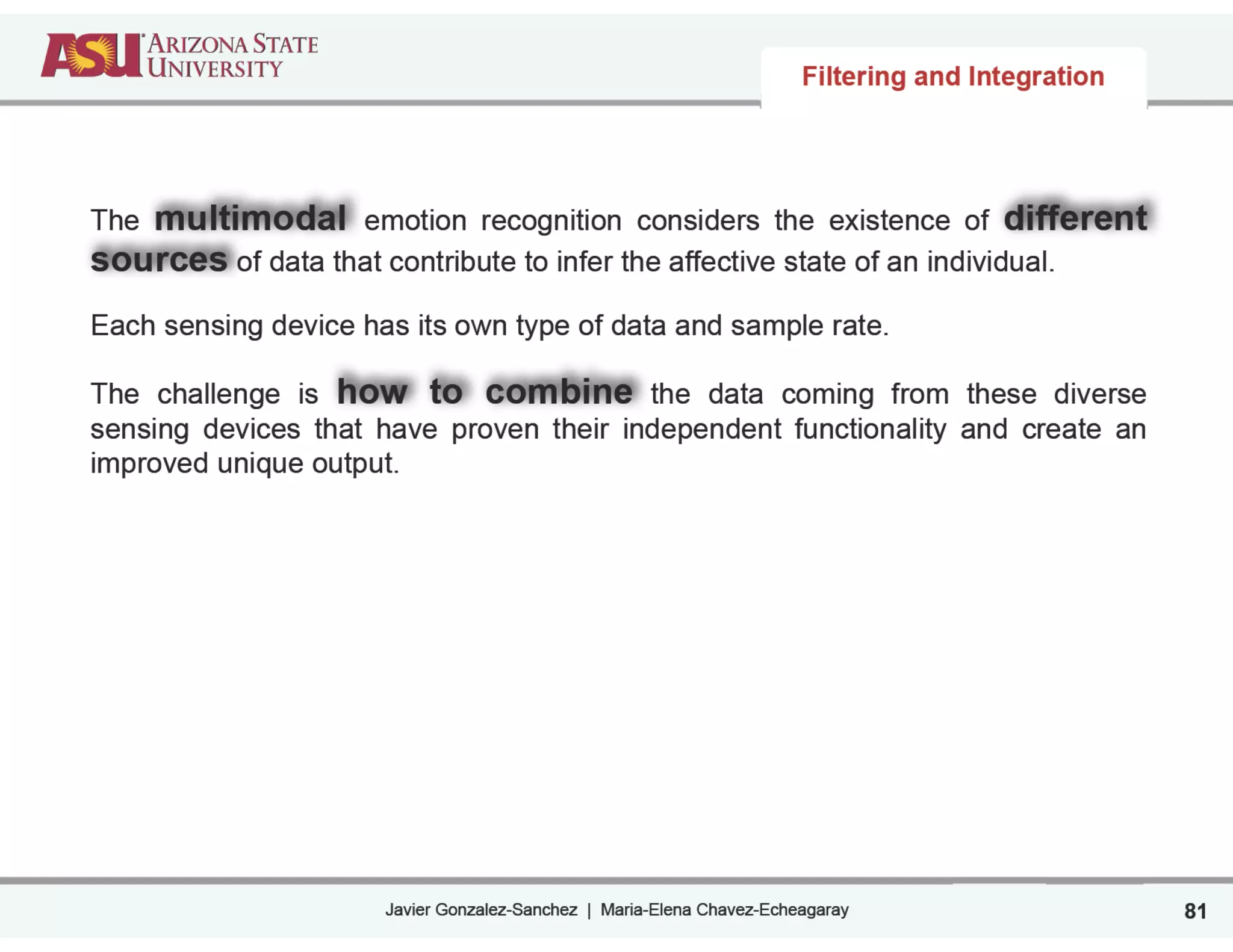

The multimodal emotion recognition considers the existence of different
sources of data that contribute to infer the affective state of an individual.
Each sensing device has its own type of data and sample rate.
The challenge is how to combine the data coming from these diverse
sensing devices that have proven their independent functionality and create an
improved unique output.

Filtering and Integration
Centre
Agent
Agent
Data
Logger
!
Data
Tutoring
Multimodal
82

Framework
83

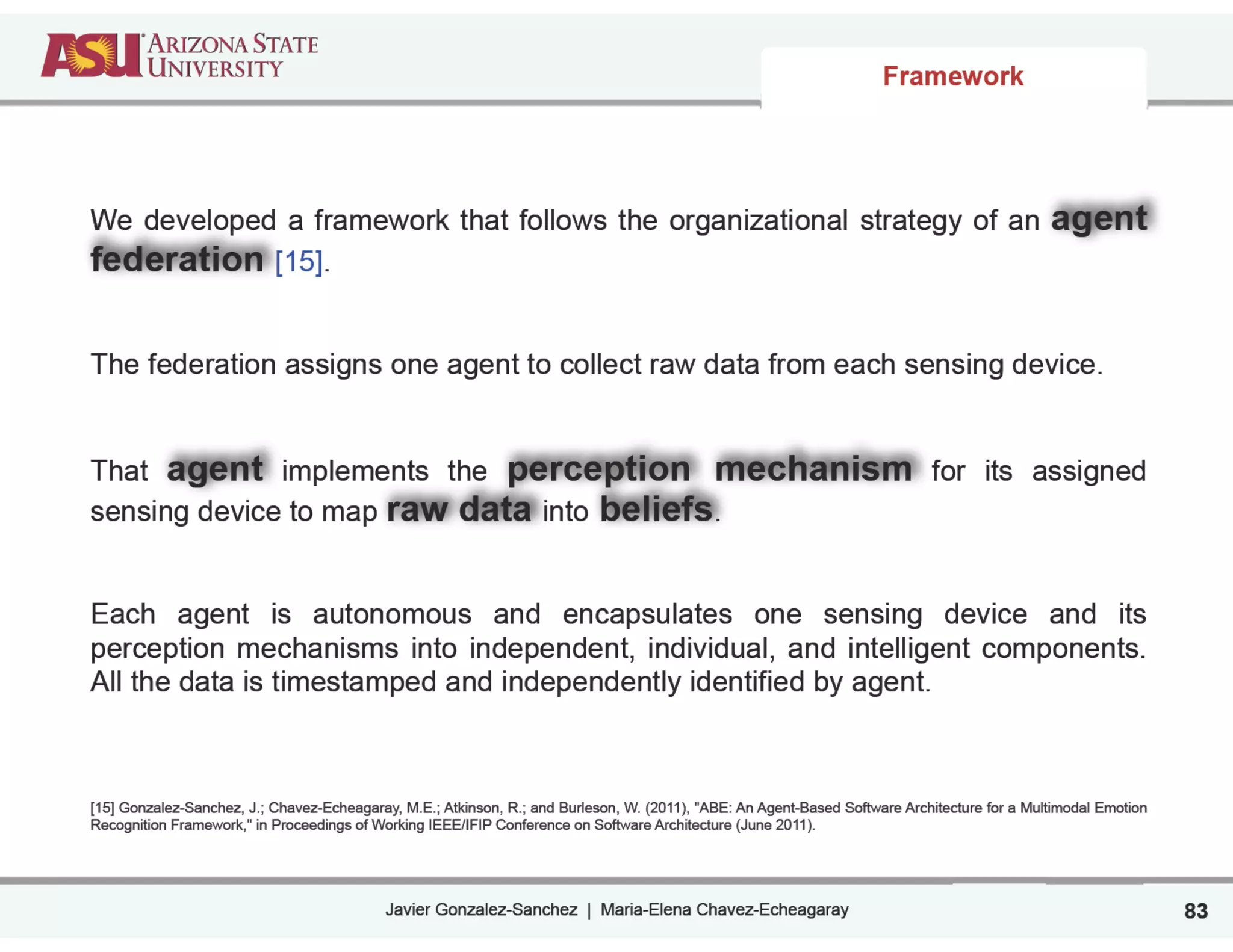

We developed a framework that follows the organizational strategy of an agent
federation [15].
!
!
The federation assigns one agent to collect raw data from each sensing device.
!
!
That agent implements the perception mechanism for its assigned
sensing device to map raw data into beliefs.
!
!
Each agent is autonomous and encapsulates one sensing device and its
perception mechanisms into independent, individual, and intelligent components.
All the data is timestamped and independently identified by agent.
!
!
!
[15] Gonzalez-Sanchez, J.; Chavez-Echeagaray, M.E.; Atkinson, R.; and Burleson, W. (2011), "ABE: An Agent-Based Software Architecture for a Multimodal Emotion
Recognition Framework," in Proceedings of Working IEEE/IFIP Conference on Software Architecture (June 2011).

Framework
84

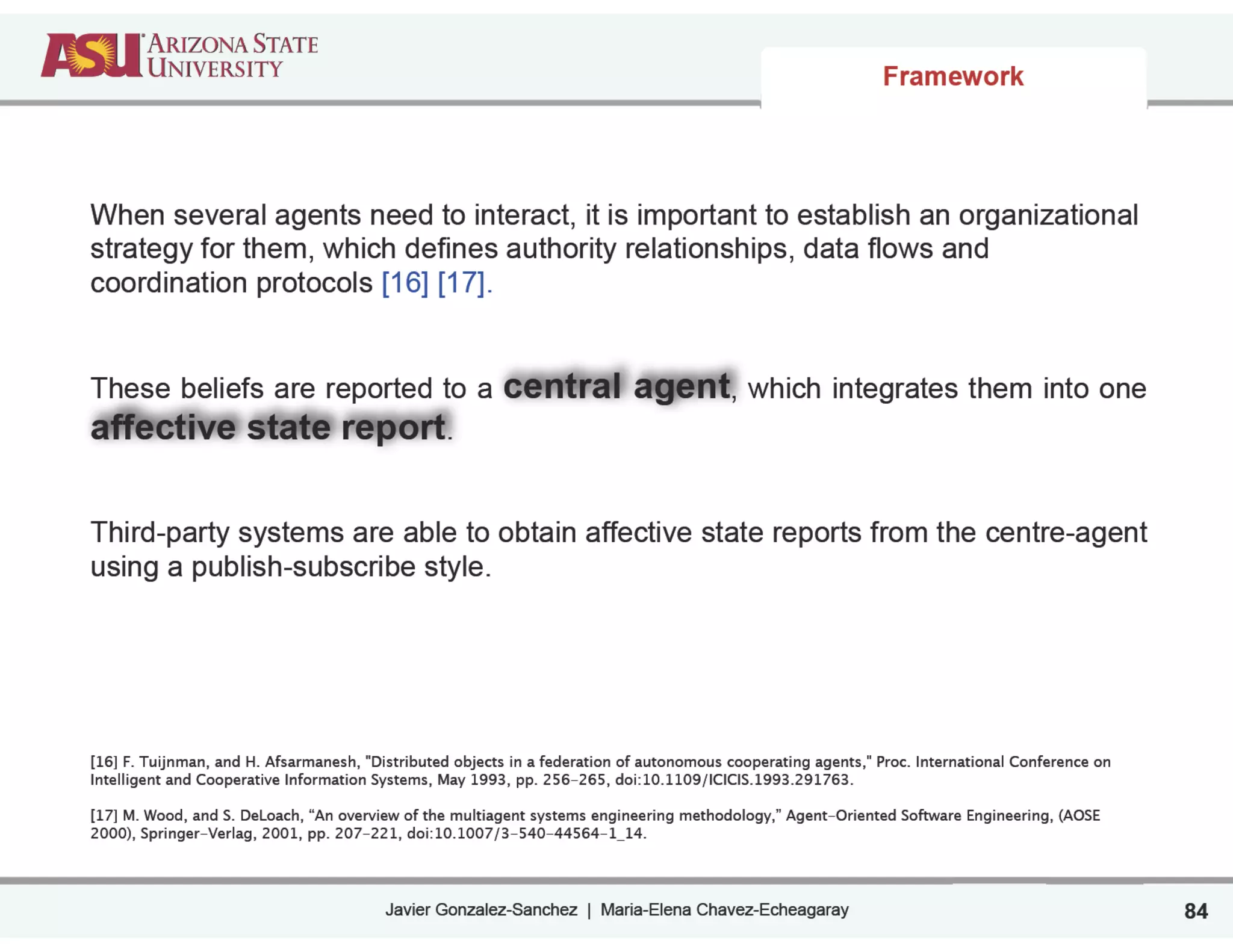

When several agents need to interact, it is important to establish an organizational
strategy for them, which defines authority relationships, data flows and
coordination protocols [16] [17].
!
!
These beliefs are reported to a central agent, which integrates them into one
affective state report.
!
!
Third-party systems are able to obtain affective state reports from the centre-agent
using a publish-subscribe style.
!
!
!
!
!
[16] F. Tuijnman, and H. Afsarmanesh, "Distributed objects in a federation of autonomous cooperating agents," Proc. International Conference on
Intelligent and Cooperative Information Systems, May 1993, pp. 256-265, doi:10.1109/ICICIS.1993.291763.
!
[17] M. Wood, and S. DeLoach, “An overview of the multiagent systems engineering methodology,” Agent-Oriented Software Engineering, (AOSE
2000), Springer-Verlag, 2001, pp. 207-221, doi:10.1007/3-540-44564-1_14.

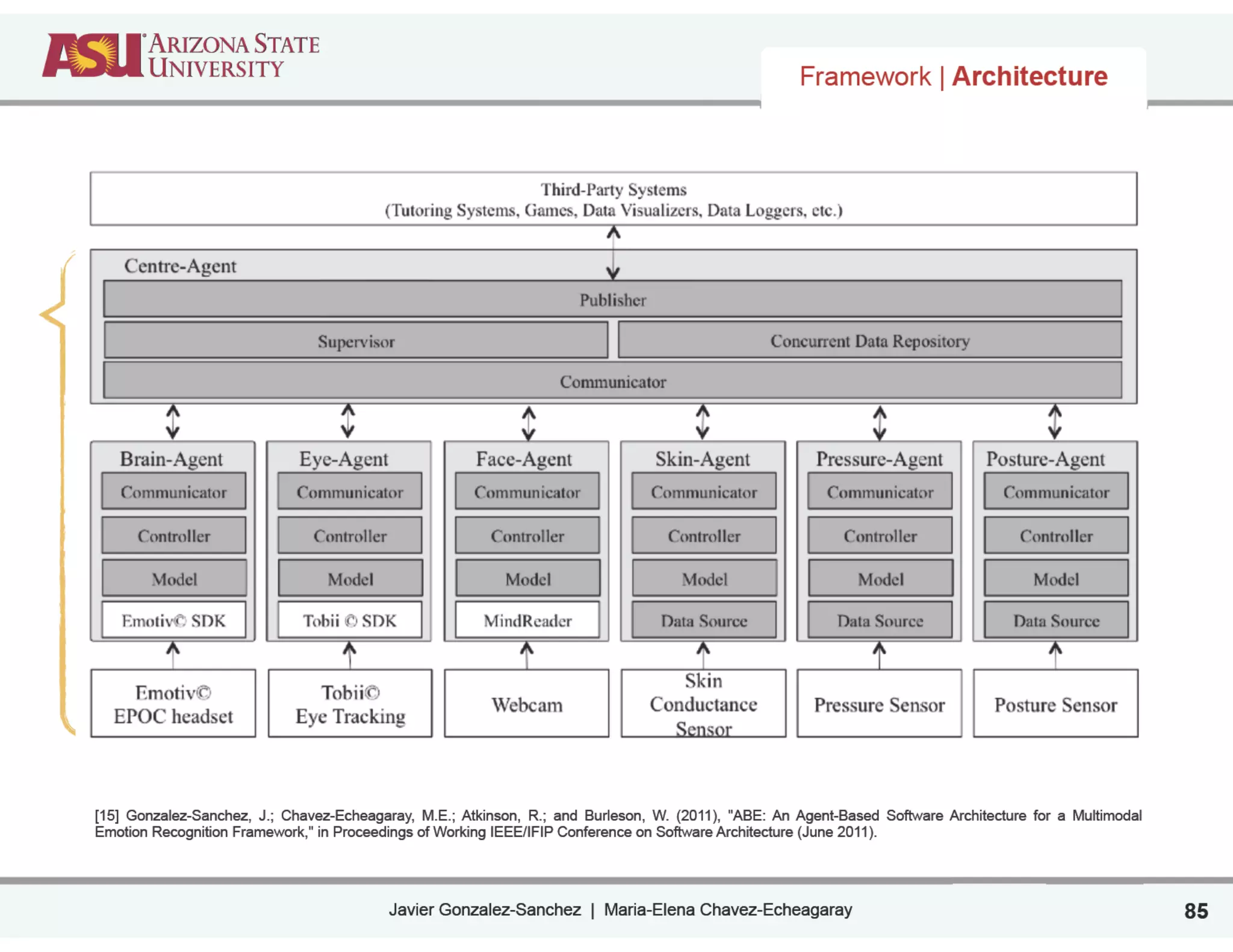

Framework | Architecture
[15] Gonzalez-Sanchez, J.; Chavez-Echeagaray, M.E.; Atkinson, R.; and Burleson, W. (2011), "ABE: An Agent-Based Software Architecture for a Multimodal
Emotion Recognition Framework," in Proceedings of Working IEEE/IFIP Conference on Software Architecture (June 2011).
85

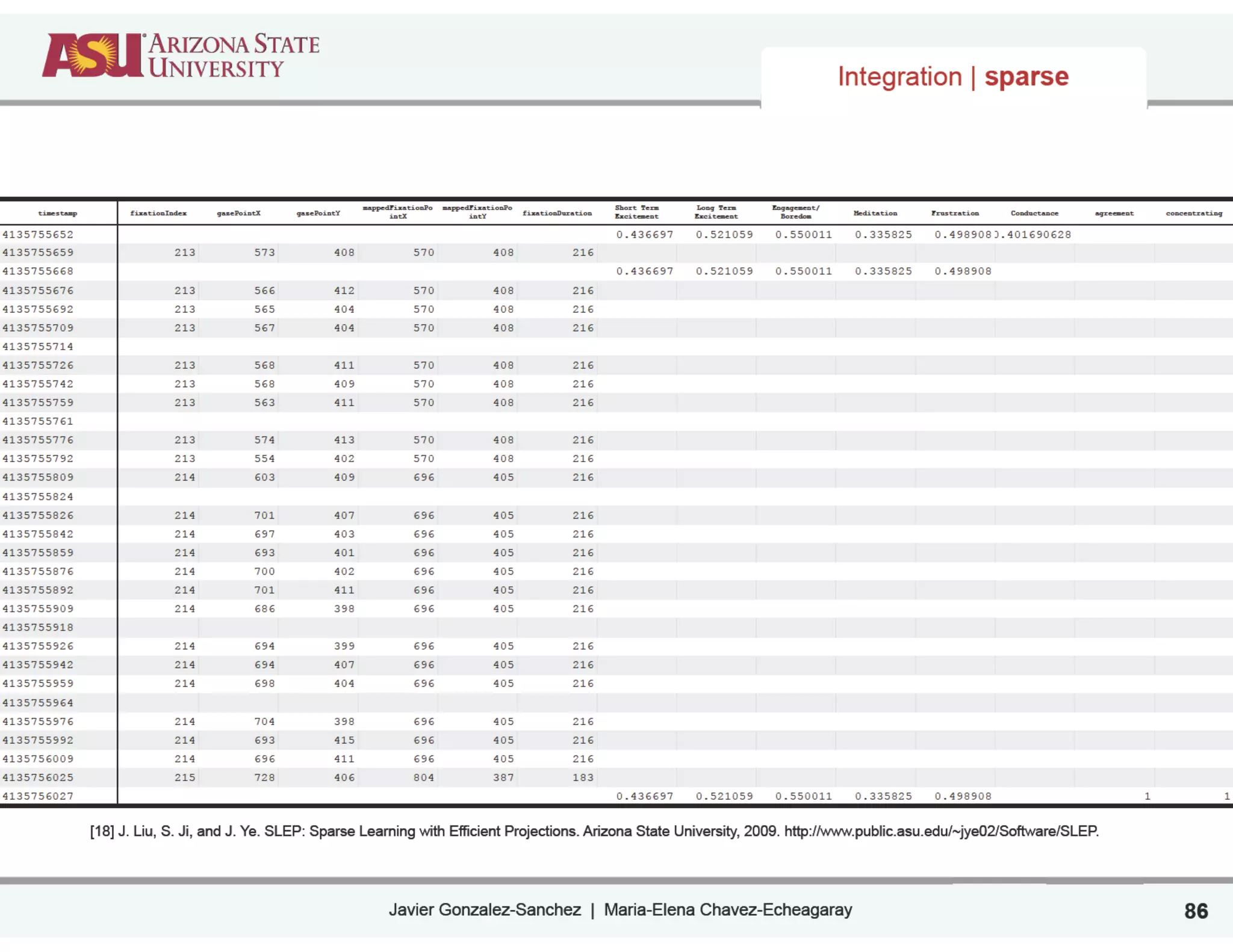

Integration | sparse
86
[18] J. Liu, S. Ji, and J. Ye. SLEP: Sparse Learning with Efficient Projections. Arizona State University, 2009. http://www.public.asu.edu/~jye02/Software/SLEP.
timestamp fixationIndex gazePointX gazePointY
mappedFixationPo
intX
mappedFixationPo
intY fixationDuration
Short Term
Excitement
Long Term
Excitement
Engagement/
Boredom Meditation Frustration Conductance agreement concentrating
4135755652 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628
4135755659 213 573 408 570 408 216
4135755668 0.436697 0.521059 0.550011 0.335825 0.498908
4135755676 213 566 412 570 408 216
4135755692 213 565 404 570 408 216
4135755709 213 567 404 570 408 216
4135755714
4135755726 213 568 411 570 408 216
4135755742 213 568 409 570 408 216
4135755759 213 563 411 570 408 216
4135755761
4135755776 213 574 413 570 408 216
4135755792 213 554 402 570 408 216
4135755809 214 603 409 696 405 216
4135755824
4135755826 214 701 407 696 405 216
4135755842 214 697 403 696 405 216
4135755859 214 693 401 696 405 216
4135755876 214 700 402 696 405 216
4135755892 214 701 411 696 405 216
4135755909 214 686 398 696 405 216
4135755918
4135755926 214 694 399 696 405 216
4135755942 214 694 407 696 405 216
4135755959 214 698 404 696 405 216
4135755964
4135755976 214 704 398 696 405 216
4135755992 214 693 415 696 405 216
4135756009 214 696 411 696 405 216
4135756025 215 728 406 804 387 183
4135756027 0.436697 0.521059 0.550011 0.335825 0.498908 1 1

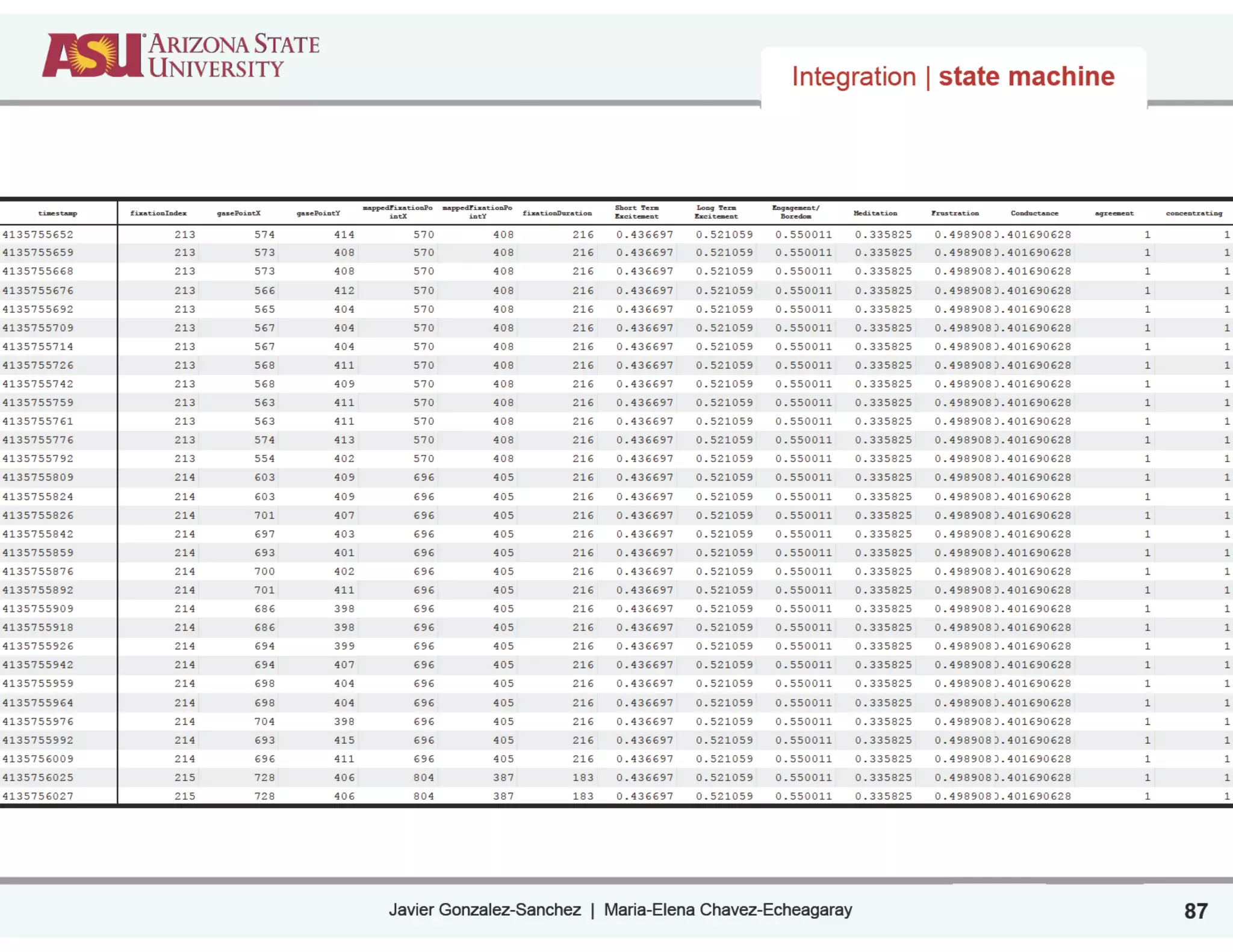

Integration | state machine
87
timestamp fixationIndex gazePointX gazePointY
mappedFixationPo
intX
mappedFixationPo
intY fixationDuration
Short Term
Excitement
Long Term
Excitement
Engagement/
Boredom Meditation Frustration Conductance agreement concentrating
4135755652 213 574 414 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755659 213 573 408 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755668 213 573 408 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755676 213 566 412 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755692 213 565 404 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755709 213 567 404 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755714 213 567 404 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755726 213 568 411 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755742 213 568 409 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755759 213 563 411 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755761 213 563 411 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755776 213 574 413 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755792 213 554 402 570 408 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755809 214 603 409 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755824 214 603 409 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755826 214 701 407 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755842 214 697 403 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755859 214 693 401 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755876 214 700 402 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755892 214 701 411 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755909 214 686 398 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755918 214 686 398 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755926 214 694 399 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755942 214 694 407 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755959 214 698 404 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755964 214 698 404 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755976 214 704 398 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135755992 214 693 415 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135756009 214 696 411 696 405 216 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135756025 215 728 406 804 387 183 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1
4135756027 215 728 406 804 387 183 0.436697 0.521059 0.550011 0.335825 0.4989080.401690628 1 1

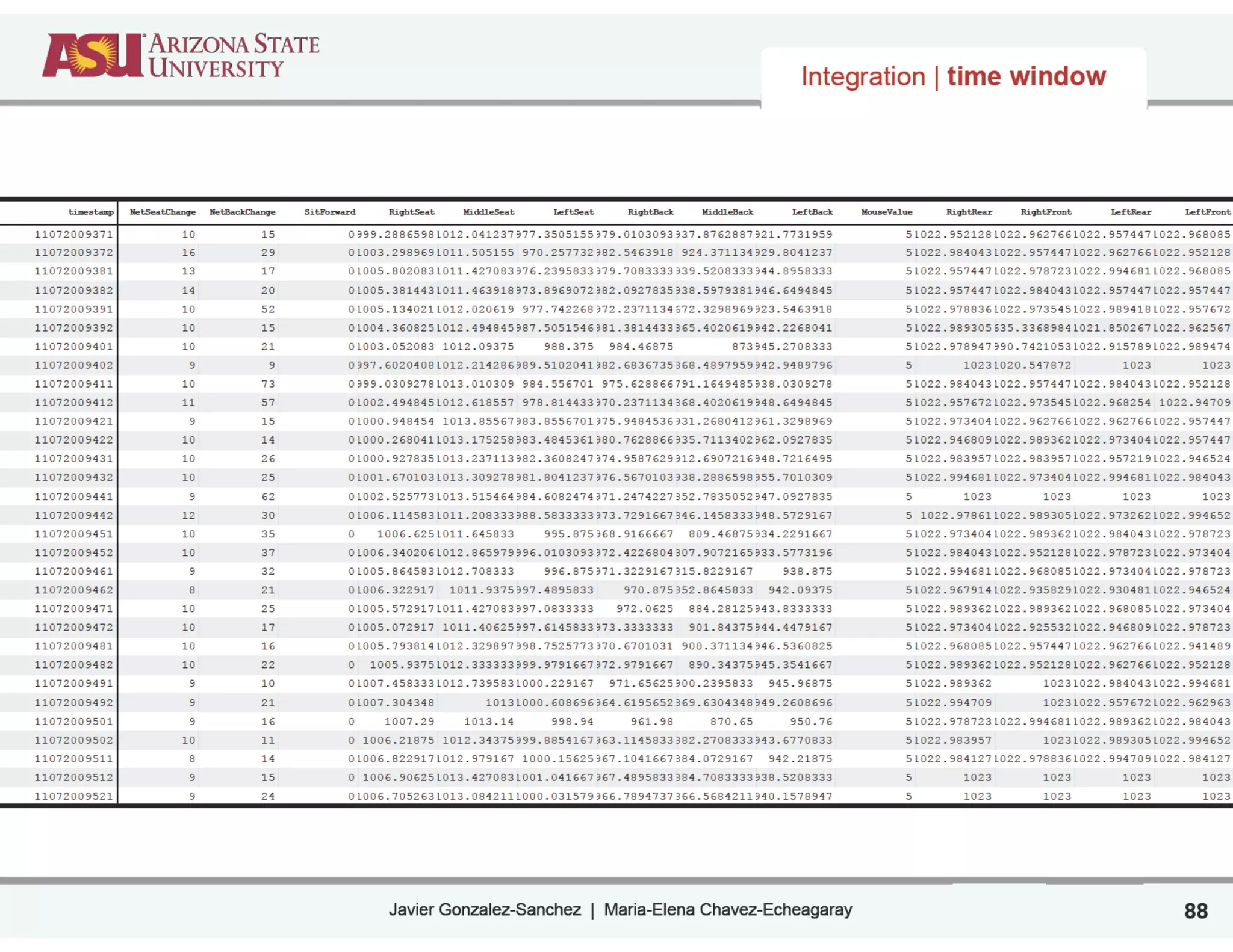

Integration | time window
88
timestamp NetSeatChange NetBackChange SitForward RightSeat MiddleSeat LeftSeat RightBack MiddleBack LeftBack MouseValue RightRear RightFront LeftRear LeftFront
11072009371 10 15 0999.28865981012.041237977.3505155979.0103093937.8762887921.7731959 51022.9521281022.9627661022.9574471022.968085
11072009372 16 29 01003.2989691011.505155 970.257732982.5463918 924.371134929.8041237 51022.9840431022.9574471022.9627661022.952128
11072009381 13 17 01005.8020831011.427083976.2395833979.7083333939.5208333944.8958333 51022.9574471022.9787231022.9946811022.968085
11072009382 14 20 01005.3814431011.463918973.8969072982.0927835938.5979381946.6494845 51022.9574471022.9840431022.9574471022.957447
11072009391 10 52 01005.1340211012.020619 977.742268972.2371134672.3298969923.5463918 51022.9788361022.9735451022.9894181022.957672
11072009392 10 15 01004.3608251012.494845987.5051546981.3814433865.4020619942.2268041 51022.989305635.33689841021.8502671022.962567
11072009401 10 21 01003.052083 1012.09375 988.375 984.46875 873945.2708333 51022.978947990.74210531022.9157891022.989474
11072009402 9 9 0997.60204081012.214286989.5102041982.6836735868.4897959942.9489796 5 10231020.547872 1023 1023
11072009411 10 73 0999.03092781013.010309 984.556701 975.628866791.1649485938.0309278 51022.9840431022.9574471022.9840431022.952128
11072009412 11 57 01002.4948451012.618557 978.814433970.2371134868.4020619948.6494845 51022.9576721022.9735451022.968254 1022.94709
11072009421 9 15 01000.948454 1013.85567983.8556701975.9484536931.2680412961.3298969 51022.9734041022.9627661022.9627661022.957447
11072009422 10 14 01000.2680411013.175258983.4845361980.7628866935.7113402962.0927835 51022.9468091022.9893621022.9734041022.957447
11072009431 10 26 01000.9278351013.237113982.3608247974.9587629912.6907216948.7216495 51022.9839571022.9839571022.9572191022.946524
11072009432 10 25 01001.6701031013.309278981.8041237976.5670103938.2886598955.7010309 51022.9946811022.9734041022.9946811022.984043
11072009441 9 62 01002.5257731013.515464984.6082474971.2474227852.7835052947.0927835 5 1023 1023 1023 1023
11072009442 12 30 01006.1145831011.208333988.5833333973.7291667846.1458333948.5729167 5 1022.978611022.9893051022.9732621022.994652
11072009451 10 35 0 1006.6251011.645833 995.875968.9166667 809.46875934.2291667 51022.9734041022.9893621022.9840431022.978723
11072009452 10 37 01006.3402061012.865979996.0103093972.4226804807.9072165933.5773196 51022.9840431022.9521281022.9787231022.973404
11072009461 9 32 01005.8645831012.708333 996.875971.3229167815.8229167 938.875 51022.9946811022.9680851022.9734041022.978723
11072009462 8 21 01006.322917 1011.9375997.4895833 970.875852.8645833 942.09375 51022.9679141022.9358291022.9304811022.946524
11072009471 10 25 01005.5729171011.427083997.0833333 972.0625 884.28125943.8333333 51022.9893621022.9893621022.9680851022.973404
11072009472 10 17 01005.072917 1011.40625997.6145833973.3333333 901.84375944.4479167 51022.9734041022.9255321022.9468091022.978723
11072009481 10 16 01005.7938141012.329897998.7525773970.6701031 900.371134946.5360825 51022.9680851022.9574471022.9627661022.941489
11072009482 10 22 0 1005.93751012.333333999.9791667972.9791667 890.34375945.3541667 51022.9893621022.9521281022.9627661022.952128
11072009491 9 10 01007.4583331012.7395831000.229167 971.65625900.2395833 945.96875 51022.989362 10231022.9840431022.994681
11072009492 9 21 01007.304348 10131000.608696964.6195652869.6304348949.2608696 51022.994709 10231022.9576721022.962963
11072009501 9 16 0 1007.29 1013.14 998.94 961.98 870.65 950.76 51022.9787231022.9946811022.9893621022.984043
11072009502 10 11 0 1006.21875 1012.34375999.8854167963.1145833882.2708333943.6770833 51022.983957 10231022.9893051022.994652
11072009511 8 14 01006.8229171012.979167 1000.15625967.1041667884.0729167 942.21875 51022.9841271022.9788361022.9947091022.984127
11072009512 9 15 0 1006.906251013.4270831001.041667967.4895833884.7083333938.5208333 5 1023 1023 1023 1023
11072009521 9 24 01006.7052631013.0842111000.031579966.7894737866.5684211940.1578947 5 1023 1023 1023 1023

4. Analyzing Data
89
Session 2

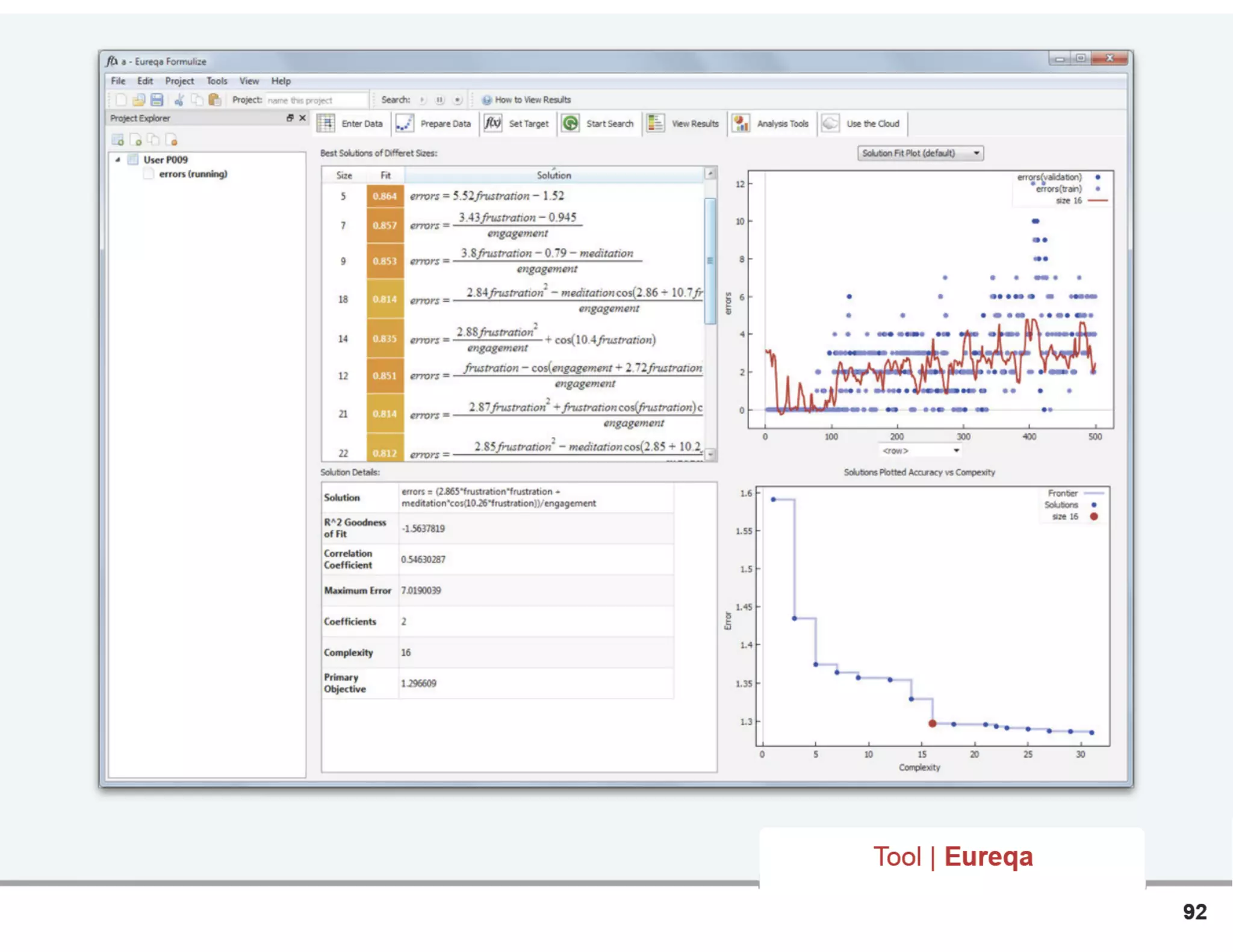

Tool | Eureqa
mathematical relationships in data
90

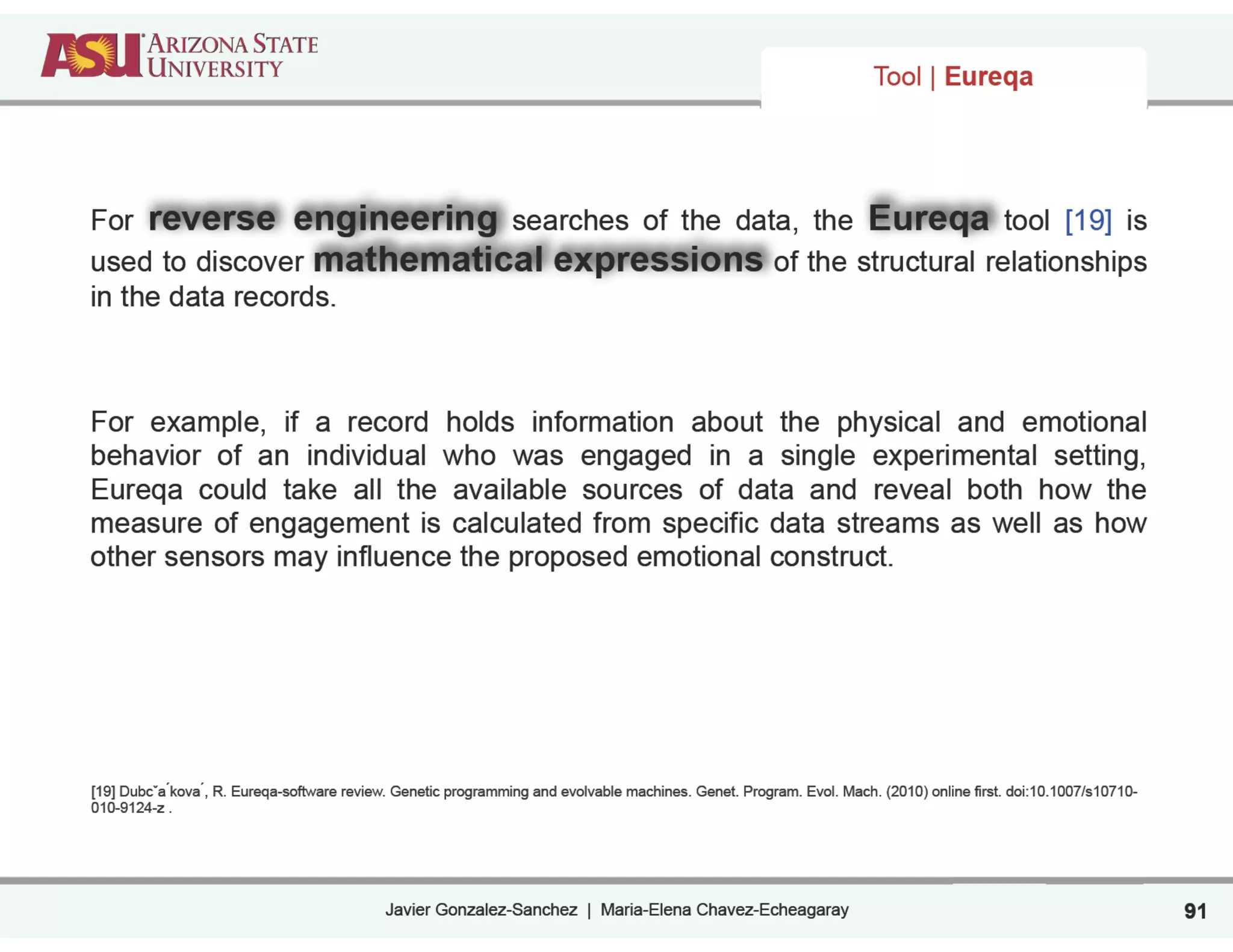

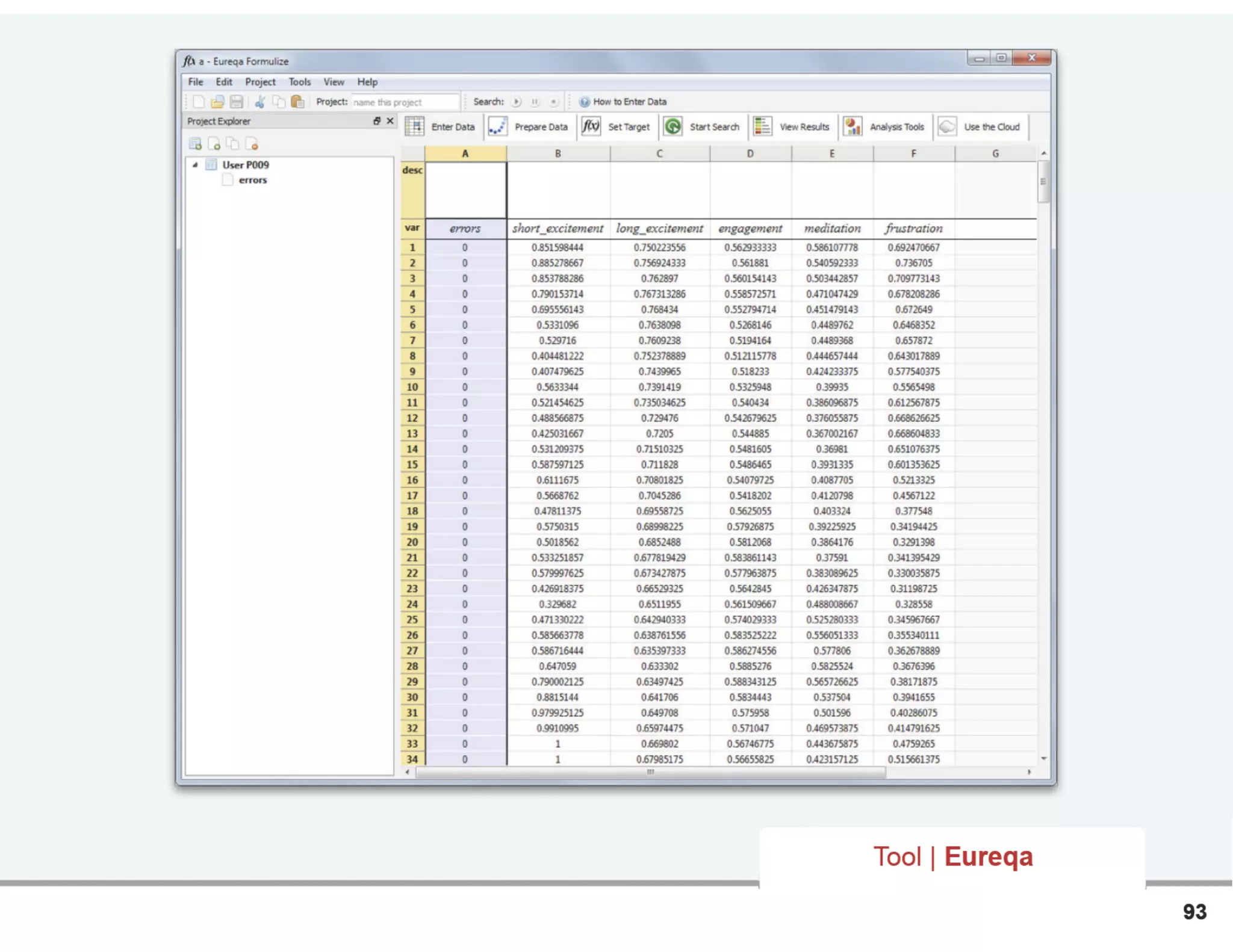

For reverse engineering searches of the data, the Eureqa tool [19] is
used to discover mathematical expressions of the structural relationships
in the data records.
!
For example, if a record holds information about the physical and emotional
behavior of an individual who was engaged in a single experimental setting,
Eureqa could take all the available sources of data and reveal both how the
measure of engagement is calculated from specific data streams as well as how
other sensors may influence the proposed emotional construct.
!
!
!
!
!
!
!
!
[19] Dubcˇa ́kova ́, R. Eureqa-software review. Genetic programming and evolvable machines. Genet. Program. Evol. Mach. (2010) online first. doi:10.1007/s10710-
010-9124-z .
Tool | Eureqa

Tool | Weka
explore classification clustering
pre-processing visualization
94

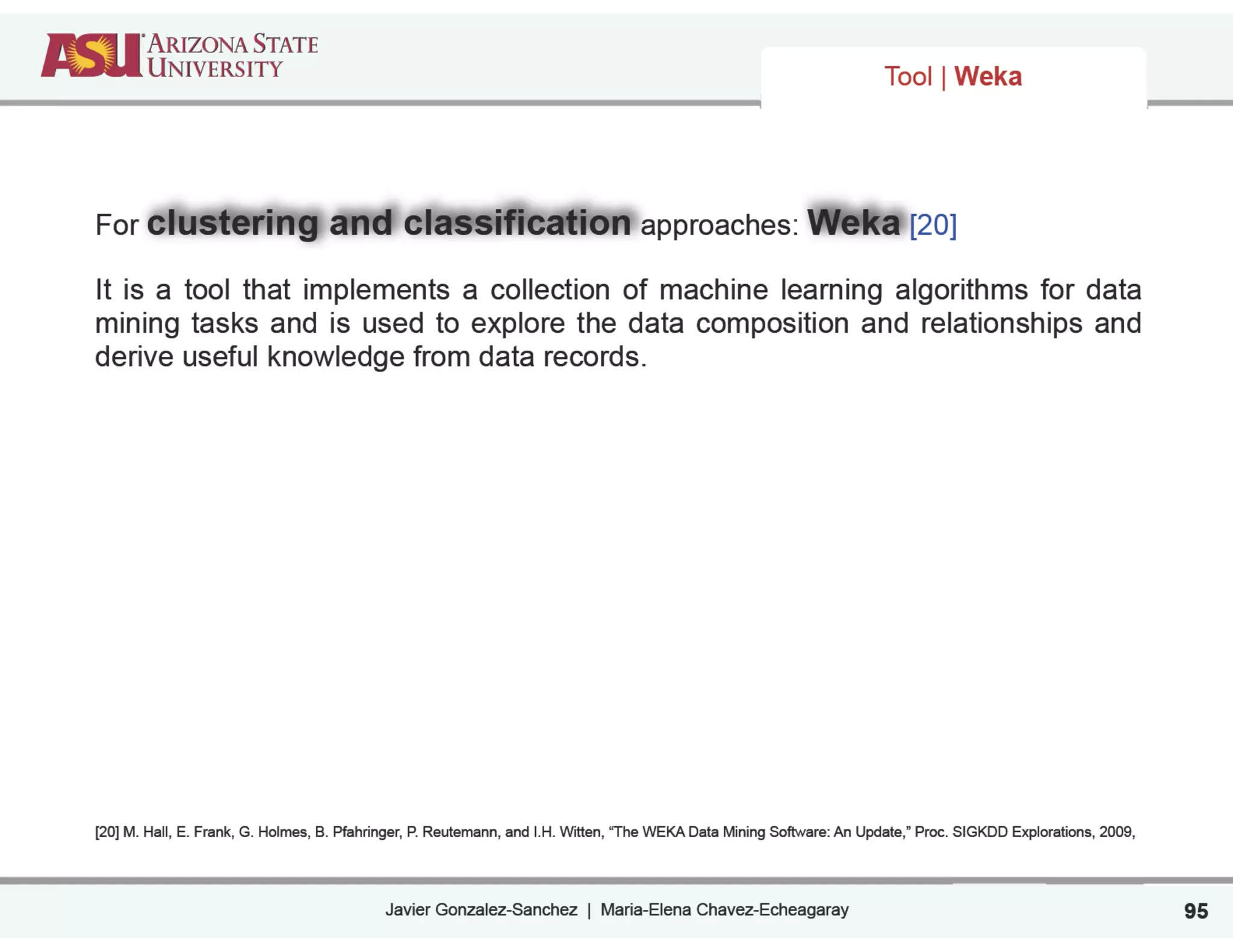

For clustering and classification approaches: Weka [20]
It is a tool that implements a collection of machine learning algorithms for data
mining tasks and is used to explore the data composition and relationships and
derive useful knowledge from data records.
!
!
!
!
!
!
!
[20] M. Hall, E. Frank, G. Holmes, B. Pfahringer, P. Reutemann, and I.H. Witten, “The WEKA Data Mining Software: An Update,” Proc. SIGKDD Explorations, 2009,

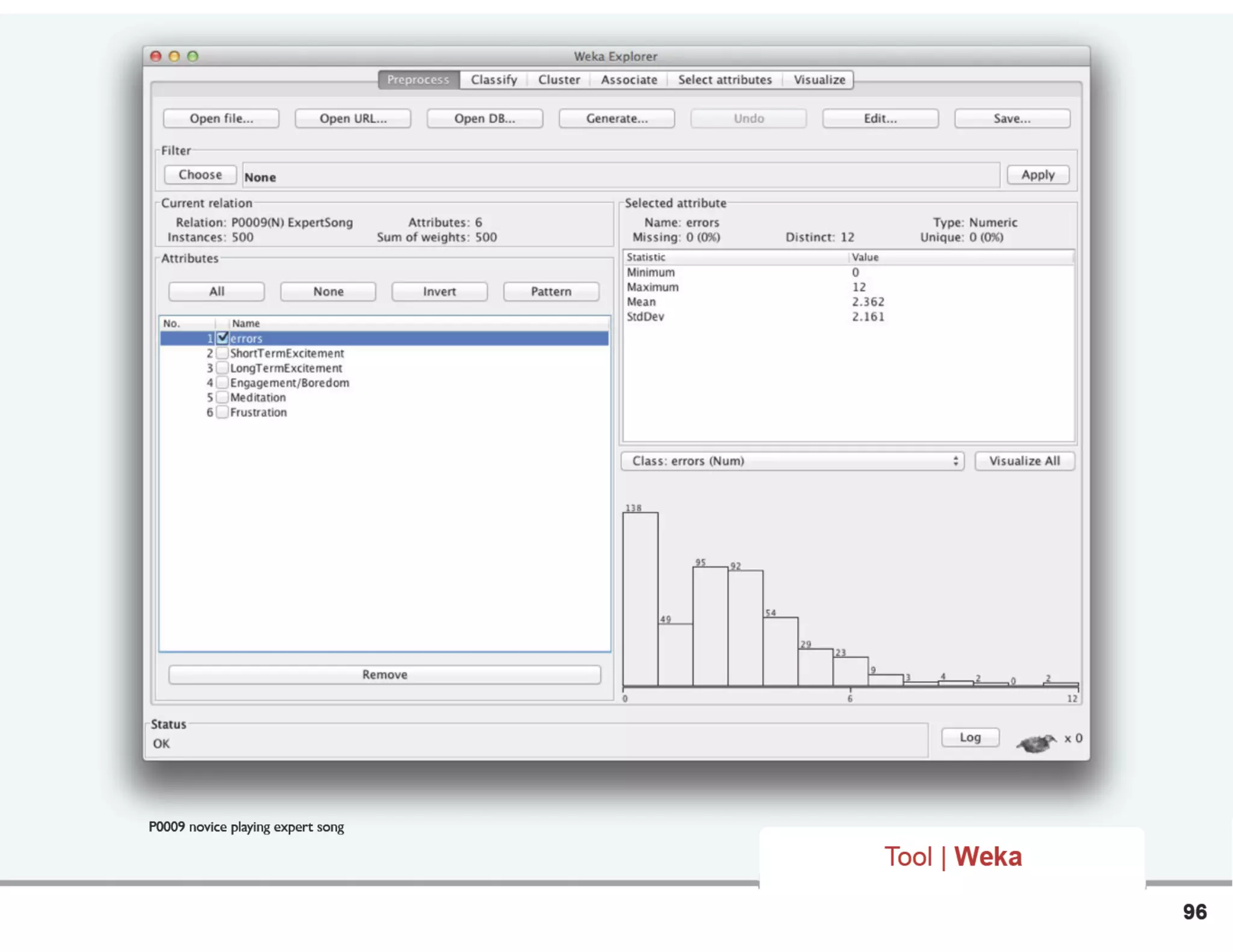

Tool | Weka

96

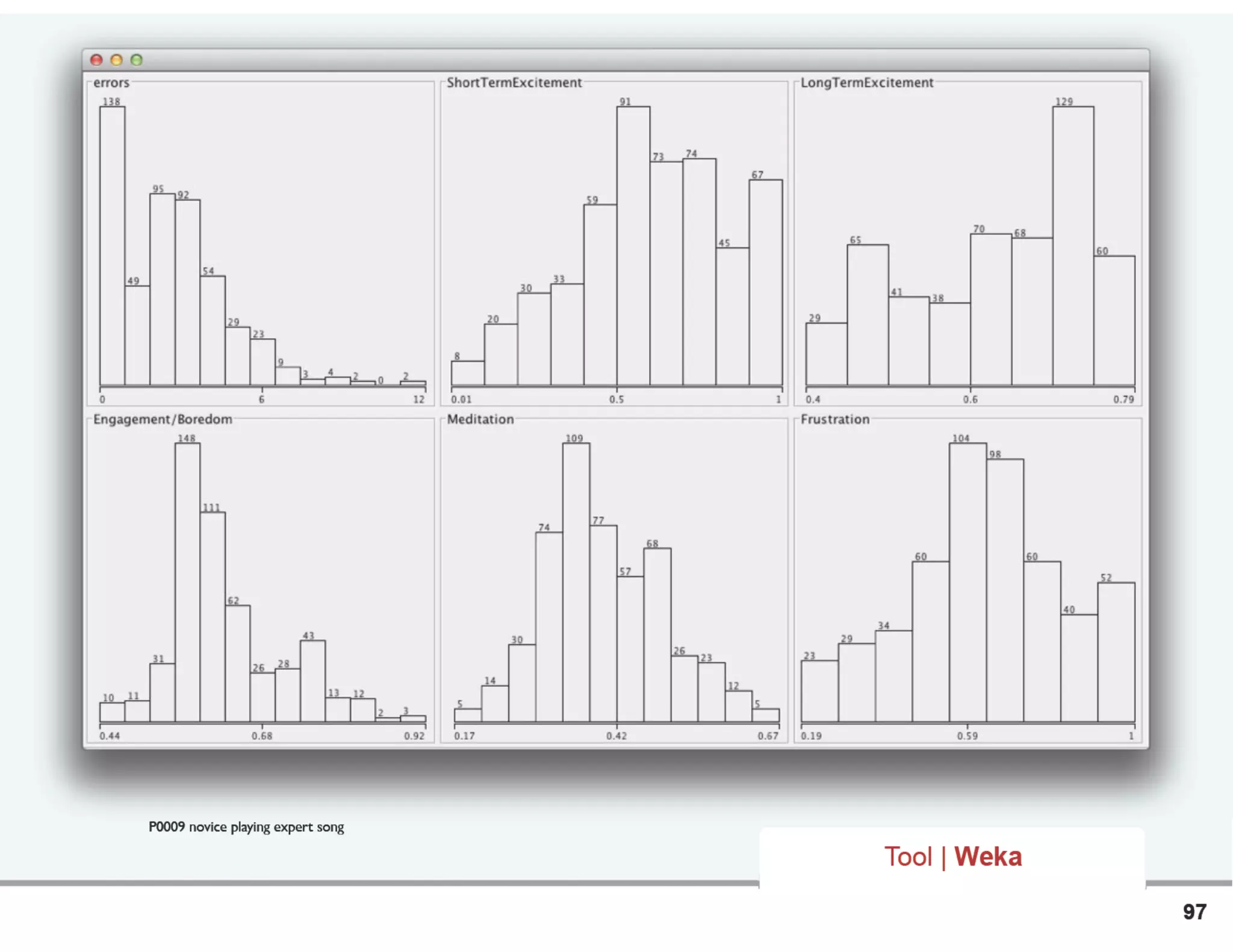

Tool | Weka
P0009 novice playing expert song

97
Tool | Weka
P0009 novice playing expert song

98

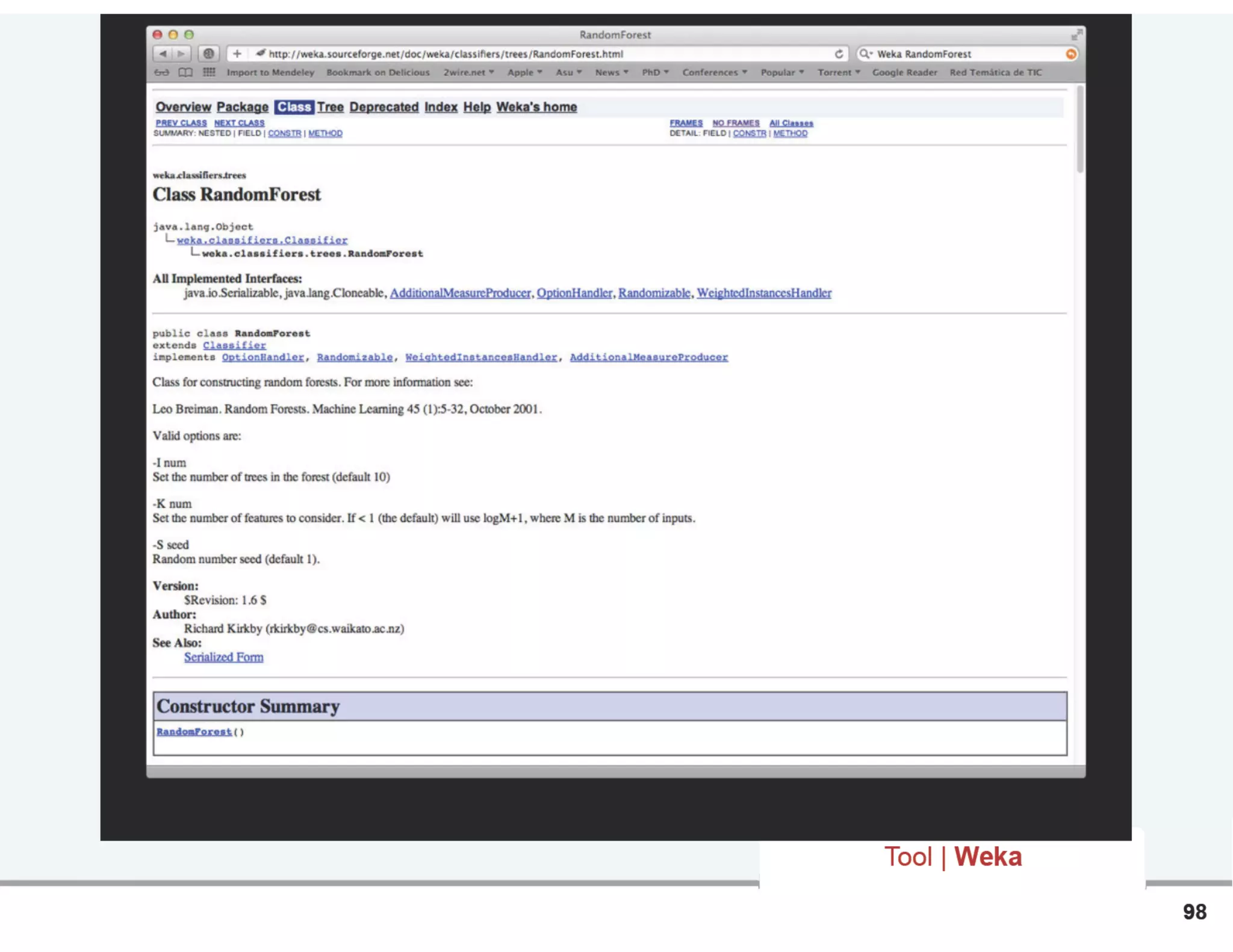

Tool | Weka
Documented API for Java Developers

5. Sharing Experiences and Group Discussion
99
Session 2

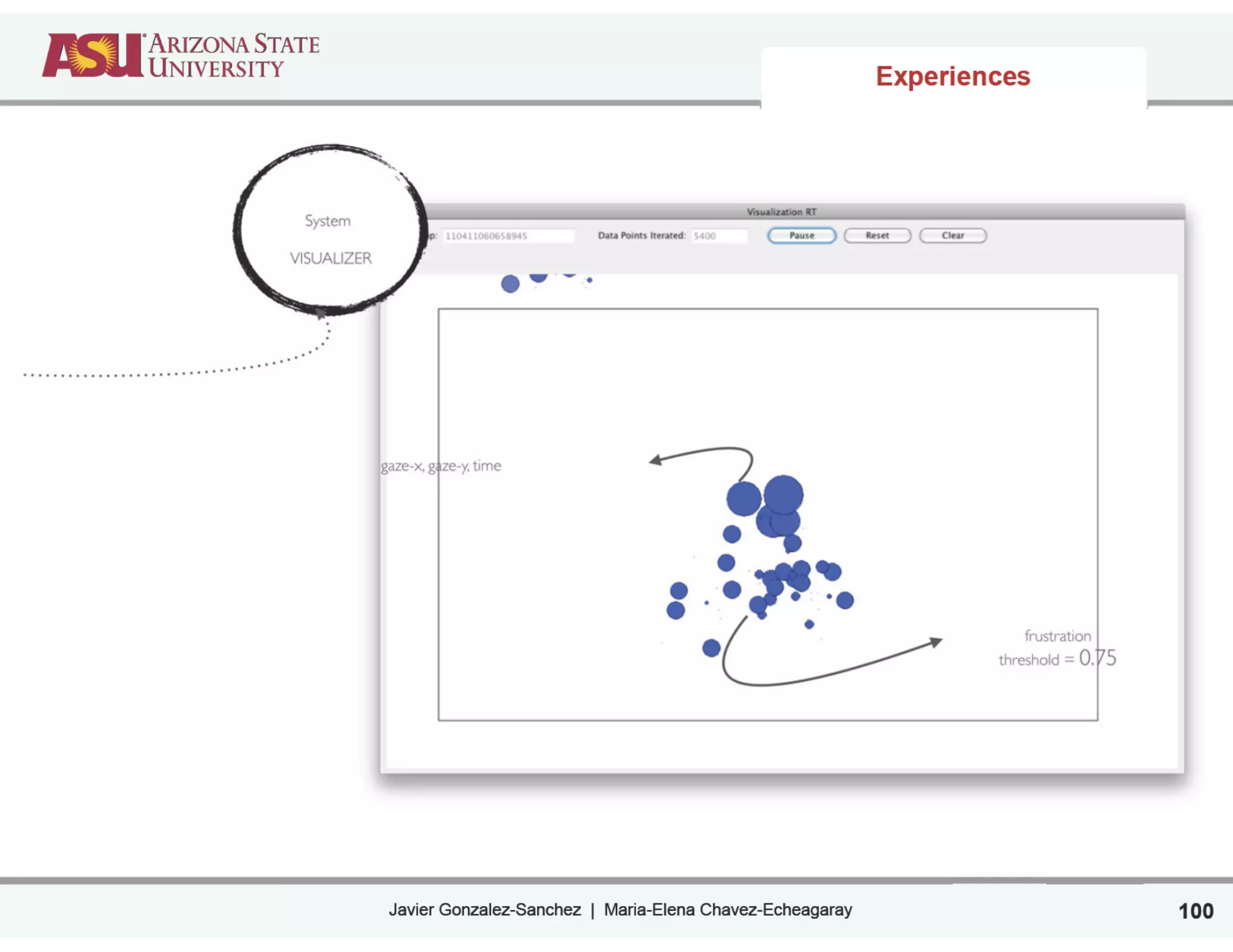

Experiences
100

Visualization
101

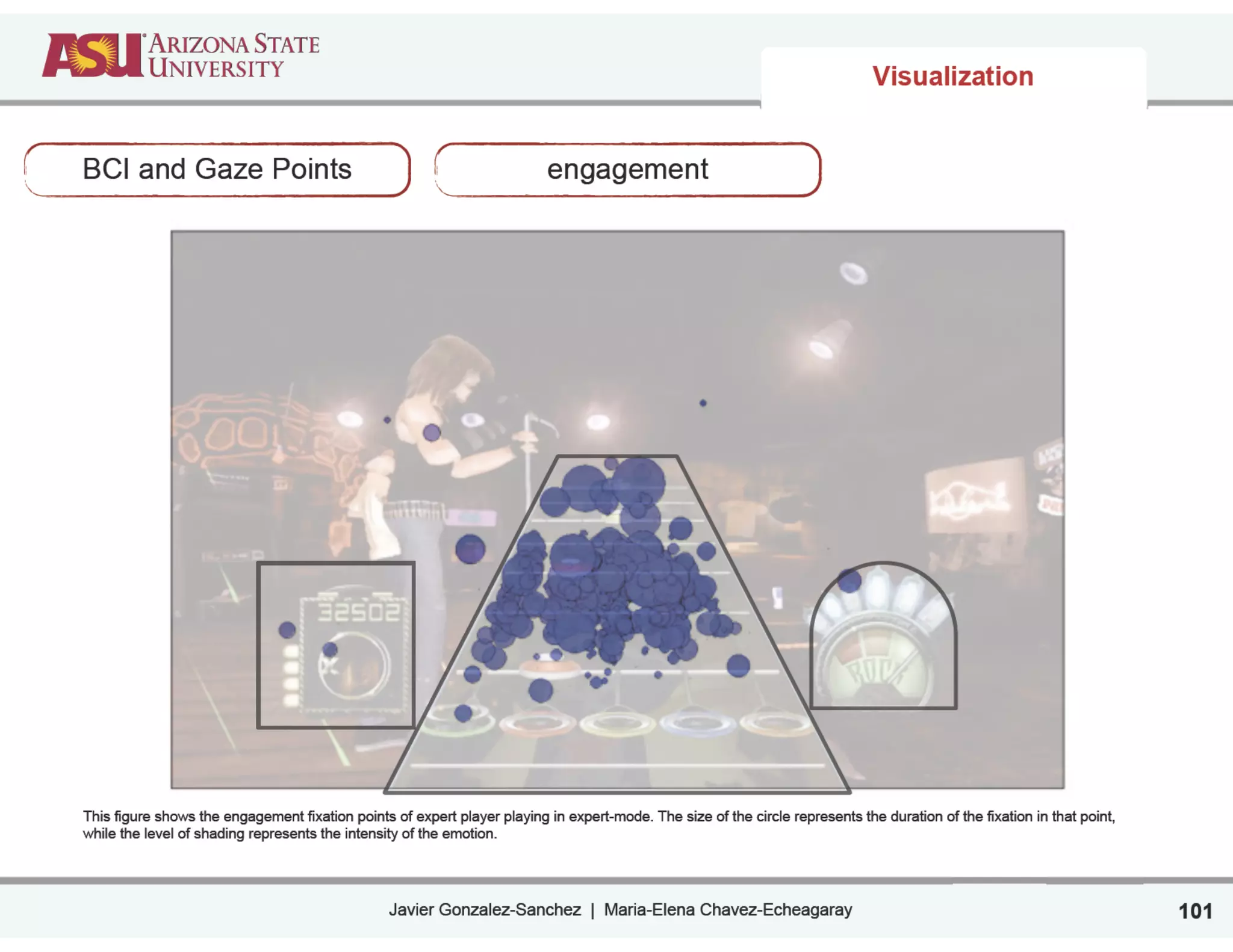

BCI and Gaze Points engagement
This figure shows the engagement fixation points of expert player playing in expert-mode. The size of the circle represents the duration of the fixation in that point,
while the level of shading represents the intensity of the emotion.

Visualization
102

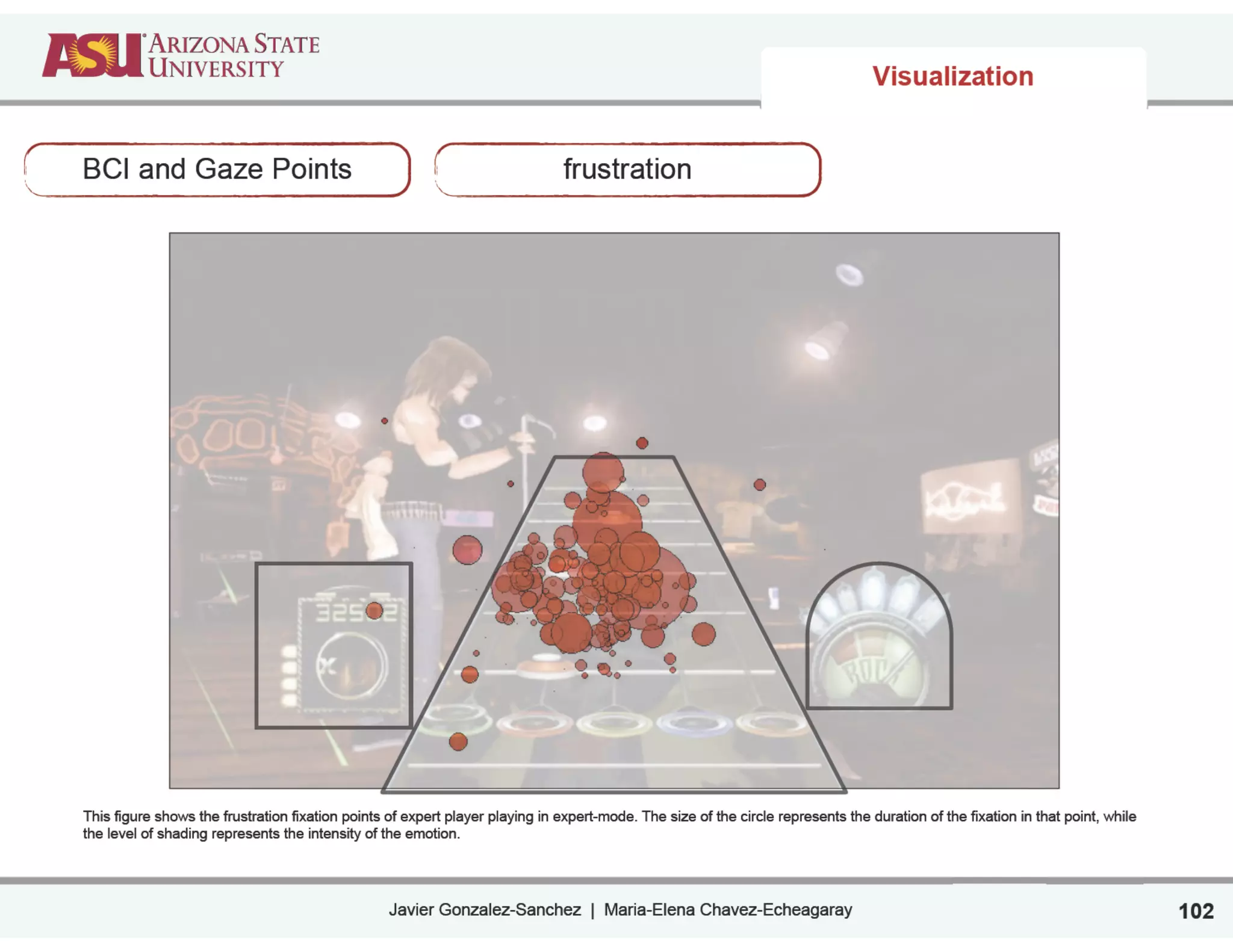

BCI and Gaze Points frustration
This figure shows the frustration fixation points of expert player playing in expert-mode. The size of the circle represents the duration of the fixation in that point, while
the level of shading represents the intensity of the emotion.

Visualization
103

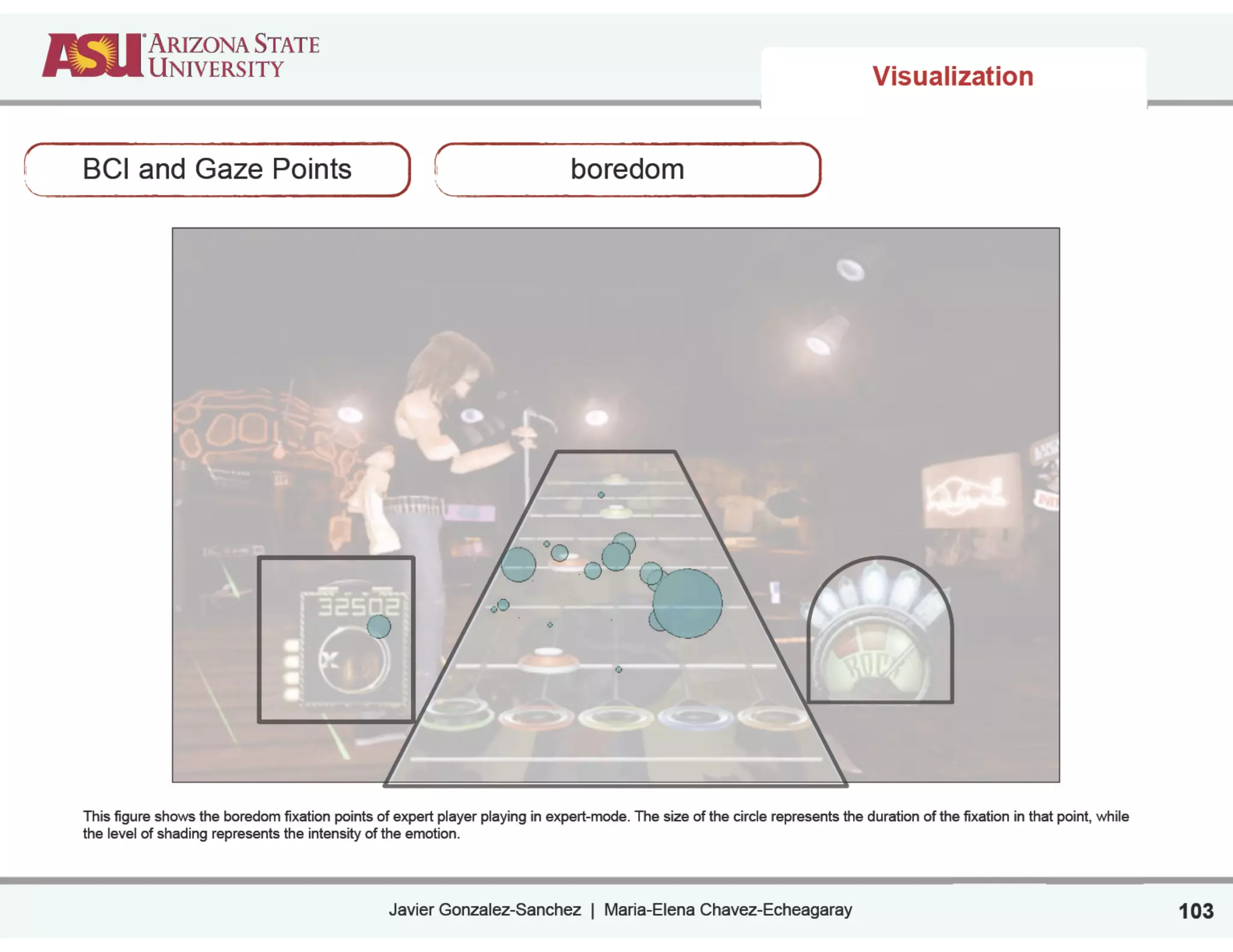

BCI and Gaze Points boredom
This figure shows the boredom fixation points of expert player playing in expert-mode. The size of the circle represents the duration of the fixation in that point, while
the level of shading represents the intensity of the emotion.

Visualization
104

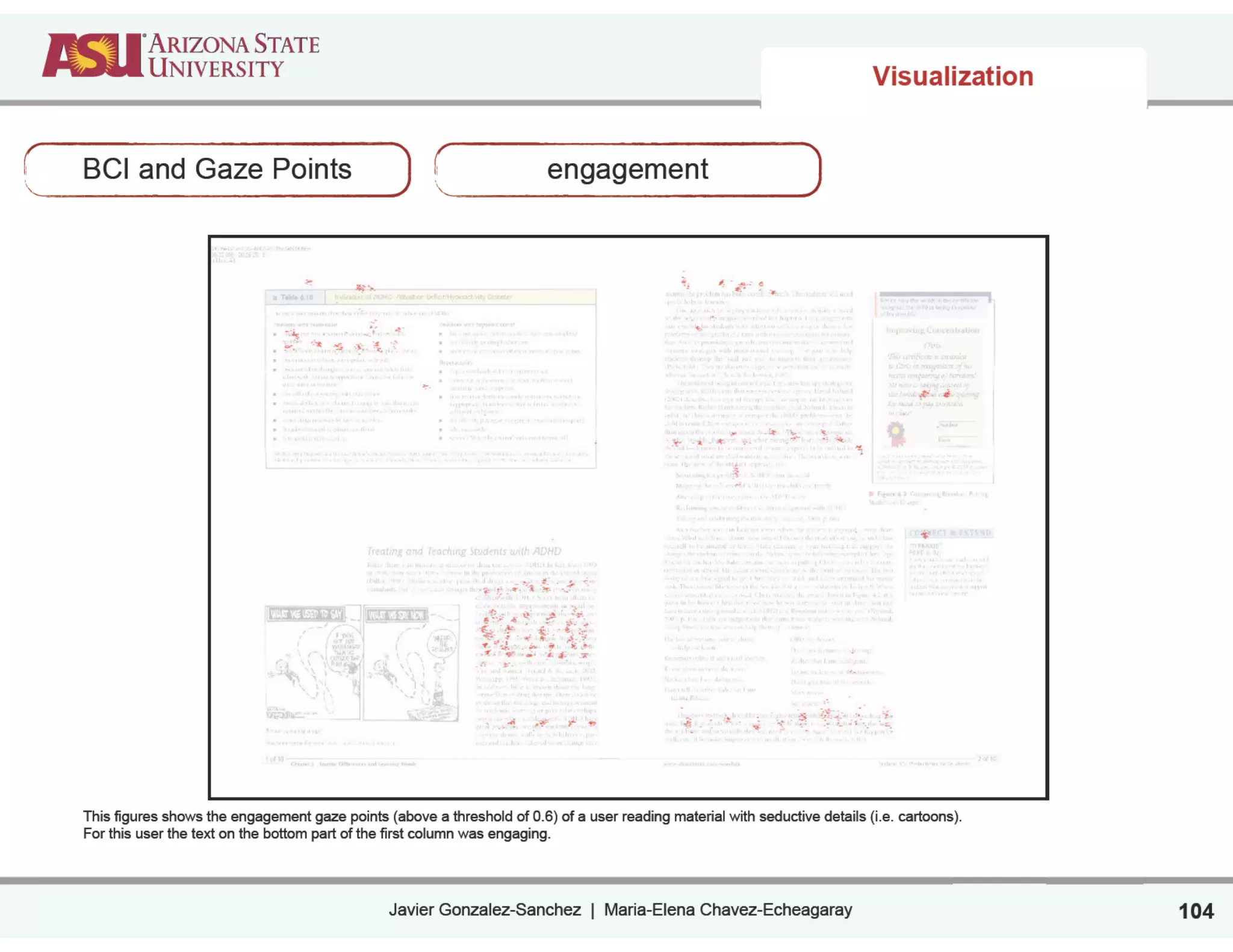

BCI and Gaze Points engagement
This figures shows the engagement gaze points (above a threshold of 0.6) of a user reading material with seductive details (i.e. cartoons).
For this user the text on the bottom part of the first column was engaging.

Visualization
105

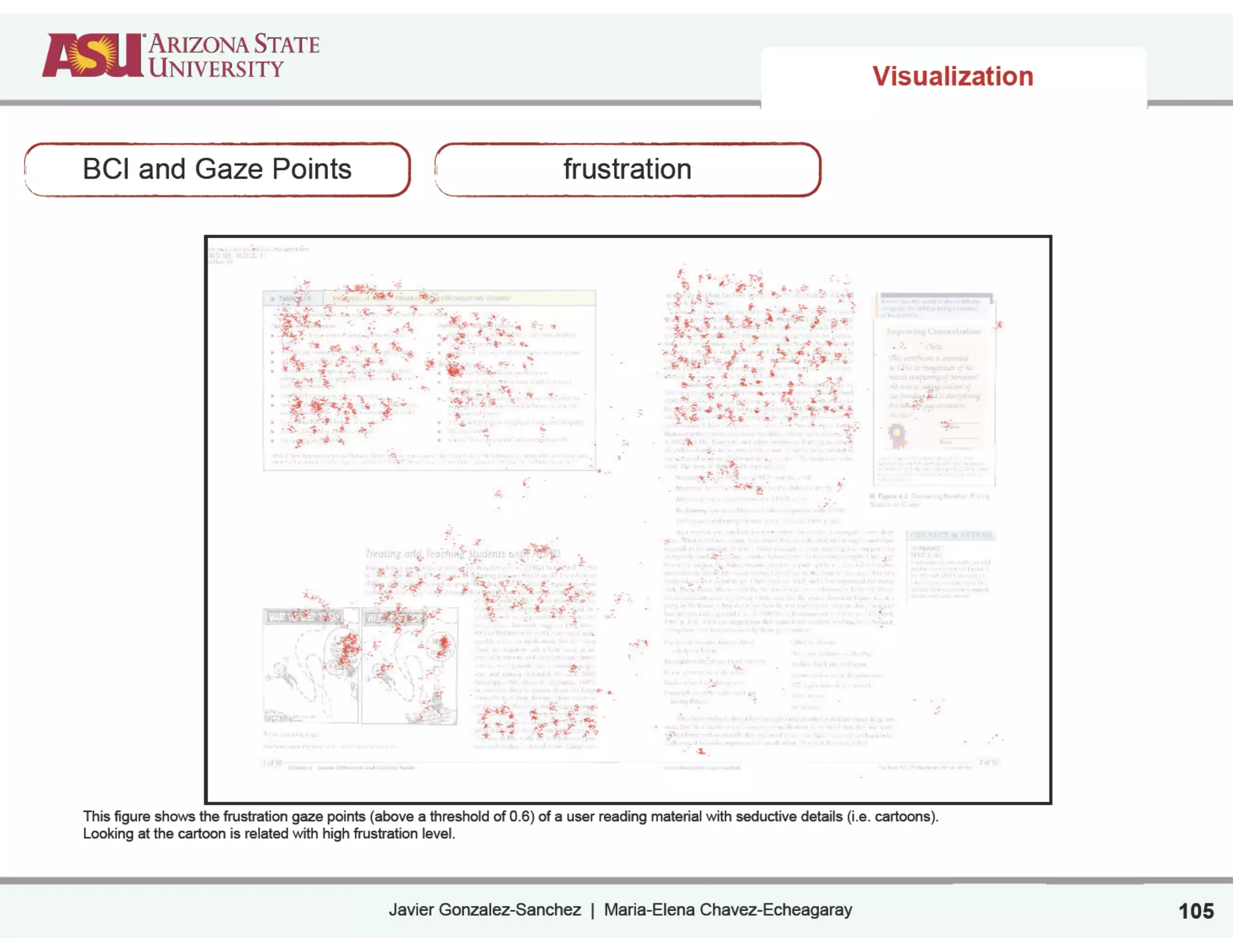

BCI and Gaze Points frustration
This figure shows the frustration gaze points (above a threshold of 0.6) of a user reading material with seductive details (i.e. cartoons).
Looking at the cartoon is related with high frustration level.

Visualization
106

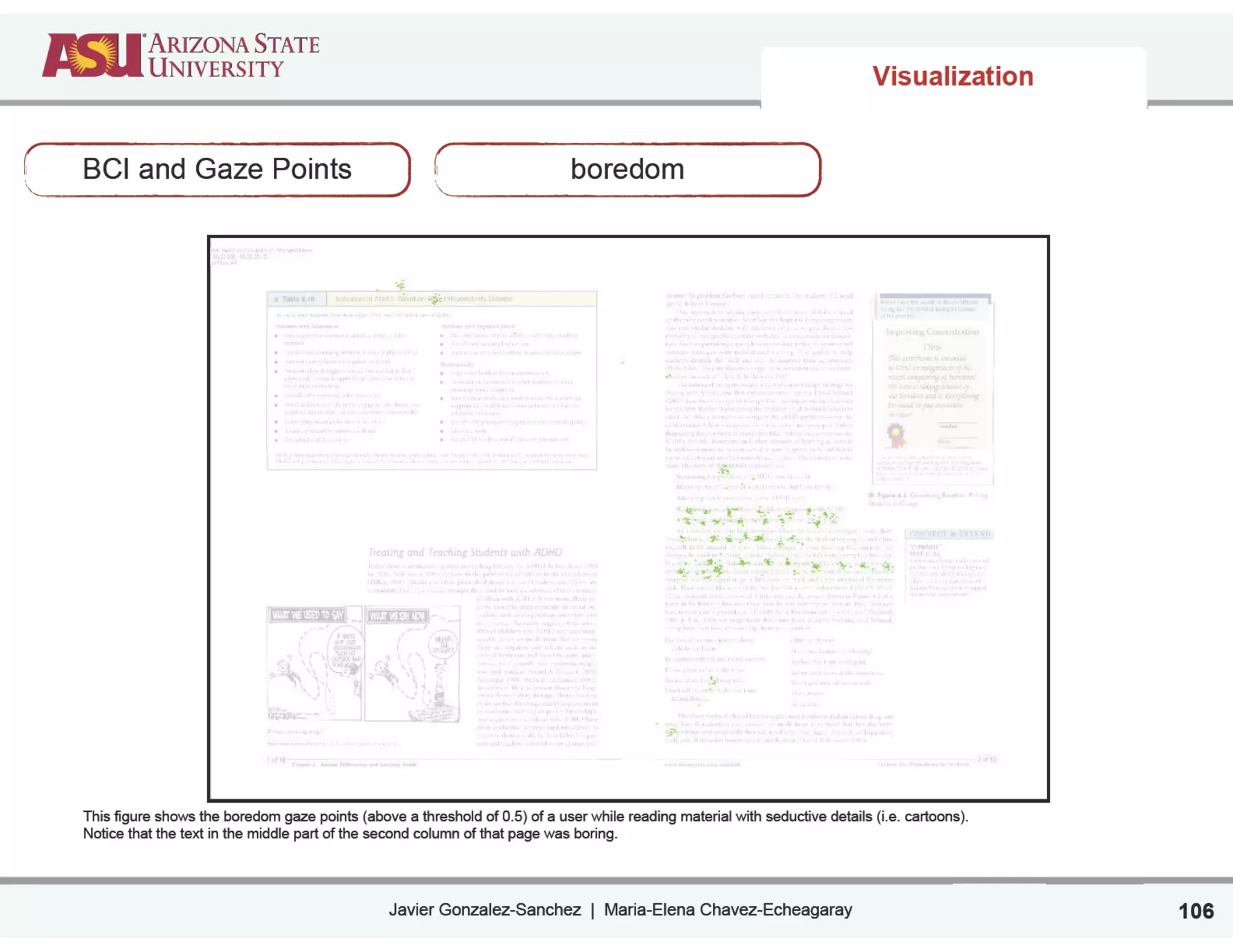

BCI and Gaze Points boredom
This figure shows the boredom gaze points (above a threshold of 0.5) of a user while reading material with seductive details (i.e. cartoons).
Notice that the text in the middle part of the second column of that page was boring.

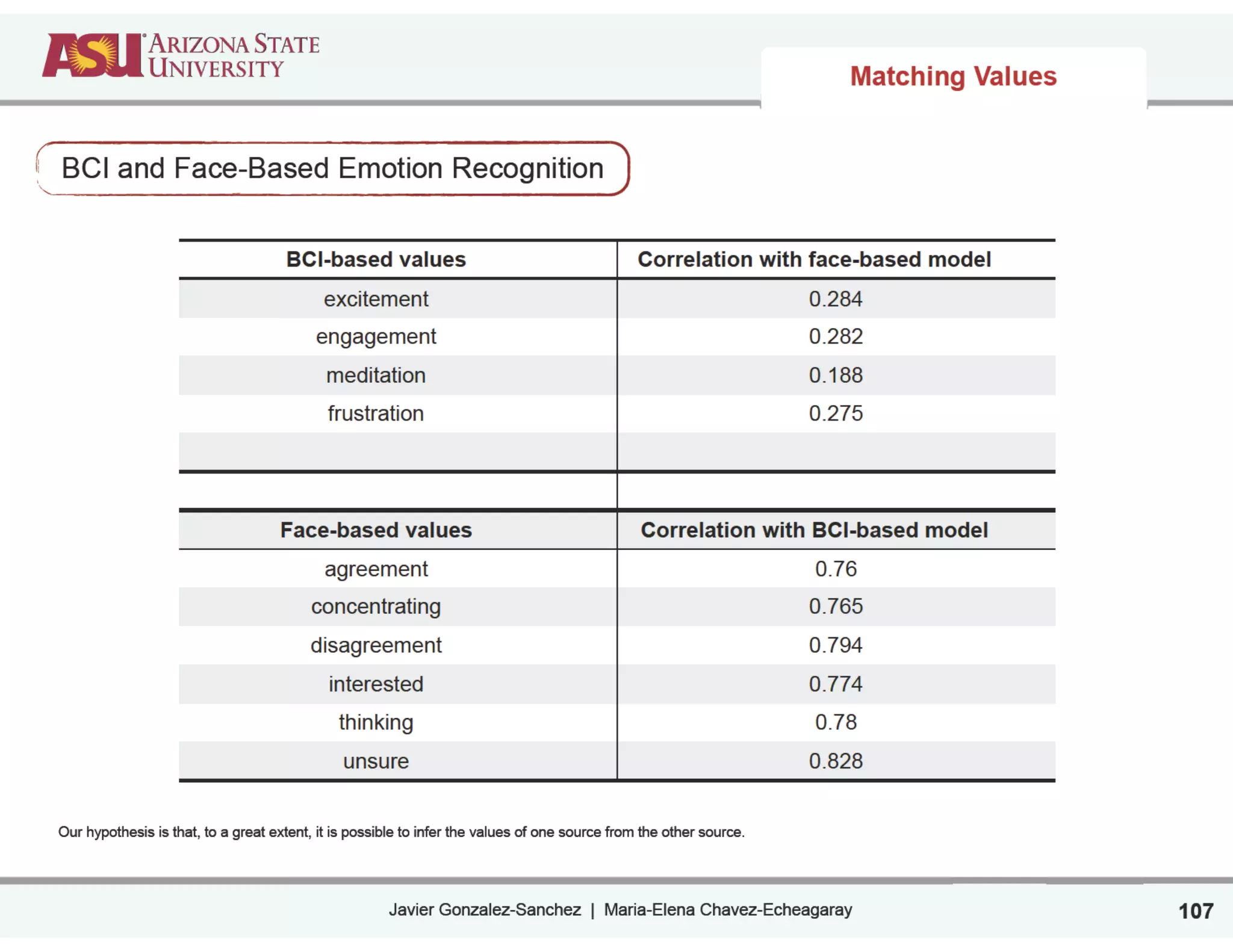

Matching Values
107
Our hypothesis is that, to a great extent, it is possible to infer the values of one source from the other source.
BCI-based values Correlation with face-based model
excitement 0.284
engagement 0.282
meditation 0.188
frustration 0.275
Face-based values Correlation with BCI-based model
agreement 0.76
concentrating 0.765
disagreement 0.794
interested 0.774
thinking 0.78
unsure 0.828
BCI and Face-Based Emotion Recognition

Matching Values
108
…"
[21] L. Breiman. Random forests. Machine Learning, 2001. Volume 45, Number 1. Pages 5–32.

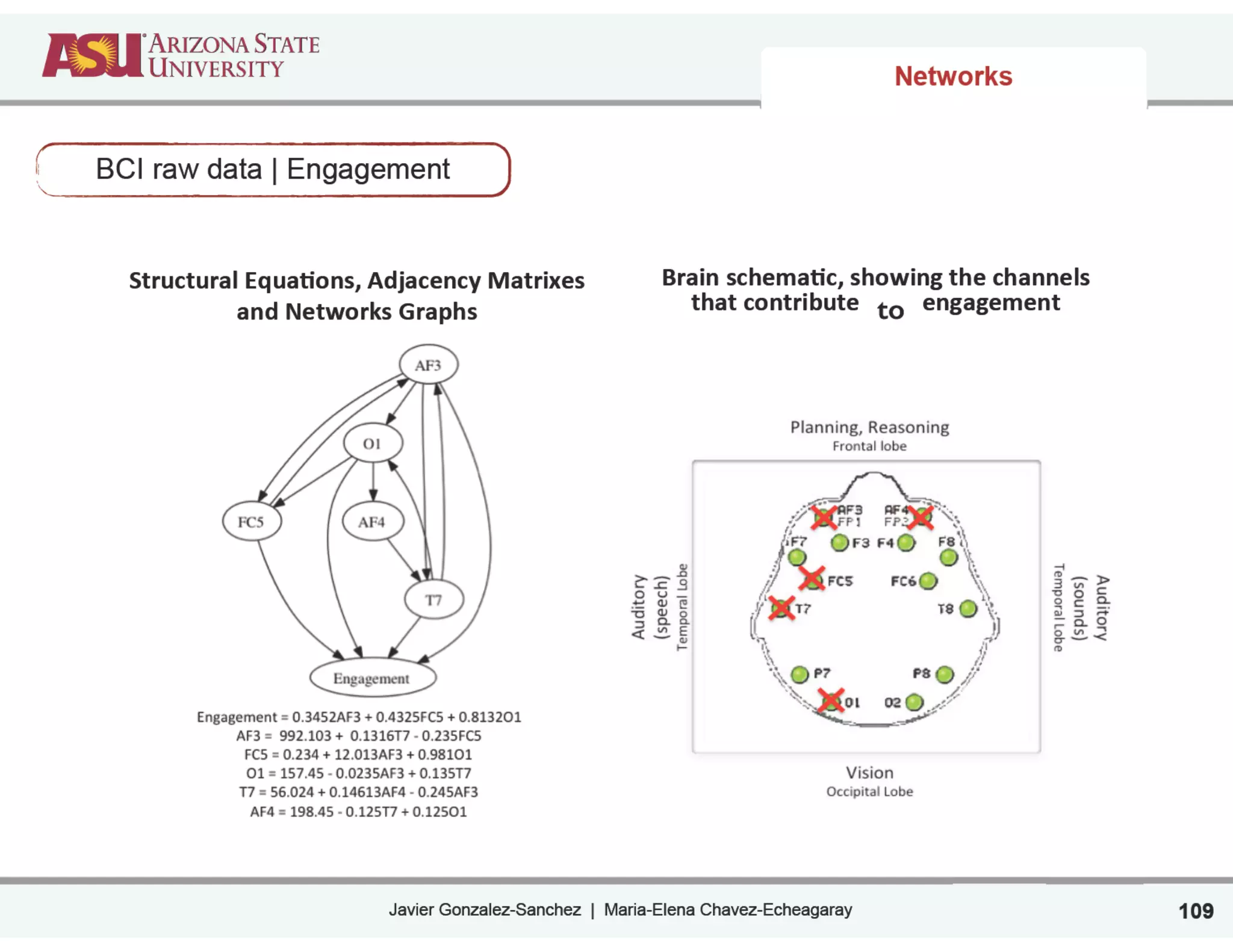

Random Forest

Networks
Structural(Equa+ons,(Adjacency(Matrixes(
and(Networks(Graphs(
Brain(schema+c,(showing(the(channels(
that(contribute(with(engagement(
! !
BCI raw data | Engagement
109
to

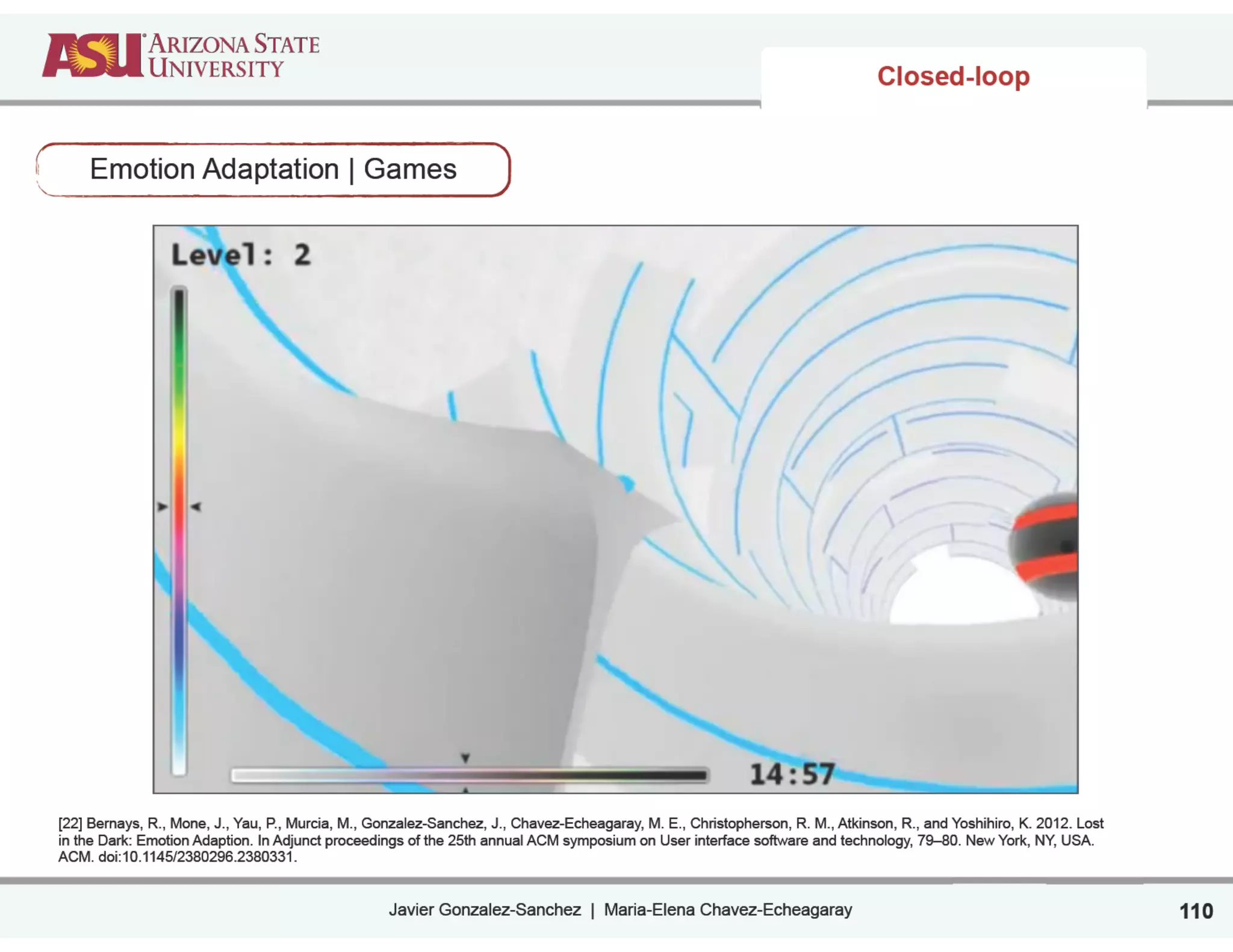

Closed-loop
Emotion Adaptation | Games
110
[22] Bernays, R., Mone, J., Yau, P., Murcia, M., Gonzalez-Sanchez, J., Chavez-Echeagaray, M. E., Christopherson, R. M., Atkinson, R., and Yoshihiro, K. 2012. Lost
in the Dark: Emotion Adaption. In Adjunct proceedings of the 25th annual ACM symposium on User interface software and technology, 79–80. New York, NY, USA.
ACM. doi:10.1145/2380296.2380331.

Closed-loop

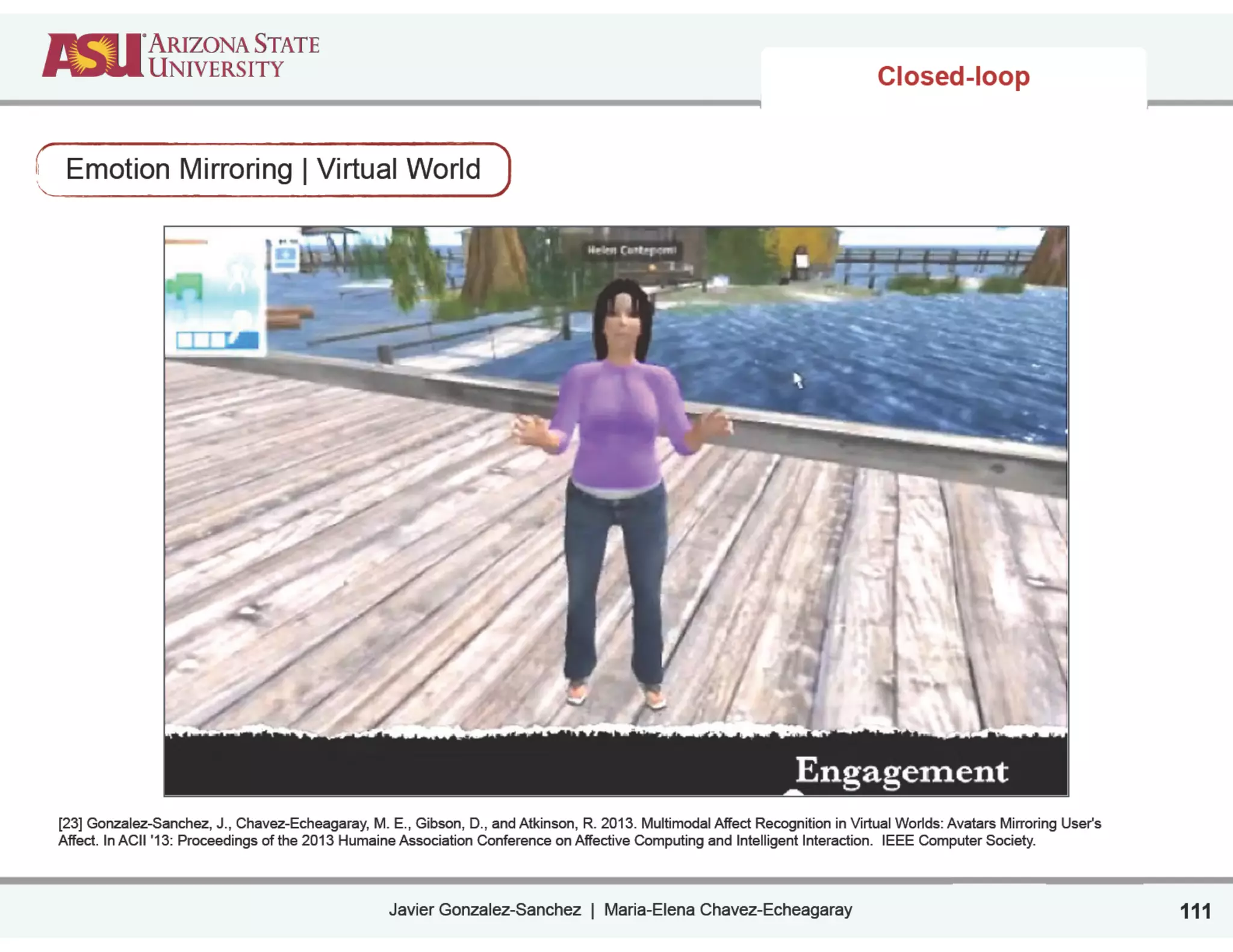

Emotion Mirroring | Virtual World
111
[23] Gonzalez-Sanchez, J., Chavez-Echeagaray, M. E., Gibson, D., and Atkinson, R. 2013. Multimodal Affect Recognition in Virtual Worlds: Avatars Mirroring User's
Affect. In ACII '13: Proceedings of the 2013 Humaine Association Conference on Affective Computing and Intelligent Interaction. IEEE Computer Society.

Group Discussion
112
devices data inferences

6. Conclusions and Q&A
113
Session 2

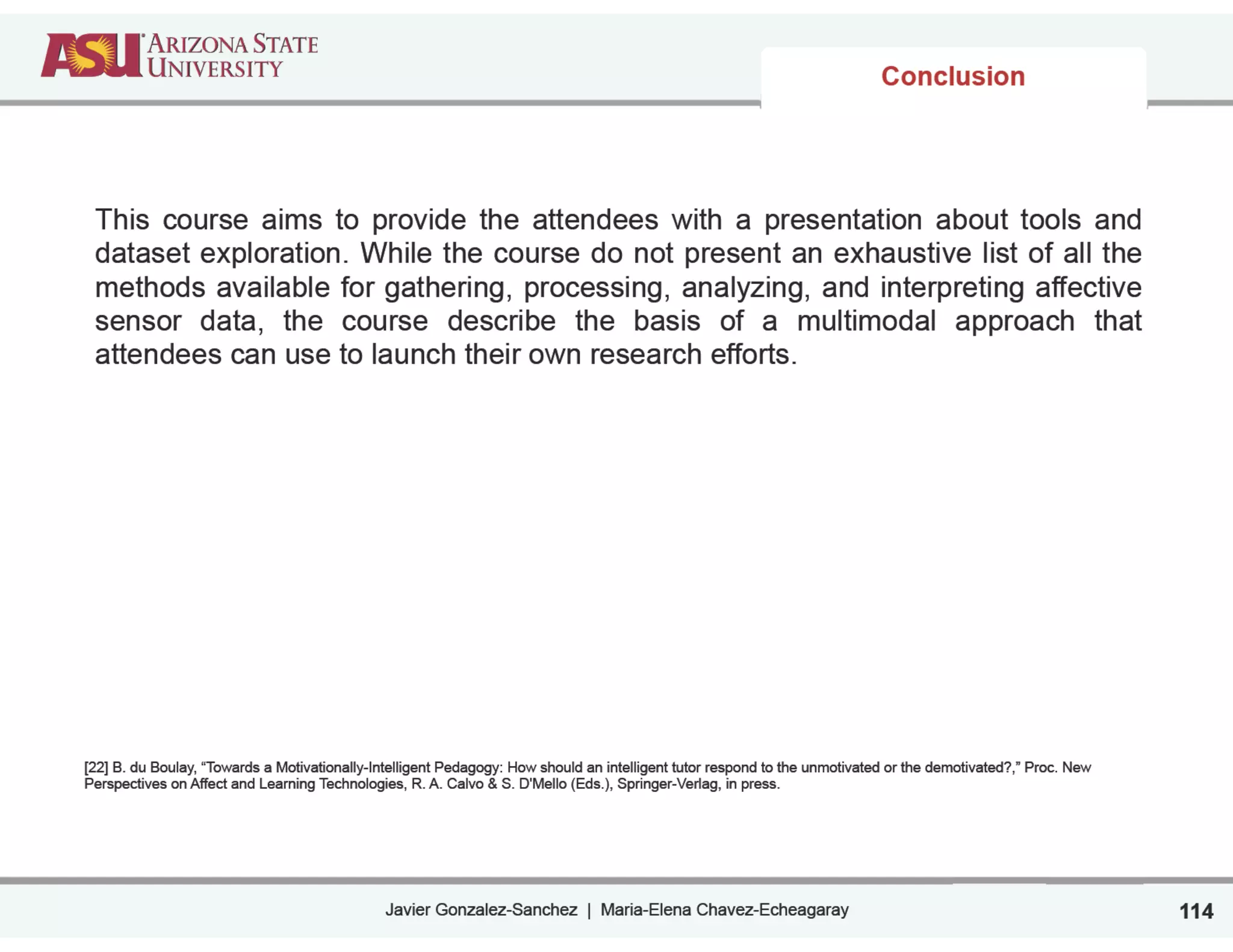

Conclusion
This course aims to provide the attendees with a presentation about tools and
dataset exploration. While the course do not present an exhaustive list of all the
methods available for gathering, processing, analyzing, and interpreting affective
sensor data, the course describe the basis of a multimodal approach that
attendees can use to launch their own research efforts.
!
!
!
!
!
!
!
!
!
!
!
!
!
[22] B. du Boulay, “Towards a Motivationally-Intelligent Pedagogy: How should an intelligent tutor respond to the unmotivated or the demotivated?,” Proc. New
Perspectives on Affect and Learning Technologies, R. A. Calvo & S. D'Mello (Eds.), Springer-Verlag, in press.
114

References
1. R.S.J. Baker, M.M.T Rodrigo and U.E. Xolocotzin, “The Dynamics of Affective Transitions in Simulation
Problem-solving Environments,” Proc. Affective Computing and Intelligent Interaction: Second
International Conference (ACII ’07), A. Paiva, R. Prada & R. W. Picard (Eds.), Springer-Verlag, Vol.
Lecture Notes in Computer Science 4738, pp. 666-677.
2. I. Arroyo, D. G. Cooper, W. Burleson, F. P. Woolf, K. Muldner, and R. Christopherson, “Emotion Sensors
Go to School,” Proc. Artificial Intelligence in Education: Building Learning Systems that Care: from
Knowledge Representation to Affective Modelling, (AIED 09), V. Dimitrova, R. Mizoguchi, B. du Boulay
& A. Grasser (Eds.), IOS Press, July 2009, vol. Frontiers in Artificial Intelligence and Applications 200,
pp. 17-24.
3. R. W. Picard, Affective Computing, MIT Press, 1997.
4. J. Gonzalez-Sanchez, R. M. Christopherson, M. E. Chavez-Echeagaray, D. C. Gibson, R. Atkinson, W.
Burleson, “ How to Do Multimodal Detection of Affective States?,” icalt, pp.654-655, 2011 IEEE 11th
International Conference on Advanced Learning Technologies, 2011
5. Emotiv - Brain Computer Interface Technology. Retrieved April 26, 2011, from http://www.emotiv.com.
6. F. Sharbrough, G.E. Chatrian, R.P. Lesser, H. Lüders, M. Nuwer, T.W. Picton. American
Electroencephalographic Society Guidelines for Standard Electrode Position Nomenclature. J. Clin.
Neurophysiol 8: 200-2.
7. Electroencephalography. Retrieved November 14th, 2010, from Electric and Magnetic Measurement of
the Electric Activity of Neural Tissue: http://www.bem.fi/book/13/13.htm
115

References
8. R. E. Kaliouby and P. Robinson, “Real-Time Inference of Complex Mental States from Facial
Expressions and Head Gestures,” Proc. Conference on Computer Vision and Pattern Recognition
Workshop (CVPRW ‘04), IEEE Computer Society, June 2004, Volume 10, p.154.
9. Tobii Technology - Eye Tracking and Eye Control. Retrieved April 26, 2011, from http://
www.tobii.com.
10. M. Strauss, C. Reynolds, S. Hughes, K. Park, G. McDarby, and R.W. Picard, “The HandWave
Bluetooth Skin Conductance Sensor,” Proc. First International Conference on Affective Computing
and Intelligent Interaction (ACII 05), Springer-Verlang, Oct. 2005, pp. 699-706, doi:
10.1007/11573548_90.
11. Y. Qi, and R. W. Picard, "Context-Sensitive Bayesian Classifiers and Application to Mouse Pressure
Pattern Classification," Proc. International Conference on Pattern Recognition (ICPR 02), Aug.
2002, vol 3, pp. 30448, doi:10.1109/ICPR.2002.1047973.
12. D. Cooper, I. Arroyo, B. Woolf, K. Muldner, W. Burleson, and R. Christopherson. (2009). Sensors
model student self concept in the classroom, User Modeling, Adaptation, and Personalization,
30-41.
13. S. Mota, and R. W. Picard, "Automated Posture Analysis for Detecting Learners Interest Level,"
Proc. Computer Vision and Pattern Recognition Workshop (CVPRW 03), IEEE Press, June 2003,
vol. 5, pp. 49, doi:10.1109/CVPRW.2003.10047.
116

References
14. K. VanLehn, W. Burleson, M.E. Chavez-Echeagaray, R. Christopherson, J. Gonzalez-Sanchez, Y.
Hidalgo-Pontet, and L. Zhang. “The Affective Meta-Tutoring Project: How to motivate students to
use effective meta-cognitive strategies,” Proceedings of the 19th International Conference on
Computers in Education. Chiang Mai, Thailand: Asia- Pacific Society for Computers in Education.
October 2011. In press.
15. J. Gonzalez-Sanchez; M.E. Chavez-Echeagaray; R. Atkinson; and W. Burleson. (2011), "ABE: An
Agent-Based Software Architecture for a Multimodal Emotion Recognition Framework," in
Proceedings of Working IEEE/IFIP Conference on Software Architecture (June 2011).
16. F. Tuijnman, and H. Afsarmanesh, "Distributed objects in a federation of autonomous cooperating
agents," Proc. International Conference on Intelligent and Cooperative Information Systems, May
1993, pp. 256-265, doi:10.1109/ICICIS.1993.291763.
17. M. Wood, and S. DeLoach, “An overview of the multiagent systems engineering methodology,”
Agent-Oriented Software Engineering, (AOSE 2000), Springer-Verlag, 2001, pp. 207-221, doi:
10.1007/3-540-44564-1_14.
18. [18] J. Liu, S. Ji, and J. Ye. SLEP: Sparse Learning with Efficient Projections. Arizona State
University, 2009. http://www.public.asu.edu/~jye02/Software/SLEP.
19. [19] R. Dubcakova. Eureqa-software review. Genetic programming and evolvable machines. Genet.
Program. Evol. Mach. (2010) online first. doi:10.1007/s10710- 010-9124-z .
117

References
20. M. Hall, E. Frank, G. Holmes, B. Pfahringer, P. Reutemann, and I.H.Witten, “The WEKA Data Mining
Software: An Update,” Proc. SIGKDD Explorations, 2009, Volume 11, Issue 1.
21. L. Breiman. Random forests. Machine Learning, 2001. Volume 45, Number 1. Pages 5–32.
22. R. Bernays, J. Mone, P. Yau, M. Murcia, J. Gonzalez-Sanchez, M.E. Chavez-Echeagaray, R.
Christopherson, R. Atkinson, and K. Yoshihiro. 2012. Lost in the Dark: Emotion Adaption. In Adjunct
proceedings of the 25th annual ACM symposium on User interface software and technology, 79–80.
New York, NY, USA. ACM. doi:10.1145/2380296.2380331.
23. J. Gonzalez-Sanchez, M.E. Chavez-Echeagaray, D. Gibson, and R. Atkinson. 2013. Multimodal Affect
Recognition in Virtual Worlds: Avatars Mirroring User's Affect. In ACII '13: Proceedings of the 2013
Humaine Association Conference on Affective Computing and Intelligent Interaction. IEEE Computer
Society. 724-725. doi: 10.1109/ACII.2013.133
24. B. du Boulay, Towards a Motivationally-Intelligent Pedagogy: How should an intelligent tutor respond to
the unmotivated or the demotivated?, Proc. New Perspectives on Affect and Learning Technologies, R.
A. Calvo & S. D'Mello (Eds.), Springer-Verlag.
118

Questions | Answers
119

Acknowledgements
This research was supported by
Office of Naval Research under Grant N00014-10-1-0143
awarded to Dr. Robert Atkinson
120

angle.lab.asu.edu
hci.asu.edu
!
{ javiergs, helenchavez } @ asu.edu

201404 Multimodal Detection of Affective States: A Roadmap Through Diverse Technologies

More Related Content

What's hot

Viewers also liked

Similar to 201404 Multimodal Detection of Affective States: A Roadmap Through Diverse Technologies

More from Javier Gonzalez-Sanchez

Recently uploaded

201404 Multimodal Detection of Affective States: A Roadmap Through Diverse Technologies
