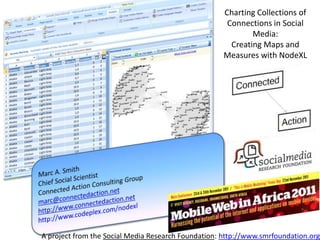

Charting Collections of
                                                     Connections in Social
                                                            Media:
                                                      Creating Maps and
                                                    Measures with NodeXL




A project from the Social Media Research Foundation: http://www.smrfoundation.org

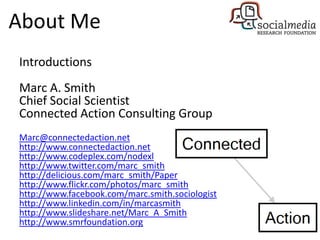

About Me
Introductions
Marc A. Smith
Chief Social Scientist
Connected Action Consulting Group
Marc@connectedaction.net
http://www.connectedaction.net
http://www.codeplex.com/nodexl
http://www.twitter.com/marc_smith
http://delicious.com/marc_smith/Paper
http://www.flickr.com/photos/marc_smith
http://www.facebook.com/marc.smith.sociologist
http://www.linkedin.com/in/marcasmith
http://www.slideshare.net/Marc_A_Smith
http://www.smrfoundation.org

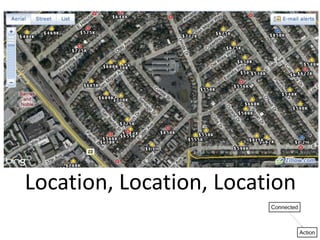

Location, Location, Location

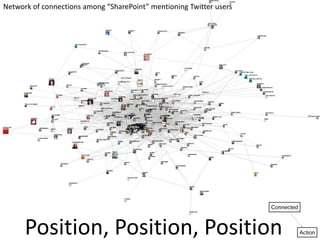

Network of connections among “SharePoint” mentioning Twitter users




      Position, Position, Position

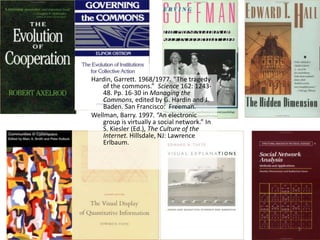

Hardin, Garrett. 1968/1977. “The tragedy
   of the commons.” Science 162: 1243-
   48. Pp. 16-30 in Managing the
   Commons, edited by G. Hardin and J.
   Baden. San Francisco: Freeman.
Wellman, Barry. 1997. “An electronic
   group is virtually a social network.” In
   S. Kiesler (Ed.), The Culture of the
   Internet. Hillsdale, NJ: Lawrence
   Erlbaum.




                                              5

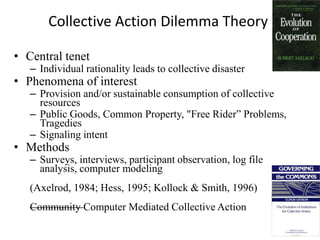

Collective Action Dilemma Theory

• Central tenet
   – Individual rationality leads to collective disaster
• Phenomena of interest
   – Provision and/or sustainable consumption of collective
     resources
   – Public Goods, Common Property, "Free Rider” Problems,
     Tragedies
   – Signaling intent
• Methods
   – Surveys, interviews, participant observation, log file
     analysis, computer modeling
   (Axelrod, 1984; Hess, 1995; Kollock & Smith, 1996)
   Community Computer Mediated Collective Action
Common goods that require controlled consumption




http://flickr.com/photos/himalayan-trails/275941886/
Common goods that require collective contribution




http://flickr.com/photos/jose1jose2jose3/241450368/

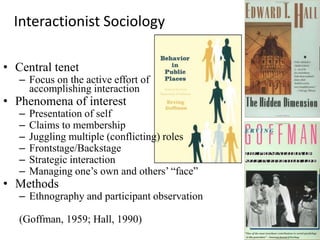

Interactionist Sociology

• Central tenet
   – Focus on the active effort of
     accomplishing interaction
• Phenomena of interest
   –   Presentation of self
   –   Claims to membership
   –   Juggling multiple (conflicting) roles
   –   Frontstage/Backstage
   –   Strategic interaction
   –   Managing one’s own and others’ “face”
• Methods
   – Ethnography and participant observation

   (Goffman, 1959; Hall, 1990)

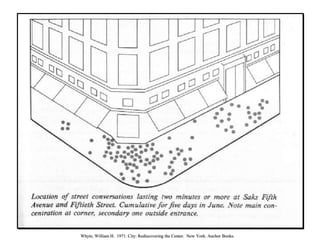

Whyte, William H. 1971. City: Rediscovering the Center. New York: Anchor Books.
Y’all.
Youse.

 Yes, youse.

               12

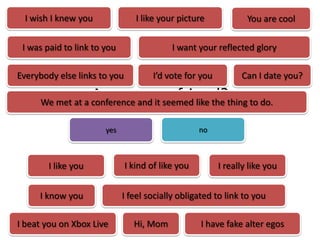

I wish I knew you              I like your picture            You are cool

 I was paid to link to you                 I want your reflected glory

Everybody else links to you          I’d vote for you         Can I date you?

                     Are you my friend?
     We met at a conference and it seemed like the thing to do.

                       yes                         no



        I like you            I kind of like you        I really like you


     I know you              I feel socially obligated to link to you

I beat you on Xbox Live         Hi, Mom            I have fake alter egos
14

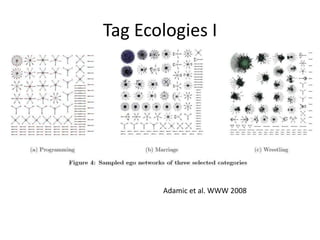

Tag Ecologies I




       Adamic et al. WWW 2008
Networks reveal patterns

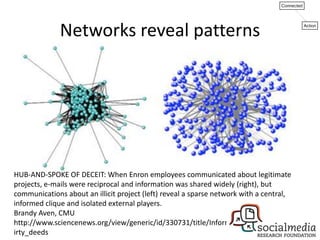

HUB-AND-SPOKE OF DECEIT: When Enron employees communicated about legitimate
projects, e-mails were reciprocal and information was shared widely (right), but
communications about an illicit project (left) reveal a sparse network with a central,
informed clique and isolated external players.
Brandy Aven, CMU
http://www.sciencenews.org/view/generic/id/330731/title/Information_flow_can_reveal_d
irty_deeds
Social Media
(email, Facebook, Twitter,
YouTube, and more)
is all about
connections




     from people to people.

                              17
Patterns are

               left
behind
                      18
There are many kinds of ties….
Like, Link, Reply, Rate, Review, Favorite, Friend, Follow, Forward, Edit, Tag, Comment, Check-in…




                                      http://www.flickr.com/photos/stevendepolo/3254238329

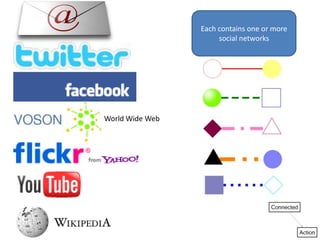

Each contains one or more
                      social networks




World Wide Web
Hubs
Bridges
http://www.flickr.com/photos/library_of_congress/3295494976/sizes/o/in/photostream/
http://www.flickr.com/photos/amycgx/3119640267/

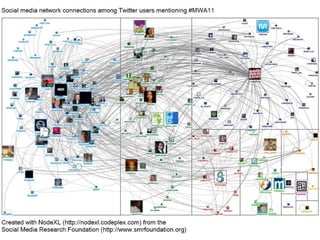

20111122-NodeXL-Twitter-mwa11 OR mwa2011 OR mwebafrica OR mobilewebafrica

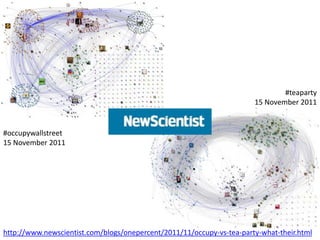

20111121-NodeXL-Twitter-#occupywallstreet
#teaparty
                                                                       15 November 2011


#occupywallstreet
15 November 2011




http://www.newscientist.com/blogs/onepercent/2011/11/occupy-vs-tea-party-what-their.html

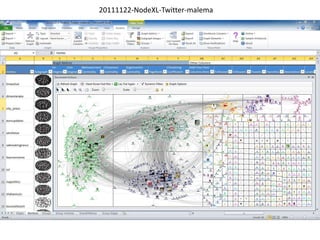

20111122-NodeXL-Twitter-malema

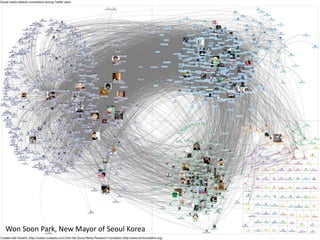

Won Soon Park, New Mayor of Seoul Korea

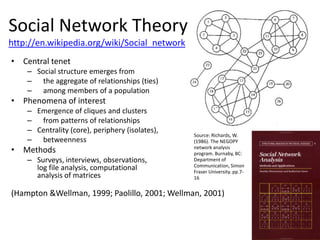

Social Network Theory
http://en.wikipedia.org/wiki/Social_network
• Central tenet
    – Social structure emerges from
    – the aggregate of relationships (ties)
    – among members of a population
• Phenomena of interest
    – Emergence of cliques and clusters
    – from patterns of relationships
    – Centrality (core), periphery (isolates),
                                                 Source: Richards, W.
    – betweenness                                (1986). The NEGOPY
• Methods                                        network analysis
                                                 program. Burnaby, BC:
    – Surveys, interviews, observations,         Department of
                                                 Communication, Simon
      log file analysis, computational           Fraser University. pp.7-
      analysis of matrices                       16


(Hampton &Wellman, 1999; Paolillo, 2001; Wellman, 2001)

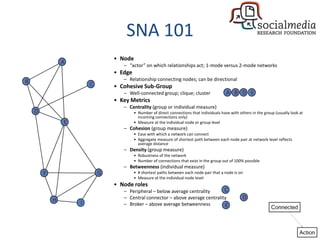

SNA 101
                                • Node
                A
                                   – “actor” on which relationships act; 1-mode versus 2-mode networks
                                • Edge
B                                  – Relationship connecting nodes; can be directional
                        C       • Cohesive Sub-Group
                                   – Well-connected group; clique; cluster                  A B D E
                                • Key Metrics
                                   – Centrality (group or individual measure)
    D                                    • Number of direct connections that individuals have with others in the group (usually look at
                                           incoming connections only)
                E                        • Measure at the individual node or group level
                                   – Cohesion (group measure)
                                         • Ease with which a network can connect
                                         • Aggregate measure of shortest path between each node pair at network level reflects
                                           average distance
                                   – Density (group measure)
                                         • Robustness of the network
                                         • Number of connections that exist in the group out of 100% possible
                                   – Betweenness (individual measure)
        F                   G            • # shortest paths between each node pair that a node is on
                                         • Measure at the individual node level
                                • Node roles
                                   – Peripheral – below average centrality      C
            H                      – Central connector – above average centrality                    D
                    I              – Broker – above average betweenness         E

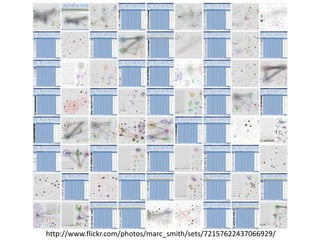

http://www.flickr.com/photos/marc_smith/sets/72157622437066929/

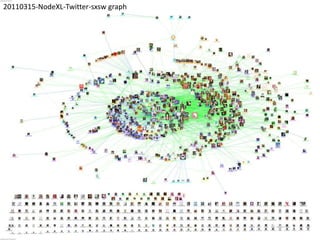

20110315-NodeXL-Twitter-sxsw graph

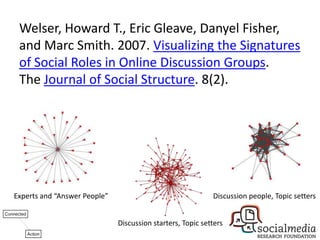

Welser, Howard T., Eric Gleave, Danyel Fisher,
 and Marc Smith. 2007. Visualizing the Signatures
 of Social Roles in Online Discussion Groups.
 The Journal of Social Structure. 8(2).

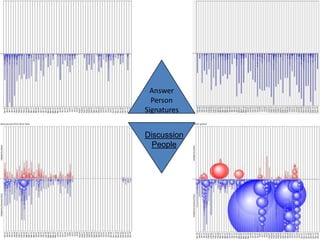

Experts and “Answer People”                                 Discussion people, Topic setters


                              Discussion starters, Topic setters
Answer
  Person
Signatures


Discussion
  People
Discussion
                    Starter
        Spammer




Reply oriented
Discussion
                                Flame
                               Warrior




                                 39
Now Available
Analogy: Clusters Are Occluded
  Hard to count nodes, clusters
Separate Clusters Are More Comprehensible

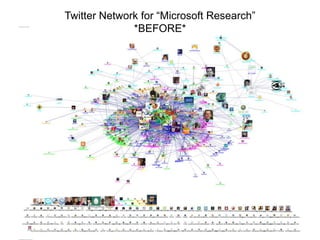

Twitter Network for “Microsoft Research”
              *BEFORE*

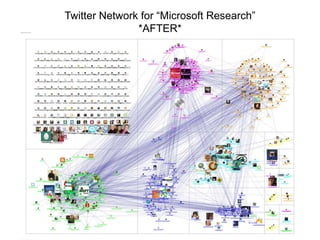

Twitter Network for “Microsoft Research”
               *AFTER*

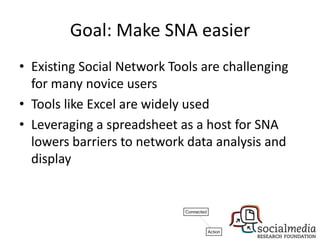

Goal: Make SNA easier
• Existing Social Network Tools are challenging
  for many novice users
• Tools like Excel are widely used
• Leveraging a spreadsheet as a host for SNA
  lowers barriers to network data analysis and
  display

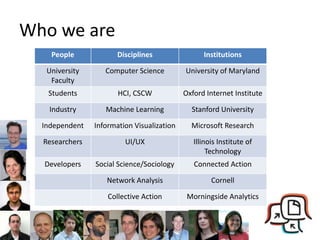

Who we are
    People             Disciplines                Institutions

   University      Computer Science         University of Maryland
    Faculty
   Students            HCI, CSCW            Oxford Internet Institute

   Industry        Machine Learning           Stanford University

  Independent   Information Visualization     Microsoft Research

  Researchers            UI/UX                 Illinois Institute of
                                                    Technology
  Developers    Social Science/Sociology       Connected Action

                   Network Analysis                  Cornell

                    Collective Action        Morningside Analytics
Social Media Research Foundation
       http://smrfoundation.org

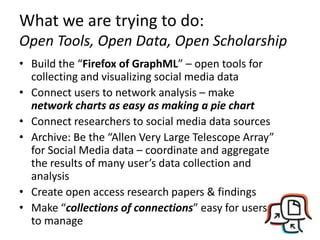

What we are trying to do:
Open Tools, Open Data, Open Scholarship
• Build the “Firefox of GraphML” – open tools for
  collecting and visualizing social media data
• Connect users to network analysis – make
  network charts as easy as making a pie chart
• Connect researchers to social media data sources
• Archive: Be the “Allen Very Large Telescope Array”
  for Social Media data – coordinate and aggregate
  the results of many user’s data collection and
  analysis
• Create open access research papers & findings
• Make “collections of connections” easy for users
  to manage

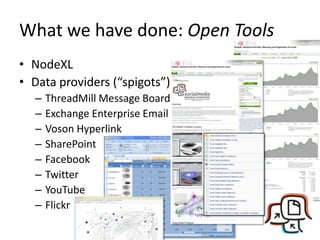

What we have done: Open Tools
• NodeXL
• Data providers (“spigots”)
  –   ThreadMill Message Board
  –   Exchange Enterprise Email
  –   Voson Hyperlink
  –   SharePoint
  –   Facebook
  –   Twitter
  –   YouTube
  –   Flickr
What we have done: Open Data

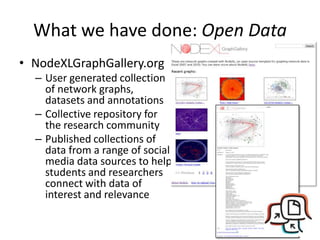

• NodeXLGraphGallery.org
  – User generated collection
    of network graphs,
    datasets and annotations
  – Collective repository for
    the research community
  – Published collections of
    data from a range of social
    media data sources to help
    students and researchers
    connect with data of
    interest and relevance

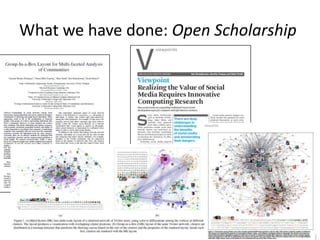

What we have done: Open Scholarship
What we have done: Open Scholarship
Facebook networks
http://www.connectedaction.net/2010/04/25/bernie-hogans-facebook-social-network-data-provider-and-visualization-toolkit/

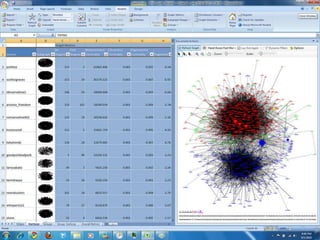

NodeXL data import sources

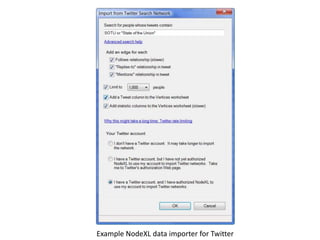

Example NodeXL data importer for Twitter

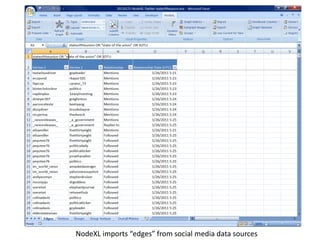

NodeXL imports “edges” from social media data sources

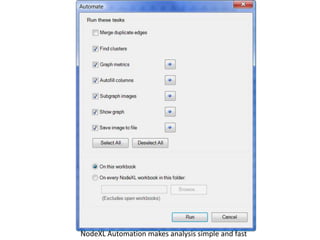

NodeXL Automation makes analysis simple and fast

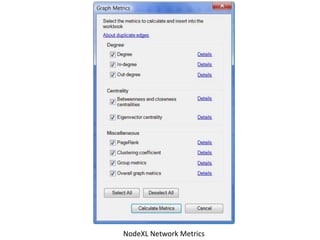

NodeXL Network Metrics

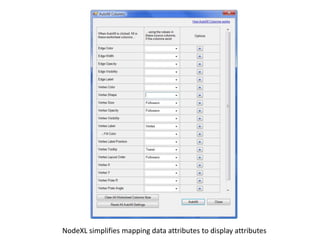

NodeXL simplifies mapping data attributes to display attributes

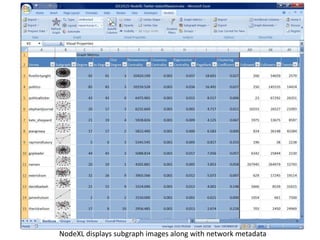

NodeXL displays subgraph images along with network metadata
NodeXL enables filtering of networks

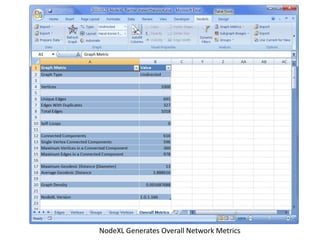

NodeXL Generates Overall Network Metrics

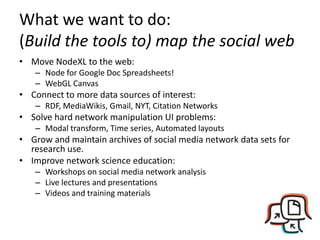

What we want to do:
(Build the tools to) map the social web
• Move NodeXL to the web:
   – Node for Google Doc Spreadsheets!
   – WebGL Canvas
• Connect to more data sources of interest:
   – RDF, MediaWikis, Gmail, NYT, Citation Networks
• Solve hard network manipulation UI problems:
   – Modal transform, Time series, Automated layouts
• Grow and maintain archives of social media network data sets for
  research use.
• Improve network science education:
   – Workshops on social media network analysis
   – Live lectures and presentations
   – Videos and training materials

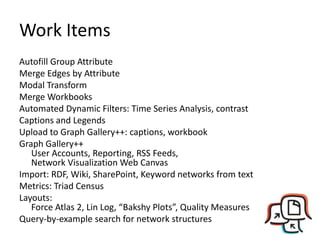

Work Items
Autofill Group Attribute
Merge Edges by Attribute
Modal Transform
Merge Workbooks
Automated Dynamic Filters: Time Series Analysis, contrast
Captions and Legends
Upload to Graph Gallery++: captions, workbook
Graph Gallery++
   User Accounts, Reporting, RSS Feeds,
   Network Visualization Web Canvas
Import: RDF, Wiki, SharePoint, Keyword networks from text
Metrics: Triad Census
Layouts:
   Force Atlas 2, Lin Log, “Bakshy Plots”, Quality Measures
Query-by-example search for network structures

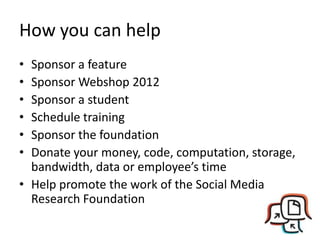

How you can help
• Sponsor a feature
• Sponsor Webshop 2012
• Sponsor a student
• Schedule training
• Sponsor the foundation
• Donate your money, code, computation, storage,
  bandwidth, data or employee’s time
• Help promote the work of the Social Media
  Research Foundation

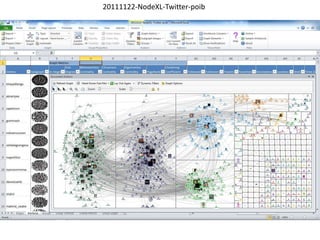

20111122-NodeXL-Twitter-poib

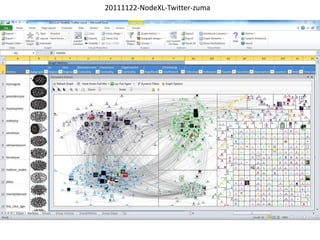

20111122-NodeXL-Twitter-zuma

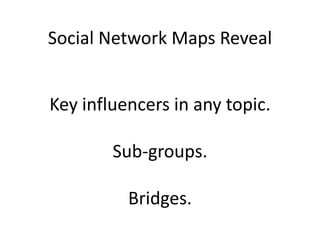

Social Network Maps Reveal


Key influencers in any topic.

        Sub-groups.

          Bridges.
Why didn’t you just say so?

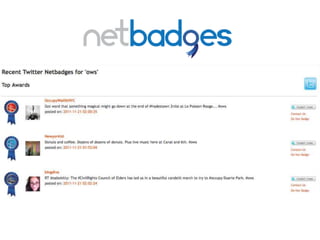

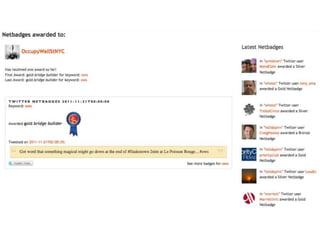

Identify the key influencers in any topic.
         Netbadges awards badges to influential people
         and web sites on the Internet. We analyze the
          social network of connections among all the
         people or web sites that gather around a topic,
           issue, or interest and award badges to key
           people and sites, highlighting their recent
                             content.
Contact:

 Marc A. Smith
 Chief Social Scientist
 Connected Action Consulting Group
 Marc@connectedaction.net
 http://www.connectedaction.net
 http://www.codeplex.com/nodexl
 http://www.twitter.com/marc_smith
 http://delicious.com/marc_smith/Paper
 http://www.flickr.com/photos/marc_smith
 http://www.facebook.com/marc.smith.sociologist
 http://www.linkedin.com/in/marcasmith
 http://www.slideshare.net/Marc_A_Smith
 http://www.smrfoundation.org
Upcoming
      Full-day social media network analysis workshops
                    This Friday – Hands on with NodeXL




                                 Next week




    Cape Town
28 November 2011                                              Johannesburg
   Protea Hotel                                            30 November 2011
Breakwater Lodge,                                            Gordon Institute
    Waterfront                                             of Business Science,
                                                                  Illovo




                    Marc Smith               Walter Pike
Charting Collections of
                                                     Connections in Social
                                                            Media:
                                                      Creating Maps and
                                                    Measures with NodeXL




A project from the Social Media Research Foundation: http://www.smrfoundation.org

More Related Content

What's hot

Social Networks and Social Capital
Social Networks and Social CapitalSocial Networks and Social Capital
Social Networks and Social Capital
Giorgos Cheliotis

2000-ACM SIGCHI-The social life of small graphical chat spaces
2000-ACM SIGCHI-The social life of small graphical chat spaces2000-ACM SIGCHI-The social life of small graphical chat spaces
2000-ACM SIGCHI-The social life of small graphical chat spaces
Marc Smith

2007-JOSS-Visualizing the signatures of social roles in online discussion groups
2007-JOSS-Visualizing the signatures of social roles in online discussion groups2007-JOSS-Visualizing the signatures of social roles in online discussion groups
2007-JOSS-Visualizing the signatures of social roles in online discussion groups
Marc Smith

2000 - CSCW - Conversation Trees and Threaded Chats
2000  - CSCW - Conversation Trees and Threaded Chats2000  - CSCW - Conversation Trees and Threaded Chats
2000 - CSCW - Conversation Trees and Threaded Chats
Marc Smith


What's hot (20)

2013 NodeXL Social Media Network Analysis
2013 NodeXL Social Media Network Analysis2013 NodeXL Social Media Network Analysis
2013 NodeXL Social Media Network Analysis

Social Networks and Social Capital
Social Networks and Social CapitalSocial Networks and Social Capital
Social Networks and Social Capital

2015 pdf-marc smith-node xl-social media sna
2015 pdf-marc smith-node xl-social media sna2015 pdf-marc smith-node xl-social media sna
2015 pdf-marc smith-node xl-social media sna

2015 #MMeasure-Marc Smith-NodeXL Mapping social media using social network ma...
2015 #MMeasure-Marc Smith-NodeXL Mapping social media using social network ma...2015 #MMeasure-Marc Smith-NodeXL Mapping social media using social network ma...
2015 #MMeasure-Marc Smith-NodeXL Mapping social media using social network ma...

Think Link: Network Insights with No Programming Skills
Think Link: Network Insights with No Programming SkillsThink Link: Network Insights with No Programming Skills
Think Link: Network Insights with No Programming Skills

2009 December NodeXL Overview
2009 December NodeXL Overview2009 December NodeXL Overview
2009 December NodeXL Overview

2000-ACM SIGCHI-The social life of small graphical chat spaces
2000-ACM SIGCHI-The social life of small graphical chat spaces2000-ACM SIGCHI-The social life of small graphical chat spaces
2000-ACM SIGCHI-The social life of small graphical chat spaces

2007-JOSS-Visualizing the signatures of social roles in online discussion groups
2007-JOSS-Visualizing the signatures of social roles in online discussion groups2007-JOSS-Visualizing the signatures of social roles in online discussion groups
2007-JOSS-Visualizing the signatures of social roles in online discussion groups

2016 SocialMedia.Org Marc Smith-NodeXL-Social Media SNA
2016 SocialMedia.Org Marc Smith-NodeXL-Social Media SNA2016 SocialMedia.Org Marc Smith-NodeXL-Social Media SNA
2016 SocialMedia.Org Marc Smith-NodeXL-Social Media SNA

2014 TheNextWeb-Mapping connections with NodeXL
2014 TheNextWeb-Mapping connections with NodeXL2014 TheNextWeb-Mapping connections with NodeXL
2014 TheNextWeb-Mapping connections with NodeXL

2000 - CSCW - Conversation Trees and Threaded Chats
2000  - CSCW - Conversation Trees and Threaded Chats2000  - CSCW - Conversation Trees and Threaded Chats
2000 - CSCW - Conversation Trees and Threaded Chats

20151001 charles university prague - marc smith - node xl-picturing political...
20151001 charles university prague - marc smith - node xl-picturing political...20151001 charles university prague - marc smith - node xl-picturing political...
20151001 charles university prague - marc smith - node xl-picturing political...

Social network analysis course 2010 - 2011
Social network analysis course 2010 - 2011Social network analysis course 2010 - 2011
Social network analysis course 2010 - 2011

2008 - ICWSM - Marc Smith - Some Dimensions Of Social Media
2008 - ICWSM - Marc Smith - Some Dimensions Of Social Media2008 - ICWSM - Marc Smith - Some Dimensions Of Social Media
2008 - ICWSM - Marc Smith - Some Dimensions Of Social Media

Social Network Visualization 101
Social Network Visualization 101Social Network Visualization 101
Social Network Visualization 101

Marc Smith - Charting Collections of Connections in Social Media: Creating Ma...
Marc Smith - Charting Collections of Connections in Social Media: Creating Ma...Marc Smith - Charting Collections of Connections in Social Media: Creating Ma...
Marc Smith - Charting Collections of Connections in Social Media: Creating Ma...

Week2
Week2Week2
Week2

Studying Social Influence On The WWW
Studying Social Influence On The WWWStudying Social Influence On The WWW
Studying Social Influence On The WWW

2013 passbac-marc smith-node xl-sna-social media-formatted
2013 passbac-marc smith-node xl-sna-social media-formatted2013 passbac-marc smith-node xl-sna-social media-formatted
2013 passbac-marc smith-node xl-sna-social media-formatted

Prof. Hendrik Speck - Social Network Analysis
Prof. Hendrik Speck - Social Network AnalysisProf. Hendrik Speck - Social Network Analysis
Prof. Hendrik Speck - Social Network Analysis


Viewers also liked

Analyzing social media networks with NodeXL - Chapter- 12 images
Analyzing social media networks with NodeXL - Chapter- 12 imagesAnalyzing social media networks with NodeXL - Chapter- 12 images
Analyzing social media networks with NodeXL - Chapter- 12 images
Marc Smith

Analyzing social media networks with NodeXL - Chapter- 09 Images
Analyzing social media networks with NodeXL - Chapter- 09 ImagesAnalyzing social media networks with NodeXL - Chapter- 09 Images
Analyzing social media networks with NodeXL - Chapter- 09 Images
Marc Smith

Analyzing social media networks with NodeXL - Chapter- 08 images
Analyzing social media networks with NodeXL - Chapter- 08 imagesAnalyzing social media networks with NodeXL - Chapter- 08 images
Analyzing social media networks with NodeXL - Chapter- 08 images
Marc Smith

Equity Financing in Infrastructure Sector in India
Equity Financing in Infrastructure Sector in IndiaEquity Financing in Infrastructure Sector in India
Equity Financing in Infrastructure Sector in India
Mayank Mohan

20120622 web sci12-won-marc smith-semantic and social network analysis of …
20120622 web sci12-won-marc smith-semantic and social network analysis of …20120622 web sci12-won-marc smith-semantic and social network analysis of …
20120622 web sci12-won-marc smith-semantic and social network analysis of …
Marc Smith

Analyzing social media networks with NodeXL - Chapter-04 images
Analyzing social media networks with NodeXL - Chapter-04 imagesAnalyzing social media networks with NodeXL - Chapter-04 images
Analyzing social media networks with NodeXL - Chapter-04 images
Marc Smith


Viewers also liked (20)

Analyzing social media networks with NodeXL - Chapter - 06 Images
Analyzing social media networks with NodeXL - Chapter - 06 ImagesAnalyzing social media networks with NodeXL - Chapter - 06 Images
Analyzing social media networks with NodeXL - Chapter - 06 Images

Analyzing social media networks with NodeXL - Chapter-10 Images
Analyzing social media networks with NodeXL - Chapter-10 ImagesAnalyzing social media networks with NodeXL - Chapter-10 Images
Analyzing social media networks with NodeXL - Chapter-10 Images

Exploring Article Networks on Wikipedia with NodeXL
Exploring Article Networks on Wikipedia with NodeXLExploring Article Networks on Wikipedia with NodeXL
Exploring Article Networks on Wikipedia with NodeXL

Analyzing social media networks with NodeXL - Chapter-14 Images
Analyzing social media networks with NodeXL - Chapter-14 ImagesAnalyzing social media networks with NodeXL - Chapter-14 Images
Analyzing social media networks with NodeXL - Chapter-14 Images

위촉장 대구남부교육지원청 정보공개심의회 위원
위촉장 대구남부교육지원청 정보공개심의회 위원위촉장 대구남부교육지원청 정보공개심의회 위원
위촉장 대구남부교육지원청 정보공개심의회 위원

Analyzing social media networks with NodeXL - Chapter- 12 images
Analyzing social media networks with NodeXL - Chapter- 12 imagesAnalyzing social media networks with NodeXL - Chapter- 12 images
Analyzing social media networks with NodeXL - Chapter- 12 images

교통사고 감소를 위한 데이터분석 기반 사고예보 서비스
교통사고 감소를 위한 데이터분석 기반 사고예보 서비스교통사고 감소를 위한 데이터분석 기반 사고예보 서비스
교통사고 감소를 위한 데이터분석 기반 사고예보 서비스

Analyzing social media networks with NodeXL - Chapter- 05 Images
Analyzing social media networks with NodeXL - Chapter- 05 ImagesAnalyzing social media networks with NodeXL - Chapter- 05 Images
Analyzing social media networks with NodeXL - Chapter- 05 Images

Analyzing social media networks with NodeXL - Chapter- 09 Images
Analyzing social media networks with NodeXL - Chapter- 09 ImagesAnalyzing social media networks with NodeXL - Chapter- 09 Images
Analyzing social media networks with NodeXL - Chapter- 09 Images

Analyzing social media networks with NodeXL - Chapter-11 Images
Analyzing social media networks with NodeXL - Chapter-11 ImagesAnalyzing social media networks with NodeXL - Chapter-11 Images
Analyzing social media networks with NodeXL - Chapter-11 Images

Analyzing social media networks with NodeXL - Chapter-13 Images
Analyzing social media networks with NodeXL - Chapter-13 ImagesAnalyzing social media networks with NodeXL - Chapter-13 Images
Analyzing social media networks with NodeXL - Chapter-13 Images

2013북핵실험사례 정규진 노드엑셜코리아
2013북핵실험사례 정규진 노드엑셜코리아2013북핵실험사례 정규진 노드엑셜코리아
2013북핵실험사례 정규진 노드엑셜코리아

Analyzing social media networks with NodeXL - Chapter- 08 images
Analyzing social media networks with NodeXL - Chapter- 08 imagesAnalyzing social media networks with NodeXL - Chapter- 08 images
Analyzing social media networks with NodeXL - Chapter- 08 images

Equity Financing in Infrastructure Sector in India
Equity Financing in Infrastructure Sector in IndiaEquity Financing in Infrastructure Sector in India
Equity Financing in Infrastructure Sector in India

20120622 web sci12-won-marc smith-semantic and social network analysis of …
20120622 web sci12-won-marc smith-semantic and social network analysis of …20120622 web sci12-won-marc smith-semantic and social network analysis of …
20120622 web sci12-won-marc smith-semantic and social network analysis of …

Node XL - features and demo
Node XL - features and demoNode XL - features and demo
Node XL - features and demo

Analyzing social media networks with NodeXL - Chapter-07 Images
Analyzing social media networks with NodeXL - Chapter-07 ImagesAnalyzing social media networks with NodeXL - Chapter-07 Images
Analyzing social media networks with NodeXL - Chapter-07 Images

Analyzing social media networks with NodeXL - Chapter-15 Images
Analyzing social media networks with NodeXL - Chapter-15 ImagesAnalyzing social media networks with NodeXL - Chapter-15 Images
Analyzing social media networks with NodeXL - Chapter-15 Images

Analyzing social media networks with NodeXL - Chapter-04 images
Analyzing social media networks with NodeXL - Chapter-04 imagesAnalyzing social media networks with NodeXL - Chapter-04 images
Analyzing social media networks with NodeXL - Chapter-04 images

Introduction to software that can be used to capture and analyse Twitter data
Introduction to software that can be used to capture and analyse Twitter dataIntroduction to software that can be used to capture and analyse Twitter data
Introduction to software that can be used to capture and analyse Twitter data


Similar to 20111123 mwa2011-marc smith

20110719 social media research foundation-charting collections of connections
20110719 social media research foundation-charting collections of connections20110719 social media research foundation-charting collections of connections
20110719 social media research foundation-charting collections of connections
SMRFoundation

Sylva workshop.gt that camp.2012
Sylva workshop.gt that camp.2012Sylva workshop.gt that camp.2012
Sylva workshop.gt that camp.2012
CameliaN


Similar to 20111123 mwa2011-marc smith (20)

An Introduction to NodeXL for Social Scientists
An Introduction to NodeXL for Social ScientistsAn Introduction to NodeXL for Social Scientists
An Introduction to NodeXL for Social Scientists

New Metrics for New Media Bay Area CIO IT Executives Meetup
New Metrics for New Media Bay Area CIO IT Executives MeetupNew Metrics for New Media Bay Area CIO IT Executives Meetup
New Metrics for New Media Bay Area CIO IT Executives Meetup

2009 - Connected Action - Marc Smith - Social Media Network Analysis
2009 - Connected Action - Marc Smith - Social Media Network Analysis2009 - Connected Action - Marc Smith - Social Media Network Analysis
2009 - Connected Action - Marc Smith - Social Media Network Analysis

01 Introduction to Networks Methods and Measures
01 Introduction to Networks Methods and Measures01 Introduction to Networks Methods and Measures
01 Introduction to Networks Methods and Measures

01 Introduction to Networks Methods and Measures (2016)
01 Introduction to Networks Methods and Measures (2016)01 Introduction to Networks Methods and Measures (2016)
01 Introduction to Networks Methods and Measures (2016)

SSRI_pt1.ppt
SSRI_pt1.pptSSRI_pt1.ppt
SSRI_pt1.ppt

Social Media Analytics Meetup
Social Media Analytics MeetupSocial Media Analytics Meetup
Social Media Analytics Meetup

2010 Catalyst Conference - Trends in Social Network Analysis
2010 Catalyst Conference - Trends in Social Network Analysis2010 Catalyst Conference - Trends in Social Network Analysis
2010 Catalyst Conference - Trends in Social Network Analysis

Methods and Tools for Facilitating Social Participation
Methods and Tools for Facilitating Social ParticipationMethods and Tools for Facilitating Social Participation
Methods and Tools for Facilitating Social Participation

Guest Lecture Irvine
Guest Lecture IrvineGuest Lecture Irvine
Guest Lecture Irvine

Group and Community Detection in Social Networks
Group and Community Detection in Social NetworksGroup and Community Detection in Social Networks
Group and Community Detection in Social Networks

20110719 social media research foundation-charting collections of connections
20110719 social media research foundation-charting collections of connections20110719 social media research foundation-charting collections of connections
20110719 social media research foundation-charting collections of connections

Sylva workshop.gt that camp.2012
Sylva workshop.gt that camp.2012Sylva workshop.gt that camp.2012
Sylva workshop.gt that camp.2012

Aahb workshop
Aahb workshopAahb workshop
Aahb workshop

01 Network Data Collection (2017)
01 Network Data Collection (2017)01 Network Data Collection (2017)
01 Network Data Collection (2017)

Social networks in schools
Social networks in schoolsSocial networks in schools
Social networks in schools

Autobiography, Mobile Social Life-Logging and the Transition from Ephemeral t...
Autobiography, Mobile Social Life-Logging and the Transition from Ephemeral t...Autobiography, Mobile Social Life-Logging and the Transition from Ephemeral t...
Autobiography, Mobile Social Life-Logging and the Transition from Ephemeral t...

02 Introduction to Social Networks and Health: Key Concepts and Overview
02 Introduction to Social Networks and Health: Key Concepts and Overview02 Introduction to Social Networks and Health: Key Concepts and Overview
02 Introduction to Social Networks and Health: Key Concepts and Overview

Network Exposure Influence on Facebook Behaviors
Network Exposure Influence on Facebook BehaviorsNetwork Exposure Influence on Facebook Behaviors
Network Exposure Influence on Facebook Behaviors

Frontiers of Computational Journalism week 8 - Visualization and Network Anal...
Frontiers of Computational Journalism week 8 - Visualization and Network Anal...Frontiers of Computational Journalism week 8 - Visualization and Network Anal...
Frontiers of Computational Journalism week 8 - Visualization and Network Anal...


More from Marc Smith

2011 IEEE Social Computing Nodexl: Group-In-A-Box
2011 IEEE Social Computing Nodexl: Group-In-A-Box2011 IEEE Social Computing Nodexl: Group-In-A-Box
2011 IEEE Social Computing Nodexl: Group-In-A-Box
Marc Smith


More from Marc Smith (9)

How to use social media network analysis for amplification
How to use social media network analysis for amplificationHow to use social media network analysis for amplification
How to use social media network analysis for amplification

Think link what is an edge - NodeXL
Think link   what is an edge - NodeXLThink link   what is an edge - NodeXL
Think link what is an edge - NodeXL

2017 05-26 NodeXL Twitter search #shakeupshow
2017 05-26 NodeXL Twitter search #shakeupshow2017 05-26 NodeXL Twitter search #shakeupshow
2017 05-26 NodeXL Twitter search #shakeupshow

20130724 ted x-marc smith-digital health futures empowerment or coercion
20130724 ted x-marc smith-digital health futures empowerment or coercion20130724 ted x-marc smith-digital health futures empowerment or coercion
20130724 ted x-marc smith-digital health futures empowerment or coercion

2012 ona practitioner-courseflyer
2012 ona practitioner-courseflyer2012 ona practitioner-courseflyer
2012 ona practitioner-courseflyer

2011 IEEE Social Computing Nodexl: Group-In-A-Box
2011 IEEE Social Computing Nodexl: Group-In-A-Box2011 IEEE Social Computing Nodexl: Group-In-A-Box
2011 IEEE Social Computing Nodexl: Group-In-A-Box

20110830 Introducing the Social Media Research Foundation
20110830 Introducing the Social Media Research Foundation20110830 Introducing the Social Media Research Foundation
20110830 Introducing the Social Media Research Foundation

Personal Digital Archiving 2011 - Charting Collections of Connections in Soci...
Personal Digital Archiving 2011 - Charting Collections of Connections in Soci...Personal Digital Archiving 2011 - Charting Collections of Connections in Soci...
Personal Digital Archiving 2011 - Charting Collections of Connections in Soci...

20110128 connected action-node xl-sea of connections
20110128 connected action-node xl-sea of connections20110128 connected action-node xl-sea of connections
20110128 connected action-node xl-sea of connections


Recently uploaded

Breaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdfBreaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdf
UK Journal

Structuring Teams and Portfolios for Success
Structuring Teams and Portfolios for SuccessStructuring Teams and Portfolios for Success
Structuring Teams and Portfolios for Success
UXDXConf

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
panagenda


Recently uploaded (20)

Breaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdfBreaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdf

Structuring Teams and Portfolios for Success
Structuring Teams and Portfolios for SuccessStructuring Teams and Portfolios for Success
Structuring Teams and Portfolios for Success

Optimizing NoSQL Performance Through Observability
Optimizing NoSQL Performance Through ObservabilityOptimizing NoSQL Performance Through Observability
Optimizing NoSQL Performance Through Observability

Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...

Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfSimplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf

Salesforce Adoption – Metrics, Methods, and Motivation, Antone Kom
Salesforce Adoption – Metrics, Methods, and Motivation, Antone KomSalesforce Adoption – Metrics, Methods, and Motivation, Antone Kom
Salesforce Adoption – Metrics, Methods, and Motivation, Antone Kom

Overview of Hyperledger Foundation
Overview of Hyperledger FoundationOverview of Hyperledger Foundation
Overview of Hyperledger Foundation

A Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System StrategyA Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System Strategy

Google I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGoogle I/O Extended 2024 Warsaw
Google I/O Extended 2024 Warsaw

Integrating Telephony Systems with Salesforce: Insights and Considerations, B...
Integrating Telephony Systems with Salesforce: Insights and Considerations, B...Integrating Telephony Systems with Salesforce: Insights and Considerations, B...
Integrating Telephony Systems with Salesforce: Insights and Considerations, B...

Designing for Hardware Accessibility at Comcast
Designing for Hardware Accessibility at ComcastDesigning for Hardware Accessibility at Comcast
Designing for Hardware Accessibility at Comcast

Microsoft CSP Briefing Pre-Engagement - Questionnaire
Microsoft CSP Briefing Pre-Engagement - QuestionnaireMicrosoft CSP Briefing Pre-Engagement - Questionnaire
Microsoft CSP Briefing Pre-Engagement - Questionnaire

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...

Oauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoftOauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoft

FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...
FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...
FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...

Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...

IESVE for Early Stage Design and Planning
IESVE for Early Stage Design and PlanningIESVE for Early Stage Design and Planning
IESVE for Early Stage Design and Planning

Demystifying gRPC in .Net by John Staveley
Demystifying gRPC in .Net by John StaveleyDemystifying gRPC in .Net by John Staveley
Demystifying gRPC in .Net by John Staveley

Portal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russePortal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russe

Free and Effective: Making Flows Publicly Accessible, Yumi Ibrahimzade
Free and Effective: Making Flows Publicly Accessible, Yumi IbrahimzadeFree and Effective: Making Flows Publicly Accessible, Yumi Ibrahimzade
Free and Effective: Making Flows Publicly Accessible, Yumi Ibrahimzade


20111123 mwa2011-marc smith

  • 1. Charting Collections of Connections in Social Media: Creating Maps and Measures with NodeXL A project from the Social Media Research Foundation: http://www.smrfoundation.org
  • 2. About Me Introductions Marc A. Smith Chief Social Scientist Connected Action Consulting Group Marc@connectedaction.net http://www.connectedaction.net http://www.codeplex.com/nodexl http://www.twitter.com/marc_smith http://delicious.com/marc_smith/Paper http://www.flickr.com/photos/marc_smith http://www.facebook.com/marc.smith.sociologist http://www.linkedin.com/in/marcasmith http://www.slideshare.net/Marc_A_Smith http://www.smrfoundation.org
  • 4. Network of connections among “SharePoint” mentioning Twitter users Position, Position, Position
  • 5. Hardin, Garrett. 1968/1977. “The tragedy of the commons.” Science 162: 1243- 48. Pp. 16-30 in Managing the Commons, edited by G. Hardin and J. Baden. San Francisco: Freeman. Wellman, Barry. 1997. “An electronic group is virtually a social network.” In S. Kiesler (Ed.), The Culture of the Internet. Hillsdale, NJ: Lawrence Erlbaum. 5
  • 6. Collective Action Dilemma Theory • Central tenet – Individual rationality leads to collective disaster • Phenomena of interest – Provision and/or sustainable consumption of collective resources – Public Goods, Common Property, "Free Rider” Problems, Tragedies – Signaling intent • Methods – Surveys, interviews, participant observation, log file analysis, computer modeling (Axelrod, 1984; Hess, 1995; Kollock & Smith, 1996) Community Computer Mediated Collective Action
  • 7. Common goods that require controlled consumption http://flickr.com/photos/himalayan-trails/275941886/
  • 8. Common goods that require collective contribution http://flickr.com/photos/jose1jose2jose3/241450368/
  • 9. Interactionist Sociology • Central tenet – Focus on the active effort of accomplishing interaction • Phenomena of interest – Presentation of self – Claims to membership – Juggling multiple (conflicting) roles – Frontstage/Backstage – Strategic interaction – Managing one’s own and others’ “face” • Methods – Ethnography and participant observation (Goffman, 1959; Hall, 1990)
  • 10.
  • 11. Whyte, William H. 1971. City: Rediscovering the Center. New York: Anchor Books.
  • 13. I wish I knew you I like your picture You are cool I was paid to link to you I want your reflected glory Everybody else links to you I’d vote for you Can I date you? Are you my friend? We met at a conference and it seemed like the thing to do. yes no I like you I kind of like you I really like you I know you I feel socially obligated to link to you I beat you on Xbox Live Hi, Mom I have fake alter egos
  • 14. 14
  • 15. Tag Ecologies I Adamic et al. WWW 2008
  • 16. Networks reveal patterns HUB-AND-SPOKE OF DECEIT: When Enron employees communicated about legitimate projects, e-mails were reciprocal and information was shared widely (right), but communications about an illicit project (left) reveal a sparse network with a central, informed clique and isolated external players. Brandy Aven, CMU http://www.sciencenews.org/view/generic/id/330731/title/Information_flow_can_reveal_d irty_deeds
  • 17. Social Media (email, Facebook, Twitter, YouTube, and more) is all about connections from people to people. 17
  • 18. Patterns are left behind 18
  • 19. There are many kinds of ties…. Like, Link, Reply, Rate, Review, Favorite, Friend, Follow, Forward, Edit, Tag, Comment, Check-in… http://www.flickr.com/photos/stevendepolo/3254238329
  • 20. Each contains one or more social networks World Wide Web
  • 21. Hubs
  • 25.
  • 26. 20111122-NodeXL-Twitter-mwa11 OR mwa2011 OR mwebafrica OR mobilewebafrica
  • 27.
  • 29. #teaparty 15 November 2011 #occupywallstreet 15 November 2011 http://www.newscientist.com/blogs/onepercent/2011/11/occupy-vs-tea-party-what-their.html
  • 31. Won Soon Park, New Mayor of Seoul Korea
  • 32. Social Network Theory http://en.wikipedia.org/wiki/Social_network • Central tenet – Social structure emerges from – the aggregate of relationships (ties) – among members of a population • Phenomena of interest – Emergence of cliques and clusters – from patterns of relationships – Centrality (core), periphery (isolates), Source: Richards, W. – betweenness (1986). The NEGOPY • Methods network analysis program. Burnaby, BC: – Surveys, interviews, observations, Department of Communication, Simon log file analysis, computational Fraser University. pp.7- analysis of matrices 16 (Hampton &Wellman, 1999; Paolillo, 2001; Wellman, 2001)
  • 33. SNA 101 • Node A – “actor” on which relationships act; 1-mode versus 2-mode networks • Edge B – Relationship connecting nodes; can be directional C • Cohesive Sub-Group – Well-connected group; clique; cluster A B D E • Key Metrics – Centrality (group or individual measure) D • Number of direct connections that individuals have with others in the group (usually look at incoming connections only) E • Measure at the individual node or group level – Cohesion (group measure) • Ease with which a network can connect • Aggregate measure of shortest path between each node pair at network level reflects average distance – Density (group measure) • Robustness of the network • Number of connections that exist in the group out of 100% possible – Betweenness (individual measure) F G • # shortest paths between each node pair that a node is on • Measure at the individual node level • Node roles – Peripheral – below average centrality C H – Central connector – above average centrality D I – Broker – above average betweenness E
  • 35.
  • 37. Welser, Howard T., Eric Gleave, Danyel Fisher, and Marc Smith. 2007. Visualizing the Signatures of Social Roles in Online Discussion Groups. The Journal of Social Structure. 8(2). Experts and “Answer People” Discussion people, Topic setters Discussion starters, Topic setters
  • 39. Discussion Starter Spammer Reply oriented Discussion Flame Warrior 39
  • 41. Analogy: Clusters Are Occluded Hard to count nodes, clusters
  • 42. Separate Clusters Are More Comprehensible
  • 43. Twitter Network for “Microsoft Research” *BEFORE*
  • 44. Twitter Network for “Microsoft Research” *AFTER*
  • 45. Goal: Make SNA easier • Existing Social Network Tools are challenging for many novice users • Tools like Excel are widely used • Leveraging a spreadsheet as a host for SNA lowers barriers to network data analysis and display
  • 46. Who we are People Disciplines Institutions University Computer Science University of Maryland Faculty Students HCI, CSCW Oxford Internet Institute Industry Machine Learning Stanford University Independent Information Visualization Microsoft Research Researchers UI/UX Illinois Institute of Technology Developers Social Science/Sociology Connected Action Network Analysis Cornell Collective Action Morningside Analytics
  • 47. Social Media Research Foundation http://smrfoundation.org
  • 48. What we are trying to do: Open Tools, Open Data, Open Scholarship • Build the “Firefox of GraphML” – open tools for collecting and visualizing social media data • Connect users to network analysis – make network charts as easy as making a pie chart • Connect researchers to social media data sources • Archive: Be the “Allen Very Large Telescope Array” for Social Media data – coordinate and aggregate the results of many user’s data collection and analysis • Create open access research papers & findings • Make “collections of connections” easy for users to manage
  • 49. What we have done: Open Tools • NodeXL • Data providers (“spigots”) – ThreadMill Message Board – Exchange Enterprise Email – Voson Hyperlink – SharePoint – Facebook – Twitter – YouTube – Flickr
  • 50. What we have done: Open Data • NodeXLGraphGallery.org – User generated collection of network graphs, datasets and annotations – Collective repository for the research community – Published collections of data from a range of social media data sources to help students and researchers connect with data of interest and relevance
  • 51. What we have done: Open Scholarship
  • 52. What we have done: Open Scholarship
  • 55. Example NodeXL data importer for Twitter
  • 56. NodeXL imports “edges” from social media data sources
  • 57. NodeXL Automation makes analysis simple and fast
  • 59. NodeXL simplifies mapping data attributes to display attributes
  • 60. NodeXL displays subgraph images along with network metadata
  • 62. NodeXL Generates Overall Network Metrics
  • 63. What we want to do: (Build the tools to) map the social web • Move NodeXL to the web: – Node for Google Doc Spreadsheets! – WebGL Canvas • Connect to more data sources of interest: – RDF, MediaWikis, Gmail, NYT, Citation Networks • Solve hard network manipulation UI problems: – Modal transform, Time series, Automated layouts • Grow and maintain archives of social media network data sets for research use. • Improve network science education: – Workshops on social media network analysis – Live lectures and presentations – Videos and training materials
  • 64. Work Items Autofill Group Attribute Merge Edges by Attribute Modal Transform Merge Workbooks Automated Dynamic Filters: Time Series Analysis, contrast Captions and Legends Upload to Graph Gallery++: captions, workbook Graph Gallery++ User Accounts, Reporting, RSS Feeds, Network Visualization Web Canvas Import: RDF, Wiki, SharePoint, Keyword networks from text Metrics: Triad Census Layouts: Force Atlas 2, Lin Log, “Bakshy Plots”, Quality Measures Query-by-example search for network structures
  • 65. How you can help • Sponsor a feature • Sponsor Webshop 2012 • Sponsor a student • Schedule training • Sponsor the foundation • Donate your money, code, computation, storage, bandwidth, data or employee’s time • Help promote the work of the Social Media Research Foundation
  • 68. Social Network Maps Reveal Key influencers in any topic. Sub-groups. Bridges.
  • 69. Why didn’t you just say so? Identify the key influencers in any topic. Netbadges awards badges to influential people and web sites on the Internet. We analyze the social network of connections among all the people or web sites that gather around a topic, issue, or interest and award badges to key people and sites, highlighting their recent content.
  • 70.
  • 71.
  • 72.
  • 73. Contact: Marc A. Smith Chief Social Scientist Connected Action Consulting Group Marc@connectedaction.net http://www.connectedaction.net http://www.codeplex.com/nodexl http://www.twitter.com/marc_smith http://delicious.com/marc_smith/Paper http://www.flickr.com/photos/marc_smith http://www.facebook.com/marc.smith.sociologist http://www.linkedin.com/in/marcasmith http://www.slideshare.net/Marc_A_Smith http://www.smrfoundation.org
  • 74. Upcoming Full-day social media network analysis workshops This Friday – Hands on with NodeXL Next week Cape Town 28 November 2011 Johannesburg Protea Hotel 30 November 2011 Breakwater Lodge, Gordon Institute Waterfront of Business Science, Illovo Marc Smith Walter Pike
  • 75. Charting Collections of Connections in Social Media: Creating Maps and Measures with NodeXL A project from the Social Media Research Foundation: http://www.smrfoundation.org

Editor's Notes

  1. http://www.flickr.com/photos/library_of_congress/3295494976/sizes/o/in/photostream/
  2. http://www.flickr.com/photos/amycgx/3119640267/
