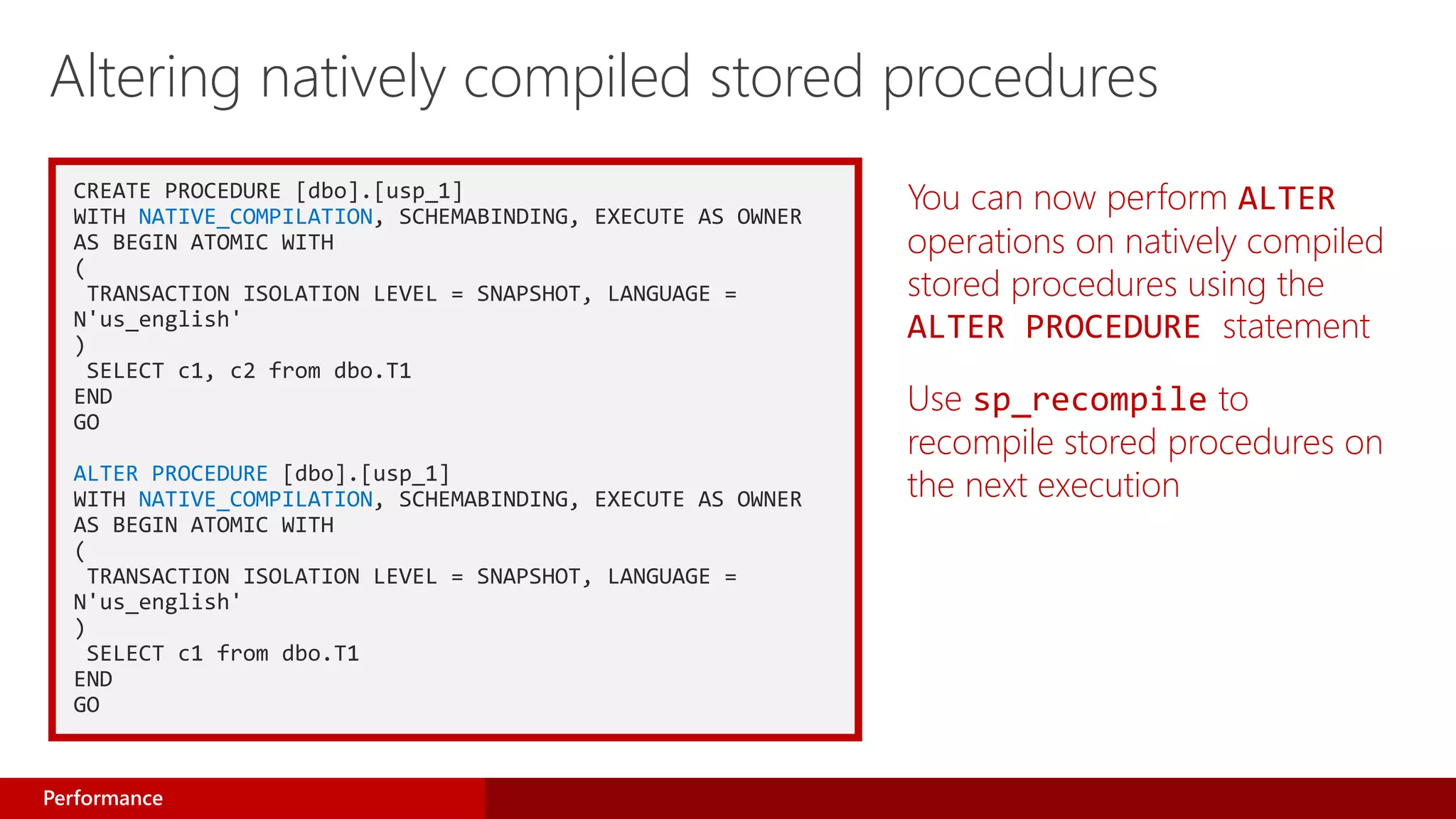

![CREATE PROCEDURE [dbo].[usp_1]
WITH NATIVE_COMPILATION, SCHEMABINDING, EXECUTE AS OWNER
AS BEGIN ATOMIC WITH
(
TRANSACTION ISOLATION LEVEL = SNAPSHOT, LANGUAGE =
N'us_english'
)
SELECT c1, c2 from dbo.T1
END
GO
ALTER PROCEDURE [dbo].[usp_1]
WITH NATIVE_COMPILATION, SCHEMABINDING, EXECUTE AS OWNER
AS BEGIN ATOMIC WITH
(
TRANSACTION ISOLATION LEVEL = SNAPSHOT, LANGUAGE =
N'us_english'
)
SELECT c1 from dbo.T1
END
GO
You can now perform ALTER
operations on natively compiled
stored procedures using the
ALTER PROCEDURE statement
Use sp_recompile to
recompile stored procedures on
the next execution
Altering natively compiled stored procedures
Performance](https://image.slidesharecdn.com/microsoftiicicloseminario3evoluzionedeldatabase-170317135424/75/2-Ciclo-Microsoft-CRUI-3-Sessione-l-evoluzione-delle-piattaforme-tecnologiche-a-supporto-del-database-7-2048.jpg)

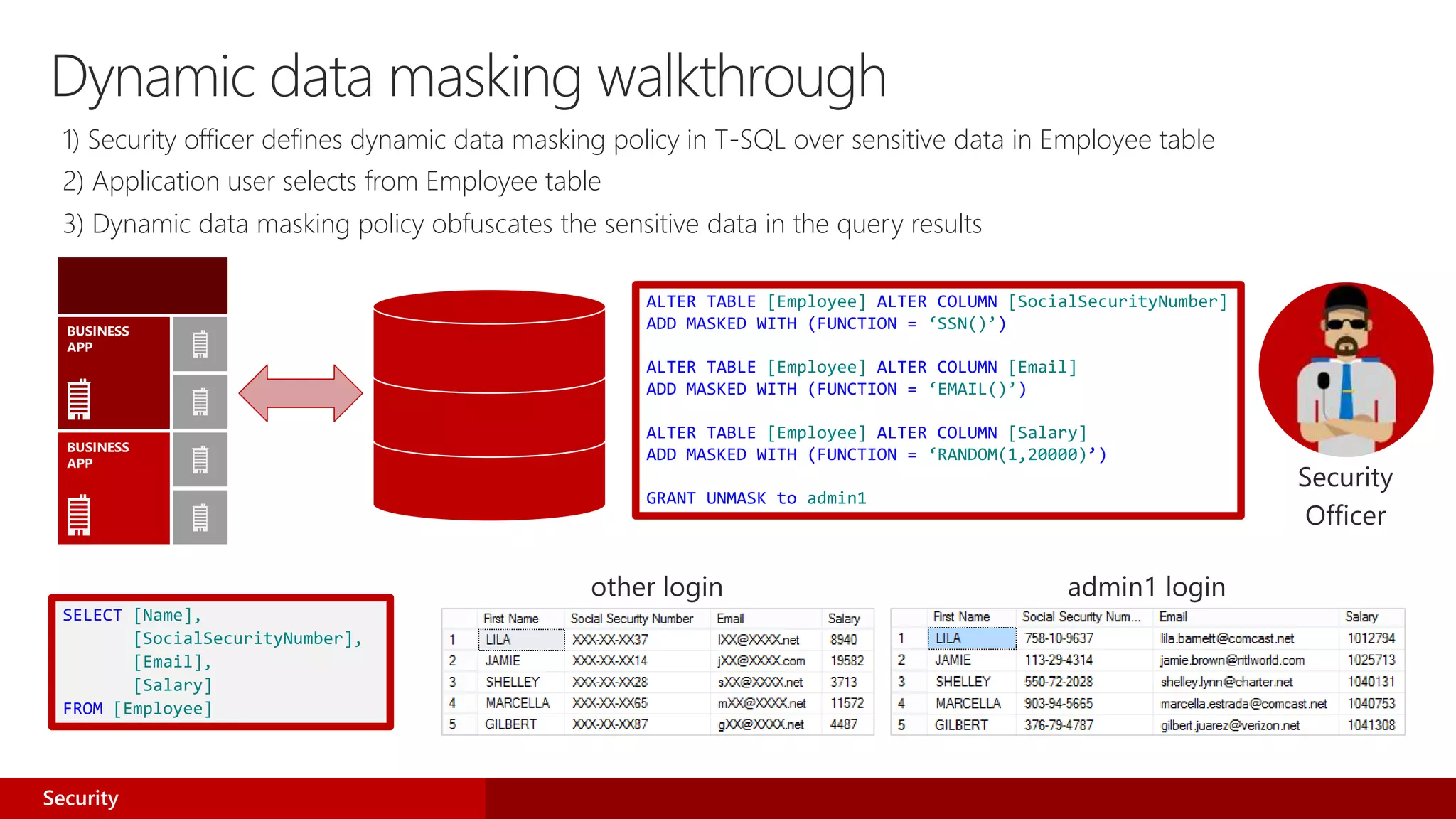

![Dynamic data masking walkthrough
ALTER TABLE [Employee] ALTER COLUMN [SocialSecurityNumber]
ADD MASKED WITH (FUNCTION = ‘SSN()’)
ALTER TABLE [Employee] ALTER COLUMN [Email]
ADD MASKED WITH (FUNCTION = ‘EMAIL()’)
ALTER TABLE [Employee] ALTER COLUMN [Salary]
ADD MASKED WITH (FUNCTION = ‘RANDOM(1,20000)’)
GRANT UNMASK to admin1
1) Security officer defines dynamic data masking policy in T-SQL over sensitive data in Employee table
2) Application user selects from Employee table
3) Dynamic data masking policy obfuscates the sensitive data in the query results
SELECT [Name],
[SocialSecurityNumber],
[Email],
[Salary]
FROM [Employee]
Security](https://image.slidesharecdn.com/microsoftiicicloseminario3evoluzionedeldatabase-170317135424/75/2-Ciclo-Microsoft-CRUI-3-Sessione-l-evoluzione-delle-piattaforme-tecnologiche-a-supporto-del-database-24-2048.jpg)
![Nurse
Database
One
Policy manager creates a filter predicate and security policy
Two
App user (e.g., nurse) selects from Patients table
Three
Security Policy transparently rewrites query to apply filter predicate
CREATE FUNCTION dbo.fn_securitypredicate(@wing int)
RETURNS TABLE WITH SCHEMABINDING AS
return SELECT 1 as [fn_securitypredicate_result] FROM
StaffDuties d INNER JOIN Employees e
ON (d.EmpId = e.EmpId)
WHERE e.UserSID = SUSER_SID() AND @wing = d.Wing;
CREATE SECURITY POLICY dbo.SecPol
ADD FILTER PREDICATE dbo.fn_securitypredicate(Wing) ON Patients
WITH (STATE = ON)
Filter
Predicate:
INNER
JOIN…
Security
Policy
Application
Patients
SELECT * FROM Patients
SELECT * FROM Patients
SEMIJOIN APPLY dbo.fn_securitypredicate(patients.Wing);
SELECT Patients.* FROM Patients,
StaffDuties d INNER JOIN Employees e ON (d.EmpId = e.EmpId)
WHERE e.UserSID = SUSER_SID() AND Patients.wing = d.Wing;
Security
RLS in three steps
Policy Manager](https://image.slidesharecdn.com/microsoftiicicloseminario3evoluzionedeldatabase-170317135424/75/2-Ciclo-Microsoft-CRUI-3-Sessione-l-evoluzione-delle-piattaforme-tecnologiche-a-supporto-del-database-26-2048.jpg)

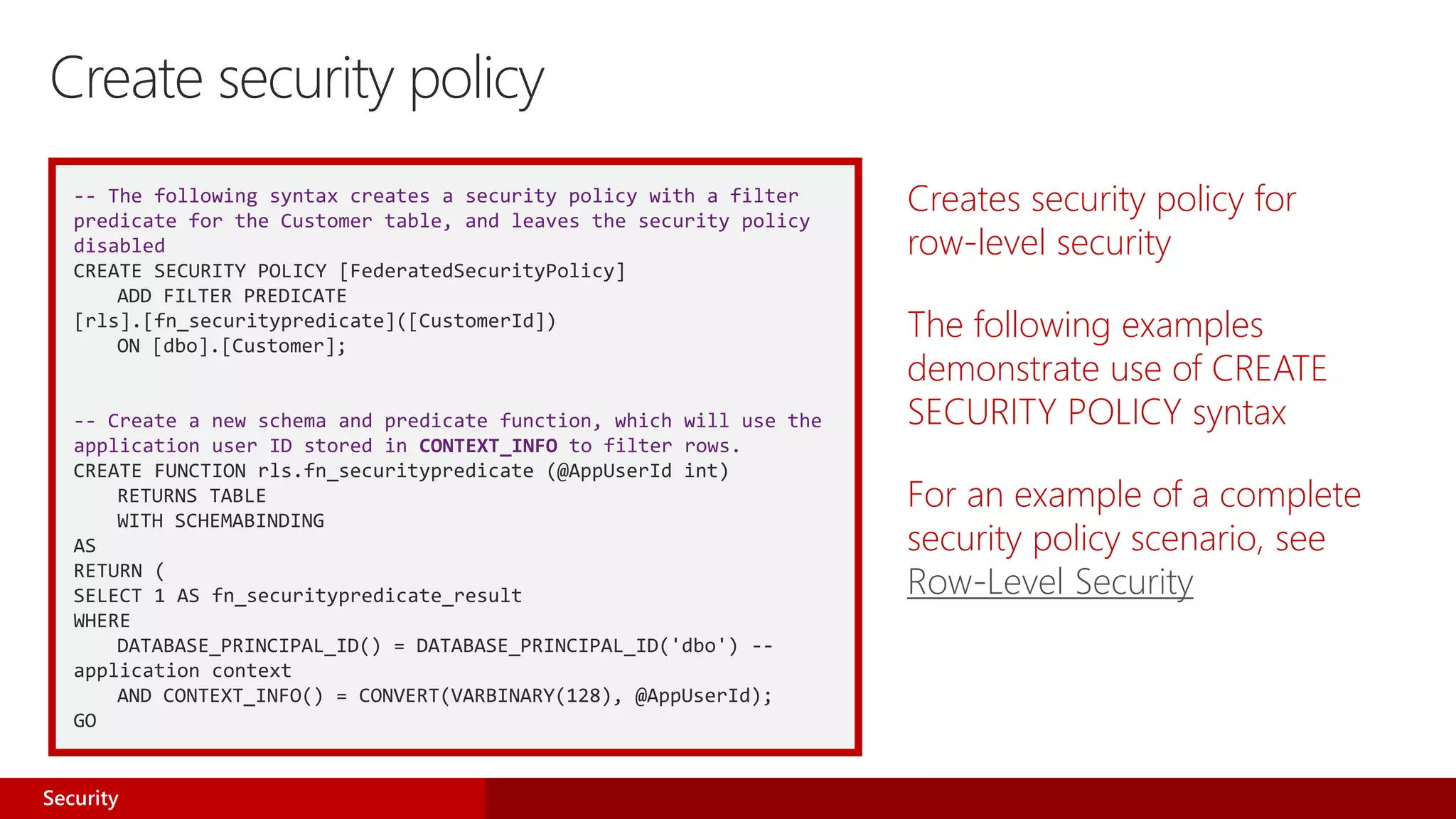

![-- The following syntax creates a security policy with a filter
predicate for the Customer table, and leaves the security policy
disabled
CREATE SECURITY POLICY [FederatedSecurityPolicy]
ADD FILTER PREDICATE
[rls].[fn_securitypredicate]([CustomerId])
ON [dbo].[Customer];
-- Create a new schema and predicate function, which will use the
application user ID stored in CONTEXT_INFO to filter rows.
CREATE FUNCTION rls.fn_securitypredicate (@AppUserId int)
RETURNS TABLE
WITH SCHEMABINDING
AS
RETURN (
SELECT 1 AS fn_securitypredicate_result
WHERE
DATABASE_PRINCIPAL_ID() = DATABASE_PRINCIPAL_ID('dbo') --
application context
AND CONTEXT_INFO() = CONVERT(VARBINARY(128), @AppUserId);
GO
Creates security policy for
row-level security
The following examples
demonstrate use of CREATE
SECURITY POLICY syntax
For an example of a complete
security policy scenario, see
Row-Level Security
Create security policy
Security](https://image.slidesharecdn.com/microsoftiicicloseminario3evoluzionedeldatabase-170317135424/75/2-Ciclo-Microsoft-CRUI-3-Sessione-l-evoluzione-delle-piattaforme-tecnologiche-a-supporto-del-database-27-2048.jpg)
Uploaded byJürgen Ambrosi
2° Ciclo Microsoft CRUI 3° Sessione: l'evoluzione delle piattaforme tecnologiche a supporto del database
The document provides a comprehensive technical overview of SQL Server 2016, highlighting its built-in features and enhancements such as Always On, in-memory OLTP, and temporal tables. It also covers security improvements like dynamic data masking and row-level security, alongside performance optimizations and integration with Azure services. Additionally, it details functionalities related to data management, big data integration via PolyBase, and new reporting capabilities in SQL Server Reporting Services (SSRS).
More Related Content
![Real Time Operational Analytics with Microsoft Sql Server 2016 [Liviu Ieran]](https://cdn.slidesharecdn.com/ss_thumbnails/realtimeoperationalanalyticswithmicrosoftsqlserver2016liviuieran-161102082504-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to 2° Ciclo Microsoft CRUI 3° Sessione: l'evoluzione delle piattaforme tecnologiche a supporto del database
![[JSS2015] Nouveautés SQL Server 2016:Sécurité,Temporal & Stretch Tables](https://cdn.slidesharecdn.com/ss_thumbnails/jss2015-sql2016-151211084830-thumbnail.jpg?width=640&height=640&fit=bounds)
2° Ciclo Microsoft CRUI 3° Sessione: l'evoluzione delle piattaforme tecnologiche a supporto del database

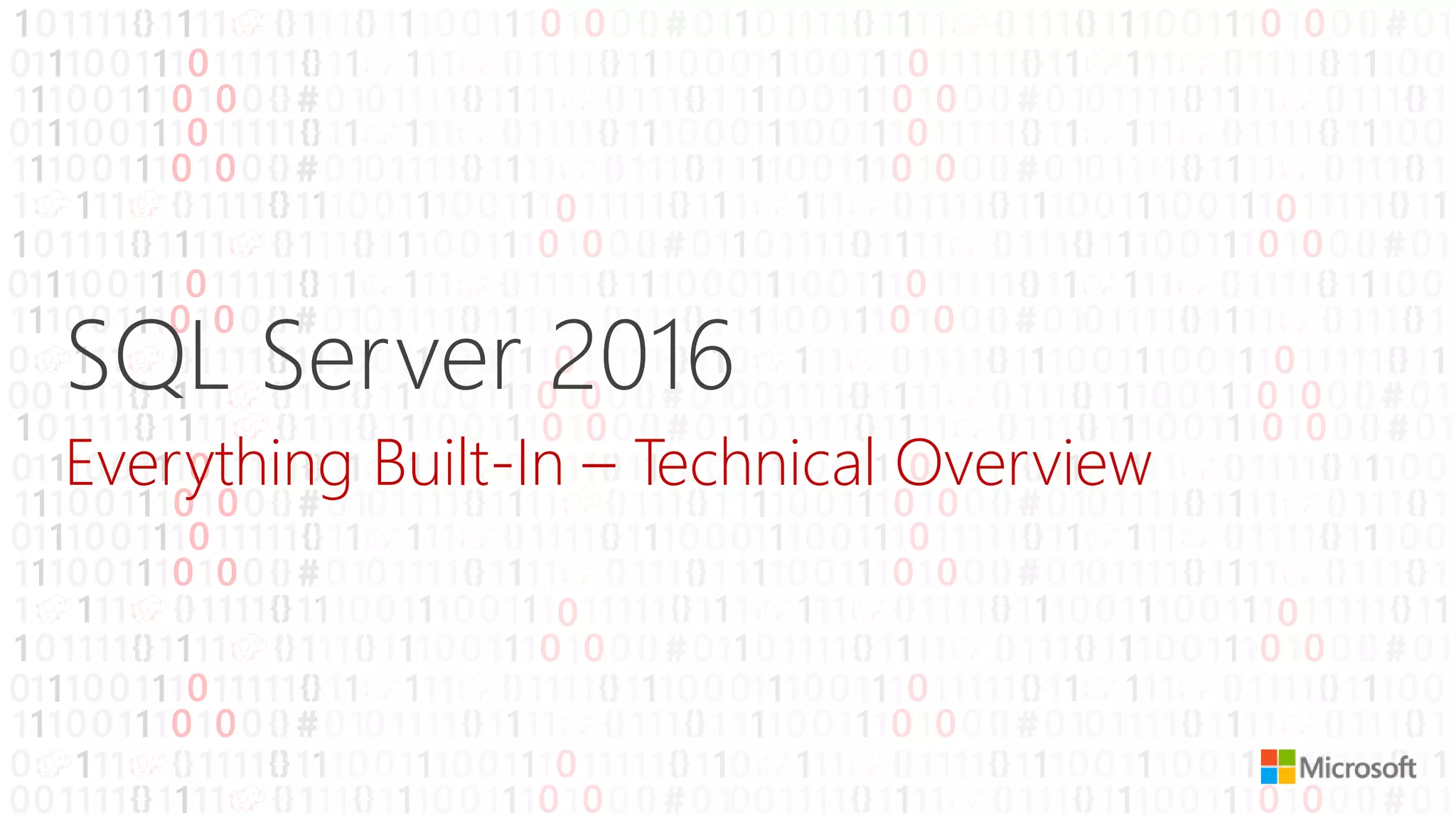

- 1. SQL Server 2016 EverythingBuilt-In – Technical Overview

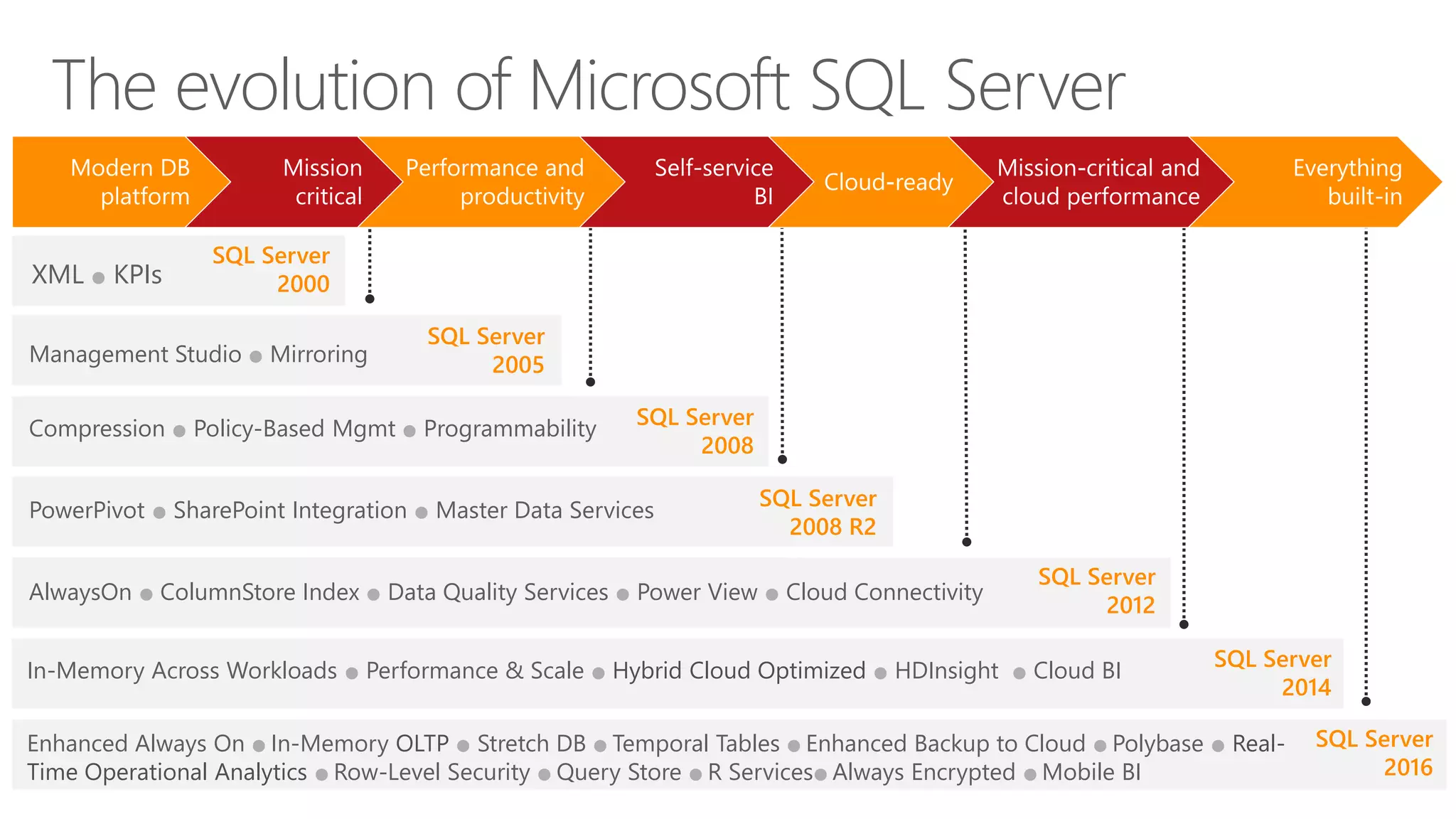

- 2. SQL Server 2008 SQL Server 2008R2 SQL Server 2000XML ● KPIs Compression ● Policy-Based Mgmt ● Programmability PowerPivot ● SharePoint Integration ● Master Data Services SQL Server 2012 AlwaysOn ● ColumnStore Index ● Data Quality Services ● Power View ● Cloud Connectivity SQL Server 2014 In-Memory Across Workloads ● Performance & Scale ● Hybrid Cloud Optimized ● HDInsight ● Cloud BI Management Studio ● Mirroring SQL Server 2005 SQL Server 2016 Enhanced Always On ● In-Memory OLTP ● Stretch DB ● Temporal Tables ● Enhanced Backup to Cloud ● Polybase ● Real- Time Operational Analytics ● Row-Level Security ● Query Store ● R Services● Always Encrypted ● Mobile BI The evolution of Microsoft SQL Server
- 3. How we developSQL Cloud-first but not cloud-only Use SQL Database to improve core SQL Server features and cadence Many interesting and compelling on-premises cloud scenarios SQL Server and APS Azure SQL Virtual Machines Azure SQL Database Azure SQL Data Warehouse
- 4.
- 5.

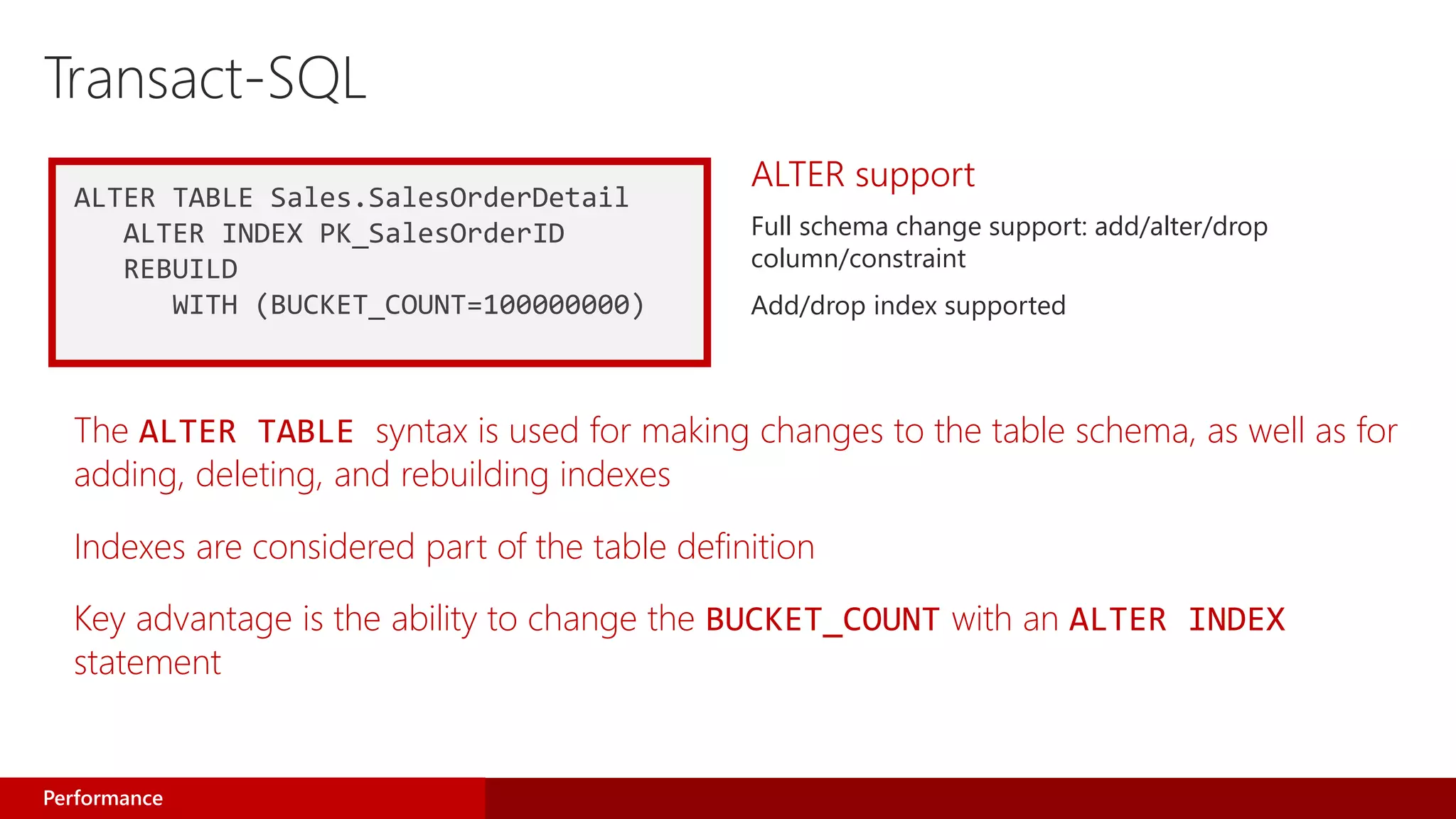

- 6. ALTER TABLE Sales.SalesOrderDetail ALTERINDEX PK_SalesOrderID REBUILD WITH (BUCKET_COUNT=100000000) ALTER support Full schema change support: add/alter/drop column/constraint Add/drop index supported Performance The ALTER TABLE syntax is used for making changes to the table schema, as well as for adding, deleting, and rebuilding indexes Indexes are considered part of the table definition Key advantage is the ability to change the BUCKET_COUNT with an ALTER INDEX statement
- 7. CREATE PROCEDURE [dbo].[usp_1] WITHNATIVE_COMPILATION, SCHEMABINDING, EXECUTE AS OWNER AS BEGIN ATOMIC WITH ( TRANSACTION ISOLATION LEVEL = SNAPSHOT, LANGUAGE = N'us_english' ) SELECT c1, c2 from dbo.T1 END GO ALTER PROCEDURE [dbo].[usp_1] WITH NATIVE_COMPILATION, SCHEMABINDING, EXECUTE AS OWNER AS BEGIN ATOMIC WITH ( TRANSACTION ISOLATION LEVEL = SNAPSHOT, LANGUAGE = N'us_english' ) SELECT c1 from dbo.T1 END GO You can now perform ALTER operations on natively compiled stored procedures using the ALTER PROCEDURE statement Use sp_recompile to recompile stored procedures on the next execution Altering natively compiled stored procedures Performance

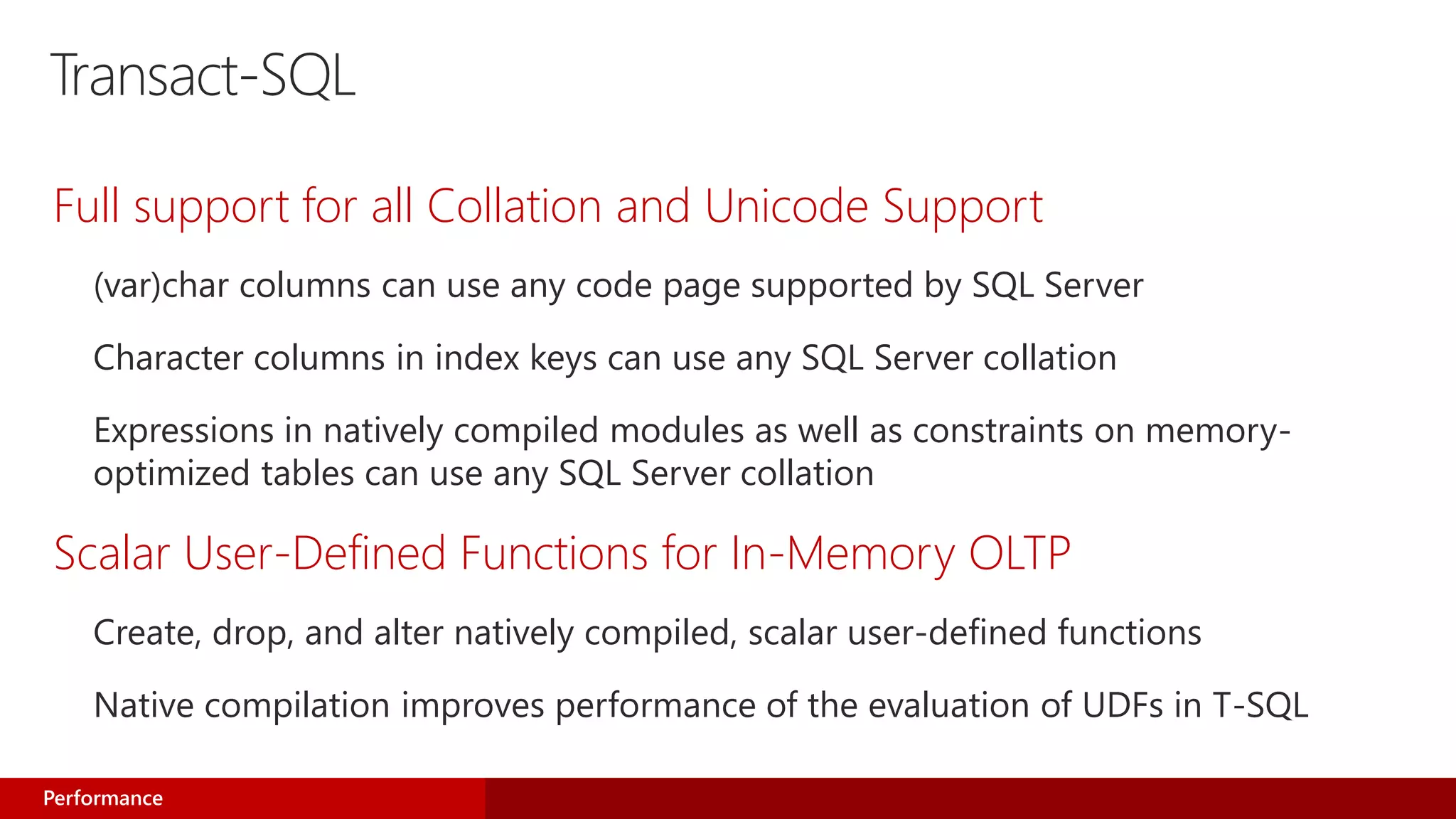

- 8. Transact-SQL Full support forall Collation and Unicode Support (var)char columns can use any code page supported by SQL Server Character columns in index keys can use any SQL Server collation Expressions in natively compiled modules as well as constraints on memory- optimized tables can use any SQL Server collation Scalar User-Defined Functions for In-Memory OLTP Create, drop, and alter natively compiled, scalar user-defined functions Native compilation improves performance of the evaluation of UDFs in T-SQL Performance

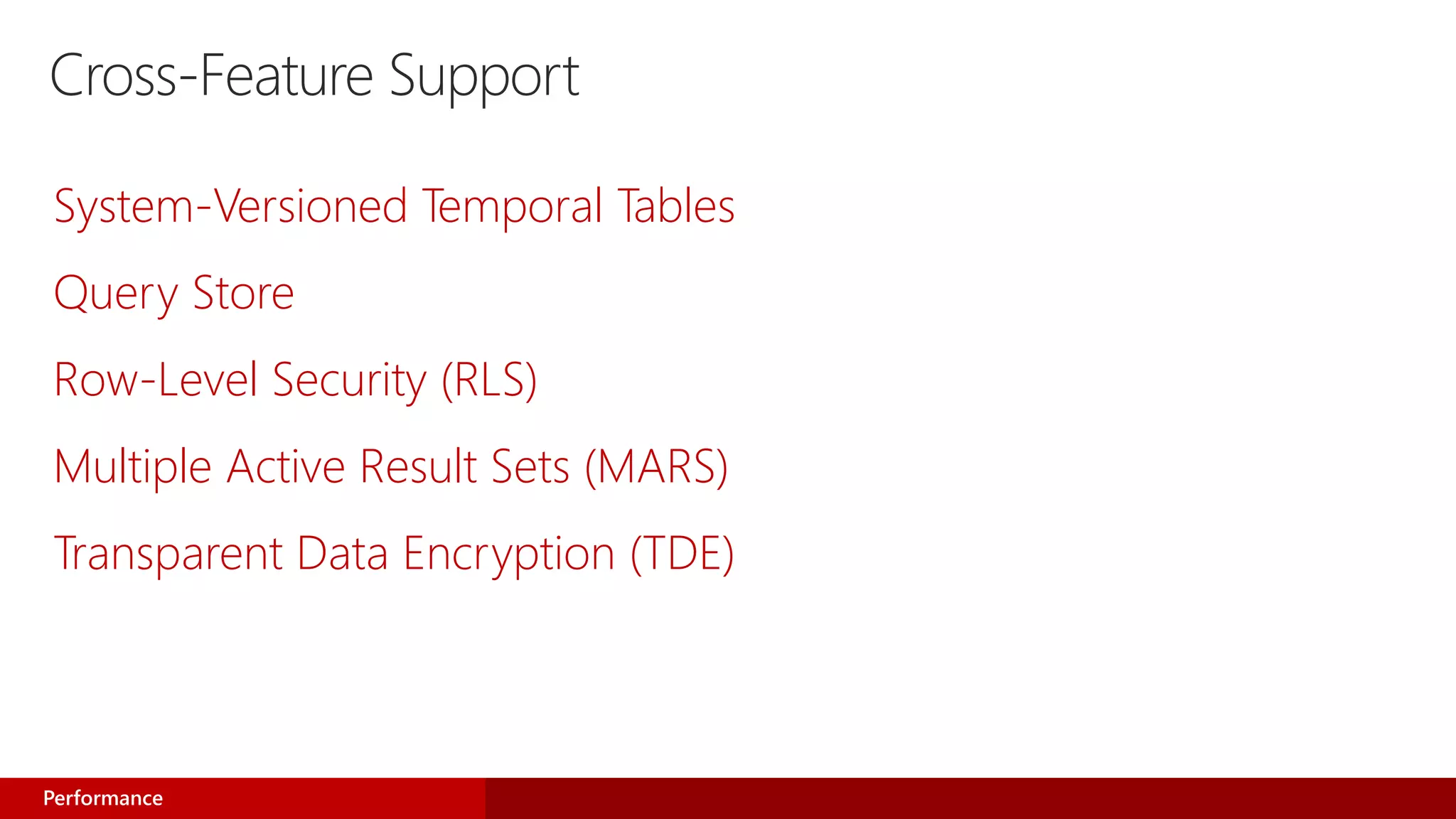

- 9. Cross-Feature Support System-Versioned TemporalTables Query Store Row-Level Security (RLS) Multiple Active Result Sets (MARS) Transparent Data Encryption (TDE) Performance

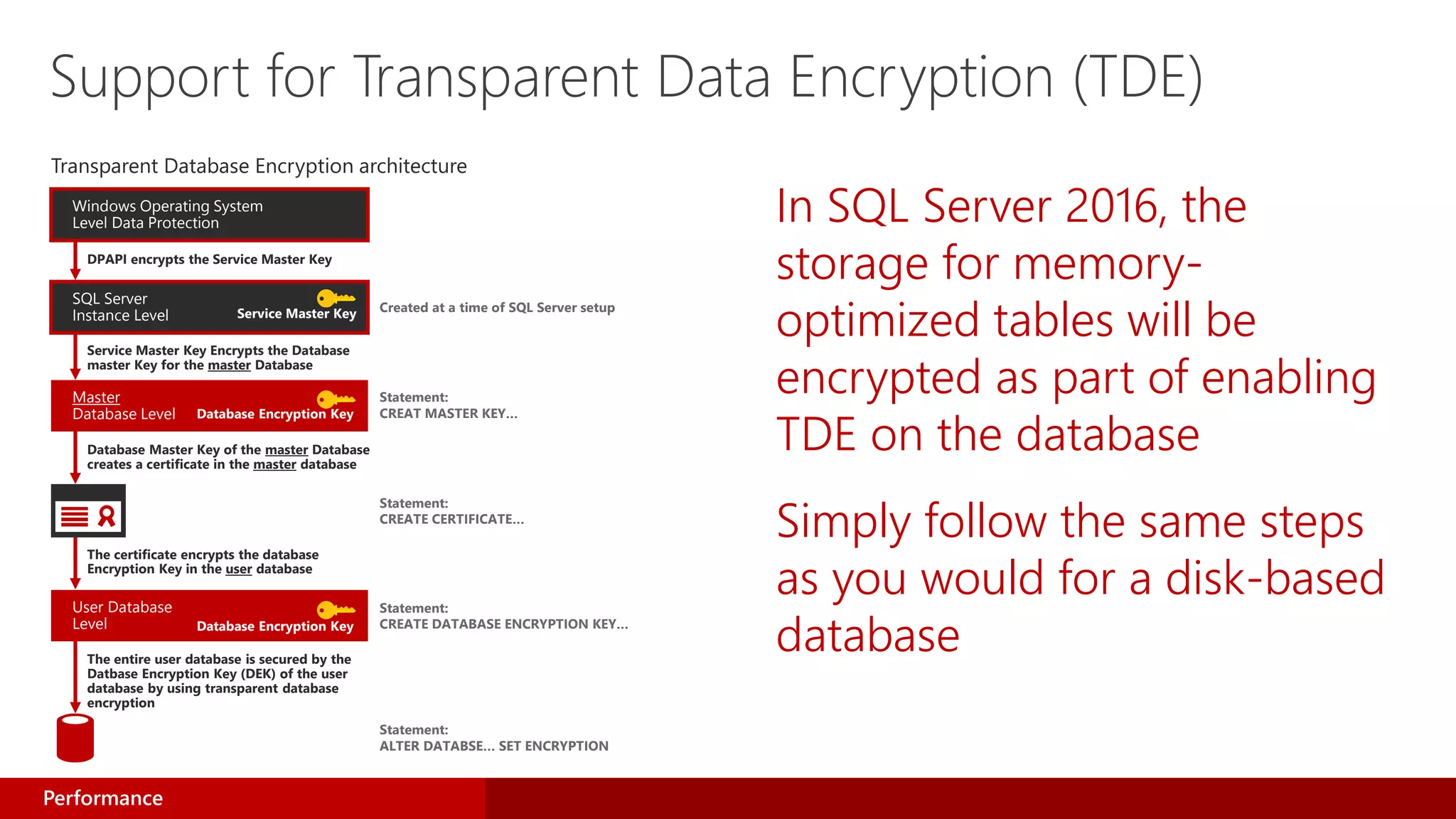

- 10. In SQL Server2016, the storage for memory- optimized tables will be encrypted as part of enabling TDE on the database Simply follow the same steps as you would for a disk-based database Support for Transparent Data Encryption (TDE) Windows Operating System Level Data Protection SQL Server Instance Level User Database Level Database Encryption Key Service Master Key DPAPI encrypts the Service Master Key Master Database Level Database Encryption Key Service Master Key Encrypts the Database master Key for the master Database Database Master Key of the master Database creates a certificate in the master database The certificate encrypts the database Encryption Key in the user database The entire user database is secured by the Datbase Encryption Key (DEK) of the user database by using transparent database encryption Created at a time of SQL Server setup Statement: CREAT MASTER KEY… Statement: CREATE CERTIFICATE… Statement: CREATE DATABASE ENCRYPTION KEY… Statement: ALTER DATABSE… SET ENCRYPTION Performance

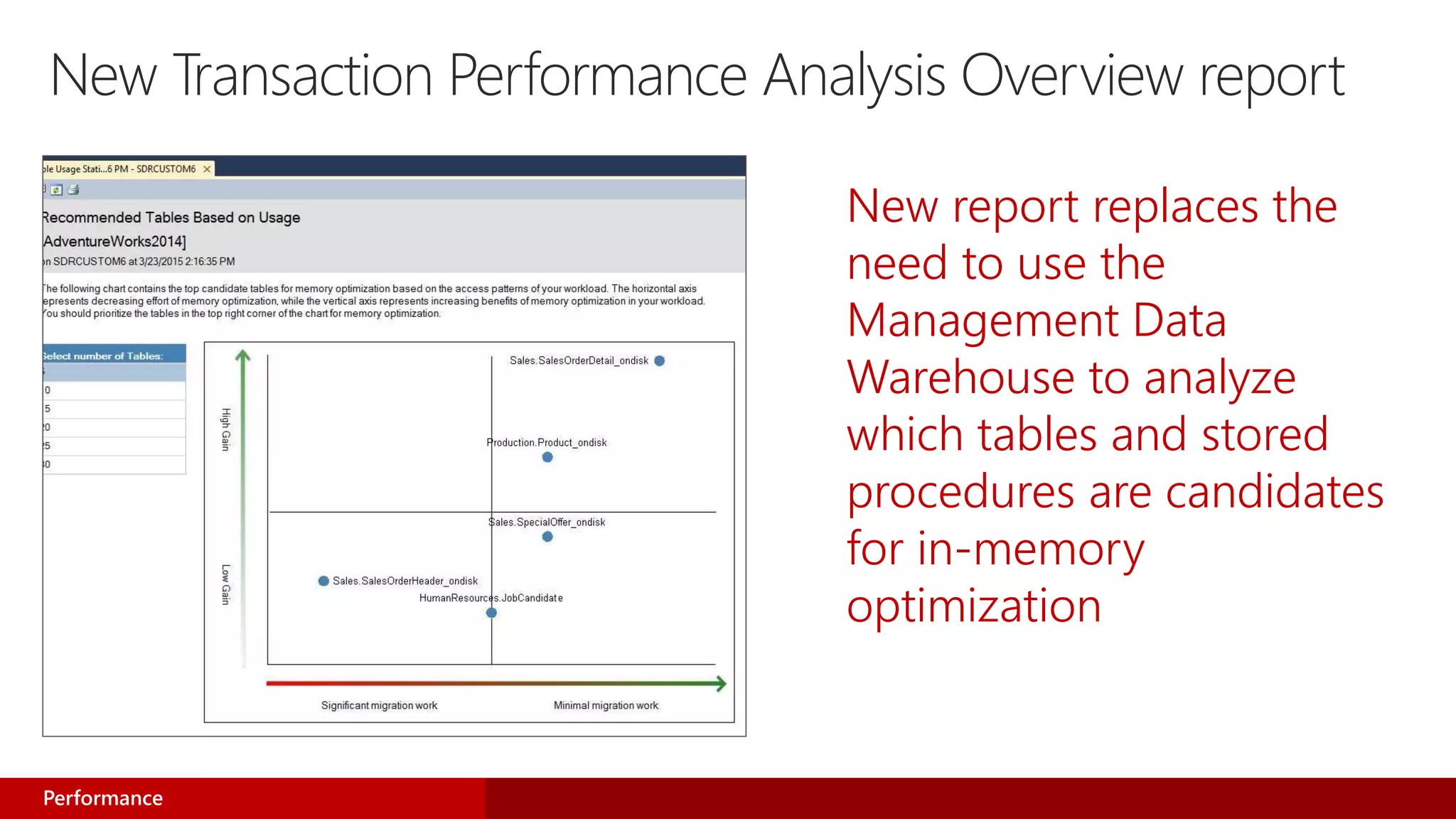

- 11. New Transaction PerformanceAnalysis Overview report New report replaces the need to use the Management Data Warehouse to analyze which tables and stored procedures are candidates for in-memory optimization Performance
- 12. Temporal Tables Query backin time

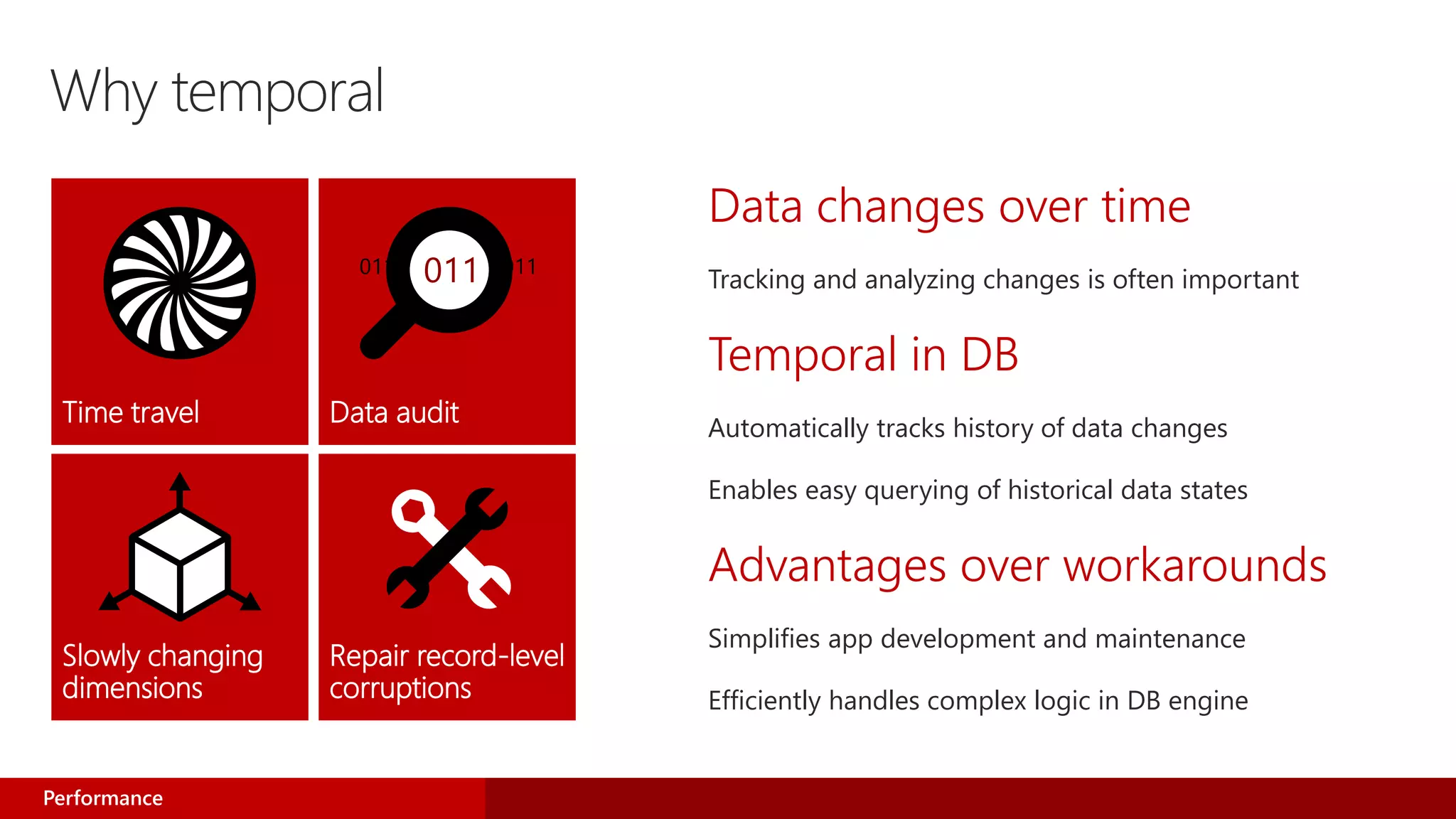

- 13. Data changes overtime Tracking and analyzing changes is often important Temporal in DB Automatically tracks history of data changes Enables easy querying of historical data states Advantages over workarounds Simplifies app development and maintenance Efficiently handles complex logic in DB engine Why temporal Time travel Data audit Slowly changing dimensions Repair record-level corruptions Performance

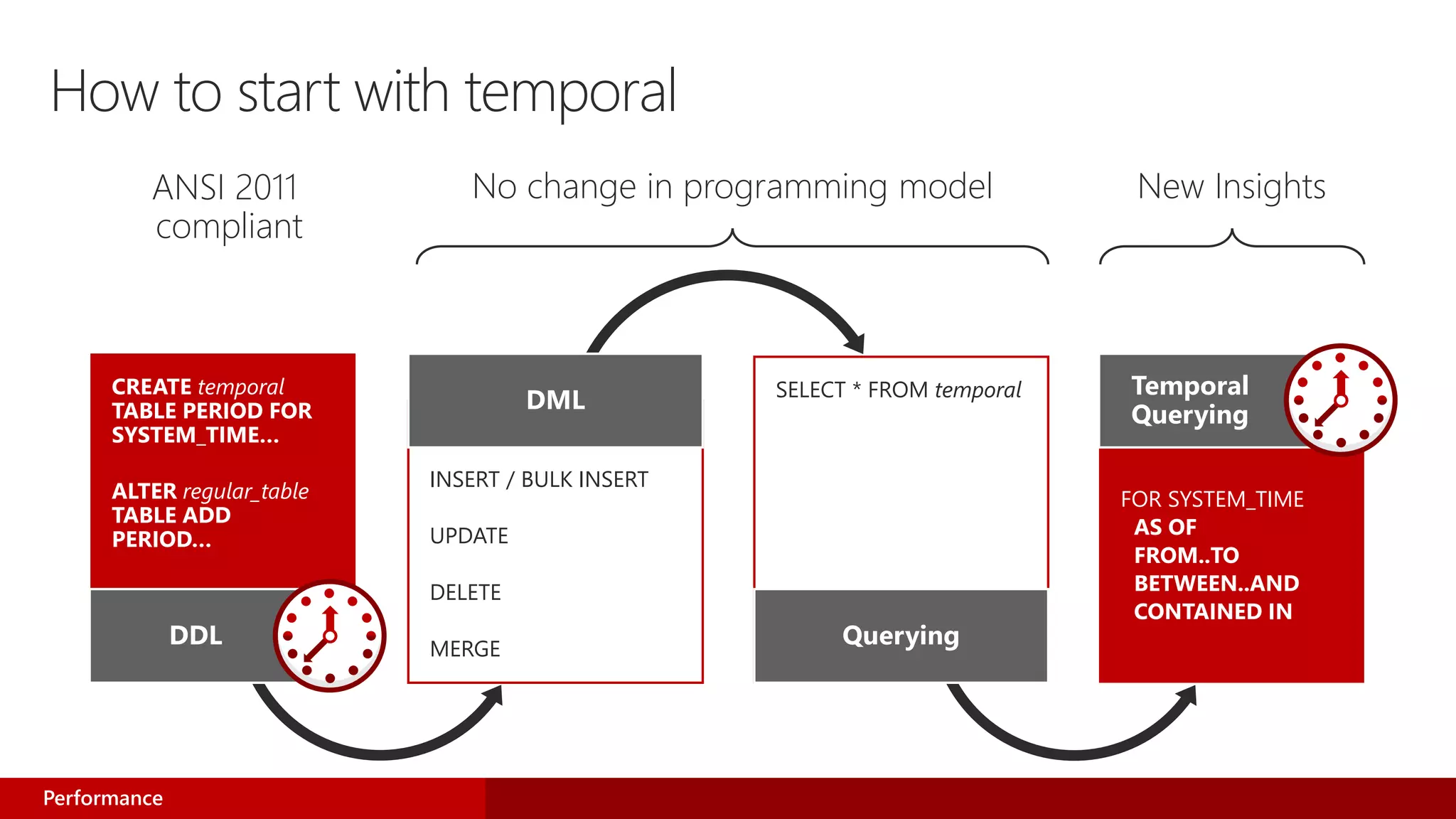

- 14. No change inprogramming model New Insights INSERT / BULK INSERT UPDATE DELETE MERGE DML SELECT * FROM temporal Querying How to start with temporal CREATE temporal TABLE PERIOD FOR SYSTEM_TIME… ALTER regular_table TABLE ADD PERIOD… DDL FOR SYSTEM_TIME AS OF FROM..TO BETWEEN..AND CONTAINED IN Temporal Querying ANSI 2011 compliant Performance

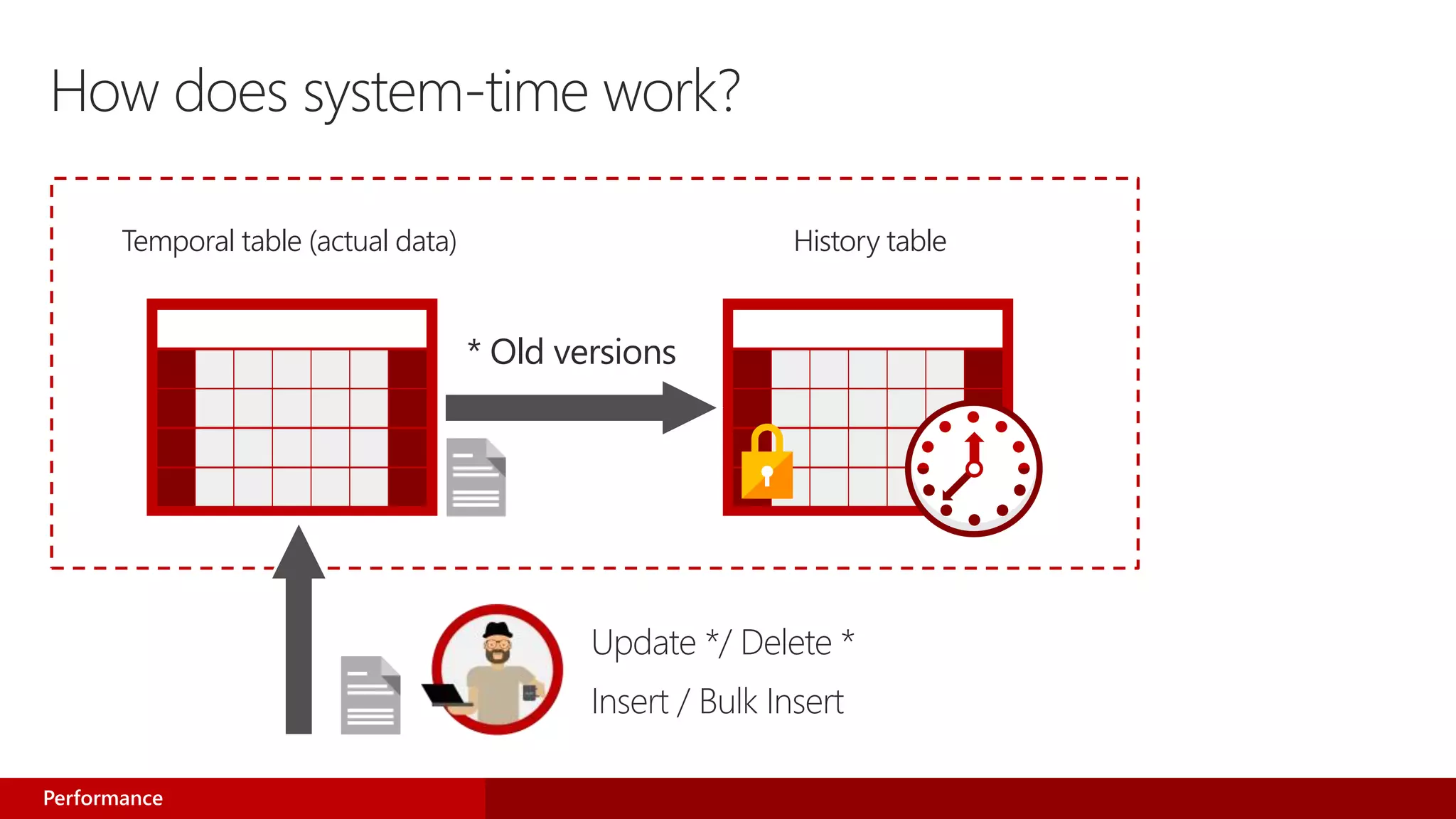

- 15. Temporal table (actualdata) Insert / Bulk Insert * Old versions Update */ Delete * How does system-time work? History table Performance

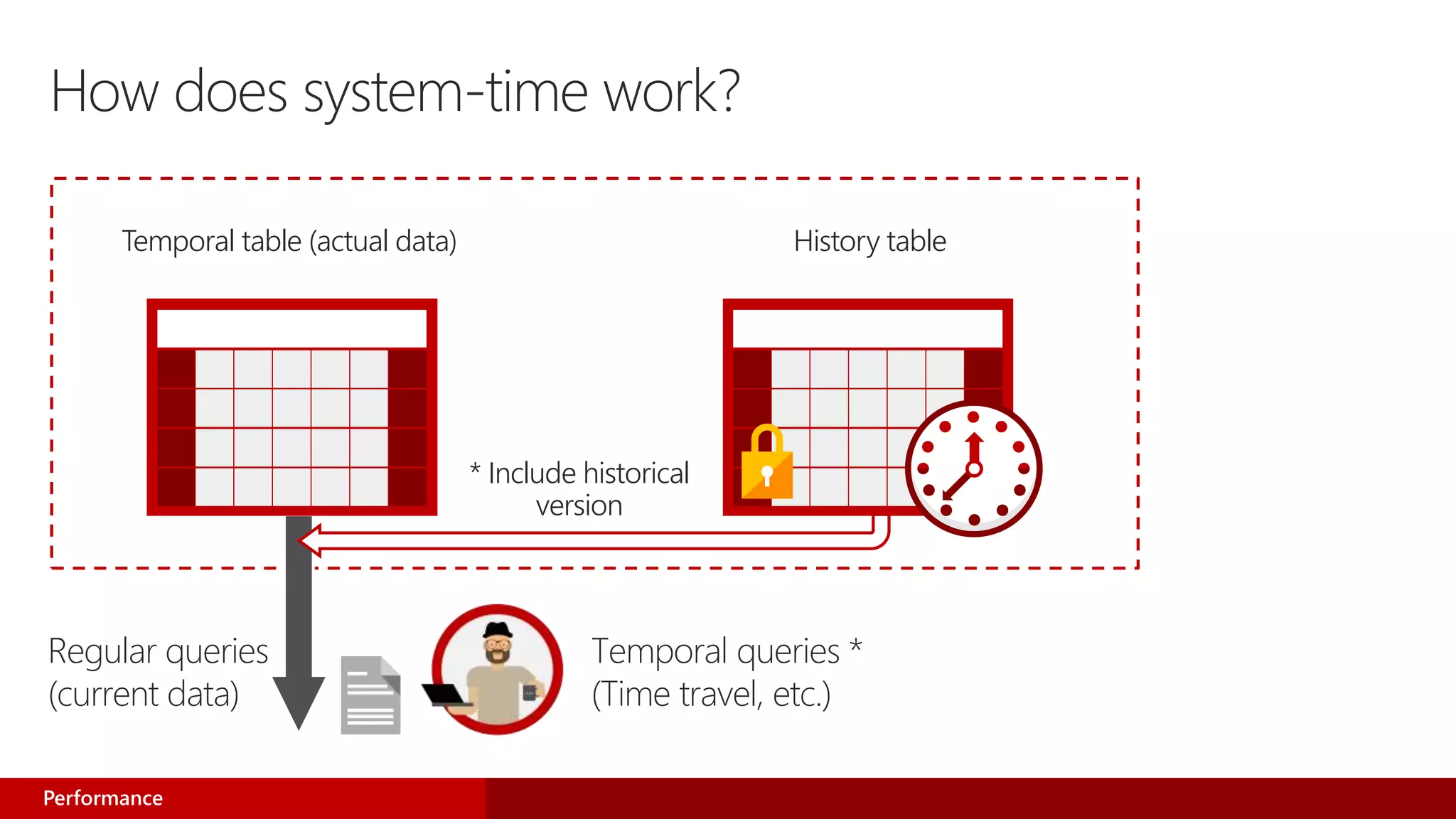

- 16. Temporal table (actualdata) Temporal queries * (Time travel, etc.) How does system-time work? History table Regular queries (current data) * Include historical version Performance
- 17.
- 18. Data disclosure prevention Client-side encryptionof sensitive data using keys that are never given to the database system Queries on encrypted data Support for equality comparison, including join, group by, and distinct operators Application transparency Minimal application changes via server and client library enhancements Allows customers to securely store sensitive data outside of their trust boundary. Data remains protected from high-privileged, yet unauthorized, users. The need for Always Encrypted Security

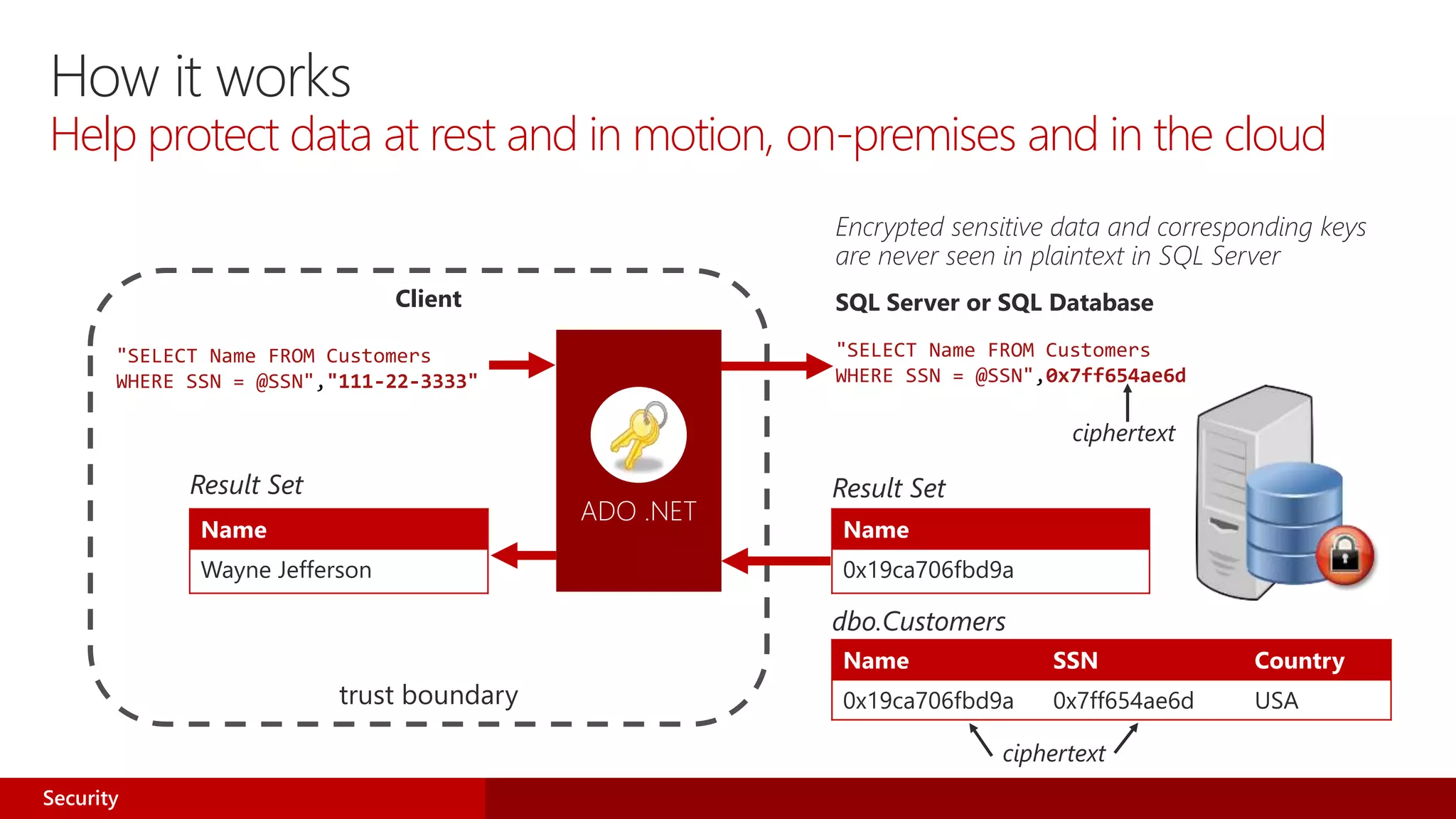

- 19. trust boundary "SELECT NameFROM Customers WHERE SSN = @SSN","111-22-3333" How it works Help protect data at rest and in motion, on-premises and in the cloud Name Wayne Jefferson ADO .NET Name 0x19ca706fbd9a Result SetResult Set Client Name SSN Country 0x19ca706fbd9a 0x7ff654ae6d USA SQL Server or SQL Database "SELECT Name FROM Customers WHERE SSN = @SSN",0x7ff654ae6d ciphertext Encrypted sensitive data and corresponding keys are never seen in plaintext in SQL Server dbo.Customers ciphertext Security

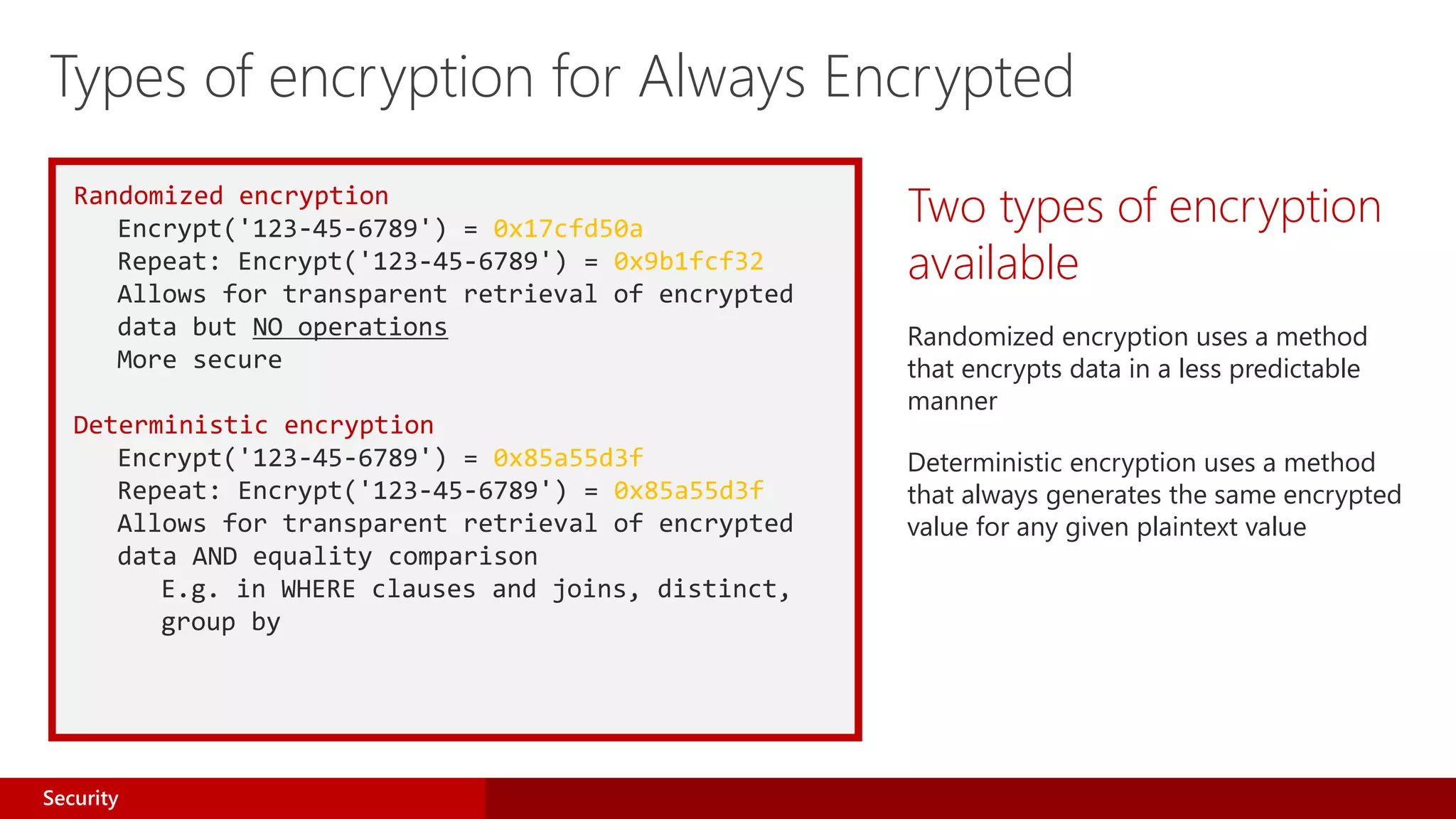

- 20. Randomized encryption Encrypt('123-45-6789') =0x17cfd50a Repeat: Encrypt('123-45-6789') = 0x9b1fcf32 Allows for transparent retrieval of encrypted data but NO operations More secure Deterministic encryption Encrypt('123-45-6789') = 0x85a55d3f Repeat: Encrypt('123-45-6789') = 0x85a55d3f Allows for transparent retrieval of encrypted data AND equality comparison E.g. in WHERE clauses and joins, distinct, group by Two types of encryption available Randomized encryption uses a method that encrypts data in a less predictable manner Deterministic encryption uses a method that always generates the same encrypted value for any given plaintext value Types of encryption for Always Encrypted Security
- 21.

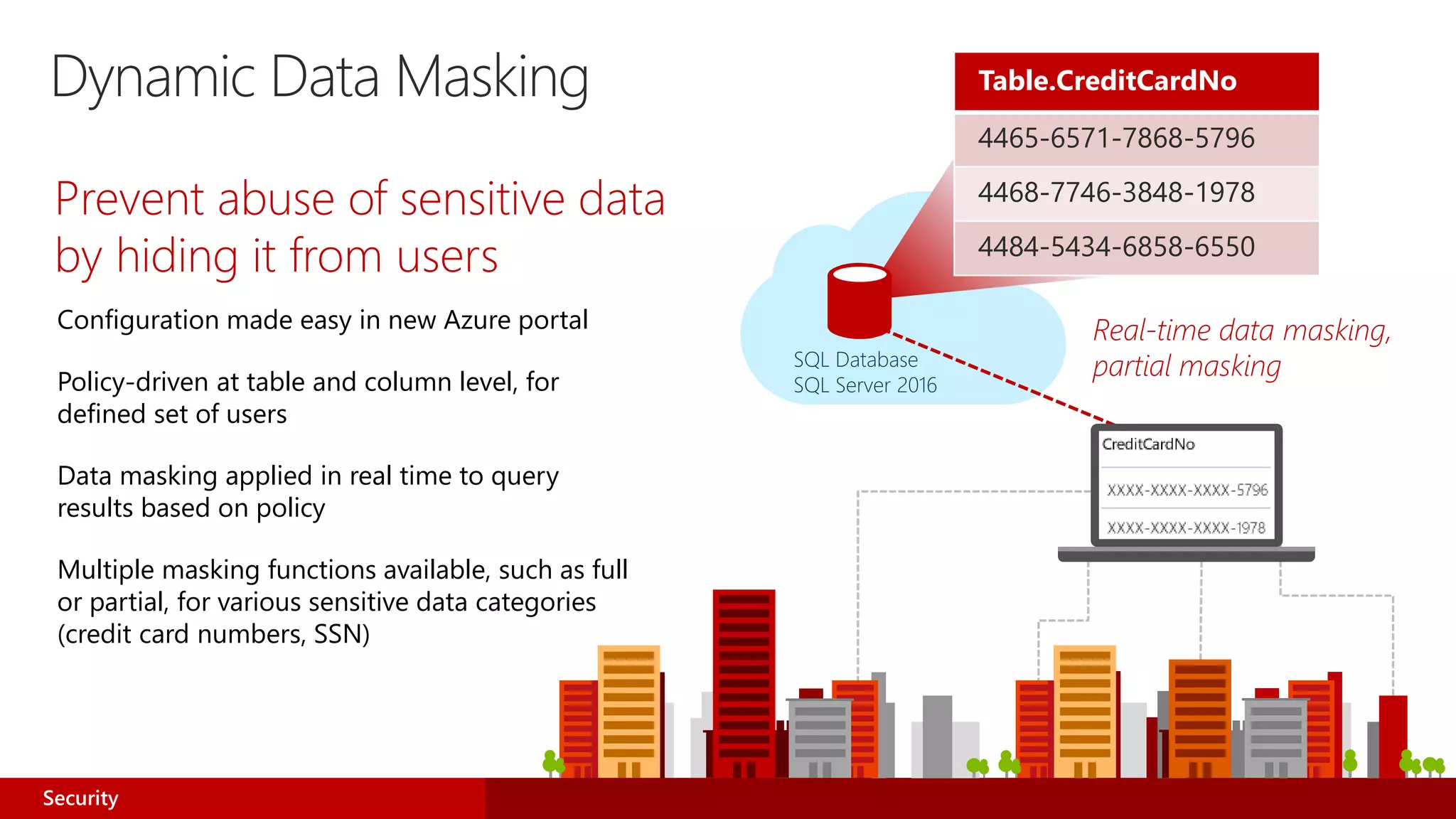

- 22. Configuration made easyin new Azure portal Policy-driven at table and column level, for defined set of users Data masking applied in real time to query results based on policy Multiple masking functions available, such as full or partial, for various sensitive data categories (credit card numbers, SSN) SQL Database SQL Server 2016 Table.CreditCardNo 4465-6571-7868-5796 4468-7746-3848-1978 4484-5434-6858-6550 Real-time data masking, partial masking Prevent abuse of sensitive data by hiding it from users Security Dynamic Data Masking

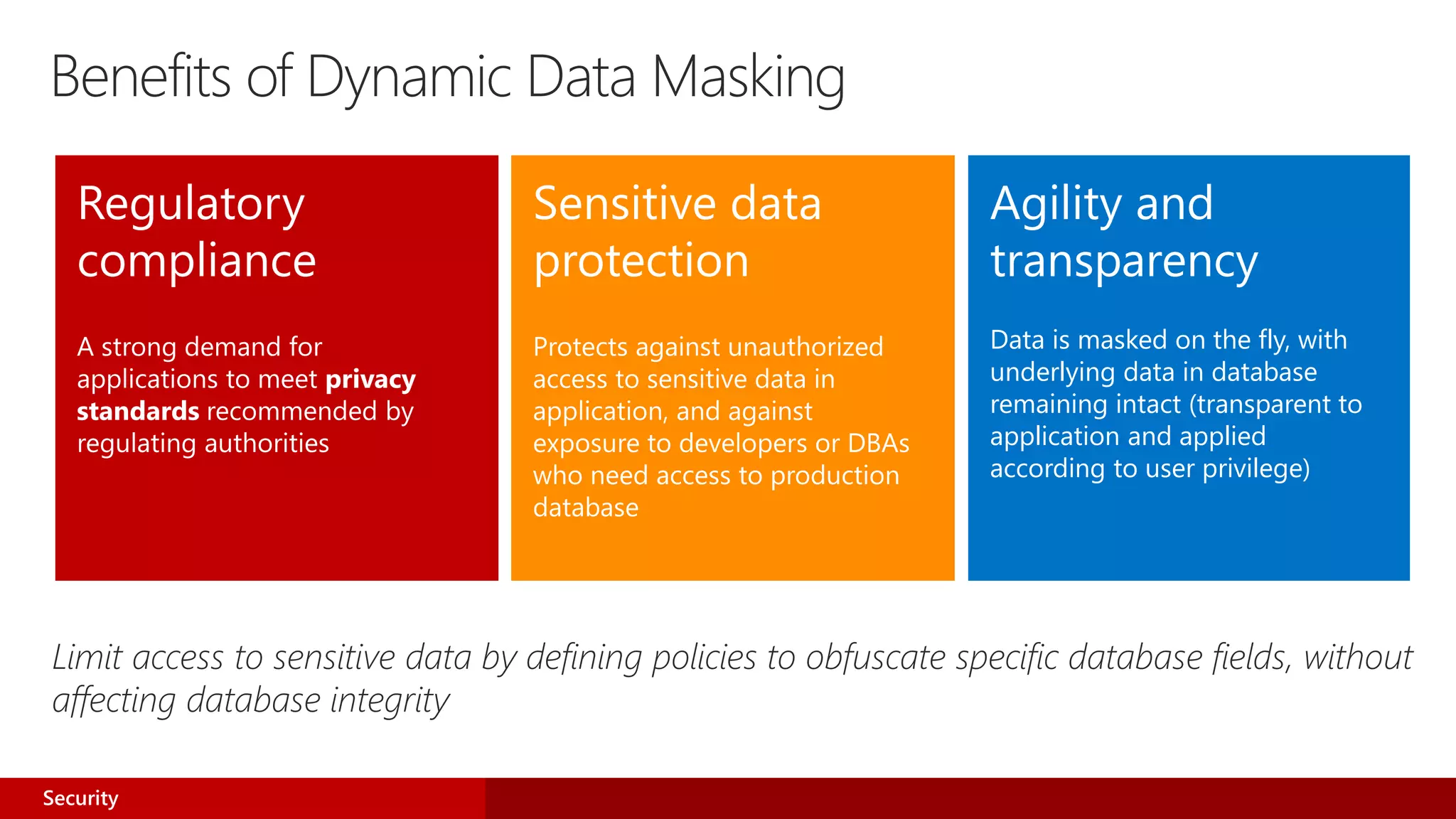

- 23. Regulatory compliance Sensitive data protection Agility and transparency Datais masked on the fly, with underlying data in database remaining intact (transparent to application and applied according to user privilege) Limit access to sensitive data by defining policies to obfuscate specific database fields, without affecting database integrity Security Benefits of Dynamic Data Masking
- 24. Dynamic data maskingwalkthrough ALTER TABLE [Employee] ALTER COLUMN [SocialSecurityNumber] ADD MASKED WITH (FUNCTION = ‘SSN()’) ALTER TABLE [Employee] ALTER COLUMN [Email] ADD MASKED WITH (FUNCTION = ‘EMAIL()’) ALTER TABLE [Employee] ALTER COLUMN [Salary] ADD MASKED WITH (FUNCTION = ‘RANDOM(1,20000)’) GRANT UNMASK to admin1 1) Security officer defines dynamic data masking policy in T-SQL over sensitive data in Employee table 2) Application user selects from Employee table 3) Dynamic data masking policy obfuscates the sensitive data in the query results SELECT [Name], [SocialSecurityNumber], [Email], [Salary] FROM [Employee] Security
- 25. Row-Level Security SQL Server2016 SQL Database
- 26. Nurse Database One Policy manager createsa filter predicate and security policy Two App user (e.g., nurse) selects from Patients table Three Security Policy transparently rewrites query to apply filter predicate CREATE FUNCTION dbo.fn_securitypredicate(@wing int) RETURNS TABLE WITH SCHEMABINDING AS return SELECT 1 as [fn_securitypredicate_result] FROM StaffDuties d INNER JOIN Employees e ON (d.EmpId = e.EmpId) WHERE e.UserSID = SUSER_SID() AND @wing = d.Wing; CREATE SECURITY POLICY dbo.SecPol ADD FILTER PREDICATE dbo.fn_securitypredicate(Wing) ON Patients WITH (STATE = ON) Filter Predicate: INNER JOIN… Security Policy Application Patients SELECT * FROM Patients SELECT * FROM Patients SEMIJOIN APPLY dbo.fn_securitypredicate(patients.Wing); SELECT Patients.* FROM Patients, StaffDuties d INNER JOIN Employees e ON (d.EmpId = e.EmpId) WHERE e.UserSID = SUSER_SID() AND Patients.wing = d.Wing; Security RLS in three steps Policy Manager
- 27. -- The followingsyntax creates a security policy with a filter predicate for the Customer table, and leaves the security policy disabled CREATE SECURITY POLICY [FederatedSecurityPolicy] ADD FILTER PREDICATE [rls].[fn_securitypredicate]([CustomerId]) ON [dbo].[Customer]; -- Create a new schema and predicate function, which will use the application user ID stored in CONTEXT_INFO to filter rows. CREATE FUNCTION rls.fn_securitypredicate (@AppUserId int) RETURNS TABLE WITH SCHEMABINDING AS RETURN ( SELECT 1 AS fn_securitypredicate_result WHERE DATABASE_PRINCIPAL_ID() = DATABASE_PRINCIPAL_ID('dbo') -- application context AND CONTEXT_INFO() = CONVERT(VARBINARY(128), @AppUserId); GO Creates security policy for row-level security The following examples demonstrate use of CREATE SECURITY POLICY syntax For an example of a complete security policy scenario, see Row-Level Security Create security policy Security

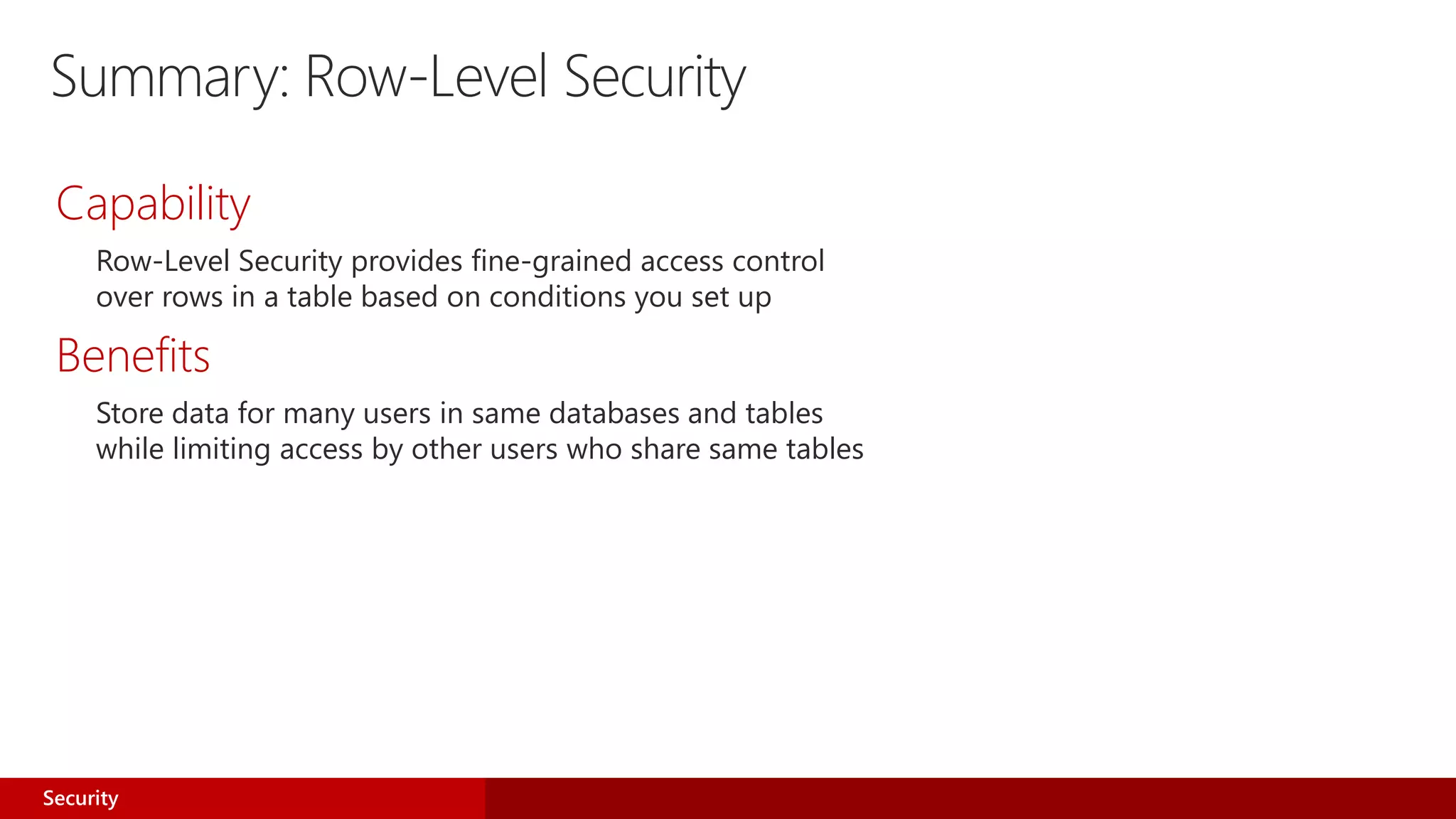

- 28. Capability Row-Level Security providesfine-grained access control over rows in a table based on conditions you set up Benefits Store data for many users in same databases and tables while limiting access by other users who share same tables Security Summary: Row-Level Security

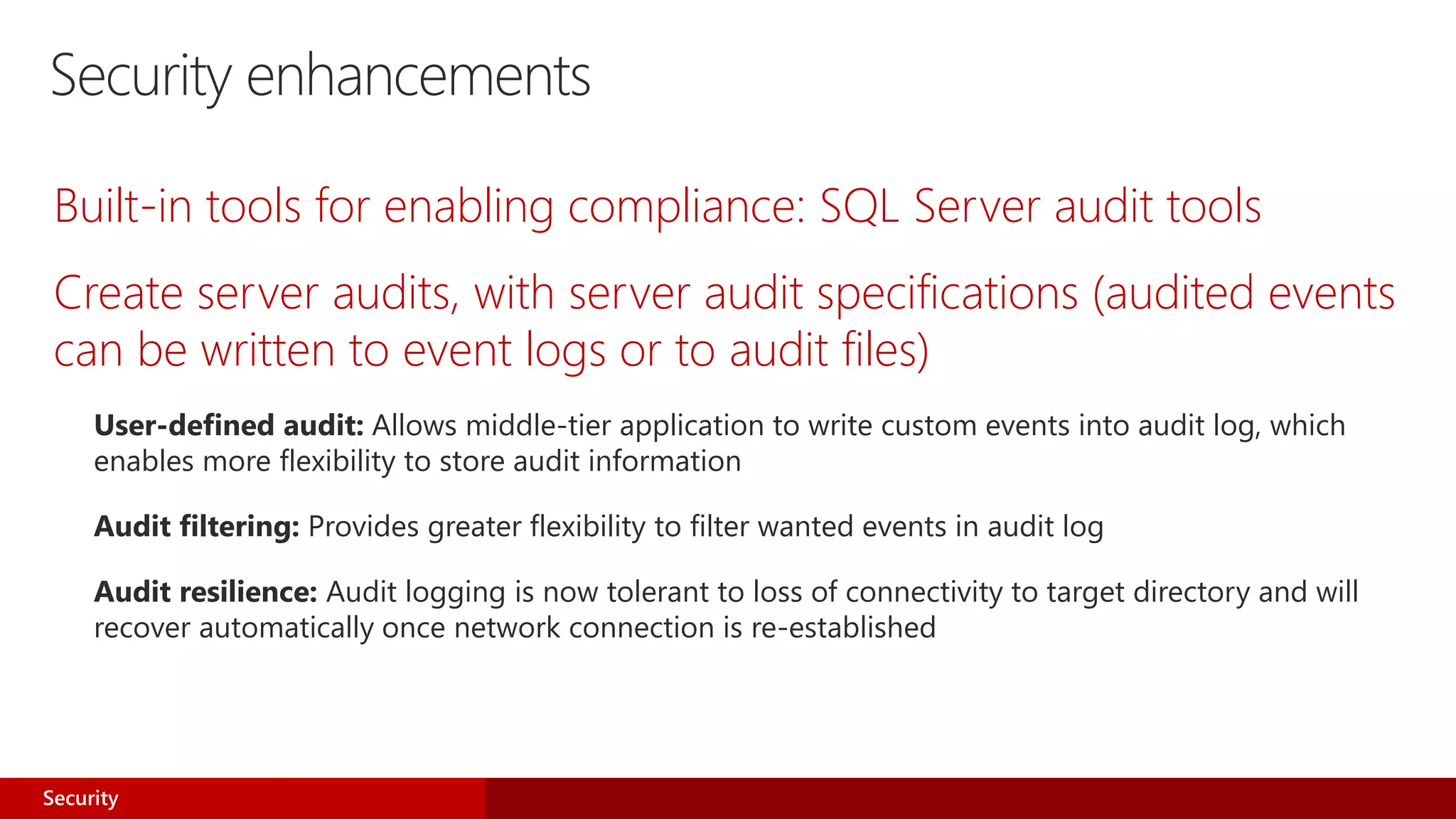

- 29. Security enhancements Built-in toolsfor enabling compliance: SQL Server audit tools Create server audits, with server audit specifications (audited events can be written to event logs or to audit files) User-defined audit: Allows middle-tier application to write custom events into audit log, which enables more flexibility to store audit information Audit filtering: Provides greater flexibility to filter wanted events in audit log Audit resilience: Audit logging is now tolerant to loss of connectivity to target directory and will recover automatically once network connection is re-established Security

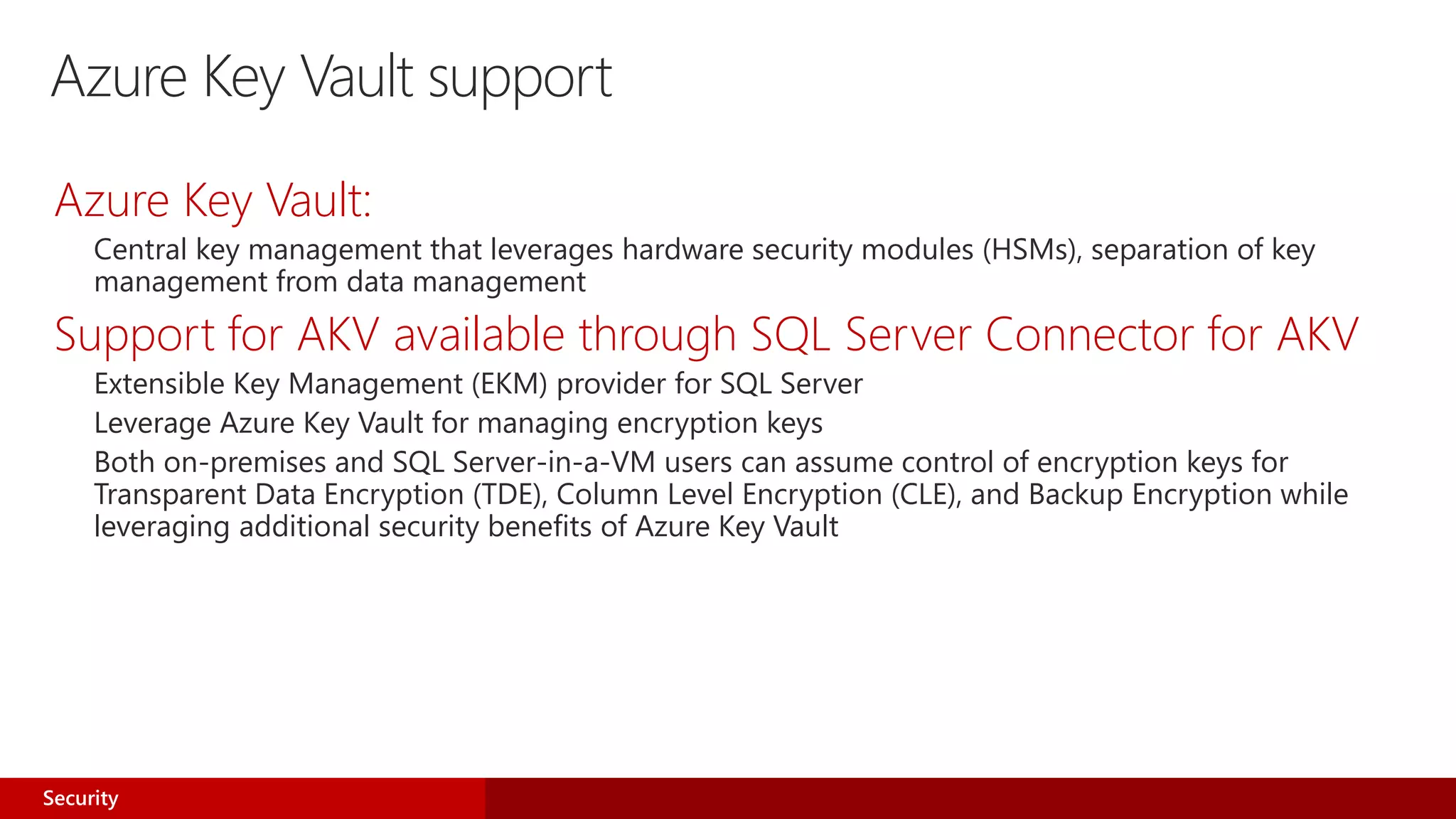

- 30. Azure Key Vaultsupport Azure Key Vault: Central key management that leverages hardware security modules (HSMs), separation of key management from data management Support for AKV available through SQL Server Connector for AKV Extensible Key Management (EKM) provider for SQL Server Leverage Azure Key Vault for managing encryption keys Both on-premises and SQL Server-in-a-VM users can assume control of encryption keys for Transparent Data Encryption (TDE), Column Level Encryption (CLE), and Backup Encryption while leveraging additional security benefits of Azure Key Vault Security

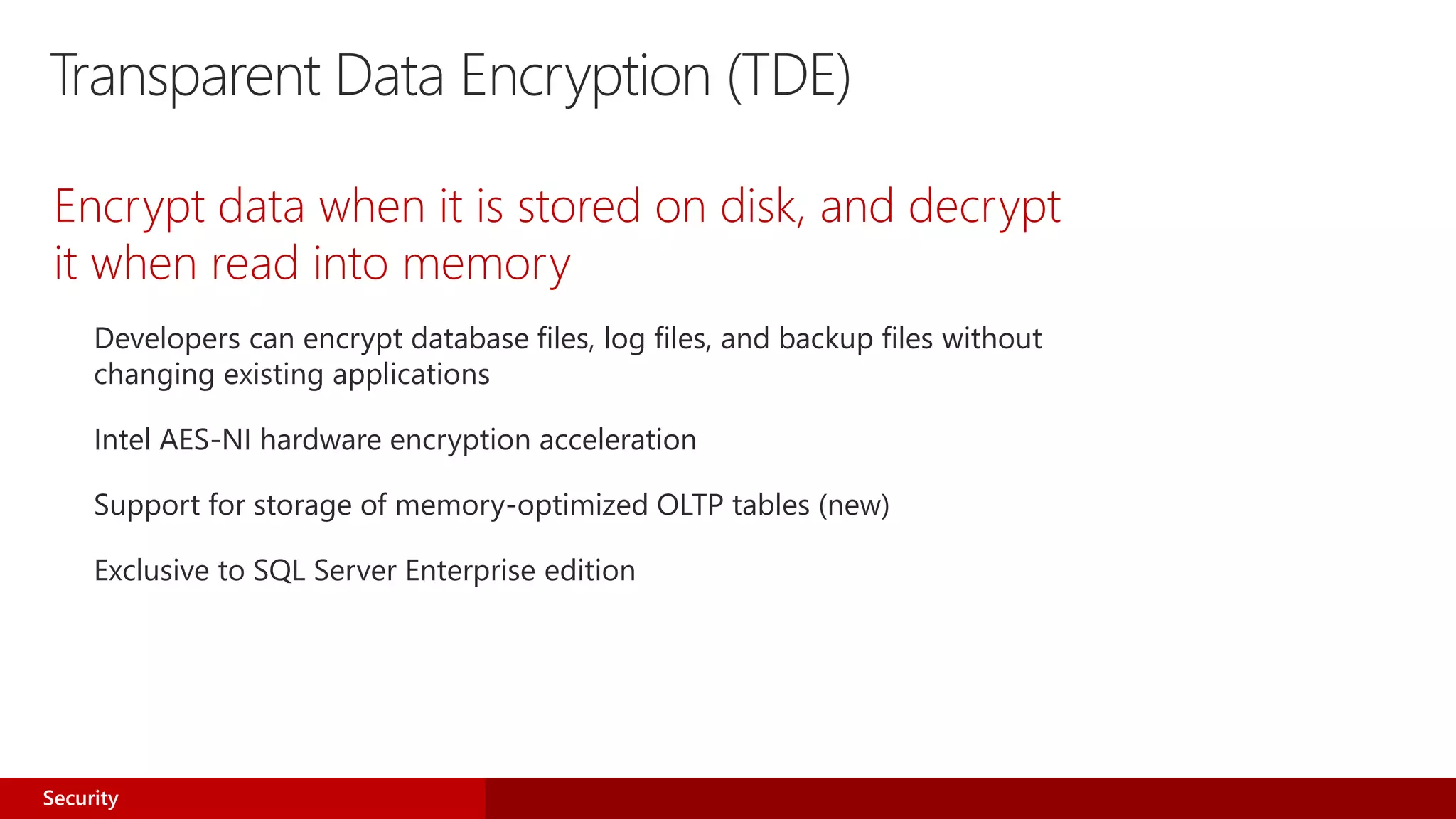

- 31. Transparent Data Encryption(TDE) Encrypt data when it is stored on disk, and decrypt it when read into memory Developers can encrypt database files, log files, and backup files without changing existing applications Intel AES-NI hardware encryption acceleration Support for storage of memory-optimized OLTP tables (new) Exclusive to SQL Server Enterprise edition Security

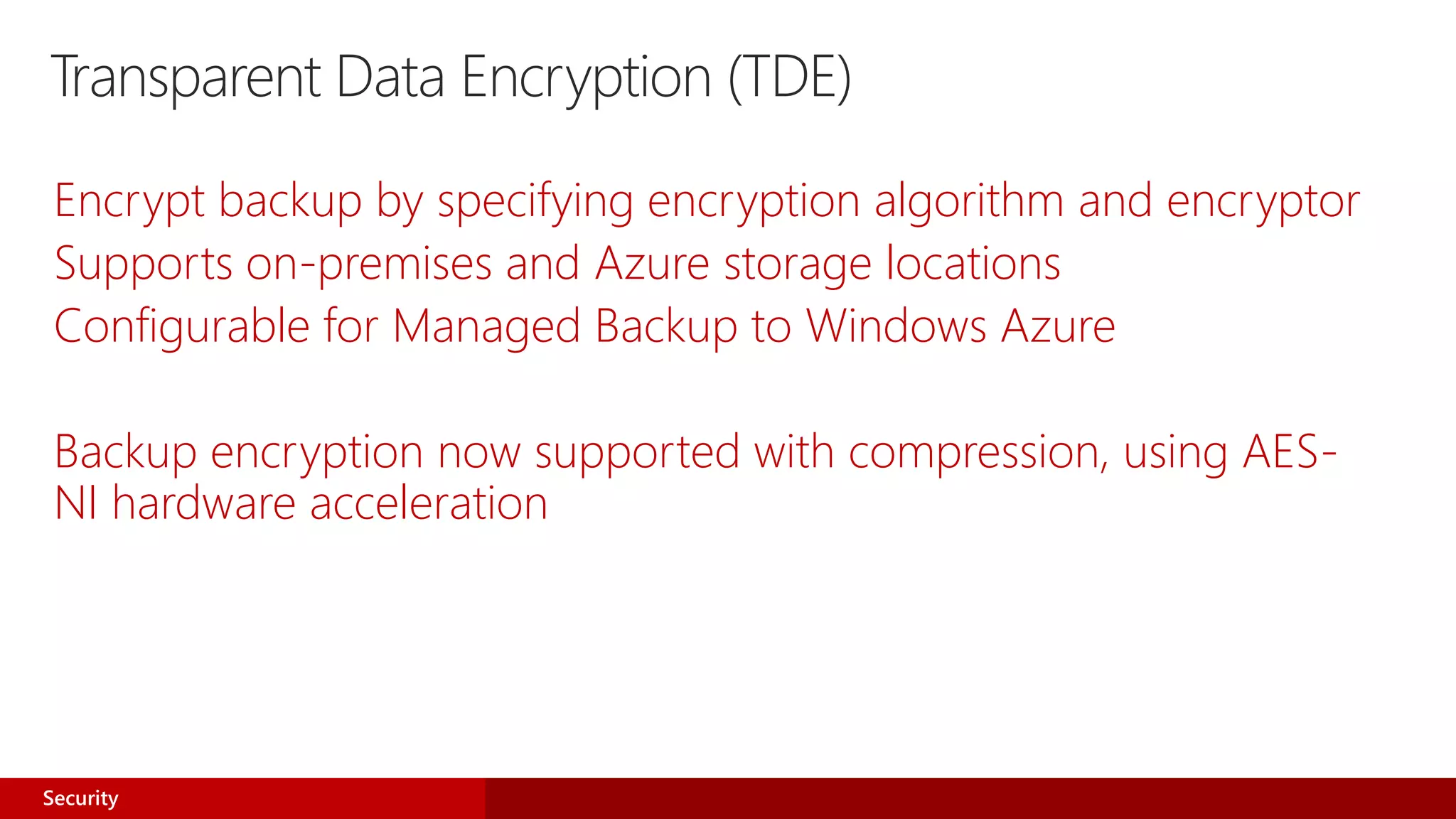

- 32. Transparent Data Encryption(TDE) Encrypt backup by specifying encryption algorithm and encryptor Supports on-premises and Azure storage locations Configurable for Managed Backup to Windows Azure Backup encryption now supported with compression, using AES- NI hardware acceleration Security

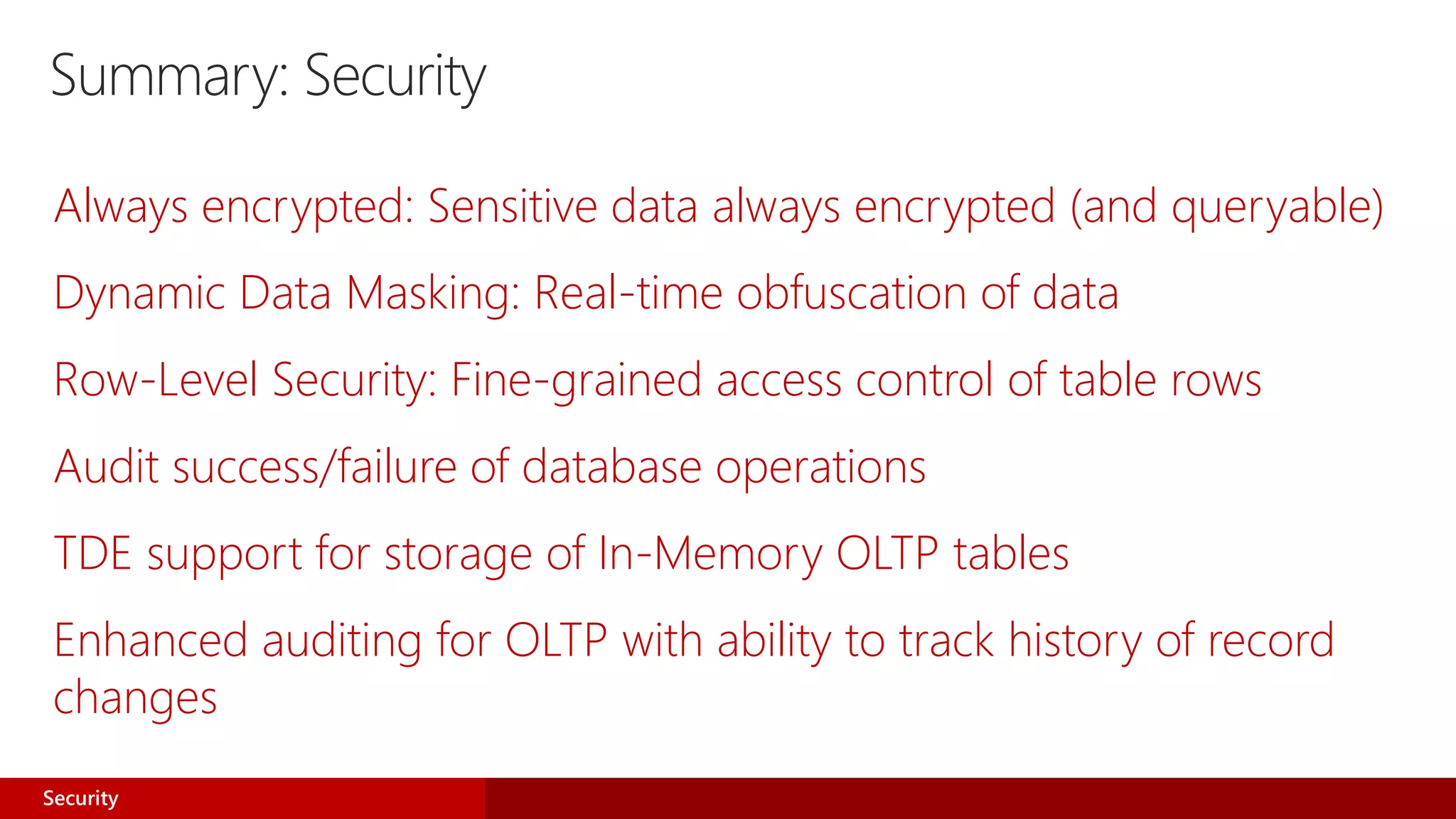

- 33. Summary: Security Always encrypted:Sensitive data always encrypted (and queryable) Dynamic Data Masking: Real-time obfuscation of data Row-Level Security: Fine-grained access control of table rows Audit success/failure of database operations TDE support for storage of In-Memory OLTP tables Enhanced auditing for OLTP with ability to track history of record changes Security

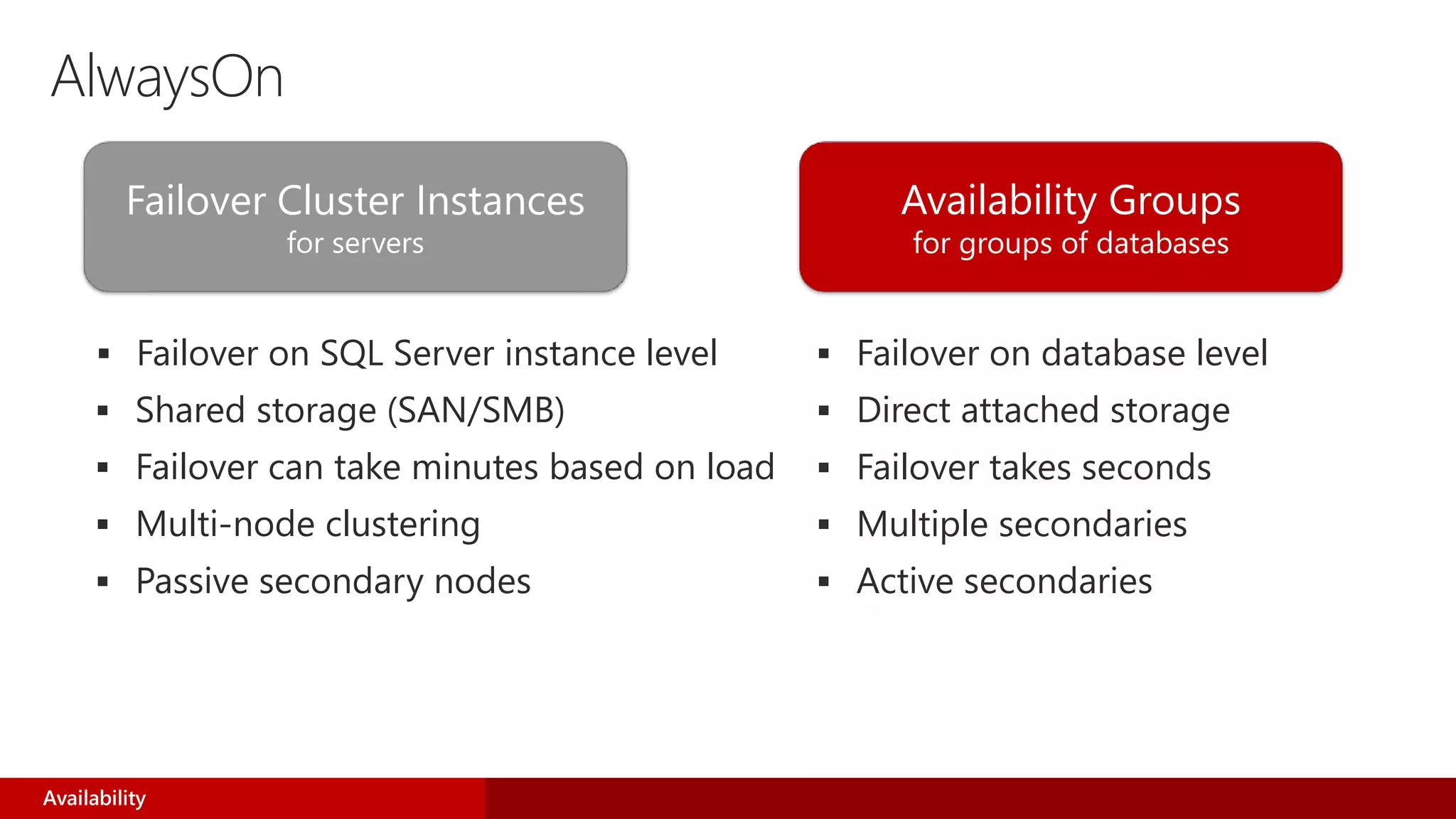

- 34. AlwaysOn Failover onSQL Server instance level Shared storage (SAN/SMB) Failover can take minutes based on load Multi-node clustering Passive secondary nodes Failover on database level Direct attached storage Failover takes seconds Multiple secondaries Active secondaries Availability Failover Cluster Instances for servers Availability Groups for groups of databases

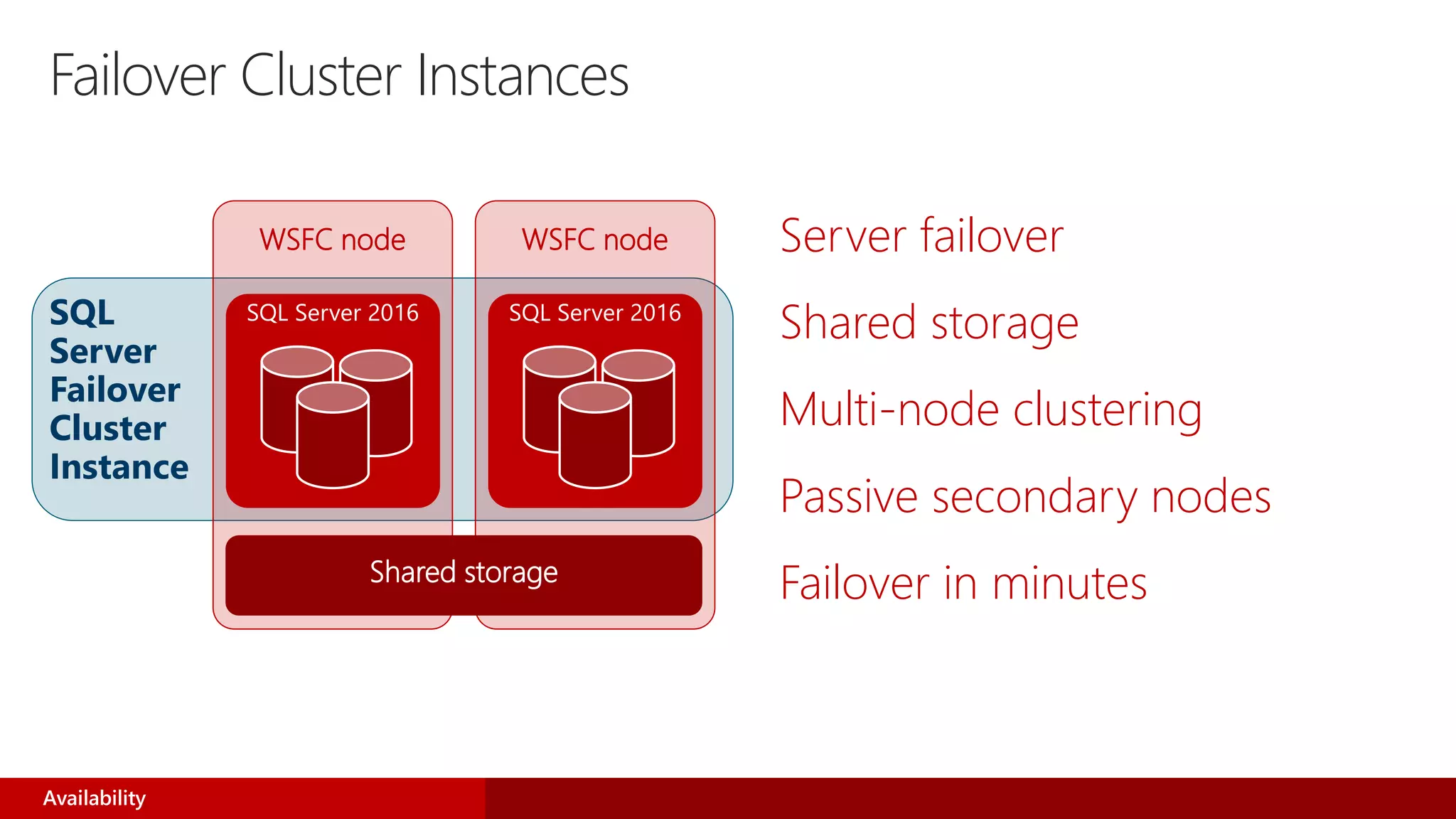

- 35. WSFC node WSFCnode Failover Cluster Instances Server failover Shared storage Multi-node clustering Passive secondary nodes Failover in minutes SQL Server 2016 Shared storage SQL Server 2016SQL Server Failover Cluster Instance Availability

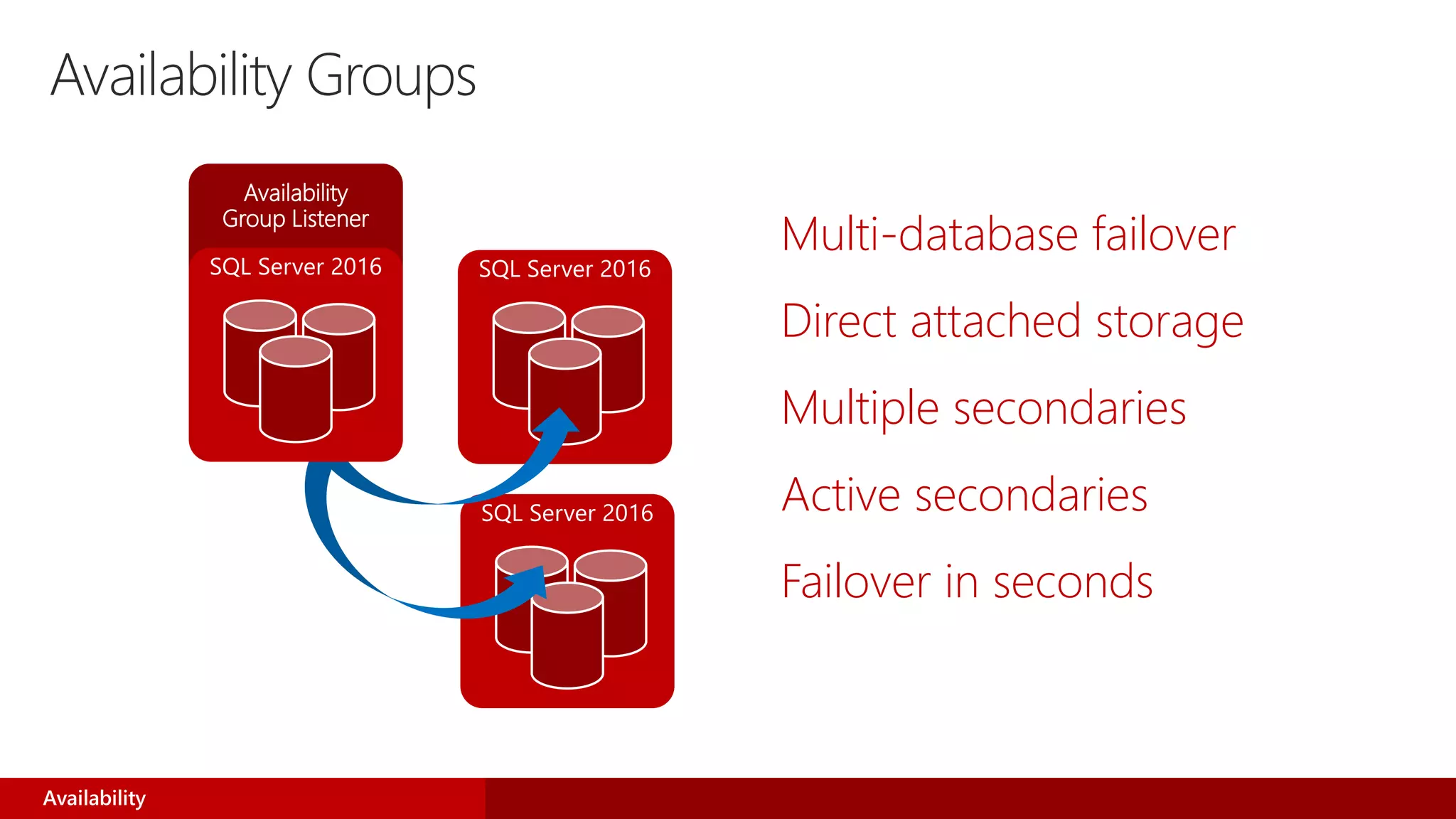

- 36. Availability Group Listener Availability Groups Multi-databasefailover Direct attached storage Multiple secondaries Active secondaries Failover in seconds SQL Server 2016 SQL Server 2016SQL Server 2016 Availability

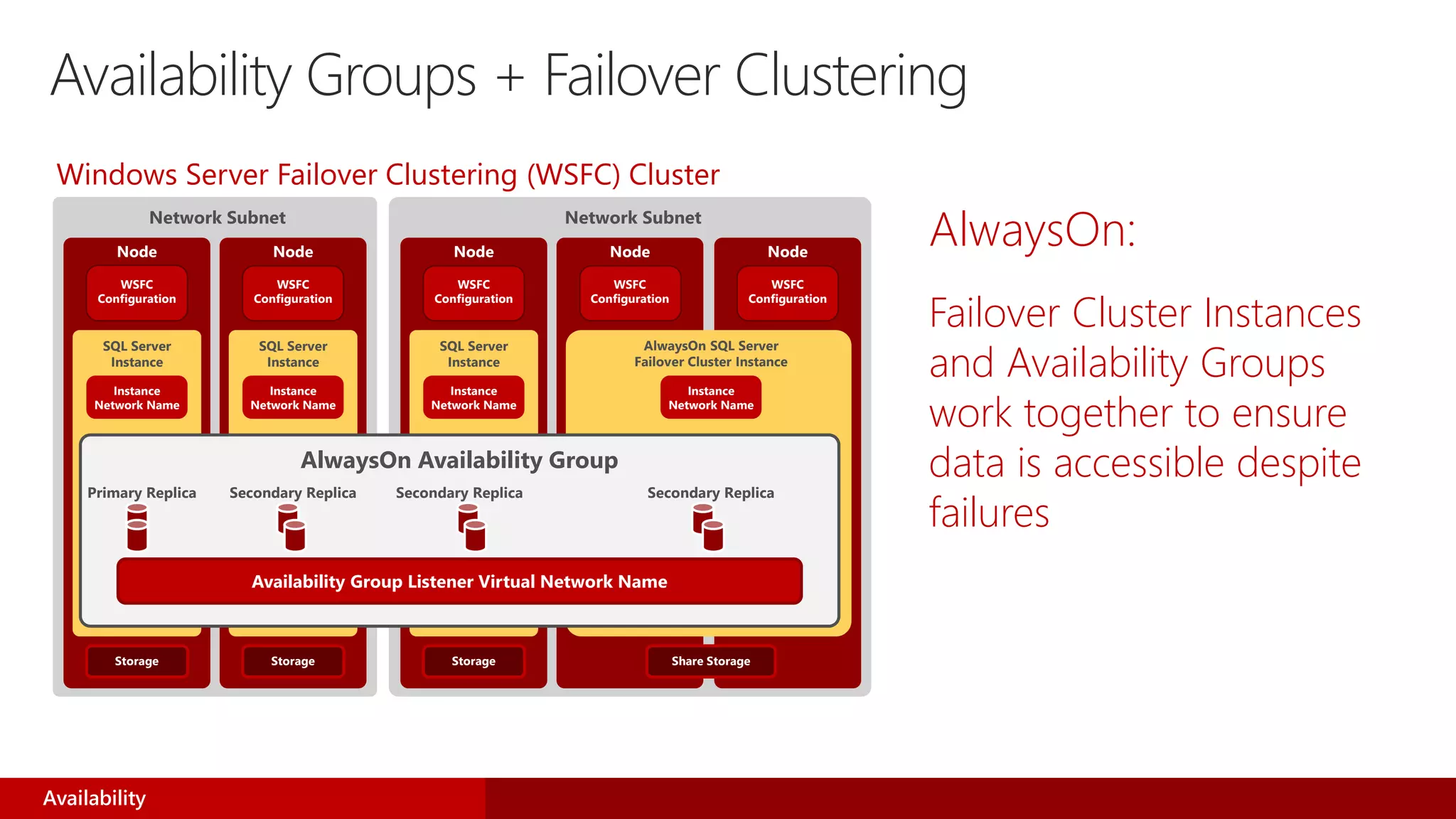

- 37. Availability Groups +Failover Clustering AlwaysOn: Failover Cluster Instances and Availability Groups work together to ensure data is accessible despite failures Availability Windows Server Failover Clustering (WSFC) Cluster Network Subnet Network Subnet Node NodeNodeNodeNode SQL Server Instance SQL Server Instance SQL Server Instance AlwaysOn SQL Server Failover Cluster Instance Primary Replica Secondary Replica Secondary Replica Secondary Replica AlwaysOn Availability Group Instance Network Name WSFC Configuration WSFC Configuration WSFC Configuration WSFC Configuration WSFC Configuration Instance Network Name Instance Network Name Instance Network Name Availability Group Listener Virtual Network Name Storage Storage Storage Share Storage
- 38.

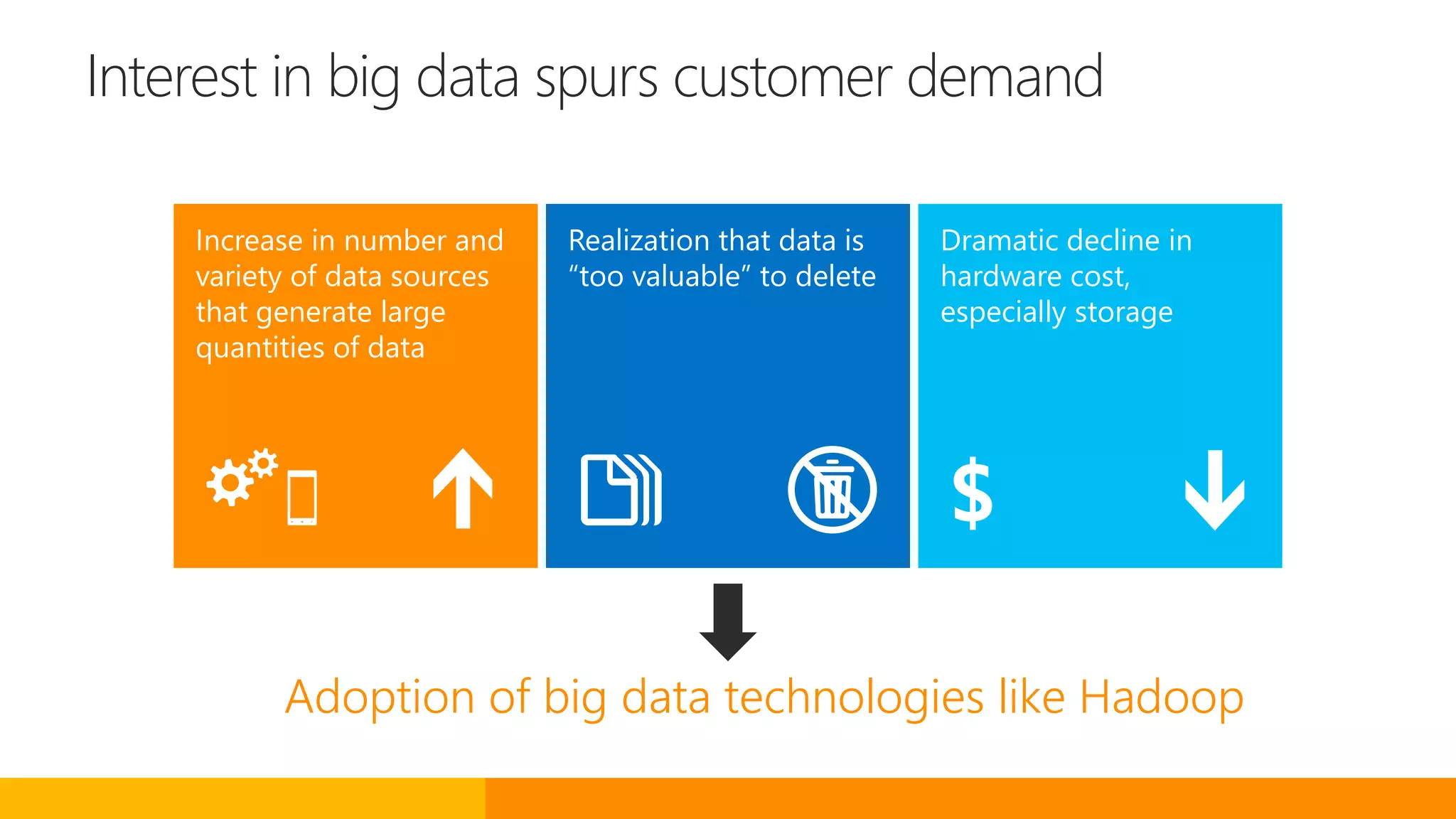

- 39. Interest in bigdata spurs customer demand Adoption of big data technologies like Hadoop Increase in number and variety of data sources that generate large quantities of data Realization that data is “too valuable” to delete Dramatic decline in hardware cost, especially storage $

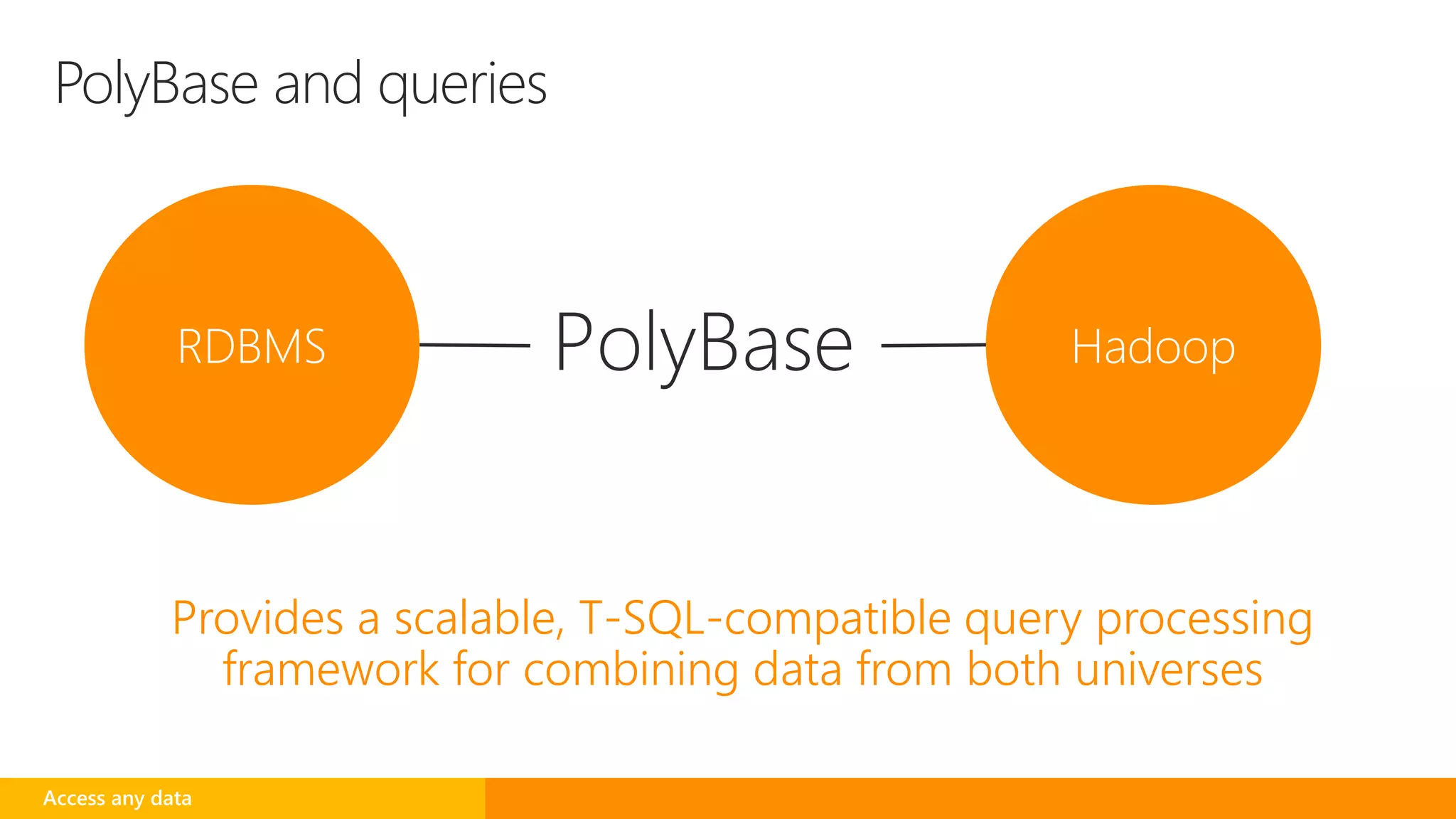

- 40. PolyBase and queries Providesa scalable, T-SQL-compatible query processing framework for combining data from both universes Access any data

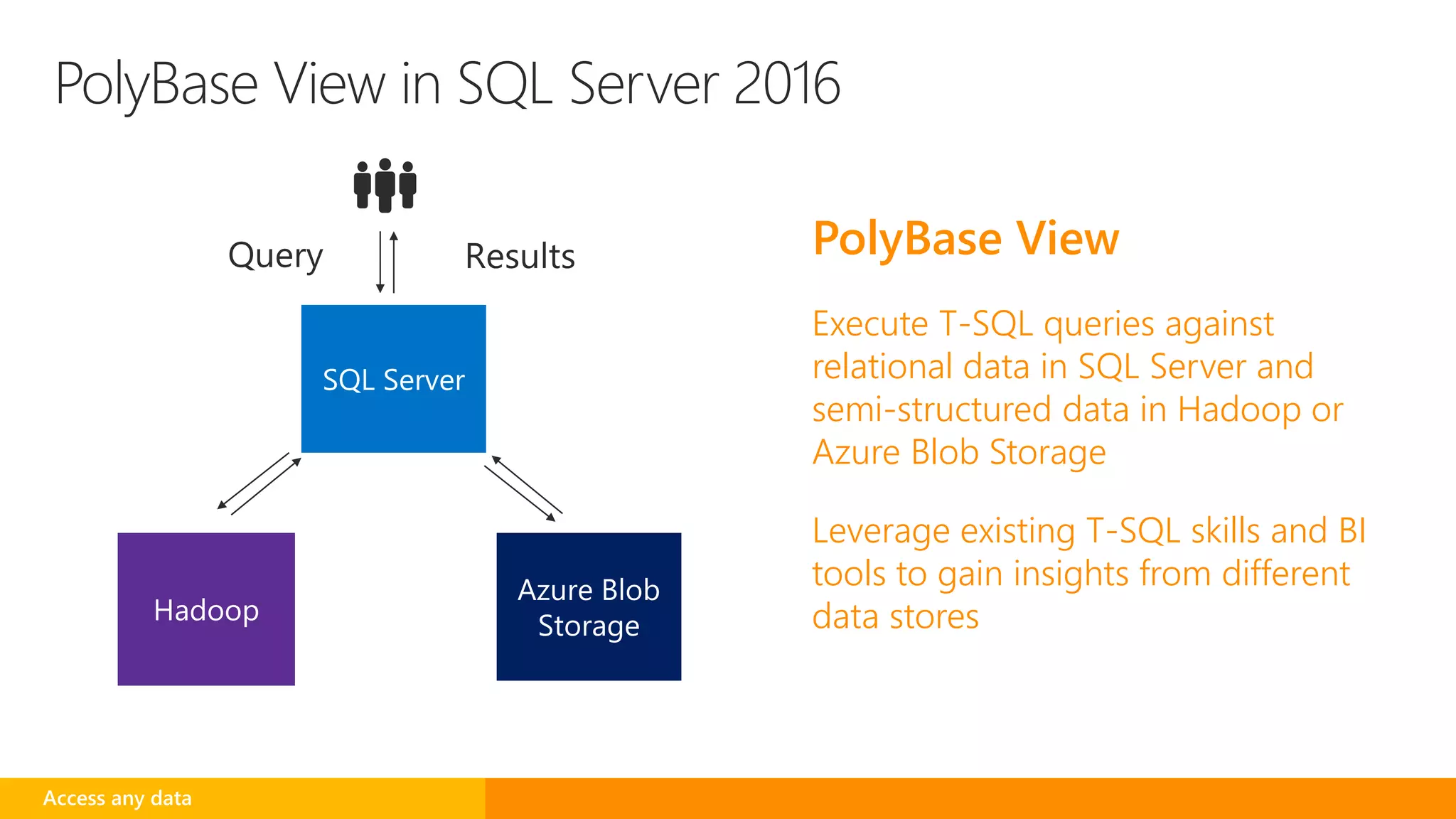

- 41. PolyBase View Execute T-SQLqueries against relational data in SQL Server and semi-structured data in Hadoop or Azure Blob Storage Leverage existing T-SQL skills and BI tools to gain insights from different data stores Access any data PolyBase View in SQL Server 2016
- 42. Access any data PolyBaseuse cases

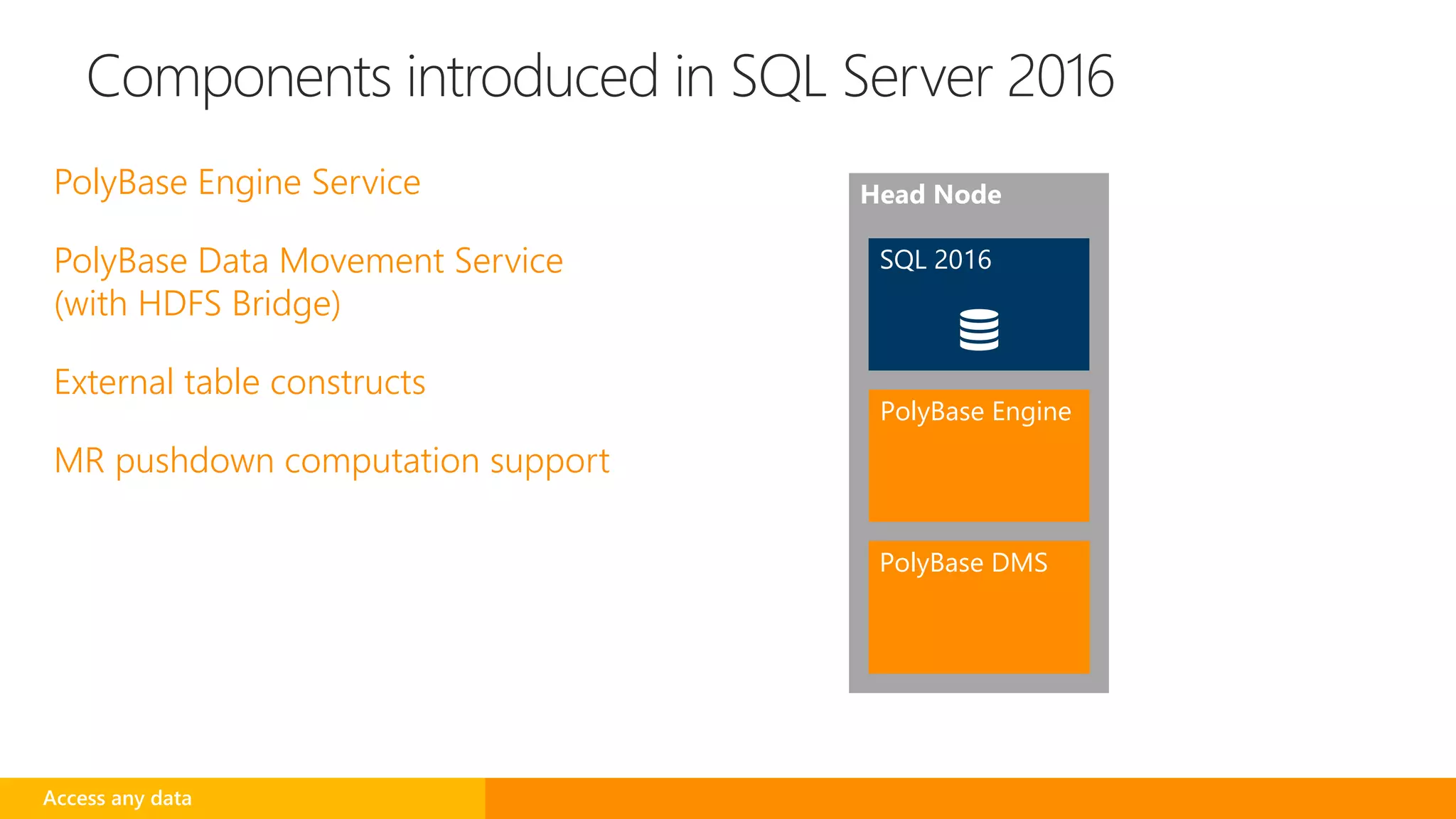

- 43. Components introduced inSQL Server 2016 PolyBase Engine Service PolyBase Data Movement Service (with HDFS Bridge) External table constructs MR pushdown computation support Access any data Head Node SQL 2016 PolyBase Engine PolyBase DMS

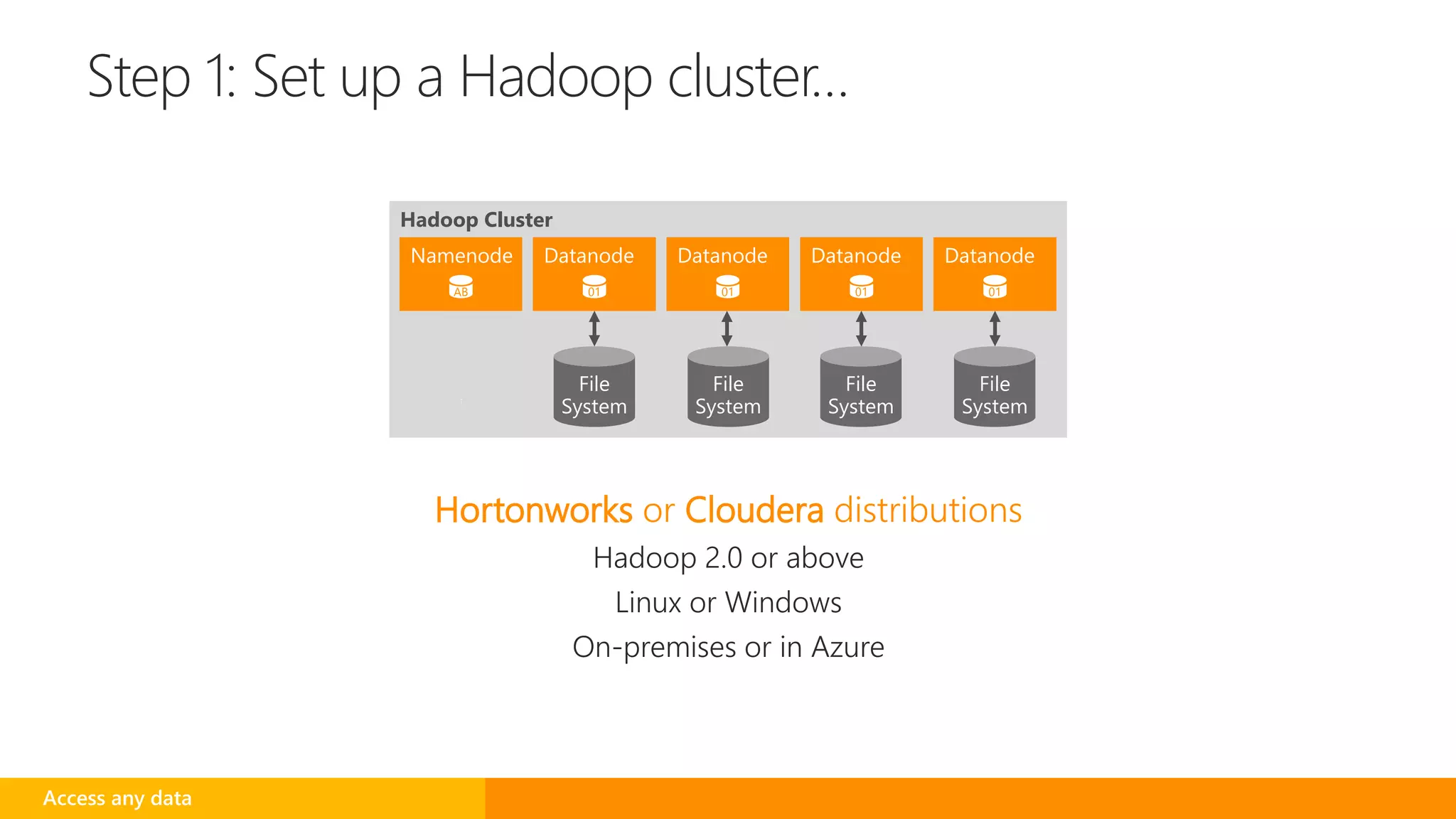

- 44. Step 1: Setup a Hadoop cluster… Hortonworks or Cloudera distributions Hadoop 2.0 or above Linux or Windows On-premises or in Azure Access any data Hadoop Cluster Namenode Datanode Datanode Datanode Datanode File System AB 01 01 01 01 File System File System File System

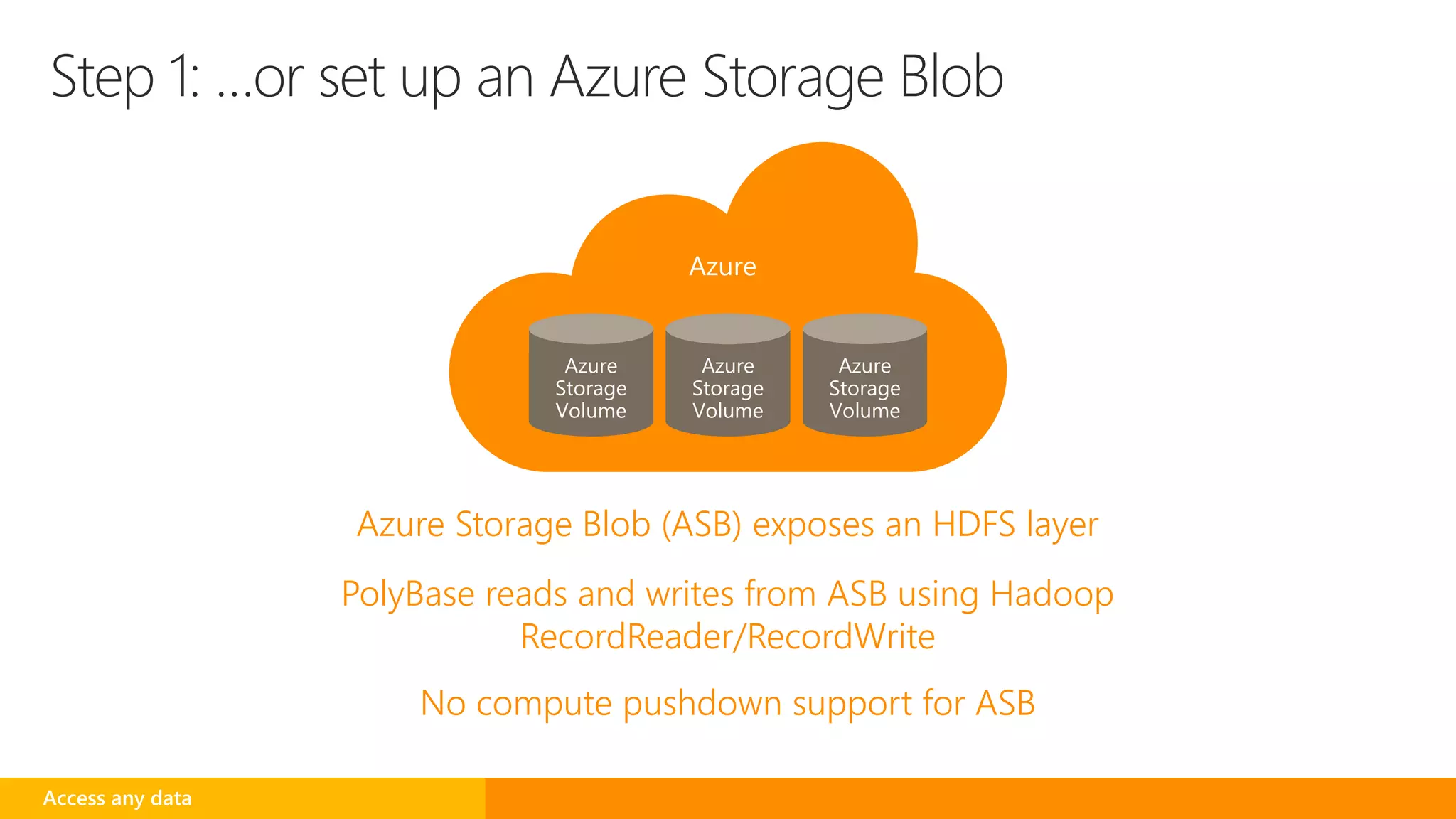

- 45. Step 1: …orset up an Azure Storage Blob Azure Storage Blob (ASB) exposes an HDFS layer PolyBase reads and writes from ASB using Hadoop RecordReader/RecordWrite No compute pushdown support for ASB Access any data Azure Azure Storage Volume Azure Storage Volume Azure Storage Volume

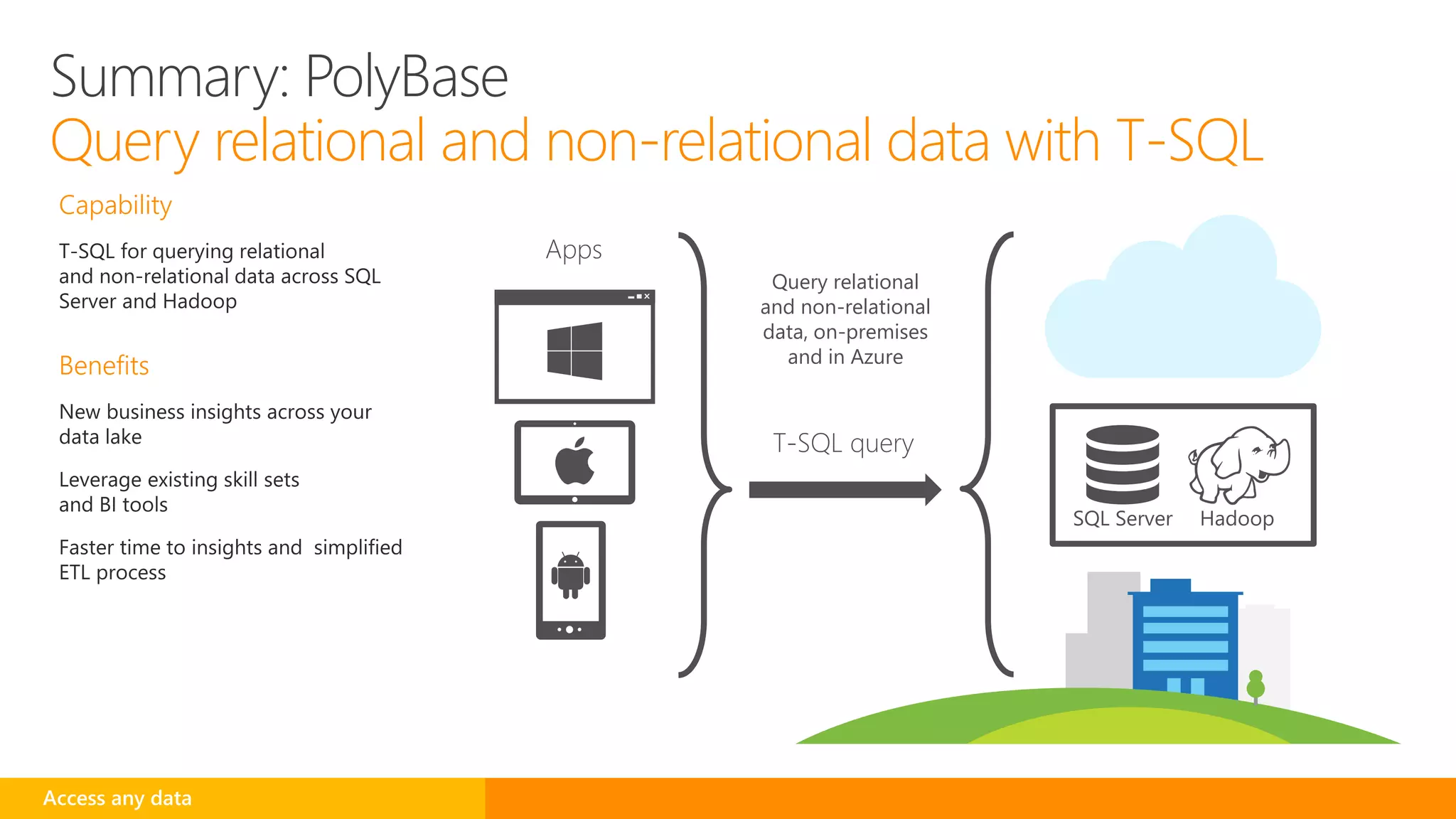

- 46. Access any data Queryrelational and non-relational data, on-premises and in Azure T-SQL query Apps SQL Server Hadoop Summary: PolyBase Query relational and non-relational data with T-SQL
- 47.

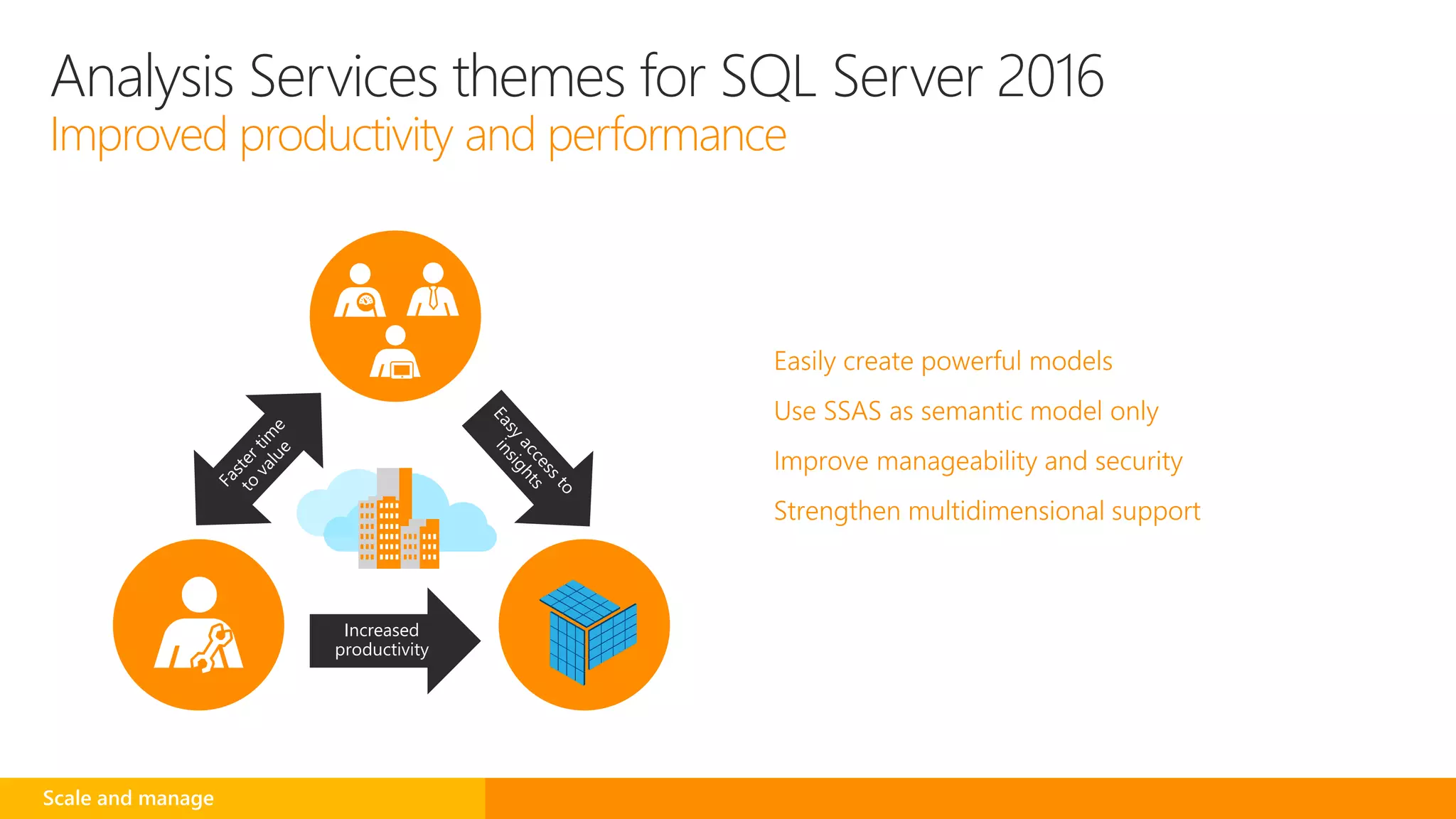

- 48. Scale and manage Increased productivity AnalysisServices themes for SQL Server 2016 Improved productivity and performance

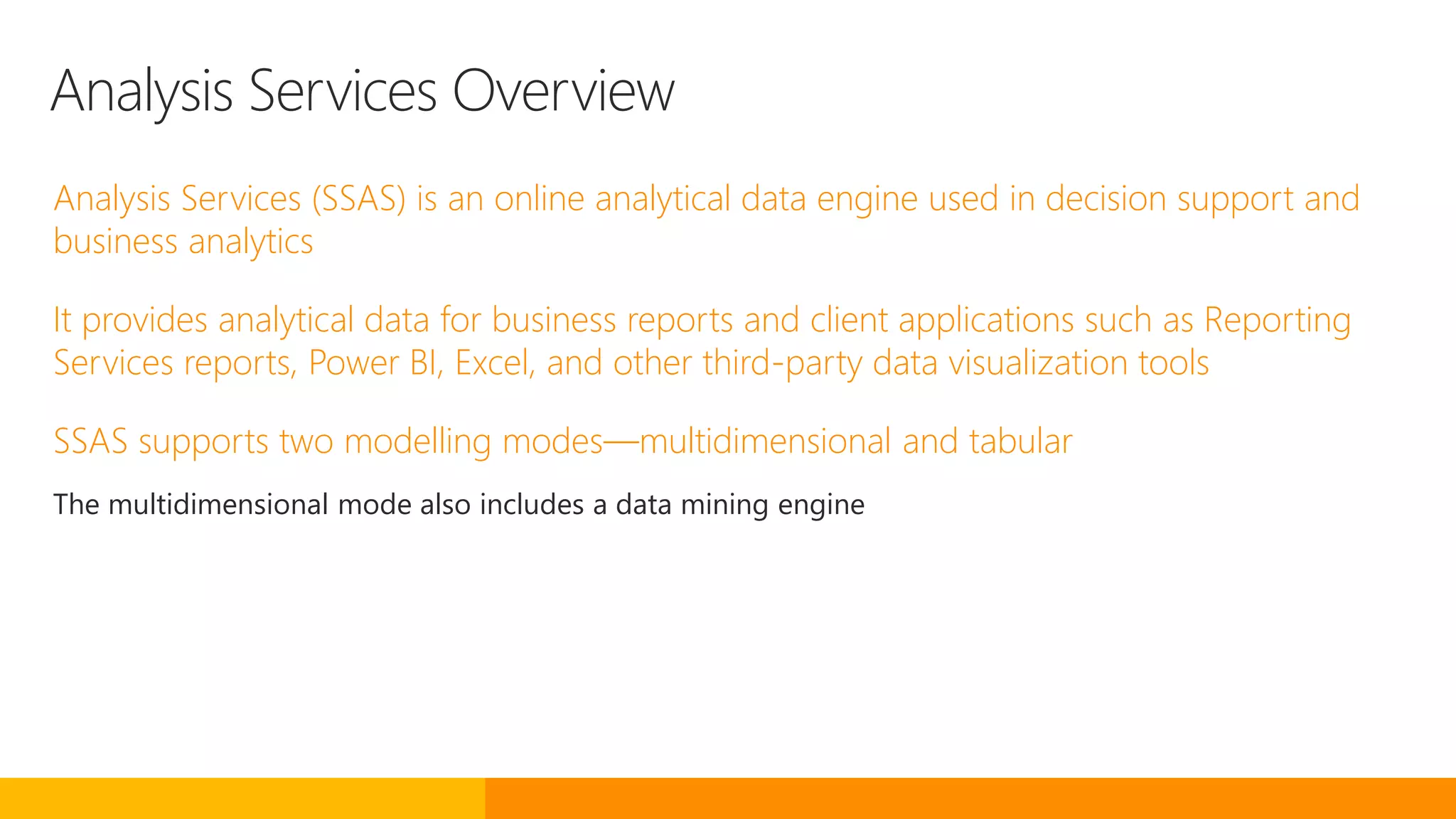

- 49. Analysis Services Overview AnalysisServices (SSAS) is an online analytical data engine used in decision support and business analytics It provides analytical data for business reports and client applications such as Reporting Services reports, Power BI, Excel, and other third-party data visualization tools SSAS supports two modelling modes—multidimensional and tabular The multidimensional mode also includes a data mining engine

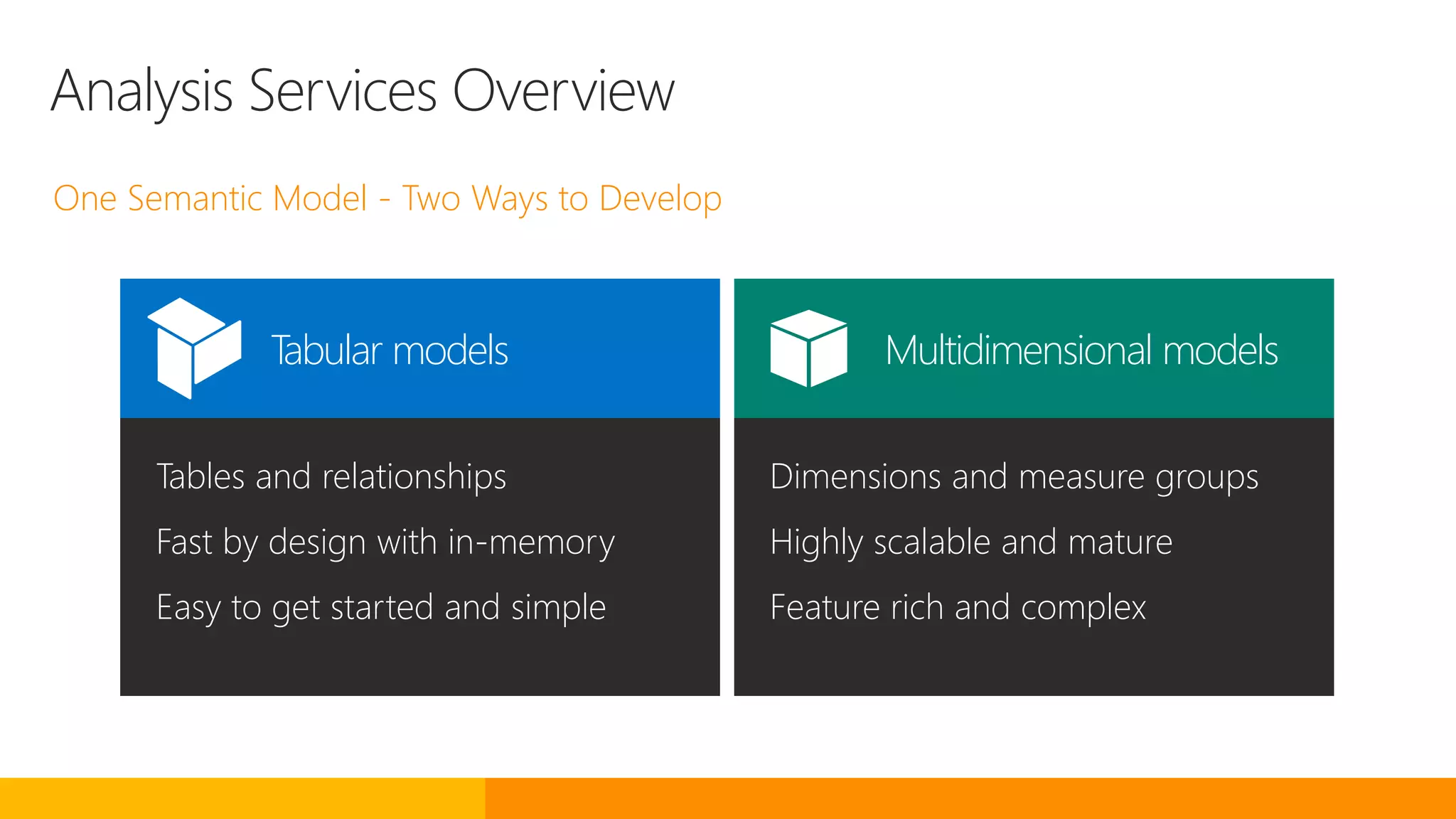

- 50. Analysis Services Overview OneSemantic Model - Two Ways to Develop Dimensions and measure groups Highly scalable and mature Feature rich and complex Multidimensional models Tables and relationships Fast by design with in-memory Easy to get started and simple Tabular models

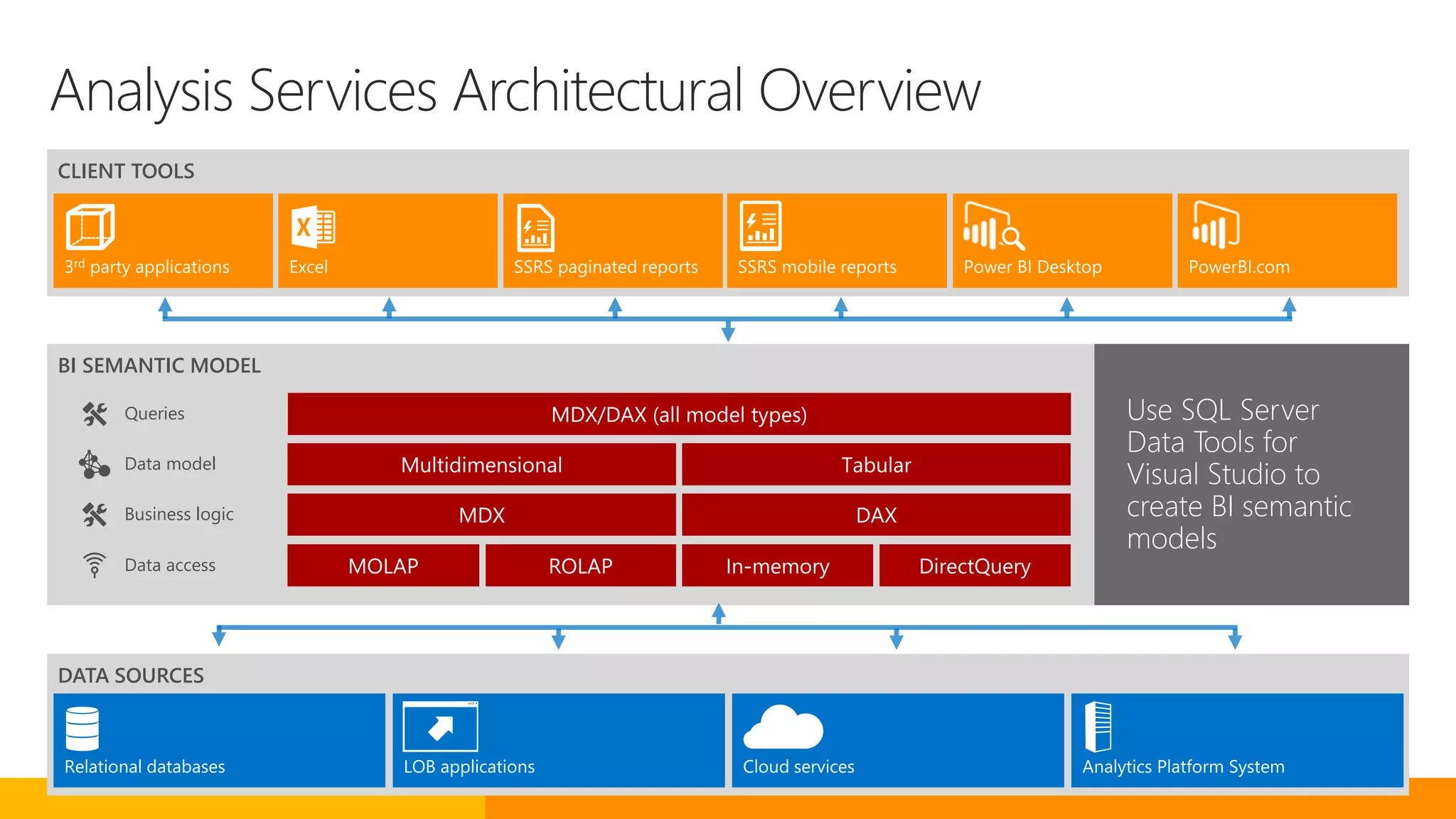

- 51. Analysis Services ArchitecturalOverview BI SEMANTIC MODEL Data access Use SQL Server Data Tools for Visual Studio to create BI semantic models DATA SOURCES CLIENT TOOLS Data model Business logic Queries

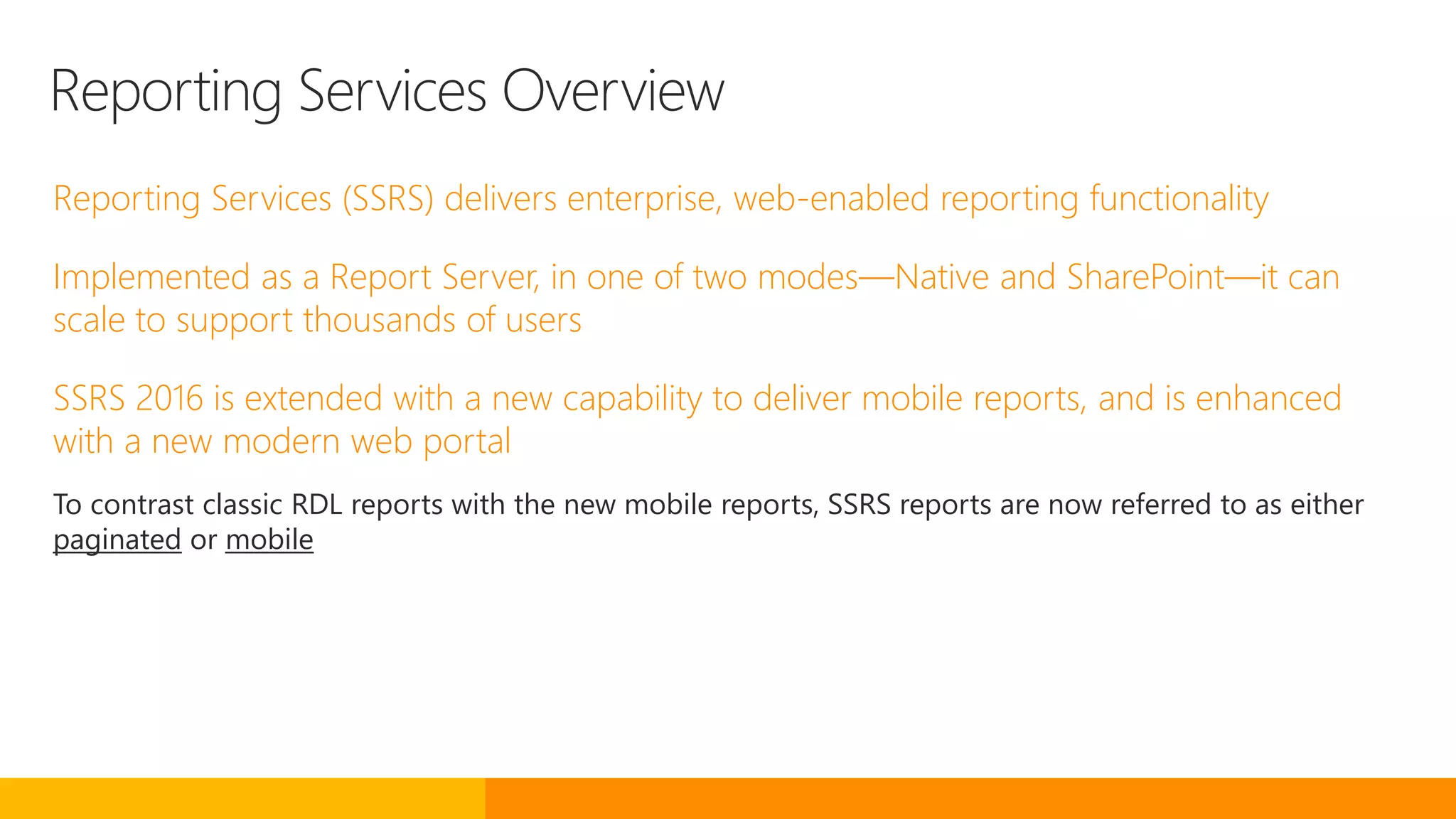

- 52. Reporting Services Overview ReportingServices (SSRS) delivers enterprise, web-enabled reporting functionality Implemented as a Report Server, in one of two modes—Native and SharePoint—it can scale to support thousands of users SSRS 2016 is extended with a new capability to deliver mobile reports, and is enhanced with a new modern web portal To contrast classic RDL reports with the new mobile reports, SSRS reports are now referred to as either paginated or mobile

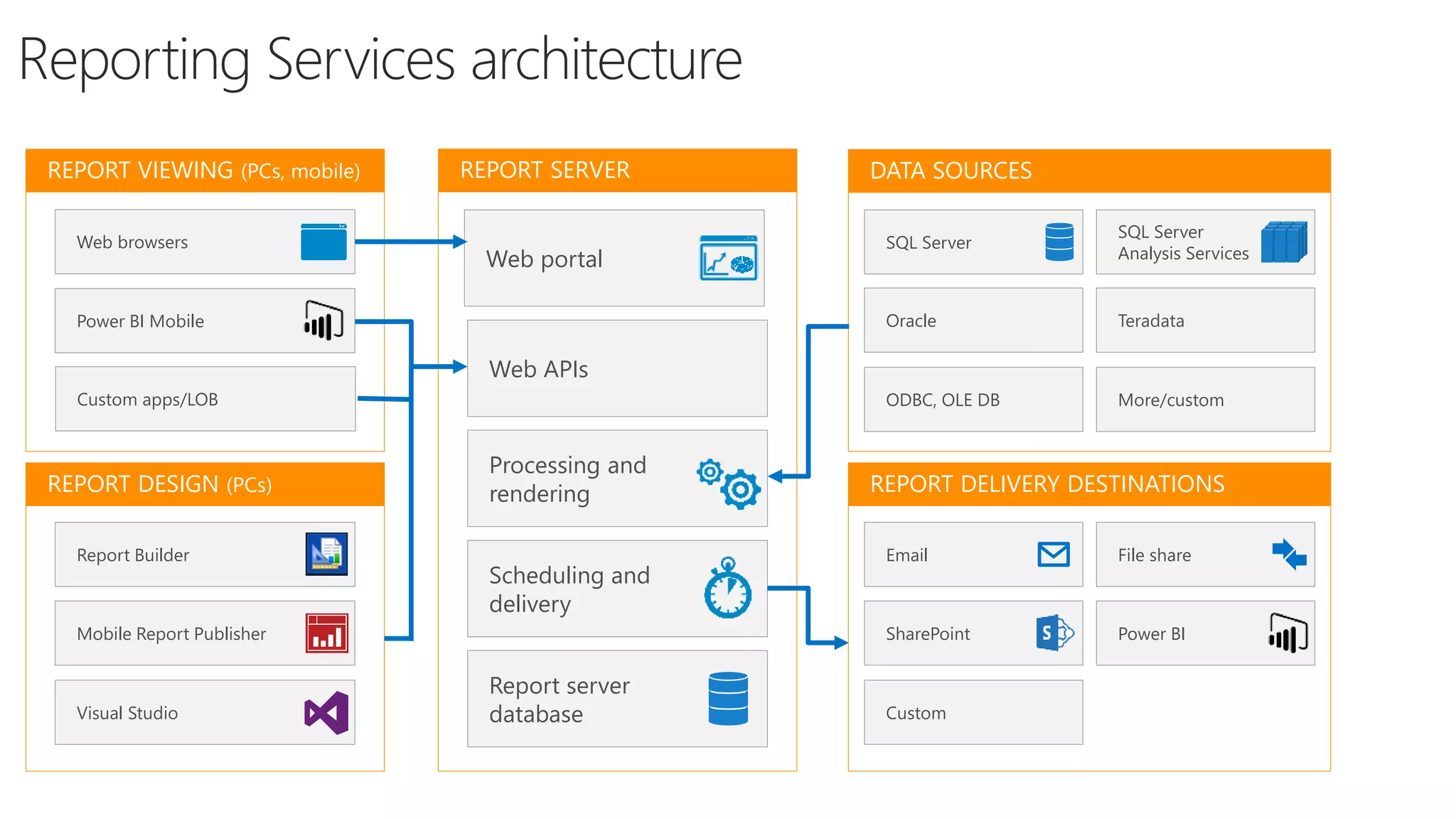

- 53. Reporting Services architecture WebAPIs Report server database Web portal Web browsers Power BI Mobile Report Builder Mobile Report Publisher Visual Studio SQL Server SQL Server Analysis Services Oracle Teradata ODBC, OLE DB More/custom Processing and rendering Scheduling and delivery Email File share SharePoint Power BI Custom REPORT VIEWING (PCs, mobile) REPORT DESIGN (PCs) REPORT SERVER DATA SOURCES REPORT DELIVERY DESTINATIONS Custom apps/LOB
- 54. SQL Server 2016 Enhancedanalysis Modern reports Rich tools Mobile reports Hybrid BI SharePoint 2016 support
- 55. New SSRS Features Supportsthe current versions of Microsoft.NET Framework 4 This includes 4.0 and 4.5.1 If no version of .NET Framework 4.x is installed, SQL Server setup installs .NET 4.0 during the feature installation Render paginated reports as PowerPoint files Text boxes and images render as PowerPoint text boxes and images Data visualizations render as images The PowerPoint slide layout can be adjusted to suit, by moving and resizing individual objects

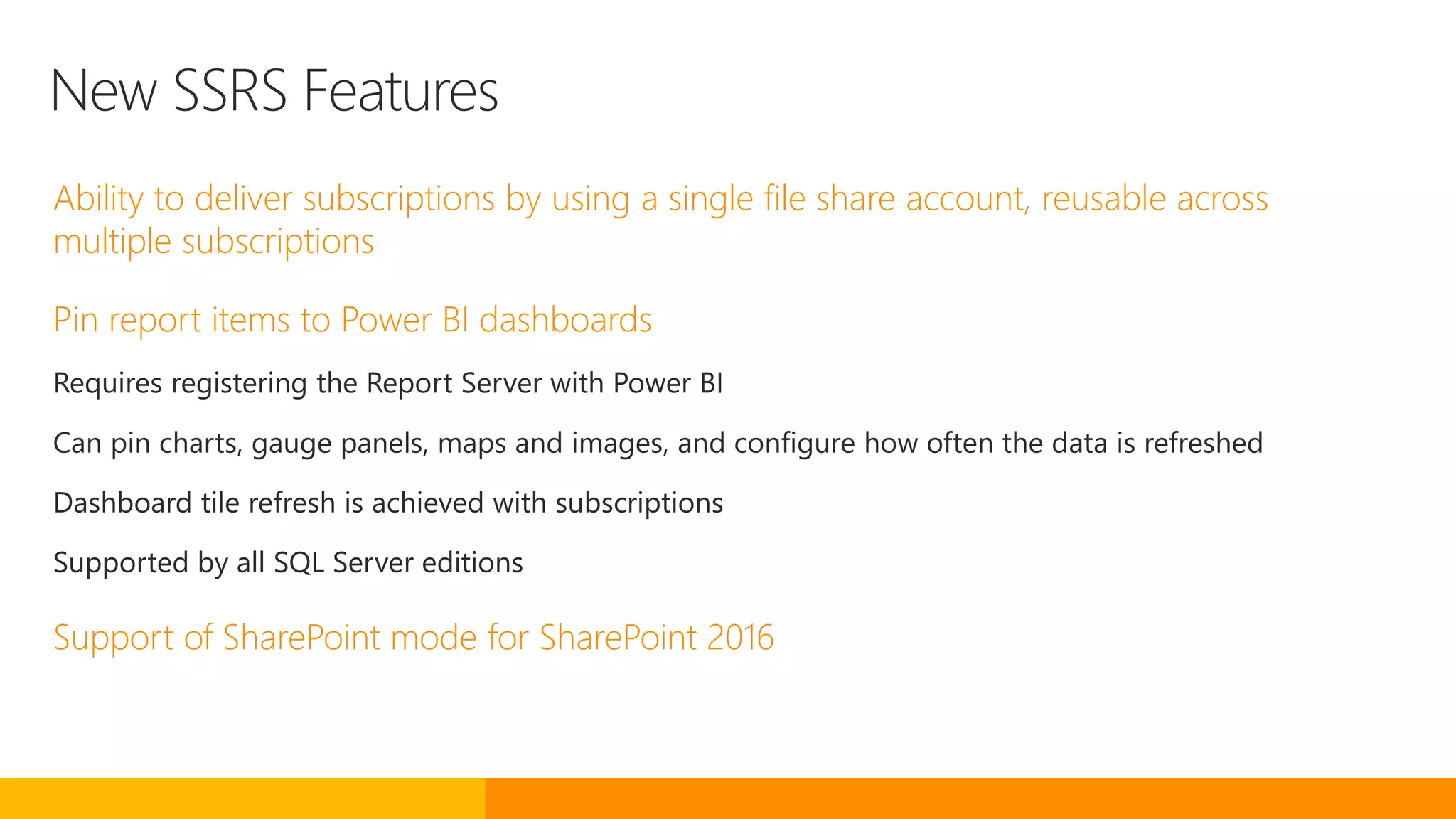

- 56. New SSRS Features Abilityto deliver subscriptions by using a single file share account, reusable across multiple subscriptions Pin report items to Power BI dashboards Requires registering the Report Server with Power BI Can pin charts, gauge panels, maps and images, and configure how often the data is refreshed Dashboard tile refresh is achieved with subscriptions Supported by all SQL Server editions Support of SharePoint mode for SharePoint 2016

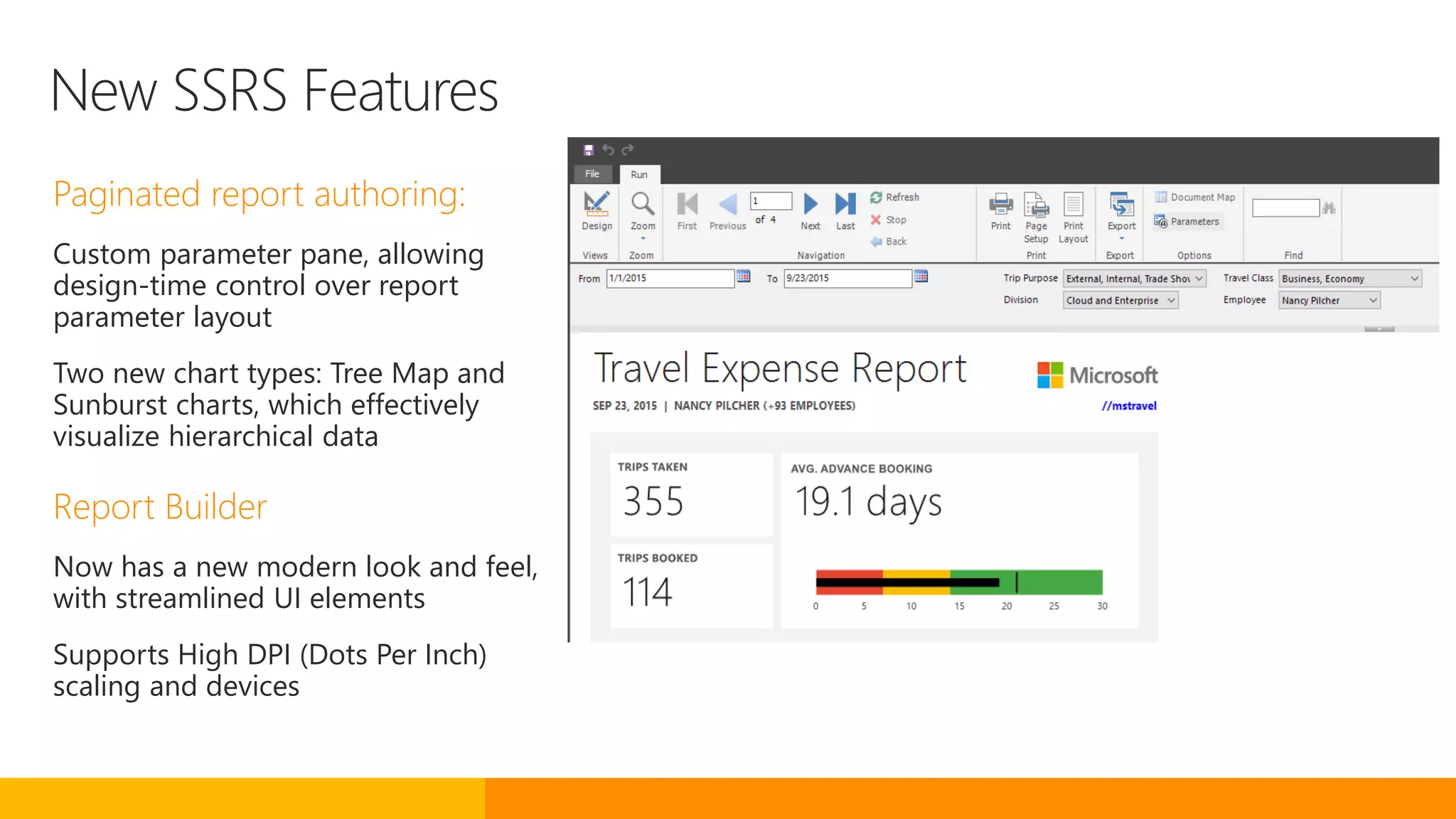

- 57. New SSRS Features Paginatedreport authoring: Custom parameter pane, allowing design-time control over report parameter layout Two new chart types: Tree Map and Sunburst charts, which effectively visualize hierarchical data Report Builder Now has a new modern look and feel, with streamlined UI elements Supports High DPI (Dots Per Inch) scaling and devices

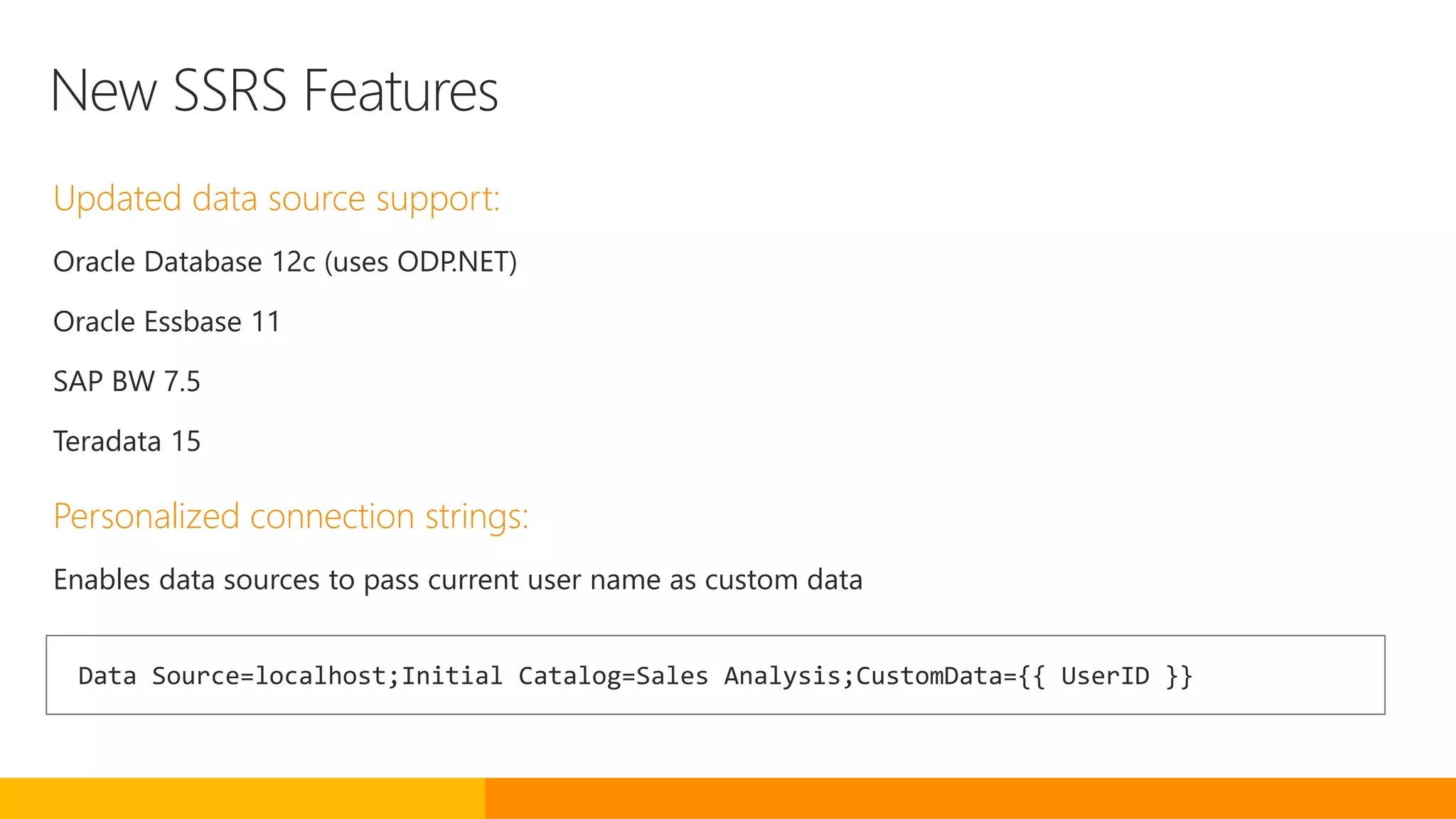

- 58. New SSRS Features Updateddata source support: Oracle Database 12c (uses ODP.NET) Oracle Essbase 11 SAP BW 7.5 Teradata 15 Personalized connection strings: Enables data sources to pass current user name as custom data Data Source=localhost;Initial Catalog=Sales Analysis;CustomData={{ UserID }}

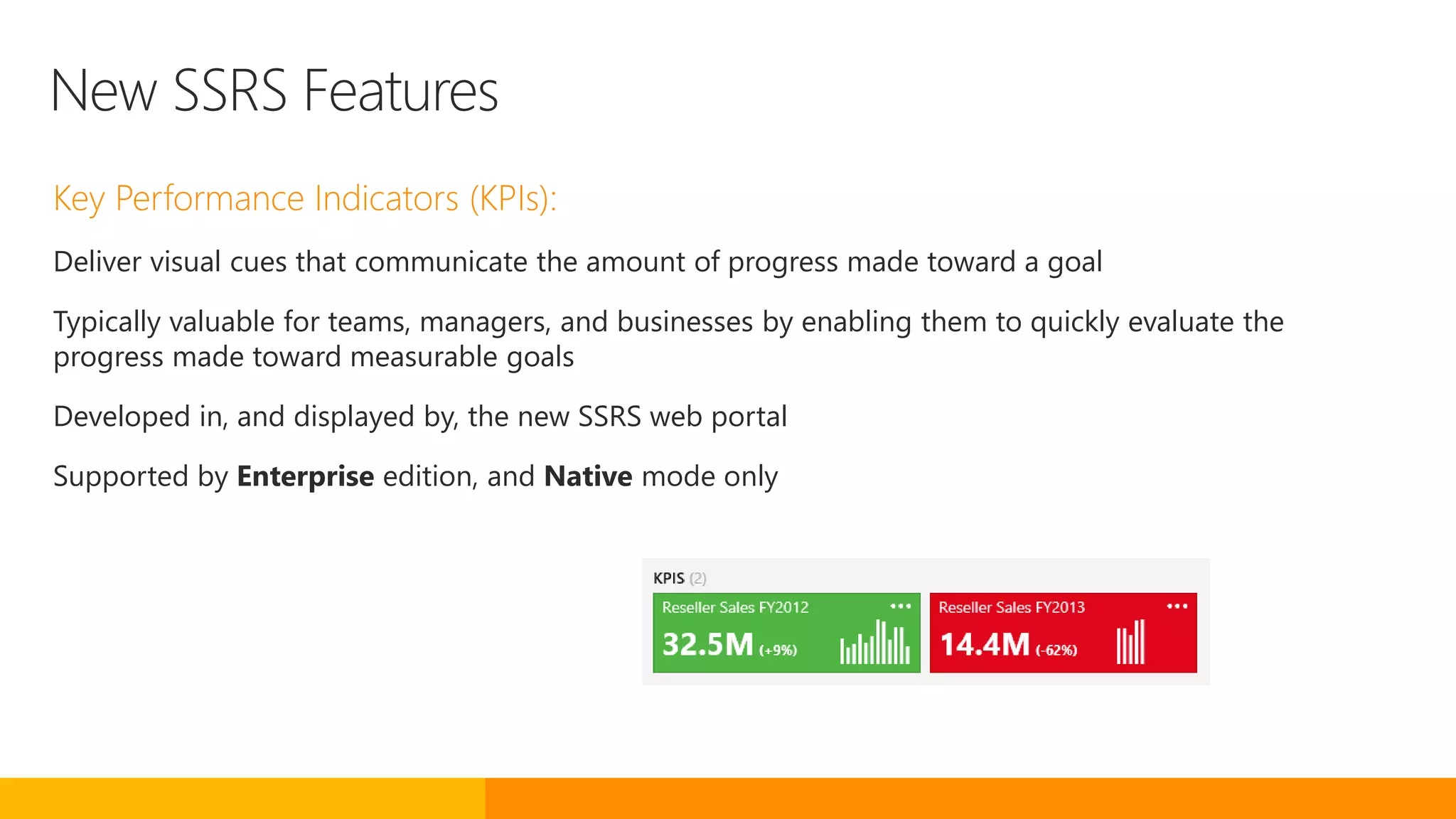

- 59. New SSRS Features KeyPerformance Indicators (KPIs): Deliver visual cues that communicate the amount of progress made toward a goal Typically valuable for teams, managers, and businesses by enabling them to quickly evaluate the progress made toward measurable goals Developed in, and displayed by, the new SSRS web portal Supported by Enterprise edition, and Native mode only

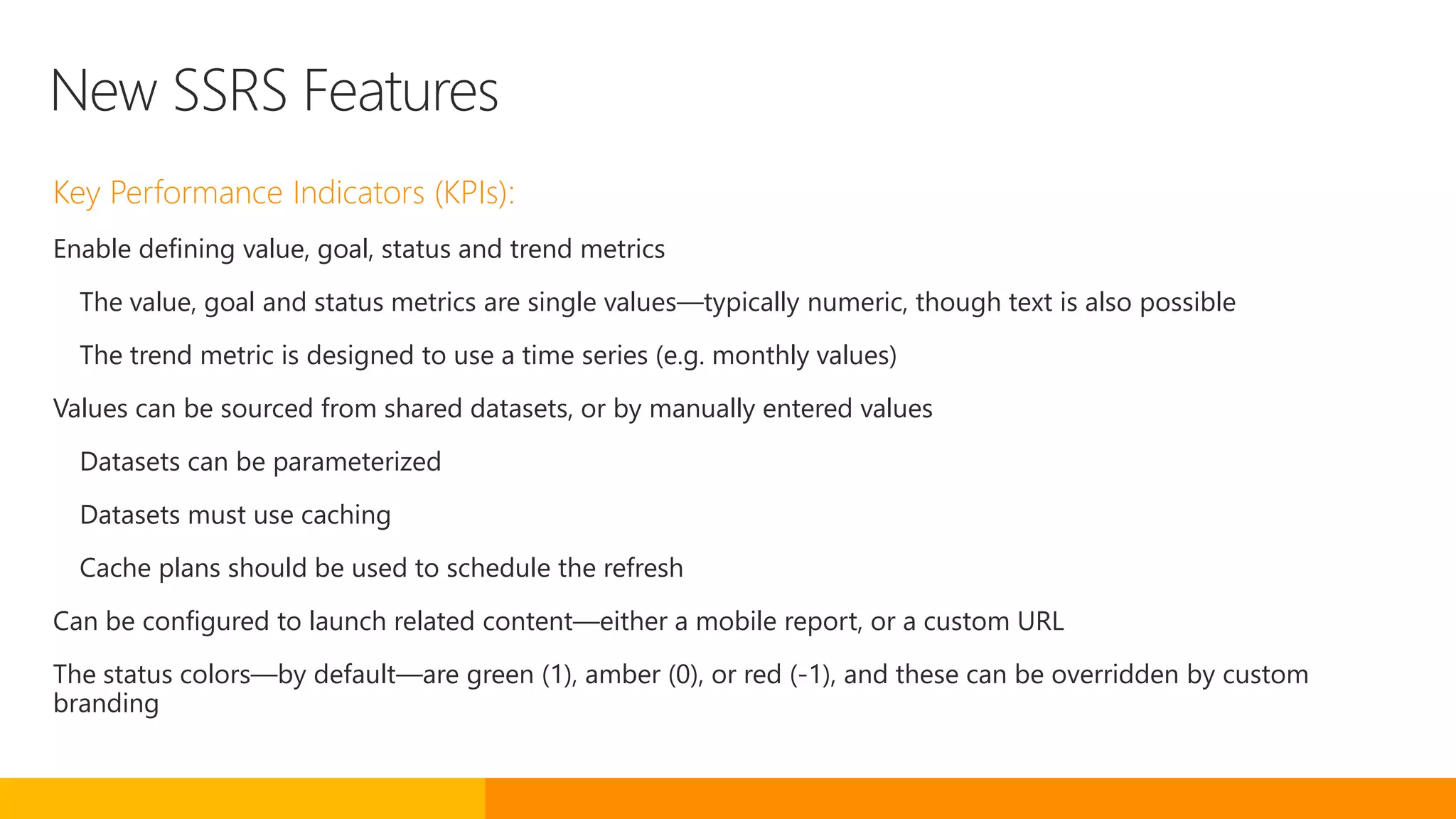

- 60. New SSRS Features KeyPerformance Indicators (KPIs): Enable defining value, goal, status and trend metrics The value, goal and status metrics are single values—typically numeric, though text is also possible The trend metric is designed to use a time series (e.g. monthly values) Values can be sourced from shared datasets, or by manually entered values Datasets can be parameterized Datasets must use caching Cache plans should be used to schedule the refresh Can be configured to launch related content—either a mobile report, or a custom URL The status colors—by default—are green (1), amber (0), or red (-1), and these can be overridden by custom branding

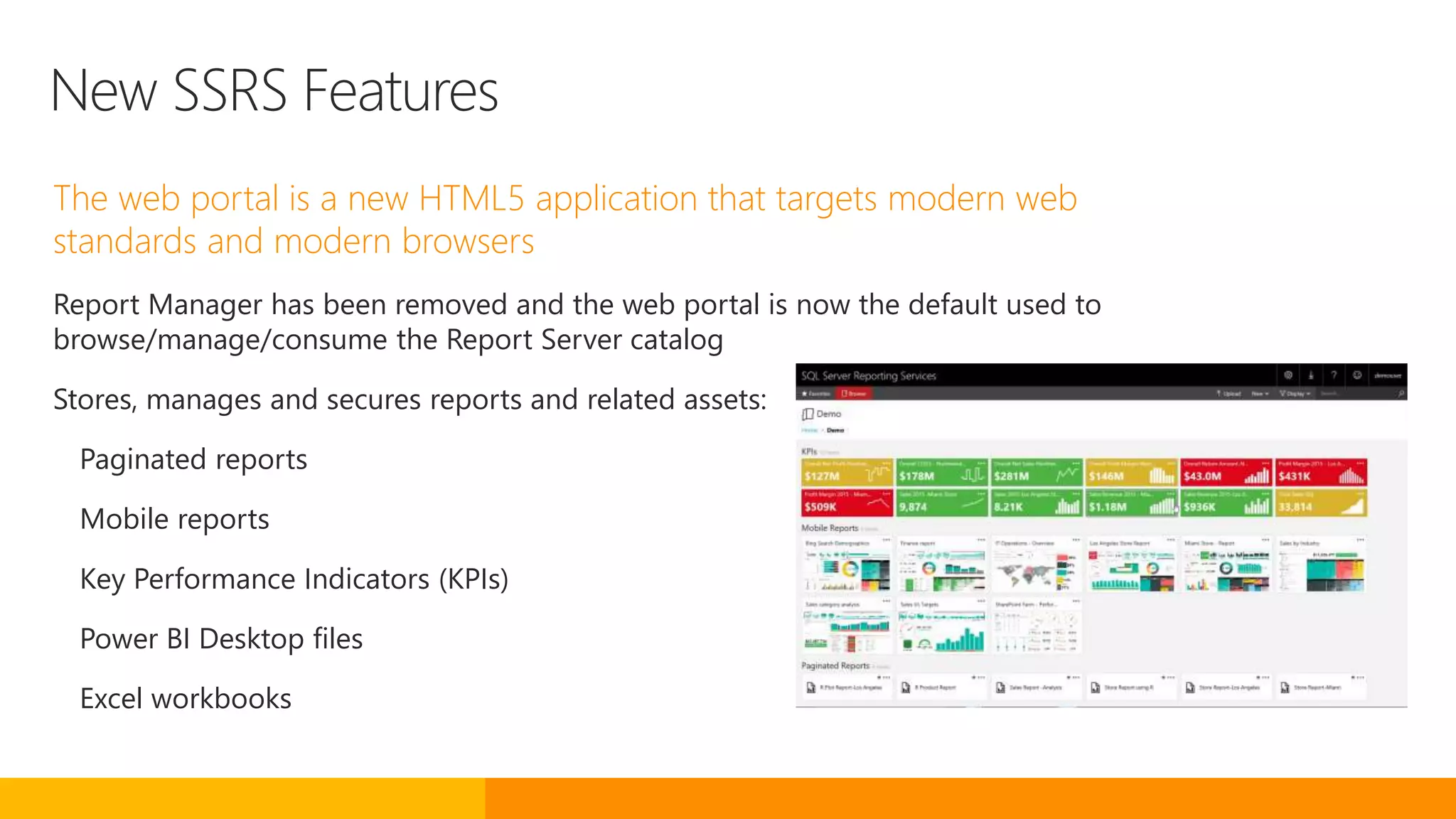

- 61. New SSRS Features Theweb portal is a new HTML5 application that targets modern web standards and modern browsers Report Manager has been removed and the web portal is now the default used to browse/manage/consume the Report Server catalog Stores, manages and secures reports and related assets: Paginated reports Mobile reports Key Performance Indicators (KPIs) Power BI Desktop files Excel workbooks

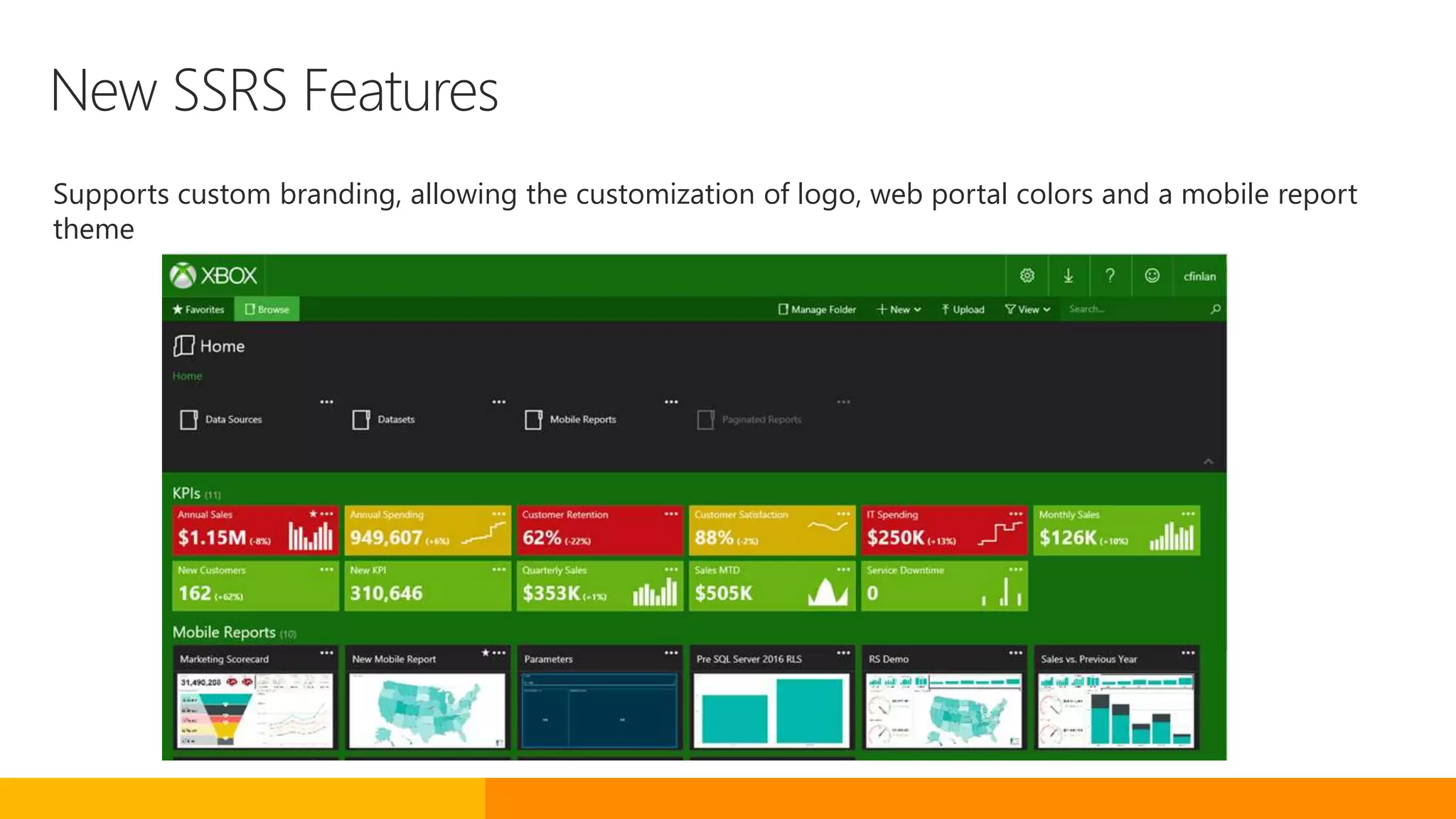

- 62. New SSRS Features Supportscustom branding, allowing the customization of logo, web portal colors and a mobile report theme
- 63. New SSRS Features PDFreplaces ActiveX for remote printing (plug-in free printing) New enhanced subscription management: Easily enable/disable Provide a description User can change the owner

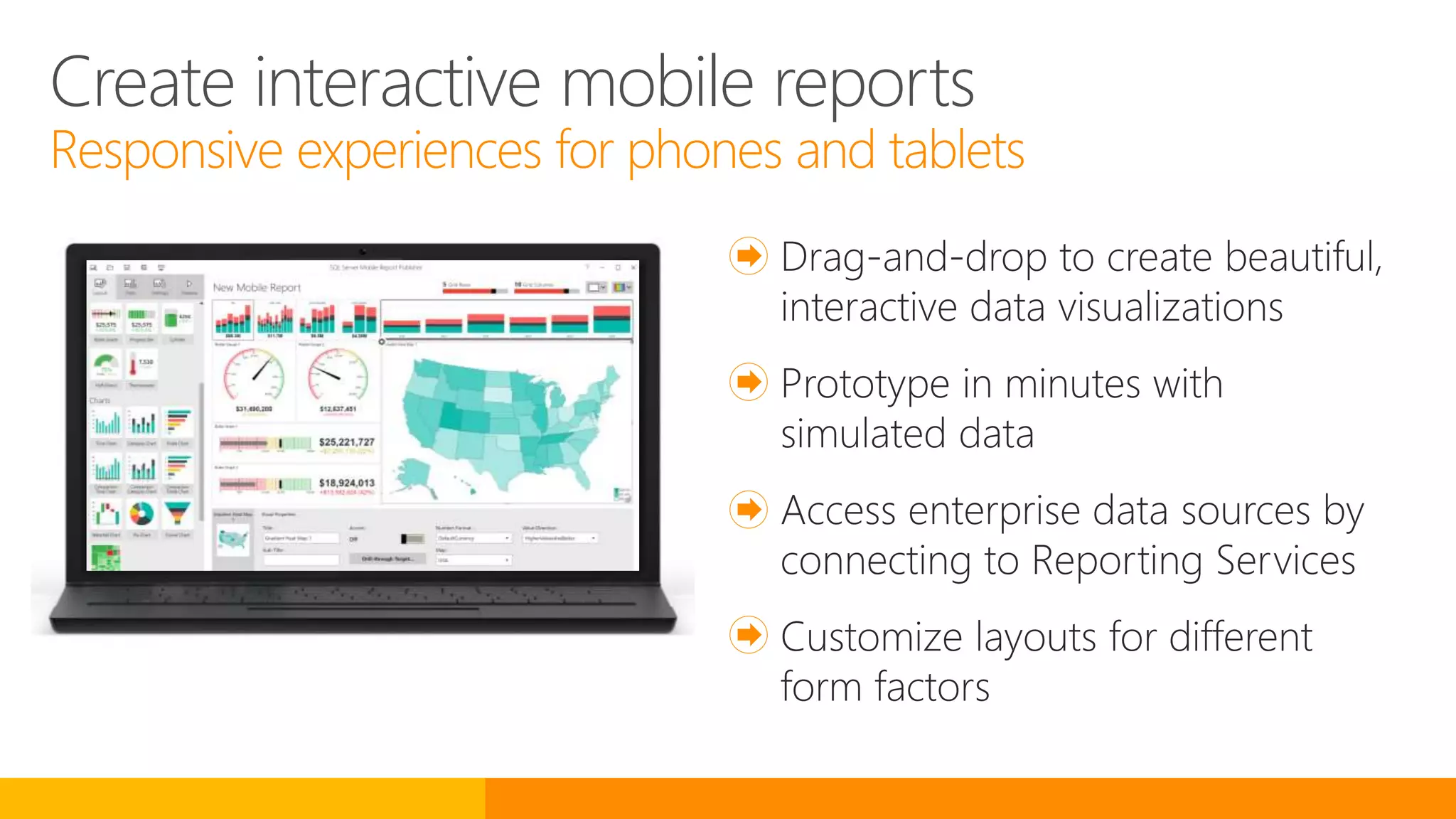

- 64. Create interactive mobilereports Responsive experiences for phones and tablets

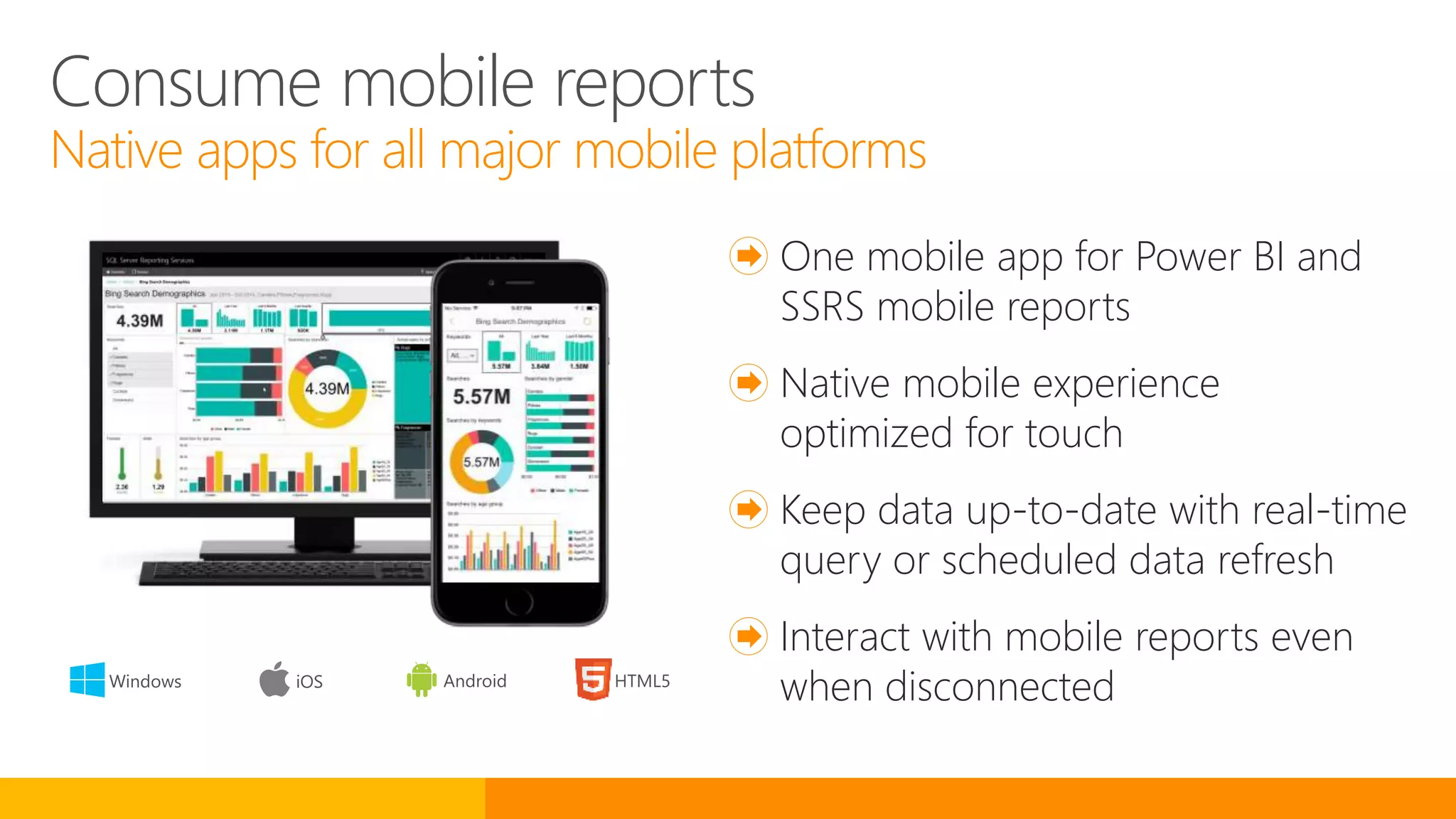

- 65. Consume mobile reports Nativeapps for all major mobile platforms One mobile app for Power BI and SSRS mobile reports Native mobile experience optimized for touch Keep data up-to-date with real-time query or scheduled data refresh Interact with mobile reports even when disconnected
- 66.

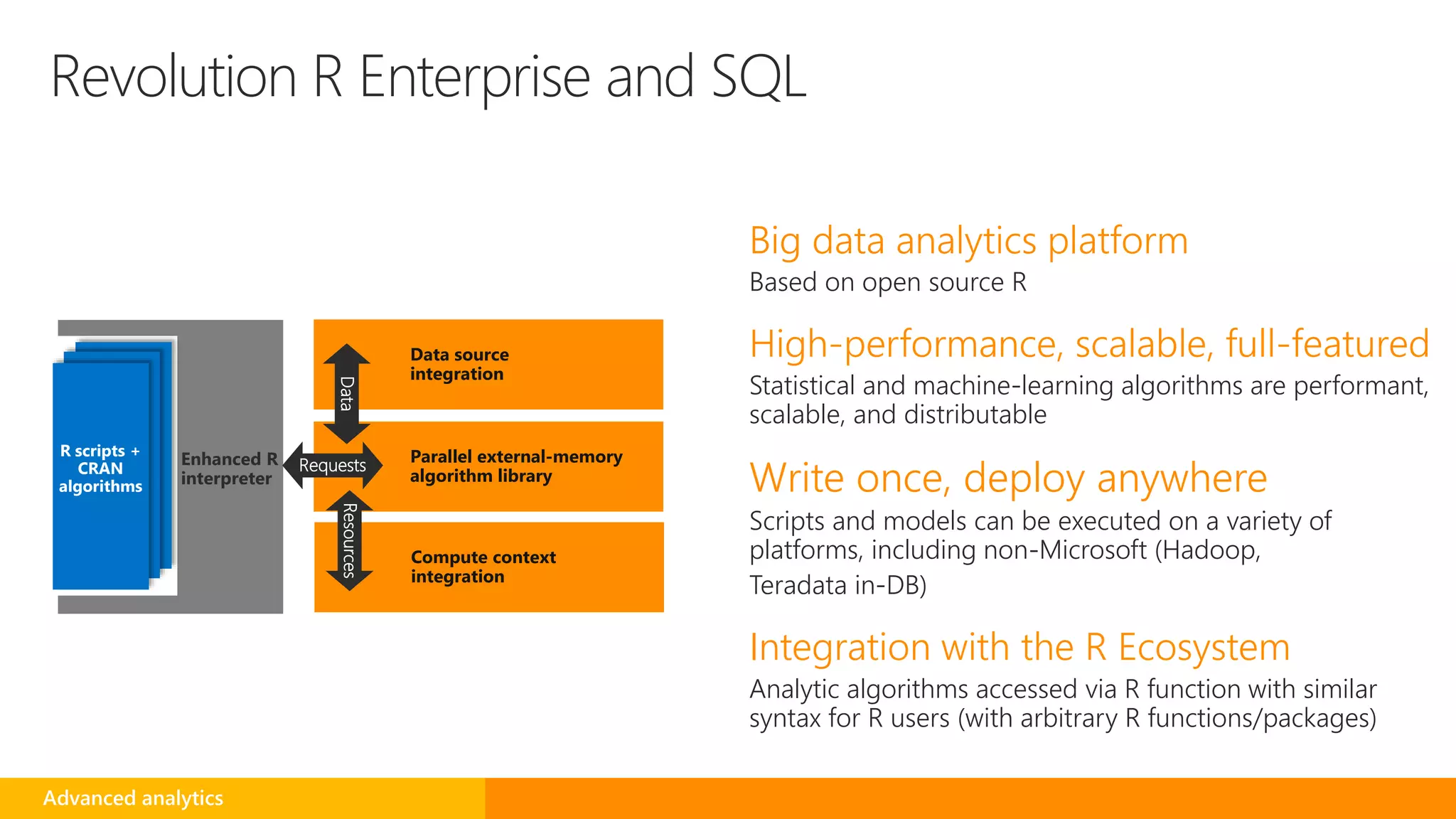

- 67. Revolution R Enterpriseand SQL Big data analytics platform Based on open source R High-performance, scalable, full-featured Statistical and machine-learning algorithms are performant, scalable, and distributable Write once, deploy anywhere Scripts and models can be executed on a variety of platforms, including non-Microsoft (Hadoop, Teradata in-DB) Integration with the R Ecosystem Analytic algorithms accessed via R function with similar syntax for R users (with arbitrary R functions/packages) Advanced analytics Data source integration Parallel external-memory algorithm library Data Compute context integration Resources Requests R scripts + CRAN algorithms

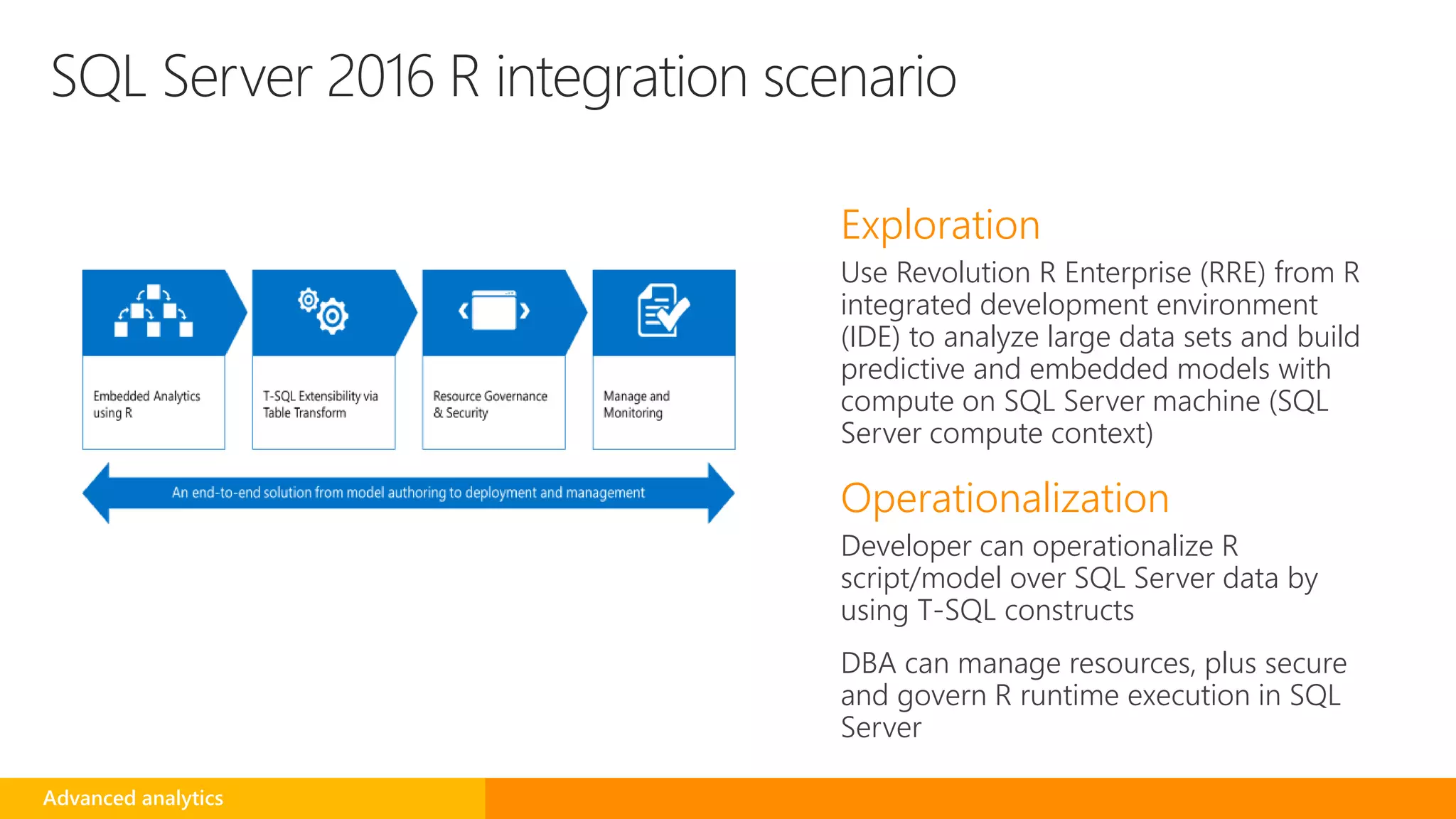

- 68. SQL Server 2016R integration scenario Exploration Use Revolution R Enterprise (RRE) from R integrated development environment (IDE) to analyze large data sets and build predictive and embedded models with compute on SQL Server machine (SQL Server compute context) Operationalization Developer can operationalize R script/model over SQL Server data by using T-SQL constructs DBA can manage resources, plus secure and govern R runtime execution in SQL Server Advanced analytics

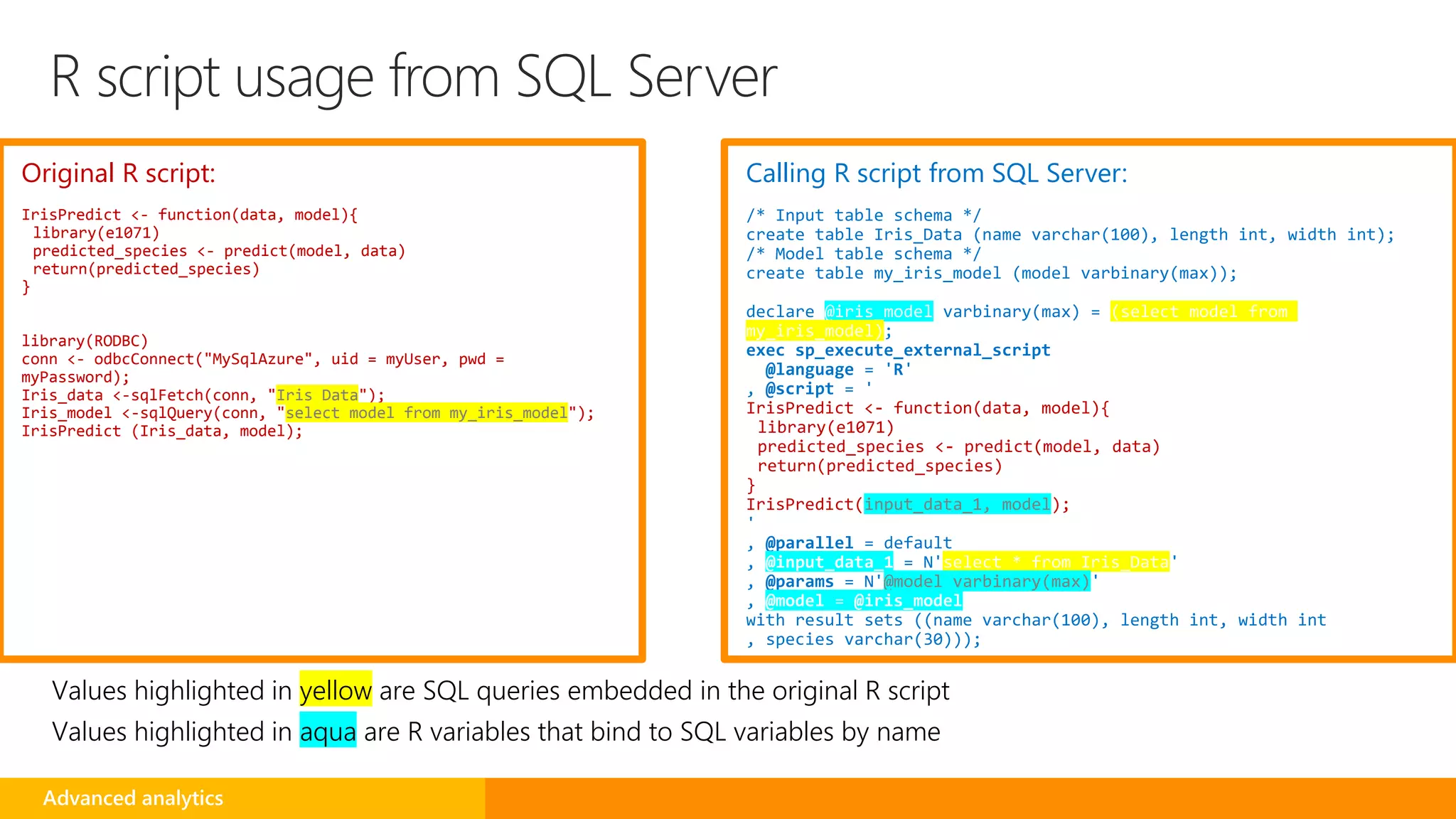

- 69. R script usagefrom SQL Server Original R script: IrisPredict <- function(data, model){ library(e1071) predicted_species <- predict(model, data) return(predicted_species) } library(RODBC) conn <- odbcConnect("MySqlAzure", uid = myUser, pwd = myPassword); Iris_data <-sqlFetch(conn, "Iris_Data"); Iris_model <-sqlQuery(conn, "select model from my_iris_model"); IrisPredict (Iris_data, model); Calling R script from SQL Server: /* Input table schema */ create table Iris_Data (name varchar(100), length int, width int); /* Model table schema */ create table my_iris_model (model varbinary(max)); declare @iris_model varbinary(max) = (select model from my_iris_model); exec sp_execute_external_script @language = 'R' , @script = ' IrisPredict <- function(data, model){ library(e1071) predicted_species <- predict(model, data) return(predicted_species) } IrisPredict(input_data_1, model); ' , @parallel = default , @input_data_1 = N'select * from Iris_Data' , @params = N'@model varbinary(max)' , @model = @iris_model with result sets ((name varchar(100), length int, width int , species varchar(30))); Values highlighted in yellow are SQL queries embedded in the original R script Values highlighted in aqua are R variables that bind to SQL variables by name Advanced analytics

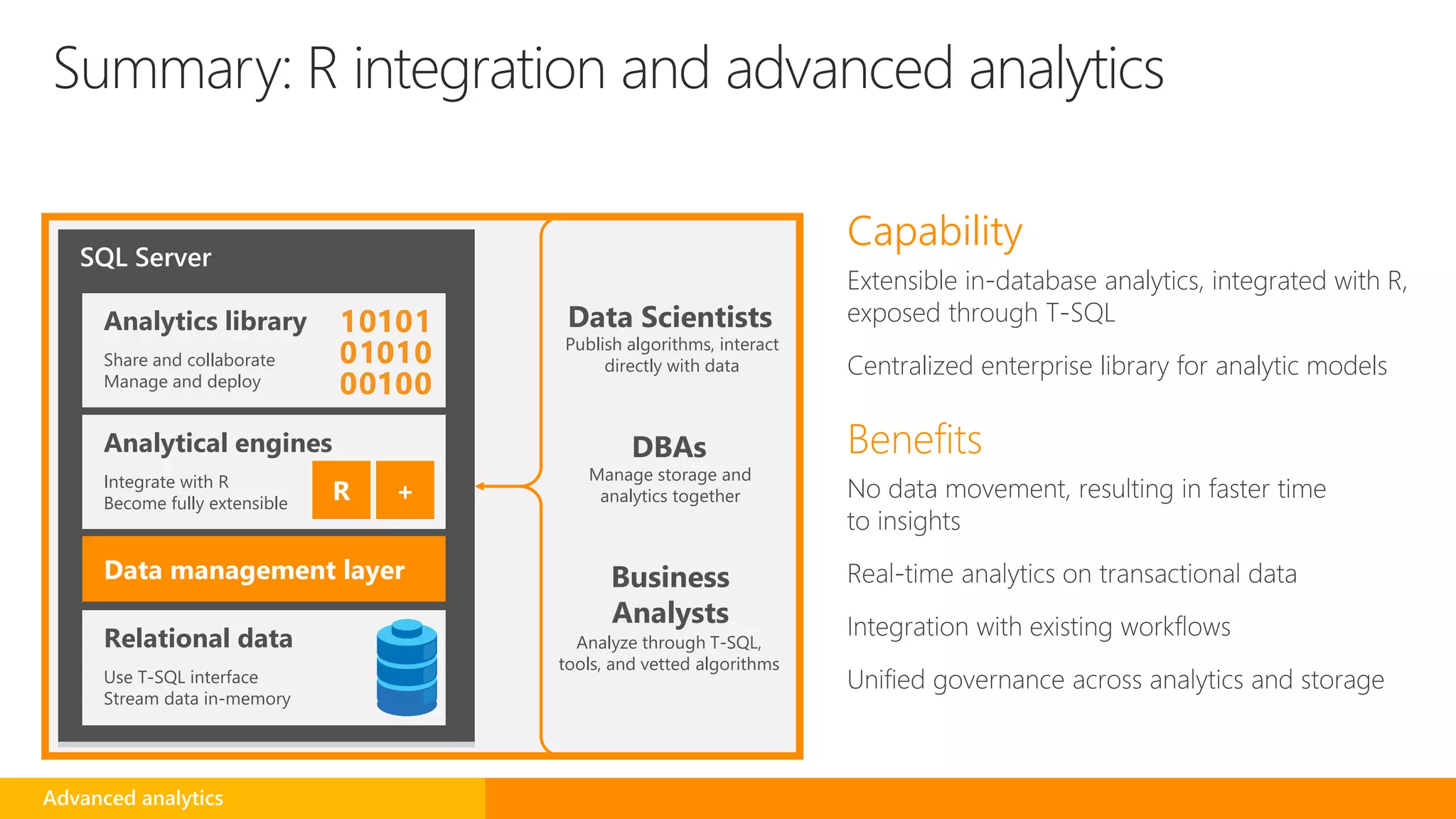

- 70. Capability Extensible in-database analytics,integrated with R, exposed through T-SQL Centralized enterprise library for analytic models Benefits SQL Server Analytical engines Integrate with R Become fully extensible Data management layer Relational data Use T-SQL interface Stream data in-memory Analytics library Share and collaborate Manage and deploy R + Data Scientists Business Analysts Publish algorithms, interact directly with data Analyze through T-SQL, tools, and vetted algorithms DBAs Manage storage and analytics together Summary: R integration and advanced analytics Advanced analytics
- 71.
- 72. Ever-growing data, ever-shrinkingIT What to do? Expand server and storage Move data elsewhere Delete Massive tables (hundreds of millions/billions of rows, TBs size) Users want/need to retain data indefinitely Cold data infrequently accessed but must be online Datacenter consolidation Maintenance challenges Business SLAs at risk Hybrid solutions

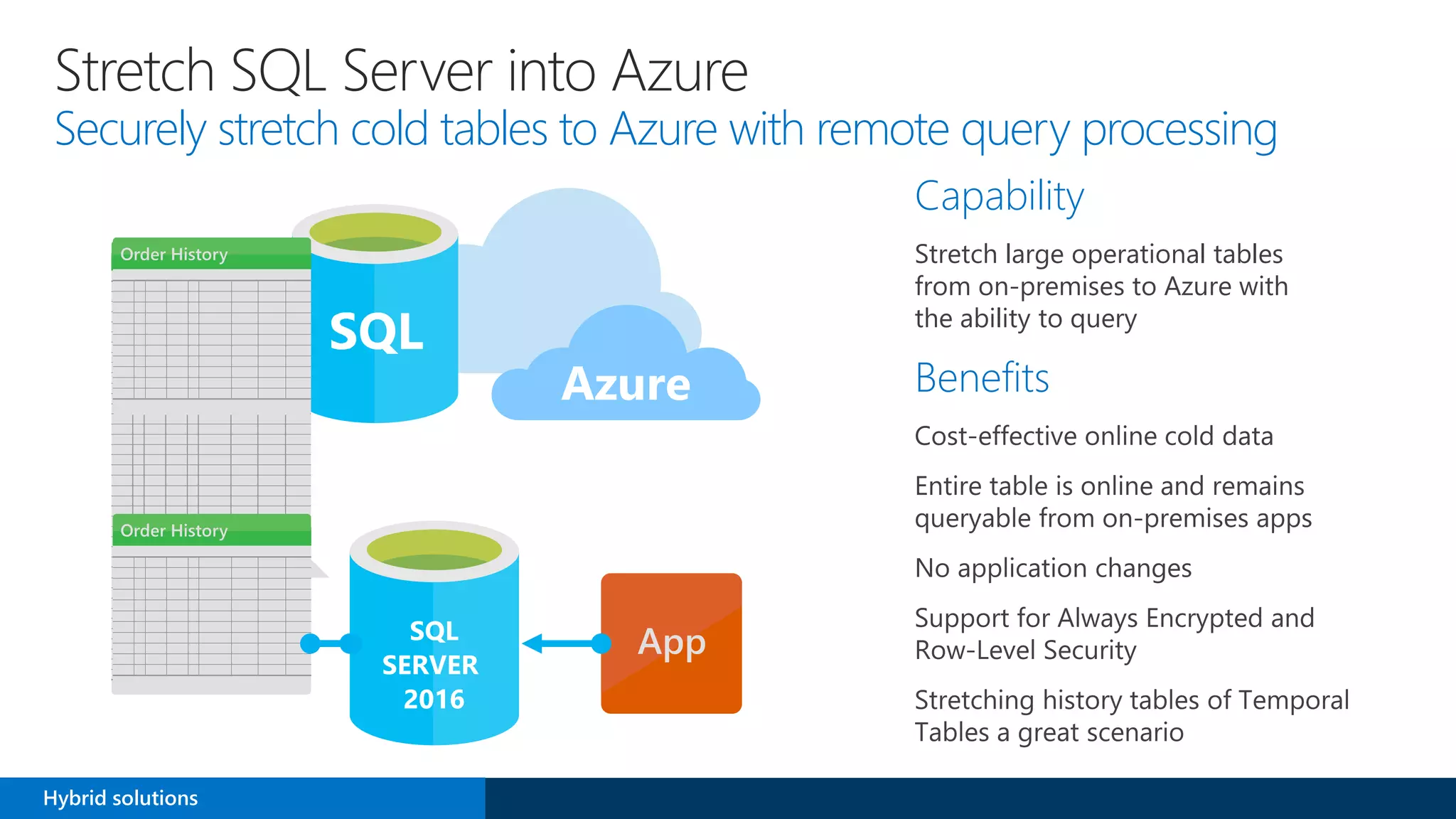

- 73. Capability Stretch large operationaltables from on-premises to Azure with the ability to query Benefits Stretch SQL Server into Azure Securely stretch cold tables to Azure with remote query processing SQL SERVER 2016 Azure Hybrid solutions

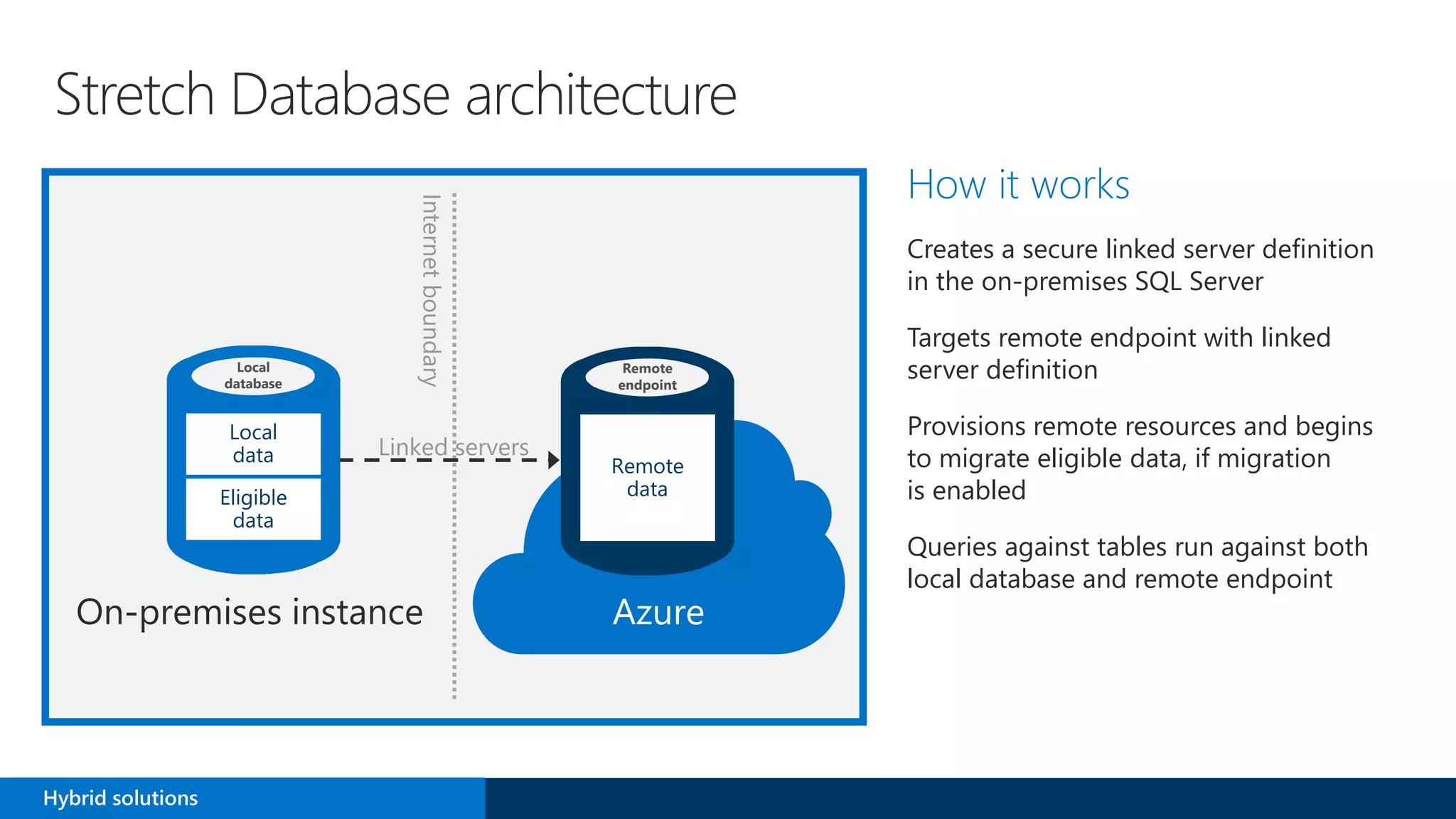

- 74. Stretch Database architecture Howit works Creates a secure linked server definition in the on-premises SQL Server Targets remote endpoint with linked server definition Provisions remote resources and begins to migrate eligible data, if migration is enabled Queries against tables run against both local database and remote endpoint Remote endpoint Remote data Azure Internetboundary Local database Local data Eligible data Linked servers Hybrid solutions

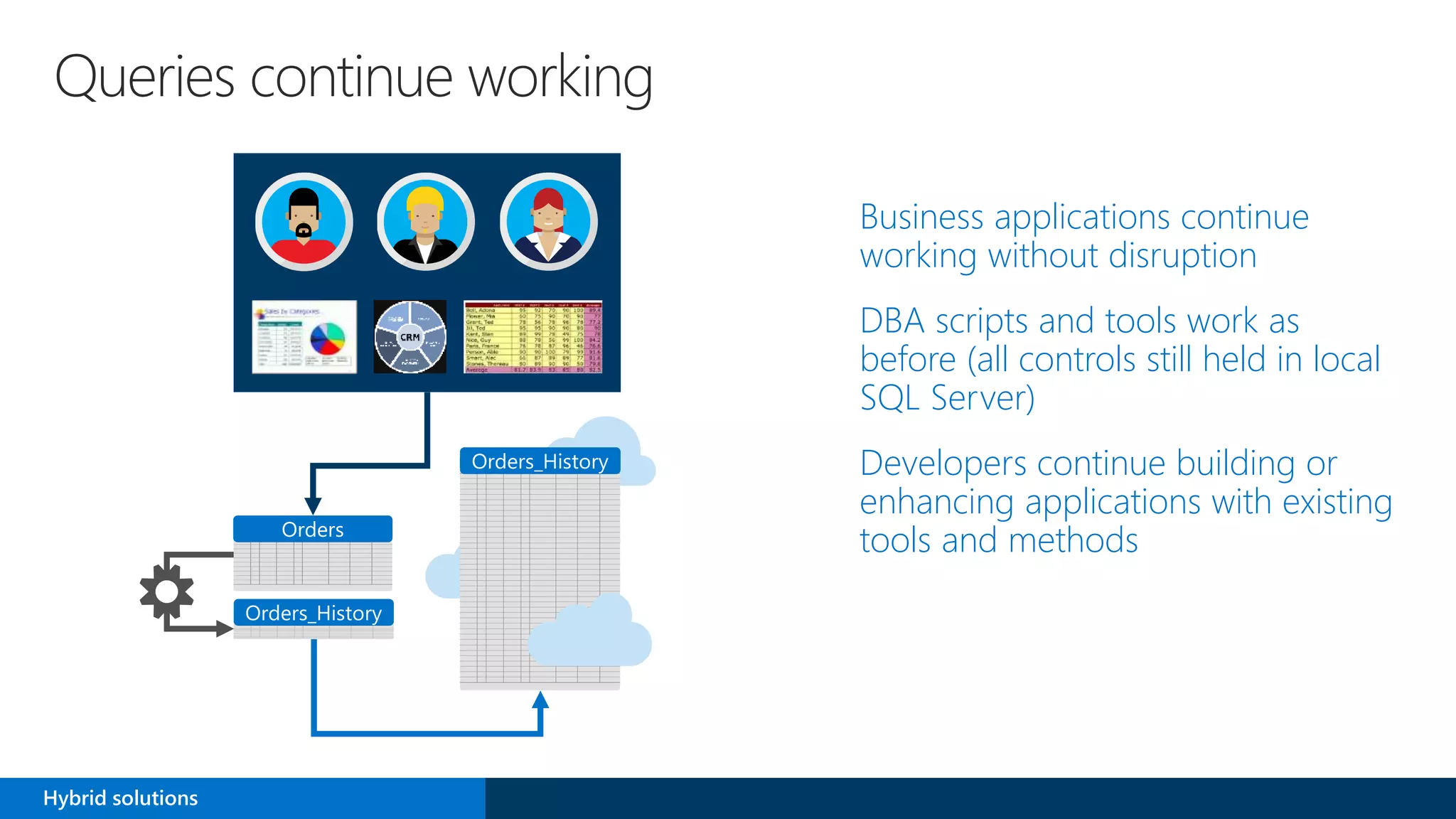

- 75. Queries continue working Businessapplications continue working without disruption DBA scripts and tools work as before (all controls still held in local SQL Server) Developers continue building or enhancing applications with existing tools and methods Hybrid solutions

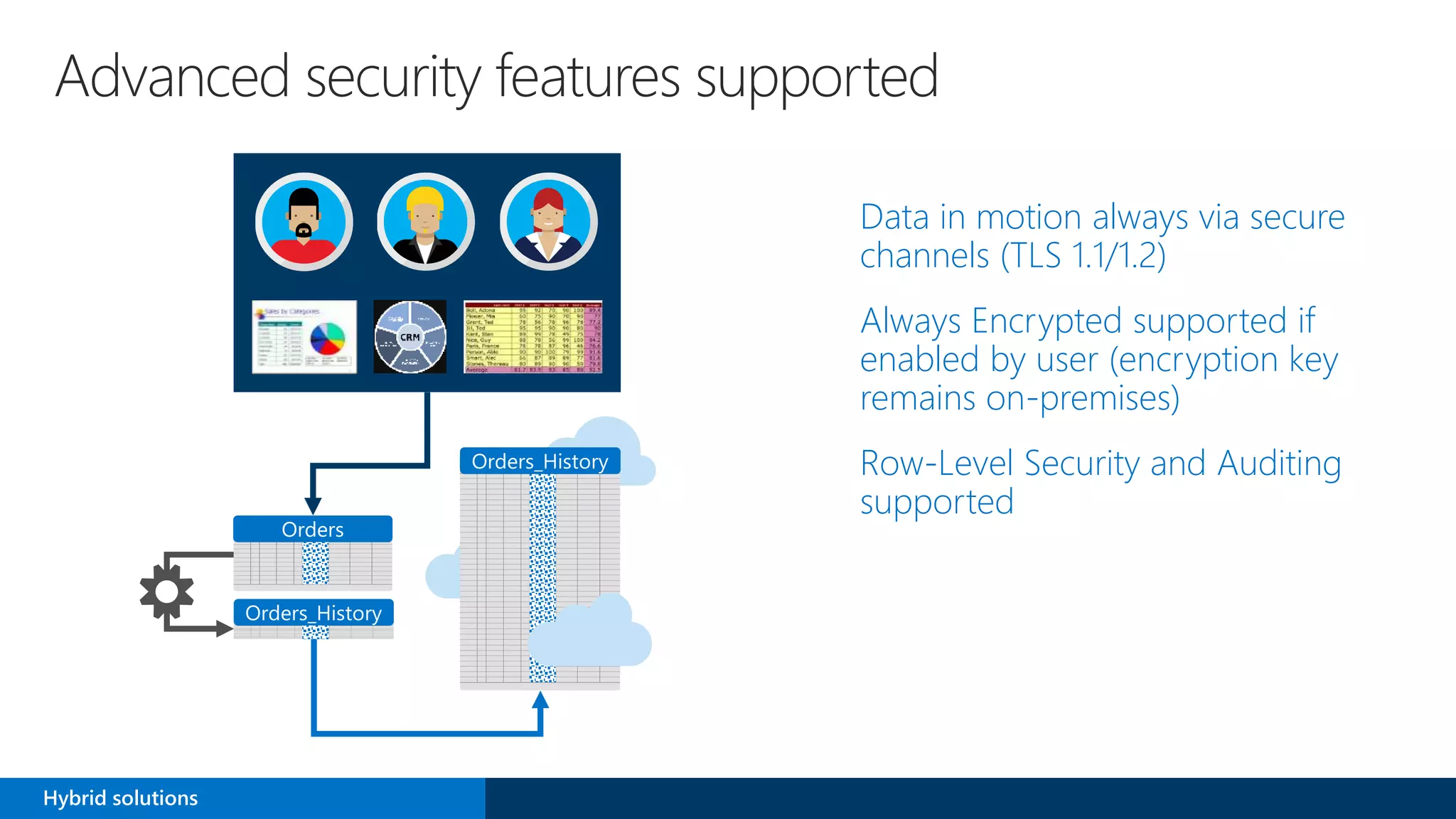

- 76. Advanced security featuressupported Data in motion always via secure channels (TLS 1.1/1.2) Always Encrypted supported if enabled by user (encryption key remains on-premises) Row-Level Security and Auditing supported Hybrid solutions

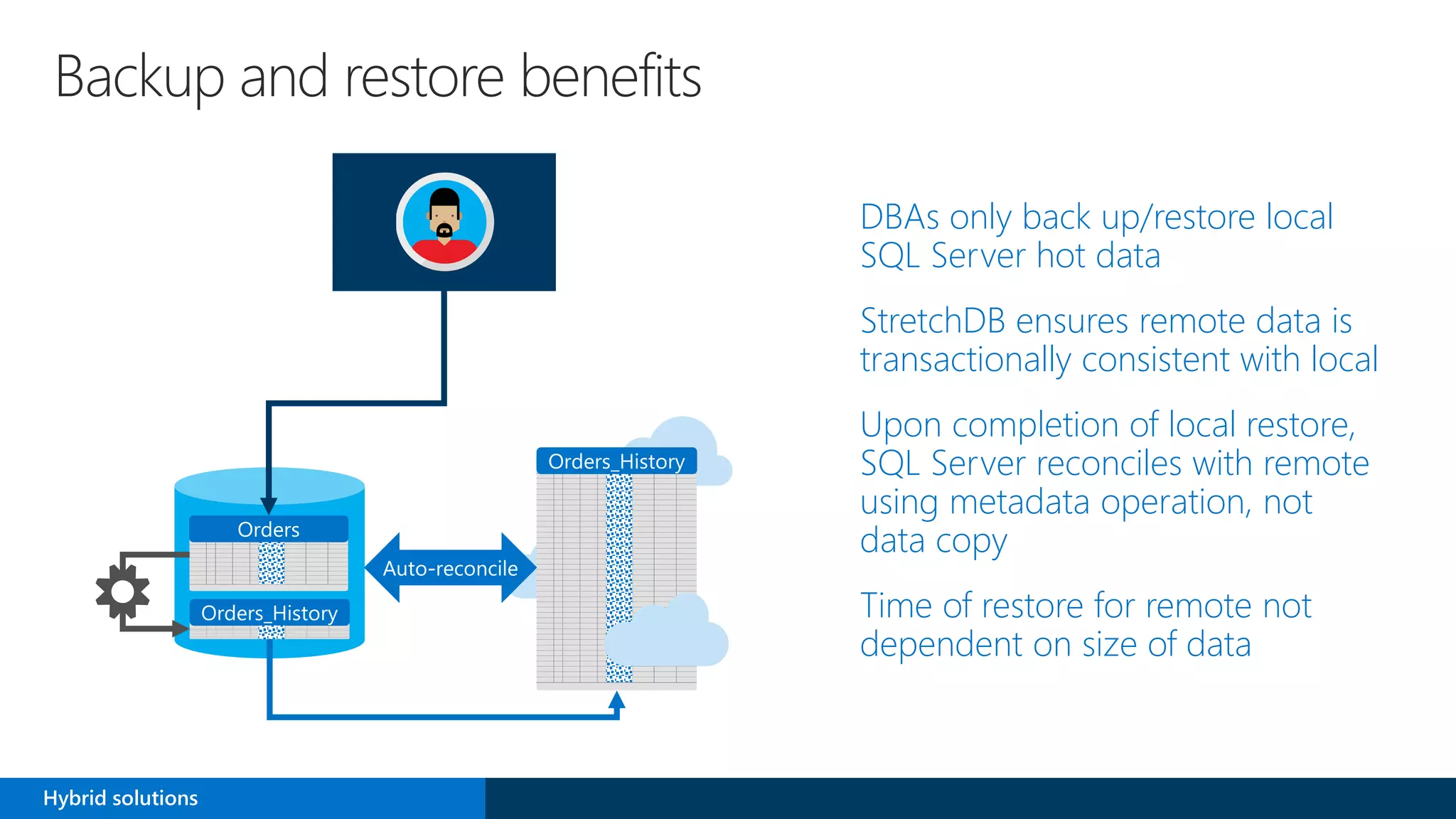

- 77. Backup and restorebenefits Hybrid solutions DBAs only back up/restore local SQL Server hot data StretchDB ensures remote data is transactionally consistent with local Upon completion of local restore, SQL Server reconciles with remote using metadata operation, not data copy Time of restore for remote not dependent on size of data

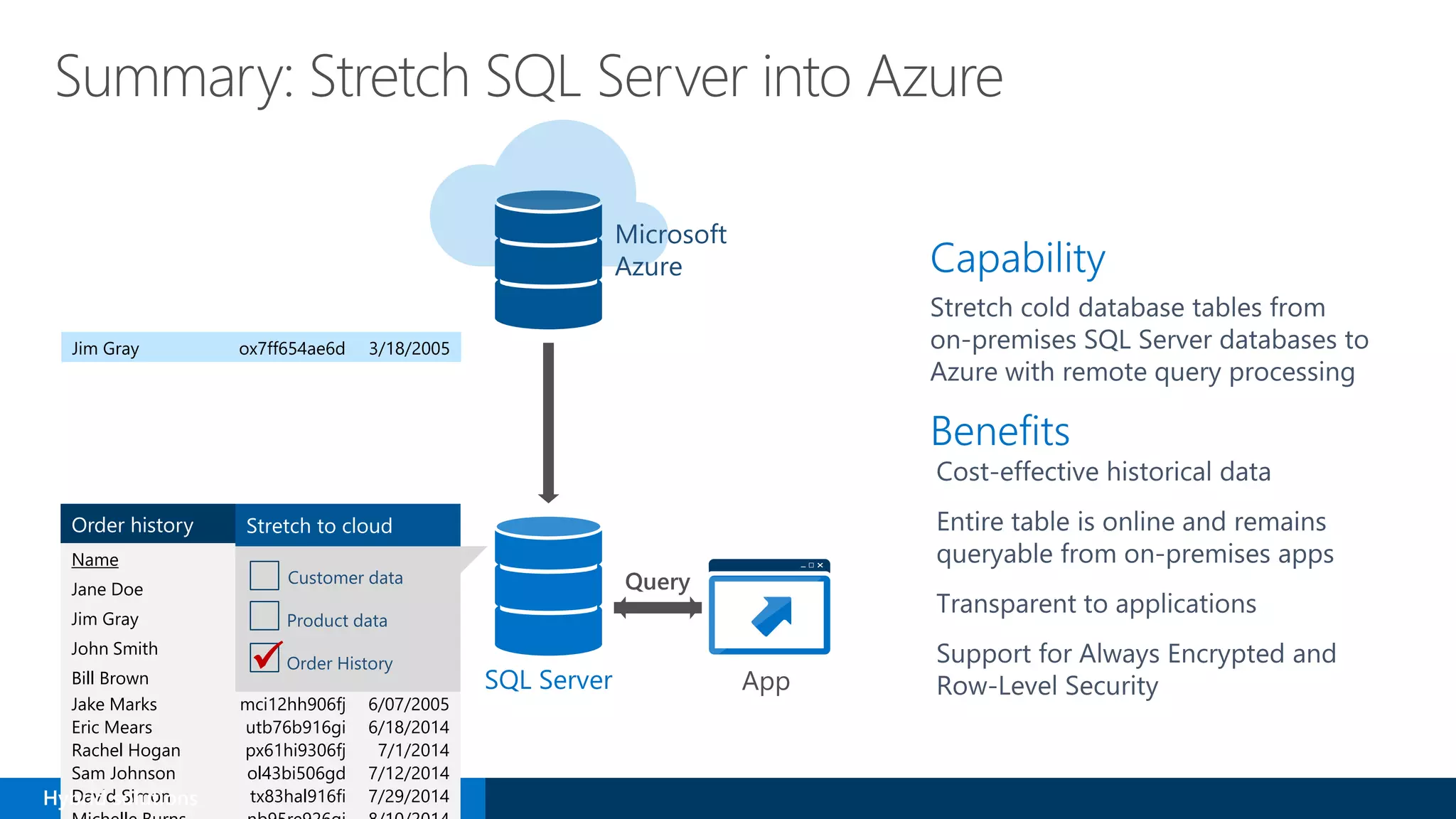

- 78. Order history Name SSNDate Jane Doe cm61ba906fd 2/28/2005 Jim Gray ox7ff654ae6d 3/18/2005 John Smith i2y36cg776rg 4/10/2005 Bill Brown nx290pldo90l 4/27/2005 Sue Daniels ypo85ba616rj 5/12/2005 Sarah Jones bns51ra806fd 5/22/2005 Jake Marks mci12hh906fj 6/07/2005 Eric Mears utb76b916gi 6/18/2014 Rachel Hogan px61hi9306fj 7/1/2014 Sam Johnson ol43bi506gd 7/12/2014 David Simon tx83hal916fi 7/29/2014 Order history Name SSN Date Jane Doe cm61ba906fd 2/28/2005 Jim Gray ox7ff654ae6d 3/18/2005 John Smith i2y36cg776rg 4/10/2005 Bill Brown nx290pldo90l 4/27/2005 Customer data Product data Order History Stretch to cloud App Query Microsoft Azure Jim Gray ox7ff654ae6d 3/18/2005 Hybrid solutions
