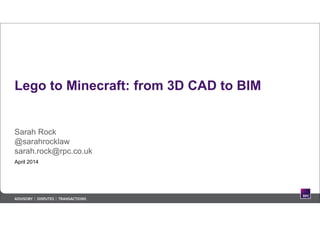

Lego to Minecraft: from 3D CAD to BIM
April 2014
Sarah Rock
@sarahrocklaw
sarah.rock@rpc.co.uk

2 April 2014Lego to Minecraft: from 3D CAD to BIM

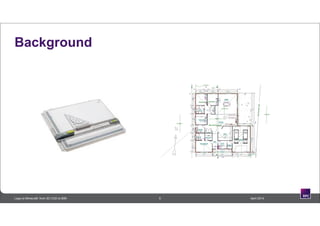

Background

Protocol

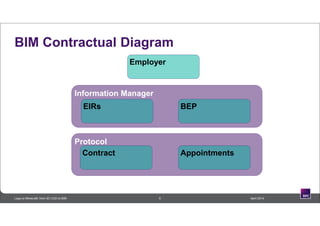

BIM Contractual Diagram
Employer
Information Manager
EIRs BEP
AppointmentsContract

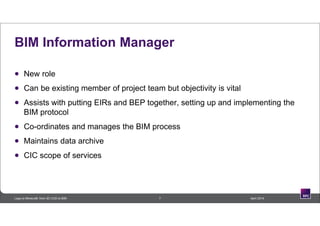

BIM Information Manager
 New role
 Can be existing member of project team but objectivity is vital
 Assists with putting EIRs and BEP together, setting up and implementing the
BIM protocol
 Co-ordinates and manages the BIM process
 Maintains data archive
 CIC scope of services

Employer’s Information Requirements
 Software platforms
 Data exchange format
 Co-ordinates
 Level of detail (general)
 Level of detail (components)
 Training
 Standards
 Stakeholder roles and
responsibilities
 Planning the work and data
segregation
 Security
 Coordination and clash
detection process
 Collaboration process
 Model review meetings
 Health and safety and
construction and design
management
 System performance
constraints
 Compliance plan
 Delivery strategy for assets
information
 Timing of data drops
 Clients strategic purpose
 Defined BIM/project
deliverables
 BIM-specific competence
assessment
Technical Management Commercial

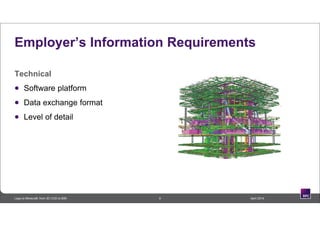

Technical
 Software platform
 Data exchange format
 Level of detail

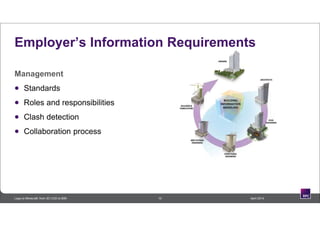

Management
 Standards
 Roles and responsibilities
 Clash detection
 Collaboration process

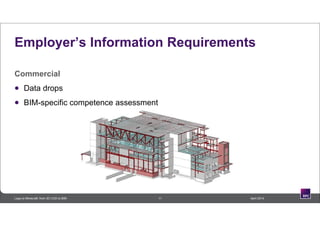

Commercial
 Data drops
 BIM-specific competence assessment

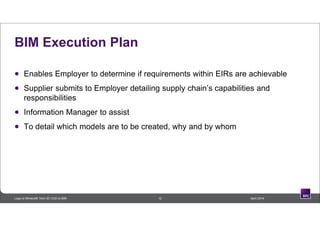

BIM Execution Plan
 Enables Employer to determine if requirements within EIRs are achievable
 Supplier submits to Employer detailing supply chain’s capabilities and
responsibilities
 Information Manager to assist
 To detail which models are to be created, why and by whom

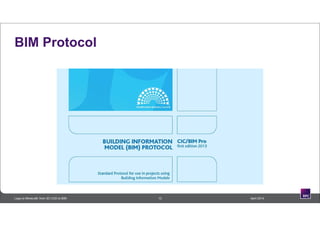

BIM Protocol

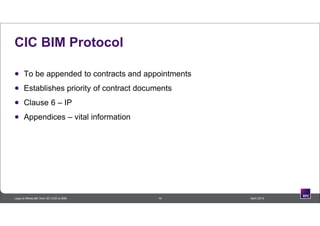

CIC BIM Protocol
 To be appended to contracts and appointments
 Establishes priority of contract documents
 Clause 6 – IP
 Appendices – vital information

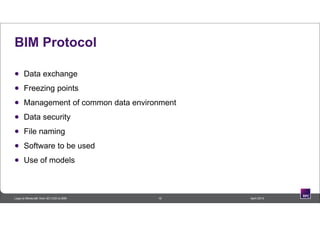

BIM Protocol
 Data exchange
 Freezing points
 Management of common data environment
 Data security
 File naming
 Software to be used
 Use of models

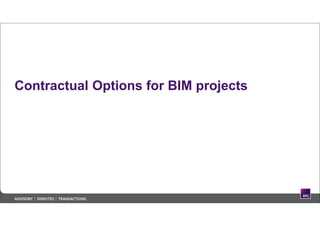

Contractual Options for BIM projects

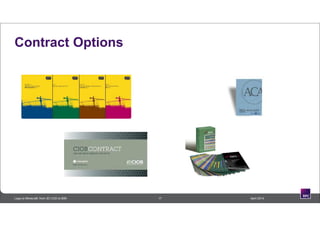

Contract Options

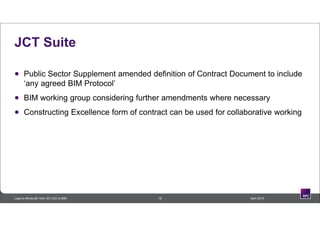

JCT Suite
 Public Sector Supplement amended definition of Contract Document to include
‘any agreed BIM Protocol’
 BIM working group considering further amendments where necessary
 Constructing Excellence form of contract can be used for collaborative working

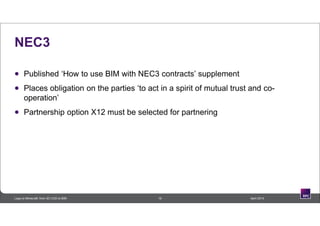

NEC3
 Published ‘How to use BIM with NEC3 contracts’ supplement
 Places obligation on the parties ‘to act in a spirit of mutual trust and co-
operation’
 Partnership option X12 must be selected for partnering

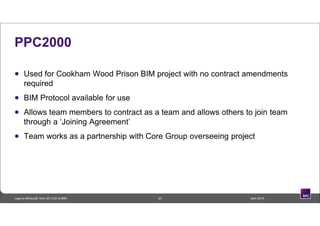

PPC2000
 Used for Cookham Wood Prison BIM project with no contract amendments
required
 BIM Protocol available for use
 Allows team members to contract as a team and allows others to join team
through a ‘Joining Agreement’
 Team works as a partnership with Core Group overseeing project

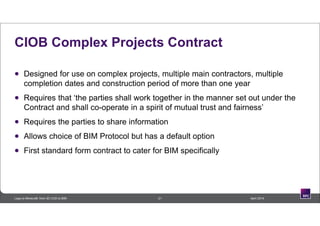

CIOB Complex Projects Contract
 Designed for use on complex projects, multiple main contractors, multiple
completion dates and construction period of more than one year
 Requires that ‘the parties shall work together in the manner set out under the
Contract and shall co-operate in a spirit of mutual trust and fairness’
 Requires the parties to share information
 Allows choice of BIM Protocol but has a default option
 First standard form contract to cater for BIM specifically

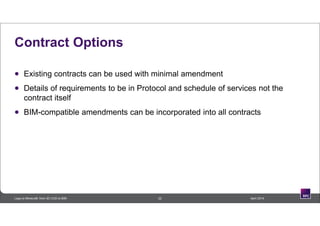

Contract Options
 Existing contracts can be used with minimal amendment
 Details of requirements to be in Protocol and schedule of services not the
contract itself
 BIM-compatible amendments can be incorporated into all contracts

Procurement Routes for BIM projects

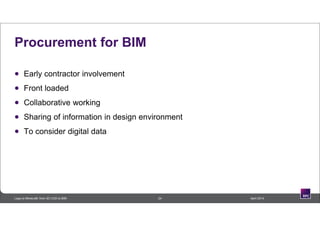

Procurement for BIM
 Early contractor involvement
 Front loaded
 Collaborative working
 Sharing of information in design environment
 To consider digital data

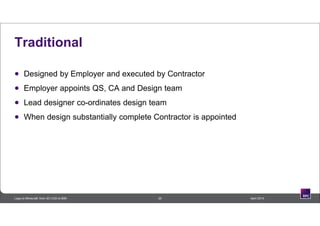

Traditional
 Designed by Employer and executed by Contractor
 Employer appoints QS, CA and Design team
 Lead designer co-ordinates design team
 When design substantially complete Contractor is appointed

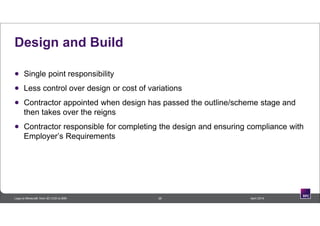

Design and Build
 Single point responsibility
 Less control over design or cost of variations
 Contractor appointed when design has passed the outline/scheme stage and
then takes over the reigns
 Contractor responsible for completing the design and ensuring compliance with
Employer’s Requirements

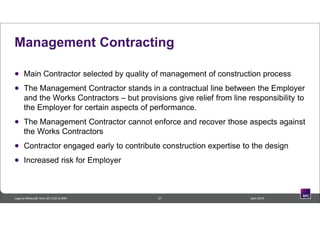

Management Contracting
 Main Contractor selected by quality of management of construction process
 The Management Contractor stands in a contractual line between the Employer
and the Works Contractors – but provisions give relief from line responsibility to
the Employer for certain aspects of performance.
 The Management Contractor cannot enforce and recover those aspects against
the Works Contractors
 Contractor engaged early to contribute construction expertise to the design
 Increased risk for Employer

Construction Management
 Main Contractor selected by quality of management of construction process
 Construction Manager appointed in effect as a consultant
 Employer, on the advice of the Construction Manager, enters into Works
contracts directly
 Suitable for fast track projects or those with short lead time
 Increased risk for Employer
 No main contract

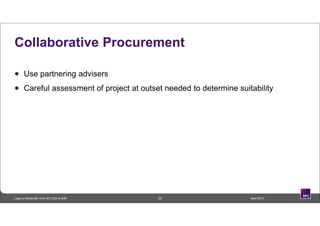

Collaborative Procurement
 Use partnering advisers
 Careful assessment of project at outset needed to determine suitability

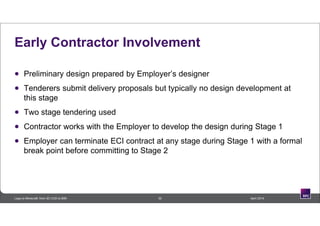

Early Contractor Involvement
 Preliminary design prepared by Employer’s designer
 Tenderers submit delivery proposals but typically no design development at
this stage
 Two stage tendering used
 Contractor works with the Employer to develop the design during Stage 1
 Employer can terminate ECI contract at any stage during Stage 1 with a formal
break point before committing to Stage 2

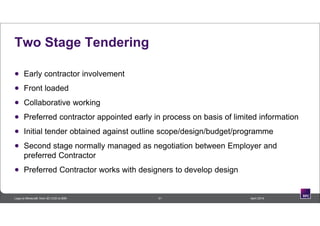

Two Stage Tendering
 Front loaded
 Collaborative working
 Preferred contractor appointed early in process on basis of limited information
 Initial tender obtained against outline scope/design/budget/programme
 Second stage normally managed as negotiation between Employer and
preferred Contractor
 Preferred Contractor works with designers to develop design

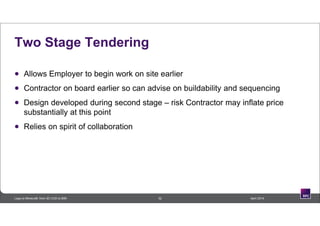

Two Stage Tendering
 Allows Employer to begin work on site earlier
 Contractor on board earlier so can advise on buildability and sequencing
 Design developed during second stage – risk Contractor may inflate price
substantially at this point
 Relies on spirit of collaboration

Procurement for BIM
 Collaborative forms of contracts encouraged
 Pre-selection of team should take account of commitment to and capability to
implement BIM
 Project team to ‘build the project twice’

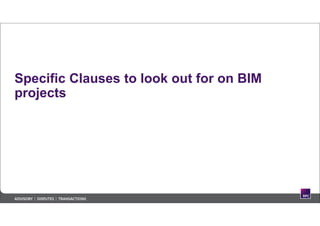

Specific Clauses to look out for on BIM
projects

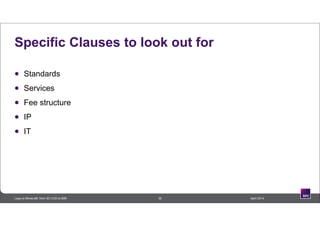

Specific Clauses to look out for
 Standards
 Services
 Fee structure
 IP
 IT

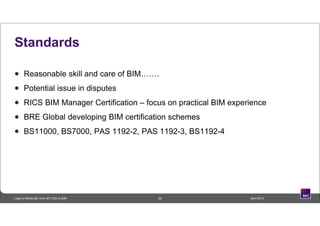

Standards
 Reasonable skill and care of BIM…….
 Potential issue in disputes
 RICS BIM Manager Certification – focus on practical BIM experience
 BRE Global developing BIM certification schemes
 BS11000, BS7000, PAS 1192-2, PAS 1192-3, BS1192-4

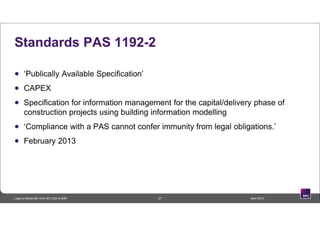

Standards PAS 1192-2
 ‘Publically Available Specification’
 CAPEX
 Specification for information management for the capital/delivery phase of
construction projects using building information modelling
 ‘Compliance with a PAS cannot confer immunity from legal obligations.’
 February 2013

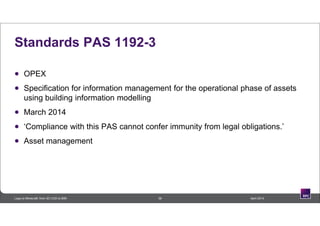

Standards PAS 1192-3
 OPEX
 Specification for information management for the operational phase of assets
using building information modelling
 March 2014
 ‘Compliance with this PAS cannot confer immunity from legal obligations.’
 Asset management

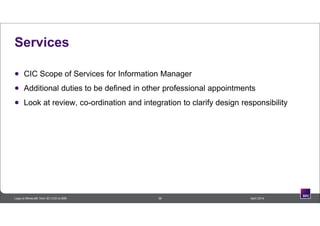

Services
 CIC Scope of Services for Information Manager
 Additional duties to be defined in other professional appointments
 Look at review, co-ordination and integration to clarify design responsibility

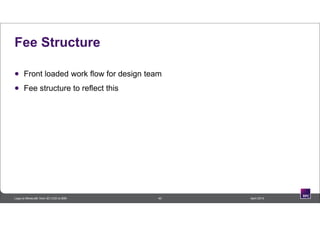

Fee Structure
 Front loaded work flow for design team
 Fee structure to reflect this

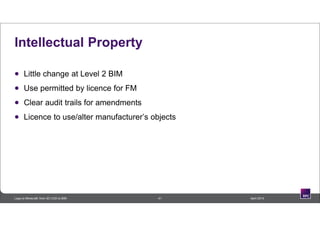

Intellectual Property
 Little change at Level 2 BIM
 Use permitted by licence for FM
 Clear audit trails for amendments
 Licence to use/alter manufacturer’s objects

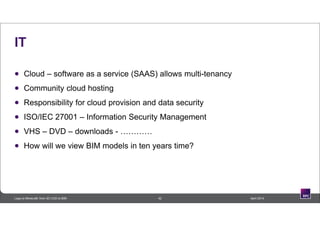

IT
 Cloud – software as a service (SAAS) allows multi-tenancy
 Community cloud hosting
 Responsibility for cloud provision and data security
 ISO/IEC 27001 – Information Security Management
 VHS – DVD – downloads - …………
 How will we view BIM models in ten years time?

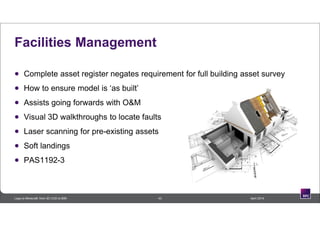

Facilities Management
 Complete asset register negates requirement for full building asset survey
 How to ensure model is ‘as built’
 Assists going forwards with O&M
 Visual 3D walkthroughs to locate faults
 Laser scanning for pre-existing assets
 Soft landings
 PAS1192-3
