1. RFID & ITS
APPLICATIONS
Members :
Tai Man Yee
(14218232)
Koo Ting Pon
(14210169)
Yip Ka Wai
(15207870)
Wong Chi Hung
(15207854)
10/7/2015

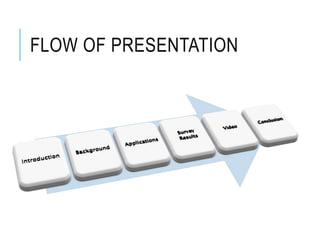

2. FLOW OF PRESENTATION

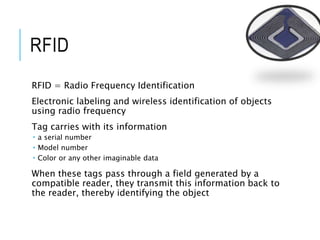

3. RFID
RFID = Radio Frequency Identification
Electronic labeling and wireless identification of objects
using radio frequency
Tag carries with its information
 a serial number
 Model number
 Color or any other imaginable data
When these tags pass through a field generated by a
compatible reader, they transmit this information back to
the reader, thereby identifying the object

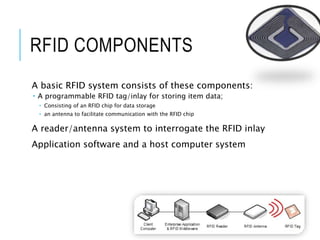

4. RFID COMPONENTS
A basic RFID system consists of these components:
 A programmable RFID tag/inlay for storing item data;
 Consisting of an RFID chip for data storage
 an antenna to facilitate communication with the RFID chip
A reader/antenna system to interrogate the RFID inlay
Application software and a host computer system

5. RFID TAG
The RFID tag consists of an integrated circuit (IC)
embedded in a thin film medium.
Information stored in the memory of the RFID chip is
transmitted by the antenna circuit embedded in the RFID
inlay via radio frequencies, to an RFID reader
3 types
 Passive
 Semi-passive
 Active

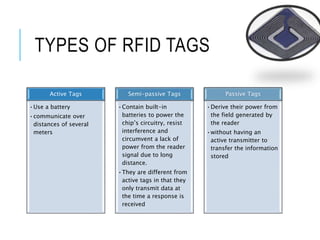

6. TYPES OF RFID TAGS
Active Tags
•Use a battery
•communicate over
distances of several
meters
Semi-passive Tags
•Contain built-in
batteries to power the
chip’s circuitry, resist
interference and
circumvent a lack of
power from the reader
signal due to long
distance.
•They are different from
active tags in that they
only transmit data at
the time a response is
received
Passive Tags
•Derive their power from
the field generated by
the reader
•without having an
active transmitter to
transfer the information
stored

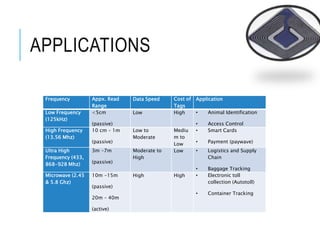

7. APPLICATIONS
Frequency Appx. Read
Range
Data Speed Cost of
Tags
Application
Low Frequency
(125kHz)
<5cm
(passive)
Low High • Animal Identification
• Access Control
High Frequency
(13.56 Mhz)
10 cm – 1m
(passive)
Low to
Moderate
Mediu
m to
Low
• Smart Cards
• Payment (paywave)
Ultra High
Frequency (433,
868-928 Mhz)
3m -7m
(passive)
Moderate to
High
Low • Logistics and Supply
Chain
• Baggage Tracking
Microwave (2.45
& 5.8 Ghz)
10m -15m
(passive)
20m – 40m
(active)
High High • Electronic toll
collection (Autotoll)
• Container Tracking

8. CURRENT APPLICATIONS

9. APPLICATIONS
Credit Cards with RFID
(Paywave function)
Octopus (Smart Card)

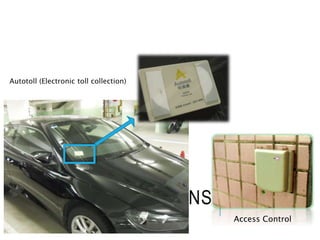

10. APPLICATIONS
Autotoll (Electronic toll collection)
Access Control

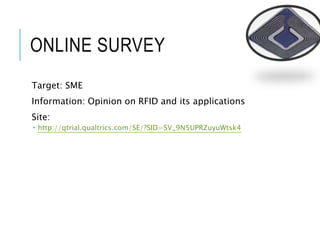

11. ONLINE SURVEY
Target: SME
Information: Opinion on RFID and its applications
Site:
 http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

12. SURVEY RESULT
Logistics and
Supply Chain
Management
20%
Pharmaceutic
manufacturing
industries
15%
Library Management
21%
Inventory
Control
10%
Document
Management
8%
Security
8% Customer Services
5%
Hotel Management
5%
Banking and Finance
5%Social Services
3%
Other
18%
Types of industries that respondents think
it is possible to apply RFID technology
Logistics and Supply Chain Management Pharmaceutic manufacturing industries
Library Management Inventory Control
Document Management Security
Customer Services Hotel Management
Banking and Finance Social Services

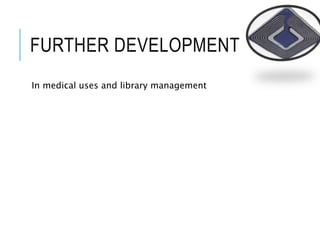

13. FURTHER DEVELOPMENT
In medical uses and library management

14. VIDEO

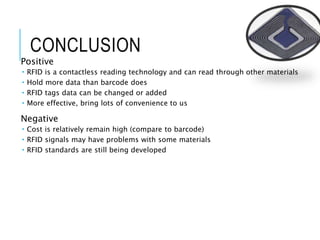

15. CONCLUSION
Positive
 RFID is a contactless reading technology and can read through other materials
 Hold more data than barcode does
 RFID tags data can be changed or added
 More effective, bring lots of convenience to us
Negative
 Cost is relatively remain high (compare to barcode)
 RFID signals may have problems with some materials
 RFID standards are still being developed
