This document discusses RFID (radio frequency identification) technology, including its components, types of tags, applications, and a survey on potential industries for adoption. It provides an overview of RFID systems consisting of tags, readers, and application software. The main types of tags are passive, semi-passive, and active, which differ in power source and read range. Current applications discussed include credit cards, transportation payment systems, access control, and supply chain/logistics. A survey found the top industries interested in adopting RFID were logistics/supply chain, libraries, and pharmaceutical manufacturing. The document concludes that RFID provides benefits but also has higher costs and standardization issues compared to barcodes.

1. RFID & Its Applications
Member:Bob(123456)
Max(2344556)
…
GCIT1015
Wednesday, October 7, 2015

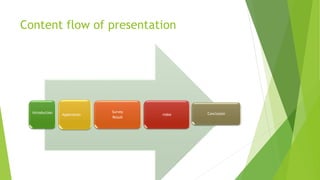

2. Content flow of presentation
Introduction
Application
Survey
Result
video Conclusion

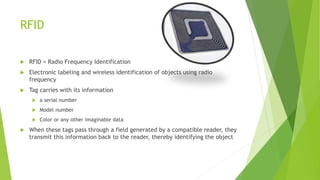

3. RFID
 RFID = Radio Frequency Identification
 Electronic labeling and wireless identification of objects using radio
frequency
 Tag carries with its information
 a serial number
 Model number
 Color or any other imaginable data
 When these tags pass through a field generated by a compatible reader, they
transmit this information back to the reader, thereby identifying the object

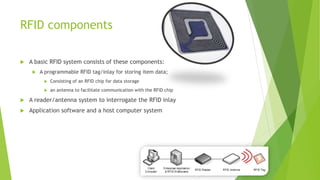

4. RFID components
 A basic RFID system consists of these components:
 A programmable RFID tag/inlay for storing item data;
 Consisting of an RFID chip for data storage
 an antenna to facilitate communication with the RFID chip
 A reader/antenna system to interrogate the RFID inlay
 Application software and a host computer system

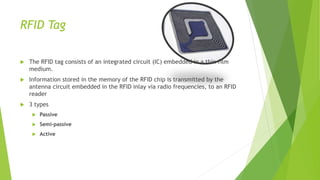

5. RFID Tag
 The RFID tag consists of an integrated circuit (IC) embedded in a thin film
medium.
 Information stored in the memory of the RFID chip is transmitted by the
antenna circuit embedded in the RFID inlay via radio frequencies, to an RFID
reader
 3 types
 Passive
 Semi-passive
 Active

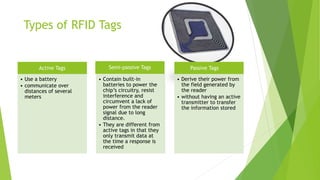

6. Types of RFID Tags
Active Tags
• Use a battery
• communicate over
distances of several
meters
Semi-passive Tags
• Contain built-in
batteries to power the
chip’s circuitry, resist
interference and
circumvent a lack of
power from the reader
signal due to long
distance.
• They are different from
active tags in that they
only transmit data at
the time a response is
received
Passive Tags
• Derive their power from
the field generated by
the reader
• without having an active
transmitter to transfer
the information stored

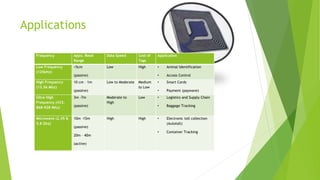

7. Applications
Frequency Appx. Read
Range
Data Speed Cost of
Tags
Application
Low Frequency
(125kHz)
<5cm
(passive)
Low High • Animal Identification
• Access Control
High Frequency
(13.56 Mhz)
10 cm – 1m
(passive)
Low to Moderate Medium
to Low
• Smart Cards
• Payment (paywave)
Ultra High
Frequency (433,
868-928 Mhz)
3m -7m
(passive)
Moderate to
High
Low • Logistics and Supply Chain
• Baggage Tracking
Microwave (2.45 &
5.8 Ghz)
10m -15m
(passive)
20m – 40m
(active)
High High • Electronic toll collection
(Autotoll)
• Container Tracking

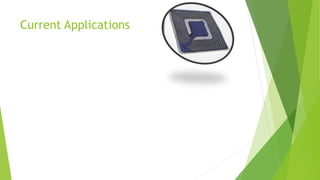

8. Current Applications

9. Applications
Credit Cards with RFID
(Paywave function)
Octopus (Smart Card)
Active Tags
• Use a battery
• communicate over
distances of
several meters
Semi-passive Tags
• Contain built-in
batteries to power
the chip’s
circuitry, resist
interference and
circumvent a lack
of power from the
reader signal due
to long distance.
• They are different
from active tags in
that they only
transmit data at
the time a
response is
received
Passive Tags
• Derive their power
from the field
generated by the
reader
• without having an
active transmitter
to transfer the
information stored

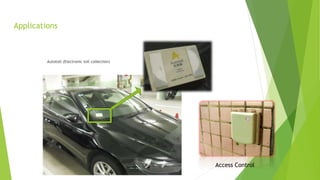

10. Applications
Autotoll (Electronic toll collection)
Access Control

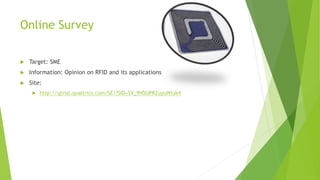

11. Online Survey
 Target: SME
 Information: Opinion on RFID and its applications
 Site:
 http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

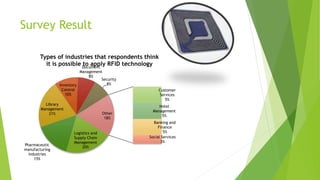

12. Survey Result
Logistics and
Supply Chain
Management
20%
Pharmaceutic
manufacturing
industries
15%
Library
Management
21%
Inventory
Control
10%
Document
Management
8%
Security
8%
Customer
Services
5%
Hotel
Management
5%
Banking and
Finance
5%
Social Services
3%
Other
18%
Types of industries that respondents think
it is possible to apply RFID technology

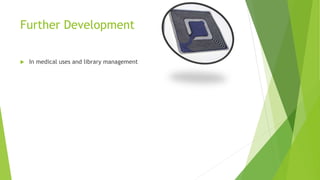

13. Further Development
 In medical uses and library management

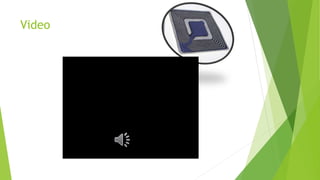

14. Video

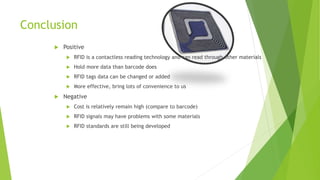

15. Conclusion
 Positive
 RFID is a contactless reading technology and can read through other materials
 Hold more data than barcode does
 RFID tags data can be changed or added
 More effective, bring lots of convenience to us
 Negative
 Cost is relatively remain high (compare to barcode)
 RFID signals may have problems with some materials
 RFID standards are still being developed
