1. RFID & ITS APPLICATIONS
MEMBERS:
WONG CHI HUNG (15207854)
YIP KA WAI (15207870)
TAI MAN YEE (14218232)
GCIT1015
10/7/2015

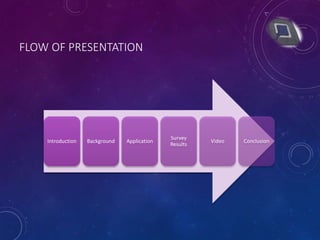

2. FLOW OF PRESENTATION
Introduction Background Application
Survey
Results
Video Conclusion

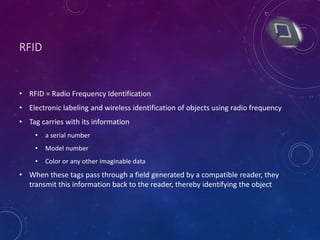

3. RFID
• RFID = Radio Frequency Identification
• Electronic labeling and wireless identification of objects using radio frequency
• Tag carries with its information
• a serial number
• Model number
• Color or any other imaginable data
• When these tags pass through a field generated by a compatible reader, they
transmit this information back to the reader, thereby identifying the object

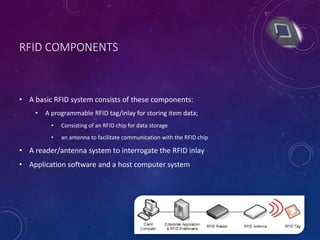

4. RFID COMPONENTS
• A basic RFID system consists of these components:
• A programmable RFID tag/inlay for storing item data;
• Consisting of an RFID chip for data storage
• an antenna to facilitate communication with the RFID chip
• A reader/antenna system to interrogate the RFID inlay
• Application software and a host computer system

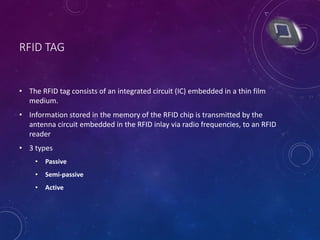

5. RFID TAG
• The RFID tag consists of an integrated circuit (IC) embedded in a thin film
medium.
• Information stored in the memory of the RFID chip is transmitted by the
antenna circuit embedded in the RFID inlay via radio frequencies, to an RFID
reader
• 3 types
• Passive
• Semi-passive
• Active

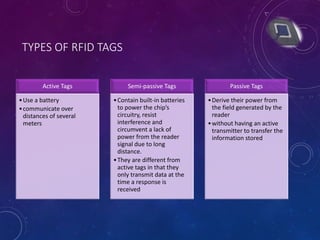

6. TYPES OF RFID TAGS
Active Tags
•Use a battery
•communicate over
distances of several
meters
Semi-passive Tags
•Contain built-in batteries
to power the chip’s
circuitry, resist
interference and
circumvent a lack of
power from the reader
signal due to long
distance.
•They are different from
active tags in that they
only transmit data at the
time a response is
received
Passive Tags
•Derive their power from
the field generated by the
reader
•without having an active
transmitter to transfer the
information stored

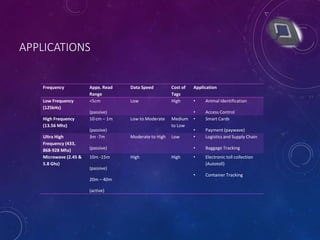

7. APPLICATIONS
Frequency Appx. Read
Range
Data Speed Cost of
Tags
Application
Low Frequency
(125kHz)
<5cm
(passive)
Low High • Animal Identification
• Access Control
High Frequency
(13.56 Mhz)
10 cm – 1m
(passive)
Low to Moderate Medium
to Low
• Smart Cards
• Payment (paywave)
Ultra High
Frequency (433,
868-928 Mhz)
3m -7m
(passive)
Moderate to High Low • Logistics and Supply Chain
• Baggage Tracking
Microwave (2.45 &
5.8 Ghz)
10m -15m
(passive)
20m – 40m
(active)
High High • Electronic toll collection
(Autotoll)
• Container Tracking

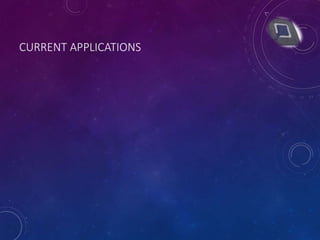

8. CURRENT APPLICATIONS

9. APPLICATIONS

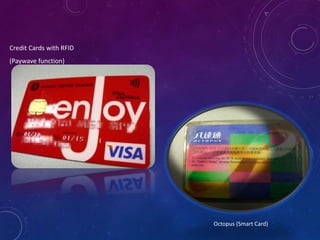

Credit Cards with RFID
(Paywave function)
Octopus (Smart Card)

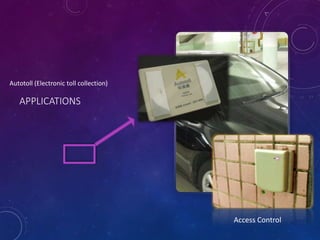

10. APPLICATIONS
Autotoll (Electronic toll collection)
Access Control

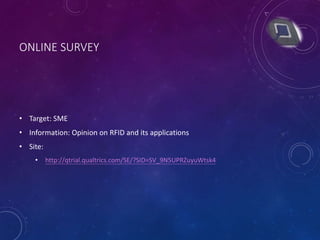

11. ONLINE SURVEY
• Target: SME
• Information: Opinion on RFID and its applications
• Site:
• http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

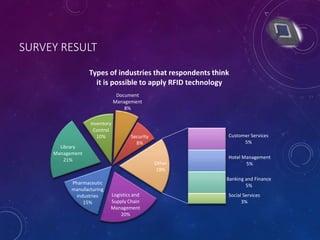

12. SURVEY RESULT
Logistics and
Supply Chain
Management
20%
Pharmaceutic
manufacturing
industries
15%
Library
Management
21%
Inventory
Control
10%
Document
Management
8%
Security
8%
Customer Services
5%
Hotel Management
5%
Banking and Finance
5%
Social Services
3%
Other
18%
Types of industries that respondents think
it is possible to apply RFID technology

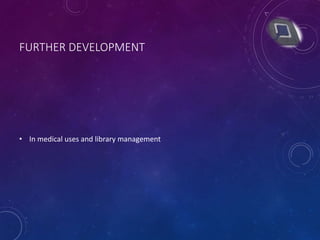

13. FURTHER DEVELOPMENT
• In medical uses and library management

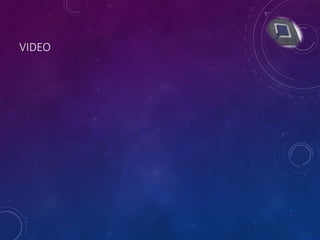

14. VIDEO

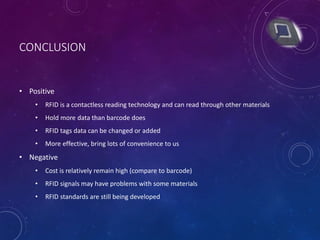

15. CONCLUSION
• Positive
• RFID is a contactless reading technology and can read through other materials
• Hold more data than barcode does
• RFID tags data can be changed or added
• More effective, bring lots of convenience to us
• Negative
• Cost is relatively remain high (compare to barcode)
• RFID signals may have problems with some materials
• RFID standards are still being developed
