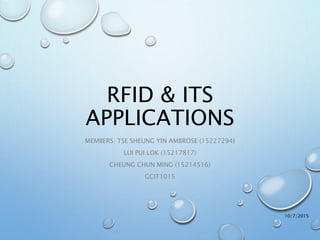

1. RFID & ITS
APPLICATIONS
MEMBERS: TSE SHEUNG YIN AMBROSE (15227294)
LUI PUI LOK (15217817)
CHEUNG CHUN MING (15214516)
GCIT1015
10/7/2015

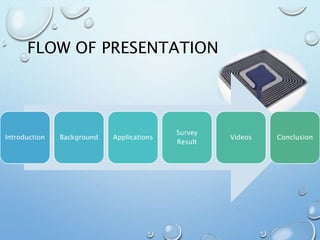

2. FLOW OF PRESENTATION
Introduction Background Applications
Survey
Result
Videos Conclusion

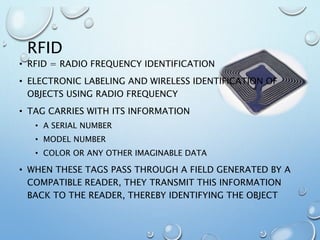

3. RFID
• RFID = RADIO FREQUENCY IDENTIFICATION
• ELECTRONIC LABELING AND WIRELESS IDENTIFICATION OF
OBJECTS USING RADIO FREQUENCY
• TAG CARRIES WITH ITS INFORMATION
• A SERIAL NUMBER
• MODEL NUMBER
• COLOR OR ANY OTHER IMAGINABLE DATA
• WHEN THESE TAGS PASS THROUGH A FIELD GENERATED BY A
COMPATIBLE READER, THEY TRANSMIT THIS INFORMATION
BACK TO THE READER, THEREBY IDENTIFYING THE OBJECT

4. RFID COMPONENTS
• A BASIC RFID SYSTEM CONSISTS OF THESE COMPONENTS:
• A PROGRAMMABLE RFID TAG/INLAY FOR STORING ITEM DATA;
• CONSISTING OF AN RFID CHIP FOR DATA STORAGE
• AN ANTENNA TO FACILITATE COMMUNICATION WITH THE RFID CHIP
• A READER/ANTENNA SYSTEM TO INTERROGATE THE RFID
INLAY
• APPLICATION SOFTWARE AND A HOST COMPUTER SYSTEM

5. RFID TAG
• THE RFID TAG CONSISTS OF AN INTEGRATED CIRCUIT (IC)
EMBEDDED IN A THIN FILM MEDIUM.
• INFORMATION STORED IN THE MEMORY OF THE RFID CHIP IS
TRANSMITTED BY THE ANTENNA CIRCUIT EMBEDDED IN THE
RFID INLAY VIA RADIO FREQUENCIES, TO AN RFID READER
• 3 TYPES
• PASSIVE
• SEMI-PASSIVE
• ACTIVE

6. TYPES OF RFID TAGS
Active Tags
•Use a battery
•communicate over
distances of several
meters
Semi-passive Tags
•Contain built-in
batteries to power the
chip’s circuitry, resist
interference and
circumvent a lack of
power from the reader
signal due to long
distance.
•They are different from
active tags in that they
only transmit data at
the time a response is
received
Passive Tags
•Derive their power
from the field
generated by the
reader
•without having an
active transmitter to
transfer the
information stored

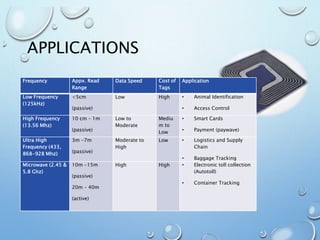

7. APPLICATIONS
Frequency Appx. Read
Range
Data Speed Cost of
Tags
Application
Low Frequency
(125kHz)
<5cm
(passive)
Low High • Animal Identification
• Access Control
High Frequency
(13.56 Mhz)
10 cm – 1m
(passive)
Low to
Moderate
Mediu
m to
Low
• Smart Cards
• Payment (paywave)
Ultra High
Frequency (433,
868-928 Mhz)
3m -7m
(passive)
Moderate to
High
Low • Logistics and Supply
Chain
• Baggage Tracking
Microwave (2.45 &
5.8 Ghz)
10m -15m
(passive)
20m – 40m
(active)
High High • Electronic toll collection
(Autotoll)
• Container Tracking

8. CURRENT APPLICATIONS

9. APPLICATIONS
CREDIT CARDS WITH RFID
(PAYWAVE FUNCTION)
Octopus (Smart Card)

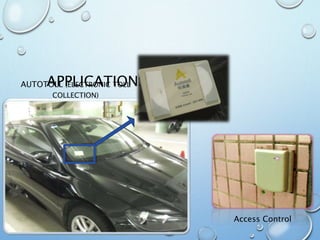

10. APPLICATIONSAUTOTOLL (ELECTRONIC TOLL
COLLECTION)
Access Control

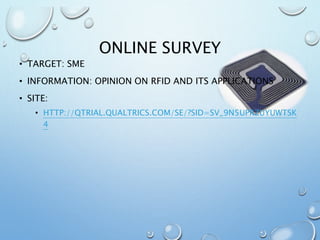

11. ONLINE SURVEY
• TARGET: SME
• INFORMATION: OPINION ON RFID AND ITS APPLICATIONS
• SITE:
• HTTP://QTRIAL.QUALTRICS.COM/SE/?SID=SV_9N5UPRZUYUWTSK
4

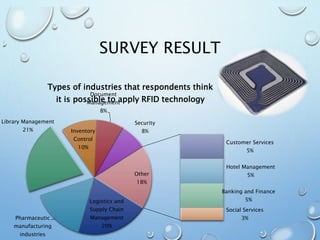

12. SURVEY RESULT
Logistics and
Supply Chain
Management
20%
Pharmaceutic
manufacturing
industries
Library Management
21% Inventory
Control
10%
Document
Management
8%
Security
8%
Customer Services
5%
Hotel Management
5%
Banking and Finance
5%
Social Services
3%
Other
18%
Types of industries that respondents think
it is possible to apply RFID technology

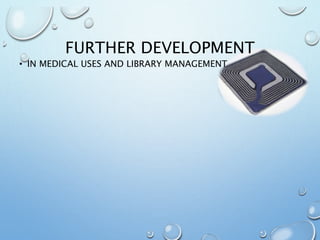

13. FURTHER DEVELOPMENT
• IN MEDICAL USES AND LIBRARY MANAGEMENT

14. VIDEO

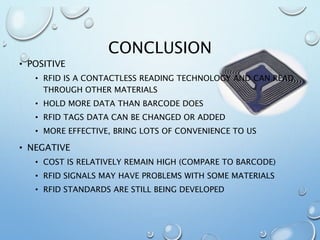

15. CONCLUSION
• POSITIVE
• RFID IS A CONTACTLESS READING TECHNOLOGY AND CAN READ
THROUGH OTHER MATERIALS
• HOLD MORE DATA THAN BARCODE DOES
• RFID TAGS DATA CAN BE CHANGED OR ADDED
• MORE EFFECTIVE, BRING LOTS OF CONVENIENCE TO US
• NEGATIVE
• COST IS RELATIVELY REMAIN HIGH (COMPARE TO BARCODE)
• RFID SIGNALS MAY HAVE PROBLEMS WITH SOME MATERIALS
• RFID STANDARDS ARE STILL BEING DEVELOPED
