Cooling Load

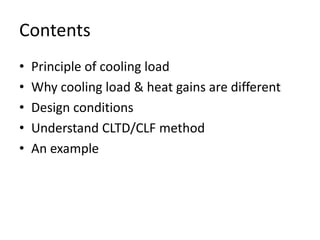

Contents
•   Principle of cooling load
•   Why cooling load & heat gains are different
•   Design conditions
•   Understand CLTD/CLF method
•   An example

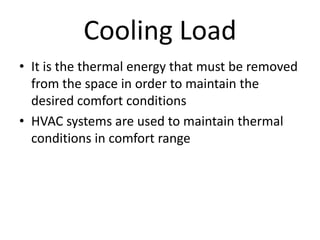

Cooling Load
• It is the thermal energy that must be removed
  from the space in order to maintain the
  desired comfort conditions
• HVAC systems are used to maintain thermal
  conditions in comfort range

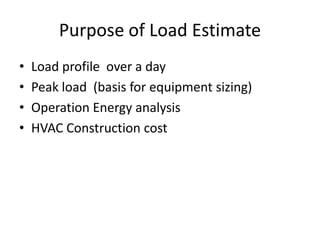

Purpose of Load Estimate
•   Load profile over a day
•   Peak load (basis for equipment sizing)
•   Operation Energy analysis
•   HVAC Construction cost

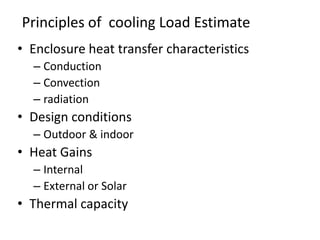

Principles of cooling Load Estimate
• Enclosure heat transfer characteristics
  – Conduction
  – Convection
  – radiation
• Design conditions
  – Outdoor & indoor
• Heat Gains
  – Internal
  – External or Solar
• Thermal capacity

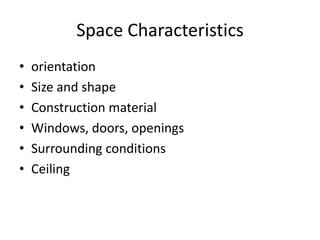

Space Characteristics
•   orientation
•   Size and shape
•   Construction material
•   Windows, doors, openings
•   Surrounding conditions
•   Ceiling

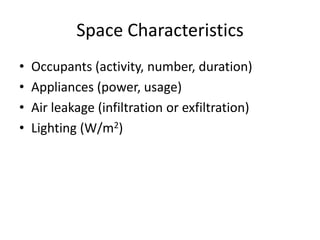

Space Characteristics
•   Occupants (activity, number, duration)
•   Appliances (power, usage)
•   Air leakage (infiltration or exfiltration)
•   Lighting (W/m2)

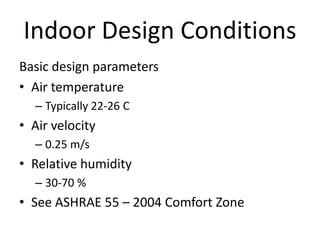

Indoor Design Conditions
Basic design parameters
• Air temperature
  – Typically 22-26 C
• Air velocity
  – 0.25 m/s
• Relative humidity
  – 30-70 %
• See ASHRAE 55 – 2004 Comfort Zone
Indoor Design Conditions
• Indoor air quality
  – Air contaminants
  – Air cleaning
• Acoustic requirements
• Pressurization requirements

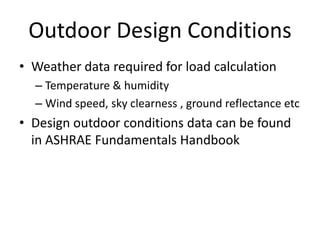

Outdoor Design Conditions
• Weather data required for load calculation
  – Temperature & humidity
  – Wind speed, sky clearness , ground reflectance etc
• Design outdoor conditions data can be found
  in ASHRAE Fundamentals Handbook

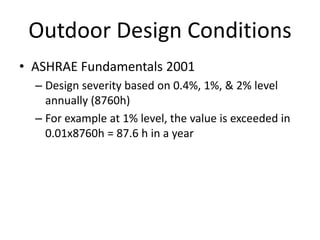

Outdoor Design Conditions
• ASHRAE Fundamentals 2001
  – Design severity based on 0.4%, 1%, & 2% level
    annually (8760h)
  – For example at 1% level, the value is exceeded in
    0.01x8760h = 87.6 h in a year

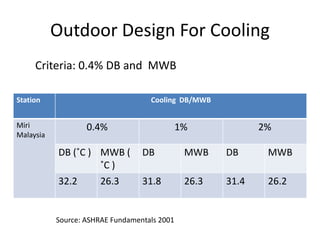

Outdoor Design For Cooling
     Criteria: 0.4% DB and MWB

Station                             Cooling DB/MWB


Miri               0.4%                       1%             2%
Malaysia

           DB (˚C ) MWB (         DB           MWB    DB      MWB
                    ˚C )
           32.2       26.3        31.8         26.3   31.4    26.2


           Source: ASHRAE Fundamentals 2001

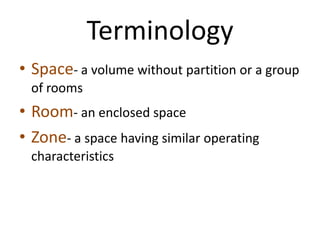

Terminology
• Space- a volume without partition or a group
 of rooms
• Room- an enclosed space
• Zone- a space having similar operating
 characteristics

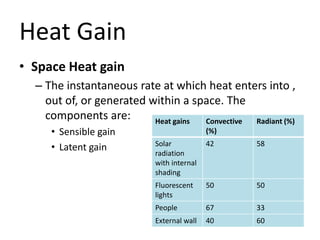

Heat Gain
• Space Heat gain
  – The instantaneous rate at which heat enters into ,
    out of, or generated within a space. The
    components are:       Heat gains Convective Radiant (%)
     • Sensible gain                        (%)
                            Solar           42    58
     • Latent gain
                            radiation
                            with internal
                            shading
                            Fluorescent     50    50
                            lights
                            People          67    33
                            External wall   40    60
Heat Gain
Cooling Load
• Space Cooling load
  – The rate at which heat must be removed from a
    space to maintain air temperature and humidity at
    the design values
• Cooling load differs from the heat gain due to
  – delay effect of conversion of radiation energy to
    heat
  – Thermal storage lag

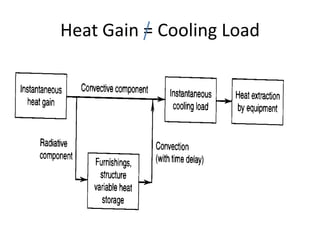

Heat Gain = Cooling Load

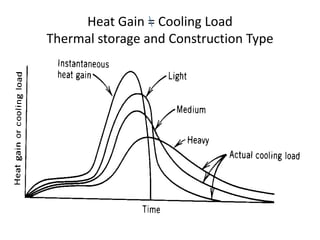

Heat Gain = Cooling Load
Thermal storage and Construction Type

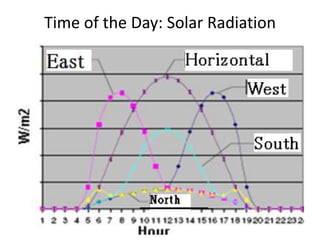

Time of the Day: Solar Radiation

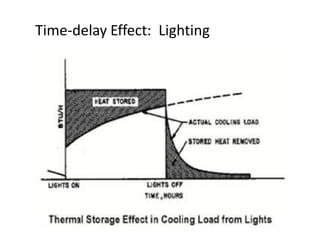

Time-delay Effect: Lighting

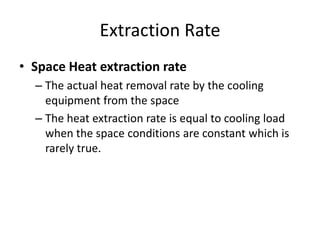

Extraction Rate
• Space Heat extraction rate
  – The actual heat removal rate by the cooling
    equipment from the space
  – The heat extraction rate is equal to cooling load
    when the space conditions are constant which is
    rarely true.
Heat Balance
          The principal terms of heat Gains/Losses are indicated below .




(Source: ASHRAE Handbook Fundamentals 2005)

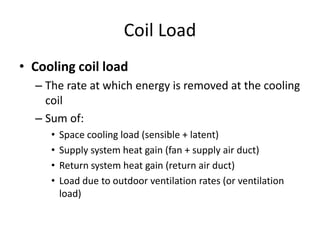

Coil Load
• Cooling coil load
  – The rate at which energy is removed at the cooling
    coil
  – Sum of:
     •   Space cooling load (sensible + latent)
     •   Supply system heat gain (fan + supply air duct)
     •   Return system heat gain (return air duct)
     •   Load due to outdoor ventilation rates (or ventilation
         load)

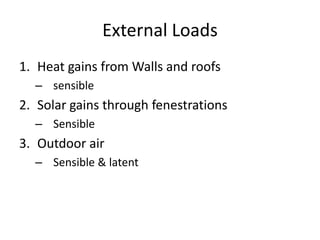

External Loads
1. Heat gains from Walls and roofs
  – sensible
2. Solar gains through fenestrations
  – Sensible
3. Outdoor air
  – Sensible & latent

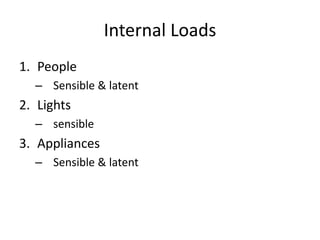

Internal Loads
1. People
  – Sensible & latent
2. Lights
  – sensible
3. Appliances
  – Sensible & latent

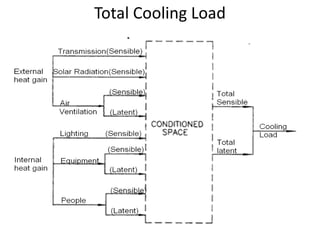

Total Cooling Load

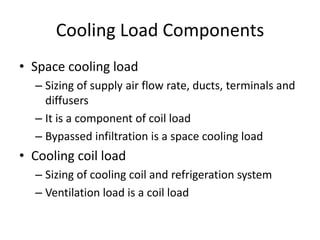

Cooling Load Components
• Space cooling load
  – Sizing of supply air flow rate, ducts, terminals and
    diffusers
  – It is a component of coil load
  – Bypassed infiltration is a space cooling load
• Cooling coil load
  – Sizing of cooling coil and refrigeration system
  – Ventilation load is a coil load

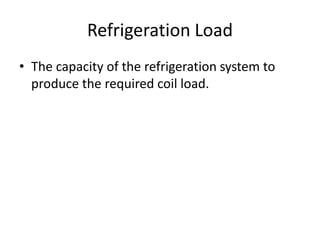

Refrigeration Load
• The capacity of the refrigeration system to
  produce the required coil load.

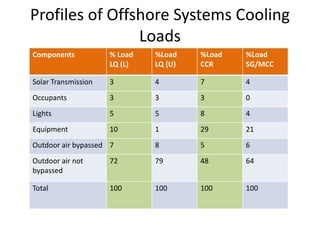

Profiles of Offshore Systems Cooling
                Loads
Components           % Load   %Load    %Load   %Load
                     LQ (L)   LQ (U)   CCR     SG/MCC

Solar Transmission   3        4        7       4
Occupants            3        3        3       0
Lights               5        5        8       4
Equipment            10       1        29      21
Outdoor air bypassed 7        8        5       6
Outdoor air not      72       79       48      64
bypassed

Total                100      100      100     100
Heat Load Components


    Outdoor air &
    Electrical Equipment loads
    (77-85% )
                                           People: 3%

                                        Lighting: 4-8%

                                 Solar Transmission: 3-7%
                          Infiltration : 5-8%

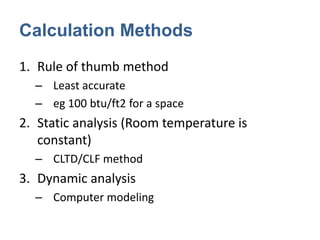

Calculation Methods
1. Rule of thumb method
  – Least accurate
  – eg 100 btu/ft2 for a space
2. Static analysis (Room temperature is
   constant)
  – CLTD/CLF method
3. Dynamic analysis
  – Computer modeling

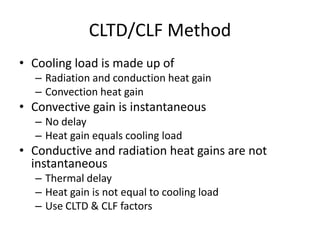

CLTD/CLF Method
• Cooling load is made up of
  – Radiation and conduction heat gain
  – Convection heat gain
• Convective gain is instantaneous
  – No delay
  – Heat gain equals cooling load
• Conductive and radiation heat gains are not
  instantaneous
  – Thermal delay
  – Heat gain is not equal to cooling load
  – Use CLTD & CLF factors

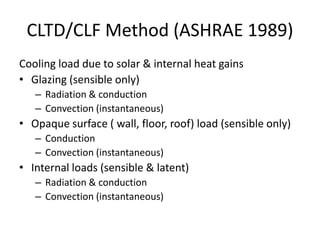

CLTD/CLF Method (ASHRAE 1989)
Cooling load due to solar & internal heat gains
• Glazing (sensible only)
   – Radiation & conduction
   – Convection (instantaneous)
• Opaque surface ( wall, floor, roof) load (sensible only)
   – Conduction
   – Convection (instantaneous)
• Internal loads (sensible & latent)
   – Radiation & conduction
   – Convection (instantaneous)
Cooling Load Temperature Difference
                CLTD
Compare
 Q transmission = UA (T o – T i )
 Q transmission = UA (CLTD)
• CLTD is theoretical temperature difference
  defined for each wall/roof to give the same heat
  load for exposed surfaces to account for the
  combined effects of radiation, conductive
  storage, etc
  – It is affected by orientation, time , latitude, etc
  – Data published by ASHRAE

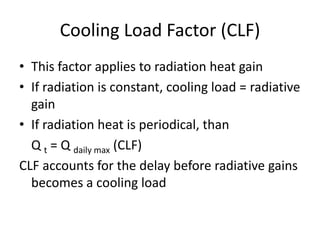

Cooling Load Factor (CLF)
• This factor applies to radiation heat gain
• If radiation is constant, cooling load = radiative
  gain
• If radiation heat is periodical, than
  Q t = Q daily max (CLF)
CLF accounts for the delay before radiative gains
  becomes a cooling load
Glazing
                                                      glass
• Q = A (SC) (SHGF) (CLF)
   A= glass area
   SC= shading coefficient                                      Solar ray
   SHGF= solar heat gain factor,
     tabulated by ASHRAE
   CLF= cooling load factor,
     tabulated by ASHRAE
                                       transmitted
• Q = U x A x CLTD                                              reflected

      U= surface U-factor                            absorbed
      A= surface area
      CLTD= cooling load temperature
        difference
Opaque Surfaces
• Q 2 = UA (CLTD)
     U= surface U-factor
     A= surface area
     CLTD= cooling load temperature difference
• Tabulated or chart values for CLTD can be
  referred
• Offshore enclosure
  – Light weight
  – Metal frame with insulation
  – Group G wall with U-value about 0.5-1.0 W/m2 K

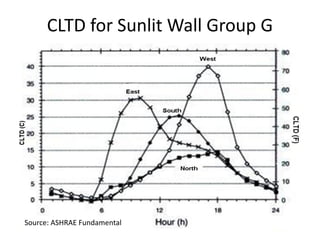

CLTD for Sunlit Wall Group G




Source: ASHRAE Fundamental

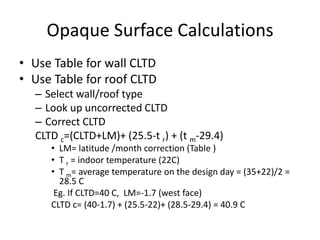

Opaque Surface Calculations
• Use Table for wall CLTD
• Use Table for roof CLTD
  – Select wall/roof type
  – Look up uncorrected CLTD
  – Correct CLTD
  CLTD c=(CLTD+LM)+ (25.5-t r) + (t m-29.4)
     • LM= latitude /month correction (Table )
     • T r = indoor temperature (22C)
     • T m= average temperature on the design day = (35+22)/2 =
       28.5 C
      Eg. If CLTD=40 C, LM=-1.7 (west face)
     CLTD c= (40-1.7) + (25.5-22)+ (28.5-29.4) = 40.9 C

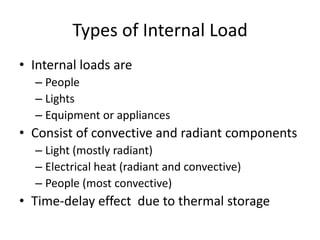

Types of Internal Load
• Internal loads are
  – People
  – Lights
  – Equipment or appliances
• Consist of convective and radiant components
  – Light (mostly radiant)
  – Electrical heat (radiant and convective)
  – People (most convective)
• Time-delay effect due to thermal storage

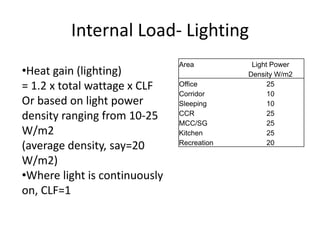

Internal Load- Lighting
                               Area          Light Power
•Heat gain (lighting)                       Density W/m2
= 1.2 x total wattage x CLF    Office             25
                               Corridor           10
Or based on light power        Sleeping           10
density ranging from 10-25     CCR
                               MCC/SG
                                                  25
                                                  25
W/m2                           Kitchen            25
(average density, say=20       Recreation         20

W/m2)
•Where light is continuously
on, CLF=1
Internal Loads- People
• Q people-s = No x sensible heat gain/p x CLF
• Q people-L = No x latent heat gain/p

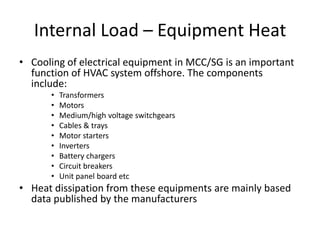

Internal Load – Equipment Heat
• Cooling of electrical equipment in MCC/SG is an important
  function of HVAC system offshore. The components
  include:
      •   Transformers
      •   Motors
      •   Medium/high voltage switchgears
      •   Cables & trays
      •   Motor starters
      •   Inverters
      •   Battery chargers
      •   Circuit breakers
      •   Unit panel board etc
• Heat dissipation from these equipments are mainly based
  data published by the manufacturers

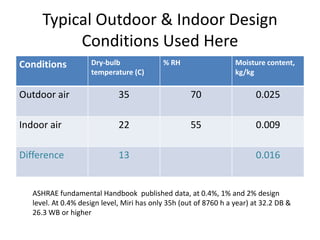

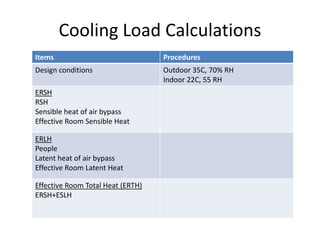

Typical Outdoor & Indoor Design
           Conditions Used Here
Conditions           Dry-bulb               % RH                   Moisture content,
                     temperature (C)                               kg/kg

Outdoor air                   35                     70                  0.025

Indoor air                    22                     55                  0.009

Difference                    13                                         0.016


   ASHRAE fundamental Handbook published data, at 0.4%, 1% and 2% design
   level. At 0.4% design level, Miri has only 35h (out of 8760 h a year) at 32.2 DB &
   26.3 WB or higher

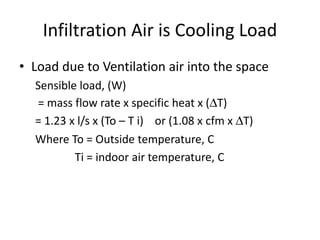

Infiltration Air is Cooling Load
• Load due to Ventilation air into the space
  Sensible load, (W)
  = mass flow rate x specific heat x (∆T)
  = 1.23 x l/s x (To – T i) or (1.08 x cfm x ∆T)
  Where To = Outside temperature, C
          Ti = indoor air temperature, C

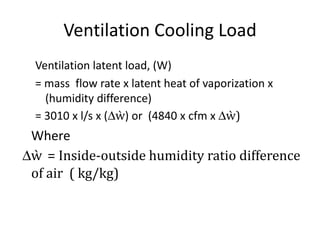

Ventilation Cooling Load
  Ventilation latent load, (W)
  = mass flow rate x latent heat of vaporization x
    (humidity difference)
  = 3010 x l/s x (∆ẁ) or (4840 x cfm x ∆ẁ)
 Where
∆ẁ = Inside-outside humidity ratio difference
 of air ( kg/kg)

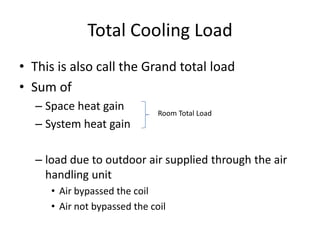

Total Cooling Load
• This is also call the Grand total load
• Sum of
  – Space heat gain           Room Total Load
  – System heat gain

  – load due to outdoor air supplied through the air
    handling unit
     • Air bypassed the coil
     • Air not bypassed the coil

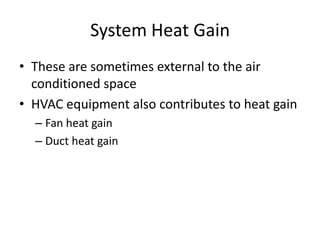

System Heat Gain
• These are sometimes external to the air
  conditioned space
• HVAC equipment also contributes to heat gain
  – Fan heat gain
  – Duct heat gain

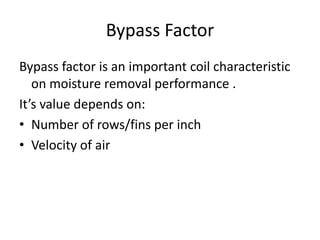

Bypass Factor
Bypass factor is an important coil characteristic
   on moisture removal performance .
It’s value depends on:
• Number of rows/fins per inch
• Velocity of air

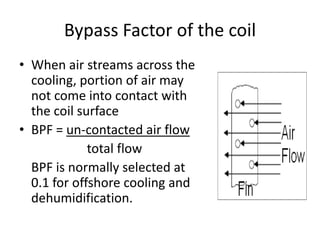

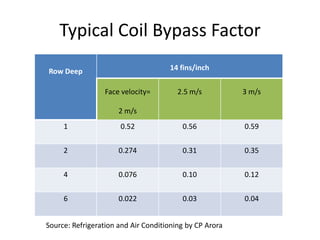

Bypass Factor of the coil
• When air streams across the
  cooling, portion of air may
  not come into contact with
  the coil surface
• BPF = un-contacted air flow
             total flow
  BPF is normally selected at
  0.1 for offshore cooling and
  dehumidification.
Typical Coil Bypass Factor
Row Deep                             14 fins/inch


                  Face velocity=        2.5 m/s          3 m/s

                      2 m/s
     1                0.52               0.56            0.59


     2                0.274              0.31            0.35


     4                0.076              0.10            0.12


     6                0.022              0.03            0.04


Source: Refrigeration and Air Conditioning by CP Arora

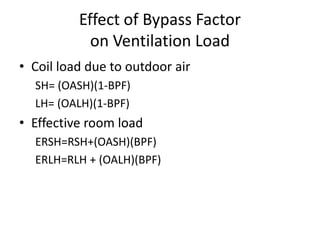

Effect of Bypass Factor
            on Ventilation Load
• Coil load due to outdoor air
  SH= (OASH)(1-BPF)
  LH= (OALH)(1-BPF)
• Effective room load
  ERSH=RSH+(OASH)(BPF)
  ERLH=RLH + (OALH)(BPF)

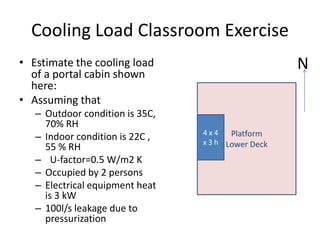

Cooling Load Classroom Exercise
• Estimate the cooling load                         N
  of a portal cabin shown
  here:
• Assuming that
   – Outdoor condition is 35C,
     70% RH
                                 4x4    Platform
   – Indoor condition is 22C ,   x 3 h Lower Deck
     55 % RH
   – U-factor=0.5 W/m2 K
   – Occupied by 2 persons
   – Electrical equipment heat
     is 3 kW
   – 100l/s leakage due to
     pressurization
Cooling Load Calculations
Items                                        Procedures
Transmission- sensible                       Q = UA (CLTD)
Wall- West side
Wall- East side
Wall – North
Wall- South
Roof
Floor
Total (T1)

Internal load- sensible
People
Equipment
Light
Total (T2)
Safety Factor (5% of T1+ T2)
Fan heat & supply Duct Gain (7 % of T1+T2)
RSH (Total of the above)

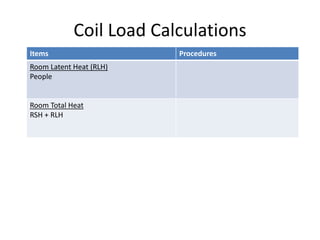

Coil Load Calculations
Items                    Procedures
Room Latent Heat (RLH)
People


Room Total Heat
RSH + RLH
Cooling Load Calculations
Items                            Procedures

Design conditions                Outdoor 35C, 70% RH
                                 Indoor 22C, 55 RH

Ventilation- sensible
Bypass air (0.1 bypass factor)   10% x outdoor air
Sensible heat of bypass air


Ventilation - Latent
Latent heat of bypass air
Cooling Load Calculations
Items                              Procedures
Design conditions                  Outdoor 35C, 70% RH
                                   Indoor 22C, 55 RH
ERSH
RSH
Sensible heat of air bypass
Effective Room Sensible Heat

ERLH
People
Latent heat of air bypass
Effective Room Latent Heat

Effective Room Total Heat (ERTH)
ERSH+ESLH

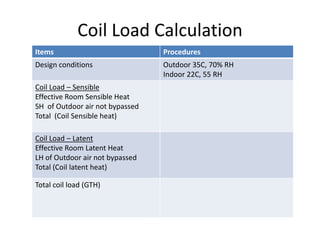

Coil Load Calculation
Items                            Procedures
Design conditions                Outdoor 35C, 70% RH
                                 Indoor 22C, 55 RH
Coil Load – Sensible
Effective Room Sensible Heat
SH of Outdoor air not bypassed
Total (Coil Sensible heat)

Coil Load – Latent
Effective Room Latent Heat
LH of Outdoor air not bypassed
Total (Coil latent heat)

Total coil load (GTH)

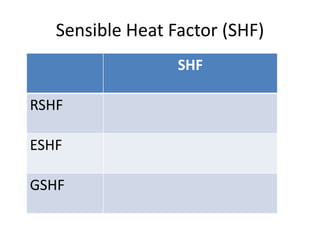

Sensible Heat Factor (SHF)
                  SHF

RSHF

ESHF

GSHF

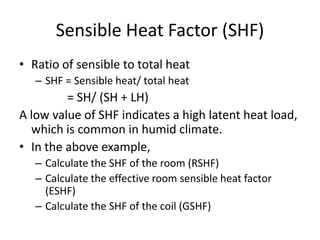

Sensible Heat Factor (SHF)
• Ratio of sensible to total heat
   – SHF = Sensible heat/ total heat
         = SH/ (SH + LH)
A low value of SHF indicates a high latent heat load,
  which is common in humid climate.
• In the above example,
   – Calculate the SHF of the room (RSHF)
   – Calculate the effective room sensible heat factor
     (ESHF)
   – Calculate the SHF of the coil (GSHF)

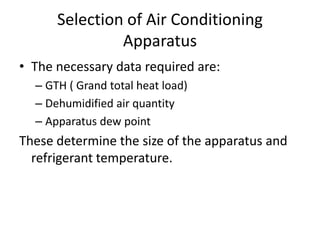

Selection of Air Conditioning
               Apparatus
• The necessary data required are:
  – GTH ( Grand total heat load)
  – Dehumidified air quantity
  – Apparatus dew point
These determine the size of the apparatus and
  refrigerant temperature.

More Related Content

What's hot

Reversed carnot cycle
Reversed carnot cycle   Reversed carnot cycle
Reversed carnot cycle
Ihsan Wassan

Heating and cooling load of a building
Heating and cooling load of a buildingHeating and cooling load of a building
Heating and cooling load of a building
INDIAN INSTITUTE OF TECHNOLOGY Delhi

Refrigeration And Air Conditioning
Refrigeration And Air ConditioningRefrigeration And Air Conditioning
Refrigeration And Air Conditioning
Saurabh Jain

Refrigeration cycle
Refrigeration cycleRefrigeration cycle
Refrigeration cycle
zubi0585

Refrigerant compressors
Refrigerant compressorsRefrigerant compressors
Refrigerant compressors
Akshay Kumar Mishra

Basic Mechanical Engineering - Refrigeration
Basic Mechanical Engineering - RefrigerationBasic Mechanical Engineering - Refrigeration
Basic Mechanical Engineering - Refrigeration
Steve M S

Refrigeration and Air Conditioning System Components
Refrigeration and Air Conditioning System ComponentsRefrigeration and Air Conditioning System Components
Refrigeration and Air Conditioning System Components
Ajaypalsinh Barad

Air distribution Product
Air distribution ProductAir distribution Product
Air distribution Product
Ashutosh kumar Dubey

Refrigeration system
Refrigeration systemRefrigeration system
Refrigeration system
Kunj Patel

REFRIGERATION AND AIR CONDITIONING
REFRIGERATION AND AIR CONDITIONINGREFRIGERATION AND AIR CONDITIONING
REFRIGERATION AND AIR CONDITIONING
Divakar Ketha

vapour compression refrigeration system
vapour compression refrigeration systemvapour compression refrigeration system
vapour compression refrigeration system
Abhishek Choksi

Refrigerants used in Refrigeration System
Refrigerants used in Refrigeration SystemRefrigerants used in Refrigeration System
Refrigerants used in Refrigeration System
Ajaypalsinh Barad

Chilled water systems
Chilled water systemsChilled water systems
Chilled water systems
Jason Abston

Air conditioning system
Air conditioning systemAir conditioning system
Air conditioning system
anojan kanagarathnam

EVAPORATORS AND TYPES
EVAPORATORS AND TYPESEVAPORATORS AND TYPES
EVAPORATORS AND TYPES
MeenakshyMS

Airconditioning ppt
Airconditioning pptAirconditioning ppt
Airconditioning ppt
Aamir Farhan Sheikh

Cooling towers
Cooling towersCooling towers
Cooling towers
ctlin5

AIR CONDITIONING SYSTEM DESINGING
AIR CONDITIONING SYSTEM DESINGINGAIR CONDITIONING SYSTEM DESINGING
AIR CONDITIONING SYSTEM DESINGING
INDUSTRIAL ENGINEERING

2. psychrometric chart
2. psychrometric chart2. psychrometric chart
2. psychrometric chart
Manoj Pj

Evaporator
EvaporatorEvaporator
Evaporator
rampal singh


What's hot (20)

Reversed carnot cycle
Reversed carnot cycle   Reversed carnot cycle
Reversed carnot cycle

Heating and cooling load of a building
Heating and cooling load of a buildingHeating and cooling load of a building
Heating and cooling load of a building

Refrigeration And Air Conditioning
Refrigeration And Air ConditioningRefrigeration And Air Conditioning
Refrigeration And Air Conditioning

Refrigeration cycle
Refrigeration cycleRefrigeration cycle
Refrigeration cycle

Refrigerant compressors
Refrigerant compressorsRefrigerant compressors
Refrigerant compressors

Basic Mechanical Engineering - Refrigeration
Basic Mechanical Engineering - RefrigerationBasic Mechanical Engineering - Refrigeration
Basic Mechanical Engineering - Refrigeration

Refrigeration and Air Conditioning System Components
Refrigeration and Air Conditioning System ComponentsRefrigeration and Air Conditioning System Components
Refrigeration and Air Conditioning System Components

Air distribution Product
Air distribution ProductAir distribution Product
Air distribution Product

Refrigeration system
Refrigeration systemRefrigeration system
Refrigeration system

REFRIGERATION AND AIR CONDITIONING
REFRIGERATION AND AIR CONDITIONINGREFRIGERATION AND AIR CONDITIONING
REFRIGERATION AND AIR CONDITIONING

vapour compression refrigeration system
vapour compression refrigeration systemvapour compression refrigeration system
vapour compression refrigeration system

Refrigerants used in Refrigeration System
Refrigerants used in Refrigeration SystemRefrigerants used in Refrigeration System
Refrigerants used in Refrigeration System

Chilled water systems
Chilled water systemsChilled water systems
Chilled water systems

Air conditioning system
Air conditioning systemAir conditioning system
Air conditioning system

EVAPORATORS AND TYPES
EVAPORATORS AND TYPESEVAPORATORS AND TYPES
EVAPORATORS AND TYPES

Airconditioning ppt
Airconditioning pptAirconditioning ppt
Airconditioning ppt

Cooling towers
Cooling towersCooling towers
Cooling towers

AIR CONDITIONING SYSTEM DESINGING
AIR CONDITIONING SYSTEM DESINGINGAIR CONDITIONING SYSTEM DESINGING
AIR CONDITIONING SYSTEM DESINGING

2. psychrometric chart
2. psychrometric chart2. psychrometric chart
2. psychrometric chart

Evaporator
EvaporatorEvaporator
Evaporator


Viewers also liked

Cooling load calculations and principles
Cooling load calculations and principlesCooling load calculations and principles
Cooling load calculations and principles
Dheiy Myth

[W f stoecker]_refrigeration_and_a_ir_conditioning_(book_zz.org)
[W f stoecker]_refrigeration_and_a_ir_conditioning_(book_zz.org)[W f stoecker]_refrigeration_and_a_ir_conditioning_(book_zz.org)
[W f stoecker]_refrigeration_and_a_ir_conditioning_(book_zz.org)
Mike Mentzos

Cooling tower full report
Cooling tower full reportCooling tower full report
Cooling tower full report
Azlan Skool

đò án tốt nghiệp ngành xây dựng
đò án tốt nghiệp ngành xây dựngđò án tốt nghiệp ngành xây dựng
đò án tốt nghiệp ngành xây dựngDinh Do

Cooling Towers - An Extensive Approach
Cooling Towers - An Extensive ApproachCooling Towers - An Extensive Approach
Cooling Towers - An Extensive Approach
Noaman Ahmed

GIFT - Presentation
GIFT - PresentationGIFT - Presentation
GIFT - Presentation
Our Vibrant Gujarat

GIFT City
GIFT CityGIFT City
GIFT City
Vishal Dedhia

Refrigeration and-air-conditioning-notes
Refrigeration and-air-conditioning-notesRefrigeration and-air-conditioning-notes
Refrigeration and-air-conditioning-notes
Olumide Daniel

Final presentation
Final presentationFinal presentation
Final presentation
Tushar Kanta Sethi

Dharavi slums and Housing
Dharavi slums and HousingDharavi slums and Housing
Dharavi slums and Housing
Anjuman e Islam

Natural ventilation
Natural ventilationNatural ventilation
Natural ventilation
Aming Osman

Lifts & Escalators
Lifts & EscalatorsLifts & Escalators
Lifts & Escalators
GAURAV. H .TANDON

Lecture 7 thermal insulation
Lecture 7   thermal insulationLecture 7   thermal insulation
Lecture 7 thermal insulation
Bekark

Naya Raipur - A New City Takes Root - SS Bajaj
Naya Raipur - A New City Takes Root - SS BajajNaya Raipur - A New City Takes Root - SS Bajaj
Naya Raipur - A New City Takes Root - SS Bajaj
WRI Ross Center for Sustainable Cities

Centralised Air Conditioning
Centralised Air ConditioningCentralised Air Conditioning
Centralised Air Conditioning
Kapil Sinha

Mohamed Zedan - State of The Art in the Use of Thermal Insulation in Building
Mohamed Zedan - State of The Art in the Use of Thermal Insulation in BuildingMohamed Zedan - State of The Art in the Use of Thermal Insulation in Building
Mohamed Zedan - State of The Art in the Use of Thermal Insulation in Building
kuwaitinsulation

Ab bp warehouse hvac calculation
Ab bp warehouse hvac calculationAb bp warehouse hvac calculation
Ab bp warehouse hvac calculation
Hazem Sherif

cooling load calculations Hostel Building
 cooling load calculations Hostel Building  cooling load calculations Hostel Building
cooling load calculations Hostel Building
Jabir Ali Siddique

Heat & sound insulation
Heat & sound insulationHeat & sound insulation
Heat & sound insulation
Manish Jain Luhadia

Materials and Usage of Treatment for Thermal Insulation
Materials and Usage of Treatment for Thermal Insulation Materials and Usage of Treatment for Thermal Insulation
Materials and Usage of Treatment for Thermal Insulation
Visweswararao Veeramachaneni


Viewers also liked (20)

Cooling load calculations and principles
Cooling load calculations and principlesCooling load calculations and principles
Cooling load calculations and principles

[W f stoecker]_refrigeration_and_a_ir_conditioning_(book_zz.org)
[W f stoecker]_refrigeration_and_a_ir_conditioning_(book_zz.org)[W f stoecker]_refrigeration_and_a_ir_conditioning_(book_zz.org)
[W f stoecker]_refrigeration_and_a_ir_conditioning_(book_zz.org)

Cooling tower full report
Cooling tower full reportCooling tower full report
Cooling tower full report

đò án tốt nghiệp ngành xây dựng
đò án tốt nghiệp ngành xây dựngđò án tốt nghiệp ngành xây dựng
đò án tốt nghiệp ngành xây dựng

Cooling Towers - An Extensive Approach
Cooling Towers - An Extensive ApproachCooling Towers - An Extensive Approach
Cooling Towers - An Extensive Approach

GIFT - Presentation
GIFT - PresentationGIFT - Presentation
GIFT - Presentation

GIFT City
GIFT CityGIFT City
GIFT City

Refrigeration and-air-conditioning-notes
Refrigeration and-air-conditioning-notesRefrigeration and-air-conditioning-notes
Refrigeration and-air-conditioning-notes

Final presentation
Final presentationFinal presentation
Final presentation

Dharavi slums and Housing
Dharavi slums and HousingDharavi slums and Housing
Dharavi slums and Housing

Natural ventilation
Natural ventilationNatural ventilation
Natural ventilation

Lifts & Escalators
Lifts & EscalatorsLifts & Escalators
Lifts & Escalators

Lecture 7 thermal insulation
Lecture 7   thermal insulationLecture 7   thermal insulation
Lecture 7 thermal insulation

Naya Raipur - A New City Takes Root - SS Bajaj
Naya Raipur - A New City Takes Root - SS BajajNaya Raipur - A New City Takes Root - SS Bajaj
Naya Raipur - A New City Takes Root - SS Bajaj

Centralised Air Conditioning
Centralised Air ConditioningCentralised Air Conditioning
Centralised Air Conditioning

Mohamed Zedan - State of The Art in the Use of Thermal Insulation in Building
Mohamed Zedan - State of The Art in the Use of Thermal Insulation in BuildingMohamed Zedan - State of The Art in the Use of Thermal Insulation in Building
Mohamed Zedan - State of The Art in the Use of Thermal Insulation in Building

Ab bp warehouse hvac calculation
Ab bp warehouse hvac calculationAb bp warehouse hvac calculation
Ab bp warehouse hvac calculation

cooling load calculations Hostel Building
 cooling load calculations Hostel Building  cooling load calculations Hostel Building
cooling load calculations Hostel Building

Heat & sound insulation
Heat & sound insulationHeat & sound insulation
Heat & sound insulation

Materials and Usage of Treatment for Thermal Insulation
Materials and Usage of Treatment for Thermal Insulation Materials and Usage of Treatment for Thermal Insulation
Materials and Usage of Treatment for Thermal Insulation


Similar to 12 Cooling Load Calculations

106381932-Fridge.pptx
106381932-Fridge.pptx106381932-Fridge.pptx
106381932-Fridge.pptx
AlthafMk3

solar refrigerator .pptx
solar refrigerator .pptxsolar refrigerator .pptx
solar refrigerator .pptx
SANGARALINGAMT

2 Thermal Control.pdf
2 Thermal Control.pdf2 Thermal Control.pdf
2 Thermal Control.pdf
a a

Cooling Load Calculations.pptx
Cooling Load Calculations.pptxCooling Load Calculations.pptx
Cooling Load Calculations.pptx
201725MDSAZIDALAMPAT

425 3-cooling load-2009
425 3-cooling load-2009425 3-cooling load-2009
425 3-cooling load-2009
okky agassy firmansyah

Heating & Cooling Loads Calculations and HVAC Equipment Sizing
Heating & Cooling Loads Calculations  and HVAC Equipment SizingHeating & Cooling Loads Calculations  and HVAC Equipment Sizing
Heating & Cooling Loads Calculations and HVAC Equipment Sizing
IES VE

ATI_SDM_2010_Jun
ATI_SDM_2010_JunATI_SDM_2010_Jun
ATI_SDM_2010_Jun
MDO_Lab

2021 heating and cooling loads
2021 heating and cooling loads2021 heating and cooling loads
2021 heating and cooling loads
INDIAN INSTITUTE OF TECHNOLOGY Delhi

Auris_Thermal_Presentation
Auris_Thermal_PresentationAuris_Thermal_Presentation
Auris_Thermal_Presentation
Cole Gingras

Mebs6006 0910 04-load
Mebs6006 0910 04-loadMebs6006 0910 04-load
Mebs6006 0910 04-load
narazmi

Chameleon suitoct01
Chameleon suitoct01Chameleon suitoct01
Chameleon suitoct01
Clifford Stone

Dynamic modeling of a central receiver CSP powerplant
Dynamic modeling of a central receiver CSP powerplantDynamic modeling of a central receiver CSP powerplant
Dynamic modeling of a central receiver CSP powerplant
Modelon

Building Climatology - HEAT
Building Climatology - HEATBuilding Climatology - HEAT
Building Climatology - HEAT
Ansif Habib

Solar Collector [Autosaved].pptx
Solar Collector [Autosaved].pptxSolar Collector [Autosaved].pptx
Solar Collector [Autosaved].pptx
BibhutiBhusanPani1

Cooling and heating load calculations tide load4z
Cooling and heating load calculations tide load4zCooling and heating load calculations tide load4z
Cooling and heating load calculations tide load4z
Tin Arboladura

Presentation cooling tower
Presentation cooling towerPresentation cooling tower
Presentation cooling tower
ALOK KUMAR SWAIN

aowabin
aowabinaowabin
Heat exchange process in a building
Heat exchange process in a buildingHeat exchange process in a building
Heat exchange process in a building
Roopa Chikkalgi

hvac
hvachvac
Flate Plate Collector (theory presentation).pdf
Flate Plate Collector (theory presentation).pdfFlate Plate Collector (theory presentation).pdf
Flate Plate Collector (theory presentation).pdf
FaizanAhmed396943


Similar to 12 Cooling Load Calculations (20)

106381932-Fridge.pptx
106381932-Fridge.pptx106381932-Fridge.pptx
106381932-Fridge.pptx

solar refrigerator .pptx
solar refrigerator .pptxsolar refrigerator .pptx
solar refrigerator .pptx

2 Thermal Control.pdf
2 Thermal Control.pdf2 Thermal Control.pdf
2 Thermal Control.pdf

Cooling Load Calculations.pptx
Cooling Load Calculations.pptxCooling Load Calculations.pptx
Cooling Load Calculations.pptx

425 3-cooling load-2009
425 3-cooling load-2009425 3-cooling load-2009
425 3-cooling load-2009

Heating & Cooling Loads Calculations and HVAC Equipment Sizing
Heating & Cooling Loads Calculations  and HVAC Equipment SizingHeating & Cooling Loads Calculations  and HVAC Equipment Sizing
Heating & Cooling Loads Calculations and HVAC Equipment Sizing

ATI_SDM_2010_Jun
ATI_SDM_2010_JunATI_SDM_2010_Jun
ATI_SDM_2010_Jun

2021 heating and cooling loads
2021 heating and cooling loads2021 heating and cooling loads
2021 heating and cooling loads

Auris_Thermal_Presentation
Auris_Thermal_PresentationAuris_Thermal_Presentation
Auris_Thermal_Presentation

Mebs6006 0910 04-load
Mebs6006 0910 04-loadMebs6006 0910 04-load
Mebs6006 0910 04-load

Chameleon suitoct01
Chameleon suitoct01Chameleon suitoct01
Chameleon suitoct01

Dynamic modeling of a central receiver CSP powerplant
Dynamic modeling of a central receiver CSP powerplantDynamic modeling of a central receiver CSP powerplant
Dynamic modeling of a central receiver CSP powerplant

Building Climatology - HEAT
Building Climatology - HEATBuilding Climatology - HEAT
Building Climatology - HEAT

Solar Collector [Autosaved].pptx
Solar Collector [Autosaved].pptxSolar Collector [Autosaved].pptx
Solar Collector [Autosaved].pptx

Cooling and heating load calculations tide load4z
Cooling and heating load calculations tide load4zCooling and heating load calculations tide load4z
Cooling and heating load calculations tide load4z

Presentation cooling tower
Presentation cooling towerPresentation cooling tower
Presentation cooling tower

aowabin
aowabinaowabin
aowabin

Heat exchange process in a building
Heat exchange process in a buildingHeat exchange process in a building
Heat exchange process in a building

hvac
hvachvac
hvac

Flate Plate Collector (theory presentation).pdf
Flate Plate Collector (theory presentation).pdfFlate Plate Collector (theory presentation).pdf
Flate Plate Collector (theory presentation).pdf


Recently uploaded

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation
tolgahangng

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
IndexBug

AI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdf
AI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdfAI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdf
AI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdf
Techgropse Pvt.Ltd.

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany
innovationoecd

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
Edge AI and Vision Alliance

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization
Zilliz

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter
Daiki Mogmet Ito

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future
Alpen-Adria-Universität

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday
Ivanti

UI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentationUI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentation
Wouter Lemaire

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
akankshawande

Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptxOcean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
SitimaJohn

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Malak Abu Hammad

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy
Tomaz Bratanic

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

OpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - AuthorizationOpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - Authorization
David Brossard

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024
Matthew Sinclair


Recently uploaded (20)

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence

AI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdf
AI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdfAI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdf
AI-Powered Food Delivery Transforming App Development in Saudi Arabia.pdf

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday

UI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentationUI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentation

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers

Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptxOcean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptx

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

OpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - AuthorizationOpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - Authorization

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024


12 Cooling Load Calculations

  • 2. Contents • Principle of cooling load • Why cooling load & heat gains are different • Design conditions • Understand CLTD/CLF method • An example
  • 3. Cooling Load • It is the thermal energy that must be removed from the space in order to maintain the desired comfort conditions • HVAC systems are used to maintain thermal conditions in comfort range
  • 4. Purpose of Load Estimate • Load profile over a day • Peak load (basis for equipment sizing) • Operation Energy analysis • HVAC Construction cost
  • 5. Principles of cooling Load Estimate • Enclosure heat transfer characteristics – Conduction – Convection – radiation • Design conditions – Outdoor & indoor • Heat Gains – Internal – External or Solar • Thermal capacity
  • 6. Space Characteristics • orientation • Size and shape • Construction material • Windows, doors, openings • Surrounding conditions • Ceiling
  • 7. Space Characteristics • Occupants (activity, number, duration) • Appliances (power, usage) • Air leakage (infiltration or exfiltration) • Lighting (W/m2)
  • 8. Indoor Design Conditions Basic design parameters • Air temperature – Typically 22-26 C • Air velocity – 0.25 m/s • Relative humidity – 30-70 % • See ASHRAE 55 – 2004 Comfort Zone
  • 9. Indoor Design Conditions • Indoor air quality – Air contaminants – Air cleaning • Acoustic requirements • Pressurization requirements
  • 10. Outdoor Design Conditions • Weather data required for load calculation – Temperature & humidity – Wind speed, sky clearness , ground reflectance etc • Design outdoor conditions data can be found in ASHRAE Fundamentals Handbook
  • 11. Outdoor Design Conditions • ASHRAE Fundamentals 2001 – Design severity based on 0.4%, 1%, & 2% level annually (8760h) – For example at 1% level, the value is exceeded in 0.01x8760h = 87.6 h in a year
  • 12. Outdoor Design For Cooling Criteria: 0.4% DB and MWB Station Cooling DB/MWB Miri 0.4% 1% 2% Malaysia DB (˚C ) MWB ( DB MWB DB MWB ˚C ) 32.2 26.3 31.8 26.3 31.4 26.2 Source: ASHRAE Fundamentals 2001
  • 13. Terminology • Space- a volume without partition or a group of rooms • Room- an enclosed space • Zone- a space having similar operating characteristics
  • 14. Heat Gain • Space Heat gain – The instantaneous rate at which heat enters into , out of, or generated within a space. The components are: Heat gains Convective Radiant (%) • Sensible gain (%) Solar 42 58 • Latent gain radiation with internal shading Fluorescent 50 50 lights People 67 33 External wall 40 60
  • 16. Cooling Load • Space Cooling load – The rate at which heat must be removed from a space to maintain air temperature and humidity at the design values • Cooling load differs from the heat gain due to – delay effect of conversion of radiation energy to heat – Thermal storage lag
  • 17. Heat Gain = Cooling Load
  • 18. Heat Gain = Cooling Load Thermal storage and Construction Type
  • 19. Time of the Day: Solar Radiation
  • 21. Extraction Rate • Space Heat extraction rate – The actual heat removal rate by the cooling equipment from the space – The heat extraction rate is equal to cooling load when the space conditions are constant which is rarely true.
  • 22. Heat Balance The principal terms of heat Gains/Losses are indicated below . (Source: ASHRAE Handbook Fundamentals 2005)
  • 23. Coil Load • Cooling coil load – The rate at which energy is removed at the cooling coil – Sum of: • Space cooling load (sensible + latent) • Supply system heat gain (fan + supply air duct) • Return system heat gain (return air duct) • Load due to outdoor ventilation rates (or ventilation load)
  • 24. External Loads 1. Heat gains from Walls and roofs – sensible 2. Solar gains through fenestrations – Sensible 3. Outdoor air – Sensible & latent
  • 25. Internal Loads 1. People – Sensible & latent 2. Lights – sensible 3. Appliances – Sensible & latent
  • 27. Cooling Load Components • Space cooling load – Sizing of supply air flow rate, ducts, terminals and diffusers – It is a component of coil load – Bypassed infiltration is a space cooling load • Cooling coil load – Sizing of cooling coil and refrigeration system – Ventilation load is a coil load
  • 28. Refrigeration Load • The capacity of the refrigeration system to produce the required coil load.
  • 29. Profiles of Offshore Systems Cooling Loads Components % Load %Load %Load %Load LQ (L) LQ (U) CCR SG/MCC Solar Transmission 3 4 7 4 Occupants 3 3 3 0 Lights 5 5 8 4 Equipment 10 1 29 21 Outdoor air bypassed 7 8 5 6 Outdoor air not 72 79 48 64 bypassed Total 100 100 100 100
  • 30. Heat Load Components Outdoor air & Electrical Equipment loads (77-85% ) People: 3% Lighting: 4-8% Solar Transmission: 3-7% Infiltration : 5-8%
  • 31. Calculation Methods 1. Rule of thumb method – Least accurate – eg 100 btu/ft2 for a space 2. Static analysis (Room temperature is constant) – CLTD/CLF method 3. Dynamic analysis – Computer modeling
  • 32. CLTD/CLF Method • Cooling load is made up of – Radiation and conduction heat gain – Convection heat gain • Convective gain is instantaneous – No delay – Heat gain equals cooling load • Conductive and radiation heat gains are not instantaneous – Thermal delay – Heat gain is not equal to cooling load – Use CLTD & CLF factors
  • 33. CLTD/CLF Method (ASHRAE 1989) Cooling load due to solar & internal heat gains • Glazing (sensible only) – Radiation & conduction – Convection (instantaneous) • Opaque surface ( wall, floor, roof) load (sensible only) – Conduction – Convection (instantaneous) • Internal loads (sensible & latent) – Radiation & conduction – Convection (instantaneous)
  • 34. Cooling Load Temperature Difference CLTD Compare Q transmission = UA (T o – T i ) Q transmission = UA (CLTD) • CLTD is theoretical temperature difference defined for each wall/roof to give the same heat load for exposed surfaces to account for the combined effects of radiation, conductive storage, etc – It is affected by orientation, time , latitude, etc – Data published by ASHRAE
  • 35. Cooling Load Factor (CLF) • This factor applies to radiation heat gain • If radiation is constant, cooling load = radiative gain • If radiation heat is periodical, than Q t = Q daily max (CLF) CLF accounts for the delay before radiative gains becomes a cooling load
  • 36. Glazing glass • Q = A (SC) (SHGF) (CLF) A= glass area SC= shading coefficient Solar ray SHGF= solar heat gain factor, tabulated by ASHRAE CLF= cooling load factor, tabulated by ASHRAE transmitted • Q = U x A x CLTD reflected U= surface U-factor absorbed A= surface area CLTD= cooling load temperature difference
  • 37. Opaque Surfaces • Q 2 = UA (CLTD) U= surface U-factor A= surface area CLTD= cooling load temperature difference • Tabulated or chart values for CLTD can be referred • Offshore enclosure – Light weight – Metal frame with insulation – Group G wall with U-value about 0.5-1.0 W/m2 K
  • 38. CLTD for Sunlit Wall Group G Source: ASHRAE Fundamental
  • 39. Opaque Surface Calculations • Use Table for wall CLTD • Use Table for roof CLTD – Select wall/roof type – Look up uncorrected CLTD – Correct CLTD CLTD c=(CLTD+LM)+ (25.5-t r) + (t m-29.4) • LM= latitude /month correction (Table ) • T r = indoor temperature (22C) • T m= average temperature on the design day = (35+22)/2 = 28.5 C Eg. If CLTD=40 C, LM=-1.7 (west face) CLTD c= (40-1.7) + (25.5-22)+ (28.5-29.4) = 40.9 C
  • 40. Types of Internal Load • Internal loads are – People – Lights – Equipment or appliances • Consist of convective and radiant components – Light (mostly radiant) – Electrical heat (radiant and convective) – People (most convective) • Time-delay effect due to thermal storage
  • 41. Internal Load- Lighting Area Light Power •Heat gain (lighting) Density W/m2 = 1.2 x total wattage x CLF Office 25 Corridor 10 Or based on light power Sleeping 10 density ranging from 10-25 CCR MCC/SG 25 25 W/m2 Kitchen 25 (average density, say=20 Recreation 20 W/m2) •Where light is continuously on, CLF=1
  • 42. Internal Loads- People • Q people-s = No x sensible heat gain/p x CLF • Q people-L = No x latent heat gain/p
  • 43. Internal Load – Equipment Heat • Cooling of electrical equipment in MCC/SG is an important function of HVAC system offshore. The components include: • Transformers • Motors • Medium/high voltage switchgears • Cables & trays • Motor starters • Inverters • Battery chargers • Circuit breakers • Unit panel board etc • Heat dissipation from these equipments are mainly based data published by the manufacturers
  • 44. Typical Outdoor & Indoor Design Conditions Used Here Conditions Dry-bulb % RH Moisture content, temperature (C) kg/kg Outdoor air 35 70 0.025 Indoor air 22 55 0.009 Difference 13 0.016 ASHRAE fundamental Handbook published data, at 0.4%, 1% and 2% design level. At 0.4% design level, Miri has only 35h (out of 8760 h a year) at 32.2 DB & 26.3 WB or higher
  • 45. Infiltration Air is Cooling Load • Load due to Ventilation air into the space Sensible load, (W) = mass flow rate x specific heat x (∆T) = 1.23 x l/s x (To – T i) or (1.08 x cfm x ∆T) Where To = Outside temperature, C Ti = indoor air temperature, C
  • 46. Ventilation Cooling Load Ventilation latent load, (W) = mass flow rate x latent heat of vaporization x (humidity difference) = 3010 x l/s x (∆ẁ) or (4840 x cfm x ∆ẁ) Where ∆ẁ = Inside-outside humidity ratio difference of air ( kg/kg)
  • 47. Total Cooling Load • This is also call the Grand total load • Sum of – Space heat gain Room Total Load – System heat gain – load due to outdoor air supplied through the air handling unit • Air bypassed the coil • Air not bypassed the coil
  • 48. System Heat Gain • These are sometimes external to the air conditioned space • HVAC equipment also contributes to heat gain – Fan heat gain – Duct heat gain
  • 49. Bypass Factor Bypass factor is an important coil characteristic on moisture removal performance . It’s value depends on: • Number of rows/fins per inch • Velocity of air
  • 50. Bypass Factor of the coil • When air streams across the cooling, portion of air may not come into contact with the coil surface • BPF = un-contacted air flow total flow BPF is normally selected at 0.1 for offshore cooling and dehumidification.
  • 51. Typical Coil Bypass Factor Row Deep 14 fins/inch Face velocity= 2.5 m/s 3 m/s 2 m/s 1 0.52 0.56 0.59 2 0.274 0.31 0.35 4 0.076 0.10 0.12 6 0.022 0.03 0.04 Source: Refrigeration and Air Conditioning by CP Arora
  • 52. Effect of Bypass Factor on Ventilation Load • Coil load due to outdoor air SH= (OASH)(1-BPF) LH= (OALH)(1-BPF) • Effective room load ERSH=RSH+(OASH)(BPF) ERLH=RLH + (OALH)(BPF)
  • 53. Cooling Load Classroom Exercise • Estimate the cooling load N of a portal cabin shown here: • Assuming that – Outdoor condition is 35C, 70% RH 4x4 Platform – Indoor condition is 22C , x 3 h Lower Deck 55 % RH – U-factor=0.5 W/m2 K – Occupied by 2 persons – Electrical equipment heat is 3 kW – 100l/s leakage due to pressurization
  • 54. Cooling Load Calculations Items Procedures Transmission- sensible Q = UA (CLTD) Wall- West side Wall- East side Wall – North Wall- South Roof Floor Total (T1) Internal load- sensible People Equipment Light Total (T2) Safety Factor (5% of T1+ T2) Fan heat & supply Duct Gain (7 % of T1+T2) RSH (Total of the above)
  • 55. Coil Load Calculations Items Procedures Room Latent Heat (RLH) People Room Total Heat RSH + RLH
  • 56. Cooling Load Calculations Items Procedures Design conditions Outdoor 35C, 70% RH Indoor 22C, 55 RH Ventilation- sensible Bypass air (0.1 bypass factor) 10% x outdoor air Sensible heat of bypass air Ventilation - Latent Latent heat of bypass air
  • 57. Cooling Load Calculations Items Procedures Design conditions Outdoor 35C, 70% RH Indoor 22C, 55 RH ERSH RSH Sensible heat of air bypass Effective Room Sensible Heat ERLH People Latent heat of air bypass Effective Room Latent Heat Effective Room Total Heat (ERTH) ERSH+ESLH
  • 58. Coil Load Calculation Items Procedures Design conditions Outdoor 35C, 70% RH Indoor 22C, 55 RH Coil Load – Sensible Effective Room Sensible Heat SH of Outdoor air not bypassed Total (Coil Sensible heat) Coil Load – Latent Effective Room Latent Heat LH of Outdoor air not bypassed Total (Coil latent heat) Total coil load (GTH)
  • 59. Sensible Heat Factor (SHF) SHF RSHF ESHF GSHF
  • 60. Sensible Heat Factor (SHF) • Ratio of sensible to total heat – SHF = Sensible heat/ total heat = SH/ (SH + LH) A low value of SHF indicates a high latent heat load, which is common in humid climate. • In the above example, – Calculate the SHF of the room (RSHF) – Calculate the effective room sensible heat factor (ESHF) – Calculate the SHF of the coil (GSHF)
  • 61. Selection of Air Conditioning Apparatus • The necessary data required are: – GTH ( Grand total heat load) – Dehumidified air quantity – Apparatus dew point These determine the size of the apparatus and refrigerant temperature.
