The document summarizes lessons learned from 100 Exadata implementations by Enkitec, an Oracle consulting partner. It discusses Exadata configurations, performance improvements, common migration strategies, and customer use cases. Typical Exadata implementations see performance improvements of 2-140x and consolidation of 31 servers onto a single Exadata quarter rack. Questions are welcomed.

1. 100 Exadata Implementations:
What have we learned?
Martin Paynter
Tim Fox

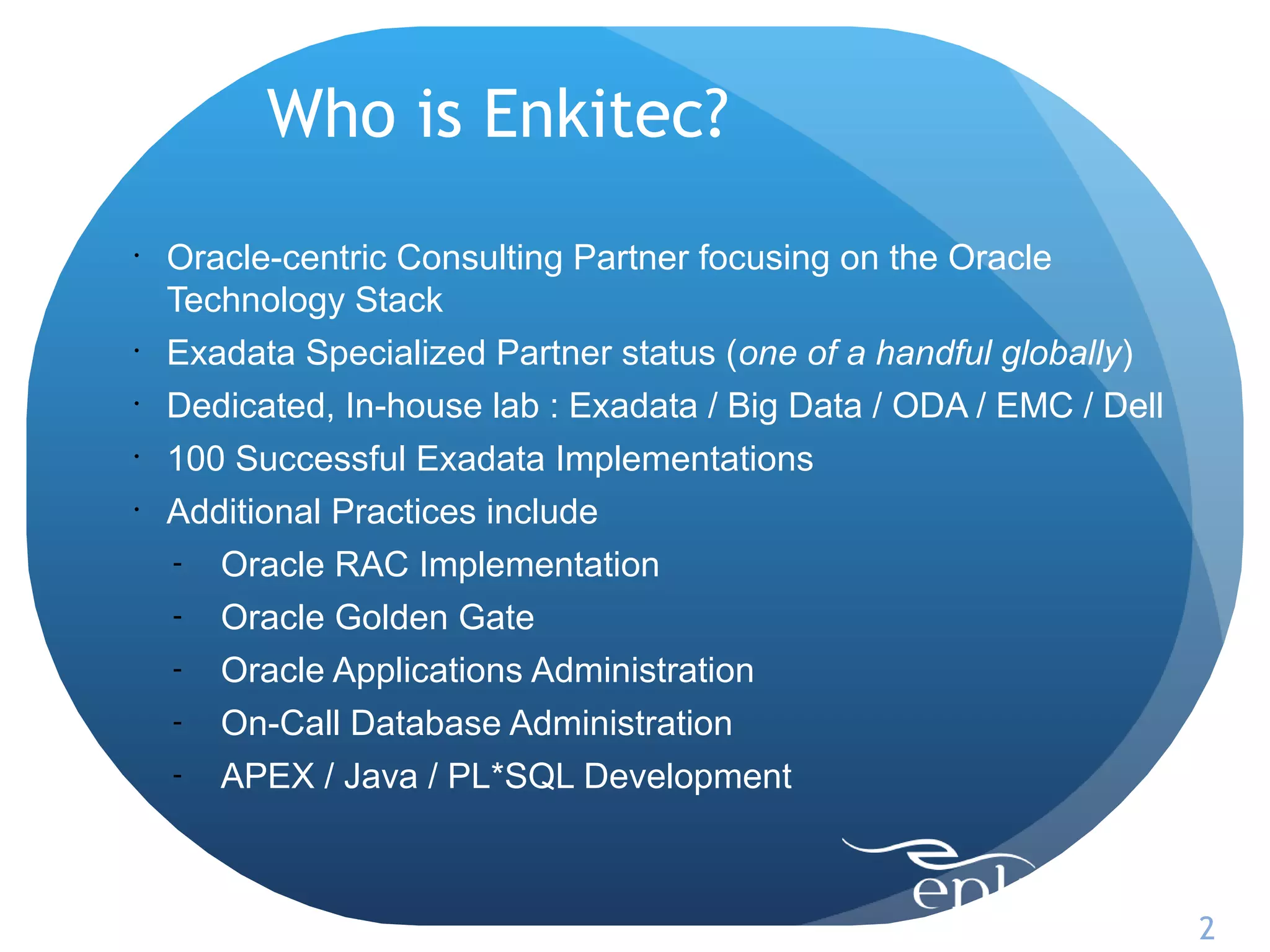

2. Who is Enkitec?
•
Oracle-centric Consulting Partner focusing on the Oracle
Technology Stack
•
Exadata Specialized Partner status (one of a handful globally)
•
Dedicated, In-house lab : Exadata / Big Data / ODA / EMC / Dell
•
100 Successful Exadata Implementations
•
Additional Practices include
- Oracle RAC Implementation
- Oracle Golden Gate
- Oracle Applications Administration
- On-Call Database Administration
- APEX / Java / PL*SQL Development
2

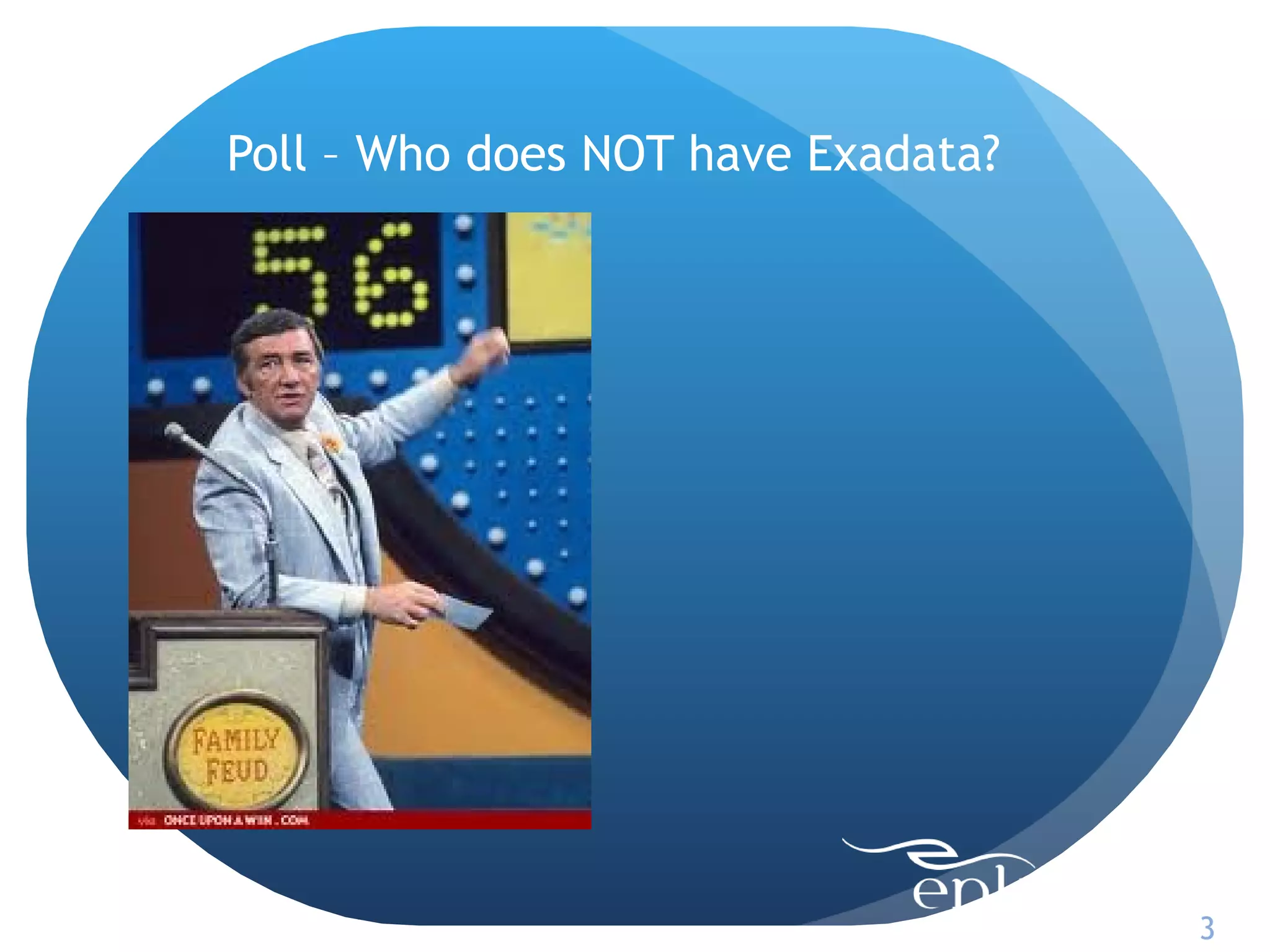

3. Poll – Who does NOT have Exadata?
3

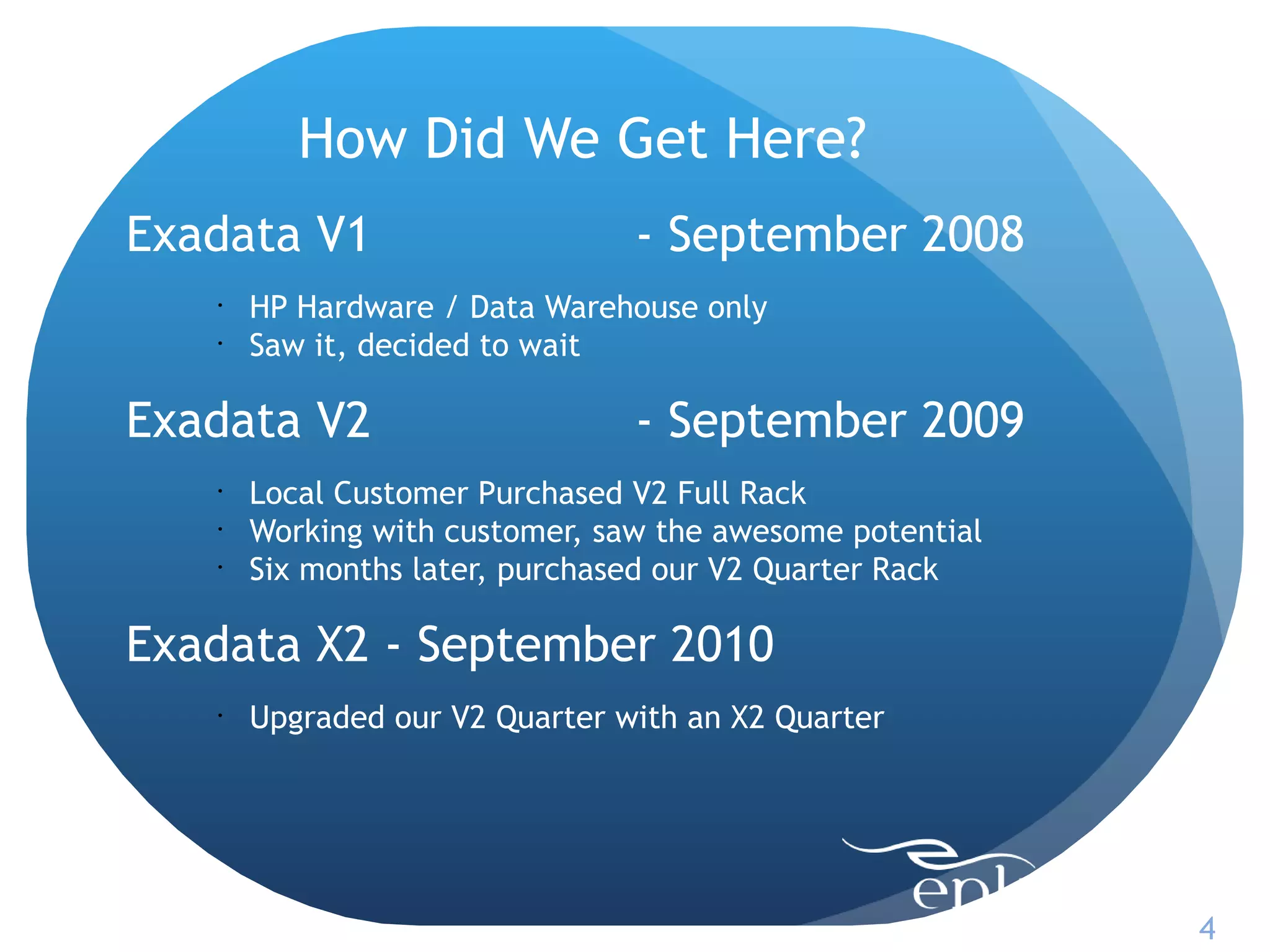

4. How Did We Get Here?
Exadata V1 - September 2008
•
HP Hardware / Data Warehouse only
•
Saw it, decided to wait
Exadata V2 - September 2009
•
Local Customer Purchased V2 Full Rack
•
Working with customer, saw the awesome potential
•
Six months later, purchased our V2 Quarter Rack
Exadata X2 - September 2010
•
Upgraded our V2 Quarter with an X2 Quarter
4

5. Proofs of Concept
POC’s are very popular
Results are often too good…
Exadata has an Acceptance Cycle:
•
Denial
•
Anger
•
Depression
•
Acceptance
5

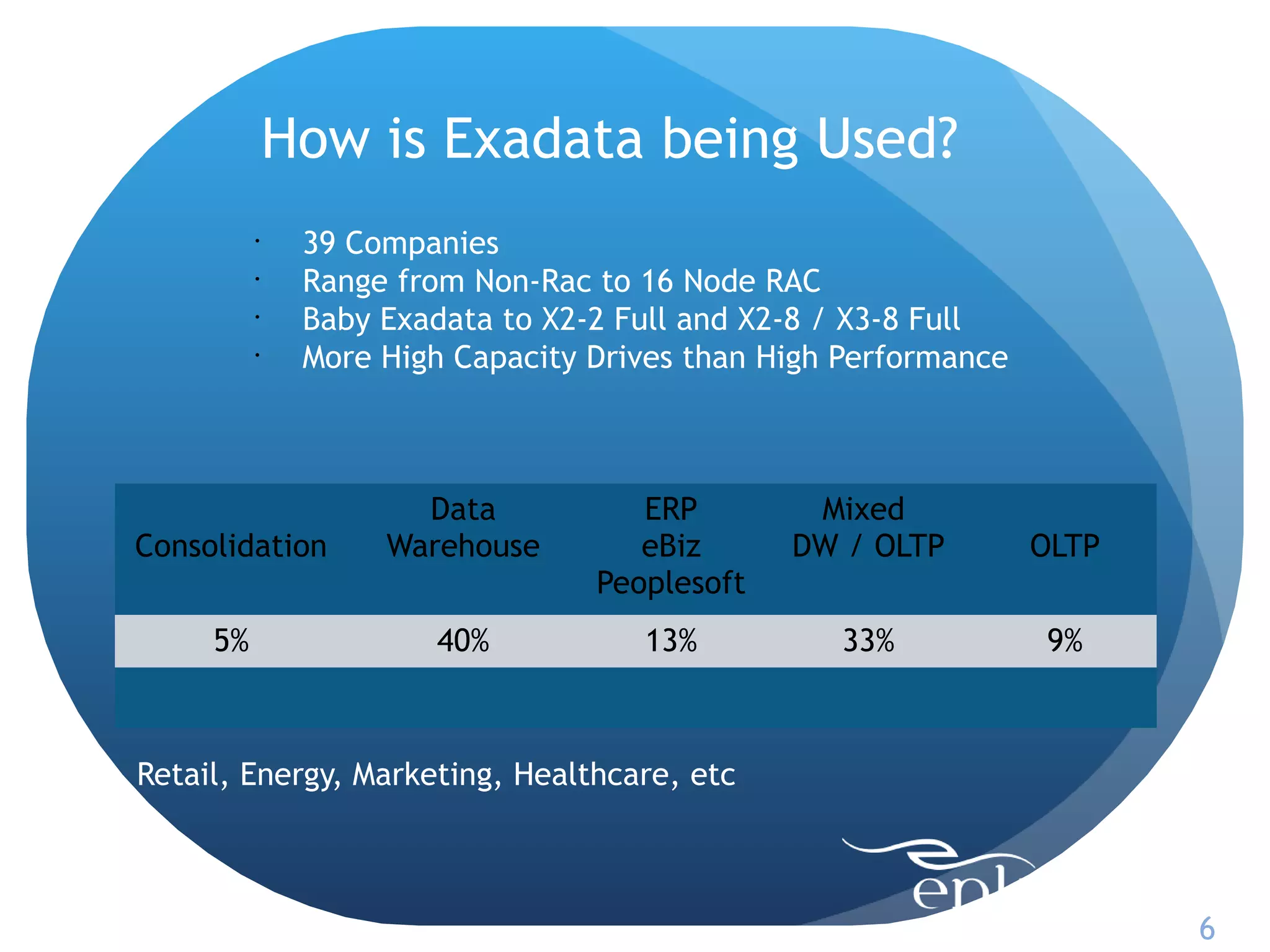

6. How is Exadata being Used?
•
39 Companies
•
Range from Non-Rac to 16 Node RAC
•
Baby Exadata to X2-2 Full and X2-8 / X3-8 Full
•
More High Capacity Drives than High Performance
Data ERP Mixed
Consolidation Warehouse eBiz DW / OLTP OLTP
Peoplesoft
5% 40% 13% 33% 9%
Retail, Energy, Marketing, Healthcare, etc
6

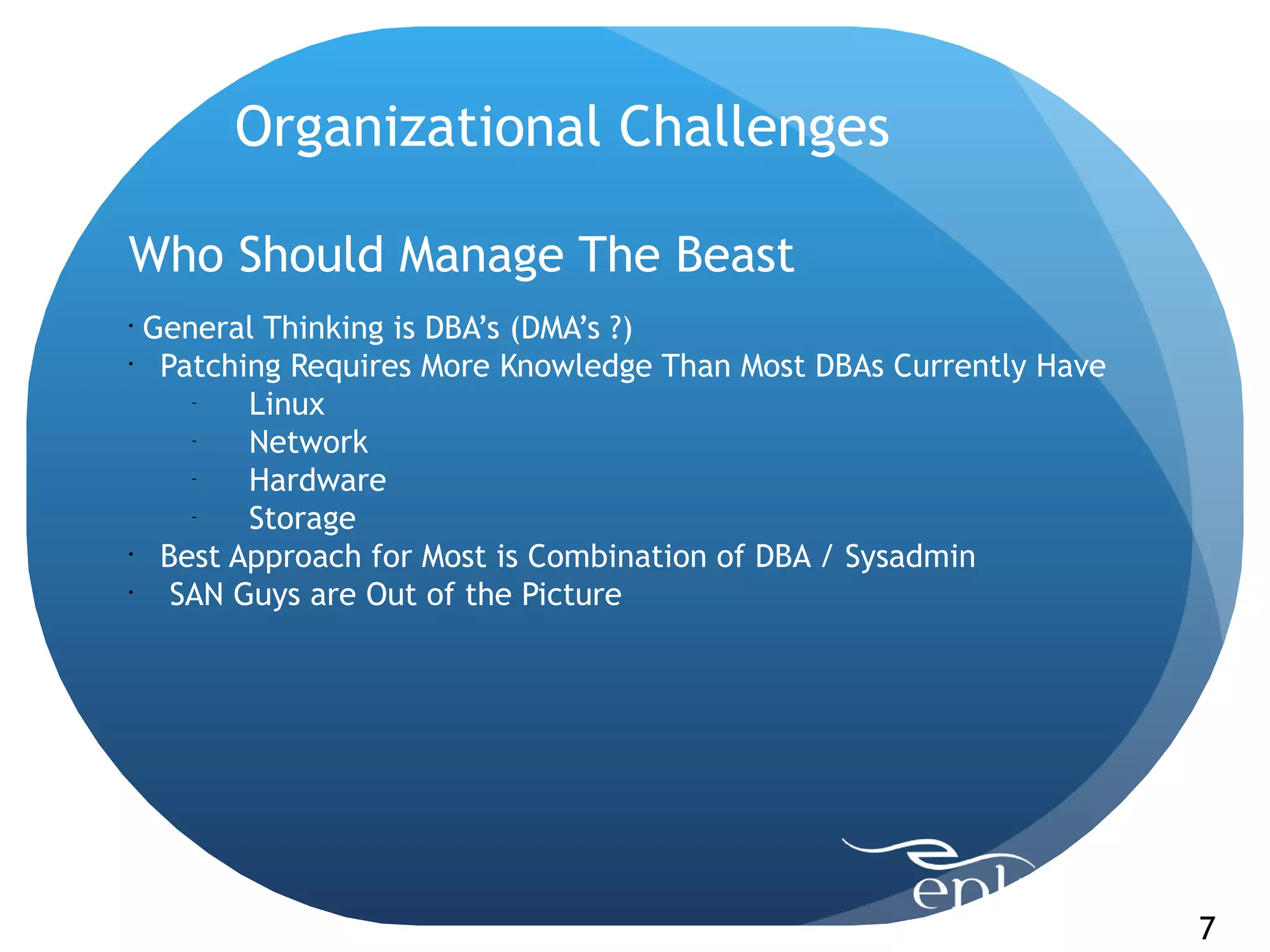

7. Organizational Challenges
Who Should Manage The Beast
•
General Thinking is DBA’s (DMA’s ?)
•
Patching Requires More Knowledge Than Most DBAs Currently Have
-
Linux
-
Network
-
Hardware
-
Storage
•
Best Approach for Most is Combination of DBA / Sysadmin
•
SAN Guys are Out of the Picture
7

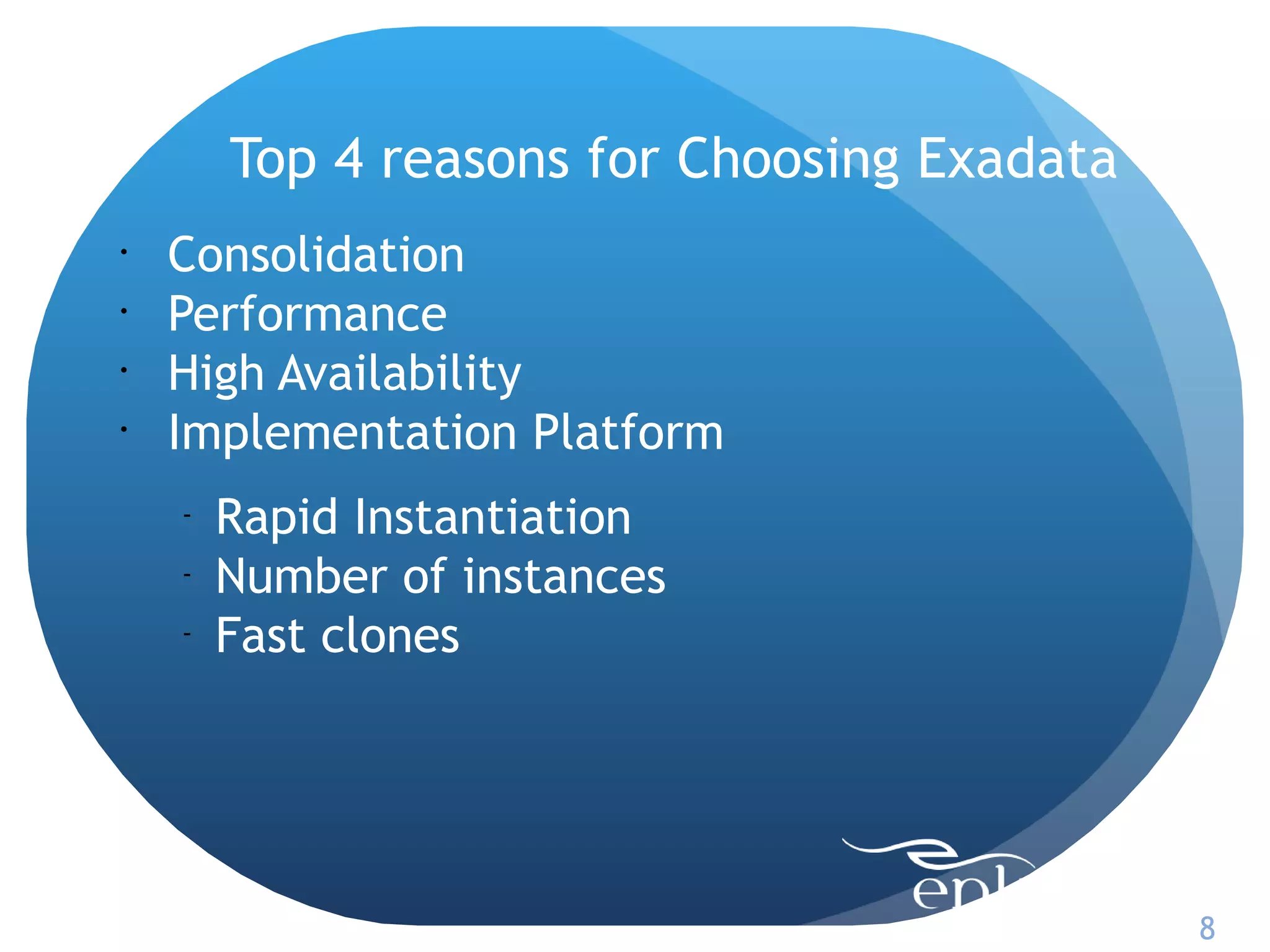

8. Top 4 reasons for Choosing Exadata
•
Consolidation
•
Performance
•
High Availability
•
Implementation Platform
-
Rapid Instantiation
-
Number of instances
-
Fast clones
8

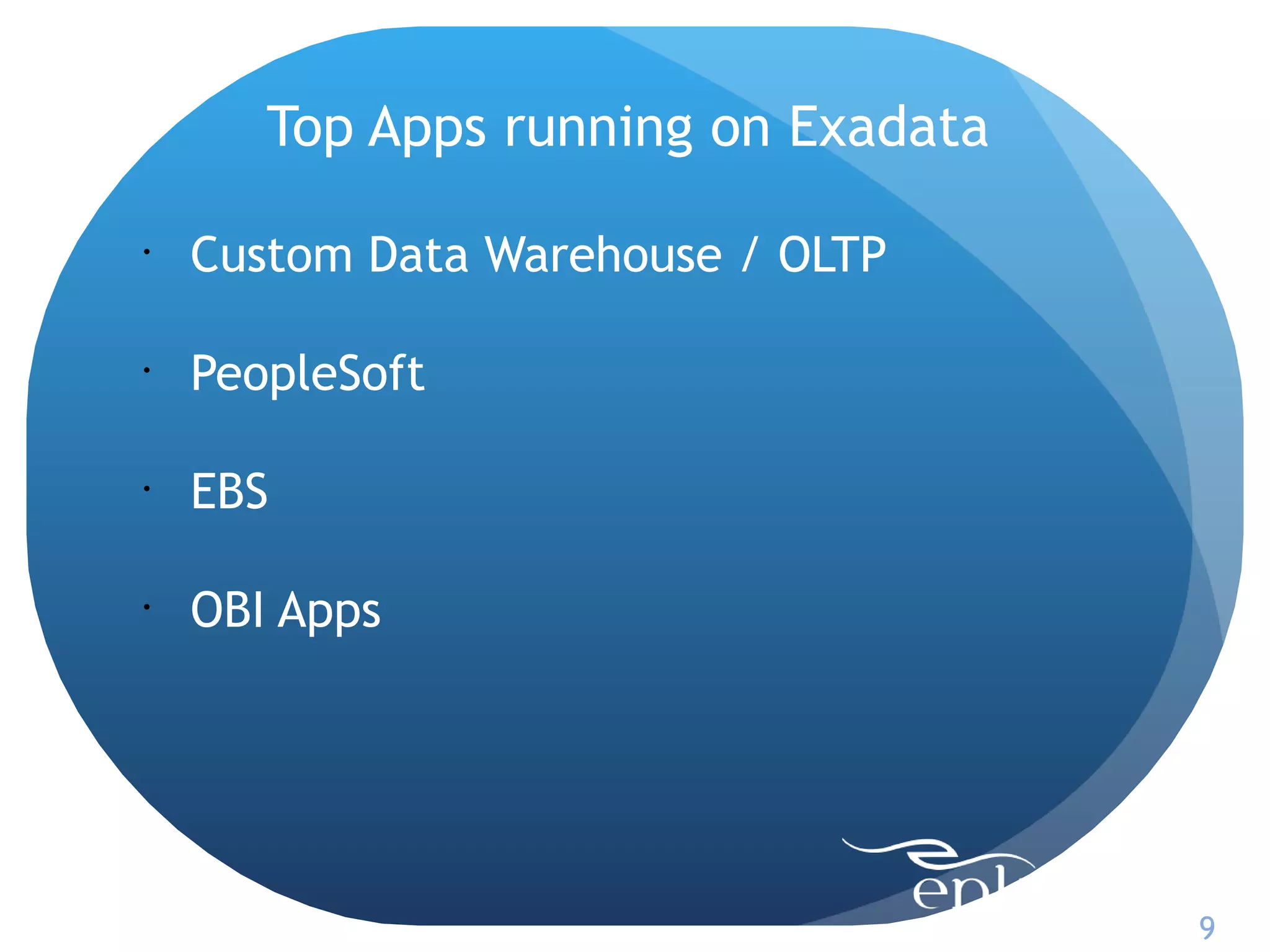

9. Top Apps running on Exadata
•
Custom Data Warehouse / OLTP
•
PeopleSoft
•
EBS
•
OBI Apps
9

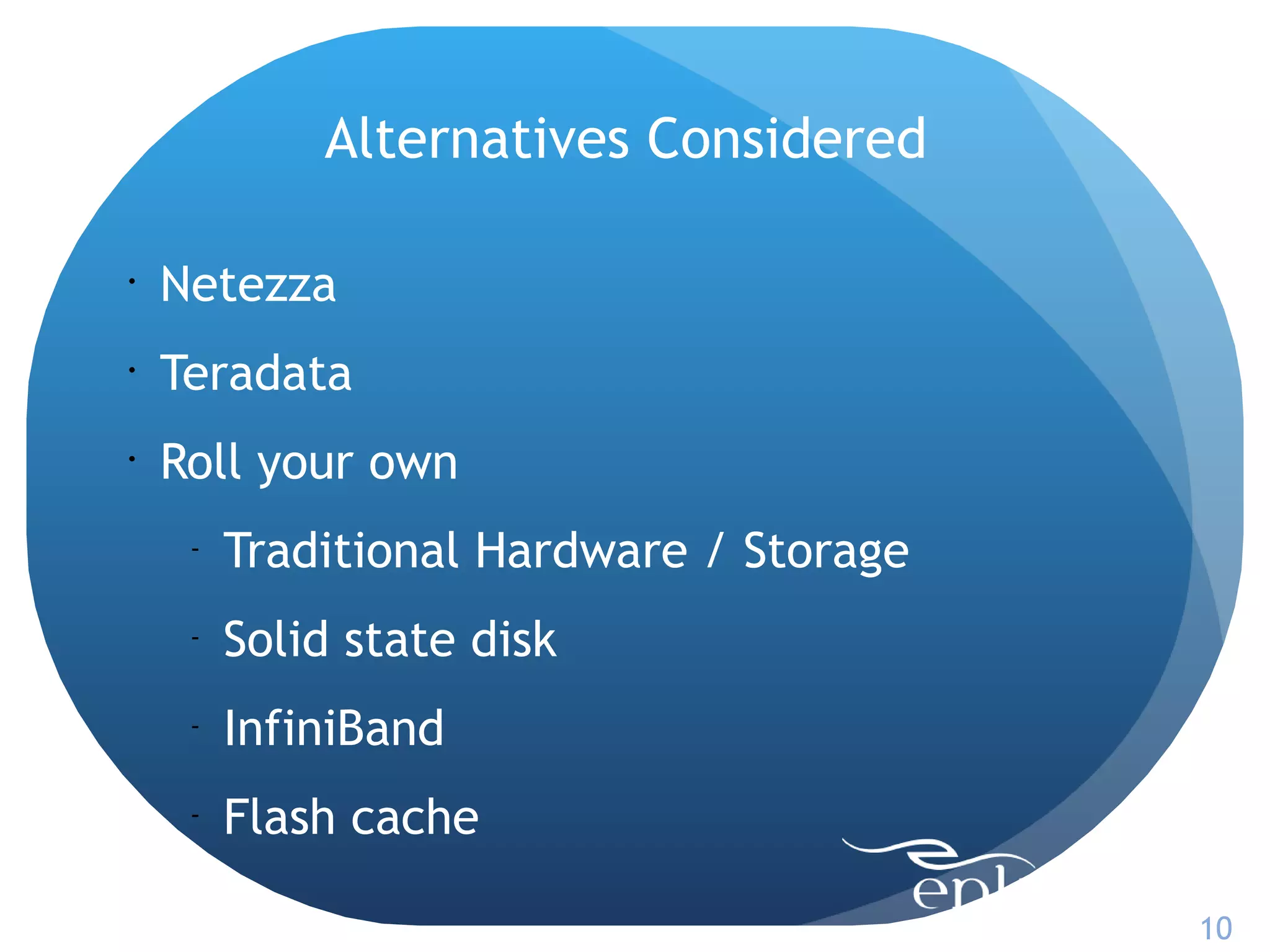

10. Alternatives Considered
•
Netezza
•
Teradata
•
Roll your own
-
Traditional Hardware / Storage
-
Solid state disk
-
InfiniBand
-
Flash cache
10

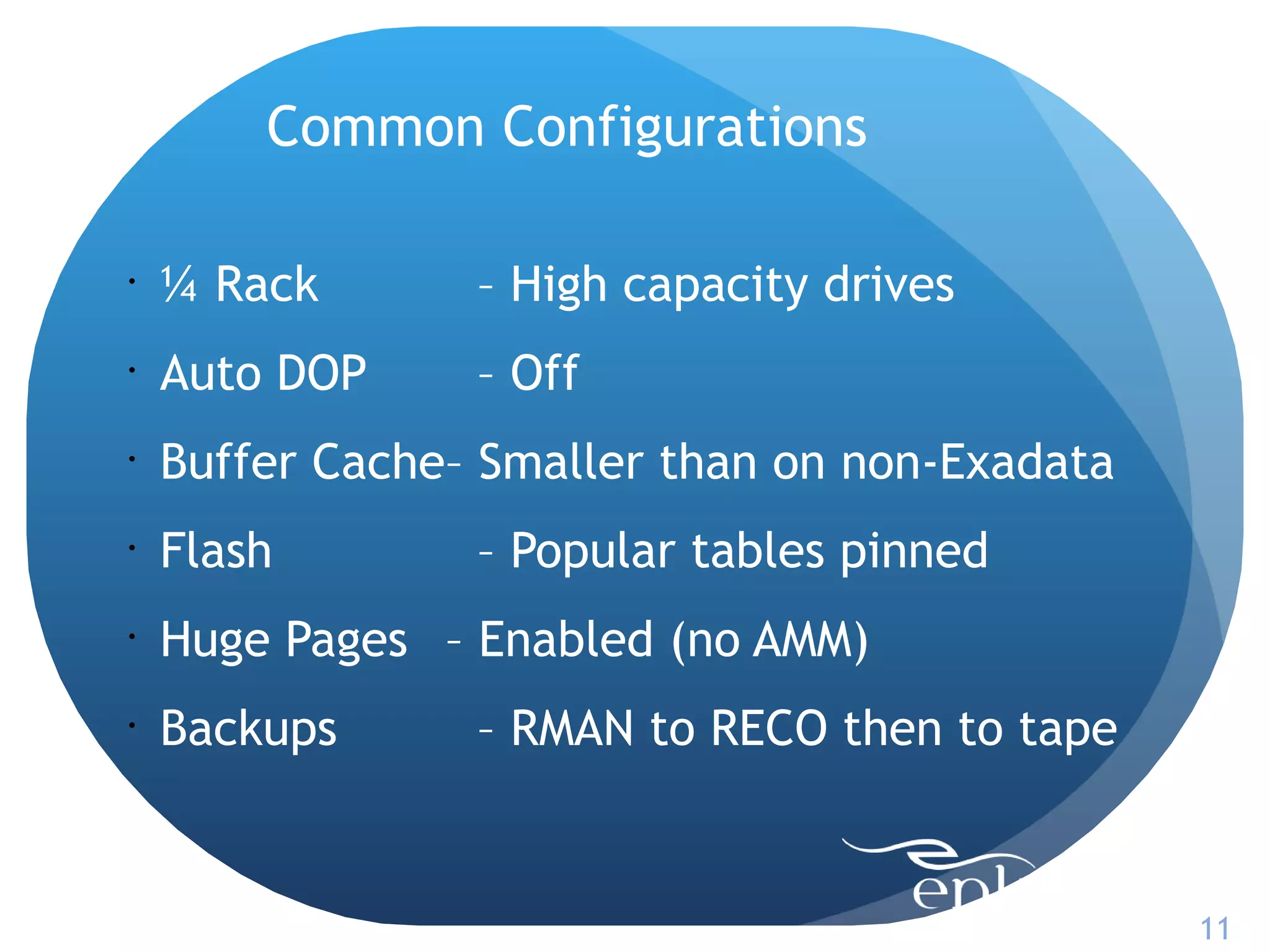

11. Common Configurations
•
¼ Rack – High capacity drives
•
Auto DOP – Off
•
Buffer Cache– Smaller than on non-Exadata
•
Flash – Popular tables pinned
•
Huge Pages – Enabled (no AMM)
•
Backups – RMAN to RECO then to tape
11

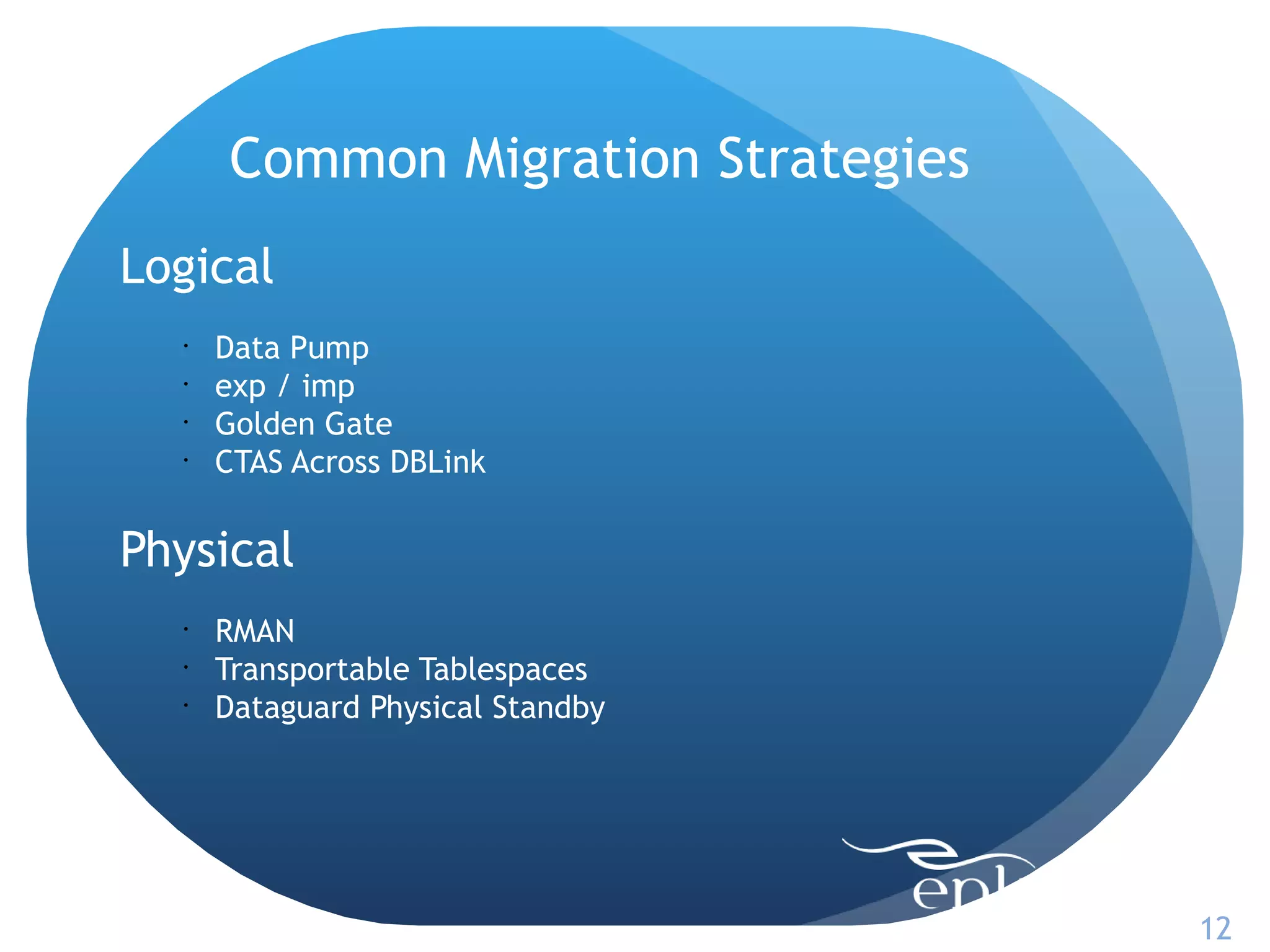

12. Common Migration Strategies
Logical
•
Data Pump
•
exp / imp
•
Golden Gate
•
CTAS Across DBLink
Physical
•
RMAN
•
Transportable Tablespaces
•
Dataguard Physical Standby
12

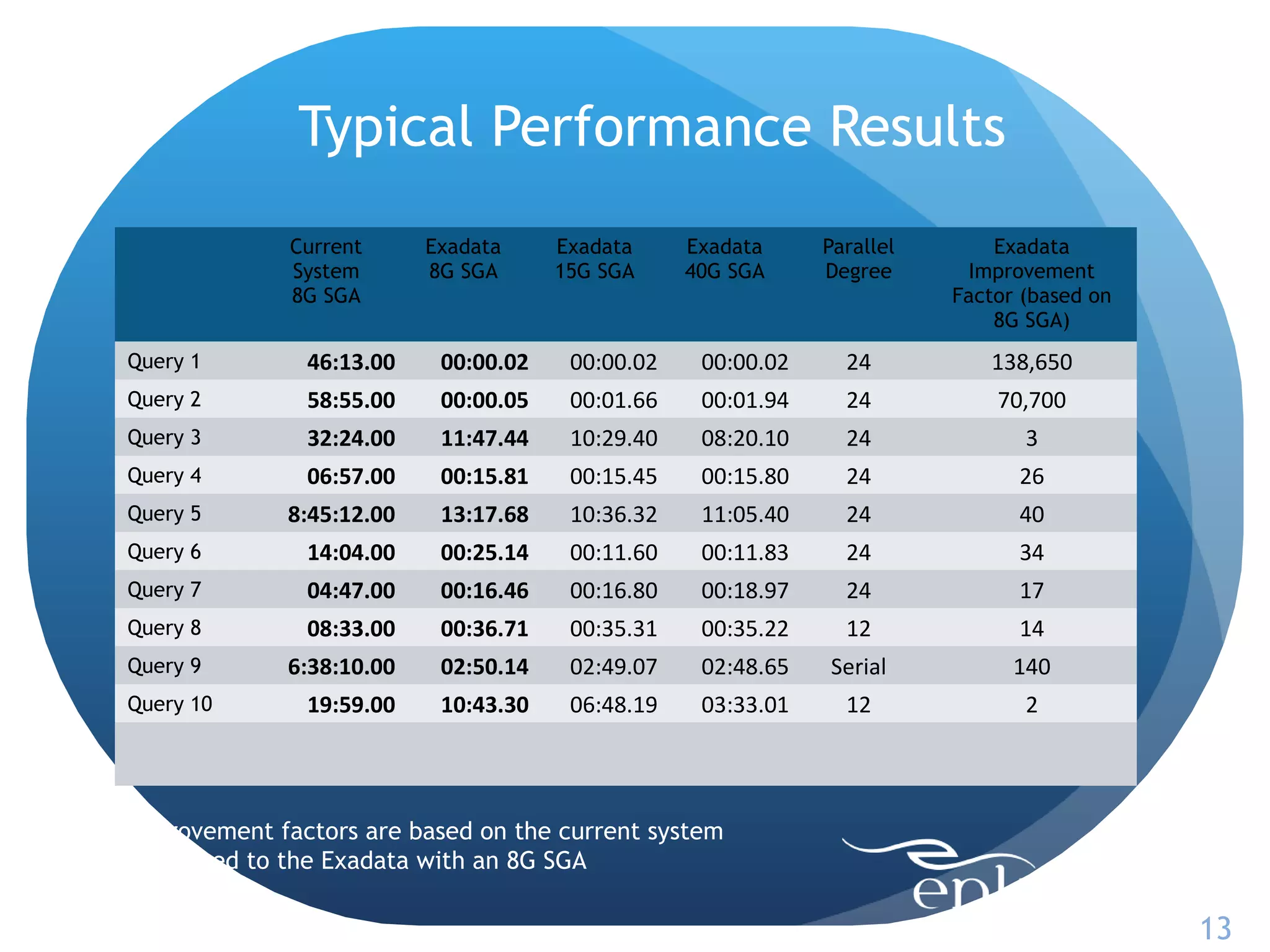

13. Typical Performance Results
Current Exadata Exadata Exadata Parallel Exadata
System 8G SGA 15G SGA 40G SGA Degree Improvement
8G SGA Factor (based on
8G SGA)
Query 1 46:13.00 00:00.02 00:00.02 00:00.02 24 138,650
Query 2 58:55.00 00:00.05 00:01.66 00:01.94 24 70,700
Query 3 32:24.00 11:47.44 10:29.40 08:20.10 24 3
Query 4 06:57.00 00:15.81 00:15.45 00:15.80 24 26
Query 5 8:45:12.00 13:17.68 10:36.32 11:05.40 24 40
Query 6 14:04.00 00:25.14 00:11.60 00:11.83 24 34
Query 7 04:47.00 00:16.46 00:16.80 00:18.97 24 17
Query 8 08:33.00 00:36.71 00:35.31 00:35.22 12 14
Query 9 6:38:10.00 02:50.14 02:49.07 02:48.65 Serial 140
Query 10 19:59.00 10:43.30 06:48.19 03:33.01 12 2
Improvement factors are based on the current system
Compared to the Exadata with an 8G SGA
13

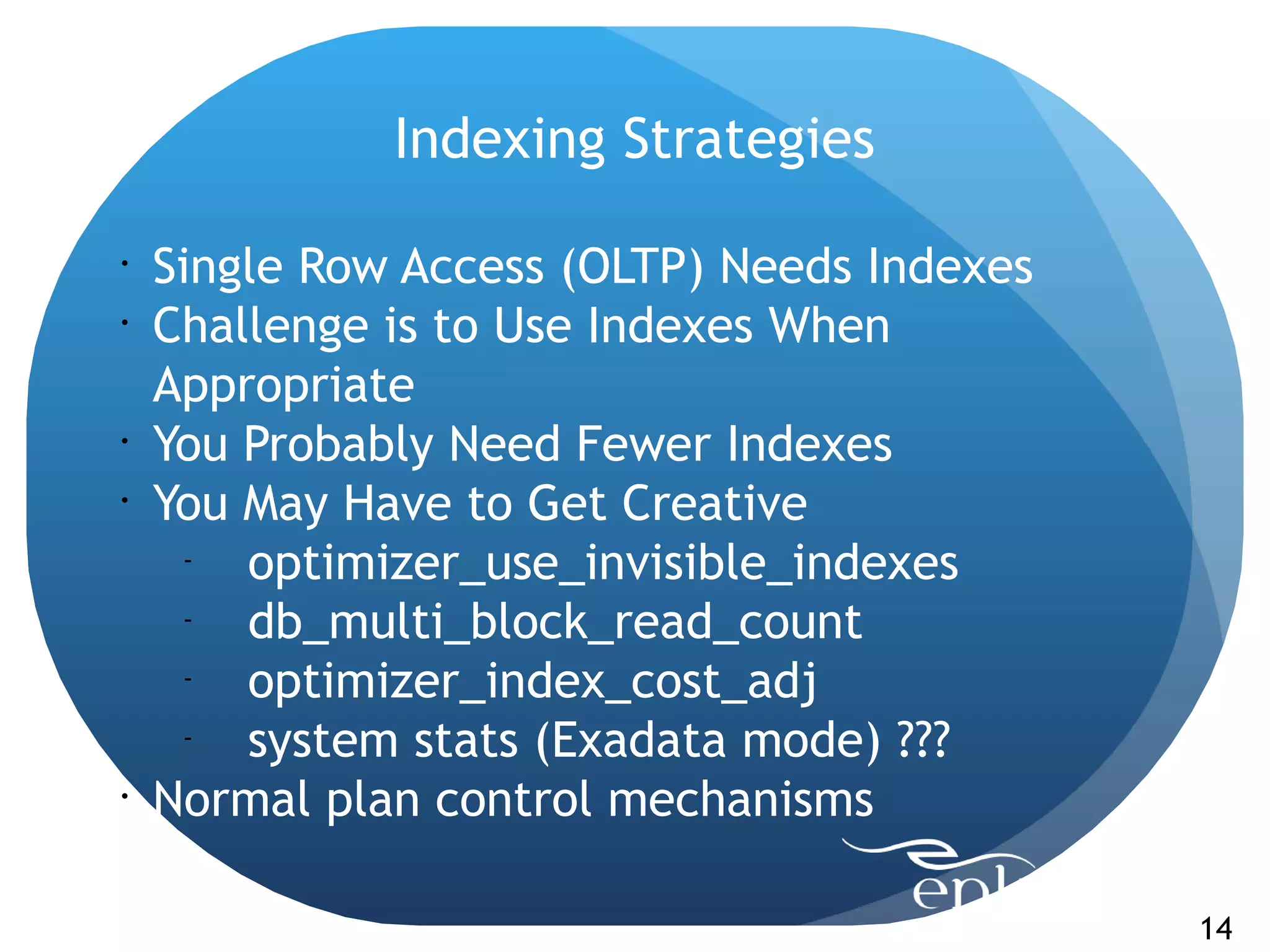

14. Indexing Strategies
•
Single Row Access (OLTP) Needs Indexes
•
Challenge is to Use Indexes When
Appropriate
•
You Probably Need Fewer Indexes
•
You May Have to Get Creative
-
optimizer_use_invisible_indexes
-
db_multi_block_read_count
-
optimizer_index_cost_adj
-
system stats (Exadata mode) ???
•
Normal plan control mechanisms
14

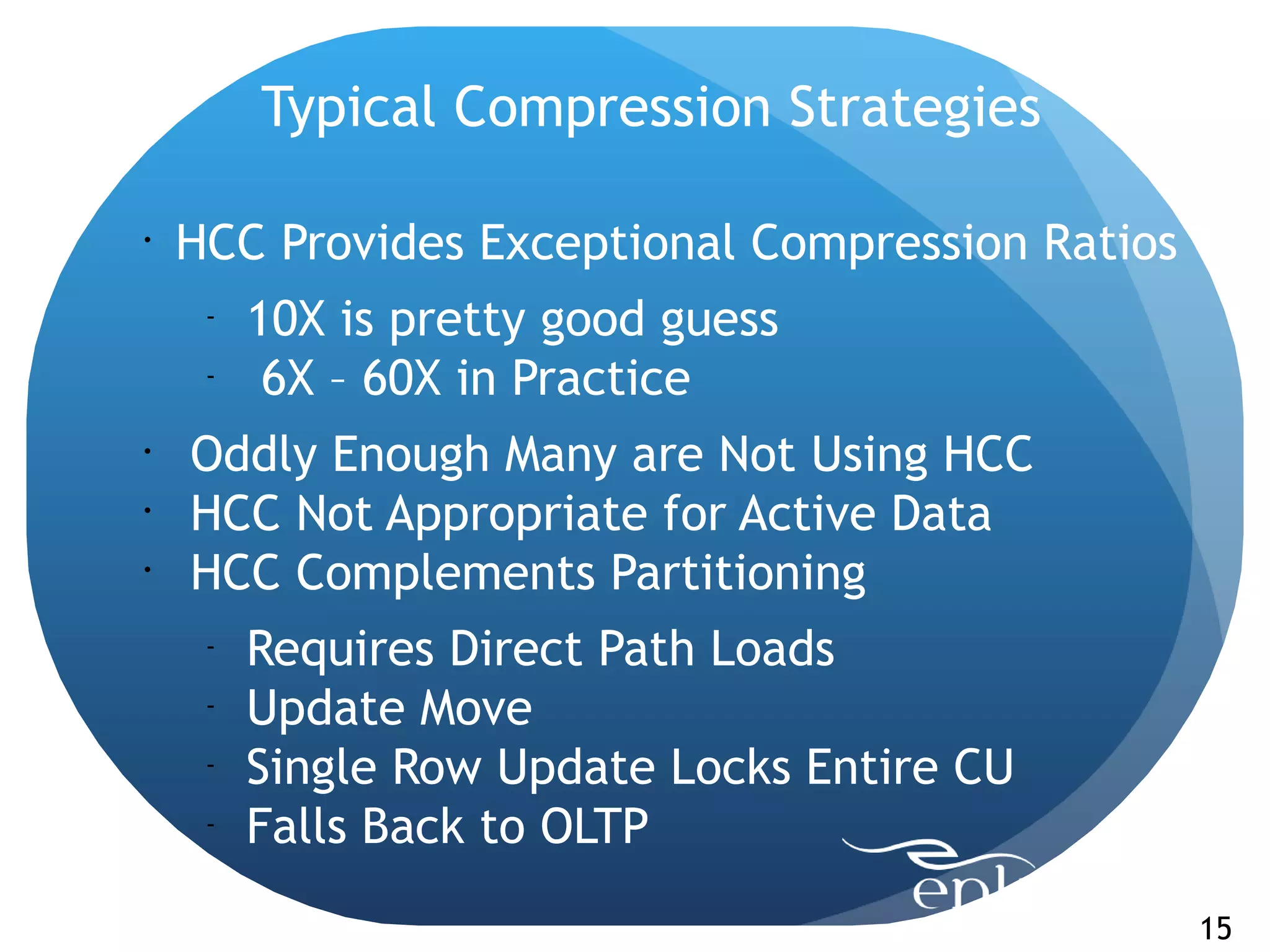

15. Typical Compression Strategies
•
HCC Provides Exceptional Compression Ratios
-
10X is pretty good guess
-
6X – 60X in Practice
•
Oddly Enough Many are Not Using HCC
•
HCC Not Appropriate for Active Data
•
HCC Complements Partitioning
-
Requires Direct Path Loads
-
Update Move
-
Single Row Update Locks Entire CU
-
Falls Back to OLTP
15

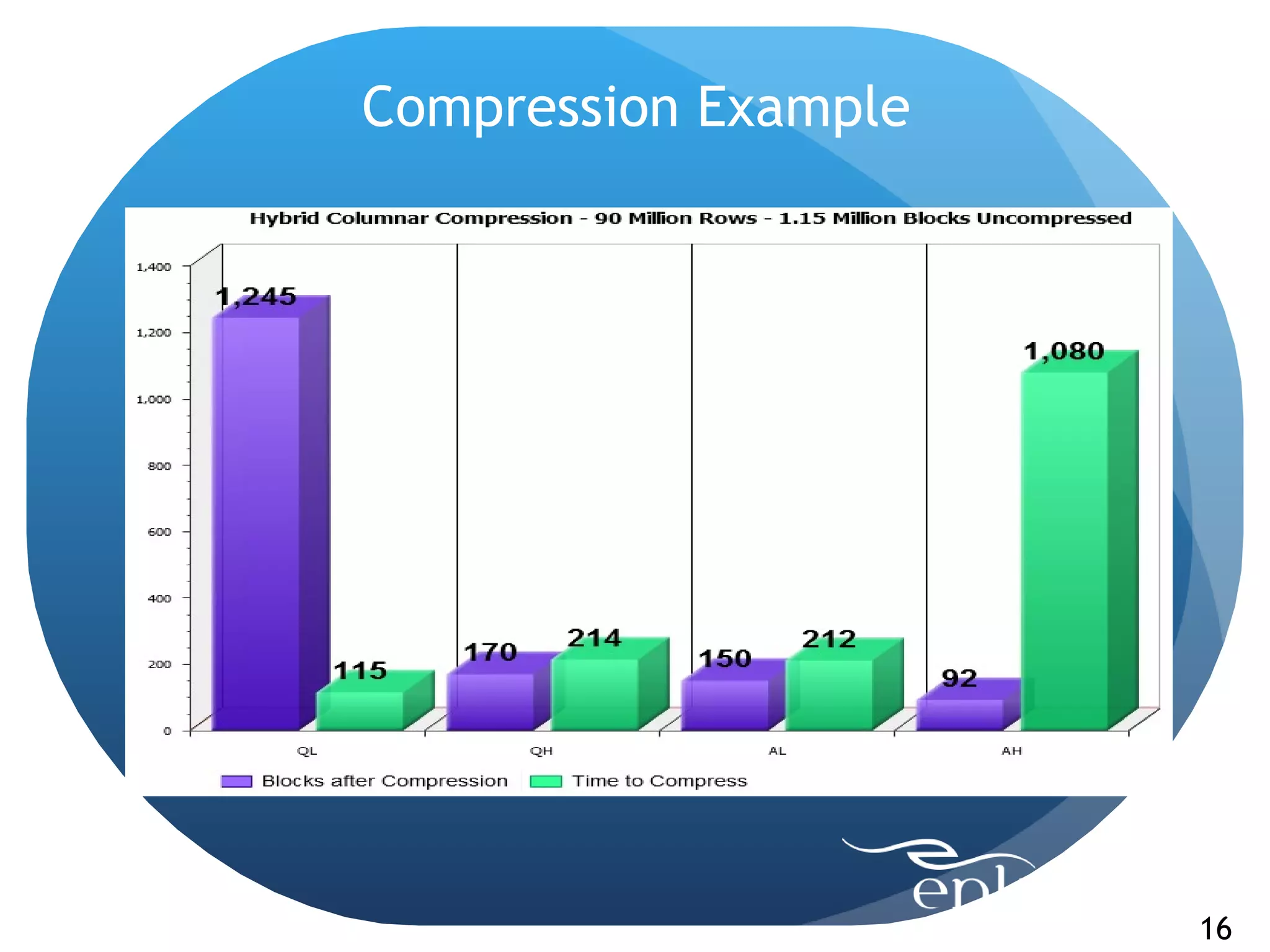

16. Compression Example
16

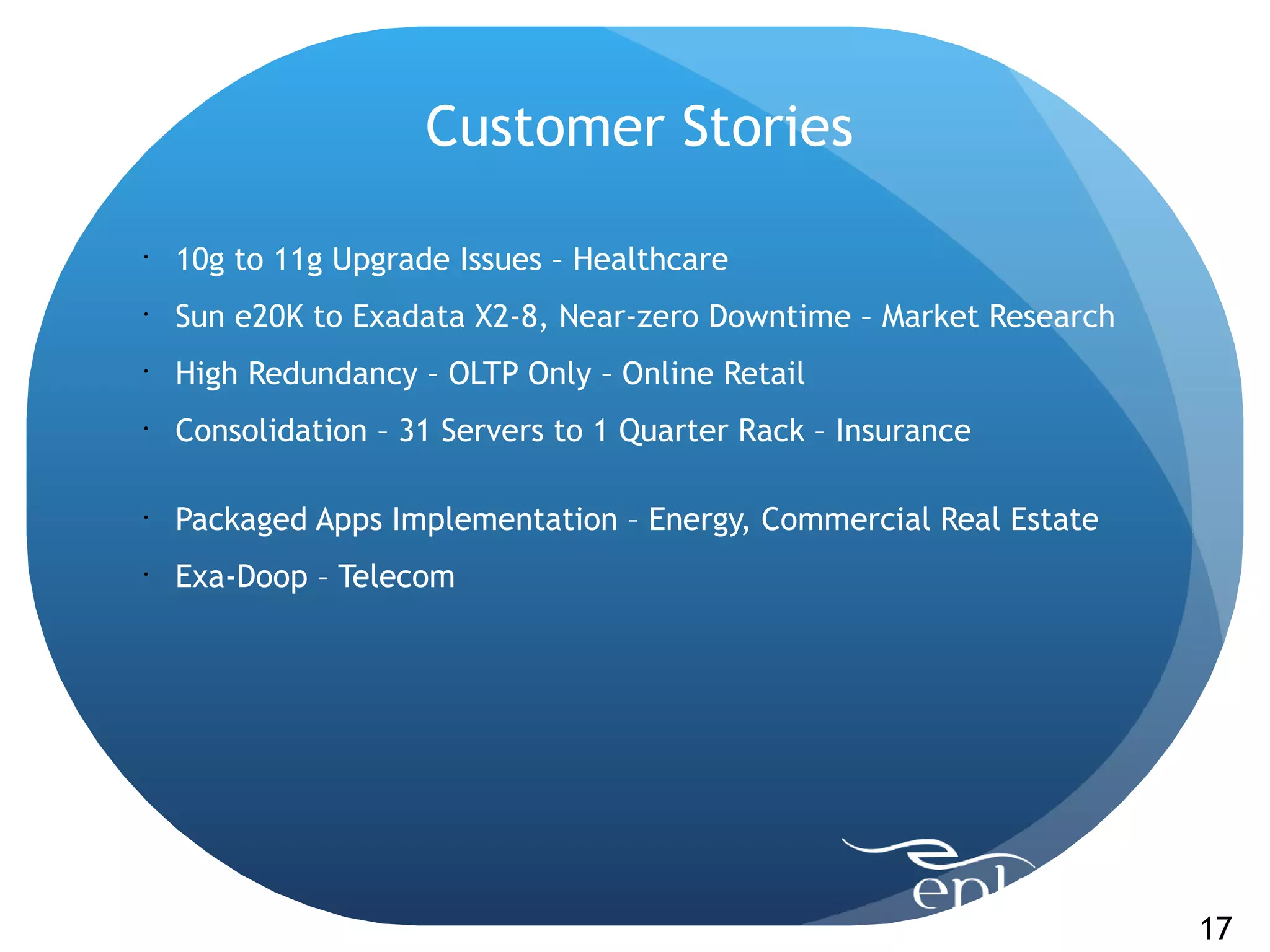

17. Customer Stories
•
10g to 11g Upgrade Issues – Healthcare
•
Sun e20K to Exadata X2-8, Near-zero Downtime – Market Research
•
High Redundancy – OLTP Only – Online Retail
•
Consolidation – 31 Servers to 1 Quarter Rack – Insurance
•
Packaged Apps Implementation – Energy, Commercial Real Estate
•
Exa-Doop – Telecom
17

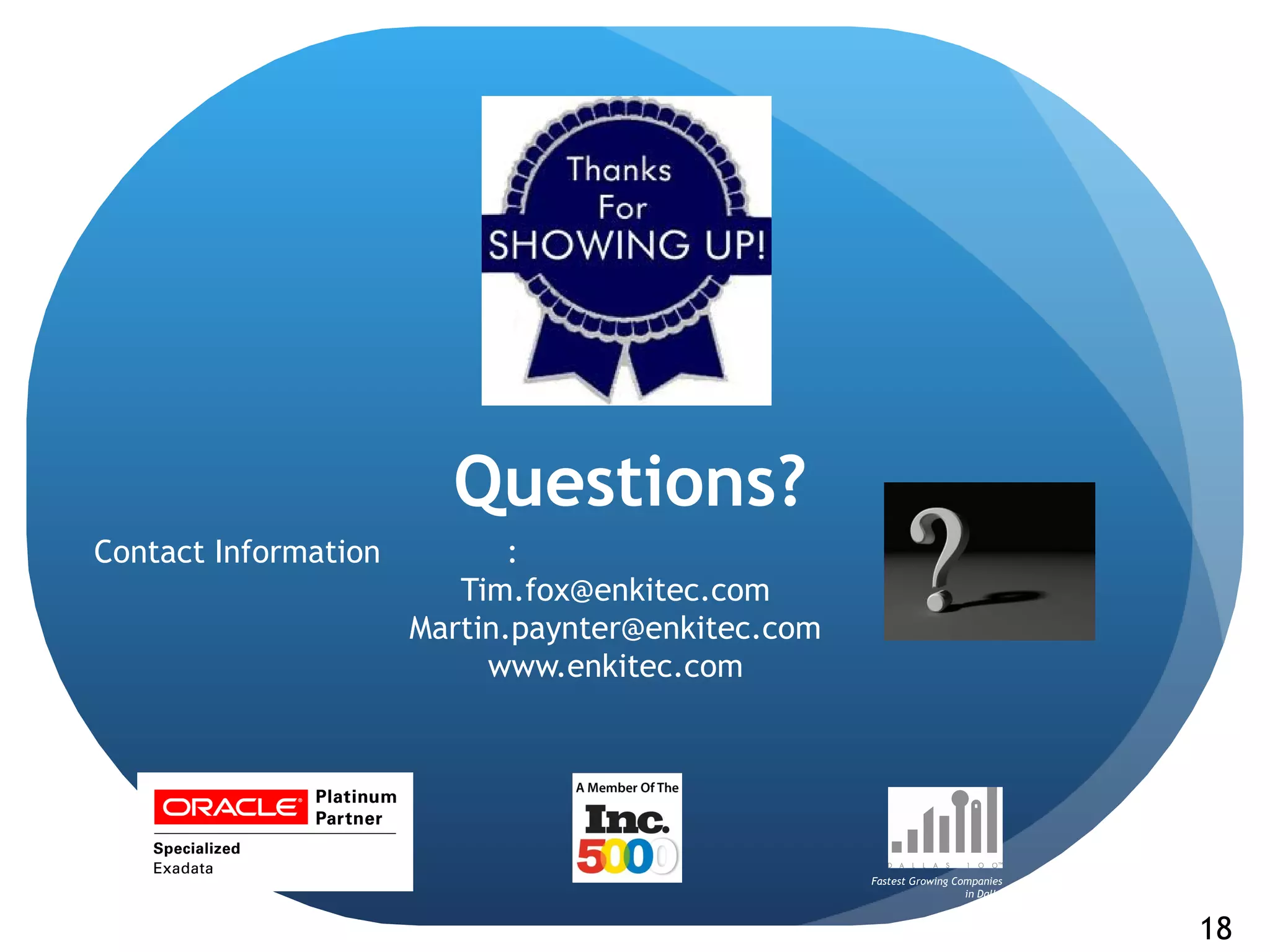

18. Questions?
