The Real Scoop on Migrating from Oracle Databases

The Real Scoop on Migrating from
Oracle Databases

Kevin.Martyn@EnterpriseDB.com
2013-10-30
© 2013 EnterpriseDB Corporation. All rights reserved.

1

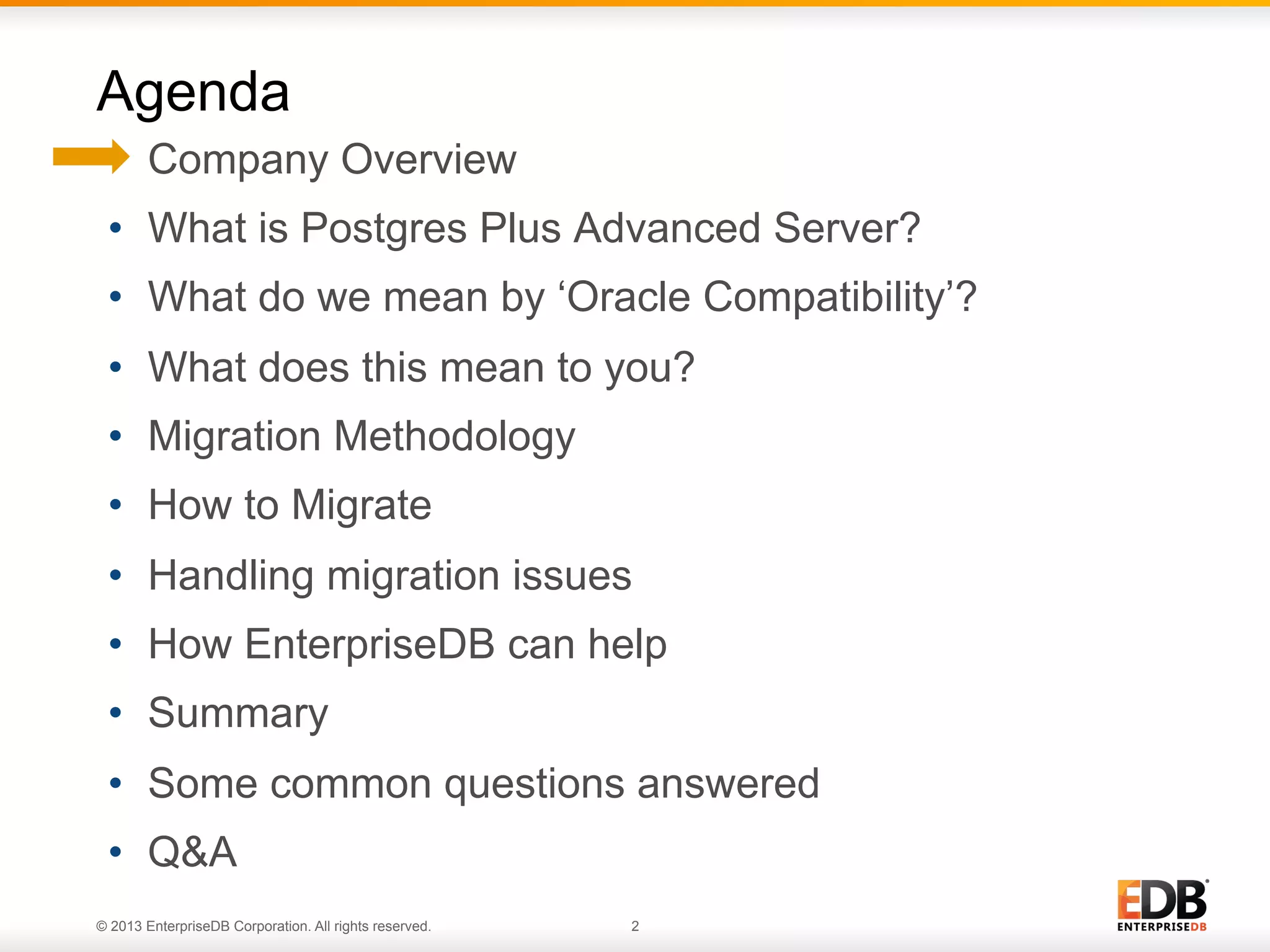

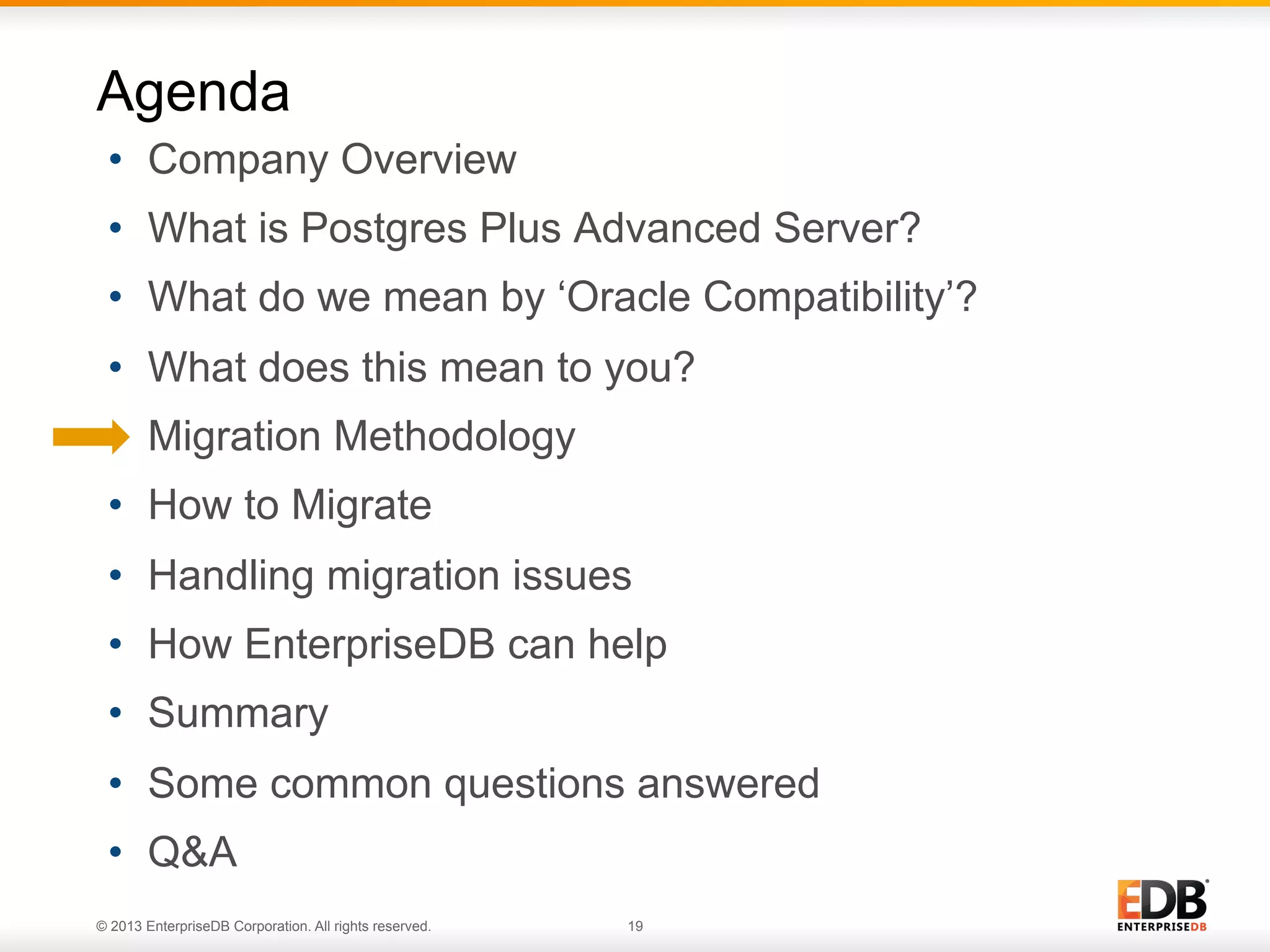

Agenda
•  Company Overview
•  What is Postgres Plus Advanced Server?
•  What do we mean by ‘Oracle Compatibility’?
•  What does this mean to you?
•  Migration Methodology
•  How to Migrate
•  Handling migration issues
•  How EnterpriseDB can help
•  Summary
•  Some common questions answered
•  Q&A

2

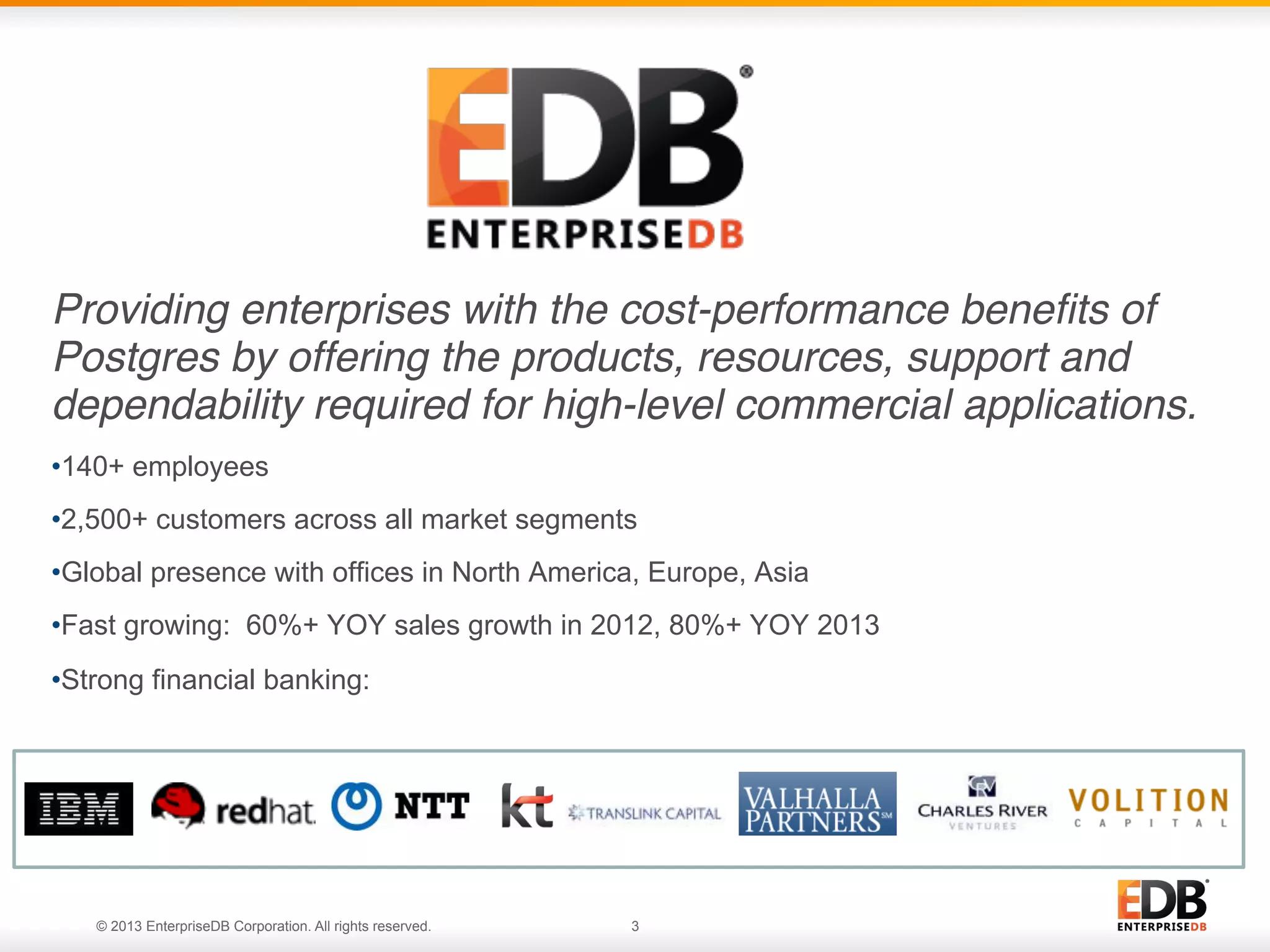

Providing enterprises with the cost-performance beneﬁts of
Postgres by offering the products, resources, support and
dependability required for high-level commercial applications.!
• 140+ employees
• 2,500+ customers across all market segments
• Global presence with offices in North America, Europe, Asia
• Fast growing: 60%+ YOY sales growth in 2012, 80%+ YOY 2013
• Strong financial banking:

© 2013 EnterpriseDB. All rights reserved.

3

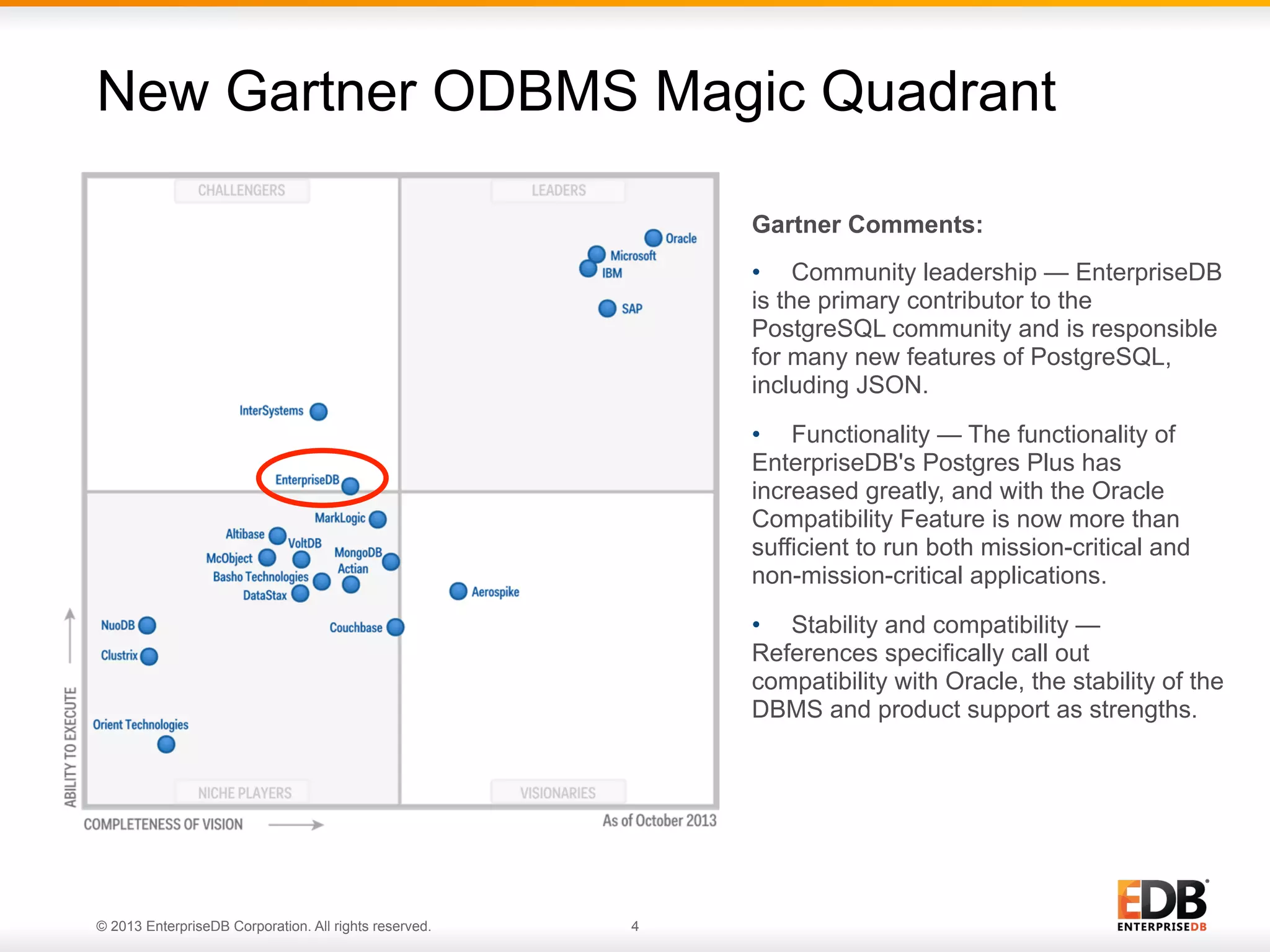

New Gartner ODBMS Magic Quadrant
Gartner Comments:
•  Community leadership — EnterpriseDB
is the primary contributor to the
PostgreSQL community and is responsible
for many new features of PostgreSQL,
including JSON.
•  Functionality — The functionality of
EnterpriseDB's Postgres Plus has
increased greatly, and with the Oracle
Compatibility Feature is now more than
sufficient to run both mission-critical and
non-mission-critical applications.
•  Stability and compatibility —
References specifically call out
compatibility with Oracle, the stability of the
DBMS and product support as strengths.


4

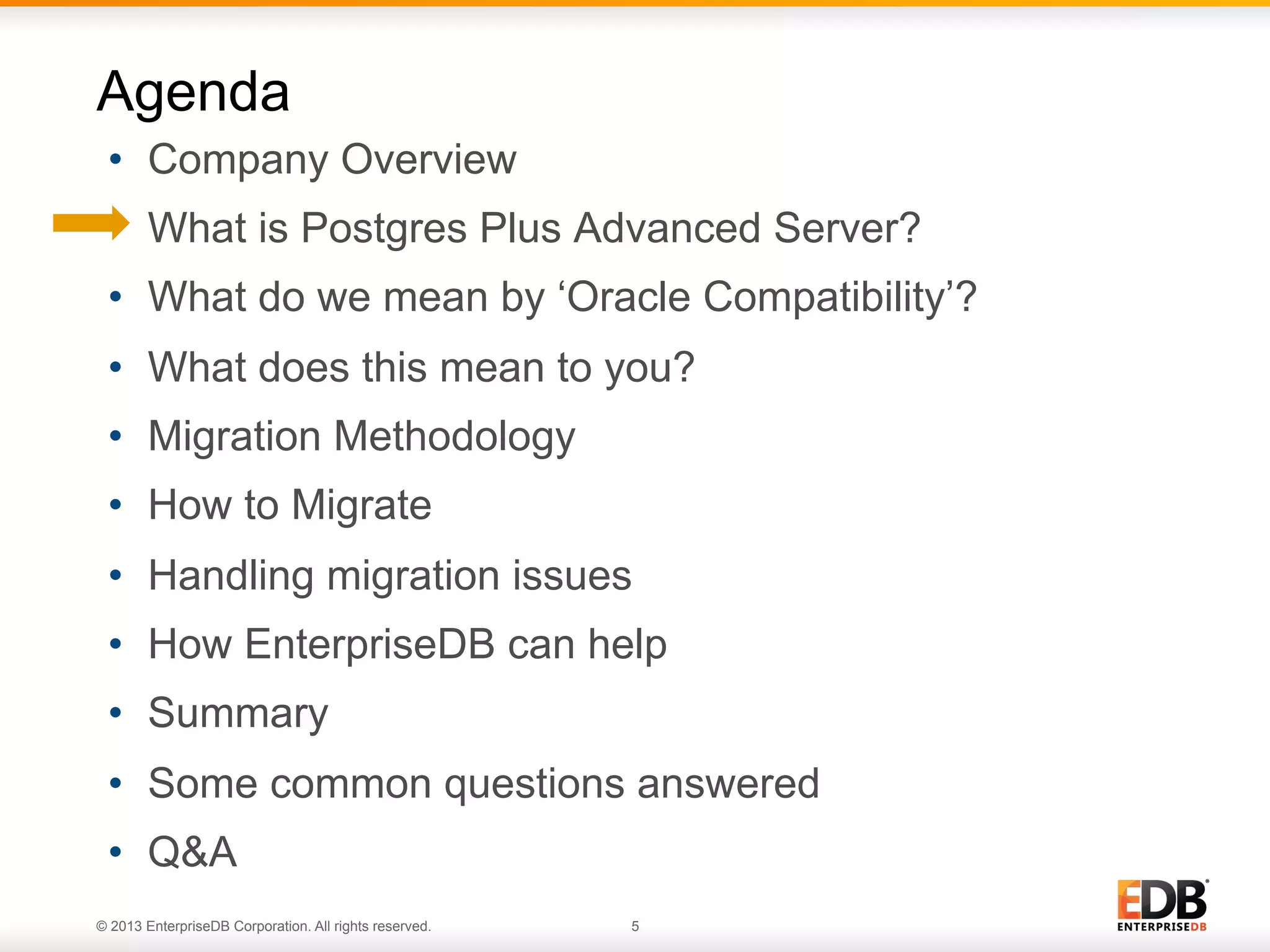

Agenda
•  Summary
•  Q&A

5

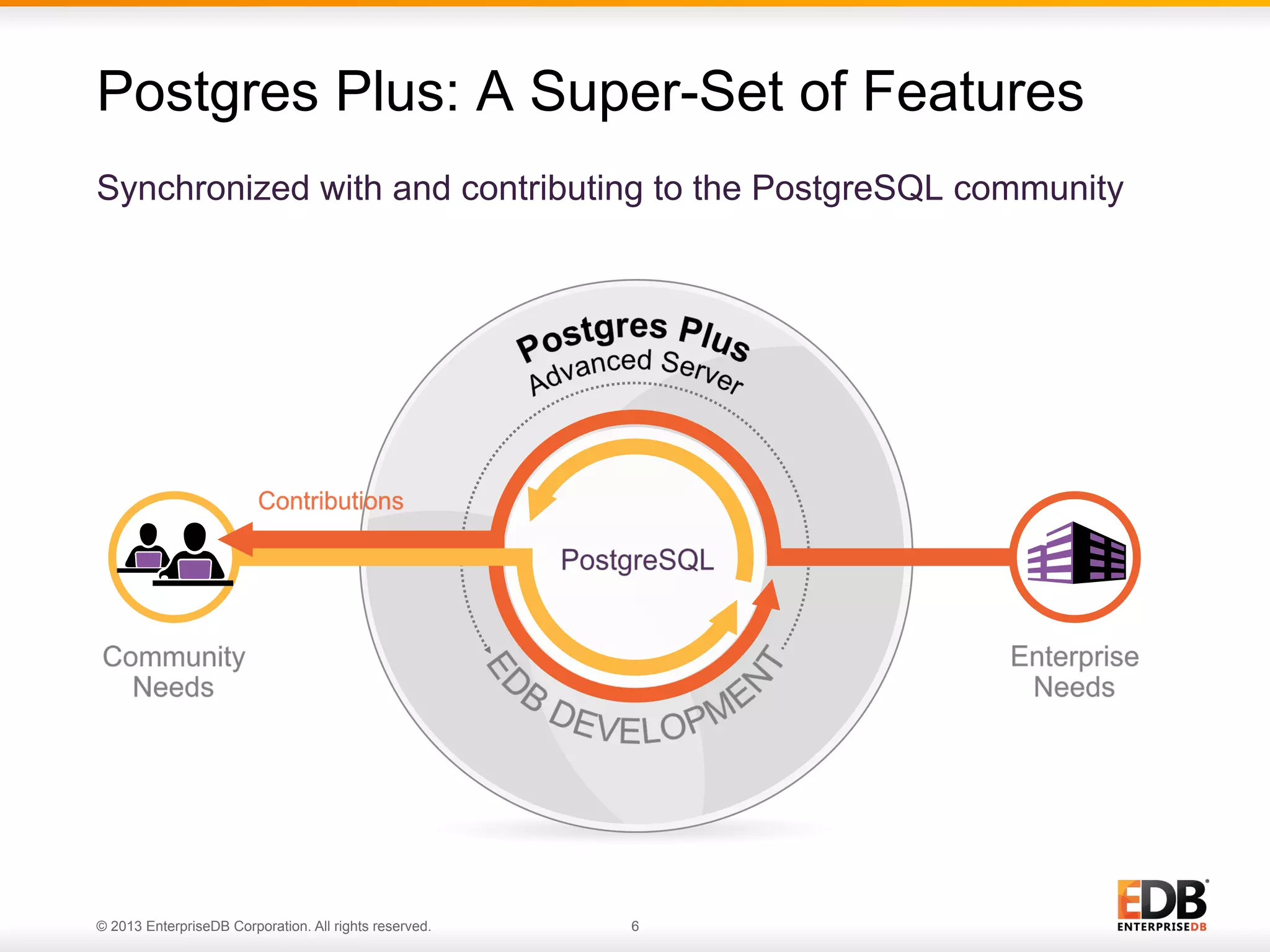

Postgres Plus: A Super-Set of Features
Synchronized with and contributing to the PostgreSQL community


6

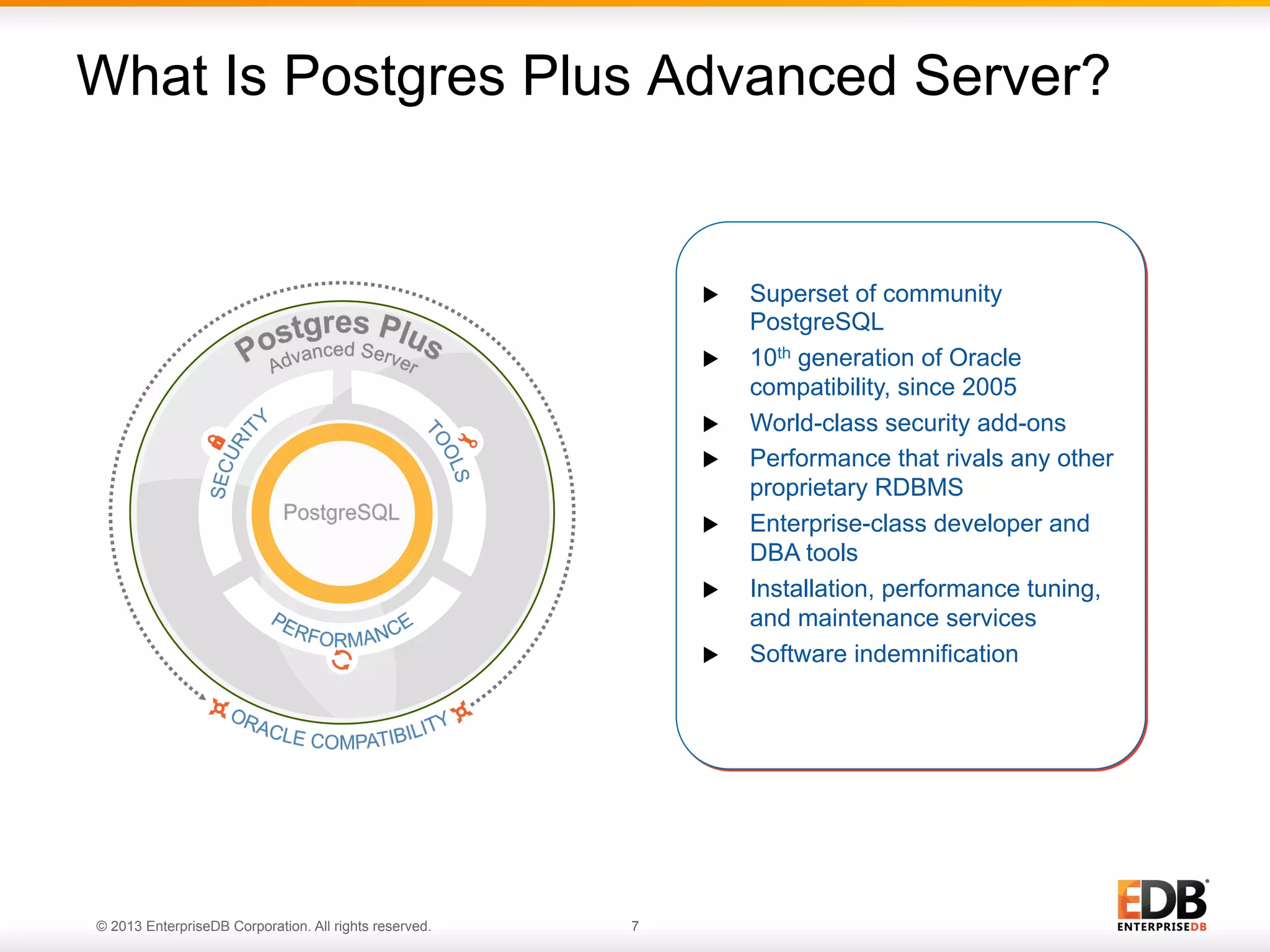

What Is Postgres Plus Advanced Server?

u 
u 
u 
u 
u 
u 
u 


7

Superset of community
PostgreSQL
10th generation of Oracle
compatibility, since 2005
World-class security add-ons
Performance that rivals any other
proprietary RDBMS
Enterprise-class developer and
DBA tools
Installation, performance tuning,
and maintenance services
Software indemnification

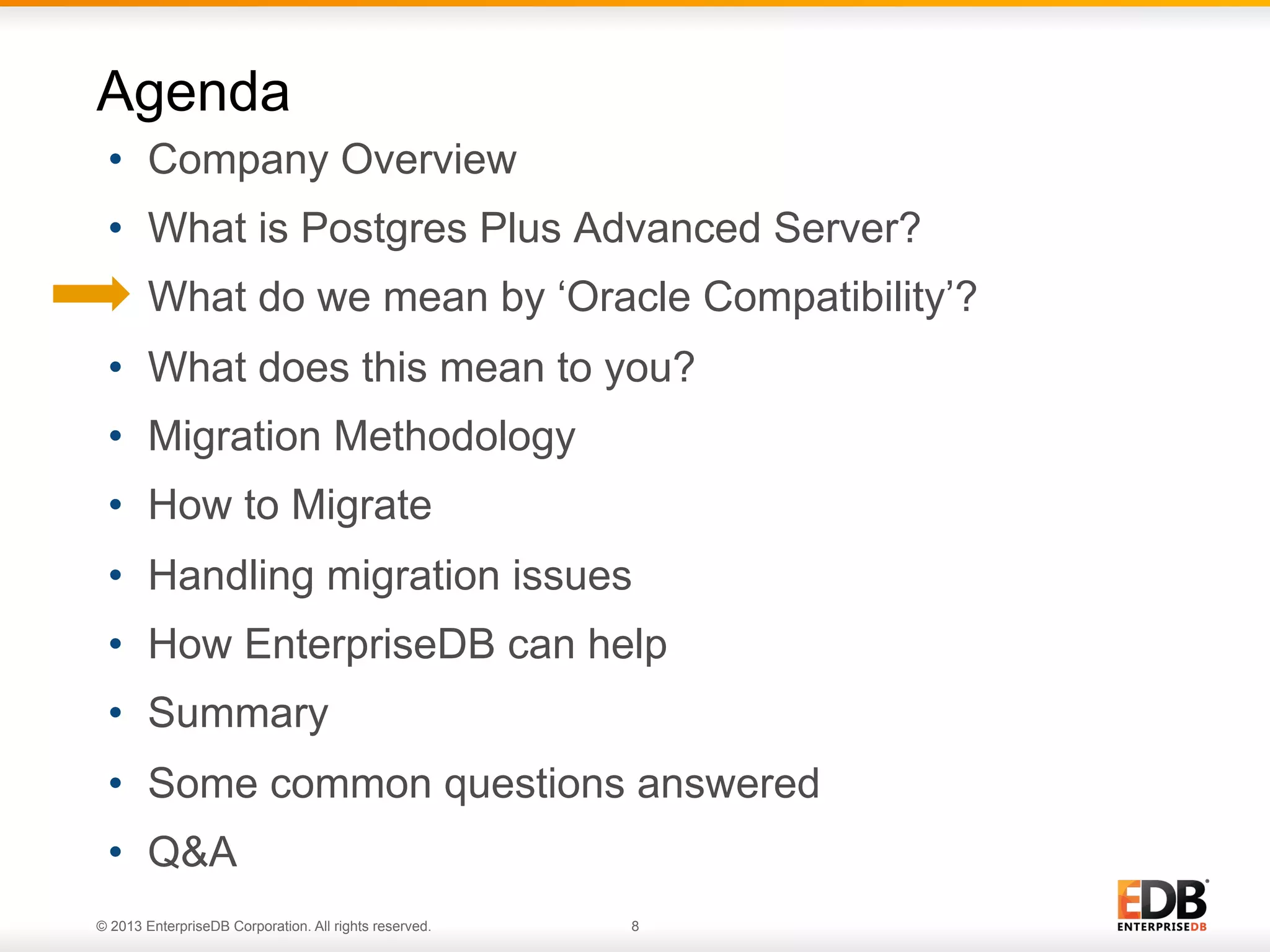

Agenda
•  Summary
•  Q&A

8

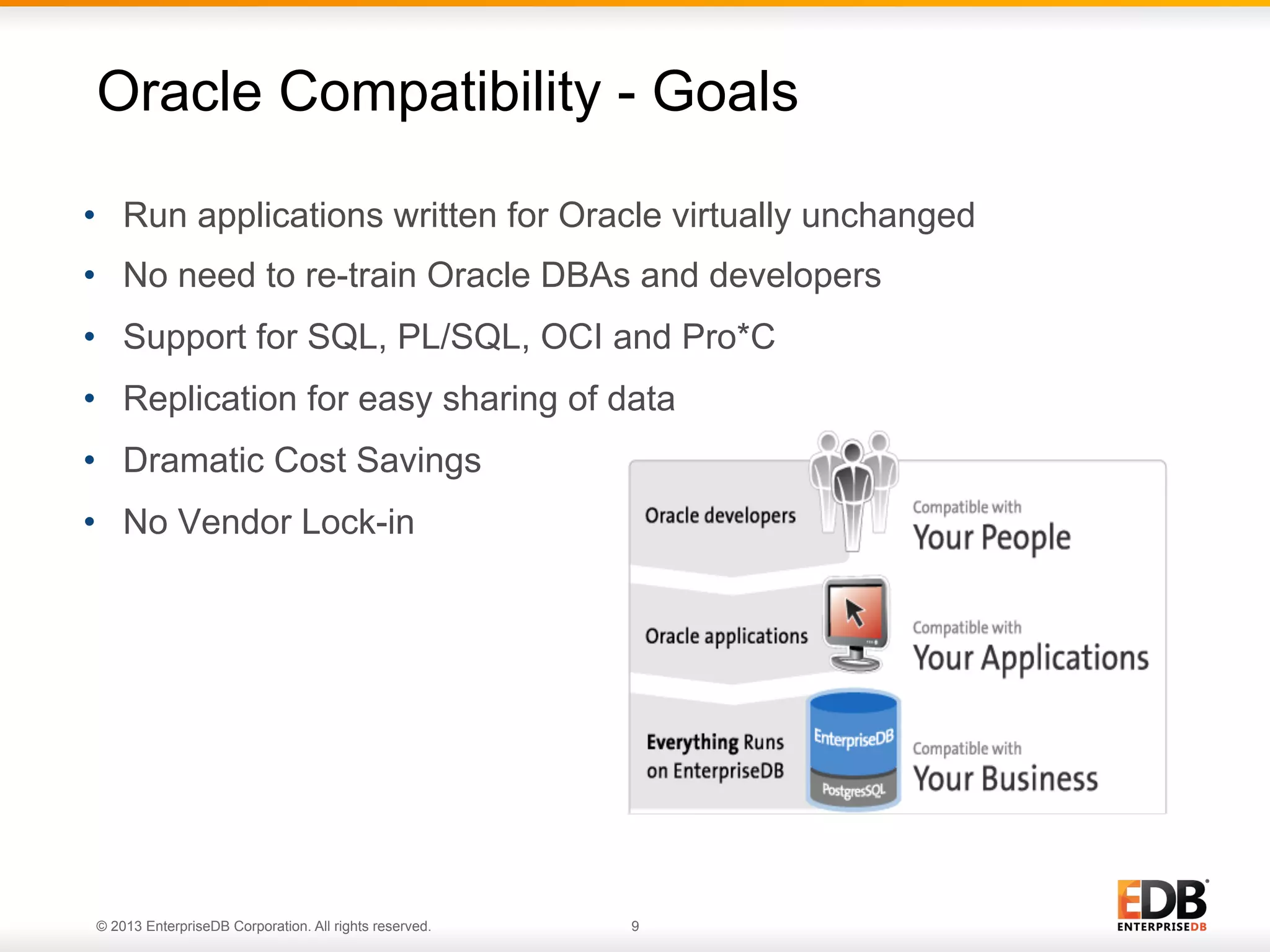

Oracle Compatibility - Goals
•  Run applications written for Oracle virtually unchanged
•  No need to re-train Oracle DBAs and developers
•  Support for SQL, PL/SQL, OCI and Pro*C
•  Replication for easy sharing of data
•  Dramatic Cost Savings
•  No Vendor Lock-in


9

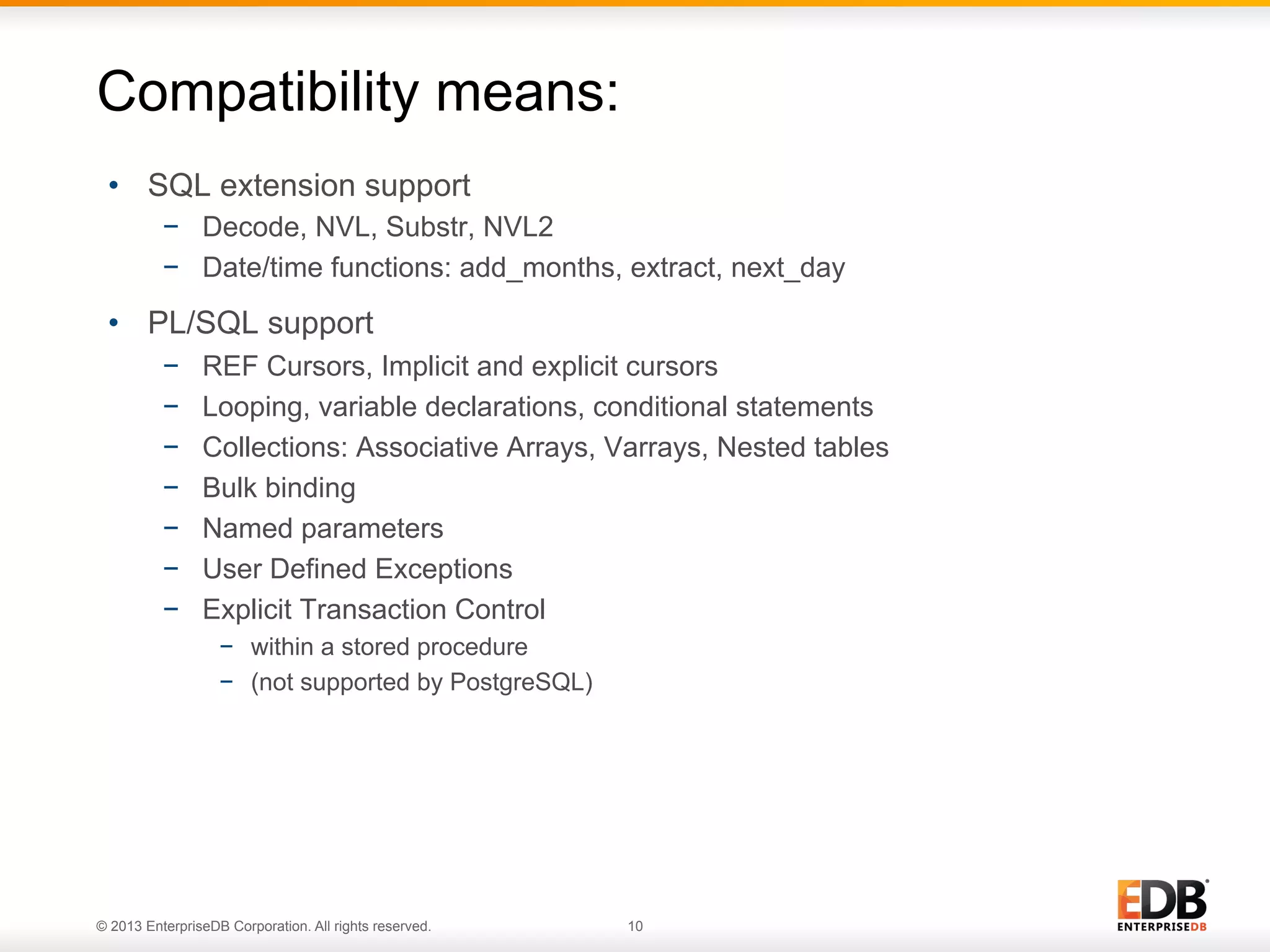

Compatibility means:
•  SQL extension support
−  Decode, NVL, Substr, NVL2
−  Date/time functions: add_months, extract, next_day

•  PL/SQL support
− 
− 
− 
− 
− 
− 
− 

REF Cursors, Implicit and explicit cursors
Looping, variable declarations, conditional statements
Collections: Associative Arrays, Varrays, Nested tables
Bulk binding
Named parameters
User Defined Exceptions
Explicit Transaction Control
−  within a stored procedure
−  (not supported by PostgreSQL)


10

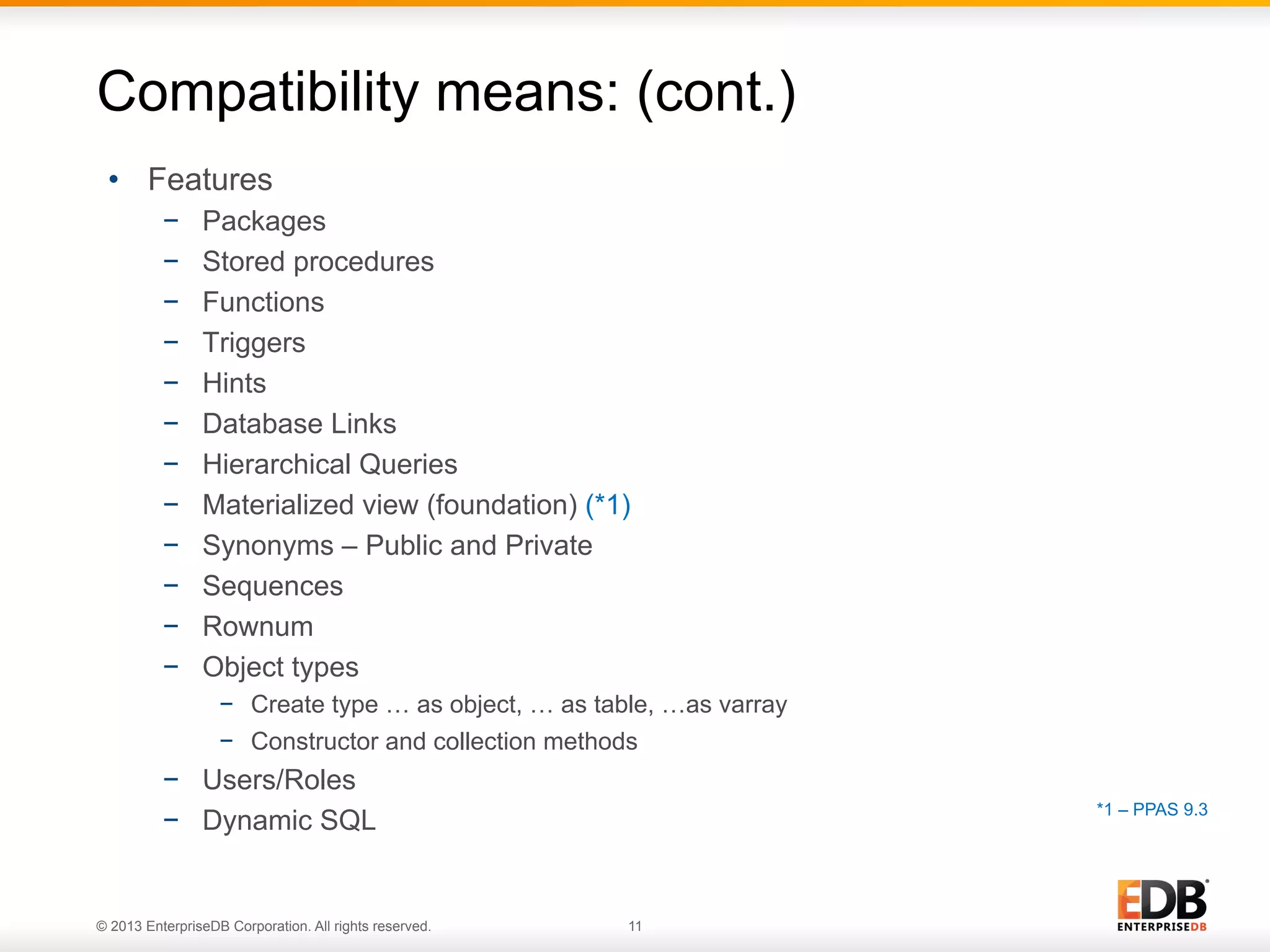

Compatibility means: (cont.)
•  Features
− 
− 
− 
− 
− 
− 
− 
− 
− 
− 
− 
− 

Packages
Stored procedures
Functions
Triggers
Hints
Database Links
Hierarchical Queries
Materialized view (foundation) (*1)
Synonyms – Public and Private
Sequences
Rownum
Object types
−  Create type … as object, … as table, …as varray
−  Constructor and collection methods

−  Users/Roles
−  Dynamic SQL


*1 – PPAS 9.3

11

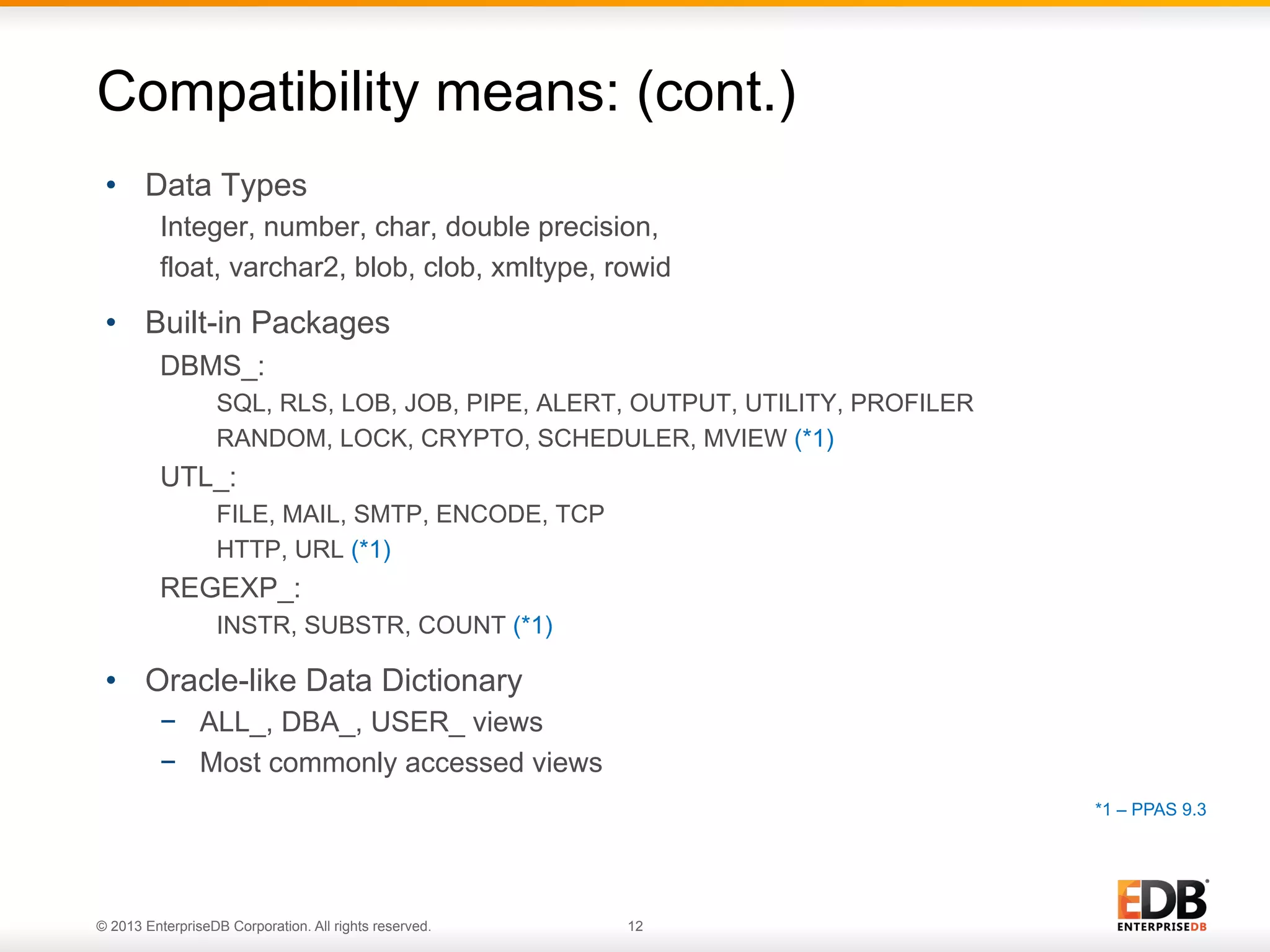

•  Data Types
Integer, number, char, double precision,
float, varchar2, blob, clob, xmltype, rowid

•  Built-in Packages
DBMS_:
SQL, RLS, LOB, JOB, PIPE, ALERT, OUTPUT, UTILITY, PROFILER
RANDOM, LOCK, CRYPTO, SCHEDULER, MVIEW (*1)

UTL_:
FILE, MAIL, SMTP, ENCODE, TCP
HTTP, URL (*1)

REGEXP_:
INSTR, SUBSTR, COUNT (*1)

•  Oracle-like Data Dictionary
−  ALL_, DBA_, USER_ views
−  Most commonly accessed views
*1 – PPAS 9.3


12

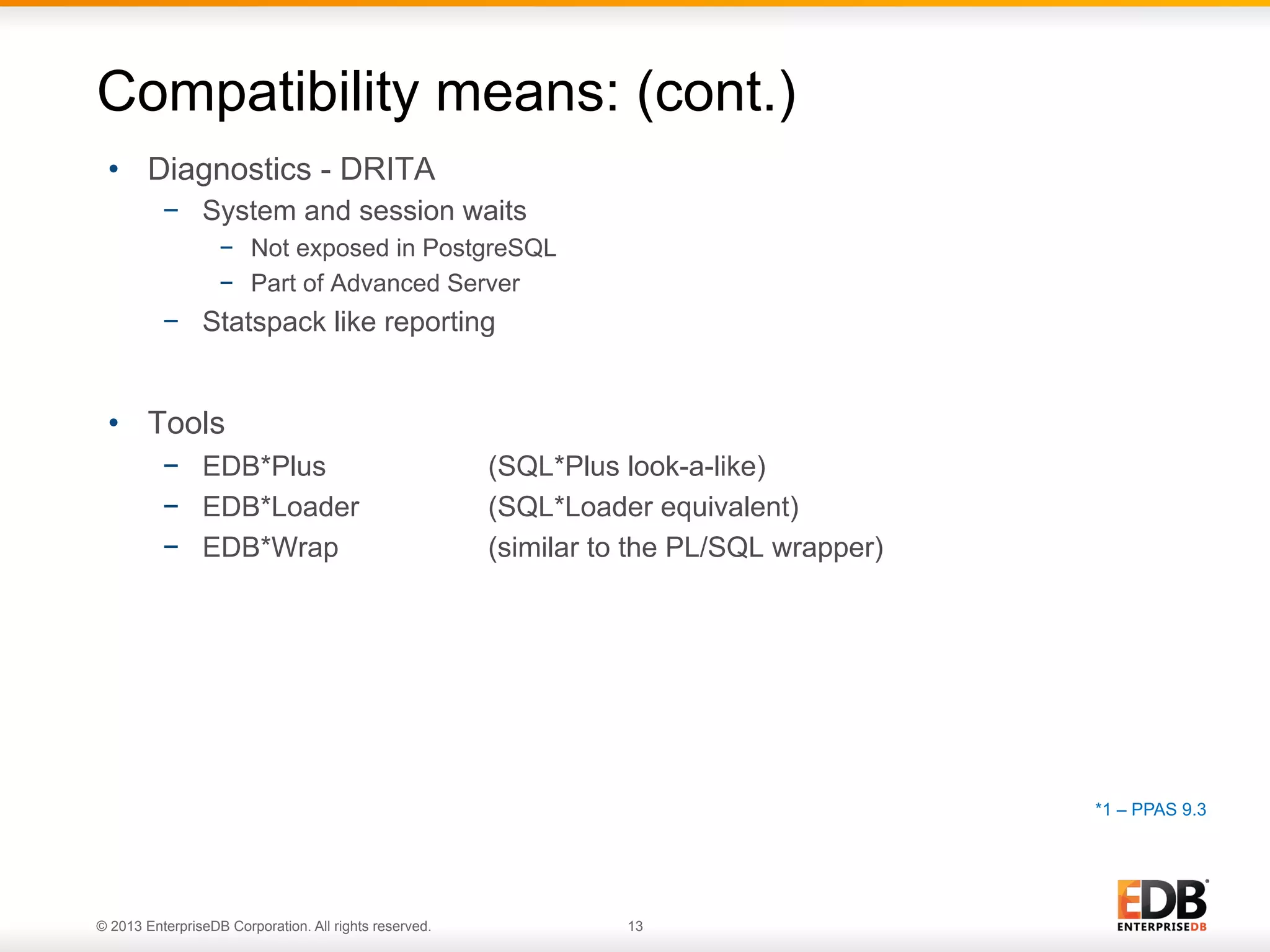

•  Diagnostics - DRITA
−  System and session waits
−  Not exposed in PostgreSQL
−  Part of Advanced Server

−  Statspack like reporting

•  Tools
−  EDB*Plus
−  EDB*Loader
−  EDB*Wrap

(SQL*Plus look-a-like)
(SQL*Loader equivalent)
(similar to the PL/SQL wrapper)

*1 – PPAS 9.3


13

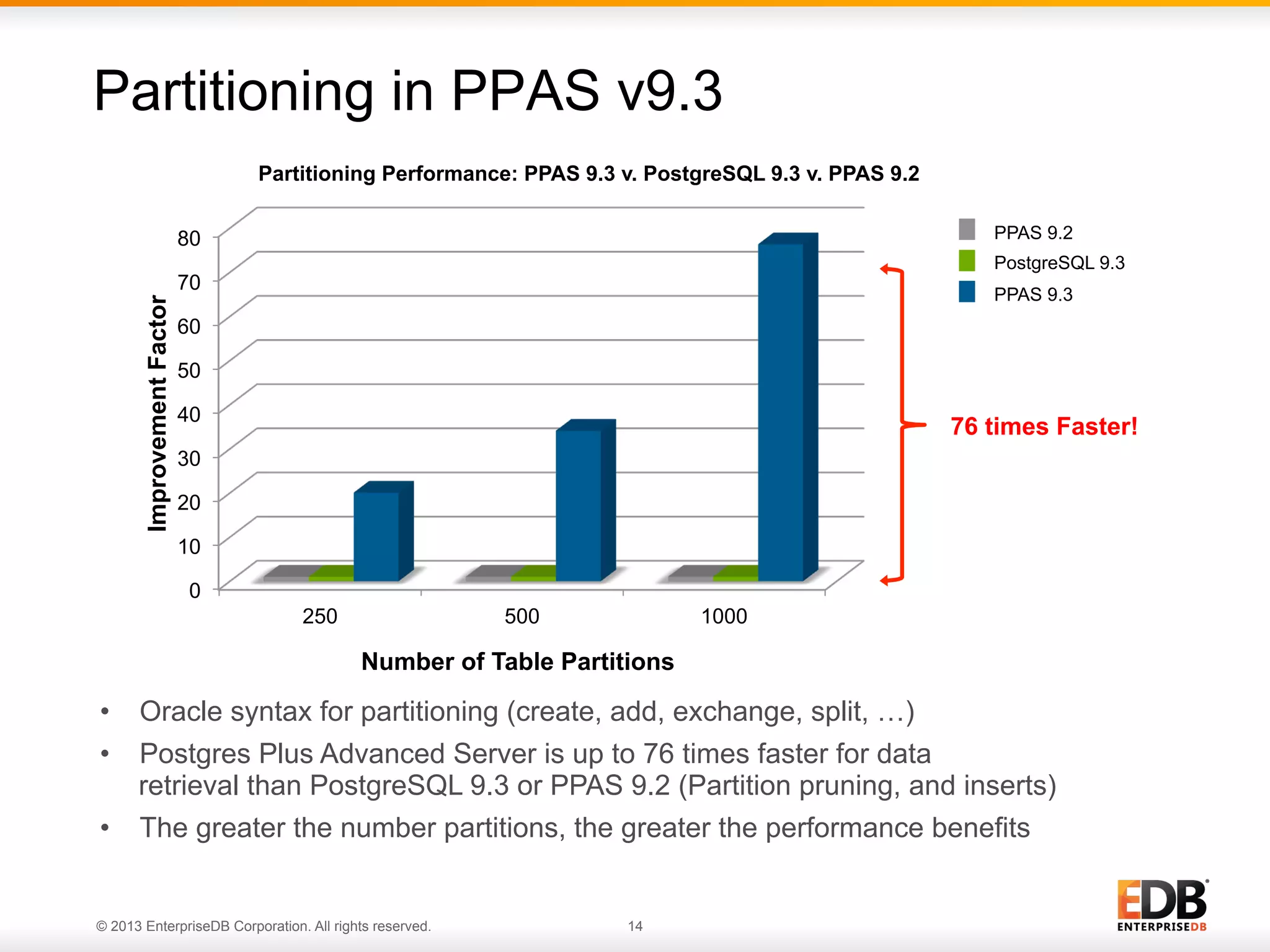

Partitioning in PPAS v9.3
Partitioning Performance: PPAS 9.3 v. PostgreSQL 9.3 v. PPAS 9.2
PPAS 9.2

80

PostgreSQL 9.3

Improvement Factor

70

PPAS 9.3

60
50
40

76 times Faster!

30
20
10
0
250

500

1000

Number of Table Partitions

•  Oracle syntax for partitioning (create, add, exchange, split, …)
•  Postgres Plus Advanced Server is up to 76 times faster for data
retrieval than PostgreSQL 9.3 or PPAS 9.2 (Partition pruning, and inserts)
•  The greater the number partitions, the greater the performance benefits


14

Agenda
•  Summary
•  Q&A

15

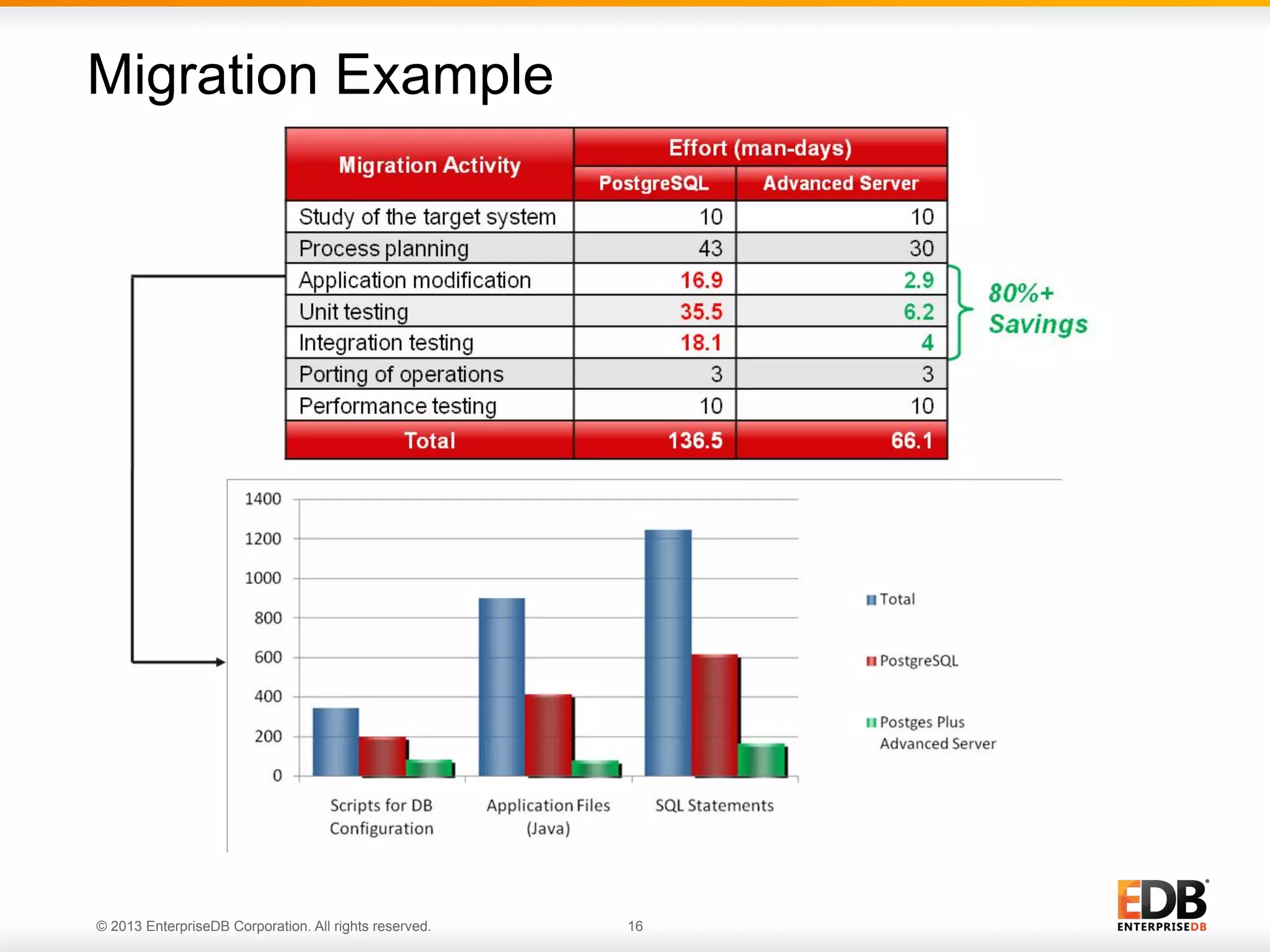

Migration Example


16

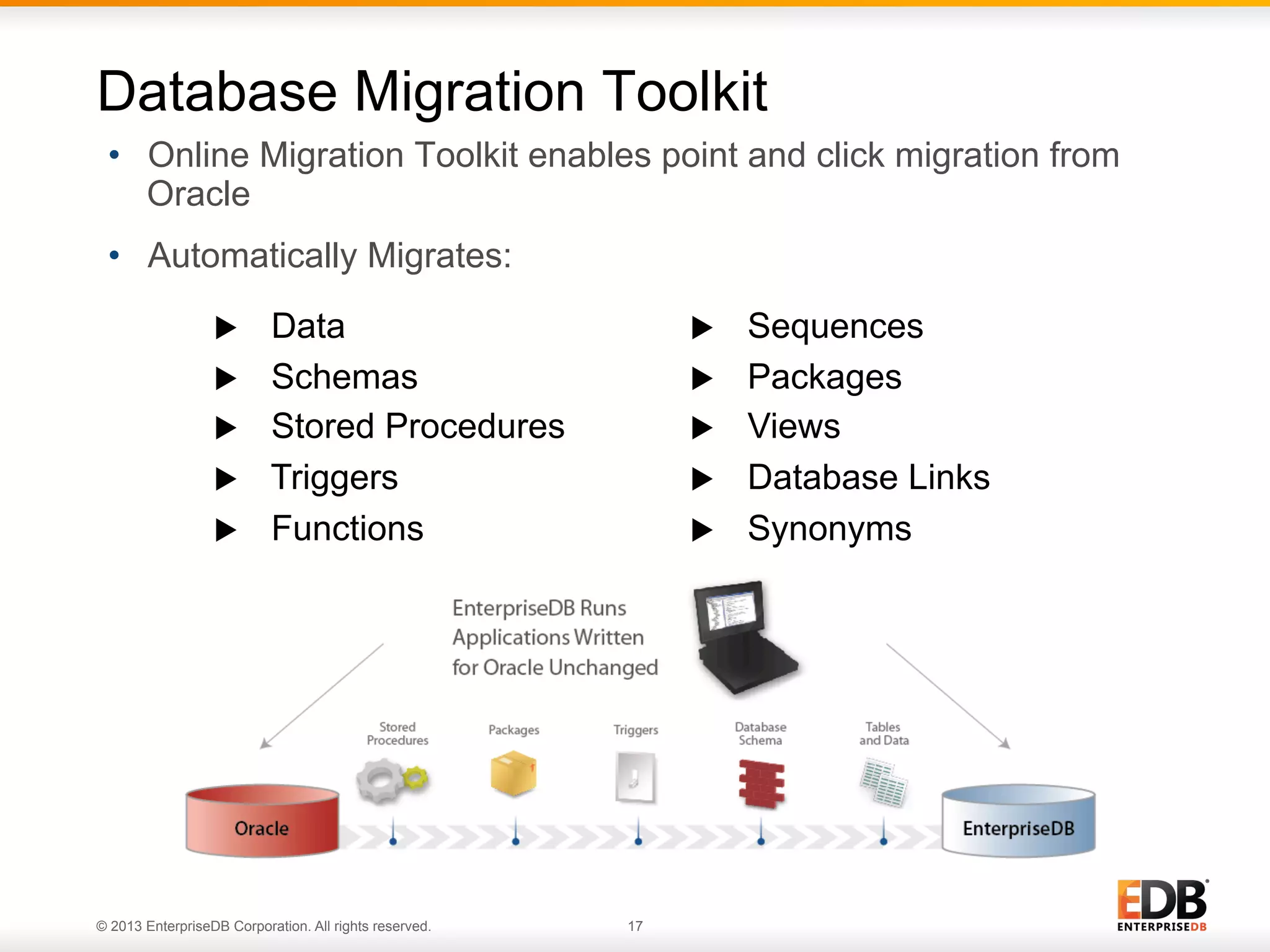

Database Migration Toolkit
•  Online Migration Toolkit enables point and click migration from
Oracle
•  Automatically Migrates:
u 
u 
u 
u 
u 

Data
Schemas
Stored Procedures
Triggers
Functions


u 
u 
u 
u 
u 

17

Sequences
Packages
Views
Database Links
Synonyms

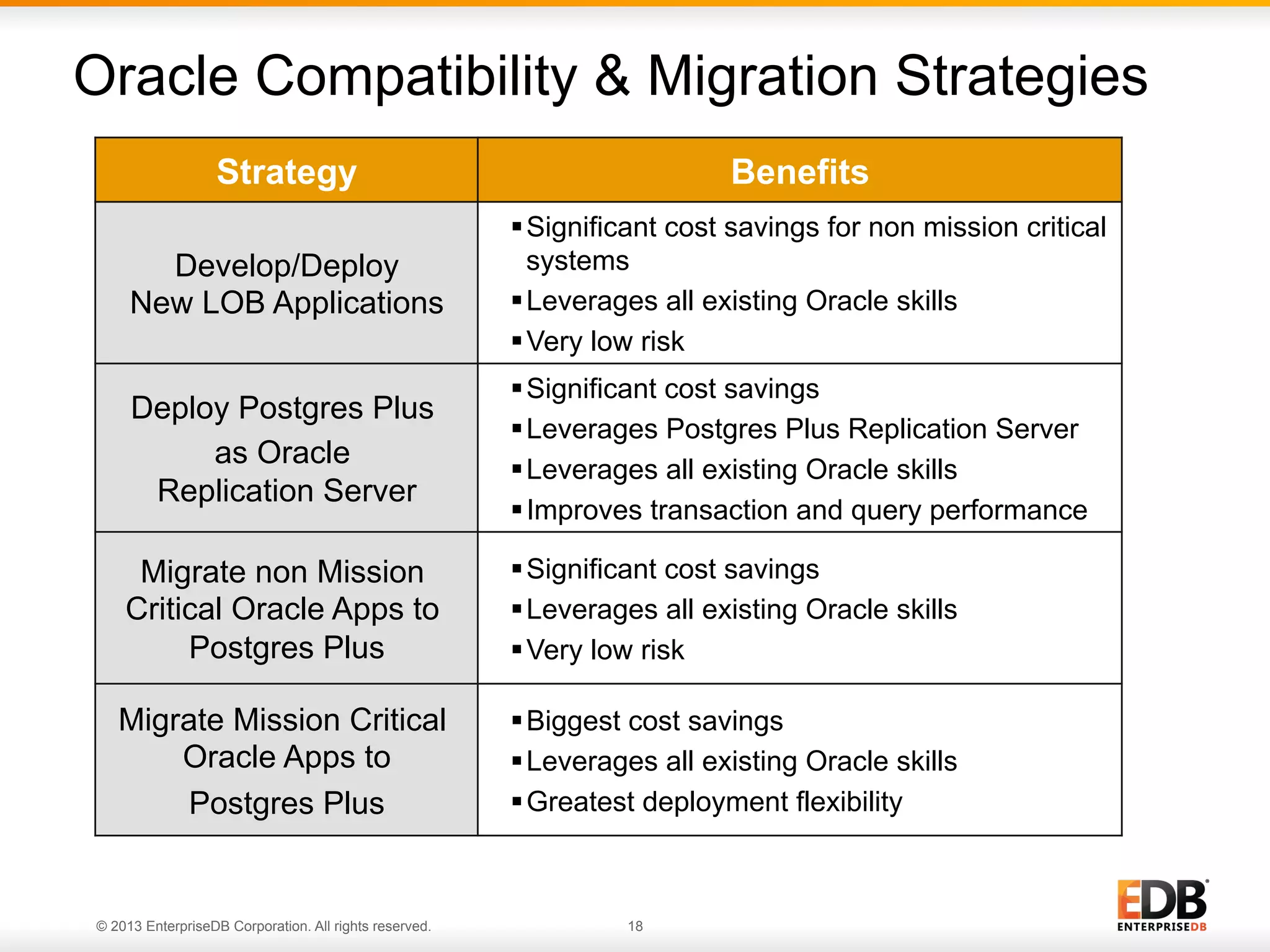

Oracle Compatibility & Migration Strategies
Strategy

Benefits

Develop/Deploy
New LOB Applications

§ Significant cost savings for non mission critical
systems
§ Leverages all existing Oracle skills
§ Very low risk

Deploy Postgres Plus
as Oracle
Replication Server

§ Significant cost savings
§ Leverages Postgres Plus Replication Server
§ Improves transaction and query performance

Migrate non Mission
Critical Oracle Apps to
Postgres Plus

§ Significant cost savings
§ Very low risk

Migrate Mission Critical
Oracle Apps to
Postgres Plus

§ Biggest cost savings
§ Greatest deployment flexibility


18

Agenda
•  Summary
•  Q&A

19

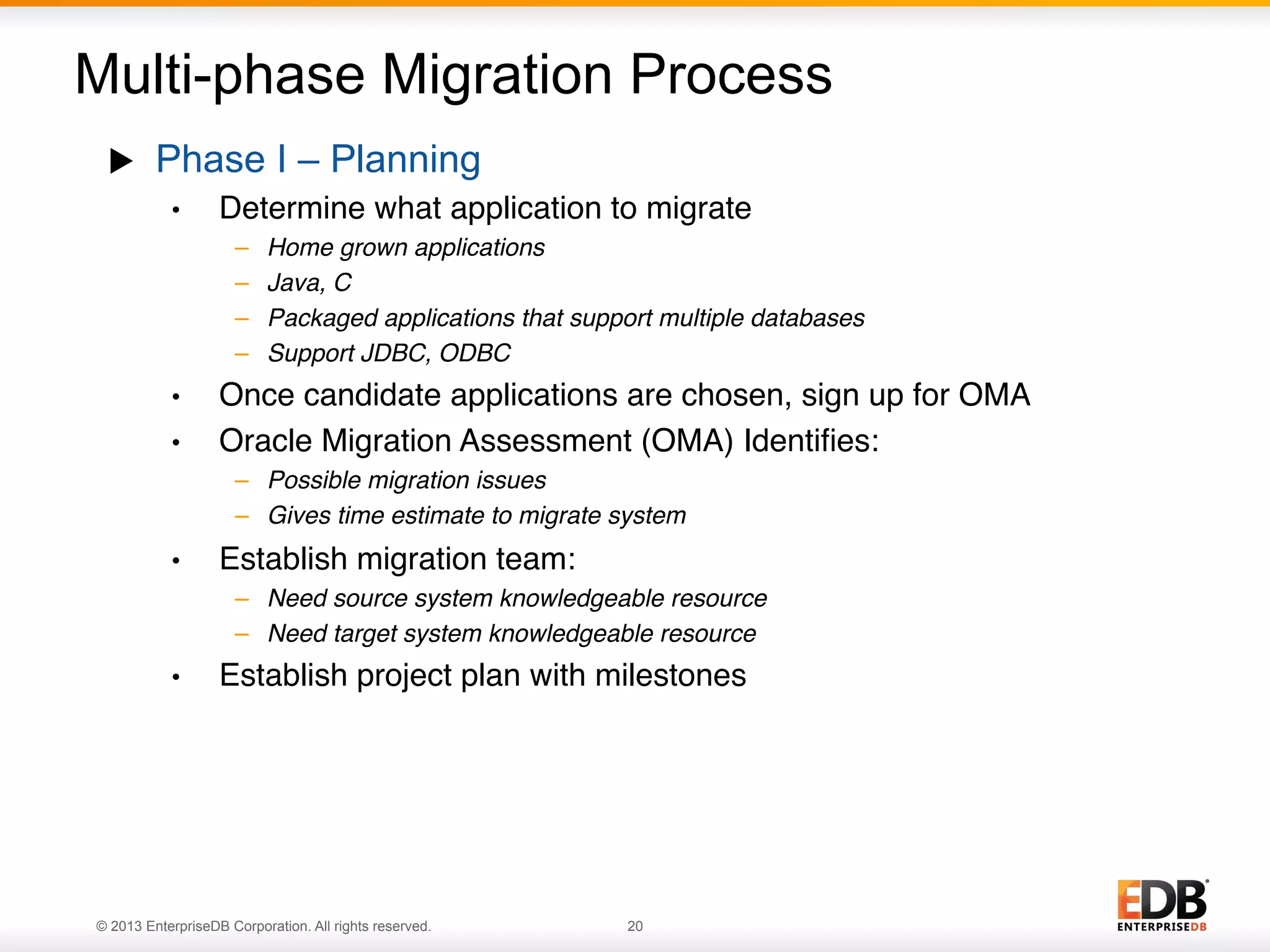

Multi-phase Migration Process
u 

Phase I – Planning
• 

Determine what application to migrate"
– 
– 
– 
– 

• 
• 

Home grown applications!
Java, C!
Packaged applications that support multiple databases!
Support JDBC, ODBC"

Once candidate applications are chosen, sign up for OMA"
Oracle Migration Assessment (OMA) Identiﬁes:"
–  Possible migration issues!
–  Gives time estimate to migrate system"

• 

Establish migration team:"
–  Need source system knowledgeable resource!
–  Need target system knowledgeable resource"

• 

Establish project plan with milestones


20

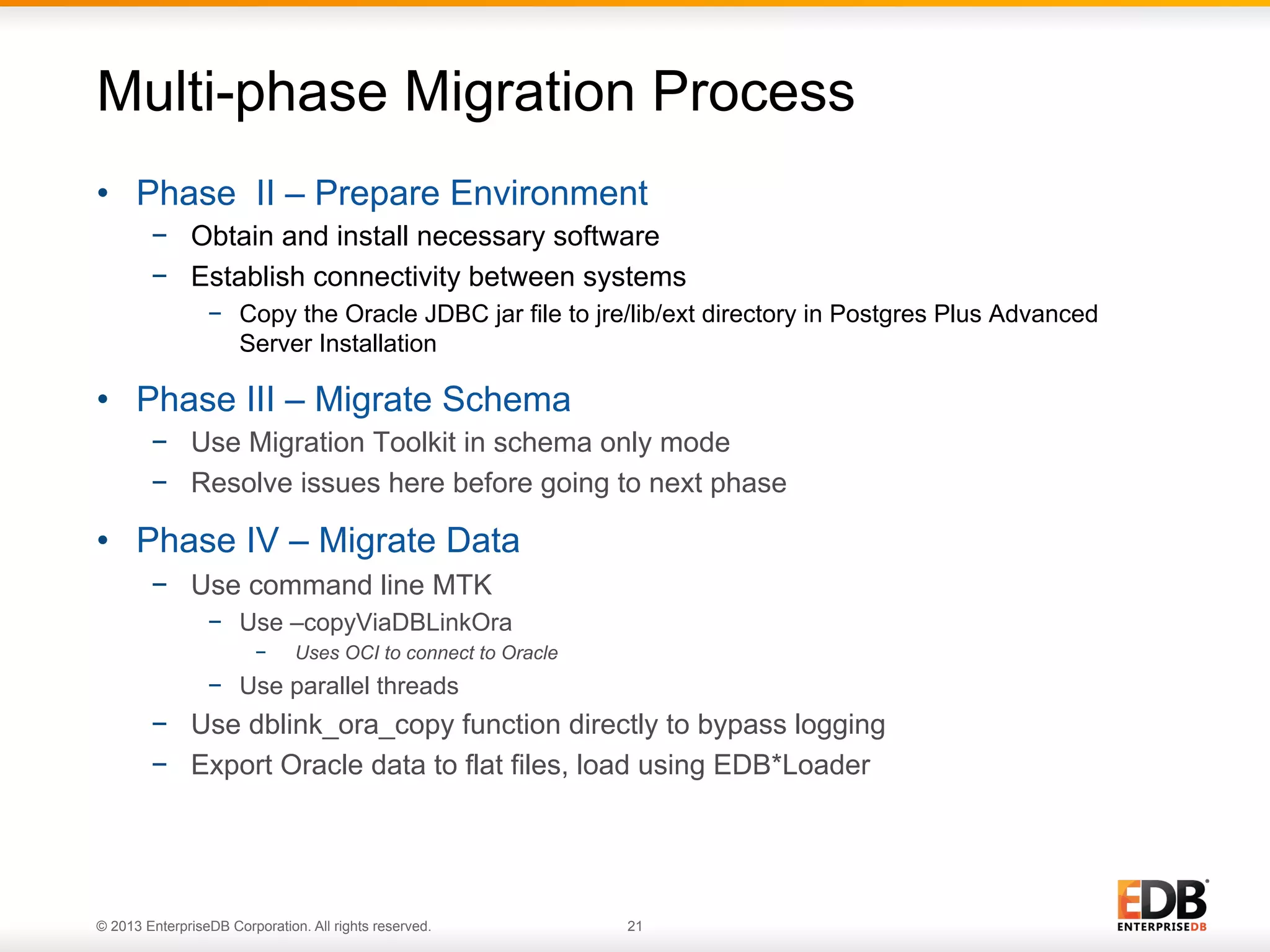

•  Phase II – Prepare Environment
−  Obtain and install necessary software
−  Establish connectivity between systems
−  Copy the Oracle JDBC jar file to jre/lib/ext directory in Postgres Plus Advanced
Server Installation

•  Phase III – Migrate Schema
−  Use Migration Toolkit in schema only mode
−  Resolve issues here before going to next phase

•  Phase IV – Migrate Data
−  Use command line MTK
−  Use –copyViaDBLinkOra
− 

Uses OCI to connect to Oracle

−  Use parallel threads

−  Use dblink_ora_copy function directly to bypass logging
−  Export Oracle data to flat files, load using EDB*Loader


21

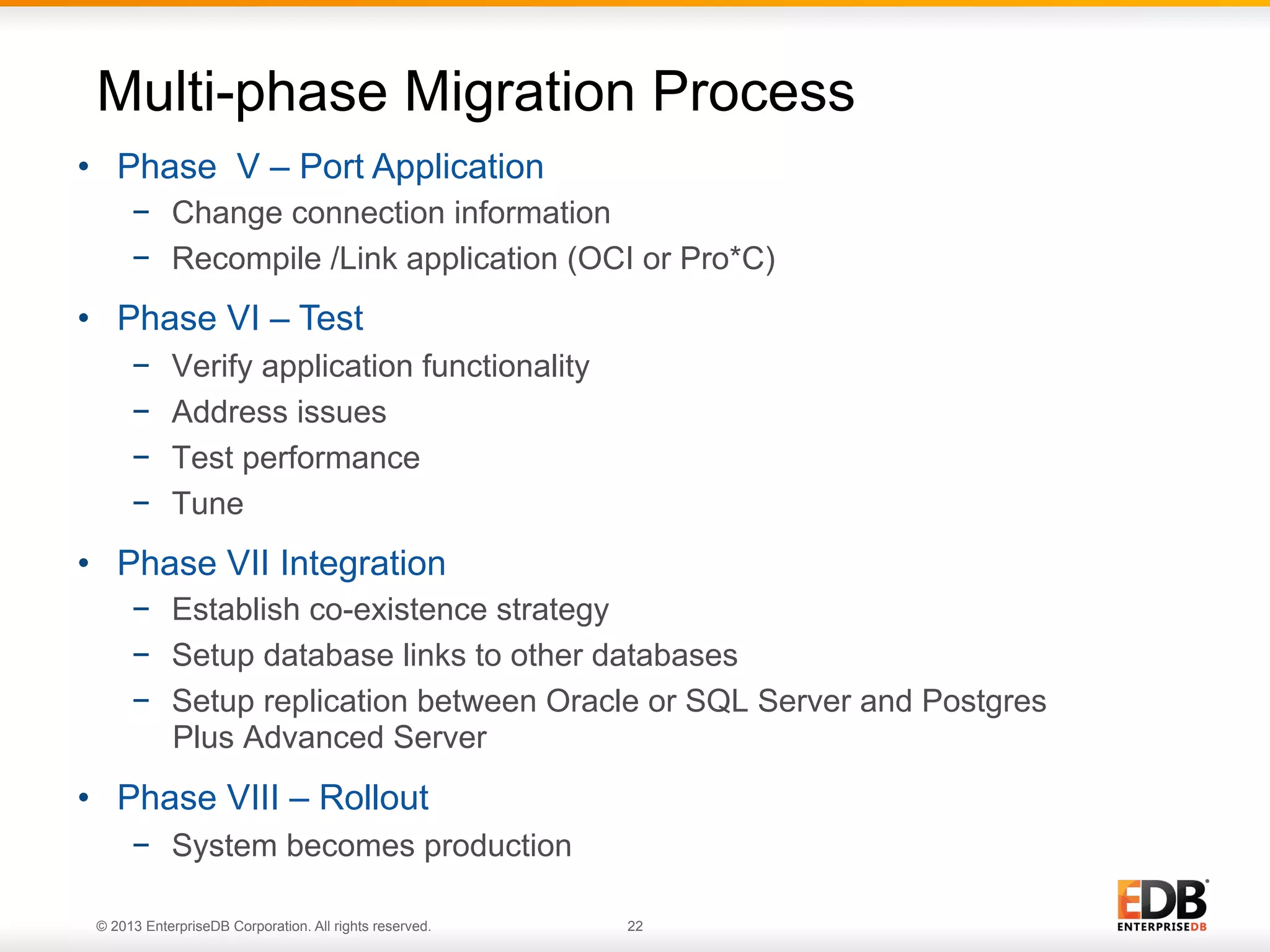

•  Phase V – Port Application
−  Change connection information
−  Recompile /Link application (OCI or Pro*C)

•  Phase VI – Test
− 
− 
− 
− 

Verify application functionality
Address issues
Test performance
Tune

•  Phase VII Integration
−  Establish co-existence strategy
−  Setup database links to other databases
−  Setup replication between Oracle or SQL Server and Postgres
Plus Advanced Server

•  Phase VIII – Rollout
−  System becomes production
22

22

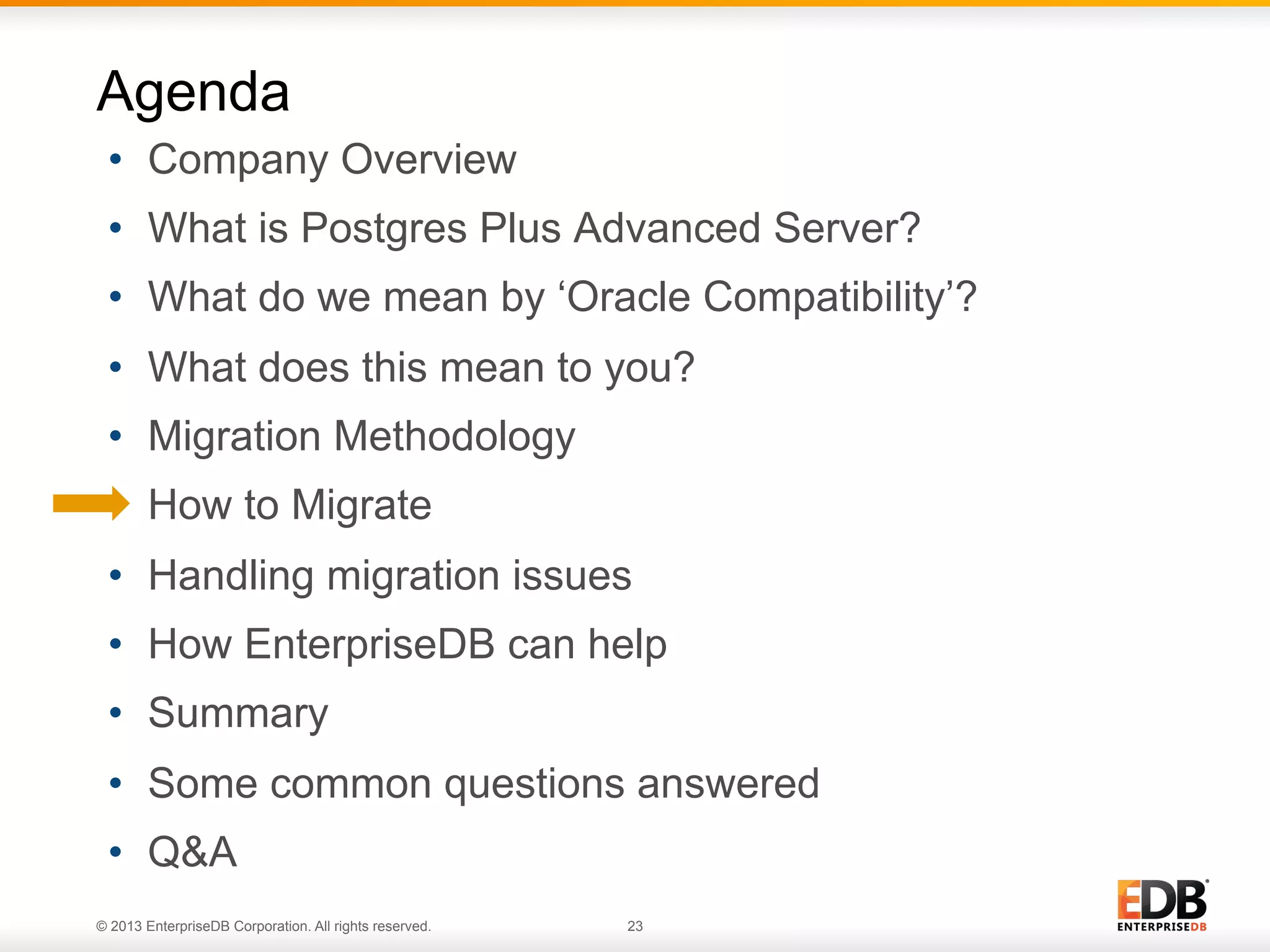

Agenda
•  Summary
•  Q&A

23

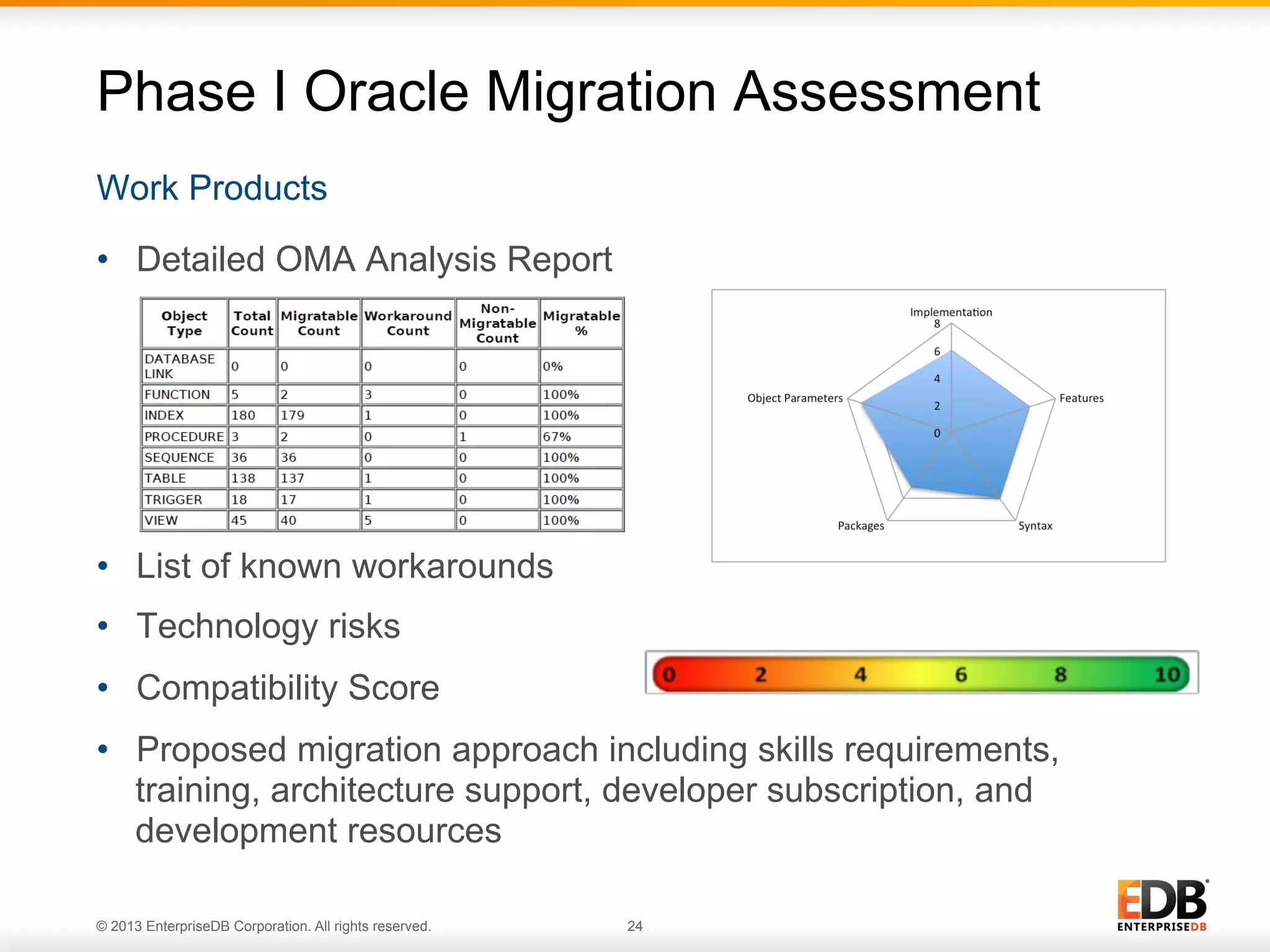

Phase I Oracle Migration Assessment
Work Products
•  Detailed OMA Analysis Report

•  List of known workarounds
•  Technology risks
•  Compatibility Score
•  Proposed migration approach including skills requirements,
training, architecture support, developer subscription, and
development resources

24

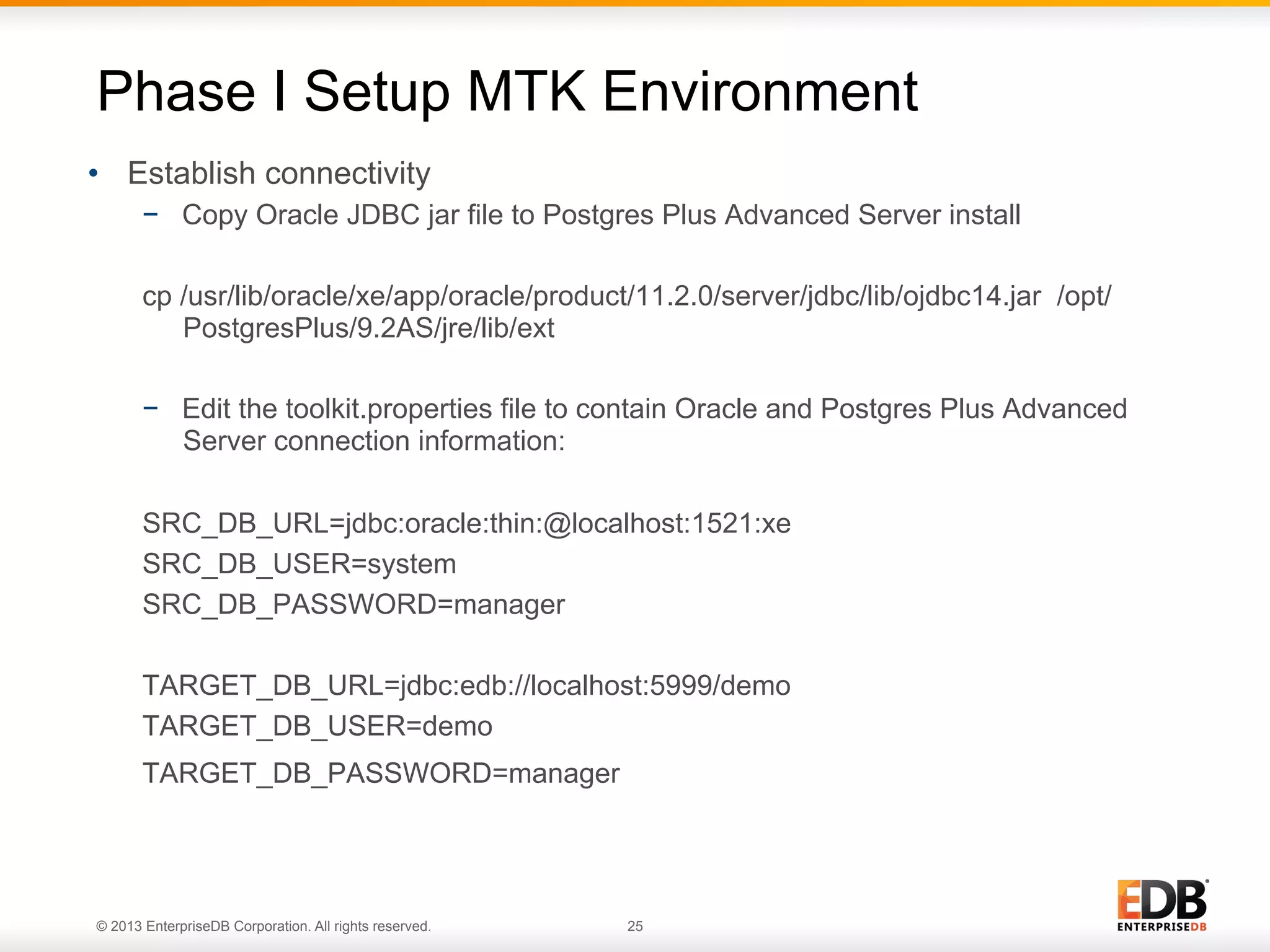

Phase I Setup MTK Environment
•  Establish connectivity
−  Copy Oracle JDBC jar file to Postgres Plus Advanced Server install
cp /usr/lib/oracle/xe/app/oracle/product/11.2.0/server/jdbc/lib/ojdbc14.jar /opt/
PostgresPlus/9.2AS/jre/lib/ext
−  Edit the toolkit.properties file to contain Oracle and Postgres Plus Advanced
Server connection information:
SRC_DB_URL=jdbc:oracle:thin:@localhost:1521:xe
SRC_DB_USER=system
SRC_DB_PASSWORD=manager
TARGET_DB_URL=jdbc:edb://localhost:5999/demo
TARGET_DB_USER=demo
TARGET_DB_PASSWORD=manager


25

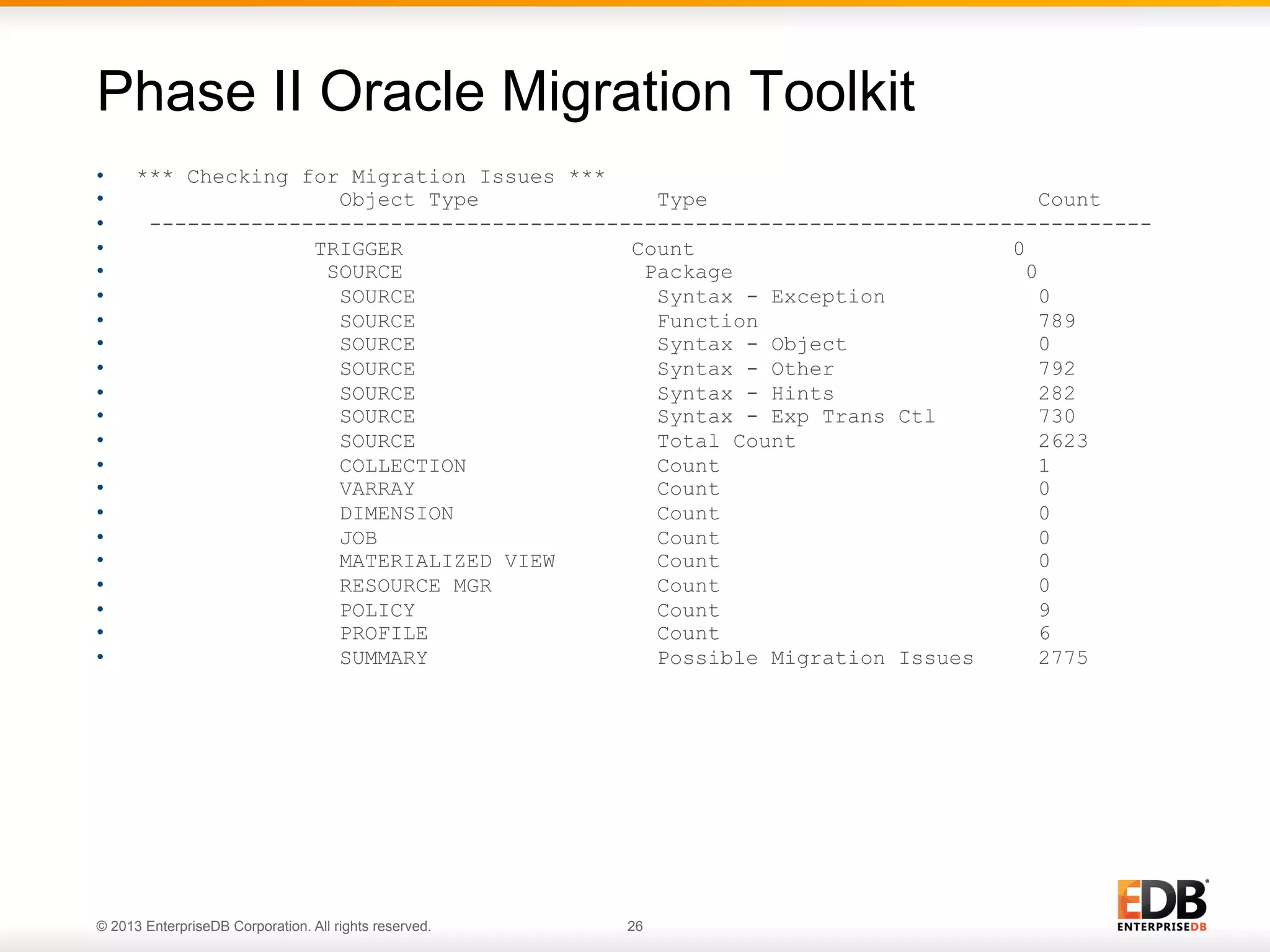

Phase II Oracle Migration Toolkit
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 

*** Checking for Migration Issues ***
Object Type
Type
Count
------------------------------------------------------------------------------TRIGGER
Count
0
SOURCE
Package
0
SOURCE
Syntax - Exception
0
SOURCE
Function
789
SOURCE
Syntax - Object
0
SOURCE
Syntax - Other
792
SOURCE
Syntax - Hints
282
SOURCE
Syntax - Exp Trans Ctl
730
SOURCE
Total Count
2623
COLLECTION
Count
1
VARRAY
Count
0
DIMENSION
Count
0
JOB
Count
0
MATERIALIZED VIEW
Count
0
RESOURCE MGR
Count
0
POLICY
Count
9
PROFILE
Count
6
SUMMARY
Possible Migration Issues
2775


26

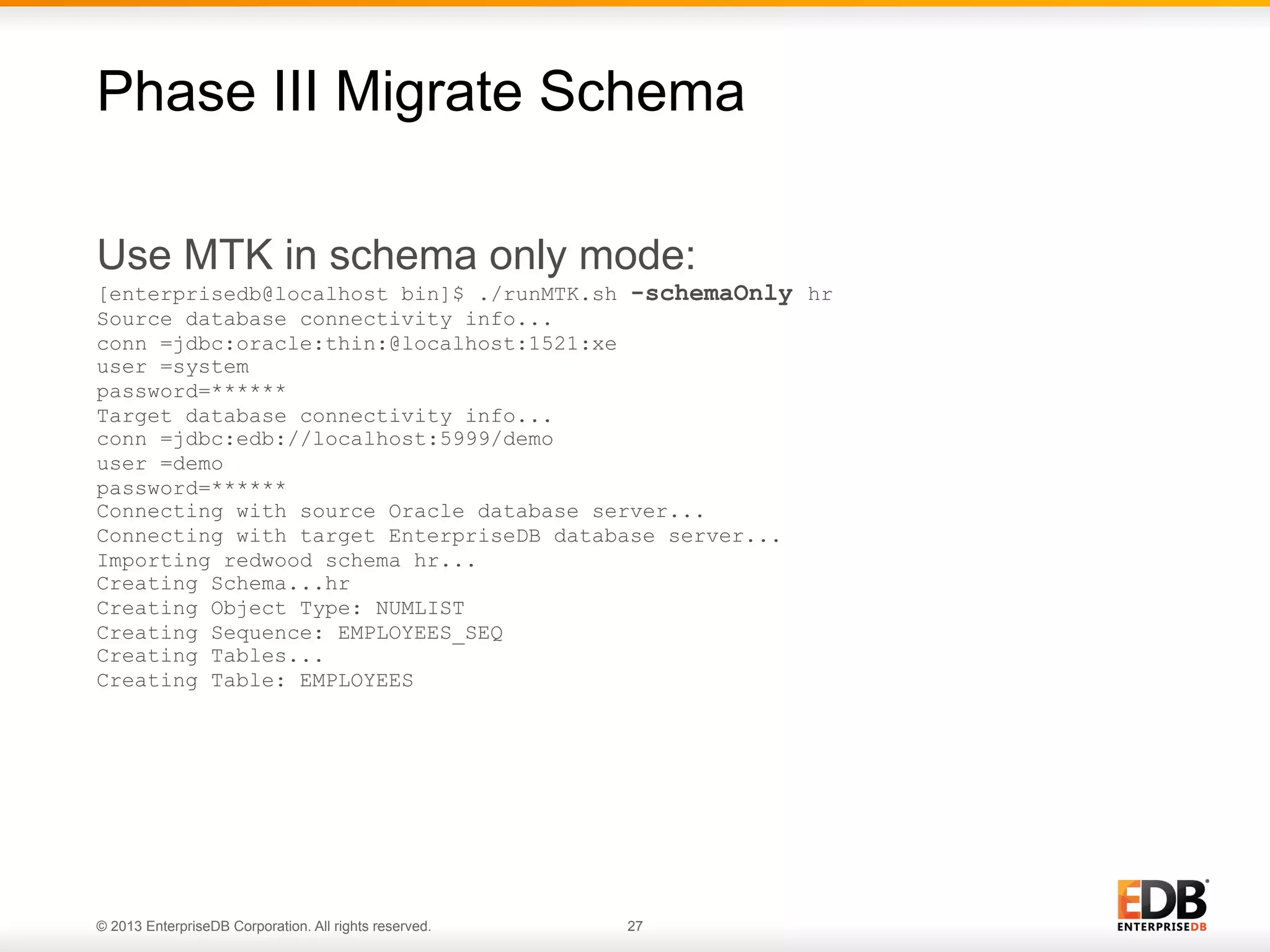

Phase III Migrate Schema
Use MTK in schema only mode:
[enterprisedb@localhost bin]$ ./runMTK.sh -schemaOnly hr
Source database connectivity info...
conn =jdbc:oracle:thin:@localhost:1521:xe
user =system
password=******
Target database connectivity info...
conn =jdbc:edb://localhost:5999/demo
user =demo
password=******
Connecting with source Oracle database server...
Connecting with target EnterpriseDB database server...
Importing redwood schema hr...
Creating Schema...hr
Creating Object Type: NUMLIST
Creating Sequence: EMPLOYEES_SEQ
Creating Tables...
Creating Table: EMPLOYEES


27

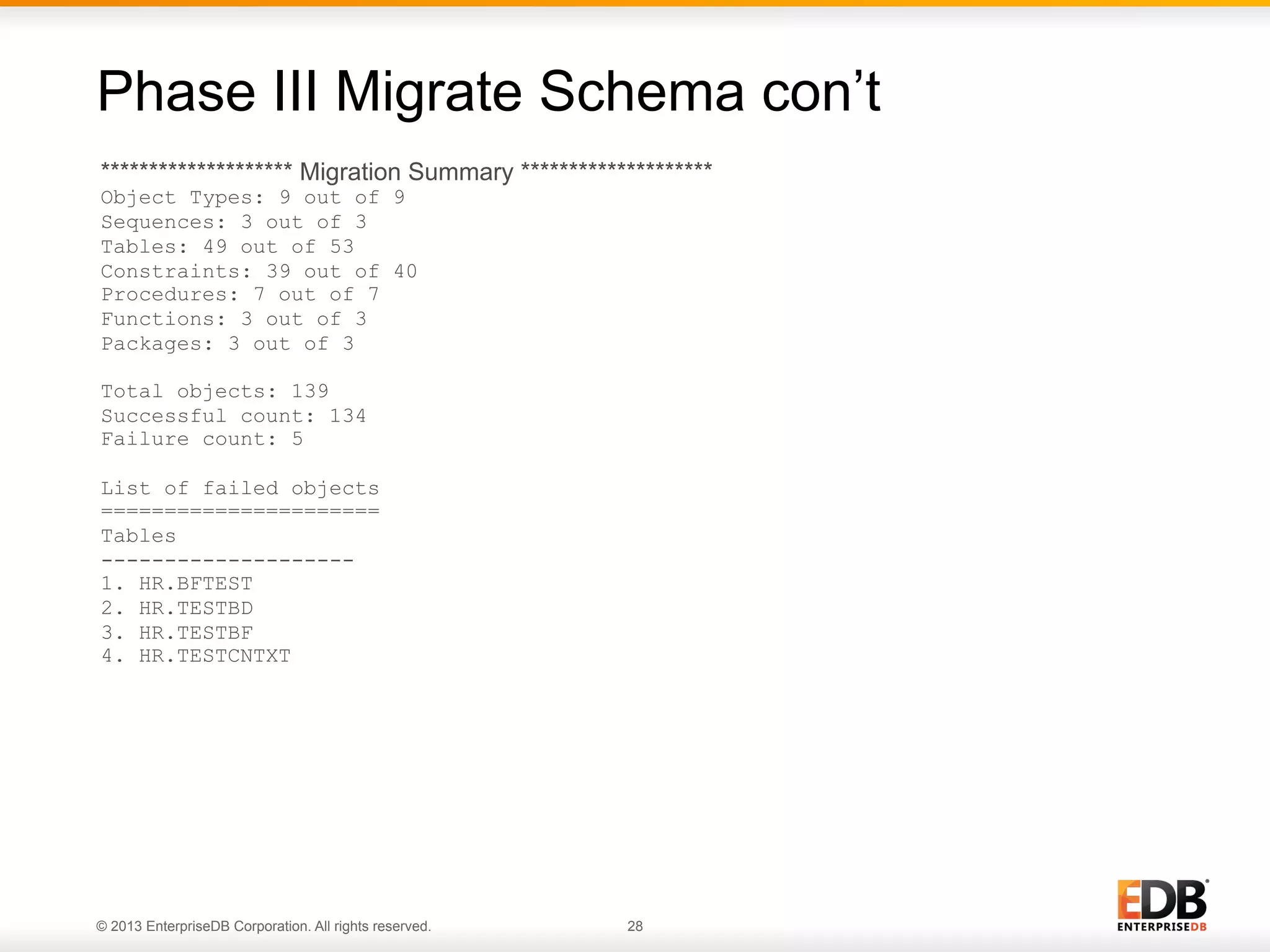

Phase III Migrate Schema con’t
******************** Migration Summary ********************
Object Types: 9 out of 9
Sequences: 3 out of 3
Tables: 49 out of 53
Constraints: 39 out of 40
Procedures: 7 out of 7
Functions: 3 out of 3
Packages: 3 out of 3
Total objects: 139
Successful count: 134
Failure count: 5
List of failed objects
======================
Tables
-------------------1. HR.BFTEST
2. HR.TESTBD
3. HR.TESTBF
4. HR.TESTCNTXT


28

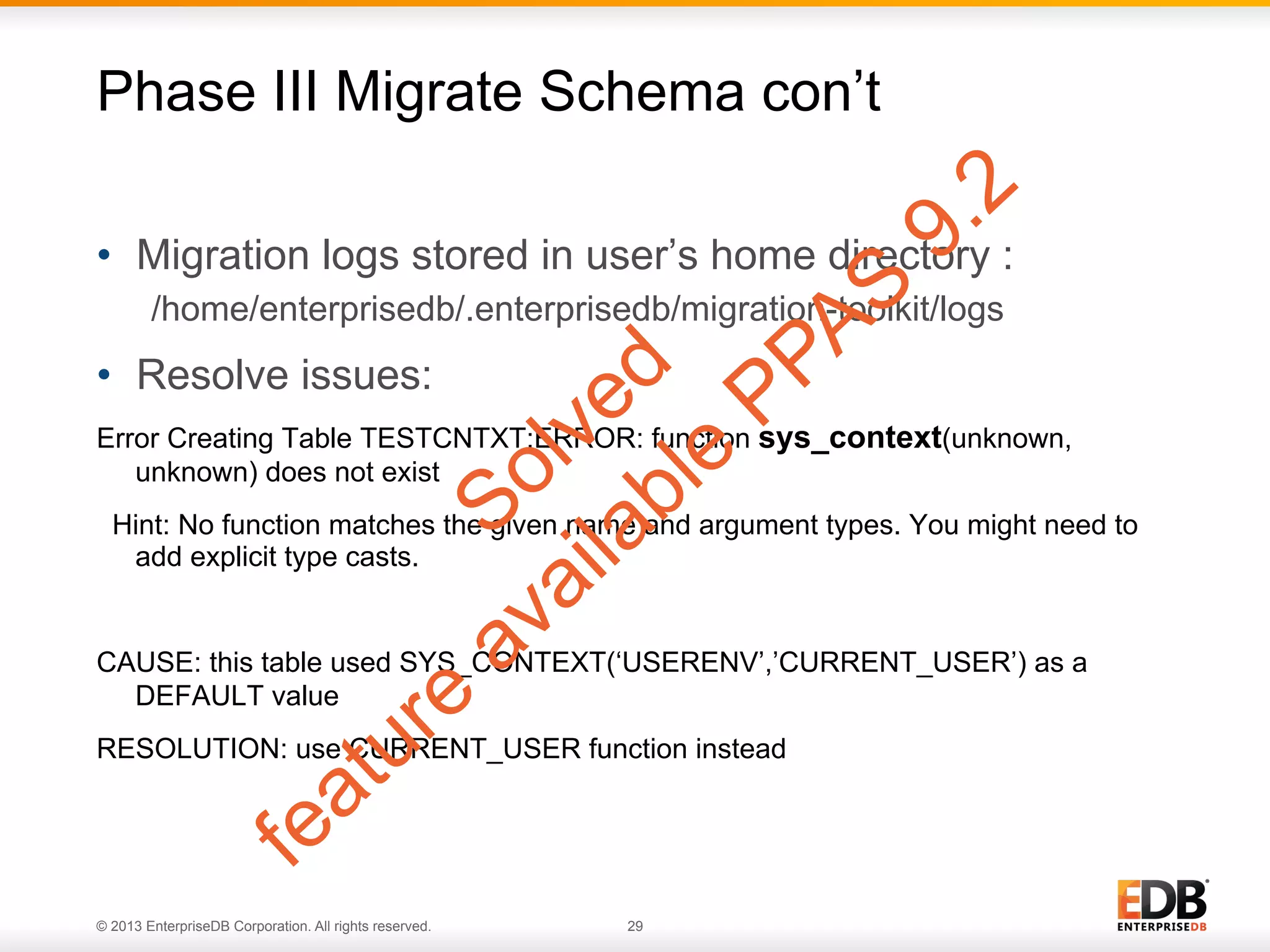

•  Migration logs stored in user’s home directory :
/home/enterprisedb/.enterprisedb/migration-toolkit/logs

•  Resolve issues:
Error Creating Table TESTCNTXT:ERROR: function sys_context(unknown,
unknown) does not exist
Hint: No function matches the given name and argument types. You might need to
add explicit type casts.

CAUSE: this table used SYS_CONTEXT(‘USERENV’,’CURRENT_USER’) as a
DEFAULT value
RESOLUTION: use CURRENT_USER function instead


29

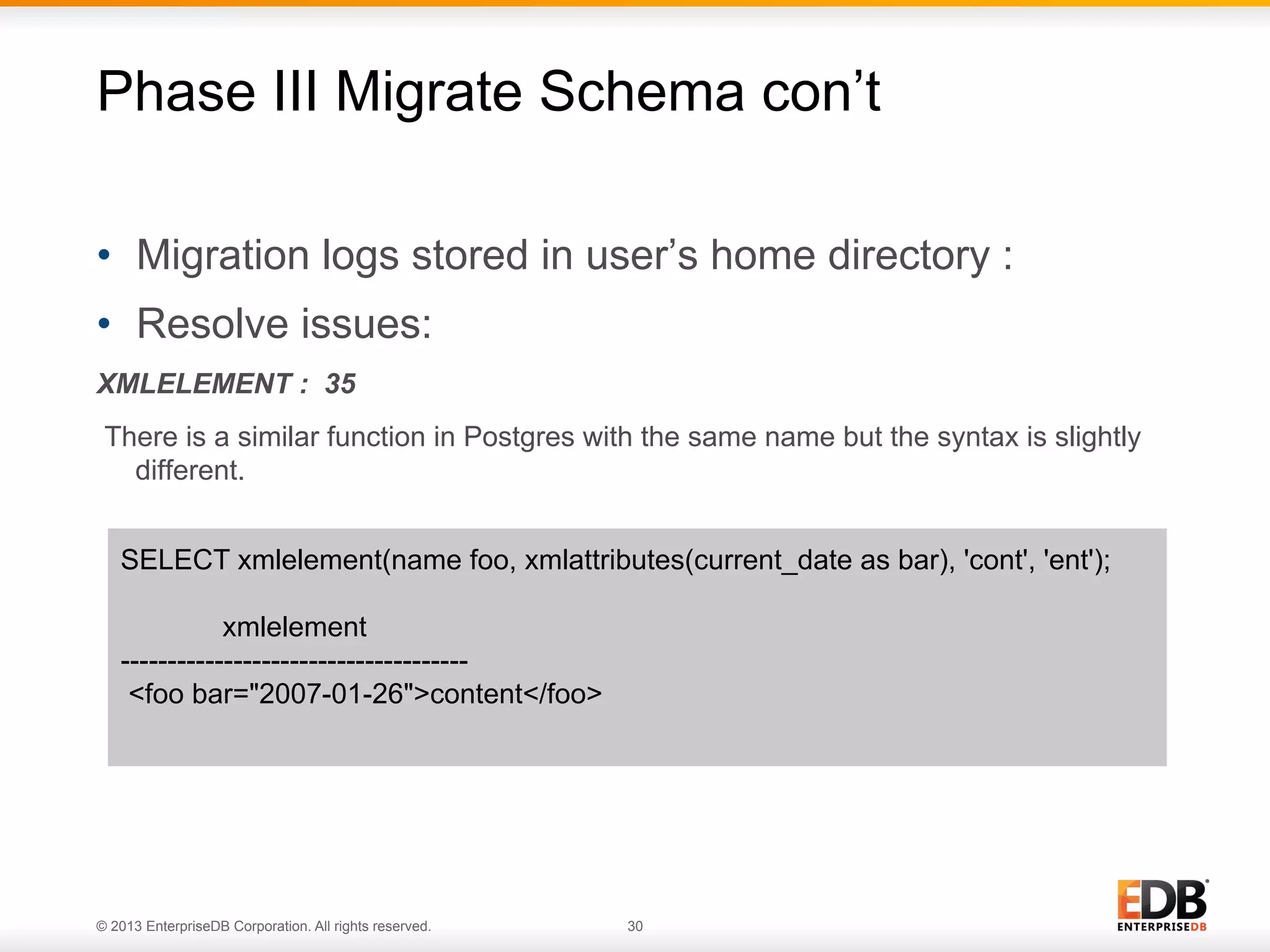

•  Migration logs stored in user’s home directory :
•  Resolve issues:
XMLELEMENT : 35
There is a similar function in Postgres with the same name but the syntax is slightly
different.
SELECT xmlelement(name foo, xmlattributes(current_date as bar), 'cont', 'ent');
xmlelement
------------------------------------<foo bar="2007-01-26">content</foo>


30

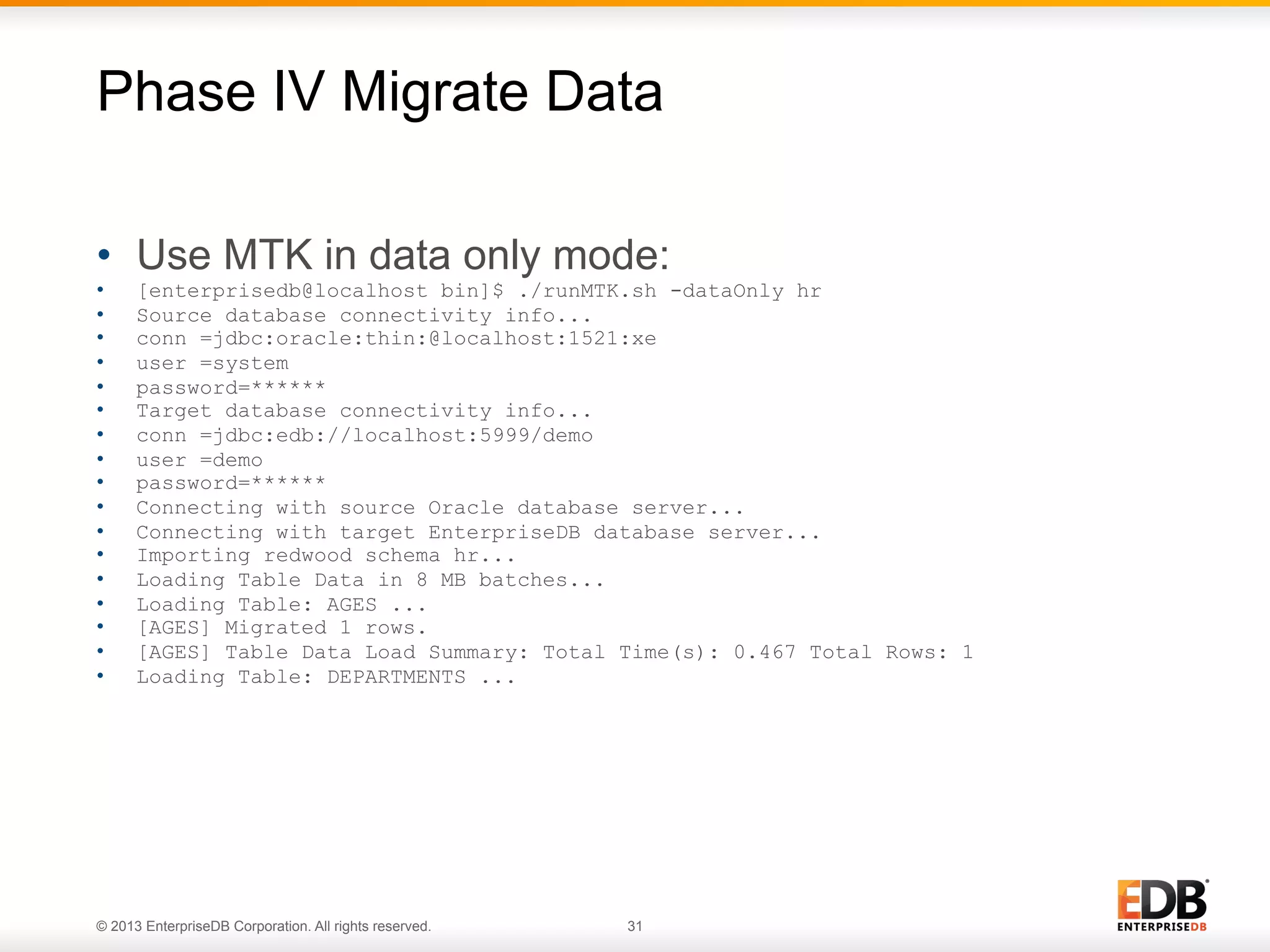

Phase IV Migrate Data
•  Use MTK in data only mode:
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 
• 

[enterprisedb@localhost bin]$ ./runMTK.sh -dataOnly hr
Source database connectivity info...
conn =jdbc:oracle:thin:@localhost:1521:xe
user =system
password=******
Target database connectivity info...
conn =jdbc:edb://localhost:5999/demo
user =demo
password=******
Connecting with source Oracle database server...
Connecting with target EnterpriseDB database server...
Importing redwood schema hr...
Loading Table Data in 8 MB batches...
Loading Table: AGES ...
[AGES] Migrated 1 rows.
[AGES] Table Data Load Summary: Total Time(s): 0.467 Total Rows: 1
Loading Table: DEPARTMENTS ...


31

Phase V Port the Application
§  Change Application Connection method
§  Java application =
§  Old connection syntax:
Class.forName("oracle.jdbc.driver.OracleDriver");
Connection con = DriverManager.getConnection("jdbc:oracle:thin:@localhost:
1521:xe”,”hrapp”,”manager”);

§  New connection syntax:
Class.forName("com.edb.Driver");
Connection con = DriverManager.getConnection("jdbc:edb://localhost:5444/edb",
“hrapp",“manager");


32

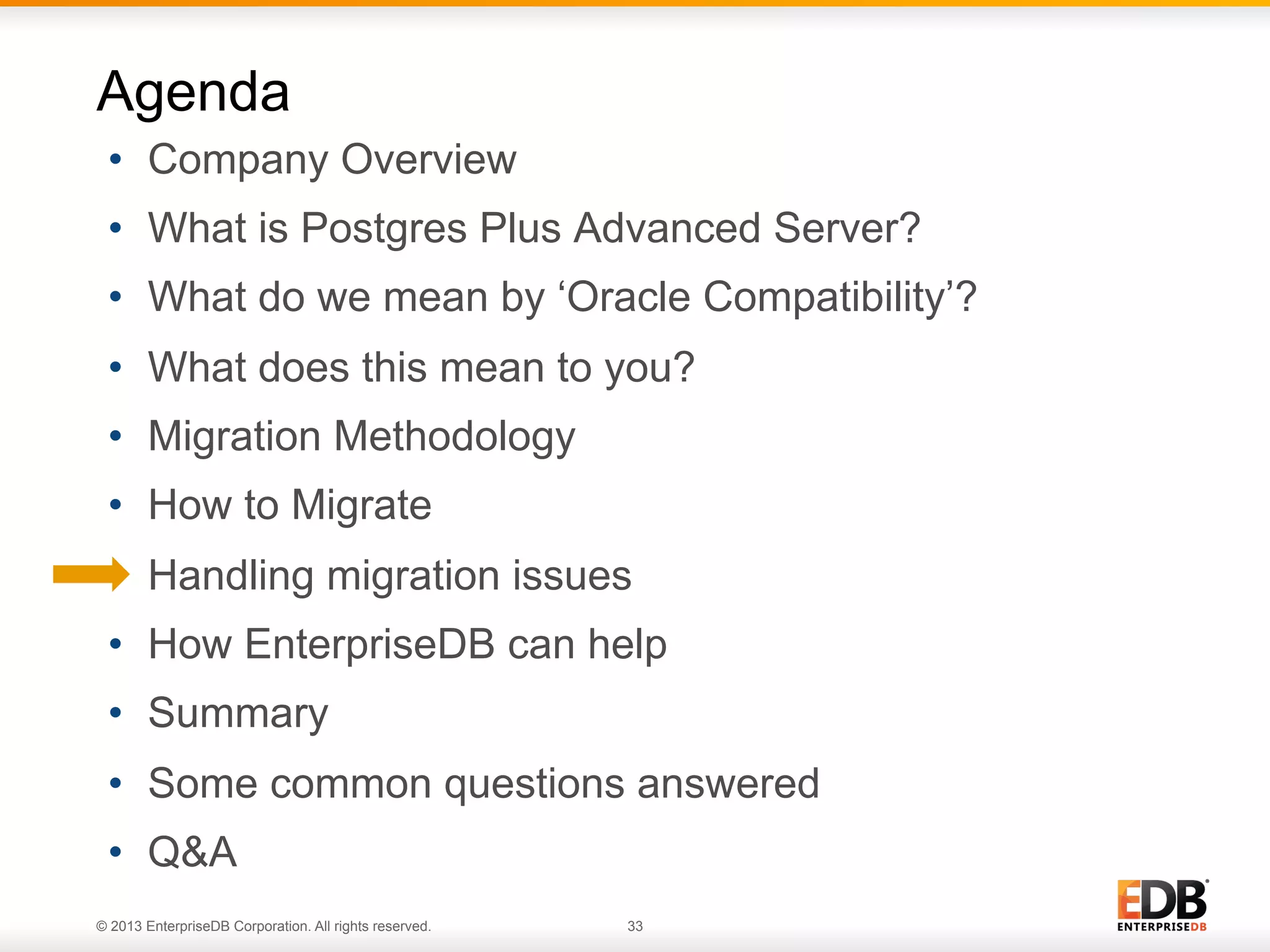

Agenda
•  Summary
•  Q&A

33

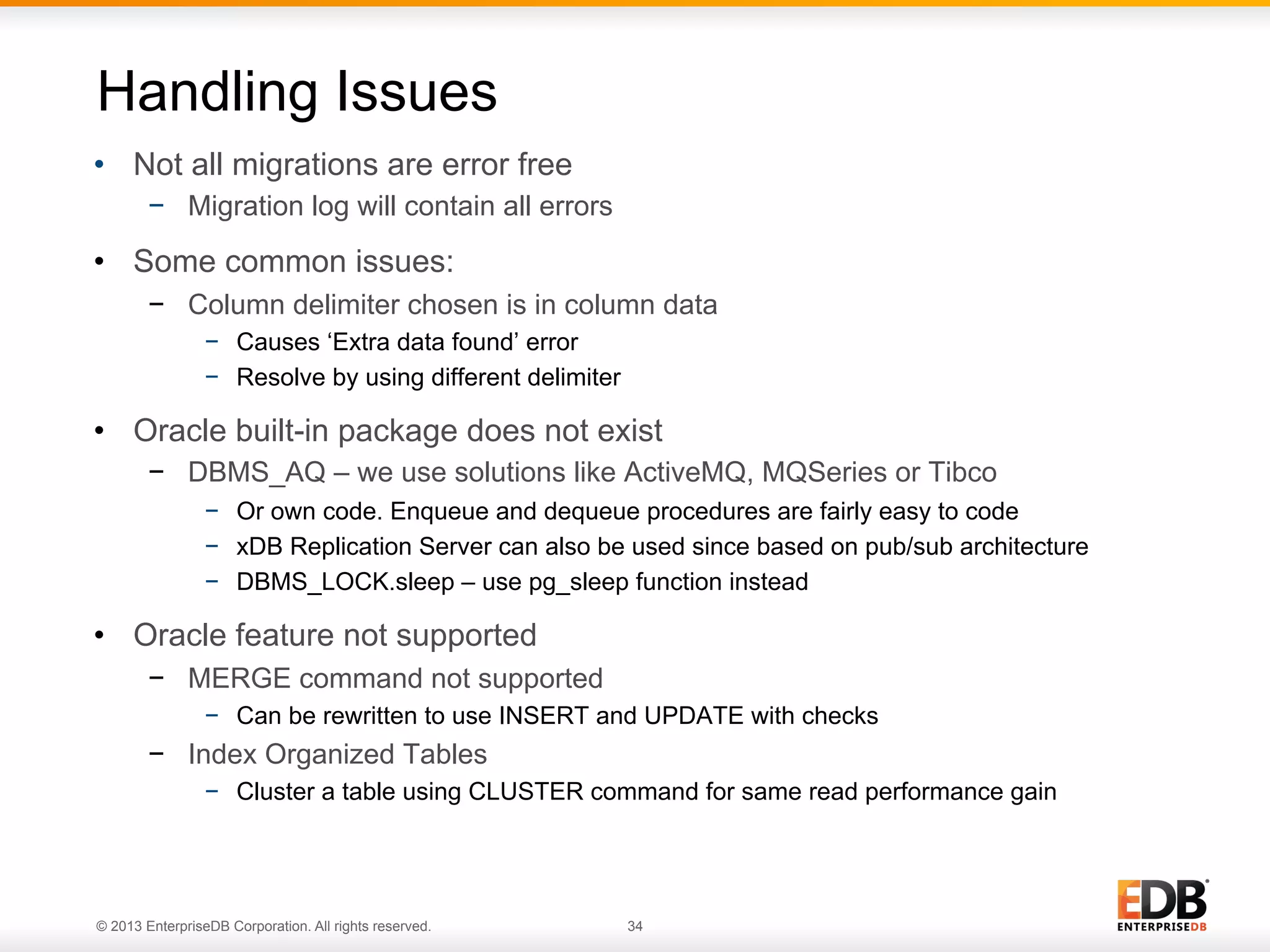

Handling Issues
•  Not all migrations are error free
−  Migration log will contain all errors

•  Some common issues:
−  Column delimiter chosen is in column data
−  Causes ‘Extra data found’ error
−  Resolve by using different delimiter

•  Oracle built-in package does not exist
−  DBMS_AQ – we use solutions like ActiveMQ, MQSeries or Tibco
−  Or own code. Enqueue and dequeue procedures are fairly easy to code
−  xDB Replication Server can also be used since based on pub/sub architecture
−  DBMS_LOCK.sleep – use pg_sleep function instead

•  Oracle feature not supported
−  MERGE command not supported
−  Can be rewritten to use INSERT and UPDATE with checks

−  Index Organized Tables
−  Cluster a table using CLUSTER command for same read performance gain


34

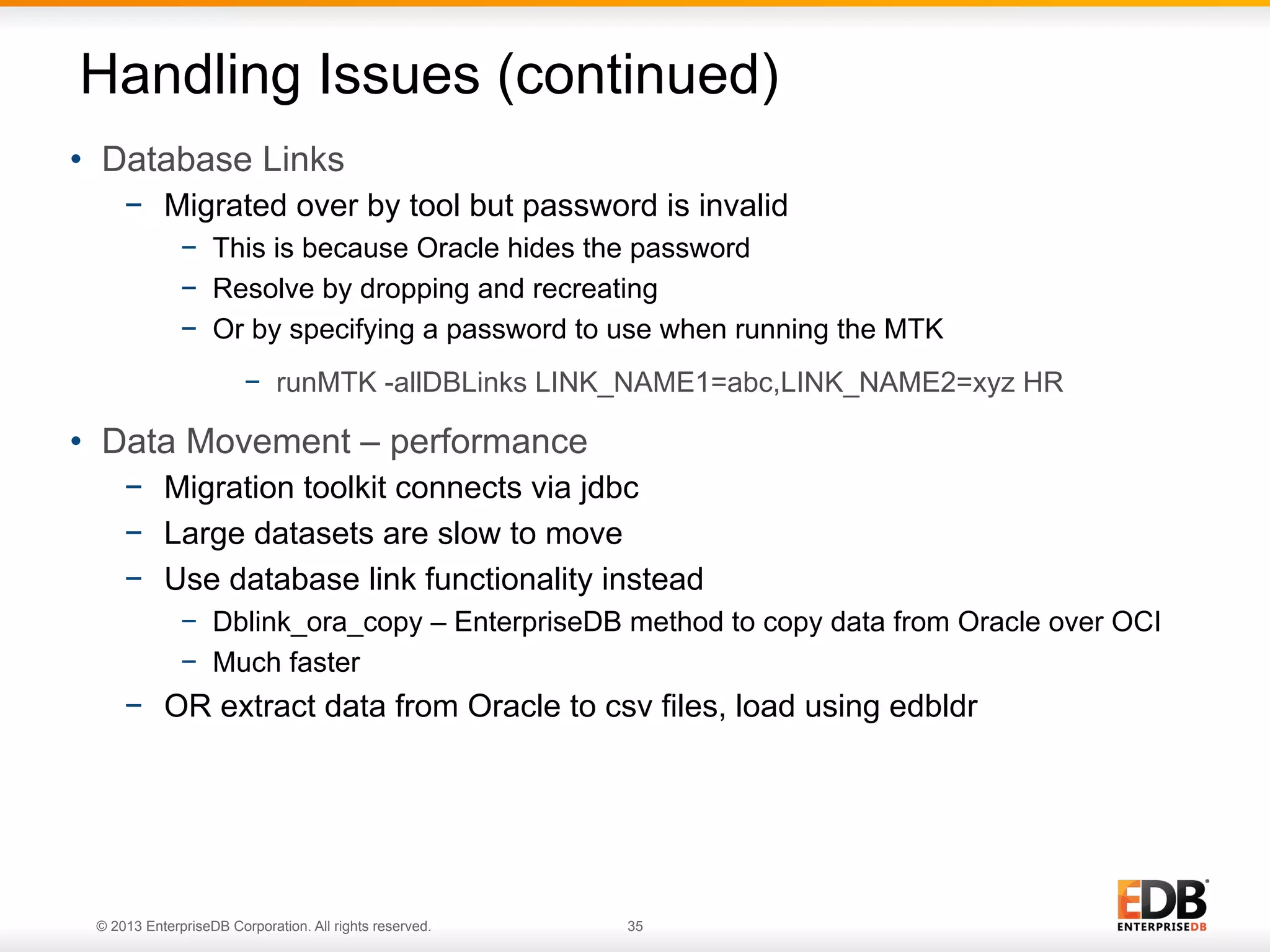

Handling Issues (continued)
•  Database Links
−  Migrated over by tool but password is invalid
−  This is because Oracle hides the password
−  Resolve by dropping and recreating
−  Or by specifying a password to use when running the MTK
−  runMTK -allDBLinks LINK_NAME1=abc,LINK_NAME2=xyz HR

•  Data Movement – performance
−  Migration toolkit connects via jdbc
−  Large datasets are slow to move
−  Use database link functionality instead
−  Dblink_ora_copy – EnterpriseDB method to copy data from Oracle over OCI
−  Much faster

−  OR extract data from Oracle to csv files, load using edbldr


35

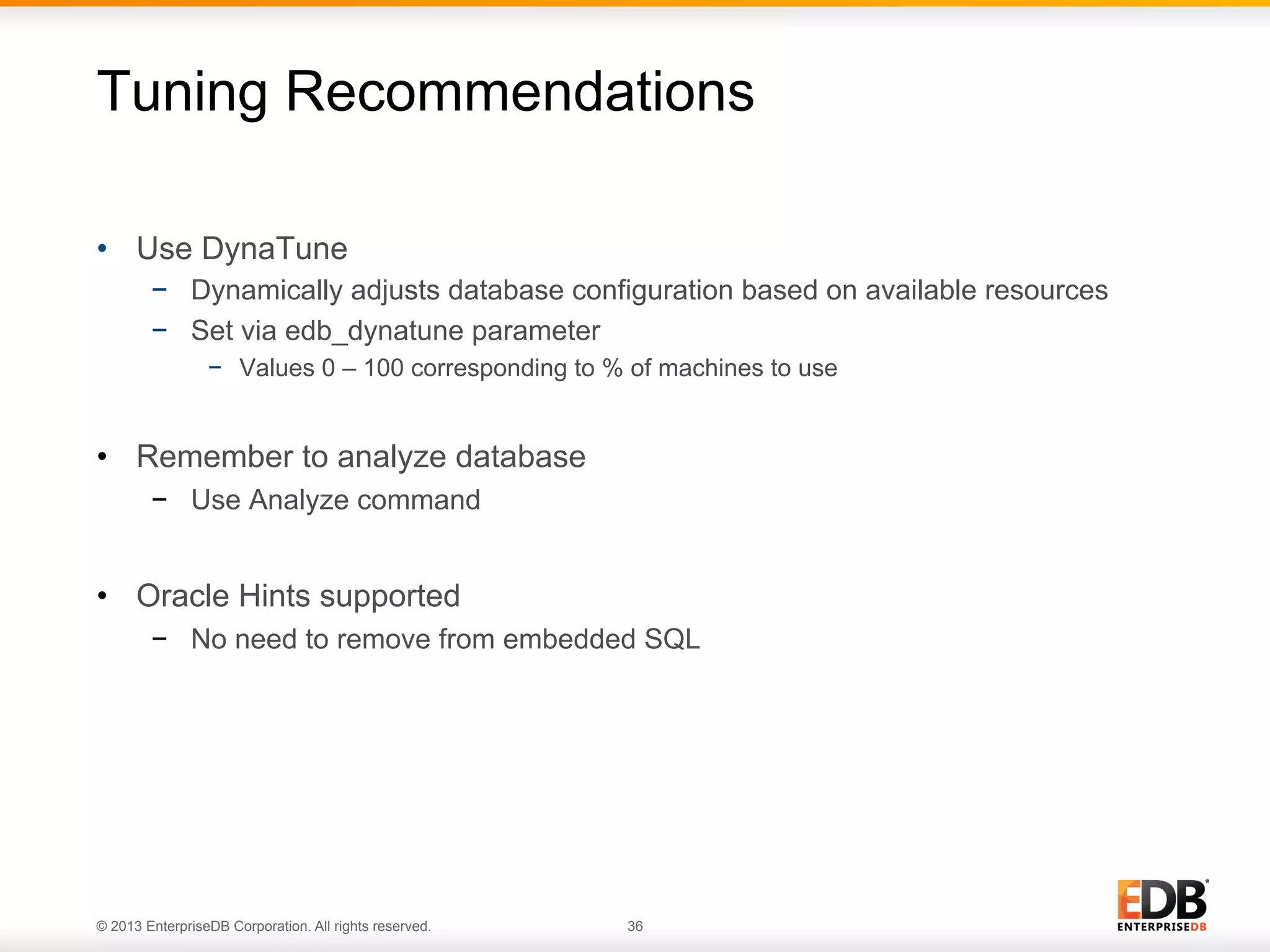

Tuning Recommendations
•  Use DynaTune
−  Dynamically adjusts database configuration based on available resources
−  Set via edb_dynatune parameter
−  Values 0 – 100 corresponding to % of machines to use

•  Remember to analyze database
−  Use Analyze command

•  Oracle Hints supported
−  No need to remove from embedded SQL


36

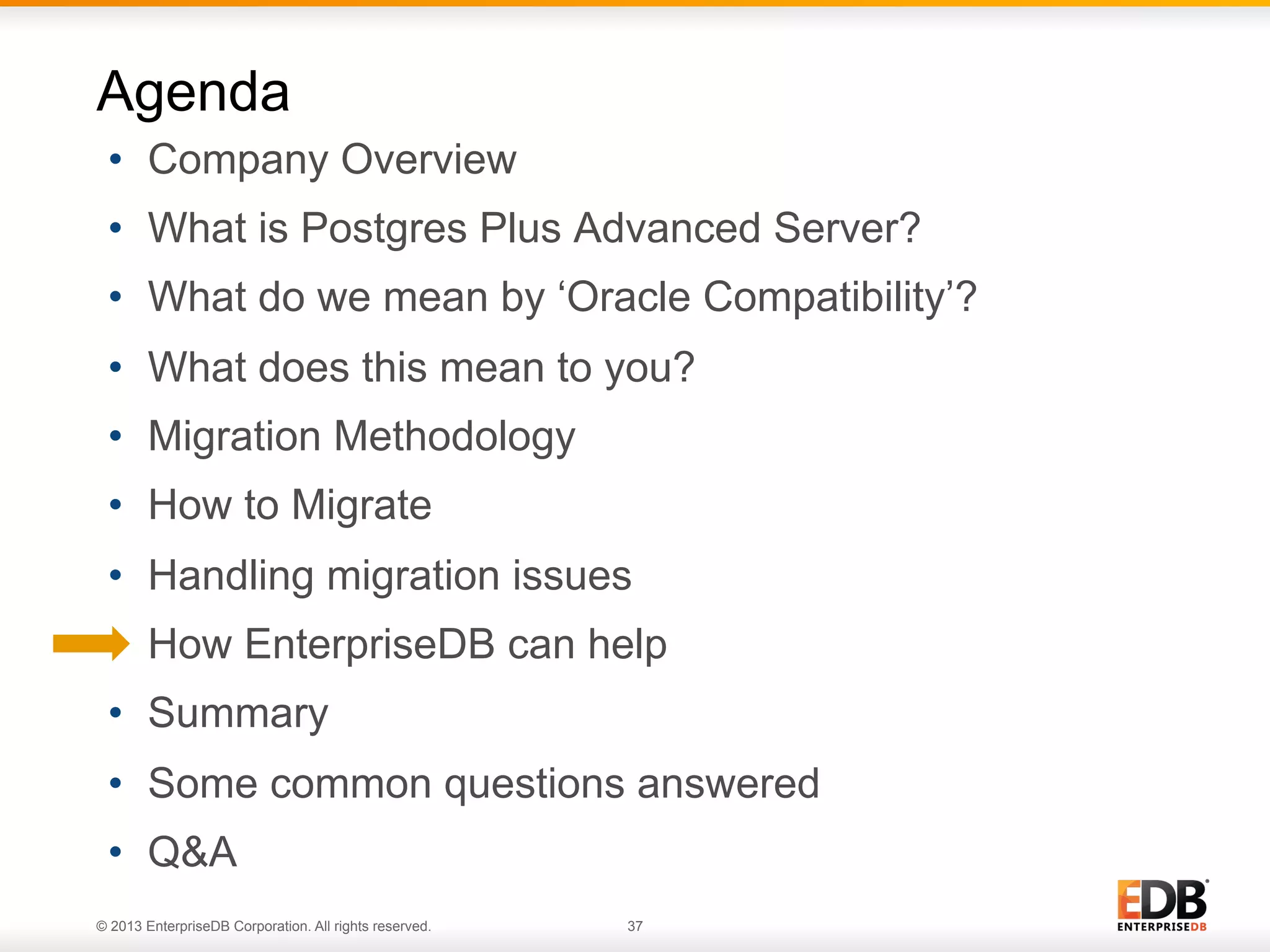

Agenda
•  Summary
•  Q&A

37

How EnterpriseDB Can Help

38

38

Oracle Migration Assessment
•  Paid for service from EnterpriseDB
•  What is it?
−  Pre-analysis interview
−  Analysis of Oracle schemas to be migrated
−  Finds possible migration issues
−  Unsupported Features
−  Unsupported Syntax
−  Implementation Differences

−  Findings documented in final report
−  Post analysis discussions to review findings

•  Migration feasibility score assigned (1 – 10)
http://www.enterprisedb.com/solutions/oracle-migration-assessment


39

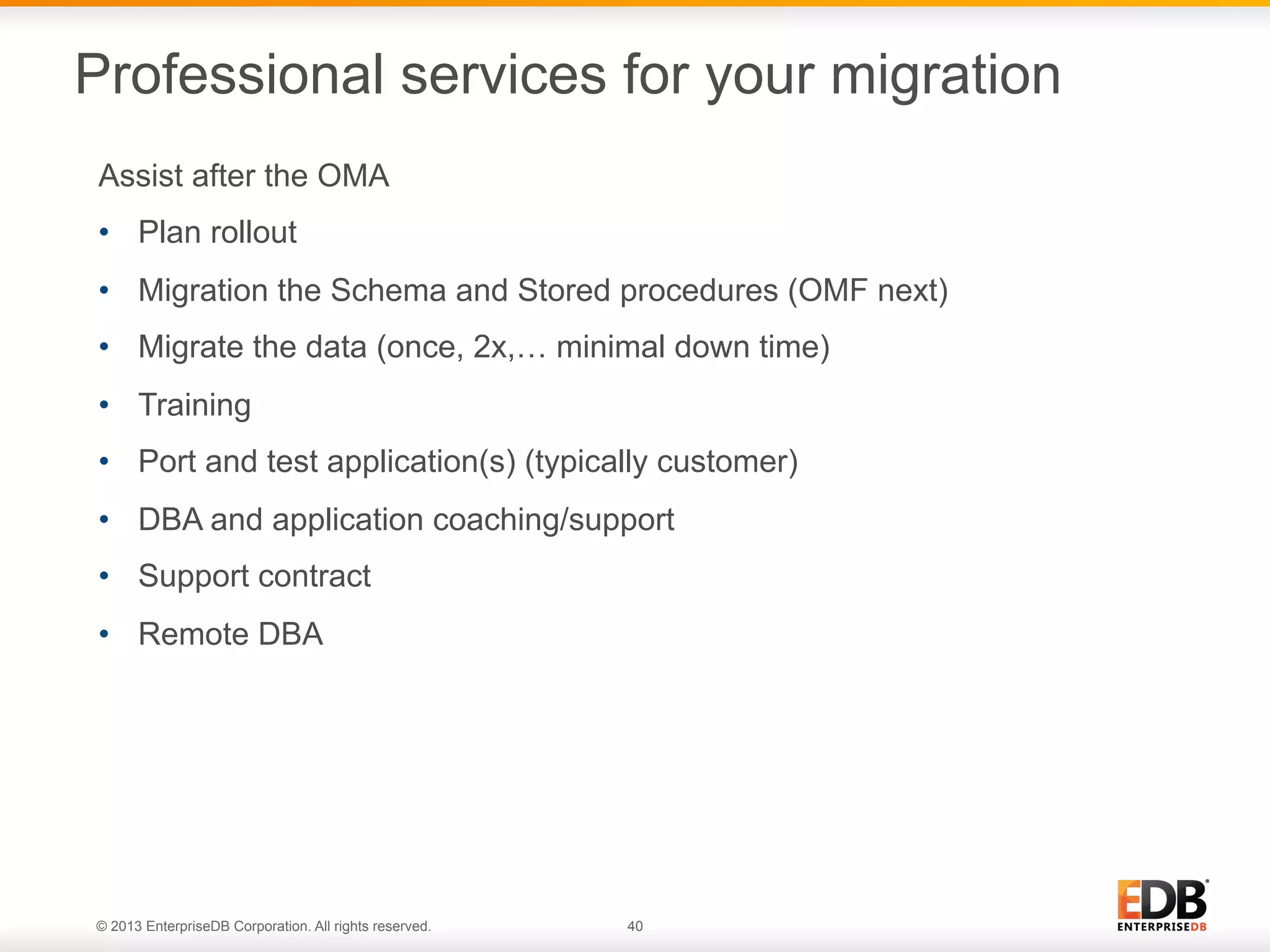

Professional services for your migration
Assist after the OMA
•  Plan rollout
•  Migration the Schema and Stored procedures (OMF next)
•  Migrate the data (once, 2x,… minimal down time)
•  Training
•  Port and test application(s) (typically customer)
•  DBA and application coaching/support
•  Support contract
•  Remote DBA


40

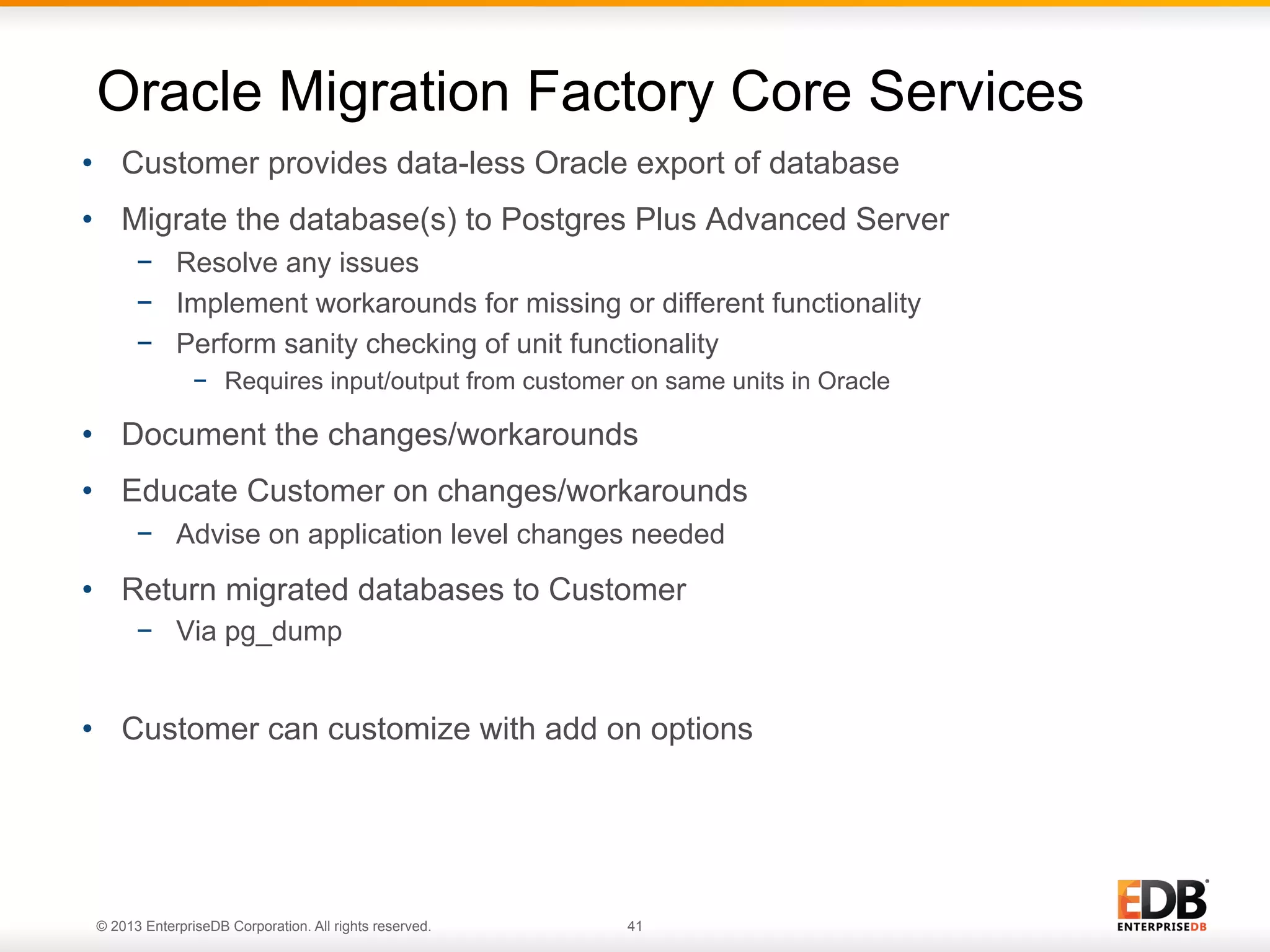

Oracle Migration Factory Core Services
•  Customer provides data-less Oracle export of database
•  Migrate the database(s) to Postgres Plus Advanced Server
−  Resolve any issues
−  Implement workarounds for missing or different functionality
−  Perform sanity checking of unit functionality
−  Requires input/output from customer on same units in Oracle

•  Document the changes/workarounds
•  Educate Customer on changes/workarounds
−  Advise on application level changes needed

•  Return migrated databases to Customer
−  Via pg_dump

•  Customer can customize with add on options


41

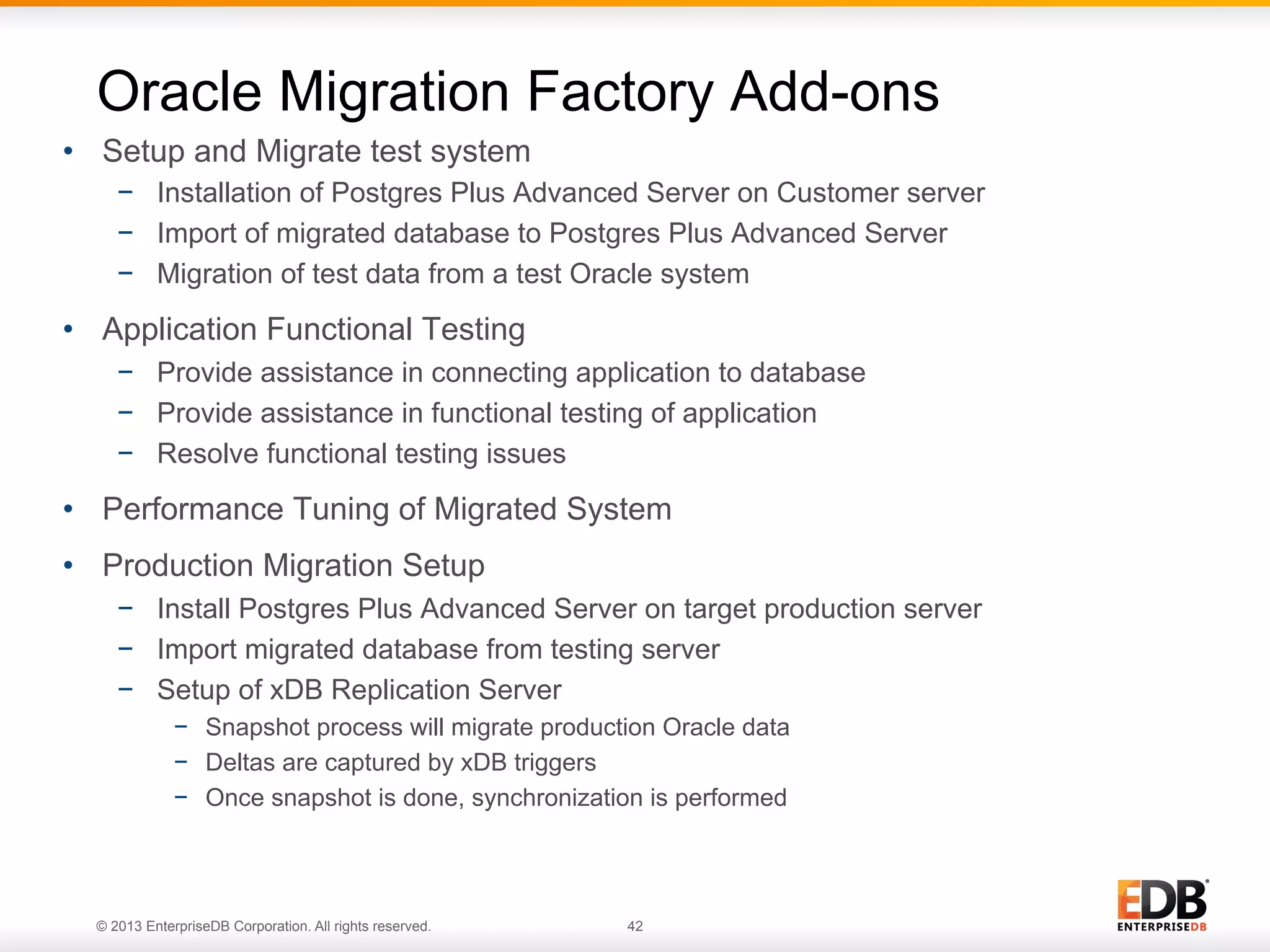

Oracle Migration Factory Add-ons
•  Setup and Migrate test system
−  Installation of Postgres Plus Advanced Server on Customer server
−  Import of migrated database to Postgres Plus Advanced Server
−  Migration of test data from a test Oracle system

•  Application Functional Testing
−  Provide assistance in connecting application to database
−  Provide assistance in functional testing of application
−  Resolve functional testing issues

•  Performance Tuning of Migrated System
•  Production Migration Setup
−  Install Postgres Plus Advanced Server on target production server
−  Import migrated database from testing server
−  Setup of xDB Replication Server
−  Snapshot process will migrate production Oracle data
−  Deltas are captured by xDB triggers
−  Once snapshot is done, synchronization is performed


42

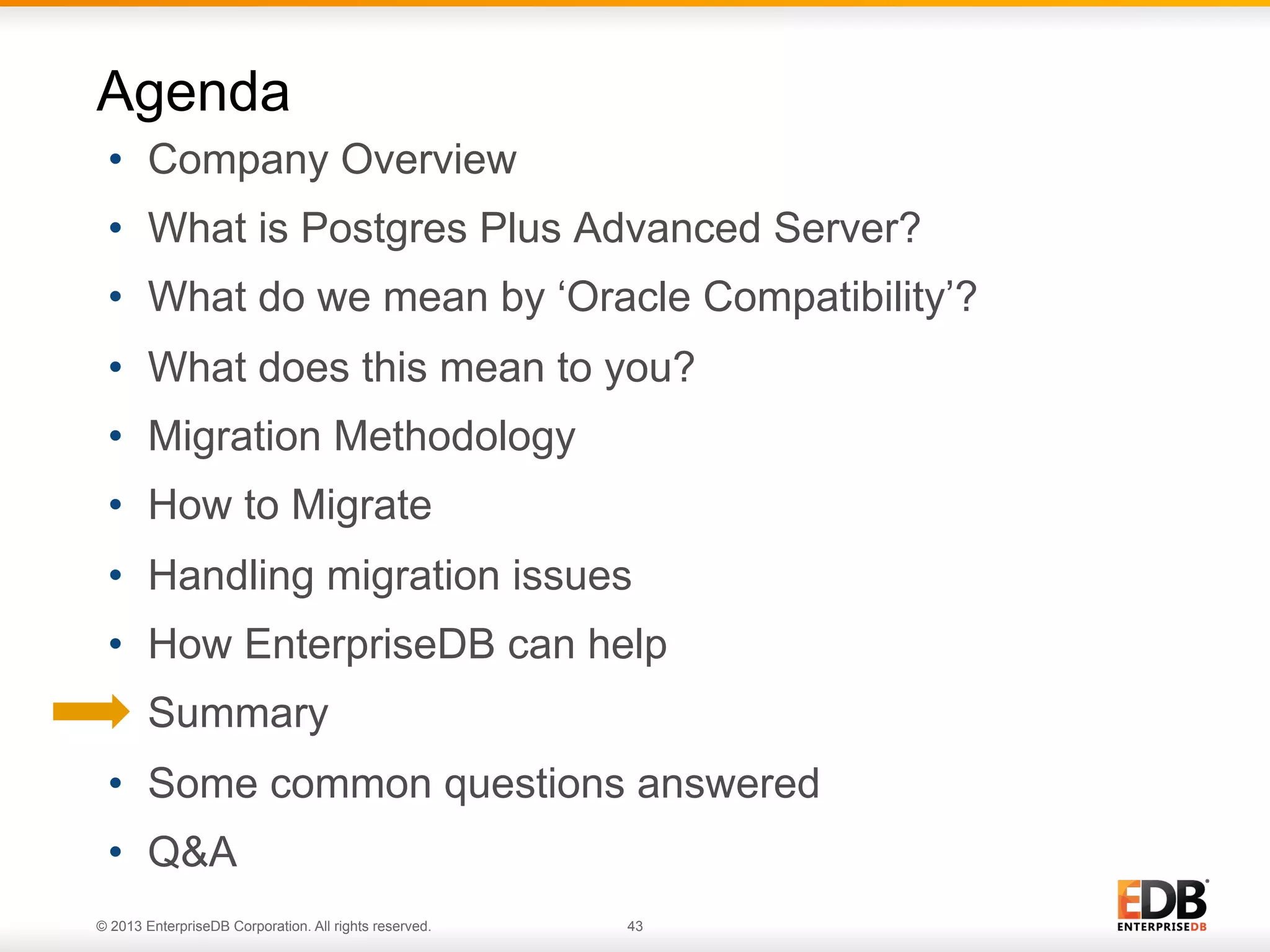

Agenda
•  Summary
•  Q&A

43

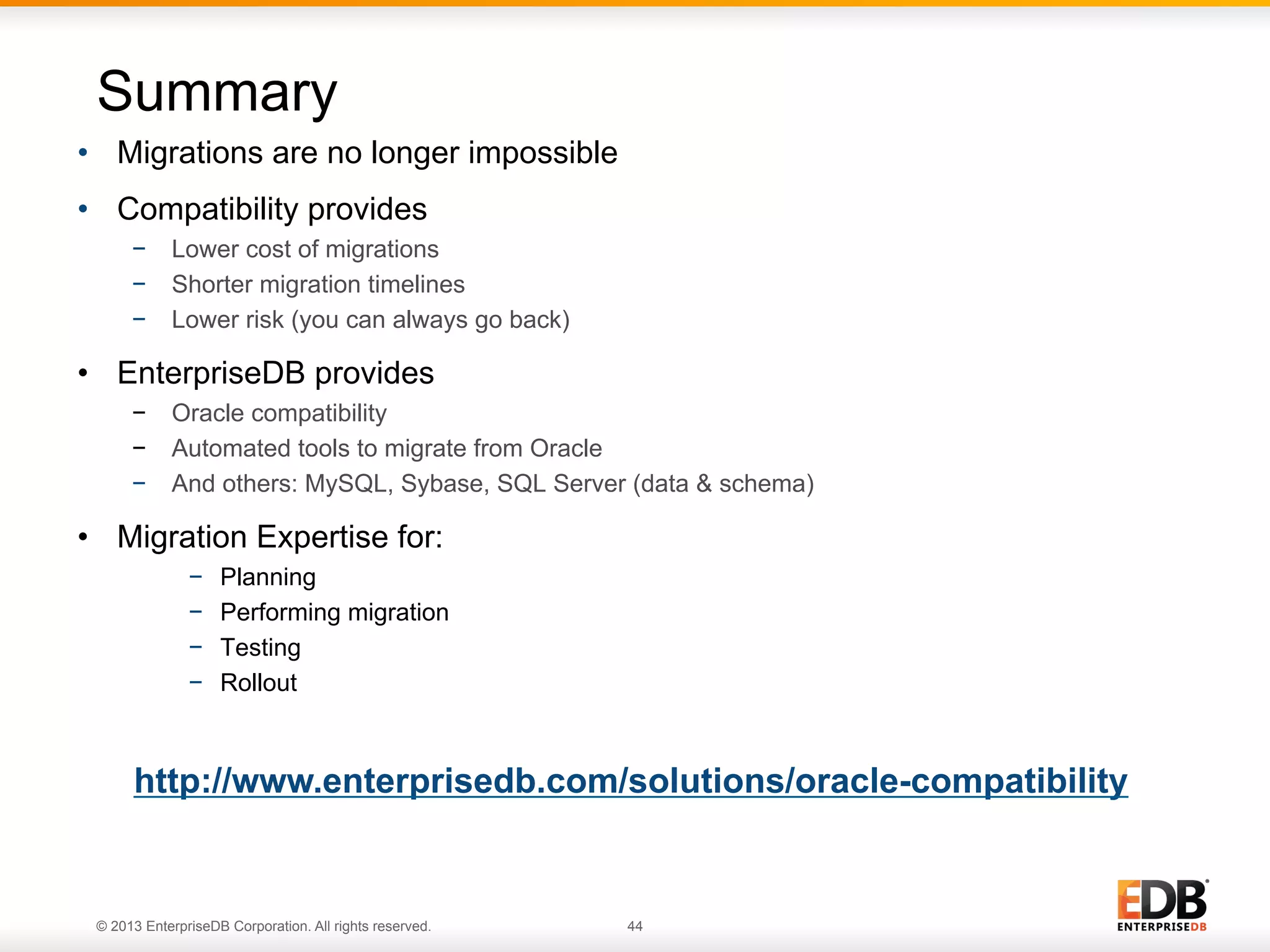

Summary
•  Migrations are no longer impossible
•  Compatibility provides
−  Lower cost of migrations
−  Shorter migration timelines
−  Lower risk (you can always go back)

•  EnterpriseDB provides
−  Oracle compatibility
−  Automated tools to migrate from Oracle
−  And others: MySQL, Sybase, SQL Server (data & schema)

•  Migration Expertise for:
− 
− 
− 
− 

Planning
Performing migration
Testing
Rollout

http://www.enterprisedb.com/solutions/oracle-compatibility


44

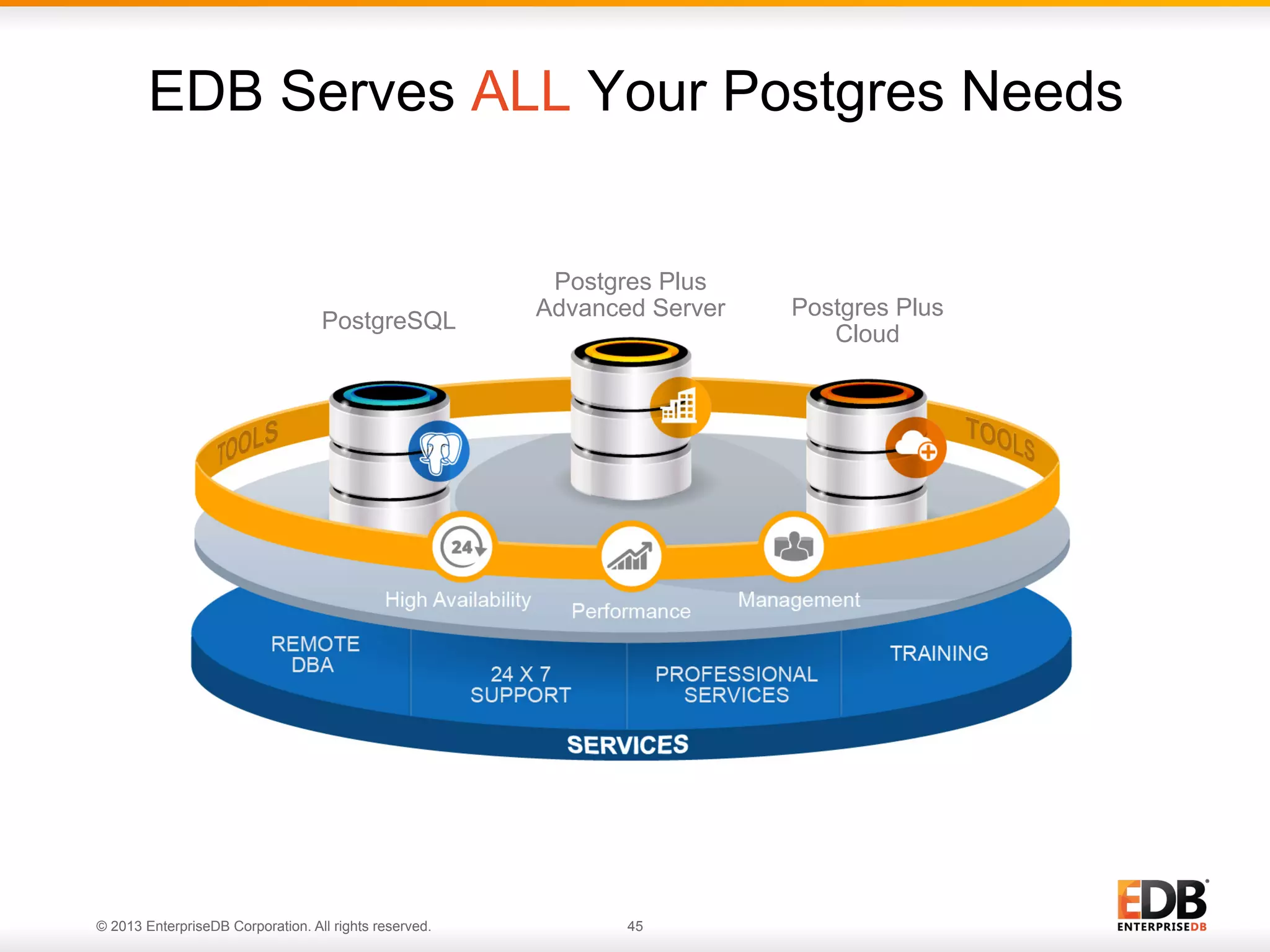

EDB Serves ALL Your Postgres Needs

PostgreSQL


Postgres Plus
Advanced Server

45

Postgres Plus
Cloud

Agenda
•  Summary
•  Q&A

46

Some Common
Questions
Answered

47

47

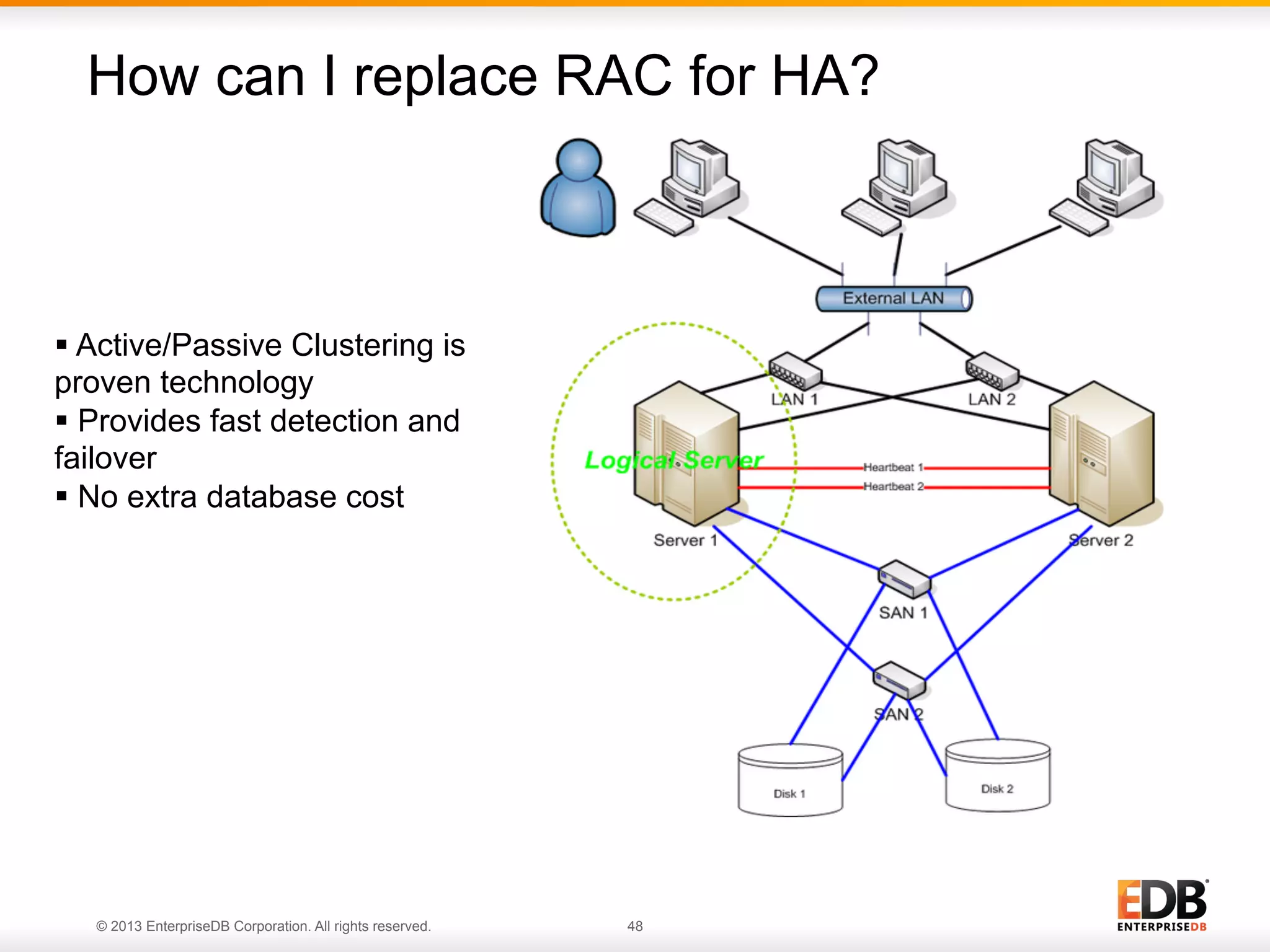

How can I replace RAC for HA?

§  Active/Passive Clustering is
proven technology
§  Provides fast detection and
failover
§  No extra database cost


48

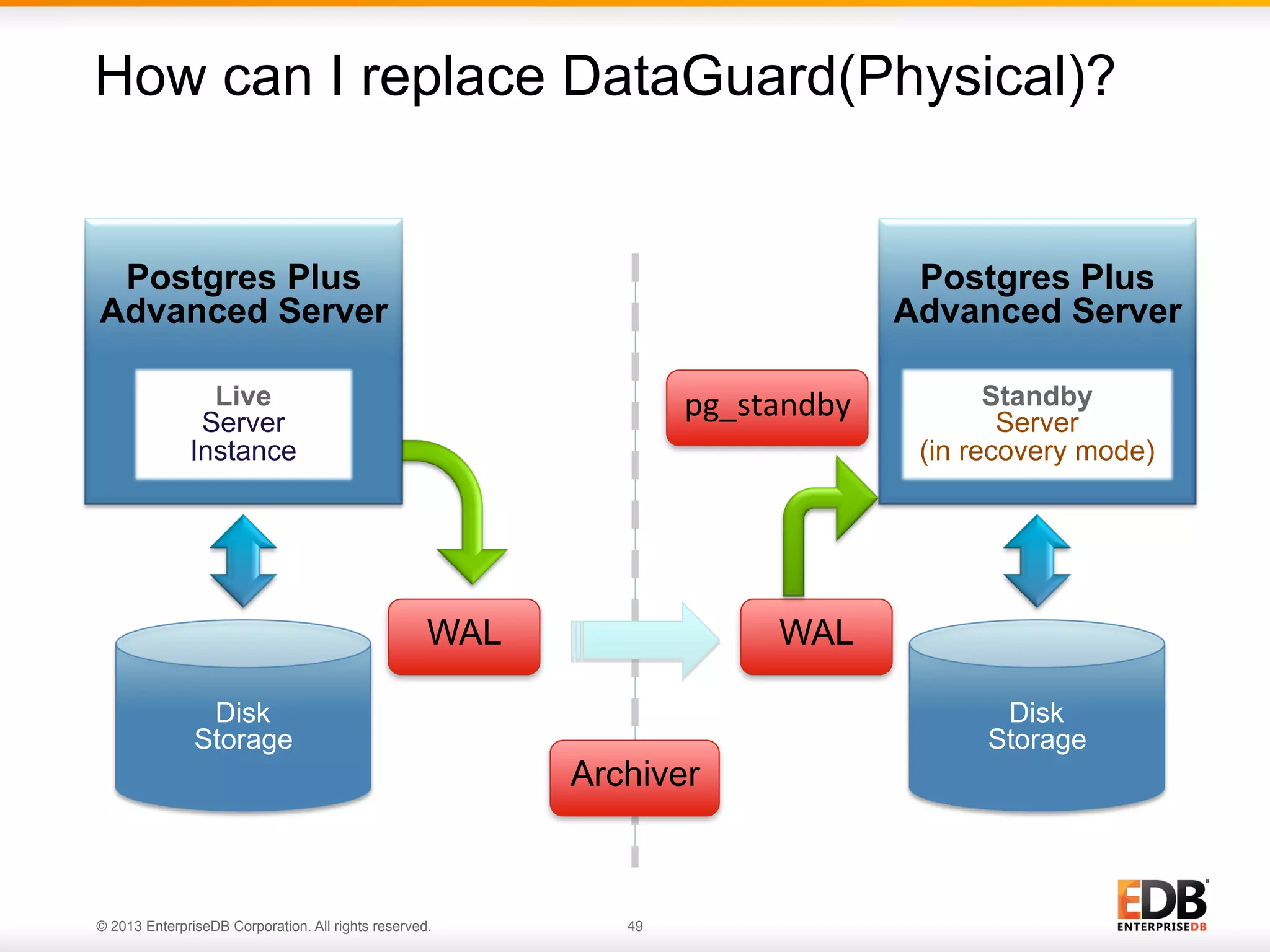

How can I replace DataGuard(Physical)?

Postgres Plus
Advanced Server

Postgres Plus
Advanced Server

Live
Server
Instance

pg_standby

WAL
Disk
Storage


Standby
Server
(in recovery mode)

WAL

Archiver

49

Disk
Storage

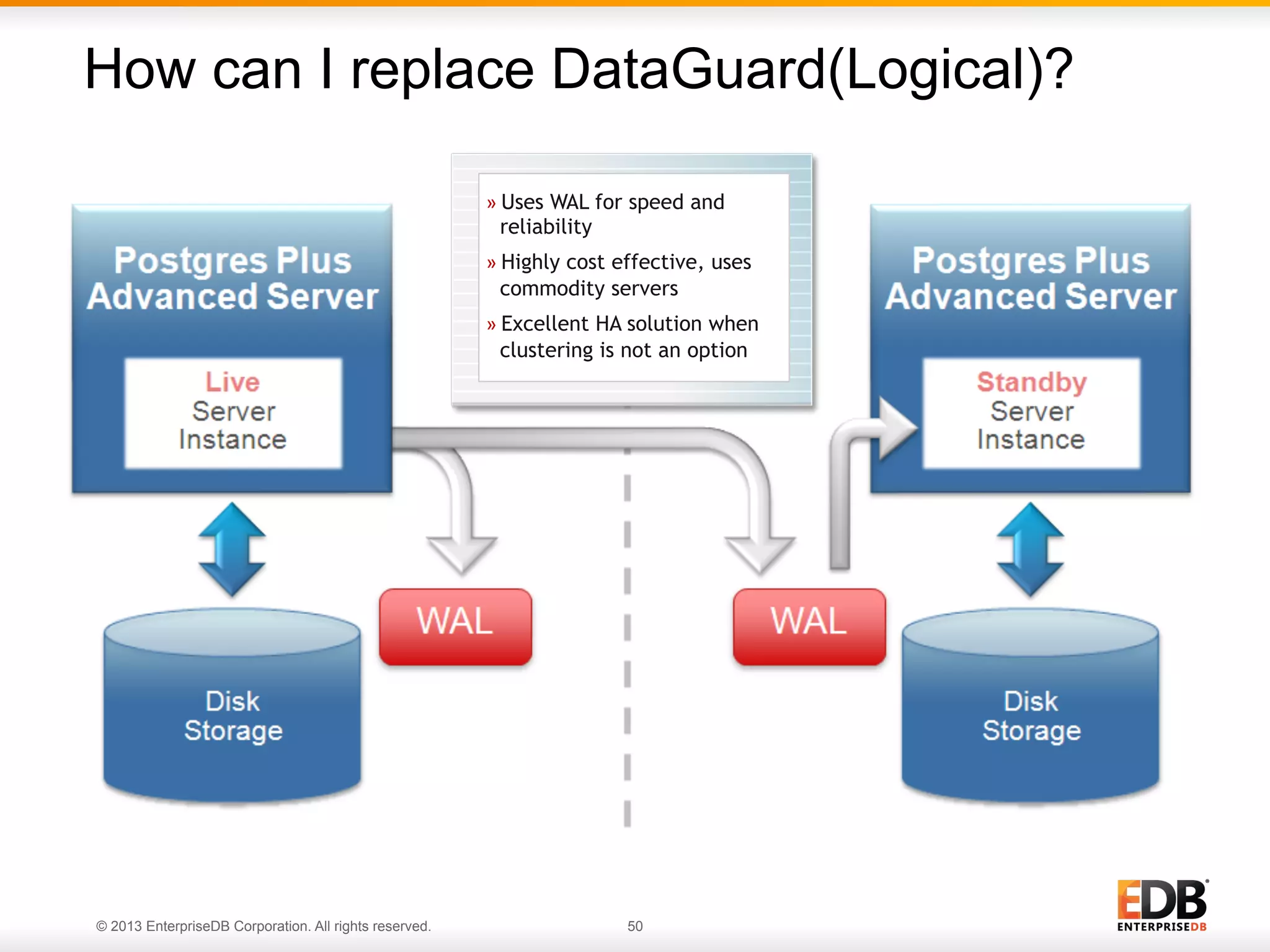

How can I replace DataGuard(Logical)?
» Uses WAL for speed and
reliability
» Highly cost effective, uses
commodity servers
» Excellent HA solution when
clustering is not an option


50


51

The Real Scoop on Migrating from Oracle Databases

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to The Real Scoop on Migrating from Oracle Databases

Similar to The Real Scoop on Migrating from Oracle Databases (20)

More from EDB

More from EDB (20)

Recently uploaded

Recently uploaded (20)

The Real Scoop on Migrating from Oracle Databases
