Oracle Database Appliance X5-2

Copyright © 2015 Oracle and/or its affiliates. All rights reserved. |
Oracle Database Appliance
Overview
Presenter’s Name
Presenter’s Title
Organization, Division or Business Unit
Month 00, 2015

Specific Skills RequiredCostly and Complex Risk of Failure
Growing Business Critical Services and Data
High Availability Solutions Desirable
2

Complete, Simple, Reliable, Affordable
Engineered System optimized to run the Oracle
Database and database-centric applications
• Complete high availability database solution in a single
appliance
• Simple to deploy and manage both databases and
applications to improve time to value and reduce
operational expense
• Reliable system to ensure database and application
availability
• Affordable Capacity on Demand (CoD) licensing to
manage capital expense
3

1,000’s of Deployments
4th Generation product
• Broad penetration in all
markets
– Higher Education
– Finance
– Manufacturing
– Retail
– Health Care
• Hundreds of ISVs in ODA
Exastack Program
4

Database Platform
• Business critical databases
– OLT and data warehouses
– Runs Oracle’s high availability software suite including
Oracle Real Application Clusters
• Consolidated databases
– Supports Multitenant and In-Memory database options
• Test and development databases
– Quickly and efficiently provision snapshots
5
ERP CRM
HR

Application Platform
• Host all tiers (web, middleware, database) on a single system
– Simplifies deployment and reduces data center footprint
– Ideal for branch office and remote deployments
• Solution-in-a-box made easy with comprehensive best
practices white papers and automation wizards
– Oracle applications
• JD Edwards, E-Business Suite, PeopleSoft, Flexcube,
Weblogic, Enterpise Manager, etc
– ISV applications
• IFS, mFormation, Temenos, etc
– Customer developed applications
6
PeopleSoft
Enterprise
Manager
ISV Apps
JD
Edwards
E-
Business

Oracle Database Appliance X5-2
• 2 Servers, each with
– 36 Intel Xeon CPU cores
– 256 GB memory, expandable to 768 GB
– Redundant InfiniBand Interconnect
– 10 GbE Public Network
• Storage Shelf
– 800 GB flash log storage
– 1.6 TB flash cache storage
– 64 TB HDD

ODA X5-2 Storage Expansion Shelf
Zero-Admin/Online Storage Expansion
• Double available storage capacity
– Additional 64 TB HDD, 128 TB total for DATA
– Additional 800 GB SSD, 1.6 TB total for REDO
– Additional 1.6 TB SSD, 3.2 TB total for FLASH
• Zero administration
– Automatically integrates when plugged in
– Data automatically distributes to new shelf
• Online expand storage
– Hot-plug storage expansion shelf
– No database downtime

• More capacity than previous
generation
– 1.5x CPU cores
– 3x memory capacity
– 3.5x data file storage
– 4x Interconnect speed
• Smarter software
– ODA Flash Cache speeds I/O operations
– Database and VM snapshots eliminate
redundant provisioning of storage
– In-Memory Fault Tolerance reduces I/O
demands while keeping data highly
available
– Oracle Multitenant eliminates
overhead of multiple instances
Ideal Consolidation Platform
Up to 4x Consolidation Density

Export-Import Bank of the United States
Consolidates Nine Servers
COMPANY OVERVIEW
• The official export credit agency of the United States
• Industry: Public Sector
• Employees: 500
CHALLENGES/OPPORTUNITIES
• Consolidate servers to reduce power consumption and space
requirements
• Accelerate data migration to the data warehouse to enable
users to access information more quickly
• Reduce dependence on system, disk, and network
administrators by simplifying the bank’s hardware and
database environment
SOLUTIONS
• Oracle Database Appliance
• Oracle Business Intelligence Enterprise Edition
• Oracle Advanced Customer Support Services
CUSTOMER PERSPECTIVE
“With Oracle Database Appliance, we have greatly
simplified and optimized our IT infrastructure. We have
improved system performance and streamlined
administration while getting information into our
business users’ hands much more quickly.”
Charles Puma, Database Administrator
RESULTS
• Simplified hardware and database environment,
reducing the number of administrators needed
• Consolidated nine servers and four storage area
networks, reducing space requirements and power
costs
10

Complete
Database and Application Solution
• Everything necessary for a HA database solution in a single appliance
– Breaks the dependency on others for specialized expertise
– Easy and fast to order: 1 part number buys it all
• Integrated virtualization enables hosting applications and database in single appliance
– Reduces floor space, power, cooling costs
– Easier to deploy and manage in branch offices
• Best practices and automation speeds time to market
– Quickly deploy entire platform for any x86 application
11

Strata Health Supports Real-time Resource
Matching and e-Referral System Expansion
COMPANY OVERVIEW
• Software as a service provider of healthcare; leverages
technology to achieve health system improvements
• Industry: Healthcare
• Employees: 45
• Ensure a highly available data infrastructure to accommodate
increasing support and hosting requirements
• Migrate one customer that was self-hosting PathWays on
hardware designed for a single Local Health Integration
Network (LHIN) to Strata Health’s software as a service (SaaS)-
based Managed Hosting Program (MHP)
SOLUTIONS
“Oracle Database Appliance provided us with the
scalability and flexibility that we needed to support our
PathWays system. Now, we can continue to grow
organically, without increasing our database support,
which is a huge advantage for us.”
Darren Jones, Chief Operating Officer
RESULTS
• Improved application response times; with the 380,000
page loads logged in the first 48 hours post migration,
of which 98.6% were clocked at faster than a three-
second response time
• Reduced number of session timeouts, from 2,400 to
175
• Experienced no more than 60% utilization
12

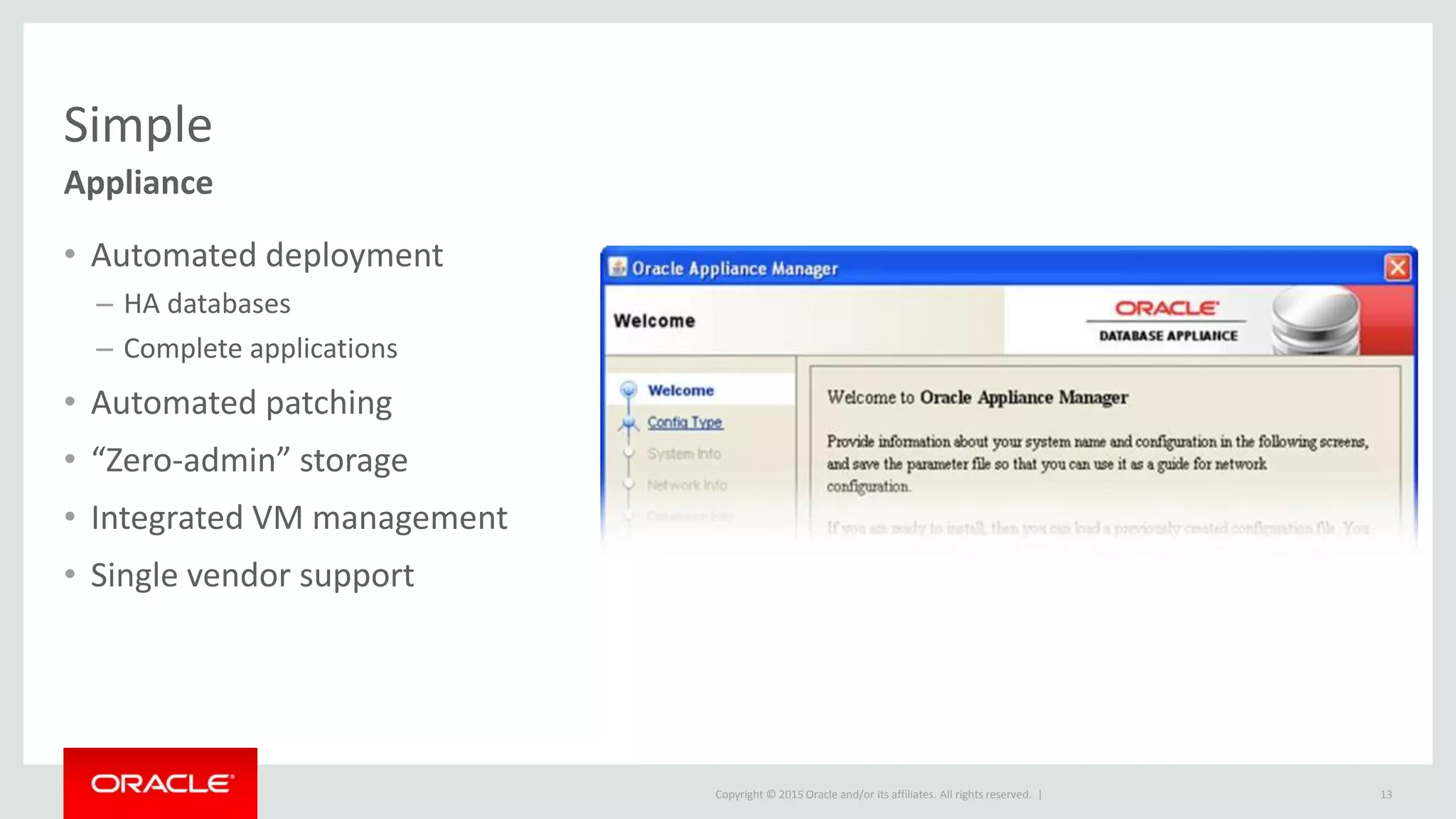

Simple
Appliance
• Automated deployment
– HA databases
– Complete applications
• Automated patching
• “Zero-admin” storage
• Integrated VM management
• Single vendor support
13

Simple
Compare to Build Your Own
Build Your Own Oracle Database Appliance
5 Puzzle Pieces
• Server, storage, networking,
database, consultants
1 Component
• Push one button
for install
7 Staff / Skills for HA
• DBA, network admin,
storage admin, system admin,
installation expertise,
HA expertise, optimization skills
1 DBA
24 + Patches
Per Year
4 Patches
Per Year
~ 2,200 Hours
Maintenance
~ 110 Hours
Maintenance
14

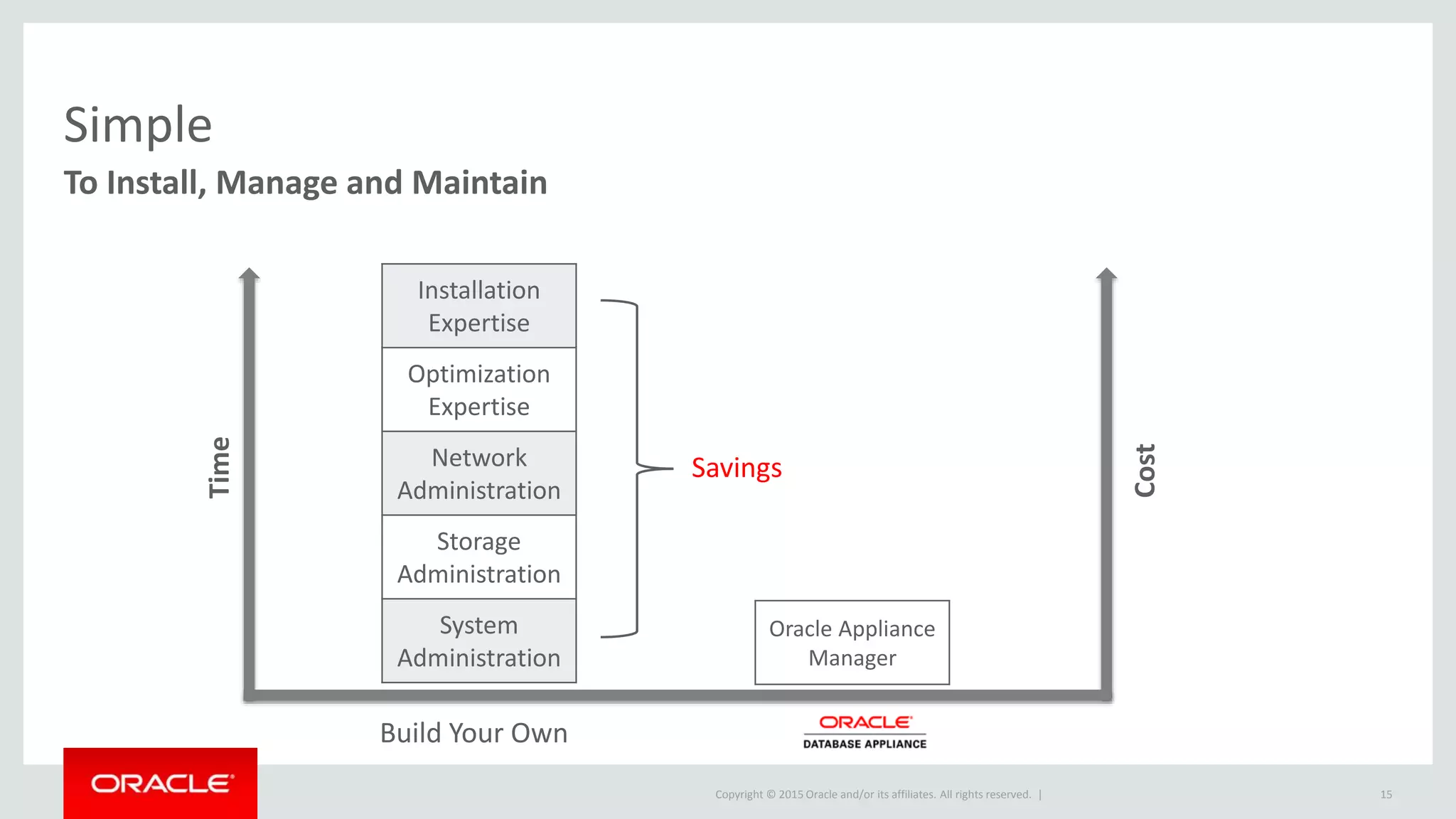

Simple
To Install, Manage and Maintain
Time
Cost
Build Your Own
15
Installation
Expertise
Optimization
Expertise
Network
Administration
Storage
Administration
System
Administration
Oracle Appliance
Manager
Savings

Auxilium Pharmaceuticals Ensures High
Availability, Improves Performance
COMPANY OVERVIEW
• Develops and markets pharmaceutical products Industry: Life
Sciences
• Employees: 600 Revenue: US$264.3 million
• Ensure highly available data infrastructure for business-critical
applications
• Gain ability to rapidly and cost-effectively build a clustered
database environment
• Streamline system validation to meet FDA requirements
• Reduce IT capital expenses and management costs
SOLUTIONS
• Oracle Active Data Guard
• Oracle Enterprise Manager
• Oracle University
“Moving forward, we cannot imagine operating a
clustered database environment without Oracle
Database Appliance. It gives us the high performance
we need and is easy-to-deploy and maintain.”
David Weiss, Senior Database Administrator
RESULTS
• Created high-performance, reliable database, attained
compliance with FDA requirements
• Reduced IT costs, cut time on applying system patches
by 20% to 30%
• Created clustered database environment rapidly,
achieved significant gain in input/output capacity
• Ensured high availability, data protection, and disaster
recovery
16

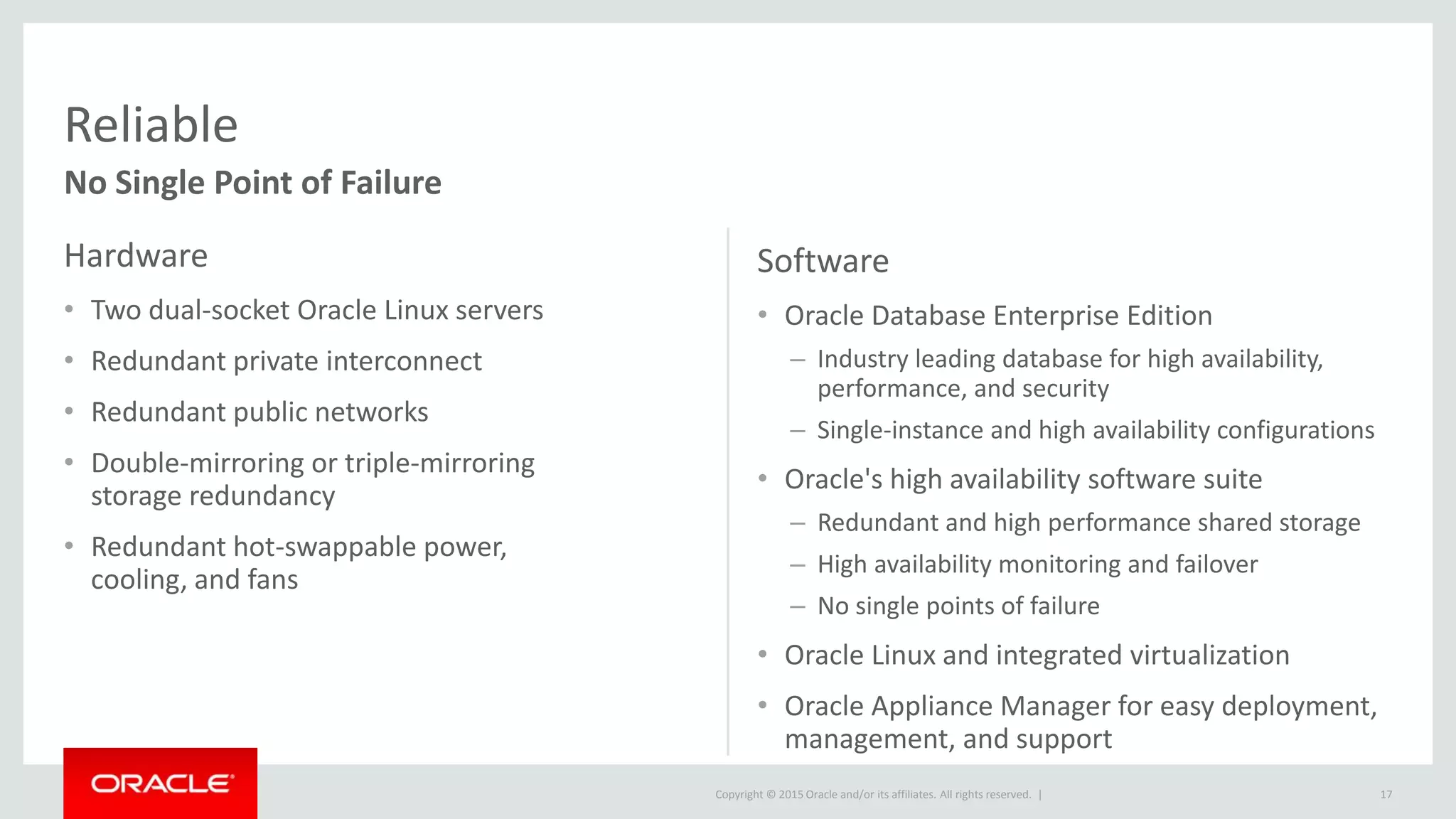

Reliable
No Single Point of Failure
17
Hardware
• Two dual-socket Oracle Linux servers
• Redundant private interconnect
• Redundant public networks
• Double-mirroring or triple-mirroring
storage redundancy
• Redundant hot-swappable power,
cooling, and fans
Software
• Oracle Database Enterprise Edition
– Industry leading database for high availability,
performance, and security
– Single-instance and high availability configurations
• Oracle's high availability software suite
– Redundant and high performance shared storage
– High availability monitoring and failover
– No single points of failure
• Oracle Linux and integrated virtualization
• Oracle Appliance Manager for easy deployment,
management, and support

Reliable
Best in Class Availability
18
Active - Active
• Best Availability
• Oracle Database 12c & 11g
Enterprise Edition
• Oracle Real Application
Clusters
• Mutual failover and load
balancing
Active - Passive
• Better Availability
Enterprise Edition
• Oracle Real Application
Clusters One Node
• Can have mutual failover
Single Instance
• Good Availability
Enterprise Edition

Radixx International Supports Airline
Reservation System
COMPANY OVERVIEW
• Founded in 1993; built the first Windows-based airline
reservations system
• Industry: Travel and Transportation
• Deploy a powerful, flexible, fast database system, capable of
processing high volumes of airline reservation transactions
• Provide an underlying system that can scale with airlines as
they grow and evolve from selling flight seats to also offering a
multitude of other products and services
• Enable airline customers to easily access all passenger data
online and store the data for many years to support marketing,
sales, and customer relationship management initiatives
SOLUTIONS
• Oracle Database
“When we implemented Oracle Database, we
experienced a performance level we had not seen with
other products. It enables our airline customers to
process extremely high transaction volumes, while
providing long-term access to passenger data to
improve sales, marketing, and customer relationship
management initiatives.”
Ron Peri, Chief Executive Officer
RESULTS
• Provided the performance and reliability required to
meet the airline industry’s high-volume transaction
processing needs
• Answered system queries approximately 4x faster than
competitors
• Enabled the company to store all data for years
19

• ODA Flash Cache
– Flash Cache shared across
nodes
– Increases cache hit rate for
your applications
– Up to 6x faster than no
cache
• ODA Flash Logs
– Database writes redo to
flash
– Sub-millisecond log writes
– Up to 4x faster than log
writes to traditional storage
media
20
• ODA Flash Files
– Stores file system metadata
in flash
– Improves file system read
and writes
– Native file system
performance for snapshots
Reliable
No
Cache
Local
Cache
ODA Flash
Cache
AccessTime
Performance optimized by Oracle : Up to 6x Faster

City of Baton Rouge Boosts System Performance
and Cuts Report Generation to 30 Seconds
COMPANY OVERVIEW
• Located in East Baton Rouge Parish, and the second-largest city
in the state
• Industry: Public Sector
• Employees: 4,500
• Improve availability and performance of business-critical
databases for public safety, fleet maintenance, and geographic
information systems, which must be available around the clock
• Ensure database scalability to support hundreds of system
users citywide
SOLUTIONS
• Oracle Application Express
• Oracle Spatial and Graph
• Oracle Enterprise Manager
“With Oracle Database Appliance’s simple deployment,
maintenance, and support, we can save time and
money while improving the performance of our most
important city and citizen-centric data and
applications.”
Eric Romero, Interim Director of Information Services
RESULTS
• Replaced servers and storage, achieving a significant
performance gain and enabling the city to better
manage its key databases
• Accelerated report creation
• Provided geographic-location functionality to both
employees and public—enabling them to generate
web-based property maps
21

Affordable
Manage CapEx using Capacity On-Demand
22
Build Your Own Option 1:
Must License all 72 Cores Day 1 whether you need them or not!
Buy Oracle Database Appliance Option 2:
License as you grow only the needed cores and save significantly
72 Cores
60 Cores
48 Cores
36 Cores
24 Cores
12 Cores
6 Cores
Year 1 Year 2 Year 3 Year 1 Year 2 Year 3
or

Affordable
What Could You Do with 2000 Extra Hours?
23
The Oracle Database Appliance
simplifies time-consuming DBA
tasks and saves:
• 828 hours in first year
• 637 hours each subsequent year
http://www.oracle.com/us/products/database/database-appliance-vs-sql-server-1434947.pdf

Oracle Database Appliance VCE Vblock System 100 Oracle Advantage
Price $68,000 $180,000 2.7x less expensive
Cores 72 48 1.5x the compute power
Memory 512GB 192GB 2.7x the memory
HDD 64TB 6TB 10x storage space
SDD 2.4TB 0 Infinite times the flash
Time to deploy 1 day 30 days 30x faster to deploy
Interconnect 40Gb/s Infiniband 10Gb/s Ethernet 4x faster interconnect
Rack Space 6RU 24RU 4x less rack space
Database Optimized Yes No Better database experience
24
Simpler, More Reliable, More Affordable than VCE Vblock
Lower price and more value than VCE Vblock

Oracle Database Appliance Dell R730/MD1400 Oracle Advantage
Price (like configurations) $68,000 $105,000 35% less expensive
Time to deploy 1 day 2-3 months 60-90x faster to deploy
Interconnect 40Gb/s Infiniband 10Gb/s Ethernet 4x faster interconnect
Rack Space 6RU 8RU 25% less rack space
Database Optimized Yes No Better database experience
Supports In-Memory Fault
Tolerance
Yes No
Better availability with In-
Memory Database
ODA Flash Cache Yes No Better performance
Free Linux and Virtualization Yes No Lower costs
Patch Automation Yes No Less time spent patching
25
Lower price and more value than Dell Build-Your-Own
Cheaper Than Building Your Own

Complete, Simple, Reliable, Affordable
• Lower Capital Expenses
– CoD aligns license spend to demand
• Reduced Operational Expenses
– Fewer expensive high skilled resources
– Reduced time spent on maintenance
• Faster Time to Market
– Bring new functionality to market more rapidly
• Better Availability
– Built-in high availability and best practices lead to greater uptime
26

Deployment Examples
27

Data Center:
• Exadata
• Exalogic
• SuperCluster
Remote Deployment
CoD, Compact Footprint and Ease of Management: Save CapEx and OpEx
Distributed:
• Branch Offices
• Departments
Motivation:
• Local regulations
• Reduce latency
28

Remote Deployment
• Duplicating main datacenter Exadata deployment is often not affordable for smaller
remote sites
– However, customers need to run the same applications and databases in those environments.
• Skill sets not available in many remote locations
• Creating and maintaining a highly available hardware and software configuration
• Managing the hardware and software remotely
• Data center space cost when charged by footprint or rack usage
• Aligning costs to demand
Customer Challenges
29

Remote Deployment
• Runs the same applications and databases as the central datacenter Exadata systems
• Highly available database and application platform out of the box, limits the skill levels
required at remote sites and reduces fault recovery
• Integrated Lights Out Management, automatic monitoring and call home support
enable remote management
• Compact footprint reduces datacenter charges
• Capacity On-Demand licensing enables you to align your costs to demand
– Start small and grow without replacing/upgrading hardware
Customer Benefits
30

Development and Test
Fast and Space Efficient Snapshots: Save CapEx and OpEx
Development
Oracle Database
Appliance
Test
Exadata
Oracle Database
Appliance
3rd Party Servers
Production
Exadata
Oracle Database
Appliance
3rd Party Servers
31

• Each developer and tester needs their own environment to:
– Develop new offerings and features
– Test a new offering prior to going into production
– Test new feature enhancements prior to going into production
• Need a system to validate backup and recovery process and procedures
• Development and testing is an iterative process – many cycles, can be nightly
– Creating development environments and test environments takes time, storage and staff
• Need multiple copies of the database
• DBA time required to create and monitor creation of copies
– Low value use of DBA time
32
Customer Challenges

Database
Refresh
Oracle Database ApplianceExadata Server
DB
ODA Server
DB
3rd-party server
DB
Copy database
From Production
Snapshot
Test
Database
Test
Database
Snapshot
Before
Refresh Snap
Test
Database
Snapshot
Before
Refresh Snap
Database
Master
Create a clone in 5 minutes, using less than 5% of original database storage
Database
Refresh
Refresh database
From Production
33

• CapEx savings
– EMC and NetApp charge for either database snapshots or snapshot management, or both
• Snapshots on ODA are free
– Storage used more efficiently, reducing the need to purchase additional storage
• OpEx savings
– Reduce staff time required to provision development and test environments
• 5 minutes to clone a 1 TB database versus one hour to create a copy
– Each developer and tester has their own environment, improving productivity
– Doesn’t require specialized hardware and associated skills to snapshot NAS or SAN environments
• Revenue acceleration
– Bring new offerings and features to market quicker with higher quality
34
Customer Benefits

Disaster Recovery
Implement Maximum Availability Architecture for Highest Availability
Active Data Guard
Production Disaster Recovery
Dev
Test
35
ZFS Storage Appliance
Storage Expansion (HCC)

Disaster Recovery for Exadata
Exalogic
Exadata
Oracle Database
Appliance
ZFS Storage Appliance
-Storage expansion
-HCC support
36

External Backup / External Storage
Seamlessly Integrate Oracle Database Appliance into your Datacenter Operations
ZFS Storage
Appliance
Media Server with Tape Drive
Oracle Database
Appliance
37

Database Hosting
Customer A
Customer B
Customer C
Dedicated Hosting Environments
Exadata
Shared Hosting Environment
Customer D
Customer E
Customer F
End Users
38

FOR MORE INFORMATION

Engineered Systems Family
42

Engineered Systems
43
Oracle
Database
Appliance
Oracle
Exadata
Database
Machine
Oracle
SuperCluster
Zero Data
Loss
Recovery
Appliance
Oracle
Exalogic
Virtual
Compute
Appliance
Oracle Big
Data
Appliance
Oracle
Exalytics In
Memory
Machine

Oracle Database Appliance Generations
ODA V1 – Oct 2011 ODA X3-2 – Mar 2013 ODA X4-2 – Dec 2013 ODA X5-2 – Feb 2015
Processor Intel X5675 Intel E5-2690 Intel E5-2697 V2
Intel Xeon E5-2699 V3
processors
Node Built-in (X4370 M2) X3-2 X4-2 X5-2
Sockets/node 2 2 2 2
Cores / node (total) 12(24) 16(32) 24(48) 36(72)
Max Memory / node
(total) 96GB (192GB) 256GB (512GB) 256GB (512GB) 256GB, upgradeable to 768
Boot disks (Free space) 500GB (250GB) 600GB (350GB) 600GB (350GB) 600GB (350GB)
Networking
6 x 1GbE NICs
2 x 10GbE fiber NICs
4 x 10GbE Copper NICs
(opt public fiber interface)
(opt public fiber interface)
Form Factor/RU Single 4U chassis
2 x 1RU servers &
1 x 2RU disk shelf
2 x 1RU servers &
1 x 2RU disk shelf
2 x 1RU servers &
1 x 4RU disk shelf
Shared Storage
292GB SSDs
12TB SAS raw
800GB SSDs
18TB SAS raw
800GB SSDs
18TB SAS raw
800GB SSD – REDO
1.6TB SSD – ODA Cache
64TB SAS raw
Storage Expansion N/A Additional Storage Shelf Additional Storage Shelf Additional Storage Shelf

Oracle Database Appliance X5-2

More Related Content

What's hot

Viewers also liked

Similar to Oracle Database Appliance X5-2

Recently uploaded

Oracle Database Appliance X5-2

Editor's Notes
