Systems news of Oracle OpenWorld 2012
Fran Navarro
Principal Sales Consultant

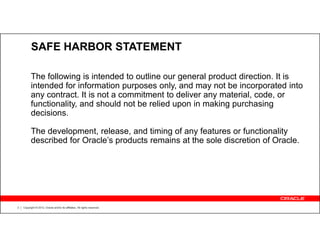

2. SAFE HARBOR STATEMENT
The following is intended to outline our general product direction. It is
intended for information purposes only, and may not be incorporated into
any contract. It is not a commitment to deliver any material, code, or
functionality, and should not be relied upon in making purchasing
decisions.
The development, release, and timing of any features or functionality
described for Oracle’s products remains at the sole discretion of Oracle.
2 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

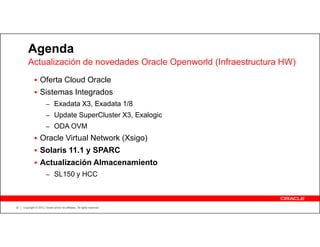

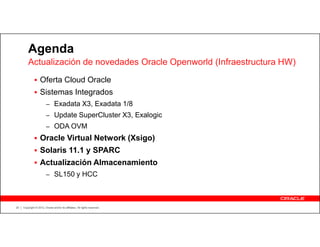

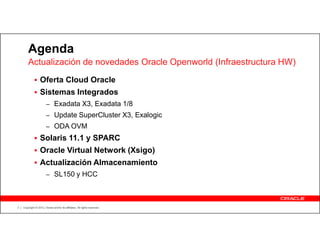

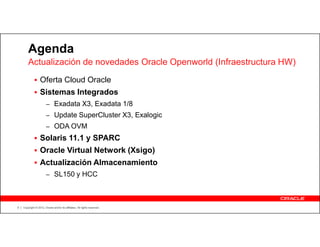

3. Agenda
Actualización de novedades Oracle Openworld (Infraestructura HW)
Oferta Cloud Oracle
Sistemas Integrados
– Exadata X3, Exadata 1/8
– Update SuperCluster X3, Exalogic
– ODA OVM
Solaris 11.1 y SPARC
Oracle Virtual Network (Xsigo)
Actualización Almacenamiento
– SL150 y HCC
3 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

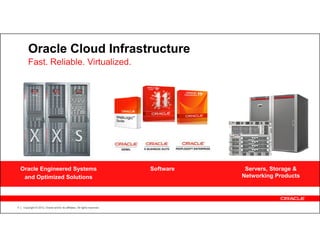

4. Oracle Cloud Infrastructure
Fast. Reliable. Virtualized.
Oracle Engineered Systems Software Servers, Storage &
and Optimized Solutions Networking Products
4 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

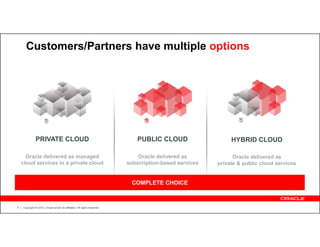

5. Customers/Partners have multiple options
PRIVATE CLOUD PUBLIC CLOUD HYBRID CLOUD
Oracle delivered as managed Oracle delivered as Oracle delivered as
cloud services in a private cloud subscription-based services private & public cloud services
COMPLETE CHOICE
6 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

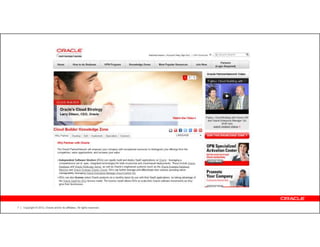

6. 7 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

7. Agenda
Actualización de novedades Oracle Openworld (Infraestructura HW)
Oferta Cloud Oracle
Sistemas Integrados
– Exadata X3, Exadata 1/8
– Update SuperCluster X3, Exalogic
– ODA OVM
Solaris 11.1 y SPARC
Oracle Virtual Network (Xsigo)
Actualización Almacenamiento
– SL150 y HCC
8 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

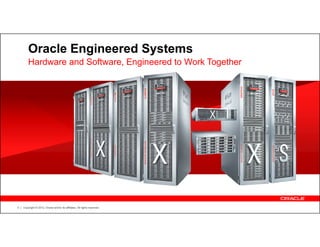

8. Oracle Engineered Systems
Hardware and Software, Engineered to Work Together
9 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

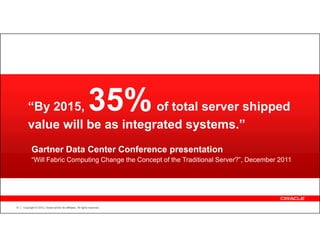

9. “By 2015, of total server shipped 35%
value will be as integrated systems.”
Gartner Data Center Conference presentation
“Will Fabric Computing Change the Concept of the Traditional Server?”, December 2011
10 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

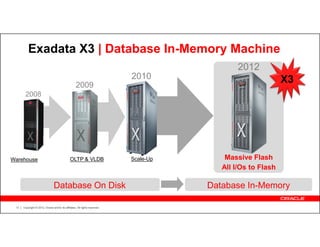

10. Exadata X3 | Database In-Memory Machine
2012
2010 X3
2009
2008
Warehouse OLTP & VLDB Scale-Up Massive Flash
All I/Os to Flash
Database On Disk Database In-Memory
13 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

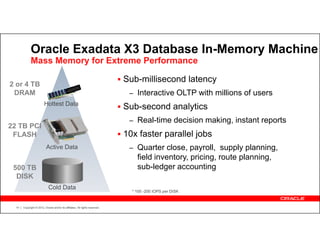

11. Oracle Exadata X3 Database In-Memory Machine
Mass Memory for Extreme Performance
Sub-millisecond latency
2 or 4 TB
DRAM – Interactive OLTP with millions of users
Hottest Data
Sub-second analytics
– Real-time decision making, instant reports
22 TB PCI
FLASH 10x faster parallel jobs
Active Data – Quarter close, payroll, supply planning,
field inventory, pricing, route planning,
500 TB sub-ledger accounting
DISK
Cold Data
* 100 -200 IOPS per DISK
14 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

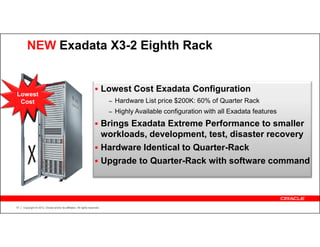

12. NEW Exadata X3-2 Eighth Rack
Lowest Cost Exadata Configuration
Lowest
Cost – Hardware List price $200K: 60% of Quarter Rack
– Highly Available configuration with all Exadata features
Brings Exadata Extreme Performance to smaller
workloads, development, test, disaster recovery
Hardware Identical to Quarter-Rack
Upgrade to Quarter-Rack with software command
15 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

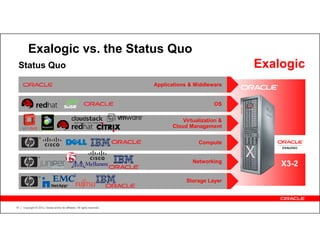

13. Exalogic vs. the Status Quo
Status Quo Exalogic
Applications & Middleware
OS
Virtualization &
Cloud Management
Compute
Networking
X3-2
Storage Layer
16 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

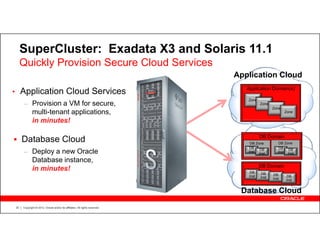

14. SuperCluster: Exadata X3 and Solaris 11.1
Quickly Provision Secure Cloud Services
Application Cloud
Application Domain(s)
• Application Cloud Services
Zone
– Provision a VM for secure, Zone
Zone
multi-tenant applications, Zone
in minutes!
DB Domain
Database Cloud DB Zone DB Zone
DB DB DB
– Deploy a new Oracle Inst
DB
Inst Inst Inst
Database instance,
DB Domain
in minutes! DB DB DB
Inst Inst DB
Inst Inst
Database Cloud
20 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

15. Optimized for High Availability
Only Oracle Gives You Fault Monitoring and Update Services in a
Standard Support Package
Integrated Support Proactive Support Tools Monitoring & Updates
24/7 HW and SW support Personalized health checks 24/7 remote fault monitoring
Consistent service across Advanced knowledge Industry-leading response
the stack from single vendor sharing and communities times:
• 5-min fault notification
Integrated stack delivery with • 15-min restoration or
SW and OS updates included Oracle Enterprise Manager escalation to development
• 30-min joint debugging
Converged HW mgmt with
Integrated online support Oracle Enterprise Manager Risk mitigation and business
interface – My Oracle Support Ops Center innovation through update
and patch deployment
ORACLE PREMIER SUPPORT PLATINUM
21 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

16. Oracle Platinum Services
Highest Level of Service in the Industry
Available Now for Certified Configurations running on
Exadata, Exalogic and SPARC SuperCluster
No Additional Cost under Oracle Premier Support
24/7 Oracle Monitoring for Database, Middleware
and Systems via Oracle Advanced Support Gateway
– 5 Minute Fault Notification
– 15 Minute Restoration or Escalation
to Development
– 30 Minute Joint Debugging with Development
Patch Deployment four times per year
22 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

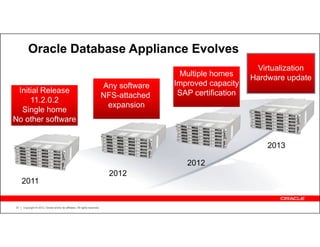

17. Oracle Database Appliance Evolves
Virtualization
Multiple homes Hardware update
Any software Improved capacity
Initial Release SAP certification
NFS-attached
11.2.0.2
expansion
Single home
No other software
2013
2012
2012
2011
23 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

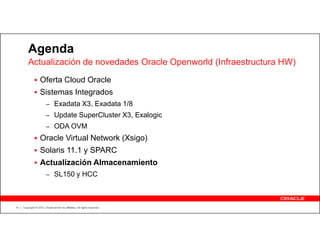

18. Agenda
Actualización de novedades Oracle Openworld (Infraestructura HW)
Oferta Cloud Oracle
Sistemas Integrados
– Exadata X3, Exadata 1/8
– Update SuperCluster X3, Exalogic
– ODA OVM
Oracle Virtual Network (Xsigo)
Solaris 11.1 y SPARC
Actualización Almacenamiento
– SL150 y HCC
25 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

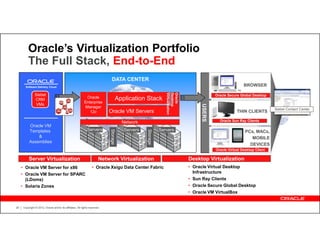

19. Oracle’s Virtualization Portfolio
The Full Stack, End-to-End
DATA CENTER
Software Delivery Cloud BROWSER
Virtualization
Desktop
Oracle
Siebel Oracle Secure Global Desktop
CRM VM
Oracle Application Stack
VM Enterprise
VMs
USERS
VM Manager
Siebel Contact Center
VM VM
VM
12c Oracle VM Servers THIN CLIENTS
Network Oracle Sun Ray Clients
Oracle VM
Templates Servers Servers Servers
Storage
Storage
PCs, MACs,
& MOBILE
Assemblies
DEVICES
Oracle Virtual Desktop Client
Server Virtualization Network Virtualization Desktop Virtualization
• Oracle VM Server for x86 • Oracle Xsigo Data Center Fabric • Oracle Virtual Desktop
• Oracle VM Server for SPARC Infrastructure
(LDoms) • Sun Ray Clients
• Solaris Zones • Oracle Secure Global Desktop
• Oracle VM VirtualBox
28 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

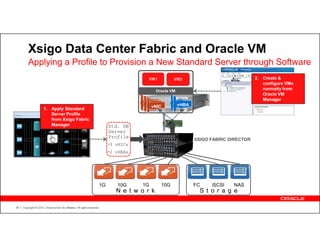

20. Xsigo Data Center Fabric and Oracle VM
Applying a Profile to Provision a New Standard Server through Software
VM1 VM2 2. Create &
configure VMs
Oracle VM
normally from
Oracle VM
Manager
vNIC
vNIC vHBA
vHBA
vNIC
1. Apply Standard
Server Profile
from Xsigo Fabric
Manager Std. DB
Server
Profile
XSIGO FABRIC DIRECTOR
•3 vNICs
•2 vHBAs
1G 10G 1G 10G FC iSCSI NAS
N e t w o r k S t o r a g e
29 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

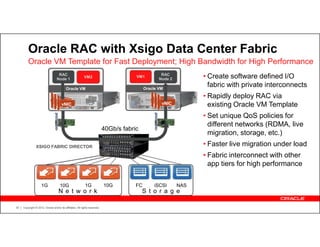

21. Oracle RAC with Xsigo Data Center Fabric
Oracle VM Template for Fast Deployment; High Bandwidth for High Performance
RAC RAC
Node 1 VM2 VM1
Node 2 • Create software defined I/O
Oracle VM Oracle VM
fabric with private interconnects
• Rapidly deploy RAC via
vNIC
vNIC vNIC
vNIC
vNIC vNIC existing Oracle VM Template
• Set unique QoS policies for
different networks (RDMA, live
40Gb/s fabric
migration, storage, etc.)
XSIGO FABRIC DIRECTOR • Faster live migration under load
• Fabric interconnect with other
app tiers for high performance
1G 10G 1G 10G FC iSCSI NAS
N e t w o r k S t o r a g e
30 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

22. Agenda
Actualización de novedades Oracle Openworld (Infraestructura HW)
Oferta Cloud Oracle
Sistemas Integrados
– Exadata X3, Exadata 1/8
– Update SuperCluster X3, Exalogic
– ODA OVM
Oracle Virtual Network (Xsigo)
Solaris 11.1 y SPARC
Actualización Almacenamiento
– SL150 y HCC
32 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

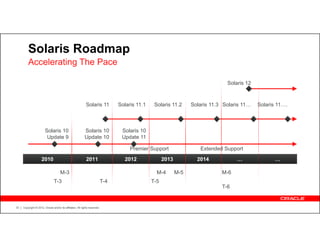

23. Solaris Roadmap
Accelerating The Pace
Solaris 12
Solaris 11 Solaris 11.1 Solaris 11.2 Solaris 11.3 Solaris 11 Solaris 11 .
Solaris 10 Solaris 10 Solaris 10
Update 9 Update 10 Update 11
Premier Support Extended Support
2010 2011 2012 2013 2014
M-3 M-4 M-5 M-6
T-3 T-4 T-5
T-6
33 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

24. Simplified Cloud Deployments
Creating an Enterprise Cloud
Fool-proof updates with
Boot Environments maintenance windows
Shrinking and IPS Packaging
Rapid provisioning with High-skill patching
Active BE Active BE Old BE
Automated Installer Risky New BE
updates Updated BE
Slow, ad-hoc
AI Server
provisioning
DHCP
Server
Net config
AI address
Rapid development, test and
deployment of Zones
Virtual environment sprawl
Reimaging Inefficiencies
34 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

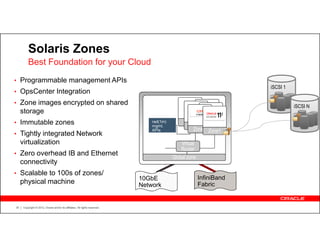

25. Solaris Zones
Best Foundation for your Cloud
• Programmable management APIs
iSCSI 1
• OpsCenter Integration
• Zone images encrypted on shared
iSCSI N
storage
• Immutable zones rad(1m)
mgmt.
ZoneA ZoneA
ZoneA ZoneA
APIs ZoneA Zone1
• Tightly integrated Network
virtualization Virtual
Router
• Zero overhead IB and Ethernet
Global zone
connectivity
• Scalable to 100s of zones/
10GbE InfiniBand
physical machine Network Fabric
35 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

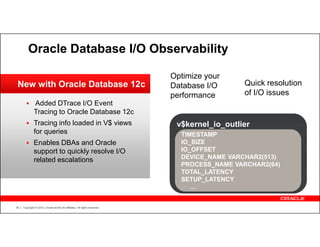

26. Oracle Database I/O Observability
Optimize your
New with Oracle Database 12c Database I/O Quick resolution
performance of I/O issues
Added DTrace I/O Event
Tracing to Oracle Database 12c
Tracing info loaded in V$ views v$kernel_io_outlier
for queries TIMESTAMP
Enables DBAs and Oracle IO_SIZE
support to quickly resolve I/O IO_OFFSET
related escalations DEVICE_NAME VARCHAR2(513)
PROCESS_NAME VARCHAR2(64)
TOTAL_LATENCY
SETUP_LATENCY
36 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

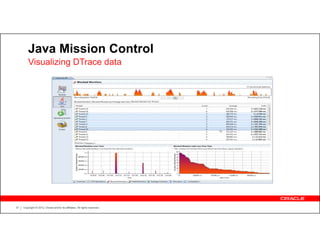

27. Java Mission Control
Visualizing DTrace data
37 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

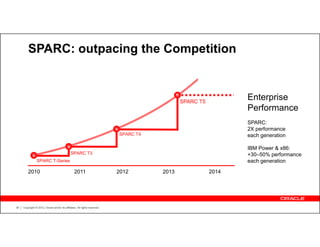

28. SPARC: outpacing the Competition
SPARC T5
Enterprise
Performance
SPARC:
2X performance
SPARC T4 each generation
IBM Power & x86:
SPARC T3 +30–50% performance
SPARC T-Series each generation
2010 2011 2012 2013 2014
38 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

29. Agenda
Actualización de novedades Oracle Openworld (Infraestructura HW)
Oferta Cloud Oracle
Sistemas Integrados
– Exadata X3, Exadata 1/8
– Update SuperCluster X3, Exalogic
– ODA OVM
Oracle Virtual Network (Xsigo)
Solaris 11.1 y SPARC
Actualización Almacenamiento
– SL150 y HCC
41 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

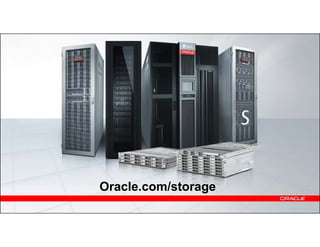

30. Oracle.com/storage
42 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

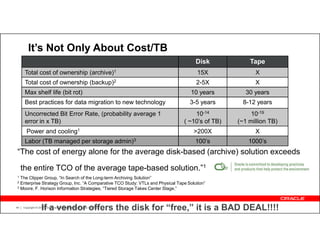

31. It’s Not Only About Cost/TB
Disk Tape
Total cost of ownership (archive)1 15X X
Total cost of ownership (backup)2 2-5X X
Max shelf life (bit rot) 10 years 30 years
Best practices for data migration to new technology 3-5 years 8-12 years
Uncorrected Bit Error Rate, (probability average 1 10-14 10-19
error in x TB) ( ~10’s of TB) (~1 million TB)
Power and cooling1 >200X X
Labor (TB managed per storage admin)3 100’s 1000’s
“The cost of energy alone for the average disk-based (archive) solution exceeds
the entire TCO of the average tape-based solution.”1
1 The Clipper Group, “In Search of the Long-term Archiving Solution”
2 Enterprise Strategy Group, Inc. “A Comparative TCO Study: VTLs and Physical Tape Solution”
3 Moore, F. Horison Information Strategies, “Tiered Storage Takes Center Stage,”
44
If a vendor offers the disk for “free,” it is a BAD DEAL!!!!
Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

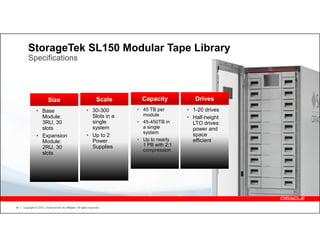

32. StorageTek SL150 Modular Tape Library
Specifications
Size Scale Capacity Drives
• Base • 30-300 • 45 TB per • 1-20 drives
Module: Slots in a module
• Half-height
3RU, 30 single • 45-450TB in LTO drives:
slots system a single power and
system space
• Expansion • Up to 2
Module: Power • Up to nearly efficient
Supplies 1 PB with 2:1
2RU, 30
compression
slots
45 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

33. ’
Oracle’s Storage Strategy
Run Oracle Software
Leverage Oracle Develop Best-in-Class
Fastest and Most
Technology Storage Products
Efficiently Leverage Oracle IP
• Oracle 11g: Up to 50x • Enterprise Manager • NAS: Best Performance
compression and 5x faster and Price/Performance
• Database
• Solaris 11: Up to 2x more • Virtualization • SAN: Best Multi-Workload
I/O efficient & Scalable Performance
• Operating System
• Enterprise Management: • Tape: Best Performance,
5x lower TCO • Servers Price/Capacity
• Storage
46 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

34. Oracle’s Hybrid Columnar Compression (HCC)
Up to 50x Data Compression
Ideal for: Data Warehousing, Database ILM, DR, Test/Dev
Oracle Exadata
HCC
3-5x Less Disk Space
Compresses
Databases
3-5x Less Energy Used
3-5x Lower Cost
Versus NetApp or EMC
Pillar Sun ZFS
Axiom Storage
Appliance
47 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

35. Graphic Section Divider
48 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

36. Oracle’s Architectural Vision
Complete, Open, Integrated Systems
ENGINEERED TO WORK TOGETHER
Tested, Certified, Packaged,
Deployed, Upgraded, Managed
and Supported Together
SIMPLIFY IT
49 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

37. 50 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.
