The document describes 12 VSEPR (Valence Shell Electron Pair Repulsion) models of molecules. Each model shows the molecular formula, species type, hybrid orbital, and shape of an example molecule. The species types include AX2, AX3, AX4, etc. Hybrid orbitals include sp, sp2, sp3, etc. Shapes include linear, trigonal planar, tetrahedral, and others. Limitations of ball-and-stick models are also noted.

1. VSEPR Models
Stephen Joseph Boylan 2021

3. Outline
VSEPR
12 Models of 12 Molecules
Limitations
Definitions

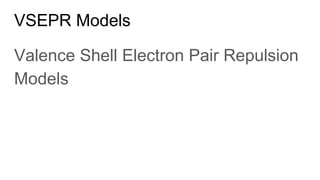

4. VSEPR Models
Valence Shell Electron Pair Repulsion
Models

5. 12 Models
Of
12 Molecules

6. 1 Model of Boron Difluoride

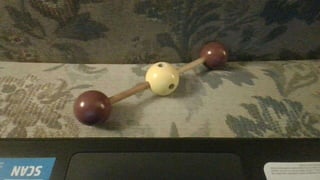

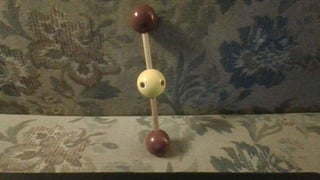

7. AX2 Linear sp BeF2
v

8. AX2 Linear sp BeF2
v
F
F
B
BF2

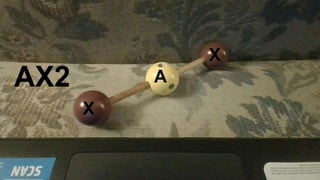

9. AX2 Linear sp BeF2
v
X
X
A
AX2

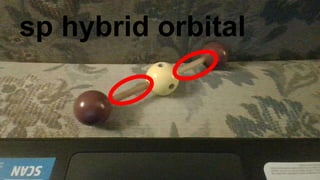

10. AX2 Linear sp BeF2
v
sp hybrid orbital

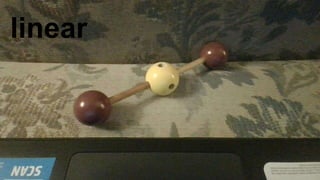

11. AX2 Linear sp BeF2
v
linear

12. AX2 Linear sp BeF2
v

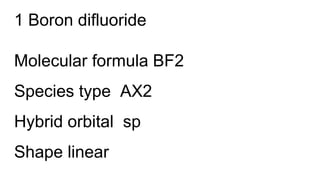

13. 1 Boron difluoride
Molecular formula BF2
Species type AX2
Hybrid orbital sp
Shape linear

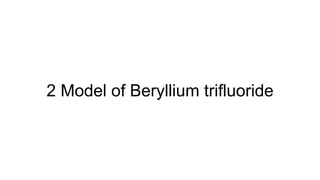

14. 2 Model of Beryllium trifluoride

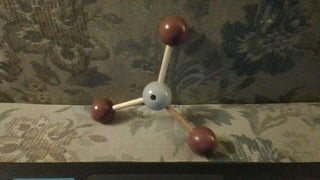

15. AX3 Triangular Planar sp2 BeF3
v

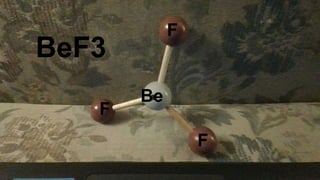

16. AX3 Triangular Planar sp2 BeF3
v
F
F
F
Be
BeF3

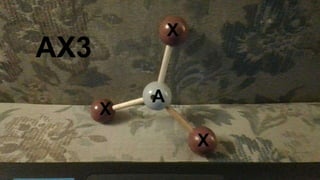

17. AX3 Triangular Planar sp2 BeF3
v
X
X
X
A
AX3

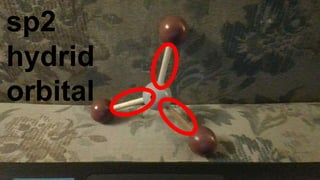

18. AX3 Triangular Planar sp2 BeF3
v
sp2
hydrid
orbital

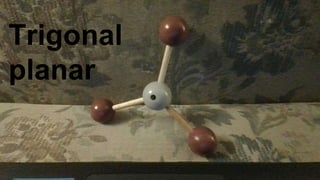

19. AX3 Triangular Planar sp2 BeF3
v
Trigonal
planar

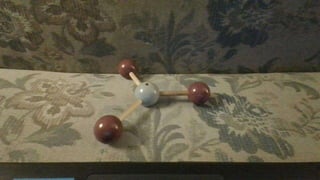

20. AX3 Triangular Planar sp2 BeF3
v

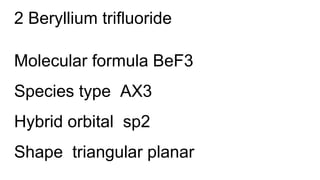

21. 2 Beryllium trifluoride
Molecular formula BeF3
Species type AX3
Hybrid orbital sp2
Shape triangular planar

22. 3 Model of Sulfur Dioxide

23. AX2E Bent sp2 SO2
v

24. AX2E Bent sp2 SO2
v
S
O
O
SO2

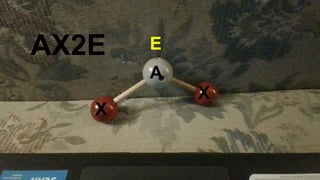

25. AX2E Bent sp2 SO2
v
A
X
X
AX2E E

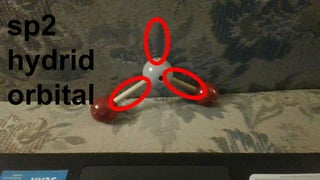

26. AX2E Bent sp2 SO2
v
sp2
hydrid
orbital

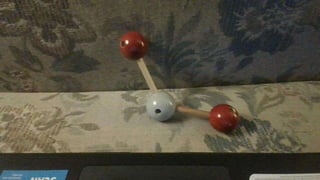

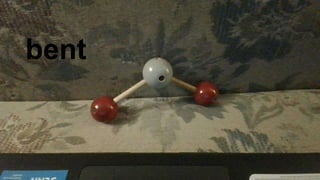

27. AX2E Bent sp2 SO2
vbent

28. AX2E Bent sp2 SO2
v

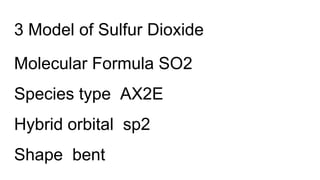

29. 3 Model of Sulfur Dioxide
Molecular Formula SO2
Species type AX2E
Hybrid orbital sp2
Shape bent

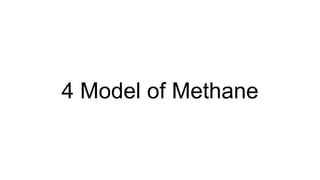

30. 4 Model of Methane

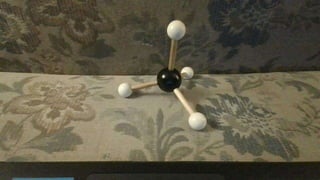

31. AX4 Tetrahedral sp3 CH4
v

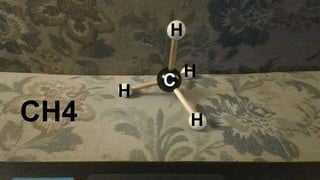

32. AX4 Tetrahedral sp3 CH4
v
H
H
H
H
C
CH4

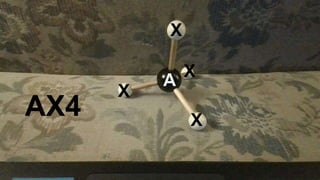

33. AX4 Tetrahedral sp3 CH4
v
X
X
X
X
A
AX4

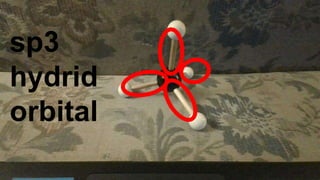

34. AX4 Tetrahedral sp3 CH4
v
sp3
hydrid
orbital

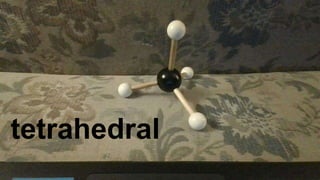

35. AX4 Tetrahedral sp3 CH4
v
tetrahedral

36. AX4 Tetrahedral sp3 CH4
v

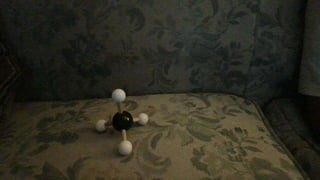

37. AX4 Tetrahedral sp3 CH4
v

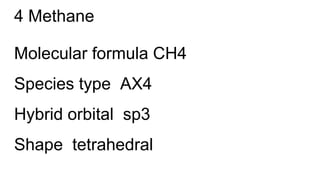

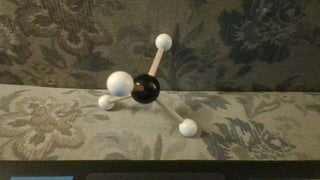

38. 4 Methane
Molecular formula CH4
Species type AX4
Hybrid orbital sp3
Shape tetrahedral

39. 5 Model of Ammonia

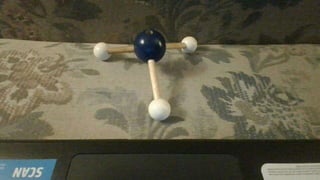

40. AX3E Trigonal Pyramid sp3 NH3
v

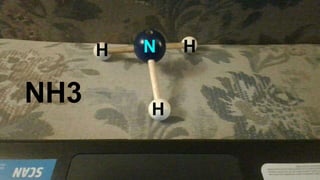

41. AX3E Trigonal Pyramid sp3 NH3
v
H
H
H N
NH3

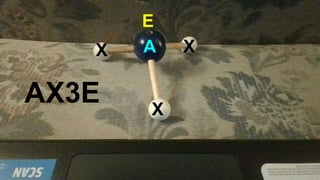

42. AX3E Trigonal Pyramid sp3 NH3
v
X
X
X A
AX3E
E

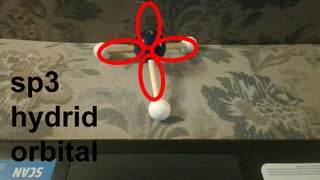

43. AX3E Trigonal Pyramid sp3 NH3
v
sp3
hydrid
orbital

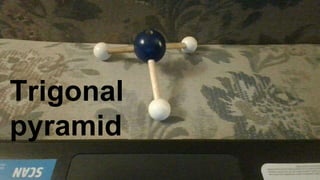

44. AX3E Trigonal Pyramid sp3 NH3
v
Trigonal
pyramid

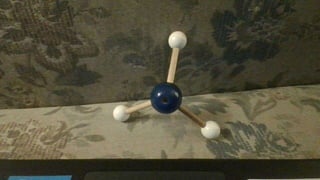

45. AX3E Trigonal Pyramid sp3 NH3
v

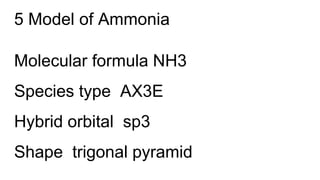

46. 5 Model of Ammonia
Molecular formula NH3
Species type AX3E
Hybrid orbital sp3
Shape trigonal pyramid

47. 6 Model of Water

48. AX2E2 Angular Bent H2O
v

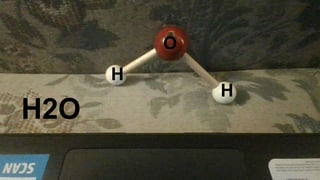

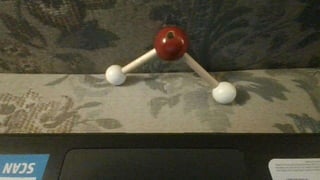

49. AX2E2 Angular Bent H2O
v
H
H
O
H2O

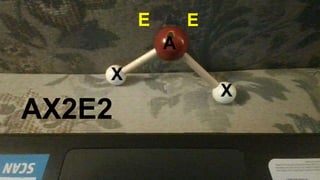

50. AX2E2 Angular Bent H2O
v
X
X
A
AX2E2
E
E

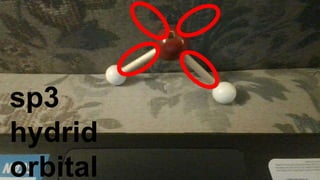

51. AX2E2 Angular Bent H2O
v
sp3
hydrid
orbital

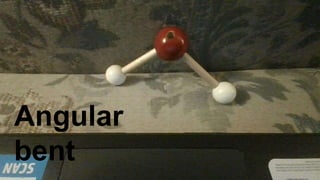

52. AX2E2 Angular Bent H2O
v
Angular
bent

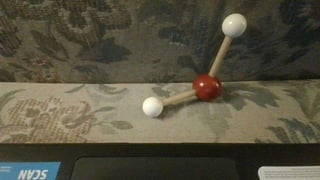

53. AX2E2 Angular Bent H2O
v

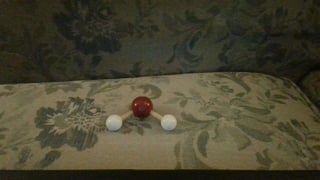

54. AX2E2 Angular Bent H2O
v

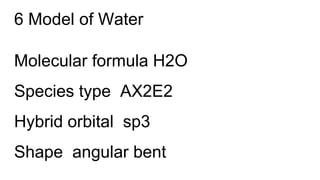

55. 6 Model of Water
Molecular formula H2O
Species type AX2E2
Hybrid orbital sp3
Shape angular bent

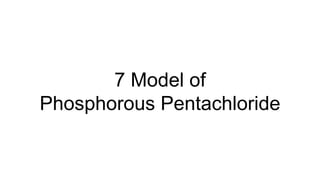

56. 7 Model of
Phosphorous Pentachloride

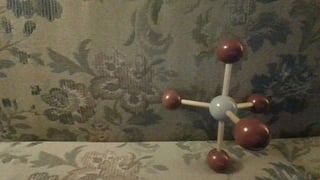

57. AX5 Triangular bipyramid sp3d PCl5
v

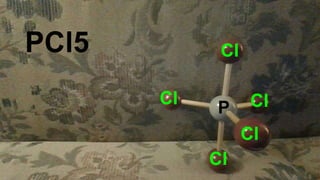

58. AX5 Triangular bipyramid sp3d PCl5
v
Cl
Cl
Cl
Cl
Cl
PCl5
P

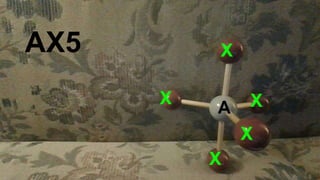

59. AX5 Triangular bipyramid sp3d PCl5
v
X
X
X
X
X
AX5
A

60. AX5 Triangular bipyramid sp3d PCl5
v
sp3d
hydrid
orbital

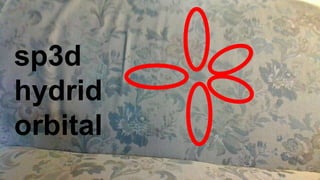

61. AX5
v
sp3d
hydrid
orbital

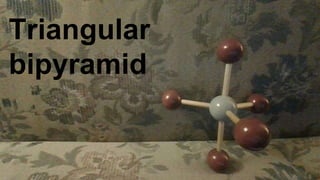

62. AX5 Triangular bipyramid sp3d PCl5
v
Triangular
bipyramid

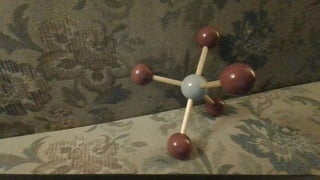

63. AX5 Triangular bipyramid sp3d PCl5
v

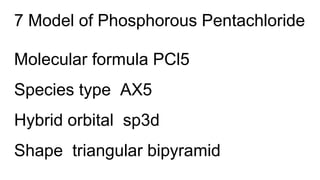

64. 7 Model of Phosphorous Pentachloride
Molecular formula PCl5
Species type AX5
Hybrid orbital sp3d
Shape triangular bipyramid

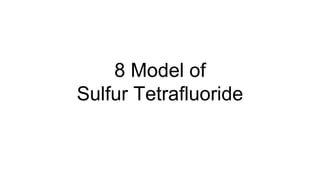

65. 8 Model of
Sulfur Tetrafluoride

66. AX4E Seesaw sp3d SF4
v

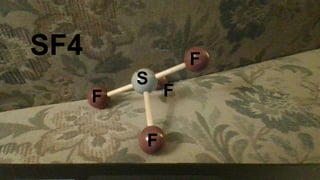

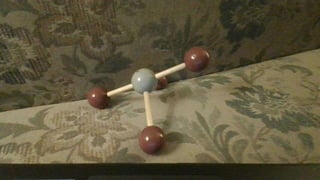

67. AX4E Seesaw sp3d SF4
v F
F
F F
S
SF4

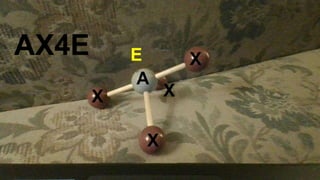

68. AX4E Seesaw sp3d SF4
v X
X
X X
A
AX4E E

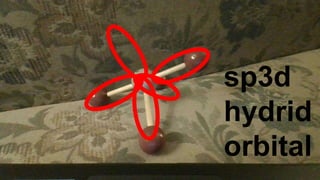

69. AX4E Seesaw sp3d SF4
v
sp3d
hydrid
orbital

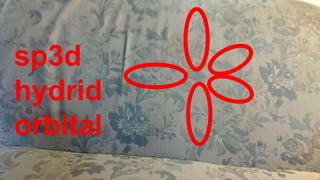

70. AX5
v
sp3d
hydrid
orbital

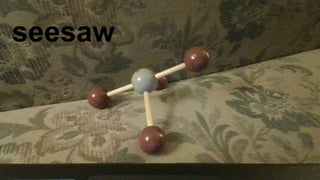

71. AX4E Seesaw sp3d SF4
v
seesaw

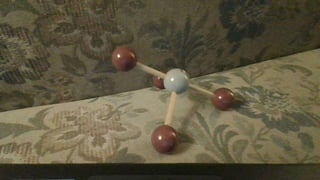

72. AX4E Seesaw sp3d SF4
v

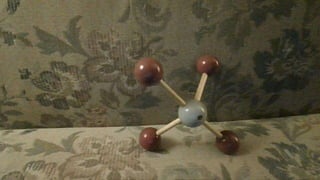

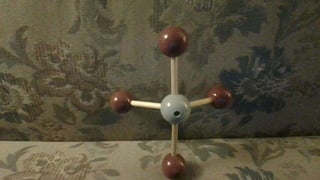

73. AX4E Seesaw sp3d SF4
v

74. AX4E Seesaw sp3d SF4
v

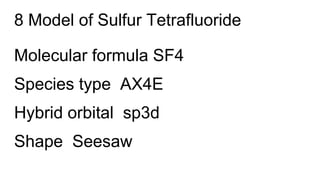

75. 8 Model of Sulfur Tetrafluoride
Molecular formula SF4
Species type AX4E
Hybrid orbital sp3d
Shape Seesaw

76. 9 Model of
Chlorine Trifluoride

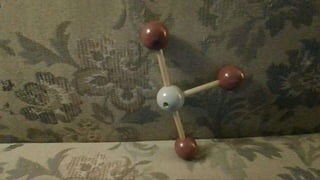

77. AX2E2 T-Shaped sp3d ClF3
v

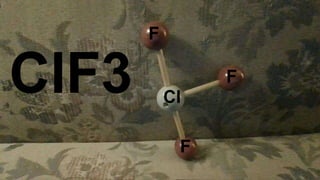

78. AX2E2 T-Shaped sp3d ClF3
v
Cl
F
F
F
ClF3

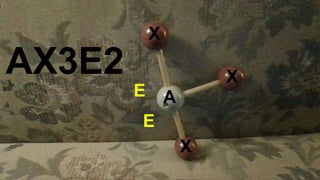

79. AX2E2 T-Shaped sp3d ClF3
v
A
X
X
X
E
AX3E2
E

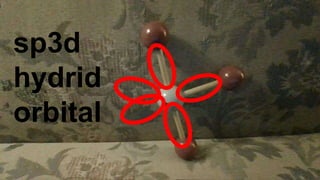

80. AX2E2 T-Shaped sp3d ClF3
v
sp3d
hydrid
orbital

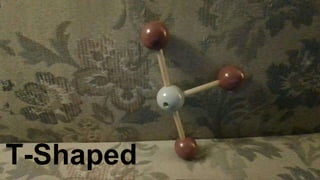

81. AX2E2 T-Shaped sp3d ClF3
v
T-Shaped

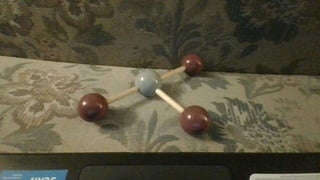

82. AX2E2 T-Shaped sp3d ClF3
v

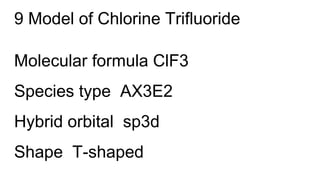

83. 9 Model of Chlorine Trifluoride
Molecular formula ClF3
Species type AX3E2
Hybrid orbital sp3d
Shape T-shaped

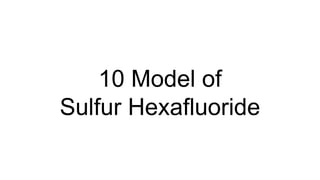

84. 10 Model of
Sulfur Hexafluoride

85. AX6 Octahedral sp3d2 SF6
v

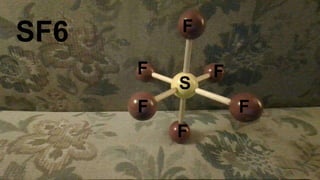

86. AX6 Octahedral sp3d2 SF6
v
F
F
F F
F
F
S
SF6

87. AX6 Octahedral sp3d2 SF6
v
X
X
X X
X
X
A
AX6

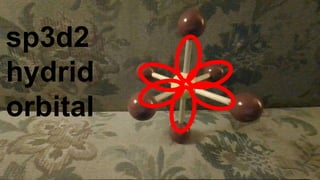

88. AX6 Octahedral sp3d2 SF6
v
sp3d2
hydrid
orbital

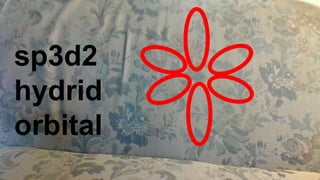

89. AX5
v
sp3d2
hydrid
orbital

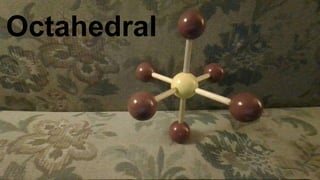

90. AX6 Octahedral sp3d2 SF6
v
Octahedral

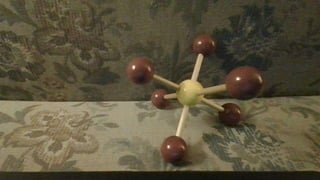

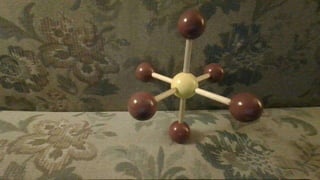

91. AX6 Octahedral sp3d2 SF6
v

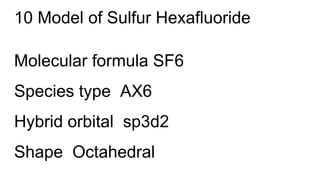

92. 10 Model of Sulfur Hexafluoride
Molecular formula SF6
Species type AX6
Hybrid orbital sp3d2
Shape Octahedral

93. 11 Model of
Iodine pentafluoride

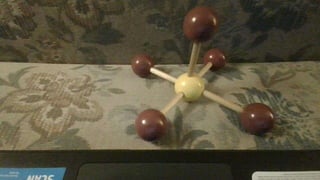

94. AX5E Square Pyramidal sp3d2 IF6
v

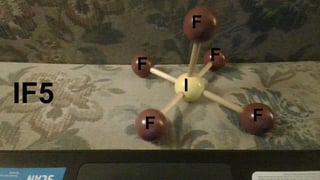

95. AX5E Square Pyramidal sp3d2 IF6
v
F F
F
F
F
I
IF5

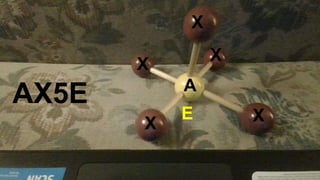

96. AX5E Square Pyramidal sp3d2 IF6
v
X X
X
X
X
A
E
AX5E

97. AX5E Square Pyramidal sp3d2 IF6
v
sp3d2
hydrid
orbital

98. AX5E Square Pyramidal sp3d2 IF6
v
Square
Pyramid

99. AX5E Square Pyramidal sp3d2 IF6
v

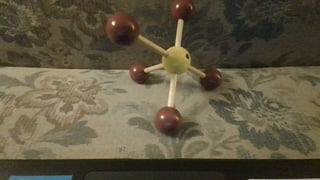

100. AX5E Square Pyramidal sp3d2 IF6
v

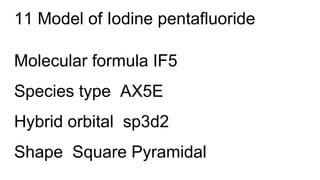

101. 11 Model of Iodine pentafluoride
Molecular formula IF5
Species type AX5E
Hybrid orbital sp3d2
Shape Square Pyramidal

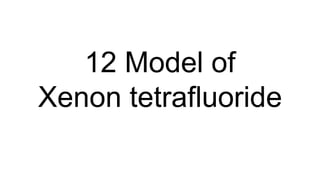

102. 12 Model of
Xenon tetrafluoride

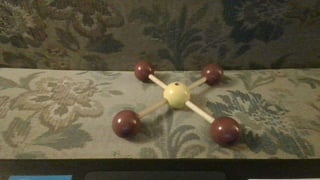

103. AX4F2 Square Planar sp3d2 XeF4
v

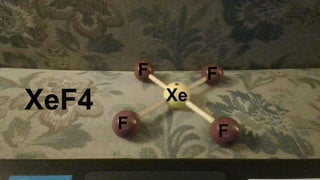

104. AX4F2 Square Planar sp3d2 XeF4
v
F F
F
F
Xe
XeF4

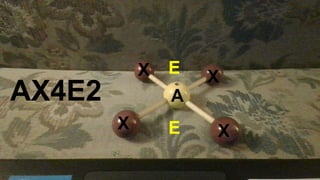

105. AX4F2 Square Planar sp3d2 XeF4
v
X X
X
X
A
AX4E2
E
E

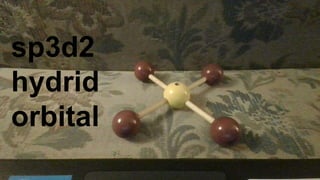

106. AX4F2 Square Planar sp3d2 XeF4
v
sp3d2
hydrid
orbital

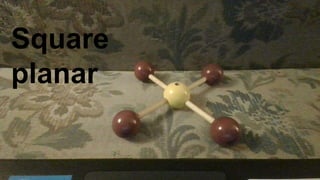

107. AX4F2 Square Planar sp3d2 XeF4
v
Square
planar

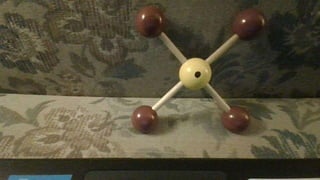

108. AX4F2 Square Planar sp3d2 XeF4
v

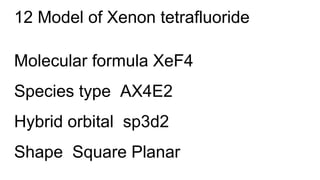

109. 12 Model of Xenon tetrafluoride
Molecular formula XeF4
Species type AX4E2
Hybrid orbital sp3d2
Shape Square Planar

110. Limitations

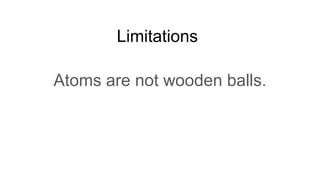

111. Limitations
Atoms are not wooden balls.

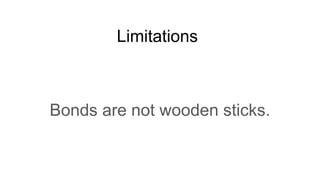

112. Limitations
Bonds are not wooden sticks.

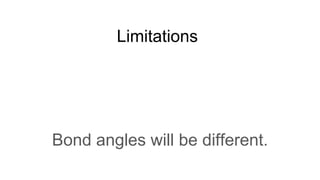

113. Limitations
Bond angles will be different.

114. Limitations
Bond lengths will be different.

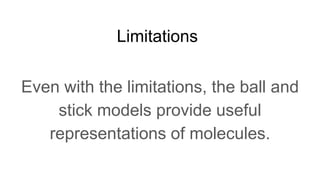

115. Limitations
Even with the limitations, the ball and
stick models provide useful
representations of molecules.

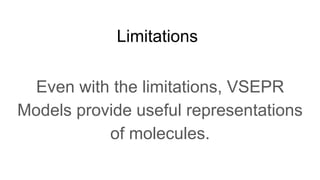

116. Limitations
Even with the limitations, VSEPR
Models provide useful representations
of molecules.

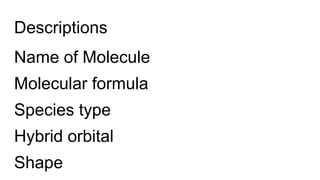

117. Descriptions
Name of Molecule
Molecular formula
Species type
Hybrid orbital
Shape

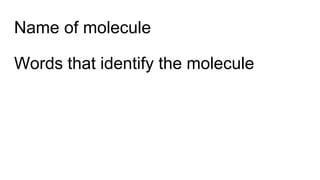

118. Name of molecule
Words that identify the molecule

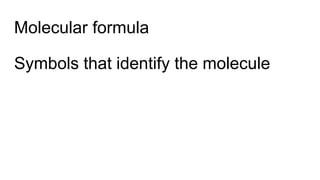

119. Molecular formula
Symbols that identify the molecule

120. Species type
general formula representing a class of molecules
A = central atom
X = atoms attached to central atom
E = electron pair connected with central atom
AX2 AX3 AX2E AX4 AX3E AX2E2 AX5 AX4E
AX3E2 AX6 AX5E AX4E2

121. Hybrid Orbital
Combination of atomic orbitals
associated with the central atom
sp sp2 sp3 sp3d sp3d2

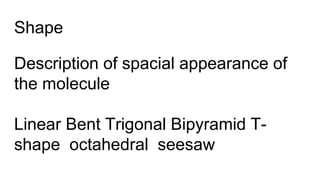

122. Shape
Description of spacial appearance of
the molecule
Linear Bent Trigonal Bipyramid T-
shape octahedral seesaw

123. The End

124. The End
Thank you for taking the time to watch.
Stephen Joseph Boylan

125. VSEPR Models Stephen Joseph Boylan
Learning Objective: Identify Valence shell electron pair repulsion models. Twelve
ball and stick models. Species type. Shape. Hydrid orbital. Example molecules.
Molecular Formula. Name of molecule. Limitations
Inductive approach with pictures presented first followed by definitions of the
words.
References
Masterton, W. L., Hurley, Chemistry Principles and Reactions eighth edition,
Cengage Learning Boston 2016
Advanced Molecular Model Set, Catalog No. 470150-458 VWR International
.
