05 architectural design
1. Architectural Design
Deciding on the right Architectural Style
Mapping the DFD to a suitable Architecture
13 January 2012 Mady by Utpal Ray 1
2. Architectural Design
Different Architectural Style
Data-Centered Architecture
Data-Flow Architecture ( Pipes and Filters )
Data-Flow Architecture ( Batch Sequential )
Call and Return Architecture
Layered Architecture ( OS Type )
Layered Architecture ( Protocol Layer Type )
Client Server Architecture
13 January 2012 Mady by Utpal Ray 2
3. Architectural Design
Data-Centered Architecture
Client Client
Software Software
Client Client
Software Software
Data Store
(Repository)
Client Client
Software Software
Client Client
Software Software
13 January 2012 Mady by Utpal Ray 3
4. Architectural Design

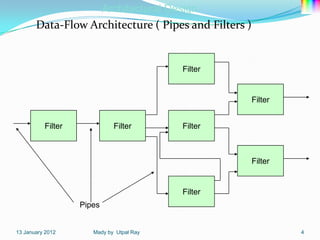

Data-Flow Architecture ( Pipes and Filters )
Filter
Filter
Filter Filter Filter
Filter
Filter
Pipes
13 January 2012 Mady by Utpal Ray 4
5. Architectural Design

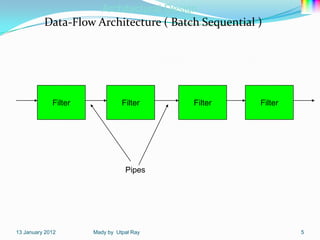

Data-Flow Architecture ( Batch Sequential )
Filter Filter Filter Filter
Pipes
13 January 2012 Mady by Utpal Ray 5
6. Architectural Design

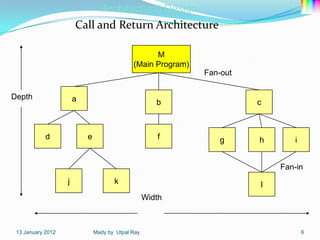

Call and Return Architecture
M
(Main Program)
Fan-out
Depth a b c
d e f g h i
Fan-in
j k l
Width
13 January 2012 Mady by Utpal Ray 6
7. Architectural Design
Layered Architecture ( OS Type )
User Interface
Layer
Application Components
Layer
Utility
Layer
Core
Layer
13 January 2012 Mady by Utpal Ray 7
8. Architectural Design

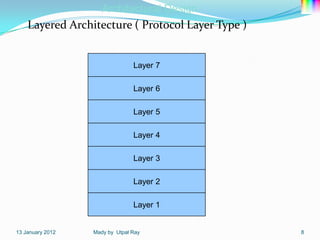

Layered Architecture ( Protocol Layer Type )
Layer 7
Layer 6
Layer 5
Layer 4
Layer 3
Layer 2
Layer 1
13 January 2012 Mady by Utpal Ray 8
9. Architectural Design

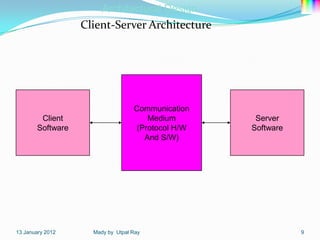

Client-Server Architecture
Communication
Client Medium Server
Software (Protocol H/W Software
And S/W)
13 January 2012 Mady by Utpal Ray 9
10. Architectural Design

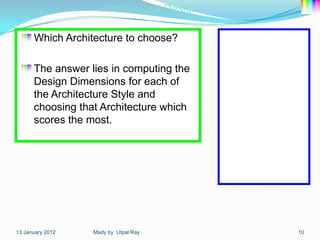

Which Architecture to choose? Design Dimension
Reliability
The answer lies in computing the Performance
Design Dimensions for each of Security
the Architecture Style and Maintainability
choosing that Architecture which Flexibility
scores the most. Testability
Portability
Re-usability
Inter-operability
Dependability
Efficiency
13 January 2012 Mady by Utpal Ray 10
11. Architectural Design

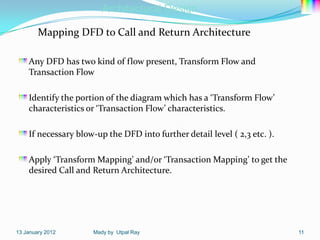

Mapping DFD to Call and Return Architecture
Any DFD has two kind of flow present, Transform Flow and
Transaction Flow
Identify the portion of the diagram which has a ‘Transform Flow’
characteristics or ‘Transaction Flow’ characteristics.
If necessary blow-up the DFD into further detail level ( 2,3 etc. ).
Apply ‘Transform Mapping’ and/or ‘Transaction Mapping’ to get the
desired Call and Return Architecture.
13 January 2012 Mady by Utpal Ray 11
12. Architectural Design

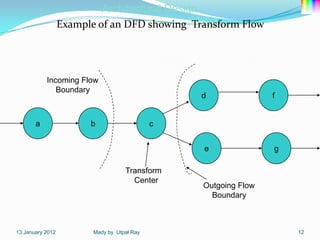

Example of an DFD showing Transform Flow
Incoming Flow
Boundary
d f
a b c
e g
Transform
Center
Outgoing Flow
Boundary
13 January 2012 Mady by Utpal Ray 12
13. Architectural Design

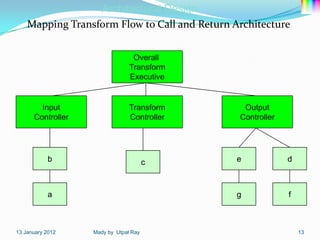

Mapping Transform Flow to Call and Return Architecture
Overall
Transform
Executive
Input Transform Output
Controller Controller Controller
b c e d
a g f
13 January 2012 Mady by Utpal Ray 13
14. Architectural Design

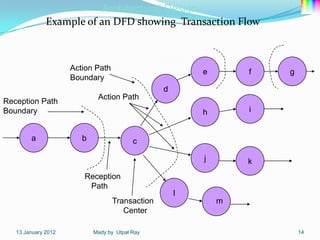

Example of an DFD showing Transaction Flow
Action Path e f g
Boundary
d
Action Path
Reception Path
Boundary h i
a b c
j k
Reception
Path
l
Transaction m
Center
13 January 2012 Mady by Utpal Ray 14
15. Architectural Design
Mapping Transaction Flow to Call and Return Architecture
Overall
Transaction
Executive
Action Branch
Reception Branch
c
b
d
l j h
Controller
Executive
a m k i e f g
d
13 January 2012 Mady by Utpal Ray 15
16. Architectural Design

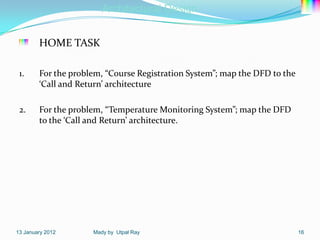

HOME TASK
1. For the problem, “Course Registration System”; map the DFD to the
‘Call and Return’ architecture
2. For the problem, “Temperature Monitoring System”; map the DFD
to the ‘Call and Return’ architecture.
13 January 2012 Mady by Utpal Ray 16
