Visual Signal Processing: 2



  “Intuition tells us that the brain is complicated. We do
  complicated things, in immense variety. We breathe, cough,
  sneeze, vomit, mate, swallow, and urinate; we add and
  subtract, speak, and even argue, write, sing, and compose
  quartets, poems, novels, and plays; we play baseball and
  musical instruments. We perceive and think. How could the
  organ responsible for doing all that not be complex?”
                   Eye Brain and Vision : David Hubel

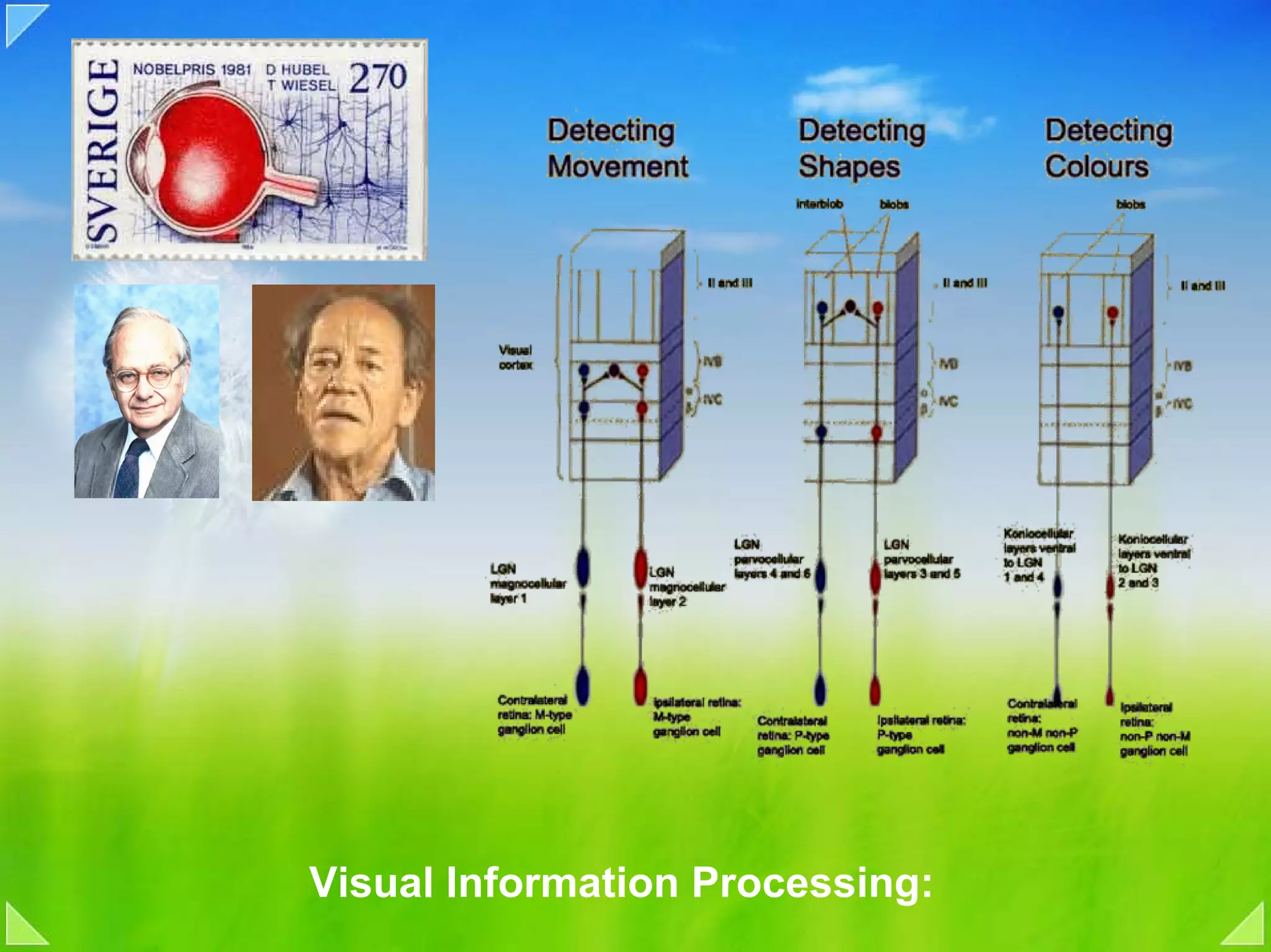

Visual Information Processing:

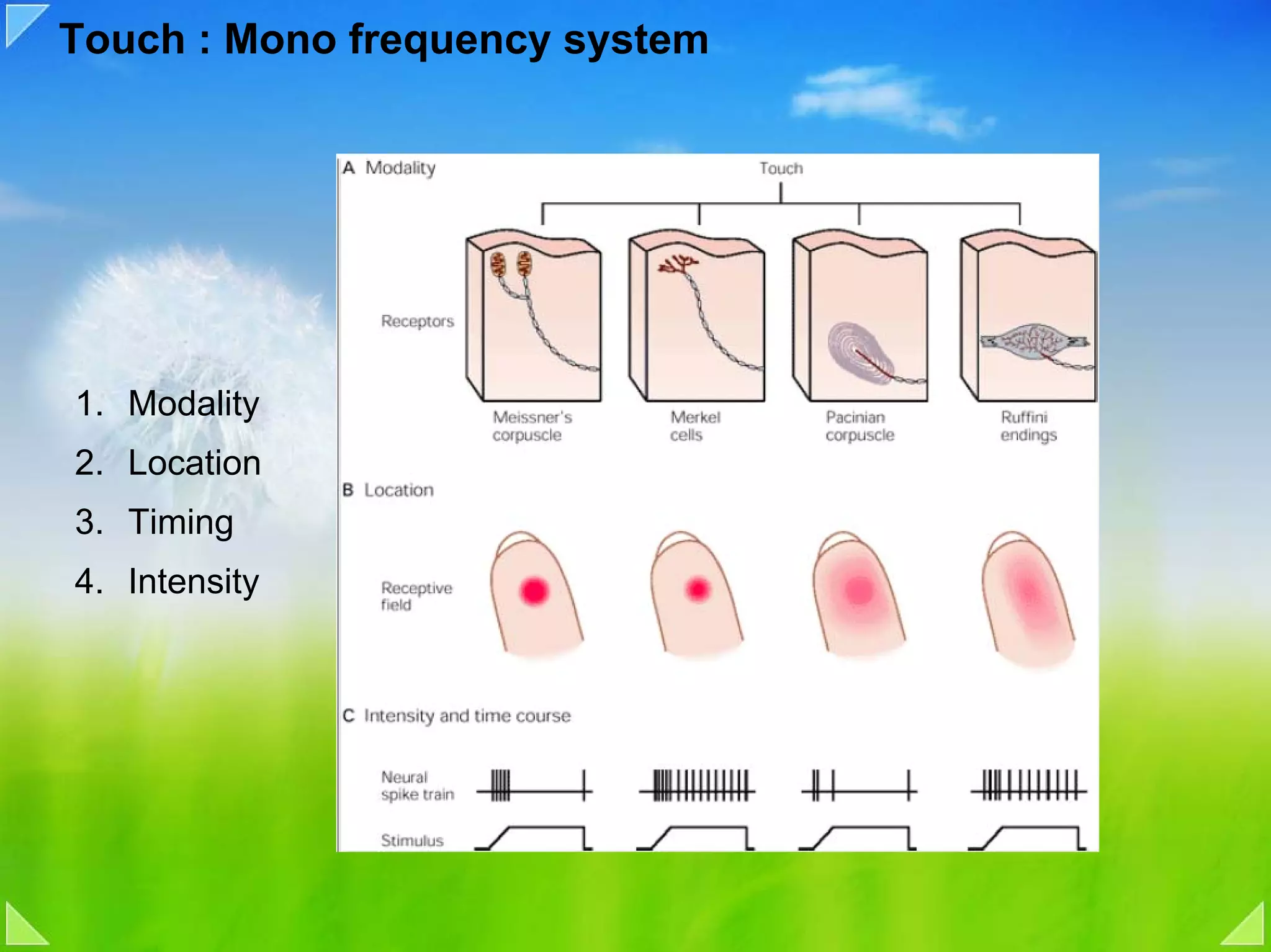

Touch : Mono frequency system




1. Modality
2. Location
3. Timing
4. Intensity

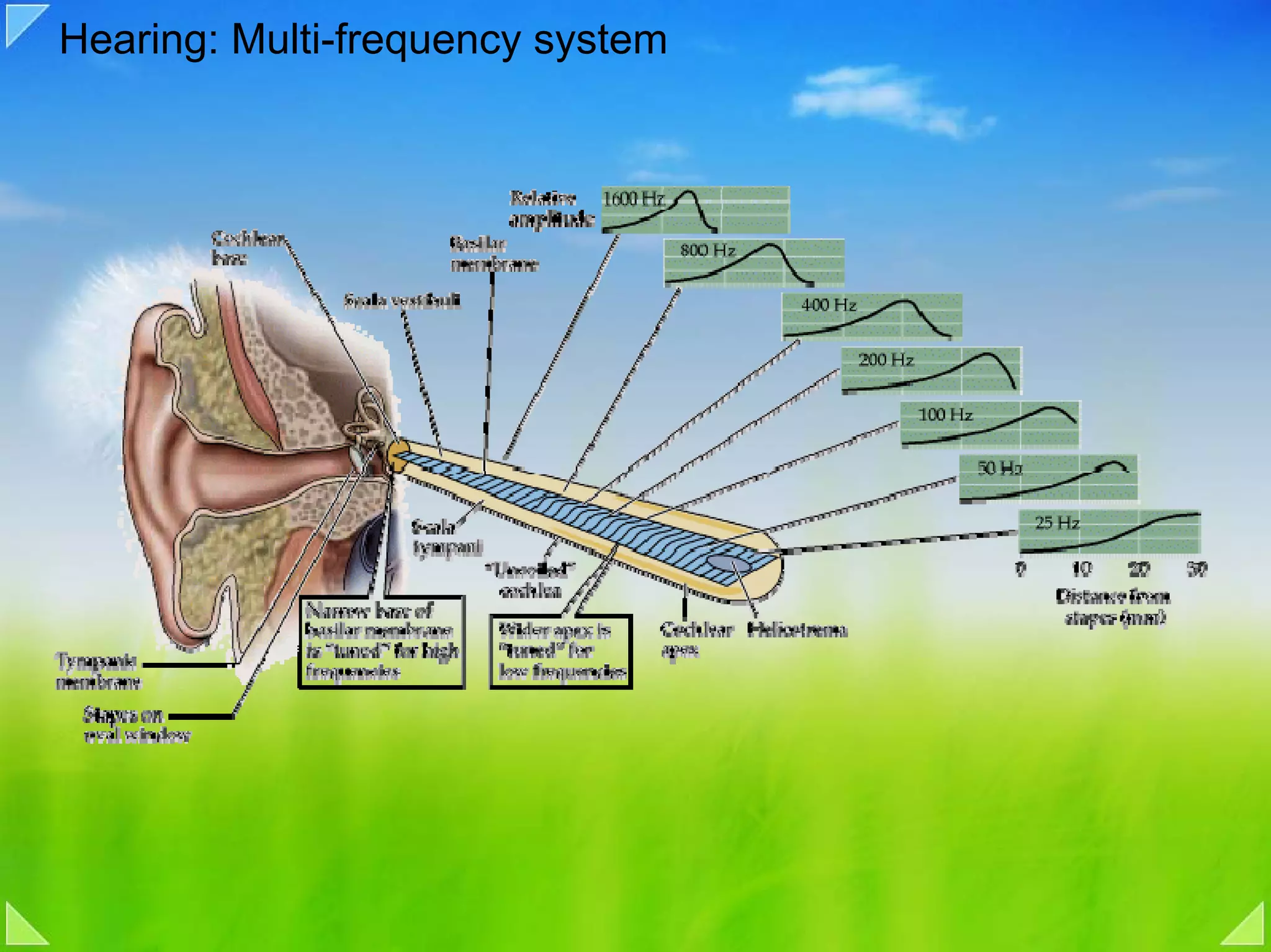

Hearing: Multi-frequency system
Bheraghat Jabalpur MP

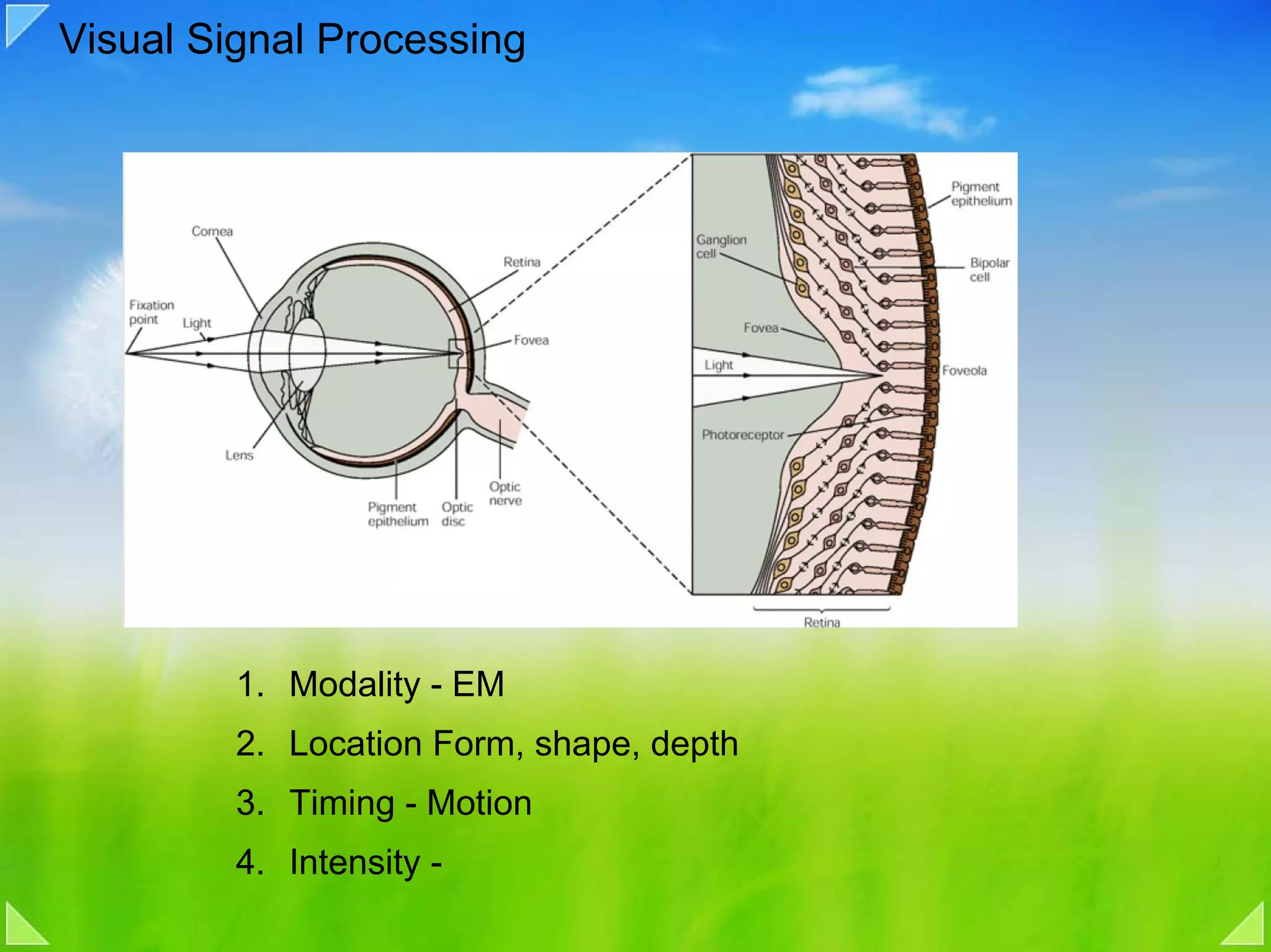

Visual Signal Processing




         1. Modality - EM
         2. Location Form, shape, depth
         3. Timing - Motion
         4. Intensity -

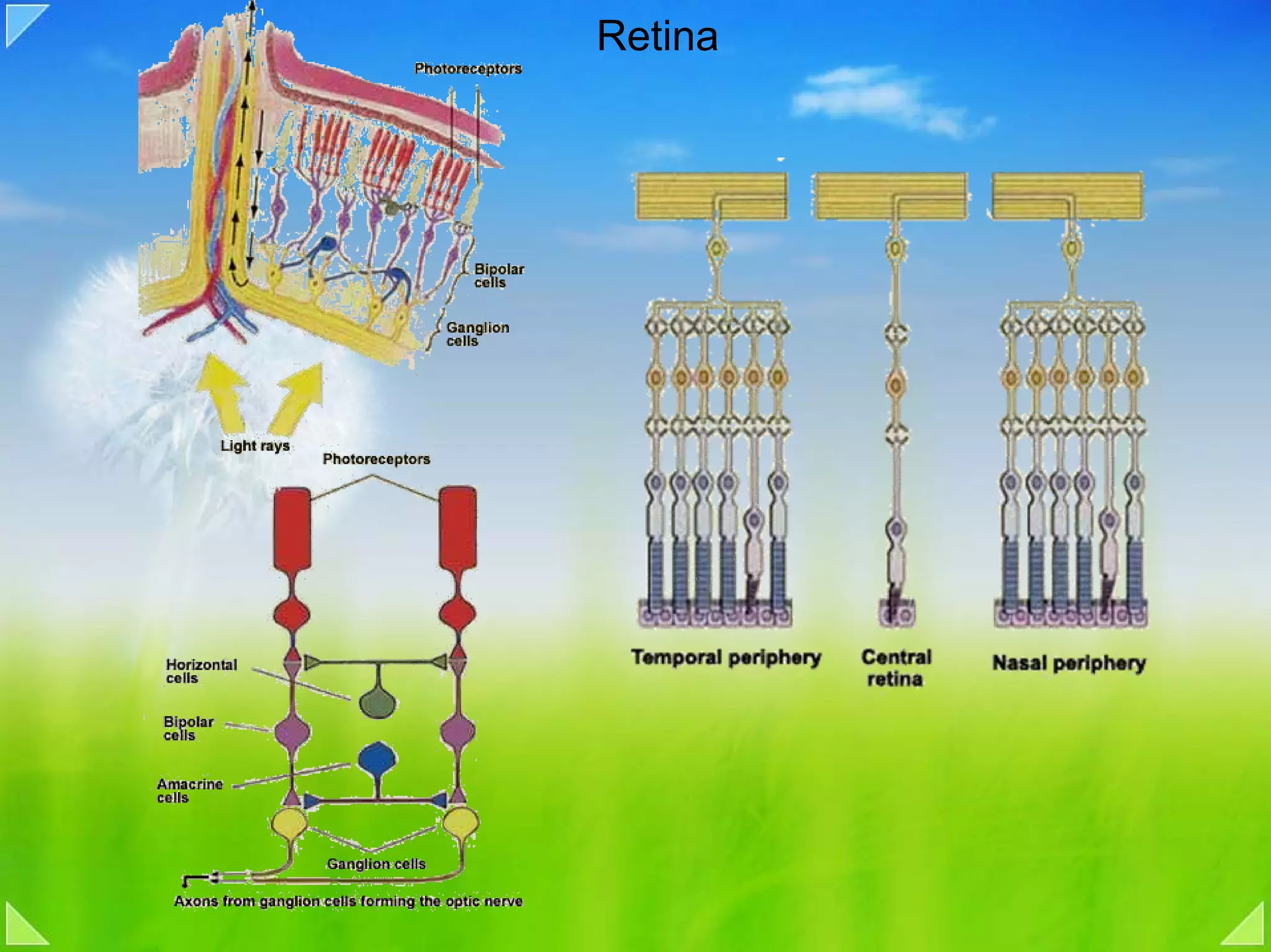

Retina

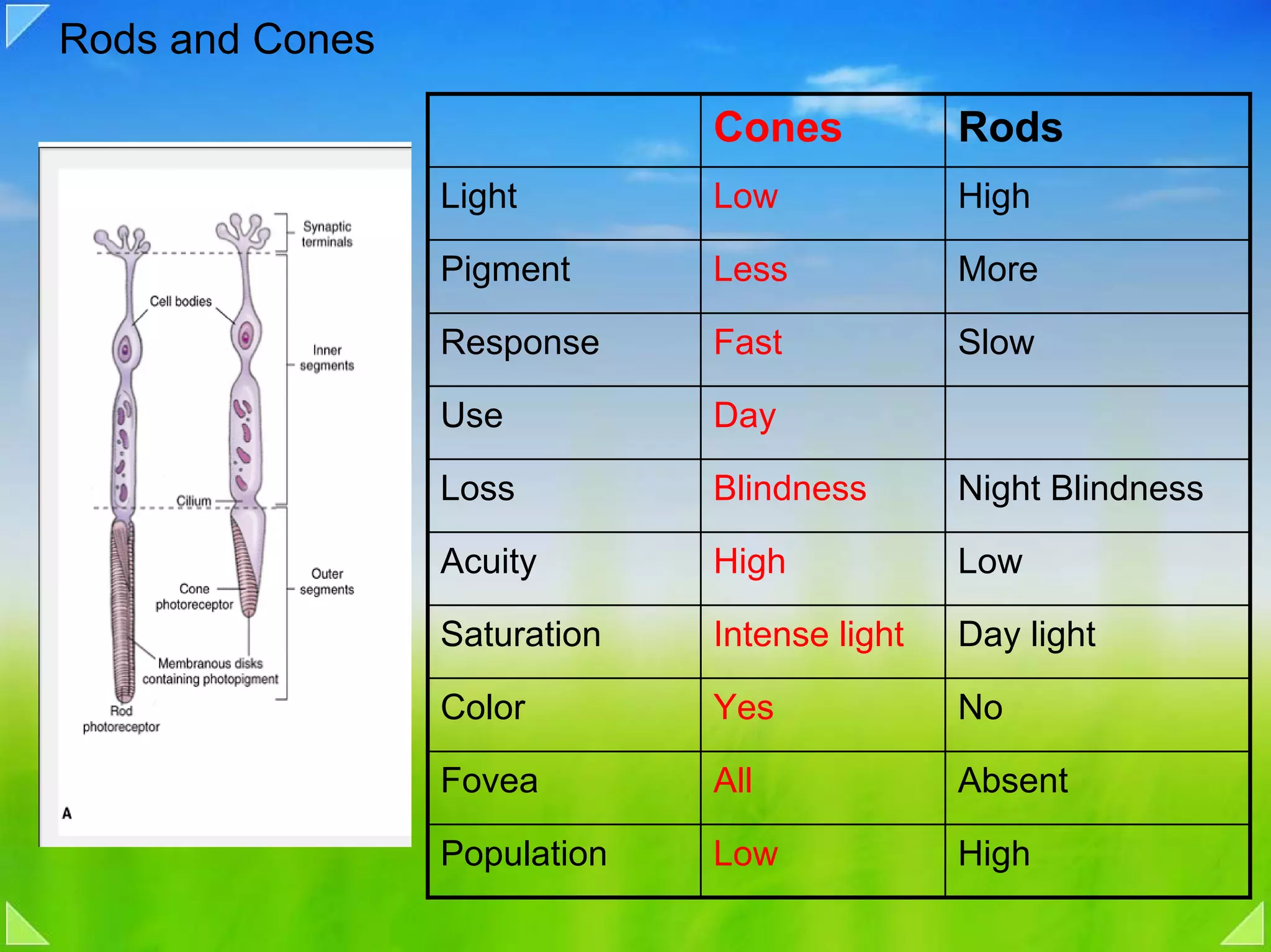

Rods and Cones

                              Cones           Rods
                 Light        Low             High

                 Pigment      Less            More

                 Response     Fast            Slow

                 Use          Day

                 Loss         Blindness       Night Blindness

                 Acuity       High            Low

                 Saturation   Intense light   Day light

                 Color        Yes             No

                 Fovea        All             Absent

                 Population   Low             High

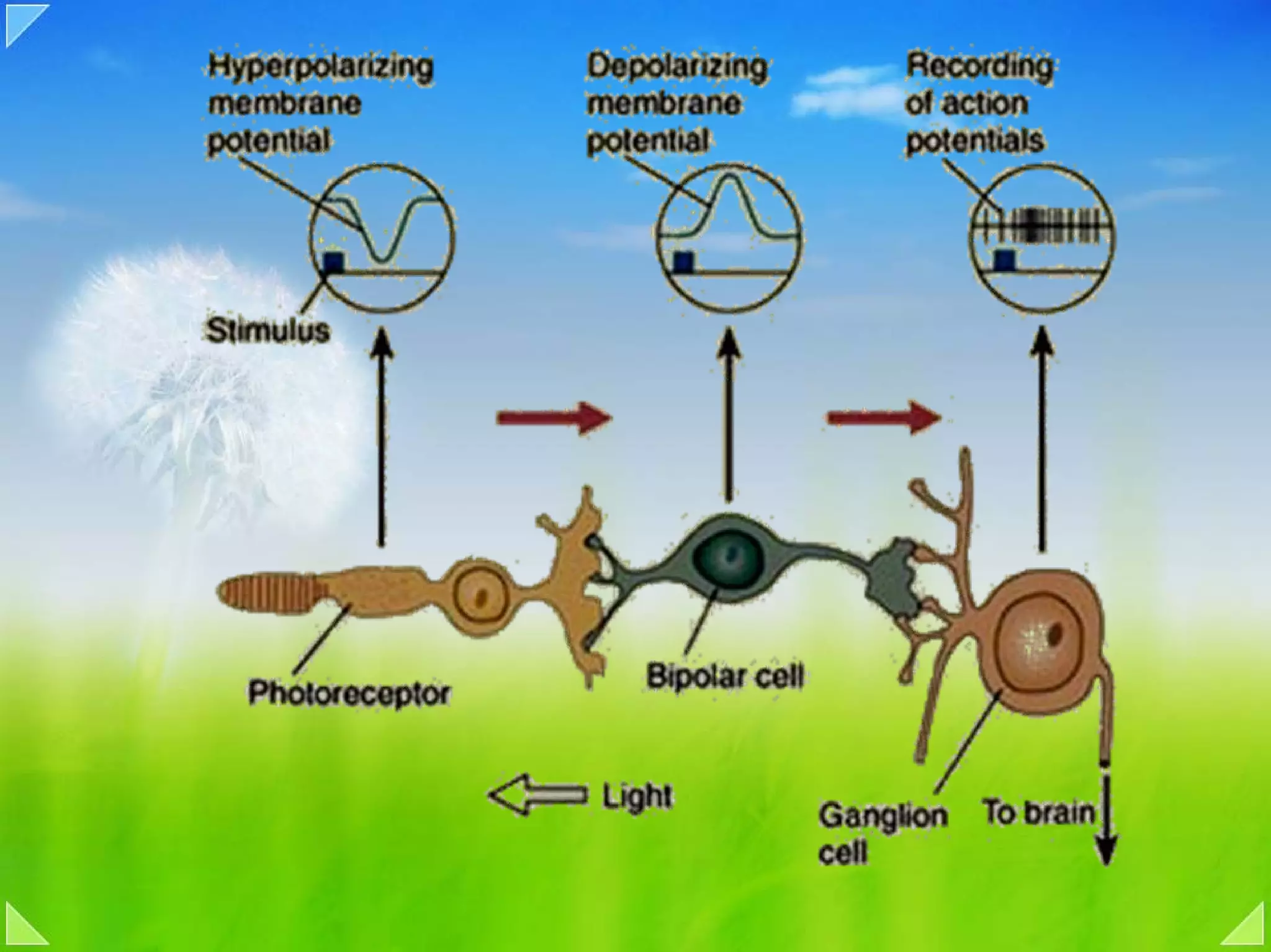

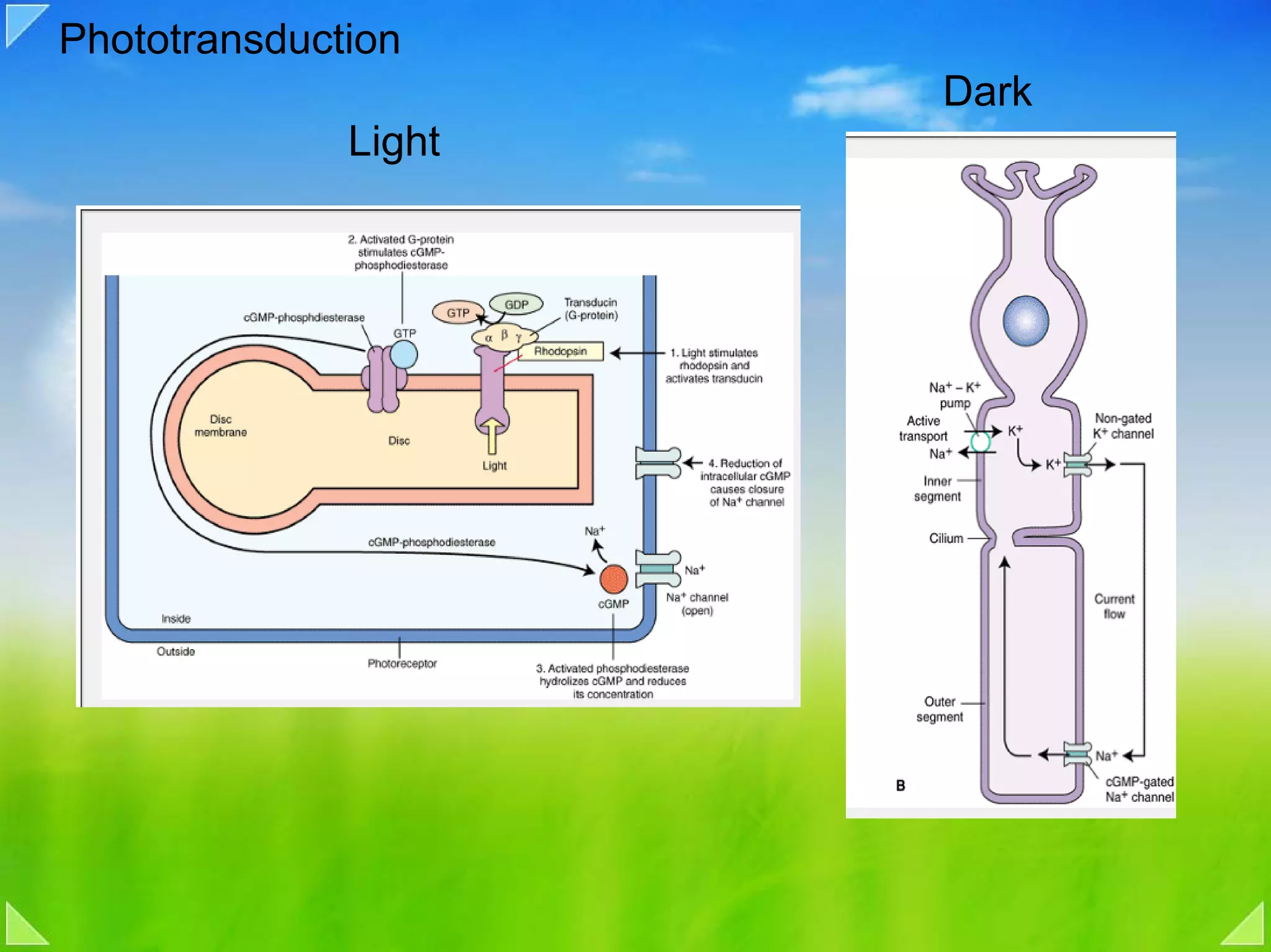

Phototransduction
                      Dark
              Light

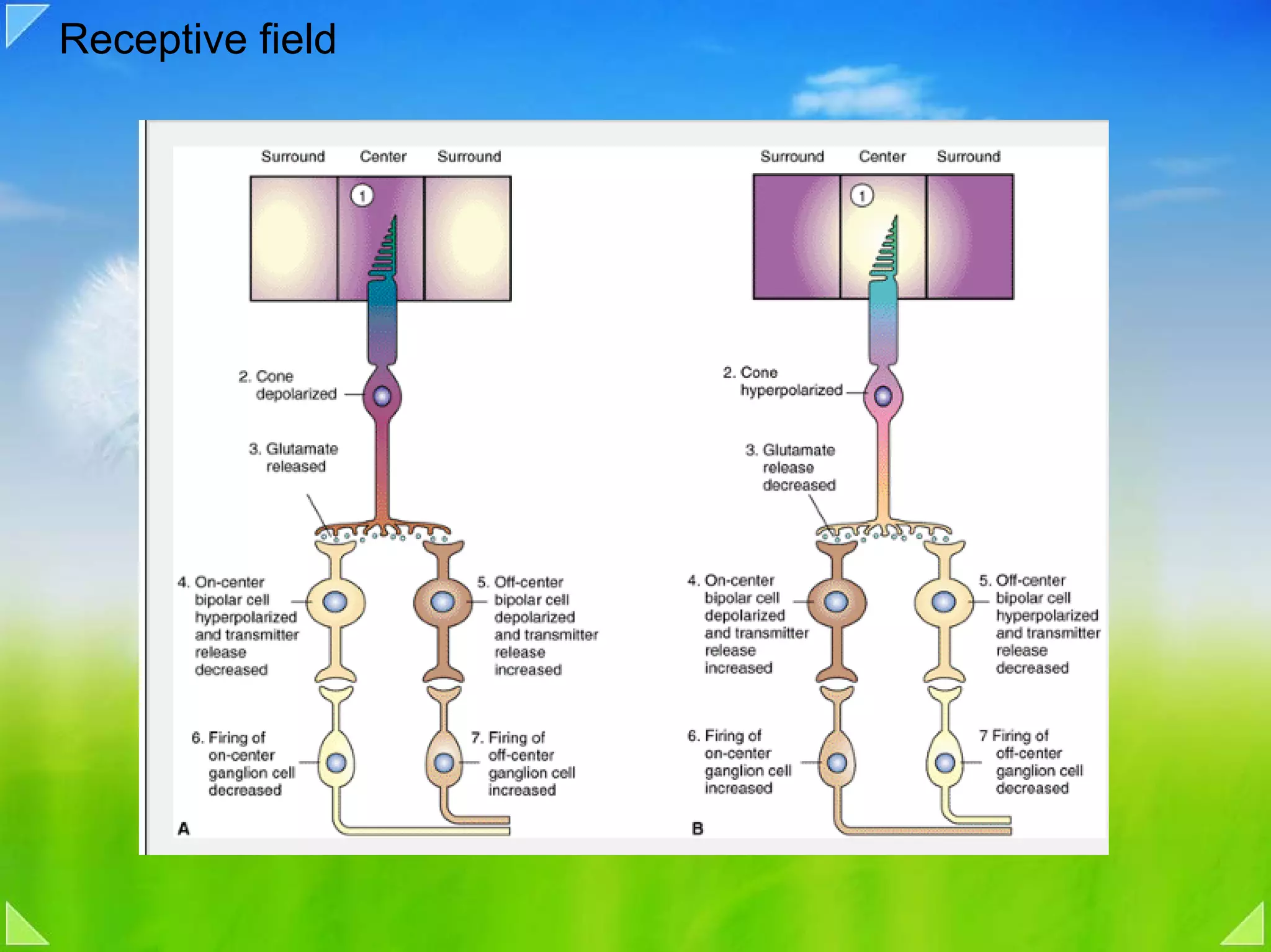

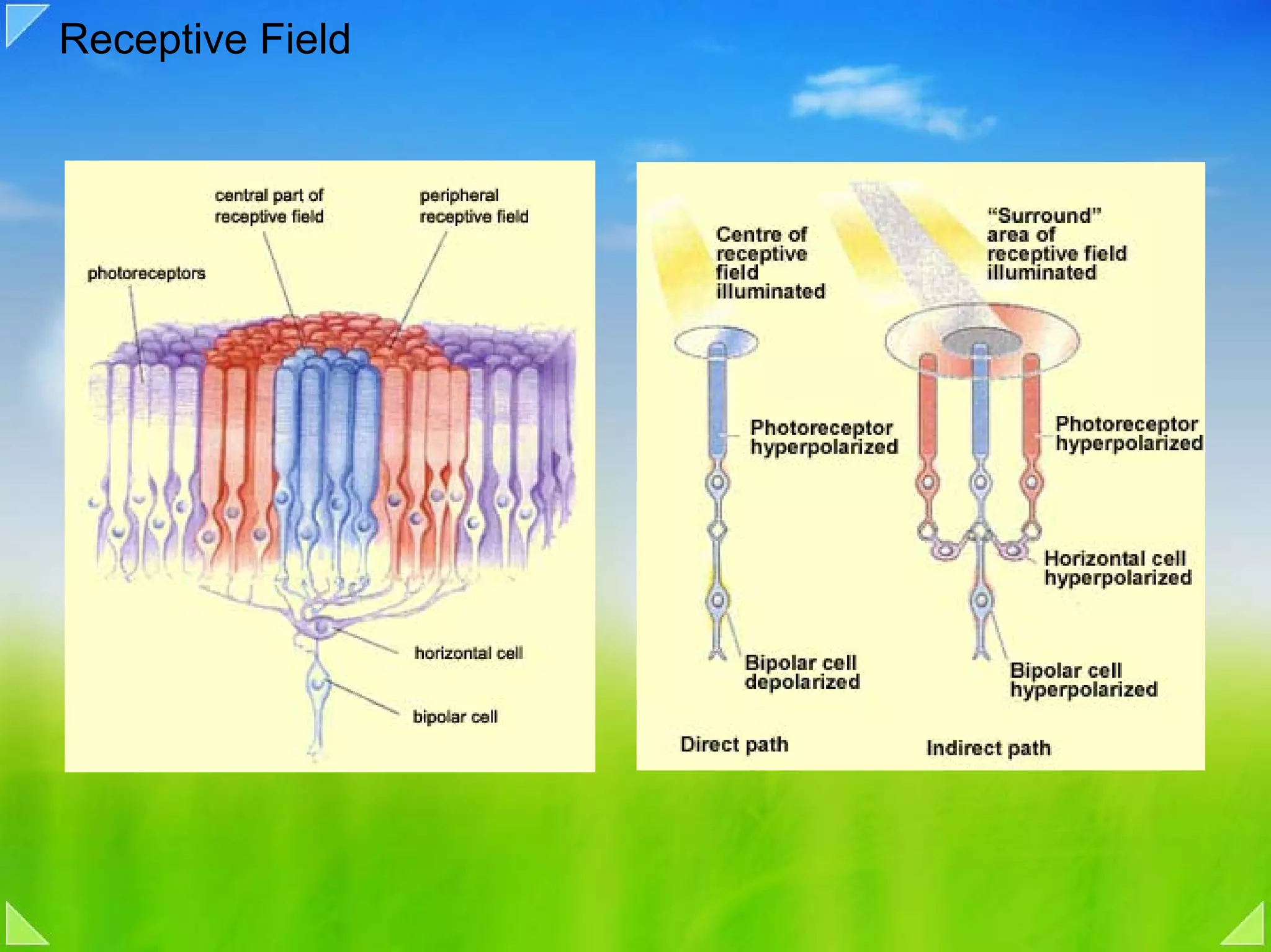

Receptive Field
Receptive field

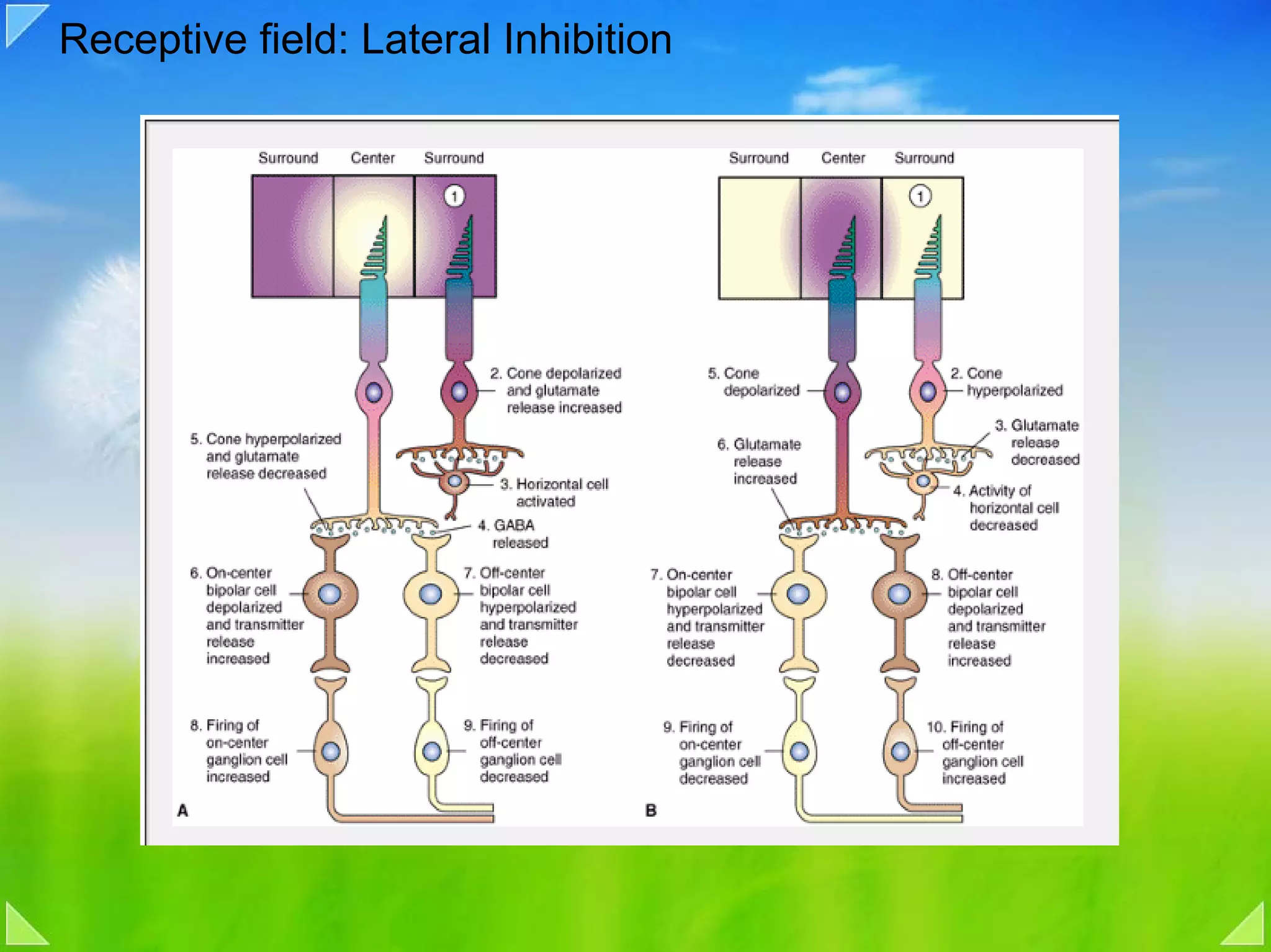

Receptive field: Lateral Inhibition

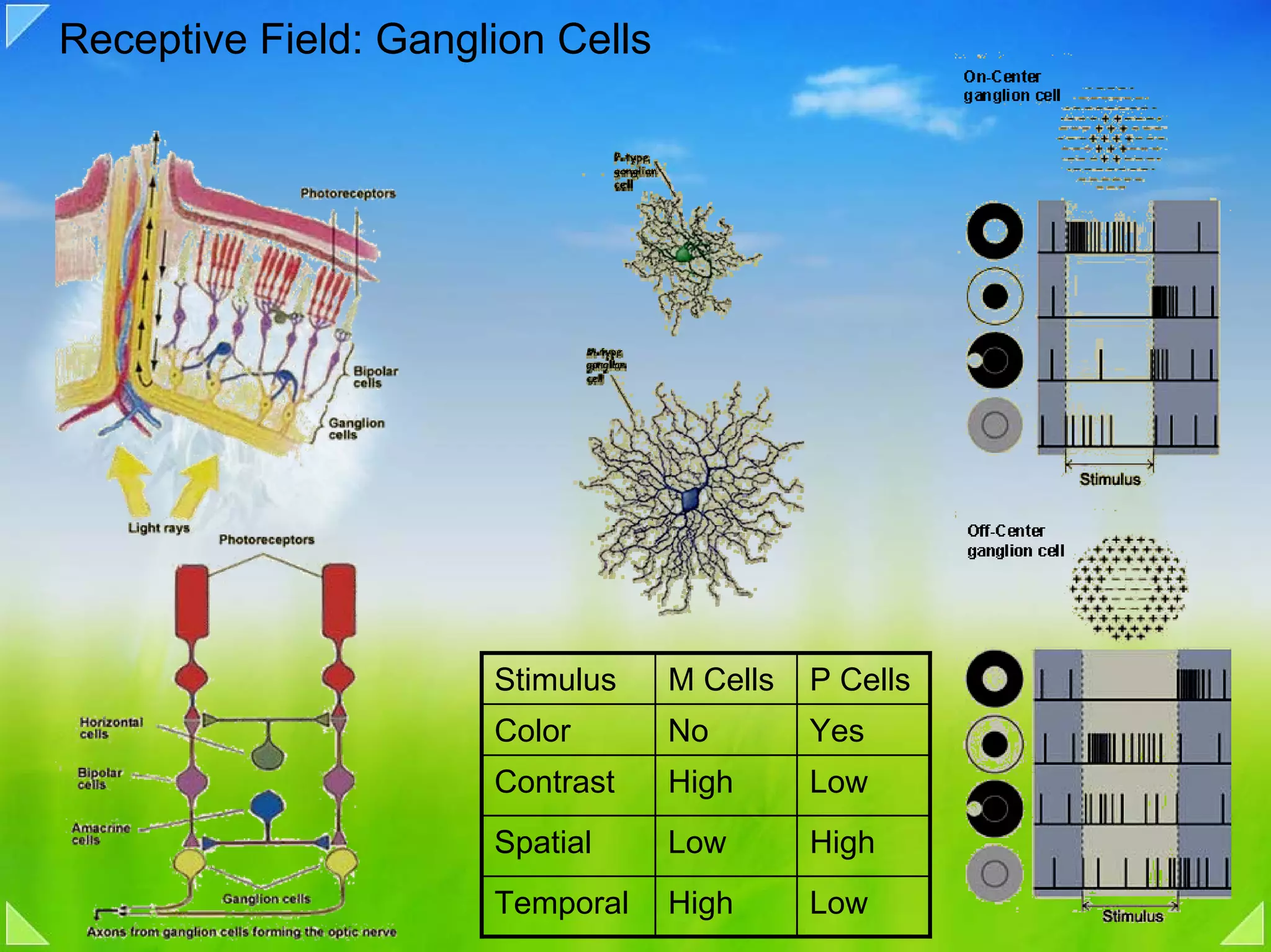

Receptive Field: Ganglion Cells




                      Stimulus    M Cells   P Cells
                      Color       No        Yes
                      Contrast    High      Low
                      Spatial     Low       High
                      Temporal    High      Low

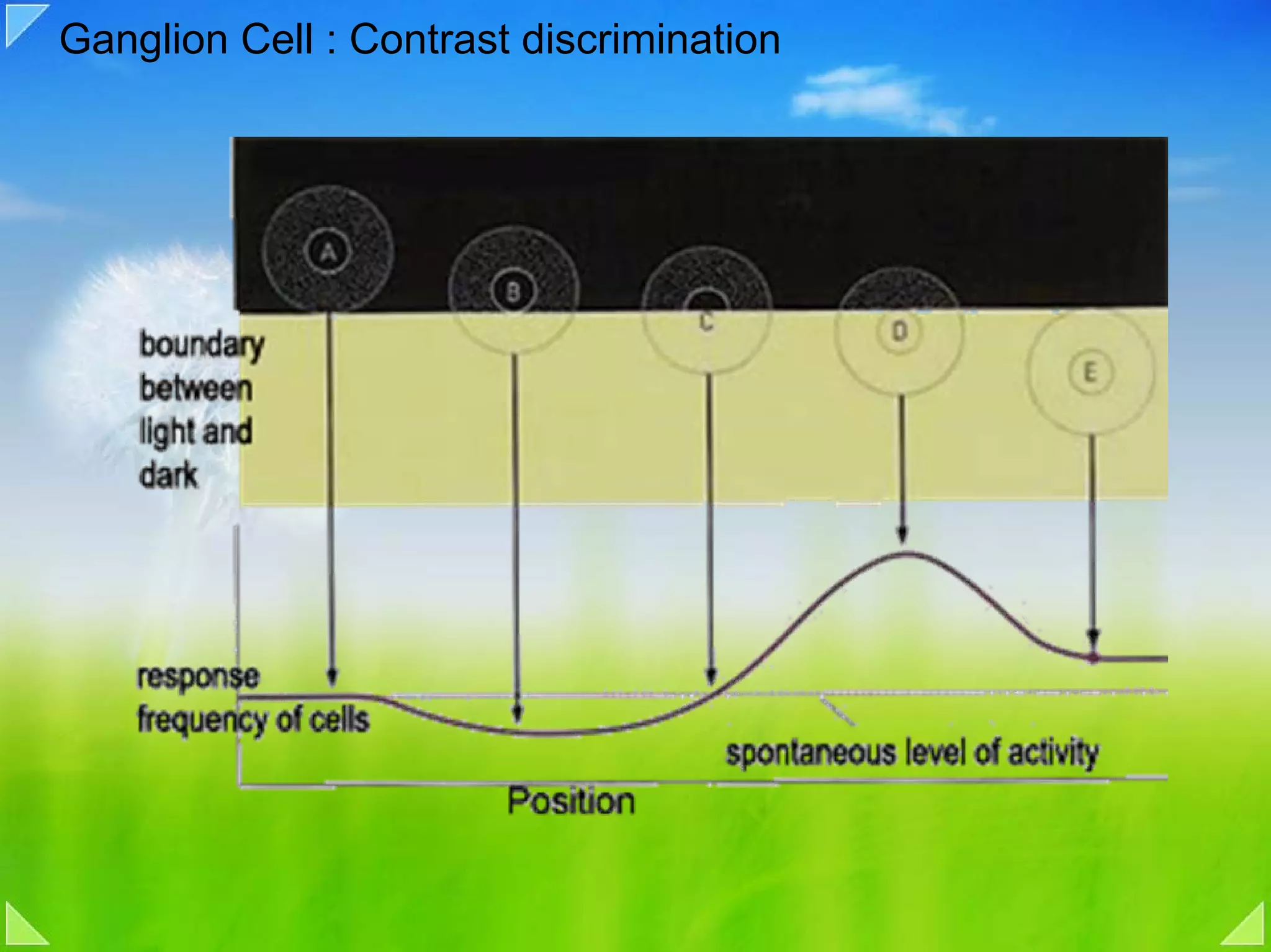

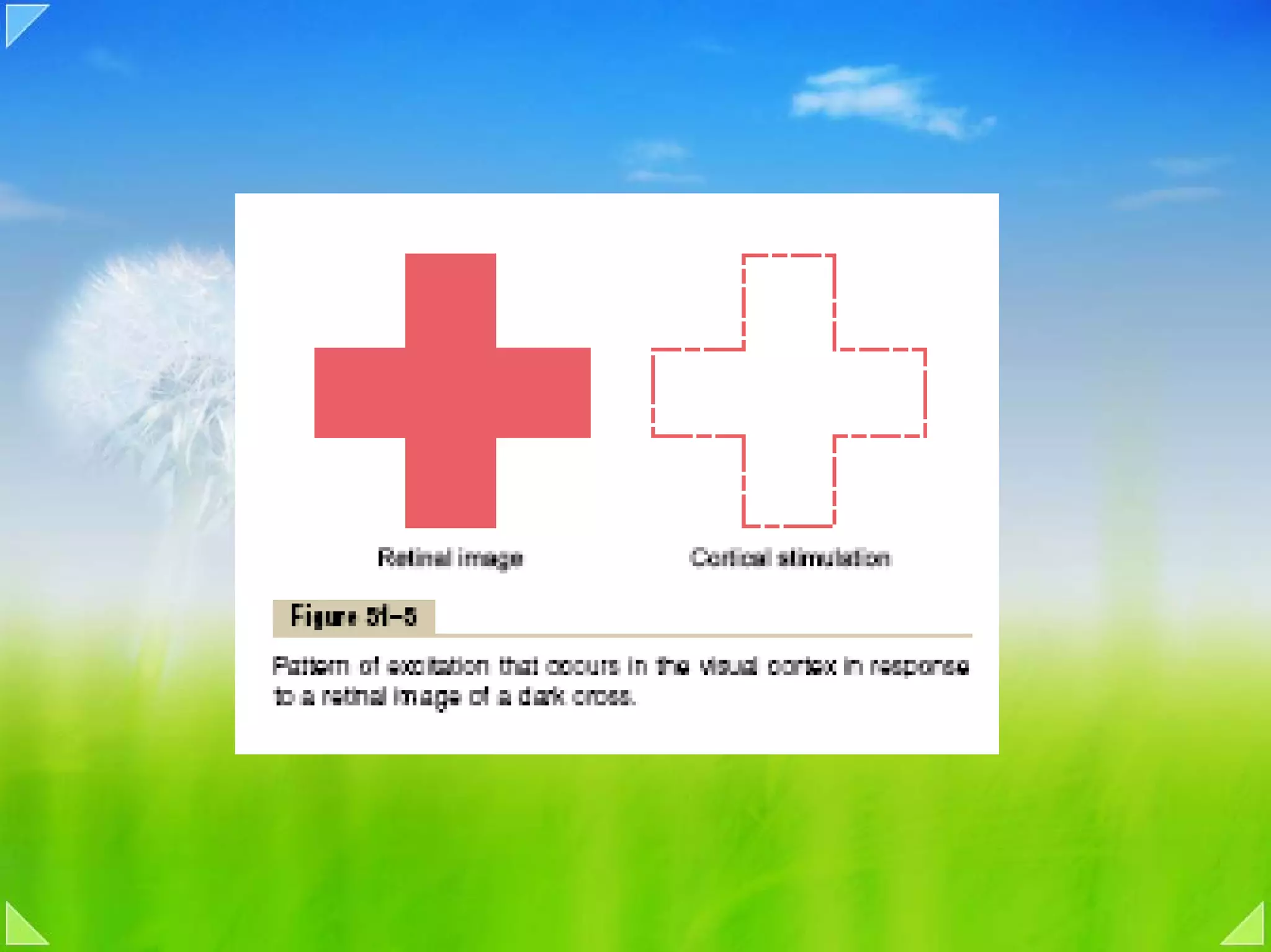

Ganglion Cell : Contrast discrimination
04b visiual signal processing form shape

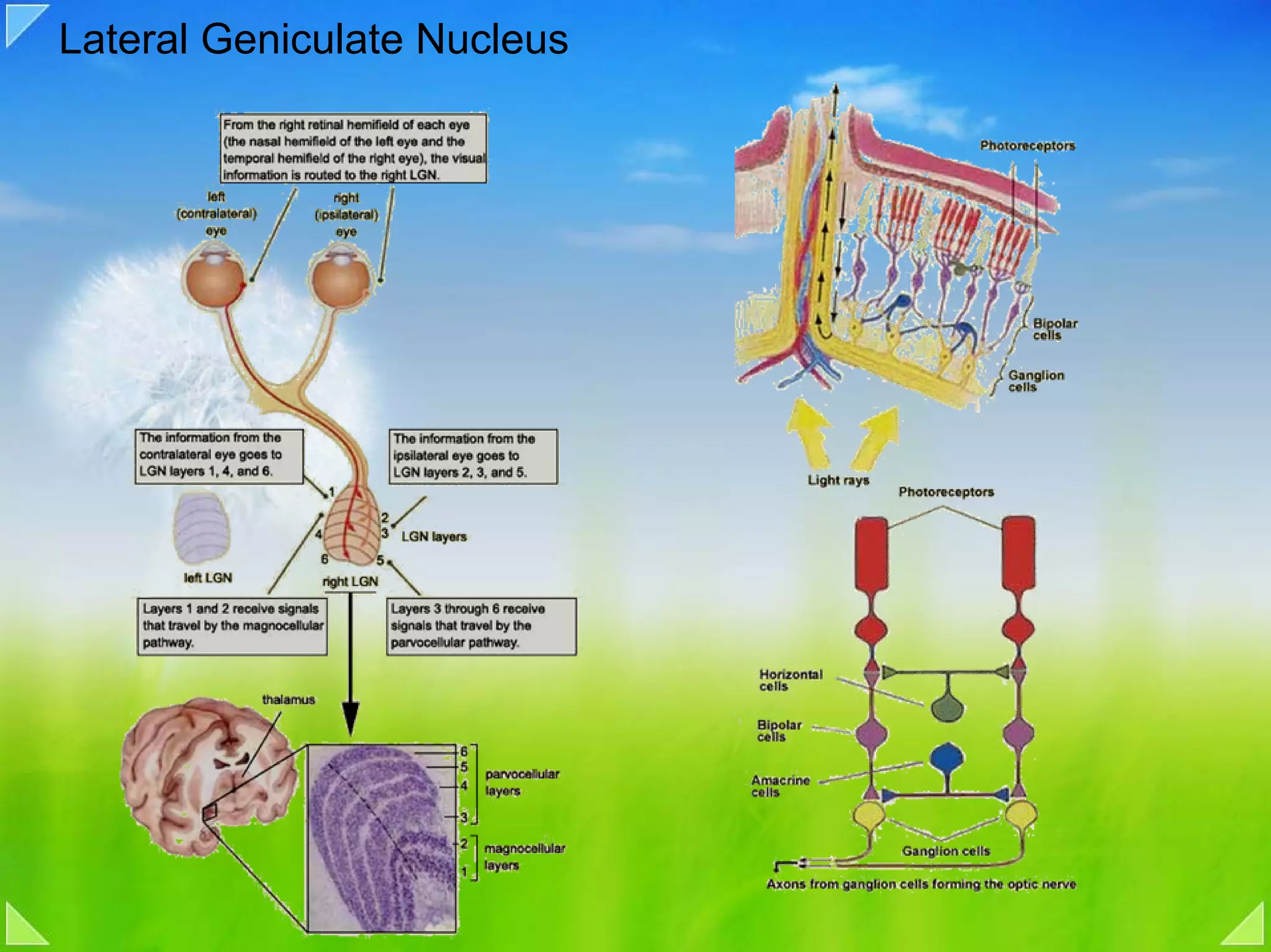

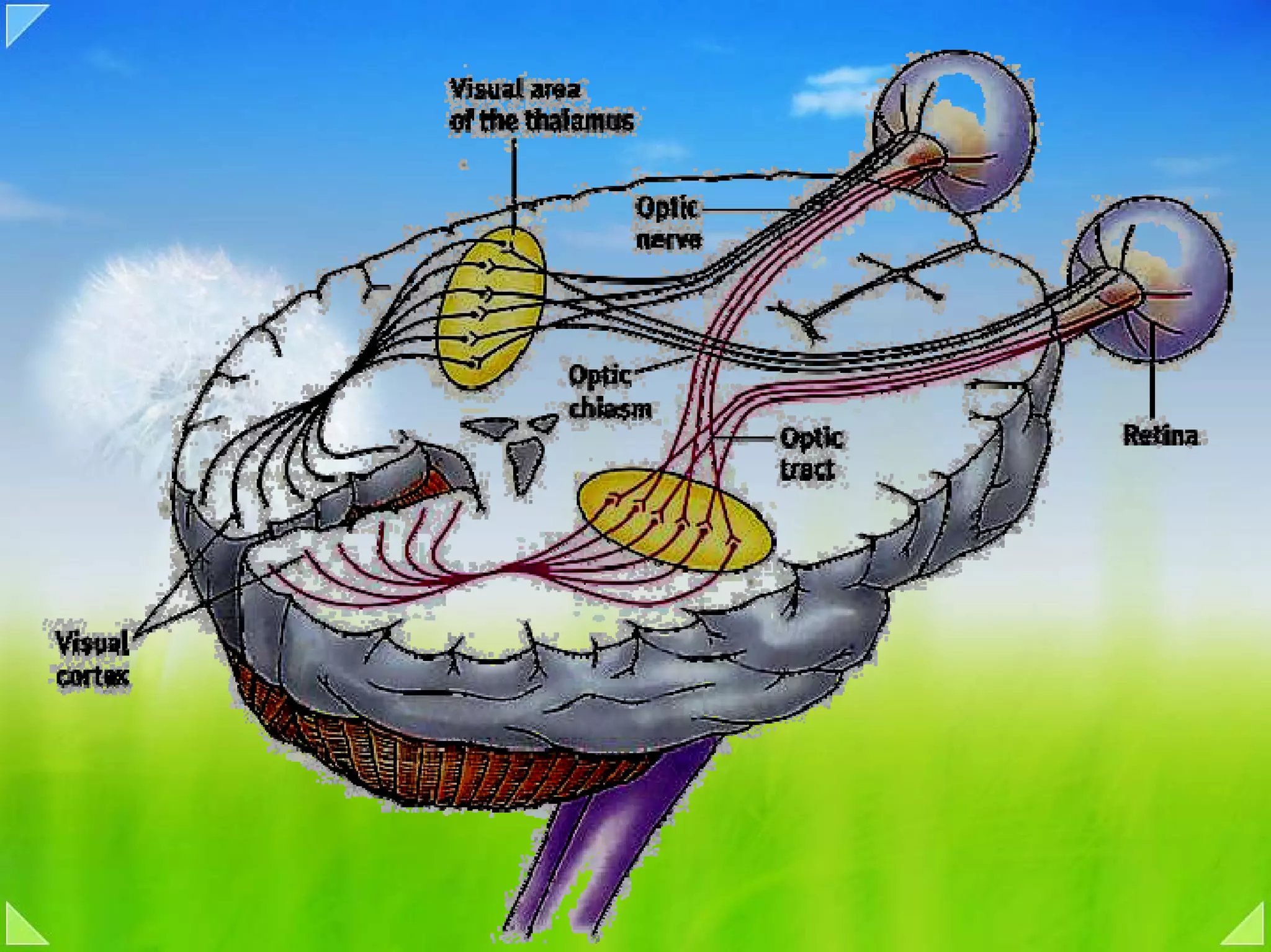

Lateral Geniculate Nucleus

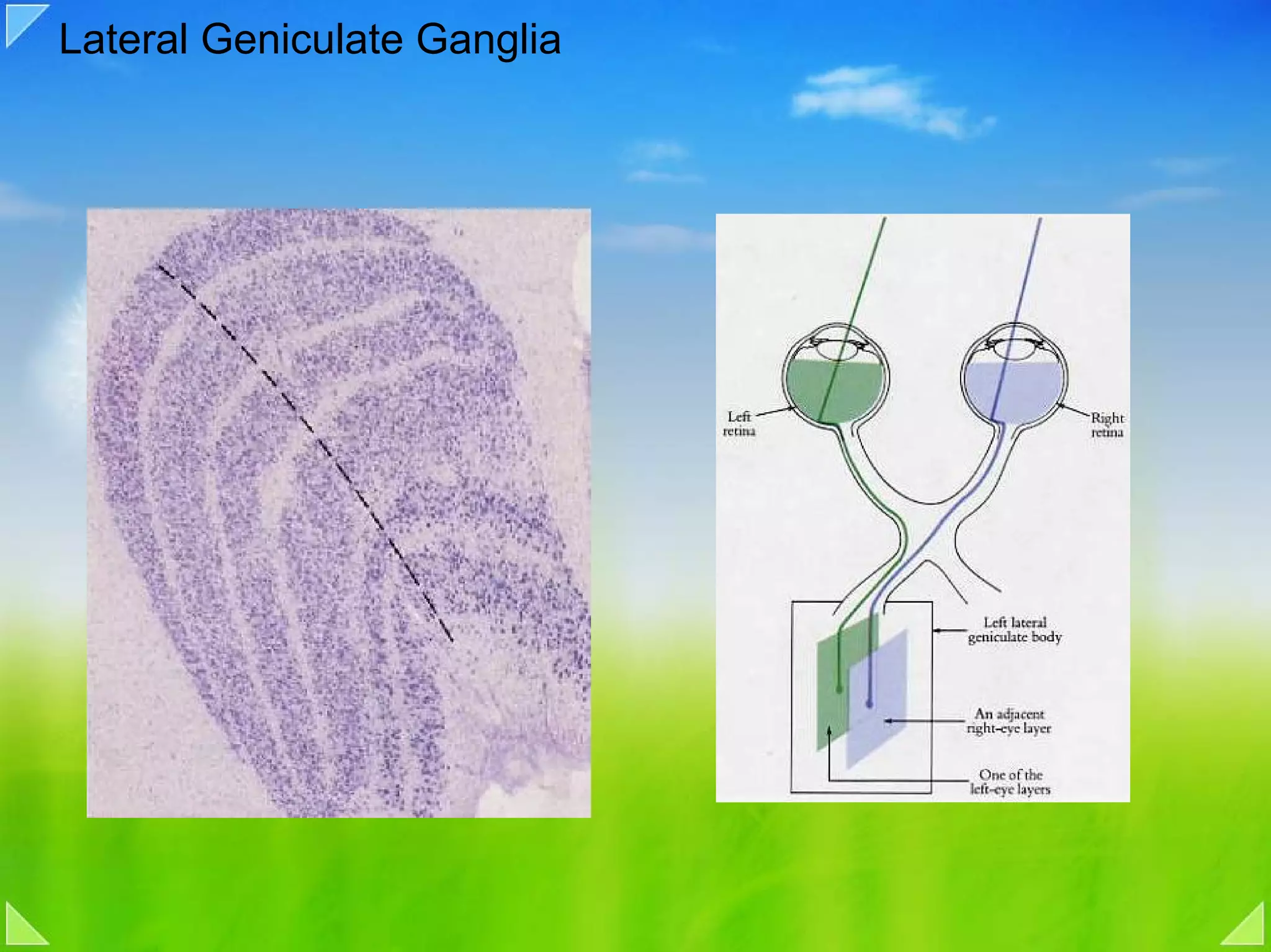

Lateral Geniculate Ganglia
04b visiual signal processing form shape

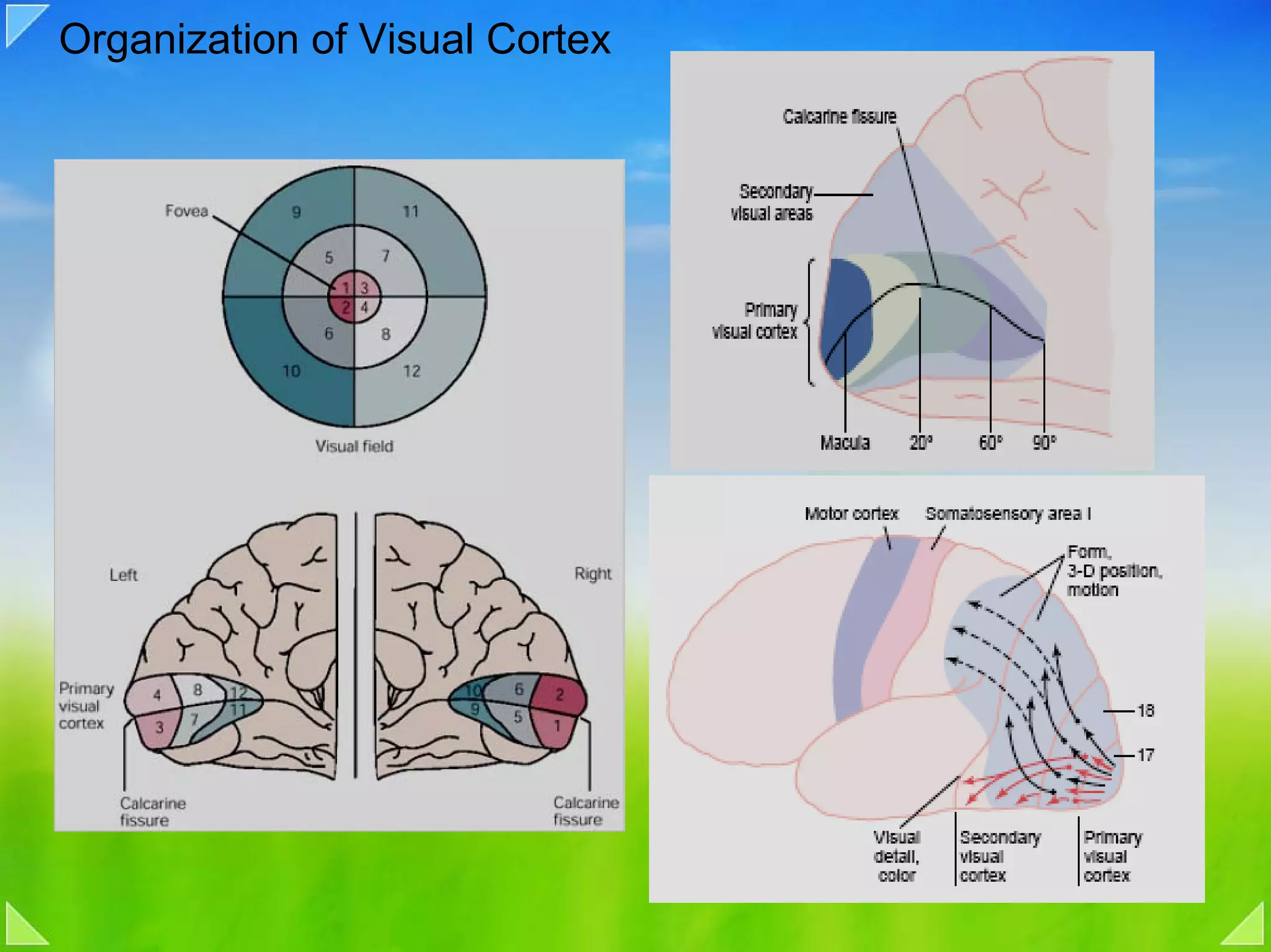

Organization of Visual Cortex
04b visiual signal processing form shape

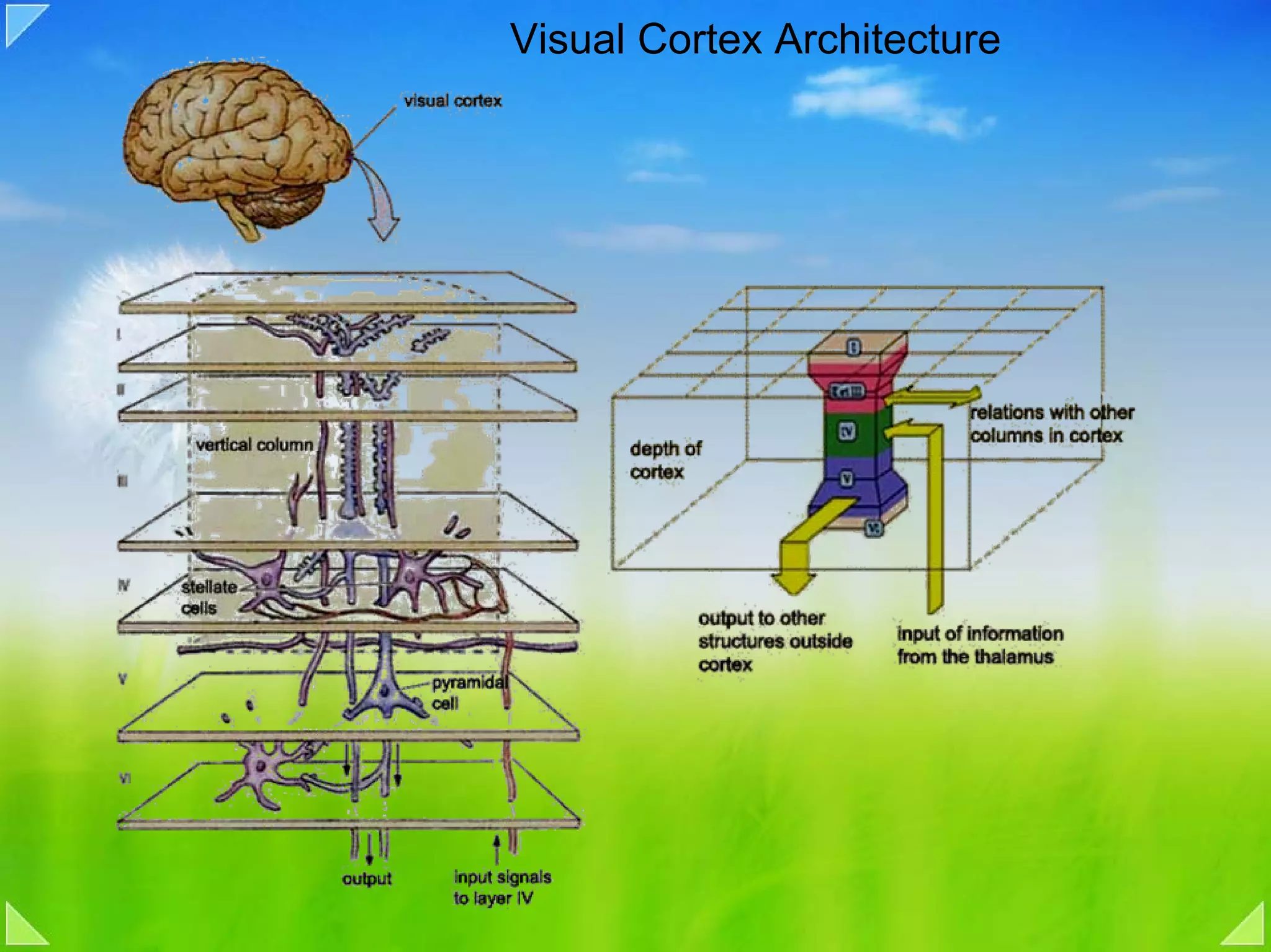

Visual Cortex Architecture

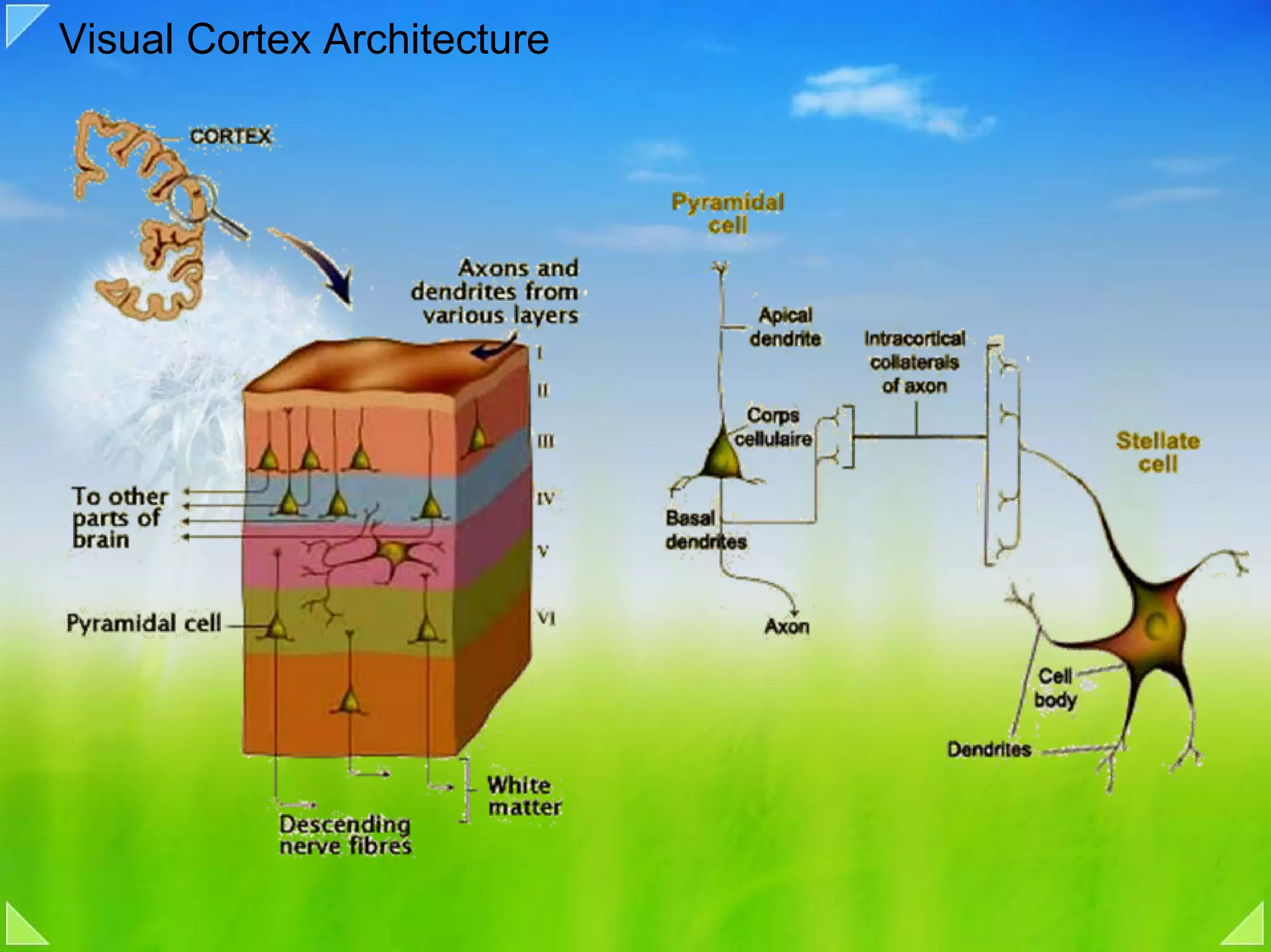

Visual Cortex Architecture

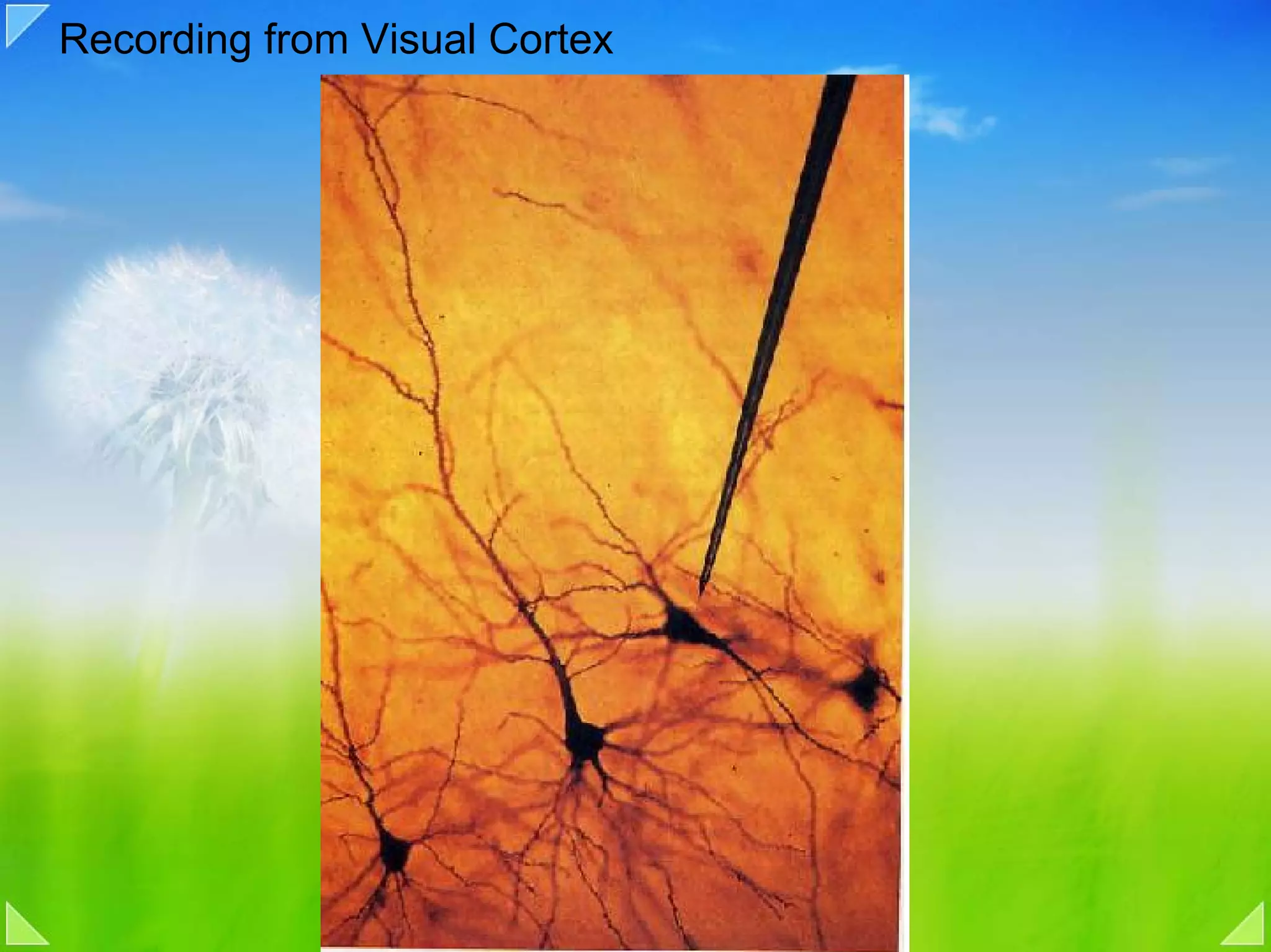

Recording from Visual Cortex
04b visiual signal processing form shape

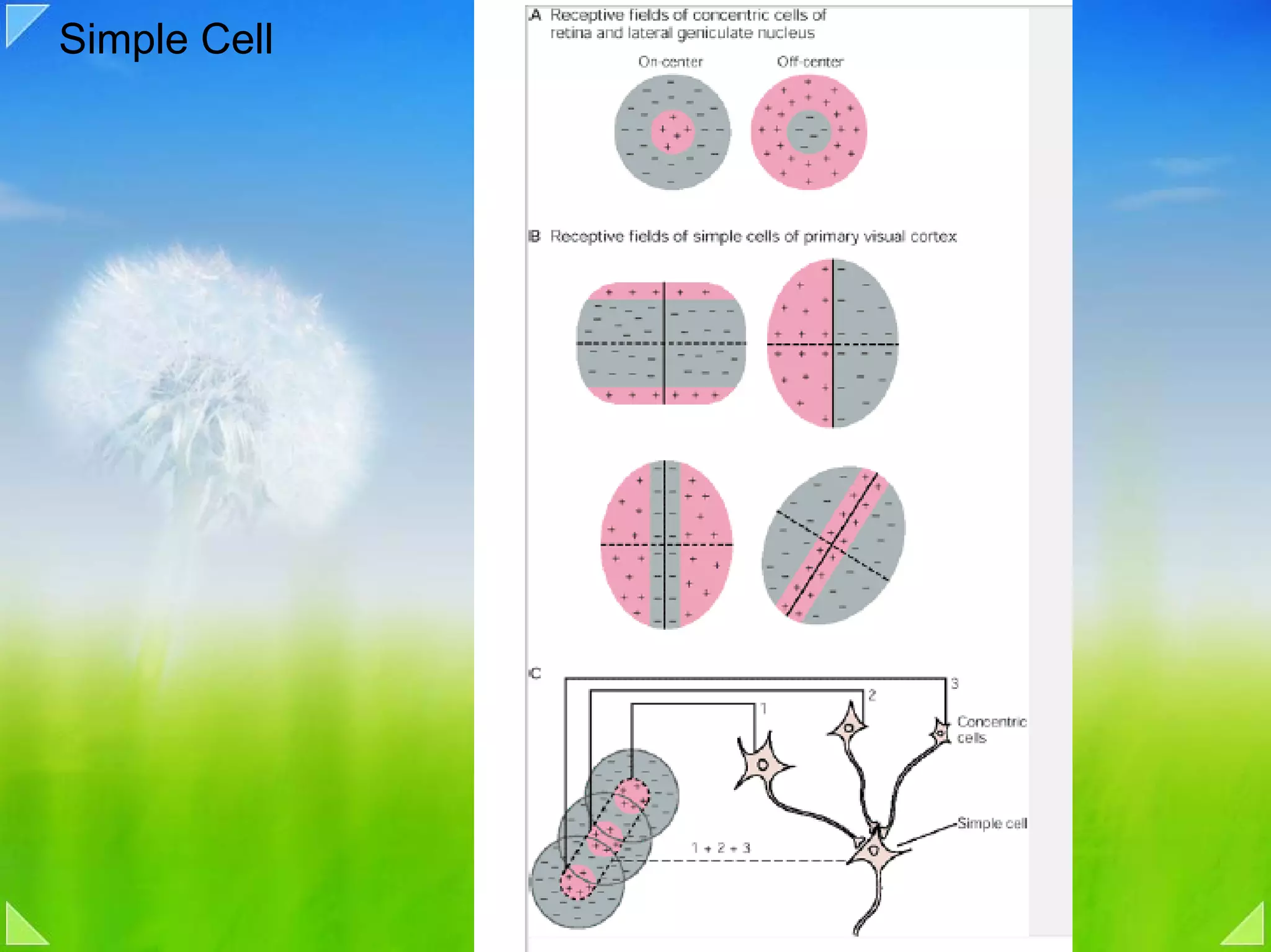

Simple Cell
Complex Cells

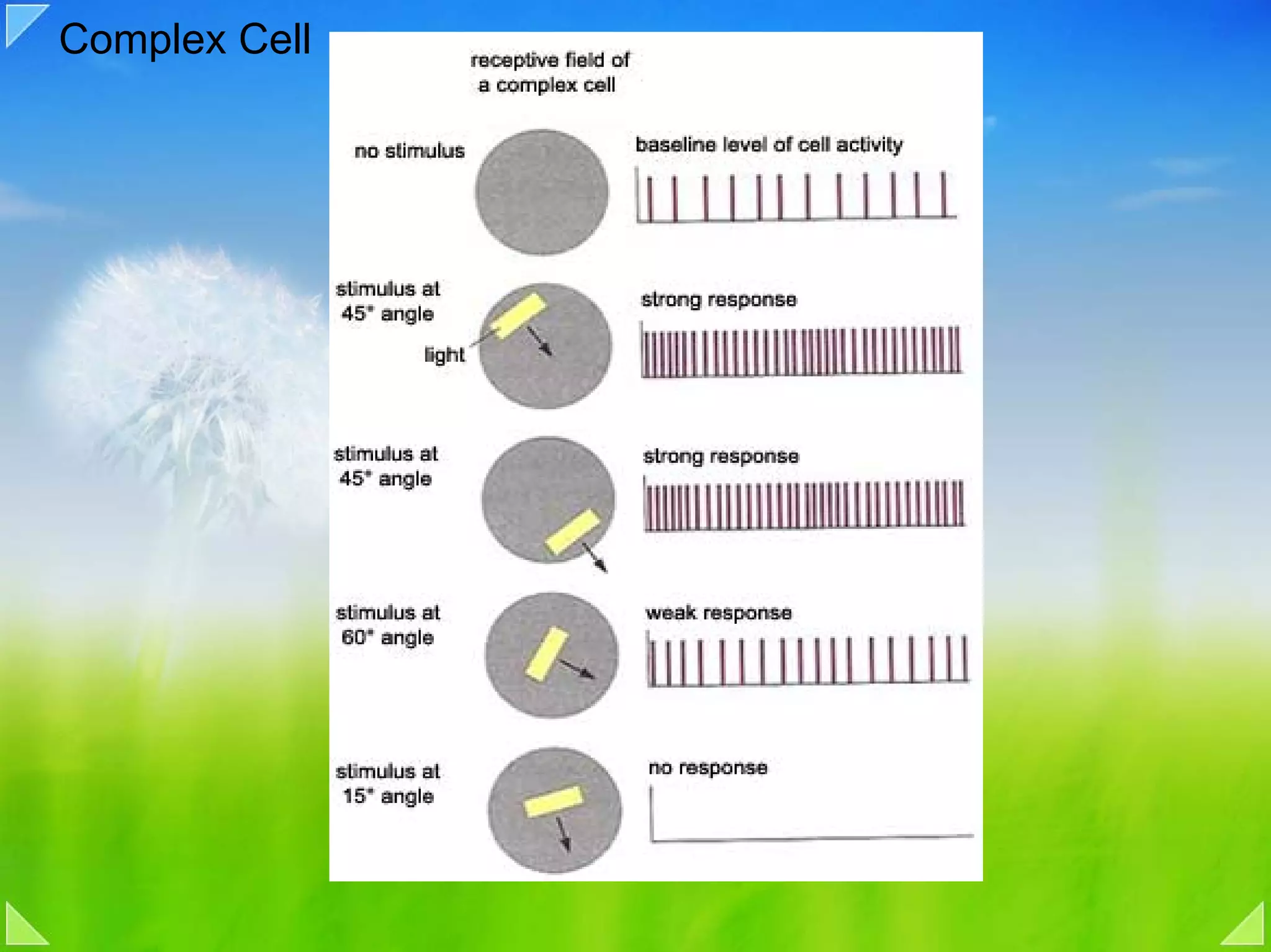

Complex Cell

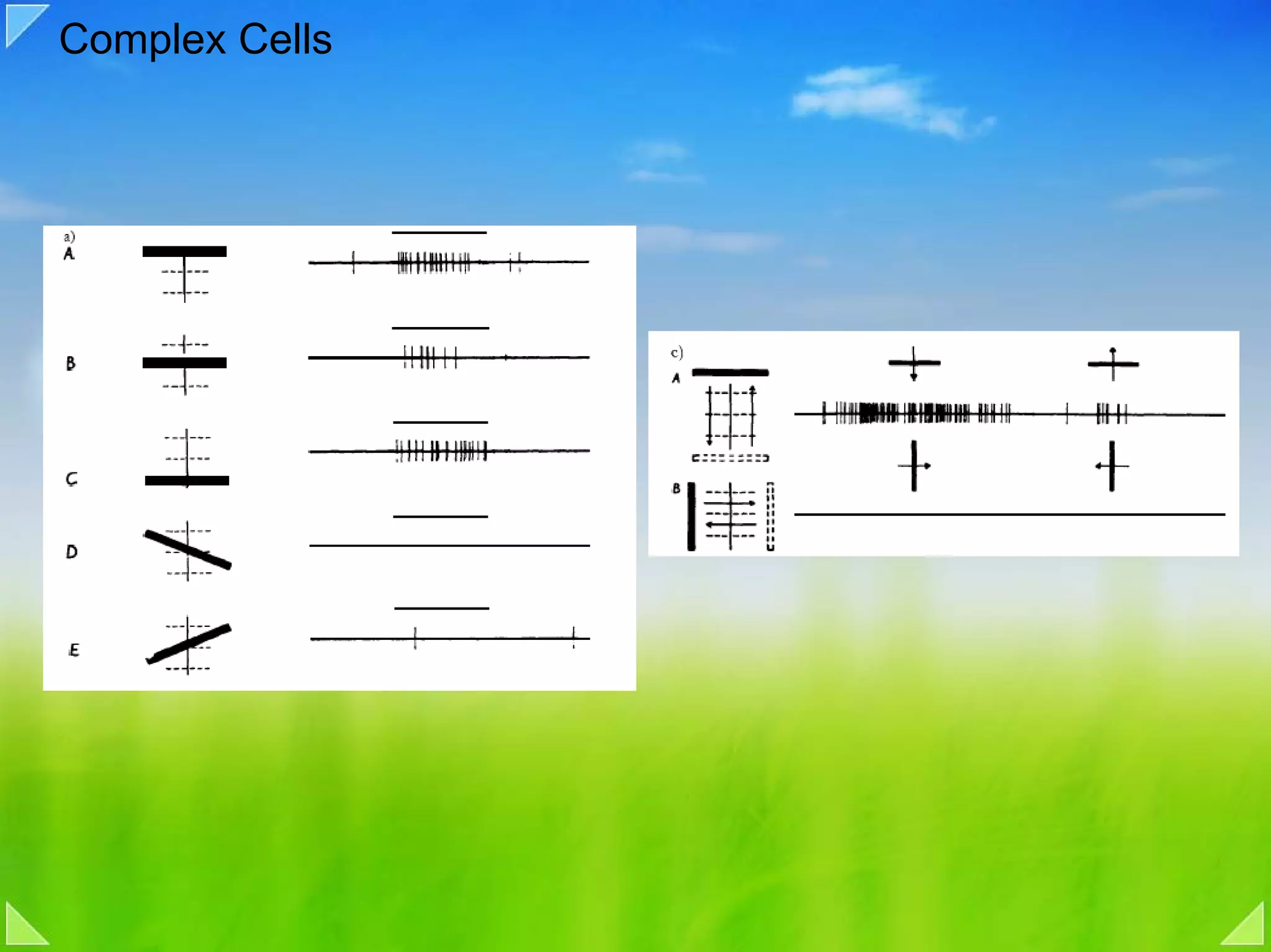

Complex Cells

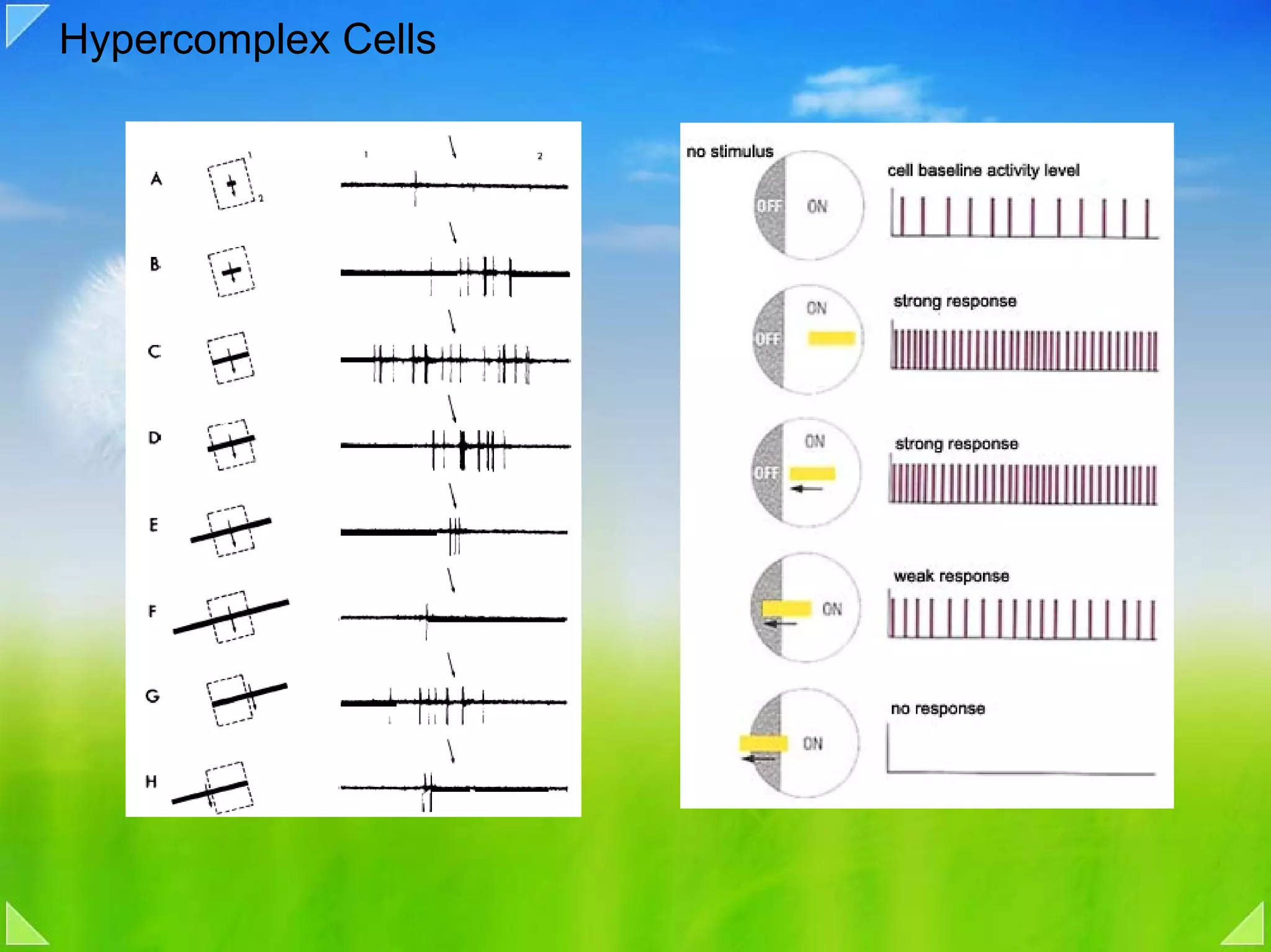

Hypercomplex Cells

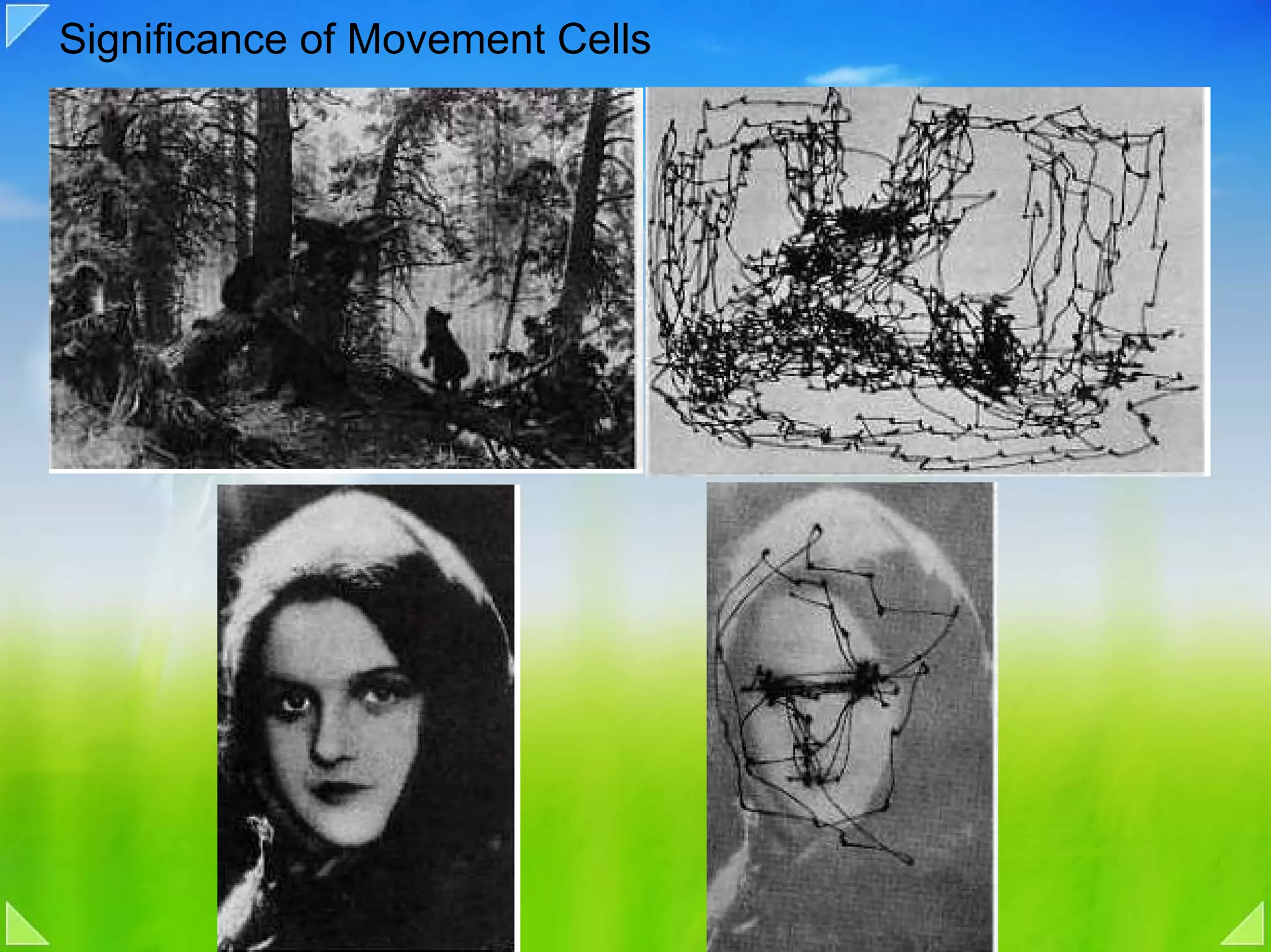

Significance of Movement Cells

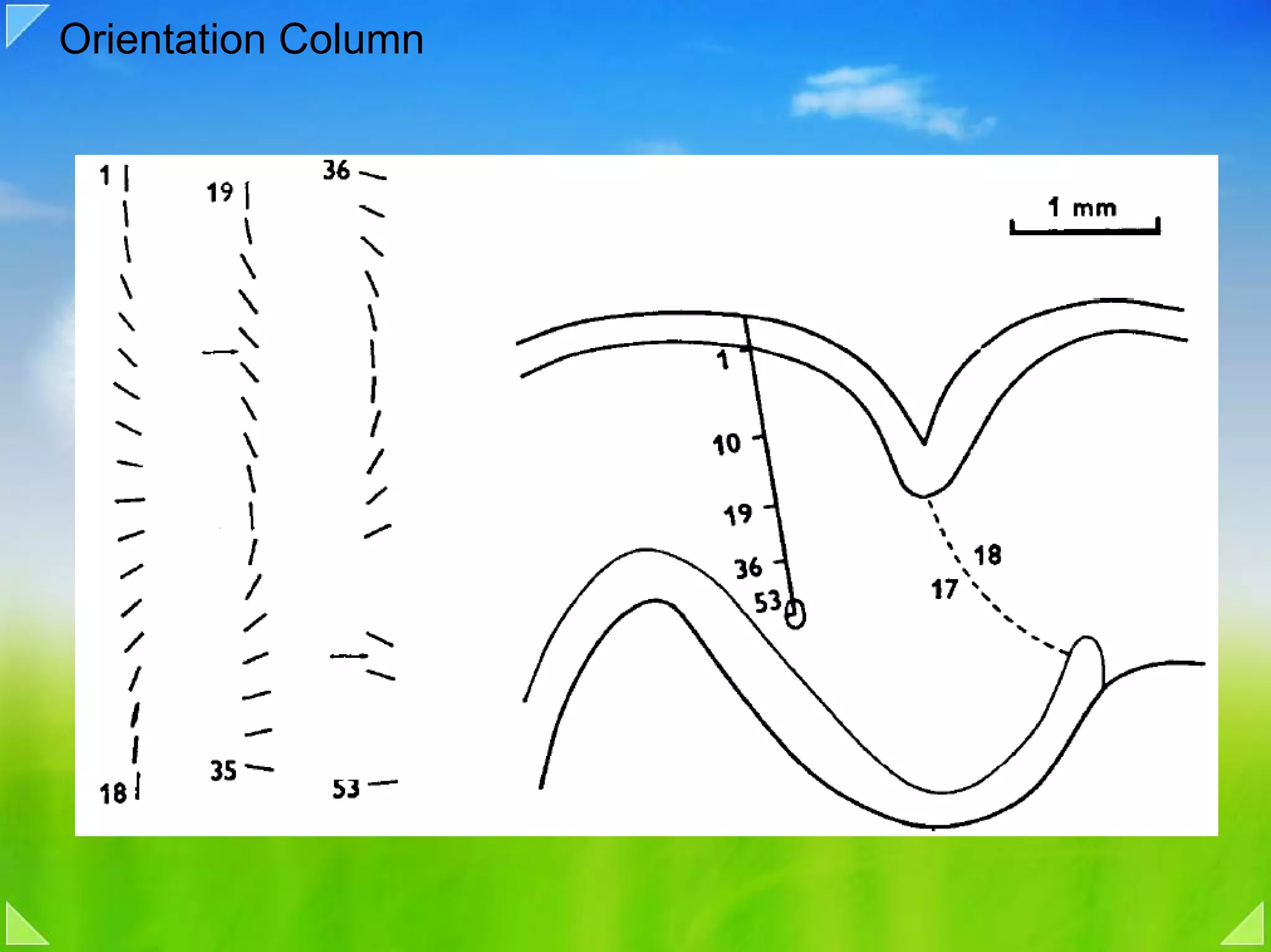

Orientation Column
04b visiual signal processing form shape

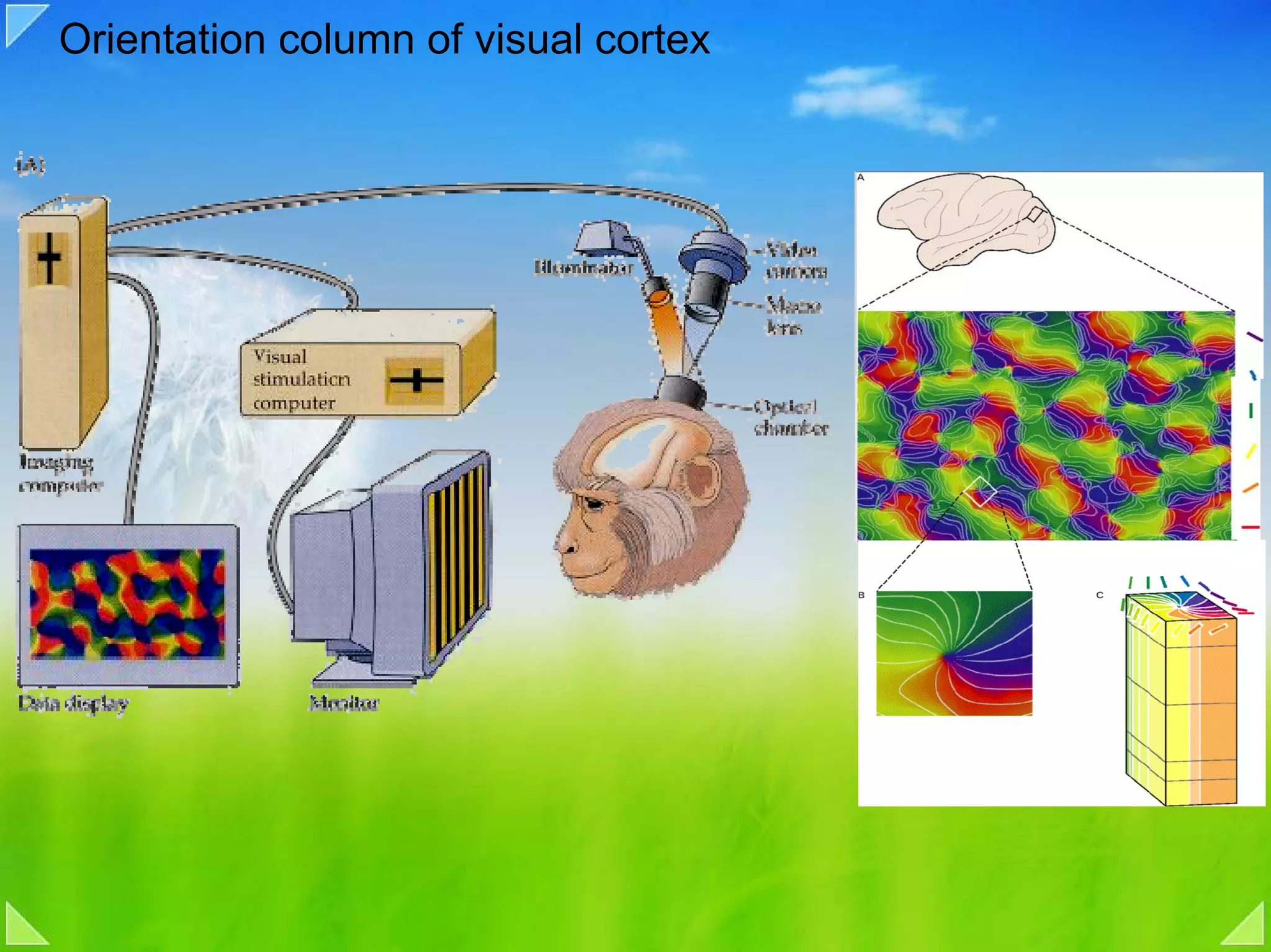

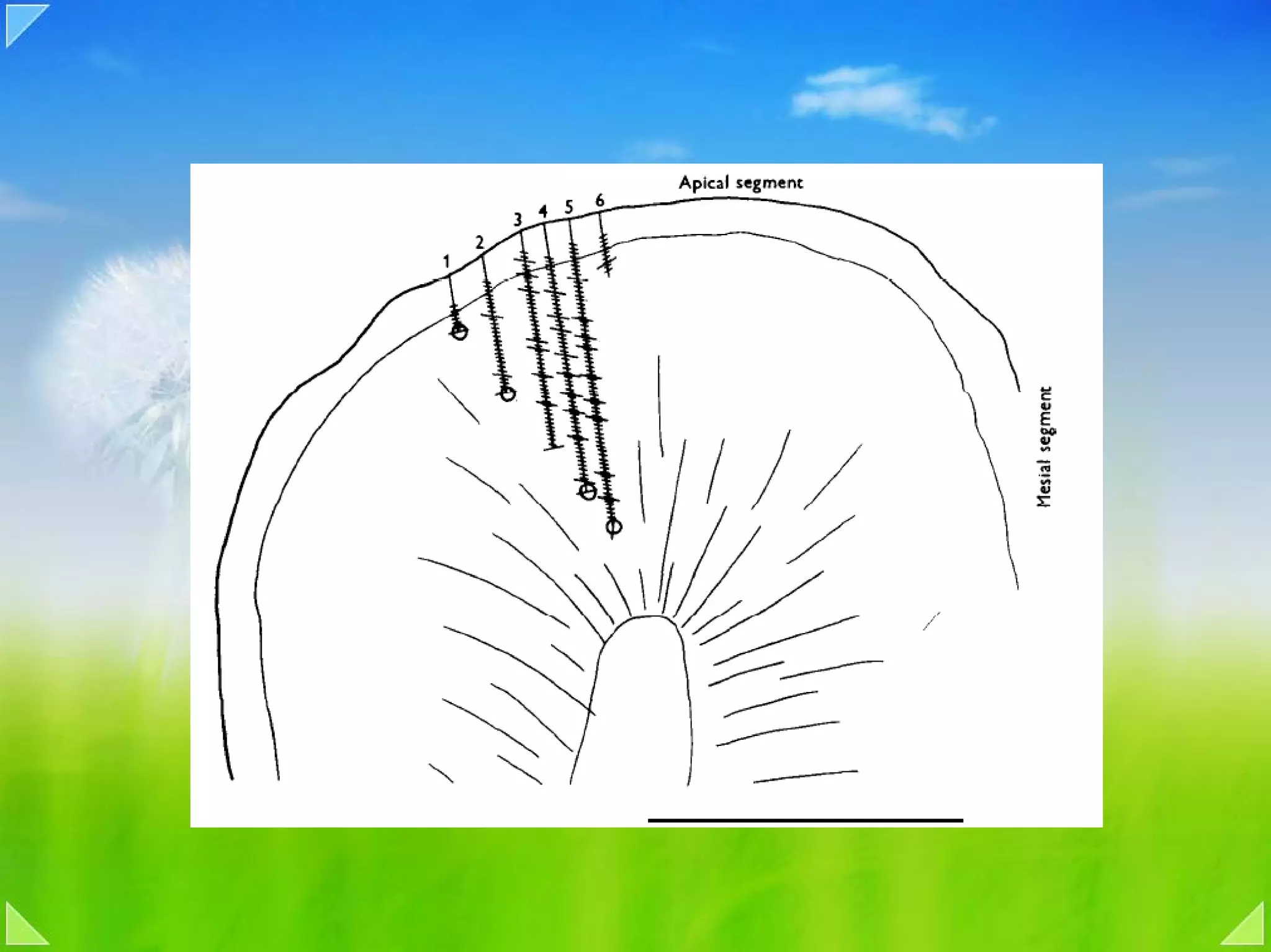

Orientation column of visual cortex

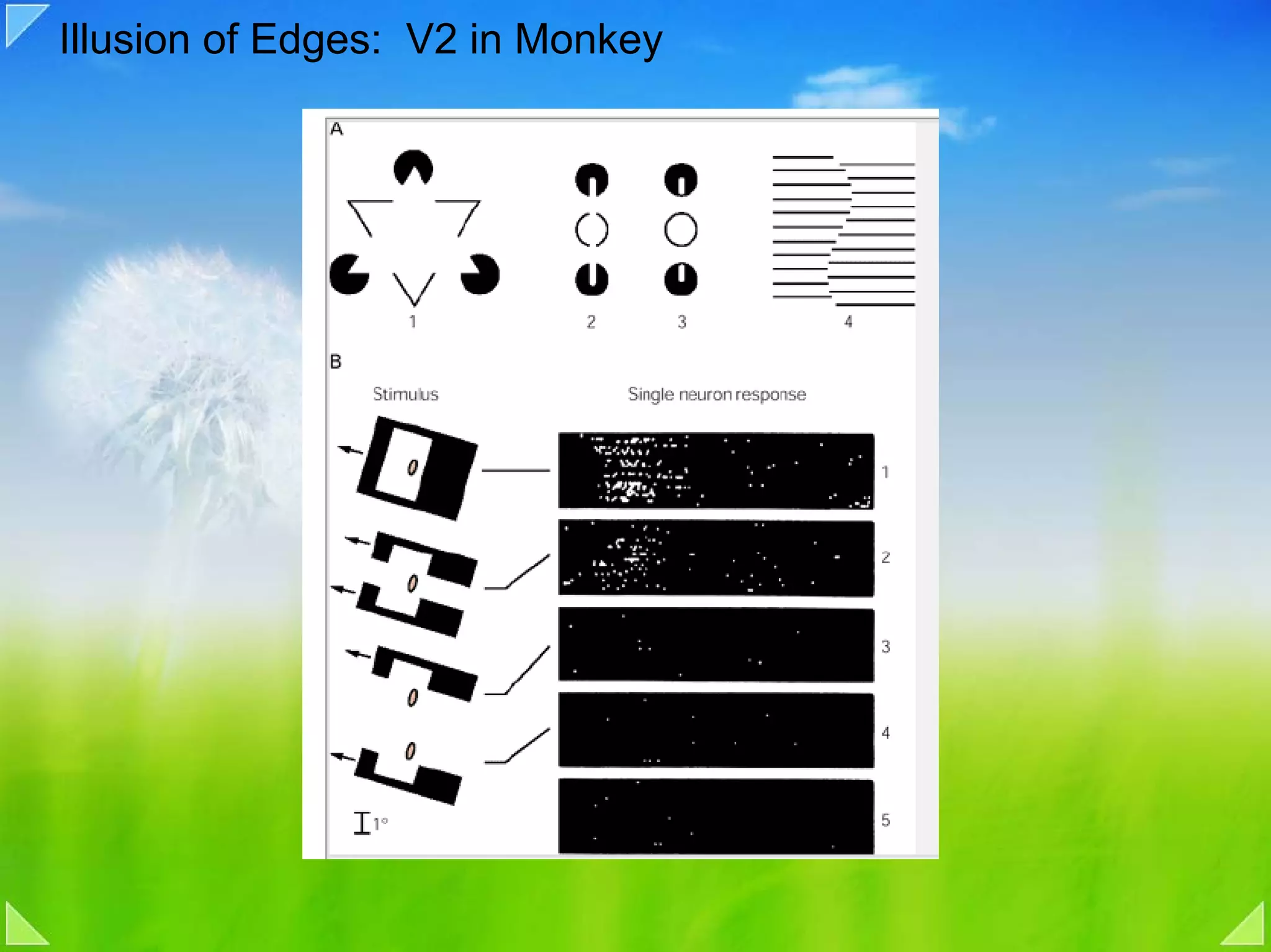

Illusion of Edges: V2 in Monkey

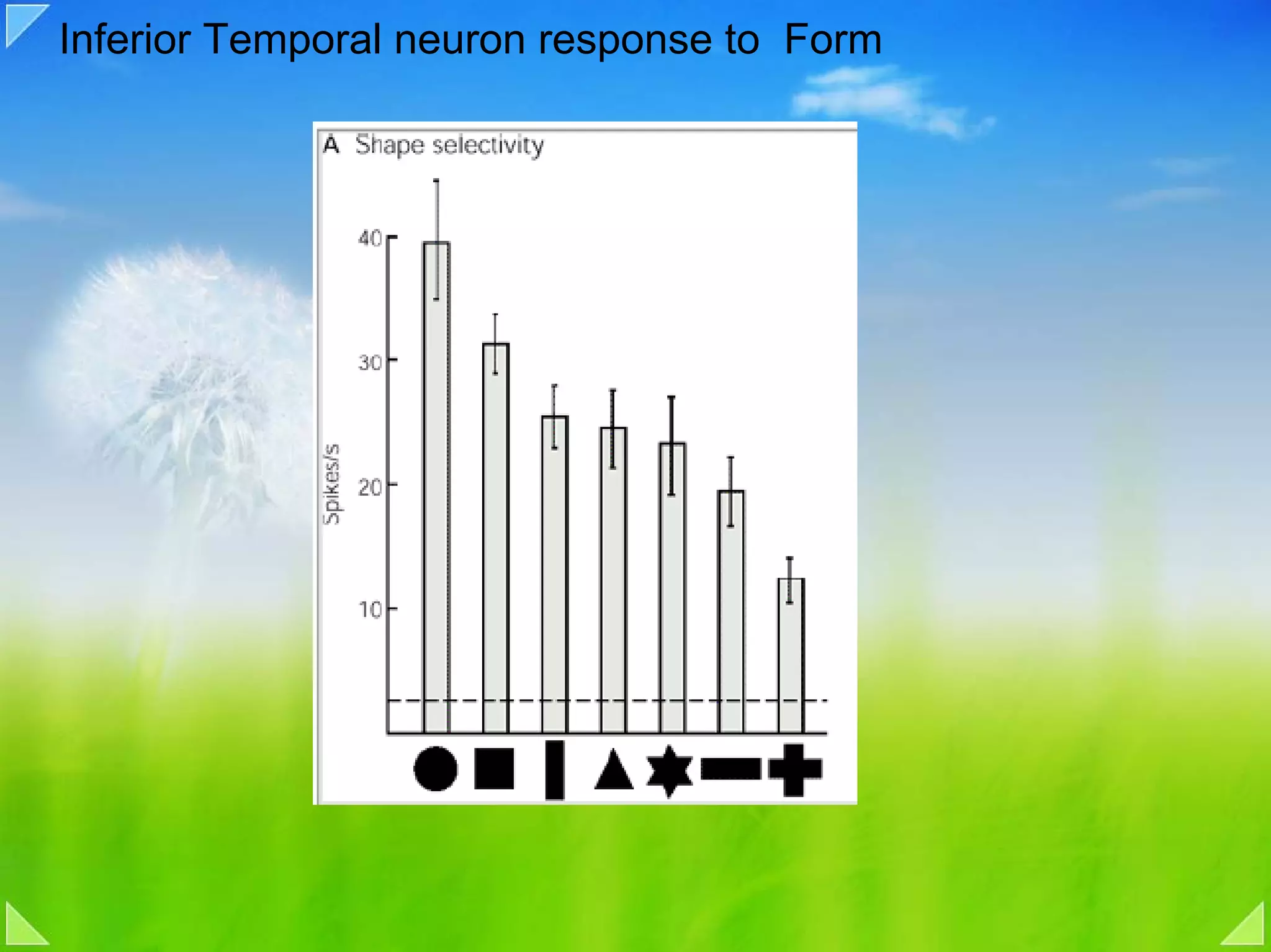

Inferior Temporal neuron response to Form
04b visiual signal processing form shape

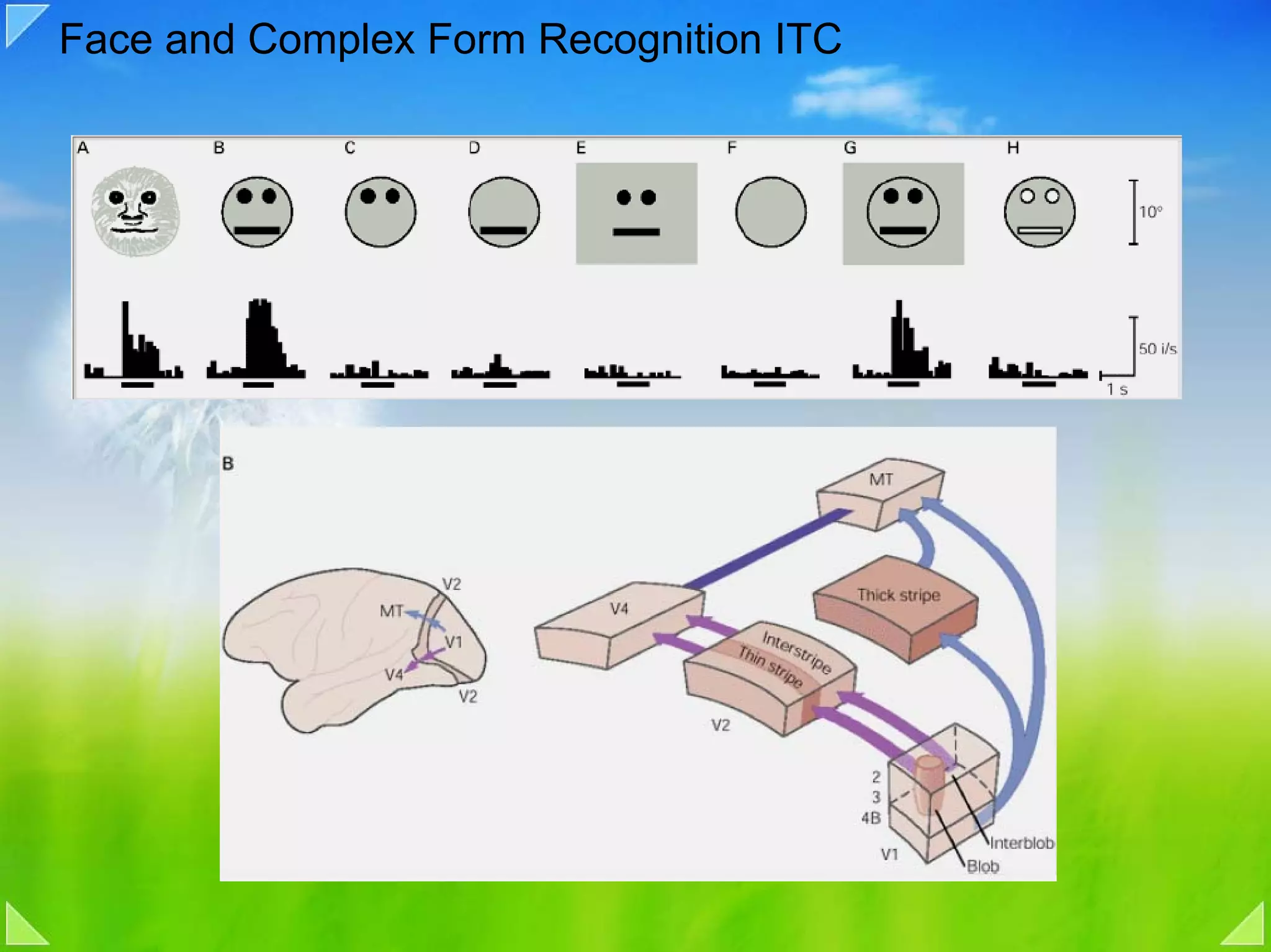

Face and Complex Form Recognition ITC
04b visiual signal processing form shape

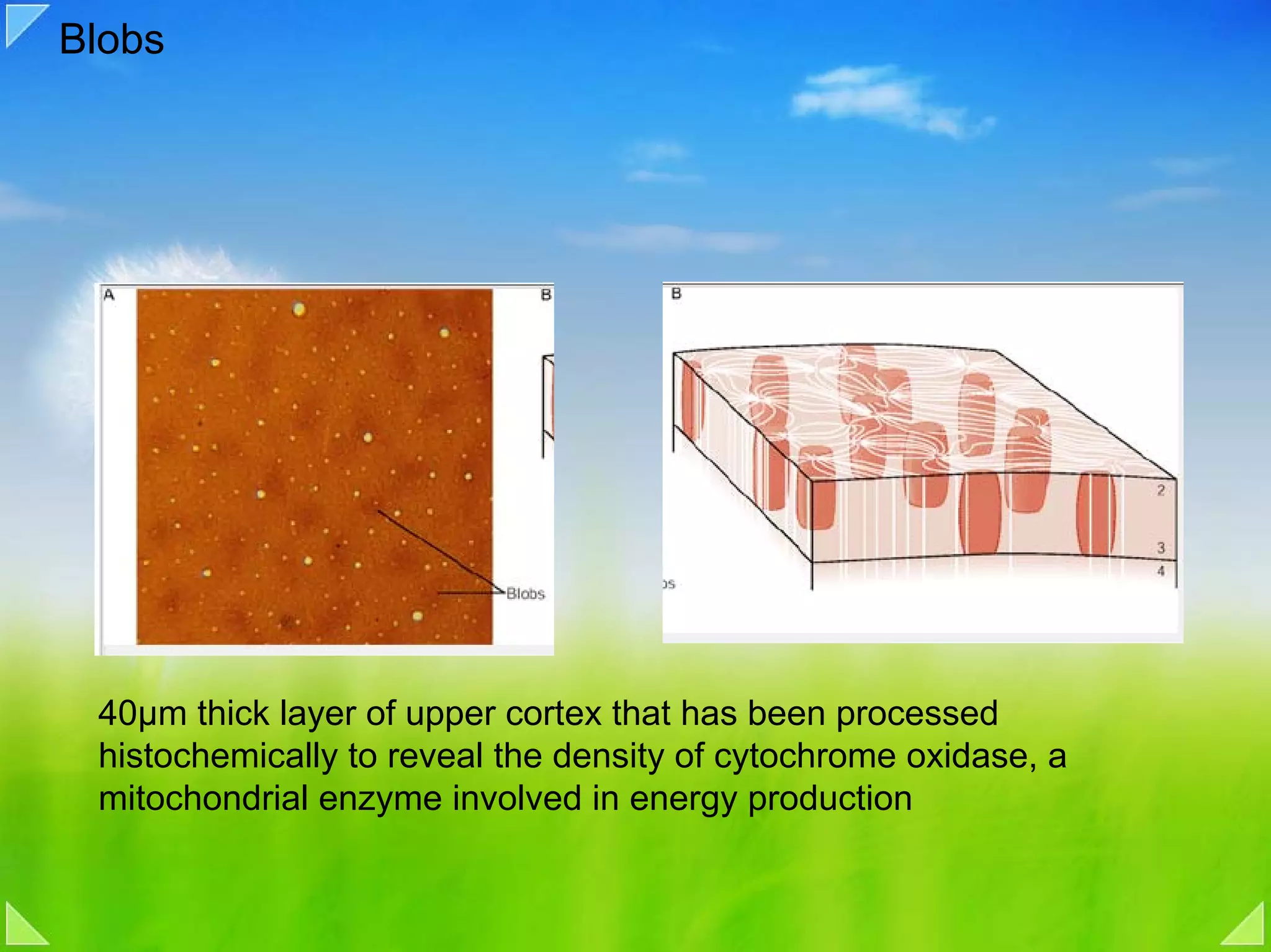

Blobs




 40μm thick layer of upper cortex that has been processed
 histochemically to reveal the density of cytochrome oxidase, a
 mitochondrial enzyme involved in energy production

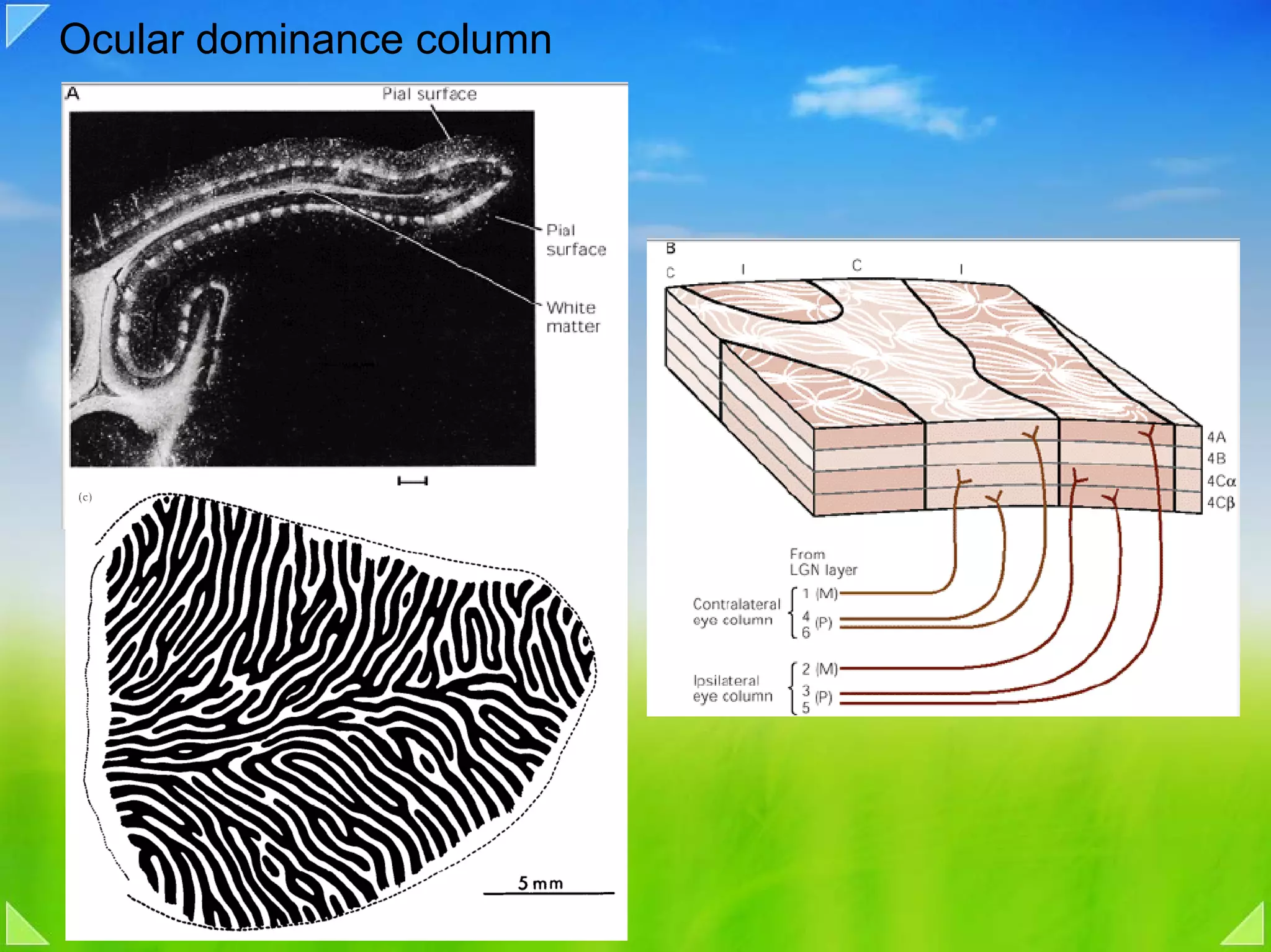

Ocular dominance column
04b visiual signal processing form shape

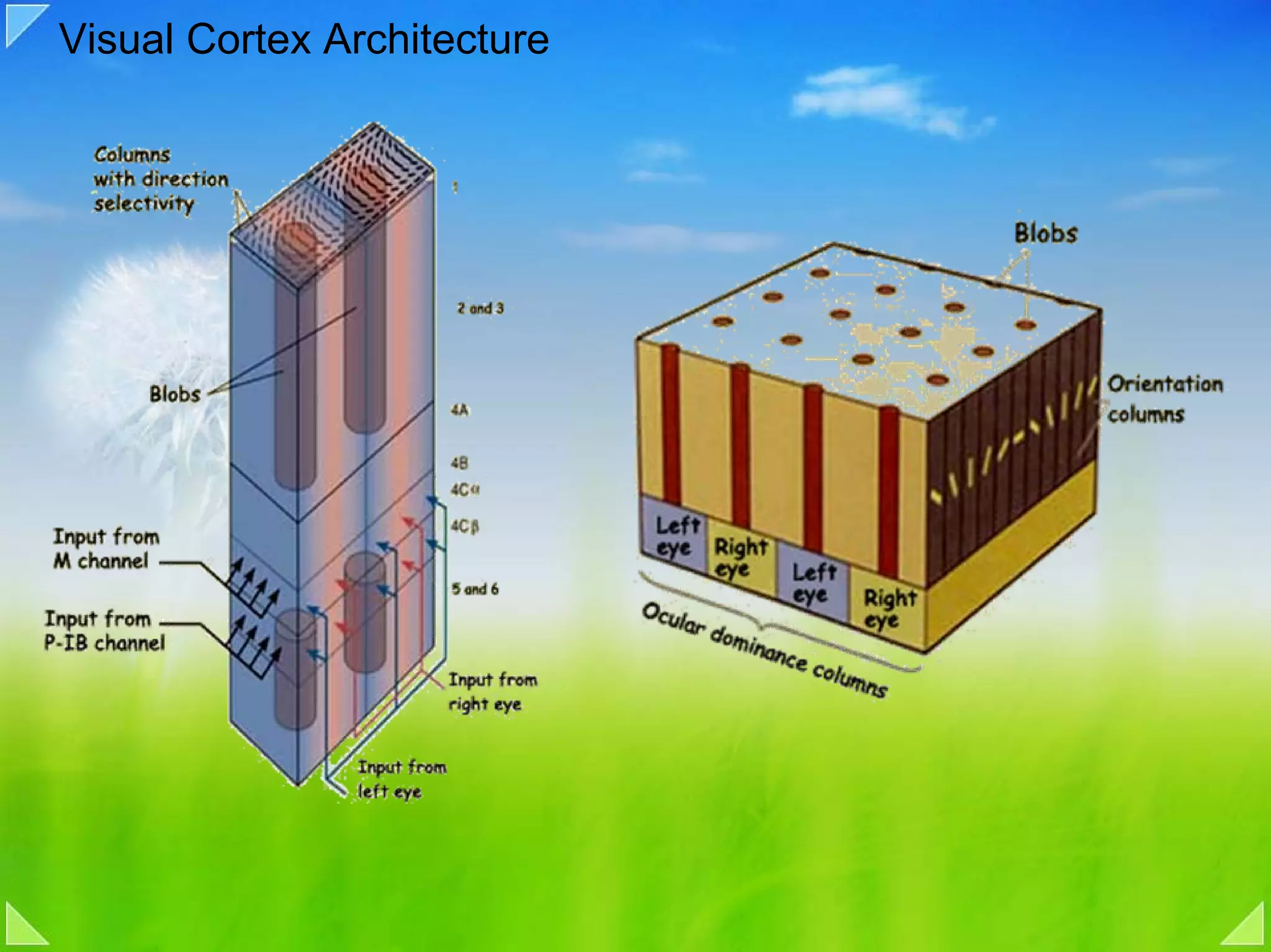

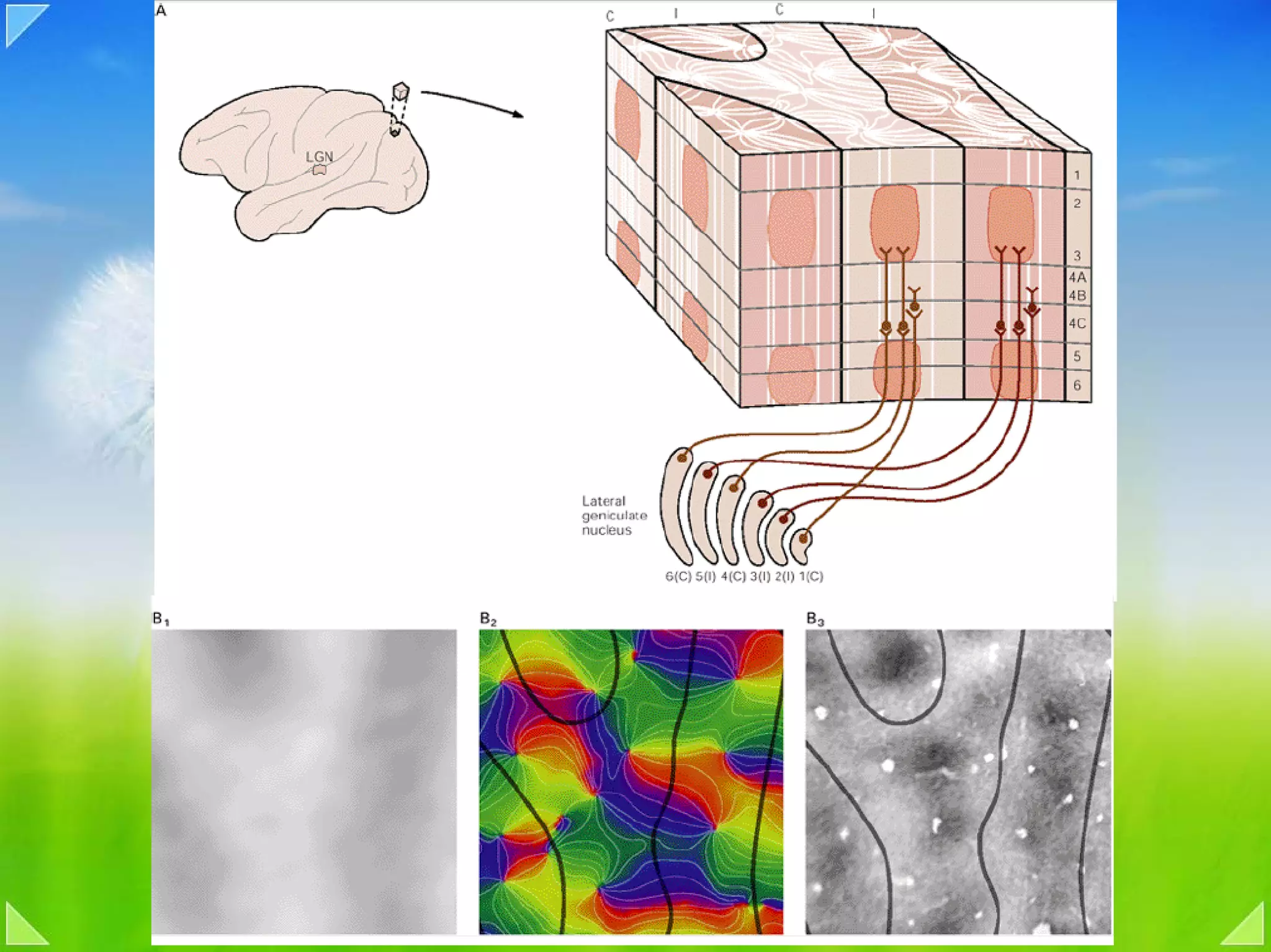

Visual Cortex Architecture

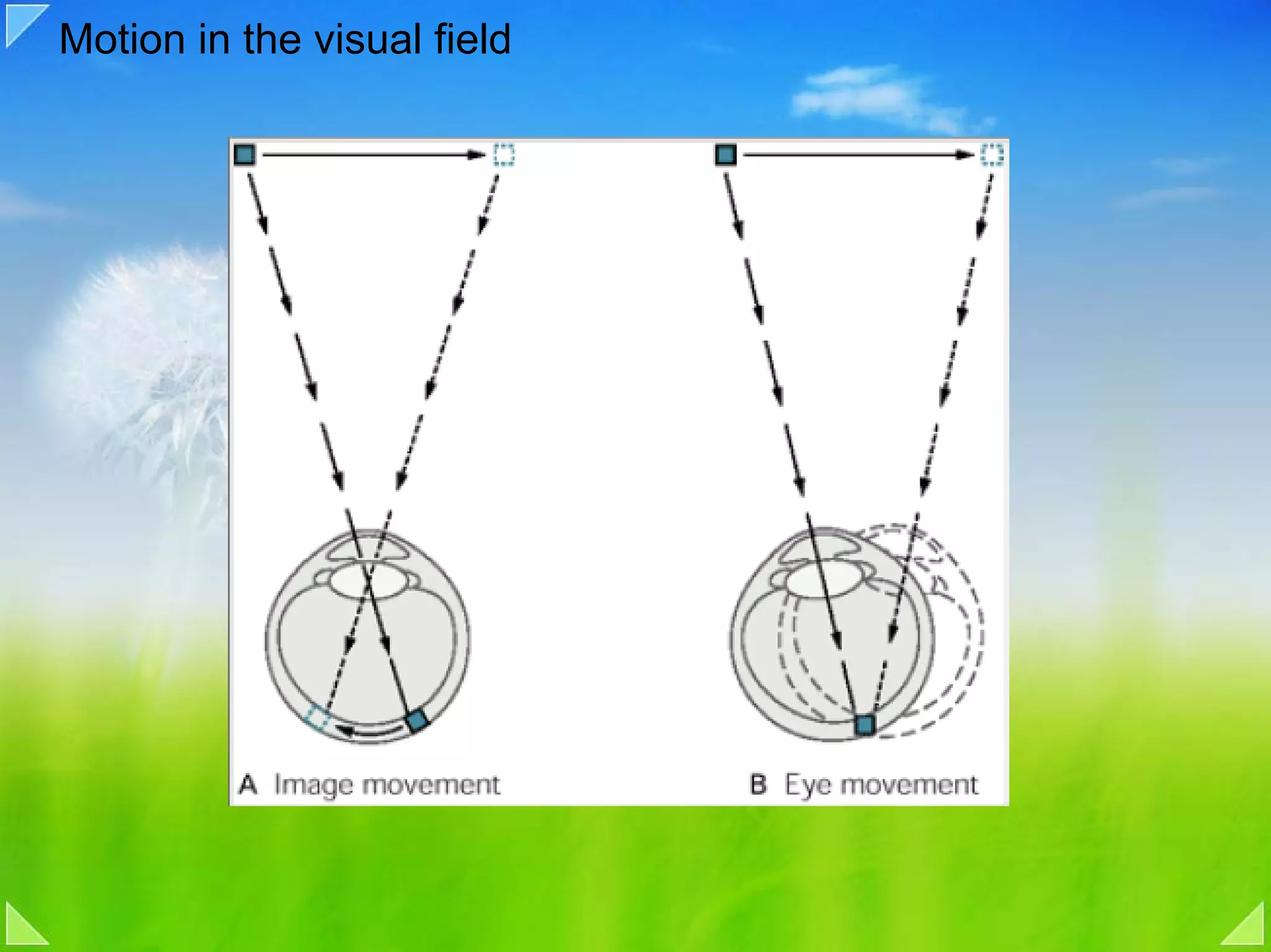

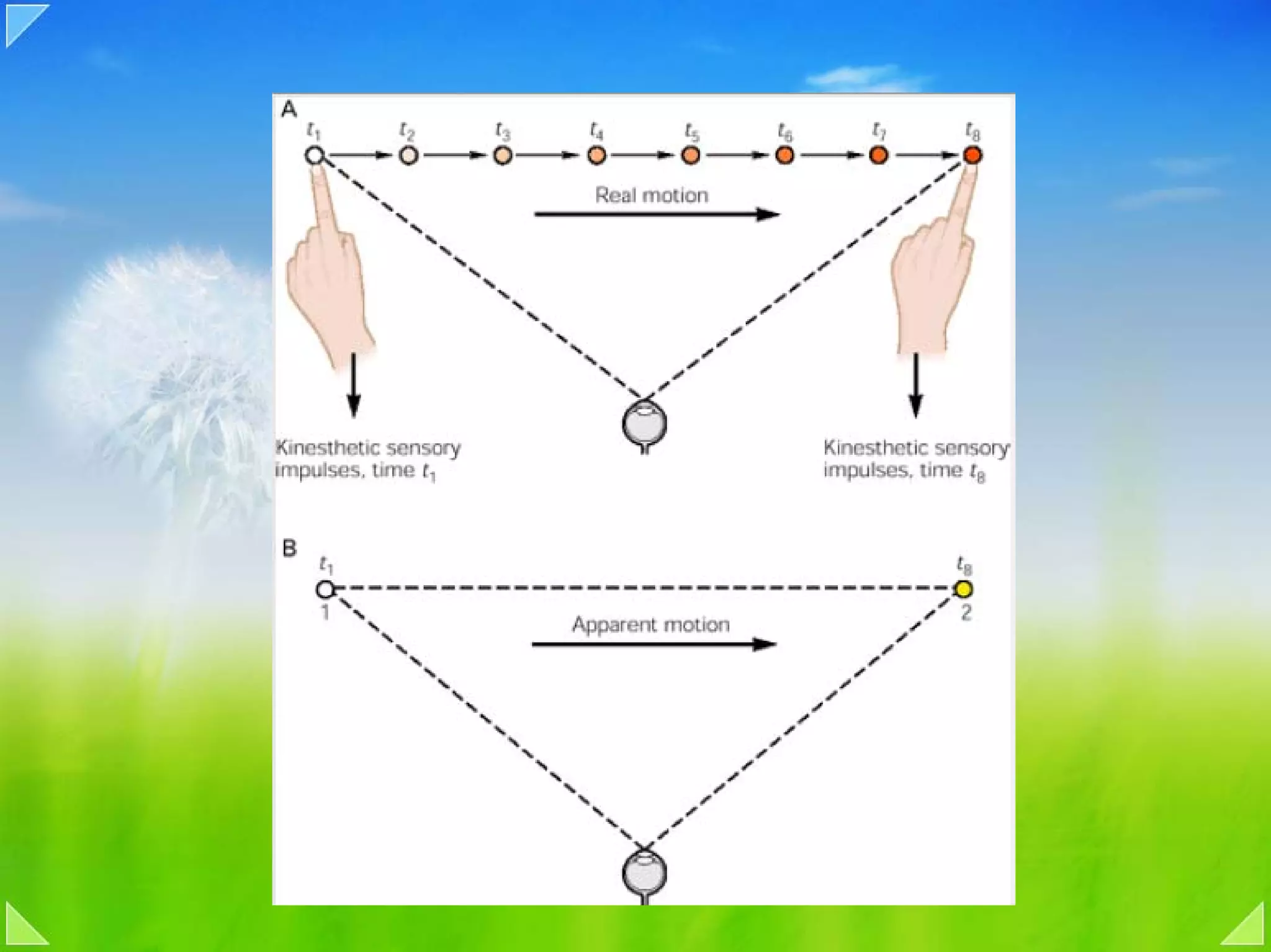

Motion in the visual field
04b visiual signal processing form shape

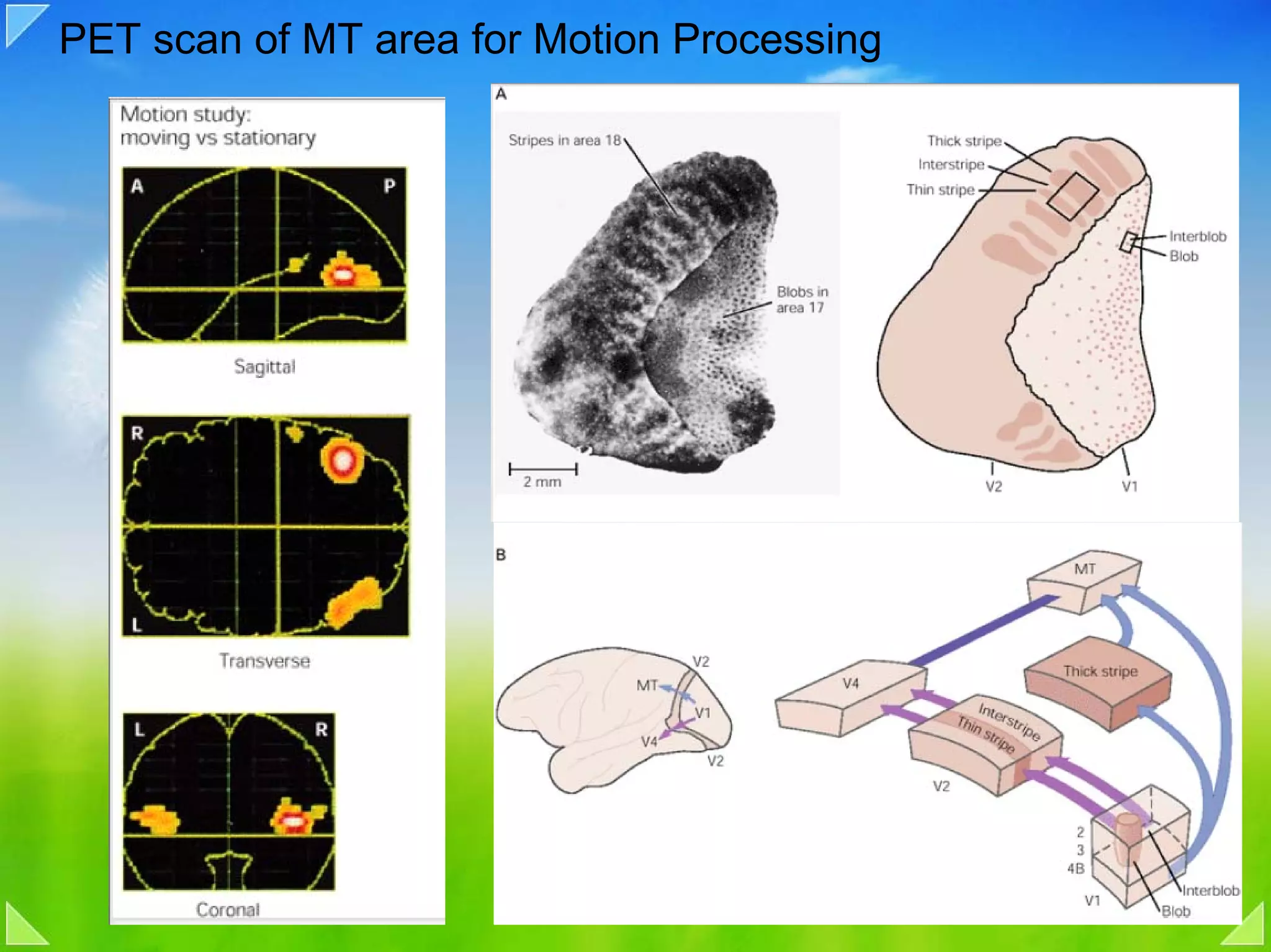

PET scan of MT area for Motion Processing

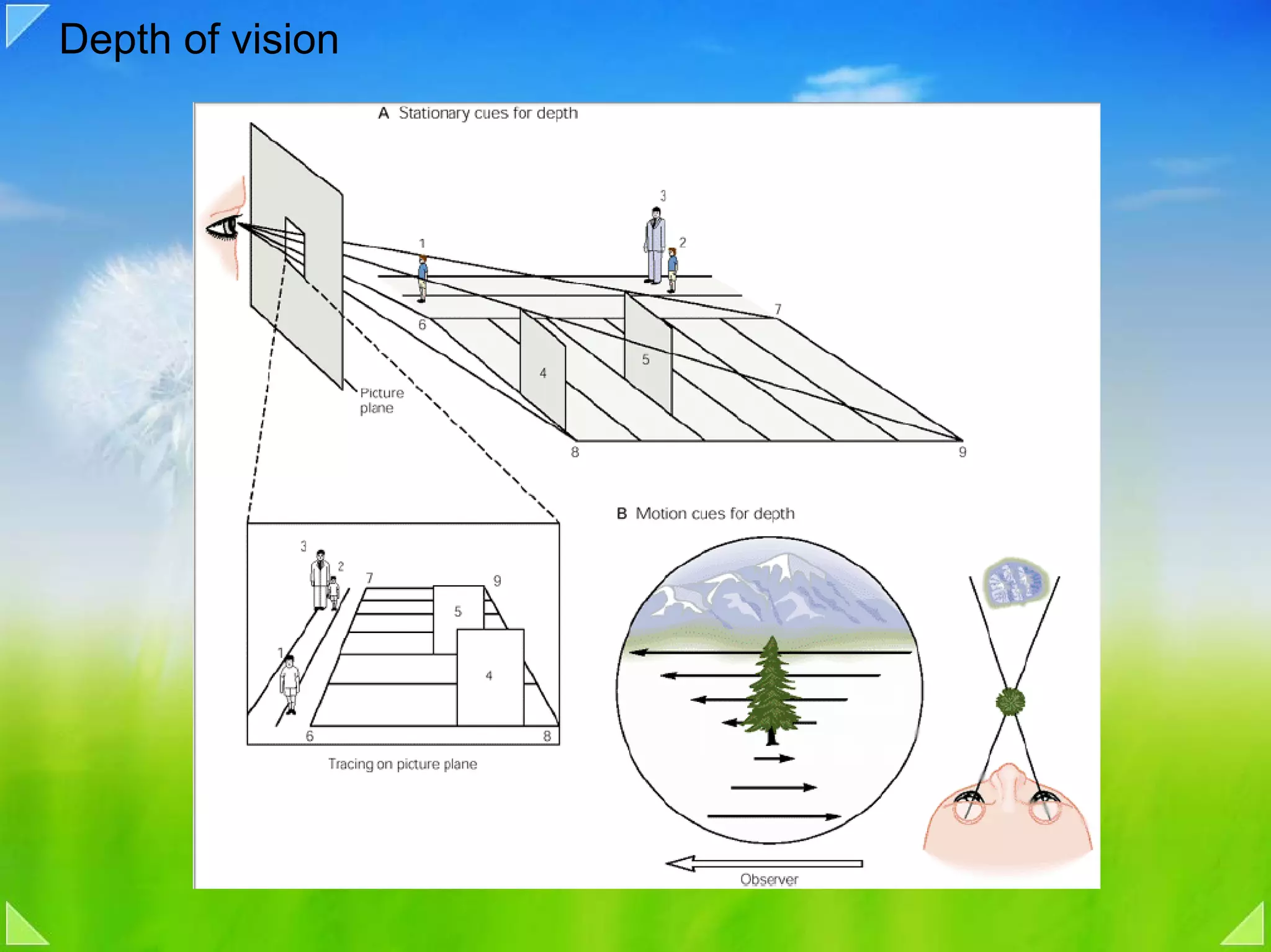

Depth of vision

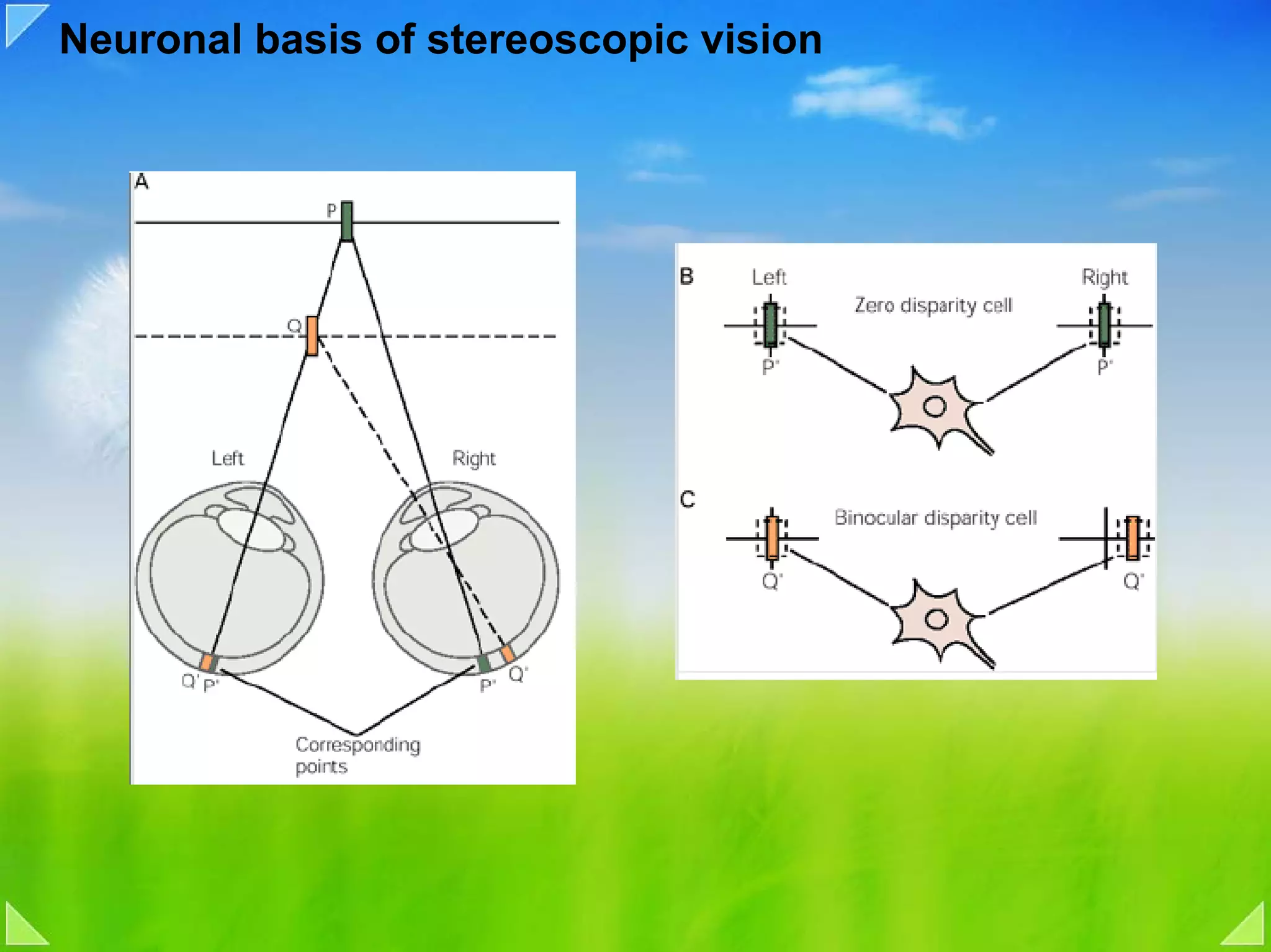

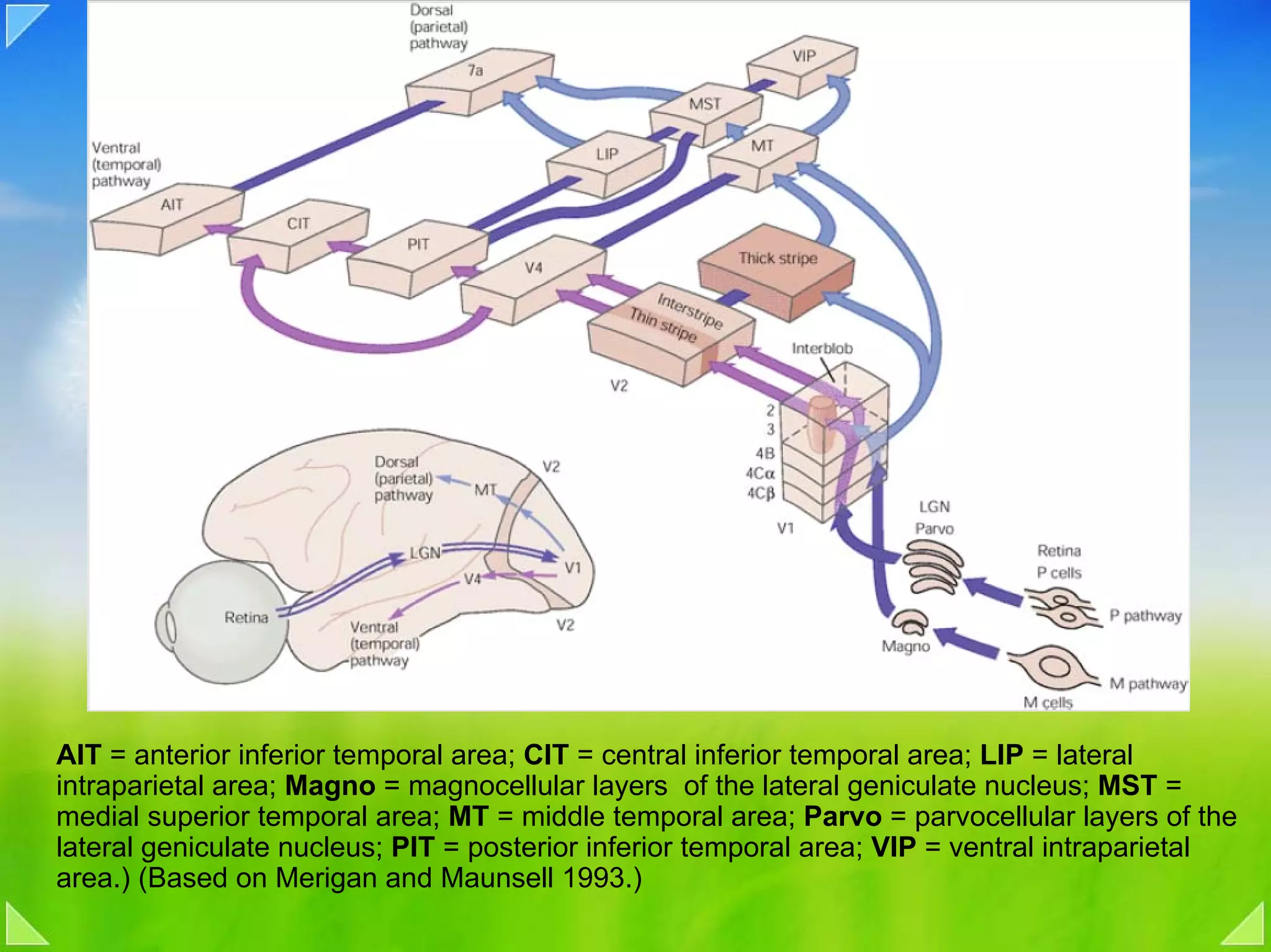

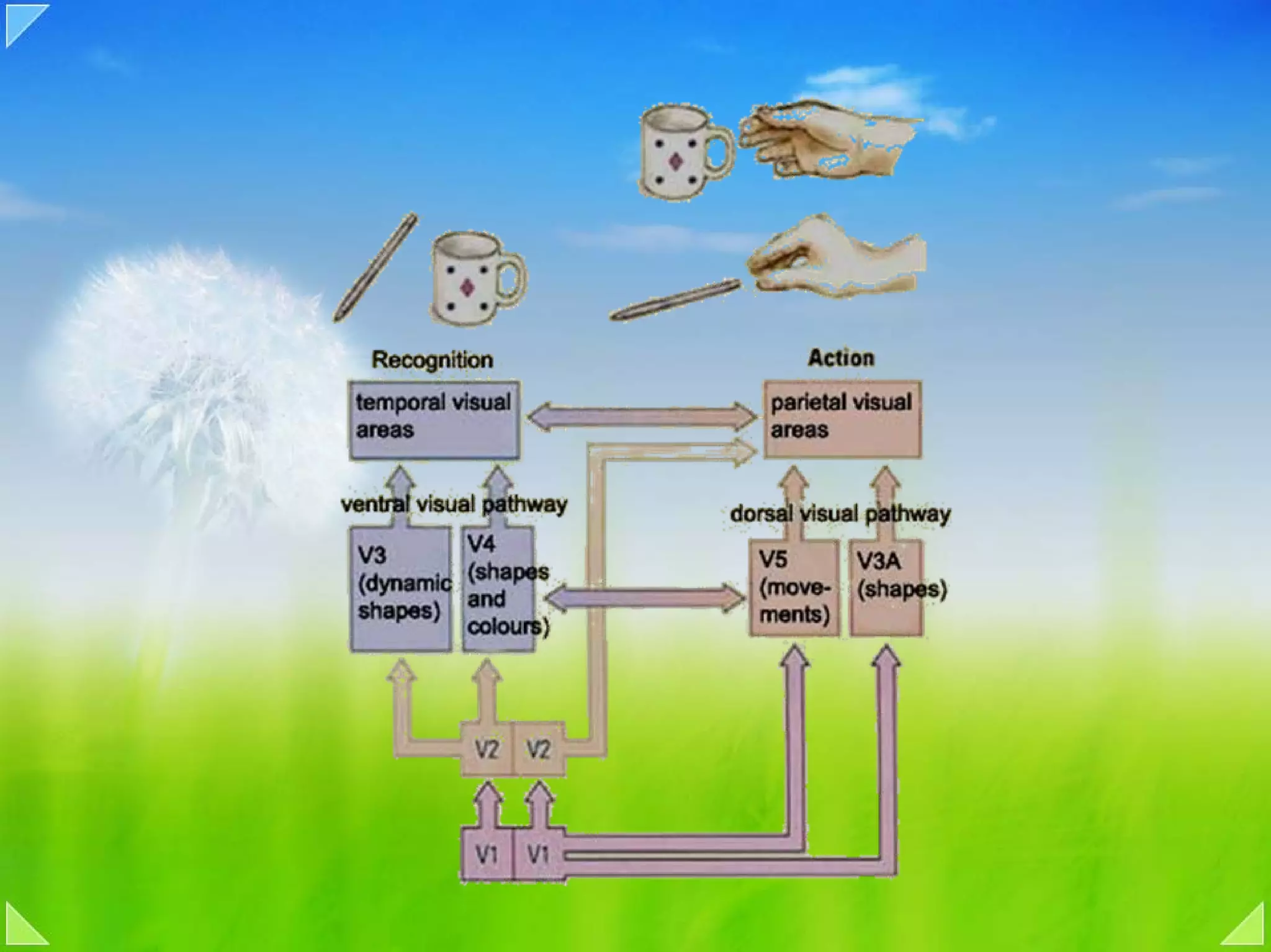

Neuronal basis of stereoscopic vision
AIT = anterior inferior temporal area; CIT = central inferior temporal area; LIP = lateral
intraparietal area; Magno = magnocellular layers of the lateral geniculate nucleus; MST =
medial superior temporal area; MT = middle temporal area; Parvo = parvocellular layers of the
lateral geniculate nucleus; PIT = posterior inferior temporal area; VIP = ventral intraparietal
area.) (Based on Merigan and Maunsell 1993.)
04b visiual signal processing form shape
