1. 2013 © Trivadis
BASEL BERN LAUSANNE ZÜRICH DÜSSELDORF FRANKFURT A.M. FREIBURG I.BR. HAMBURG MÜNCHEN STUTTGART WIEN
Microsoft Azure Development
Stefan Geiger
Gerry Keune
@trivadis.com
12.06.2014
Development
1

2. 2013 © Trivadis

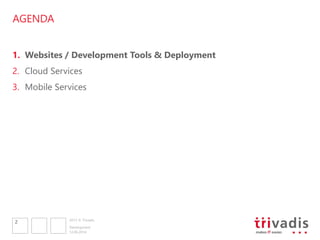

AGENDA
1. Websites / Development Tools & Deployment
2. Cloud Services
3. Mobile Services
12.06.2014
Development
2

3. 2013 © Trivadis

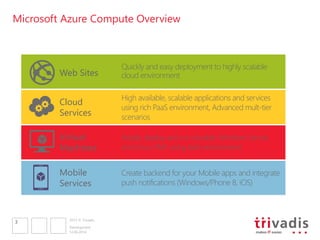

Microsoft Azure Compute Overview
12.06.2014
Development
3
Web Sites
Quickly and easy deployment to highly scalable
cloud environment
Cloud
Services
High available, scalable applications and services
using rich PaaS environment, Advanced mult-tier
scenarios
Virtual
Machines
Eeasily deploy and run durable Windows Server
and Linux VM’s using IaaS environment
Mobile
Services
Create backend for your Mobile apps and integrate
push notifications (Windows/Phone 8, iOS)

4. 2013 © Trivadis

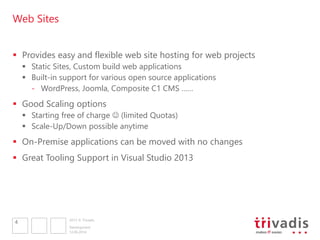

Web Sites
 Provides easy and flexible web site hosting for web projects
 Static Sites, Custom build web applications
 Built-in support for various open source applications
- WordPress, Joomla, Composite C1 CMS ……
 Good Scaling options
 Starting free of charge  (limited Quotas)
 Scale-Up/Down possible anytime
 On-Premise applications can be moved with no changes
 Great Tooling Support in Visual Studio 2013
12.06.2014
Development
4

5. 2013 © Trivadis

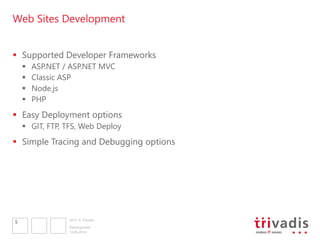

Web Sites Development
 Supported Developer Frameworks
 ASP.NET / ASP.NET MVC
 Classic ASP
 Node.js
 PHP
 Easy Deployment options
 GIT, FTP, TFS, Web Deploy
 Simple Tracing and Debugging options
12.06.2014
Development
5

6. 2013 © Trivadis

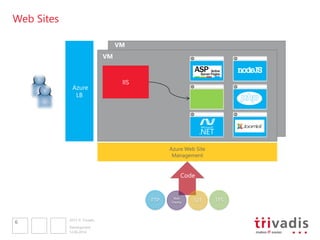

VM
Azure Web Site
Management
Web Sites
12.06.2014
Development
6
IIS
Azure
LB
Code
VM

7. 2013 © Trivadis
12.06.2014
Development
7
Demo
Web Sites

8. 2013 © Trivadis

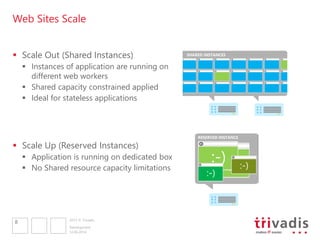

Web Sites Scale
 Scale Out (Shared Instances)
 Instances of application are running on
different web workers
 Shared capacity constrained applied
 Ideal for stateless applications
 Scale Up (Reserved Instances)
 Application is running on dedicated box
 No Shared resource capacity limitations
12.06.2014
Development
8

9. 2013 © Trivadis

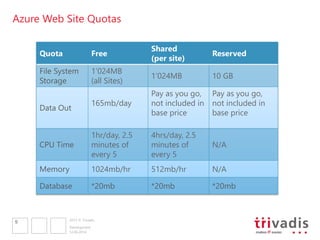

Azure Web Site Quotas
12.06.2014
Development
9
Quota Free
Shared
Reserved
1’024MB
(all Sites)
1’024MB 10 GB
165mb/day
Pay as you go,
not included in
base price
Pay as you go,
not included in
base price
1hr/day, 2.5
minutes of
every 5
4hrs/day, 2.5
minutes of
every 5
N/A
1024mb/hr 512mb/hr N/A

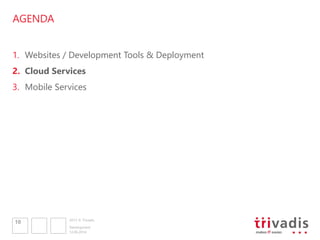

10. 2013 © Trivadis
AGENDA
1. Websites / Development Tools & Deployment
2. Cloud Services
3. Mobile Services
12.06.2014
Development
10

11. 2013 © Trivadis

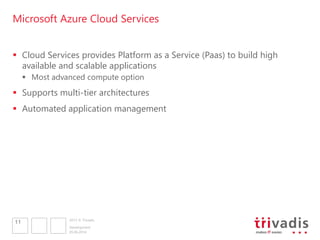

Microsoft Azure Cloud Services
 Cloud Services provides Platform as a Service (Paas) to build high
available and scalable applications
 Most advanced compute option
 Supports multi-tier architectures
 Automated application management
05.06.2014
Development
11

12. 2013 © Trivadis

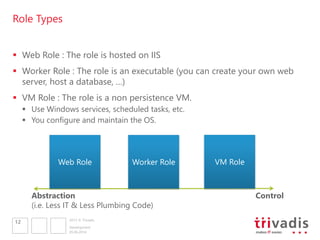

Role Types
 Web Role : The role is hosted on IIS
 Worker Role : The role is an executable (you can create your own web
server, host a database, …)
 VM Role : The role is a non persistence VM.
 Use Windows services, scheduled tasks, etc.
 You configure and maintain the OS.
05.06.2014
Development
12
Abstraction Control
(i.e. Less IT & Less Plumbing Code)
Worker Role VM RoleWeb Role

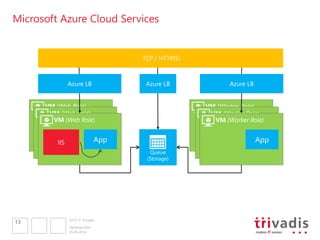

13. 2013 © Trivadis
VM (Worker Role)
VM (Worker Role)
VM (Web Role)
VM (Web Role)
VM (Web Role)
VM
Microsoft Azure Cloud Services
05.06.2014
Development
13
IIS
TCP / HTTP(S)
VM (Worker Role)
Azure LB Azure LBAzure LB

14. 2013 © Trivadis

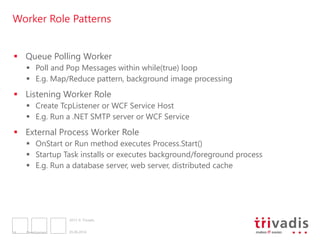

Worker Role Patterns
 Queue Polling Worker
 Poll and Pop Messages within while(true) loop
 E.g. Map/Reduce pattern, background image processing
 Listening Worker Role
 Create TcpListener or WCF Service Host
 E.g. Run a .NET SMTP server or WCF Service
 External Process Worker Role
 OnStart or Run method executes Process.Start()
 Startup Task installs or executes background/foreground process
 E.g. Run a database server, web server, distributed cache
14 Development 05.06.2014

15. 2013 © Trivadis
Microsoft Azure Cloud Services
 Windows Server 2008/R2, 2012/R2 (64bit)
 .NET 4.0 and .NET 4.5
 Full Trust
 IIS7 - 8 Web Sites (ASP.NET, FastCGI)
 Web Services (WCF)
 Stateless Servers
 HTTP(S), TCP
05.06.2014
Development
15

16. 2013 © Trivadis
Cloud Services vs Web Sites
 Cloud Services allows administrative access to your application’s VMs.
 Install arbitrary software that your application needs
 Cloud Services allow Remote Desktop connections directly to an
application’s VMs
 Cloud Services allow networking technologies such as Microsoft Azure
Virtual Network and Microsoft Azure Connect to hook on-premises
computers to Cloud Services applications.
12.06.2014
Development
16

17. 2013 © Trivadis
AGENDA
1. Websites / Development Tools & Deployment
2. Cloud Services
3. Mobile Services
12.06.2014
Development
17

18. 2013 © Trivadis

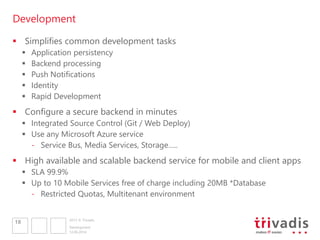

Development
12.06.2014
Development
18
 Simplifies common development tasks
 Application persistency
 Backend processing
 Push Notifications
 Identity
 Rapid Development
 Configure a secure backend in minutes
 Integrated Source Control (Git / Web Deploy)
 Use any Microsoft Azure service
- Service Bus, Media Services, Storage…..
 High available and scalable backend service for mobile and client apps
 SLA 99.9%
 Up to 10 Mobile Services free of charge including 20MB *Database
- Restricted Quotas, Multitenant environment

19. 2013 © Trivadis

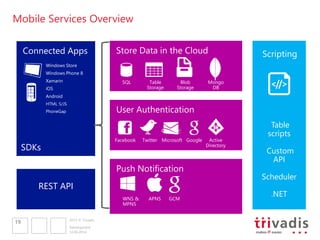

Mobile Services Overview
12.06.2014
Development
19
SDKs
Table
scripts
Custom
API
Scheduler
.NET
Facebook Twitter Microsoft Google Active
Directory
SQL Table
Storage
Blob
Storage
WNS &
MPNS
APNS GCM
Mongo
DB
Windows Store
Windows Phone 8
Xamarin
iOS
Android
HTML 5/JS
PhoneGap
REST API
Scripting

20. 2013 © Trivadis

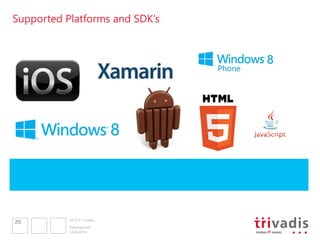

Supported Platforms and SDK’s
12.06.2014
Development
20

21. 2013 © Trivadis

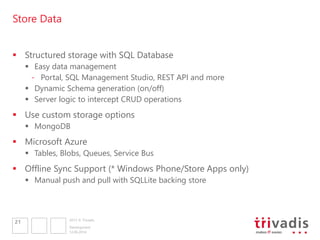

Store Data
 Structured storage with SQL Database
 Easy data management
- Portal, SQL Management Studio, REST API and more
 Dynamic Schema generation (on/off)
 Server logic to intercept CRUD operations
 Use custom storage options
 MongoDB
 Microsoft Azure
 Tables, Blobs, Queues, Service Bus
 Offline Sync Support (* Windows Phone/Store Apps only)
 Manual push and pull with SQLLite backing store
12.06.2014
Development
21

22. 2013 © Trivadis

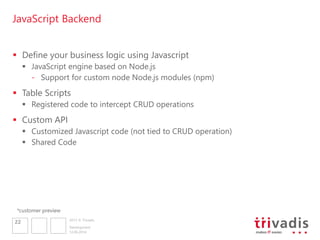

JavaScript Backend
 Define your business logic using Javascript
 JavaScript engine based on Node.js
- Support for custom node Node.js modules (npm)
 Table Scripts
 Registered code to intercept CRUD operations
 Custom API
 Customized Javascript code (not tied to CRUD operation)
 Shared Code
12.06.2014
Development
22
*customer preview

23. 2013 © Trivadis

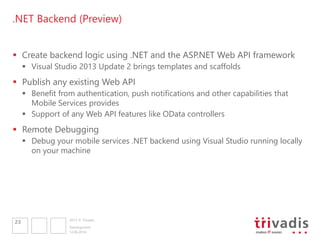

.NET Backend (Preview)
 Create backend logic using .NET and the ASP.NET Web API framework
 Visual Studio 2013 Update 2 brings templates and scaffolds
 Publish any existing Web API
 Benefit from authentication, push notifications and other capabilities that
Mobile Services provides
 Support of any Web API features like OData controllers
 Remote Debugging
 Debug your mobile services .NET backend using Visual Studio running locally
on your machine
12.06.2014
Development
23

24. 2013 © Trivadis
Authentication
 Supports for various authentication options
 Use existing identity system
- LiveID, Facebook, Twitter, Google
 Outsource identity management
- Windows Azure AD & ACS
 Create your own
- Username/password, token…
 Permissions for each CRUD operation
 Everyone
 Anyone with the Application Key
 Only Authenticated Users
 Only Scripts and Admins
12.06.2014
Development
24

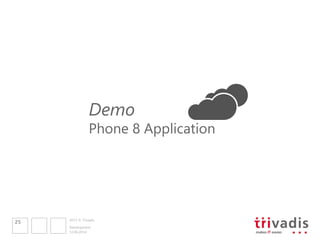

25. 2013 © Trivadis
12.06.2014
Development
25
Demo
Phone 8 Application

26. 2013 © Trivadis

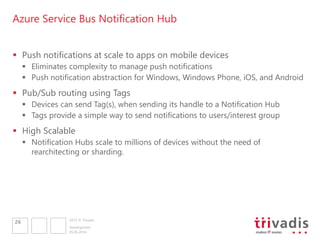

Azure Service Bus Notification Hub
 Push notifications at scale to apps on mobile devices
 Eliminates complexity to manage push notifications
 Push notification abstraction for Windows, Windows Phone, iOS, and Android
 Pub/Sub routing using Tags
 Devices can send Tag(s), when sending its handle to a Notification Hub
 Tags provide a simple way to send notifications to users/interest group
 High Scalable
 Notification Hubs scale to millions of devices without the need of
rearchitecting or sharding.
05.06.2014
Development
26

27. 2013 © Trivadis

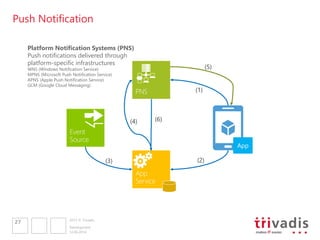

Push Notification
12.06.2014
Development
27
Platform Notification Systems (PNS)
Push notifications delivered through
platform-specific infrastructures
WNS (Windows Notification Service)
MPNS (Microsoft Push Notification Service)
APNS (Apple Push Notification Service)
GCM (Google Cloud Messaging)

28. 2013 © Trivadis
{“aps”: {“alert” : “Hello!” }}

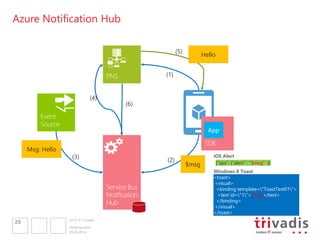

Azure Notification Hub
05.06.2014
Development
28
$msg
Msg: Hello
Hello
<toast>
<visual>
<binding template="ToastText01">
<text id="1">Hello!</text>
</binding>
</visual>
</toast>
iOS Alert
Windows 8 Toast
{“aps”: {“alert” : “$msg” }}
<toast>
<visual>
<binding template="ToastText01">
<text id="1">$msg</text>
</binding>
</visual>
</toast>

29. 2013 © Trivadis
12.06.2014
Development
29

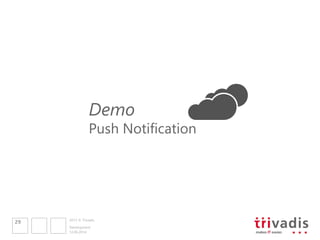

Demo
Push Notification

30. 2013 © Trivadis

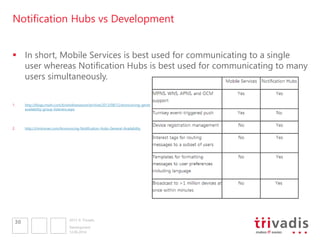

Notification Hubs vs Development
 In short, Mobile Services is best used for communicating to a single
user whereas Notification Hubs is best used for communicating to many
users simultaneously.
1. http://blogs.msdn.com/b/windowsazure/archive/2013/08/12/announcing-general-availability-of-windows-azure-notification-hubs-amp-support-for-sql-server-alwayson-
availability-group-listeners.aspx
2. http://chrisrisner.com/Announcing-Notification-Hubs-General-Availability
12.06.2014
Development
30

31. 2013 © Trivadis

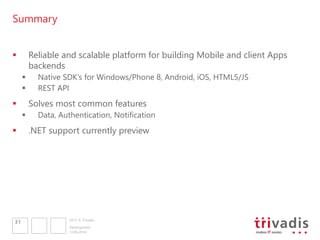

Summary
 Reliable and scalable platform for building Mobile and client Apps
backends
 Native SDK’s for Windows/Phone 8, Android, iOS, HTML5/JS
 REST API
 Solves most common features
 Data, Authentication, Notification
 .NET support currently preview
12.06.2014
Development
31

32. 2013 © Trivadis
