1. Windows Azure Platform Raj Ramabadran rajramab@microsoft.com http://rajramabadran.wordpress.com

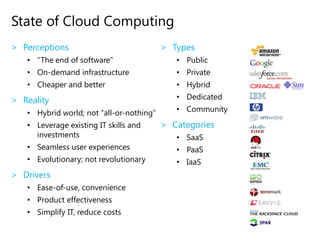

2. State of Cloud Computing Perceptions “The end of software” On-demand infrastructure Cheaper and better Reality Hybrid world; not “all-or-nothing” Leverage existing IT skills and investments Seamless user experiences Evolutionary; not revolutionary Drivers Ease-of-use, convenience Product effectiveness Simplify IT, reduce costs Types Public Private Hybrid Dedicated Community Categories SaaS PaaS IaaS

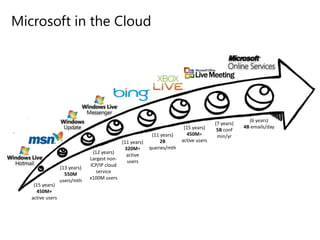

3. Microsoft in the Cloud (6 years) 4B emails/day (7 years) 5B conf min/yr (15 years) 450M+ active users (11 years) 2B queries/mth (11 years) 320M+ active users (12 years) Largest non- ICP/IP cloud service x100M users (13 years) 550M users/mth (15 years) 450M+ active users

4. Bing – “Auto Pilot” Architecture ~100,000 Servers in Multiple Data Centers Data Repositories Web & Structured Data Indices Query Analysis & Processing Front-End UX Internet

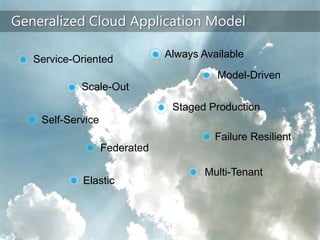

5. Generalized Cloud Application Model Always Available Service-Oriented Model-Driven Scale-Out Staged Production Self-Service Failure Resilient Federated Multi-Tenant Elastic

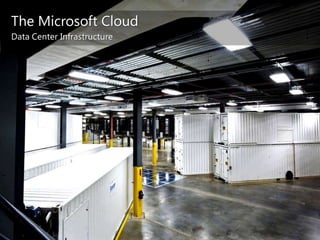

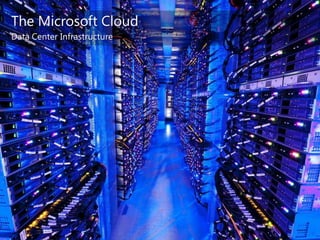

7. The Microsoft Cloud Data Center Infrastructure

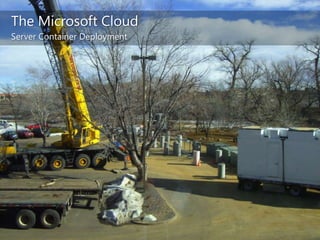

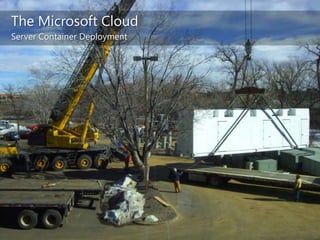

8. The Microsoft Cloud Server Container Deployment

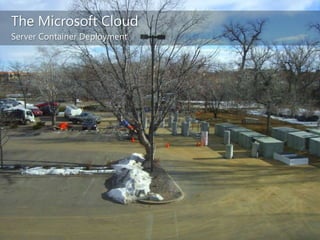

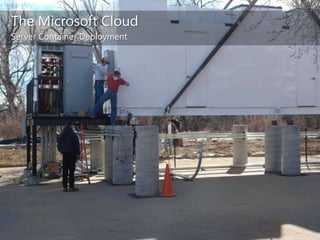

9. The Microsoft Cloud Server Container Deployment

10. The Microsoft Cloud Server Container Deployment

11. The Microsoft Cloud Server Container Deployment

12. The Microsoft Cloud Server Container Deployment

13. The Microsoft Cloud Server Container Deployment

14. The Microsoft Cloud Server Container Deployment

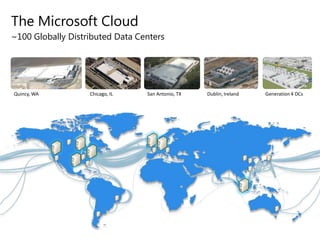

15. The Microsoft Cloud ~100 Globally Distributed Data Centers Quincy, WA Chicago, IL San Antonio, TX Dublin, Ireland Generation 4 DCs

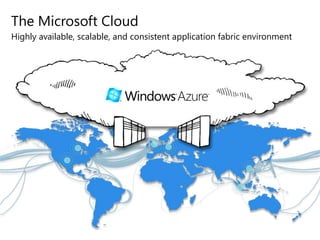

16. The Microsoft Cloud Highly available, scalable, and consistent application fabric environment

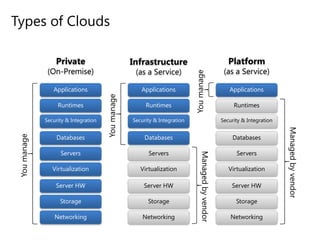

17. Private (On-Premise) Infrastructure (as a Service) Platform (as a Service) Types of Clouds You manage Applications Applications Applications You manage Runtimes Runtimes Runtimes Security & Integration Security & Integration Security & Integration Managed by vendor Databases Databases Databases You manage Servers Servers Servers Managed by vendor Virtualization Virtualization Virtualization Server HW Server HW Server HW Storage Storage Storage Networking Networking Networking

18. Private (On-Premise) Types of Clouds Infrastructure (as a Service) Platform (as a Service)

19. Scalability & Availability Consistency & Control On-premise Public Cloud Real-Time Performance Redundancy & Resiliency Global Reach Security & Privacy Customizability Ease of Provisioning Abstract Resources Physical Resources A Hybrid World Homogeneity Heterogeneity

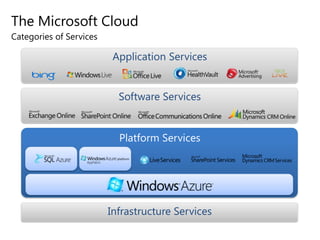

20. Categories of Services Application Services Software Services Platform Services Infrastructure Services The Microsoft Cloud

21. Application Marketplace Information Marketplace Personal Data Repository Application Services Workflow Hosting Distributed Cache Services Hosting Frameworks Claims-Based Identity Federated Identities Secure Token Service Declarative Policies Security Registry On-Premise Bridging Service Bus Connectivity Transact-SQL Data Synchronization Relational Database ADO.NET, ODBC, PHP Data Compute C / C++ Win32 VHD Dynamic Tabular Data Blobs Message Queues Distributed File System Content Distribution Storage Windows Azure Platform

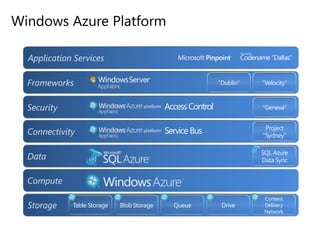

22. Application Services “Dublin” “Velocity” Frameworks “Geneva” Security Access Control Project “Sydney” Connectivity Service Bus SQL Azure Data Sync Data Compute Windows Azure Platform Table Storage Blob Storage Queue Drive Content Delivery Network Storage

24. Optimized for cloud elasticity

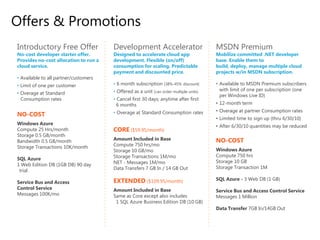

25. Discounts for commitment

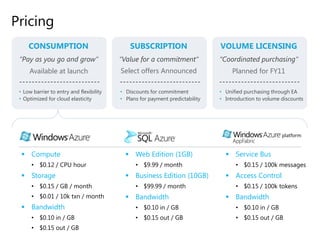

26. Plans for payment predictability

27. Unified purchasing through EA

28. Introduction to volume discounts

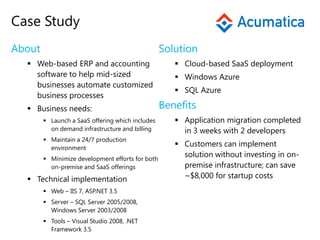

31. Offered as a unit (can order multiple units)

32. Cancel first 30 days; anytime after first 6 months

34. Limit of one per customer

36. 12-month term

37. Overage at partner Consumption rates

38. Limited time to sign up (thru 6/30/10)

39. After 6/30/10 quantities may be reduced NO-COST Windows Azure Compute 750 hrs Storage 10 GB Storage Transaction 1M SQL Azure - 3 Web DB (1 GB) Service Bus and Access Control Service Messages 1 Million Data Transfer 7GB In/14GB Out

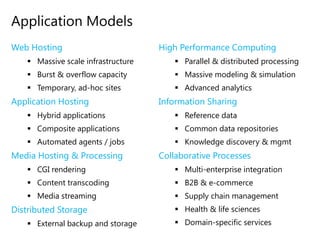

41. Burst & overflow capacity

43. Composite applications

45. Content transcoding

47. Massive modeling & simulation

49. Common data repositories

51. B2B& e-commerce

52. Supply chain management

53. Health & life sciences

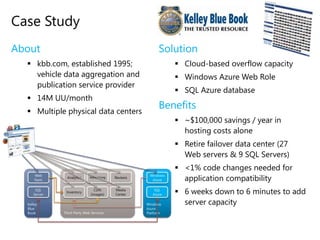

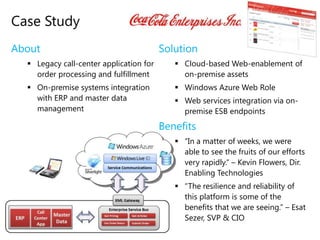

55. 14M UU/month

57. Windows Azure Web Role

59. Retire failover data center (27 Web servers & 9 SQL Servers)

60. <1% code changes needed for application compatibility

63. Windows Azure Web Role

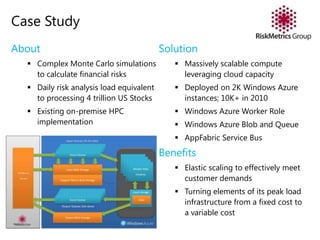

66. Daily risk analysis load equivalent to processing 4 trillion US Stocks

68. Deployed on 2K Windows Azure instances; 10K+ in 2010

69. Windows Azure Worker Role

70. Windows Azure Blob and Queue

74. Windows Azure

78. Cloud-based extensions and services mash-ups with on-premise implementation

79. Windows Azure application

81. 40% faster time-to-market

82. More effective development

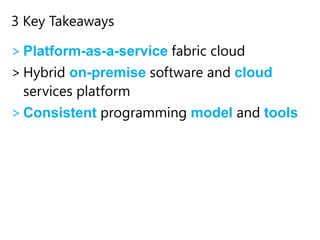

84. 3 Key Takeaways Platform-as-a-service fabric cloud Hybridon-premisesoftware and cloudservices platform Consistentprogramming modeland tools

85. Sign up at the Windows Azure Platform developers’ portal Windows Azure access Developer tools White papers Sample applications Plan pilot applications, proofs of concept, and architectural design sessions with Windows Azure partners http://www.azure.com

86. Thank you rajramab@microsoft.com rajramabadran.wordpress.com © 2009 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries. The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.

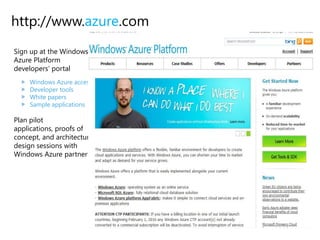

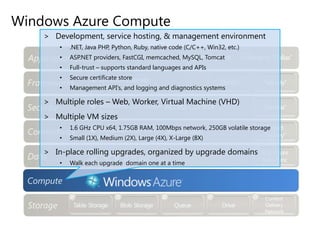

87. Windows Azure Compute Development, service hosting, & management environment .NET, Java PHP, Python, Ruby, native code (C/C++, Win32, etc.) ASP.NET providers, FastCGI, memcached, MySQL, Tomcat Full-trust – supports standard languages and APIs Secure certificate store Management API’s, and logging and diagnostics systems Multiple roles – Web, Worker, Virtual Machine (VHD) Multiple VM sizes 1.6 GHz CPU x64, 1.75GB RAM, 100Mbps network, 250GB volatile storage Small (1X), Medium (2X), Large (4X), X-Large (8X) In-place rolling upgrades, organized by upgrade domains Walk each upgrade domain one at a time Compute

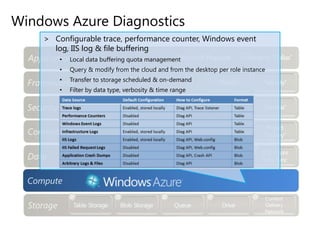

88. Windows Azure Diagnostics Configurable trace, performance counter, Windows event log, IIS log & file buffering Local data buffering quota management Query & modify from the cloud and from the desktop per role instance Transfer to storage scheduled & on-demand Filter by data type, verbosity & time range Compute

89. Windows Azure Storage Rich data abstractions – tables, blobs, queues, drives, CDN Capacity (100TB), throughput (100MB/sec), transactions (1K req/sec) High accessibility Supports geo-location Language & platform agnostic REST APIs URL: http://<account>.<store>.core.windows.net Client libraries for .NET, Java, PHP, etc. High durability – data is replicated 3 times within a cluster, and (Feb 2010) across datacenters High scalability – data is automatically partitioned and load balanced across servers Storage Storage

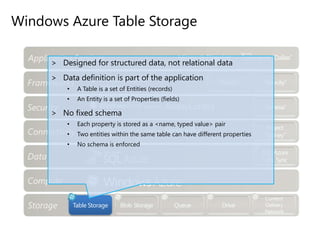

90. Windows Azure Table Storage Designed for structured data, not relational data Data definition is part of the application A Table is a set of Entities (records) An Entity is a set of Properties (fields) No fixed schema Each property is stored as a <name, typed value> pair Two entities within the same table can have different properties No schema is enforced Table Storage

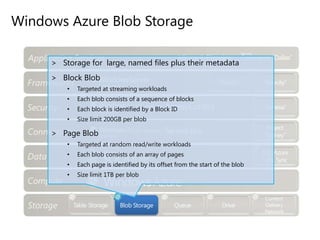

91. Windows Azure Blob Storage Storage for large, named files plus their metadata Block Blob Targeted at streaming workloads Each blob consists of a sequence of blocks Each block is identified by a Block ID Size limit 200GB per blob Page Blob Targeted at random read/write workloads Each blob consists of an array of pages Each page is identified by its offset from the start of the blob Size limit 1TB per blob Blob Storage

92. Windows Azure Queue Performance efficient, highly available and provide reliable message delivery Asynchronous work dispatch Inter-role communication Polling based model; best-effort FIFO data structure Queue operations Create Queue Delete Queue List Queues Get/Set Queue Metadata Message operations Add Message Get Message(s) Peek Message(s) Delete Message Queue

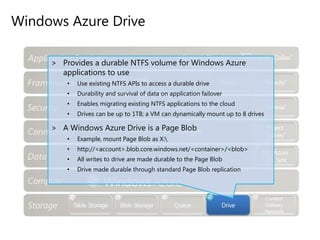

93. Windows Azure Drive Provides a durable NTFS volume for Windows Azure applications to use Use existing NTFS APIs to access a durable drive Durability and survival of data on application failover Enables migrating existing NTFS applications to the cloud Drives can be up to 1TB; a VM can dynamically mount up to 8 drives A Windows Azure Drive is a Page Blob Example, mount Page Blob as X:br />http://<account>.blob.core.windows.net/<container>/<blob> All writes to drive are made durable to the Page Blob Drive made durable through standard Page Blob replication Drive

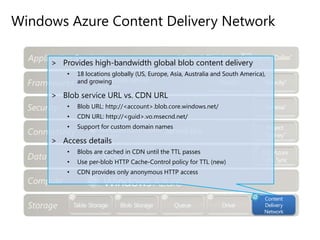

94. Windows Azure Content Delivery Network Provides high-bandwidth global blob content delivery 18 locations globally (US, Europe, Asia, Australia and South America), and growing Blob service URL vs. CDN URL Blob URL: http://<account>.blob.core.windows.net/ CDN URL: http://<guid>.vo.msecnd.net/ Support for custom domain names Access details Blobs are cached in CDN until the TTL passes Use per-blob HTTP Cache-Control policy for TTL (new) CDN provides only anonymous HTTP access Content Delivery Network

95. SQL Azure Highly available, scalable, and consistent distributed relational database; geo-replication and geo-location of data Relational database, provided as a service Highly symmetrical development and tooling experience (use TDS protocol and T-SQL) Highly scaled out, on commodity hardware Built on the SQL Server technology foundation Editions: Web (1GB), Business (10GB) Data

96. SQL Azure Data Sync Tools for data synchronization with SQL Azure Connect on-premises apps with the cloud Create cached-mode clients Built on Microsoft Sync Framework and ADO.NET Sync Services SQL Azure Data Sync

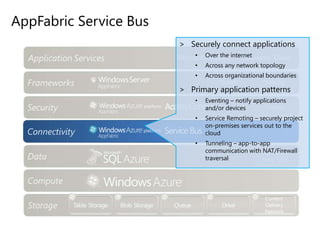

97. AppFabric Service Bus Securely connect applications Over the internet Across any network topology Across organizational boundaries Primary application patterns Eventing– notify applications and/or devices Service Remoting– securely project on-premises services out to the cloud Tunneling– app-to-app communication with NAT/Firewall traversal Connectivity Service Bus

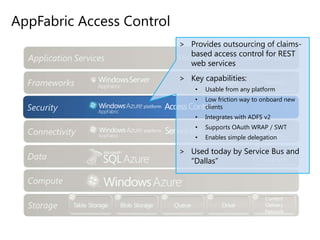

98. AppFabric Access Control Provides outsourcing of claims-based access control for REST web services Key capabilities: Usable from any platform Low friction way to onboard new clients Integrates with ADFS v2 Supports OAuth WRAP / SWT Enables simple delegation Used today by Service Bus and “Dallas” Security Access Control

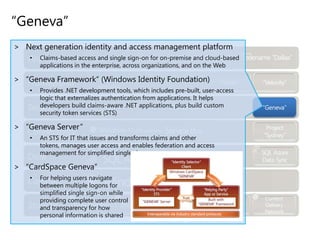

99. “Geneva” Next generation identity and access management platform Claims-based access and single sign-on for on-premise and cloud-based applications in the enterprise, across organizations, and on the Web “Geneva Framework“ (Windows Identity Foundation) Provides .NET development tools, which includes pre-built, user-access logic that externalizes authentication from applications. It helps developers build claims-aware .NET applications, plus build custom security token services (STS) “Geneva Server“ An STS for IT that issues and transforms claims and other tokens, manages user access and enables federation and access management for simplified single sign-on “Geneva” “CardSpace Geneva” For helping users navigate between multiple logons for simplified single sign-on while providing complete user control and transparency for how personal information is shared

100. “Velocity” Distributed in-memory cache platform for developing scalable, available, and highly-performance applications Caches any serializable CLR object and provides access through simple cache APIs Supports enterprise scale: tens to hundreds of computers Configurable to run as a service accessed over the network “Velocity” Supports dynamic scaling and automatic load balancing Supports continuous availability of cached data by storing copies on separate cache hosts Integration with administration and monitoring tools such as Event Tracing for Windows (ETW) and System Center.

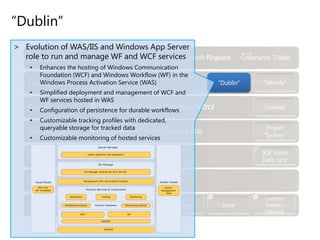

101. “Dublin” Evolution of WAS/IIS and Windows App Server role to run and manage WF and WCF services Enhances the hosting of Windows Communication Foundation (WCF) and Windows Workflow (WF) in the Windows Process Activation Service (WAS) Simplified deployment and management of WCF and WF services hosted in WAS Configuration of persistence for durable workflows Customizable tracking profiles with dedicated, queryable storage for tracked data Customizable monitoring of hosted services “Dublin”

102. “Dallas” Information-as-a-service Discover, acquire, and consume structured, blob, and real-time data to power any application – on any platform and any screen size Brokerage Business – partner driven ecosystem and global reach to deliver data and functionality to developers and information workers Analytics and Reporting – single click analysis to augment private data with public data Built on Windows Azure and SQL Azure
