Second session of PMP Exam preparation course. This session focuses on project management processes and process groups.

1. Project Management
Processes
PMP Preparation Course
March – April 2015
Session 2
by Andrey Mikityuk
Head of Project Management Team
Credit Suisse Moscow

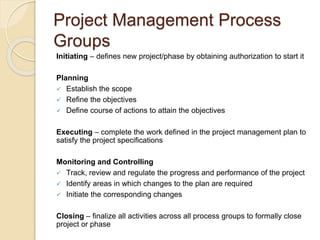

2. Project Management Process
Groups
Initiating – defines new project/phase by obtaining authorization to start it
Planning
 Establish the scope
 Refine the objectives
 Define course of actions to attain the objectives
Executing – complete the work defined in the project management plan to
satisfy the project specifications
Monitoring and Controlling
 Track, review and regulate the progress and performance of the project
 Identify areas in which changes to the plan are required
 Initiate the corresponding changes
Closing – finalize all activities across all process groups to formally close
project or phase

3. Knowledge Areas
 PMBOK defines 47 processes
 They are grouped by 10 “knowledge areas”
 Integration
 Scope
 Time
 Cost
 Quality
 Human Resource
 Communication
 Risk
 Procurement
 Stakeholder

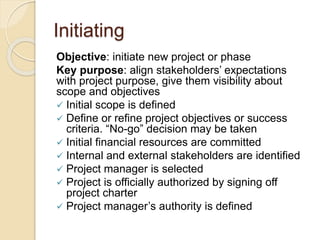

4. Initiating
Objective: initiate new project or phase
Key purpose: align stakeholders’ expectations
with project purpose, give them visibility about
scope and objectives
 Initial scope is defined
 Define or refine project objectives or success
criteria. “No-go” decision may be taken
 Initial financial resources are committed
 Internal and external stakeholders are identified
 Project manager is selected
 Project is officially authorized by signing off
project charter
 Project manager’s authority is defined

5. Initiating processes – PMBOK
view (2 processes)
Develop
Project
Charter
Identify
Stakeholders

6. Planning
Used to
 Establish total scope of the effort
 Define and refine objectives
 Develop the course of actions required to attain those objectives
Develop Project Management Plan and other documents needed to
carry out the project
Progressive elaboration: as more information appear, planning
processes are repeated

7. Planning processes – PMBOK
view (24 processes)
Develop
Project
Management
Plan
Plan Scope
Management
Collect
Requirements
Define
Scope
Create
WBS
Plan
Schedule
Management
Define
Activities
Sequence
Activities
Estimate
Activity
Resources
Estimate
Activity
Durations
Develop
Schedule
Plan Cost
Management
Estimate
Costs
Determine
Budget
Plan Quality
Management

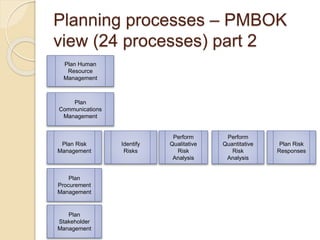

8. Planning processes – PMBOK
view (24 processes) part 2
Plan Human
Resource
Management
Plan
Communications
Management
Plan Risk
Management
Identify
Risks
Perform
Qualitative
Risk
Analysis
Perform
Quantitative
Risk
Analysis
Plan Risk
Responses
Plan
Procurement
Management
Plan
Stakeholder
Management

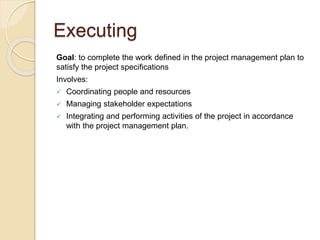

9. Executing
Goal: to complete the work defined in the project management plan to
satisfy the project specifications
Involves:
 Coordinating people and resources
 Managing stakeholder expectations
 Integrating and performing activities of the project in accordance
with the project management plan.

10. Executing processes – PMBOK
view (8 processes)
Direct and
Manage
Project Work
Perform
Quality
Assurance
Acquire
Project Team
Develop
Project Team
Manage
Project Team
Manage
Communications
Conduct
Procurements
Manage
Stakeholder
Engagement
No executing
processes for:
• Scope
• Time
• Cost
• Risk
knowledge
areas

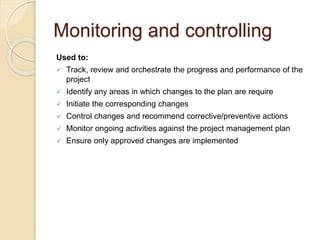

11. Monitoring and controlling
Used to:
 Track, review and orchestrate the progress and performance of the
project
 Identify any areas in which changes to the plan are require
 Initiate the corresponding changes
 Control changes and recommend corrective/preventive actions
 Monitor ongoing activities against the project management plan
 Ensure only approved changes are implemented

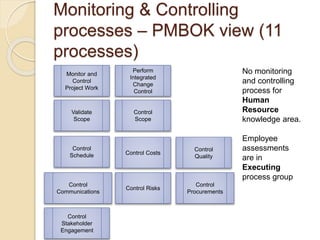

12. Monitoring & Controlling
processes – PMBOK view (11
processes)
Monitor and
Control
Project Work
No monitoring
and controlling
process for
Human
Resource
knowledge area.
Employee
assessments
are in
Executing
process group
Perform
Integrated
Change
Control
Validate
Scope
Control
Scope
Control
Schedule Control Costs
Control
Quality
Control
Communications
Control Risks
Control
Procurements
Control
Stakeholder
Engagement

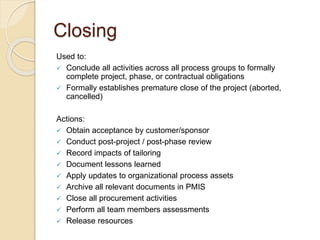

13. Closing
Used to:
 Conclude all activities across all process groups to formally
complete project, phase, or contractual obligations
 Formally establishes premature close of the project (aborted,
cancelled)
Actions:
 Obtain acceptance by customer/sponsor
 Conduct post-project / post-phase review
 Record impacts of tailoring
 Document lessons learned
 Apply updates to organizational process assets
 Archive all relevant documents in PMIS
 Close all procurement activities
 Perform all team members assessments
 Release resources

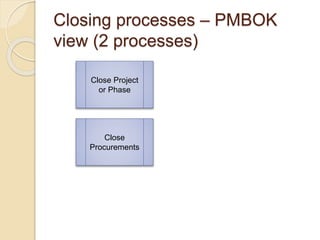

14. Closing processes – PMBOK
view (2 processes)
Close Project
or Phase
Close
Procurements

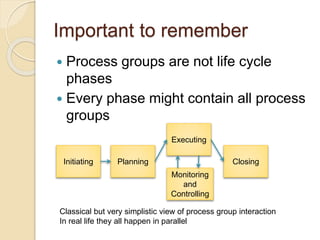

15. Important to remember
 Process groups are not life cycle
phases
 Every phase might contain all process
groups
Initiating Planning
Executing
Monitoring
and
Controlling
Closing
Classical but very simplistic view of process group interaction
In real life they all happen in parallel

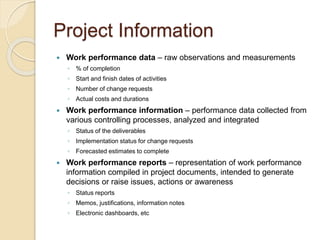

16. Project Information
 Work performance data – raw observations and measurements
◦ % of completion
◦ Start and finish dates of activities
◦ Number of change requests
◦ Actual costs and durations
 Work performance information – performance data collected from
various controlling processes, analyzed and integrated
◦ Status of the deliverables
◦ Implementation status for change requests
◦ Forecasted estimates to complete
 Work performance reports – representation of work performance
information compiled in project documents, intended to generate
decisions or raise issues, actions or awareness
◦ Status reports
◦ Memos, justifications, information notes
◦ Electronic dashboards, etc
