Anti-lock braking systems (ABS) help prevent wheels from locking up and the vehicle from skidding during heavy braking. ABS uses sensors to monitor wheel speed and quickly adjusts brake pressure to each wheel to maintain traction. It helps drivers maintain control and stability when braking heavily or in emergency situations. ABS has made braking safer and helped reduce accidents by preventing skids.

1. “ANTI-LOCK BRAKING
SYSTEMS IN CARS”
“A LIFE SAVER FOR
RIDERS”

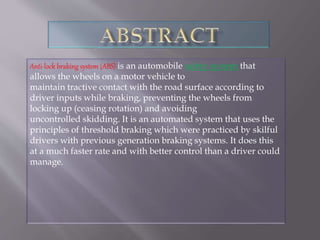

2. Anti-lock braking system (ABS) is an automobile safety system that
allows the wheels on a motor vehicle to
maintain tractive contact with the road surface according to
driver inputs while braking, preventing the wheels from
locking up (ceasing rotation) and avoiding
uncontrolled skidding. It is an automated system that uses the
principles of threshold braking which were practiced by skilful
drivers with previous generation braking systems. It does this
at a much faster rate and with better control than a driver could
manage.

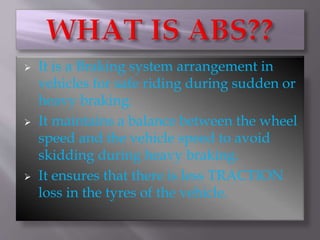

3.  It is a Braking system arrangement in
vehicles for safe riding during sudden or
heavy braking.
 It maintains a balance between the wheel
speed and the vehicle speed to avoid
skidding during heavy braking.
 It ensures that there is less TRACTION
loss in the tyres of the vehicle.

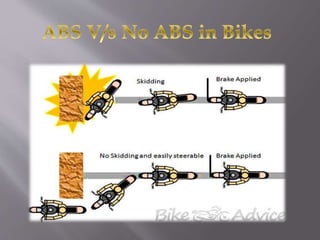

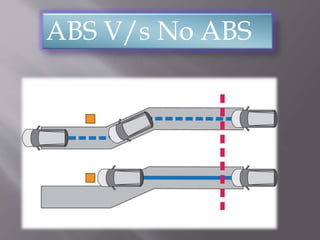

4. ABS V/s No ABS

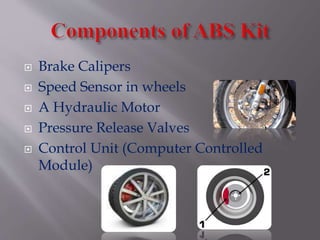

6.  Brake Calipers
 Speed Sensor in wheels
 A Hydraulic Motor
 Pressure Release Valves
 Control Unit (Computer Controlled
Module)

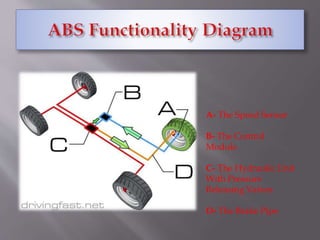

7. A- The Speed Sensor
B- The Control
Module
C- The Hydraulic Unit
With Pressure
Releasing Valves
D- The Brake Pipe

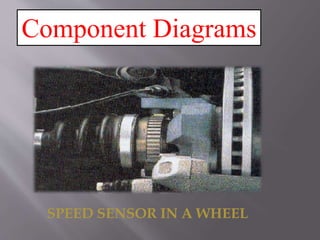

8. Component Diagrams
SPEED SENSOR IN A WHEEL

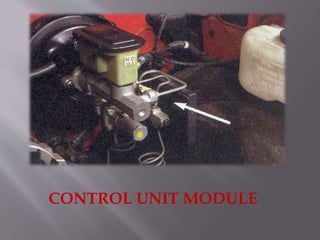

9. CONTROL UNIT MODULE

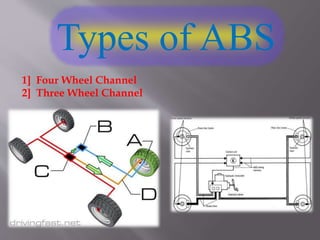

10. Types of ABS
1] Four Wheel Channel
2] Three Wheel Channel

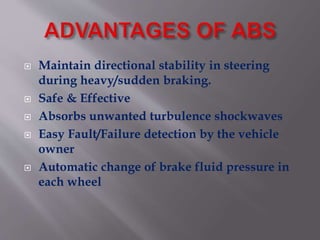

11.  Maintain directional stability in steering
during heavy/sudden braking.
 Safe & Effective
 Absorbs unwanted turbulence shockwaves
 Easy Fault/Failure detection by the vehicle
owner
 Automatic change of brake fluid pressure in
each wheel

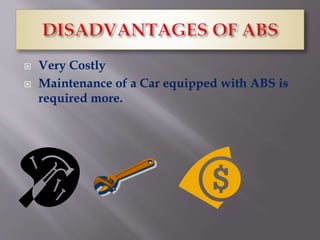

12.  Very Costly
 Maintenance of a Car equipped with ABS is
required more.

13. IN LATEST CARS
IN LATEST
TRUCKS
IN RACING CARS
ALSO IN
RACING BIKES
IN UPCOMING 2
WHEELERS

14. PRESENTED BY :-
Sundaresha A M
