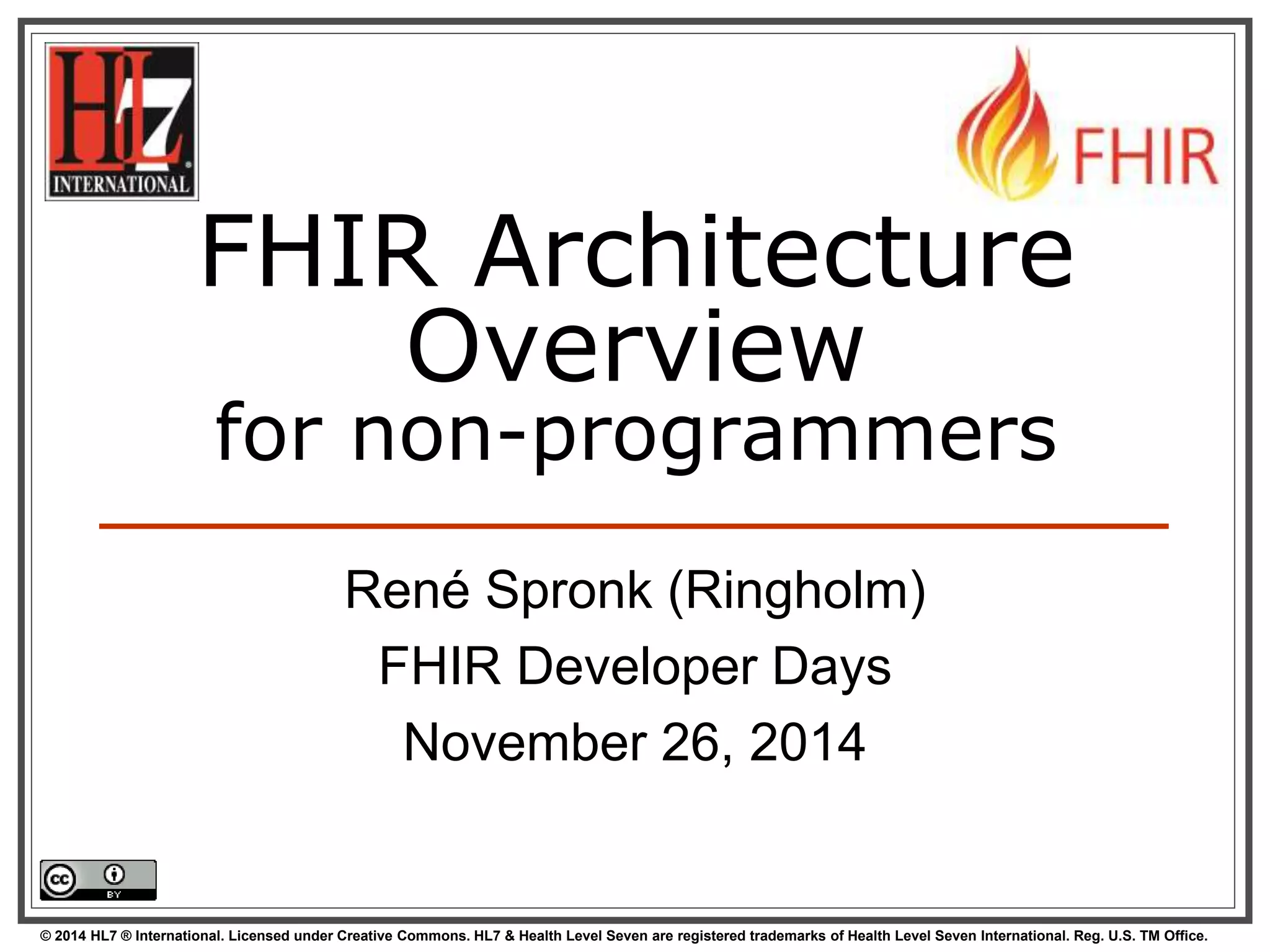

FHIR architecture overview for non-programmers by René Spronk

FHIR Architecture
Overview
for non-programmers
René Spronk (Ringholm)
FHIR Developer Days
November 26, 2014
© 2014 HL7 ® International. Licensed under Creative Commons. HL7 & Health Level Seven are registered trademarks of Health Level Seven International. Reg. U.S. TM Office.

FHIR Overview
for executives
FHIR Developer Days
November 26, 2014

3

4

5

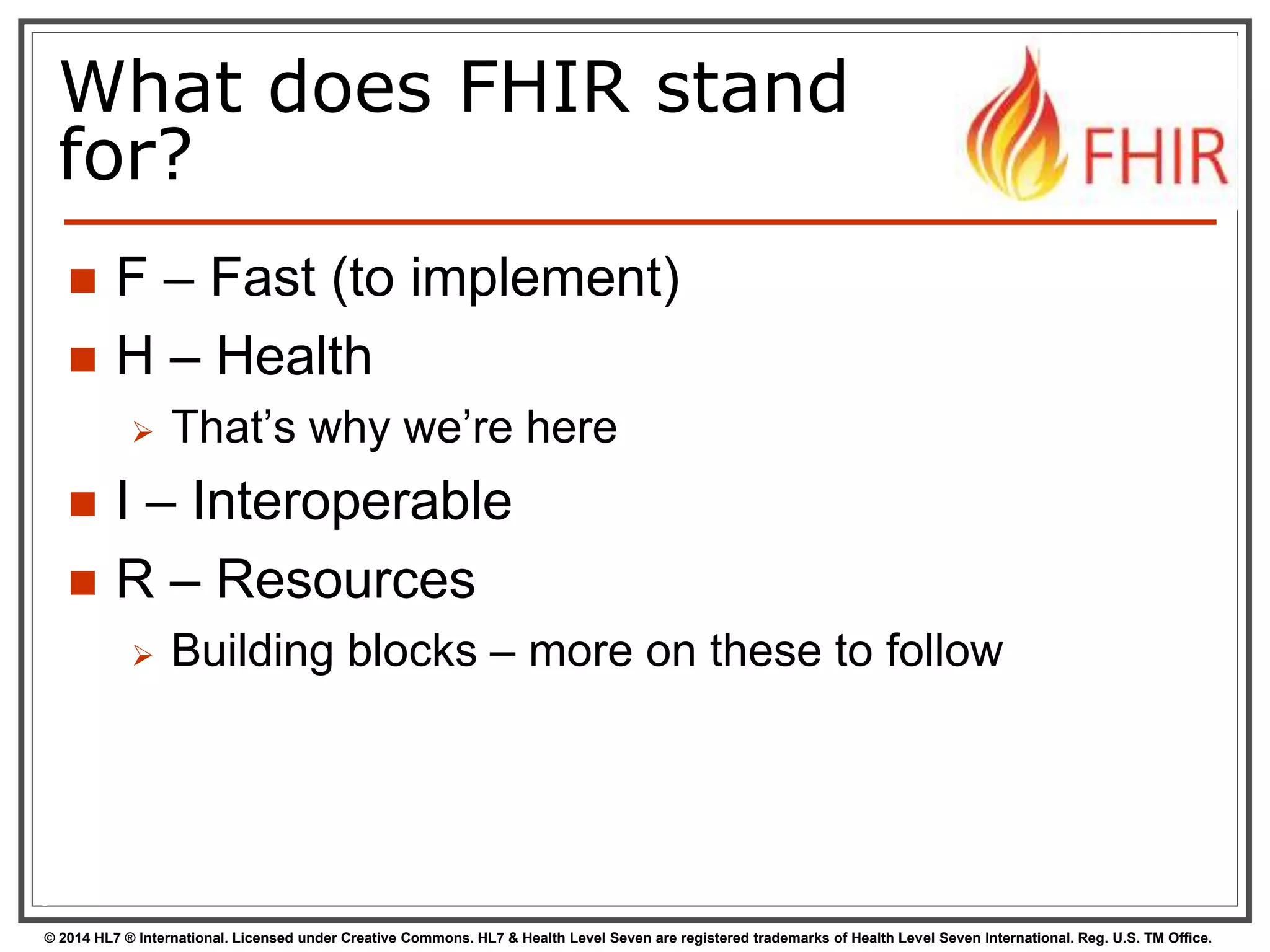

What does FHIR stand
for?
 F – Fast (to implement)
 H – Health
 That’s why we’re here
 I – Interoperable
 R – Resources
 Building blocks – more on these to follow
6

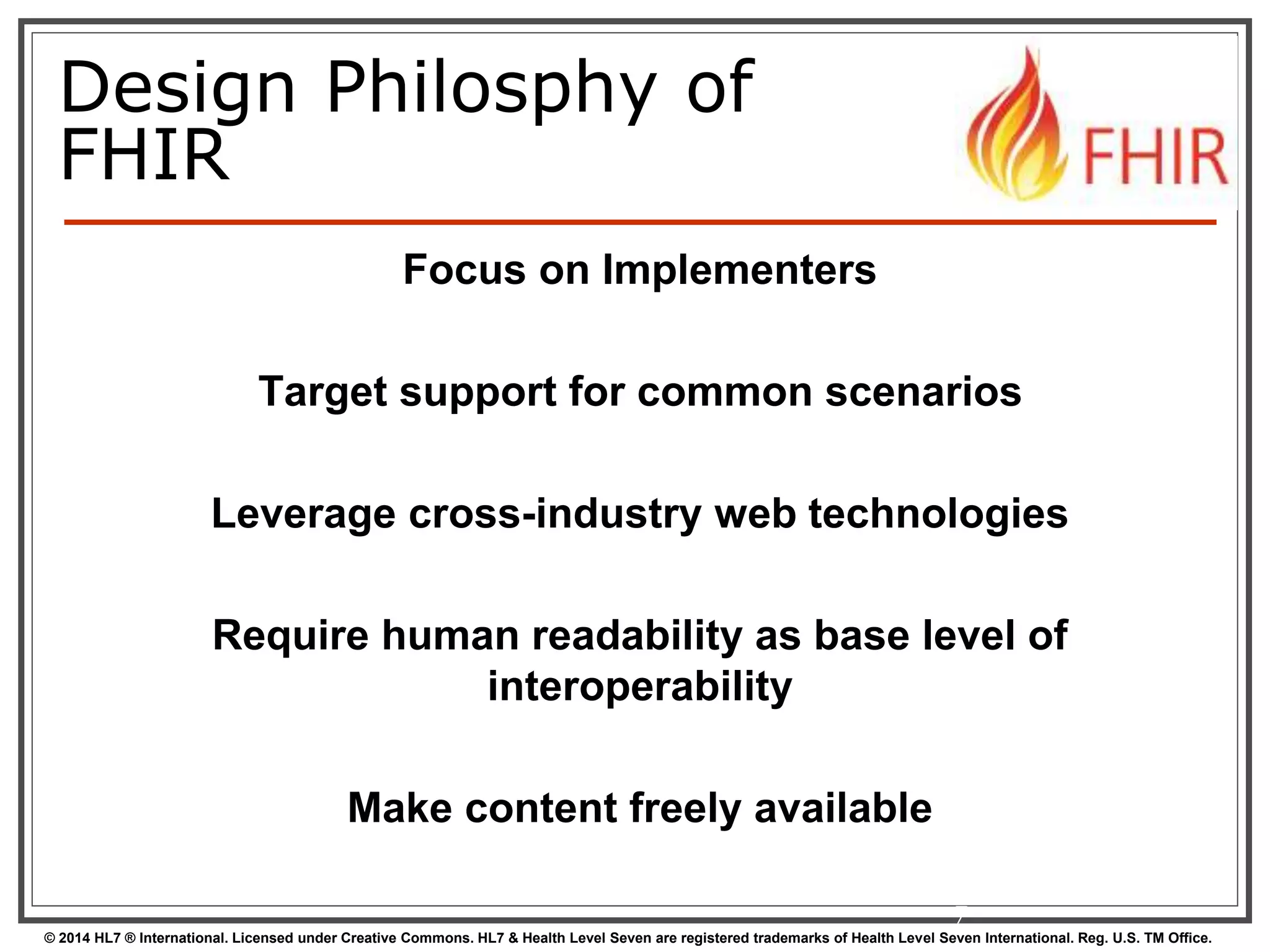

Design Philosphy of
FHIR
Focus on Implementers
Target support for common scenarios
Leverage cross-industry web technologies
Require human readability as base level of
interoperability
Make content freely available
7

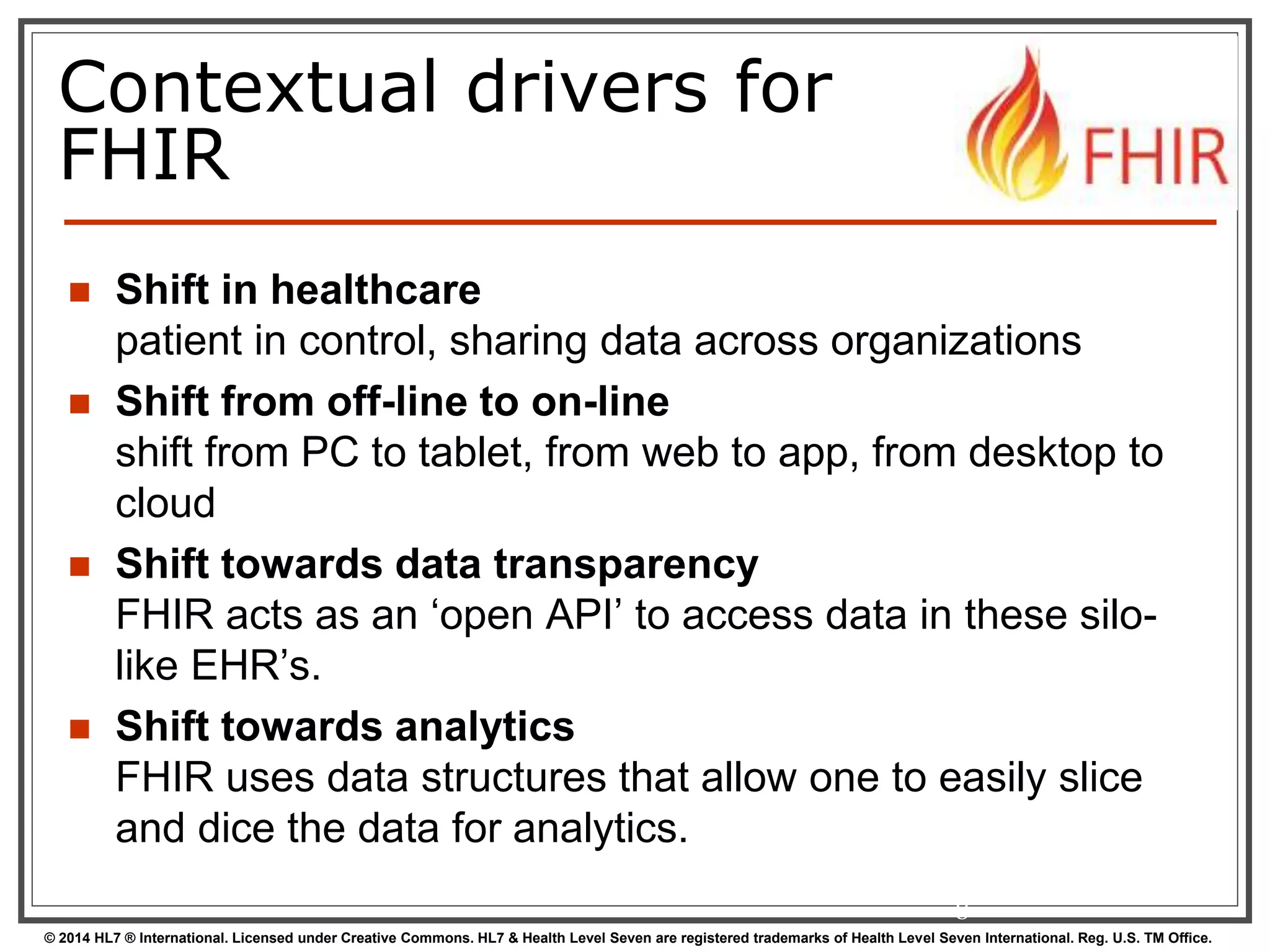

Contextual drivers for
FHIR
 Shift in healthcare
patient in control, sharing data across organizations
 Shift from off-line to on-line
shift from PC to tablet, from web to app, from desktop to
cloud
 Shift towards data transparency
FHIR acts as an ‘open API’ to access data in these silo-like
EHR’s.
 Shift towards analytics
FHIR uses data structures that allow one to easily slice
and dice the data for analytics.
8

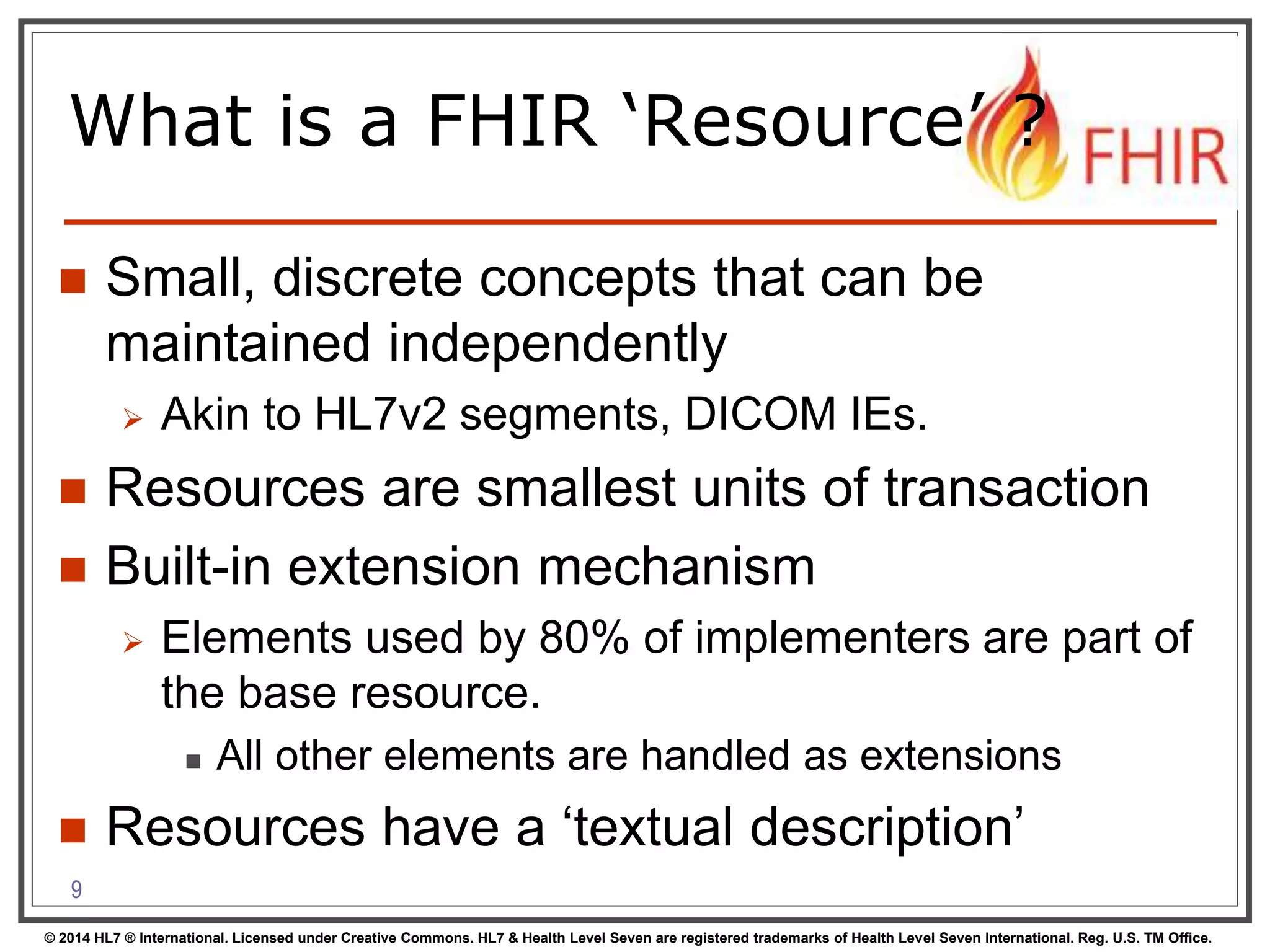

What is a FHIR ‘Resource’ ?
 Small, discrete concepts that can be
maintained independently
 Akin to HL7v2 segments, DICOM IEs.
 Resources are smallest units of transaction
 Built-in extension mechanism
 Elements used by 80% of implementers are part of
the base resource.
 All other elements are handled as extensions
 Resources have a ‘textual description’
9

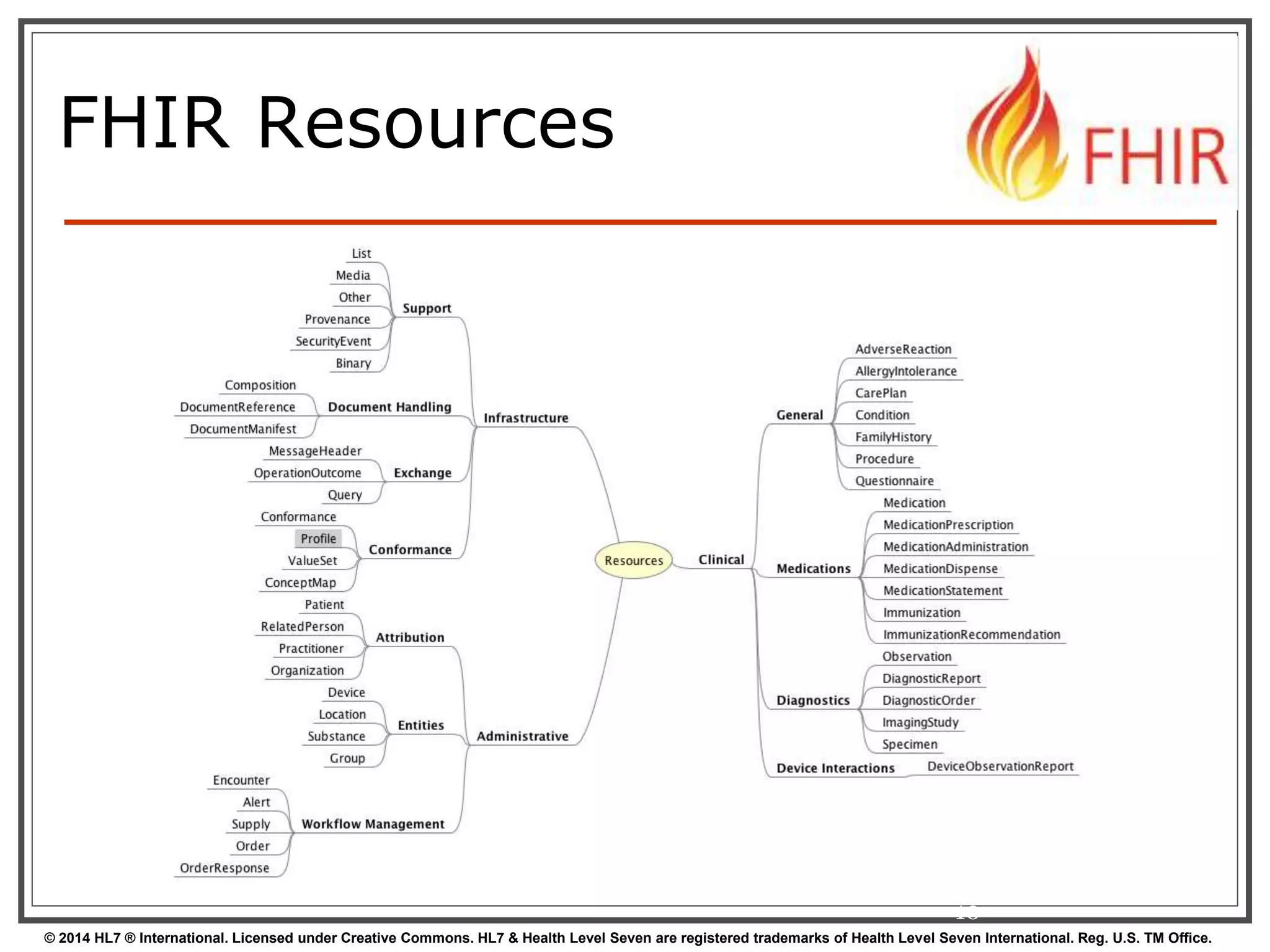

FHIR Resources
10

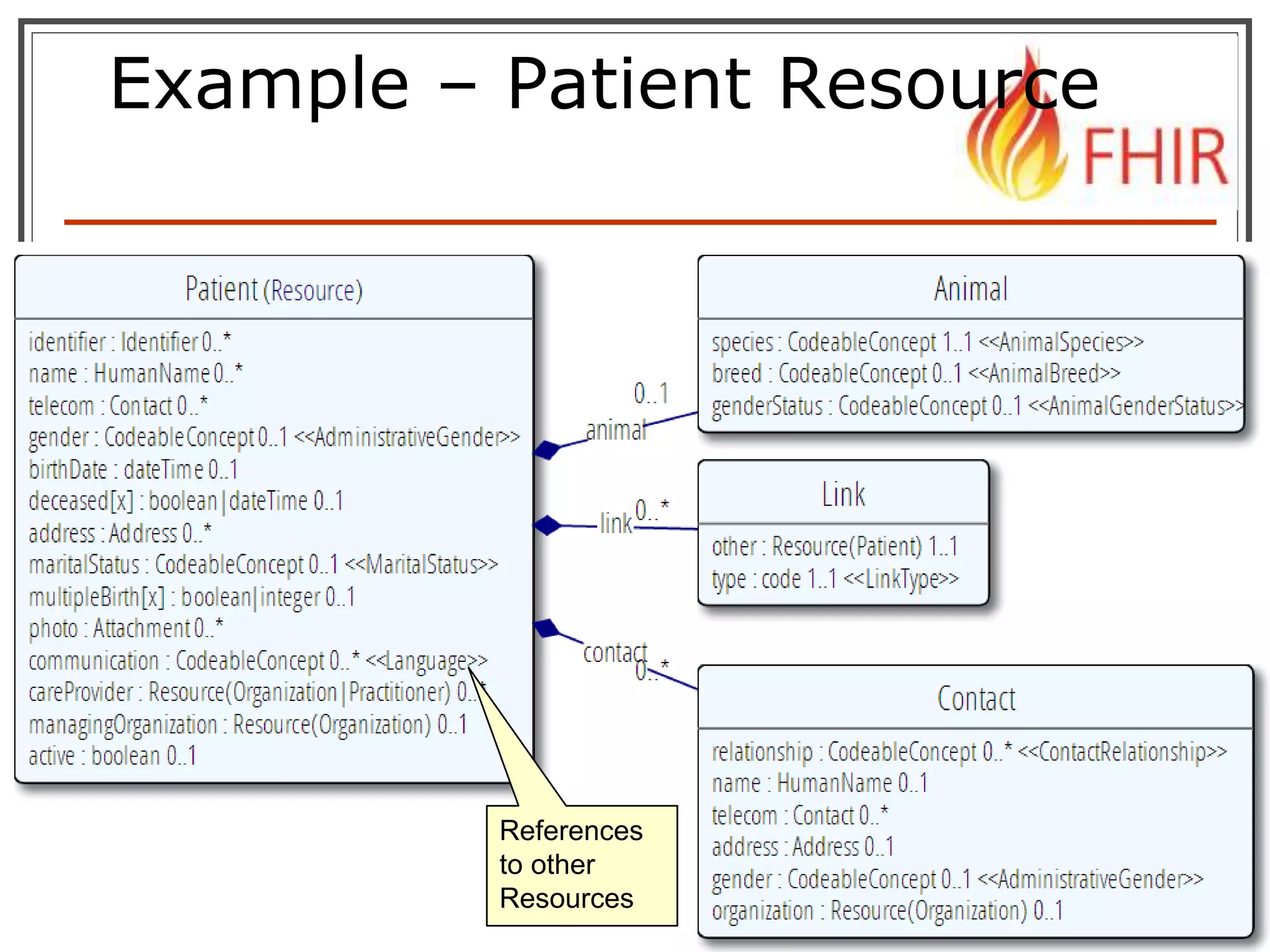

Example – Patient Resource
References
to other
Resources

Data types

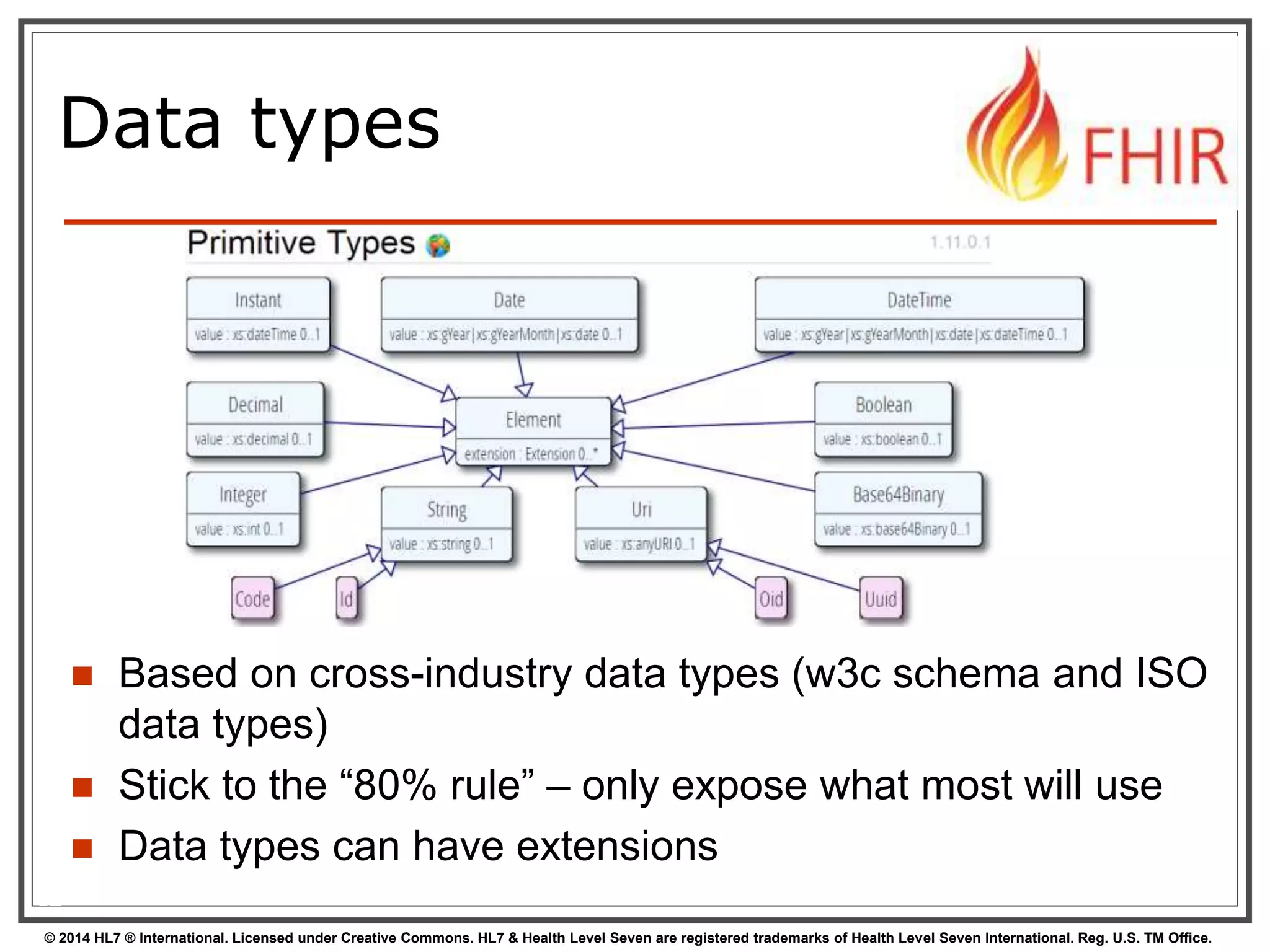

12
 Based on cross-industry data types (w3c schema and ISO
data types)
 Stick to the “80% rule” – only expose what most will use
 Data types can have extensions

13

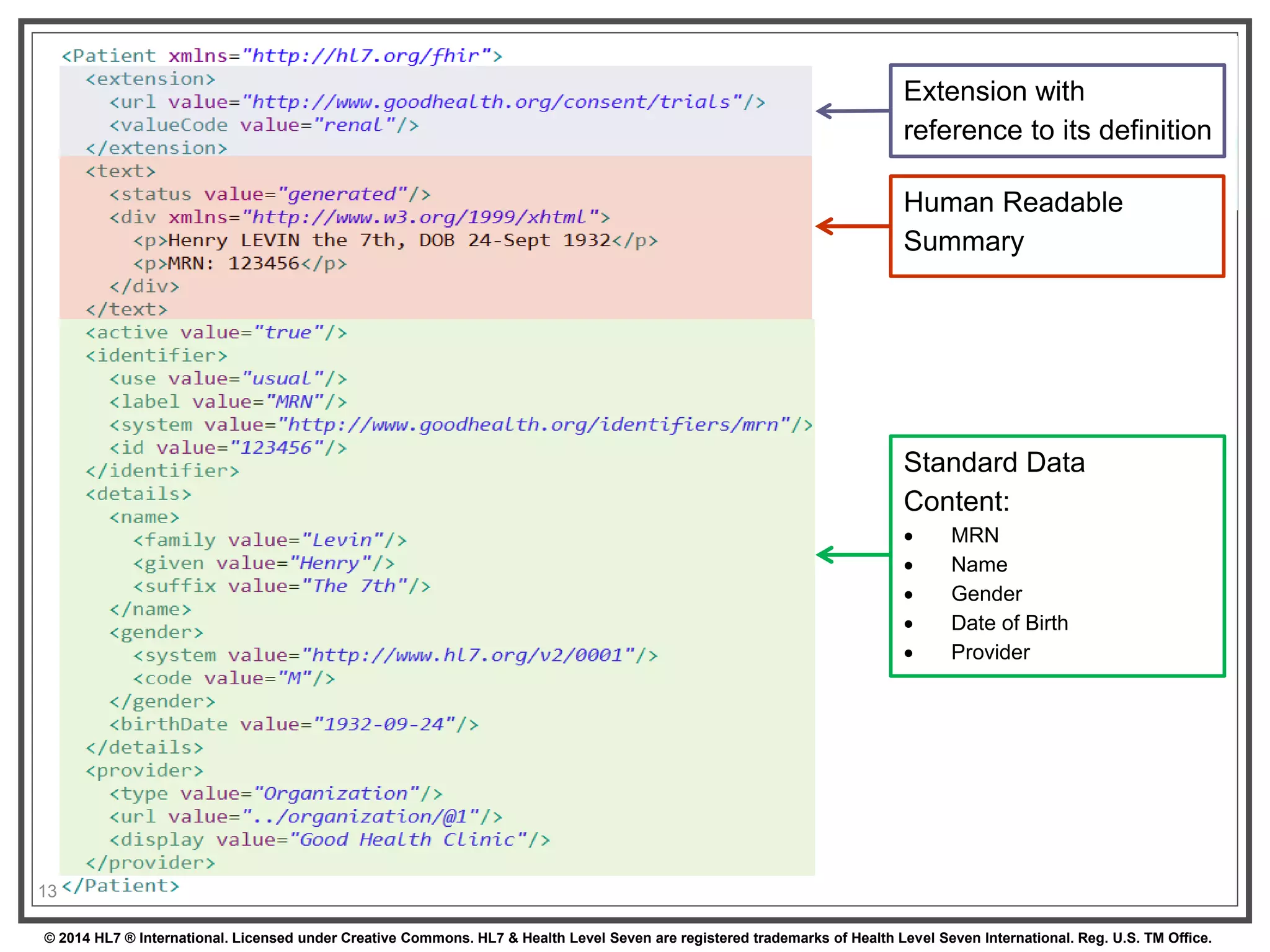

Extension with
reference to its definition
Human Readable
Summary
Standard Data
Content:
 MRN
 Name
 Gender
 Date of Birth
 Provider

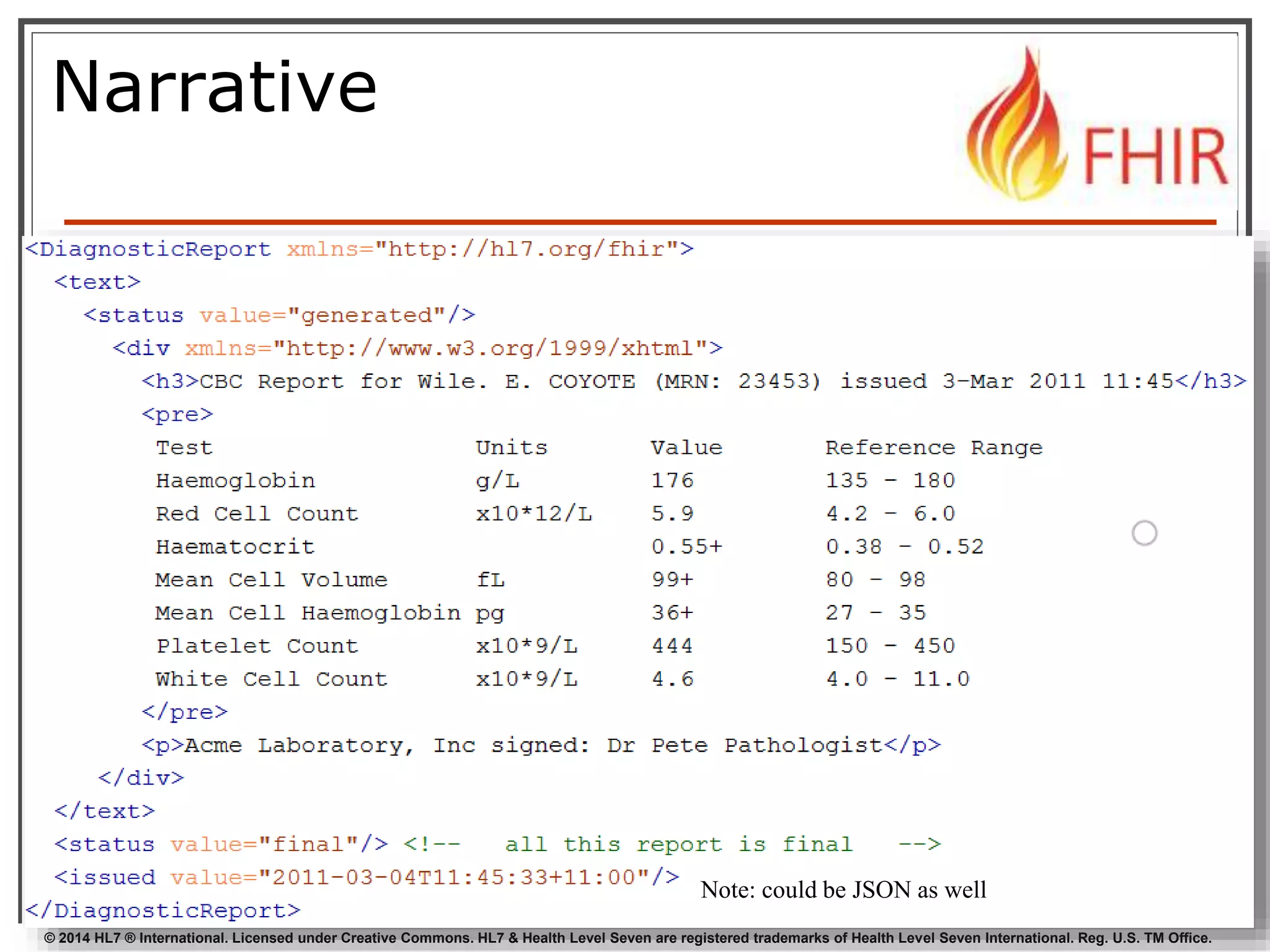

Narrative
14 Note: could be JSON as well

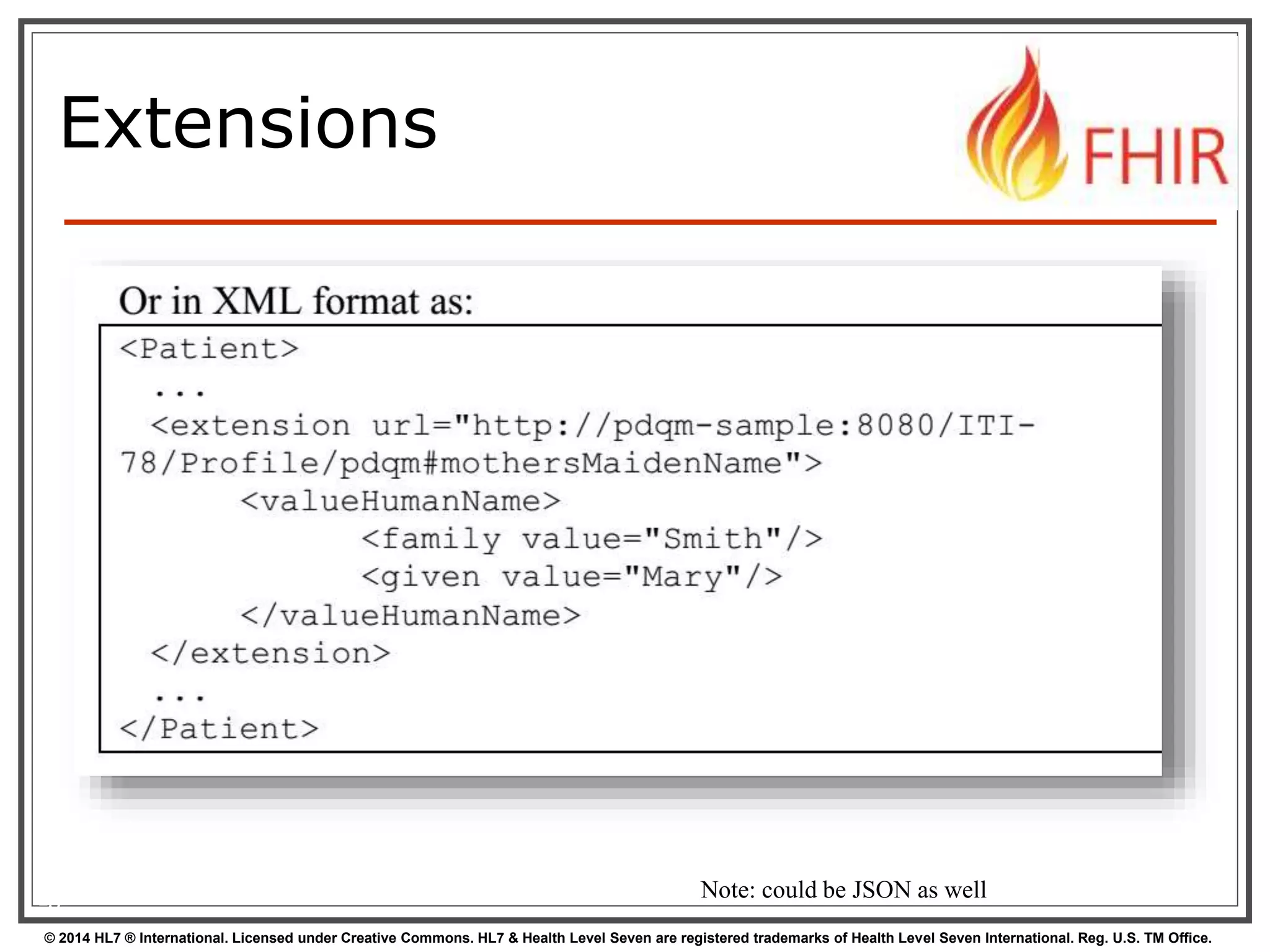

Extensions
15 Note: could be JSON as well

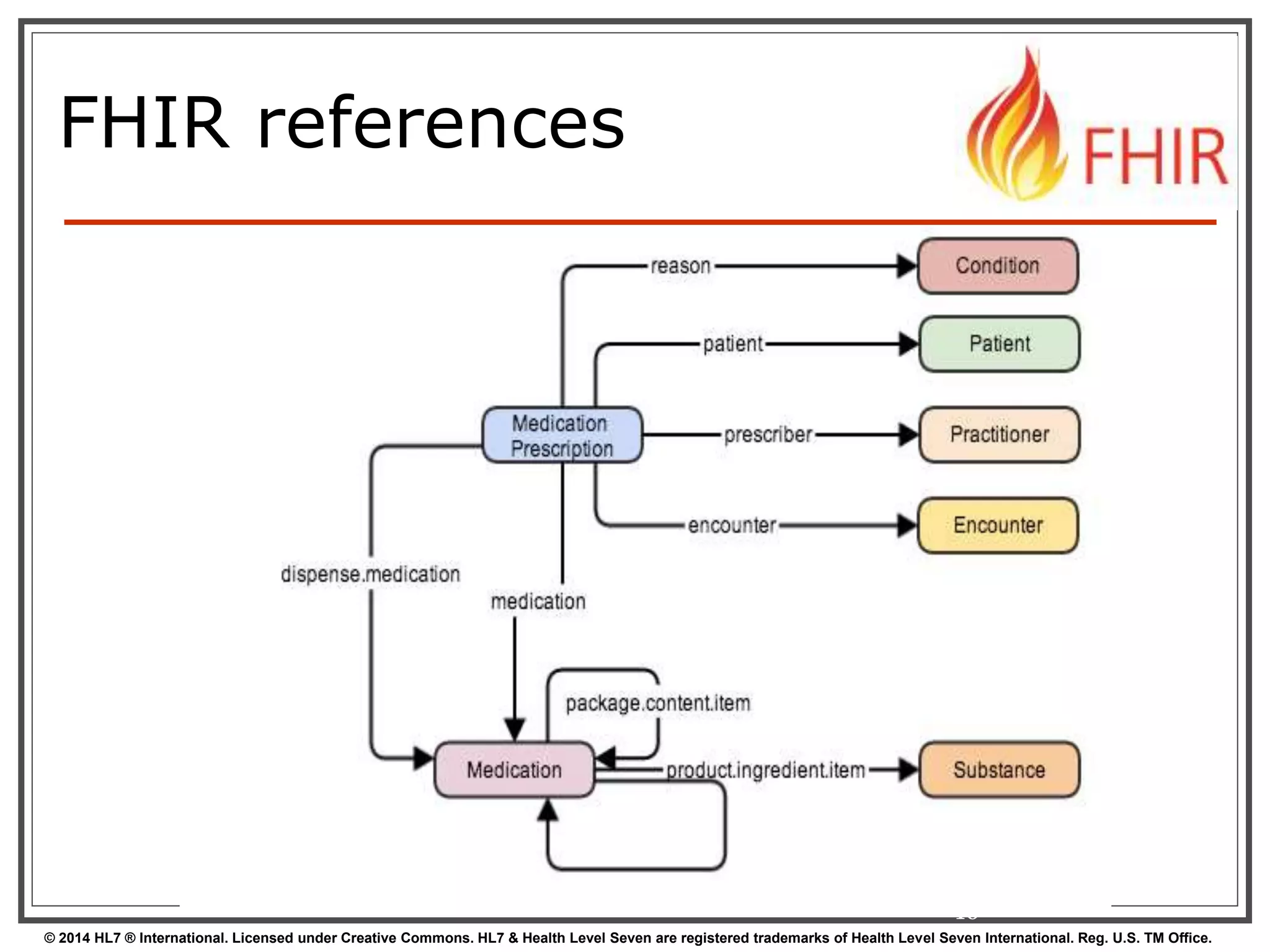

FHIR references
16

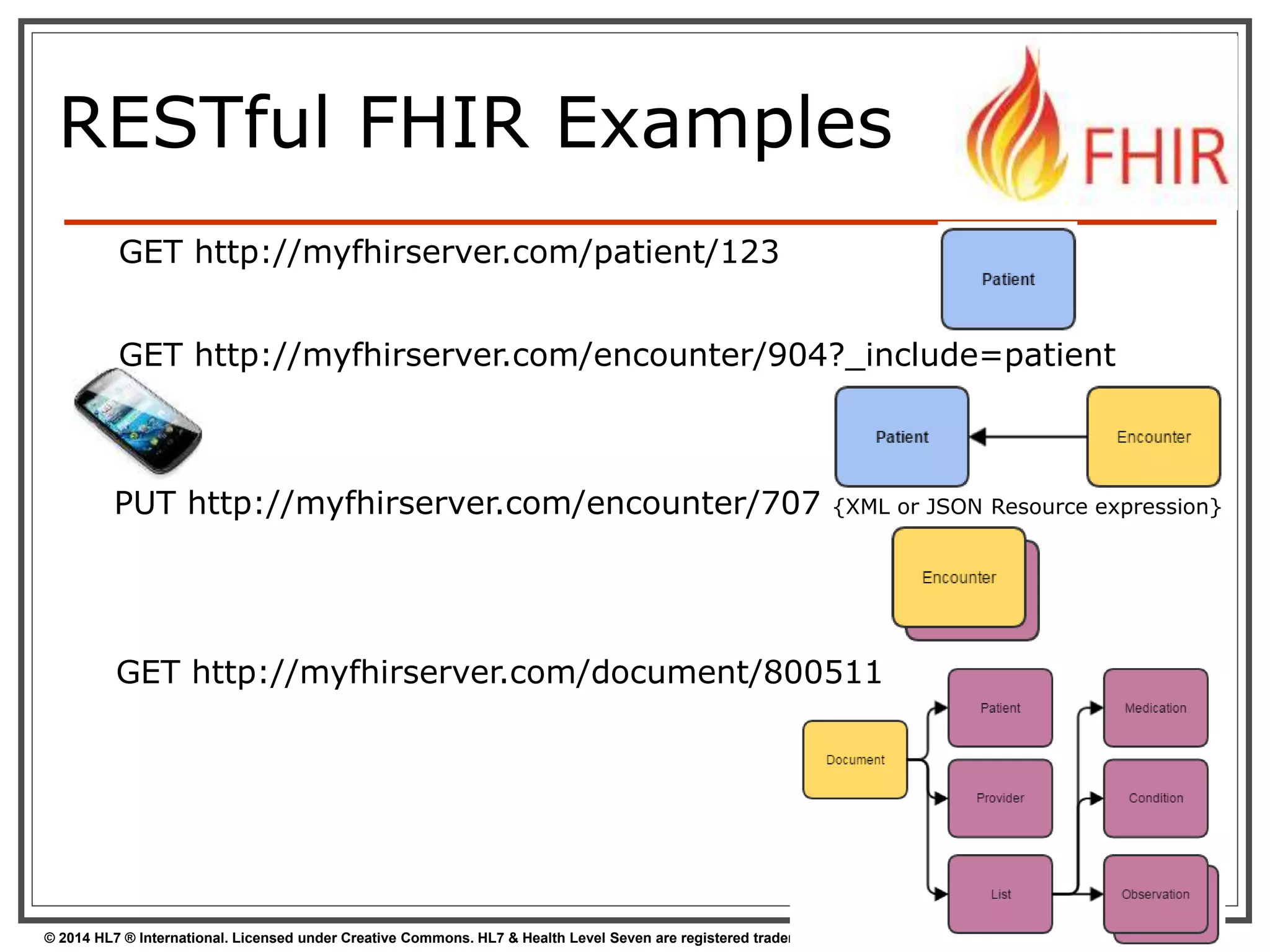

RESTful FHIR Examples
GET http://myfhirserver.com/patient/123
GET http://myfhirserver.com/encounter/904?_include=patient
PUT http://myfhirserver.com/encounter/707 {XML or JSON Resource expression}
GET http://myfhirserver.com/document/800511

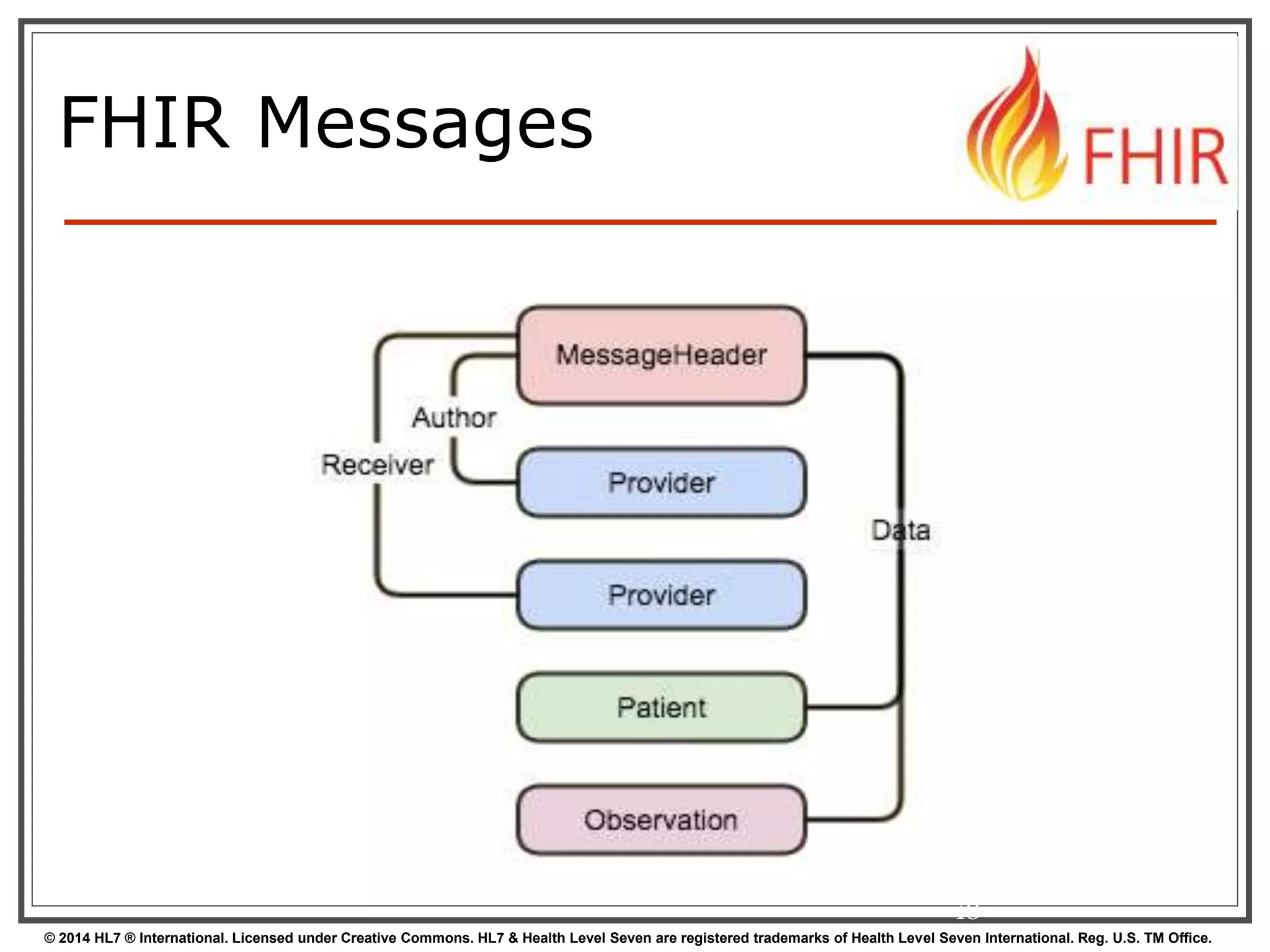

FHIR Messages
18

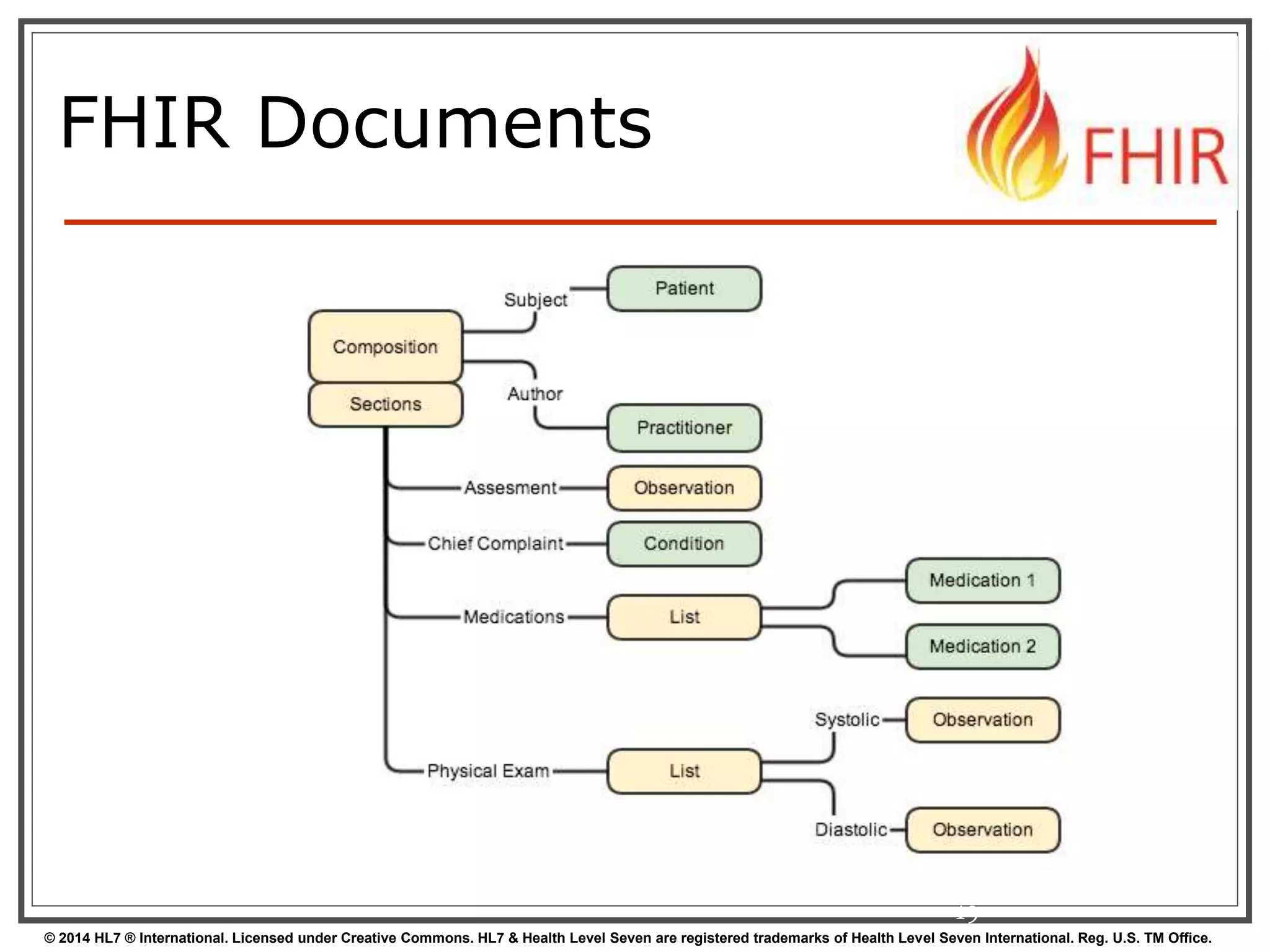

FHIR Documents
19

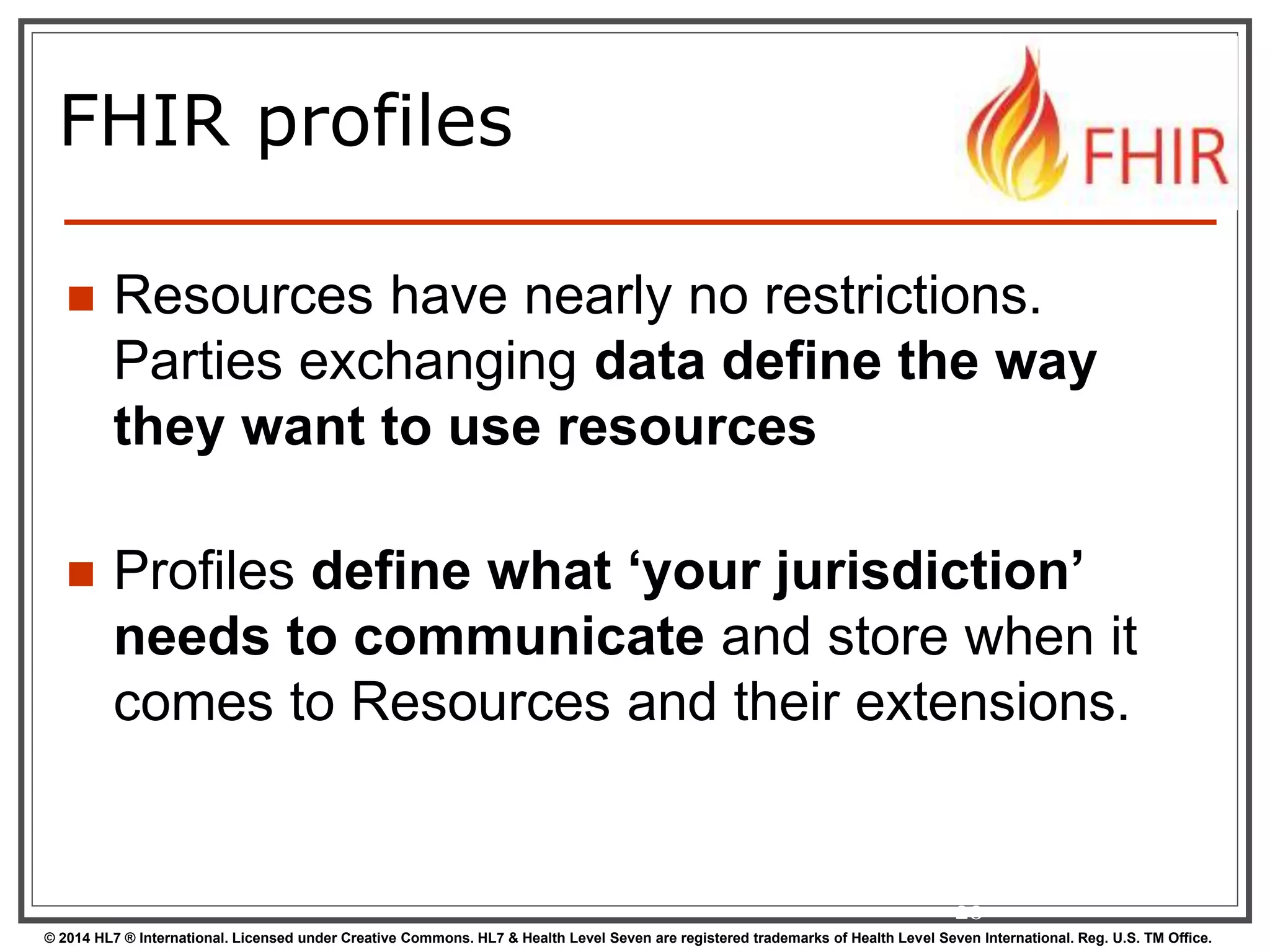

FHIR profiles
 Resources have nearly no restrictions.
Parties exchanging data define the way
they want to use resources
 Profiles define what ‘your jurisdiction’
needs to communicate and store when it
comes to Resources and their extensions.
20

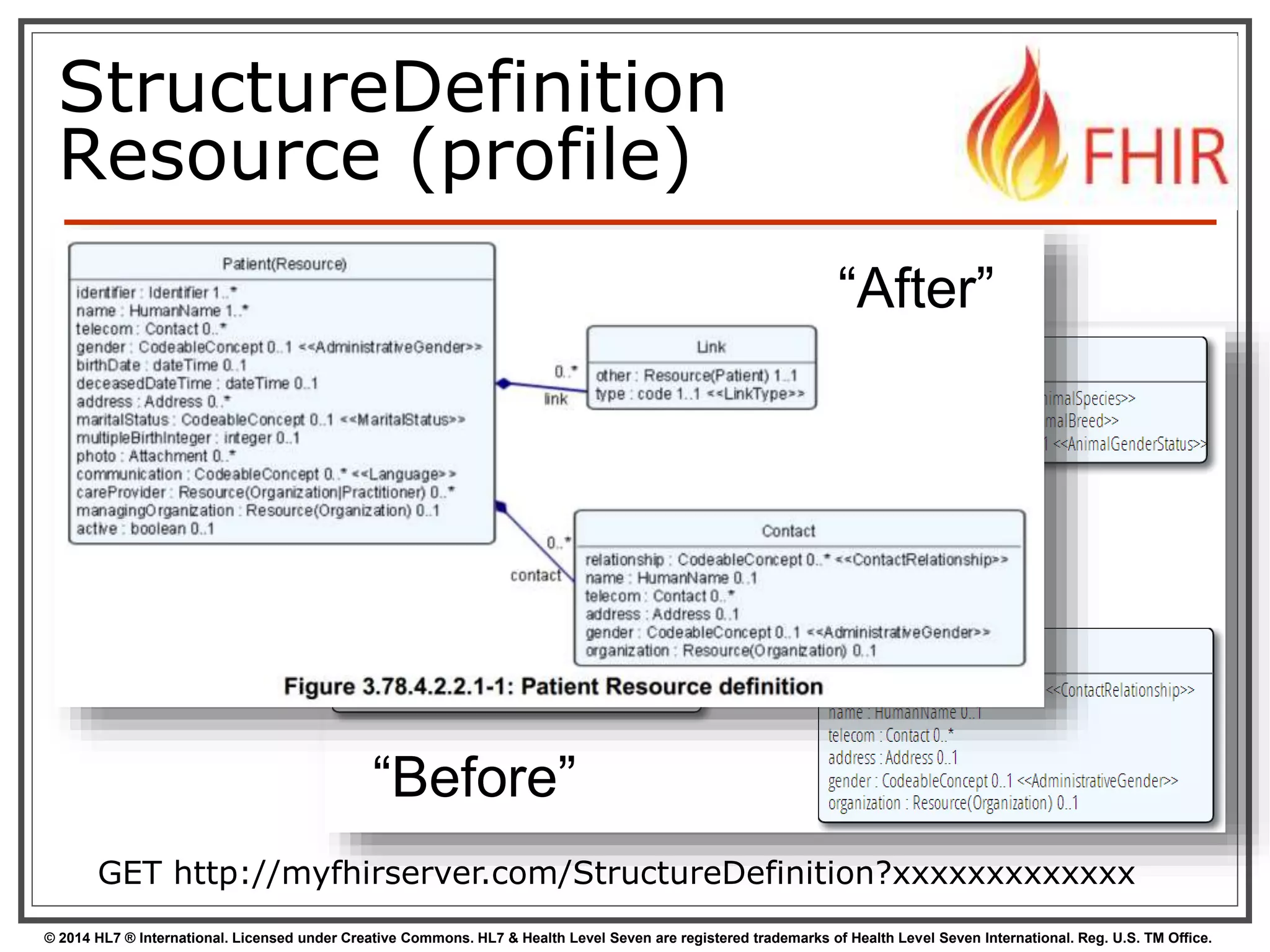

StructureDefinition
Resource (profile)
“Before”
“After”
GET http://myfhirserver.com/StructureDefinition?xxxxxxxxxxxxx

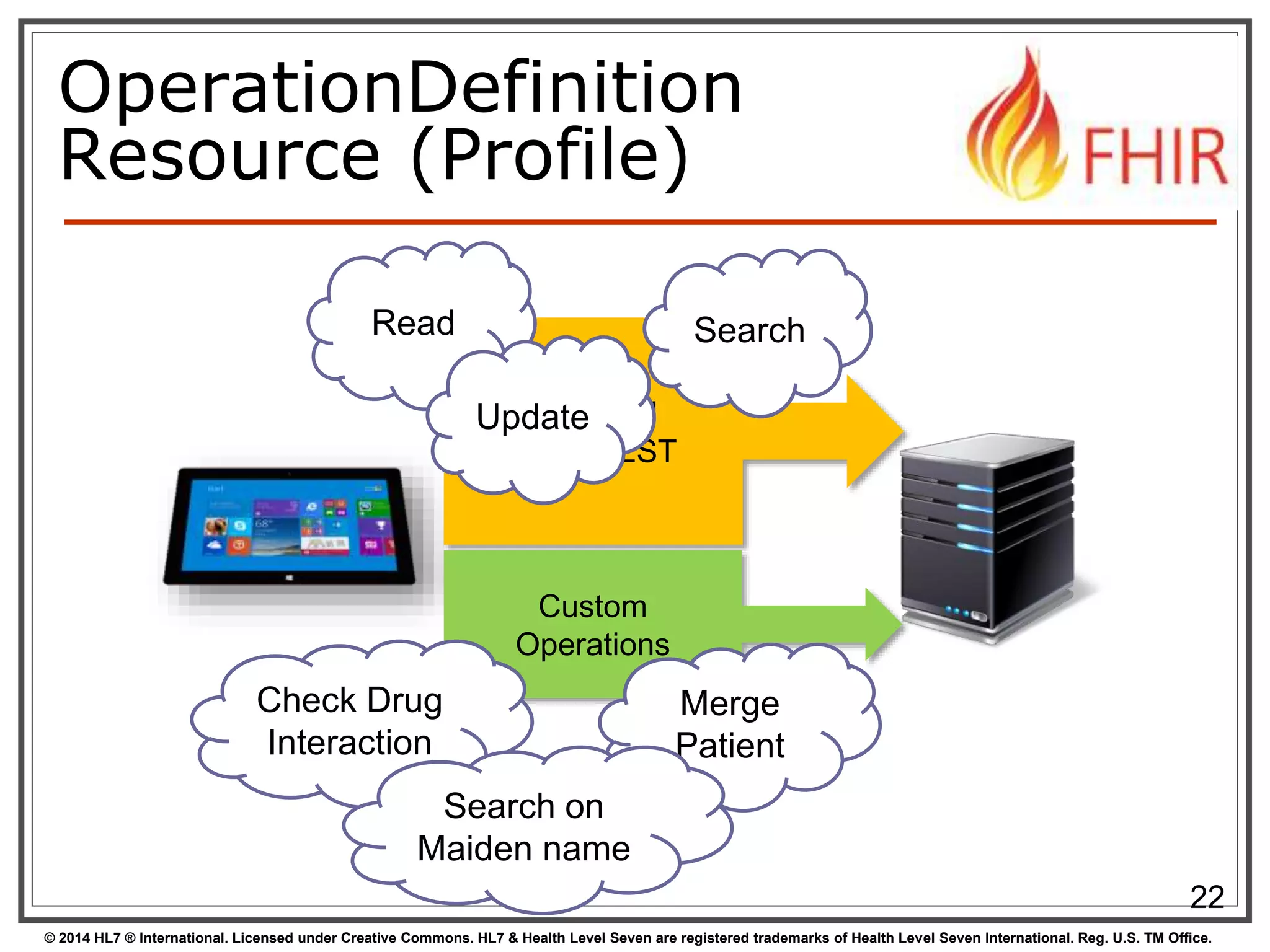

OperationDefinition
Resource (Profile)
22
Standard
FHIR REST
Update
Custom
Operations
Read
Search
Check Drug
Interaction
Merge
Patient
Search on
Maiden name

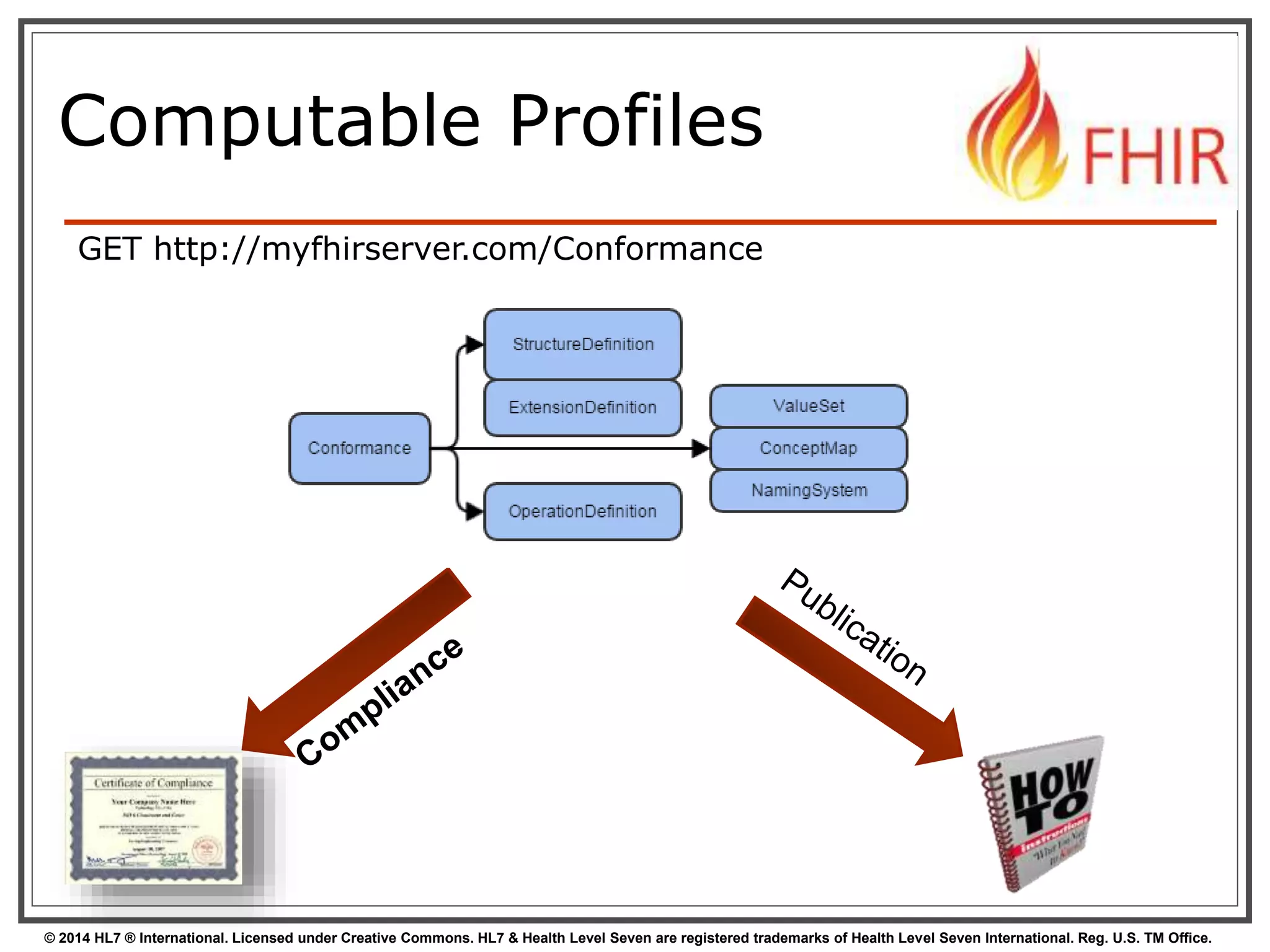

Computable Profiles
GET http://myfhirserver.com/Conformance

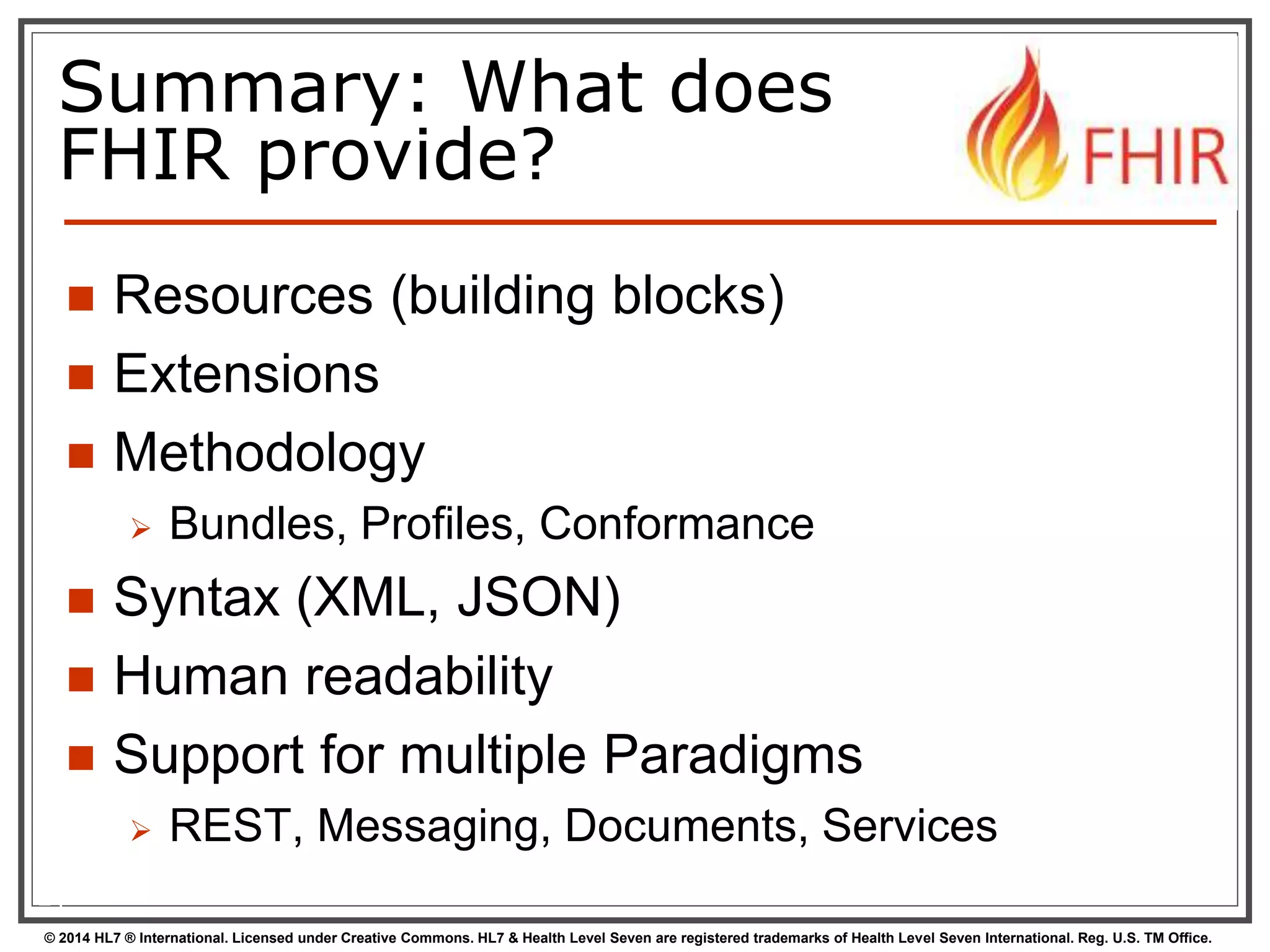

Summary: What does
FHIR provide?
 Resources (building blocks)
 Extensions
 Methodology
 Bundles, Profiles, Conformance
 Syntax (XML, JSON)
 Human readability
 Support for multiple Paradigms
 REST, Messaging, Documents, Services
24

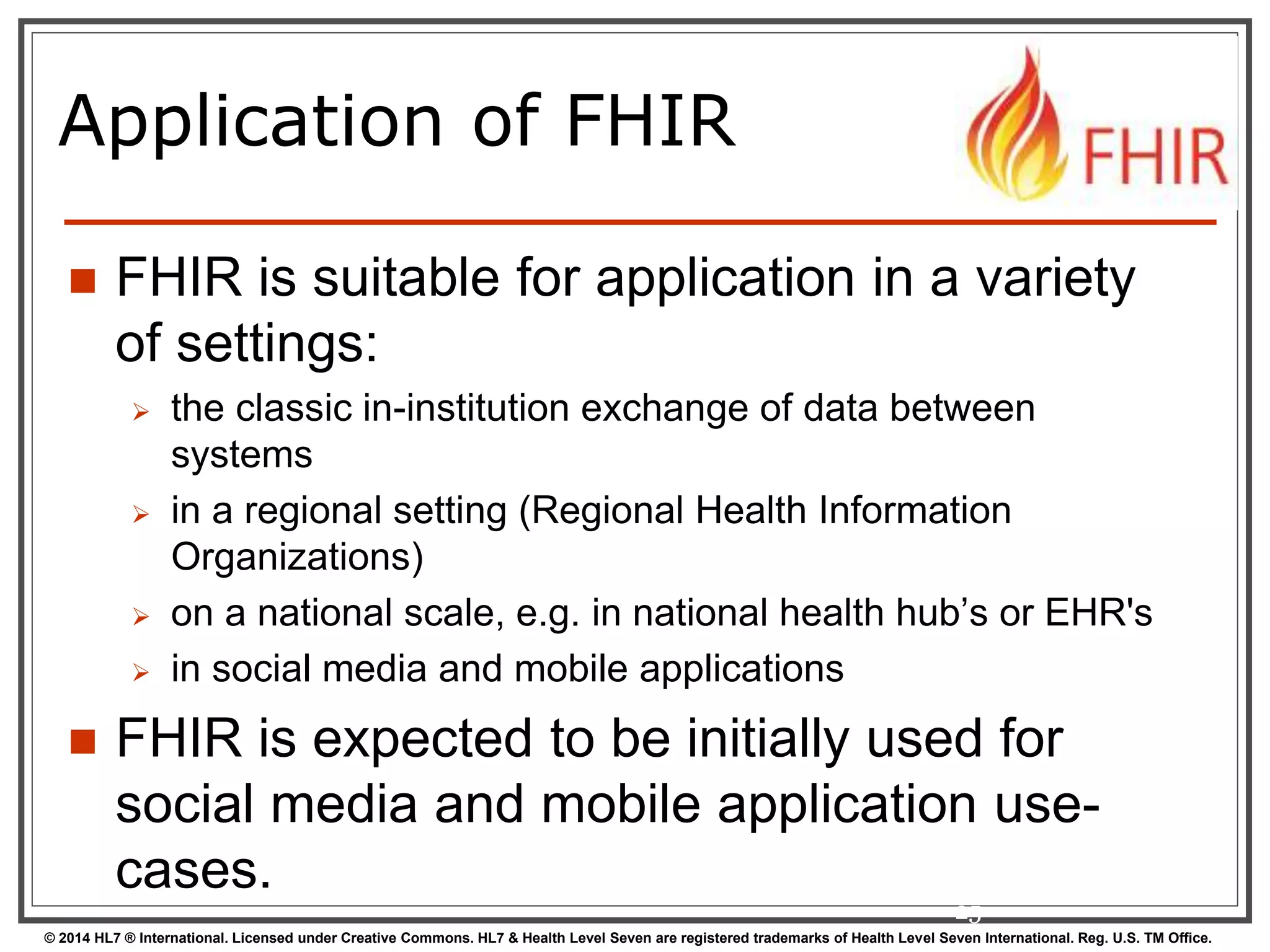

Application of FHIR
 FHIR is suitable for application in a variety
of settings:
 the classic in-institution exchange of data between
systems
 in a regional setting (Regional Health Information
Organizations)
 on a national scale, e.g. in national health hub’s or EHR's
 in social media and mobile applications
 FHIR is expected to be initially used for
social media and mobile application use-cases.
25

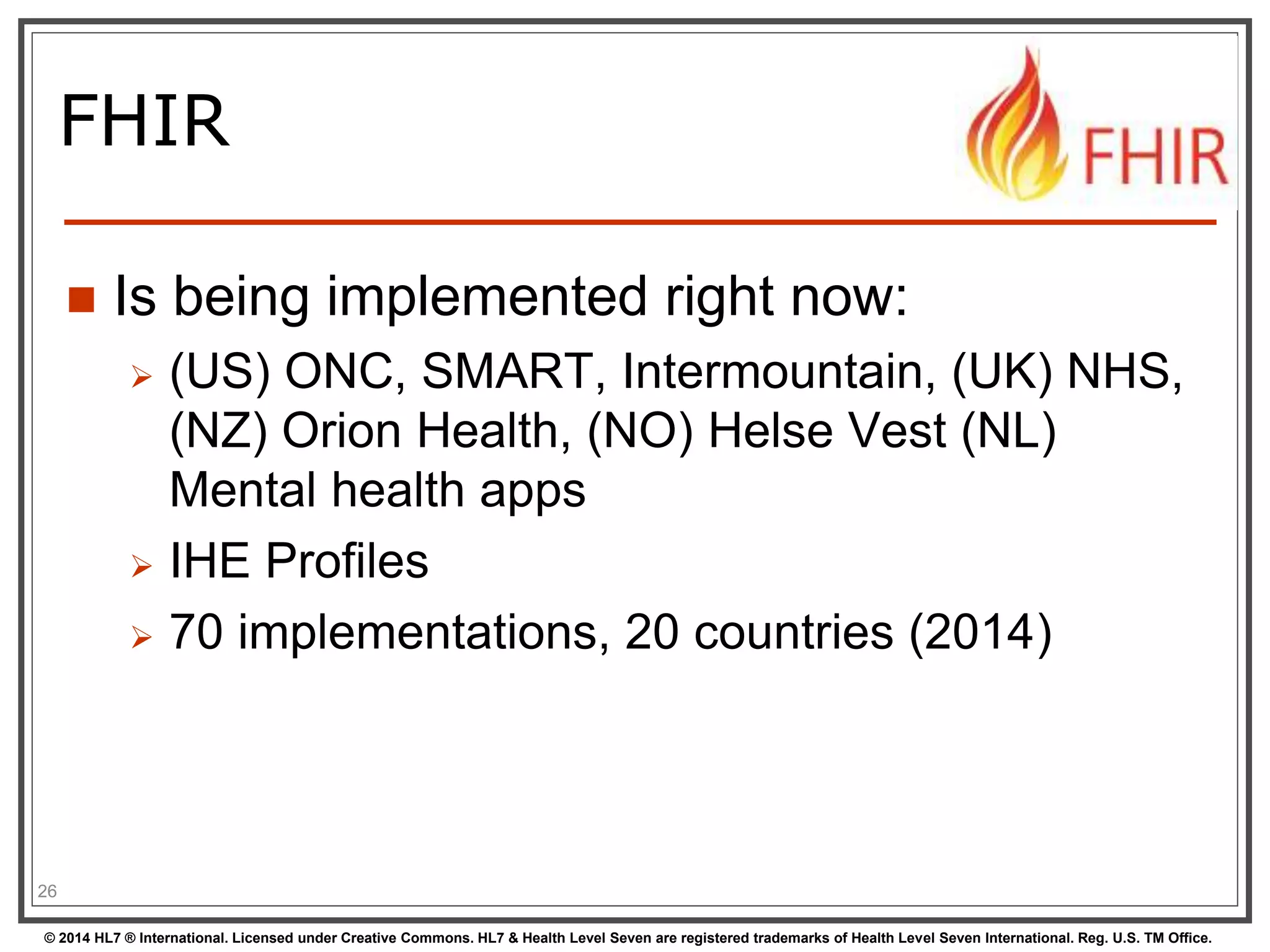

FHIR
 Is being implemented right now:
 (US) ONC, SMART, Intermountain, (UK) NHS,
(NZ) Orion Health, (NO) Helse Vest (NL)
Mental health apps
 IHE Profiles
 70 implementations, 20 countries (2014)
26

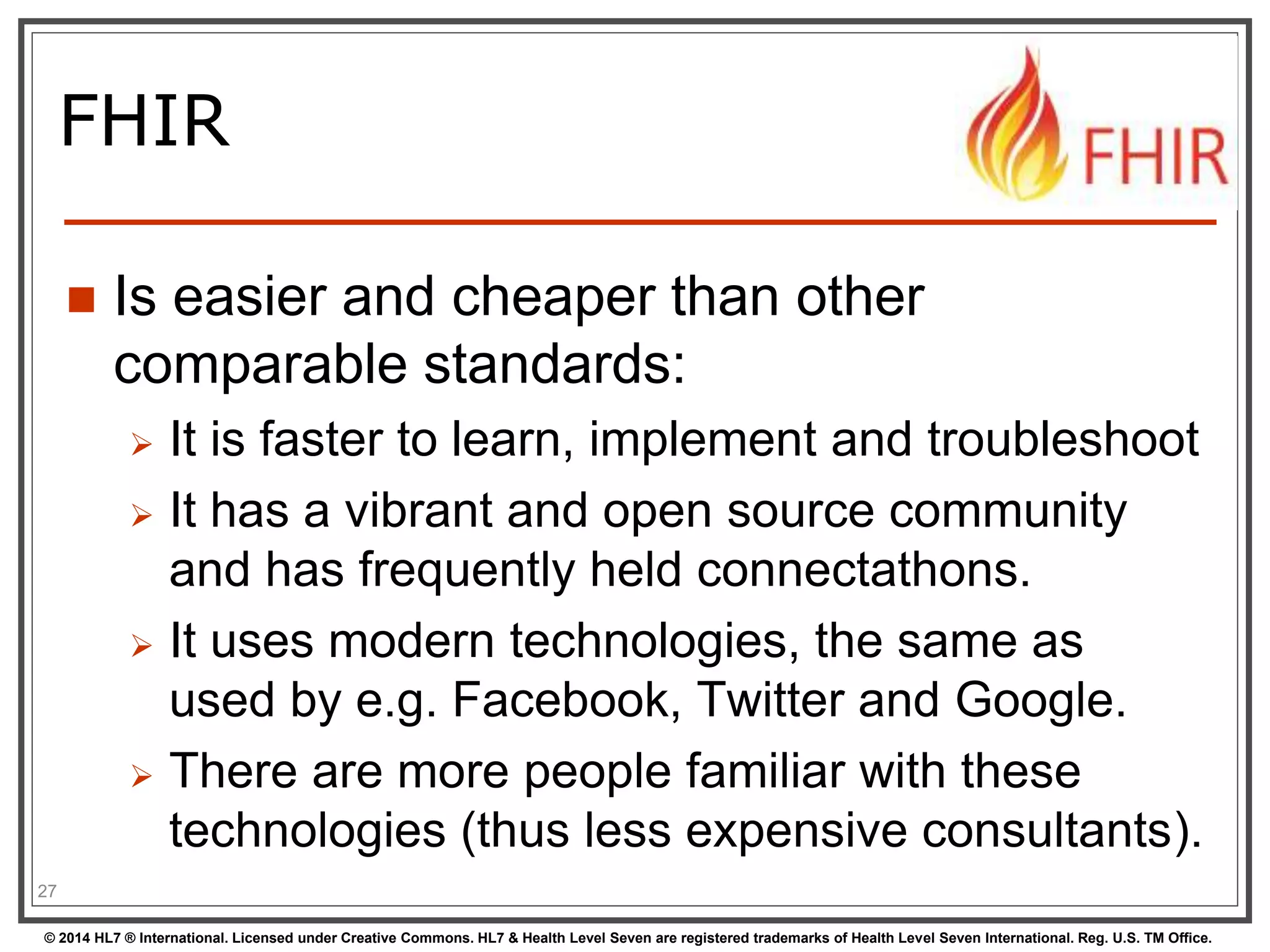

FHIR
 Is easier and cheaper than other
comparable standards:
 It is faster to learn, implement and troubleshoot
 It has a vibrant and open source community
and has frequently held connectathons.
 It uses modern technologies, the same as
used by e.g. Facebook, Twitter and Google.
 There are more people familiar with these
technologies (thus less expensive consultants).
27

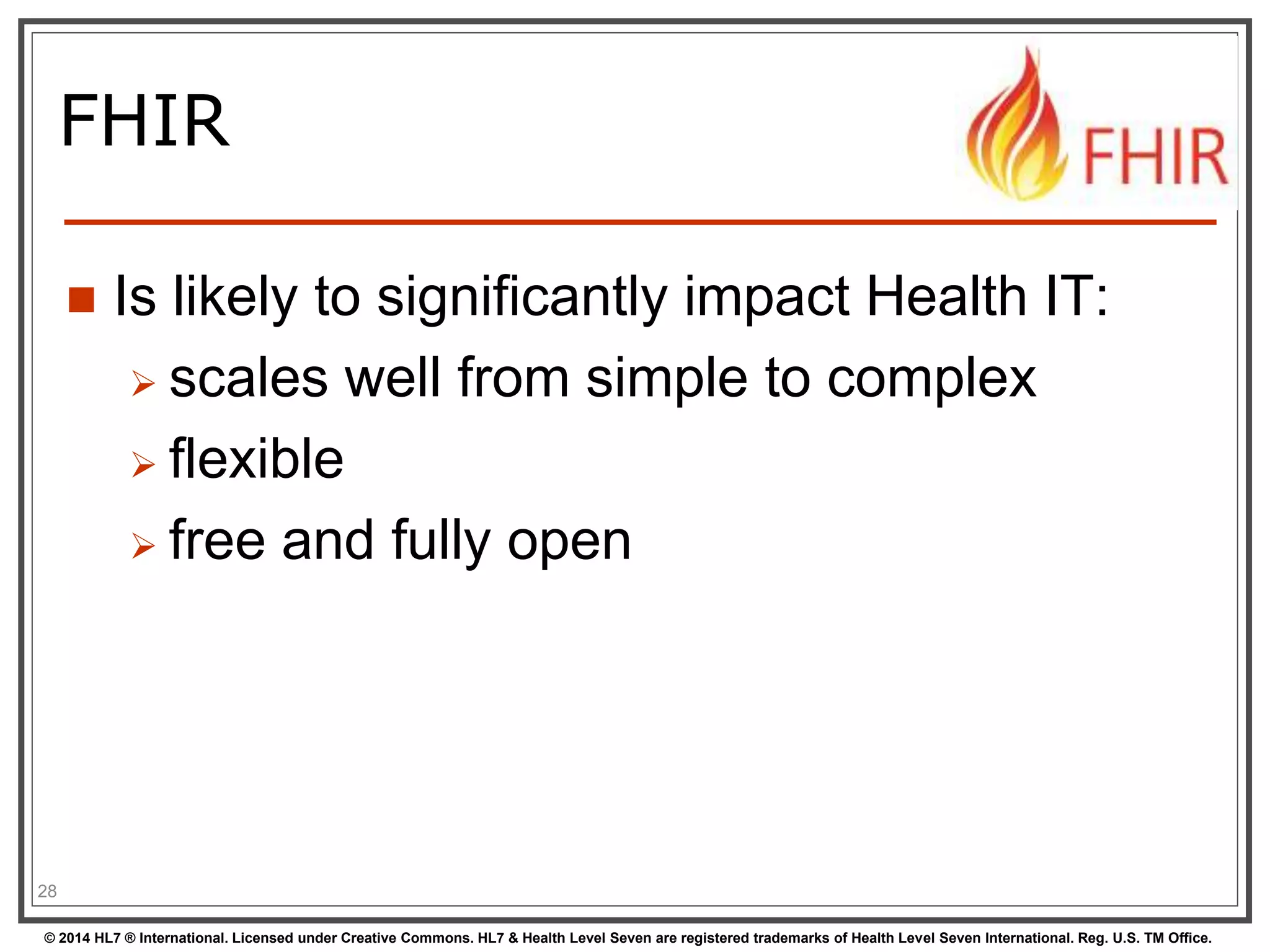

FHIR
 Is likely to significantly impact Health IT:
 scales well from simple to complex
 flexible
 free and fully open
28

29
Questions?

FHIR Example
for clinical users
FHIR Developer Days
November 26, 2014
Modified from a presentation by David Hay, Orion

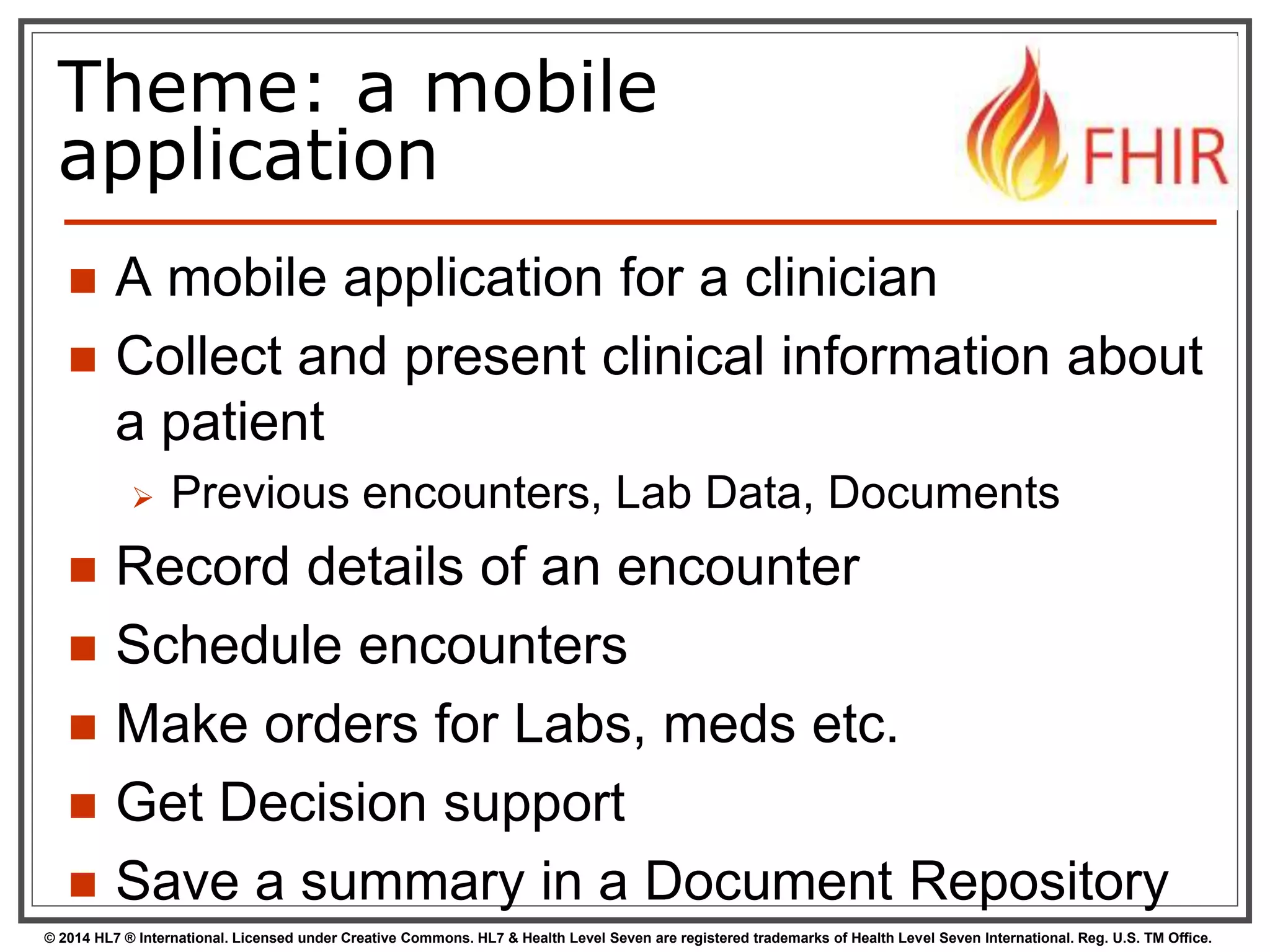

Theme: a mobile
application
 A mobile application for a clinician
 Collect and present clinical information about
a patient
 Previous encounters, Lab Data, Documents
 Record details of an encounter
 Schedule encounters
 Make orders for Labs, meds etc.
 Get Decision support
 Save a summary in a Document Repository

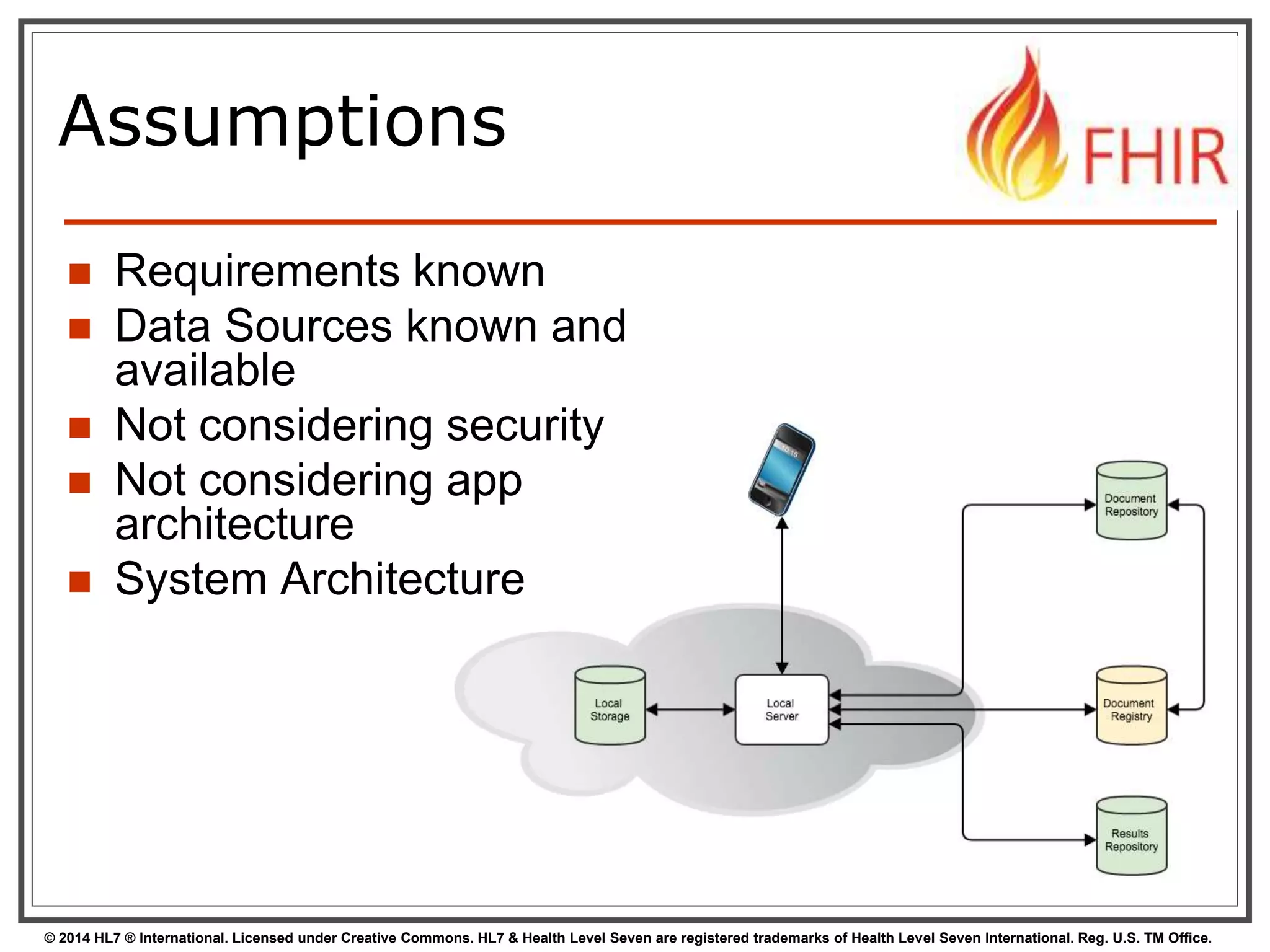

Assumptions
 Requirements known
 Data Sources known and
available
 Not considering security
 Not considering app
architecture
 System Architecture

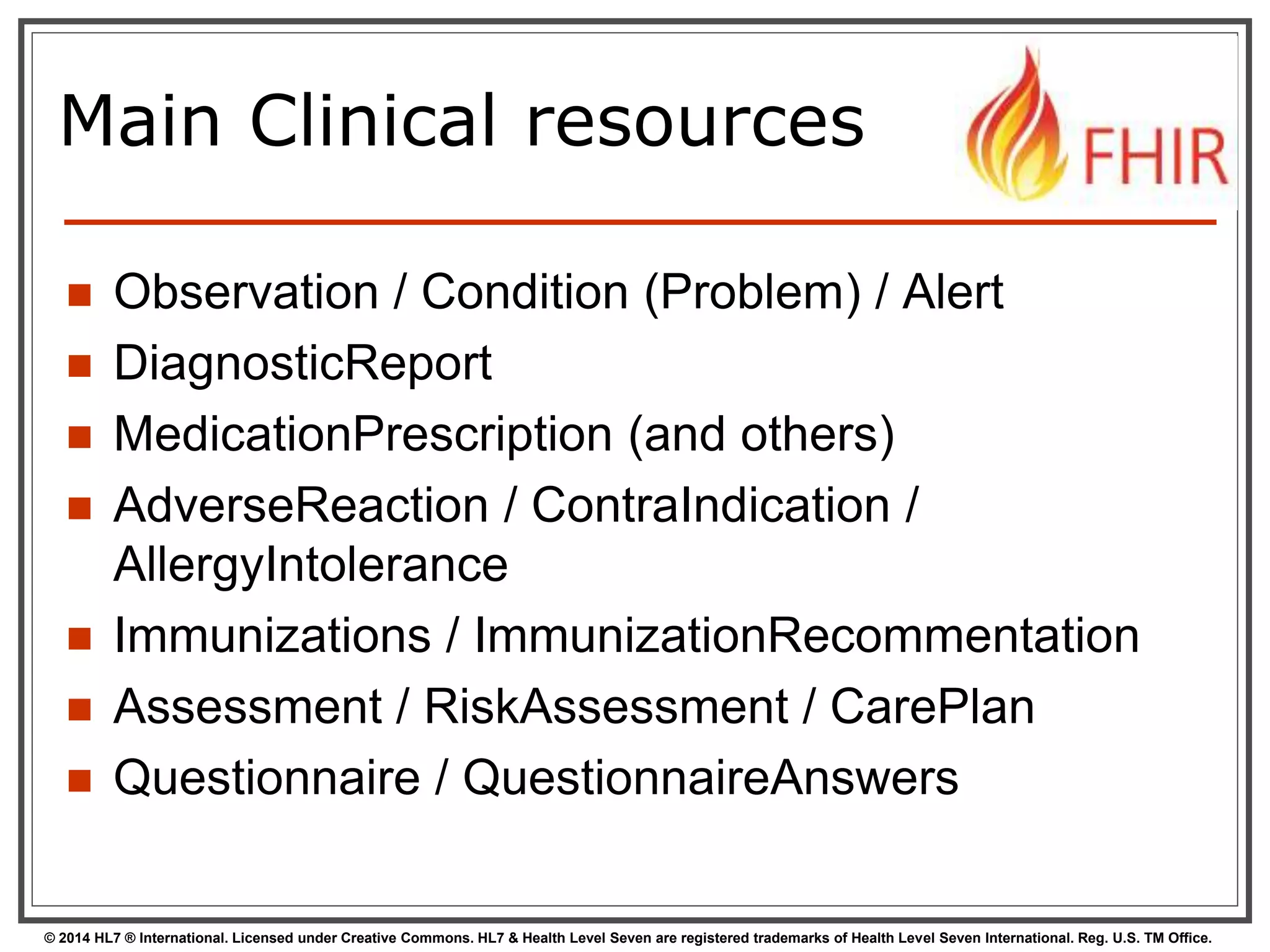

Main Clinical resources
 Observation / Condition (Problem) / Alert
 DiagnosticReport
 MedicationPrescription (and others)
 AdverseReaction / ContraIndication /
AllergyIntolerance
 Immunizations / ImmunizationRecommentation
 Assessment / RiskAssessment / CarePlan
 Questionnaire / QuestionnaireAnswers

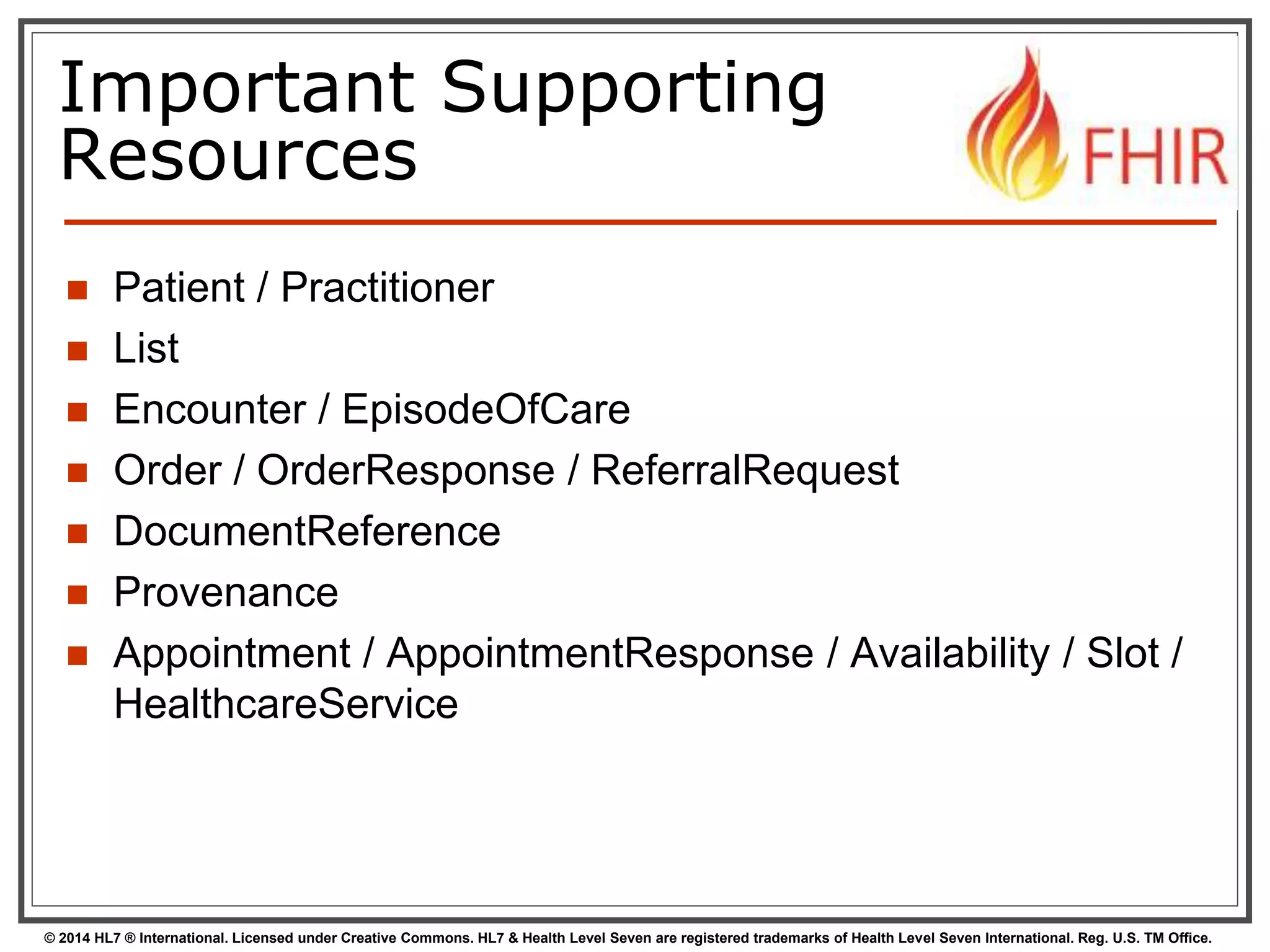

Important Supporting
Resources
 Patient / Practitioner
 List
 Encounter / EpisodeOfCare
 Order / OrderResponse / ReferralRequest
 DocumentReference
 Provenance
 Appointment / AppointmentResponse / Availability / Slot /
HealthcareService

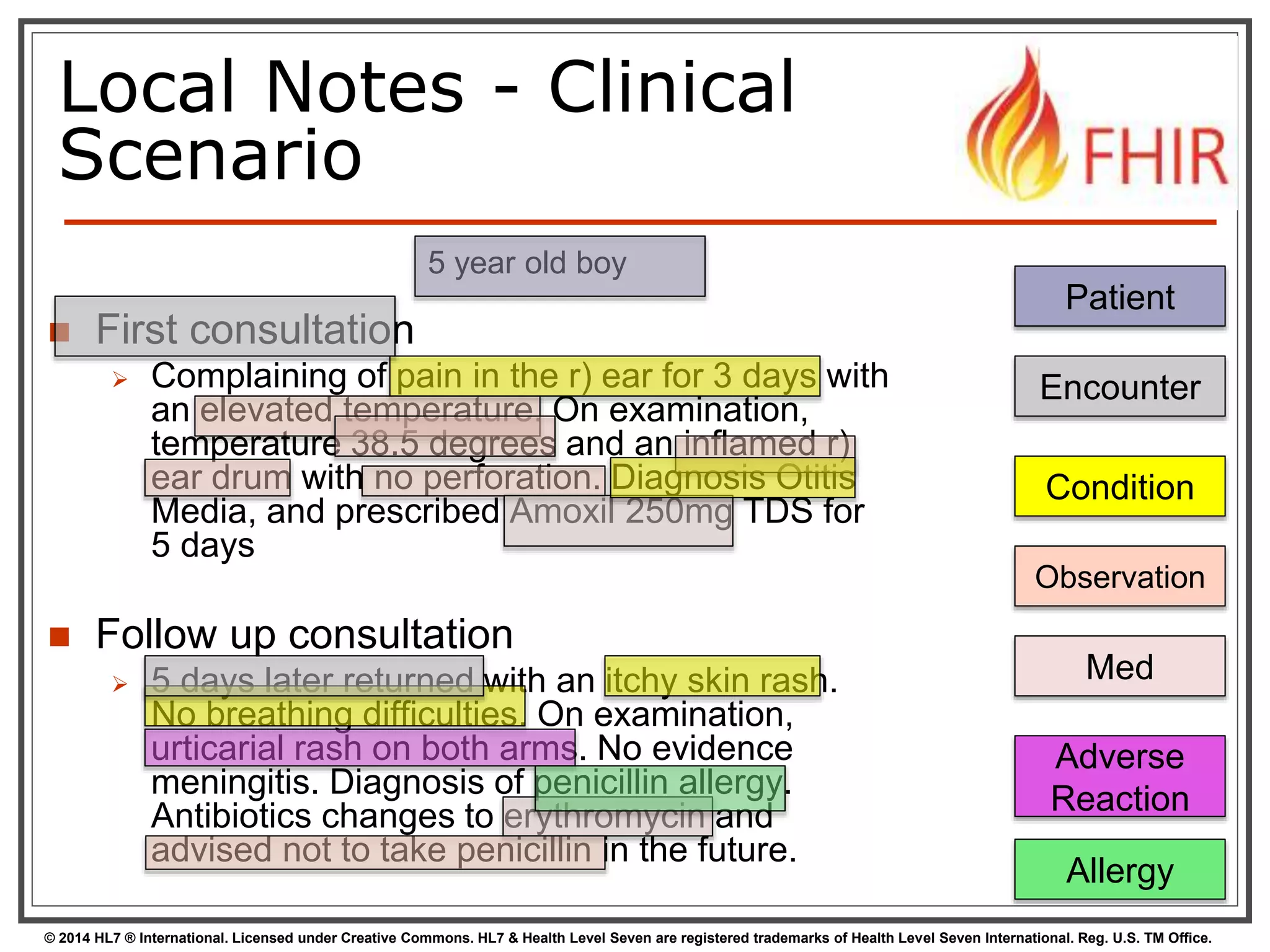

Local Notes - Clinical
Scenario
 First consultation
5 year old boy
 Complaining of pain in the r) ear for 3 days with
an elevated temperature. On examination,
temperature 38.5 degrees and an inflamed r)
ear drum with no perforation. Diagnosis Otitis
Media, and prescribed Amoxil 250mg TDS for
5 days
 Follow up consultation
 5 days later returned with an itchy skin rash.
No breathing difficulties. On examination,
urticarial rash on both arms. No evidence
meningitis. Diagnosis of penicillin allergy.
Antibiotics changes to erythromycin and
advised not to take penicillin in the future.
Patient
Encounter
Condition
Observation
Med
Adverse
Reaction
Allergy

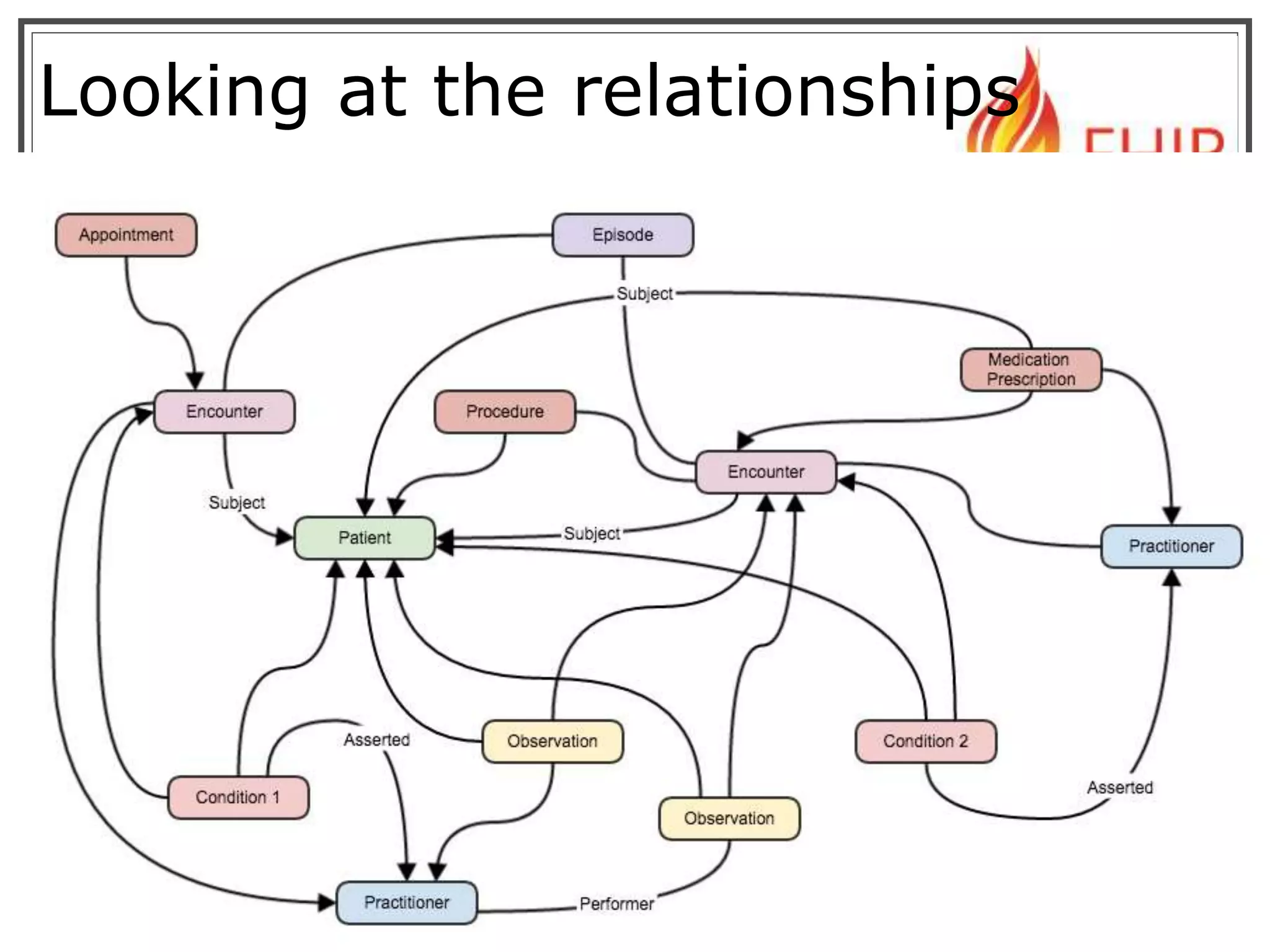

Looking at the relationships

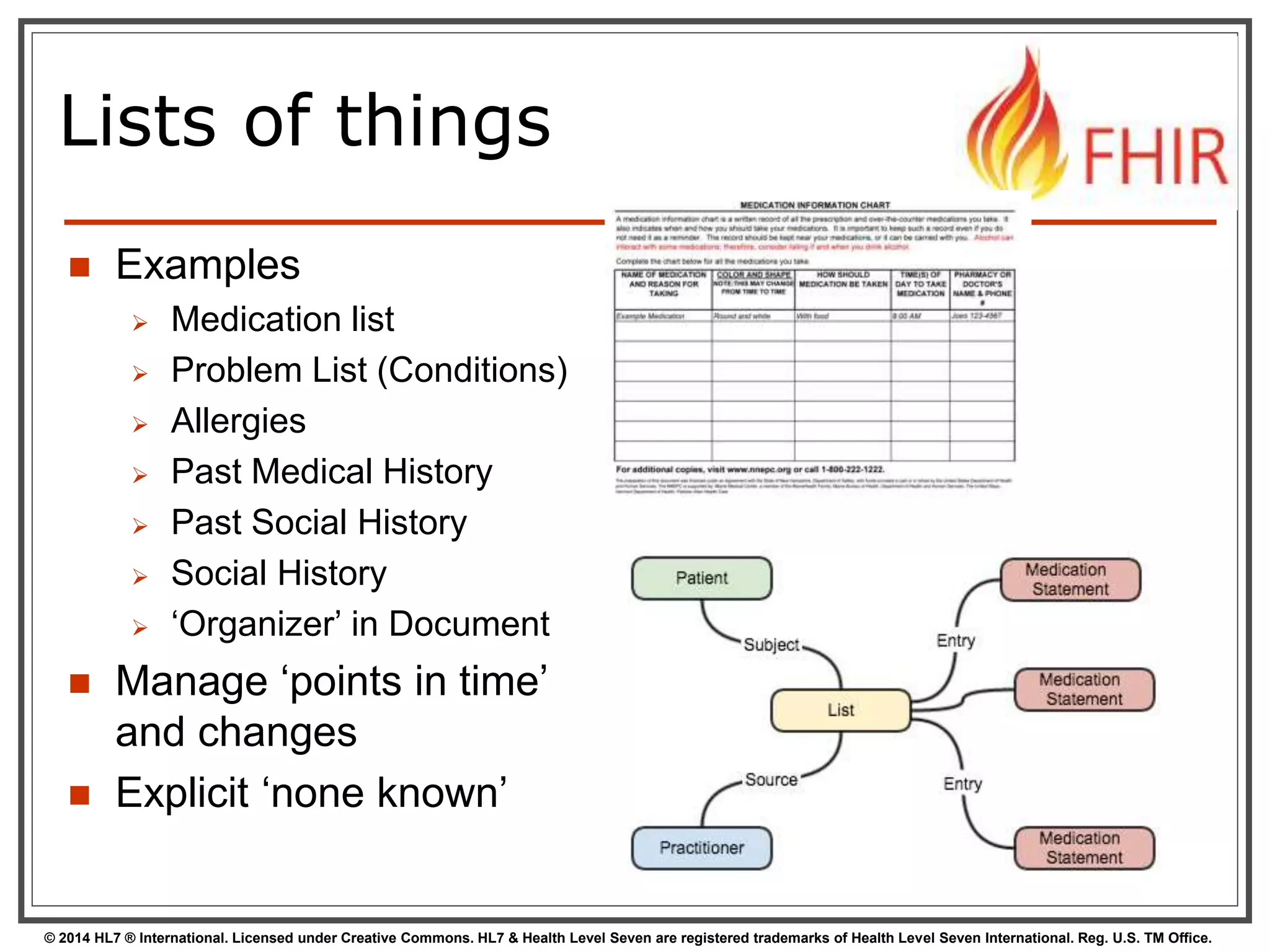

Lists of things
 Examples
 Medication list
 Problem List (Conditions)
 Allergies
 Past Medical History
 Past Social History
 Social History
 ‘Organizer’ in Document
 Manage ‘points in time’
and changes
 Explicit ‘none known’

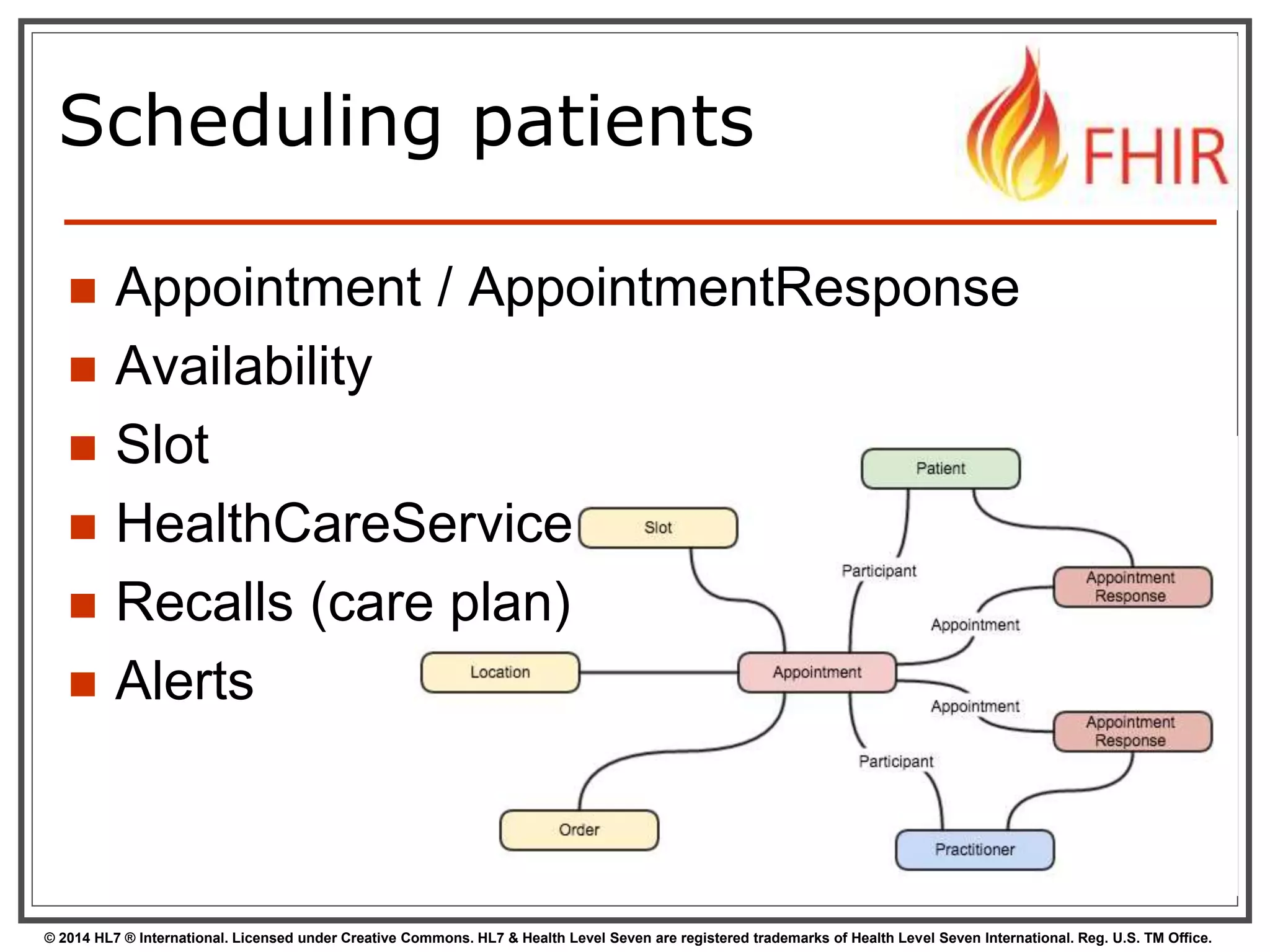

Scheduling patients
 Appointment / AppointmentResponse
 Availability
 Slot
 HealthCareService
 Recalls (care plan)
 Alerts

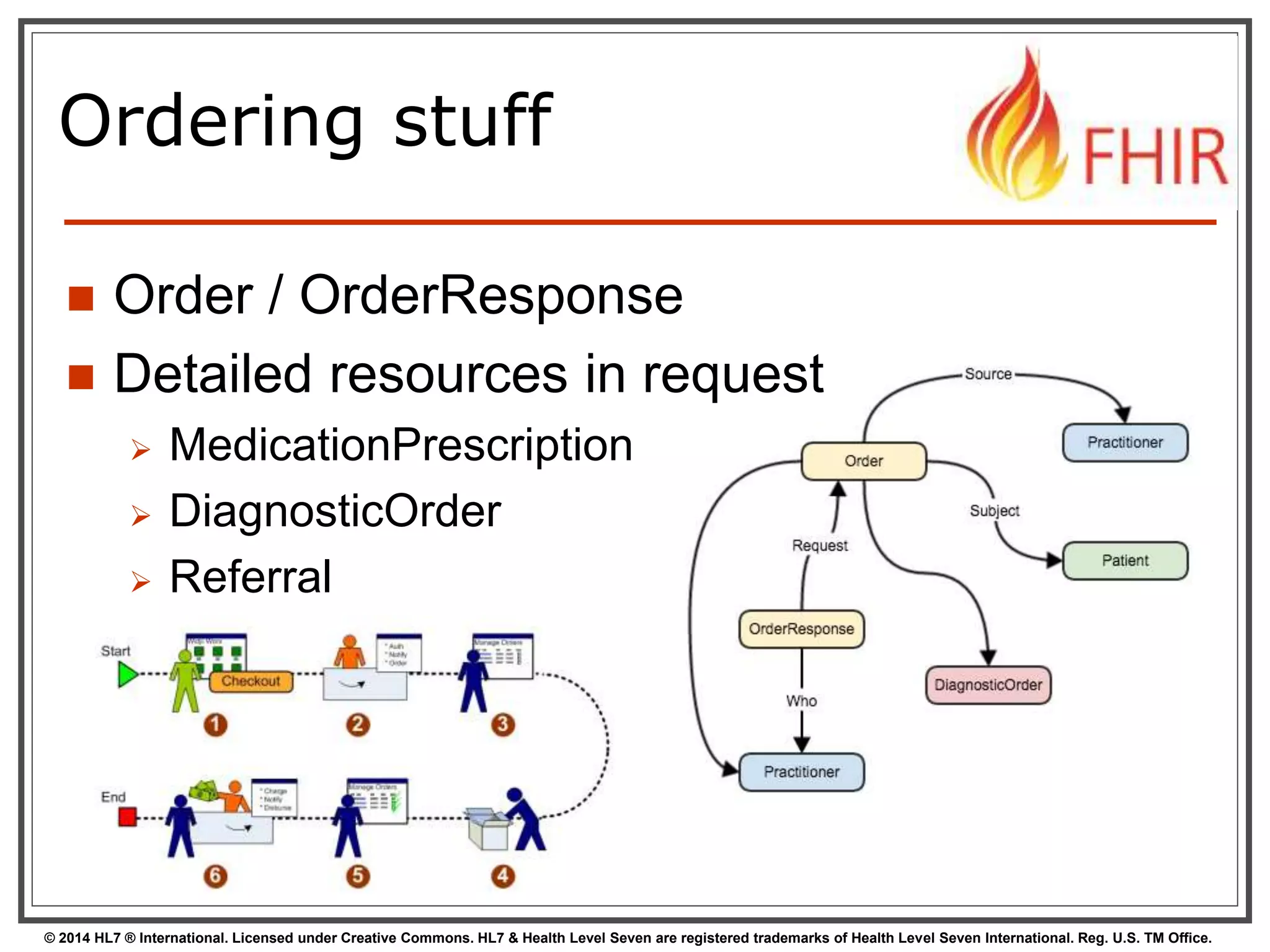

Ordering stuff
 Order / OrderResponse
 Detailed resources in request
 MedicationPrescription
 DiagnosticOrder
 Referral

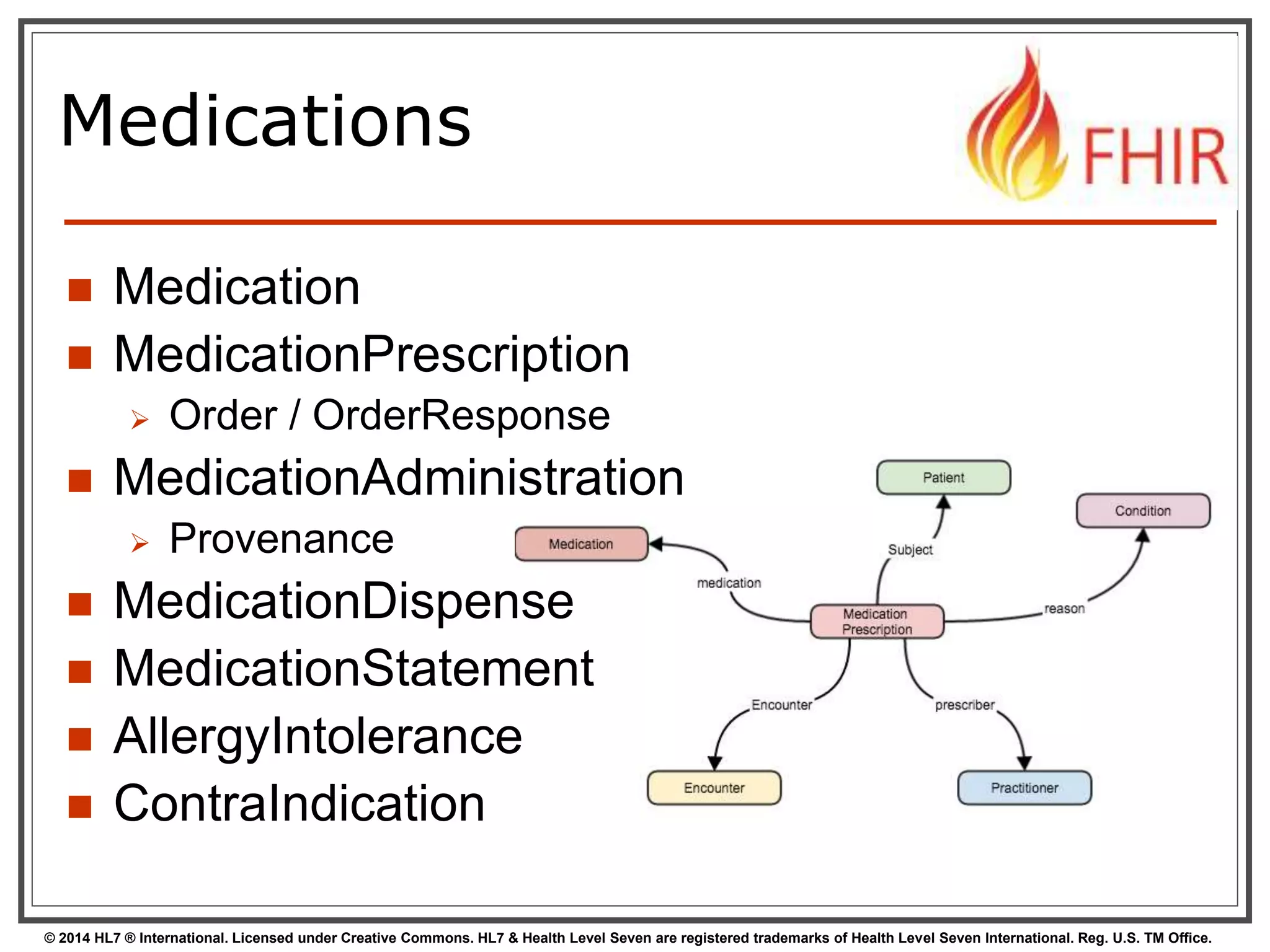

Medications
 Medication
 MedicationPrescription
 Order / OrderResponse
 MedicationAdministration
 Provenance
 MedicationDispense
 MedicationStatement
 AllergyIntolerance
 ContraIndication

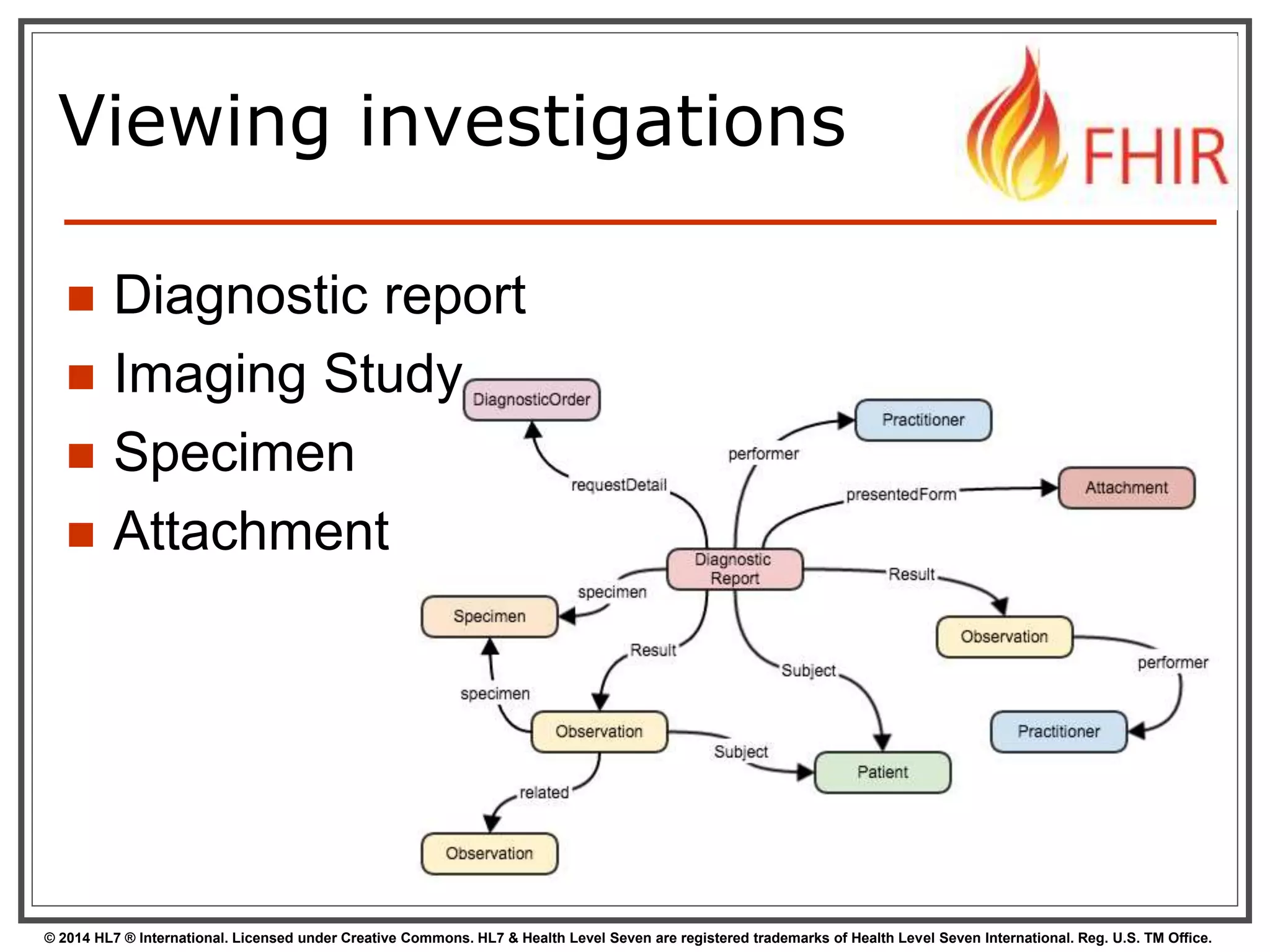

Viewing investigations
 Diagnostic report
 Imaging Study
 Specimen
 Attachment

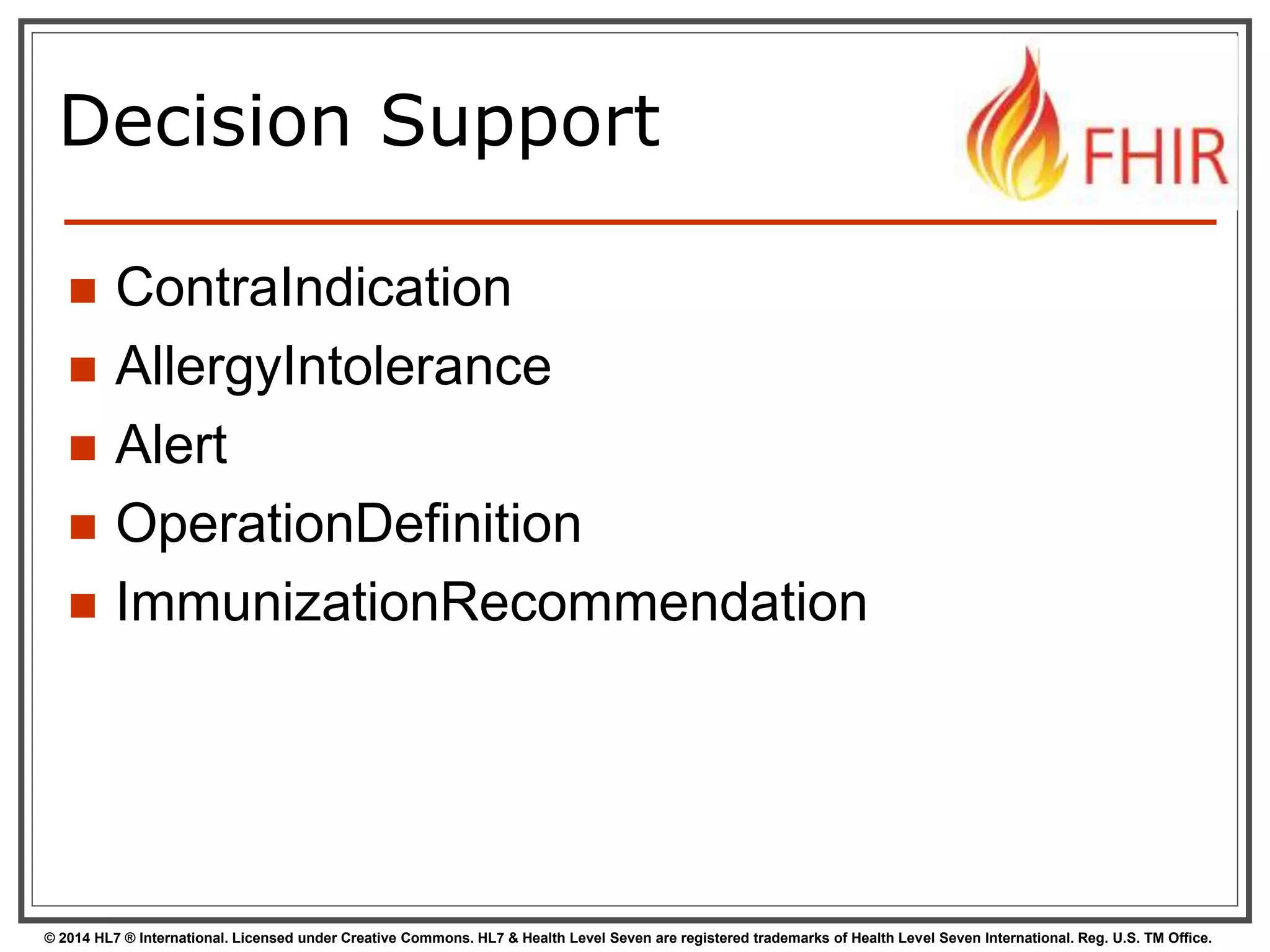

Decision Support
 ContraIndication
 AllergyIntolerance
 Alert
 OperationDefinition
 ImmunizationRecommendation

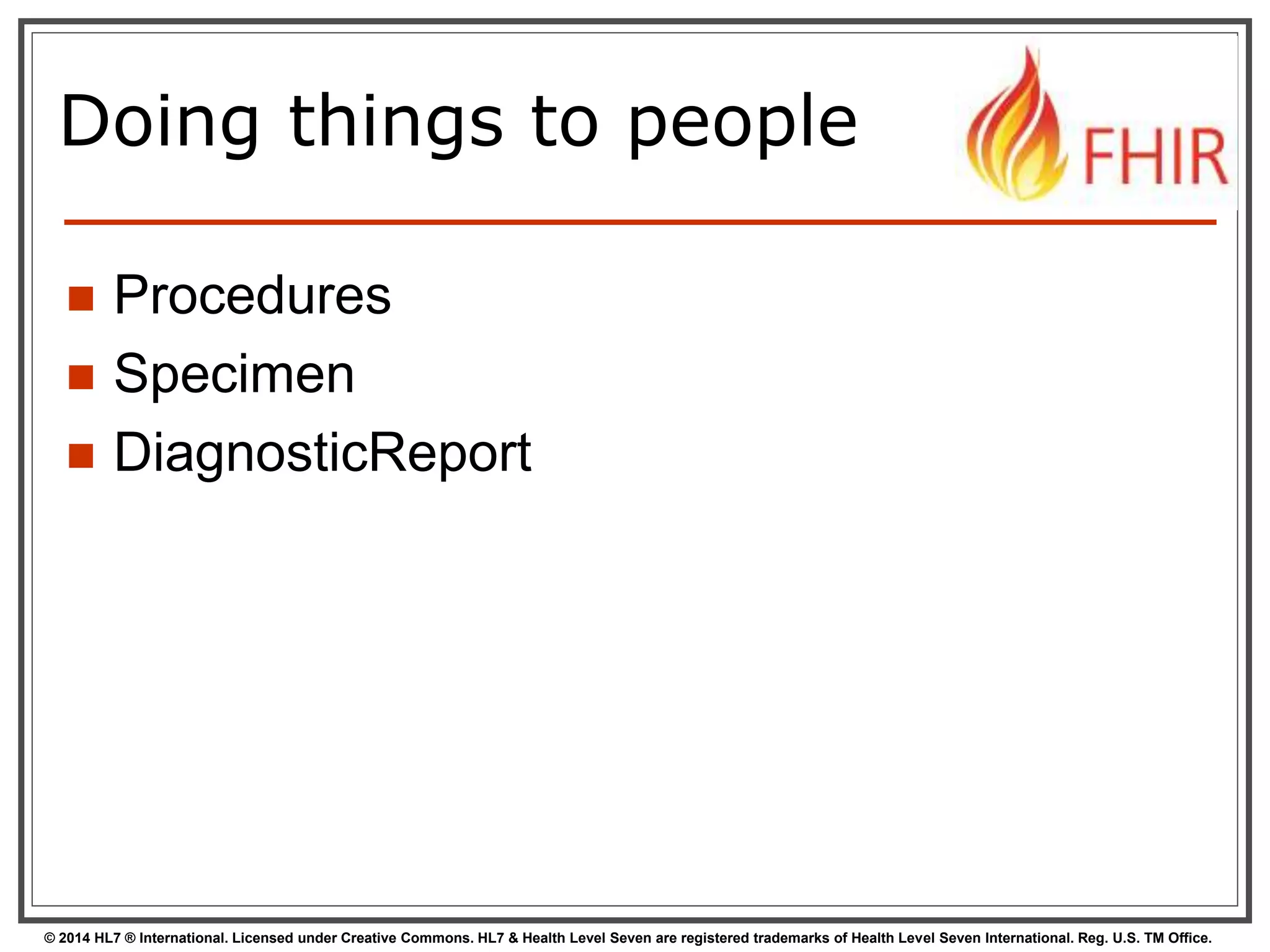

Doing things to people
 Procedures
 Specimen
 DiagnosticReport

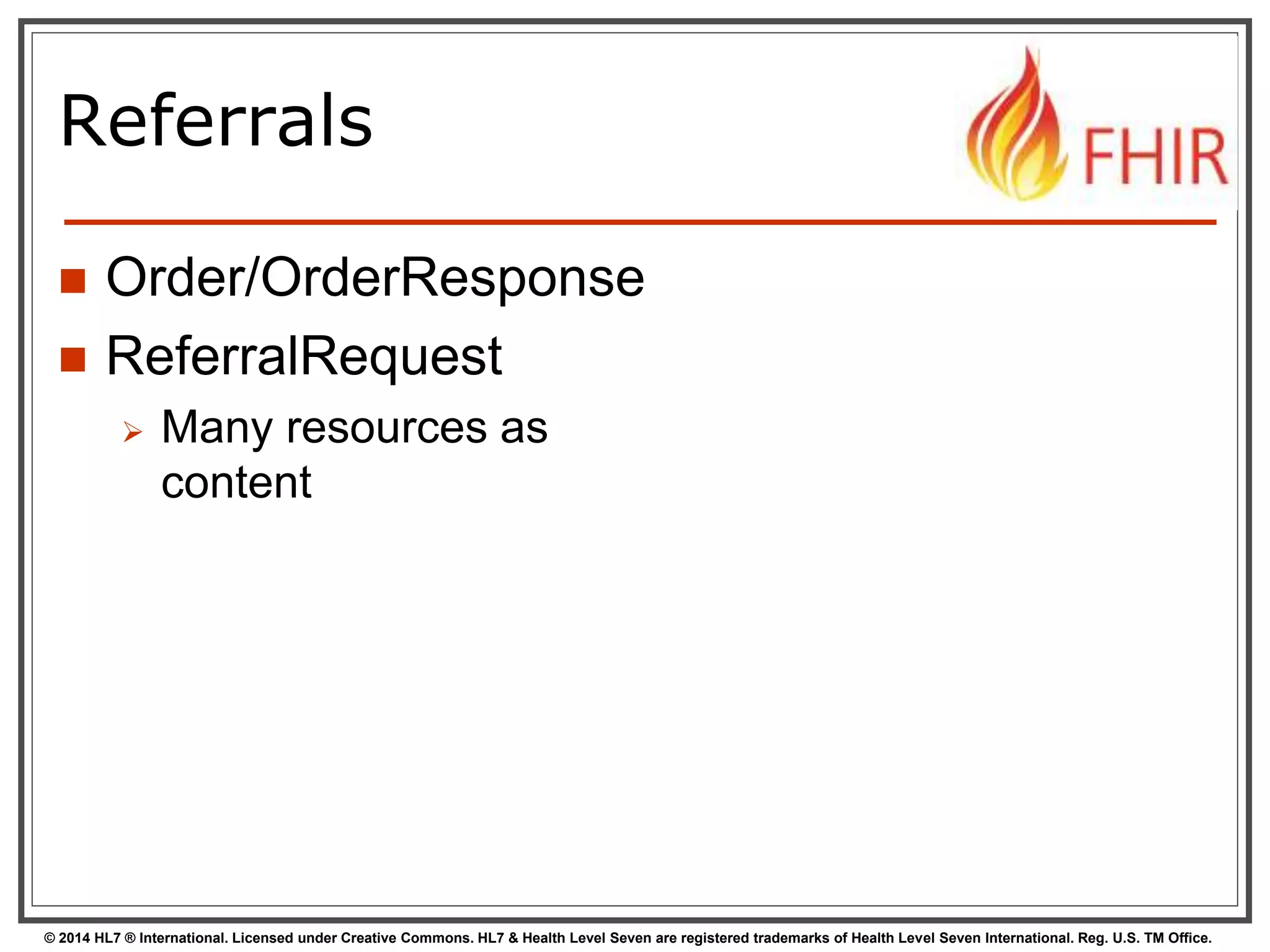

Referrals
 Order/OrderResponse
 ReferralRequest
 Many resources as
content

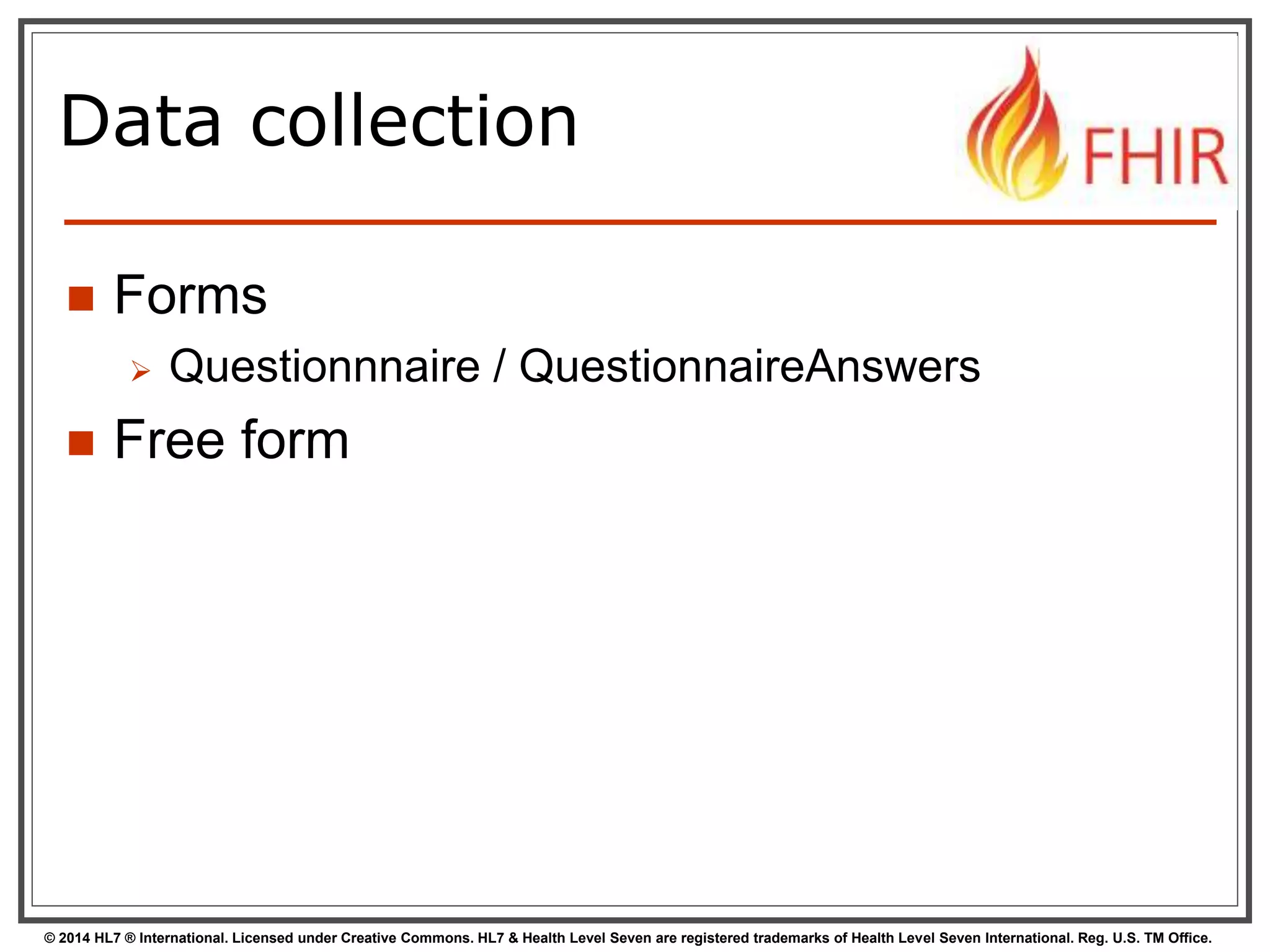

Data collection
 Forms
 Questionnnaire / QuestionnaireAnswers
 Free form

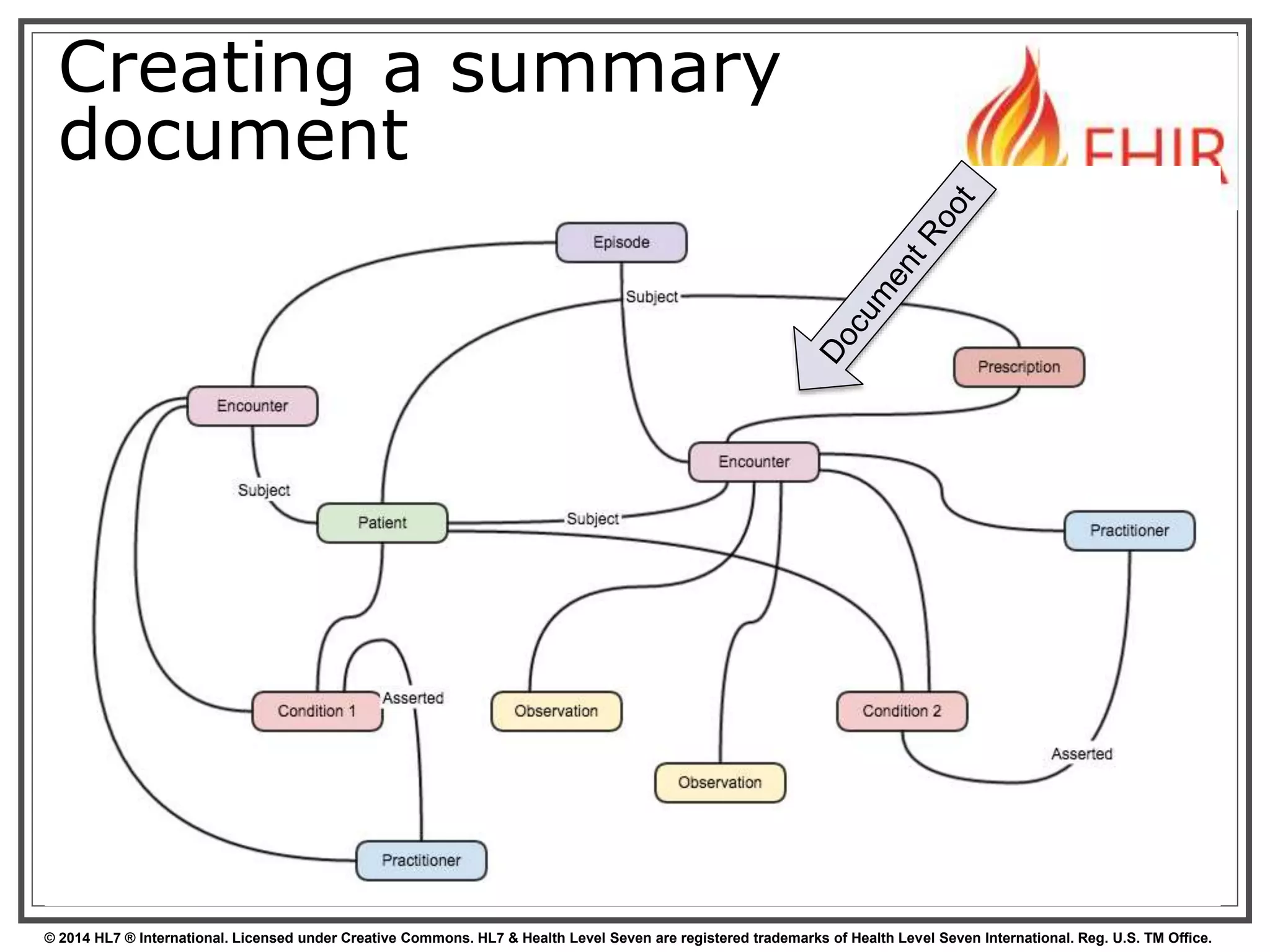

Creating a summary
document
 ddd

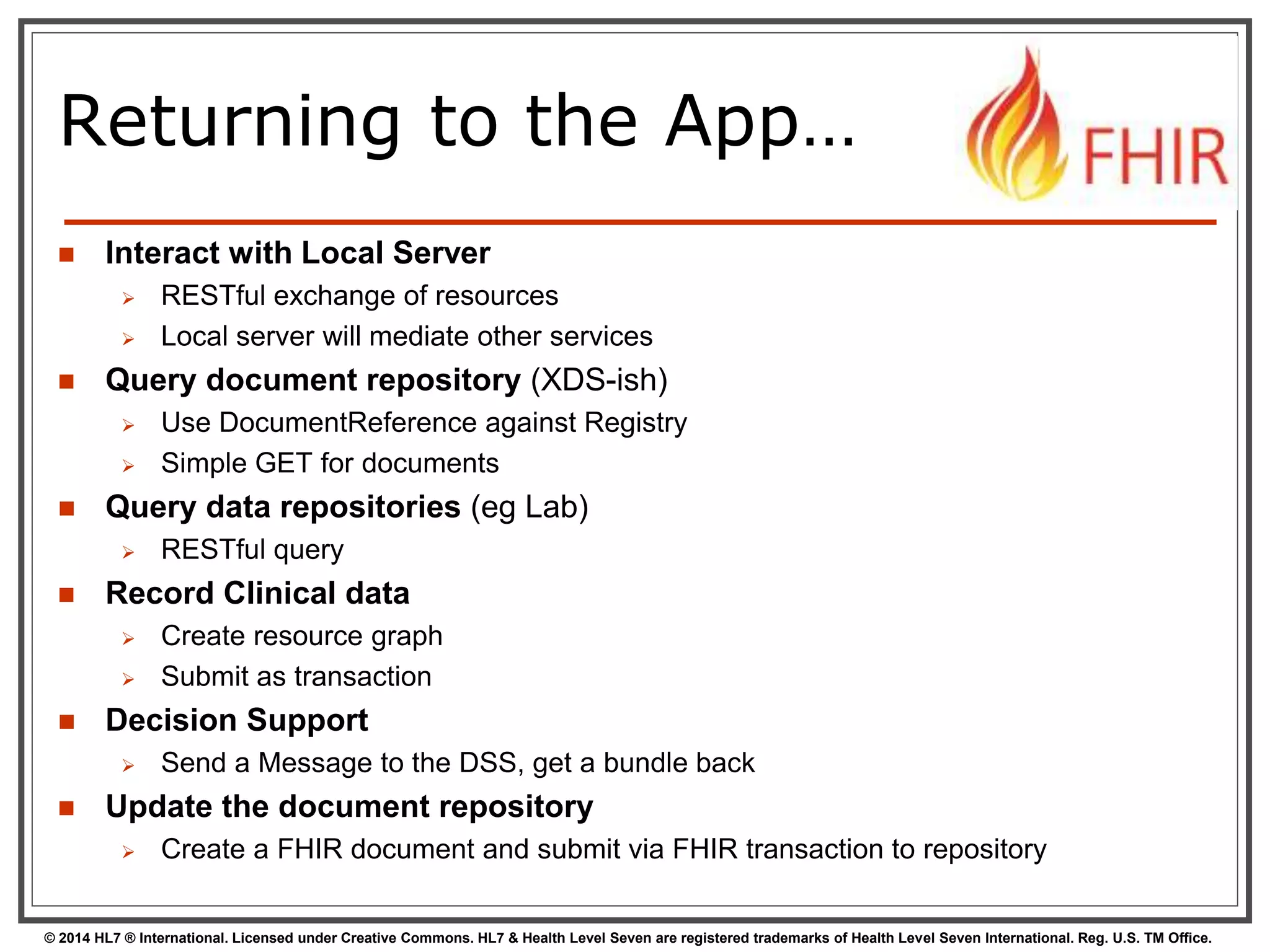

Returning to the App…
 Interact with Local Server
 RESTful exchange of resources
 Local server will mediate other services
 Query document repository (XDS-ish)
 Use DocumentReference against Registry
 Simple GET for documents
 Query data repositories (eg Lab)
 RESTful query
 Record Clinical data
 Create resource graph
 Submit as transaction
 Decision Support
 Send a Message to the DSS, get a bundle back
 Update the document repository
 Create a FHIR document and submit via FHIR transaction to repository

Winding Up
FHIR is fit for (clinical) purpose

49

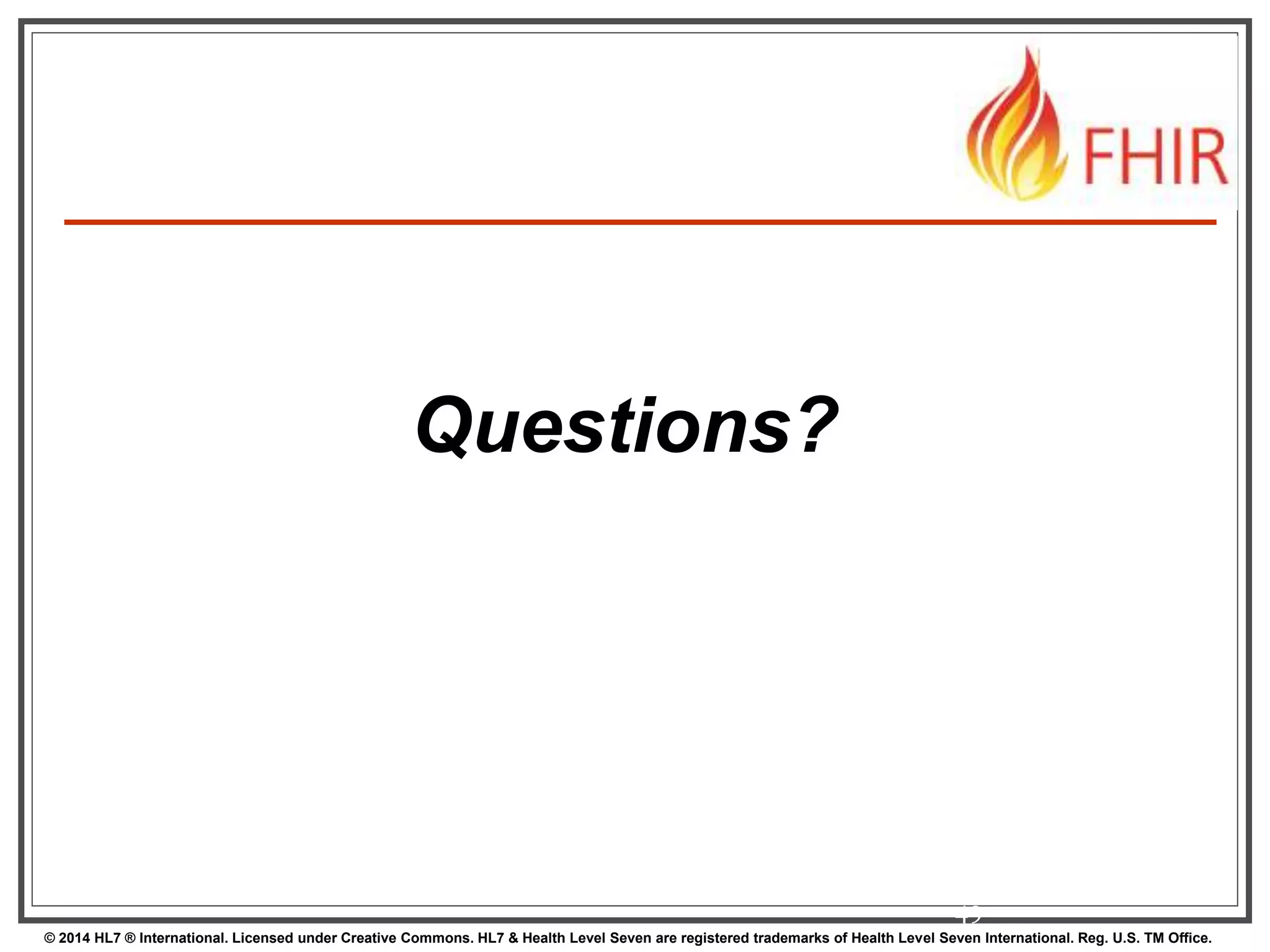

Questions?
