3D Printing in healthcare
This document discusses how 3D printing is reshaping healthcare and manufacturing. It is enabling mass customization in areas like hearing aids and dental aligners. In the operating room, 3D printing allows for customized surgical guides, implants, and models for pre-operative planning and education. It is also used to create customized prosthetics and bracing. The document envisions future applications of 3D printing like tissue engineering and organ printing.
More Related Content
Similar to 3D Printing in healthcare
3D Printing in healthcare
- 1. 3D Printing inHealthcare the Modern Operating Room Timothy Lew 3D Systems Medical Device MD&M West, Anaheim, CA 2.12.14
- 2. Summary — 3D PrintingReshapes Two Industries • mass custom manufacturing The Modern Operating Room • pre-operative • surgery Reimagining the Body… • fairings, bracing & biomimesis The 3D Future • bio-printing Discover Magazine
- 3. Hearing Aids —cottage industry to mass customization =

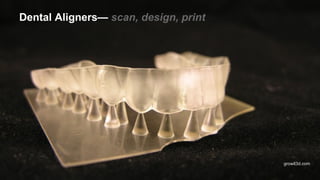

- 4. Dental Aligners— scan,design, print growit3d.com

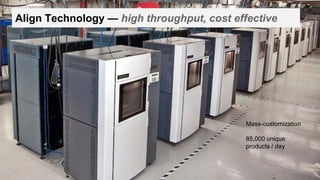

- 5. Align Technology —high throughput, cost effective Mass-customization 85,000 unique products / day
- 6. The Modern OperatingRoom — Pre-operative education practice planning Surgery drill guides instruments custom implants

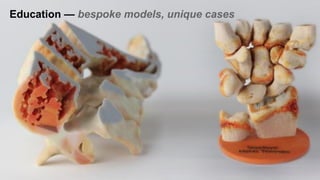

- 7. Education — bespokemodels, unique cases

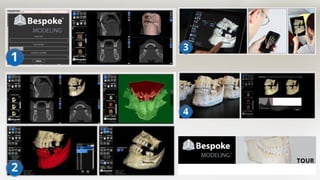

- 8.
- 9. Practice Models —multi-material, affordable thestar.com
- 10. Planning — preoperativevisualization • i.materialize.com

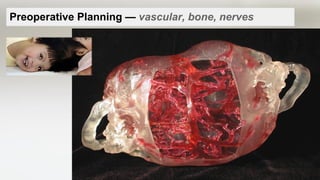

- 11. Preoperative Planning —vascular, bone, nerves
- 12. In the OperatingRoom…
- 13. Patient Specific DrillGuides — increased accuracy, preplanning
- 14. Patient Specific DrillGuides — increased accuracy, preplanning www.zimmer.com

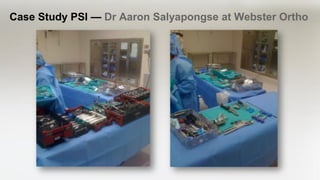

- 15. Case Study PSI— Dr Aaron Salyapongse at Webster Ortho
- 16. Case Study PSI— Dr Aaron Salyapongse at Webster Ortho VS. 3D printed TKA cut guide Conventional Kit
- 17. Custom Implant —save bone
- 18. Custom Implants —complexity is free Arcam Complex body-interfaces achievable
- 19. Custom Implants —control the workflow
- 20. Available Materials —PEEK/ PEKK, NiTi, Ti, Co-Cr, SS futuretimeline.net

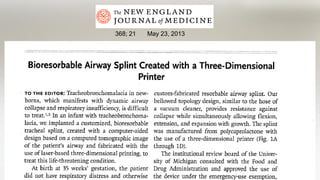

- 21. 368; 21 May 23,2013

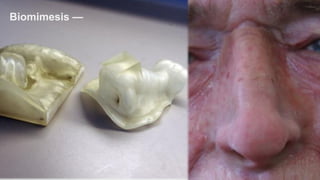

- 22. Reimagining the body— • Prosthetics bespoke fairings • Bracing bespoke braces • Biomimesis reconstructive
- 24. This is aprosthetic limb.
- 25. This is aCMC arthritis brace.

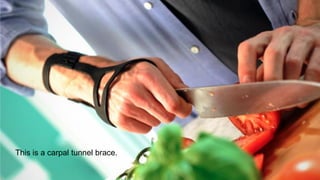

- 26. This is acarpal tunnel brace.

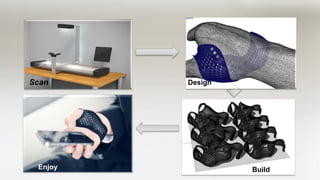

- 29.
- 30. This is afracture cast.
- 31. This is ascoliosis brace.
- 32.
- 34. Bio-printing — Organovo •Tissue printing • Print scaffolds • Promote ingrowth
- 35. Summary — 3D PrintingReshapes Two Industries • mass custom manufacturing The Modern Operating Room • pre-operative • surgery Reimagining the Body… • fairings, bracing & biomimesis The 3D Future • bio-printing Discover Magazine
- 36. THANK YOU Timothy Lew 3DSystems Medical Device tim.lew@3dsystems.com MD&M West, Anaheim, CA 2.12.14
