This document discusses the use of 3D printing for personalized medicine. It begins with background on 3D printing technologies and medical imaging. Applications discussed include medical education, surgical planning, and developing medical devices. A case study is presented on using 3D printing for planning surgery to treat an aortic arch aneurysm. The document also covers using 3D printing to create patient-specific surgical guides and implants. It concludes by discussing future directions like fully customized joint replacements printed from individual patient imaging data.

1. 3D Printing for
Personalized Medicine
In the New Healthcare Era
Ryan Klatte, BSBME
Principal Research Engineer
Lerner Research Institute
Jeff Yanof, Ph.D.
Senior Principal Research Engineer
Lerner Research Institute

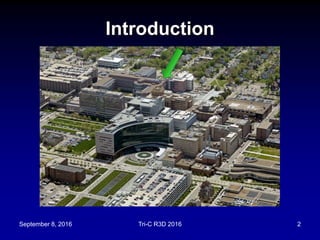

2. September 8, 2016 Tri-C R3D 2016 2
Introduction

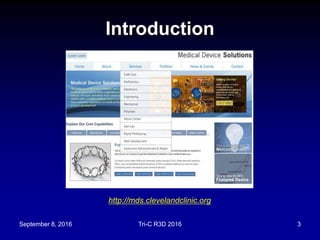

3. September 8, 2016 Tri-C R3D 2016 3
Introduction
http://mds.clevelandclinic.org

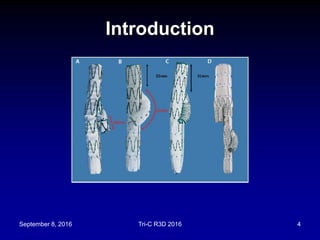

4. September 8, 2016 Tri-C R3D 2016 4
Introduction

5. September 8, 2016 Tri-C R3D 2016 5
Background
Medical Imaging Additive Manufacturing Patient-Based
Anatomical Model

6. September 8, 2016 Tri-C R3D 2016 6
Background 3D Printing Technologies
Mainstream Additive Manufacturing Technologies
Stereolithography Fused Deposition Modeling
(Fused Filament
Fabrication)
Binder Jetting Selective Laser
Sintering
Polyjet
(multi-material jetting)
Selective Laser Melting
(Electron Beam, Direct
Metal Laser Sintering)
Continuous Light
Interface Production
MultiJet Fusion

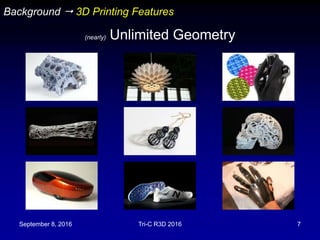

7. September 8, 2016 Tri-C R3D 2016 7
Background  3D Printing Features
(nearly) Unlimited Geometry

8. September 8, 2016 Tri-C R3D 2016 8

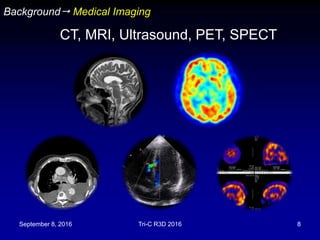

Background Medical Imaging
, Ultrasound, PET, SPECTCT, MRI,

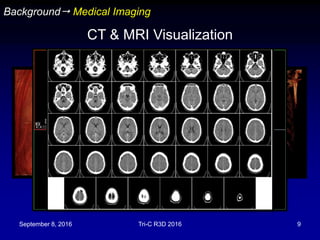

9. September 8, 2016 Tri-C R3D 2016 9
Background Medical Imaging
CT & MRI Visualization

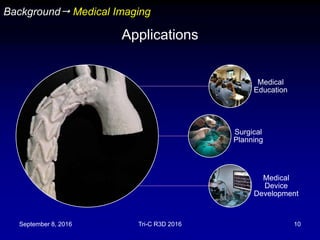

10. September 8, 2016 Tri-C R3D 2016 10
Medical
Education
Surgical
Planning
Medical
Device
Development
Background Medical Imaging
Applications

11. September 8, 2016 Tri-C R3D 2016 11

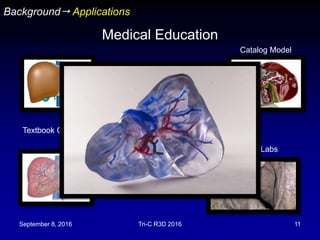

Background Applications
Medical Education
Textbook Graphics
Video
Catalog Model
Cadaver Labs

12. September 8, 2016 Tri-C R3D 2016 12

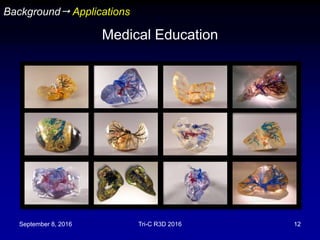

Background Applications
Medical Education

13. September 8, 2016 Tri-C R3D 2016 13
Background Applications
Surgical Planning
Tumor
Resection Remnant

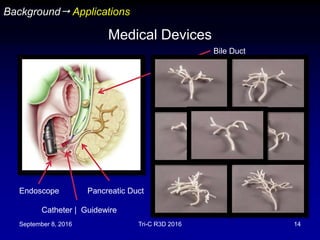

14. September 8, 2016 Tri-C R3D 2016 14
Background Applications
Medical Devices
Endoscope
Catheter | Guidewire
Pancreatic Duct
Bile Duct

15. September 8, 2016 Tri-C R3D 2016 15

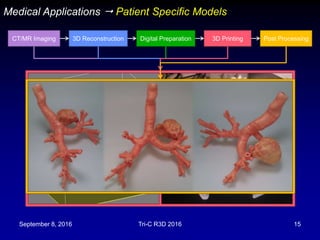

Medical Applications  Patient Specific Models
CT/MR Imaging 3D Reconstruction Digital Preparation 3D Printing Post Processing

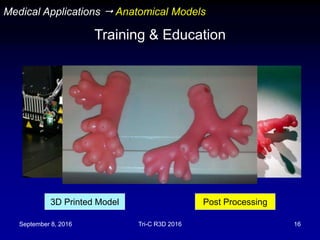

16. September 8, 2016 Tri-C R3D 2016 16
3D Printed Model Post Processing
Medical Applications  Anatomical Models
Training & Education

17. September 8, 2016 Tri-C R3D 2016 17

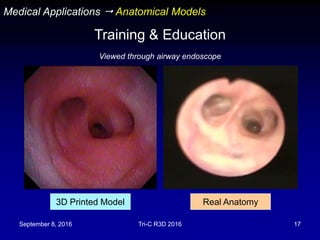

3D Printed Model Real Anatomy
Viewed through airway endoscope
Medical Applications  Anatomical Models
Training & Education

18. September 8, 2016 Tri-C R3D 2016 18

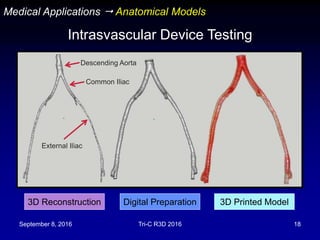

3D Reconstruction Digital Preparation 3D Printed Model
Descending Aorta
Medical Applications  Anatomical Models
Intrasvascular Device Testing
Common Iliac
External Iliac

19. September 8, 2016 Tri-C R3D 2016 19

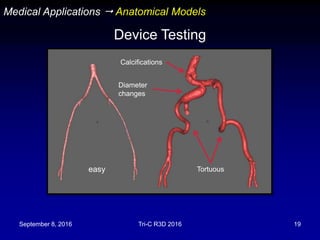

Medical Applications  Anatomical Models
Device Testing
easy Tortuous
Calcifications
Diameter
changes

20. September 8, 2016 Tri-C R3D 2016 20

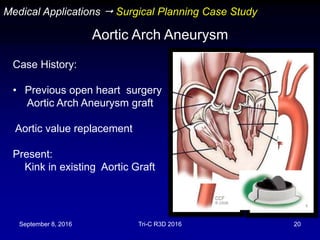

Medical Applications  Surgical Planning Case Study
Aortic Arch Aneurysm
Case History:
• Previous open heart surgery
Aortic Arch Aneurysm graft
Aortic value replacement
Present:
Kink in existing Aortic Graft

21. September 8, 2016 Tri-C R3D 2016 21
Medical Applications  Surgical Planning Case Study
Aortic Arch Aneurysm
Open Repair vs. Endovascular Approach ?

22. September 8, 2016 Tri-C R3D 2016 22

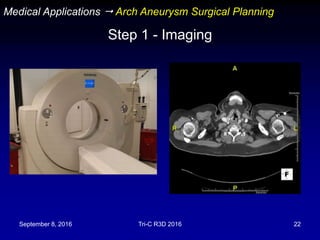

Step 1 - Imaging
Medical Applications  Arch Aneurysm Surgical Planning

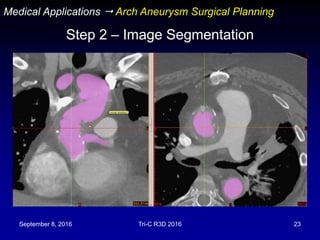

23. September 8, 2016 Tri-C R3D 2016 23
Step 2 – Image Segmentation
Medical Applications  Arch Aneurysm Surgical Planning

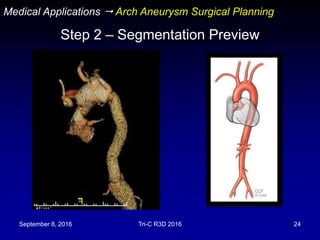

24. September 8, 2016 Tri-C R3D 2016 24
Step 2 – Segmentation Preview
Medical Applications  Arch Aneurysm Surgical Planning

25. September 8, 2016 Tri-C R3D 2016 25

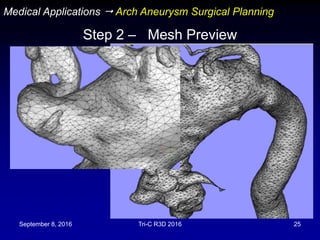

Step 2 – Mesh Preview
Medical Applications  Arch Aneurysm Surgical Planning

26. September 8, 2016 Tri-C R3D 2016 26

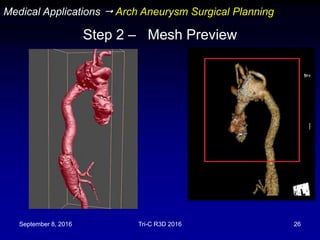

Step 2 – Mesh Preview
Medical Applications  Arch Aneurysm Surgical Planning

27. September 8, 2016 Tri-C R3D 2016 27

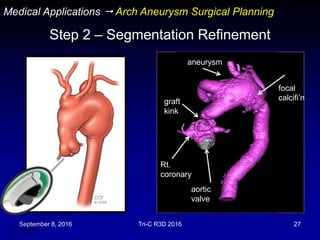

Step 2 – Segmentation Refinement
Medical Applications  Arch Aneurysm Surgical Planning
aortic
valve
graft
kink
aneurysm
Rt.
coronary
focal
calcifi’n

28. September 8, 2016 Tri-C R3D 2016 28

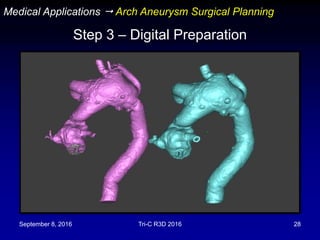

Step 3 – Digital Preparation
Medical Applications  Arch Aneurysm Surgical Planning

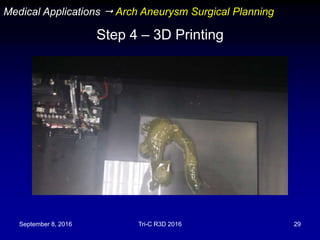

29. September 8, 2016 Tri-C R3D 2016 29
Step 4 – 3D Printing
Medical Applications  Arch Aneurysm Surgical Planning

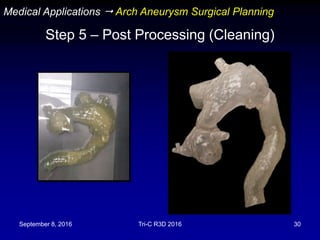

30. September 8, 2016 Tri-C R3D 2016 30
Step 5 – Post Processing (Cleaning)
Medical Applications  Arch Aneurysm Surgical Planning

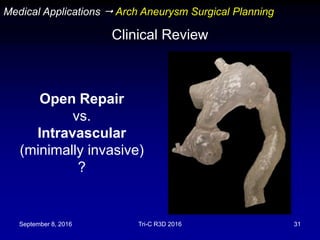

31. September 8, 2016 Tri-C R3D 2016 31
Clinical Review
Medical Applications  Arch Aneurysm Surgical Planning
Open Repair
vs.
Intravascular
(minimally invasive)
?

32. September 8, 2016 Tri-C R3D 2016 32

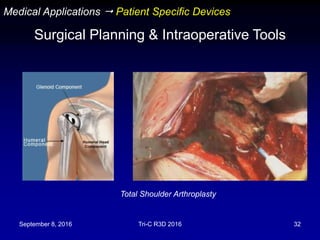

Total Shoulder Arthroplasty
Medical Applications  Patient Specific Devices
Surgical Planning & Intraoperative Tools

33. September 8, 2016 Tri-C R3D 2016 33

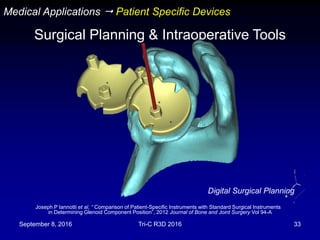

Joseph P Iannotti et al, “ Comparison of Patient-Specific Instruments with Standard Surgical Instruments
in Determining Glenoid Component Position”, 2012 Journal of Bone and Joint Surgery Vol 94-A
Digital Surgical Planning
Medical Applications  Patient Specific Devices
Surgical Planning & Intraoperative Tools

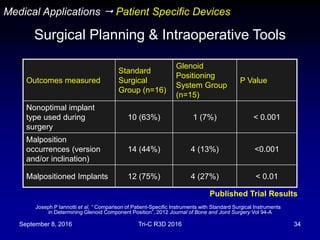

34. September 8, 2016 Tri-C R3D 2016 34
Joseph P Iannotti et al, “ Comparison of Patient-Specific Instruments with Standard Surgical Instruments
in Determining Glenoid Component Position”, 2012 Journal of Bone and Joint Surgery Vol 94-A
Published Trial Results
Outcomes measured
Standard
Surgical
Group (n=16)
Glenoid
Positioning
System Group
(n=15)
P Value
Nonoptimal implant
type used during
surgery
10 (63%) 1 (7%) < 0.001
Malposition
occurrences (version
and/or inclination)
14 (44%) 4 (13%) <0.001
Malpositioned Implants 12 (75%) 4 (27%) < 0.01
Medical Applications  Patient Specific Devices
Surgical Planning & Intraoperative Tools

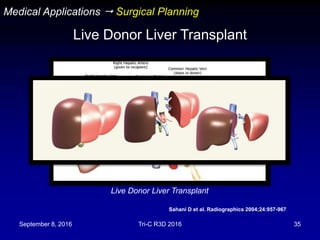

35. September 8, 2016 Tri-C R3D 2016 35
Medical Applications  Surgical Planning
Live Donor Liver Transplant
Live Donor Liver Transplant
Sahani D et al. Radiographics 2004;24:957-967

36. September 8, 2016 Tri-C R3D 2016 36

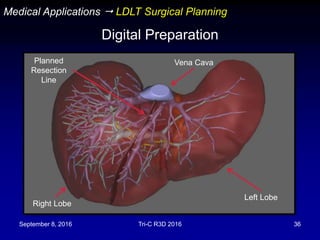

Medical Applications  LDLT Surgical Planning
Digital Preparation
Planned
Resection
Line
Left Lobe
Right Lobe
Vena Cava

37. September 8, 2016 Tri-C R3D 2016 37

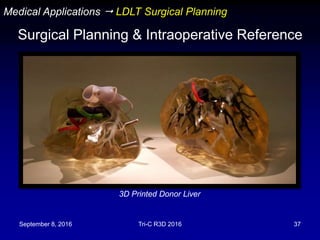

Medical Applications  LDLT Surgical Planning
Surgical Planning & Intraoperative Reference
3D Printed Donor Liver

38. September 8, 2016 Tri-C R3D 2016 38
Dr. Ingeborg van Kroonenburgh et. al., "Doctor and
engineer creating the future for 3D printed custom
made implants", Digital Dental News, April 2012 pp.
60-65
Steinert AF1, Sefrin L, Hoberg M,
Arnholdt J, Rudert M. “Individualized
total knee arthroplasty”, 2015 Apr
Orthopade Vol 44(4)290-2, 294-301.
doi: 10.1007/s00132-015-3104-1
(published in German)

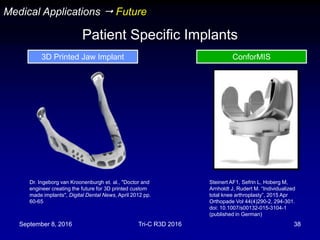

Medical Applications  Future
Patient Specific Implants
3D Printed Jaw Implant ConforMIS

39. September 8, 2016 Tri-C R3D 2016 39
Conclusion
Questions?
Ryan Klatte
• klatter@ccf.org
• 216.445.0289
Jeff Yanof
• yanofj@ccf.org
• 216.445.1944
