LOGIC DESIGN
PART 4 Maxterm

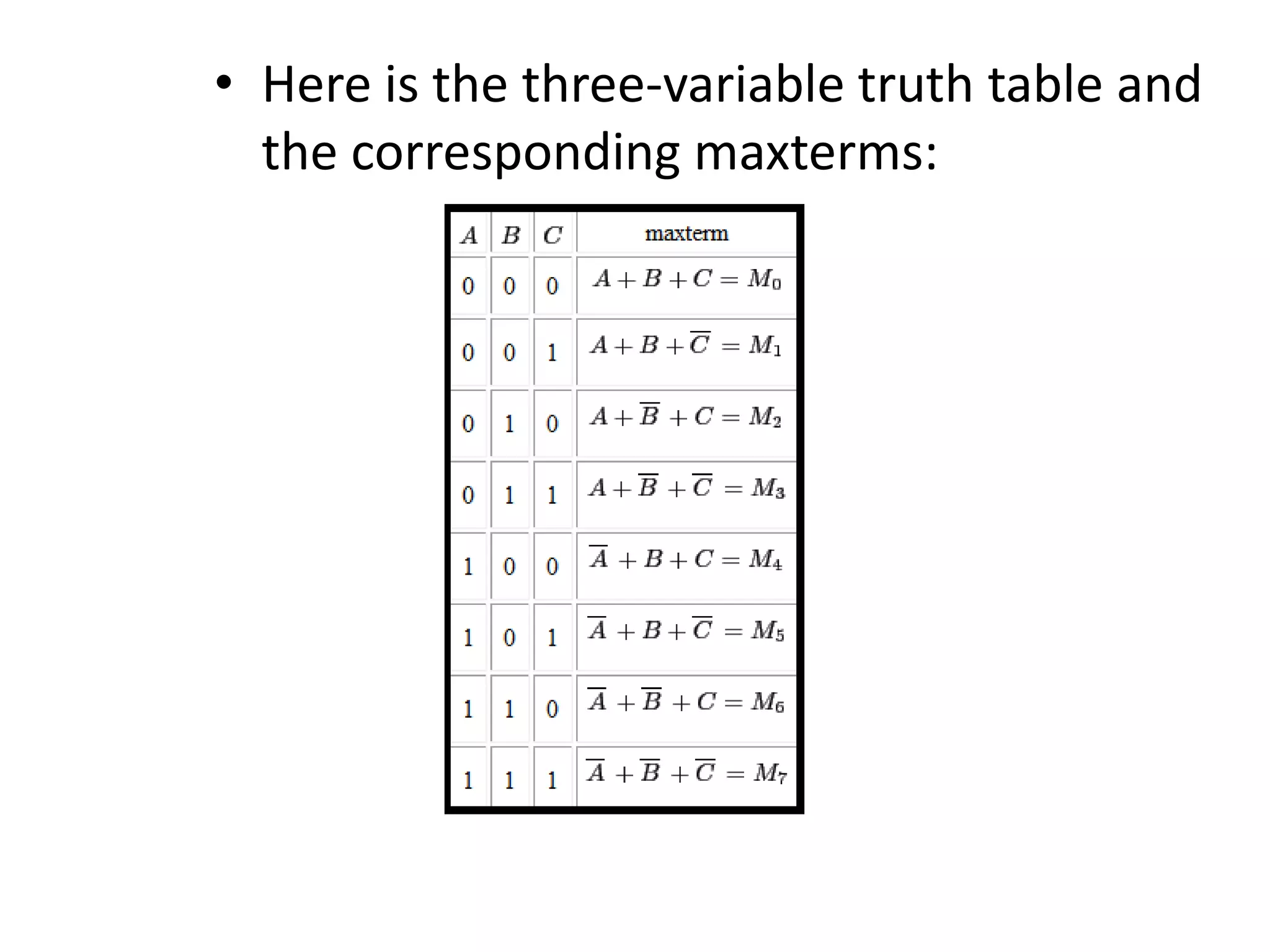

• Here is the three-variable truth table and
the corresponding maxterms:
• Like minterms, maxterms also provide a
way to represent any boolean function
algebraically once its truth table is
specified.
• The function is given by the product
(AND) of those maxterms corresponding
to rows where the function is zero. By the
maxterm property, the AND will contain a
term equal to 0 (making the function 0 )
on exactly those rows where the function
is supposed to be 0 .
• Example: for the same function as
previously, we observe that it is 0 on rows
• This form also lends itself to a compact
notation: using the Greek letter capital pi
to denote a product, we write only the
numbers of the maxterms included in :

• Two boolean functions are equivalent if
their pi forms are the same.
Maxterms

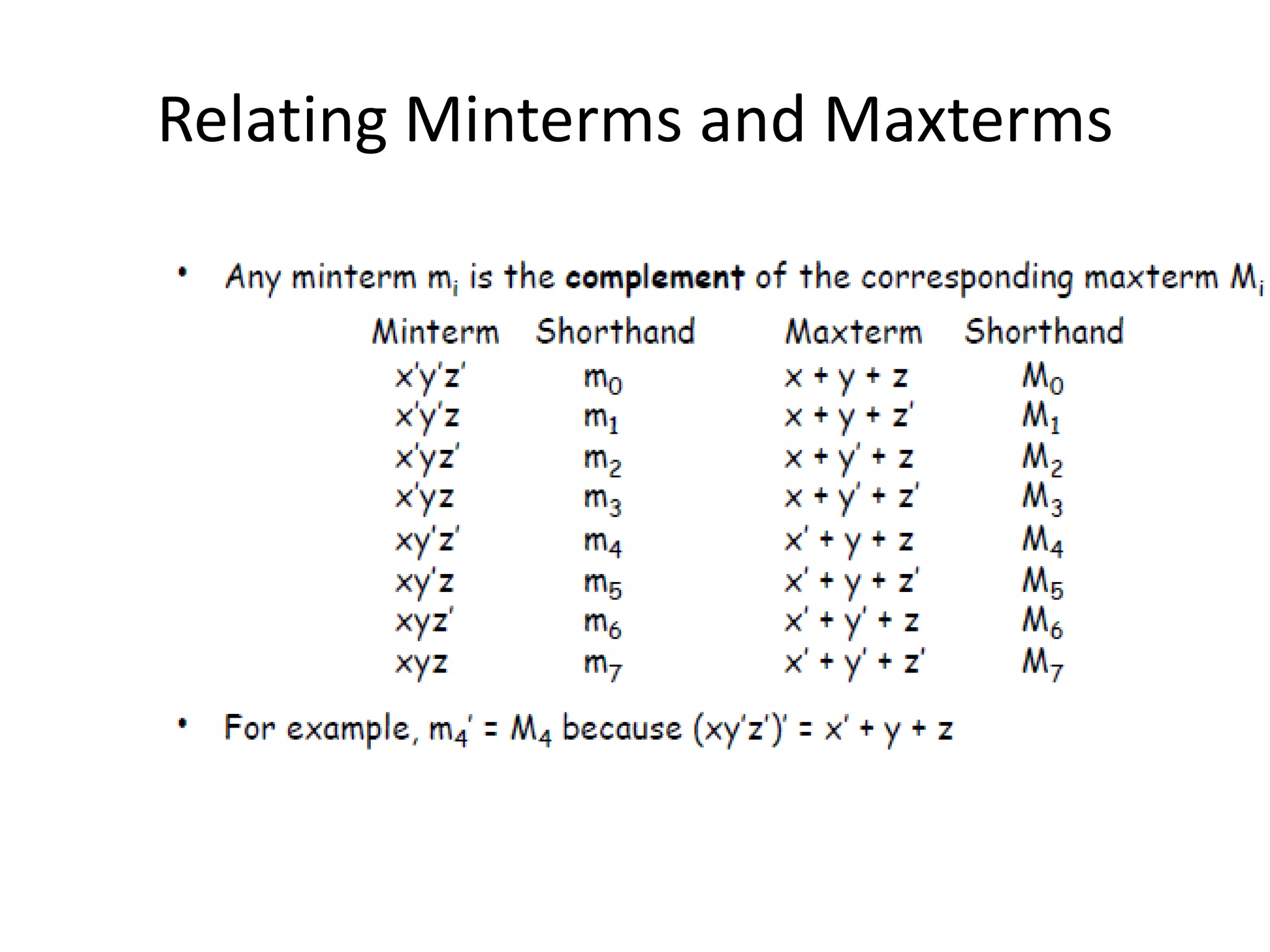

Relating Minterms and Maxterms

More Related Content

What's hot

Trigonometric, hyperbolic functions with invers and sum function
Trigonometric, hyperbolic functions with invers and sum functionTrigonometric, hyperbolic functions with invers and sum function
Trigonometric, hyperbolic functions with invers and sum functionDlearAhmad

lecture 9
lecture 9lecture 9
lecture 9sajinsc

Application of matrices in Daily life
Application of matrices in Daily lifeApplication of matrices in Daily life
Application of matrices in Daily lifeshubham mishra

Matrix basic operations
Matrix basic operationsMatrix basic operations
Matrix basic operationsJessica Garcia

4.1 Matrix Operations
4.1 Matrix Operations4.1 Matrix Operations
4.1 Matrix Operationshisema01

Naive String Matching Algorithm | Computer Science
Naive String Matching Algorithm | Computer ScienceNaive String Matching Algorithm | Computer Science
Naive String Matching Algorithm | Computer ScienceTransweb Global Inc

Multiplication of two 3 d sparse matrices using 1d arrays and linked lists
Multiplication of two 3 d sparse matrices using 1d arrays and linked listsMultiplication of two 3 d sparse matrices using 1d arrays and linked lists
Multiplication of two 3 d sparse matrices using 1d arrays and linked listsDr Sandeep Kumar Poonia

Algorithm for Hungarian Method of Assignment
Algorithm for Hungarian Method of AssignmentAlgorithm for Hungarian Method of Assignment
Algorithm for Hungarian Method of AssignmentRaja Adapa

Sparse matrix and its representation data structure
Sparse matrix and its representation data structureSparse matrix and its representation data structure
Sparse matrix and its representation data structureVardhil Patel

Operations research : Assignment problem (One's method) presentation
Operations research : Assignment problem (One's method) presentationOperations research : Assignment problem (One's method) presentation
Operations research : Assignment problem (One's method) presentationPankaj Kumar

math Vocabulary
math  Vocabularymath  Vocabulary
math Vocabularyfgeasland

Multiplication of matrices and its application in biology
Multiplication of matrices and its application in biologyMultiplication of matrices and its application in biology
Multiplication of matrices and its application in biologynayanika bhalla

Appilation of matrices in real life
Appilation of matrices in real lifeAppilation of matrices in real life
Appilation of matrices in real lifeStudent


What's hot (20)

Math
MathMath
Math

Trigonometric, hyperbolic functions with invers and sum function
Trigonometric, hyperbolic functions with invers and sum functionTrigonometric, hyperbolic functions with invers and sum function
Trigonometric, hyperbolic functions with invers and sum function

H027052054
H027052054H027052054
H027052054

lecture 9
lecture 9lecture 9
lecture 9

Brute force method
Brute force methodBrute force method
Brute force method

Application of matrices in Daily life
Application of matrices in Daily lifeApplication of matrices in Daily life
Application of matrices in Daily life

Matrix basic operations
Matrix basic operationsMatrix basic operations
Matrix basic operations

4.1 Matrix Operations
4.1 Matrix Operations4.1 Matrix Operations
4.1 Matrix Operations

Naive String Matching Algorithm | Computer Science
Naive String Matching Algorithm | Computer ScienceNaive String Matching Algorithm | Computer Science
Naive String Matching Algorithm | Computer Science

Multiplication of two 3 d sparse matrices using 1d arrays and linked lists
Multiplication of two 3 d sparse matrices using 1d arrays and linked listsMultiplication of two 3 d sparse matrices using 1d arrays and linked lists
Multiplication of two 3 d sparse matrices using 1d arrays and linked lists

Algorithm for Hungarian Method of Assignment
Algorithm for Hungarian Method of AssignmentAlgorithm for Hungarian Method of Assignment
Algorithm for Hungarian Method of Assignment

lists
listslists
lists

Sparse matrix and its representation data structure
Sparse matrix and its representation data structureSparse matrix and its representation data structure
Sparse matrix and its representation data structure

Operations research : Assignment problem (One's method) presentation
Operations research : Assignment problem (One's method) presentationOperations research : Assignment problem (One's method) presentation
Operations research : Assignment problem (One's method) presentation

Application of Matrices
Application of MatricesApplication of Matrices
Application of Matrices

Application of matrices in real life
Application of matrices in real lifeApplication of matrices in real life
Application of matrices in real life

math Vocabulary
math  Vocabularymath  Vocabulary
math Vocabulary

Multiplication of matrices and its application in biology
Multiplication of matrices and its application in biologyMultiplication of matrices and its application in biology
Multiplication of matrices and its application in biology

Arrays in Visual Basic Programming
Arrays in Visual Basic ProgrammingArrays in Visual Basic Programming
Arrays in Visual Basic Programming

Appilation of matrices in real life
Appilation of matrices in real lifeAppilation of matrices in real life
Appilation of matrices in real life


More from Ammara Javed

More from Ammara Javed (16)

Counters
CountersCounters
Counters

Registers
RegistersRegisters
Registers

Flip flops
Flip flopsFlip flops
Flip flops

Logic Gates
Logic GatesLogic Gates
Logic Gates

Programmable logic devices
Programmable logic devicesProgrammable logic devices
Programmable logic devices

Karnaugh Maps
Karnaugh MapsKarnaugh Maps
Karnaugh Maps

Demultiplexers
DemultiplexersDemultiplexers
Demultiplexers

Multiplexer
MultiplexerMultiplexer
Multiplexer

Boolean algebra
Boolean algebraBoolean algebra
Boolean algebra

Encoders
EncodersEncoders
Encoders

Decoders
DecodersDecoders
Decoders

Circuit Analysis-
Circuit Analysis-Circuit Analysis-
Circuit Analysis-

The Impact Of Holy Quran In Our Everyday Life
The Impact Of Holy Quran In Our Everyday LifeThe Impact Of Holy Quran In Our Everyday Life
The Impact Of Holy Quran In Our Everyday Life

C++ Programming Club-Lecture 3
C++ Programming Club-Lecture 3C++ Programming Club-Lecture 3
C++ Programming Club-Lecture 3

C++ Programming Club-Lecture 2
C++ Programming Club-Lecture 2C++ Programming Club-Lecture 2
C++ Programming Club-Lecture 2

C++ Programming Club-Lecture 1
C++ Programming Club-Lecture 1C++ Programming Club-Lecture 1
C++ Programming Club-Lecture 1


Recently uploaded

The Data Metaverse: Unpacking the Roles, Use Cases, and Tech Trends in Data a...
The Data Metaverse: Unpacking the Roles, Use Cases, and Tech Trends in Data a...The Data Metaverse: Unpacking the Roles, Use Cases, and Tech Trends in Data a...
The Data Metaverse: Unpacking the Roles, Use Cases, and Tech Trends in Data a...Aggregage

How Accurate are Carbon Emissions Projections?
How Accurate are Carbon Emissions Projections?How Accurate are Carbon Emissions Projections?
How Accurate are Carbon Emissions Projections?IES VE

KubeConEU24-Monitoring Kubernetes and Cloud Spend with OpenCost
KubeConEU24-Monitoring Kubernetes and Cloud Spend with OpenCostKubeConEU24-Monitoring Kubernetes and Cloud Spend with OpenCost
KubeConEU24-Monitoring Kubernetes and Cloud Spend with OpenCostMatt Ray

Basic Building Blocks of Internet of Things.
Basic Building Blocks of Internet of Things.Basic Building Blocks of Internet of Things.
Basic Building Blocks of Internet of Things.YounusS2

20230202 - Introduction to tis-py
20230202 - Introduction to tis-py20230202 - Introduction to tis-py
20230202 - Introduction to tis-pyJamie (Taka) Wang

UiPath Studio Web workshop series - Day 8
UiPath Studio Web workshop series - Day 8UiPath Studio Web workshop series - Day 8
UiPath Studio Web workshop series - Day 8DianaGray10

Salesforce Miami User Group Event - 1st Quarter 2024
Salesforce Miami User Group Event - 1st Quarter 2024Salesforce Miami User Group Event - 1st Quarter 2024
Salesforce Miami User Group Event - 1st Quarter 2024SkyPlanner

Videogame localization & technology_ how to enhance the power of translation.pdf
Videogame localization & technology_ how to enhance the power of translation.pdfVideogame localization & technology_ how to enhance the power of translation.pdf
Videogame localization & technology_ how to enhance the power of translation.pdfinfogdgmi

Using IESVE for Loads, Sizing and Heat Pump Modeling to Achieve Decarbonization
Using IESVE for Loads, Sizing and Heat Pump Modeling to Achieve DecarbonizationUsing IESVE for Loads, Sizing and Heat Pump Modeling to Achieve Decarbonization
Using IESVE for Loads, Sizing and Heat Pump Modeling to Achieve DecarbonizationIES VE

Computer 10: Lesson 10 - Online Crimes and Hazards
Computer 10: Lesson 10 - Online Crimes and HazardsComputer 10: Lesson 10 - Online Crimes and Hazards
Computer 10: Lesson 10 - Online Crimes and HazardsSeth Reyes

Machine Learning Model Validation (Aijun Zhang 2024).pdf
Machine Learning Model Validation (Aijun Zhang 2024).pdfMachine Learning Model Validation (Aijun Zhang 2024).pdf
Machine Learning Model Validation (Aijun Zhang 2024).pdfAijun Zhang

Bird eye's view on Camunda open source ecosystem
Bird eye's view on Camunda open source ecosystemBird eye's view on Camunda open source ecosystem
Bird eye's view on Camunda open source ecosystemAsko Soukka

UiPath Community: AI for UiPath Automation Developers
UiPath Community: AI for UiPath Automation DevelopersUiPath Community: AI for UiPath Automation Developers
UiPath Community: AI for UiPath Automation DevelopersUiPathCommunity

UWB Technology for Enhanced Indoor and Outdoor Positioning in Physiological M...
UWB Technology for Enhanced Indoor and Outdoor Positioning in Physiological M...UWB Technology for Enhanced Indoor and Outdoor Positioning in Physiological M...
UWB Technology for Enhanced Indoor and Outdoor Positioning in Physiological M...UbiTrack UK

COMPUTER 10 Lesson 8 - Building a Website
COMPUTER 10 Lesson 8 - Building a WebsiteCOMPUTER 10 Lesson 8 - Building a Website
COMPUTER 10 Lesson 8 - Building a Websitedgelyza

ADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDE
ADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDEADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDE
ADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDELiveplex

Secure your environment with UiPath and CyberArk technologies - Session 1
Secure your environment with UiPath and CyberArk technologies - Session 1Secure your environment with UiPath and CyberArk technologies - Session 1
Secure your environment with UiPath and CyberArk technologies - Session 1DianaGray10

Building Your Own AI Instance (TBLC AI )
Building Your Own AI Instance (TBLC AI )Building Your Own AI Instance (TBLC AI )
Building Your Own AI Instance (TBLC AI )Brian Pichman

Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...
Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...
Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...DianaGray10


Recently uploaded (20)

20150722 - AGV
20150722 - AGV20150722 - AGV
20150722 - AGV

The Data Metaverse: Unpacking the Roles, Use Cases, and Tech Trends in Data a...
The Data Metaverse: Unpacking the Roles, Use Cases, and Tech Trends in Data a...The Data Metaverse: Unpacking the Roles, Use Cases, and Tech Trends in Data a...
The Data Metaverse: Unpacking the Roles, Use Cases, and Tech Trends in Data a...

How Accurate are Carbon Emissions Projections?
How Accurate are Carbon Emissions Projections?How Accurate are Carbon Emissions Projections?
How Accurate are Carbon Emissions Projections?

KubeConEU24-Monitoring Kubernetes and Cloud Spend with OpenCost
KubeConEU24-Monitoring Kubernetes and Cloud Spend with OpenCostKubeConEU24-Monitoring Kubernetes and Cloud Spend with OpenCost
KubeConEU24-Monitoring Kubernetes and Cloud Spend with OpenCost

Basic Building Blocks of Internet of Things.
Basic Building Blocks of Internet of Things.Basic Building Blocks of Internet of Things.
Basic Building Blocks of Internet of Things.

20230202 - Introduction to tis-py
20230202 - Introduction to tis-py20230202 - Introduction to tis-py
20230202 - Introduction to tis-py

UiPath Studio Web workshop series - Day 8
UiPath Studio Web workshop series - Day 8UiPath Studio Web workshop series - Day 8
UiPath Studio Web workshop series - Day 8

Salesforce Miami User Group Event - 1st Quarter 2024
Salesforce Miami User Group Event - 1st Quarter 2024Salesforce Miami User Group Event - 1st Quarter 2024
Salesforce Miami User Group Event - 1st Quarter 2024

Videogame localization & technology_ how to enhance the power of translation.pdf
Videogame localization & technology_ how to enhance the power of translation.pdfVideogame localization & technology_ how to enhance the power of translation.pdf
Videogame localization & technology_ how to enhance the power of translation.pdf

Using IESVE for Loads, Sizing and Heat Pump Modeling to Achieve Decarbonization
Using IESVE for Loads, Sizing and Heat Pump Modeling to Achieve DecarbonizationUsing IESVE for Loads, Sizing and Heat Pump Modeling to Achieve Decarbonization
Using IESVE for Loads, Sizing and Heat Pump Modeling to Achieve Decarbonization

Computer 10: Lesson 10 - Online Crimes and Hazards
Computer 10: Lesson 10 - Online Crimes and HazardsComputer 10: Lesson 10 - Online Crimes and Hazards
Computer 10: Lesson 10 - Online Crimes and Hazards

Machine Learning Model Validation (Aijun Zhang 2024).pdf
Machine Learning Model Validation (Aijun Zhang 2024).pdfMachine Learning Model Validation (Aijun Zhang 2024).pdf
Machine Learning Model Validation (Aijun Zhang 2024).pdf

Bird eye's view on Camunda open source ecosystem
Bird eye's view on Camunda open source ecosystemBird eye's view on Camunda open source ecosystem
Bird eye's view on Camunda open source ecosystem

UiPath Community: AI for UiPath Automation Developers
UiPath Community: AI for UiPath Automation DevelopersUiPath Community: AI for UiPath Automation Developers
UiPath Community: AI for UiPath Automation Developers

UWB Technology for Enhanced Indoor and Outdoor Positioning in Physiological M...
UWB Technology for Enhanced Indoor and Outdoor Positioning in Physiological M...UWB Technology for Enhanced Indoor and Outdoor Positioning in Physiological M...
UWB Technology for Enhanced Indoor and Outdoor Positioning in Physiological M...

COMPUTER 10 Lesson 8 - Building a Website
COMPUTER 10 Lesson 8 - Building a WebsiteCOMPUTER 10 Lesson 8 - Building a Website
COMPUTER 10 Lesson 8 - Building a Website

ADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDE
ADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDEADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDE
ADOPTING WEB 3 FOR YOUR BUSINESS: A STEP-BY-STEP GUIDE

Secure your environment with UiPath and CyberArk technologies - Session 1
Secure your environment with UiPath and CyberArk technologies - Session 1Secure your environment with UiPath and CyberArk technologies - Session 1
Secure your environment with UiPath and CyberArk technologies - Session 1

Building Your Own AI Instance (TBLC AI )
Building Your Own AI Instance (TBLC AI )Building Your Own AI Instance (TBLC AI )
Building Your Own AI Instance (TBLC AI )

Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...
Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...
Connector Corner: Extending LLM automation use cases with UiPath GenAI connec...


Maxterms

  • 2. • Here is the three-variable truth table and the corresponding maxterms:

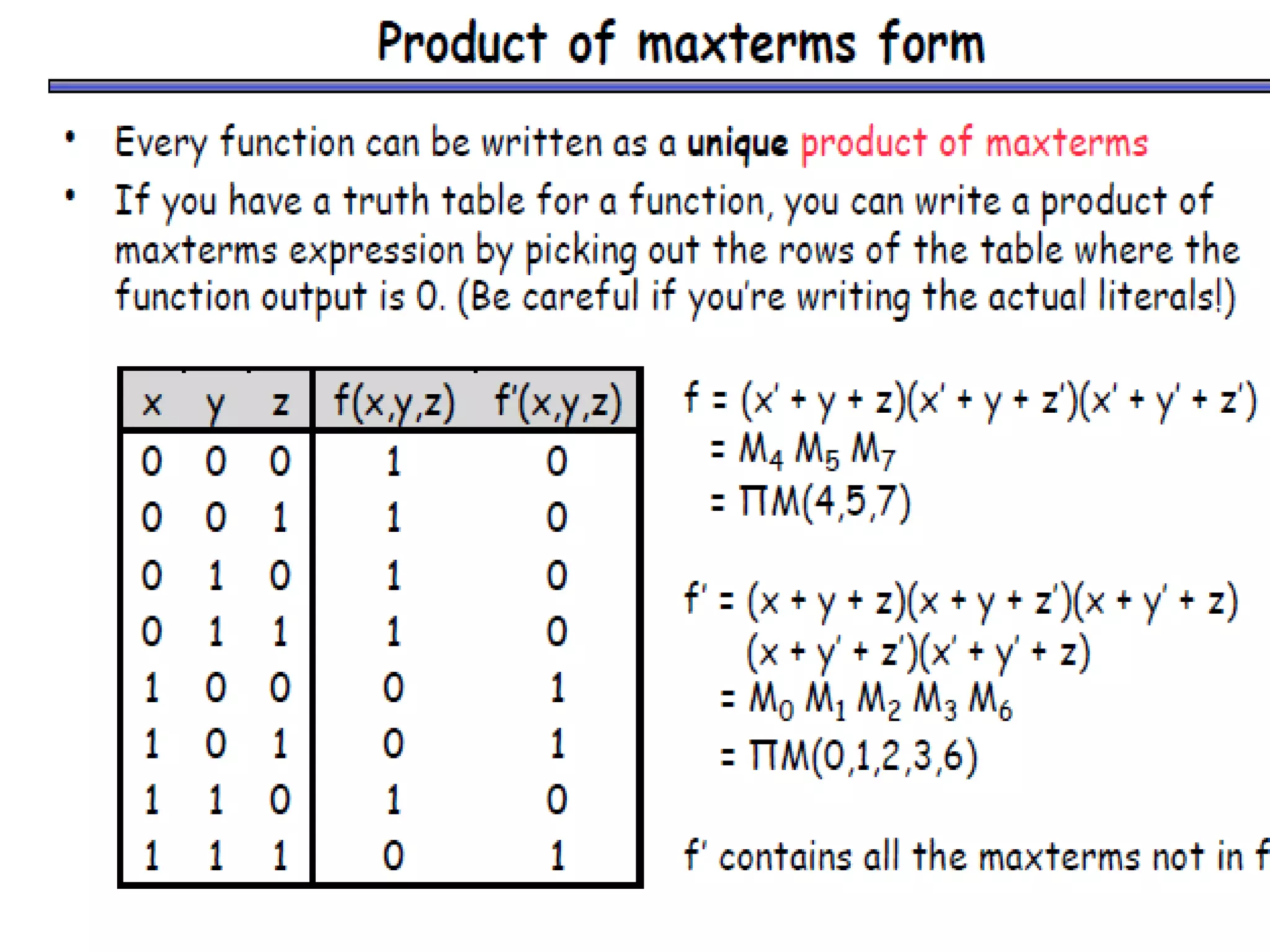

  • 3. • Like minterms, maxterms also provide a way to represent any boolean function algebraically once its truth table is specified. • The function is given by the product (AND) of those maxterms corresponding to rows where the function is zero. By the maxterm property, the AND will contain a term equal to 0 (making the function 0 ) on exactly those rows where the function is supposed to be 0 . • Example: for the same function as previously, we observe that it is 0 on rows
  • 4. • This form also lends itself to a compact notation: using the Greek letter capital pi to denote a product, we write only the numbers of the maxterms included in : • Two boolean functions are equivalent if their pi forms are the same.
