A multiplexer has N control inputs, 2^N data inputs, and 1 output. It routes the selected data input to the output based on the value of the control inputs. The document provides examples of using multiplexers to build larger multiplexers, including an 8-to-1 multiplexer using 4-to-1 and 2-to-1 multiplexers, and a 16-to-1 multiplexer using only 4-to-1 multiplexers. It also mentions multiplexers can be designed in VHDL.

1. LOGIC DESIGN
Multiplexers

2. 

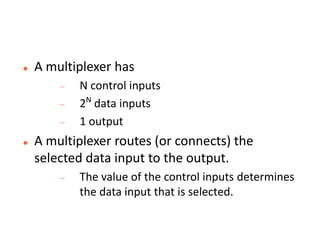

A multiplexer has
N control inputs
2N data inputs
1 output

A multiplexer routes (or connects) the
selected data input to the output.
The value of the control inputs determines
the data input that is selected.

3. Data
inputs
Control
input

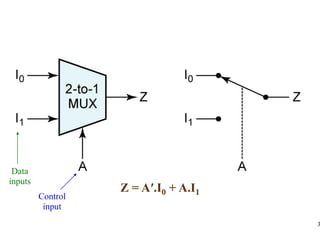

Z = A′.I0 + A.I1
3

4. MSB
LSB

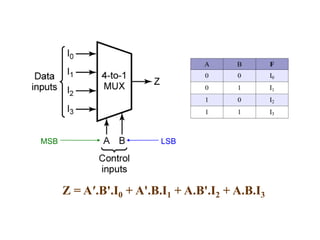

Z = A′.B'.I0 + A'.B.I1 + A.B'.I2 + A.B.I3

5. MSB
LSB

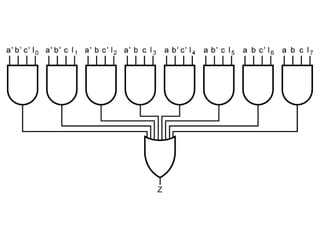

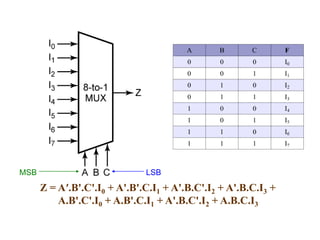

Z = A′.B'.C'.I0 + A'.B'.C.I1 + A'.B.C'.I2 + A'.B.C.I3 +
A.B'.C'.I0 + A.B'.C.I1 + A'.B.C'.I2 + A.B.C.I3

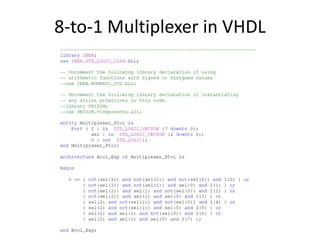

7. 8-to-1 Multiplexer in VHDL

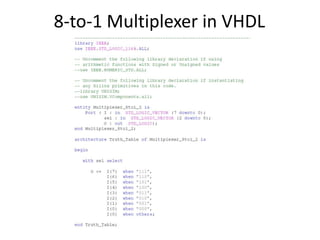

8. 8-to-1 Multiplexer in VHDL

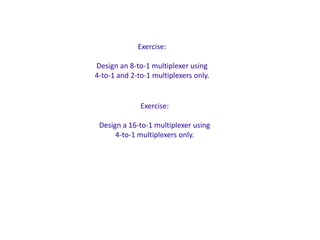

9. Exercise:
Design an 8-to-1 multiplexer using
4-to-1 and 2-to-1 multiplexers only.
Exercise:
Design a 16-to-1 multiplexer using
4-to-1 multiplexers only.

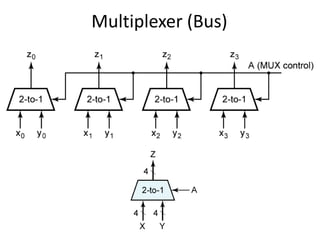

10. Multiplexer (Bus)
