TURN is used for relaying data from source to target. TURN consumes bandwidh and it is expensive. Therefore there is a need for authorizing the TURN connection. However given that the connection is made from a client using javascript, use of a static username/password can be easily compromised. Ephemeral password comes to the rescue here. Learn WebRTC in 200 Line of code: You will need a lot of patience going through libraries that are present today simply because they have thousands of line of code. So I will highly encourage you all to refer the source code located here: github.com/amiteshawa/learn-rtc

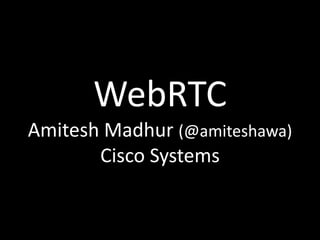

1. WebRTC
Amitesh Madhur (@amiteshawa)
Cisco Systems

2. Agenda
1. Media Stream
2. Constraints
3. RTCPeerConnection
4. Network (STUN, TURN)
5. DataChannel
6. Ephemeral password

3. Peer to peer, plugin free!
X
Server

4. WebRTC
1. MediaStream
2. RTCPeerConnection
3. DataChannel

5. Media Stream
1.
2.
3.
4.
5.
getUserMedia
Collects audio, video, screen inputs
Synchronizes Audio & Video
Noise Cancellation
Image Enhancement

6. <video id=“me" autoplay></video>
navigator.getUserMedia
=
navigator.getUserMedia ||
navigator.webkitGetUserMedia ||
navigator.mozGetUserMedia;
if (navigator.getUserMedia) {
navigator.getUserMedia({video: true}, onSuccess, onError);
}
window.URL = window.URL || window.webkitURL;
var me = document.getElementById('me');
function onSuccess(stream) {
me.src = window.URL.createObjectURL(stream);
}
function onError(e) {
// error
}

7. Demo

8. Confused Left/Right?
<style>
video {
-webkit-transform: scaleX(-1);
}
</style>
canvasContext.translate(width, 0);
canvasContext.scale(-1, 1);
<video id=“me" autoplay></video>

9. <video id=“me" autoplay></video>
navigator.getUserMedia
=
navigator.getUserMedia ||
navigator.webkitGetUserMedia ||
navigator.mozGetUserMedia;
navigator.getUserMedia(
{video: true},
onSuccess, onError);
window.URL = window.URL || window.webkitURL;
if (navigator.getUserMedia) {
navigator.getUserMedia({video: true}, onSuccess, onError);
}
var me = document.getElementById('me');
function onSuccess(stream) {
me.src = window.URL.createObjectURL(stream);
}
Constraints
function onError(e) {
// error
}

10. Constraints (audio, video)
{audio: true, video: true}

11. Constraints (video height, width)
{
audio: true,
video: {
mandatory: {
maxWidth: 320,
maxHeight: 180
}
}
}

12. Constraints for screen capture
getUserMedia({video: {
mandatory: {
chromeMediaSource: 'screen'
}
}, audio: false},
onSuccess, onError);

13. chromeMediaSource: 'screen'
1. Works only on https
2. chrome://flags/#enable-usermedia-screencapture

14. Peer Connection

15. 1.
2.
3.
4.
Establish a connection though Signaling
Pass the user media stream
Other side gets the stream
Add the received stream to <video> tag

16. Demo

17. github.com/amiteshawa/learn-rtc

18. <video id=“me" autoplay></video>
<video id=“other" autoplay></video>
peer = new RTCPeerConnection(servers);
peer.onaddstream = gotRemoteStream;
peer.addStream(localStream);
if(host) {
peer.createOffer(callGotOffer, null, {mandatory: {
OfferToReceiveAudio: true,
OfferToReceiveVideo: true}});
} else {
peer.createAnswer(peer.remoteDescription, callGotOffer);
}
function callGotOffer(sd) {
peer.setLocalDescription(sd);
}
function gotAnswer(desc) {
peer.setRemoteDescription(new RTCSessionDescription(desc));
}
function gotRemoteStream(e) {
attachMediaStream(remoteVideo, e.stream);
}

19. <video id=“me" autoplay></video>
<video id=“other" autoplay></video>
peer = new RTCPeerConnection(servers);
peer.onaddstream = gotRemoteStream;
peer.addStream(localStream);
if(host) {
peer.createOffer(callGotOffer, null, {mandatory: {
OfferToReceiveAudio: true,
var STUN, TURN, config = {};
OfferToReceiveVideo: true}});
} STUN {= { url: “stun:stun.l.google.com:19302”};
else
peer.createAnswer(peer.remoteDescription, callGotOffer);
TURN = { username: “turn-user",
}
credential: "NGFmNGRlMOWZmMTVmZGZiNg==",
function callGotOffer(sd) {
url: "turn:10.5.7.13:3333?transport=udp“
peer.setLocalDescription(sd);
}
};
function gotAnswer(desc) {
config.iceServers = [STUN, TURN];
peer.setRemoteDescription(new RTCSessionDescription(desc));
}
function gotRemoteStream(e) {
attachMediaStream(remoteVideo, e.stream);
}

20. User 1
Page Load
Renders Invite
Button
Websocket
User 2
Page Load
Renders Invite
Button

21. User 1
Page Load
Websocket
Open connection
User 2
Open connection
Page Load

22. User 1
Page Load
Websocket
Open connection
GUM
Clicks Invite
Button
Create Invite
User 2
Open connection
Page Load

23. User 1
Page Load
Websocket
Open connection
Open connection
GUM
Create Invite
User 2
Broadcast Invite
Page Load

24. User 1
Page Load
Websocket
Open connection
User 2
Open connection
Page Load
GUM
Create Invite
Ignored Invite
Broadcast Invite
Invite Button
Changed to “Join”

25. User 1
Page Load
Websocket
Open connection
User 2
Open connection
Page Load
GUM
Create Invite
Broadcast Invite
Ignored Invite
Offer SDP
Offer SDP
Invite Button
Changed to “Join”
Clicked Join
Button
GUM

26. User 1
Page Load
Websocket
Open connection
User 2
Open connection
Page Load
GUM
Create Invite
Broadcast Invite
Ignored Invite
Remote Desc
Offer SDP
Answer SDP
Offer SDP
Answer SDP
Invite Button
Changed to “Join”
Clicked Join
Button
GUM
Remote Desc

27. User 1
Page Load
Websocket
Open connection
User 2
Open connection
Page Load
GUM
Create Invite
Broadcast Invite
Ignored Invite
Remote Desc
Offer SDP
Answer SDP
ICE Candidate
Offer SDP
Answer SDP
ICE Candidate
Invite Button
Changed to “Join”
Clicked Join
Button
GUM
Remote Desc

28. User 1
Page Load
User 2
Websocket
Open connection
Open connection
Page Load
GUM
Create Invite
Broadcast Invite
Ignored Invite
Remote Desc
Offer SDP
Answer SDP
Offer SDP
Answer SDP
ICE Candidate
ICE Candidate
ICE Candidate
ICE Candidate
Add Stream
Add Stream
Invite Button
Changed to “Join”
Clicked Join
Button
GUM
Remote Desc

29. User 1
Page Load
Websocket
Open connection
User 2
Open connection
Page Load
GUM
Create Invite
Broadcast Invite
Ignored Invite
Remote Desc
Offer SDP
Answer SDP
Offer SDP
Answer SDP
ICE Candidate
Add Stream
ICE Candidate
ICE Candidate
Invite Button
Changed to “Join”
Clicked Join
Button
GUM
Remote Desc
ICE Candidate
Add Stream

30. STUN/TURN and ICE

31. S
T
U
N
N
A
T
N
A
T

32. S
T
U
N
N
A
T
Not 100% Reliable
N
A
T

33. T
U
R
N
N
A
T
S
E
C
U
R
E
N
A
T

34. T
U
R
N
Expensive & Slow
N
A
T
S
E
C
U
R
E
N
A
T

35. TURN
ICE
STUN
S
E
C
U
R
E
N
A
T
N
A
T

36. Public STUN
stun.l.google.com:19302
stun1.l.google.com:19302
stun2.l.google.com:19302
stun3.l.google.com:19302
stun4.l.google.com:19302

37. Wanna Setup your own?
slideshare.net/amiteshawa/webrtc-media-stra

38. Data Channel

39. RTCDataChannel
1.
2.
3.
4.
Peer to peer data sharing
Works with RTCPeerConnection
Secure
Websocket like APIs

40. webkitRTCPeerConnection(config,
{optional:
[{RtpDataChannels: true}]});
channel =
peer.createDataChannel("sendDataChanne
l",
{reliable:
false});
channel.onopen = manageChannel;
channel.onclose = manageChannel;
},
sendData = function(data){
channel.send(data); },
onMsg = function(e){ obj.innerHTML +=
'He: ' + e.data ; },
manageChannel = function(){

41. Demo

42. Ephemeral password

43. IN JAVASCRIPT
var turn;
turn = {
url: 'turn:<user-name>@<IP>:<PORT>',
credential: ‘password‘
};
// for chrome 28 and above
turn = {
url: 'turn:<IP-address>:<PORT>',
username: ‘<user-name>‘,
credential: ‘<password>'
};

44. Ephemeral password
1.
2.
3.
4.
5.
6.
Limited time TURN credentials
Based on REST Service
Webserver creates password
Shared secret
TURN Server does NOT implement the REST API
Based on long-term credentials mechanism

45. long-term credentials
User
TURN
User sends request to TURN without password

46. long-term credentials
User
TURN
User sends request to TURN without password
TURN send Error 401, with realm and nonce

47. long-term credentials
User
TURN
User sends request to TURN without password
TURN send Error 401, with realm and nonce
User Checks 401 and extracts realm and nonce

48. long-term credentials
User
TURN
User sends request to TURN without password
TURN send Error 401, with realm and nonce
User Checks 401 and extracts realm and nonce
User generates MD5 key with user, realm

49. long-term credentials
User
TURN
User sends request to TURN without password
TURN send Error 401, with realm and nonce
User Checks 401 and extracts realm and nonce
User generates MD5 key with user, realm
User sends new request to TURN with password

50. long-term credentials
User
TURN
User sends request to TURN without password
TURN send Error 401, with realm and nonce
User Checks 401 and extracts realm and nonce
User generates MD5 key with user, realm
User sends new request to TURN with password
TURN Validates
Matches? Then connected

51. Long-term password alone does not
solve the problem for WebRTC

52. Ephemeral credentials
User
TURN
REST Server
my-svc/get-turn-auth
Creates username, password
Shared Secret
Sends username, password
MySQL
Send connection request to TURN
After this it same as long term auth

53. Create Tables
CREATE TABLE turnusers_lt (
name varchar(512) PRIMARY KEY,
hmackey char(32)
);
CREATE TABLE turn_secret (
value varchar(512)
);
CREATE TABLE allowed_peer_ip (
ip_range varchar(256)
);
CREATE TABLE denied_peer_ip (
ip_range varchar(256)
);

54. Create REST API
Generate username and credential
username= <USER NAME> + ":" + <timestamp>
password = base64(hmac-sha1(secret, username))

55. {
"username" : "user1:1393412082",
"password" : "NGFmNzUzZDIxOWE1OWI0NTBmZGZiNg==",
"ttl" : 86400,
"uris" : [
"turn:1.2.3.4:3333?transport=udp"
]
}
var i, uri, iceServer, config = {"iceServers": []};
for (i = 0; i < response.uris.length; ++i) {
uri = response.uris[i];
iceServer = {
"username":response.username,
"credential":response.password,
"uri":uri
};
config.iceServers.push(iceServer);
}
var pc = new PeerConnection(config);

56. Config
1. In turnserver.conf Uncomment/Enable
1.
2.
3.
4.
lt-cred-mech
use-auth-secret
static-auth-secret
mysql-userdb="host=127.0.0.1 dbname=turn
user=root password= port=3306
connect_timeout=60"
5. realm=foobar
6. fingerprint
7. Start turn: turnserver -c /usr/local/etc/turnserver.conf

57. Create User & Secret
Create Secret
$ turnadmin --mysql-userdb="host=127.0.0.1
dbname=turn user=root password=
connect_timeout=10" --set-secret=no1knows

58. >= 21
>= 20
>= 12

59. WebRTC4all…

60. Thank you
Twitter: @amiteshawa
