1. Improve Your Web Authentication Security
Cherie Hsieh
Chrome Dev Summit 2020 Extended

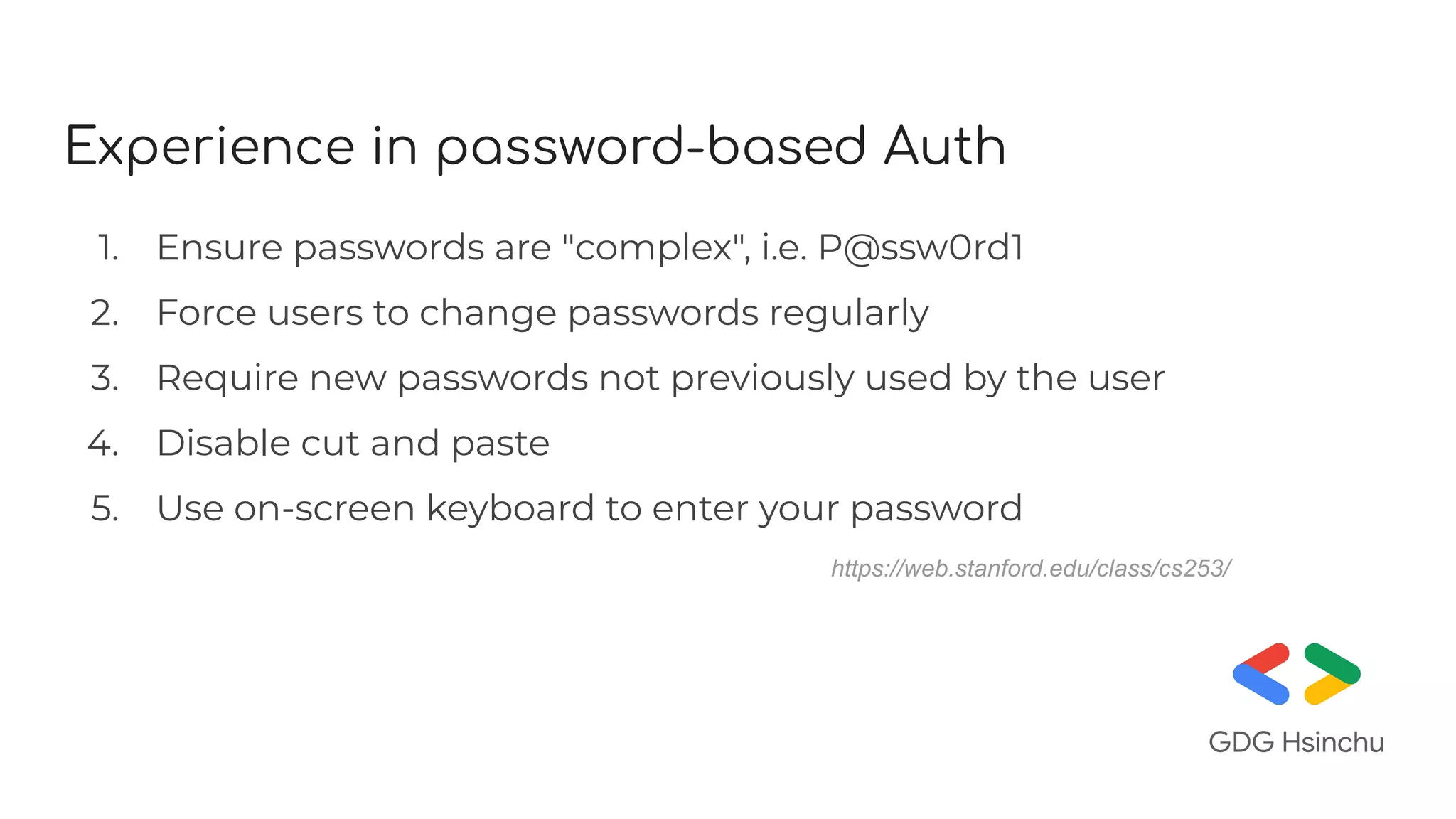

2. Experience in password-based Auth
1. Ensure passwords are "complex", i.e. P@ssw0rd1
2. Force users to change passwords regularly
3. Require new passwords not previously used by the user
4. Disable cut and paste
5. Use on-screen keyboard to enter your password
https://web.stanford.edu/class/cs253/

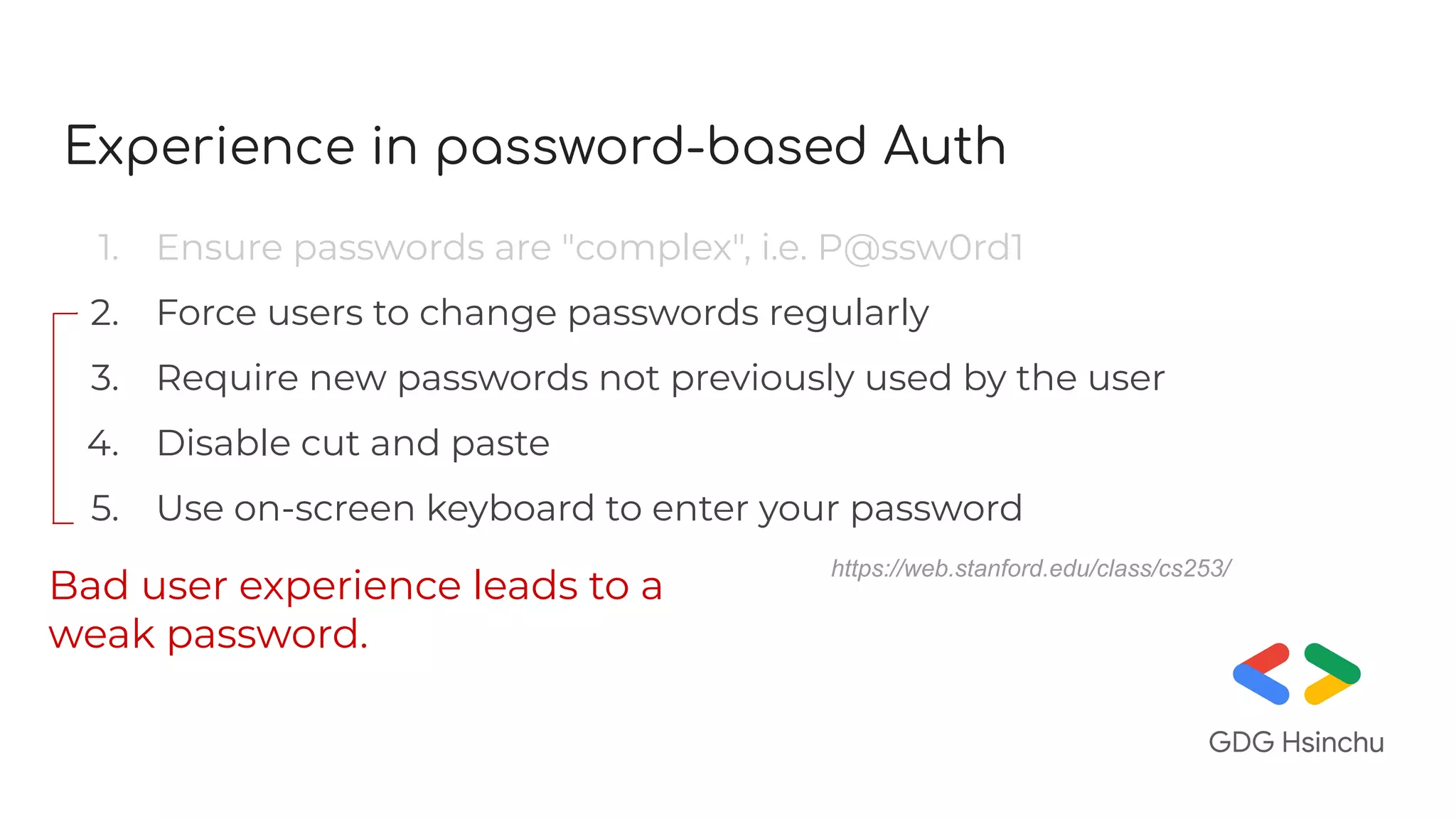

3. Experience in password-based Auth
1. Ensure passwords are "complex", i.e. P@ssw0rd1
2. Force users to change passwords regularly
3. Require new passwords not previously used by the user
4. Disable cut and paste
5. Use on-screen keyboard to enter your password
Bad user experience leads to a
weak password.
https://web.stanford.edu/class/cs253/

4. Src: https://xkcd.com/936/

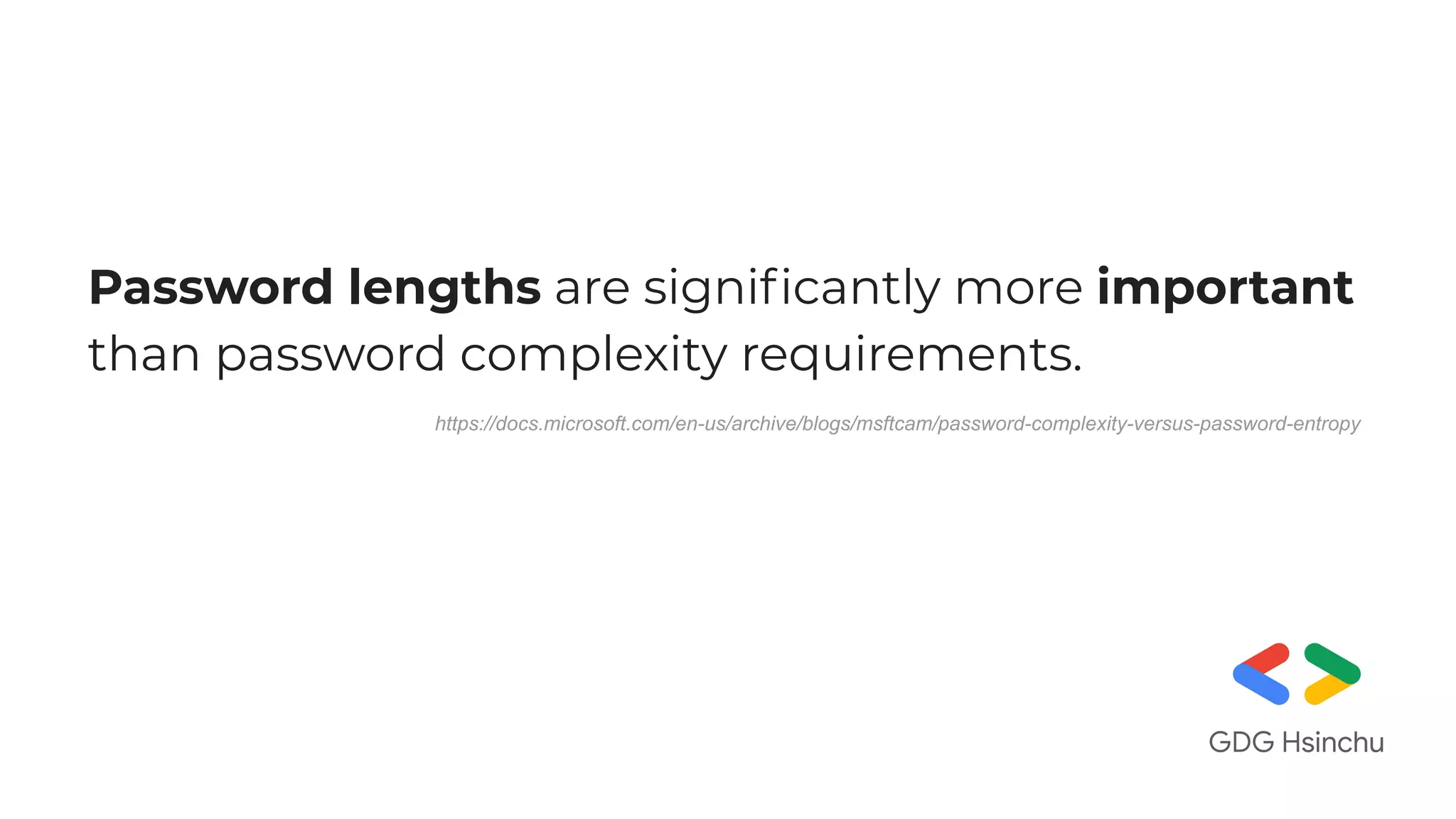

5. Password lengths are significantly more important
than password complexity requirements.
https://docs.microsoft.com/en-us/archive/blogs/msftcam/password-complexity-versus-password-entropy

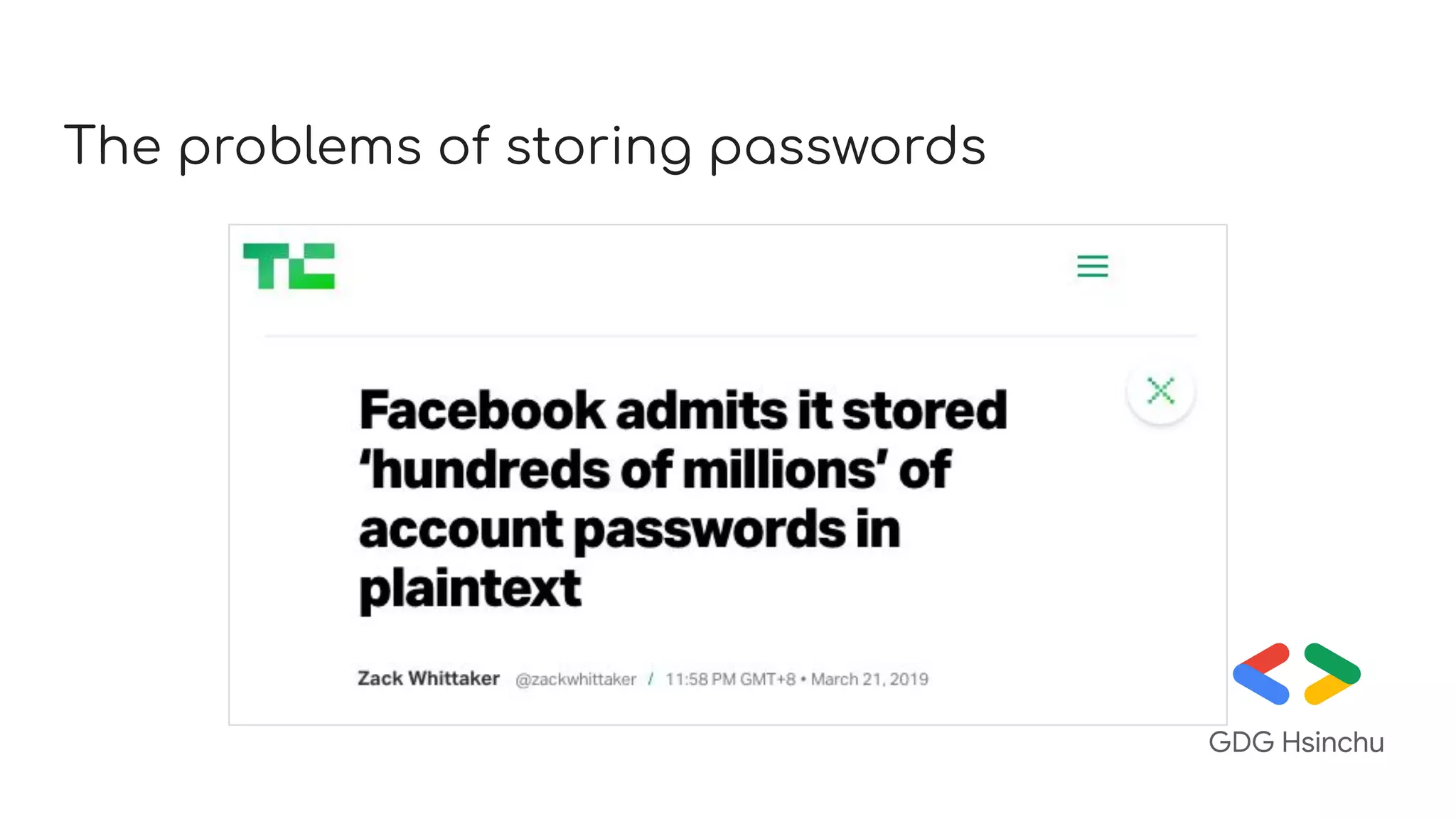

6. The problems of storing passwords

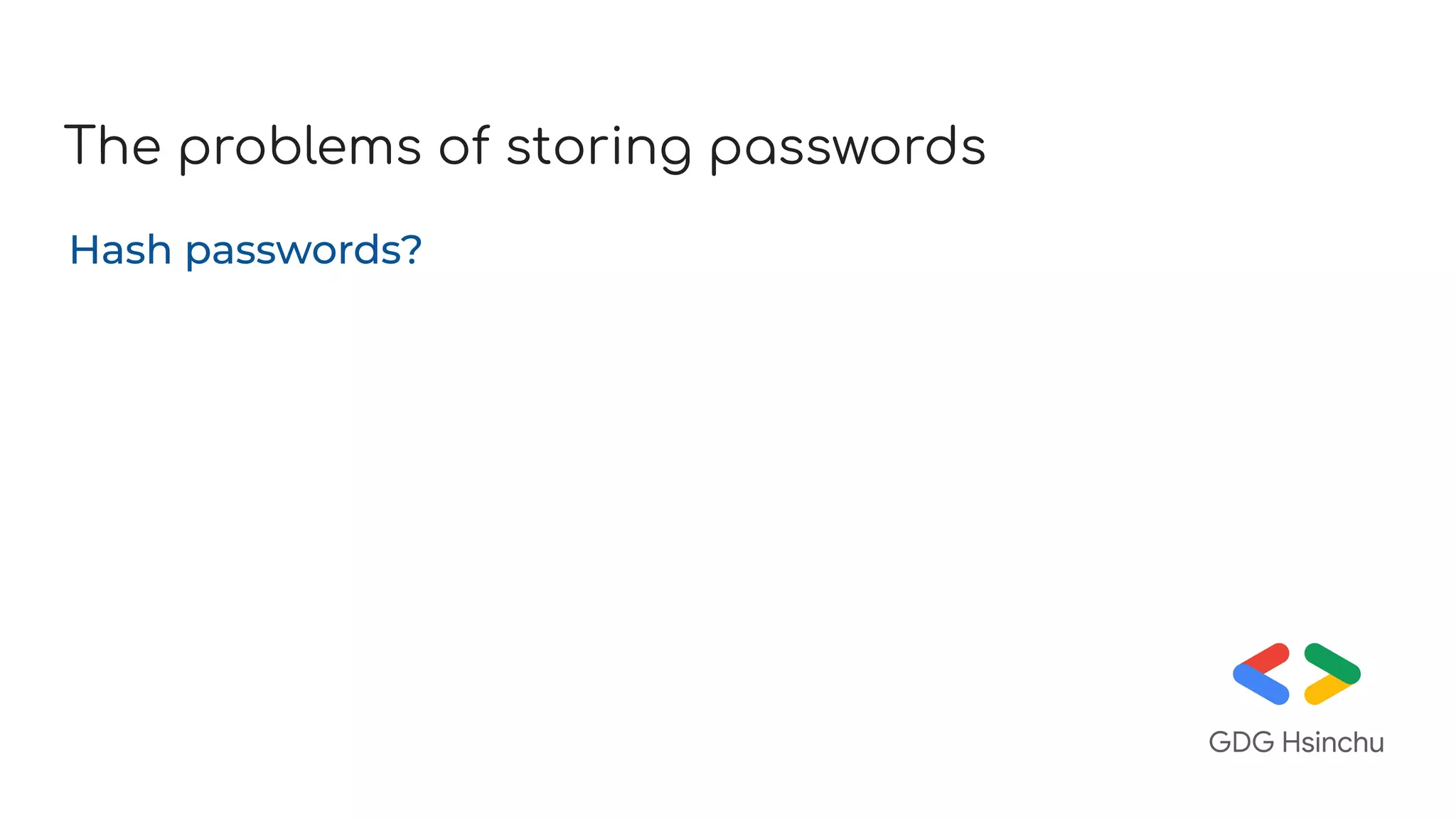

7. The problems of storing passwords
Hash passwords?

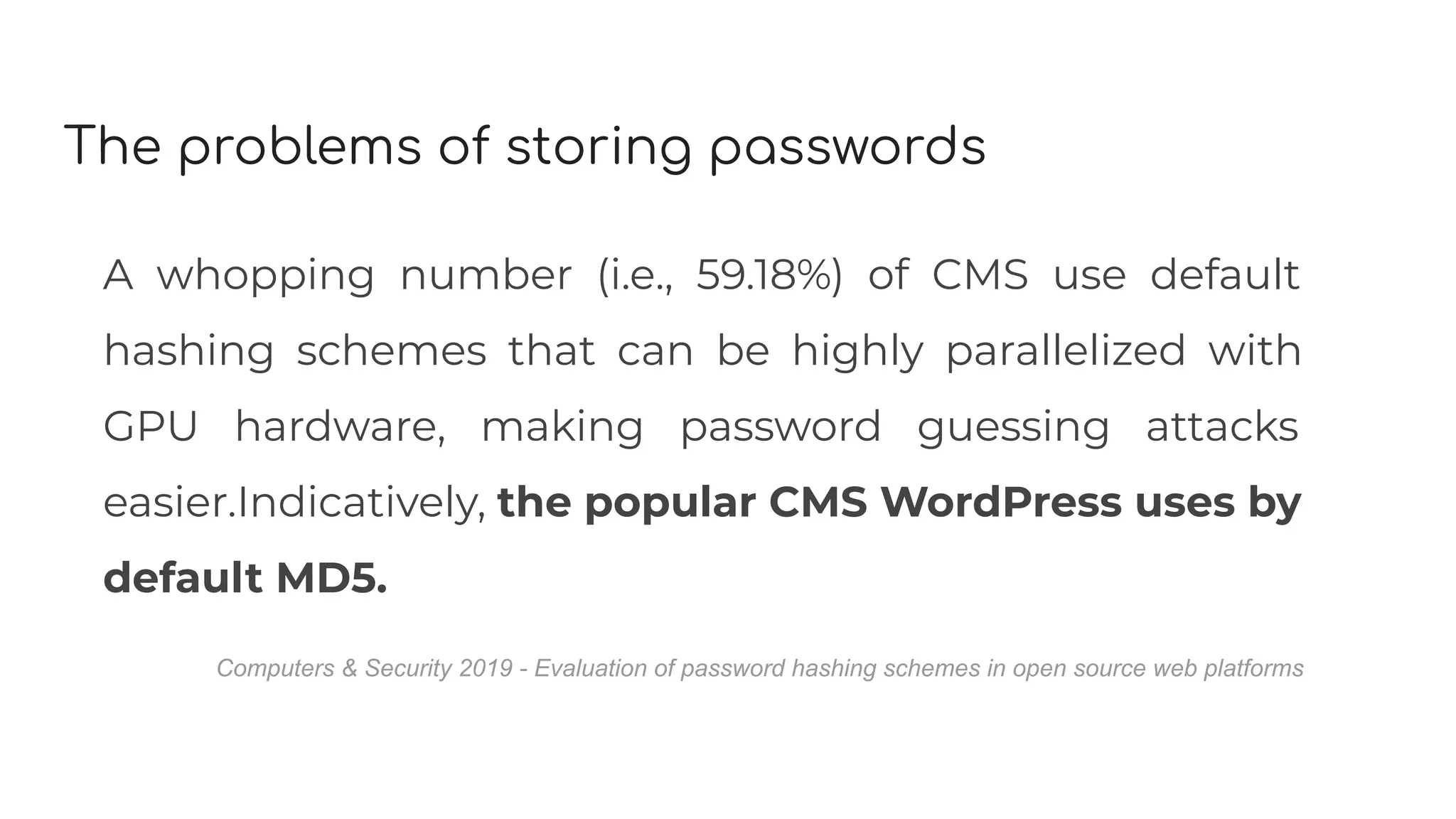

8. The problems of storing passwords
A whopping number (i.e., 59.18%) of CMS use default
hashing schemes that can be highly parallelized with
GPU hardware, making password guessing attacks
easier.Indicatively, the popular CMS WordPress uses by
default MD5.
Computers & Security 2019 - Evaluation of password hashing schemes in open source web platforms

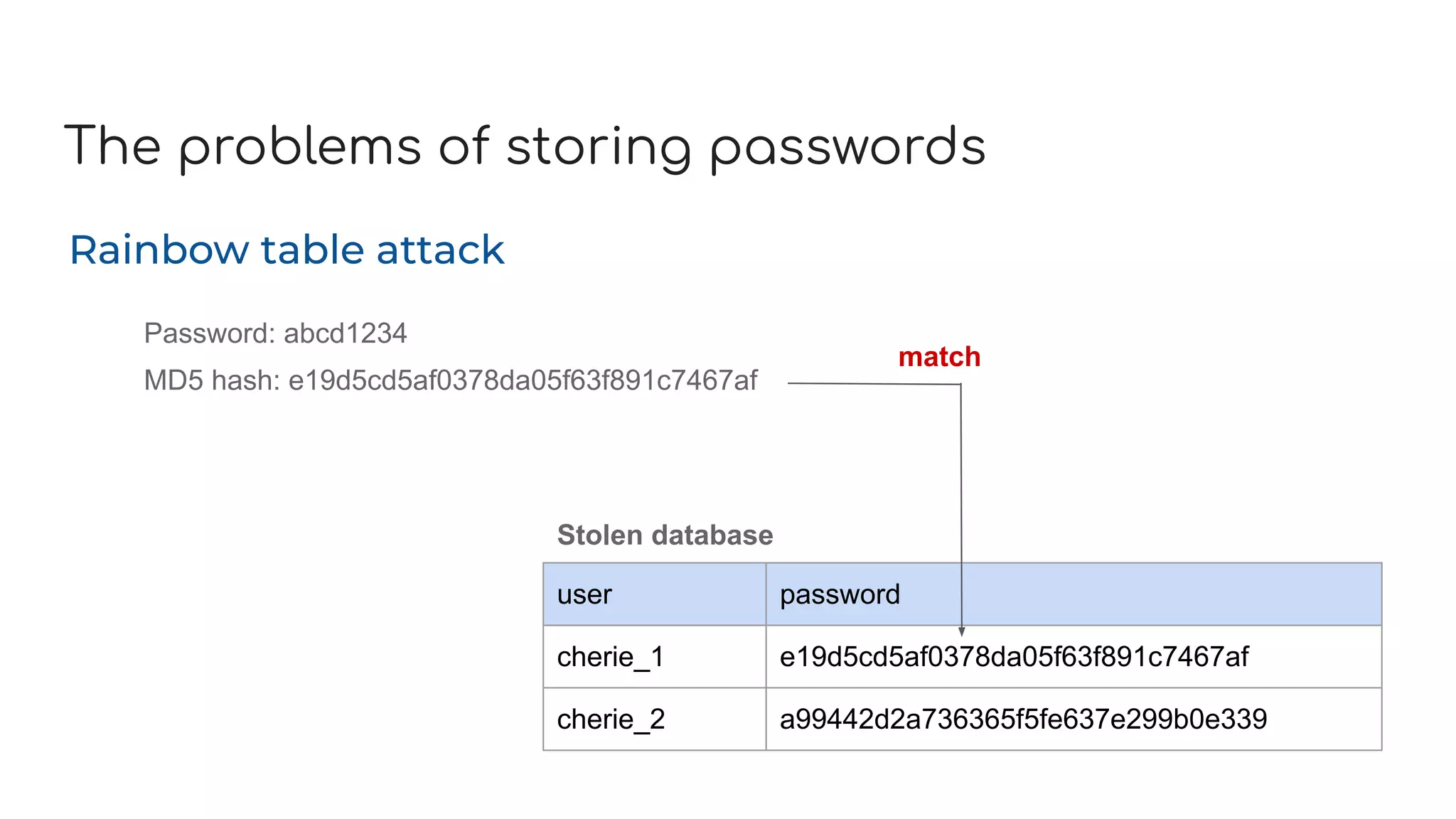

9. The problems of storing passwords
user password
cherie_1 e19d5cd5af0378da05f63f891c7467af
cherie_2 a99442d2a736365f5fe637e299b0e339
Stolen database
Password: abcd1234
MD5 hash: e19d5cd5af0378da05f63f891c7467af
match
Rainbow table attack

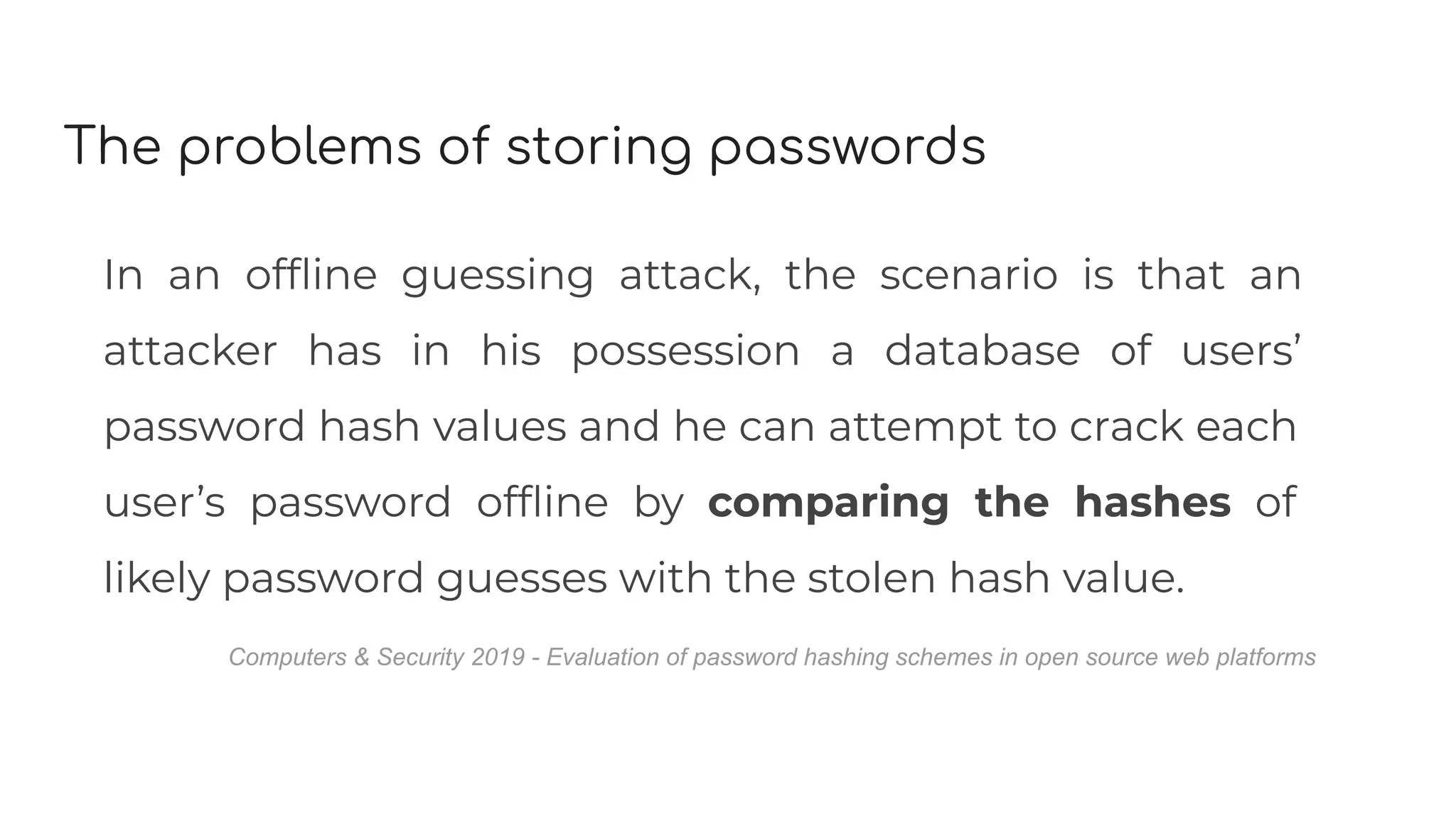

10. The problems of storing passwords
In an offline guessing attack, the scenario is that an
attacker has in his possession a database of users’
password hash values and he can attempt to crack each
user’s password offline by comparing the hashes of
likely password guesses with the stolen hash value.
Computers & Security 2019 - Evaluation of password hashing schemes in open source web platforms

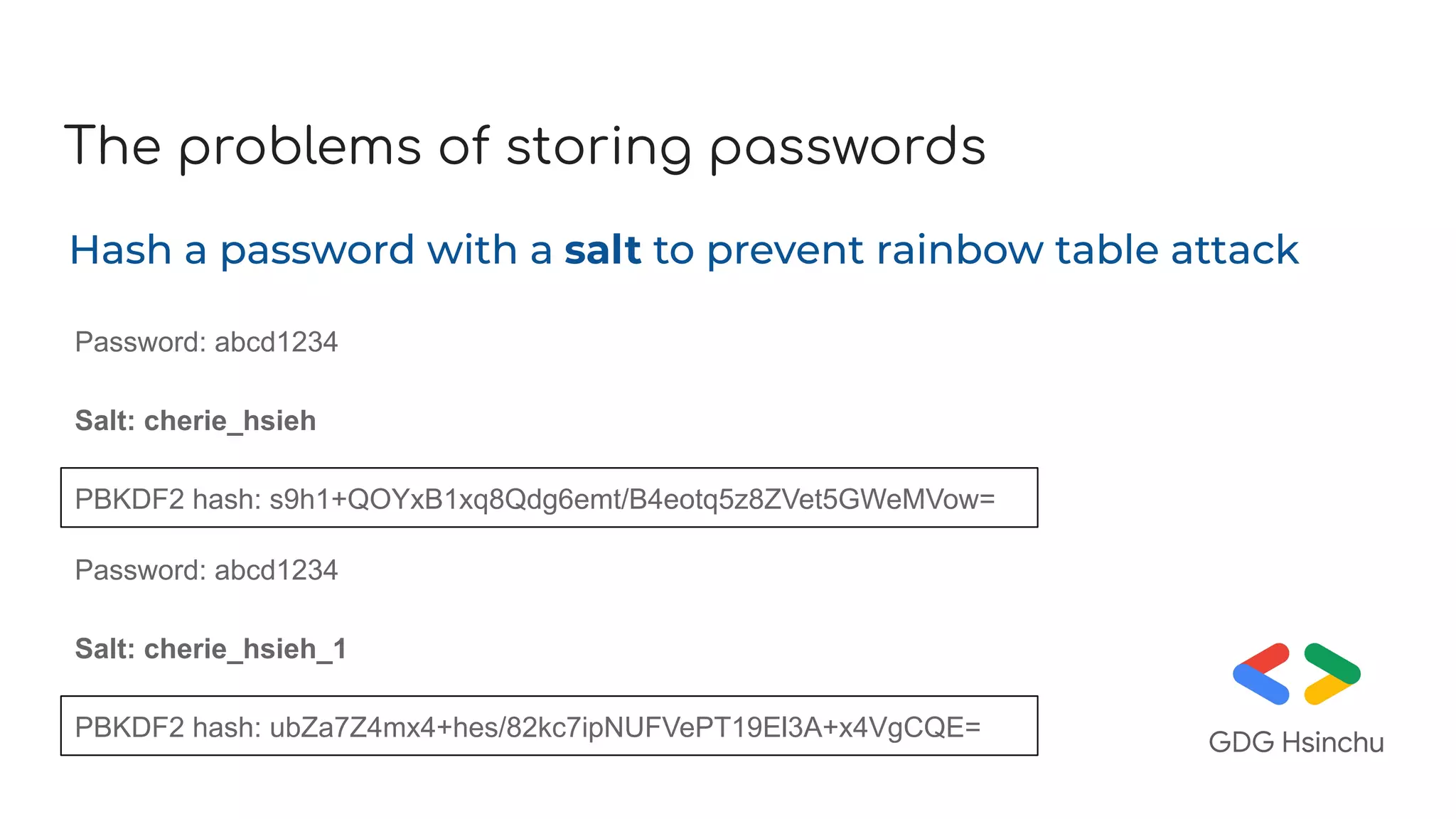

11. The problems of storing passwords
Hash a password with a salt to prevent rainbow table attack
Password: abcd1234
PBKDF2 hash: s9h1+QOYxB1xq8Qdg6emt/B4eotq5z8ZVet5GWeMVow=
Salt: cherie_hsieh
Password: abcd1234
PBKDF2 hash: ubZa7Z4mx4+hes/82kc7ipNUFVePT19El3A+x4VgCQE=
Salt: cherie_hsieh_1

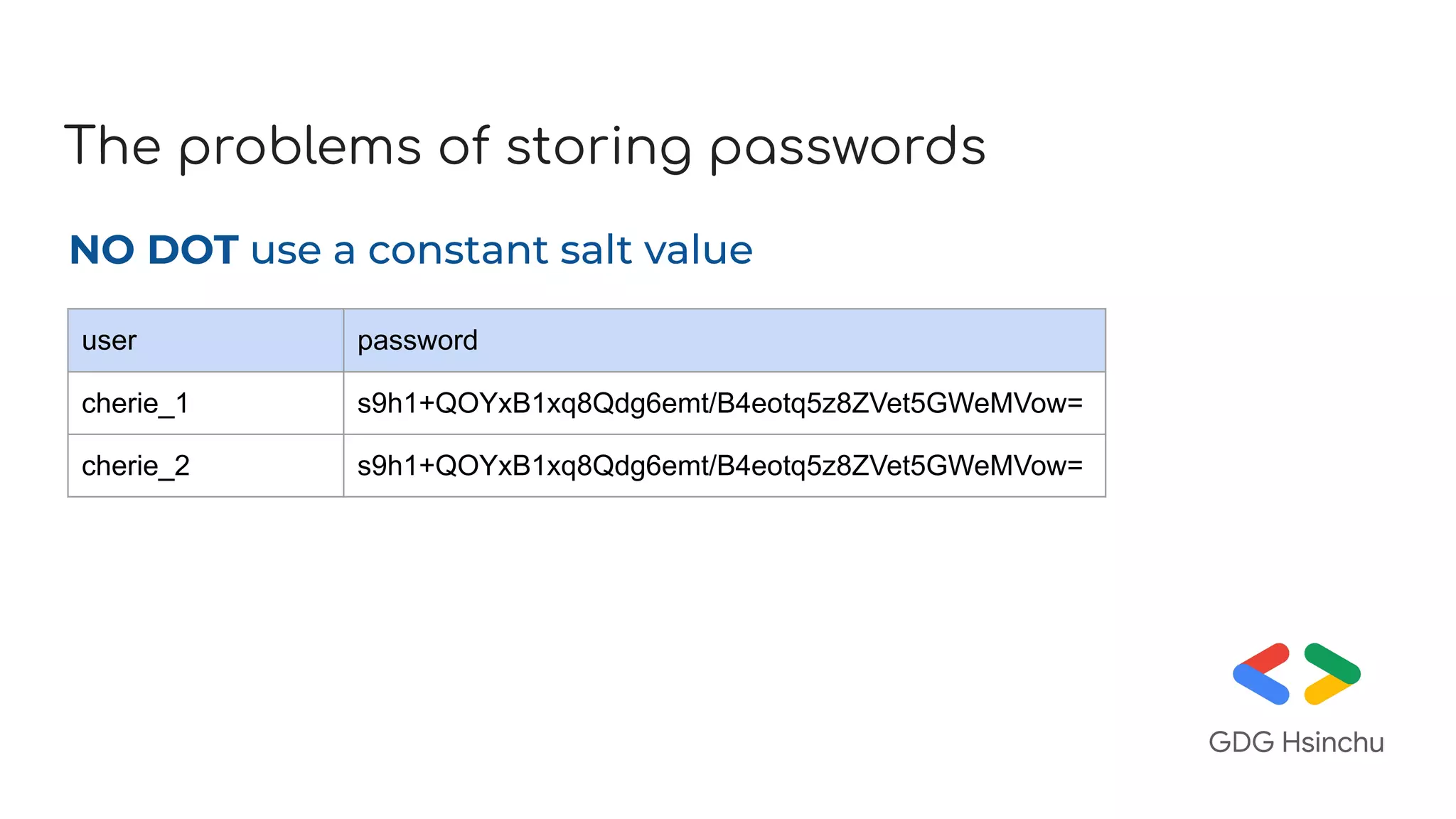

12. The problems of storing passwords
NO DOT use a constant salt value
user password
cherie_1 s9h1+QOYxB1xq8Qdg6emt/B4eotq5z8ZVet5GWeMVow=
cherie_2 s9h1+QOYxB1xq8Qdg6emt/B4eotq5z8ZVet5GWeMVow=

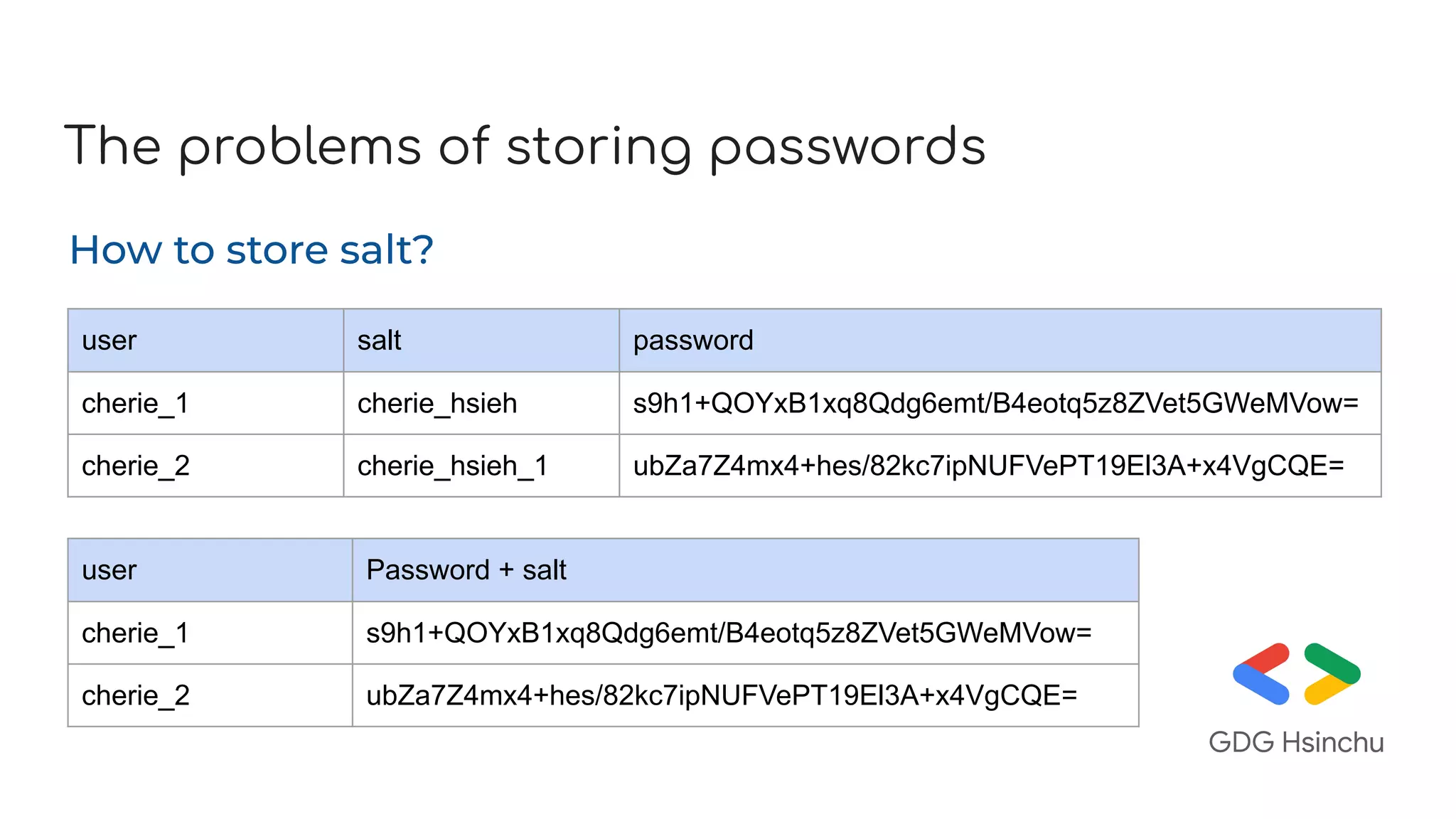

13. The problems of storing passwords
How to store salt?
user salt password
cherie_1 cherie_hsieh s9h1+QOYxB1xq8Qdg6emt/B4eotq5z8ZVet5GWeMVow=
cherie_2 cherie_hsieh_1 ubZa7Z4mx4+hes/82kc7ipNUFVePT19El3A+x4VgCQE=
user Password + salt
cherie_1 s9h1+QOYxB1xq8Qdg6emt/B4eotq5z8ZVet5GWeMVow=
cherie_2 ubZa7Z4mx4+hes/82kc7ipNUFVePT19El3A+x4VgCQE=

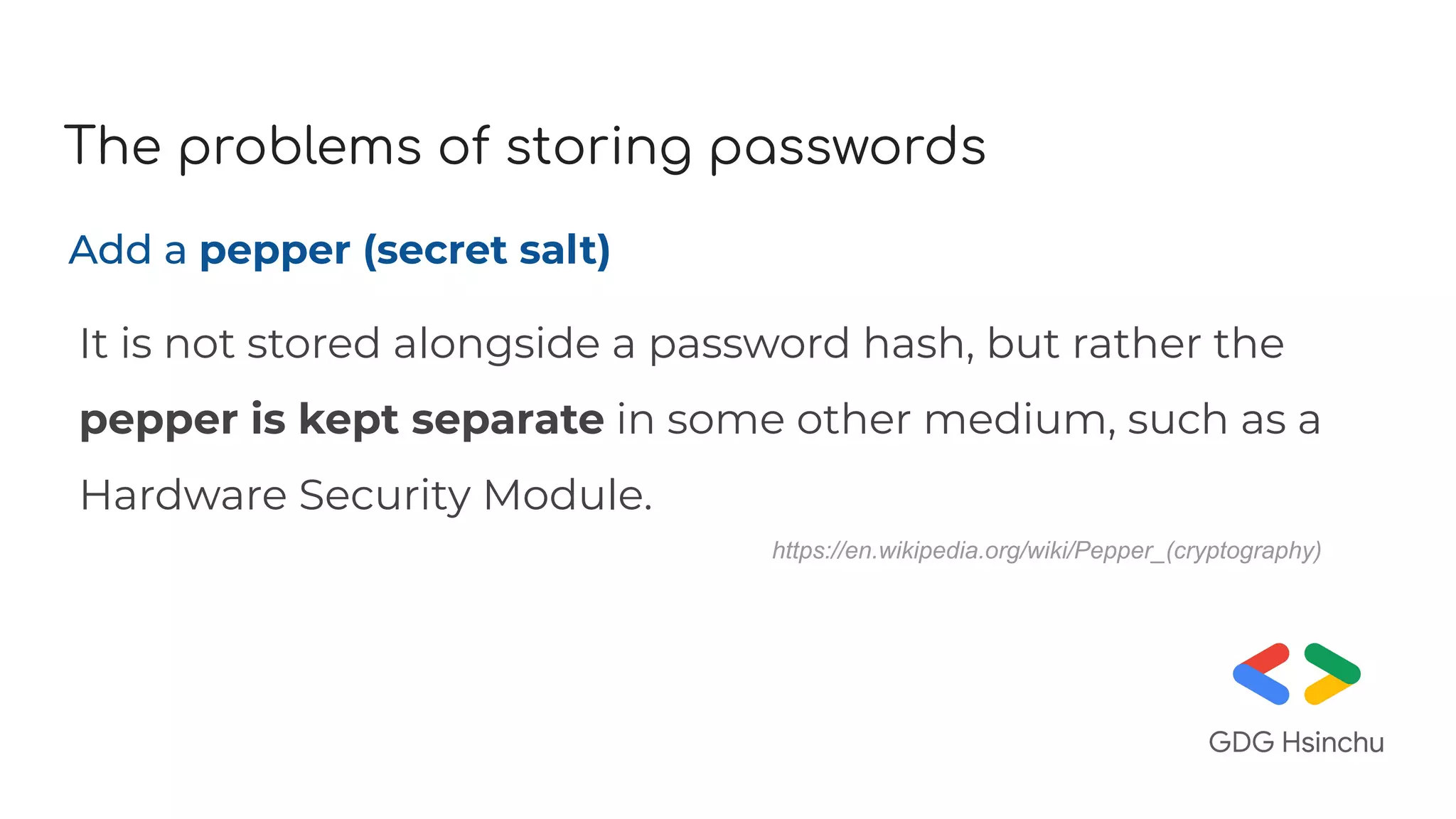

14. The problems of storing passwords
Add a pepper (secret salt)
It is not stored alongside a password hash, but rather the
pepper is kept separate in some other medium, such as a
Hardware Security Module.
https://en.wikipedia.org/wiki/Pepper_(cryptography)

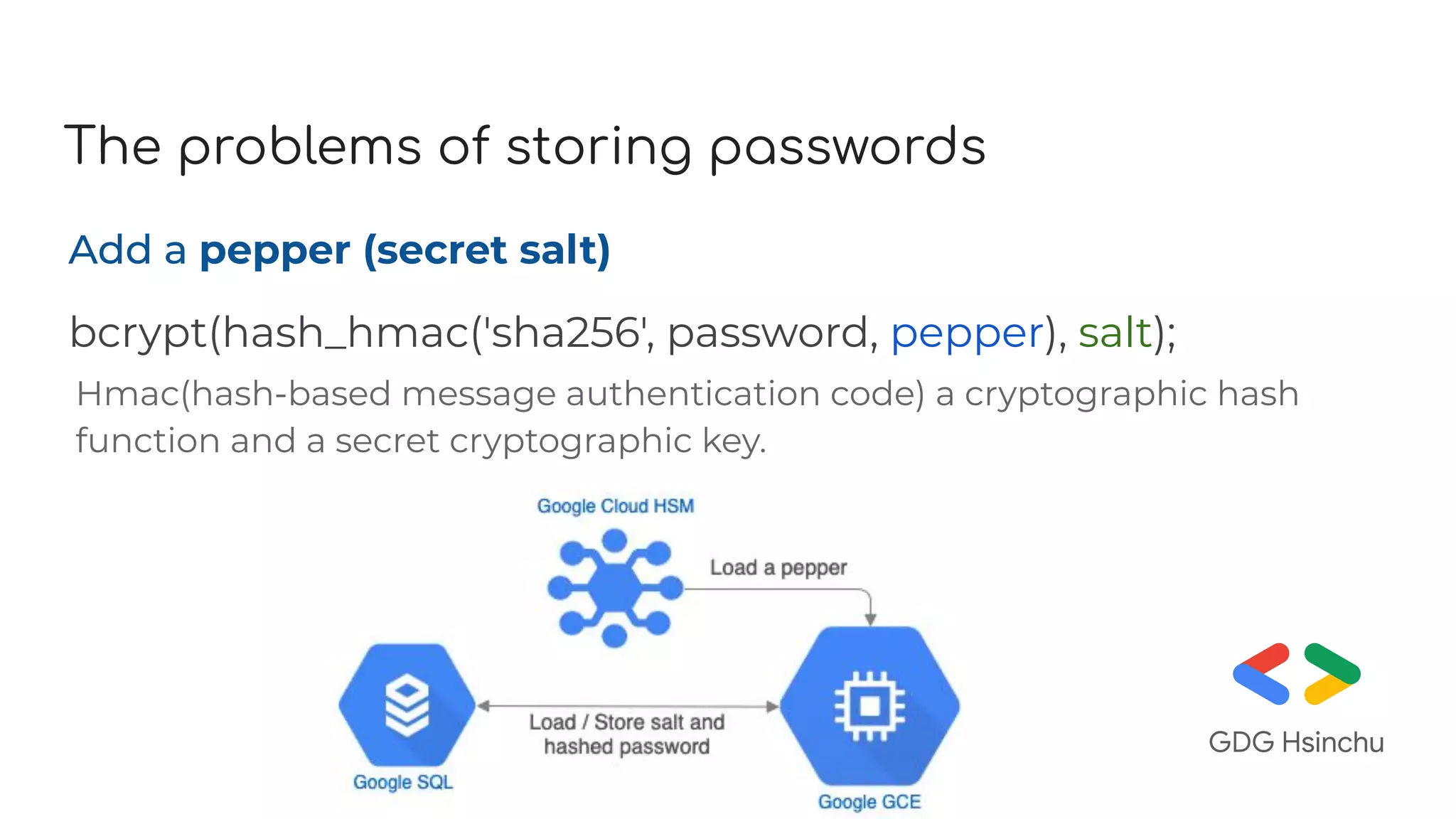

15. The problems of storing passwords
Add a pepper (secret salt)
bcrypt(hash_hmac('sha256', password, pepper), salt);
Hmac(hash-based message authentication code) a cryptographic hash
function and a secret cryptographic key.

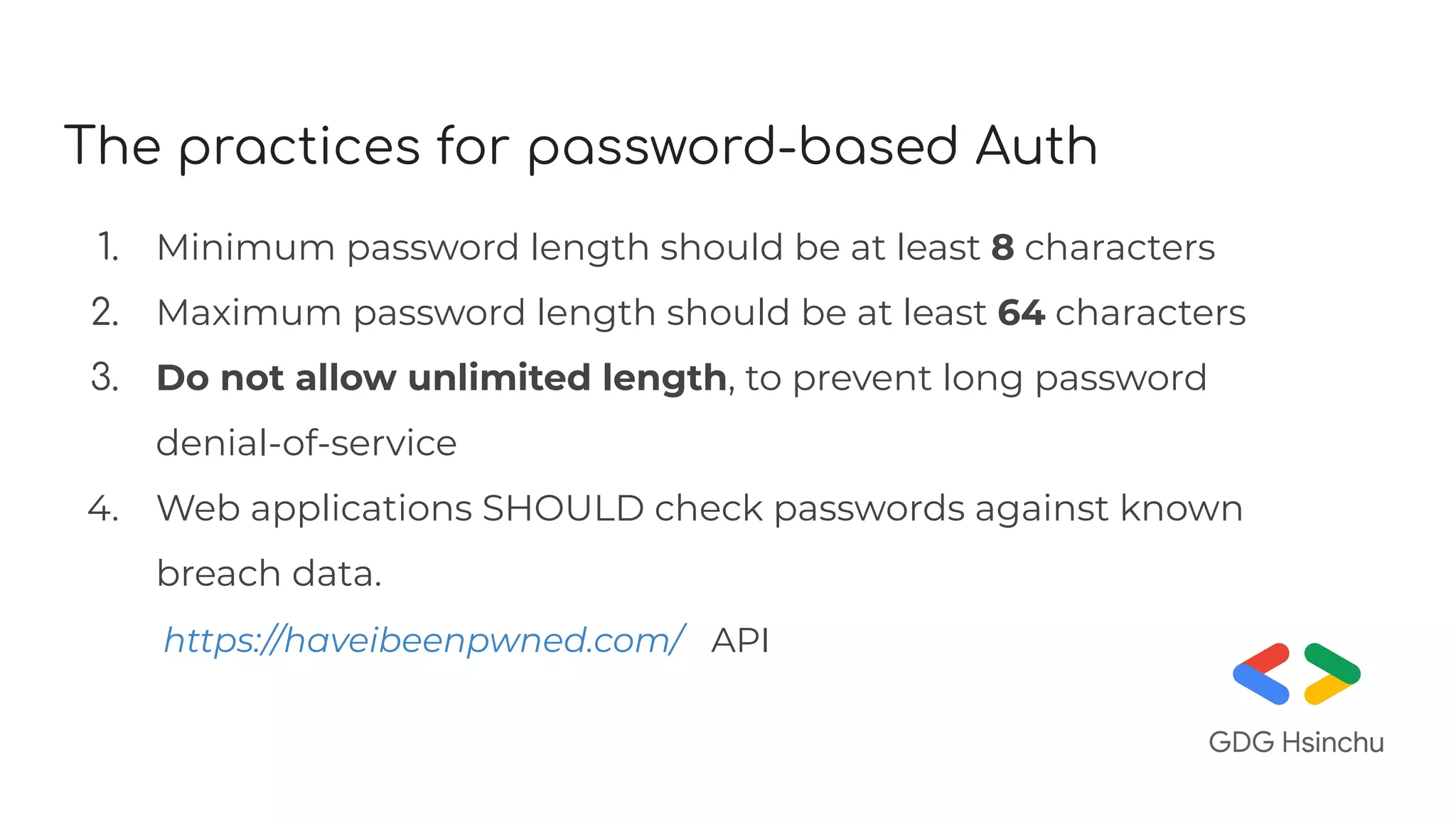

16. The practices for password-based Auth
1. Minimum password length should be at least 8 characters
2. Maximum password length should be at least 64 characters
3. Do not allow unlimited length, to prevent long password
denial-of-service
4. Web applications SHOULD check passwords against known
breach data.
https://haveibeenpwned.com/ API

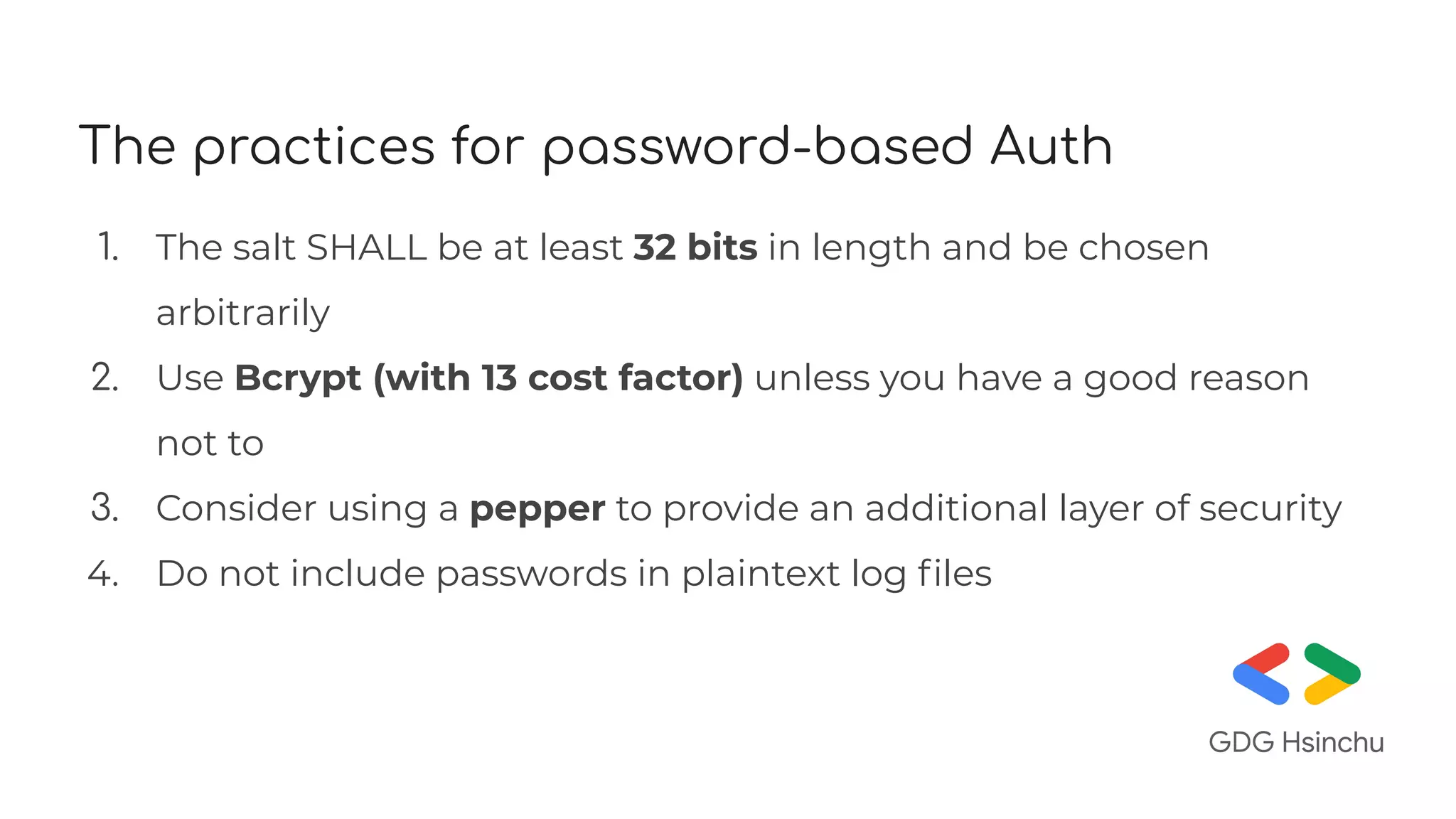

17. The practices for password-based Auth
1. The salt SHALL be at least 32 bits in length and be chosen
arbitrarily
2. Use Bcrypt (with 13 cost factor) unless you have a good reason
not to
3. Consider using a pepper to provide an additional layer of security
4. Do not include passwords in plaintext log files

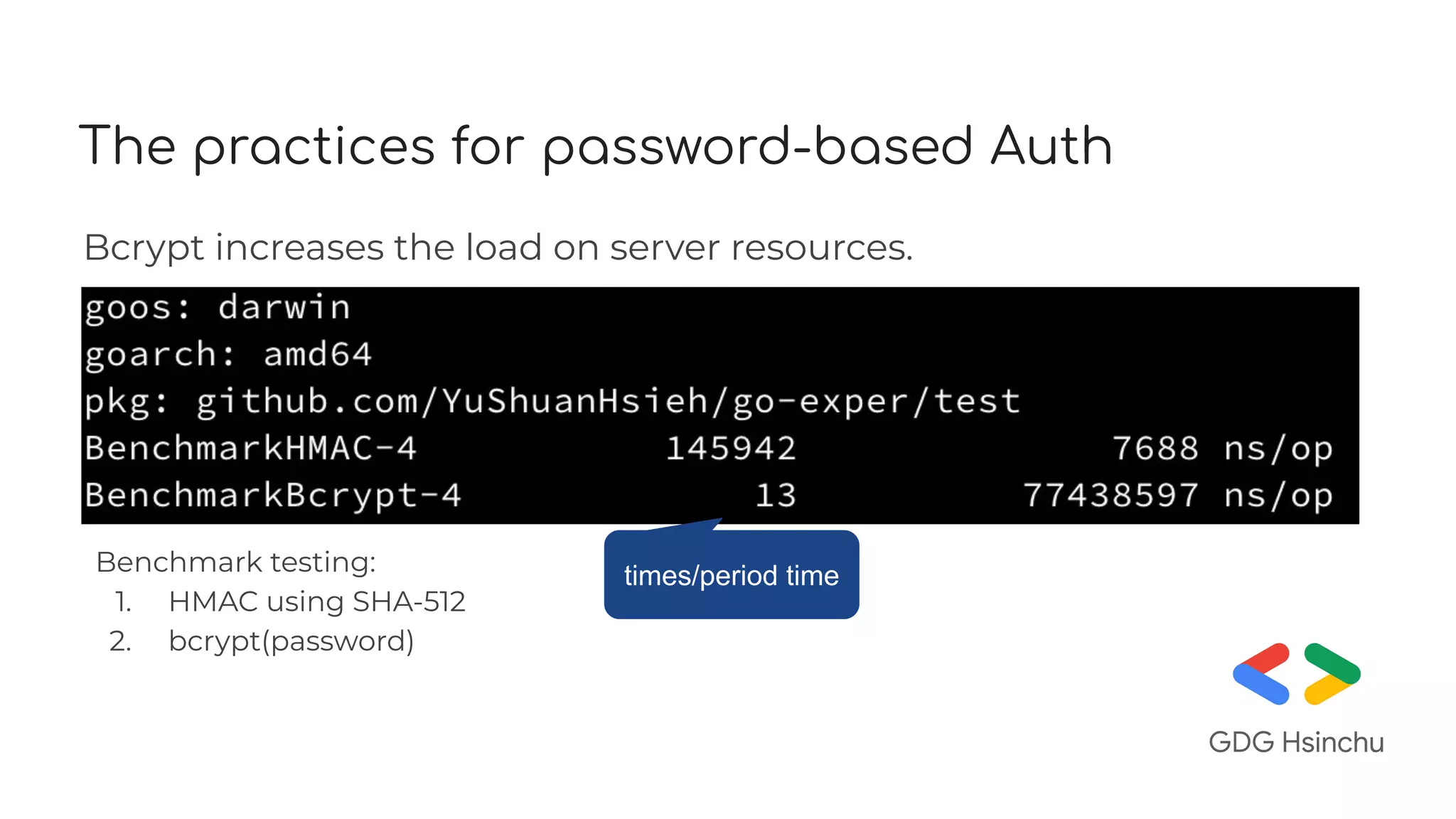

18. The practices for password-based Auth
Bcrypt increases the load on server resources.
Benchmark testing:
1. HMAC using SHA-512
2. bcrypt(password)
times/period time

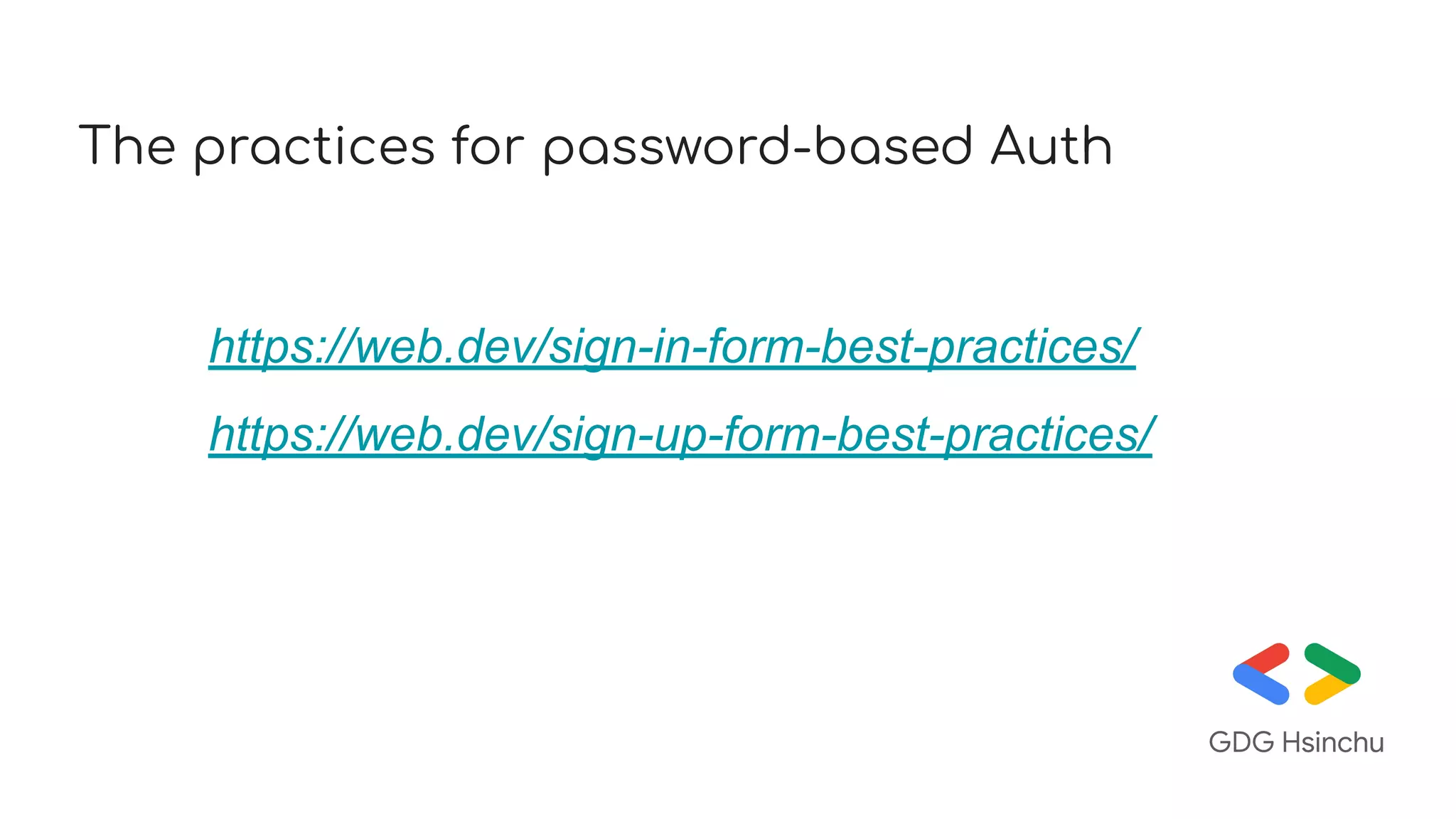

19. The practices for password-based Auth
https://web.dev/sign-in-form-best-practices/
https://web.dev/sign-up-form-best-practices/

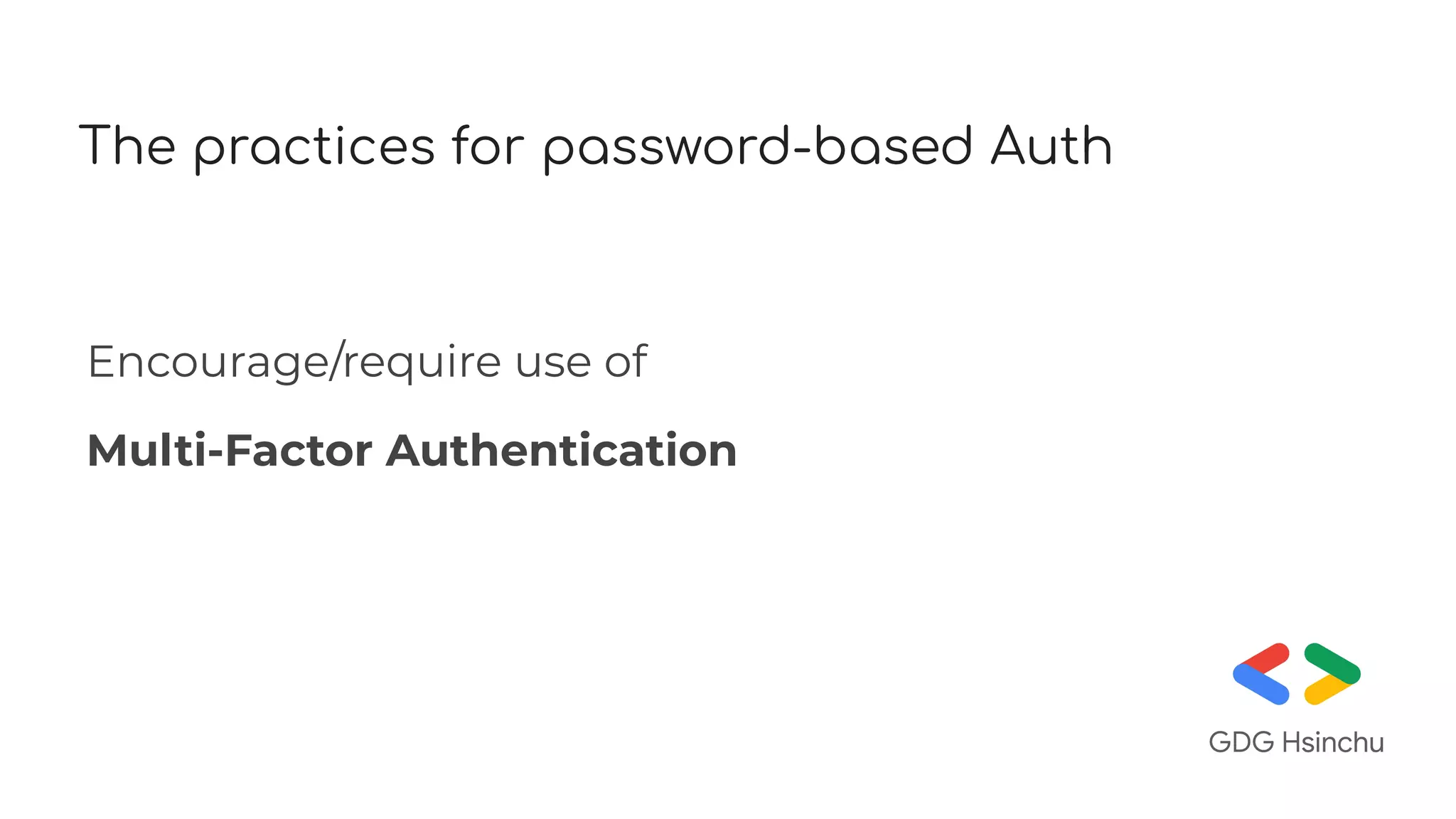

20. The practices for password-based Auth
Encourage/require use of
Multi-Factor Authentication

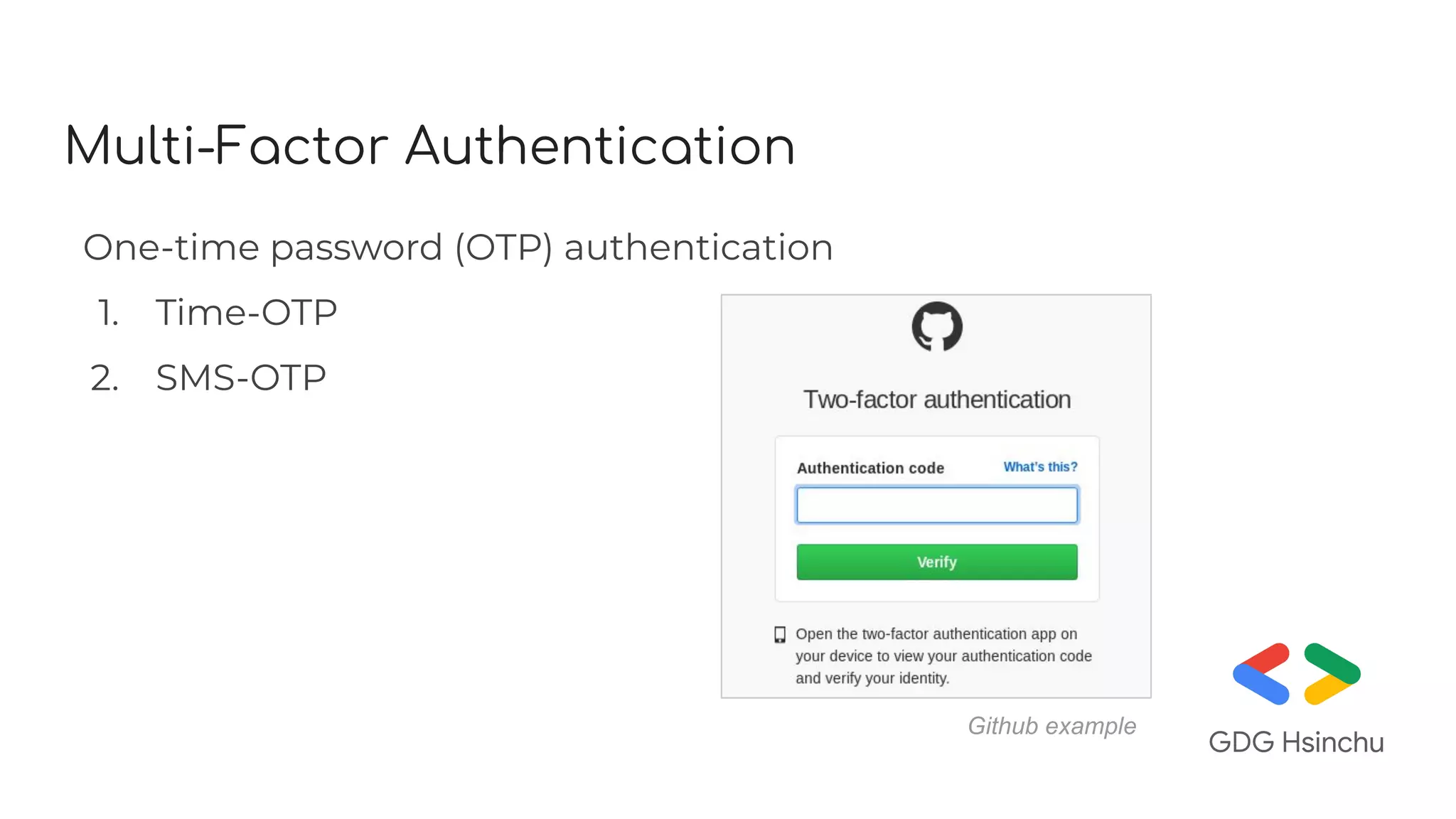

21. Multi-Factor Authentication
One-time password (OTP) authentication
1. Time-OTP
2. SMS-OTP
Github example

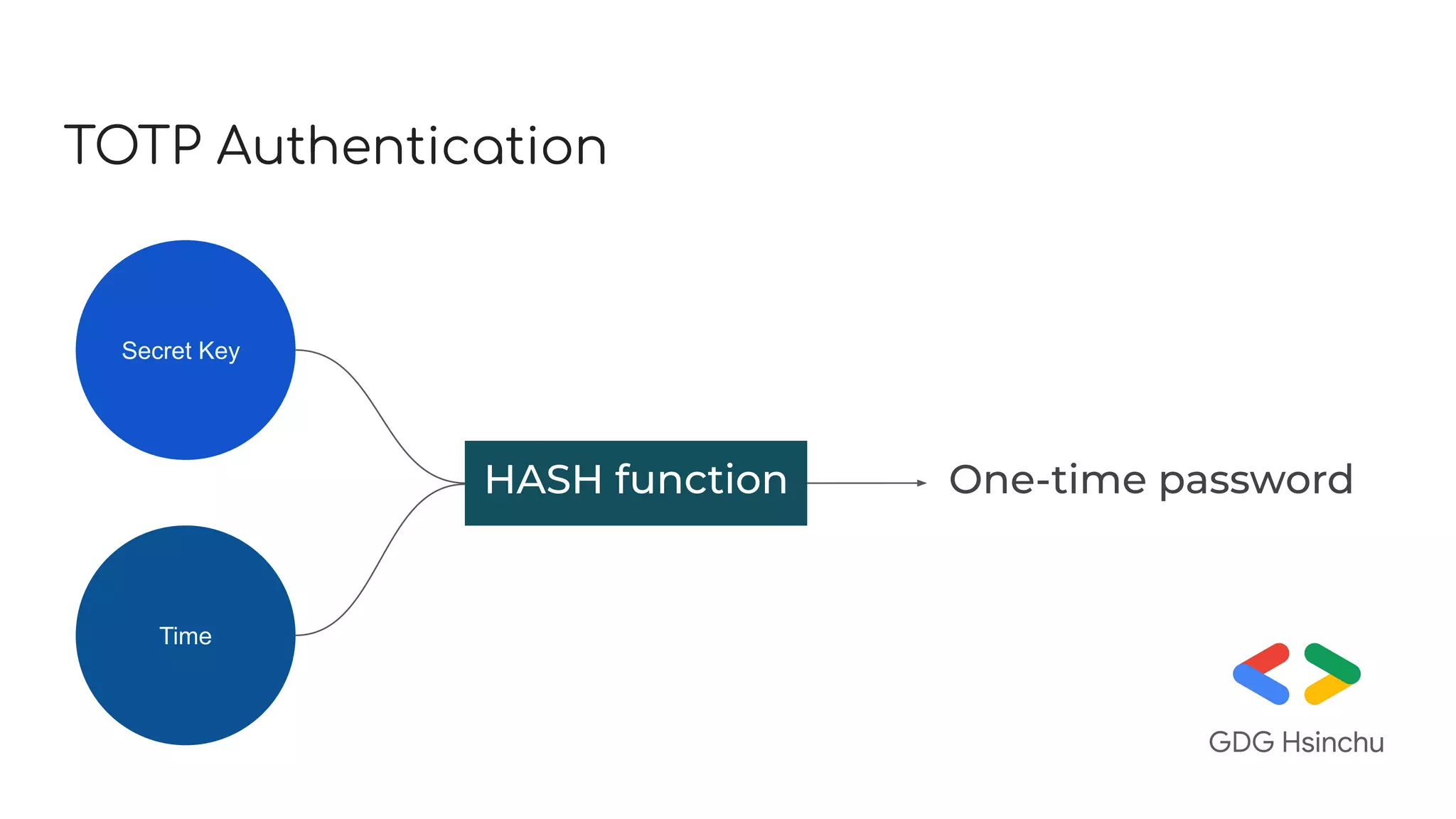

22. TOTP Authentication
Secret Key
Time
HASH function One-time password

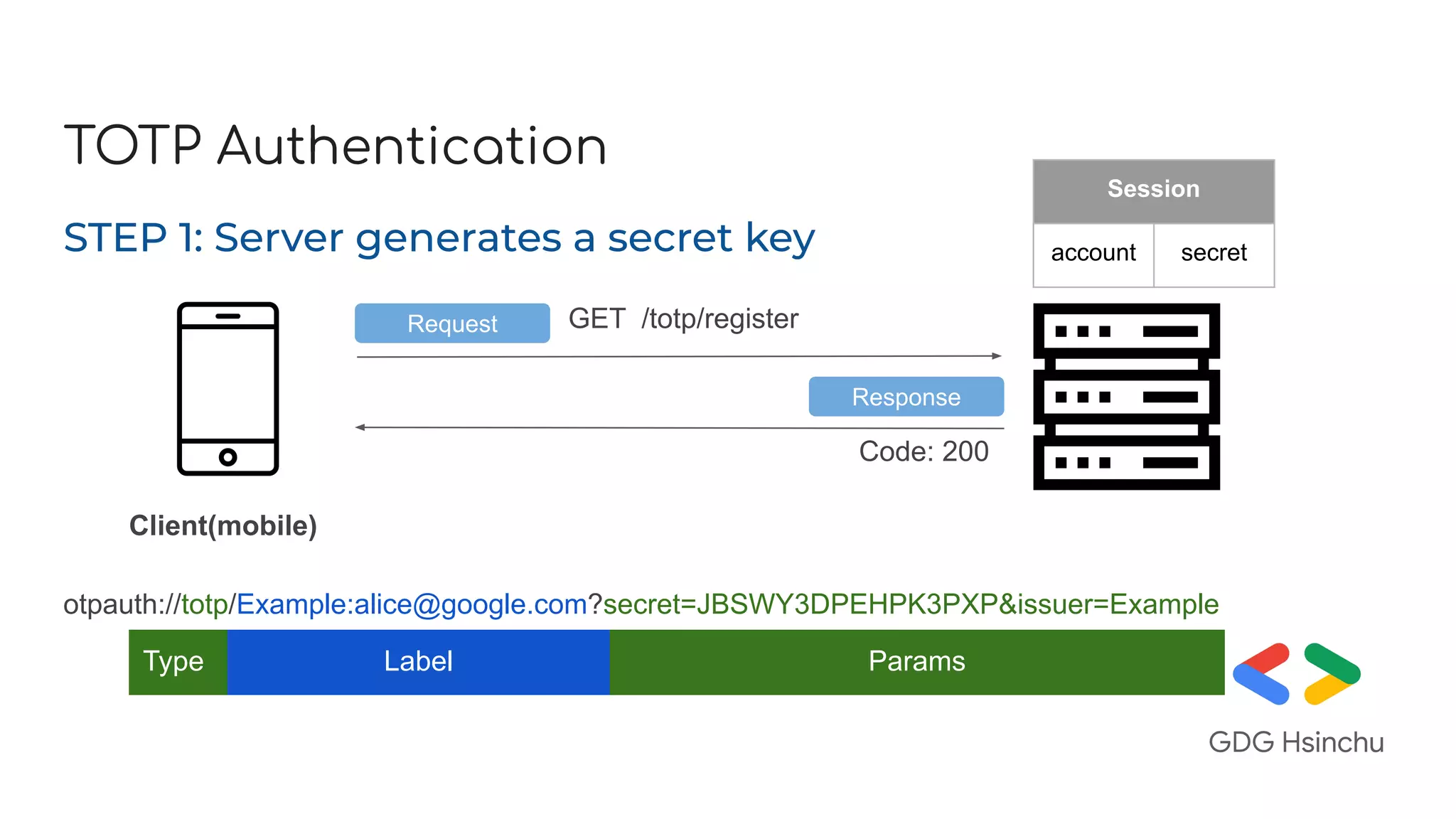

23. TOTP Authentication
GET /totp/register
Client(mobile)
STEP 1: Server generates a secret key
Response
Request
otpauth://totp/Example:alice@google.com?secret=JBSWY3DPEHPK3PXP&issuer=Example
Type Label Params
Session
account secret
Code: 200

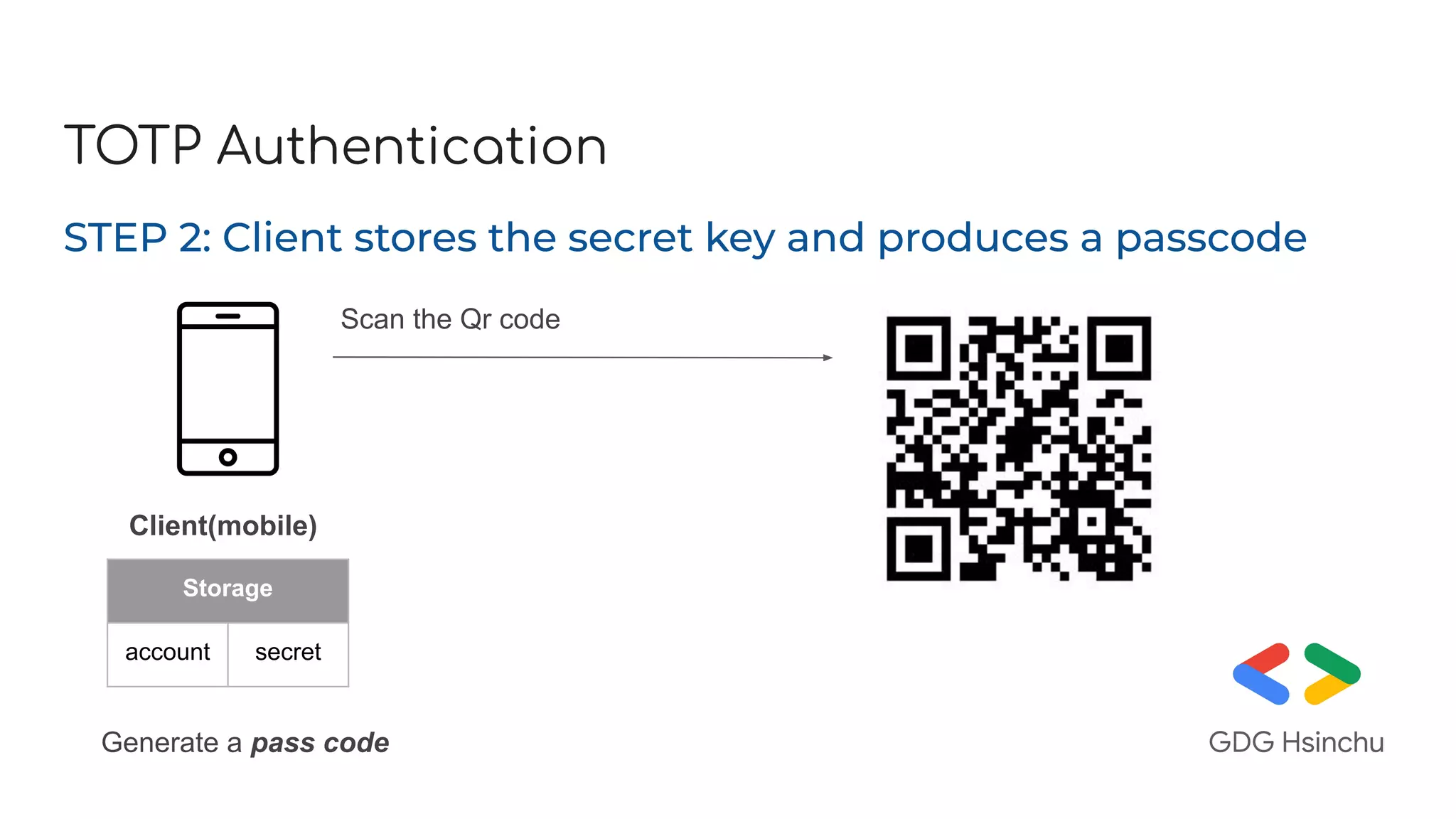

24. TOTP Authentication
STEP 2: Client stores the secret key and produces a passcode
Storage
account secret
Generate a pass code
Client(mobile)
Scan the Qr code

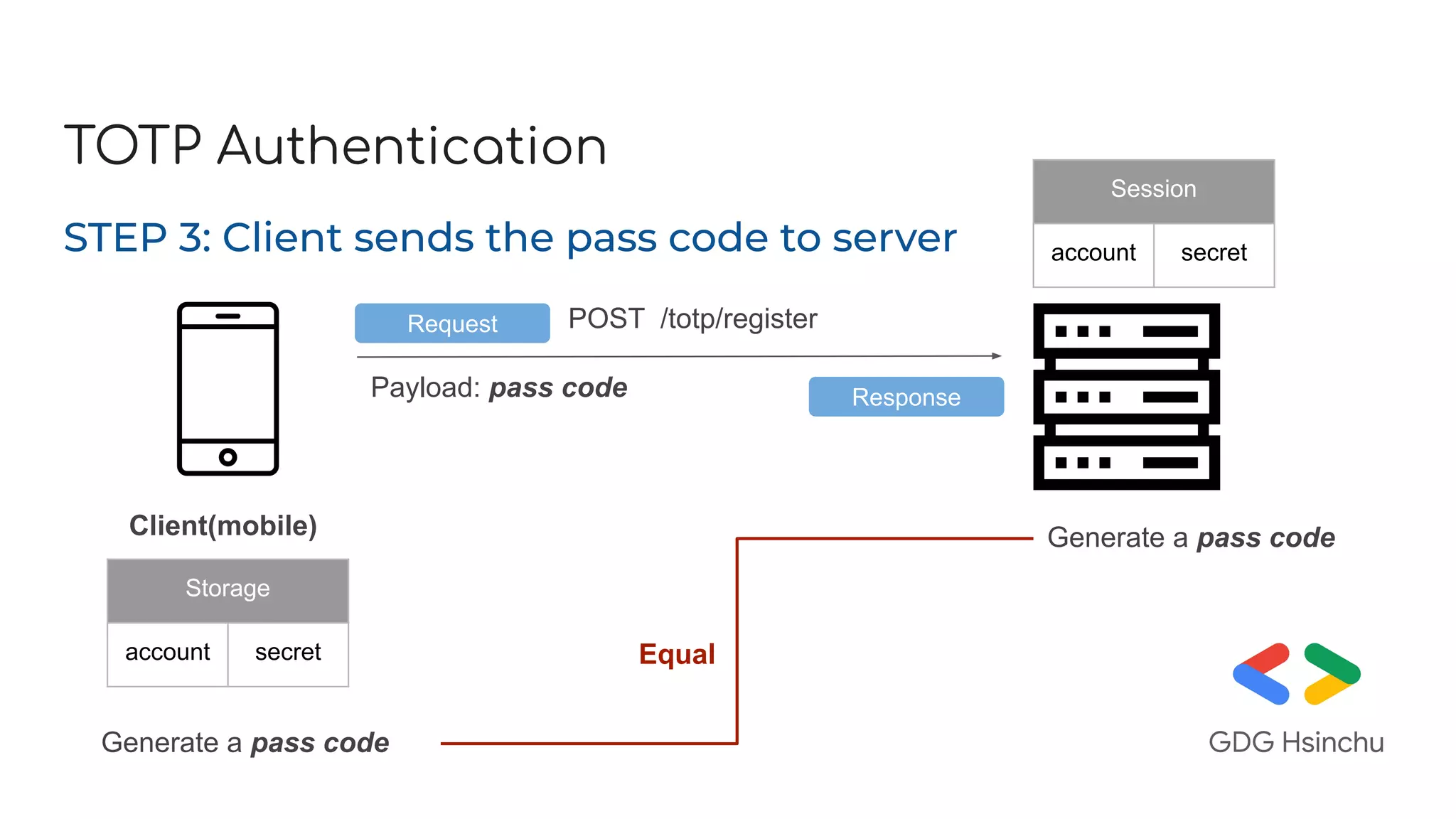

25. TOTP Authentication
STEP 3: Client sends the pass code to server
Storage
account secret
Generate a pass code
Request POST /totp/register
Payload: pass code
Session
account secret
Response
Generate a pass code
Equal
Client(mobile)

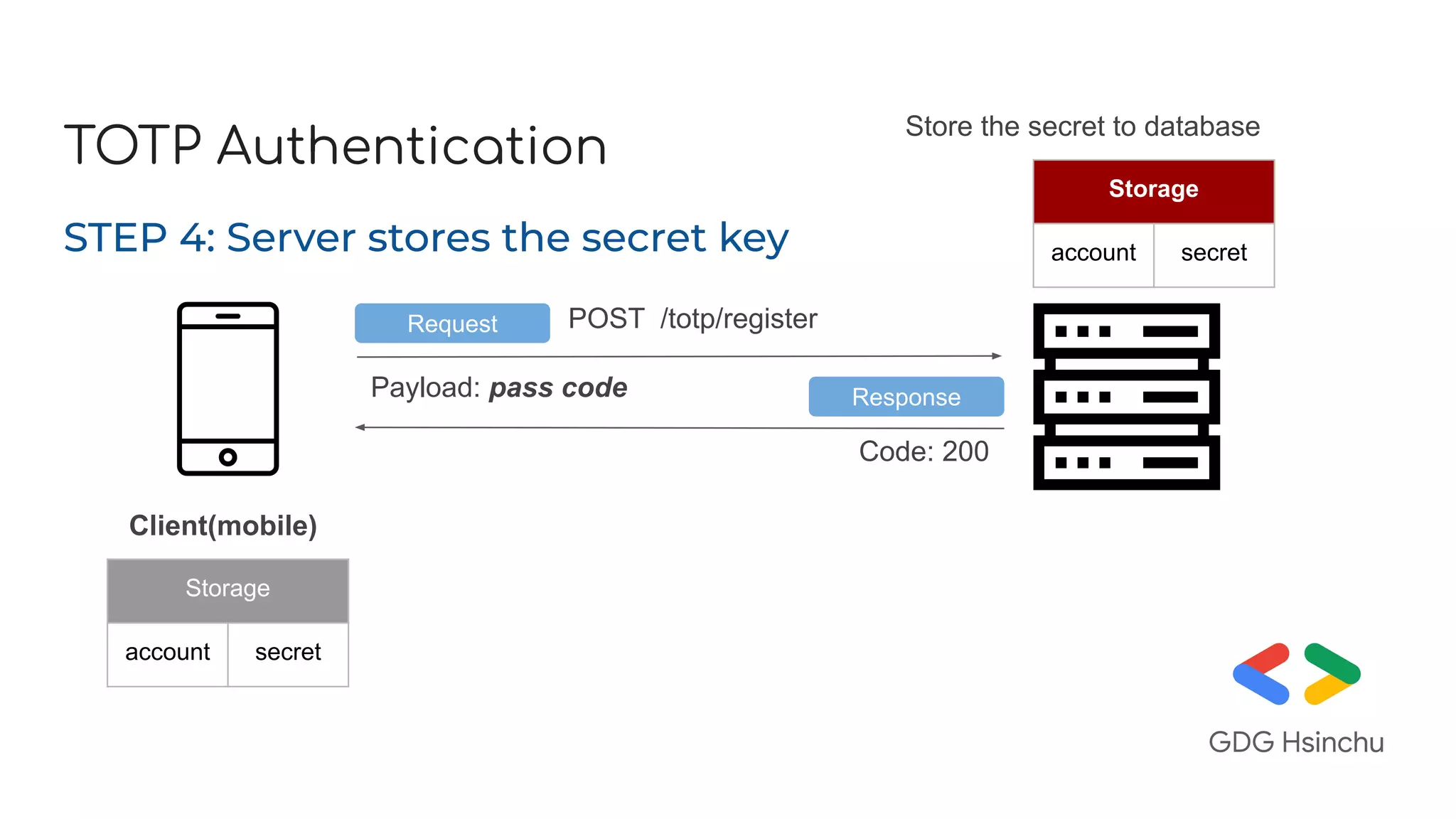

26. TOTP Authentication
STEP 4: Server stores the secret key
Storage
account secret
Request POST /totp/register
Payload: pass code
Storage
account secret
ResponseResponse
Code: 200
Client(mobile)
Store the secret to database

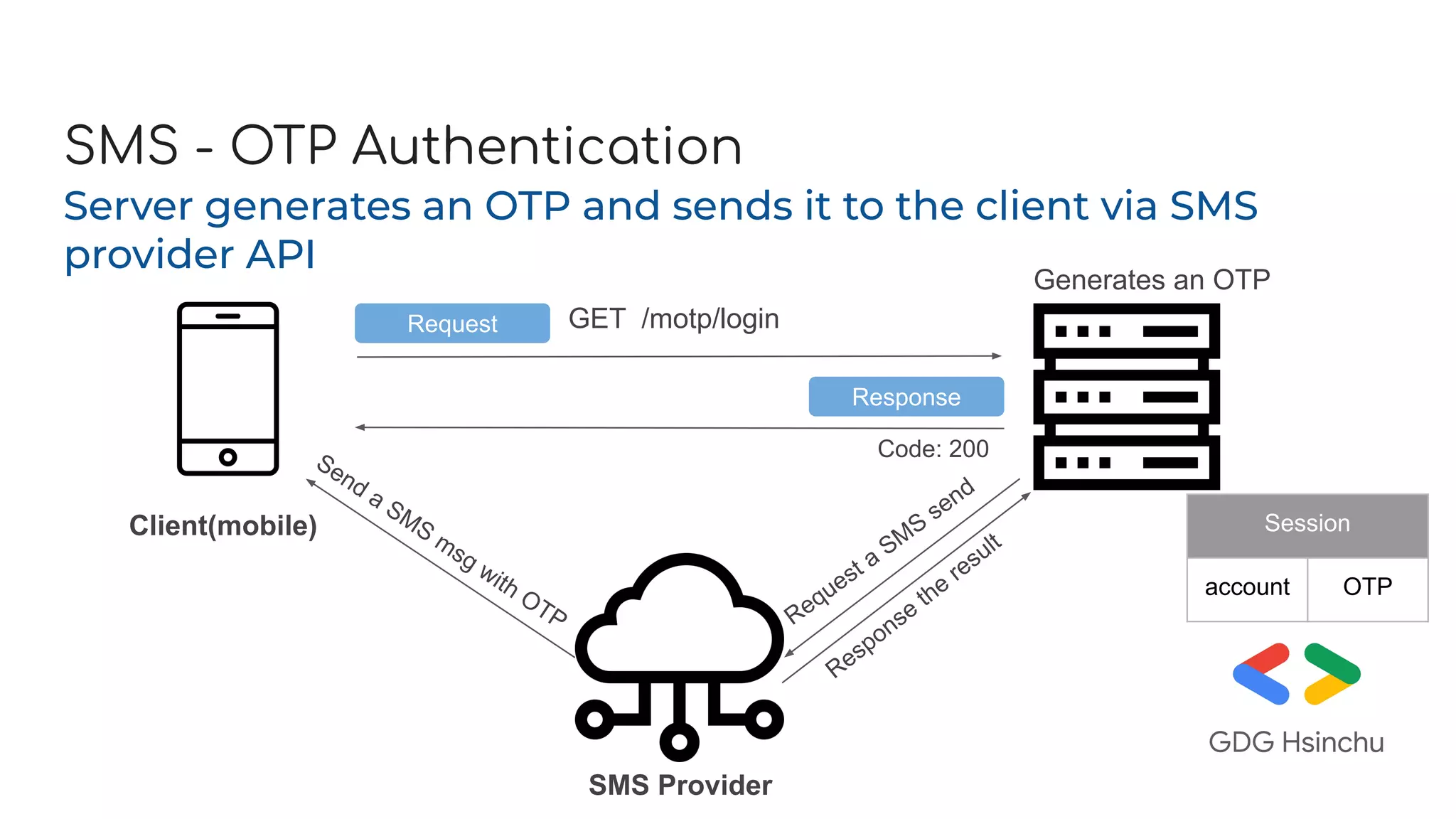

27. SMS - OTP Authentication
GET /motp/login
Server generates an OTP and sends it to the client via SMS
provider API
Response
Request
Session
account OTP
Code: 200
SMS Provider
Request a SMS
send
Response
the
result
Send a SMS
msg with OTP
Client(mobile)
Generates an OTP

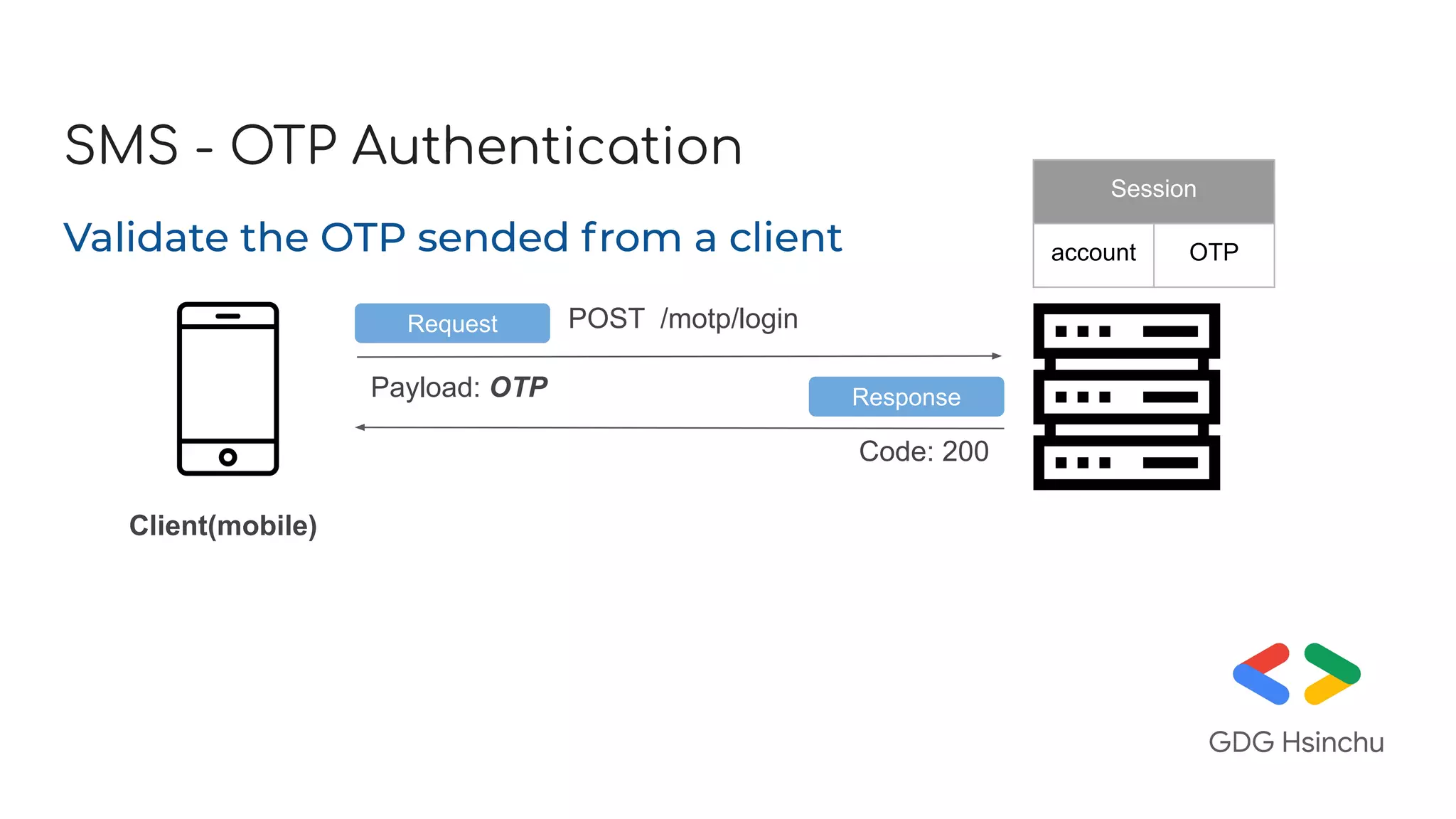

28. SMS - OTP Authentication
Validate the OTP sended from a client
Request POST /motp/login
Payload: OTP
Session
account OTP
ResponseResponse
Code: 200
Client(mobile)

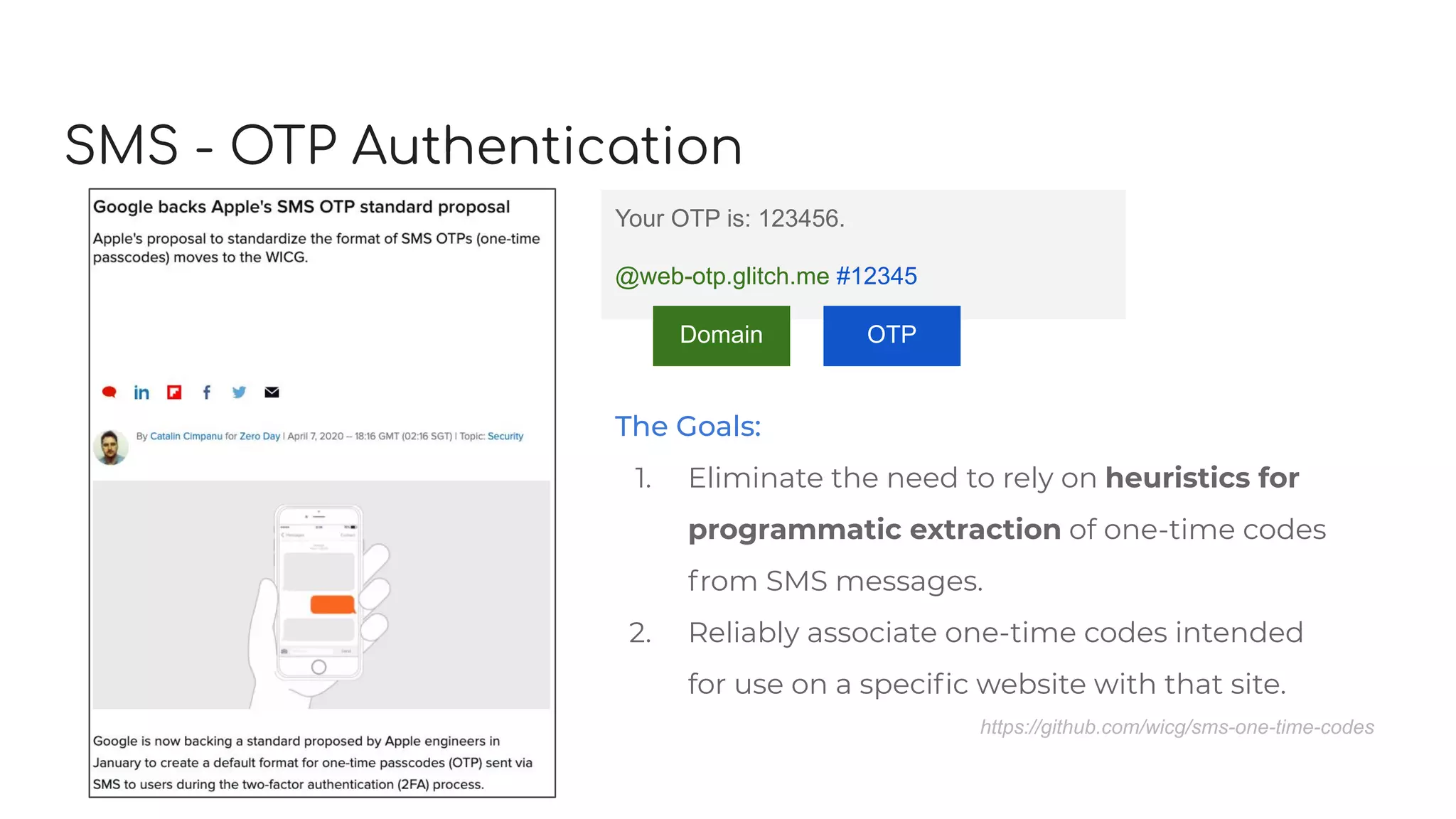

29. SMS - OTP Authentication
Your OTP is: 123456.
@web-otp.glitch.me #12345
Domain OTP
The Goals:
1. Eliminate the need to rely on heuristics for
programmatic extraction of one-time codes
from SMS messages.
2. Reliably associate one-time codes intended
for use on a specific website with that site.
https://github.com/wicg/sms-one-time-codes

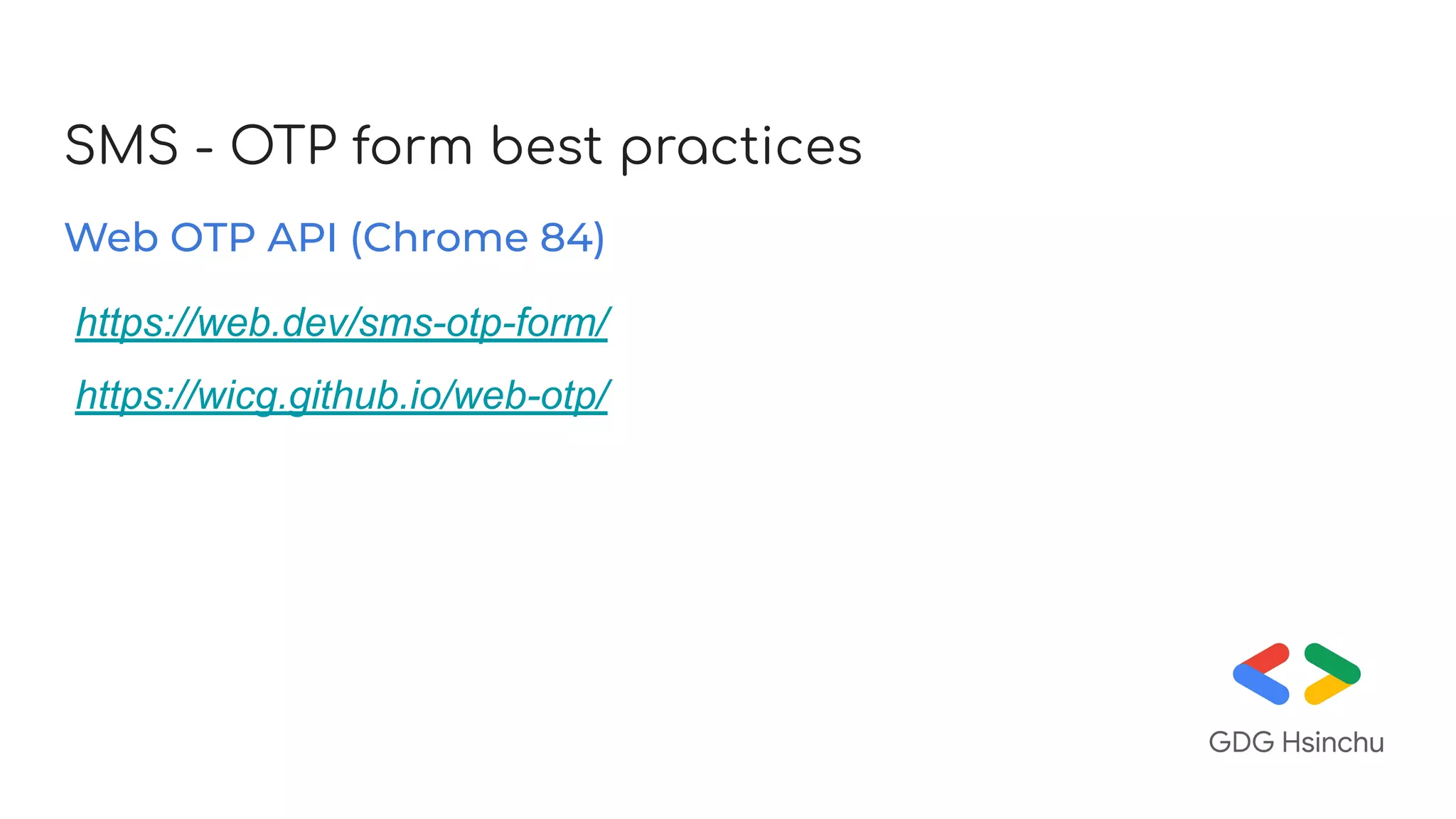

30. SMS - OTP form best practices
Web OTP API (Chrome 84)
https://web.dev/sms-otp-form/
https://wicg.github.io/web-otp/

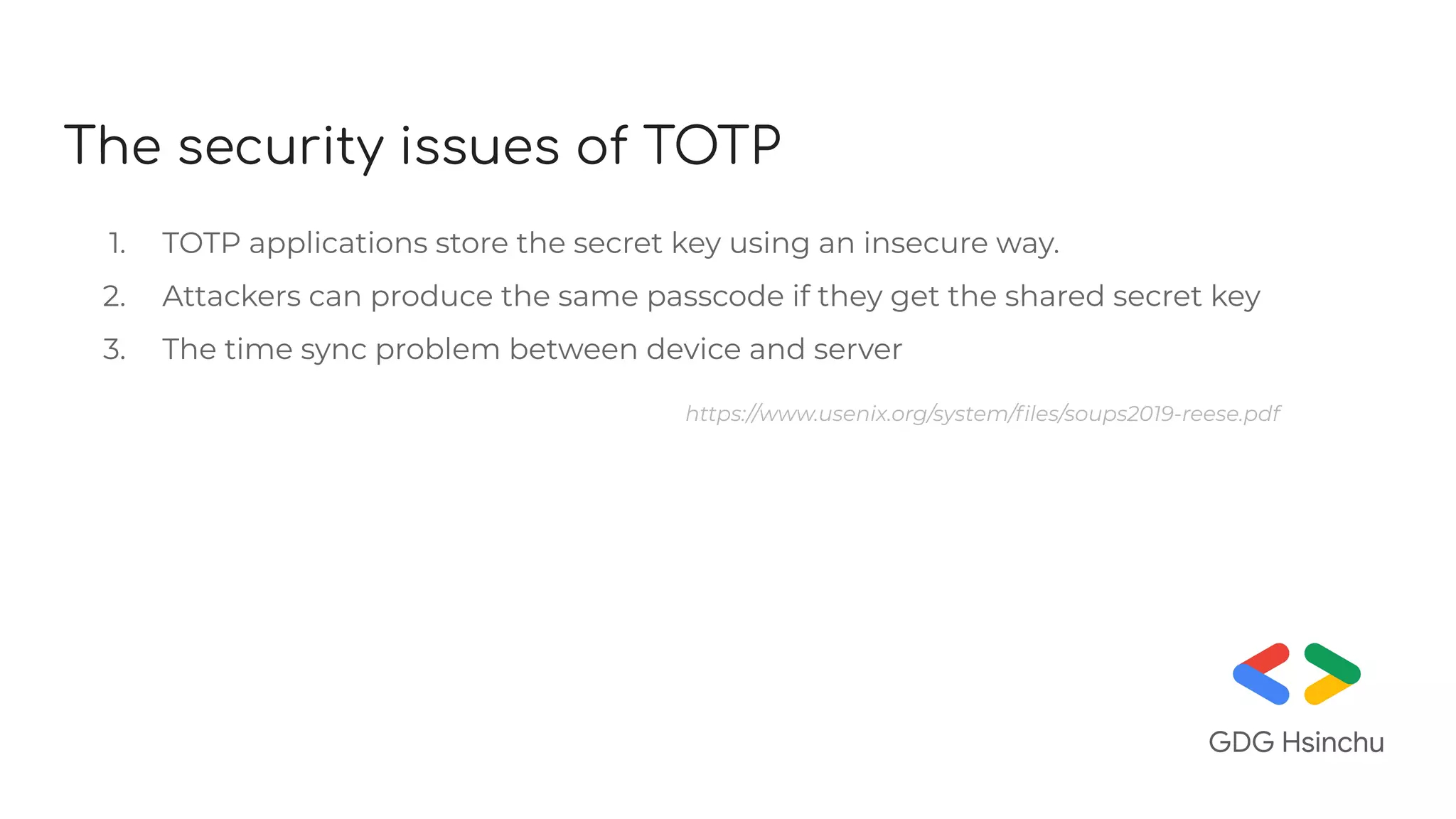

31. The security issues of TOTP
1. TOTP applications store the secret key using an insecure way.
2. Attackers can produce the same passcode if they get the shared secret key
3. The time sync problem between device and server
https://www.usenix.org/system/files/soups2019-reese.pdf

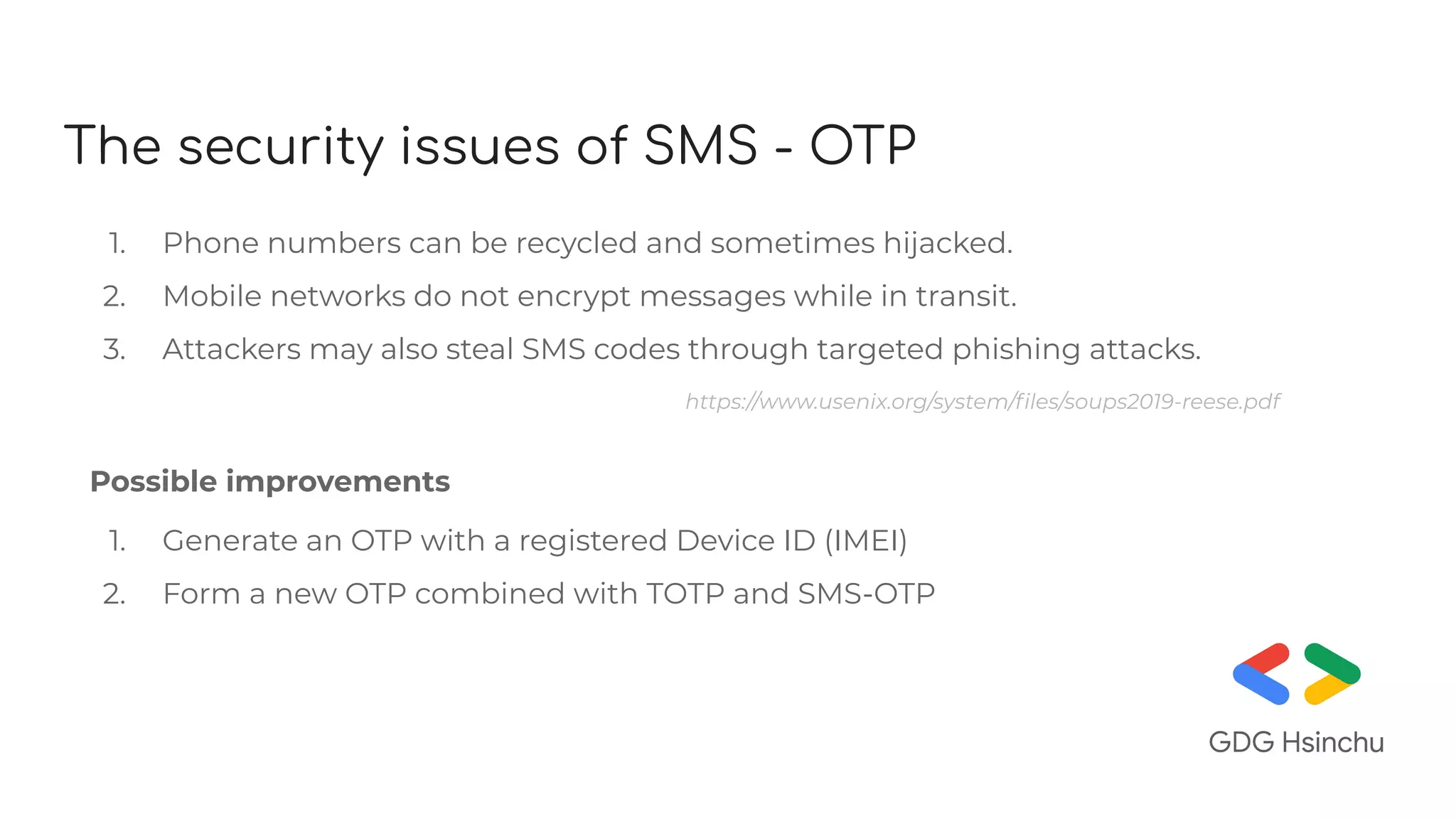

32. The security issues of SMS - OTP
1. Phone numbers can be recycled and sometimes hijacked.
2. Mobile networks do not encrypt messages while in transit.
3. Attackers may also steal SMS codes through targeted phishing attacks.
https://www.usenix.org/system/files/soups2019-reese.pdf
Possible improvements
1. Generate an OTP with a registered Device ID (IMEI)
2. Form a new OTP combined with TOTP and SMS-OTP

33. A more secure solution for user login
FIDO2 : WebAuthn & CTAP (U2F)
(Client to Authenticator Protocol)(Fast IDentity Online)

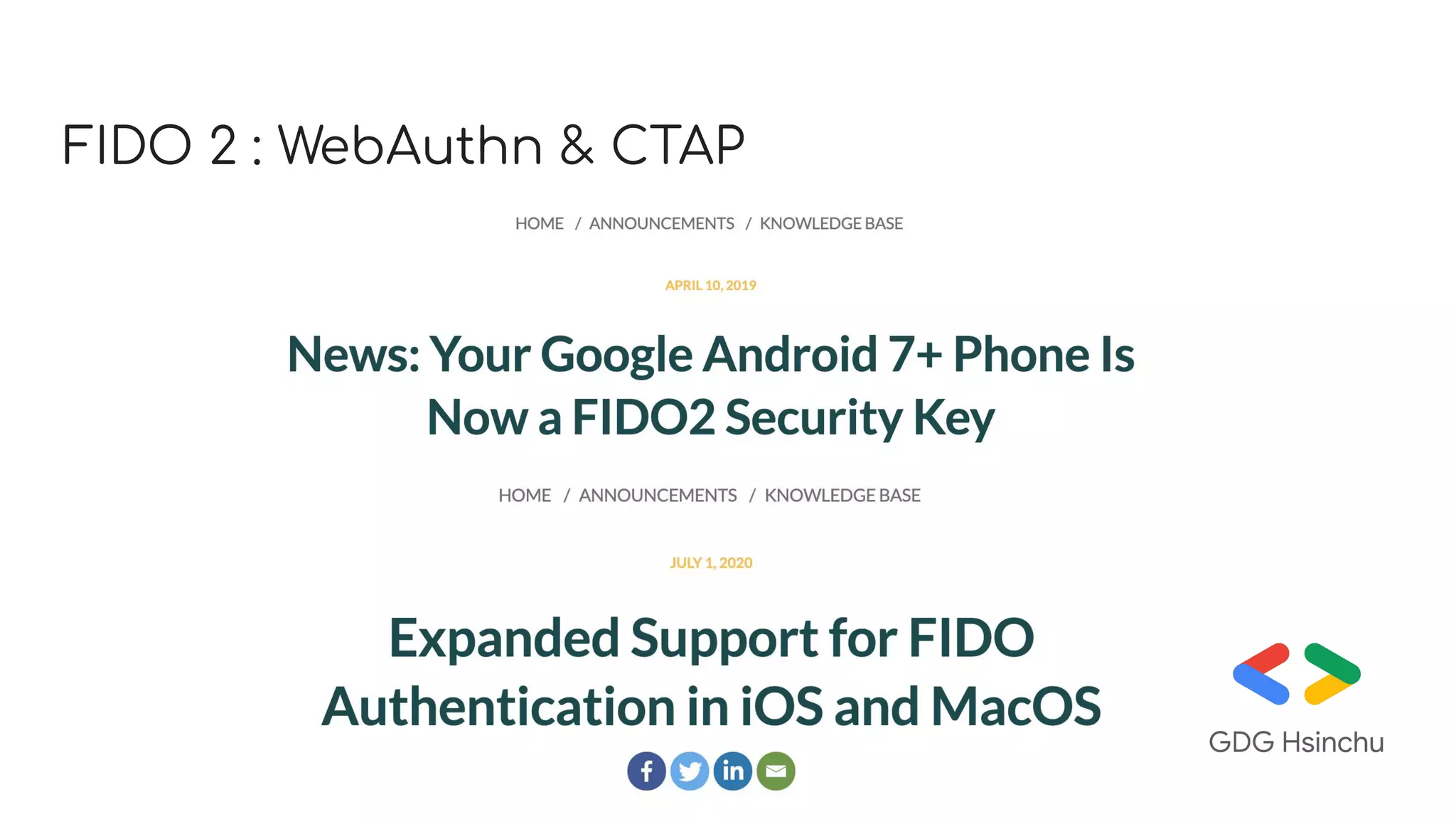

34. FIDO 2 : WebAuthn & CTAP

35. FIDO 2 : WebAuthn & CTAP
Try it! https://webauthn.io/

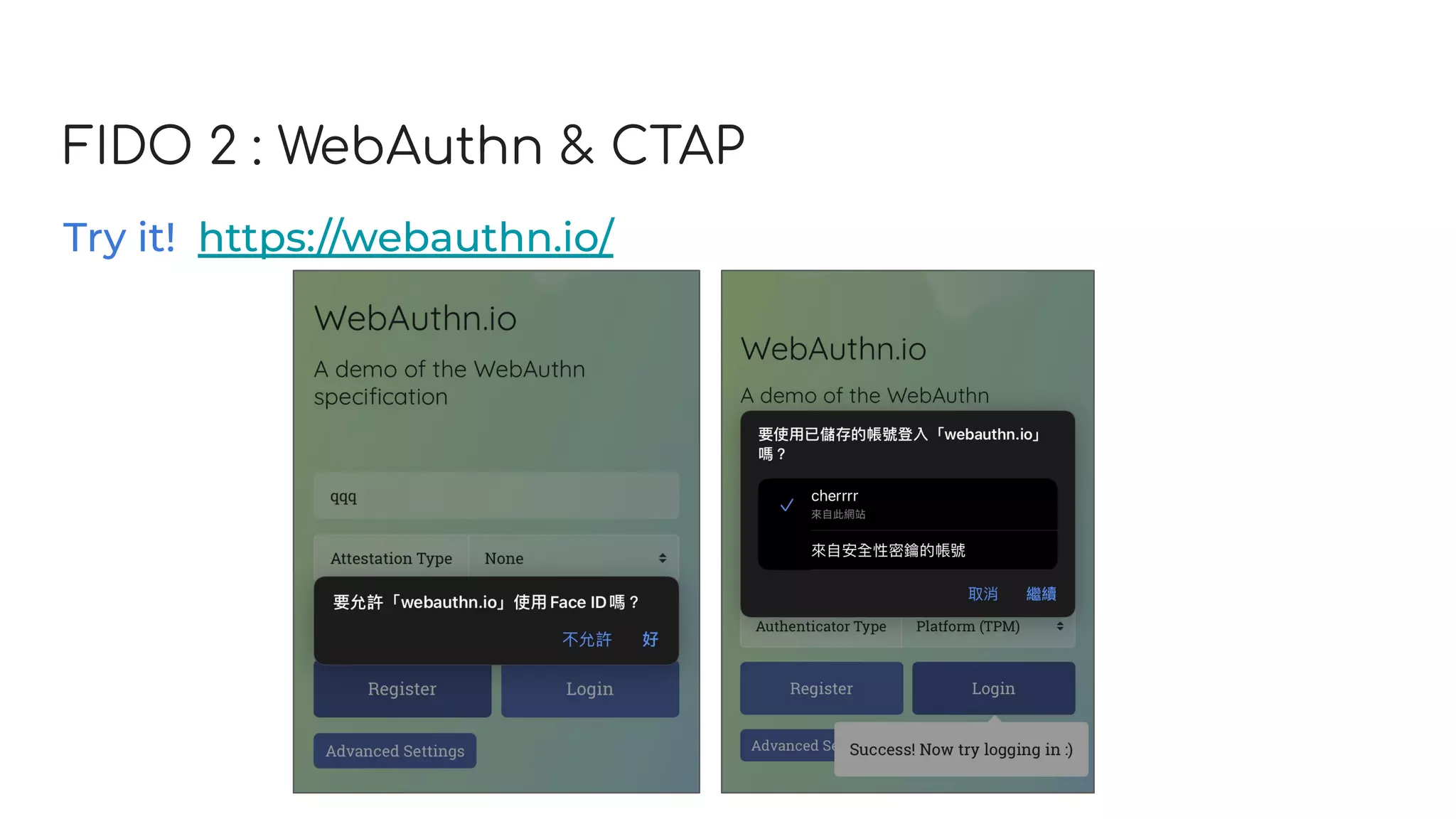

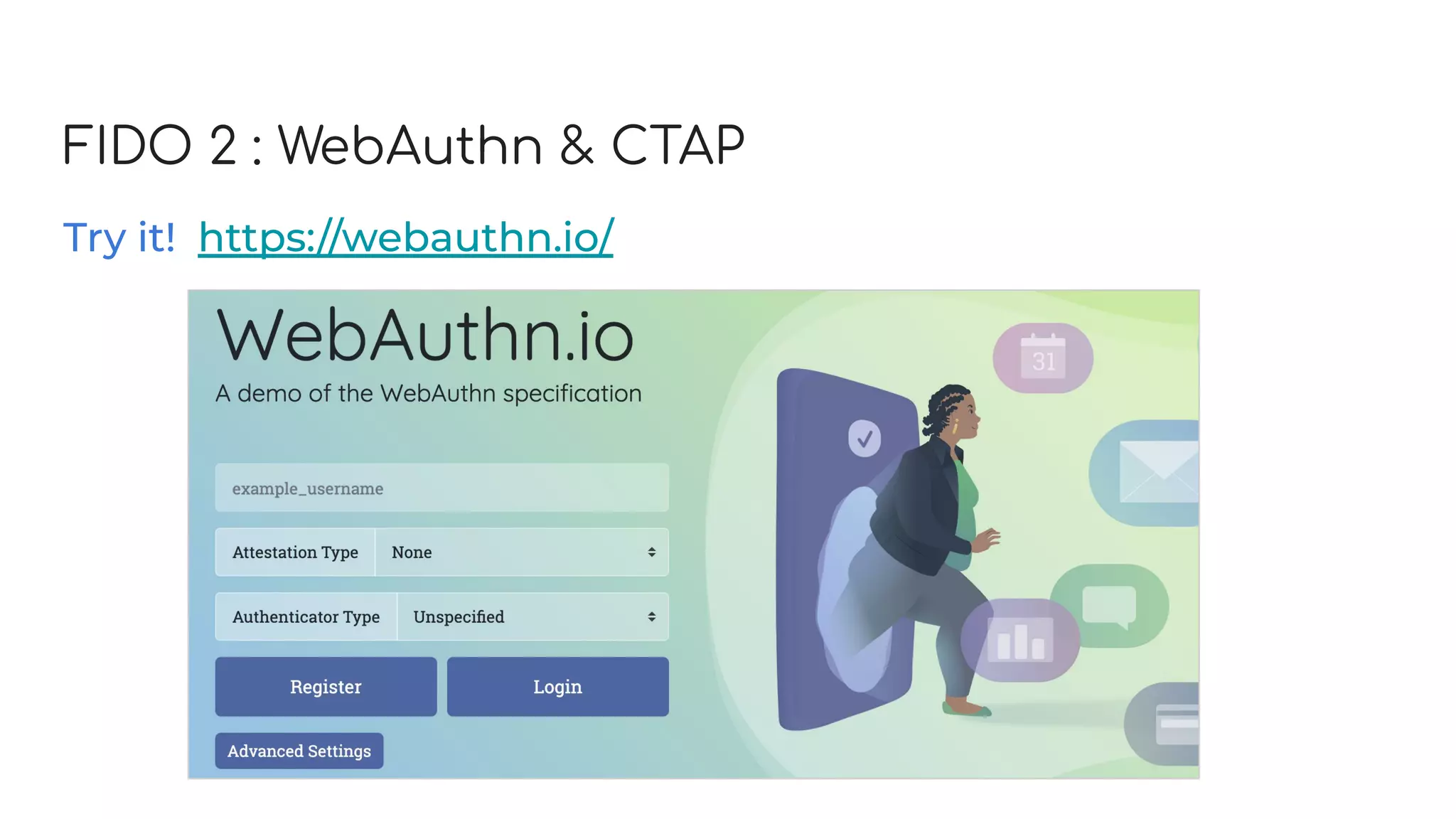

36. FIDO 2 : WebAuthn & CTAP
Try it! https://webauthn.io/

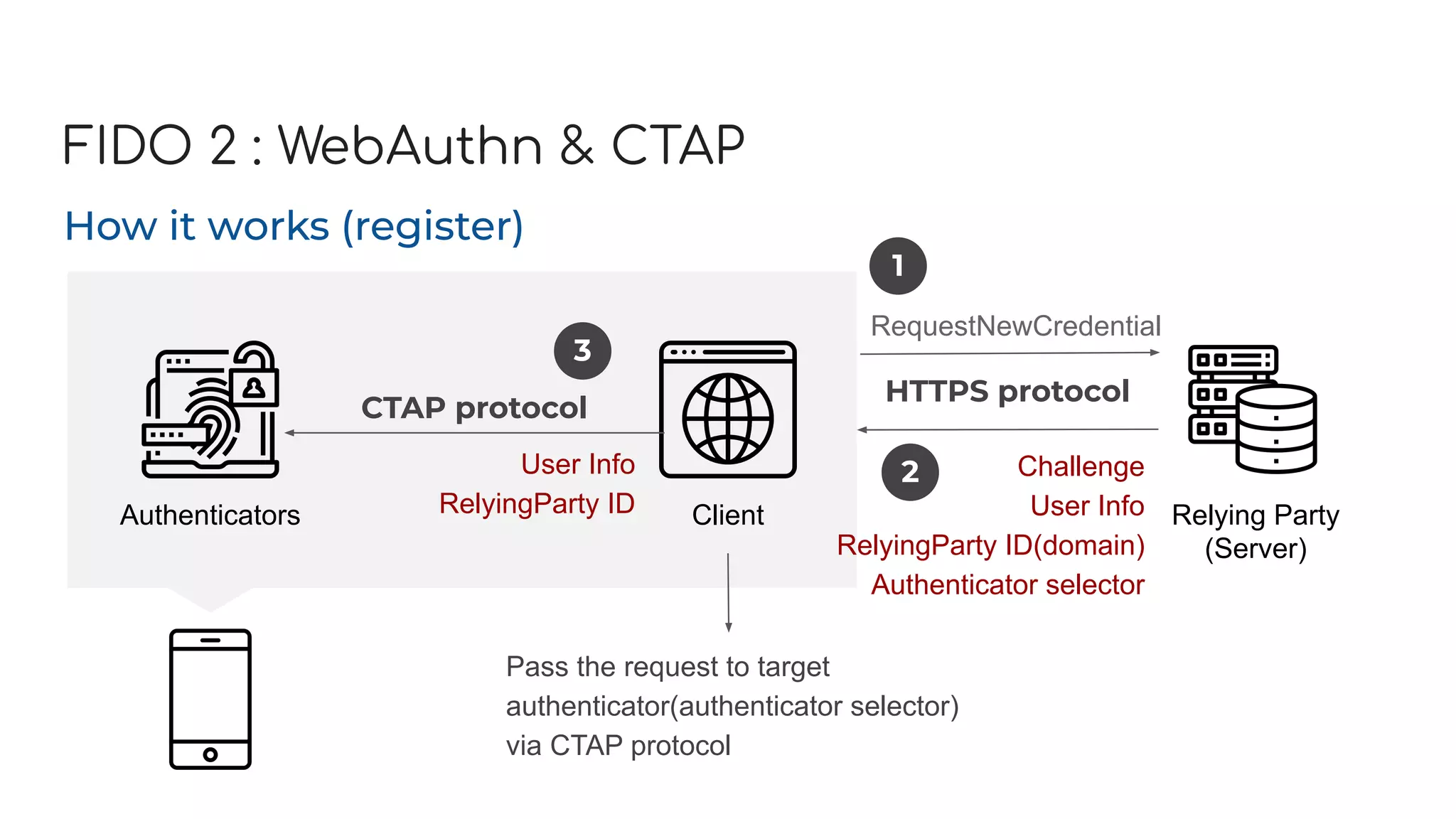

37. FIDO 2 : WebAuthn & CTAP
How it works (register)
Authenticators Client Relying Party
(Server)
RequestNewCredential
Challenge
User Info
RelyingParty ID(domain)
Authenticator selector
HTTPS protocol
User Info
RelyingParty ID
CTAP protocol
Pass the request to target
authenticator(authenticator selector)
via CTAP protocol
1
2
3

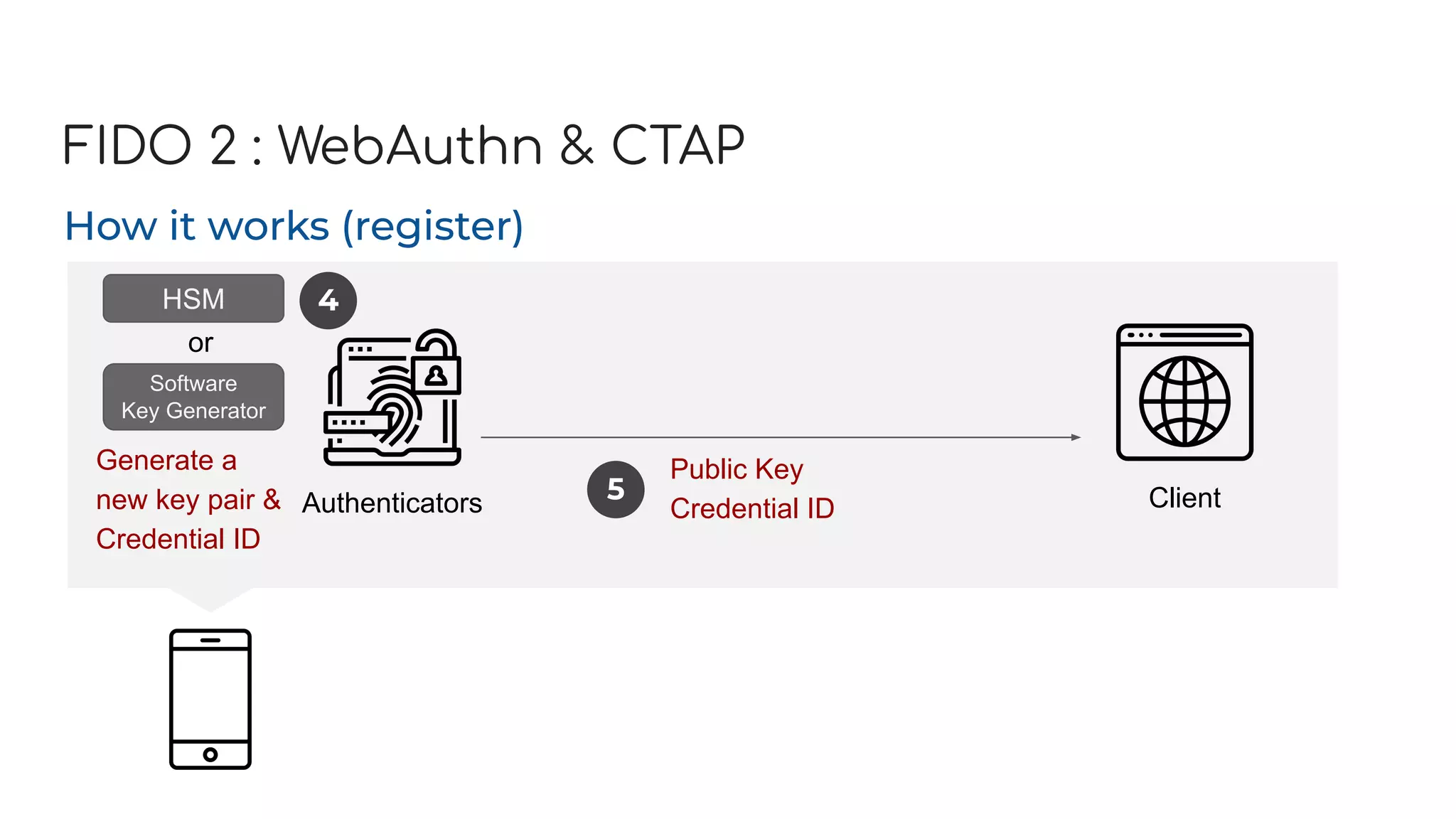

38. FIDO 2 : WebAuthn & CTAP
How it works (register)
Authenticators Client
4
Generate a
new key pair &
Credential ID
HSM
Software
Key Generator
Public Key
Credential ID
5
or

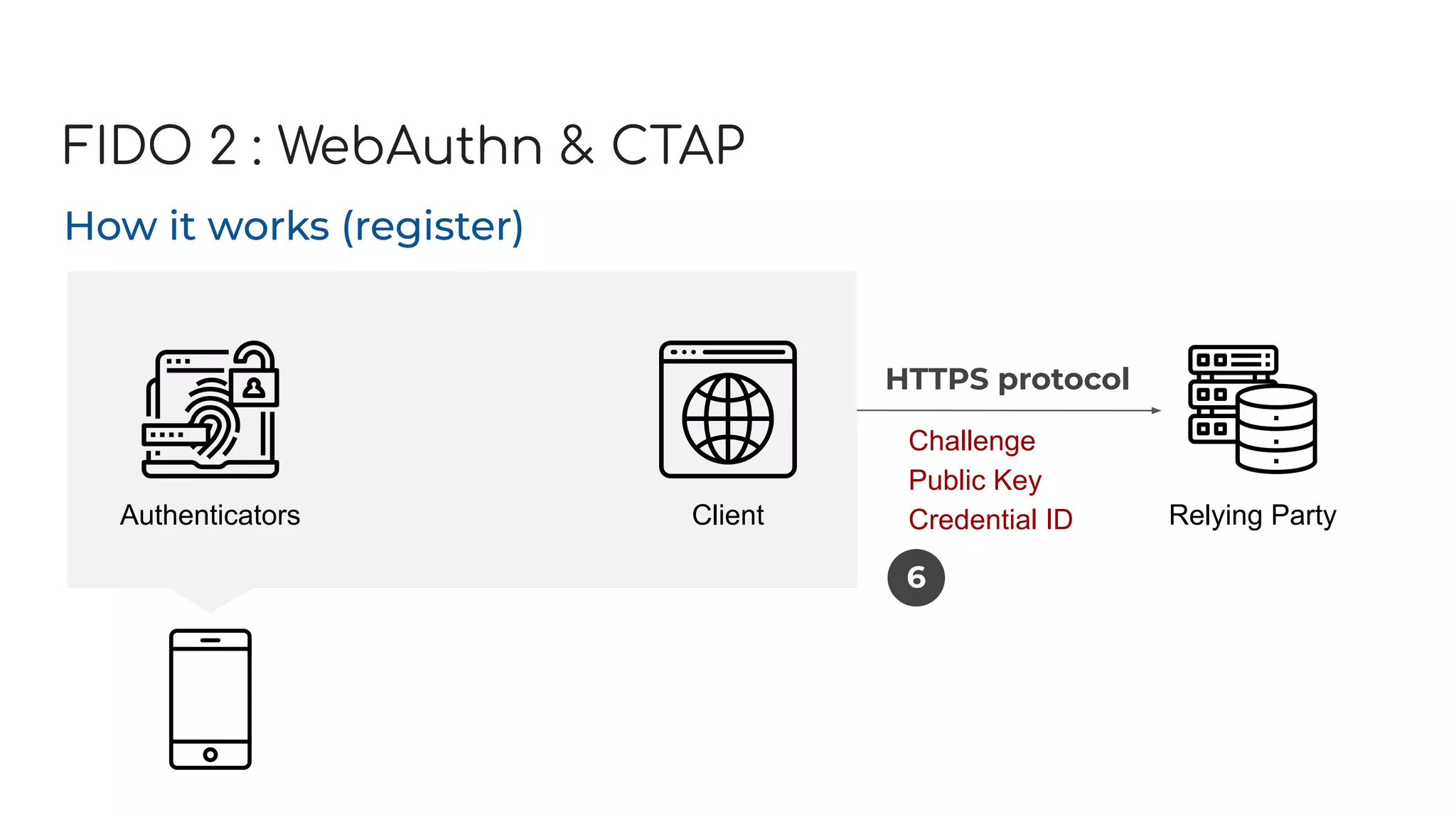

39. FIDO 2 : WebAuthn & CTAP
How it works (register)
Authenticators Client Relying Party
Challenge
Public Key
Credential ID
6
HTTPS protocol

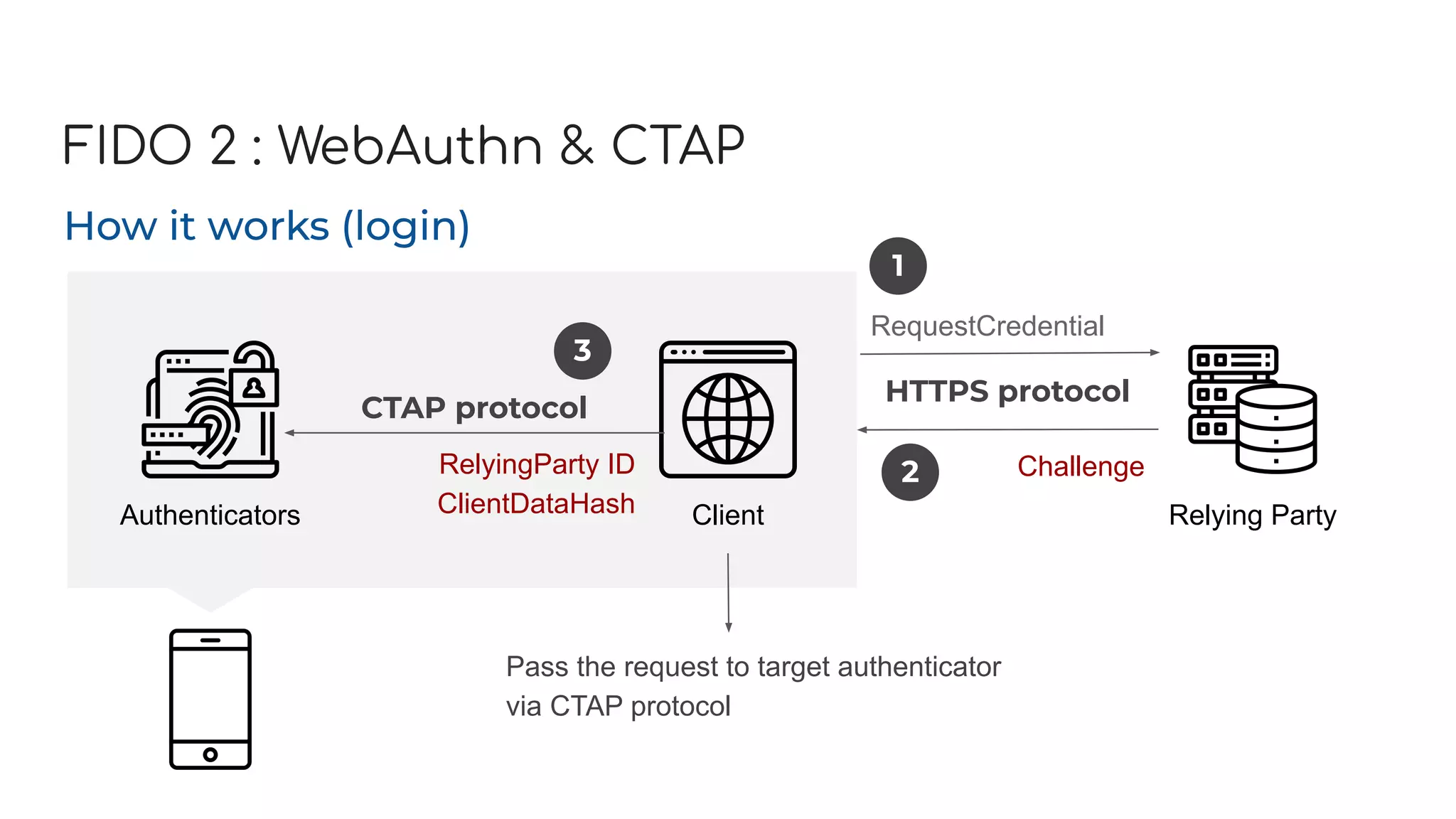

40. FIDO 2 : WebAuthn & CTAP
How it works (login)
Authenticators Client Relying Party
RequestCredential
Challenge
HTTPS protocol
RelyingParty ID
ClientDataHash
CTAP protocol
Pass the request to target authenticator
via CTAP protocol
1
2
3

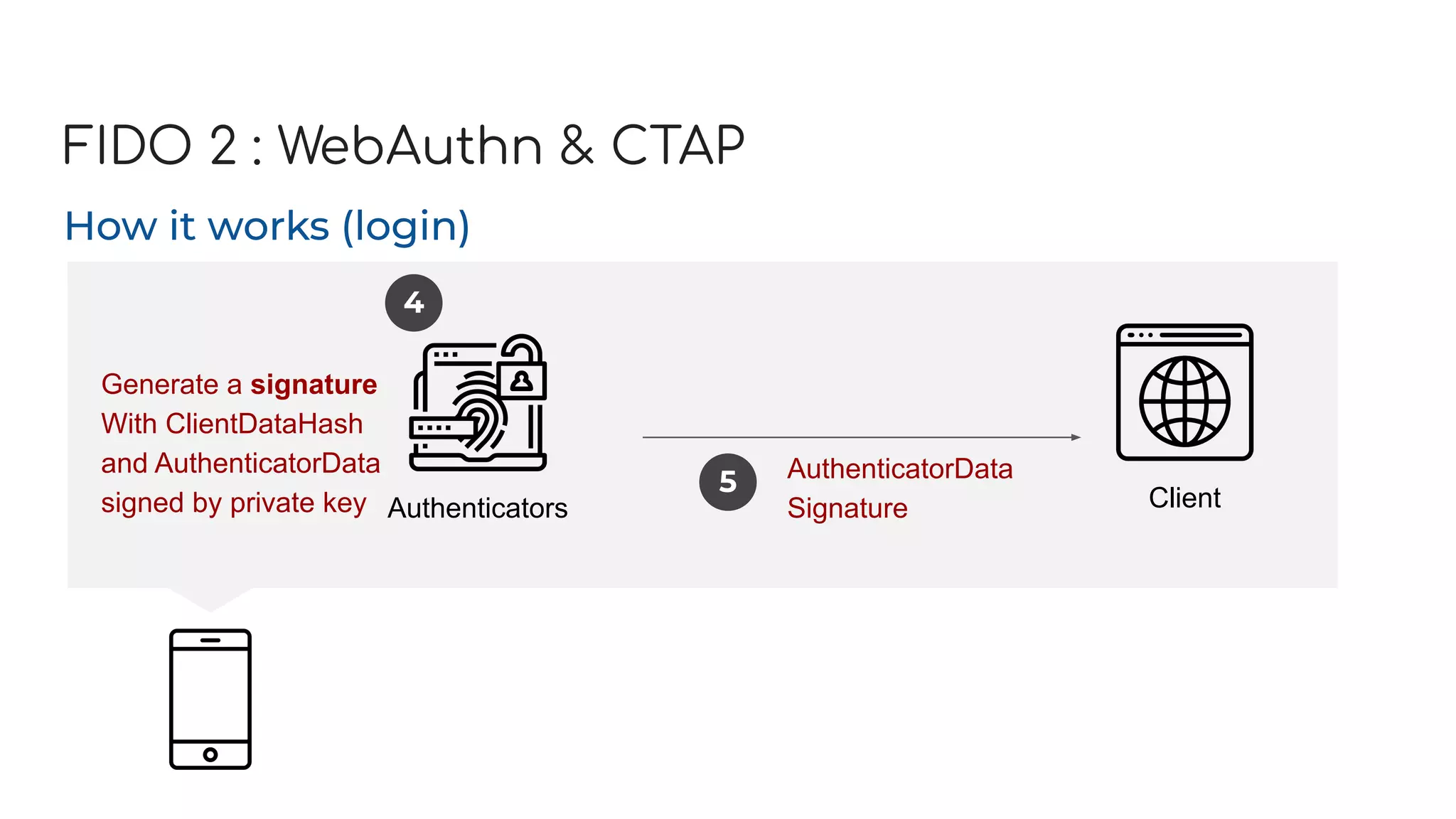

41. FIDO 2 : WebAuthn & CTAP
How it works (login)
Authenticators Client
4
Generate a signature
With ClientDataHash
and AuthenticatorData
signed by private key
AuthenticatorData
Signature
5

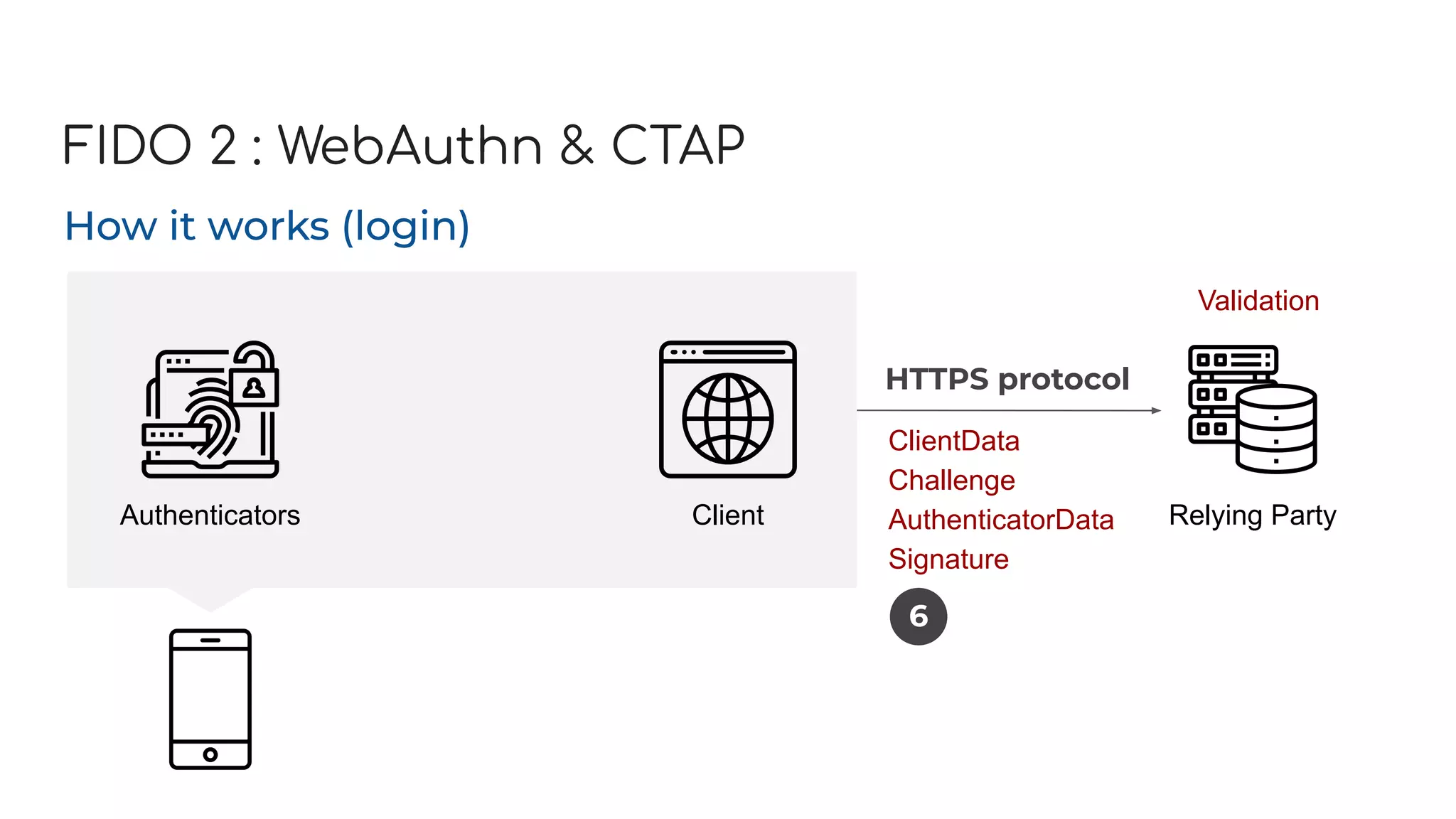

42. FIDO 2 : WebAuthn & CTAP
How it works (login)
Authenticators Client Relying Party
ClientData
Challenge
AuthenticatorData
Signature
6
HTTPS protocol
Validation

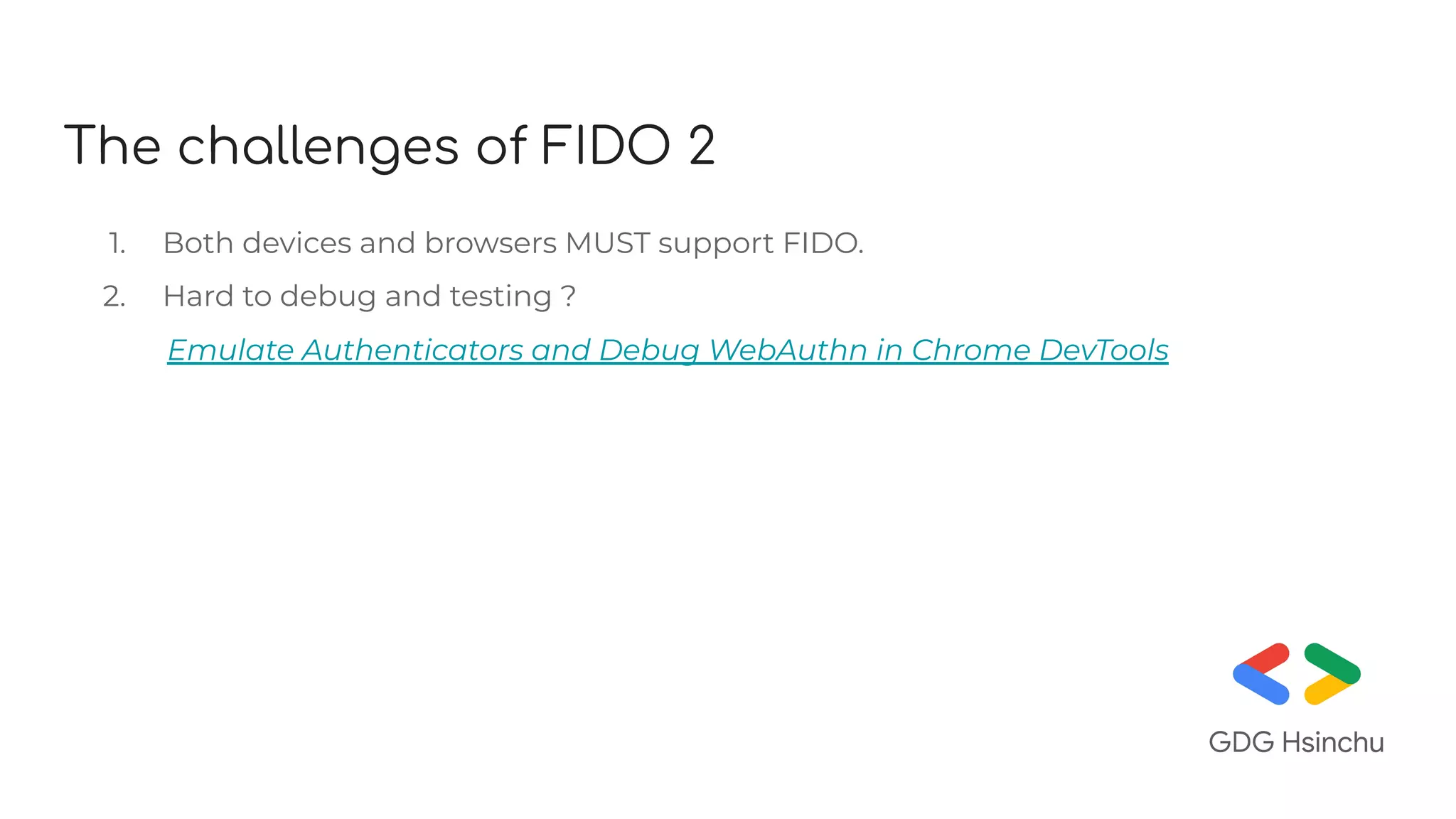

43. The challenges of FIDO 2
1. Both devices and browsers MUST support FIDO.
2. Hard to debug and testing ?
Emulate Authenticators and Debug WebAuthn in Chrome DevTools

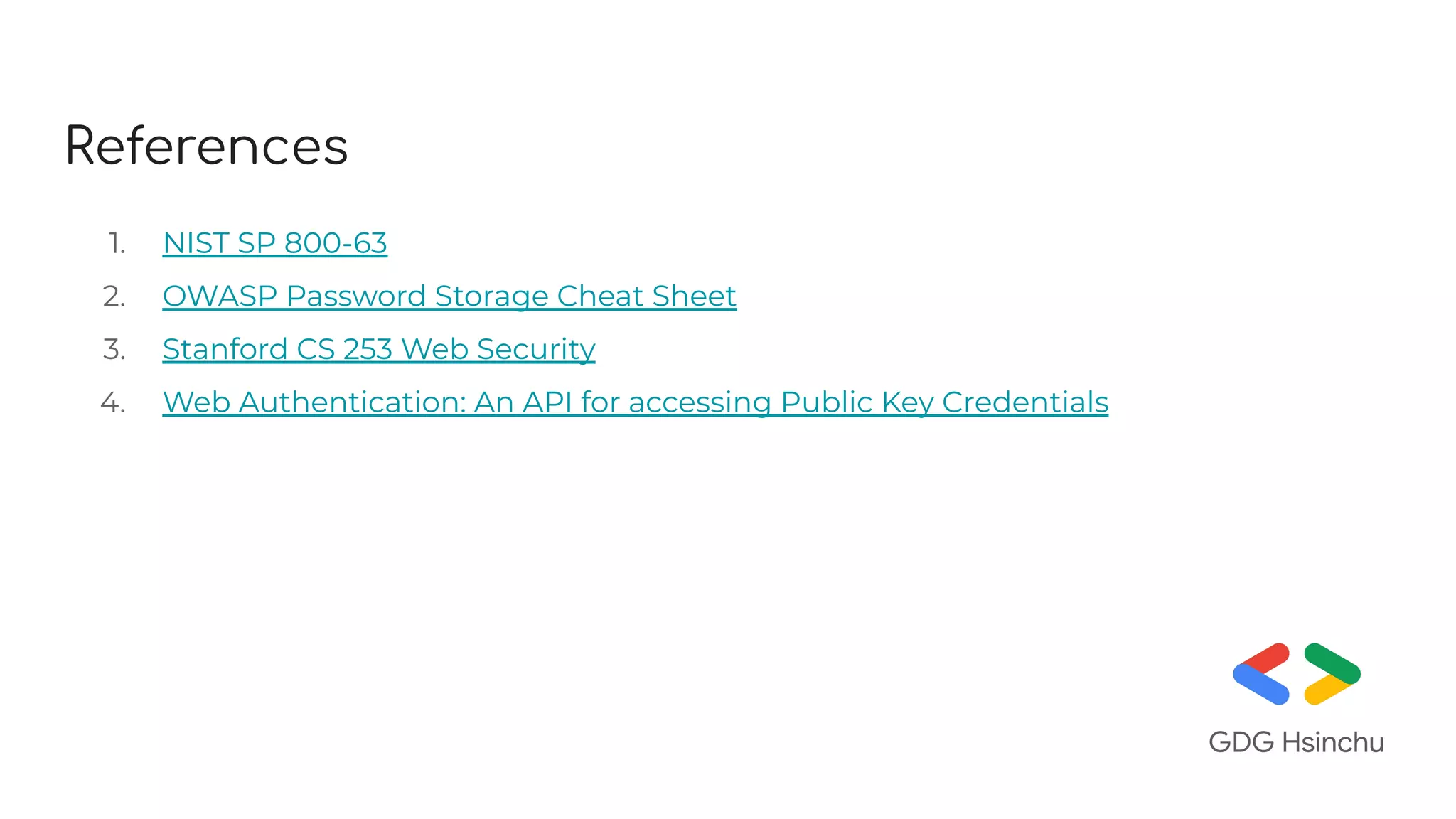

44. References
1. NIST SP 800-63
2. OWASP Password Storage Cheat Sheet
3. Stanford CS 253 Web Security
4. Web Authentication: An API for accessing Public Key Credentials

45. Thank you!
Cherie Hsieh
