1. OAuth 2.0 for developers - the
technology you need but never
really learned
Mikkel Flindt Heisterberg
OnTime® by IntraVision

2. PLATINUM & CHAMPAGNE SPONSORS
GOLD SPONSORS
SILVER SPONSORS
BRONZE SPONSORS

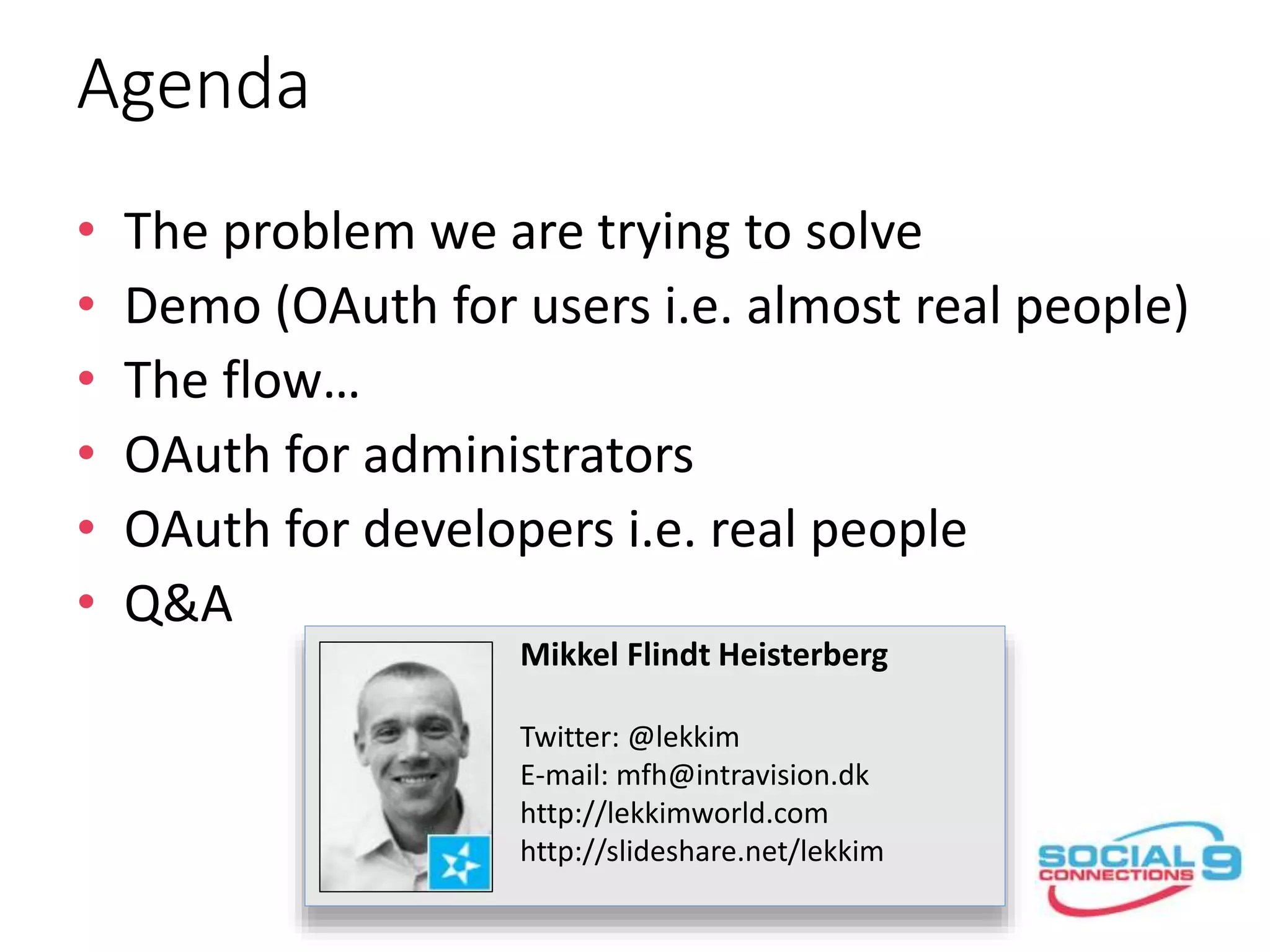

3. Agenda
• The problem we are trying to solve
• Demo (OAuth for users i.e. almost real people)
• The flow…
• OAuth for administrators
• OAuth for developers i.e. real people
• Q&A
Mikkel Flindt Heisterberg
Twitter: @lekkim
E-mail: mfh@intravision.dk
http://lekkimworld.com
http://slideshare.net/lekkim

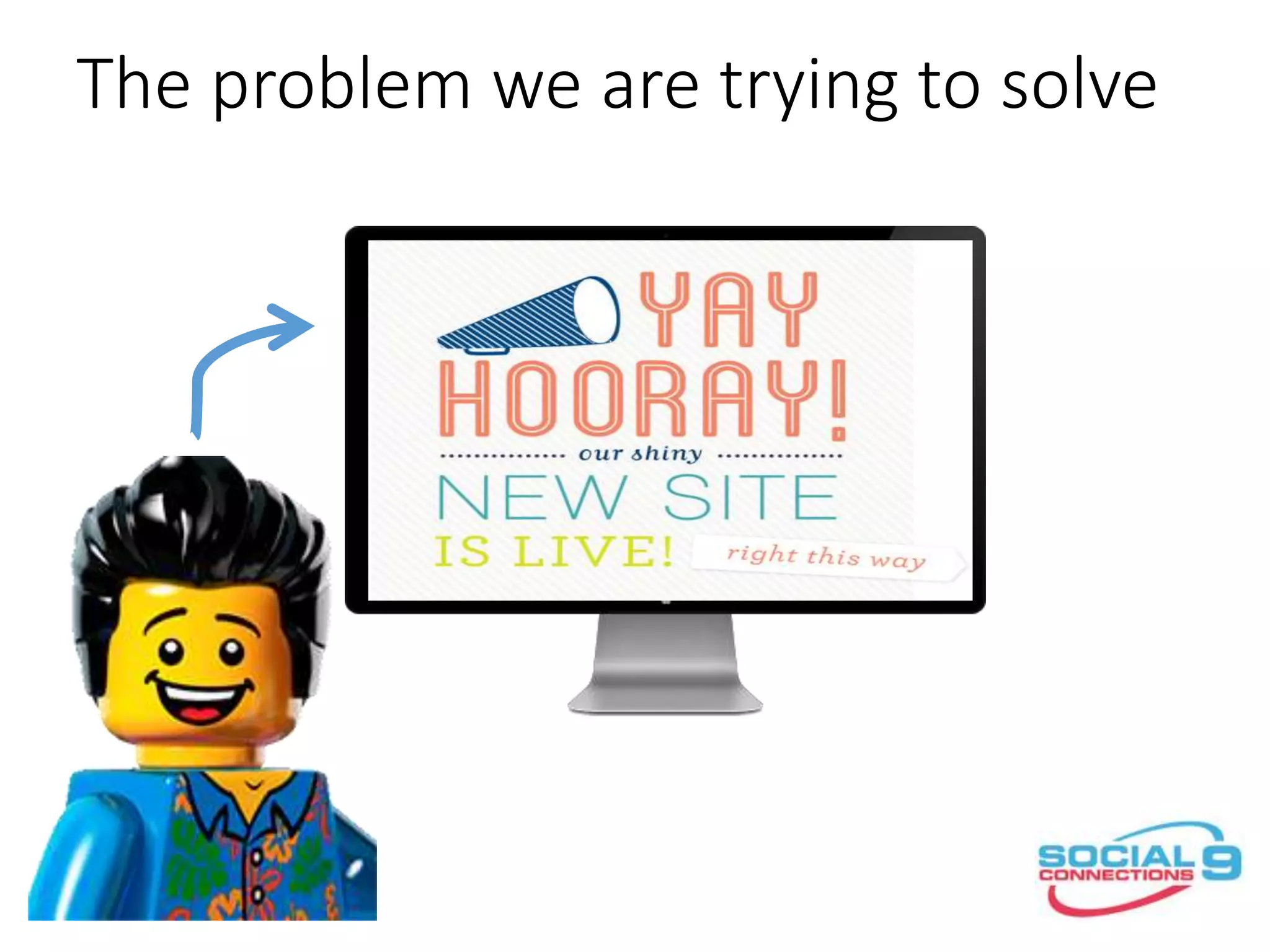

4. The problem we are trying to solve

5. The problem we are trying to solve
Give me your Social
site username and
password and we can
play…

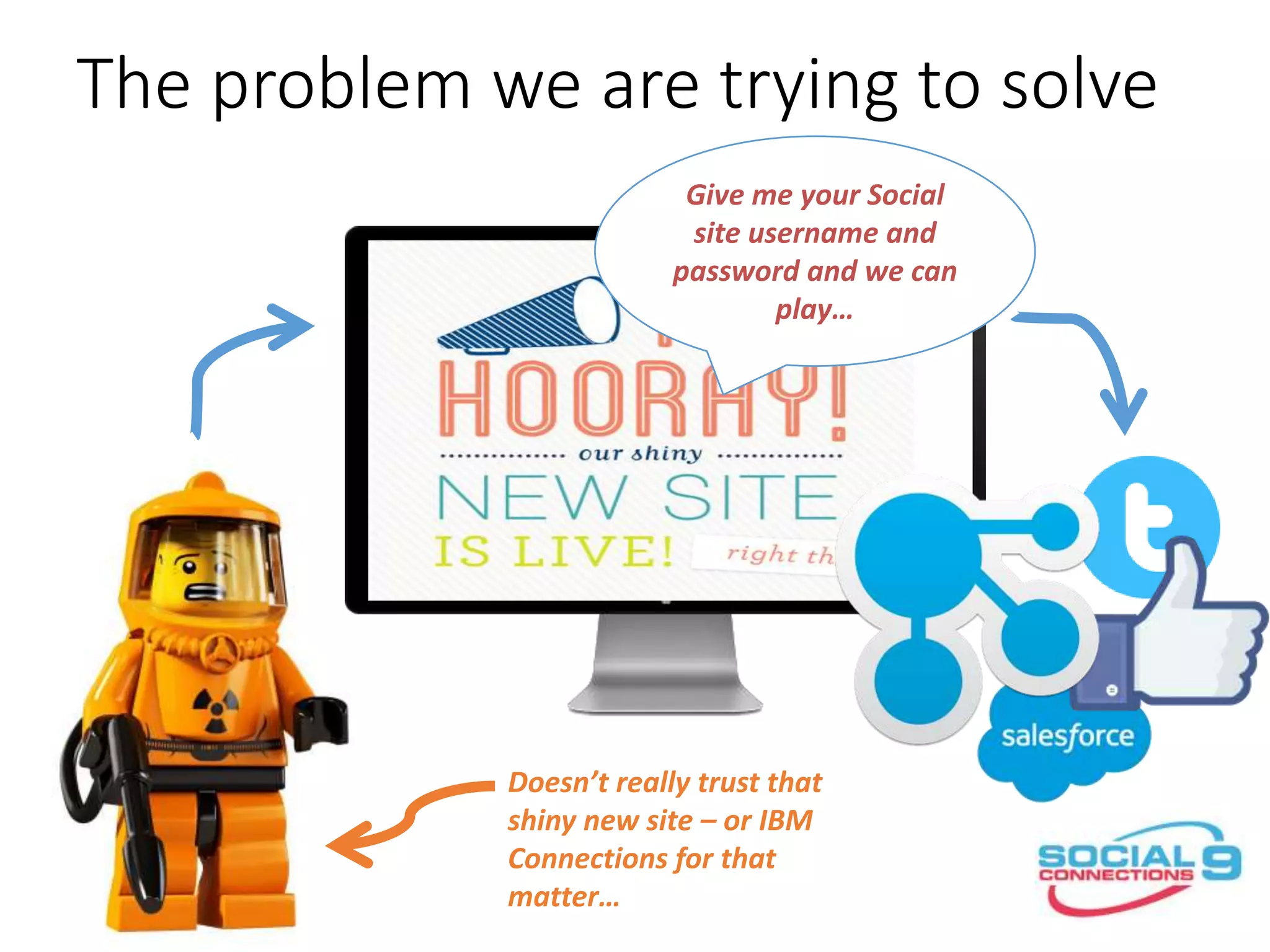

6. The problem we are trying to solve
Doesn’t really trust that
shiny new site – or IBM
Connections for that
matter…
Give me your Social
site username and
password and we can
play…

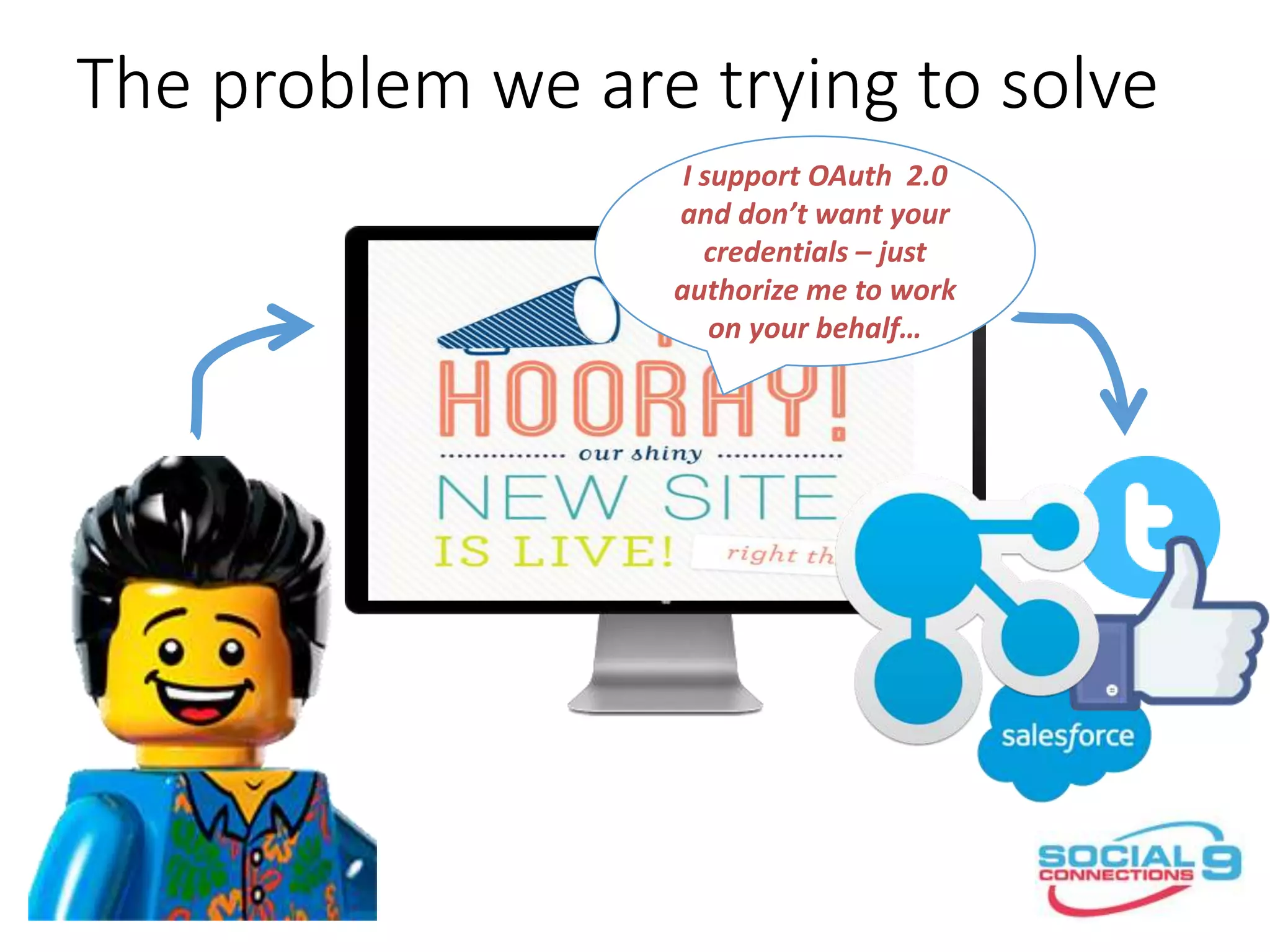

7. The problem we are trying to solve
I support OAuth 2.0
and don’t want your
credentials – just
authorize me to work
on your behalf…

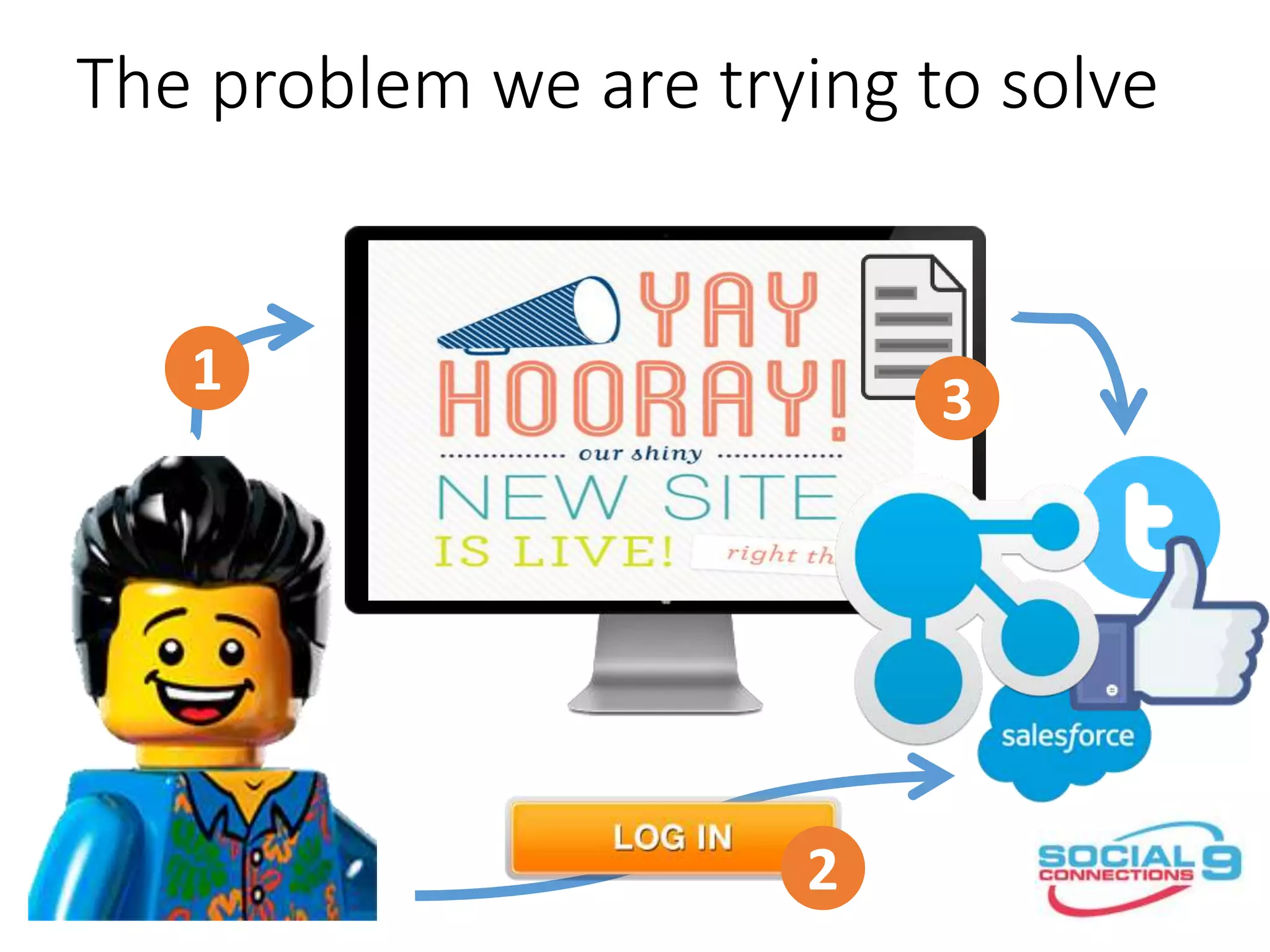

8. The problem we are trying to solve
1
2
3

9. it’s about letting a service
access user data without
knowing the users credentials...
- or without the user being there...

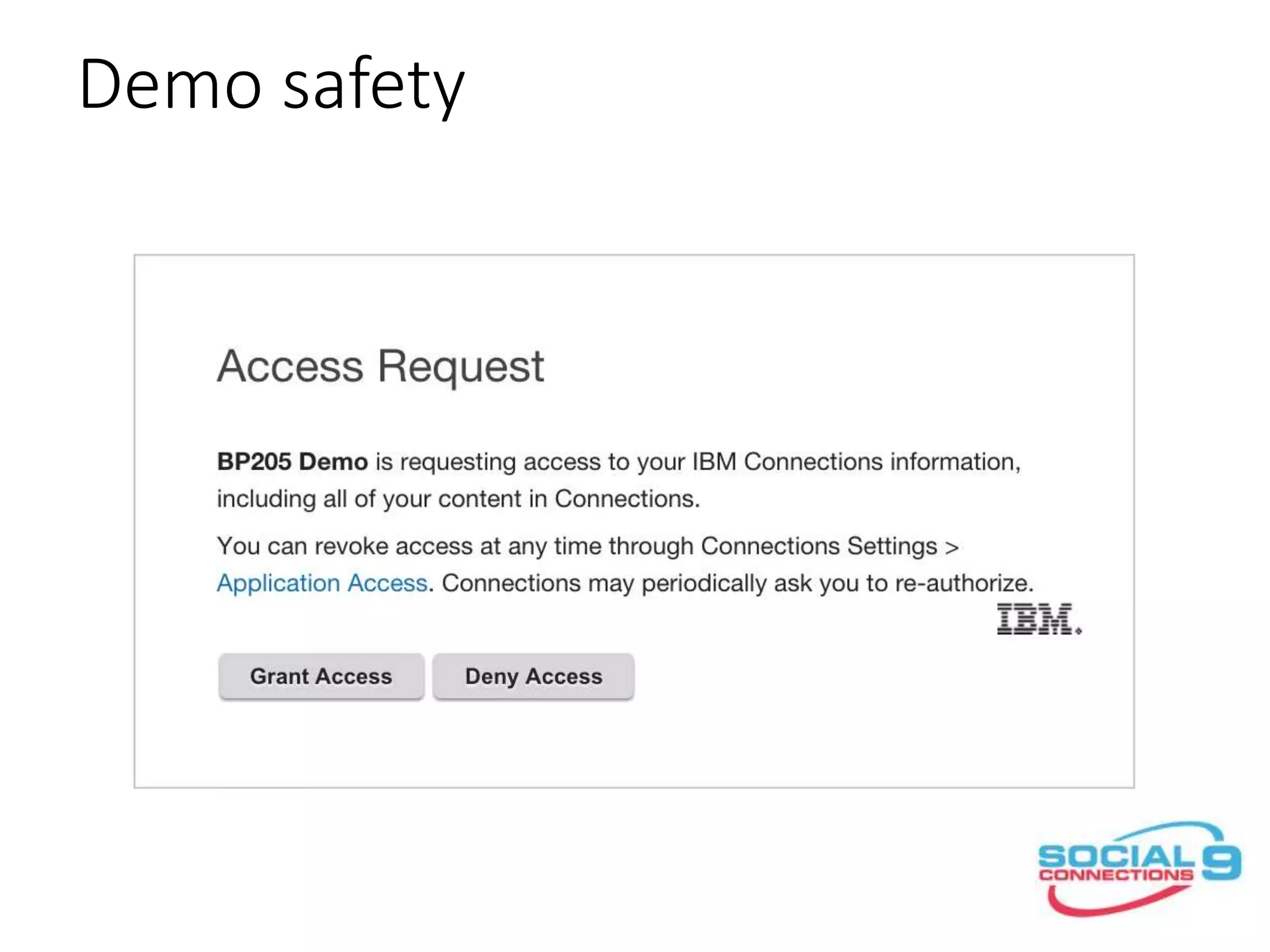

11. Demo safety

12. it’s not as simple as that
but almost...

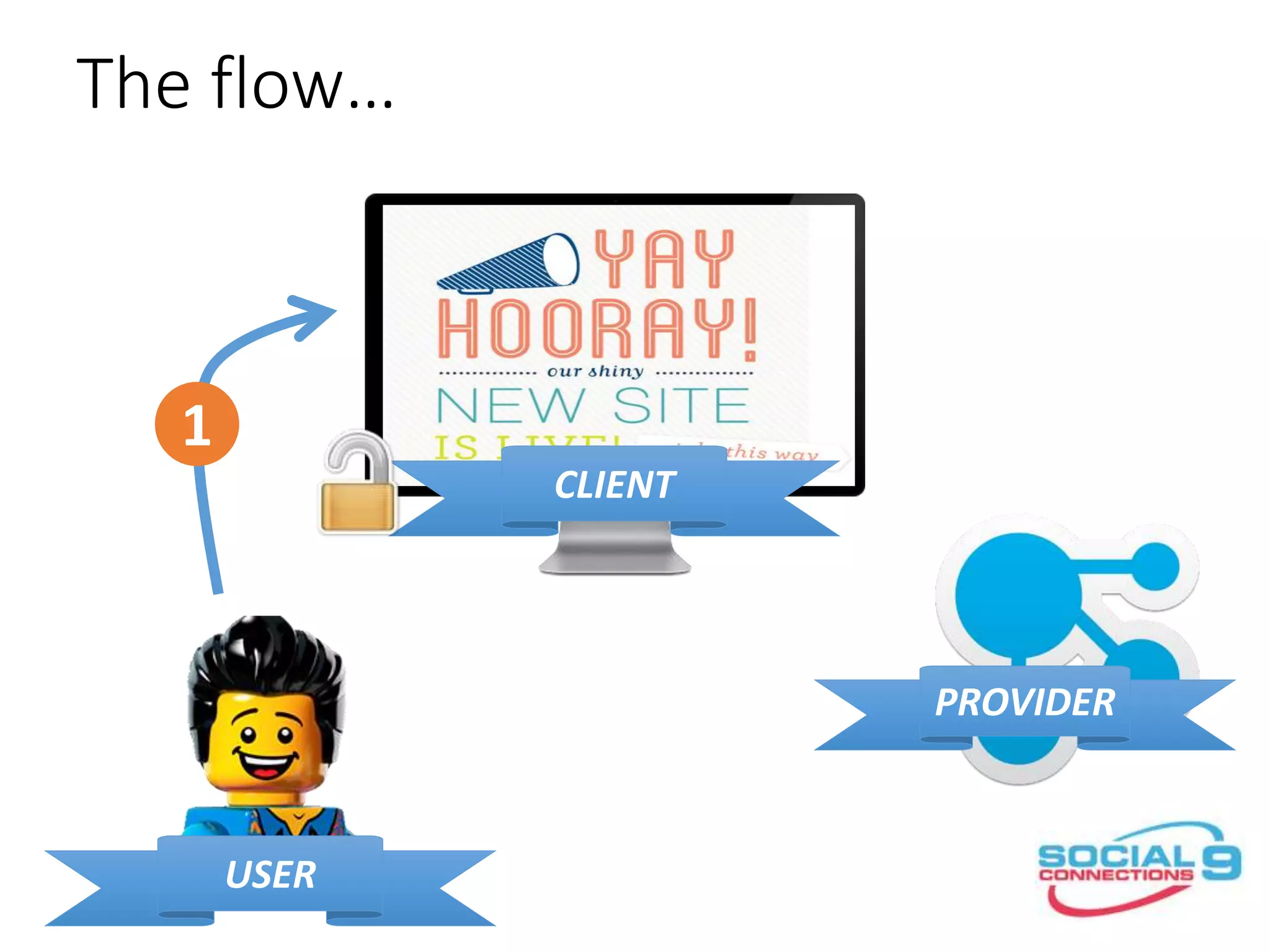

13. The flow…
CLIENT
PROVIDER
USER
1

14. The flow…
CLIENT
PROVIDER
USER
2

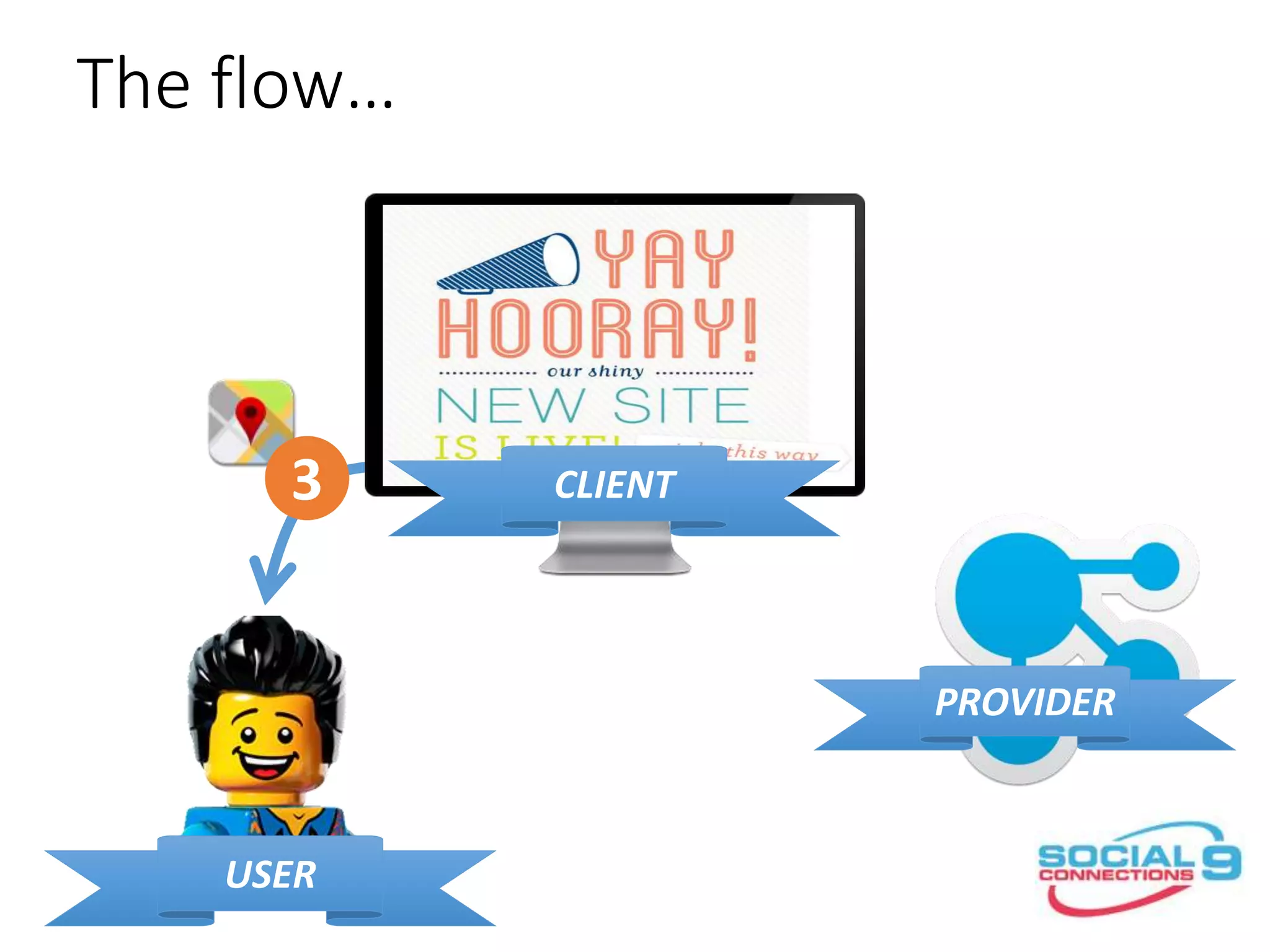

15. The flow…
CLIENT
PROVIDER
USER
3

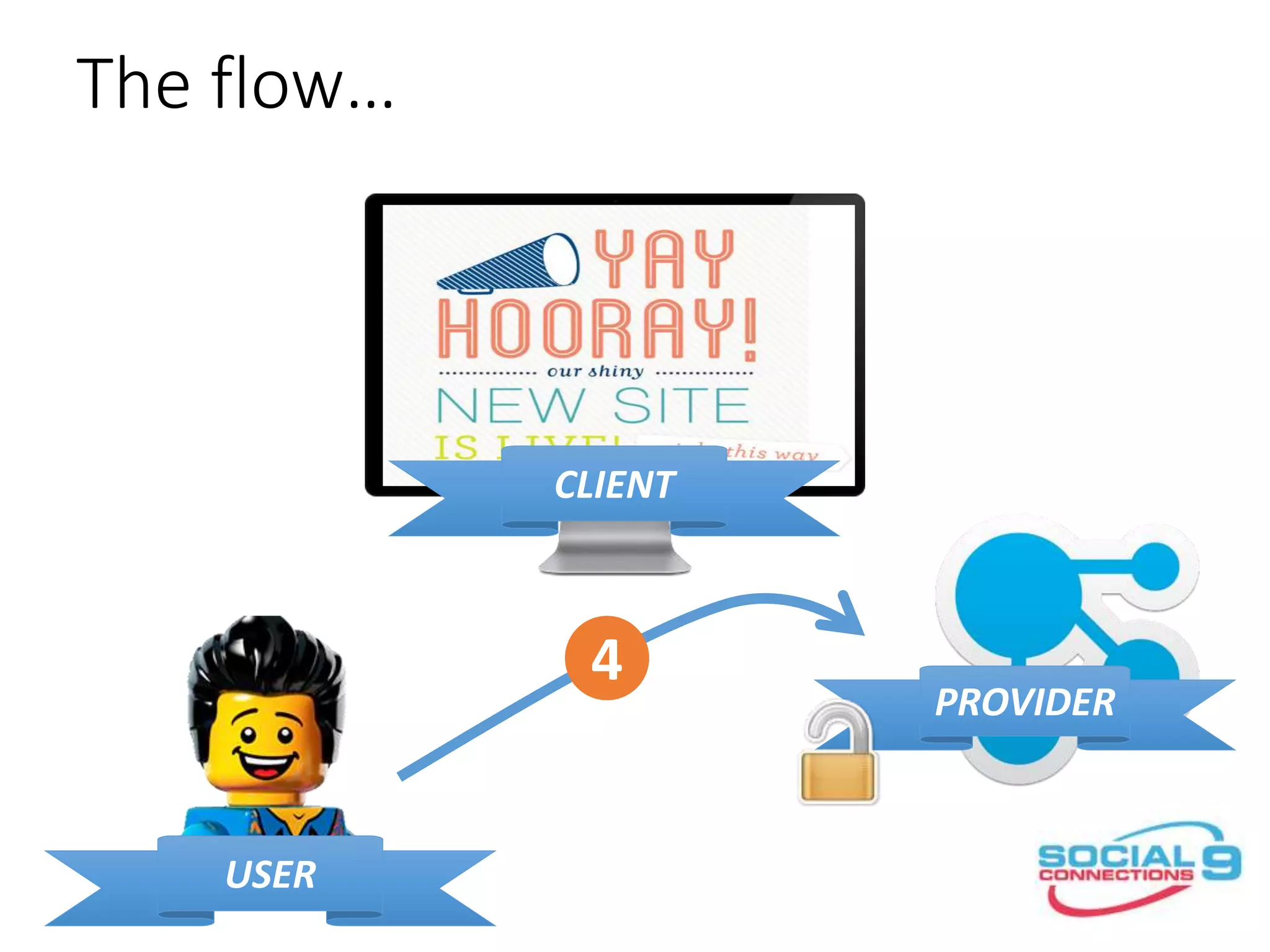

16. The flow…
CLIENT
PROVIDER
USER
4

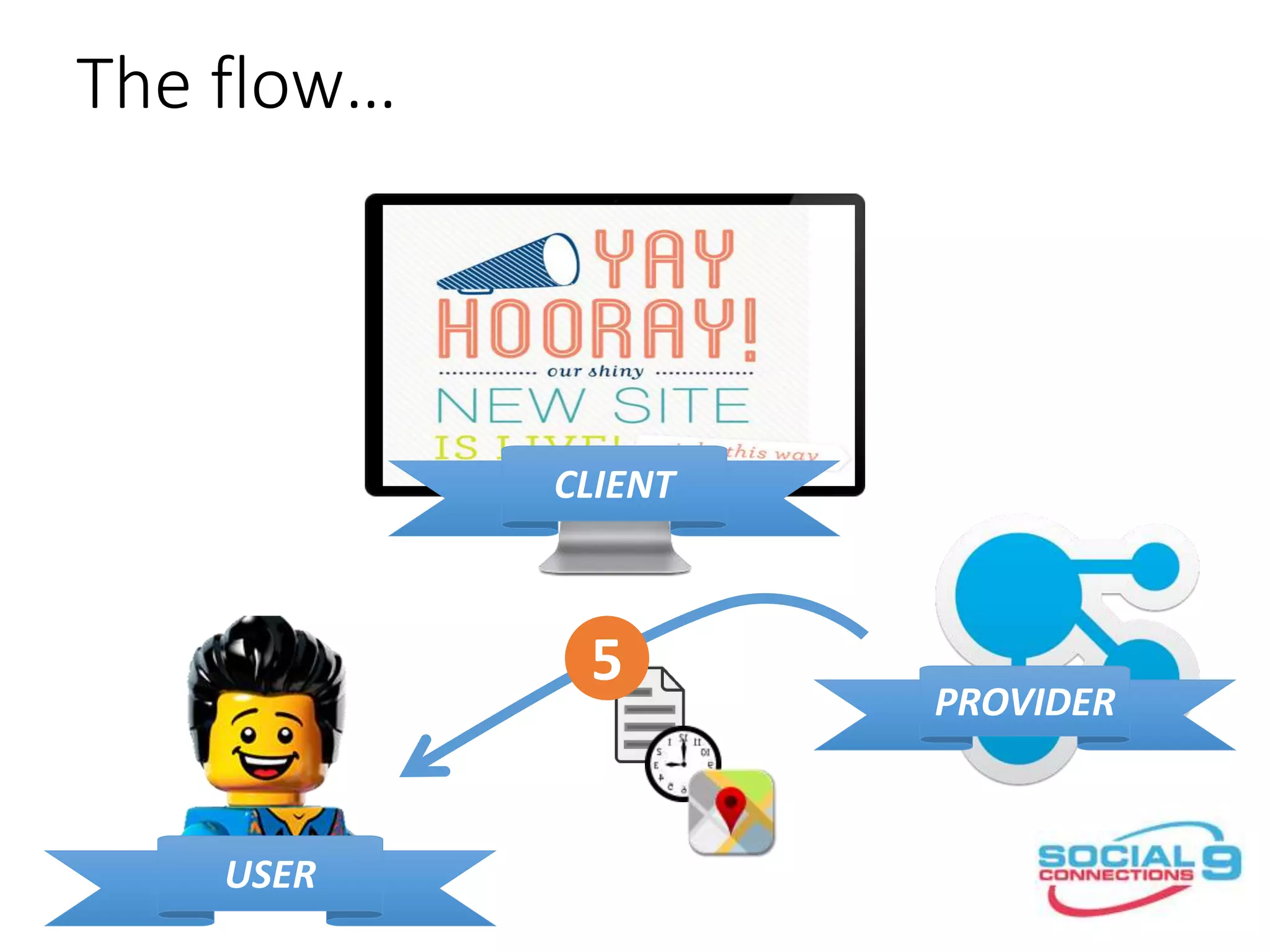

17. The flow…
CLIENT
PROVIDER
USER
5

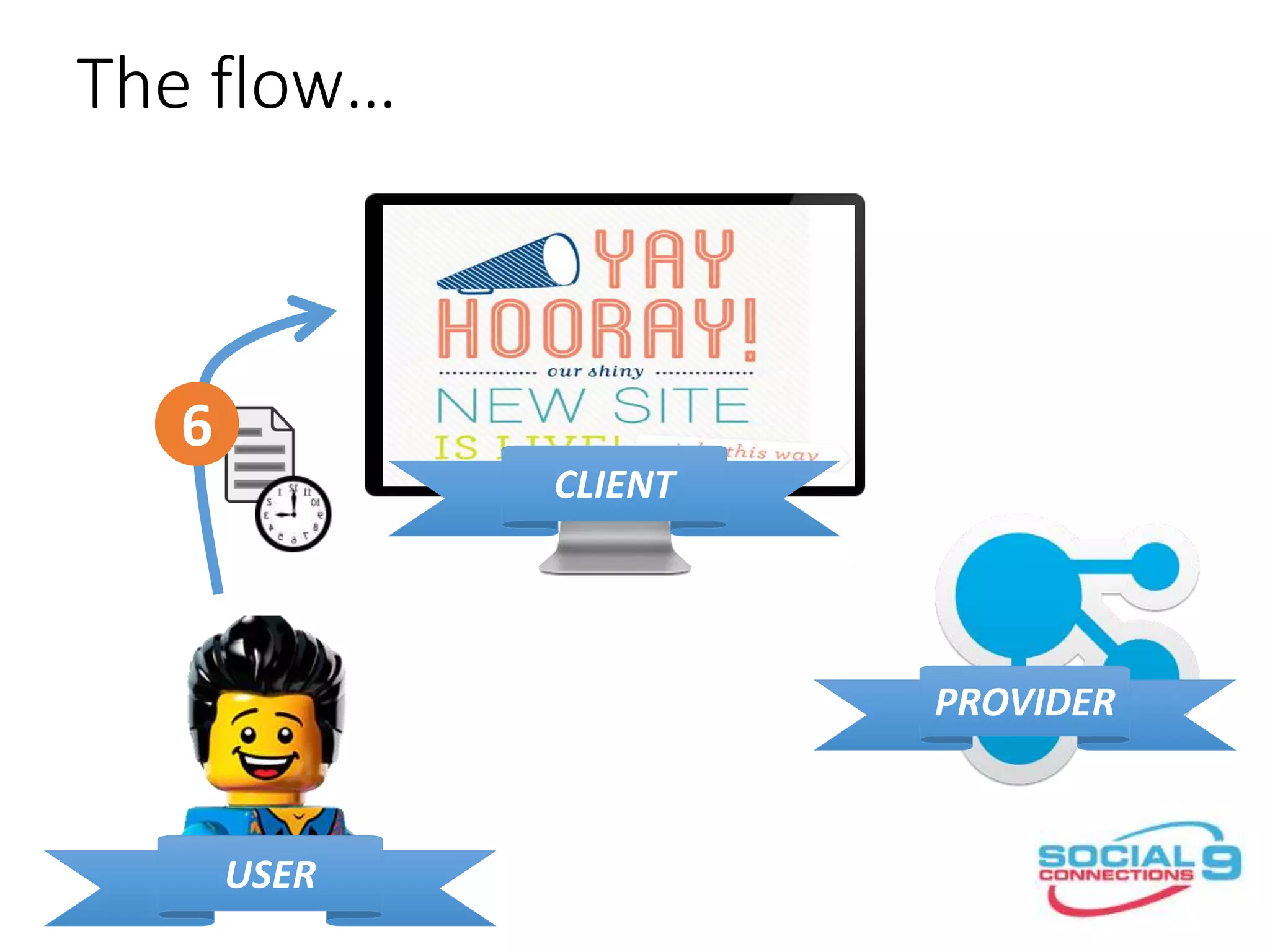

18. The flow…
CLIENT
PROVIDER
USER
6

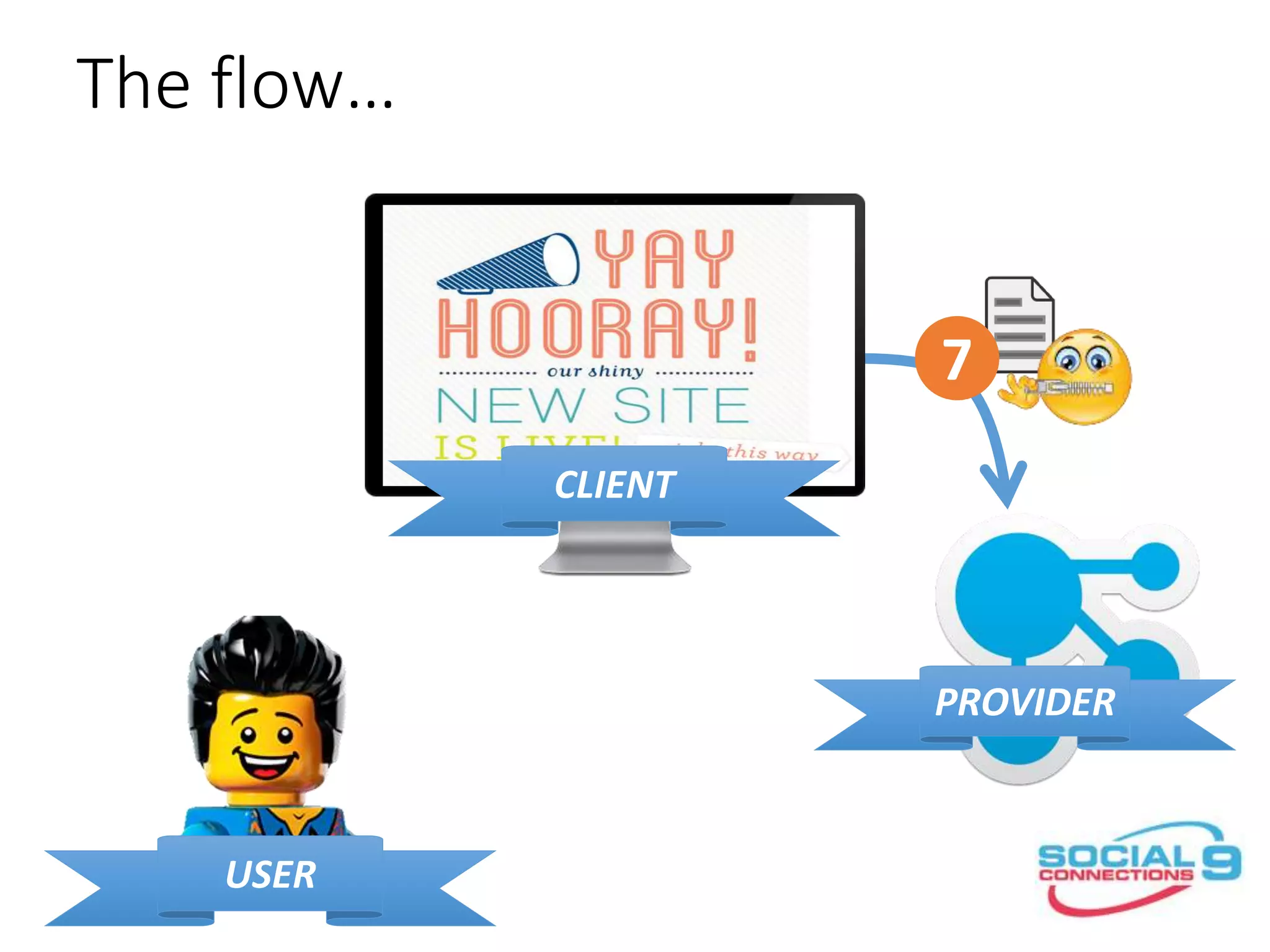

19. The flow…
CLIENT
PROVIDER
USER
7

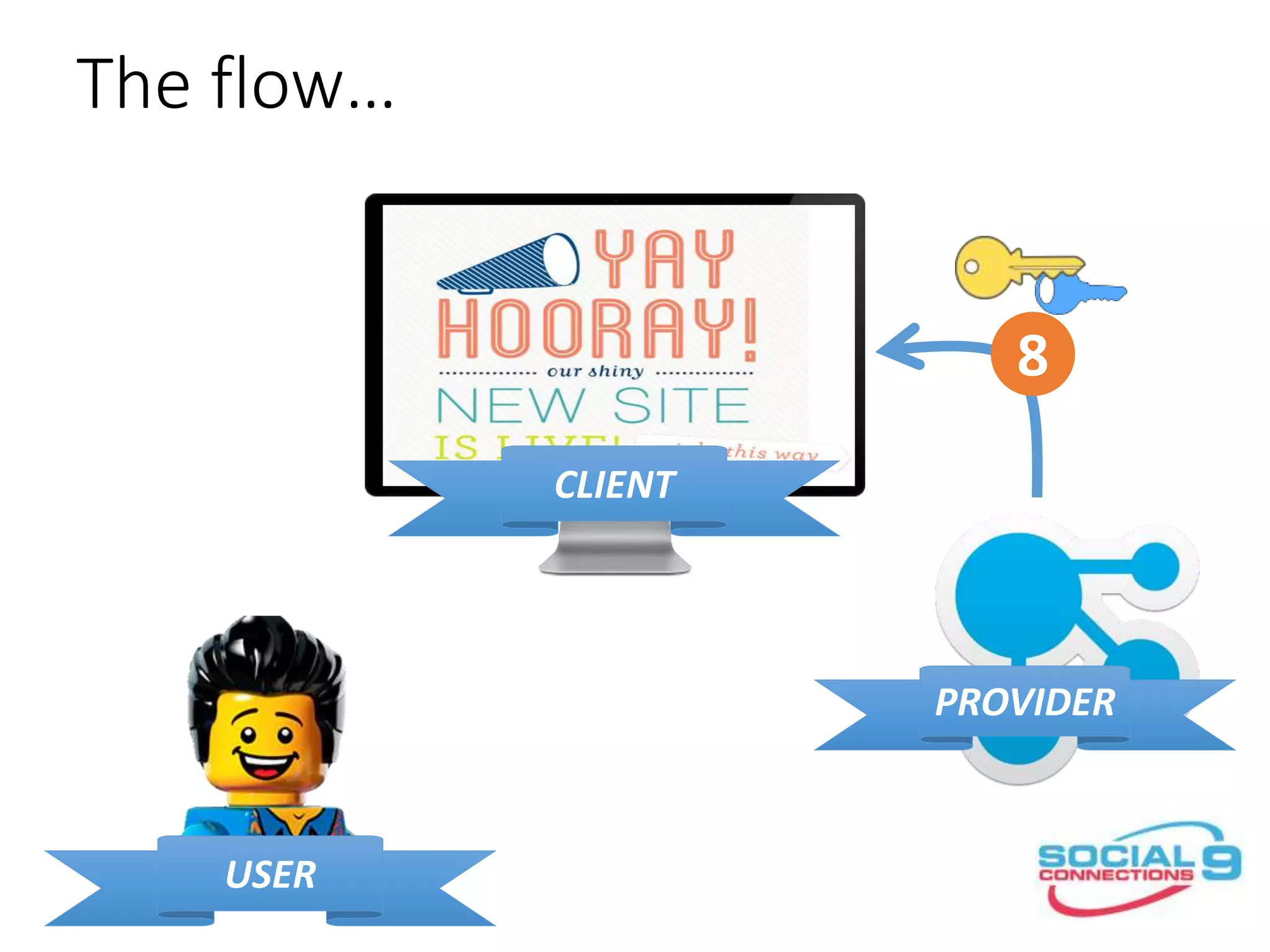

20. The flow…
CLIENT
PROVIDER
USER
8

21. The flow…
CLIENT
PROVIDER
USER
9

22. but less cartoony and with
real words this time...

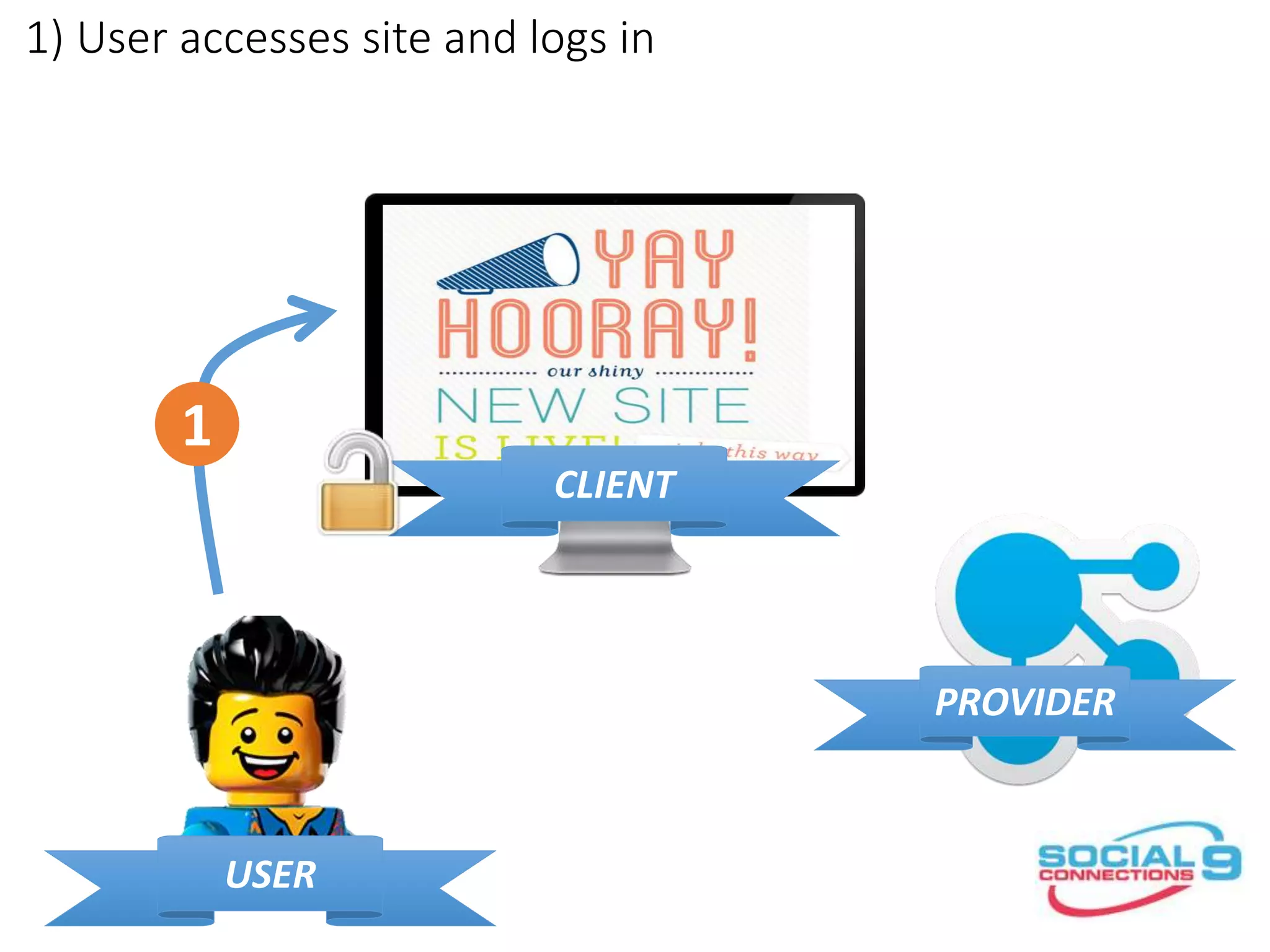

23. 1) User accesses site and logs in
CLIENT
PROVIDER
USER
1

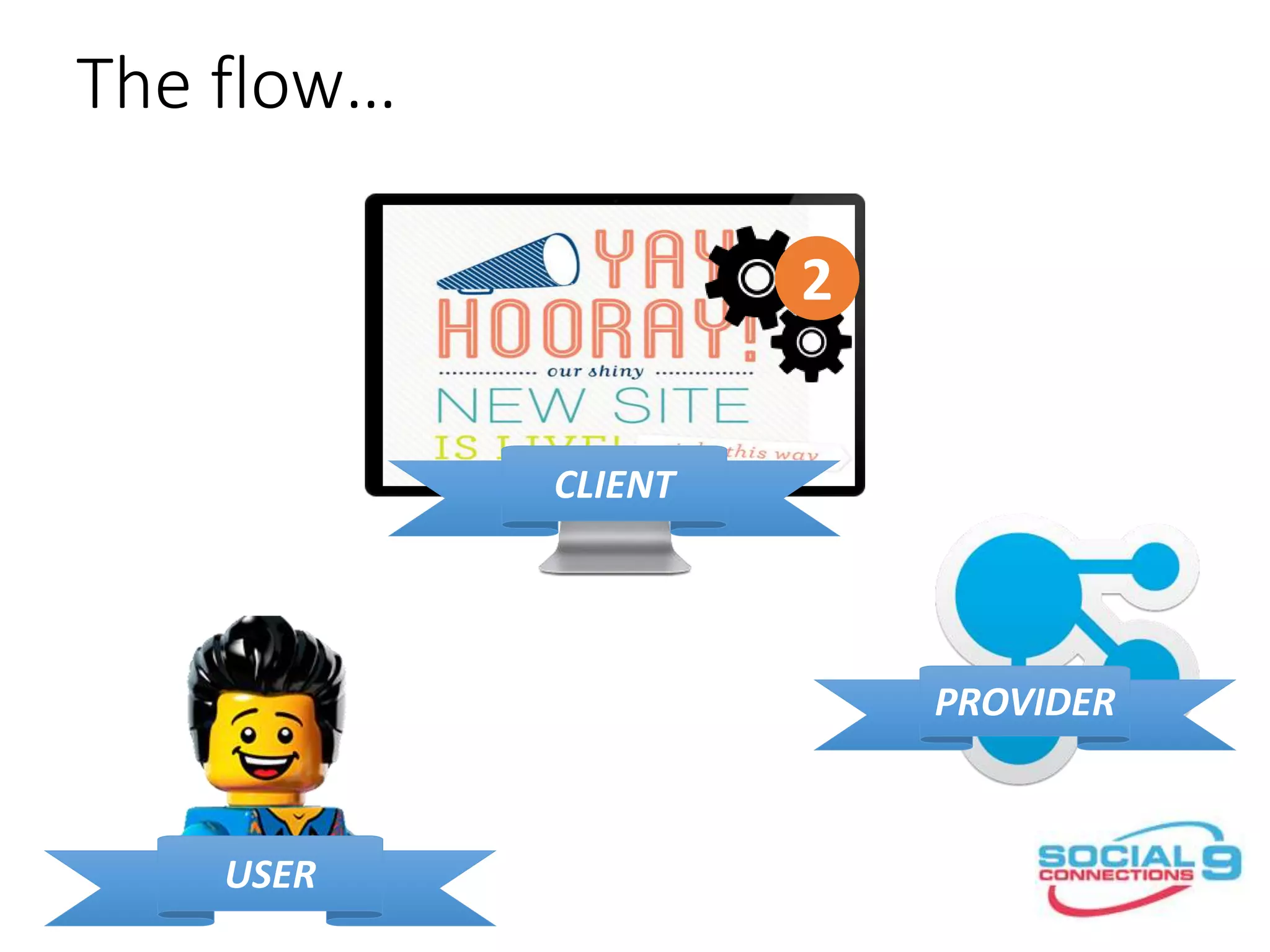

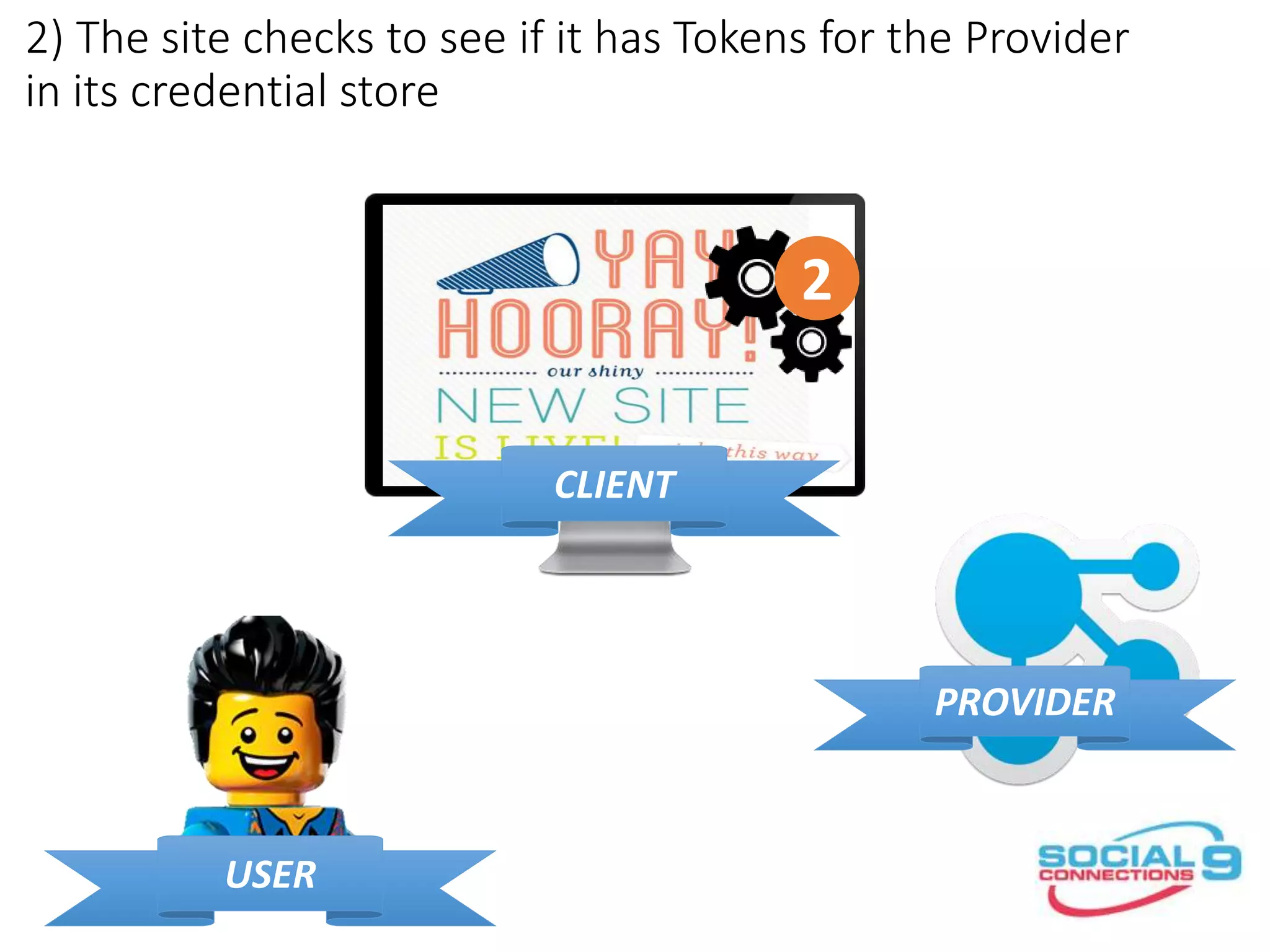

24. 2) The site checks to see if it has Tokens for the Provider
in its credential store
CLIENT
PROVIDER
USER
2

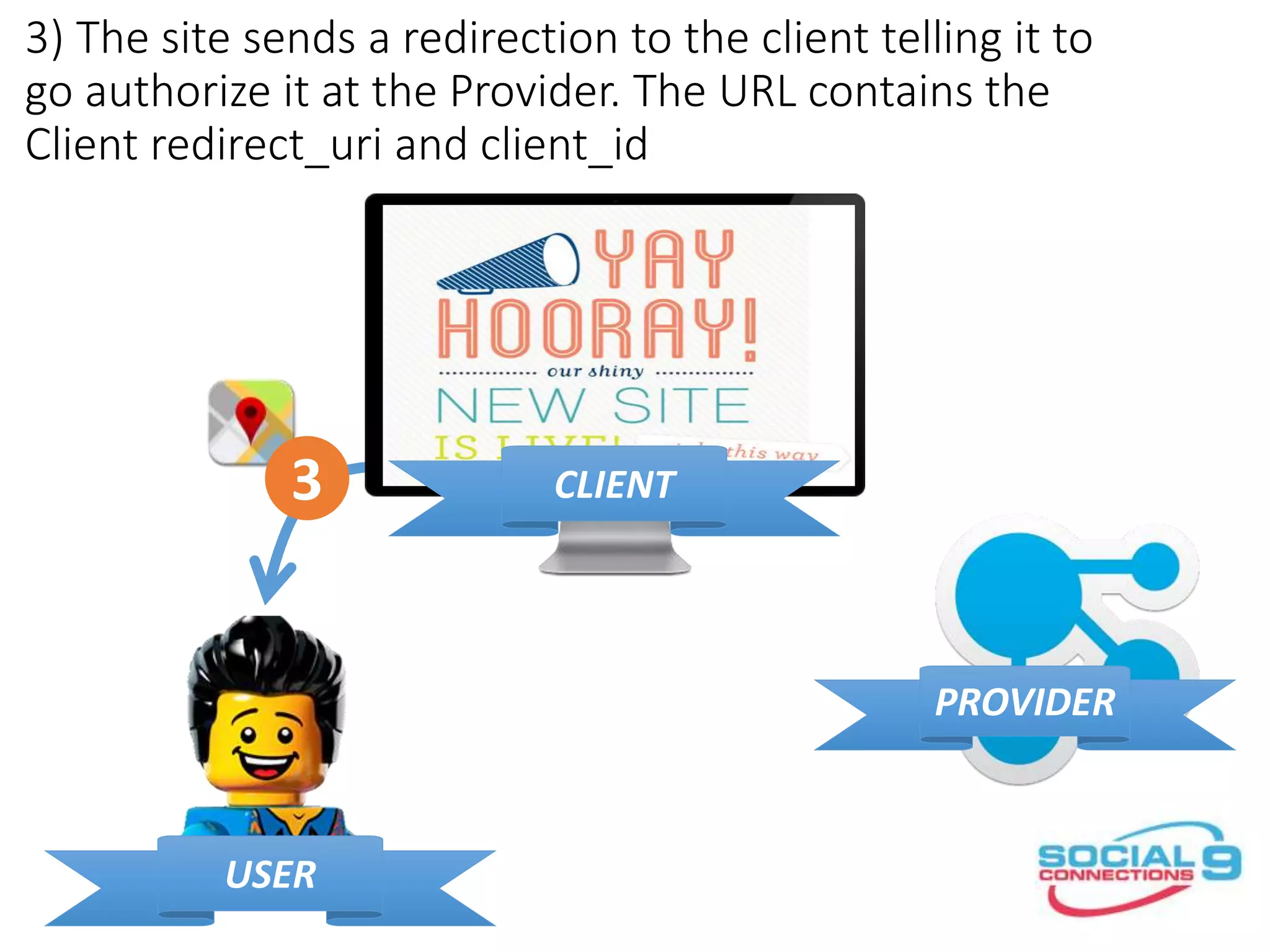

25. 3) The site sends a redirection to the client telling it to
go authorize it at the Provider. The URL contains the
Client redirect_uri and client_id
CLIENT
PROVIDER
USER
3

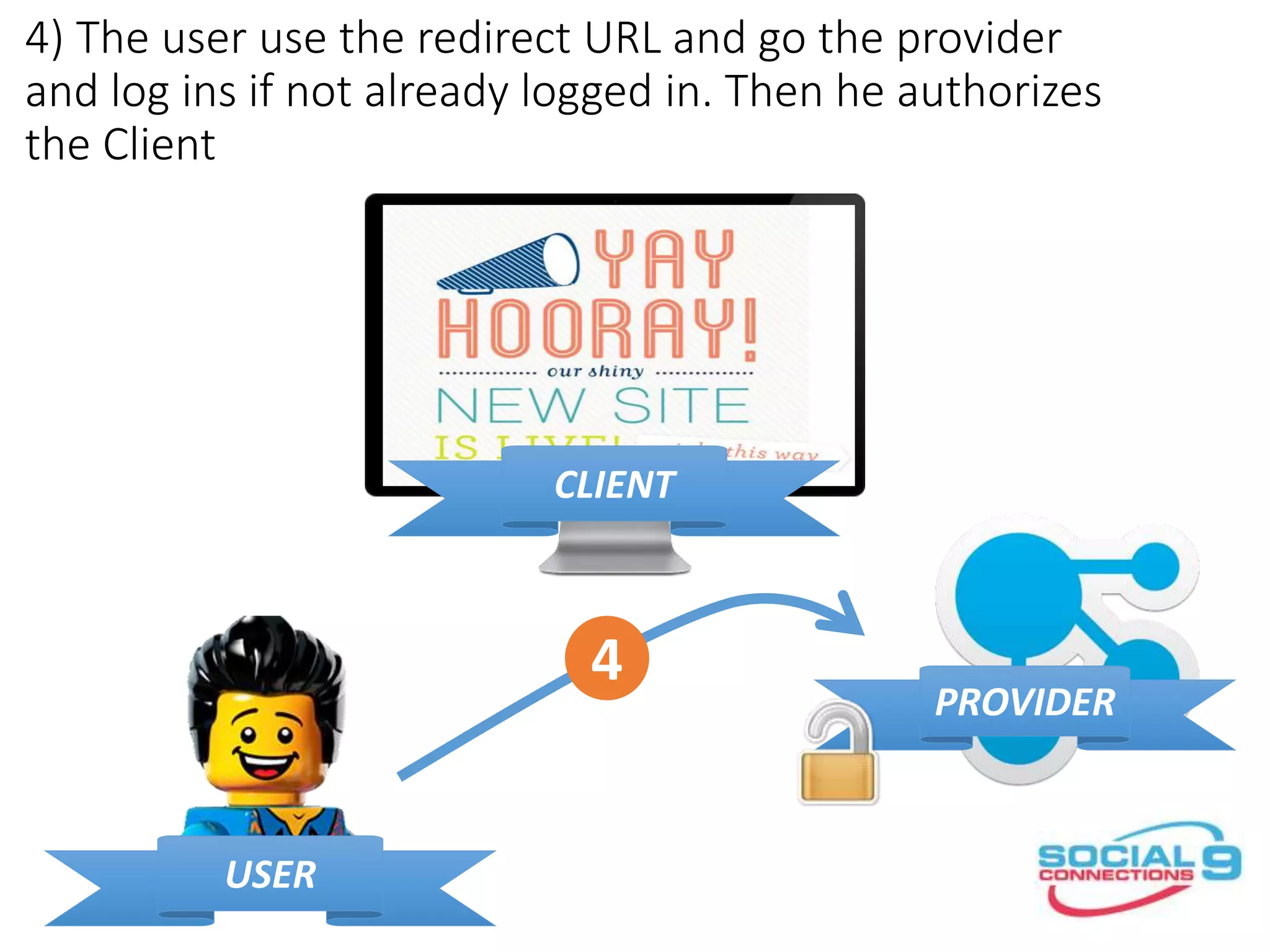

26. 4) The user use the redirect URL and go the provider
and log ins if not already logged in. Then he authorizes
the Client
CLIENT
PROVIDER
USER
4

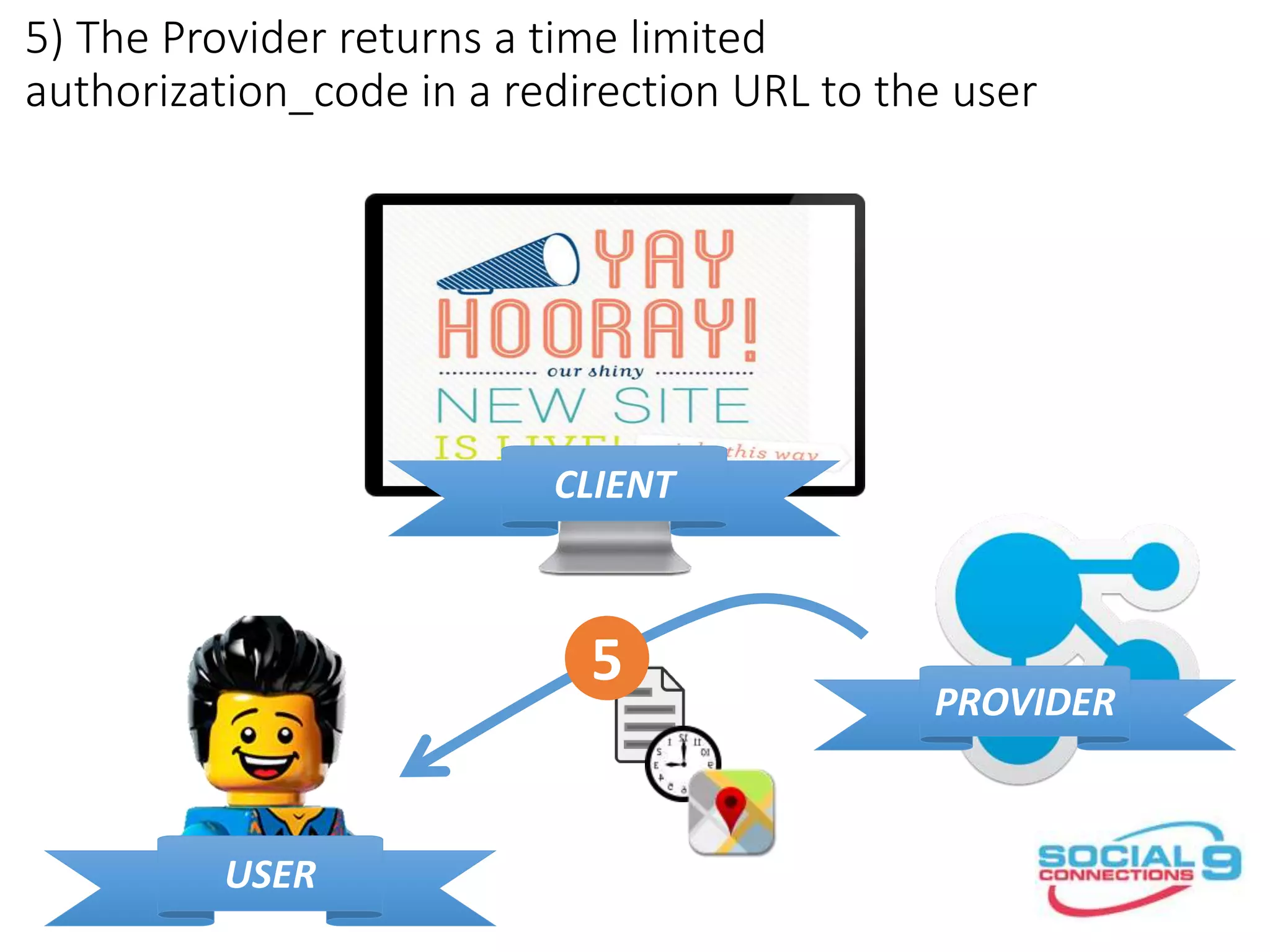

27. 5) The Provider returns a time limited
authorization_code in a redirection URL to the user
CLIENT
PROVIDER
USER
5

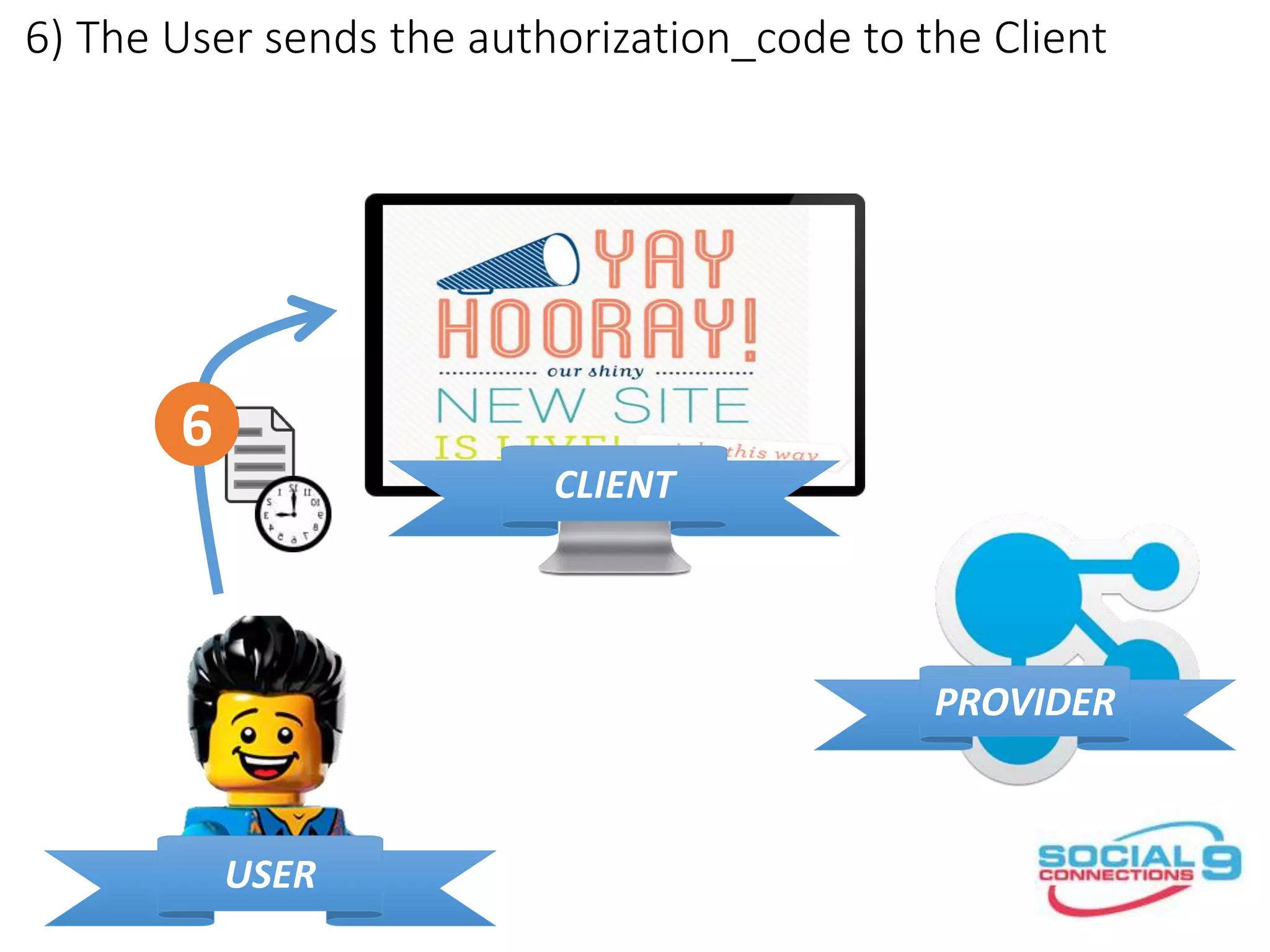

28. 6) The User sends the authorization_code to the Client
CLIENT
PROVIDER
USER
6

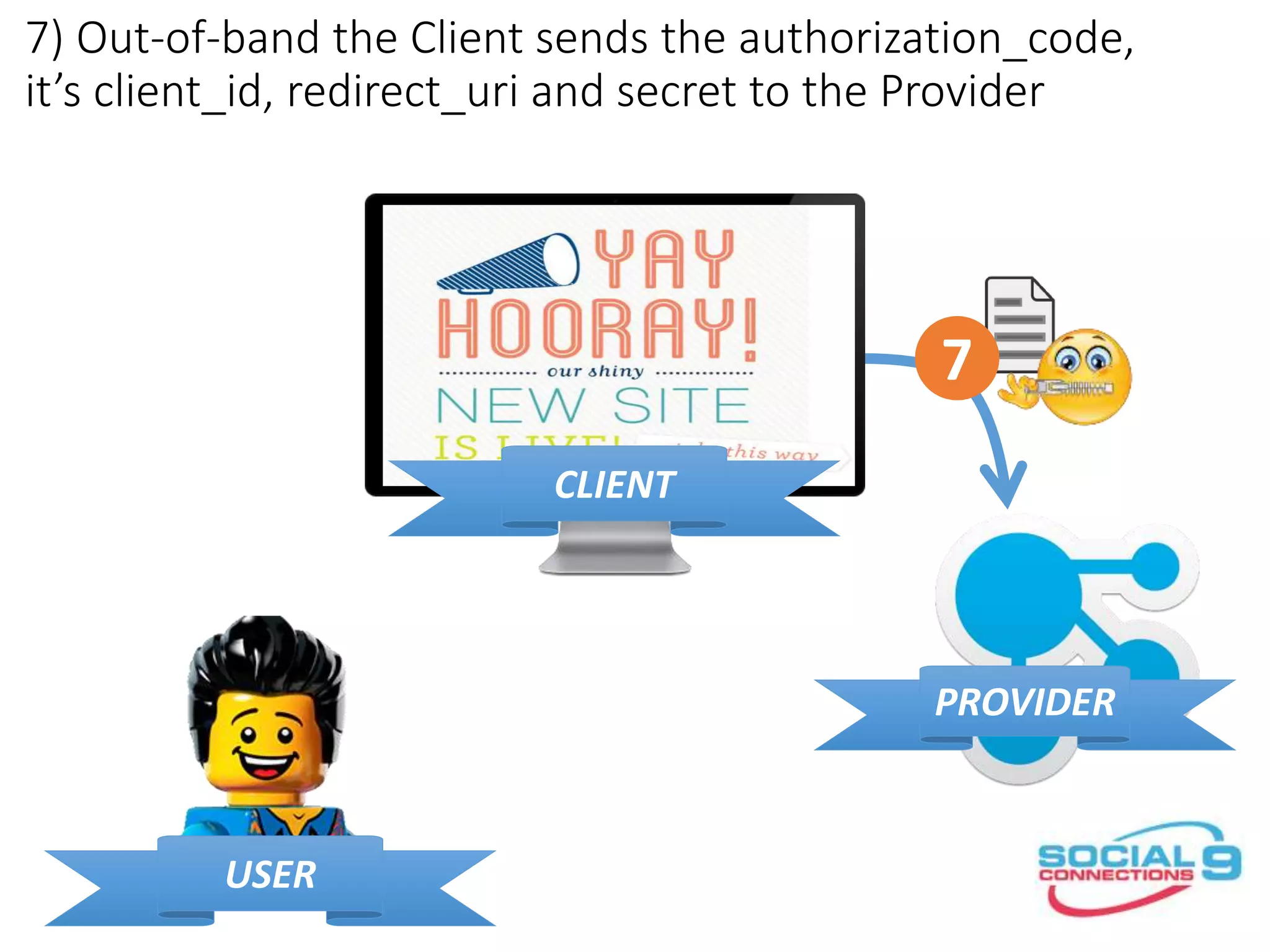

29. 7) Out-of-band the Client sends the authorization_code,
it’s client_id, redirect_uri and secret to the Provider
CLIENT
PROVIDER
USER
7

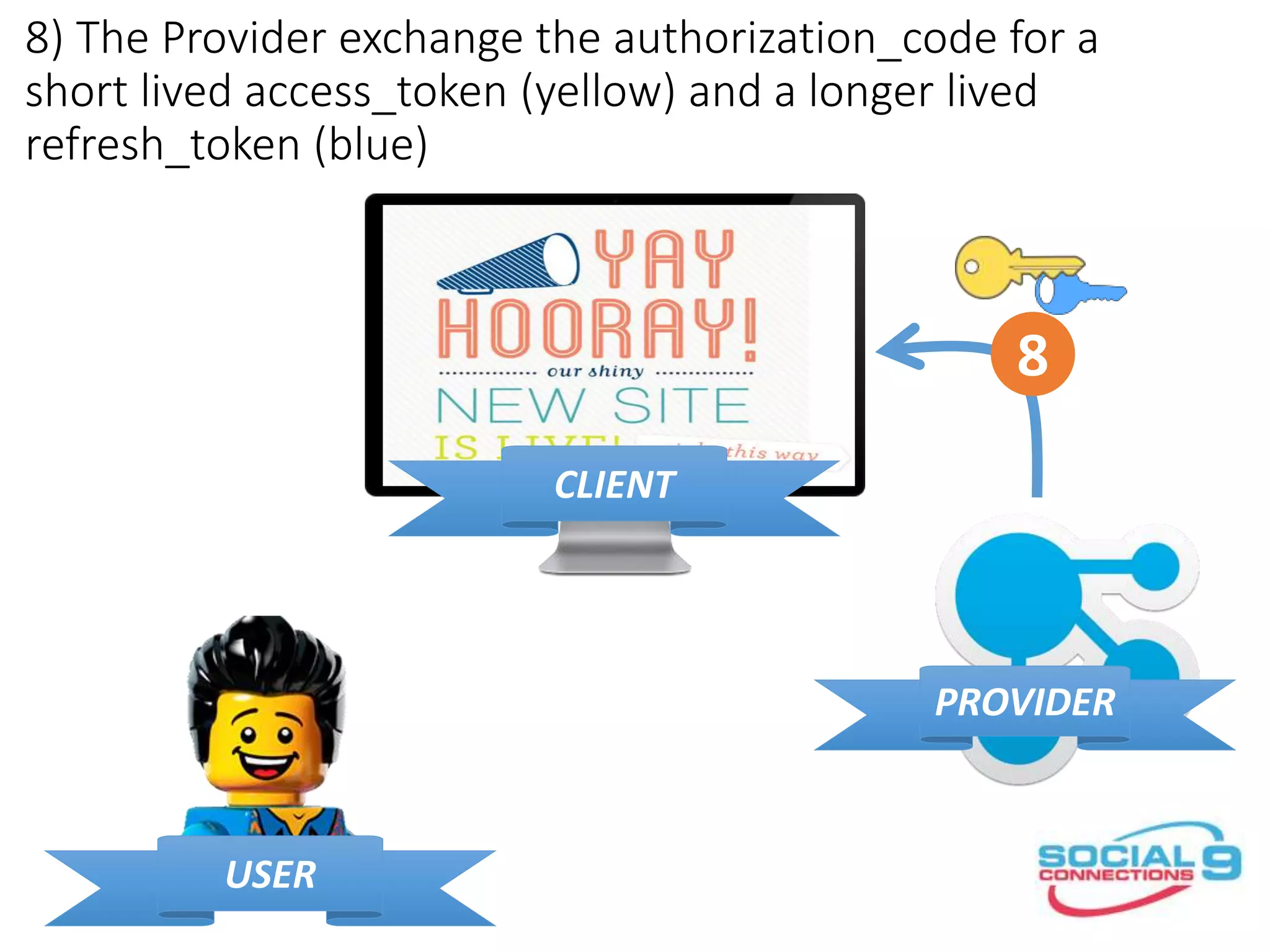

30. 8) The Provider exchange the authorization_code for a
short lived access_token (yellow) and a longer lived
refresh_token (blue)
CLIENT
PROVIDER
USER
8

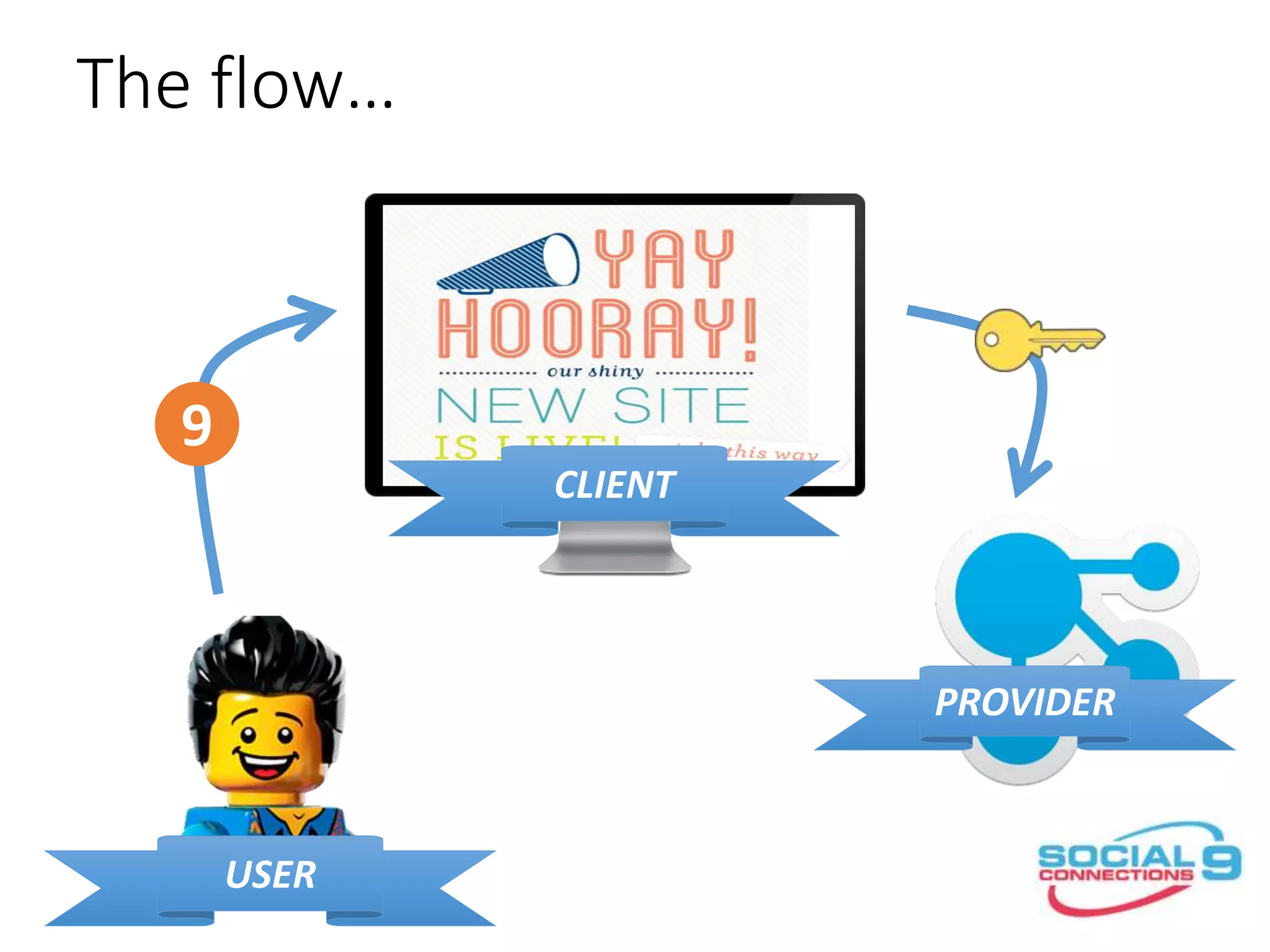

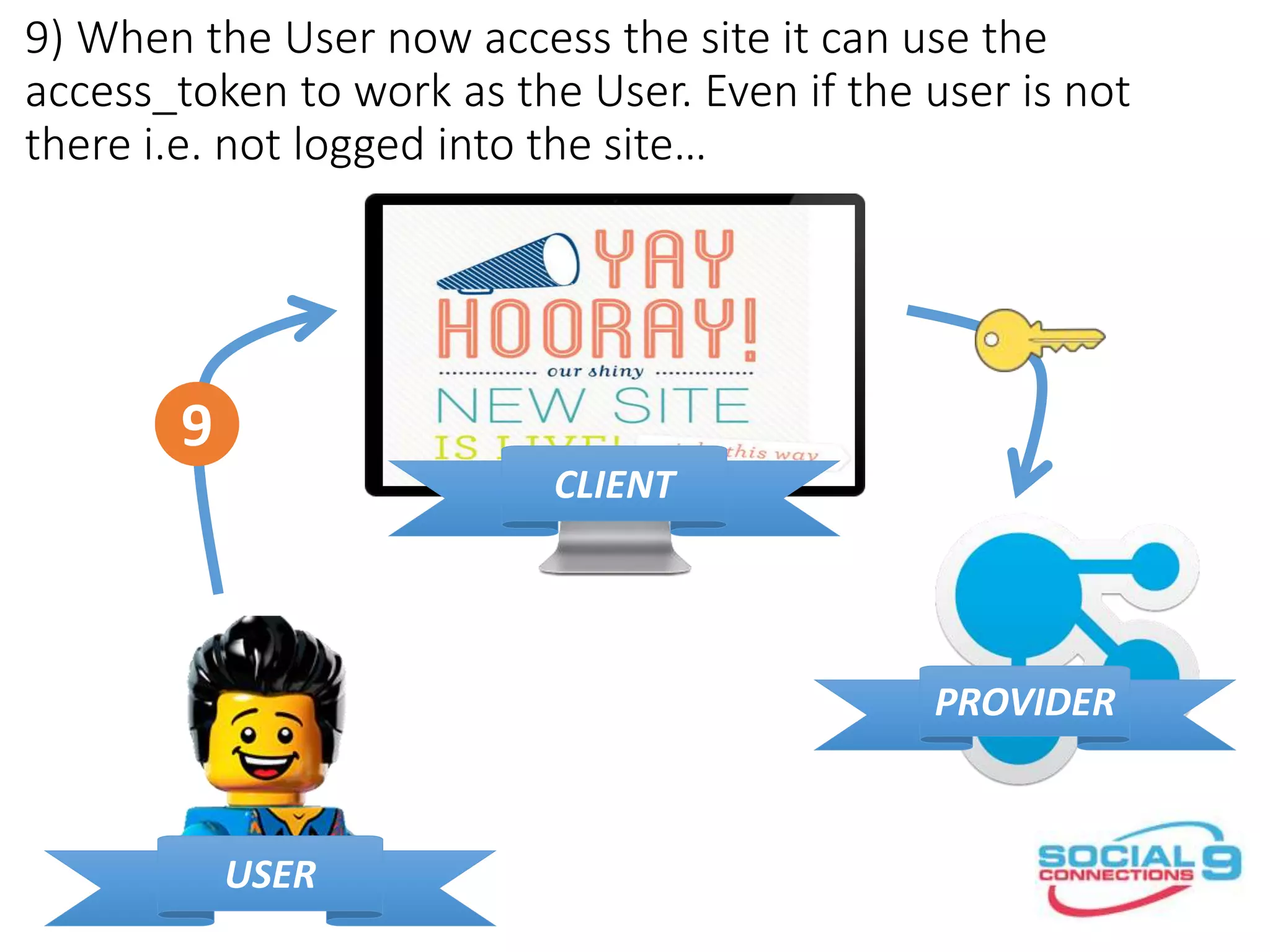

31. 9) When the User now access the site it can use the
access_token to work as the User. Even if the user is not
there i.e. not logged into the site…
CLIENT
PROVIDER
USER
9

32. If not you should ask now…

33. WSADMIN
COMING UP

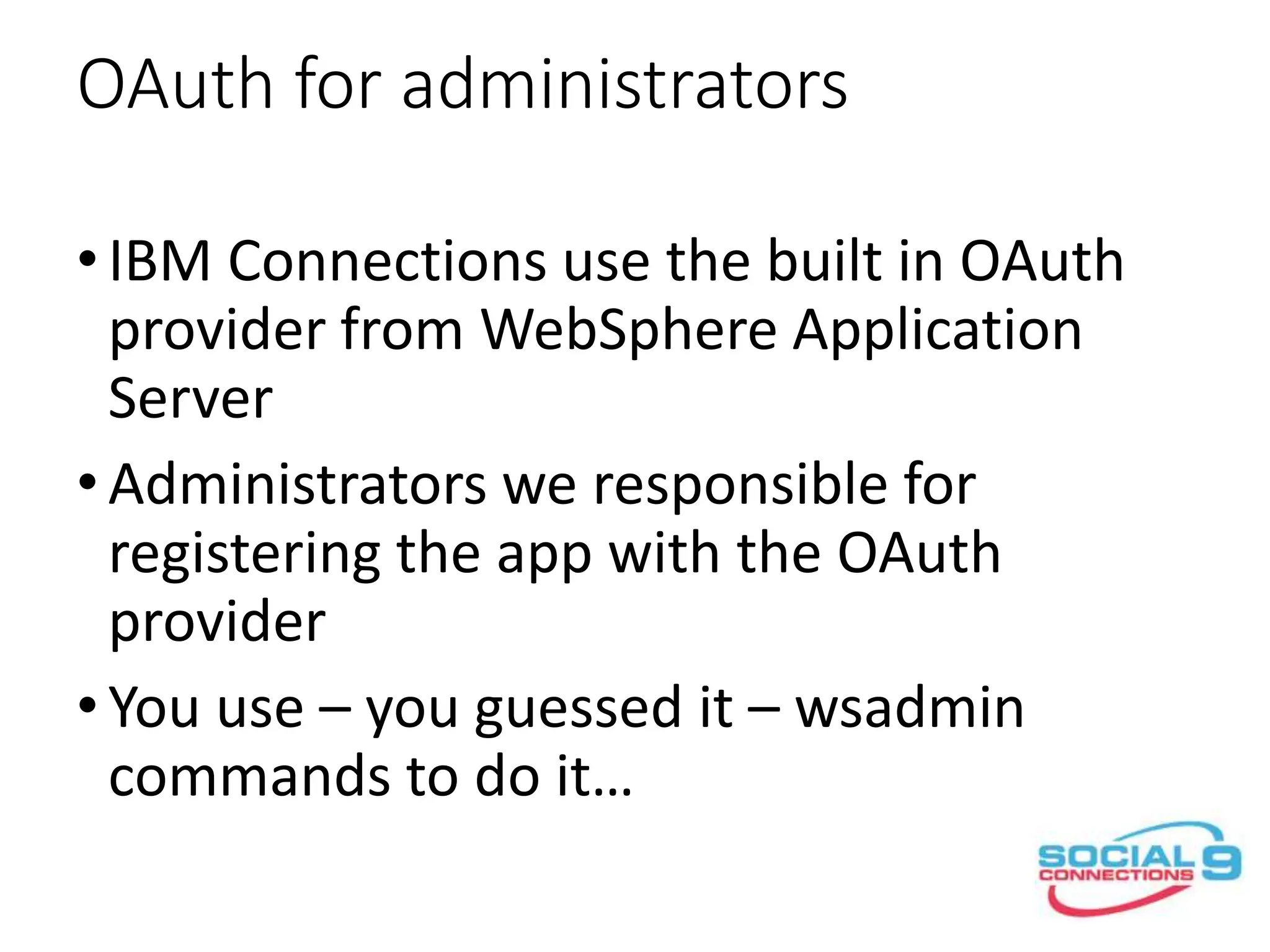

34. OAuth for administrators
•IBM Connections use the built in OAuth
provider from WebSphere Application
Server
•Administrators we responsible for
registering the app with the OAuth
provider
•You use – you guessed it – wsadmin
commands to do it…

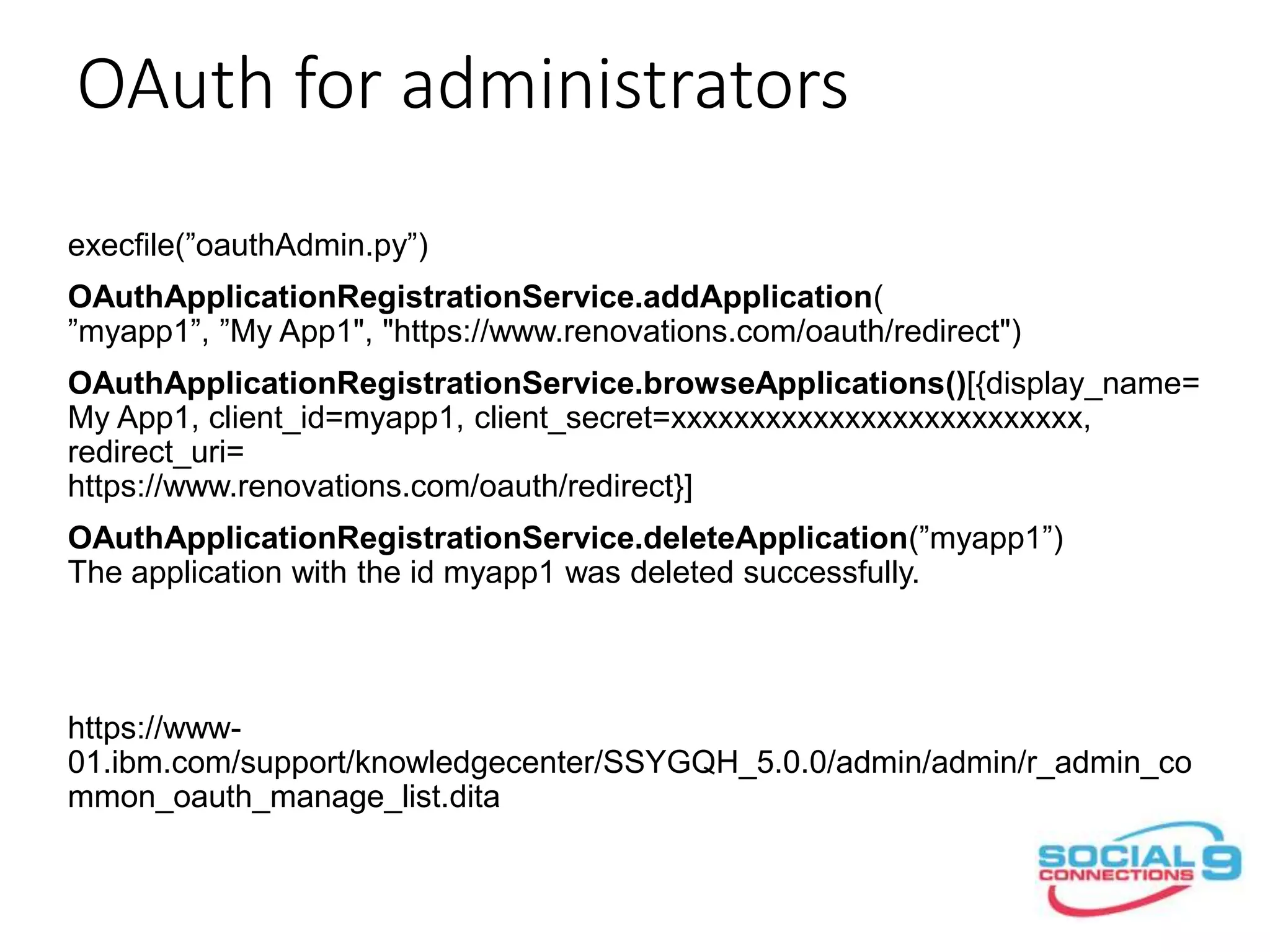

35. OAuth for administrators
execfile(”oauthAdmin.py”)
OAuthApplicationRegistrationService.addApplication(
”myapp1”, ”My App1", "https://www.renovations.com/oauth/redirect")
OAuthApplicationRegistrationService.browseApplications()[{display_name=
My App1, client_id=myapp1, client_secret=xxxxxxxxxxxxxxxxxxxxxxxxxx,
redirect_uri=
https://www.renovations.com/oauth/redirect}]
OAuthApplicationRegistrationService.deleteApplication(”myapp1”)
The application with the id myapp1 was deleted successfully.
https://www-
01.ibm.com/support/knowledgecenter/SSYGQH_5.0.0/admin/admin/r_admin_co
mmon_oauth_manage_list.dita

36. I’M A
DEVELOPER

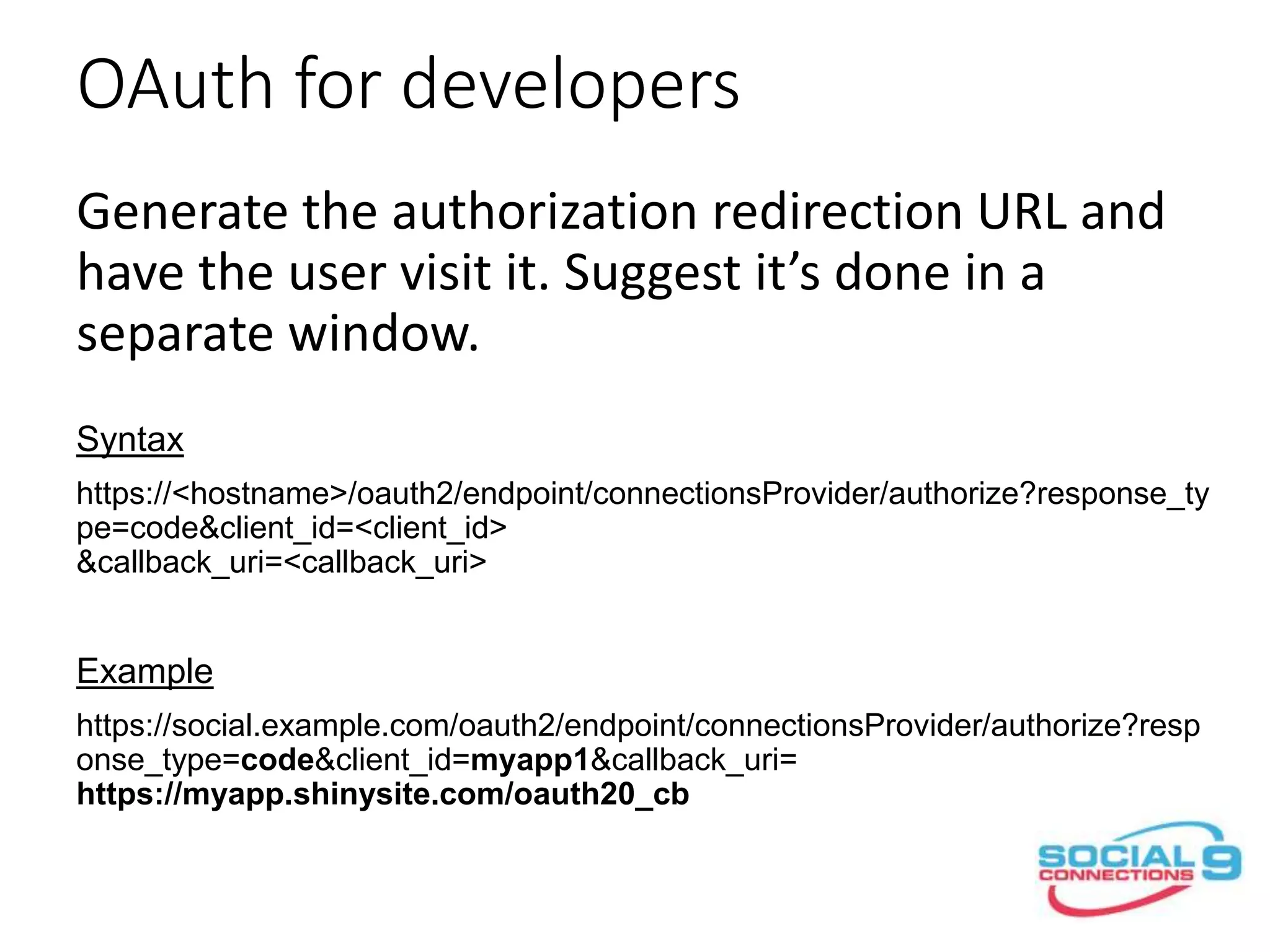

38. OAuth for developers
Generate the authorization redirection URL and
have the user visit it. Suggest it’s done in a
separate window.
Syntax
https://<hostname>/oauth2/endpoint/connectionsProvider/authorize?response_ty
pe=code&client_id=<client_id>
&callback_uri=<callback_uri>
Example
https://social.example.com/oauth2/endpoint/connectionsProvider/authorize?resp
onse_type=code&client_id=myapp1&callback_uri=
https://myapp.shinysite.com/oauth20_cb

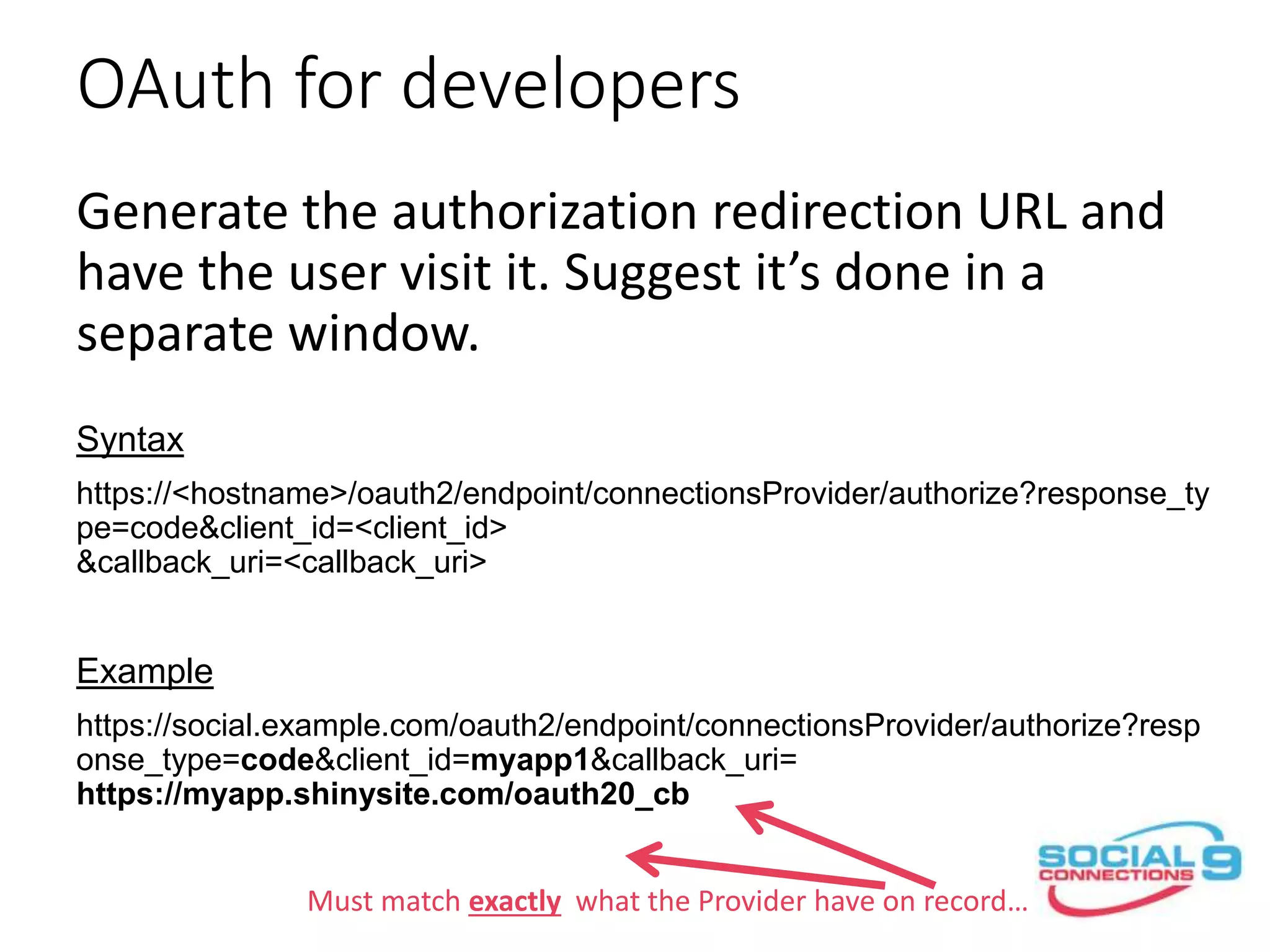

39. OAuth for developers
Generate the authorization redirection URL and
have the user visit it. Suggest it’s done in a
separate window.
Syntax
https://<hostname>/oauth2/endpoint/connectionsProvider/authorize?response_ty
pe=code&client_id=<client_id>
&callback_uri=<callback_uri>
Example
https://social.example.com/oauth2/endpoint/connectionsProvider/authorize?resp
onse_type=code&client_id=myapp1&callback_uri=
https://myapp.shinysite.com/oauth20_cb
Must match exactly what the Provider have on record…

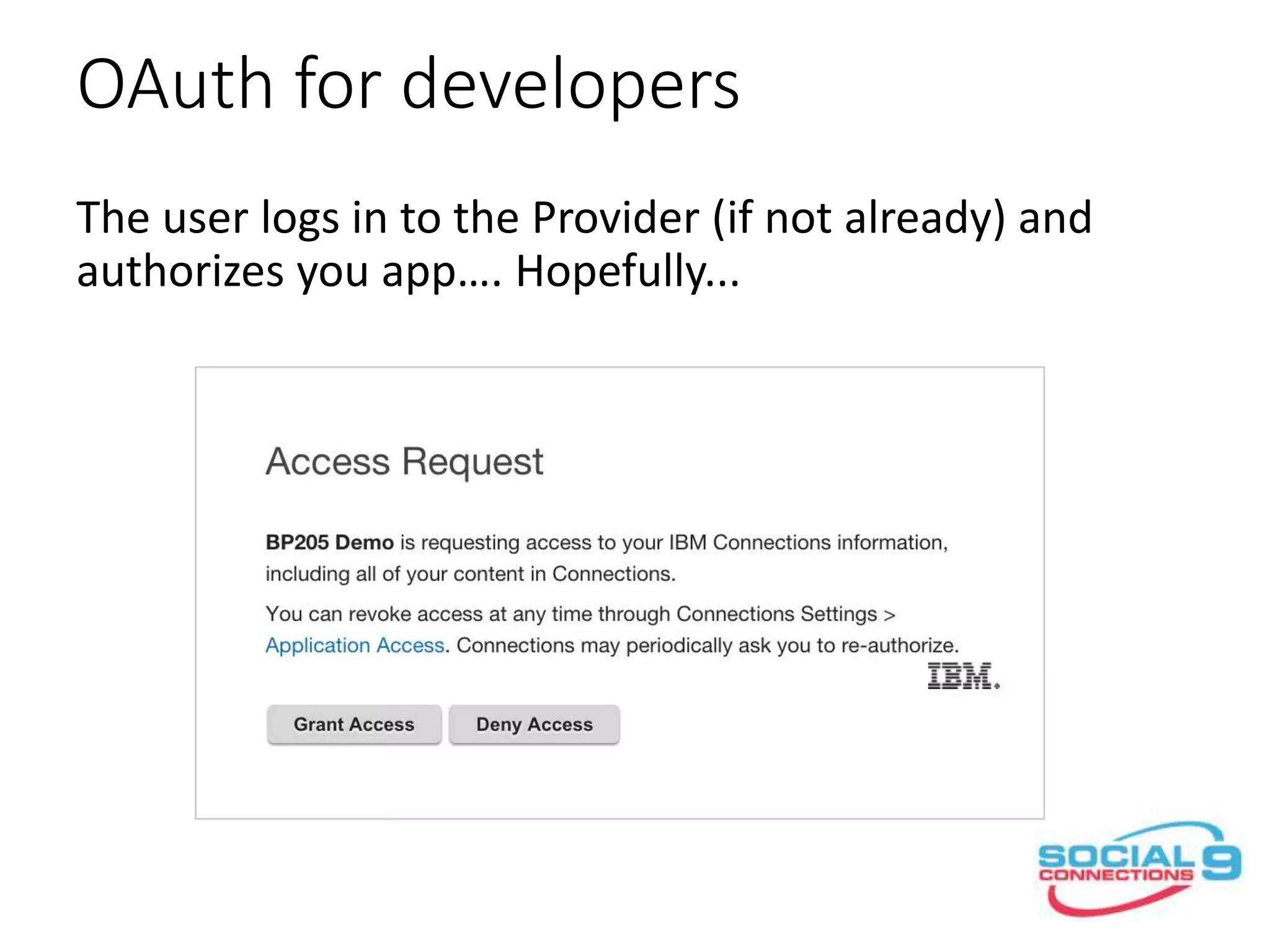

40. OAuth for developers
The user logs in to the Provider (if not already) and
authorizes you app…. Hopefully...

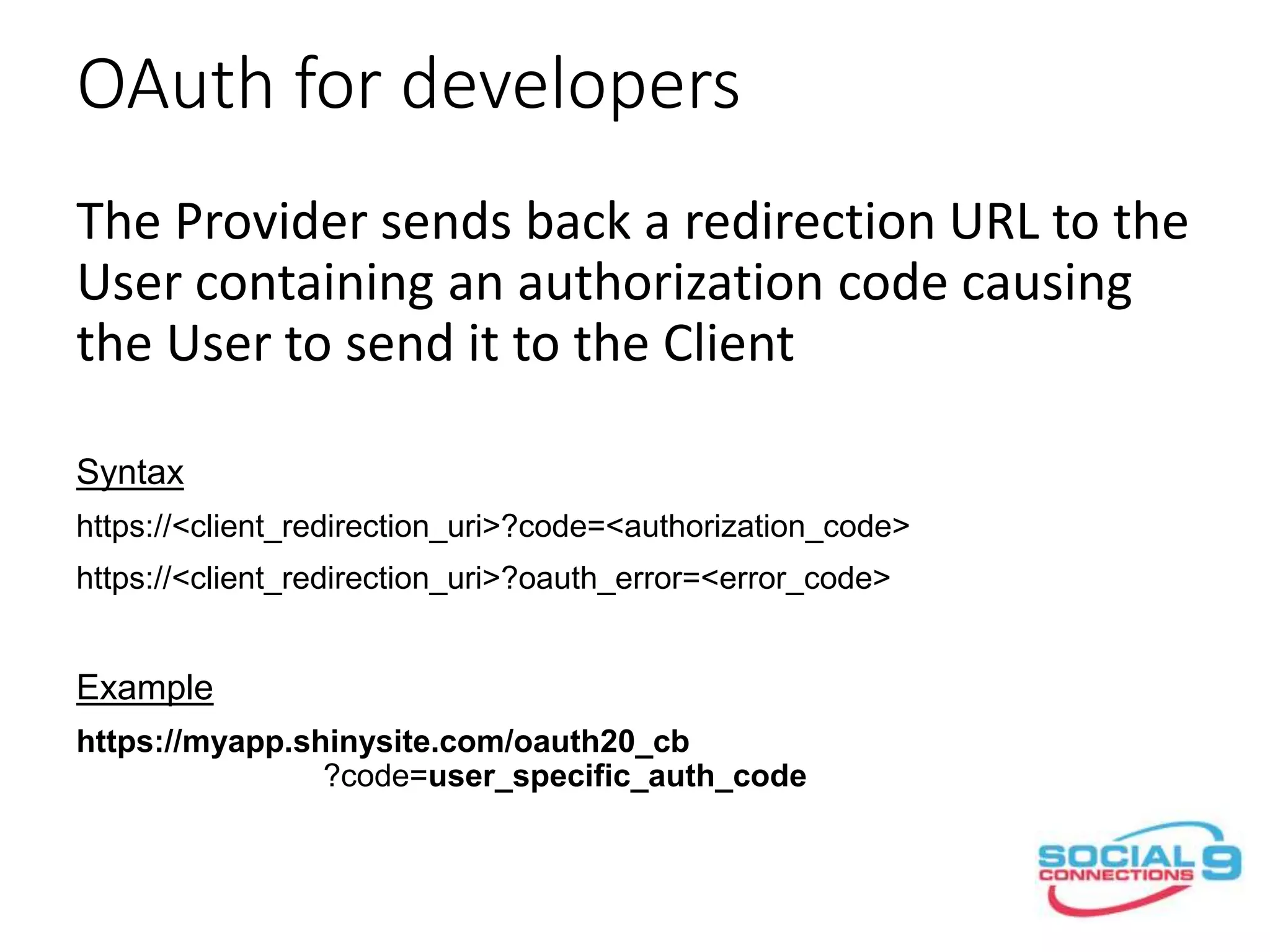

41. OAuth for developers
The Provider sends back a redirection URL to the
User containing an authorization code causing
the User to send it to the Client
Syntax
https://<client_redirection_uri>?code=<authorization_code>
https://<client_redirection_uri>?oauth_error=<error_code>
Example
https://myapp.shinysite.com/oauth20_cb
?code=user_specific_auth_code

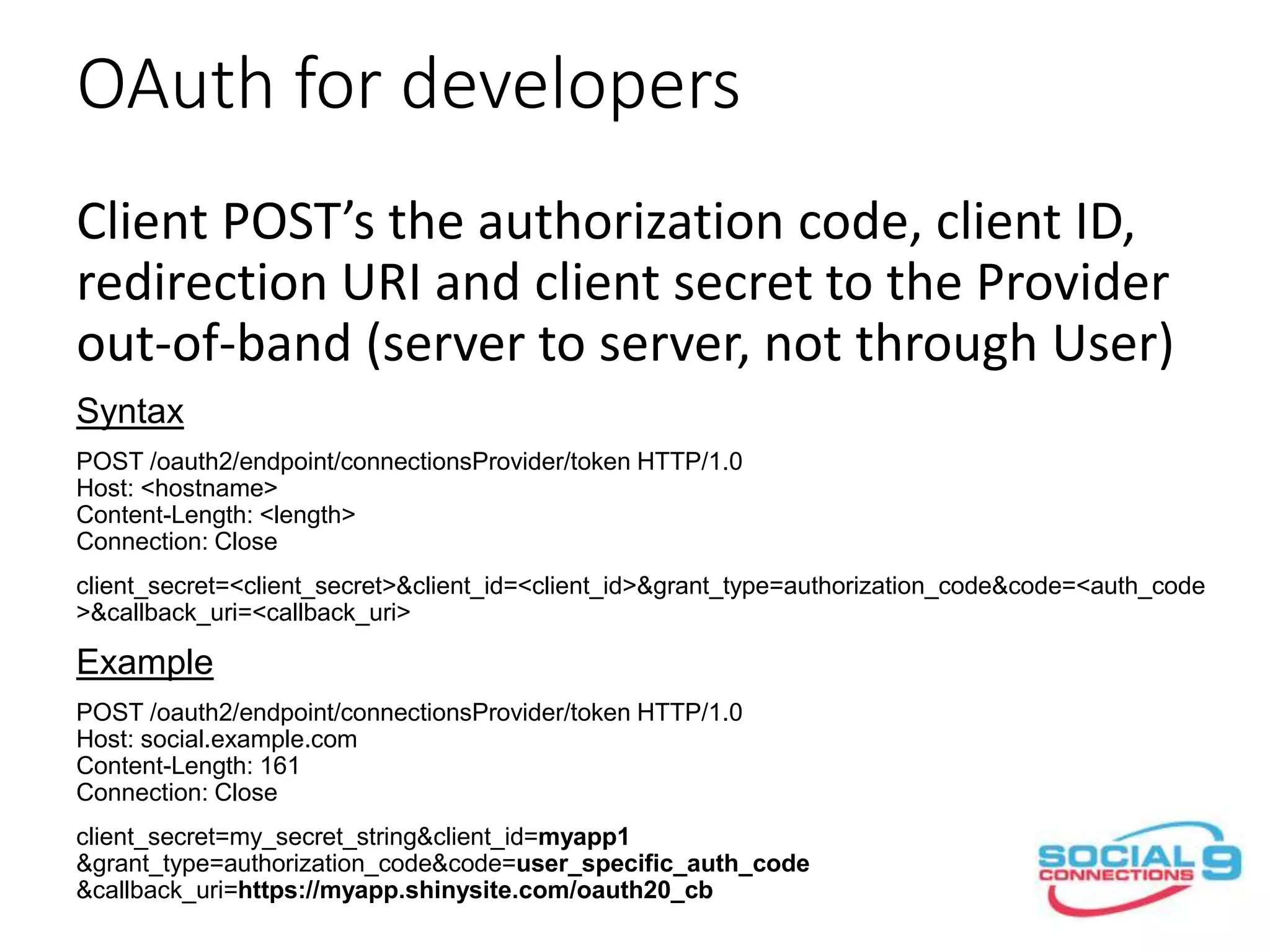

42. OAuth for developers
Client POST’s the authorization code, client ID,
redirection URI and client secret to the Provider
out-of-band (server to server, not through User)
Syntax
POST /oauth2/endpoint/connectionsProvider/token HTTP/1.0
Host: <hostname>
Content-Length: <length>
Connection: Close
client_secret=<client_secret>&client_id=<client_id>&grant_type=authorization_code&code=<auth_code
>&callback_uri=<callback_uri>
Example
POST /oauth2/endpoint/connectionsProvider/token HTTP/1.0
Host: social.example.com
Content-Length: 161
Connection: Close
client_secret=my_secret_string&client_id=myapp1
&grant_type=authorization_code&code=user_specific_auth_code
&callback_uri=https://myapp.shinysite.com/oauth20_cb

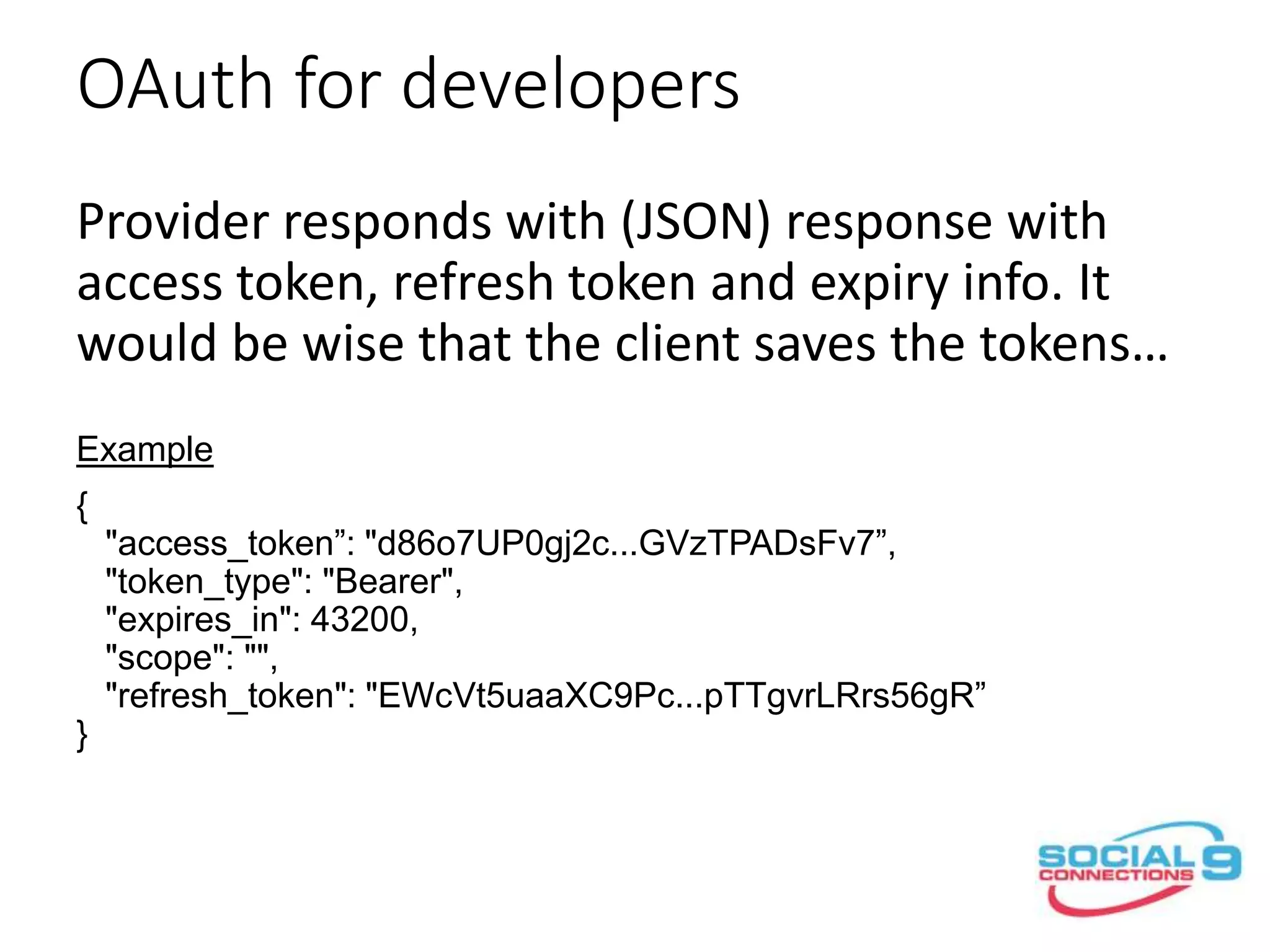

43. OAuth for developers
Provider responds with (JSON) response with
access token, refresh token and expiry info. It
would be wise that the client saves the tokens…
Example
{
"access_token”: "d86o7UP0gj2c...GVzTPADsFv7”,
"token_type": "Bearer",
"expires_in": 43200,
"scope": "",
"refresh_token": "EWcVt5uaaXC9Pc...pTTgvrLRrs56gR”
}
Response format is Provider specific i.e. IBM Connections Cloud
returns tokens in plain text format…

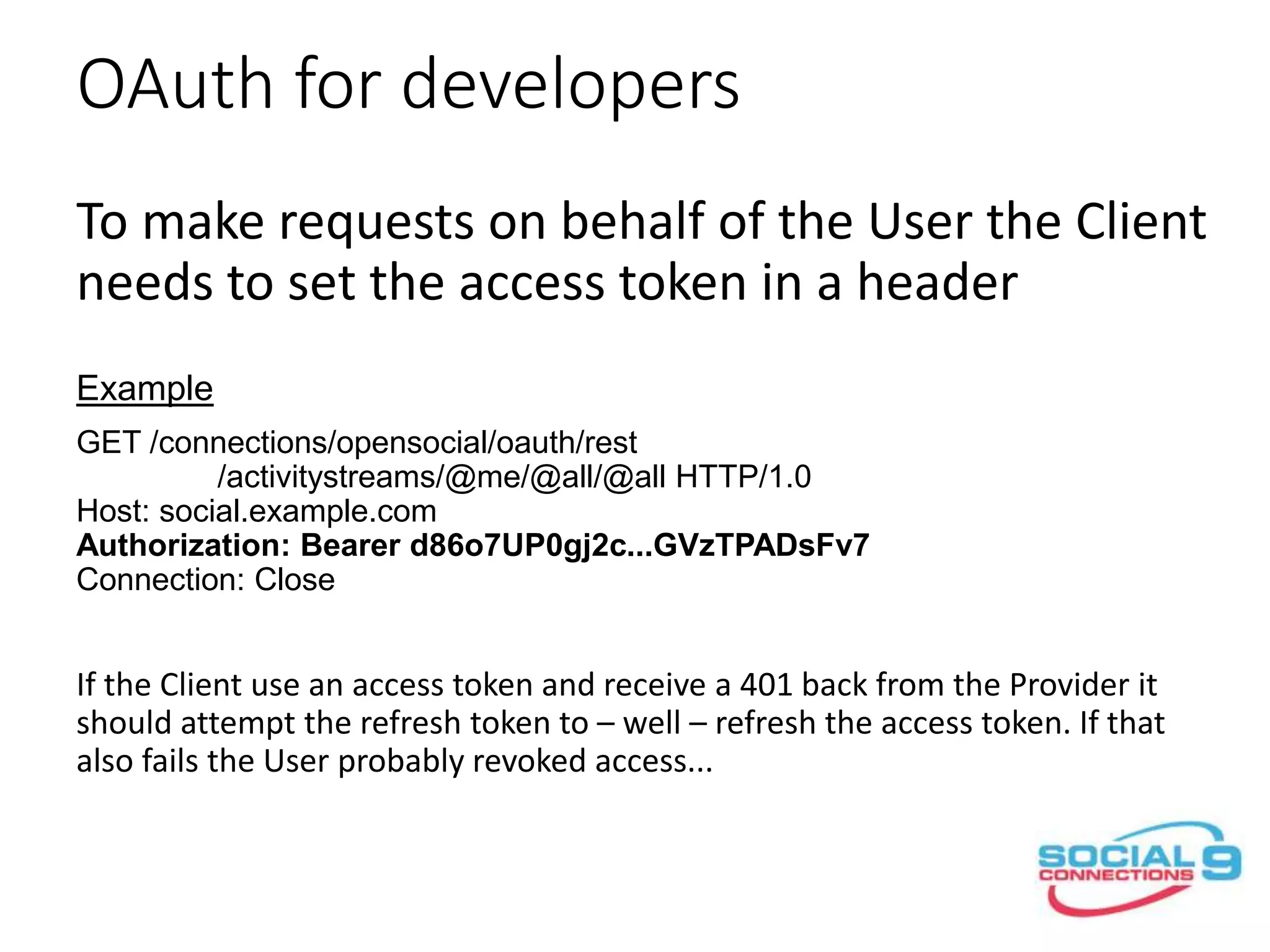

44. OAuth for developers
To make requests on behalf of the User the Client
needs to set the access token in an Authorization
header
Example
GET /connections/opensocial/oauth/rest
/activitystreams/@me/@all/@all HTTP/1.0
Host: social.example.com
Authorization: Bearer d86o7UP0gj2c...GVzTPADsFv7
Connection: Close
If the Client use an access token and receive a 401 back from the Provider it
should attempt to refresh the access token.

45. OAuth for developers
You can refresh the tokens i.e. if a call using the access token
returns a 401 from the Provider by using the refresh_token. If that
also fails the user probably revoked your authorization.
Syntax
POST /oauth2/endpoint/connectionsProvider/token HTTP/1.0
Host: <hostname>
Content-Length: <length>
Connection: Close
client_secret=<client_secret>&client_id=<client_id>&grant_type=refresh_token&refresh_token=<refresh_
token>
Example
POST /oauth2/endpoint/connectionsProvider/token HTTP/1.0
Host: social.example.com
Content-Length: 104
Connection: Close
client_secret=my_secret_string&client_id=myapp1
&grant_type=refresh_token&refresh_token=my_refresh_token
