Speed , Velocity and
Acceleration
Distance –Time graphs
Speed: It is defined as the distance travelled by
the body per unit time
Units: km/hr or
m/s.
Scalar quantity. It
has magnitude but
no direction.

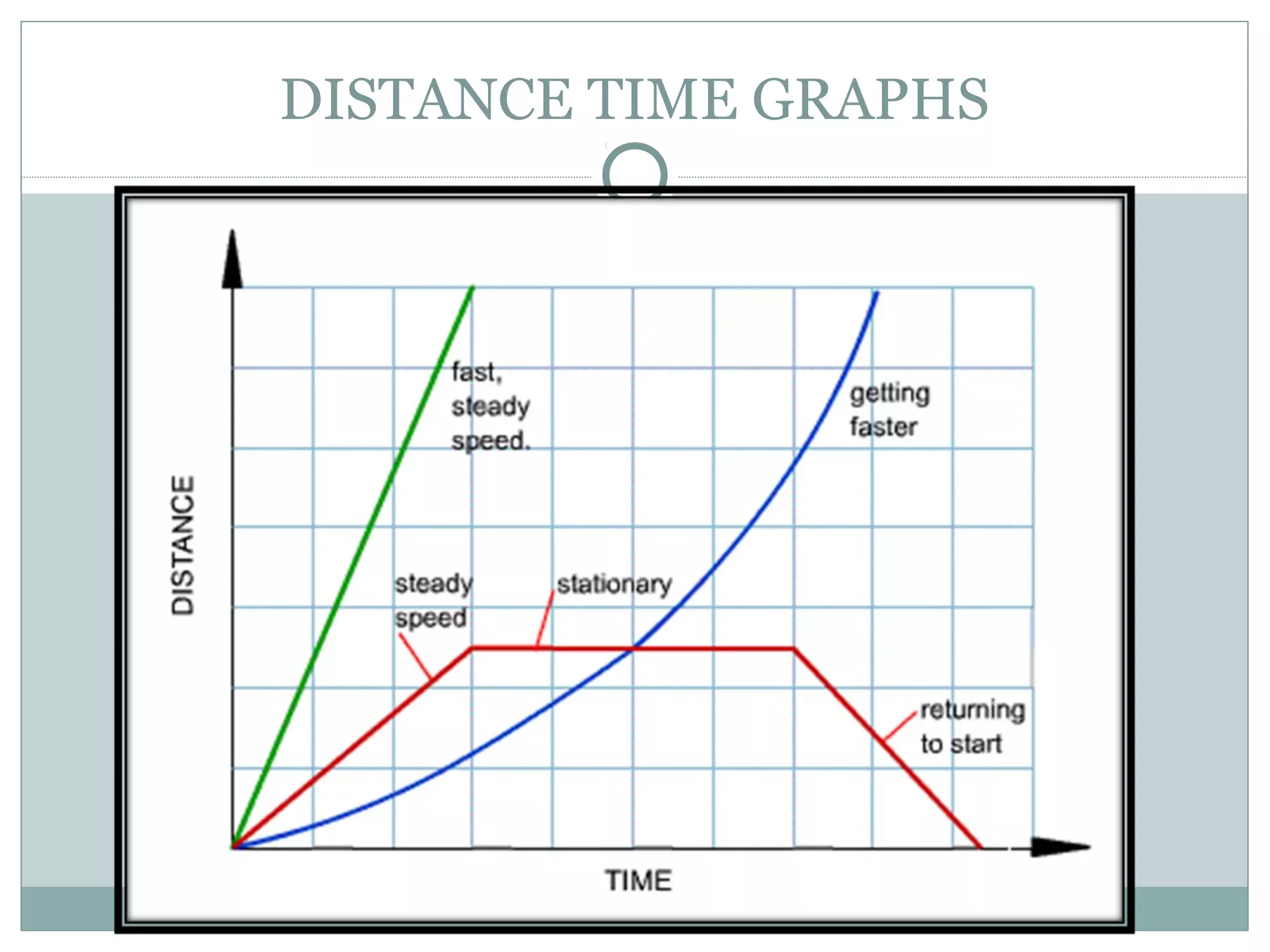

DISTANCE TIME GRAPHS

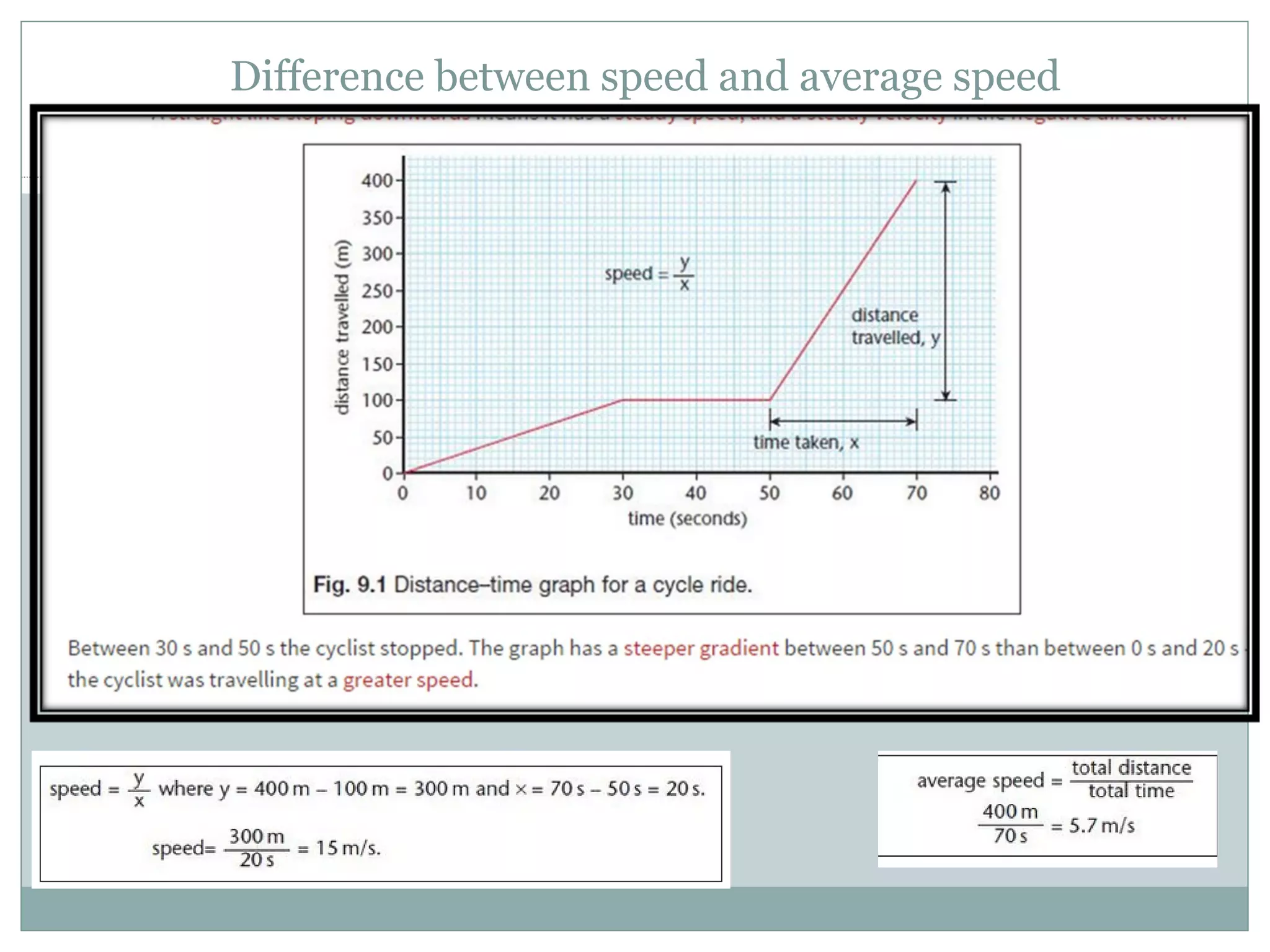

Difference between speed and average speed

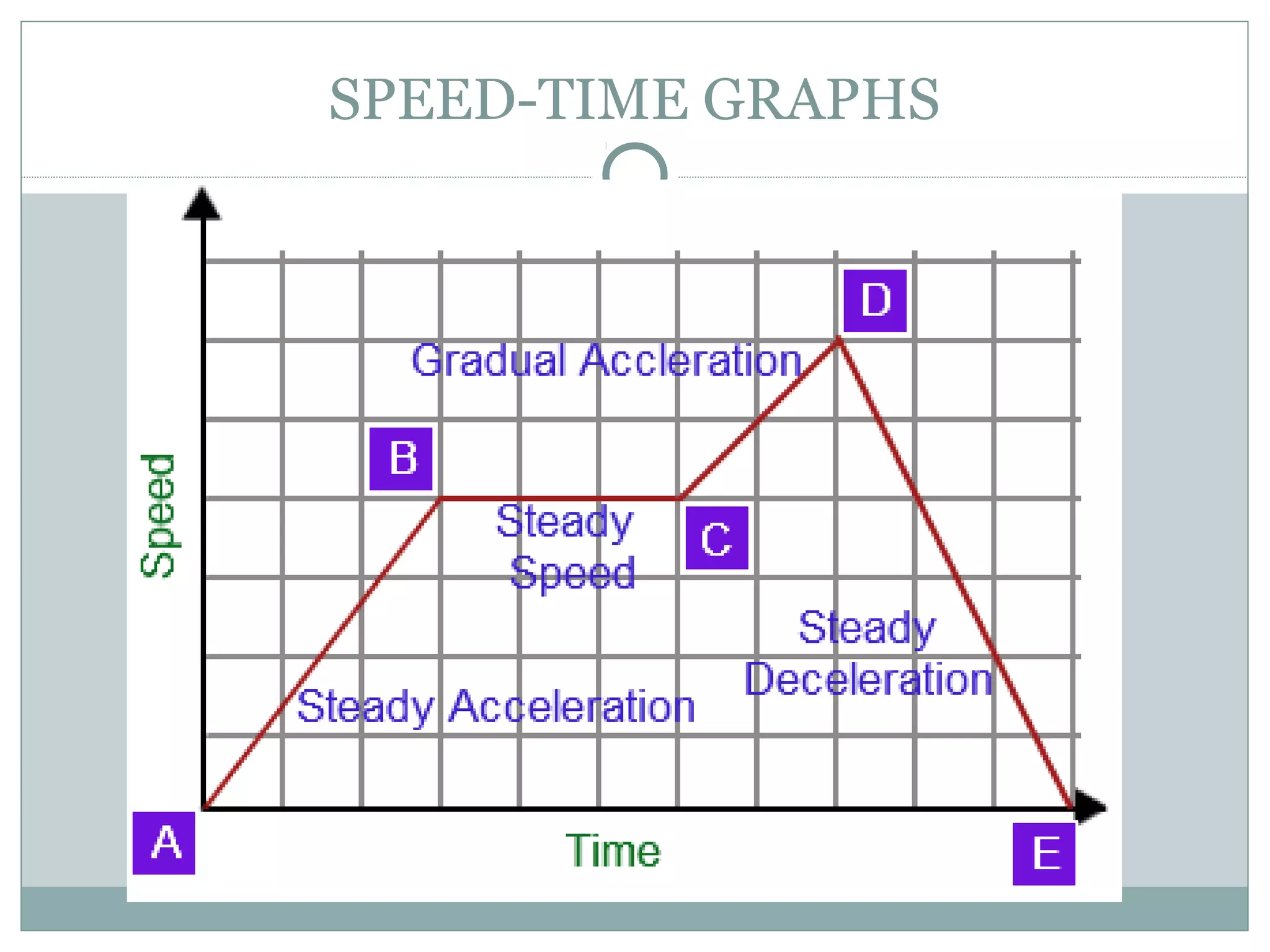

SPEED-TIME GRAPHS

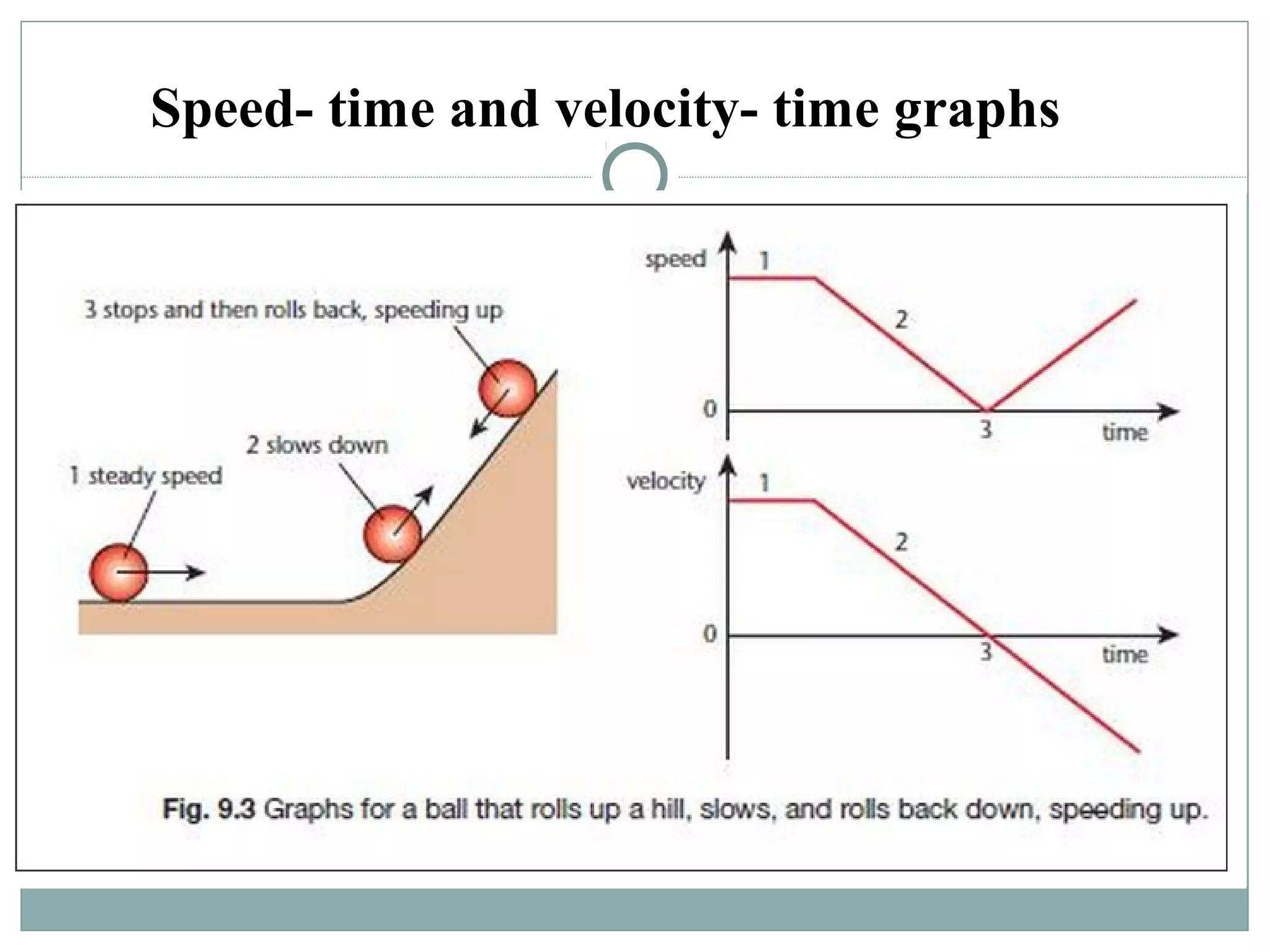

Speed- time and velocity- time graphs

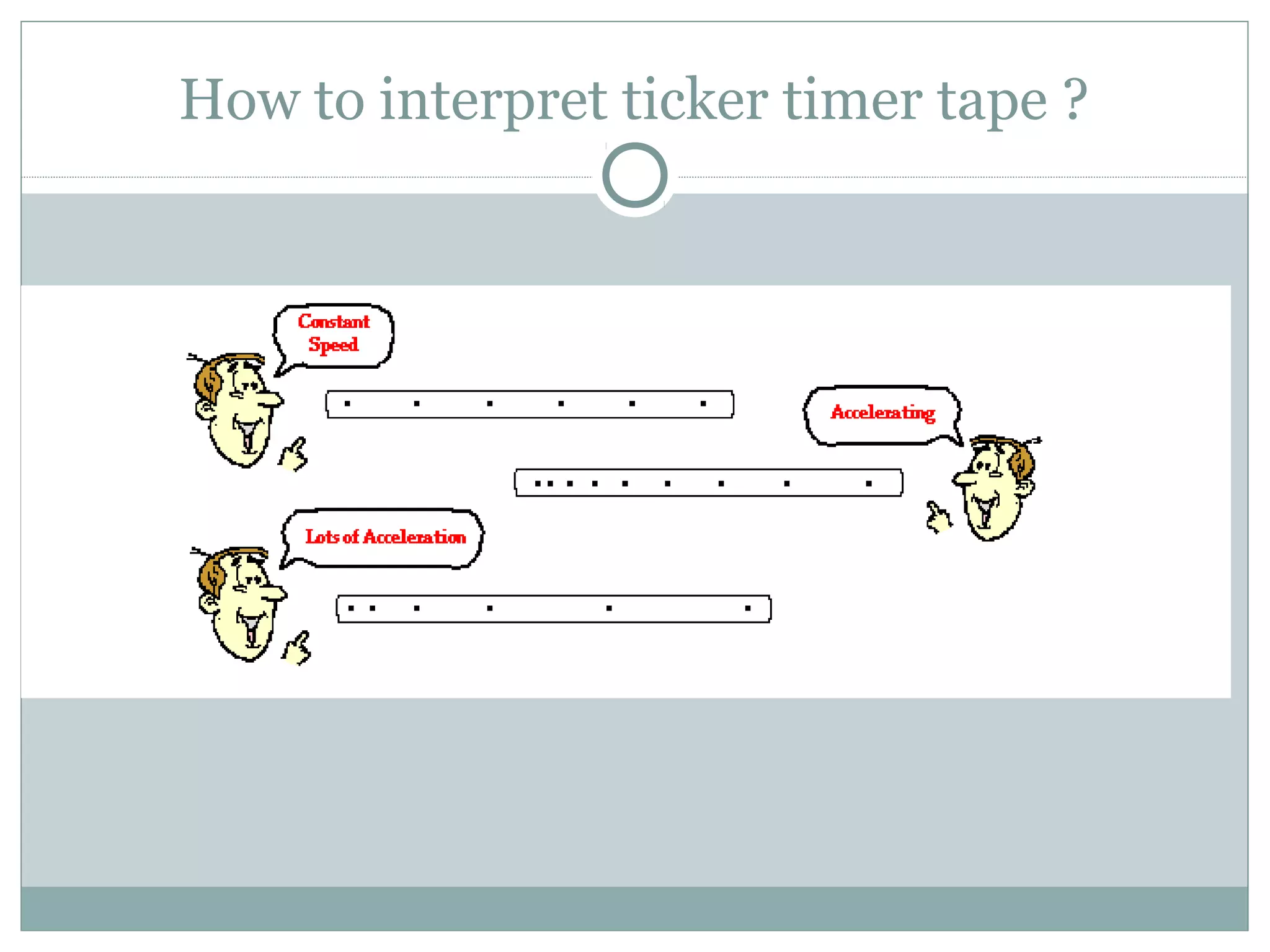

How to interpret ticker timer tape ?

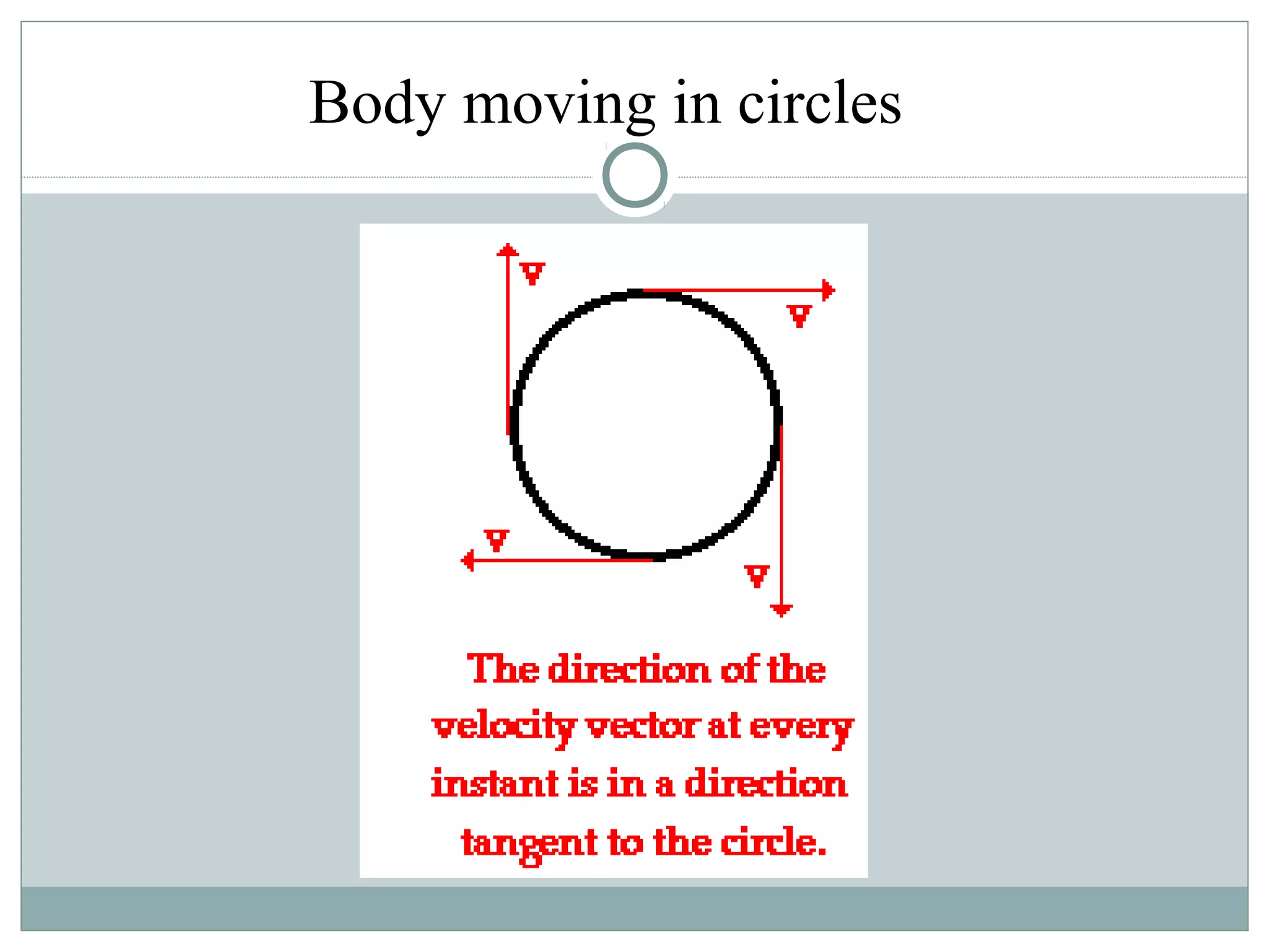

Body moving in circles

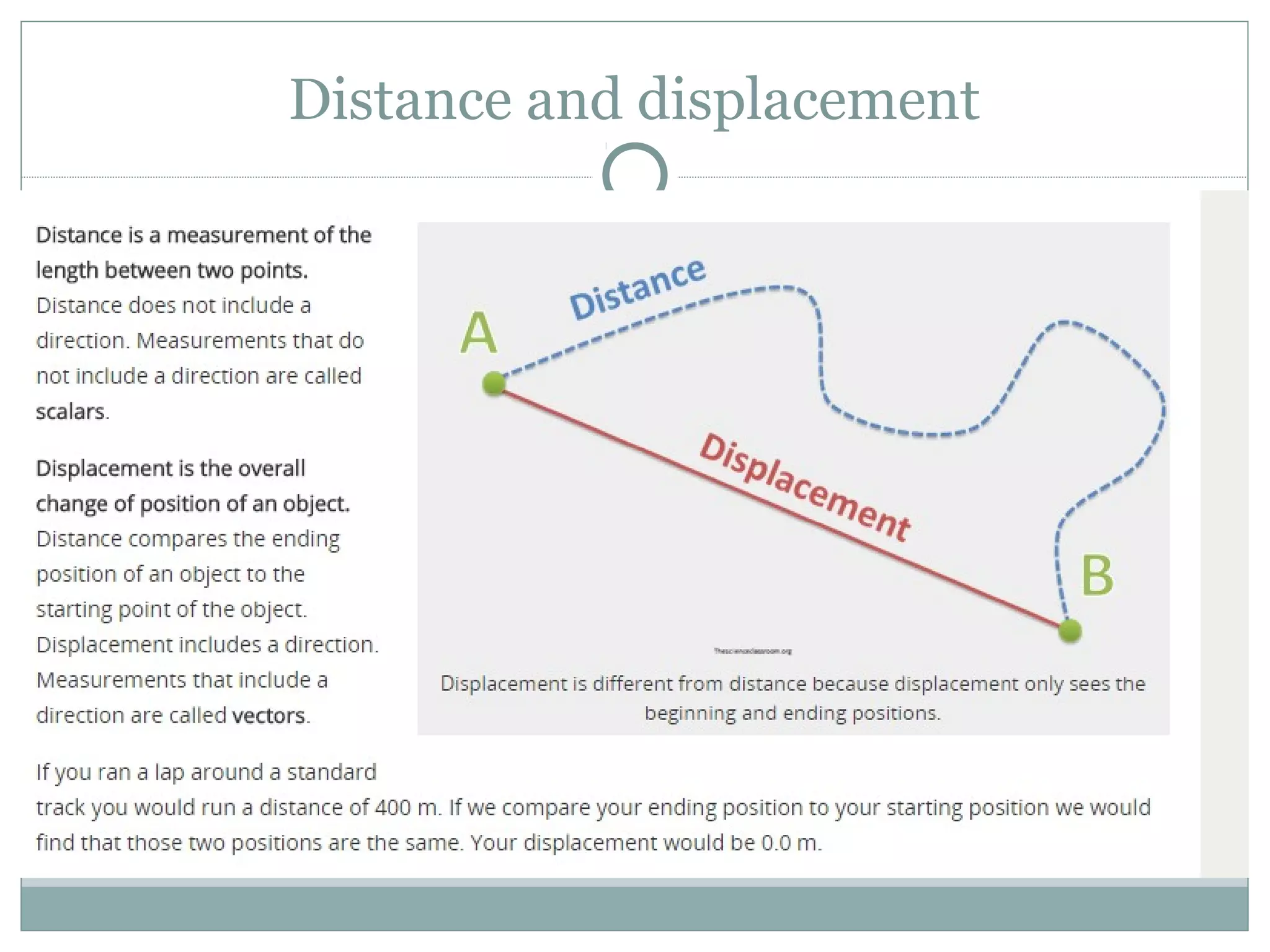

Distance and displacement

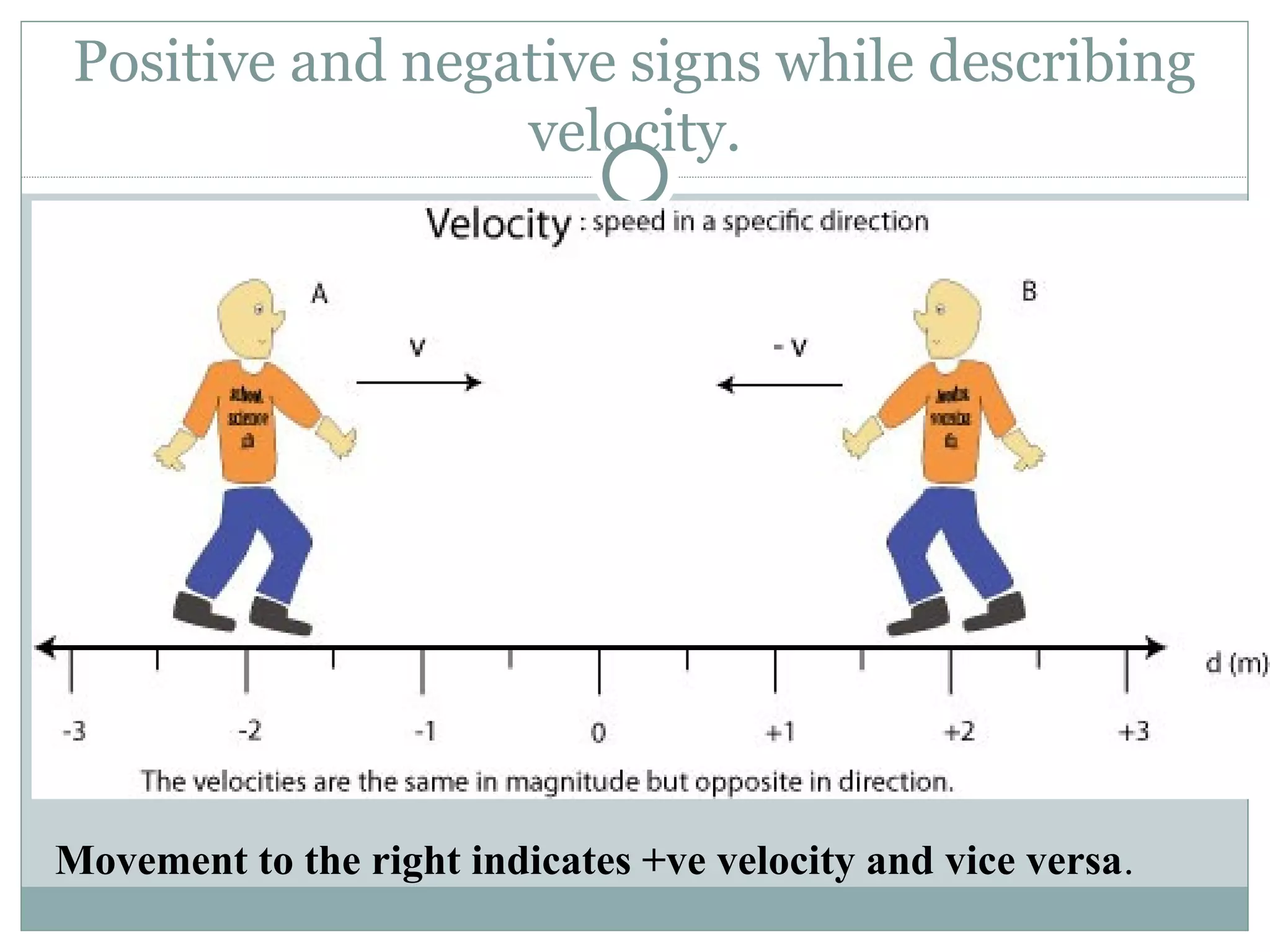

Positive and negative signs while describing
velocity.
Movement to the right indicates +ve velocity and vice versa.

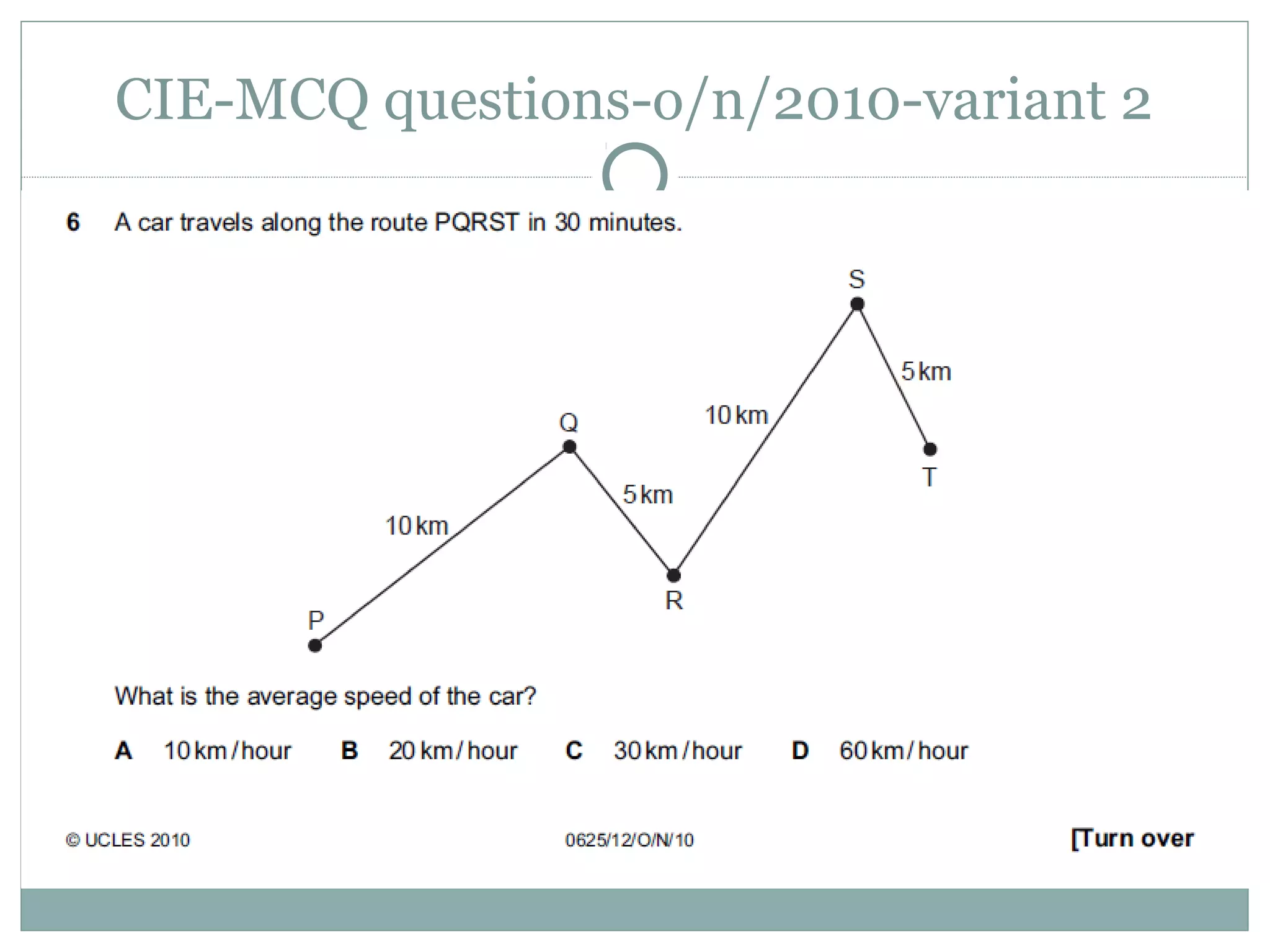

CIE-MCQ questions-o/n/2010-variant 2

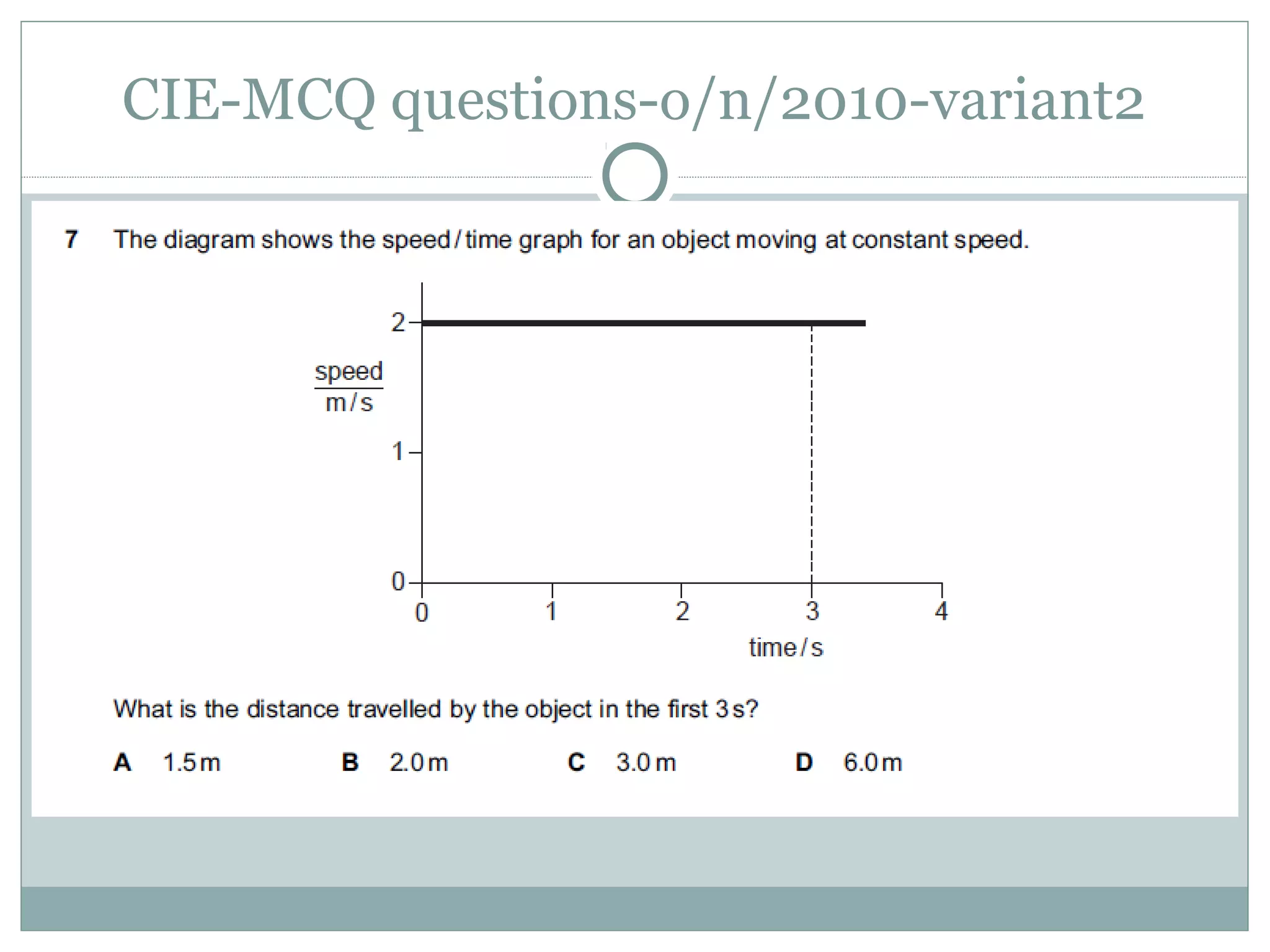

CIE-MCQ questions-o/n/2010-variant2

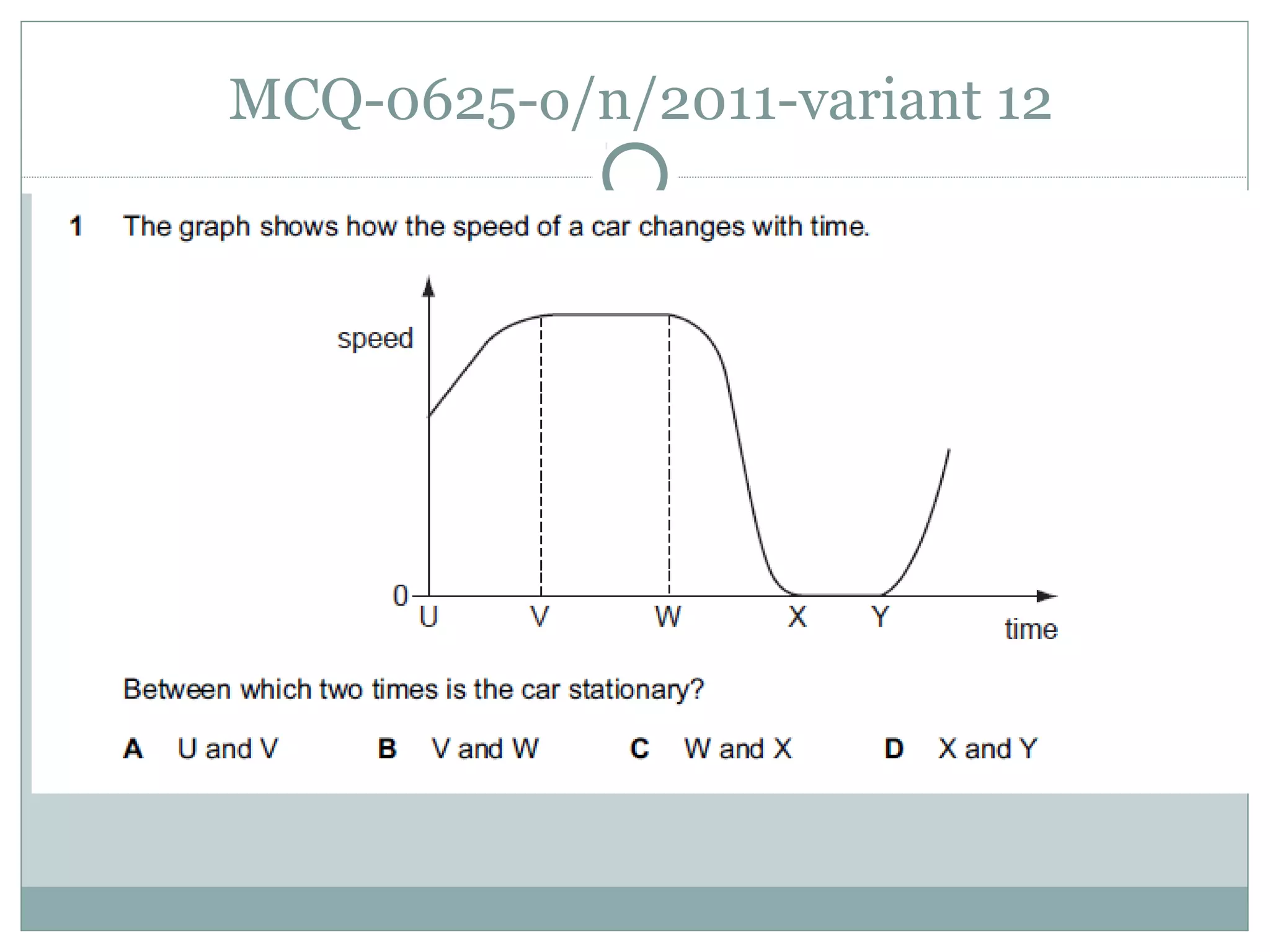

MCQ-0625-o/n/2011-variant 12

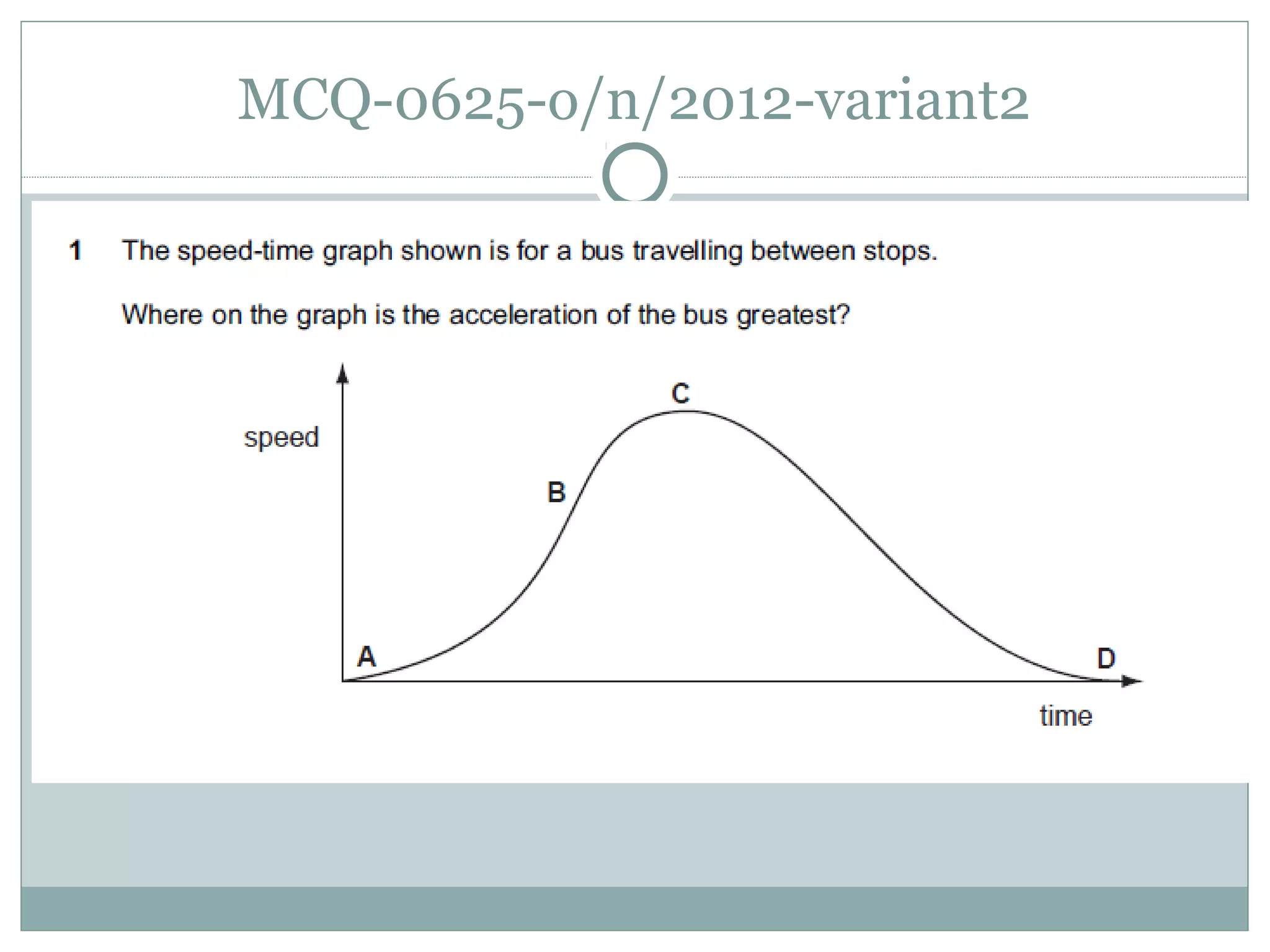

MCQ-0625-o/n/2012-variant2
O/N/2013-VARIANT 11

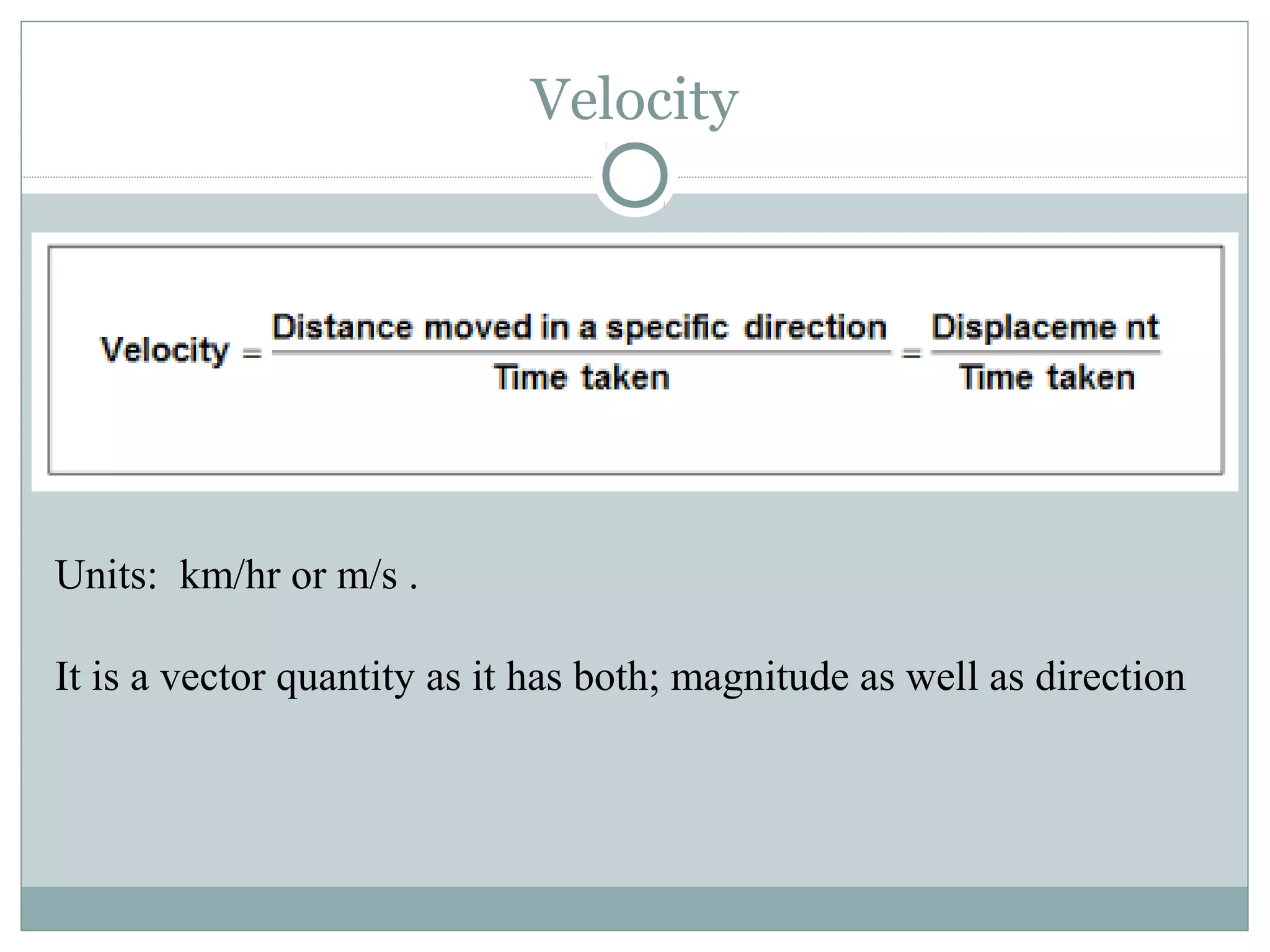

Velocity
Units: km/hr or m/s .
It is a vector quantity as it has both; magnitude as well as direction

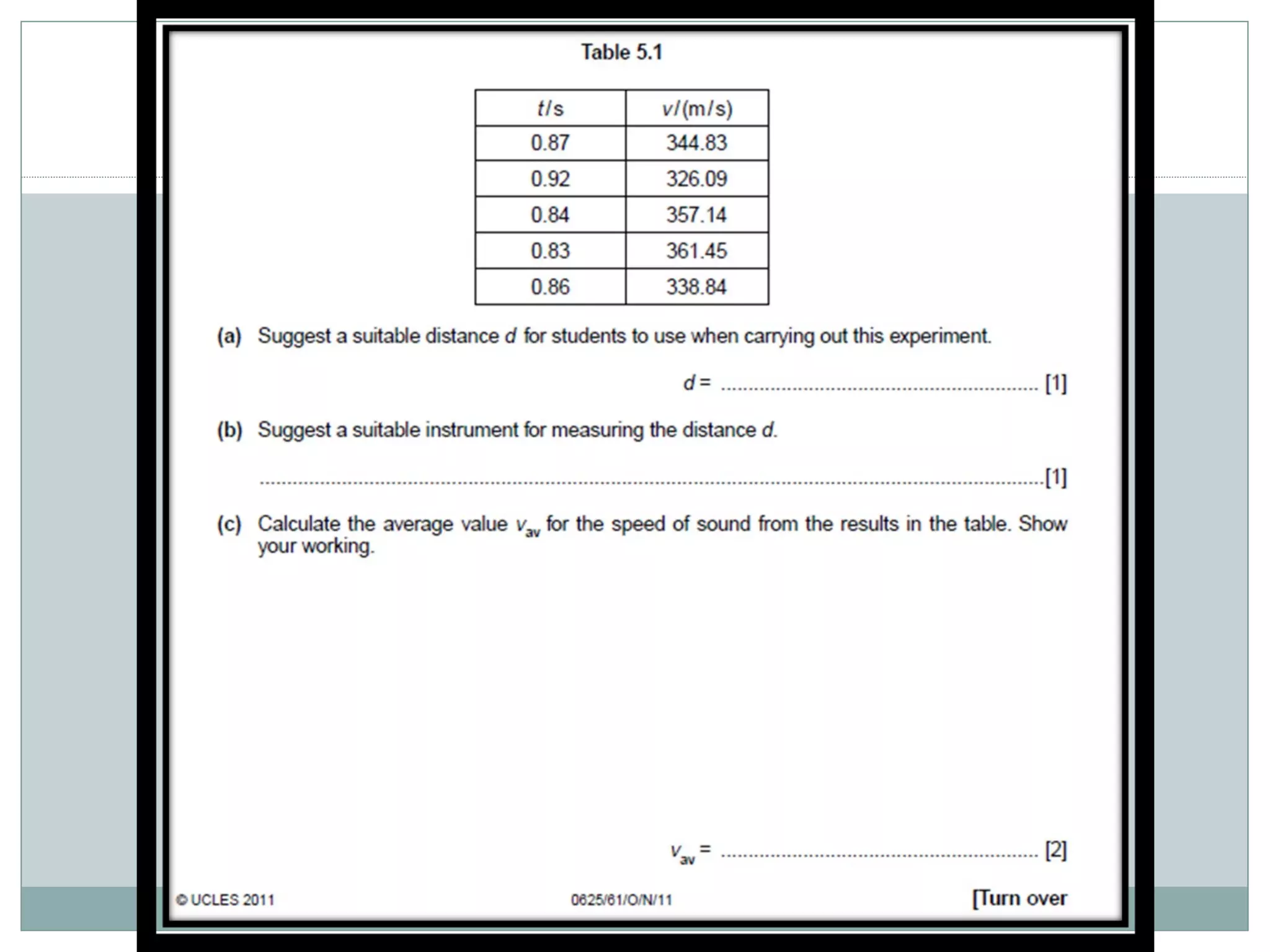

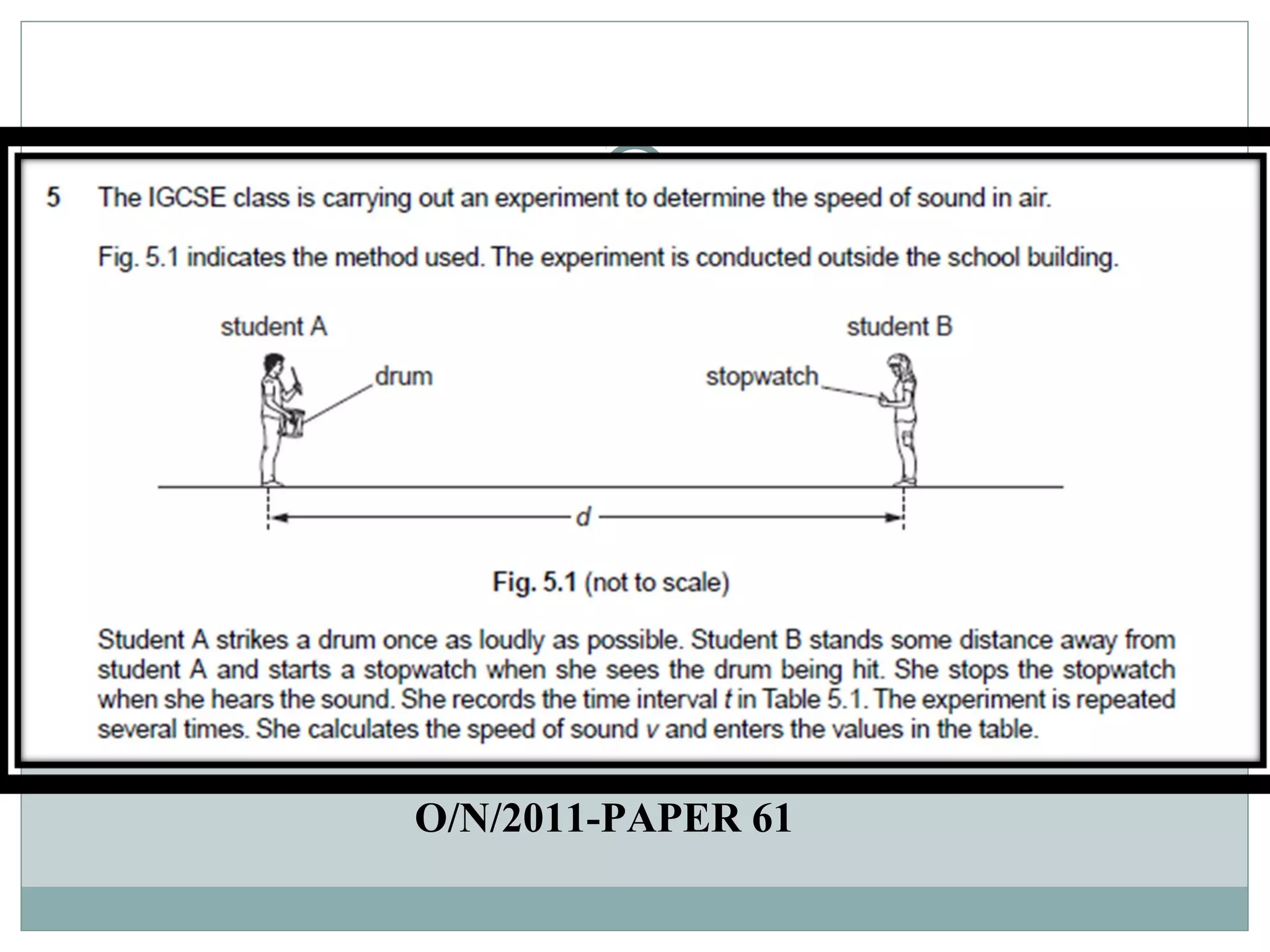

O/N/2011-PAPER 61

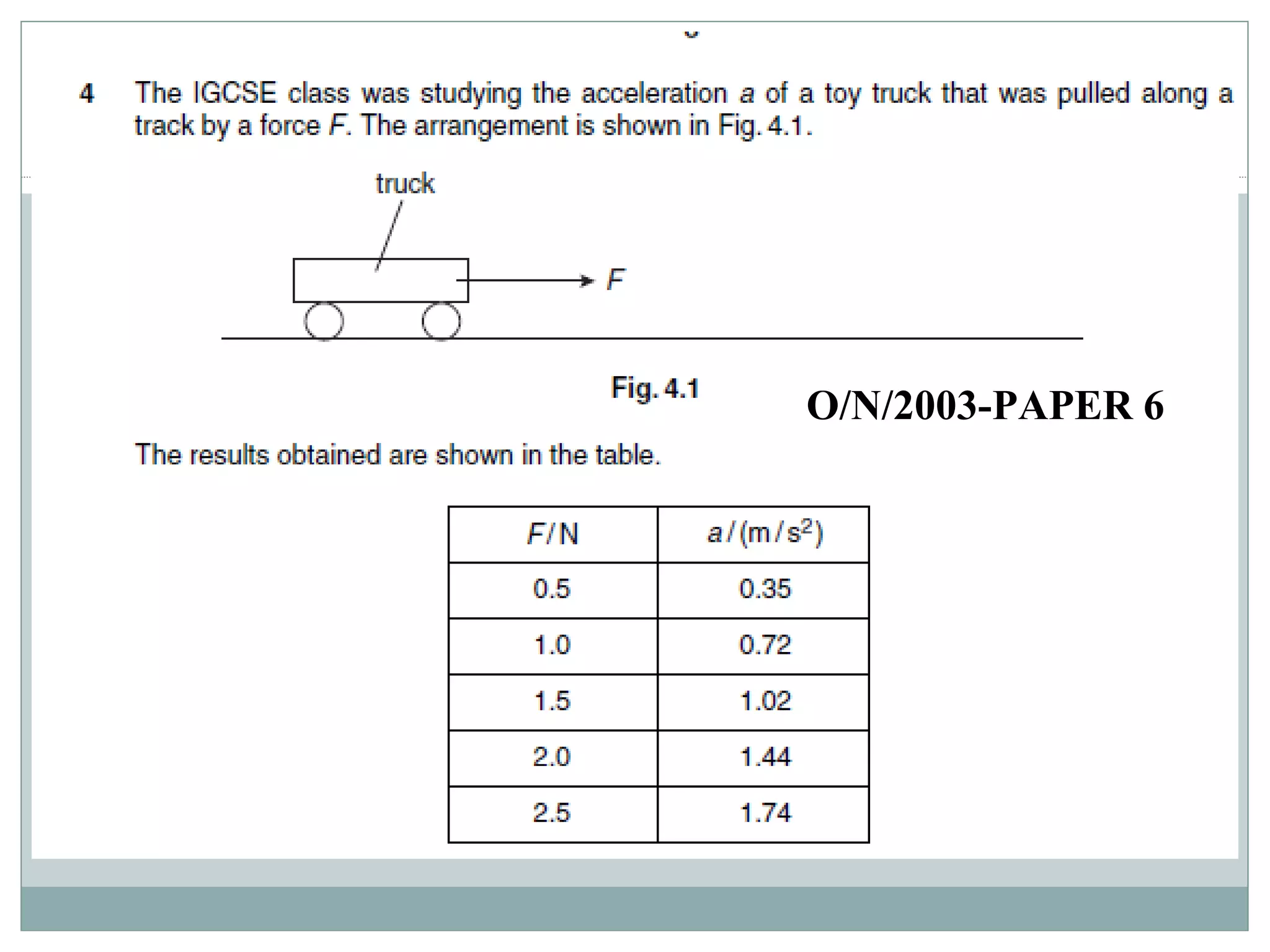

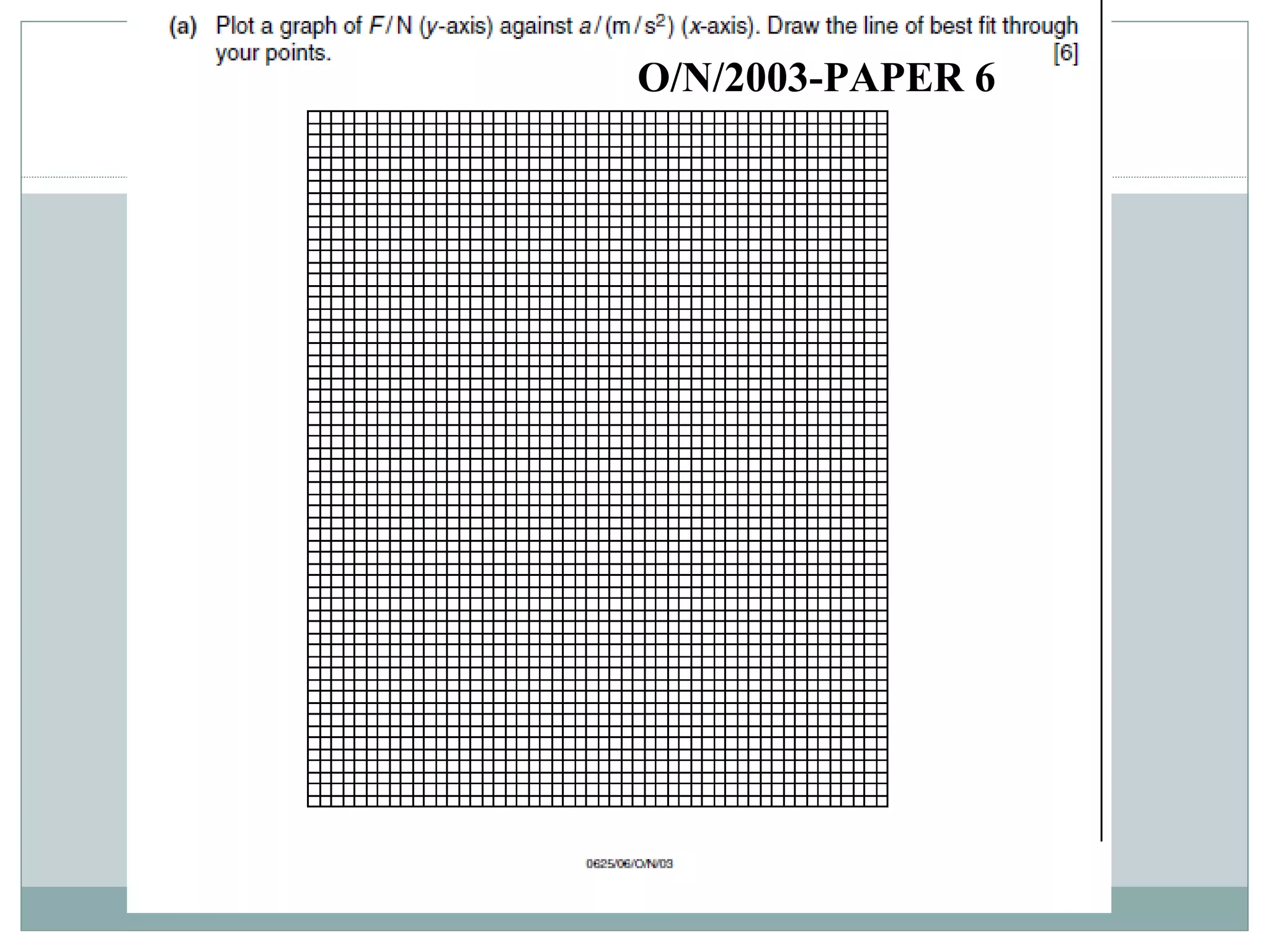

O/N/2003-PAPER 6
O/N/2003-PAPER 6

Motion graphs-speed, velocity and acceleration graphs
