@crichardson
Events and Commands:
Developing Asynchronous
Microservices
Chris Richardson
Founder of Eventuate.io
Founder of the original CloudFoundry.com
Author of POJOs in Action and Microservices Patterns
@crichardson
chris@chrisrichardson.net
http://learn.microservices.io
Copyright © 2018 Chris Richardson Consulting, Inc. All rights reserved
@crichardson

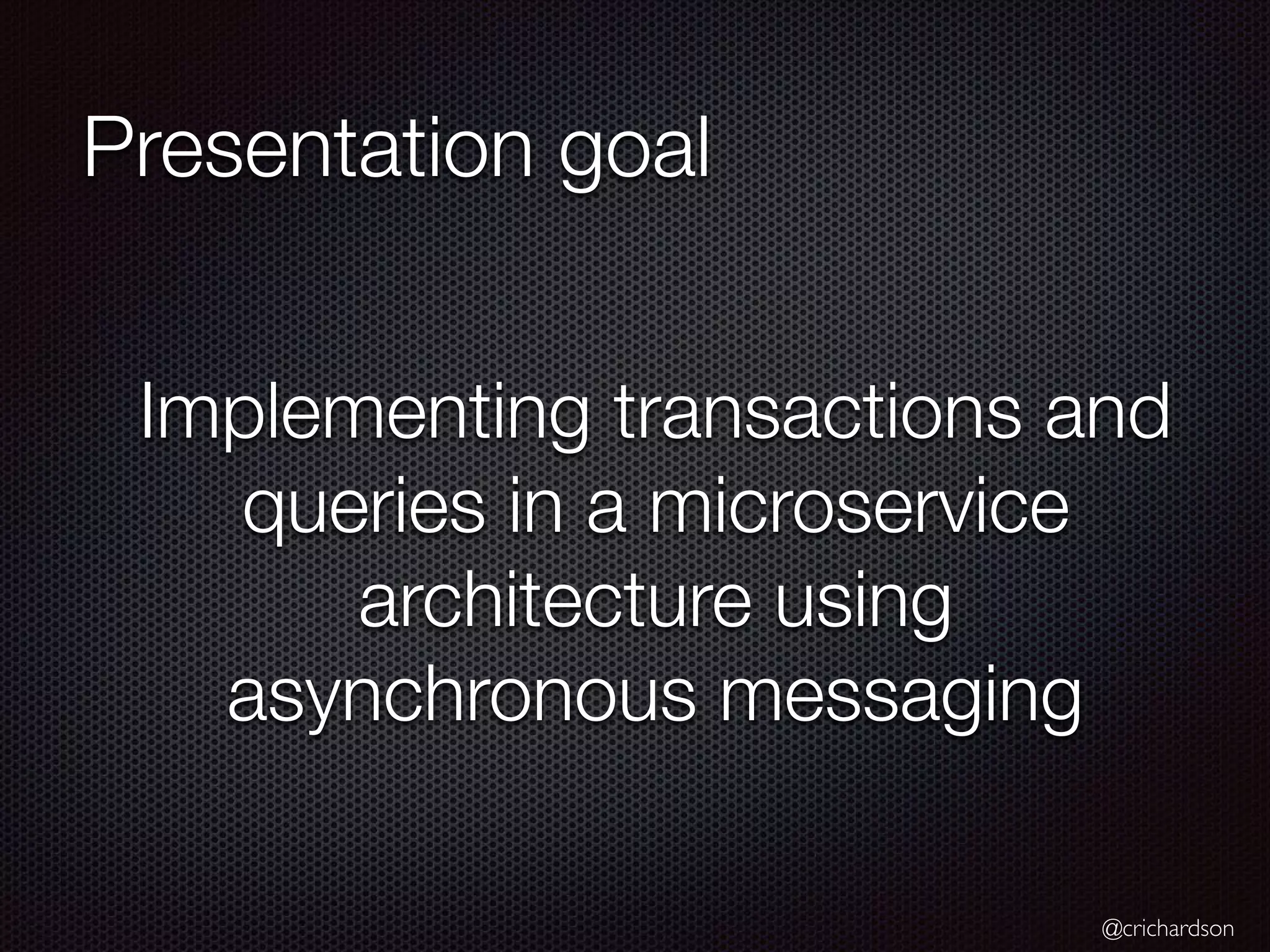

Presentation goal
Implementing transactions and
queries in a microservice
architecture using
asynchronous messaging
@crichardson

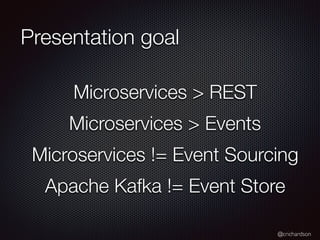

Presentation goal
Microservices > REST
Microservices > Events
Microservices != Event Sourcing

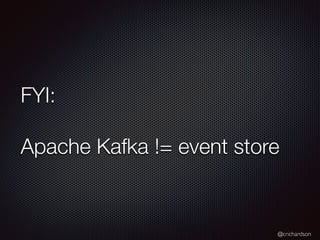

Apache Kafka != Event Store
@crichardson
About Chris
microservices.io eventuate.io
@crichardson
About Chris
https://microservices.io/book
@crichardson

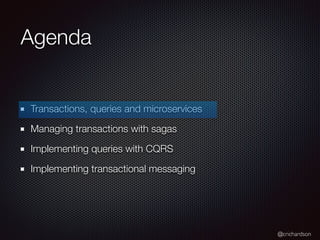

Agenda
Transactions, queries and microservices
Managing transactions with sagas
Implementing queries with CQRS
Implementing transactional messaging
The microservice architecture
structures
an application as a
set of loosely coupled
services
@crichardson
API

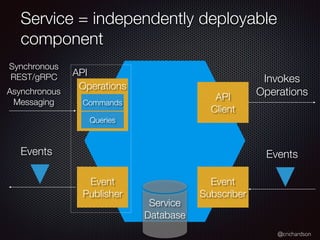

Service = independently deployable
component
Operations
Event
Publisher
Commands
Queries
Synchronous
REST/gRPC
Asynchronous
Messaging
Events
Event
Subscriber
API
Client
Invokes
Operations
Events
Service
Database
@crichardson

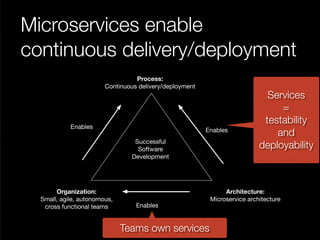

Microservices enable
continuous delivery/deployment
Process:
Continuous delivery/deployment
Organization:
Small, agile, autonomous,
cross functional teams
Architecture:
Microservice architecture
Enables
Enables
Enables
Successful
Software
Development
Services
=
testability
and
deployability
Teams own services
@crichardson
Let’s imagine that you are
building an online store API
createCustomer(creditLimit)
createOrder(customerId, orderTotal)
findOrdersForCustomer(customerId)
findRecentCustomers()
Order
Management
Customer
Management
REST API
…

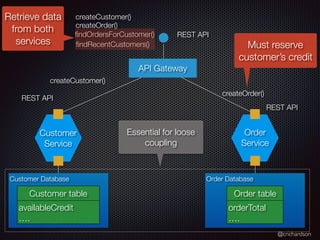

@crichardson
Order
Service
createCustomer()
createOrder()
findOrdersForCustomer()
findRecentCustomers()
API Gateway
createCustomer()
createOrder()
Order DatabaseCustomer Database
Order tableCustomer table
REST API
REST API
Essential for loose
coupling
Must reserve
customer’s credit
Retrieve data
from both
services
Customer
Service
REST API
availableCredit
….
orderTotal
….
@crichardson

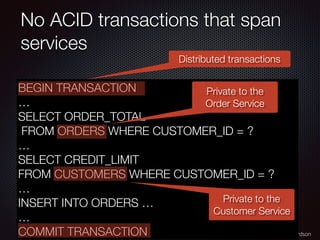

No ACID transactions that span
services
BEGIN TRANSACTION
…
SELECT ORDER_TOTAL
FROM ORDERS WHERE CUSTOMER_ID = ?
…
SELECT CREDIT_LIMIT
FROM CUSTOMERS WHERE CUSTOMER_ID = ?
…
INSERT INTO ORDERS …
…
COMMIT TRANSACTION
Private to the
Order Service
Private to the
Customer Service
Distributed transactions
@crichardson

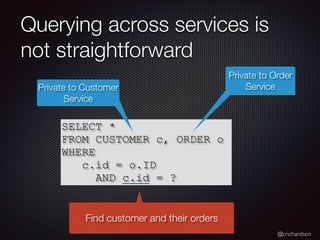

Querying across services is
not straightforward
SELECT *
FROM CUSTOMER c, ORDER o
WHERE
c.id = o.ID
AND c.id = ?
Private to Customer
Service
Private to Order
Service
Find customer and their orders
@crichardson
Agenda
Transactions, queries and microservices
Managing transactions with sagas
Implementing queries with CQRS
Implementing transactional messaging
@crichardson
From a 1987 paper
@crichardson

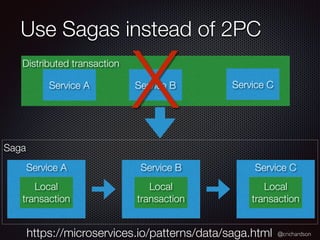

Saga
Use Sagas instead of 2PC
Distributed transaction
Service A Service B
Service A
Local
transaction
Service B
Local
transaction
Service C
Local
transaction
X Service C
https://microservices.io/patterns/data/saga.html
@crichardson
Order Service
Create Order Saga
Local transaction
Order
state=PENDING
createOrder()
Customer Service
Local transaction
Customer
reserveCredit()
Order Service
Local transaction
Order
state=APPROVED
approve
order()
createOrder() Initiates saga
@crichardson

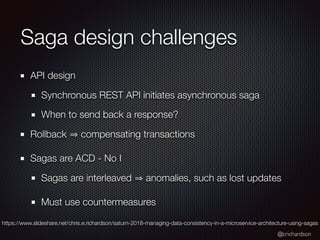

Saga design challenges
API design
Synchronous REST API initiates asynchronous saga
When to send back a response?
Rollback compensating transactions
Sagas are ACD - No I
Sagas are interleaved anomalies, such as lost updates
Must use countermeasures
https://www.slideshare.net/chris.e.richardson/saturn-2018-managing-data-consistency-in-a-microservice-architecture-using-sagas

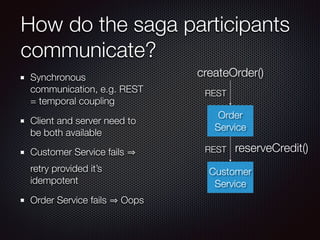

How do the saga participants
communicate?
Synchronous
communication, e.g. REST
= temporal coupling
Client and server need to
be both available
Customer Service fails
retry provided it’s
idempotent
Order Service fails Oops
Order
Service
createOrder()
REST
Customer
Service
reserveCredit()
REST
@crichardson

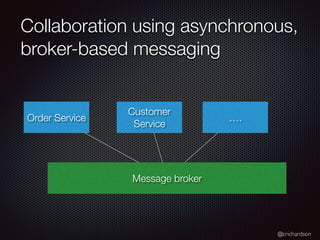

Collaboration using asynchronous,
broker-based messaging
Order Service
Customer
Service
….
Message broker
@crichardson

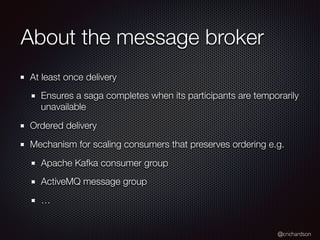

About the message broker
At least once delivery
Ensures a saga completes when its participants are temporarily
unavailable
Ordered delivery
Mechanism for scaling consumers that preserves ordering e.g.
Apache Kafka consumer group
ActiveMQ message group
…
@crichardson

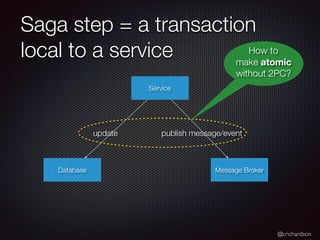

Saga step = a transaction
local to a service
Service
Database Message Broker
update publish message/event
How to
make atomic
without 2PC?
@crichardson

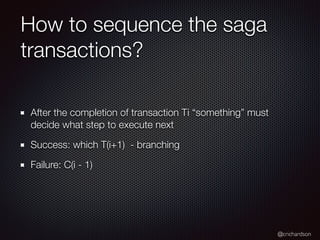

How to sequence the saga
transactions?
After the completion of transaction Ti “something” must
decide what step to execute next
Success: which T(i+1) - branching
Failure: C(i - 1)
@crichardson
Choreography: distributed decision making
vs.
Orchestration: centralized decision making

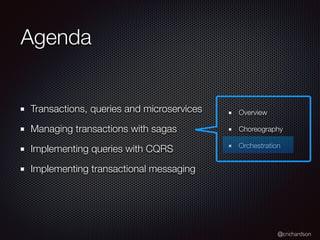

@crichardson

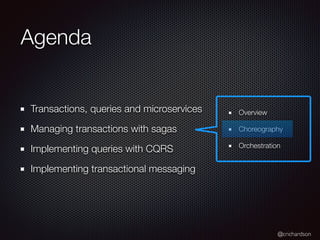

Transactions, queries and microservices
Managing transactions with sagas
Implementing queries with CQRS
Implementing transactional messaging
Overview
Choreography
Orchestration
Agenda
@crichardson
Message broker

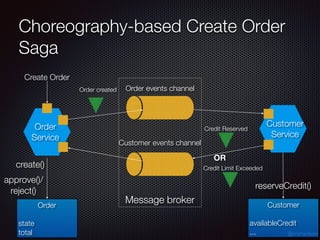

Choreography-based Create Order
Saga
Order created
Credit Reserved
Credit Limit Exceeded
Create Order
OR
Customer
availableCredit
...
Order
state
total
create()
reserveCredit()
approve()/
reject()
Order events channel
Customer events channel
Order
Service
Customer
Service

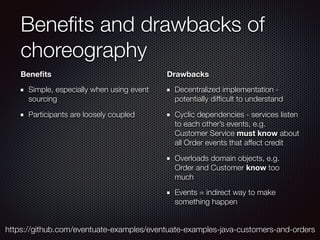

Benefits and drawbacks of
choreography
Benefits
Simple, especially when using event
sourcing
Participants are loosely coupled
Drawbacks
Decentralized implementation -
potentially difficult to understand
Cyclic dependencies - services listen
to each other’s events, e.g.
Customer Service must know about
all Order events that affect credit
Overloads domain objects, e.g.
Order and Customer know too
much
Events = indirect way to make
something happen
https://github.com/eventuate-examples/eventuate-examples-java-customers-and-orders
@crichardson
Agenda
Transactions, queries and microservices
Managing transactions with sagas
Implementing queries with CQRS
Implementing transactional messaging
Overview
Choreography
Orchestration
@crichardson
Order Service
Orchestration-based coordination using
command messages
Local transaction
Order
state=PENDING
createOrder()
Customer Service
Local transaction
Customer
reserveCredit()
Order Service
Local transaction
Order
state=APPROVED
approve
order()
createOrder() CreateOrderSaga
InvokesInvokesInvokes
@crichardson
A saga (orchestrator)
is a persistent object
that
implements a state machine
and
invokes the participants

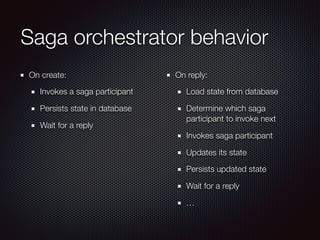

Saga orchestrator behavior
On create:
Invokes a saga participant
Persists state in database
Wait for a reply
On reply:
Load state from database
Determine which saga
participant to invoke next
Invokes saga participant
Updates its state
Persists updated state
Wait for a reply
…

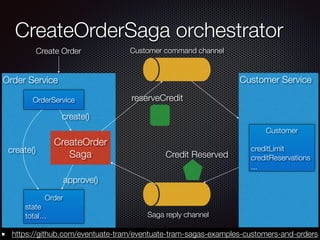

@crichardson
Order Service
CreateOrderSaga orchestrator
Customer Service
Create Order
Customer
creditLimit
creditReservations
...
Order
state
total…
reserveCredit
CreateOrder
Saga
OrderService
create()
create()
approve()
Credit Reserved
Customer command channel
Saga reply channel
https://github.com/eventuate-tram/eventuate-tram-sagas-examples-customers-and-orders

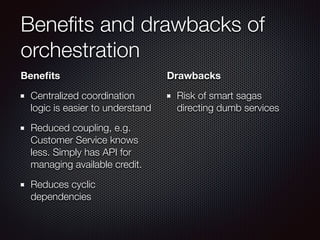

Benefits and drawbacks of
orchestration
Benefits
Centralized coordination
logic is easier to understand
Reduced coupling, e.g.
Customer Service knows
less. Simply has API for
managing available credit.
Reduces cyclic
dependencies
Drawbacks
Risk of smart sagas
directing dumb services
@crichardson

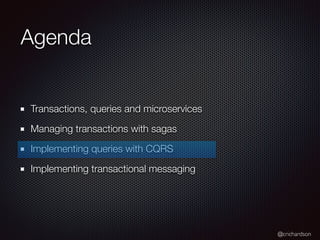

Agenda
Transactions, queries and microservices
Managing transactions with sagas
Implementing queries with CQRS
Implementing transactional messaging
@crichardson

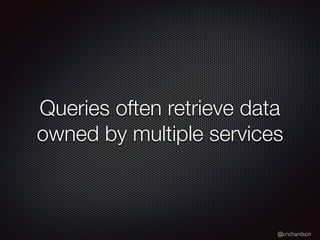

Queries often retrieve data
owned by multiple services
@crichardson
API Composition pattern
Customer Service
Customer
…
Order Service
Order
…
API Gateway
findOrdersForCustomer(customerId)
GET /customer/id GET /orders?customerId=id
https://microservices.io/patterns/data/api-composition.html
@crichardson

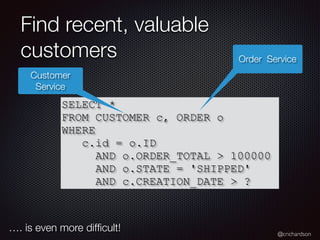

Find recent, valuable
customers
SELECT *
FROM CUSTOMER c, ORDER o
WHERE
c.id = o.ID
AND o.ORDER_TOTAL > 100000
AND o.STATE = 'SHIPPED'
AND c.CREATION_DATE > ?
Customer
Service
Order Service
…. is even more difficult!
API Composition would be
inefficient
1 + N strategy:
Fetch recent customers
Iterate through customers
fetching their shipped
orders
Lots of round trips
high-latency
Alternative strategy:
Fetch recent customers
Fetch recent orders
Join
2 roundtrips but
potentially large datasets
inefficient
@crichardson

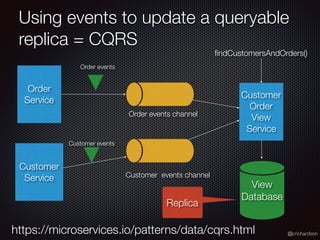

Using events to update a queryable
replica = CQRS
Order
Service
Customer
Service
Order events
Customer events
findCustomersAndOrders()
Order events channel
Customer events channel
Customer
Order
View
Service
Replica
View
Database
https://microservices.io/patterns/data/cqrs.html
@crichardson
Persisting a customer and
order history in MongoDB
{
"_id" : "0000014f9a45004b 0a00270000000000",
"name" : "Fred",
"creditLimit" : {
"amount" : "2000"
},
"orders" : {
"0000014f9a450063 0a00270000000000" : {
"state" : "APPROVED",
"orderId" : "0000014f9a450063 0a00270000000000",
"orderTotal" : {
"amount" : "1234"
}
},
"0000014f9a450063 0a00270000000001" : {
"state" : "REJECTED",
"orderId" : "0000014f9a450063 0a00270000000001",
"orderTotal" : {
"amount" : "3000"
}
}
}
}
Denormalized = efficient lookup
Customer
information
Order
information
@crichardson

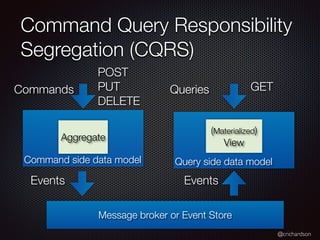

Query side data model
Command Query Responsibility
Segregation (CQRS)
Command side data model
Commands
Aggregate
Message broker or Event Store
Events
Queries
(Materialized)
View
Events
POST
PUT
DELETE
GET
@crichardson

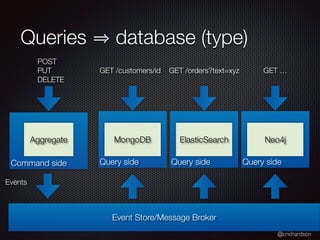

Queries database (type)
Command side
POST
PUT
DELETE
Aggregate
Event Store/Message Broker
Events
Query side
GET /customers/id
MongoDB
Query side
GET /orders?text=xyz
ElasticSearch
Query side
GET …
Neo4j
@crichardson
CQRS views are disposable
Rebuild when needed from source of truth
Using event sourcing
(Conceptually) replay all events from beginning of time
Using traditional persistence
“ETL” from source of truth databases
@crichardson

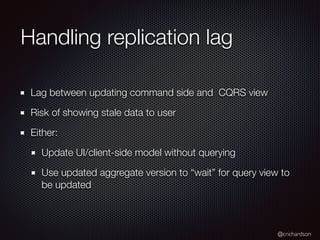

Handling replication lag
Lag between updating command side and CQRS view
Risk of showing stale data to user
Either:
Update UI/client-side model without querying
Use updated aggregate version to “wait” for query view to
be updated
@crichardson
Agenda
Transactions, queries and microservices
Managing transactions with sagas
Implementing queries with CQRS
Implementing transactional messaging
@crichardson
Messaging must be
transactional
Service
Database Message Broker
update publish
How to
make atomic
without 2PC?

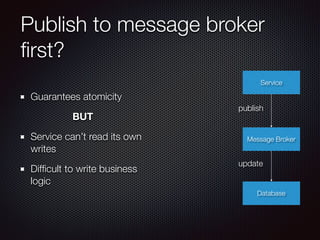

Publish to message broker
first?
Guarantees atomicity
BUT
Service can’t read its own
writes
Difficult to write business
logic
Service
Database
Message Broker
update
publish
@crichardson
Option: Event sourcing
=
Event centric approach to
business logic and persistence
http://eventuate.io/
@crichardson

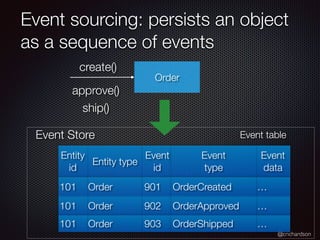

Event sourcing: persists an object
as a sequence of events
Event table
Entity type
Event
id
Entity
id
Event
data
Order 902101 …OrderApproved
Order 903101 …OrderShipped
Event
type
Order 901101 …OrderCreated
Order
create()
approve()
ship()
Event Store
@crichardson

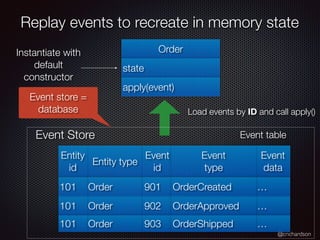

Replay events to recreate in memory state
Order
state
apply(event)
Event table
Entity type
Event
id
Entity
id
Event
data
Order 902101 …OrderApproved
Order 903101 …OrderShipped
Event
type
Order 901101 …OrderCreated
Event Store
Load events by ID and call apply()
Instantiate with
default
constructor
Event store =
database
@crichardson
FYI:
Apache Kafka != event store
@crichardson

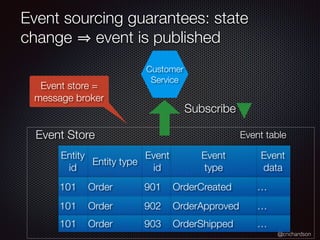

Event sourcing guarantees: state
change event is published
Event table
Entity type
Event
id
Entity
id
Event
data
Order 902101 …OrderApproved
Order 903101 …OrderShipped
Event
type
Order 901101 …OrderCreated
Event Store
Customer
Service
Subscribe
Event store =
message broker
@crichardson

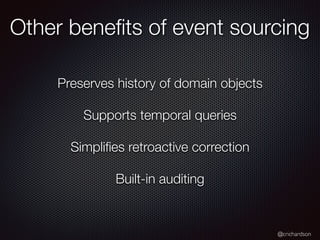

Preserves history of domain objects
Supports temporal queries
Simplifies retroactive correction
Built-in auditing
Other benefits of event sourcing
@crichardson
Unfamiliar programming model
Evolving the schema of long-lived events
Event store only supports PK-based access
requires CQRS less consistent reads
Drawbacks of event sourcing
@crichardson

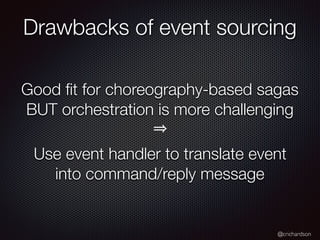

Good fit for choreography-based sagas
BUT orchestration is more challenging
Use event handler to translate event
into command/reply message
Drawbacks of event sourcing
@crichardson
Option:
Traditional persistence
(JPA, MyBatis,…)
+
Transactional outbox pattern
https://github.com/eventuate-tram/eventuate-tram-core
@crichardson

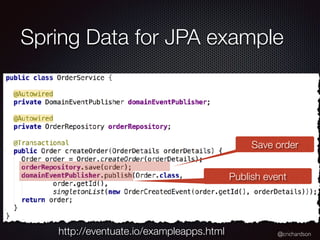

Spring Data for JPA example
Publish event
Save order
http://eventuate.io/exampleapps.html
@crichardson
Transactional outbox pattern
ACID
transaction
See BASE: An Acid Alternative, http://bit.ly/ebaybase
DELETE
?
Customer
Service
ORDER_ID CUSTOMER_ID TOTAL
99
CUSTOMER_CREDIT_RESERVATIONS table
101 1234
ID TYPE DATA DESTINATION
MESSAGE table
84784 CreditReserved {…} …
INSERT INSERT
Message
Publisher
QUERY
Message
Broker
Publish
Local transaction
reserveCredit()
DomainEventPublisher
@crichardson
Transaction log tailing
Order
Service
Datastore
ORDER table
Transaction log
Update
Transaction log
miner
Message
Broker
Publish
Changes
MySQL binlog
Postgres WAL
AWS DynamoDB table streams
MongoDB change streams
http://eventuate.io/
@crichardson

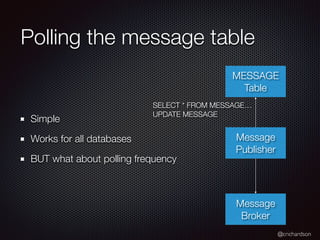

Polling the message table
Simple
Works for all databases
BUT what about polling frequency
MESSAGE
Table
Message
Publisher
Message
Broker
SELECT * FROM MESSAGE…
UPDATE MESSAGE
@crichardson

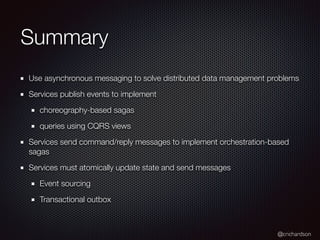

Summary
Use asynchronous messaging to solve distributed data management problems
Services publish events to implement
choreography-based sagas
queries using CQRS views
Services send command/reply messages to implement orchestration-based
sagas
Services must atomically update state and send messages
Event sourcing
Transactional outbox
@crichardson
@crichardson chris@chrisrichardson.net
http://learn.microservices.io
Questions?

More Related Content

What's hot

Mainframe Integration, Offloading and Replacement with Apache Kafka
Mainframe Integration, Offloading and Replacement with Apache KafkaMainframe Integration, Offloading and Replacement with Apache Kafka
Mainframe Integration, Offloading and Replacement with Apache Kafka
Kai Wähner


What's hot (20)

A pattern language for microservices - June 2021
A pattern language for microservices - June 2021 A pattern language for microservices - June 2021
A pattern language for microservices - June 2021

Microservices Part 3 Service Mesh and Kafka
Microservices Part 3 Service Mesh and KafkaMicroservices Part 3 Service Mesh and Kafka
Microservices Part 3 Service Mesh and Kafka

Hexagonal architecture with Spring Boot
Hexagonal architecture with Spring BootHexagonal architecture with Spring Boot
Hexagonal architecture with Spring Boot

Microservices in the Apache Kafka Ecosystem
Microservices in the Apache Kafka EcosystemMicroservices in the Apache Kafka Ecosystem
Microservices in the Apache Kafka Ecosystem

Micro services Architecture
Micro services ArchitectureMicro services Architecture
Micro services Architecture

Mainframe Integration, Offloading and Replacement with Apache Kafka
Mainframe Integration, Offloading and Replacement with Apache KafkaMainframe Integration, Offloading and Replacement with Apache Kafka
Mainframe Integration, Offloading and Replacement with Apache Kafka

Event Driven Architecture (EDA) Reference Architecture
Event Driven Architecture (EDA) Reference ArchitectureEvent Driven Architecture (EDA) Reference Architecture
Event Driven Architecture (EDA) Reference Architecture

Microservice Architecture Patterns, by Richard Langlois P. Eng.
Microservice Architecture Patterns, by Richard Langlois P. Eng.Microservice Architecture Patterns, by Richard Langlois P. Eng.
Microservice Architecture Patterns, by Richard Langlois P. Eng.

MicroCPH - Managing data consistency in a microservice architecture using Sagas
MicroCPH - Managing data consistency in a microservice architecture using SagasMicroCPH - Managing data consistency in a microservice architecture using Sagas
MicroCPH - Managing data consistency in a microservice architecture using Sagas

Introduction to microservices
Introduction to microservicesIntroduction to microservices
Introduction to microservices

Apache Kafka vs RabbitMQ: Fit For Purpose / Decision Tree
Apache Kafka vs RabbitMQ: Fit For Purpose / Decision TreeApache Kafka vs RabbitMQ: Fit For Purpose / Decision Tree
Apache Kafka vs RabbitMQ: Fit For Purpose / Decision Tree

Microservices Docker Kubernetes Istio Kanban DevOps SRE
Microservices Docker Kubernetes Istio Kanban DevOps SREMicroservices Docker Kubernetes Istio Kanban DevOps SRE
Microservices Docker Kubernetes Istio Kanban DevOps SRE

QCONSF - ACID Is So Yesterday: Maintaining Data Consistency with Sagas
QCONSF - ACID Is So Yesterday: Maintaining Data Consistency with SagasQCONSF - ACID Is So Yesterday: Maintaining Data Consistency with Sagas
QCONSF - ACID Is So Yesterday: Maintaining Data Consistency with Sagas

Build and Deploy Cloud Native Camel Quarkus routes with Tekton and Knative
Build and Deploy Cloud Native Camel Quarkus routes with Tekton and KnativeBuild and Deploy Cloud Native Camel Quarkus routes with Tekton and Knative
Build and Deploy Cloud Native Camel Quarkus routes with Tekton and Knative

Microservices, DevOps & SRE
Microservices, DevOps & SREMicroservices, DevOps & SRE
Microservices, DevOps & SRE

Microservices
MicroservicesMicroservices
Microservices

Introduction to Microservices Patterns
Introduction to Microservices PatternsIntroduction to Microservices Patterns
Introduction to Microservices Patterns

Mucon: Not Just Events: Developing Asynchronous Microservices
Mucon: Not Just Events: Developing Asynchronous MicroservicesMucon: Not Just Events: Developing Asynchronous Microservices
Mucon: Not Just Events: Developing Asynchronous Microservices

Microservices with Docker
Microservices with Docker Microservices with Docker
Microservices with Docker

Service Mesh - Observability
Service Mesh - ObservabilityService Mesh - Observability
Service Mesh - Observability


Similar to YOW2018 - Events and Commands: Developing Asynchronous Microservices

Developing Applications with a Micro Service Architecture - Chris Richardson
Developing Applications with a Micro Service Architecture - Chris RichardsonDeveloping Applications with a Micro Service Architecture - Chris Richardson
Developing Applications with a Micro Service Architecture - Chris Richardson
JAXLondon2014


Similar to YOW2018 - Events and Commands: Developing Asynchronous Microservices (20)

GotoChgo 2019: Not Just Events: Developing Asynchronous Microservices
GotoChgo 2019: Not Just Events: Developing Asynchronous MicroservicesGotoChgo 2019: Not Just Events: Developing Asynchronous Microservices
GotoChgo 2019: Not Just Events: Developing Asynchronous Microservices

Oracle Code One: Events and commands: developing asynchronous microservices
Oracle Code One: Events and commands: developing asynchronous microservicesOracle Code One: Events and commands: developing asynchronous microservices
Oracle Code One: Events and commands: developing asynchronous microservices

An overview of the Eventuate Platform
An overview of the Eventuate PlatformAn overview of the Eventuate Platform
An overview of the Eventuate Platform

Saturn 2018: Managing data consistency in a microservice architecture using S...
Saturn 2018: Managing data consistency in a microservice architecture using S...Saturn 2018: Managing data consistency in a microservice architecture using S...
Saturn 2018: Managing data consistency in a microservice architecture using S...

Building microservices with Scala, functional domain models and Spring Boot
Building microservices with Scala, functional domain models and Spring BootBuilding microservices with Scala, functional domain models and Spring Boot
Building microservices with Scala, functional domain models and Spring Boot

Solving distributed data management problems in a microservice architecture (...
Solving distributed data management problems in a microservice architecture (...Solving distributed data management problems in a microservice architecture (...
Solving distributed data management problems in a microservice architecture (...

SVCC Developing Asynchronous, Message-Driven Microservices
SVCC Developing Asynchronous, Message-Driven Microservices  SVCC Developing Asynchronous, Message-Driven Microservices
SVCC Developing Asynchronous, Message-Driven Microservices

JavaOne2017: ACID Is So Yesterday: Maintaining Data Consistency with Sagas
JavaOne2017: ACID Is So Yesterday: Maintaining Data Consistency with SagasJavaOne2017: ACID Is So Yesterday: Maintaining Data Consistency with Sagas
JavaOne2017: ACID Is So Yesterday: Maintaining Data Consistency with Sagas

Microservices + Events + Docker = A Perfect Trio by Docker Captain Chris Rich...
Microservices + Events + Docker = A Perfect Trio by Docker Captain Chris Rich...Microservices + Events + Docker = A Perfect Trio by Docker Captain Chris Rich...
Microservices + Events + Docker = A Perfect Trio by Docker Captain Chris Rich...

Microservices + Events + Docker = A Perfect Trio (dockercon)
Microservices + Events + Docker = A Perfect Trio (dockercon)Microservices + Events + Docker = A Perfect Trio (dockercon)
Microservices + Events + Docker = A Perfect Trio (dockercon)

#JaxLondon keynote: Developing applications with a microservice architecture
#JaxLondon keynote: Developing applications with a microservice architecture#JaxLondon keynote: Developing applications with a microservice architecture
#JaxLondon keynote: Developing applications with a microservice architecture

Developing Applications with a Micro Service Architecture - Chris Richardson
Developing Applications with a Micro Service Architecture - Chris RichardsonDeveloping Applications with a Micro Service Architecture - Chris Richardson
Developing Applications with a Micro Service Architecture - Chris Richardson

Developing event-driven microservices with event sourcing and CQRS (london Ja...
Developing event-driven microservices with event sourcing and CQRS (london Ja...Developing event-driven microservices with event sourcing and CQRS (london Ja...
Developing event-driven microservices with event sourcing and CQRS (london Ja...

Microservices in Java and Scala (sfscala)
Microservices in Java and Scala (sfscala)Microservices in Java and Scala (sfscala)
Microservices in Java and Scala (sfscala)

Developing applications with a microservice architecture (SVforum, microservi...
Developing applications with a microservice architecture (SVforum, microservi...Developing applications with a microservice architecture (SVforum, microservi...
Developing applications with a microservice architecture (SVforum, microservi...

Developing event-driven microservices with event sourcing and CQRS (Shanghai)
Developing event-driven microservices with event sourcing and CQRS (Shanghai)Developing event-driven microservices with event sourcing and CQRS (Shanghai)
Developing event-driven microservices with event sourcing and CQRS (Shanghai)

Developing applications with a microservice architecture (svcc)
Developing applications with a microservice architecture (svcc)Developing applications with a microservice architecture (svcc)
Developing applications with a microservice architecture (svcc)

Developing event-driven microservices with event sourcing and CQRS (phillyete)
Developing event-driven microservices with event sourcing and CQRS (phillyete)Developing event-driven microservices with event sourcing and CQRS (phillyete)
Developing event-driven microservices with event sourcing and CQRS (phillyete)

Building microservices with Scala, functional domain models and Spring Boot (...
Building microservices with Scala, functional domain models and Spring Boot (...Building microservices with Scala, functional domain models and Spring Boot (...
Building microservices with Scala, functional domain models and Spring Boot (...

OReilly SACON2018 - Events on the outside, on the inside, and at the core
OReilly SACON2018 - Events on the outside, on the inside, and at the coreOReilly SACON2018 - Events on the outside, on the inside, and at the core
OReilly SACON2018 - Events on the outside, on the inside, and at the core


More from Chris Richardson

More from Chris Richardson (20)

The microservice architecture: what, why, when and how?
The microservice architecture: what, why, when and how?The microservice architecture: what, why, when and how?
The microservice architecture: what, why, when and how?

More the merrier: a microservices anti-pattern
More the merrier: a microservices anti-patternMore the merrier: a microservices anti-pattern
More the merrier: a microservices anti-pattern

YOW London - Considering Migrating a Monolith to Microservices? A Dark Energy...
YOW London - Considering Migrating a Monolith to Microservices? A Dark Energy...YOW London - Considering Migrating a Monolith to Microservices? A Dark Energy...
YOW London - Considering Migrating a Monolith to Microservices? A Dark Energy...

Dark Energy, Dark Matter and the Microservices Patterns?!
Dark Energy, Dark Matter and the Microservices Patterns?!Dark Energy, Dark Matter and the Microservices Patterns?!
Dark Energy, Dark Matter and the Microservices Patterns?!

Dark energy, dark matter and microservice architecture collaboration patterns
Dark energy, dark matter and microservice architecture collaboration patternsDark energy, dark matter and microservice architecture collaboration patterns
Dark energy, dark matter and microservice architecture collaboration patterns

Scenarios_and_Architecture_SkillsMatter_April_2022.pdf
Scenarios_and_Architecture_SkillsMatter_April_2022.pdfScenarios_and_Architecture_SkillsMatter_April_2022.pdf
Scenarios_and_Architecture_SkillsMatter_April_2022.pdf

Using patterns and pattern languages to make better architectural decisions
Using patterns and pattern languages to make better architectural decisions Using patterns and pattern languages to make better architectural decisions
Using patterns and pattern languages to make better architectural decisions

iSAQB gathering 2021 keynote - Architectural patterns for rapid, reliable, fr...
iSAQB gathering 2021 keynote - Architectural patterns for rapid, reliable, fr...iSAQB gathering 2021 keynote - Architectural patterns for rapid, reliable, fr...
iSAQB gathering 2021 keynote - Architectural patterns for rapid, reliable, fr...

Events to the rescue: solving distributed data problems in a microservice arc...
Events to the rescue: solving distributed data problems in a microservice arc...Events to the rescue: solving distributed data problems in a microservice arc...
Events to the rescue: solving distributed data problems in a microservice arc...

QConPlus 2021: Minimizing Design Time Coupling in a Microservice Architecture
QConPlus 2021: Minimizing Design Time Coupling in a Microservice ArchitectureQConPlus 2021: Minimizing Design Time Coupling in a Microservice Architecture
QConPlus 2021: Minimizing Design Time Coupling in a Microservice Architecture

Mucon 2021 - Dark energy, dark matter: imperfect metaphors for designing micr...
Mucon 2021 - Dark energy, dark matter: imperfect metaphors for designing micr...Mucon 2021 - Dark energy, dark matter: imperfect metaphors for designing micr...
Mucon 2021 - Dark energy, dark matter: imperfect metaphors for designing micr...

Designing loosely coupled services
Designing loosely coupled servicesDesigning loosely coupled services
Designing loosely coupled services

Microservices - an architecture that enables DevOps (T Systems DevOps day)
Microservices - an architecture that enables DevOps (T Systems DevOps day)Microservices - an architecture that enables DevOps (T Systems DevOps day)
Microservices - an architecture that enables DevOps (T Systems DevOps day)

DDD SoCal: Decompose your monolith: Ten principles for refactoring a monolith...
DDD SoCal: Decompose your monolith: Ten principles for refactoring a monolith...DDD SoCal: Decompose your monolith: Ten principles for refactoring a monolith...
DDD SoCal: Decompose your monolith: Ten principles for refactoring a monolith...

Decompose your monolith: Six principles for refactoring a monolith to microse...
Decompose your monolith: Six principles for refactoring a monolith to microse...Decompose your monolith: Six principles for refactoring a monolith to microse...
Decompose your monolith: Six principles for refactoring a monolith to microse...

TDC2020 - The microservice architecture: enabling rapid, reliable, frequent a...
TDC2020 - The microservice architecture: enabling rapid, reliable, frequent a...TDC2020 - The microservice architecture: enabling rapid, reliable, frequent a...
TDC2020 - The microservice architecture: enabling rapid, reliable, frequent a...

Overview of the Eventuate Tram Customers and Orders application
Overview of the Eventuate Tram Customers and Orders applicationOverview of the Eventuate Tram Customers and Orders application
Overview of the Eventuate Tram Customers and Orders application

#DevNexus202 Decompose your monolith
#DevNexus202 Decompose your monolith#DevNexus202 Decompose your monolith
#DevNexus202 Decompose your monolith

JFokus: Cubes, Hexagons, Triangles, and More: Understanding Microservices
JFokus: Cubes, Hexagons, Triangles, and More: Understanding MicroservicesJFokus: Cubes, Hexagons, Triangles, and More: Understanding Microservices
JFokus: Cubes, Hexagons, Triangles, and More: Understanding Microservices

Decompose your monolith: strategies for migrating to microservices (Tide)
Decompose your monolith: strategies for migrating to microservices (Tide)Decompose your monolith: strategies for migrating to microservices (Tide)
Decompose your monolith: strategies for migrating to microservices (Tide)


Recently uploaded

Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Lisi Hocke

Jax, FL Admin Community Group 05.14.2024 Combined Deck
Jax, FL Admin Community Group 05.14.2024 Combined DeckJax, FL Admin Community Group 05.14.2024 Combined Deck
Jax, FL Admin Community Group 05.14.2024 Combined Deck
Marc Lester


Recently uploaded (20)

Transformer Neural Network Use Cases with Links
Transformer Neural Network Use Cases with LinksTransformer Neural Network Use Cases with Links
Transformer Neural Network Use Cases with Links

COMPUTER AND ITS COMPONENTS PPT.by naitik sharma Class 9th A mittal internati...
COMPUTER AND ITS COMPONENTS PPT.by naitik sharma Class 9th A mittal internati...COMPUTER AND ITS COMPONENTS PPT.by naitik sharma Class 9th A mittal internati...
COMPUTER AND ITS COMPONENTS PPT.by naitik sharma Class 9th A mittal internati...

Weeding your micro service landscape.pdf
Weeding your micro service landscape.pdfWeeding your micro service landscape.pdf
Weeding your micro service landscape.pdf

Microsoft365_Dev_Security_2024_05_16.pdf
Microsoft365_Dev_Security_2024_05_16.pdfMicrosoft365_Dev_Security_2024_05_16.pdf
Microsoft365_Dev_Security_2024_05_16.pdf

Navigation in flutter – how to add stack, tab, and drawer navigators to your ...
Navigation in flutter – how to add stack, tab, and drawer navigators to your ...Navigation in flutter – how to add stack, tab, and drawer navigators to your ...
Navigation in flutter – how to add stack, tab, and drawer navigators to your ...

Abortion Pill Prices Jane Furse ](+27832195400*)[ 🏥 Women's Abortion Clinic i...
Abortion Pill Prices Jane Furse ](+27832195400*)[ 🏥 Women's Abortion Clinic i...Abortion Pill Prices Jane Furse ](+27832195400*)[ 🏥 Women's Abortion Clinic i...
Abortion Pill Prices Jane Furse ](+27832195400*)[ 🏥 Women's Abortion Clinic i...

Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...

UNI DI NAPOLI FEDERICO II - Il ruolo dei grafi nell'AI Conversazionale Ibrida
UNI DI NAPOLI FEDERICO II - Il ruolo dei grafi nell'AI Conversazionale IbridaUNI DI NAPOLI FEDERICO II - Il ruolo dei grafi nell'AI Conversazionale Ibrida
UNI DI NAPOLI FEDERICO II - Il ruolo dei grafi nell'AI Conversazionale Ibrida

Test Automation Design Patterns_ A Comprehensive Guide.pdf
Test Automation Design Patterns_ A Comprehensive Guide.pdfTest Automation Design Patterns_ A Comprehensive Guide.pdf
Test Automation Design Patterns_ A Comprehensive Guide.pdf

Effective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeConEffective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeCon

Jax, FL Admin Community Group 05.14.2024 Combined Deck
Jax, FL Admin Community Group 05.14.2024 Combined DeckJax, FL Admin Community Group 05.14.2024 Combined Deck
Jax, FL Admin Community Group 05.14.2024 Combined Deck

Software Engineering - Introduction + Process Models + Requirements Engineering
Software Engineering - Introduction + Process Models + Requirements EngineeringSoftware Engineering - Introduction + Process Models + Requirements Engineering
Software Engineering - Introduction + Process Models + Requirements Engineering

From Theory to Practice: Utilizing SpiraPlan's REST API
From Theory to Practice: Utilizing SpiraPlan's REST APIFrom Theory to Practice: Utilizing SpiraPlan's REST API
From Theory to Practice: Utilizing SpiraPlan's REST API

BusinessGPT - Security and Governance for Generative AI
BusinessGPT  - Security and Governance for Generative AIBusinessGPT  - Security and Governance for Generative AI
BusinessGPT - Security and Governance for Generative AI

Encryption Recap: A Refresher on Key Concepts
Encryption Recap: A Refresher on Key ConceptsEncryption Recap: A Refresher on Key Concepts
Encryption Recap: A Refresher on Key Concepts

Entropy, Software Quality, and Innovation (presented at Princeton Plasma Phys...
Entropy, Software Quality, and Innovation (presented at Princeton Plasma Phys...Entropy, Software Quality, and Innovation (presented at Princeton Plasma Phys...
Entropy, Software Quality, and Innovation (presented at Princeton Plasma Phys...

CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...
CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...
CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...

Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...
Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...
Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...

Modern binary build systems - PyCon 2024
Modern binary build systems - PyCon 2024Modern binary build systems - PyCon 2024
Modern binary build systems - PyCon 2024

Lessons Learned from Building a Serverless Notifications System.pdf
Lessons Learned from Building a Serverless Notifications System.pdfLessons Learned from Building a Serverless Notifications System.pdf
Lessons Learned from Building a Serverless Notifications System.pdf


YOW2018 - Events and Commands: Developing Asynchronous Microservices

  • 1. @crichardson Events and Commands: Developing Asynchronous Microservices Chris Richardson Founder of Eventuate.io Founder of the original CloudFoundry.com Author of POJOs in Action and Microservices Patterns @crichardson chris@chrisrichardson.net http://learn.microservices.io Copyright © 2018 Chris Richardson Consulting, Inc. All rights reserved
  • 2. @crichardson Presentation goal Implementing transactions and queries in a microservice architecture using asynchronous messaging
  • 3. @crichardson Presentation goal Microservices > REST Microservices > Events Microservices != Event Sourcing Apache Kafka != Event Store
  • 6. @crichardson Agenda Transactions, queries and microservices Managing transactions with sagas Implementing queries with CQRS Implementing transactional messaging
  • 7. The microservice architecture structures an application as a set of loosely coupled services
  • 8. @crichardson API Service = independently deployable component Operations Event Publisher Commands Queries Synchronous REST/gRPC Asynchronous Messaging Events Event Subscriber API Client Invokes Operations Events Service Database
  • 9. @crichardson Microservices enable continuous delivery/deployment Process: Continuous delivery/deployment Organization: Small, agile, autonomous, cross functional teams Architecture: Microservice architecture Enables Enables Enables Successful Software Development Services = testability and deployability Teams own services
  • 10. @crichardson Let’s imagine that you are building an online store API createCustomer(creditLimit) createOrder(customerId, orderTotal) findOrdersForCustomer(customerId) findRecentCustomers() Order Management Customer Management REST API …
  • 11. @crichardson Order Service createCustomer() createOrder() findOrdersForCustomer() findRecentCustomers() API Gateway createCustomer() createOrder() Order DatabaseCustomer Database Order tableCustomer table REST API REST API Essential for loose coupling Must reserve customer’s credit Retrieve data from both services Customer Service REST API availableCredit …. orderTotal ….
  • 12. @crichardson No ACID transactions that span services BEGIN TRANSACTION … SELECT ORDER_TOTAL FROM ORDERS WHERE CUSTOMER_ID = ? … SELECT CREDIT_LIMIT FROM CUSTOMERS WHERE CUSTOMER_ID = ? … INSERT INTO ORDERS … … COMMIT TRANSACTION Private to the Order Service Private to the Customer Service Distributed transactions
  • 13. @crichardson Querying across services is not straightforward SELECT * FROM CUSTOMER c, ORDER o WHERE c.id = o.ID AND c.id = ? Private to Customer Service Private to Order Service Find customer and their orders
  • 14. @crichardson Agenda Transactions, queries and microservices Managing transactions with sagas Implementing queries with CQRS Implementing transactional messaging
  • 16. @crichardson Saga Use Sagas instead of 2PC Distributed transaction Service A Service B Service A Local transaction Service B Local transaction Service C Local transaction X Service C https://microservices.io/patterns/data/saga.html
  • 17. @crichardson Order Service Create Order Saga Local transaction Order state=PENDING createOrder() Customer Service Local transaction Customer reserveCredit() Order Service Local transaction Order state=APPROVED approve order() createOrder() Initiates saga
  • 18. @crichardson Saga design challenges API design Synchronous REST API initiates asynchronous saga When to send back a response? Rollback compensating transactions Sagas are ACD - No I Sagas are interleaved anomalies, such as lost updates Must use countermeasures https://www.slideshare.net/chris.e.richardson/saturn-2018-managing-data-consistency-in-a-microservice-architecture-using-sagas
  • 19. How do the saga participants communicate? Synchronous communication, e.g. REST = temporal coupling Client and server need to be both available Customer Service fails retry provided it’s idempotent Order Service fails Oops Order Service createOrder() REST Customer Service reserveCredit() REST
  • 20. @crichardson Collaboration using asynchronous, broker-based messaging Order Service Customer Service …. Message broker
  • 21. @crichardson About the message broker At least once delivery Ensures a saga completes when its participants are temporarily unavailable Ordered delivery Mechanism for scaling consumers that preserves ordering e.g. Apache Kafka consumer group ActiveMQ message group …
  • 22. @crichardson Saga step = a transaction local to a service Service Database Message Broker update publish message/event How to make atomic without 2PC?
  • 23. @crichardson How to sequence the saga transactions? After the completion of transaction Ti “something” must decide what step to execute next Success: which T(i+1) - branching Failure: C(i - 1)
  • 24. @crichardson Choreography: distributed decision making vs. Orchestration: centralized decision making
  • 25. @crichardson Transactions, queries and microservices Managing transactions with sagas Implementing queries with CQRS Implementing transactional messaging Overview Choreography Orchestration Agenda
  • 26. @crichardson Message broker Choreography-based Create Order Saga Order created Credit Reserved Credit Limit Exceeded Create Order OR Customer availableCredit ... Order state total create() reserveCredit() approve()/ reject() Order events channel Customer events channel Order Service Customer Service
  • 27. Benefits and drawbacks of choreography Benefits Simple, especially when using event sourcing Participants are loosely coupled Drawbacks Decentralized implementation - potentially difficult to understand Cyclic dependencies - services listen to each other’s events, e.g. Customer Service must know about all Order events that affect credit Overloads domain objects, e.g. Order and Customer know too much Events = indirect way to make something happen https://github.com/eventuate-examples/eventuate-examples-java-customers-and-orders
  • 28. @crichardson Agenda Transactions, queries and microservices Managing transactions with sagas Implementing queries with CQRS Implementing transactional messaging Overview Choreography Orchestration
  • 29. @crichardson Order Service Orchestration-based coordination using command messages Local transaction Order state=PENDING createOrder() Customer Service Local transaction Customer reserveCredit() Order Service Local transaction Order state=APPROVED approve order() createOrder() CreateOrderSaga InvokesInvokesInvokes
  • 30. @crichardson A saga (orchestrator) is a persistent object that implements a state machine and invokes the participants
  • 31. Saga orchestrator behavior On create: Invokes a saga participant Persists state in database Wait for a reply On reply: Load state from database Determine which saga participant to invoke next Invokes saga participant Updates its state Persists updated state Wait for a reply …
  • 32. @crichardson Order Service CreateOrderSaga orchestrator Customer Service Create Order Customer creditLimit creditReservations ... Order state total… reserveCredit CreateOrder Saga OrderService create() create() approve() Credit Reserved Customer command channel Saga reply channel https://github.com/eventuate-tram/eventuate-tram-sagas-examples-customers-and-orders
  • 33. Benefits and drawbacks of orchestration Benefits Centralized coordination logic is easier to understand Reduced coupling, e.g. Customer Service knows less. Simply has API for managing available credit. Reduces cyclic dependencies Drawbacks Risk of smart sagas directing dumb services
  • 34. @crichardson Agenda Transactions, queries and microservices Managing transactions with sagas Implementing queries with CQRS Implementing transactional messaging
  • 35. @crichardson Queries often retrieve data owned by multiple services
  • 36. @crichardson API Composition pattern Customer Service Customer … Order Service Order … API Gateway findOrdersForCustomer(customerId) GET /customer/id GET /orders?customerId=id https://microservices.io/patterns/data/api-composition.html
  • 37. @crichardson Find recent, valuable customers SELECT * FROM CUSTOMER c, ORDER o WHERE c.id = o.ID AND o.ORDER_TOTAL > 100000 AND o.STATE = 'SHIPPED' AND c.CREATION_DATE > ? Customer Service Order Service …. is even more difficult!
  • 38. API Composition would be inefficient 1 + N strategy: Fetch recent customers Iterate through customers fetching their shipped orders Lots of round trips high-latency Alternative strategy: Fetch recent customers Fetch recent orders Join 2 roundtrips but potentially large datasets inefficient
  • 39. @crichardson Using events to update a queryable replica = CQRS Order Service Customer Service Order events Customer events findCustomersAndOrders() Order events channel Customer events channel Customer Order View Service Replica View Database https://microservices.io/patterns/data/cqrs.html
  • 40. @crichardson Persisting a customer and order history in MongoDB { "_id" : "0000014f9a45004b 0a00270000000000", "name" : "Fred", "creditLimit" : { "amount" : "2000" }, "orders" : { "0000014f9a450063 0a00270000000000" : { "state" : "APPROVED", "orderId" : "0000014f9a450063 0a00270000000000", "orderTotal" : { "amount" : "1234" } }, "0000014f9a450063 0a00270000000001" : { "state" : "REJECTED", "orderId" : "0000014f9a450063 0a00270000000001", "orderTotal" : { "amount" : "3000" } } } } Denormalized = efficient lookup Customer information Order information
  • 41. @crichardson Query side data model Command Query Responsibility Segregation (CQRS) Command side data model Commands Aggregate Message broker or Event Store Events Queries (Materialized) View Events POST PUT DELETE GET
  • 42. @crichardson Queries database (type) Command side POST PUT DELETE Aggregate Event Store/Message Broker Events Query side GET /customers/id MongoDB Query side GET /orders?text=xyz ElasticSearch Query side GET … Neo4j
  • 43. @crichardson CQRS views are disposable Rebuild when needed from source of truth Using event sourcing (Conceptually) replay all events from beginning of time Using traditional persistence “ETL” from source of truth databases
  • 44. @crichardson Handling replication lag Lag between updating command side and CQRS view Risk of showing stale data to user Either: Update UI/client-side model without querying Use updated aggregate version to “wait” for query view to be updated
  • 45. @crichardson Agenda Transactions, queries and microservices Managing transactions with sagas Implementing queries with CQRS Implementing transactional messaging
  • 46. @crichardson Messaging must be transactional Service Database Message Broker update publish How to make atomic without 2PC?
  • 47. Publish to message broker first? Guarantees atomicity BUT Service can’t read its own writes Difficult to write business logic Service Database Message Broker update publish
  • 48. @crichardson Option: Event sourcing = Event centric approach to business logic and persistence http://eventuate.io/
  • 49. @crichardson Event sourcing: persists an object as a sequence of events Event table Entity type Event id Entity id Event data Order 902101 …OrderApproved Order 903101 …OrderShipped Event type Order 901101 …OrderCreated Order create() approve() ship() Event Store
  • 50. @crichardson Replay events to recreate in memory state Order state apply(event) Event table Entity type Event id Entity id Event data Order 902101 …OrderApproved Order 903101 …OrderShipped Event type Order 901101 …OrderCreated Event Store Load events by ID and call apply() Instantiate with default constructor Event store = database
  • 52. @crichardson Event sourcing guarantees: state change event is published Event table Entity type Event id Entity id Event data Order 902101 …OrderApproved Order 903101 …OrderShipped Event type Order 901101 …OrderCreated Event Store Customer Service Subscribe Event store = message broker
  • 53. @crichardson Preserves history of domain objects Supports temporal queries Simplifies retroactive correction Built-in auditing Other benefits of event sourcing
  • 54. @crichardson Unfamiliar programming model Evolving the schema of long-lived events Event store only supports PK-based access requires CQRS less consistent reads Drawbacks of event sourcing
  • 55. @crichardson Good fit for choreography-based sagas BUT orchestration is more challenging Use event handler to translate event into command/reply message Drawbacks of event sourcing
  • 56. @crichardson Option: Traditional persistence (JPA, MyBatis,…) + Transactional outbox pattern https://github.com/eventuate-tram/eventuate-tram-core
  • 57. @crichardson Spring Data for JPA example Publish event Save order http://eventuate.io/exampleapps.html
  • 58. @crichardson Transactional outbox pattern ACID transaction See BASE: An Acid Alternative, http://bit.ly/ebaybase DELETE ? Customer Service ORDER_ID CUSTOMER_ID TOTAL 99 CUSTOMER_CREDIT_RESERVATIONS table 101 1234 ID TYPE DATA DESTINATION MESSAGE table 84784 CreditReserved {…} … INSERT INSERT Message Publisher QUERY Message Broker Publish Local transaction reserveCredit() DomainEventPublisher
  • 59. @crichardson Transaction log tailing Order Service Datastore ORDER table Transaction log Update Transaction log miner Message Broker Publish Changes MySQL binlog Postgres WAL AWS DynamoDB table streams MongoDB change streams http://eventuate.io/
  • 60. @crichardson Polling the message table Simple Works for all databases BUT what about polling frequency MESSAGE Table Message Publisher Message Broker SELECT * FROM MESSAGE… UPDATE MESSAGE
  • 61. @crichardson Summary Use asynchronous messaging to solve distributed data management problems Services publish events to implement choreography-based sagas queries using CQRS views Services send command/reply messages to implement orchestration-based sagas Services must atomically update state and send messages Event sourcing Transactional outbox
