1. @crichardson

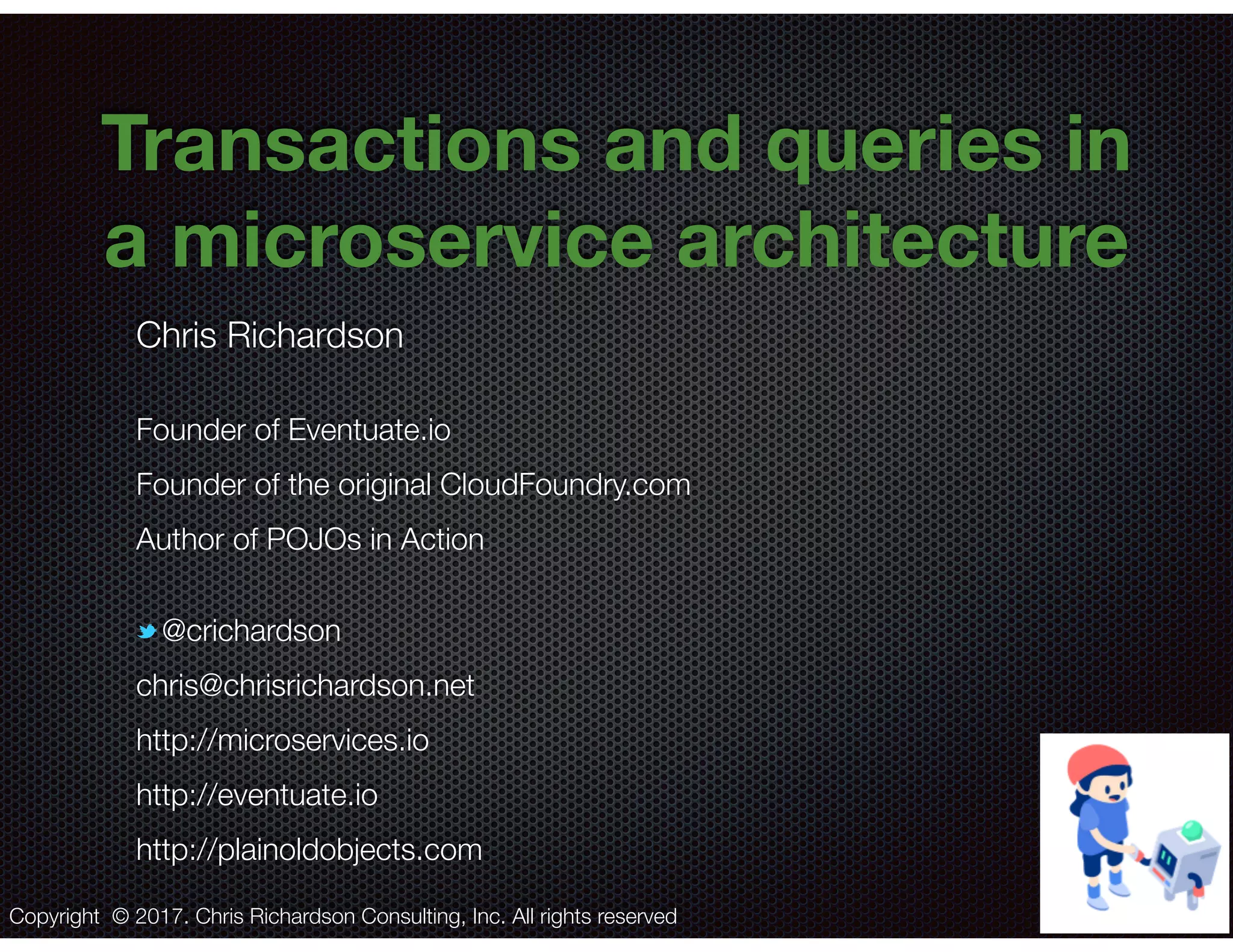

Transactions and queries in
a microservice architecture
Chris Richardson
Founder of Eventuate.io
Founder of the original CloudFoundry.com
Author of POJOs in Action
@crichardson
chris@chrisrichardson.net
http://microservices.io
http://eventuate.io
http://plainoldobjects.com
Copyright © 2017. Chris Richardson Consulting, Inc. All rights reserved

2. @crichardson

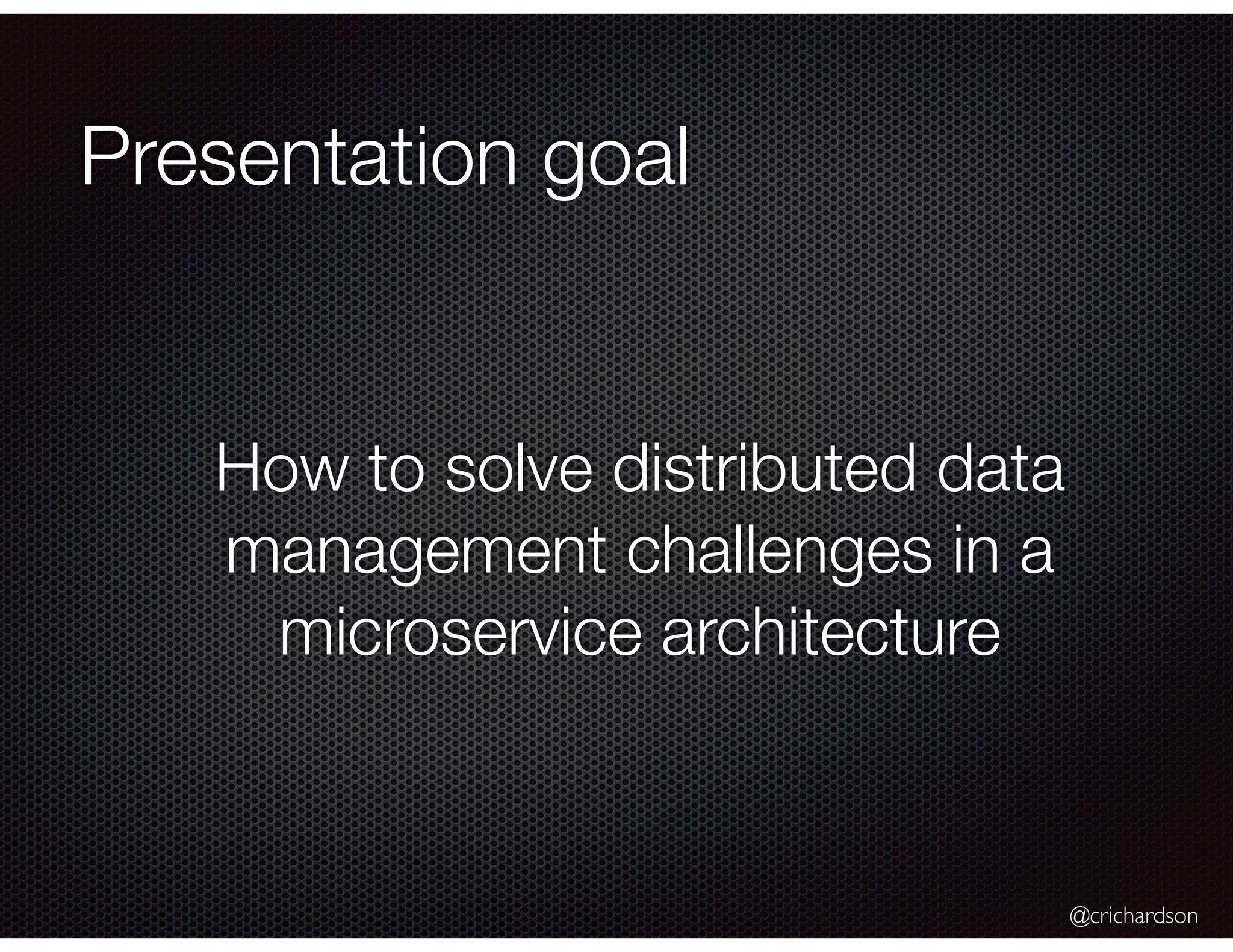

Presentation goal
How to solve distributed data
management challenges in a
microservice architecture

3. @crichardson
About Chris

4. @crichardson
About Chris

5. @crichardson
About Chris

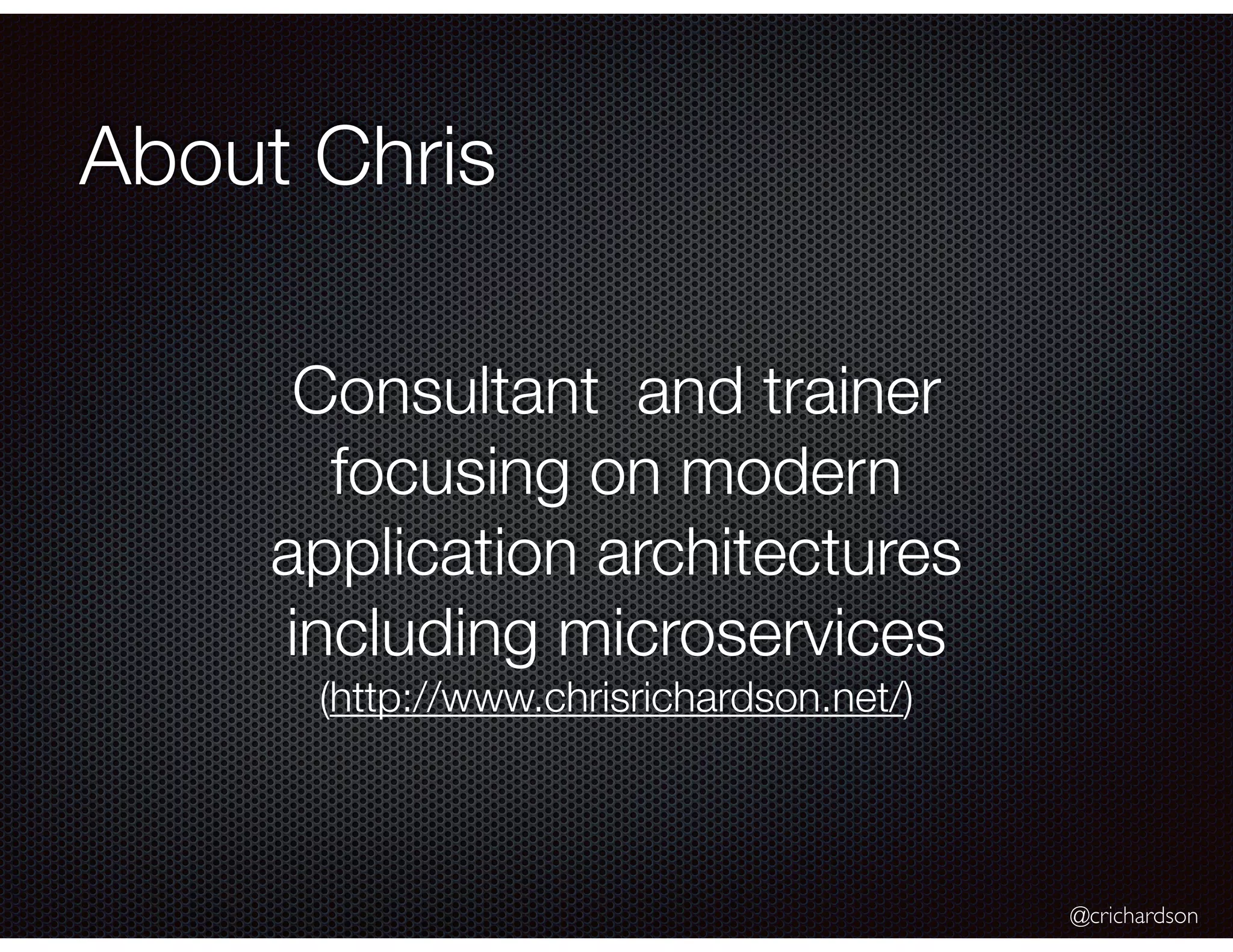

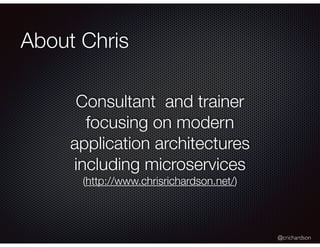

Consultant and trainer
focusing on modern
application architectures
including microservices
(http://www.chrisrichardson.net/)

6. @crichardson

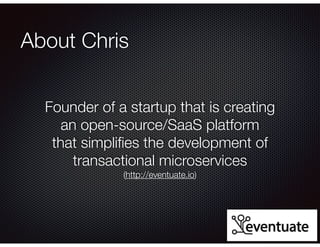

About Chris
Founder of a startup that is creating
an open-source/SaaS platform
that simplifies the development of
transactional microservices
(http://eventuate.io)

7. @crichardson
For more information
http://learnmicroservices.io

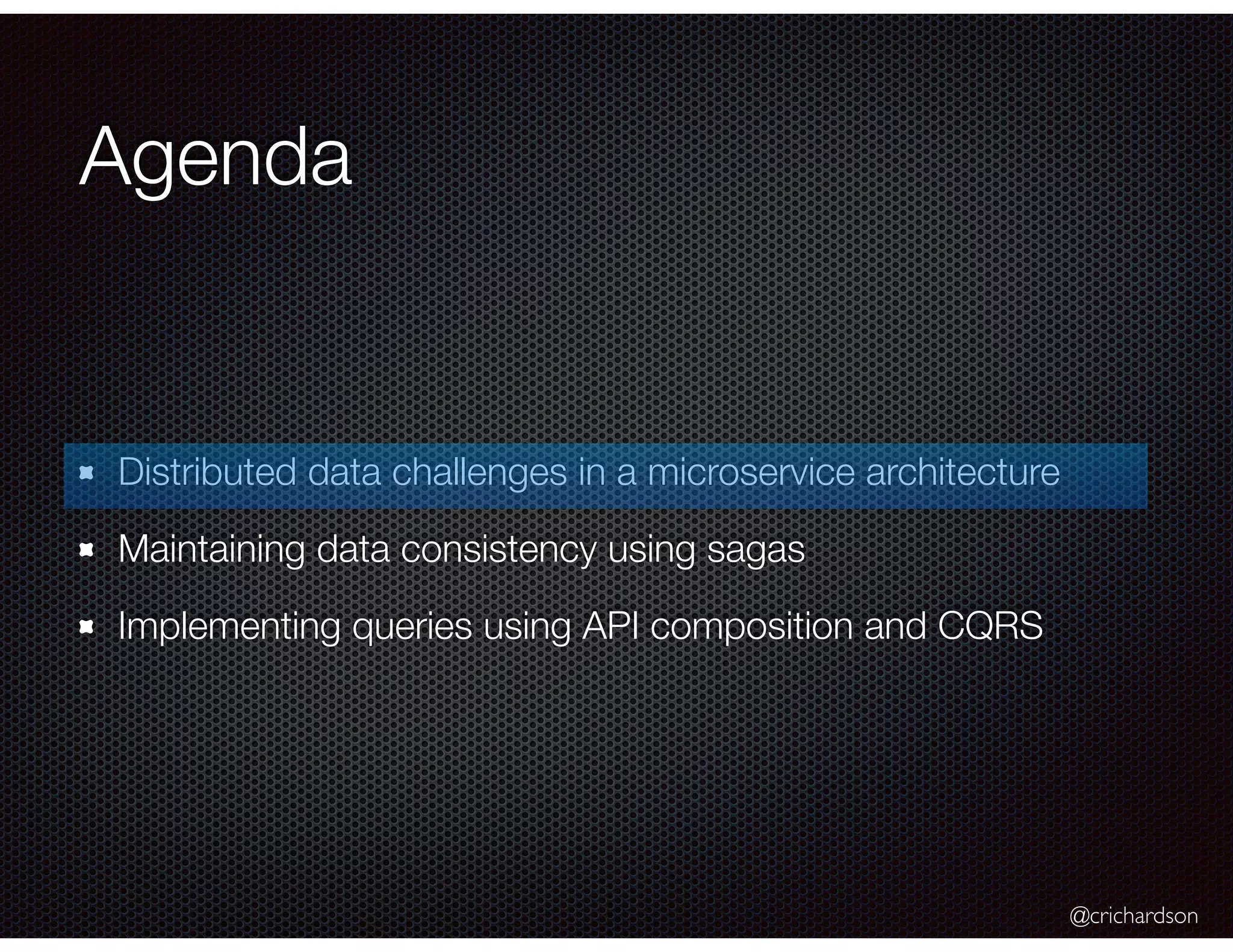

8. @crichardson
Agenda
Distributed data challenges in a microservice architecture
Maintaining data consistency using sagas
Implementing queries using API composition and CQRS

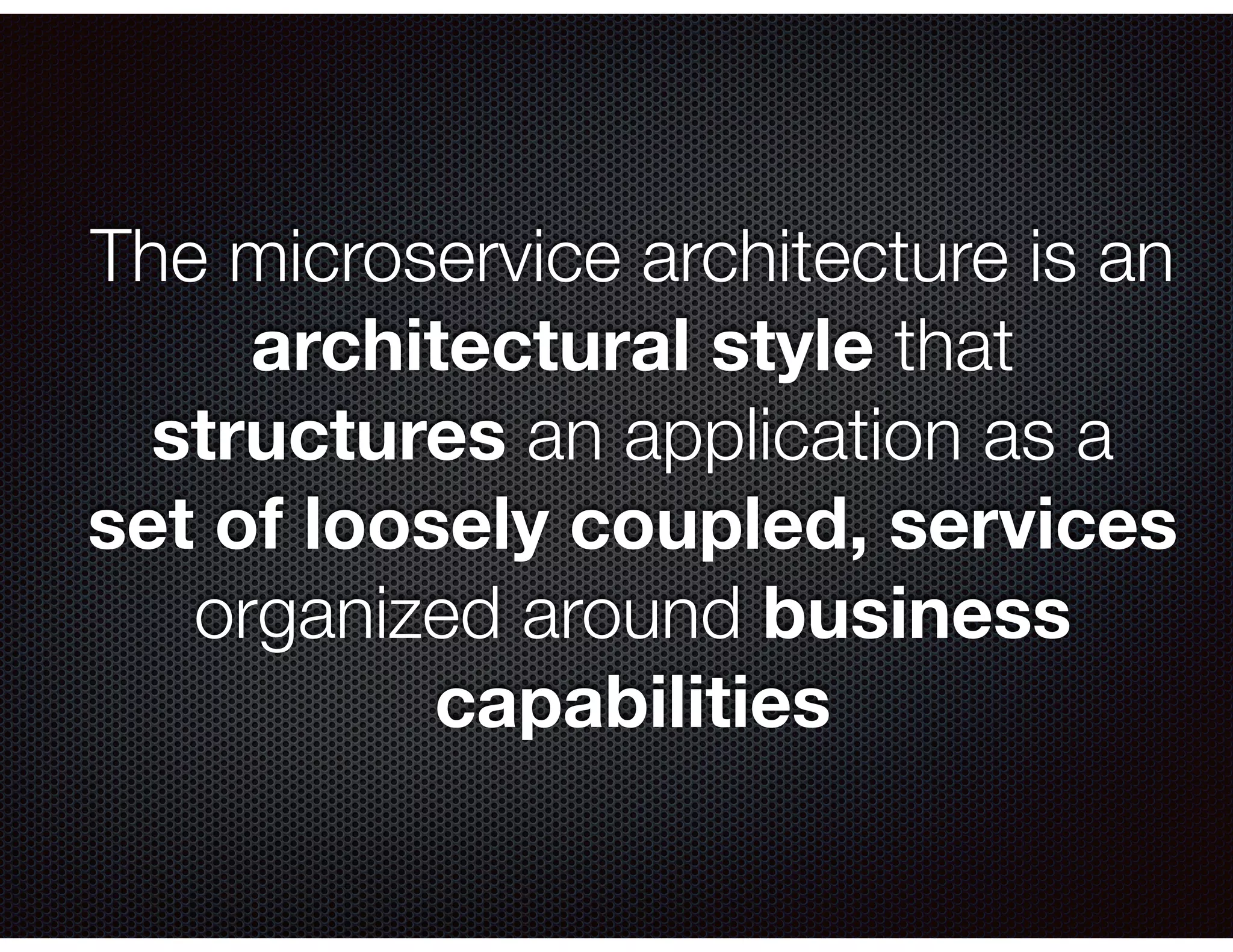

9. The microservice architecture is an
architectural style that
structures an application as a
set of loosely coupled, services
organized around business
capabilities

10. @crichardson

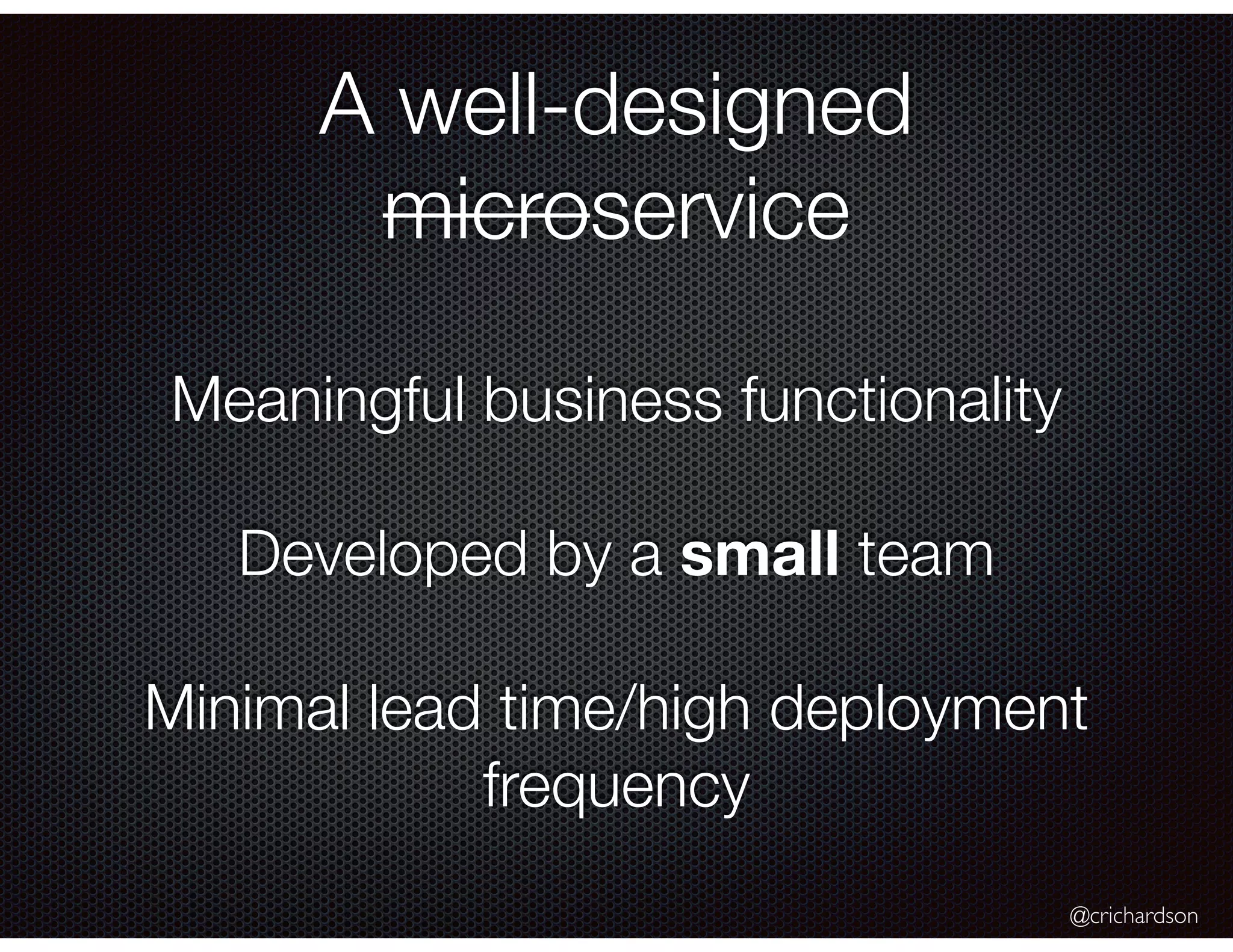

A well-designed
microservice
Meaningful business functionality
Developed by a small team
Minimal lead time/high deployment
frequency

11. @crichardson

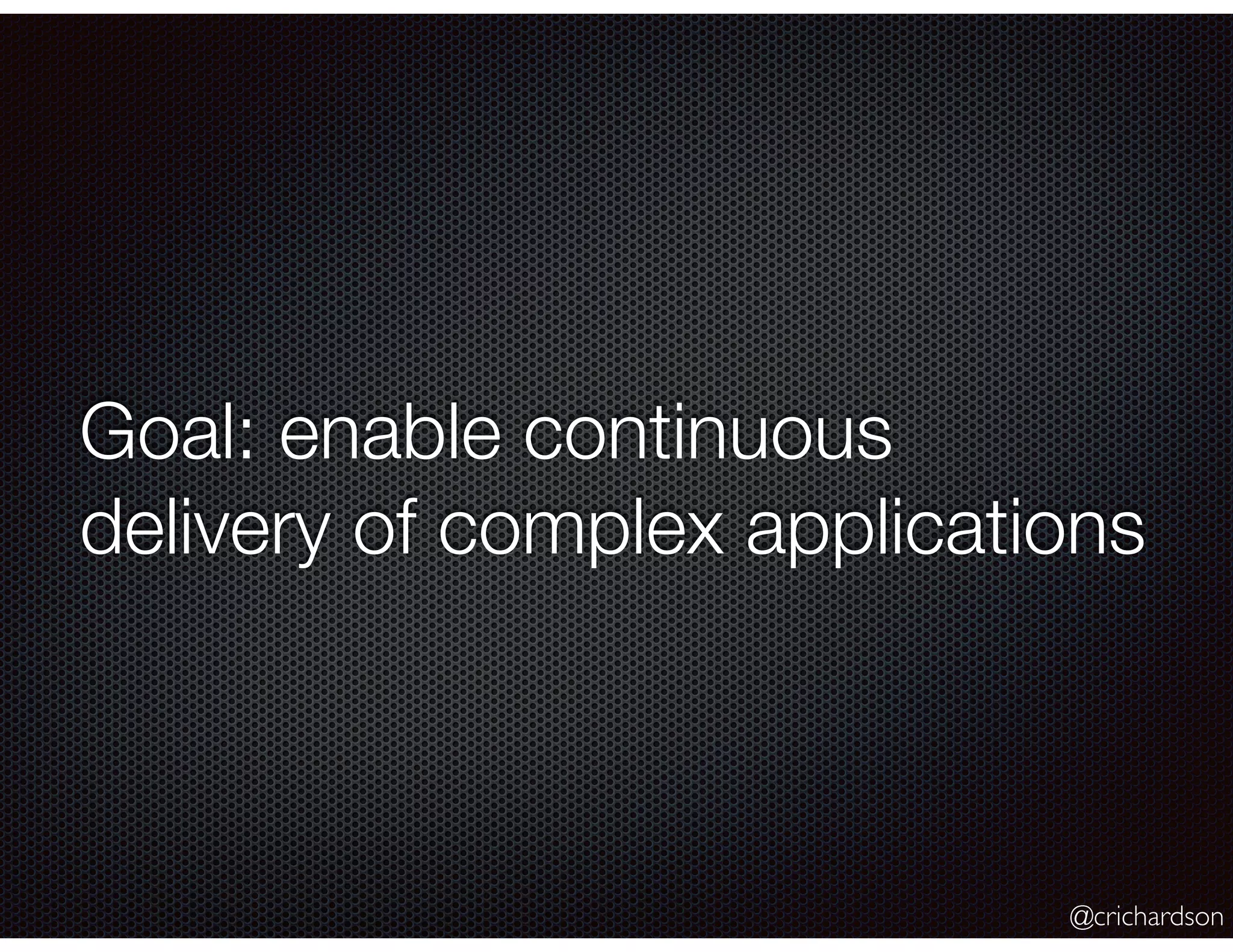

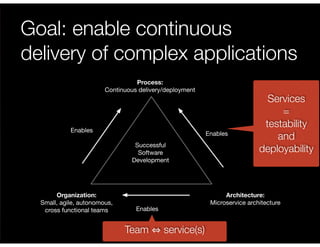

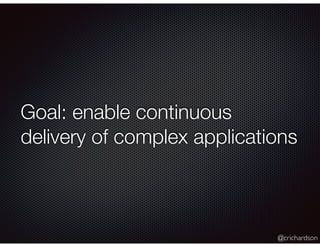

Goal: enable continuous
delivery of complex applications

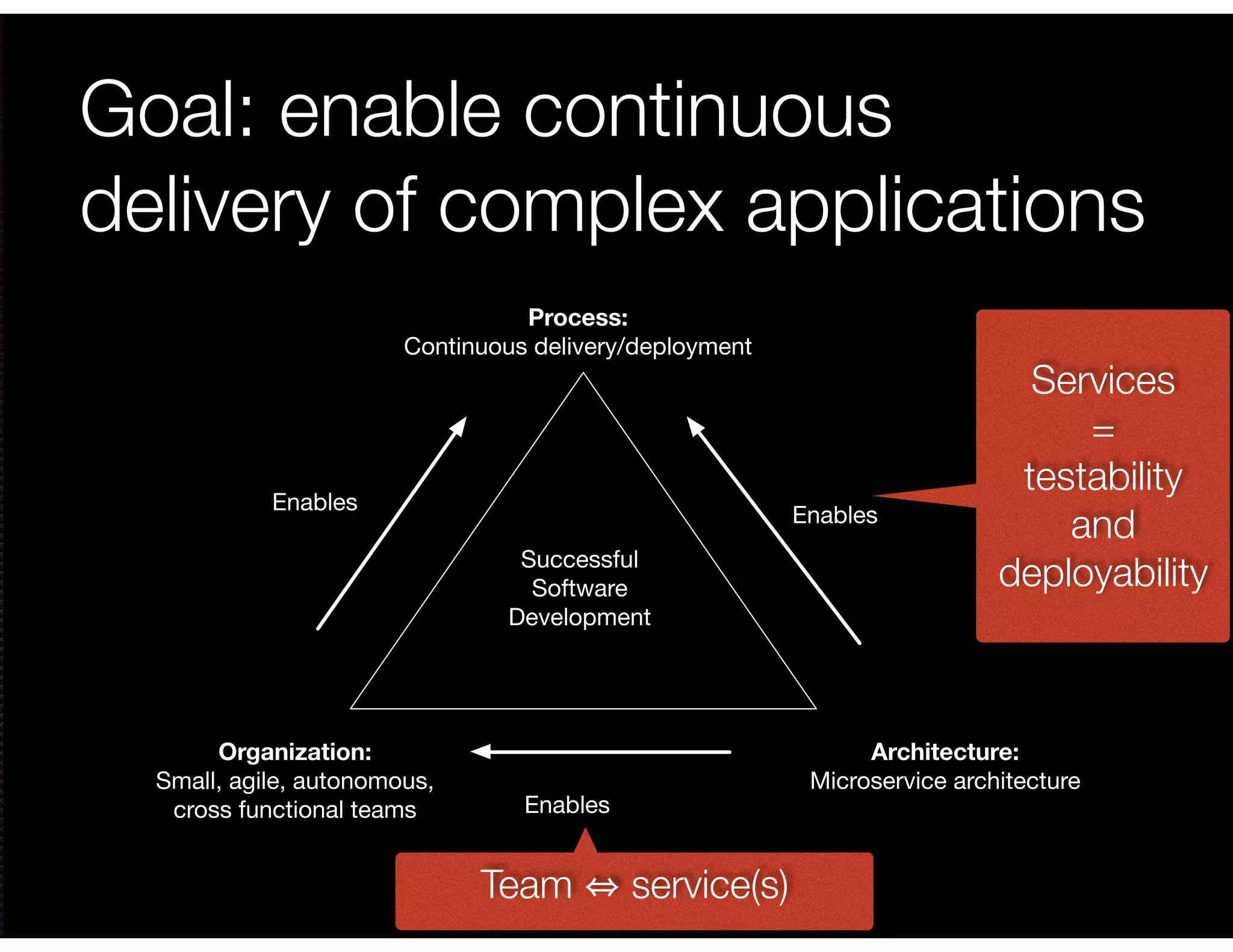

12. @crichardson
Goal: enable continuous
delivery of complex applications
Process:
Continuous delivery/deployment
Organization:
Small, agile, autonomous,
cross functional teams
Architecture:
Microservice architecture
Enables
Enables
Enables
Successful
Software
Development
Services
=
testability
and
deployability
Team service(s)

13. @crichardson

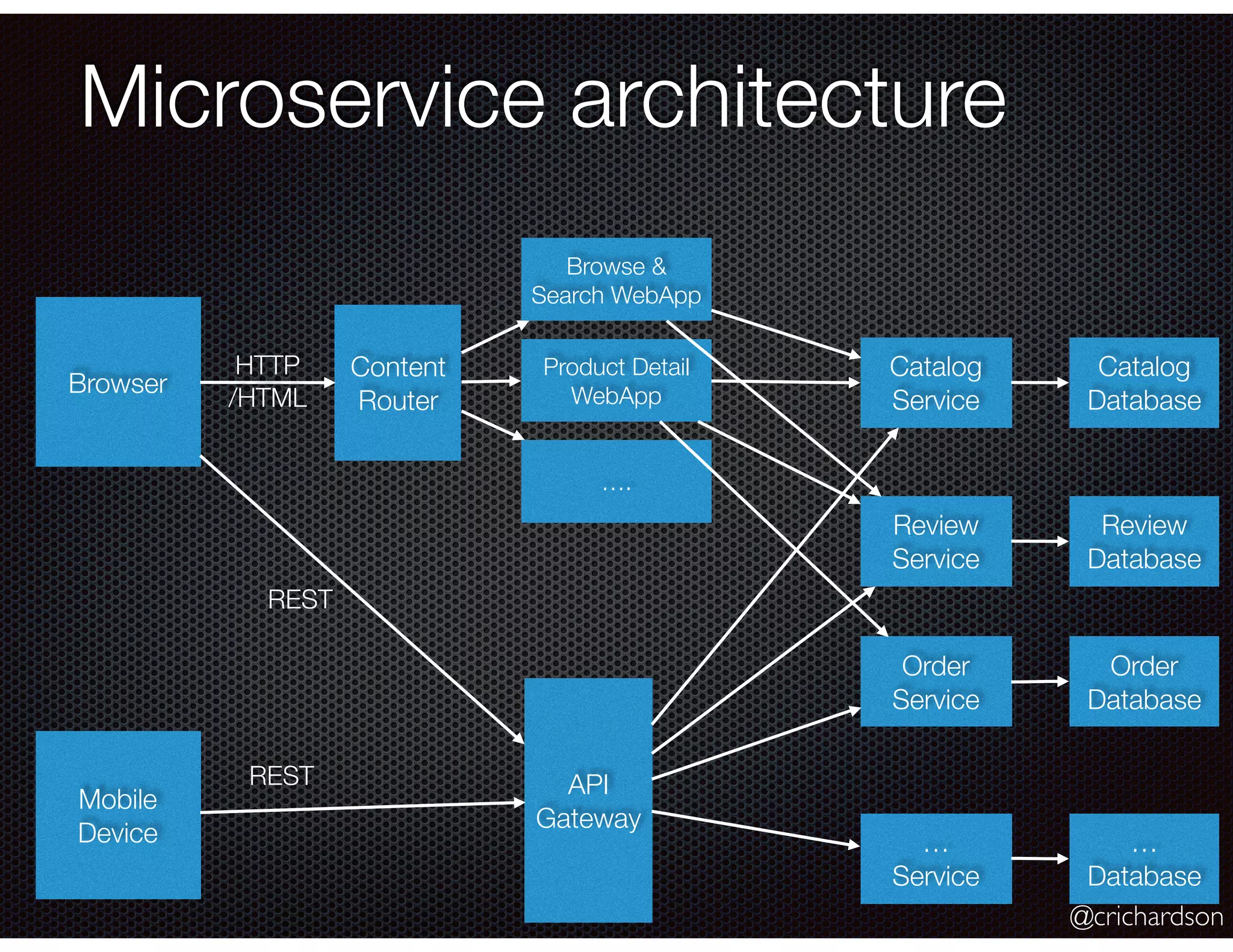

Microservice architecture
Browser
Mobile
Device
Content
Router
API
Gateway
Catalog
Service
Review
Service
Order
Service
…
Service
Catalog
Database
Review
Database
Order
Database
…
Database
HTTP
/HTML
REST
REST
Browse &
Search WebApp
Product Detail
WebApp
….

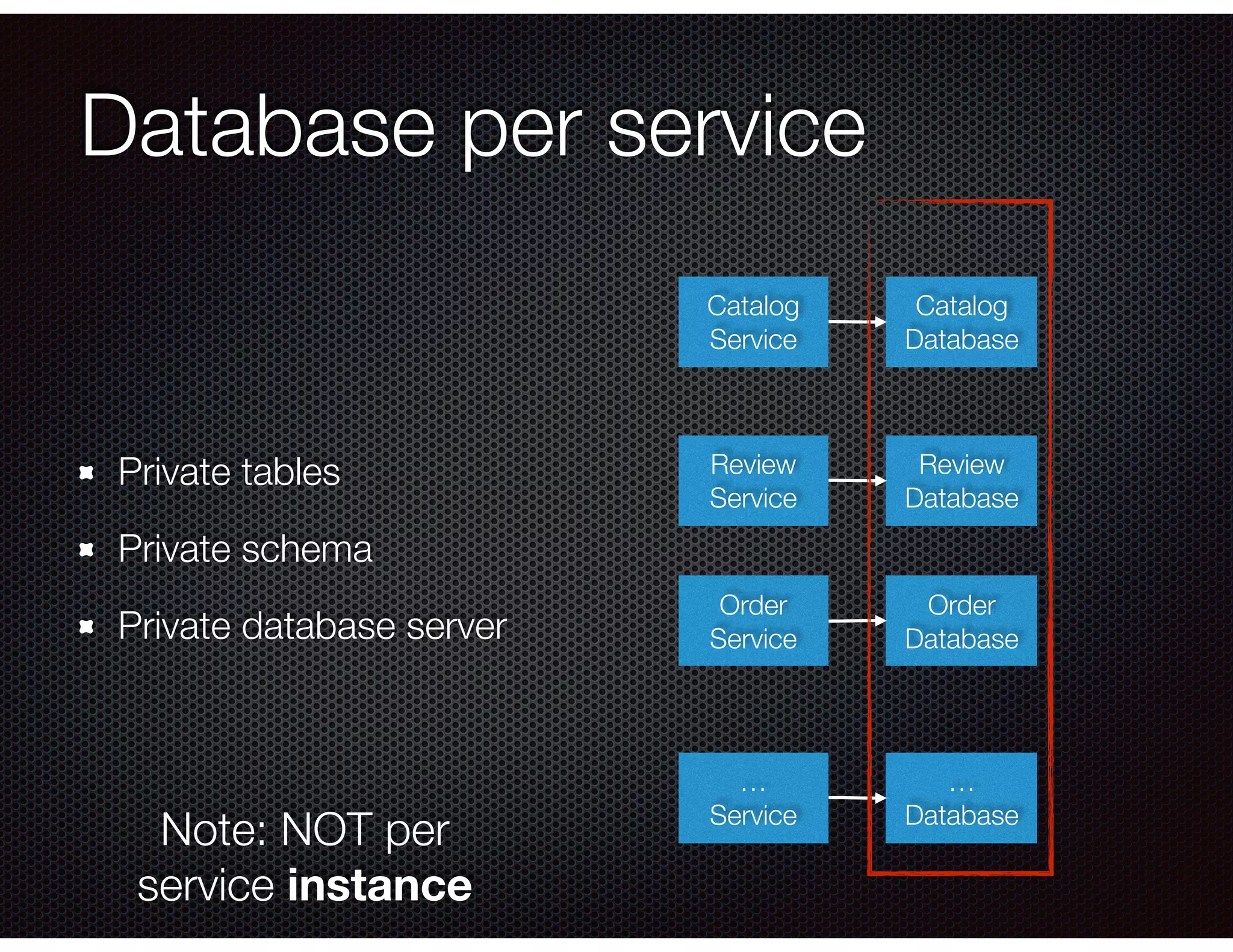

14. Database per service
Private tables
Private schema
Private database server
Catalog
Service
Review
Service
Order
Service
…
Service
Catalog
Database
Review
Database
Order
Database
…
Database
Note: NOT per
service instance

15. @crichardson

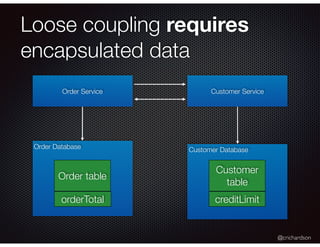

Loose coupling requires
encapsulated data
Order Service Customer Service
Order Database Customer Database
Order table
Customer
table
orderTotal creditLimit

16. @crichardson

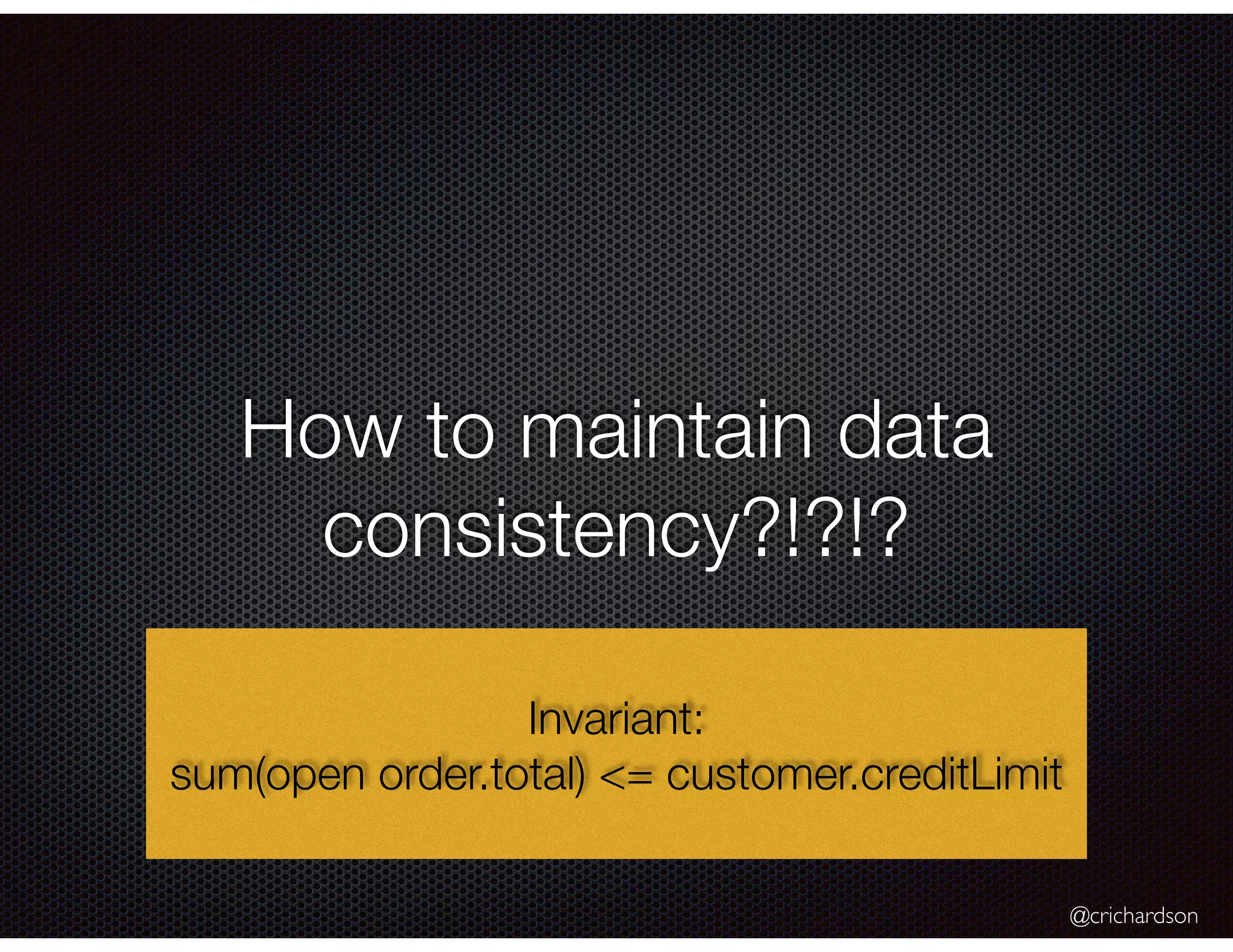

How to maintain data
consistency?!?!?
Invariant:
sum(open order.total) <= customer.creditLimit

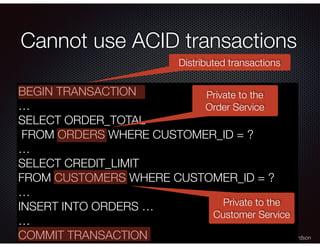

17. @crichardson

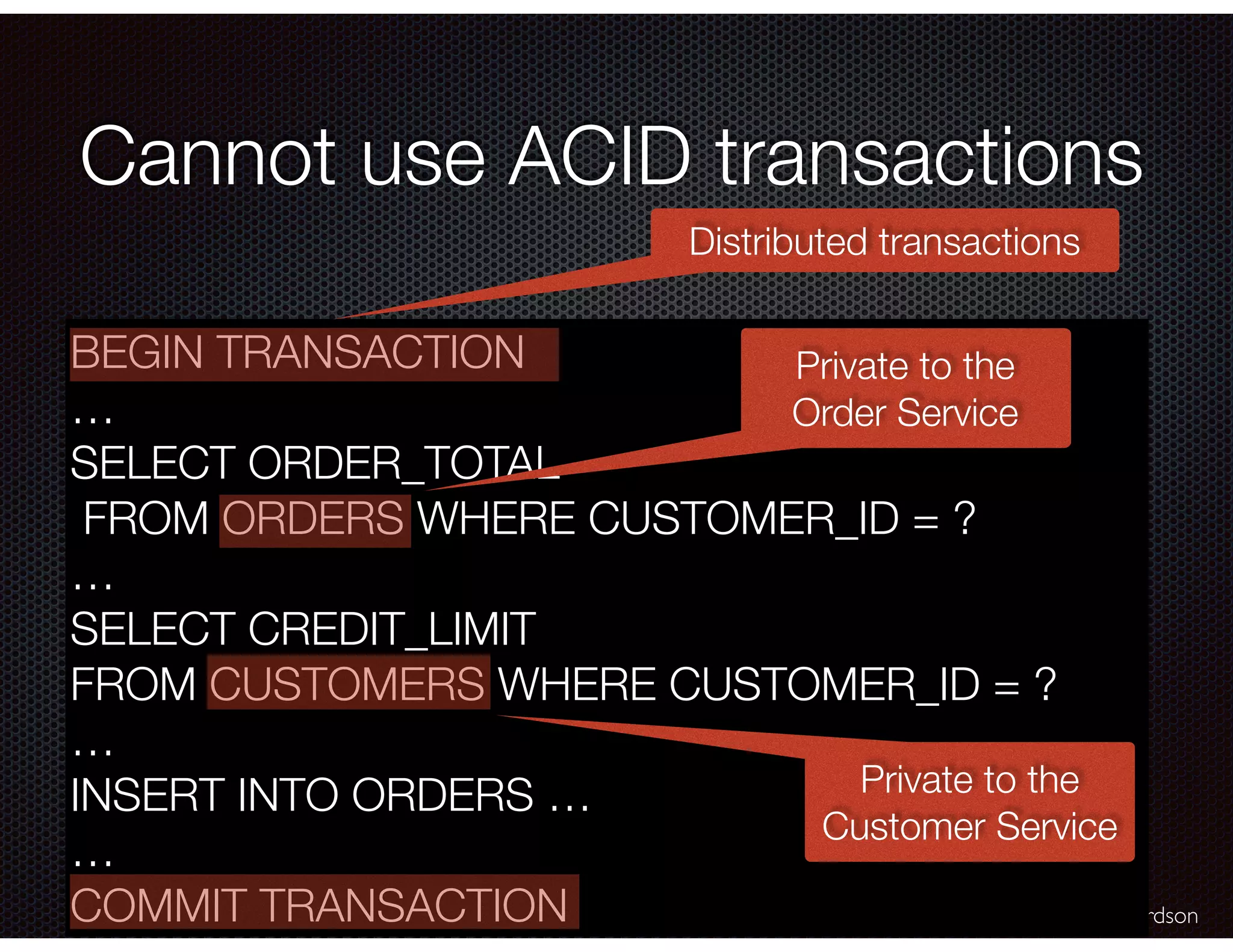

Cannot use ACID transactions
BEGIN TRANSACTION
…
SELECT ORDER_TOTAL
FROM ORDERS WHERE CUSTOMER_ID = ?
…
SELECT CREDIT_LIMIT
FROM CUSTOMERS WHERE CUSTOMER_ID = ?
…
INSERT INTO ORDERS …
…
COMMIT TRANSACTION
Private to the
Order Service
Private to the
Customer Service
Distributed transactions

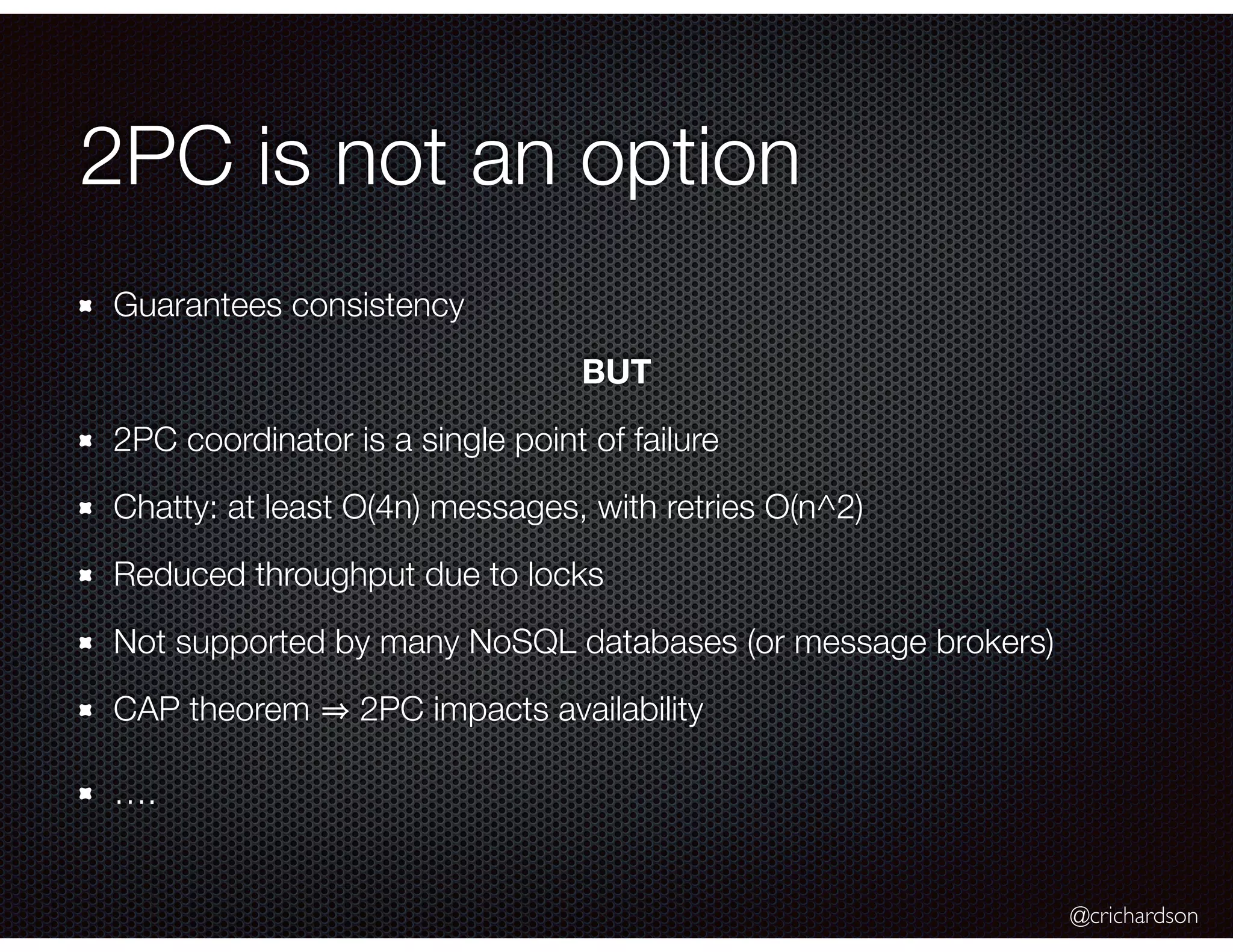

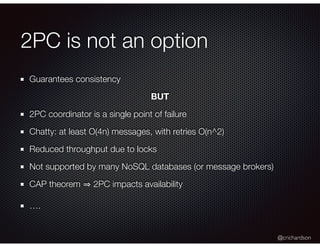

18. @crichardson
2PC is not an option
Guarantees consistency
BUT
2PC coordinator is a single point of failure
Chatty: at least O(4n) messages, with retries O(n^2)
Reduced throughput due to locks
Not supported by many NoSQL databases (or message brokers)
CAP theorem 2PC impacts availability
….

19. @crichardson

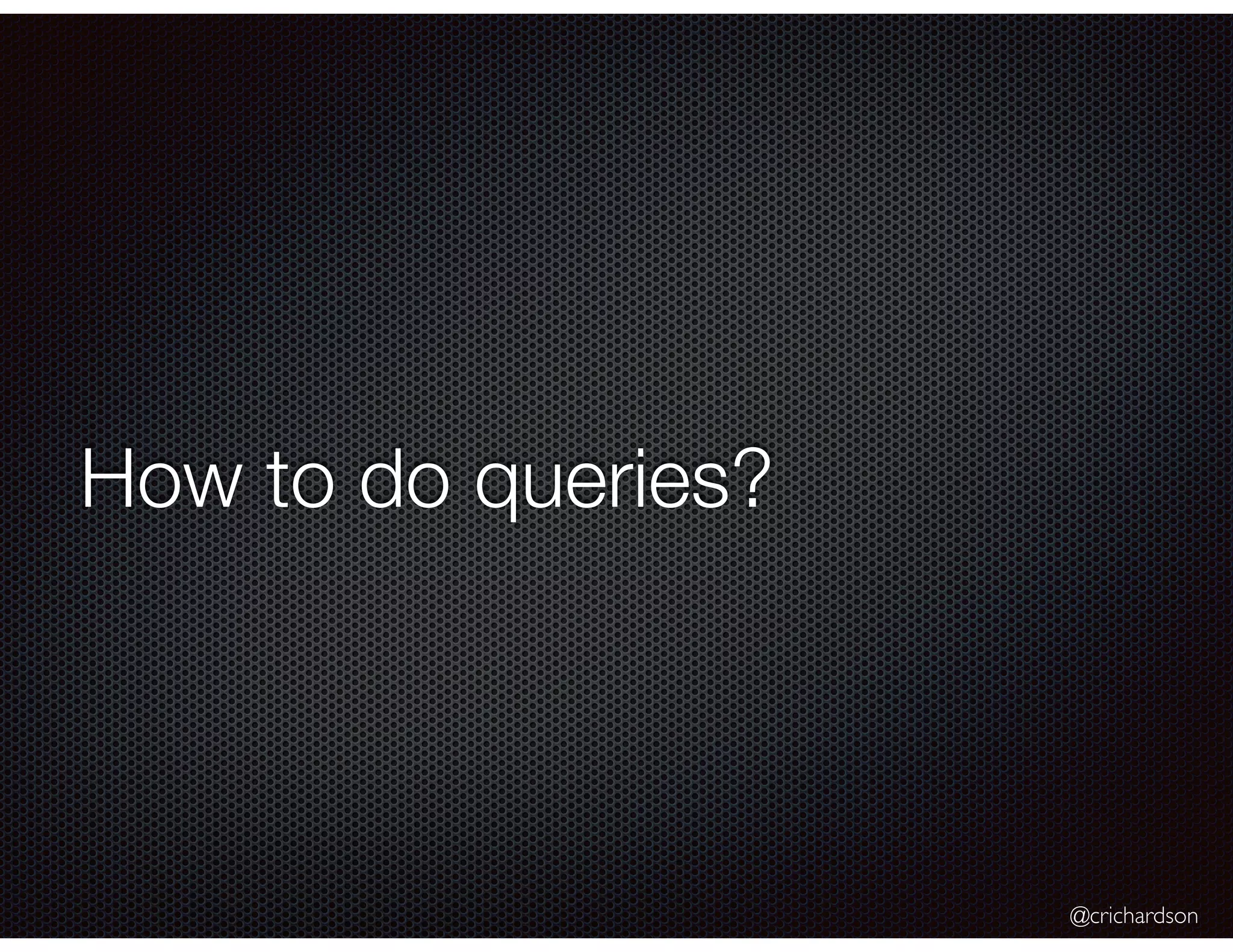

How to do queries?

20. @crichardson

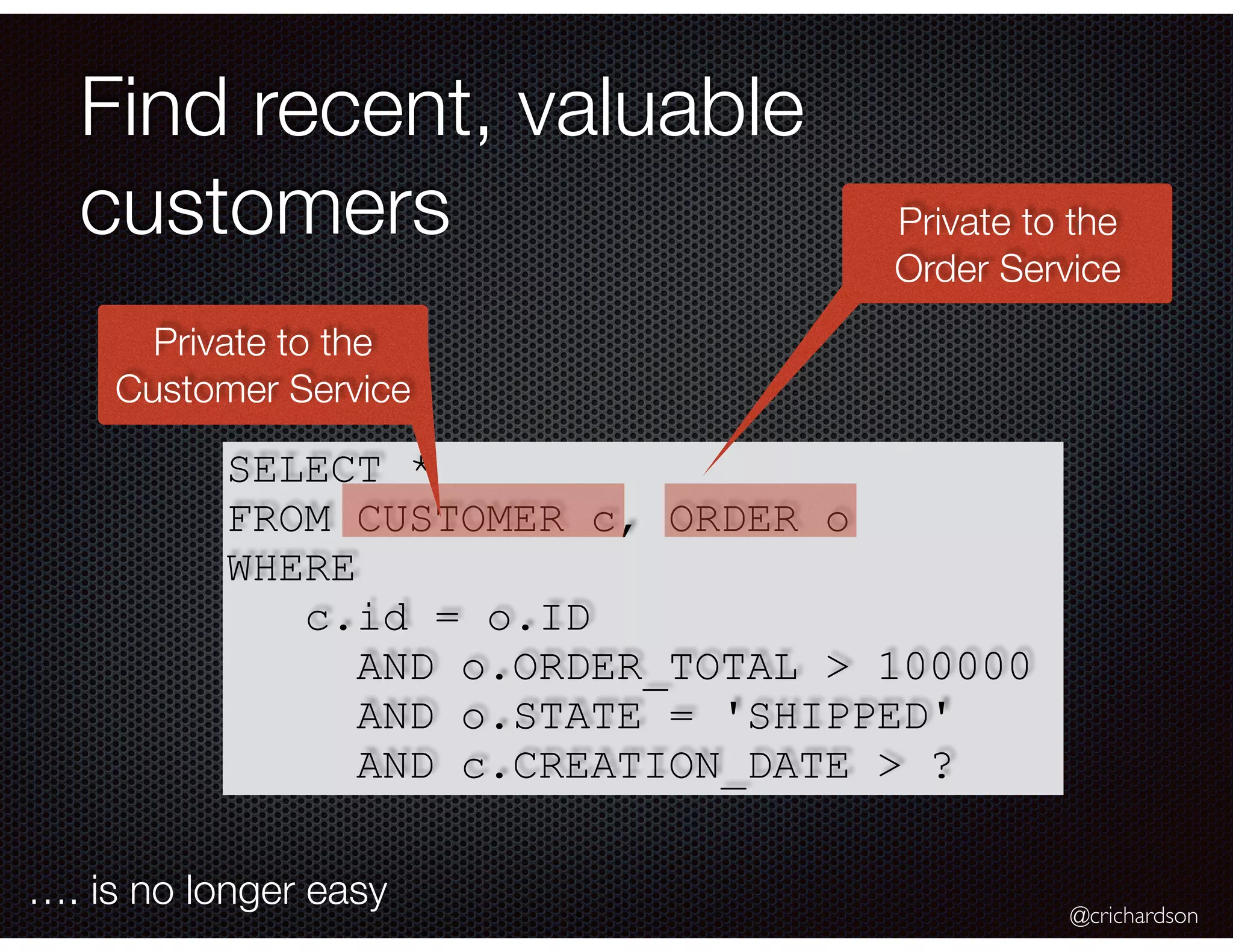

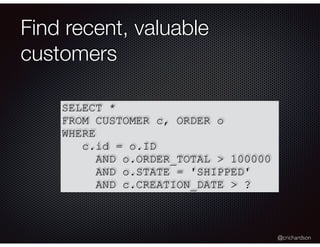

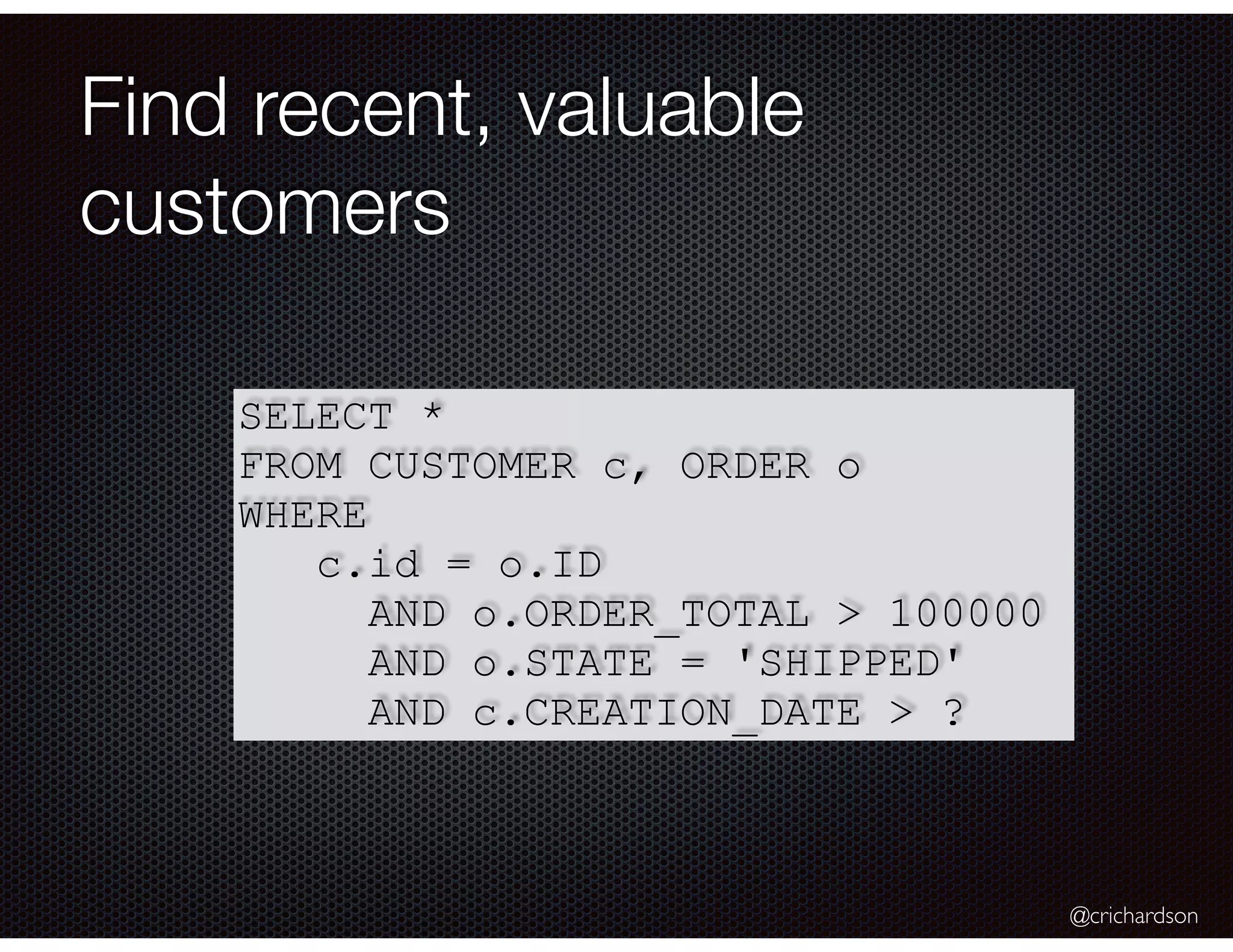

Find recent, valuable
customers
SELECT *
FROM CUSTOMER c, ORDER o
WHERE
c.id = o.ID
AND o.ORDER_TOTAL > 100000
AND o.STATE = 'SHIPPED'
AND c.CREATION_DATE > ?
…. is no longer easy
Private to the
Order Service
Private to the
Customer Service

21. @crichardson

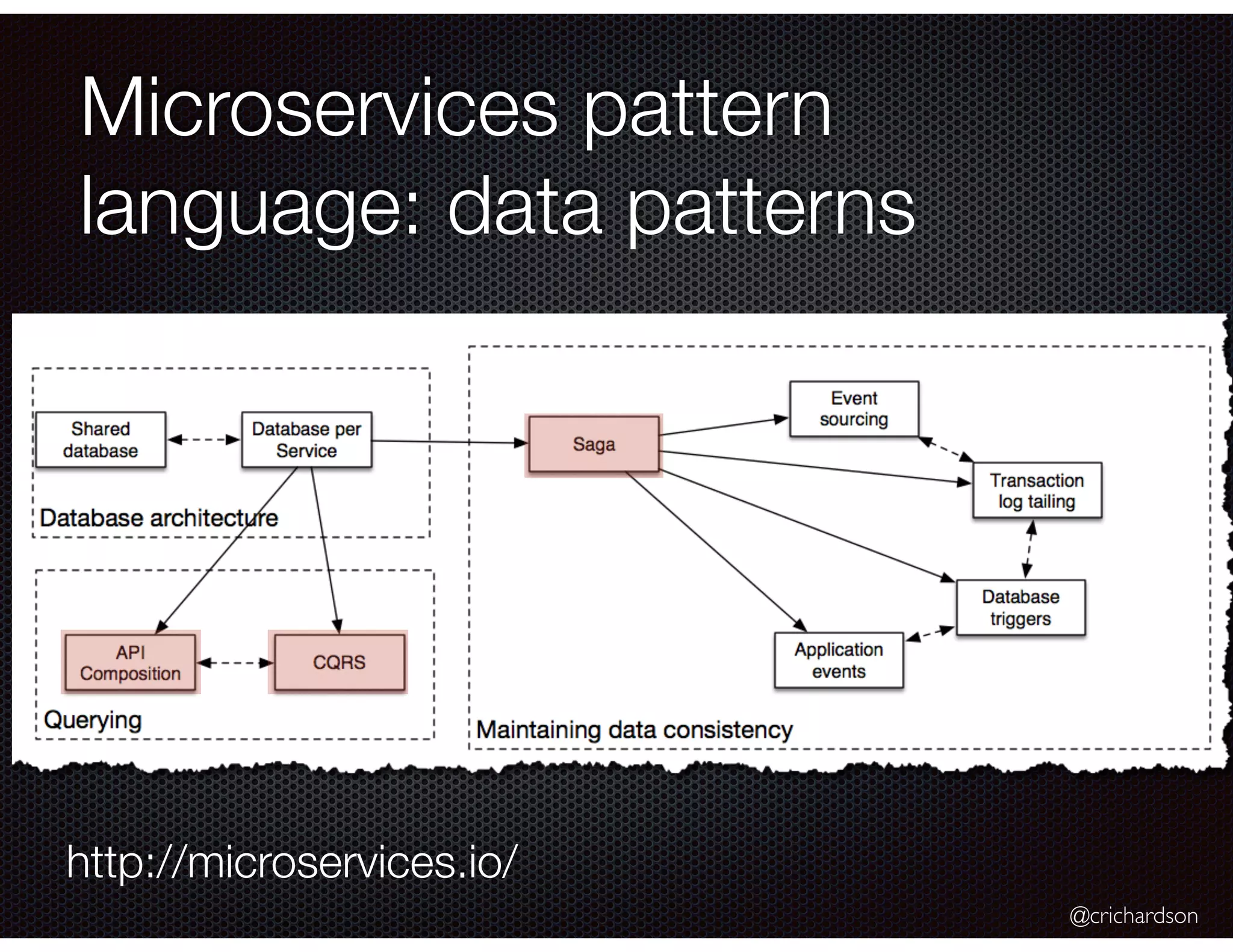

Microservices pattern
language: data patterns
http://microservices.io/

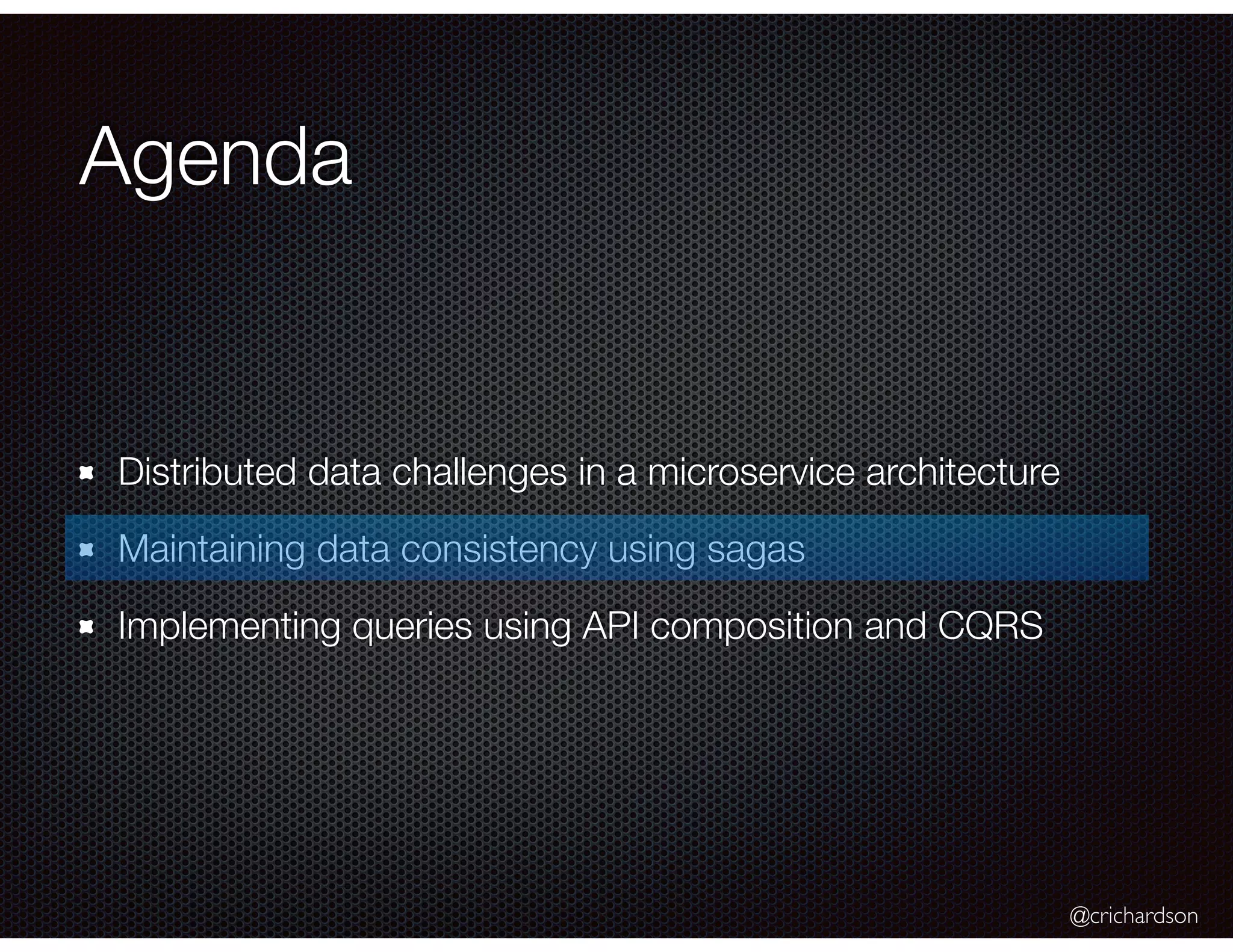

22. @crichardson
Agenda
Distributed data challenges in a microservice architecture
Maintaining data consistency using sagas
Implementing queries using API composition and CQRS

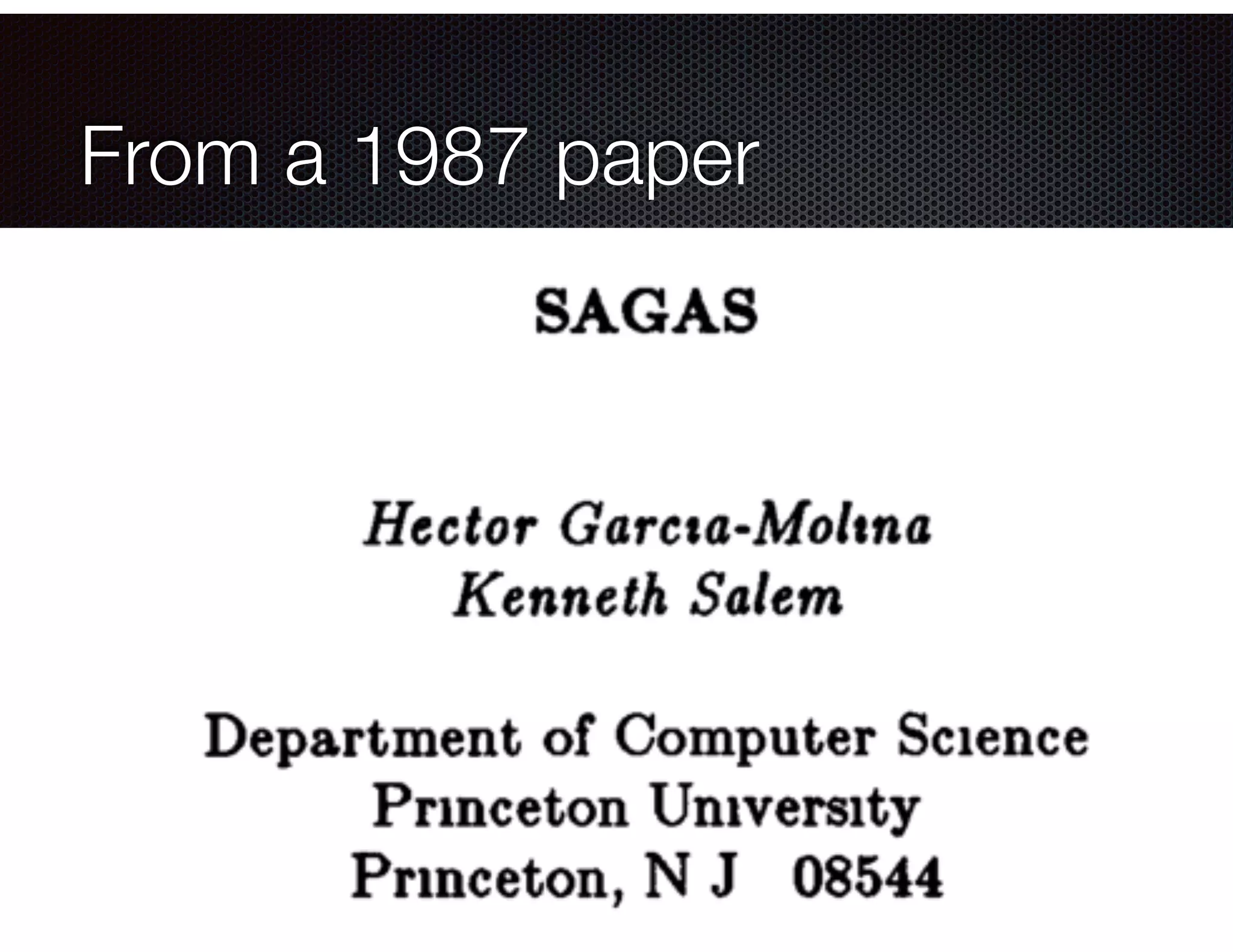

23. @crichardson

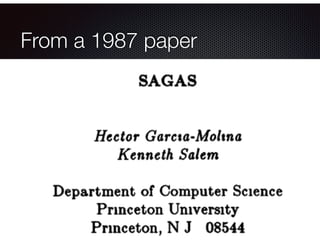

From a 1987 paper

24. @crichardson
Saga

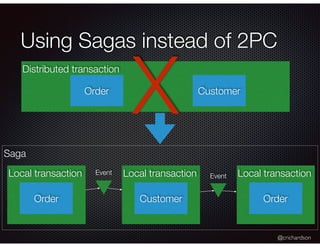

Using Sagas instead of 2PC
Distributed transaction
Order Customer
Local transaction
Order
Local transaction
Customer
Local transaction
Order
Event
Event
X

25. @crichardson

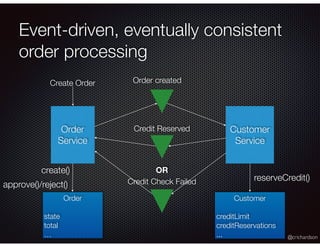

Event-driven, eventually consistent
order processing
Order
Service
Customer
Service
Order created
Credit Reserved
Credit Check Failed
Create Order
OR
Customer
creditLimit
creditReservations
...
Order
state
total
…
create()
reserveCredit()
approve()/reject()

26. @crichardson

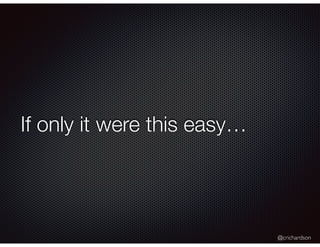

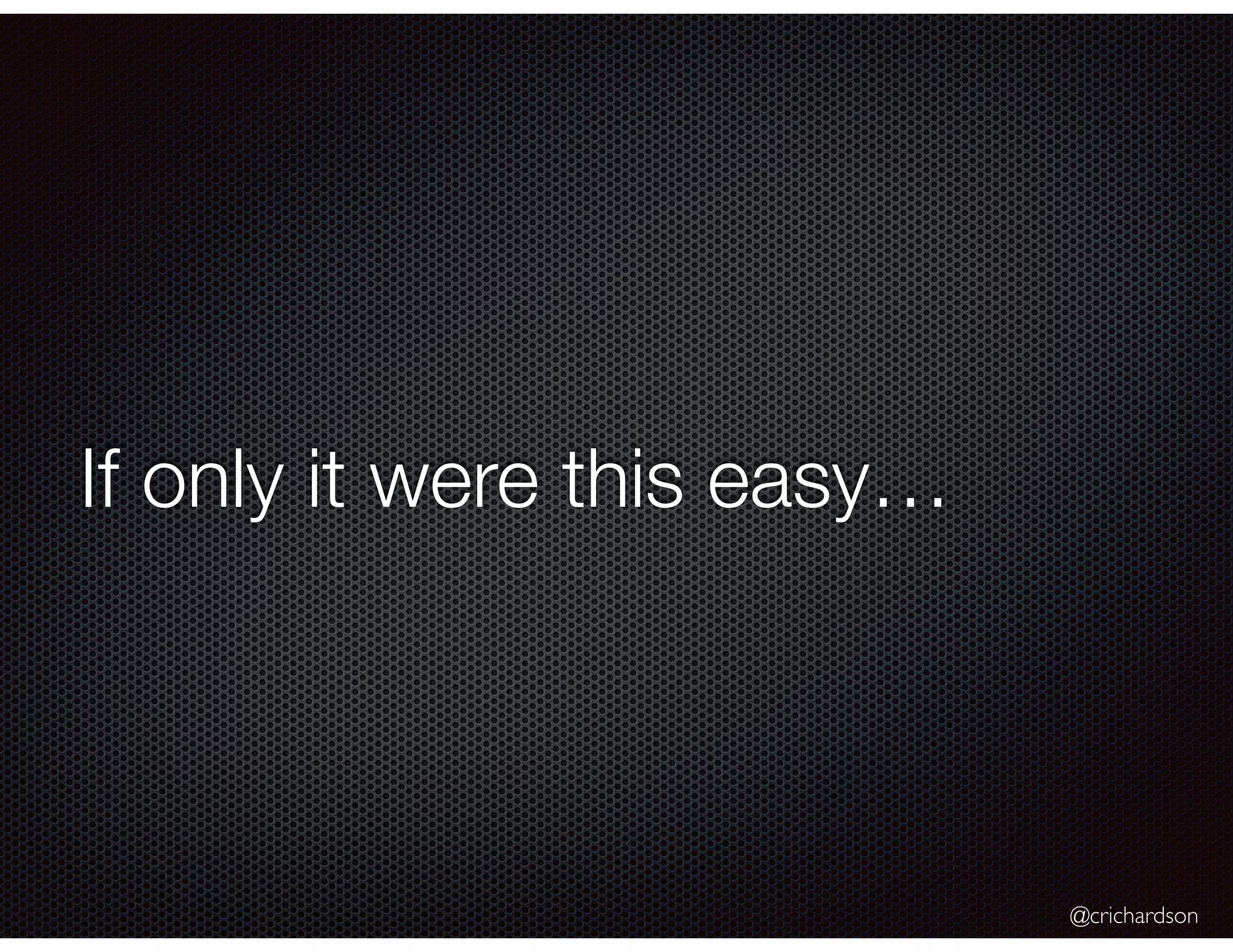

If only it were this easy…

27. @crichardson

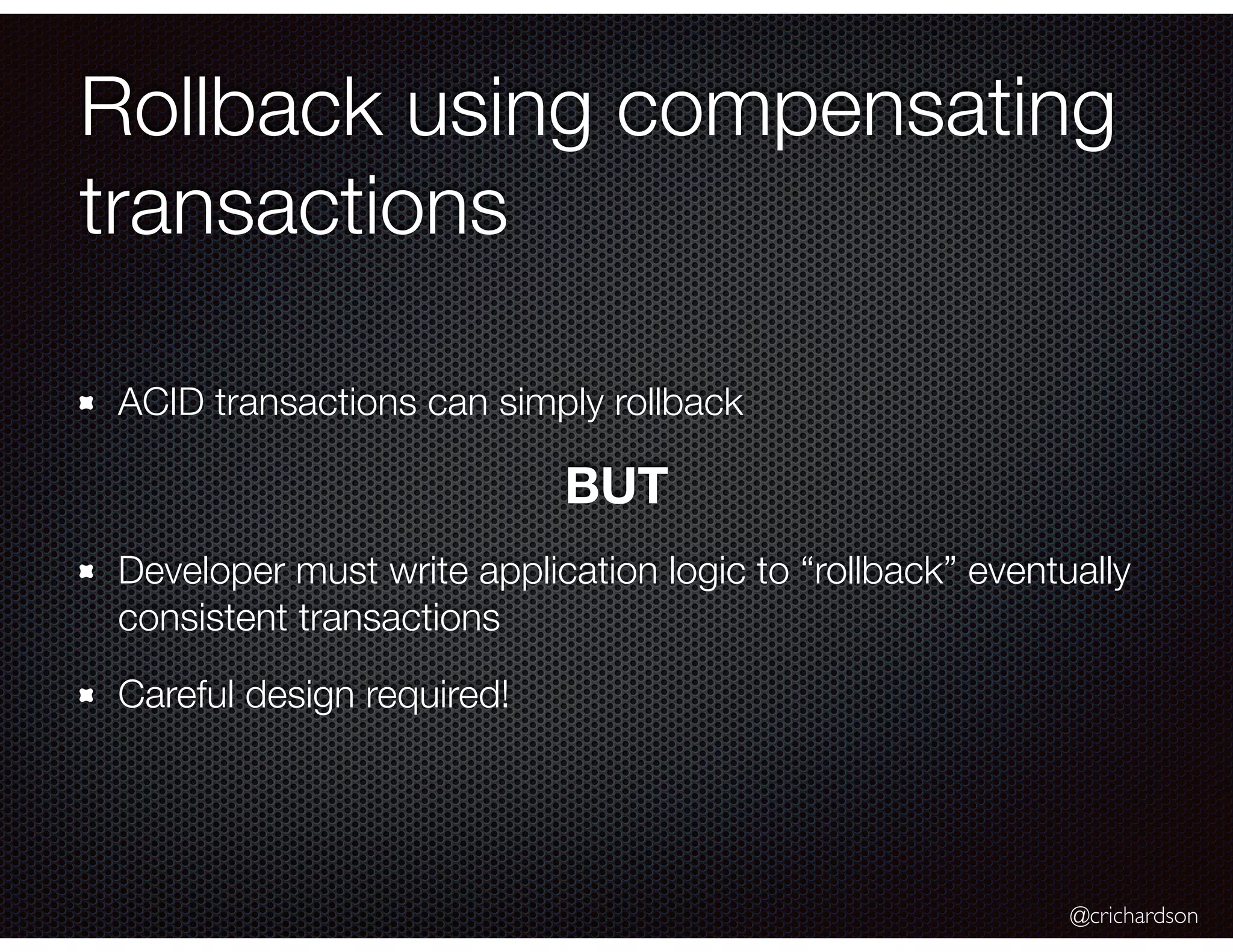

Rollback using compensating
transactions
ACID transactions can simply rollback
BUT
Developer must write application logic to “rollback” eventually
consistent transactions
Careful design required!

28. @crichardson

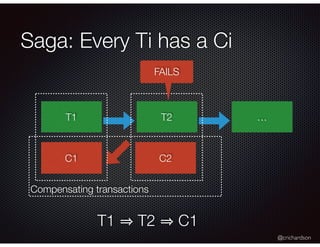

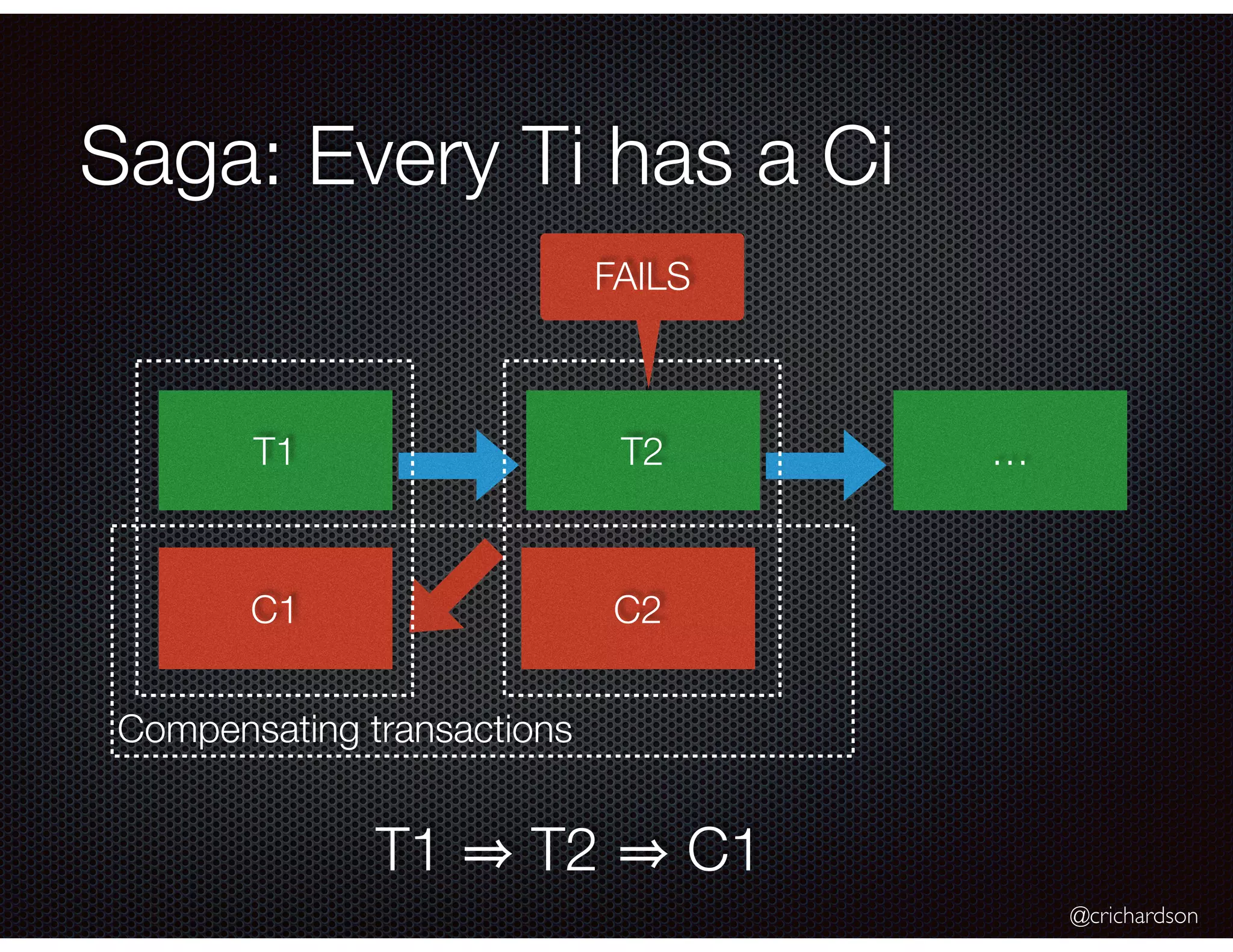

Saga: Every Ti has a Ci
T1 T2 …
C1 C2
Compensating transactions
T1 T2 C1
FAILS

29. @crichardson

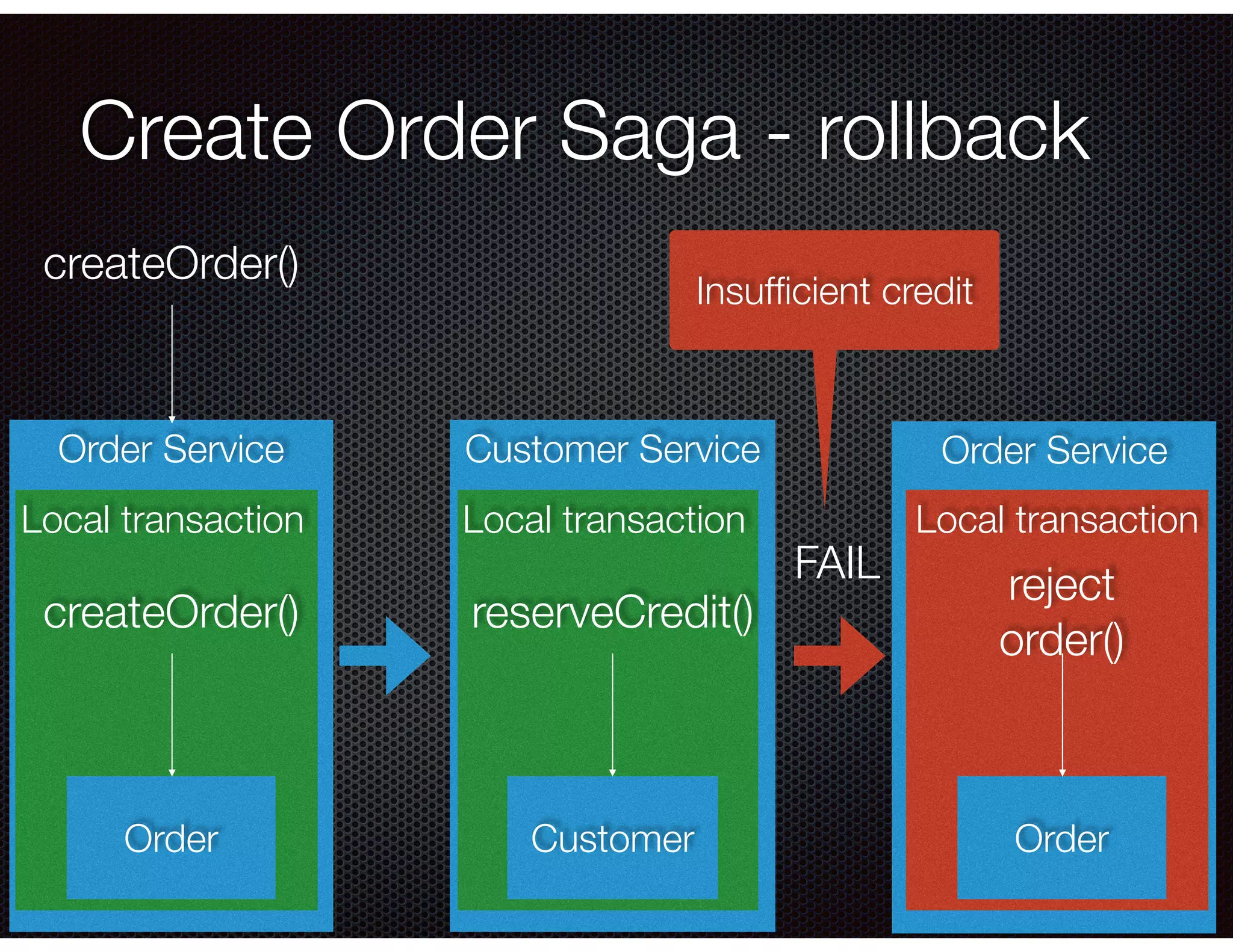

Order Service
Create Order Saga - rollback
Local transaction
Order
createOrder()
Customer Service
Local transaction
Customer
reserveCredit()
Order Service
Local transaction
Order
reject
order()
createOrder()
FAIL
Insufficient credit

30. @crichardson

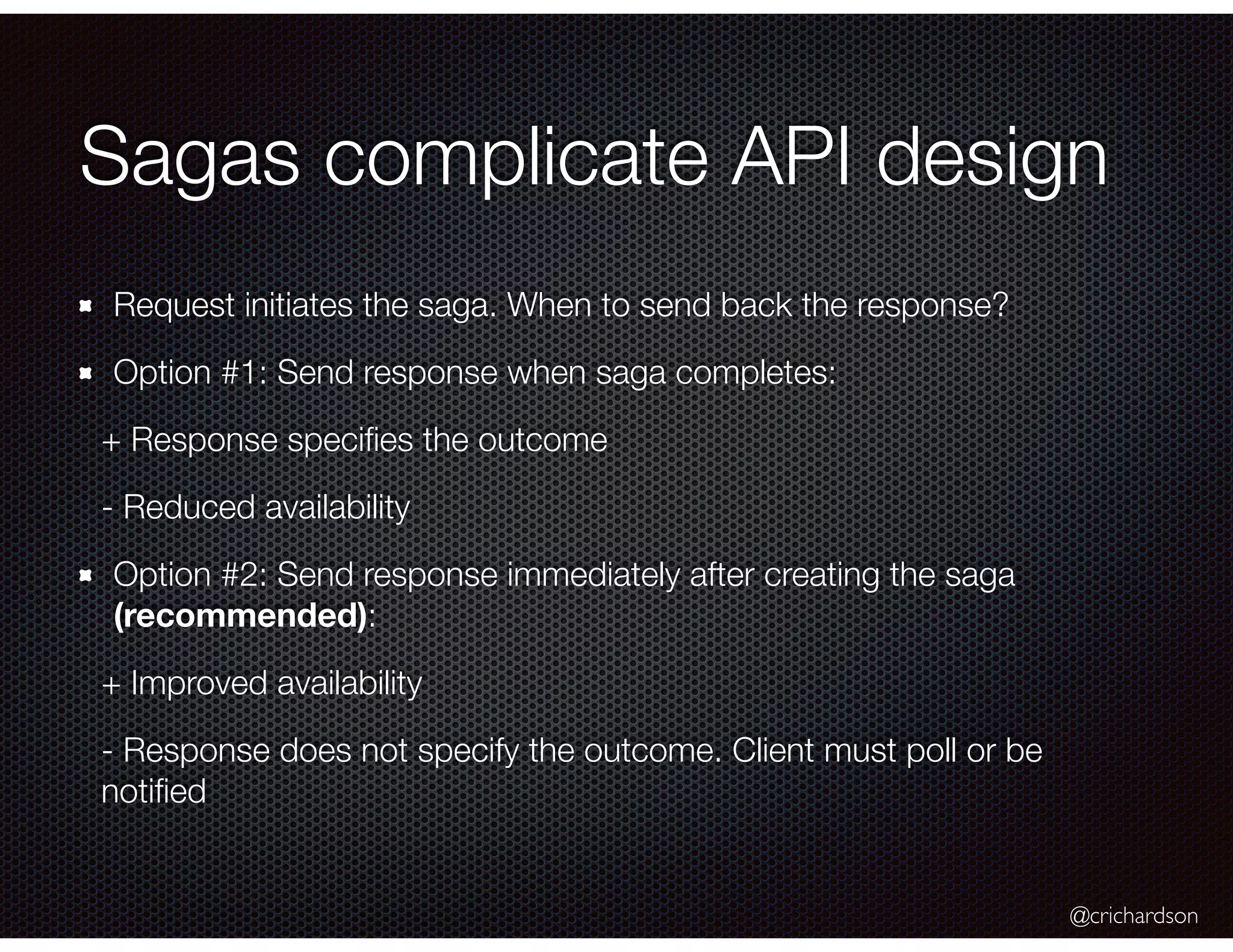

Sagas complicate API design
Request initiates the saga. When to send back the response?
Option #1: Send response when saga completes:
+ Response specifies the outcome
- Reduced availability
Option #2: Send response immediately after creating the saga
(recommended):
+ Improved availability
- Response does not specify the outcome. Client must poll or be
notified

31. @crichardson

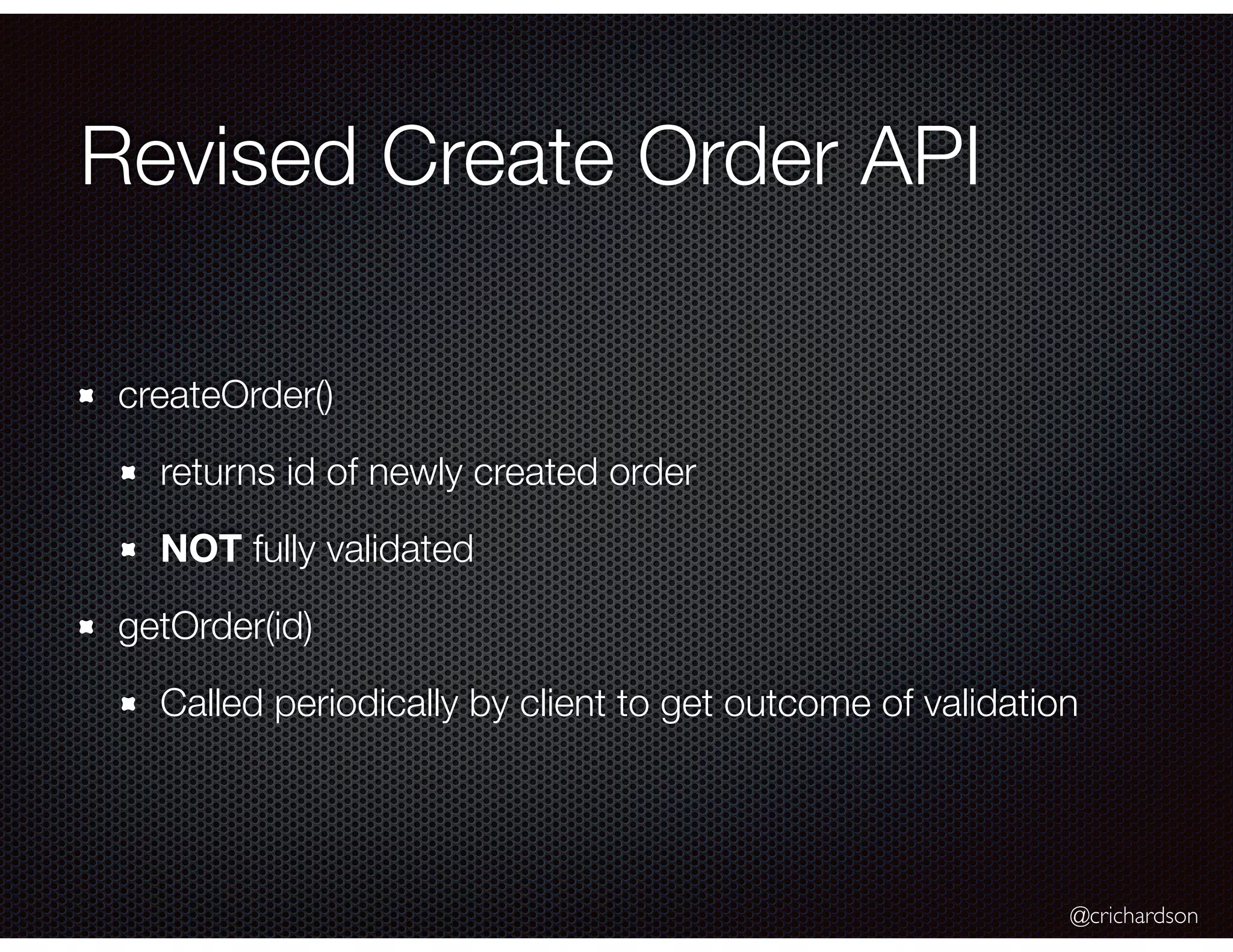

Revised Create Order API
createOrder()
returns id of newly created order
NOT fully validated
getOrder(id)
Called periodically by client to get outcome of validation

32. @crichardson

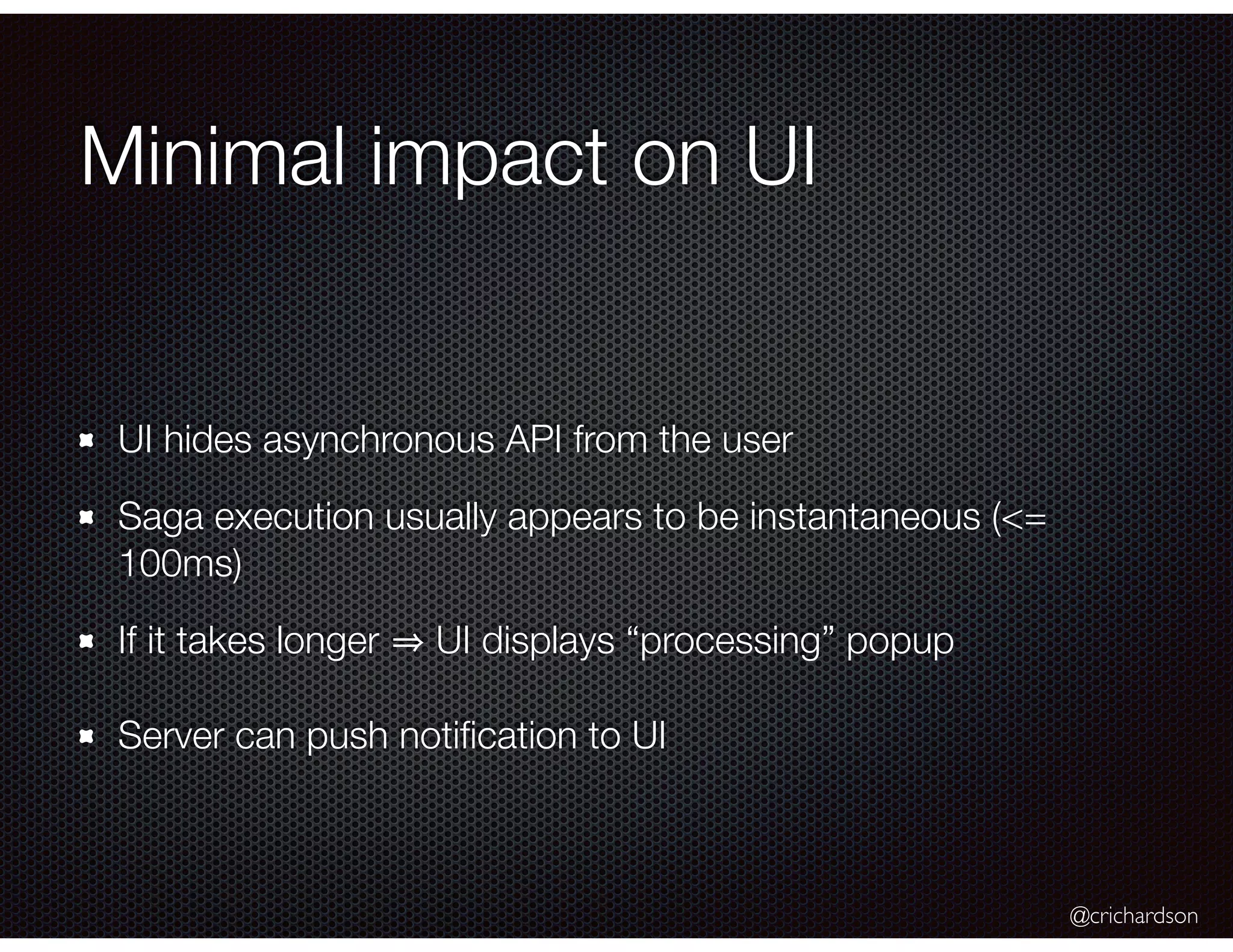

Minimal impact on UI
UI hides asynchronous API from the user
Saga execution usually appears to be instantaneous (<=
100ms)
If it takes longer UI displays “processing” popup
Server can push notification to UI

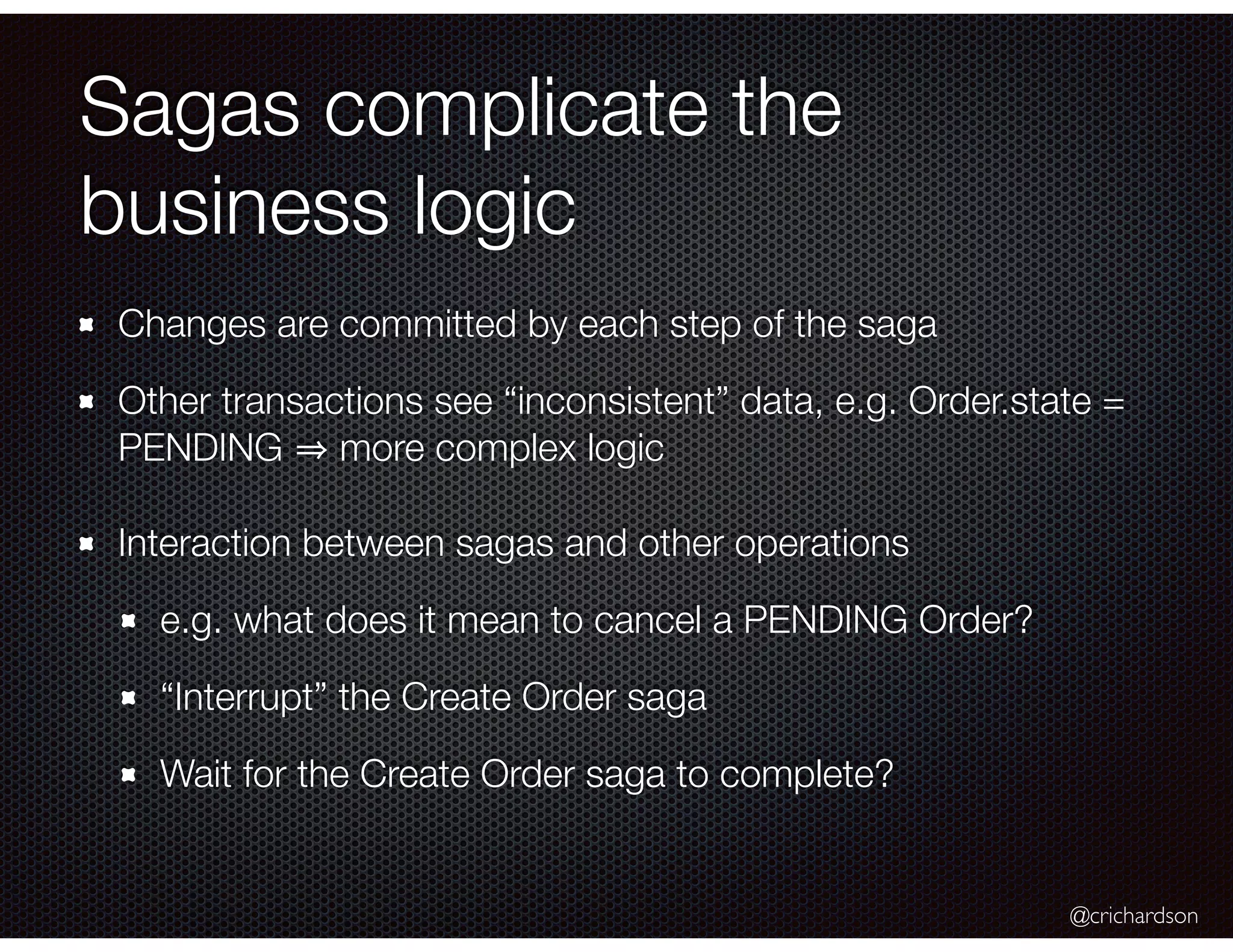

33. @crichardson
Sagas complicate the
business logic
Changes are committed by each step of the saga
Other transactions see “inconsistent” data, e.g. Order.state =
PENDING more complex logic
Interaction between sagas and other operations
e.g. what does it mean to cancel a PENDING Order?
“Interrupt” the Create Order saga
Wait for the Create Order saga to complete?

34. @crichardson

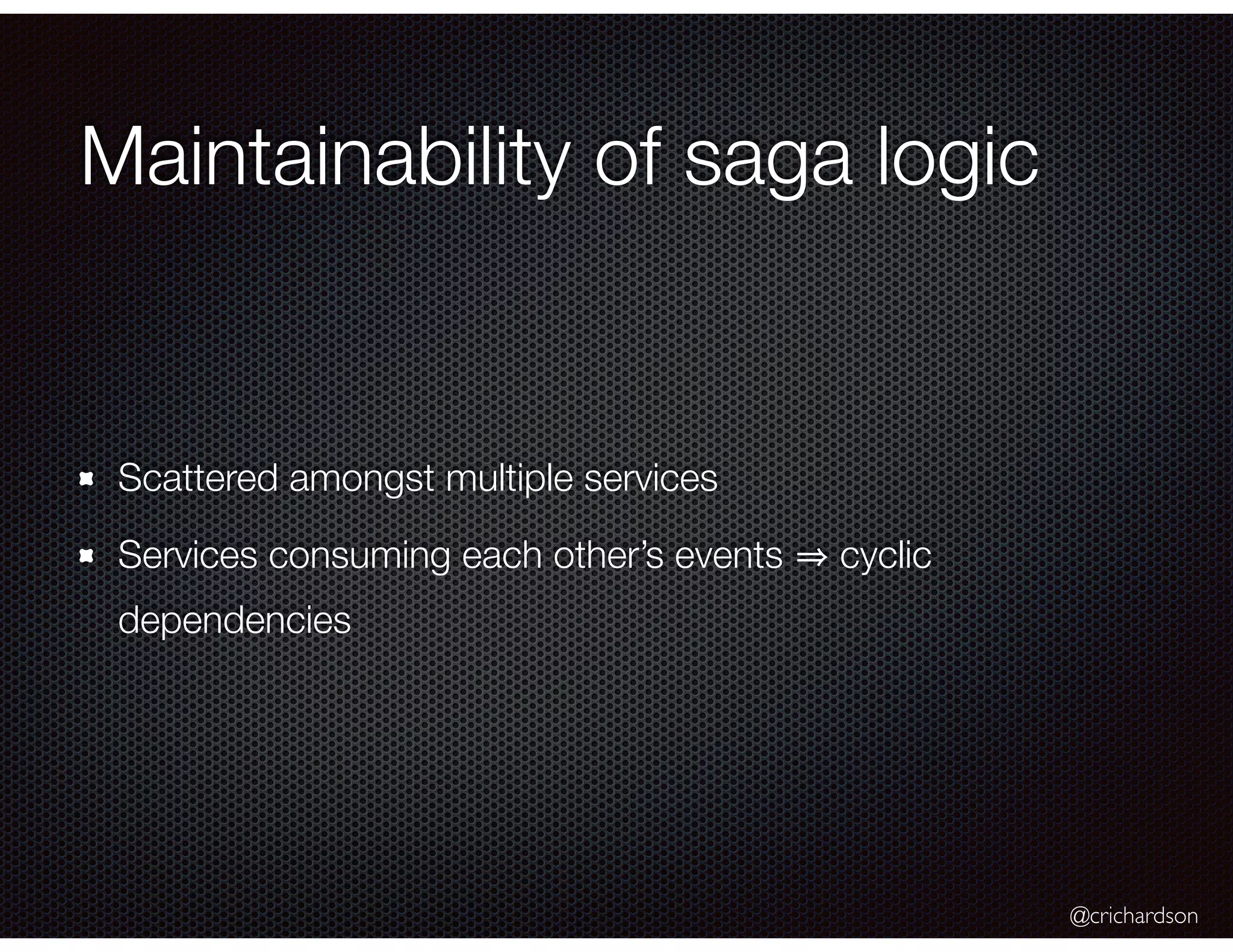

Maintainability of saga logic
Scattered amongst multiple services
Services consuming each other’s events cyclic
dependencies

35. @crichardson

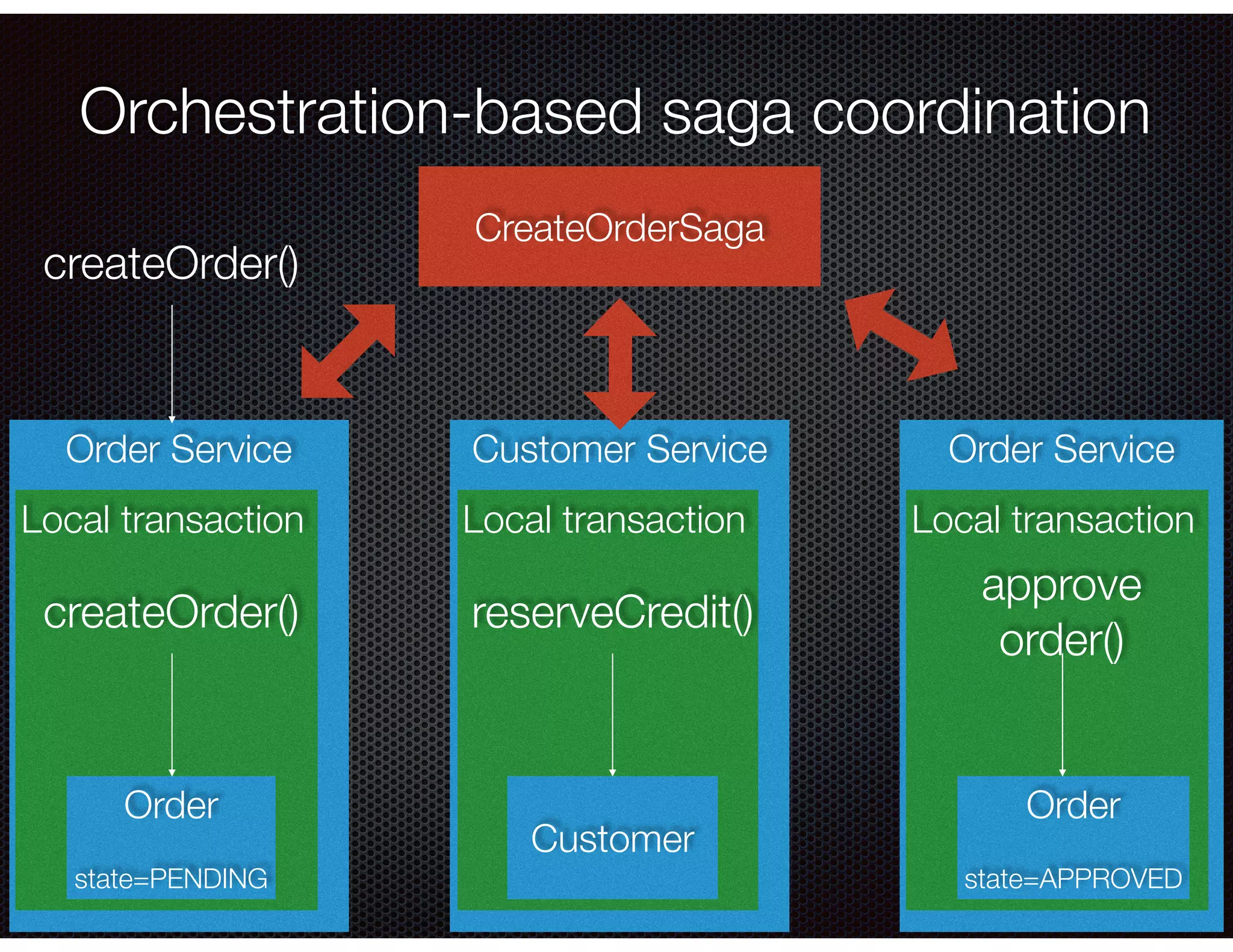

Order Service
Orchestration-based saga coordination
Local transaction
Order
state=PENDING
createOrder()
Customer Service
Local transaction
Customer
reserveCredit()
Order Service
Local transaction
Order
state=APPROVED
approve
order()
createOrder()
CreateOrderSaga

36. @crichardson

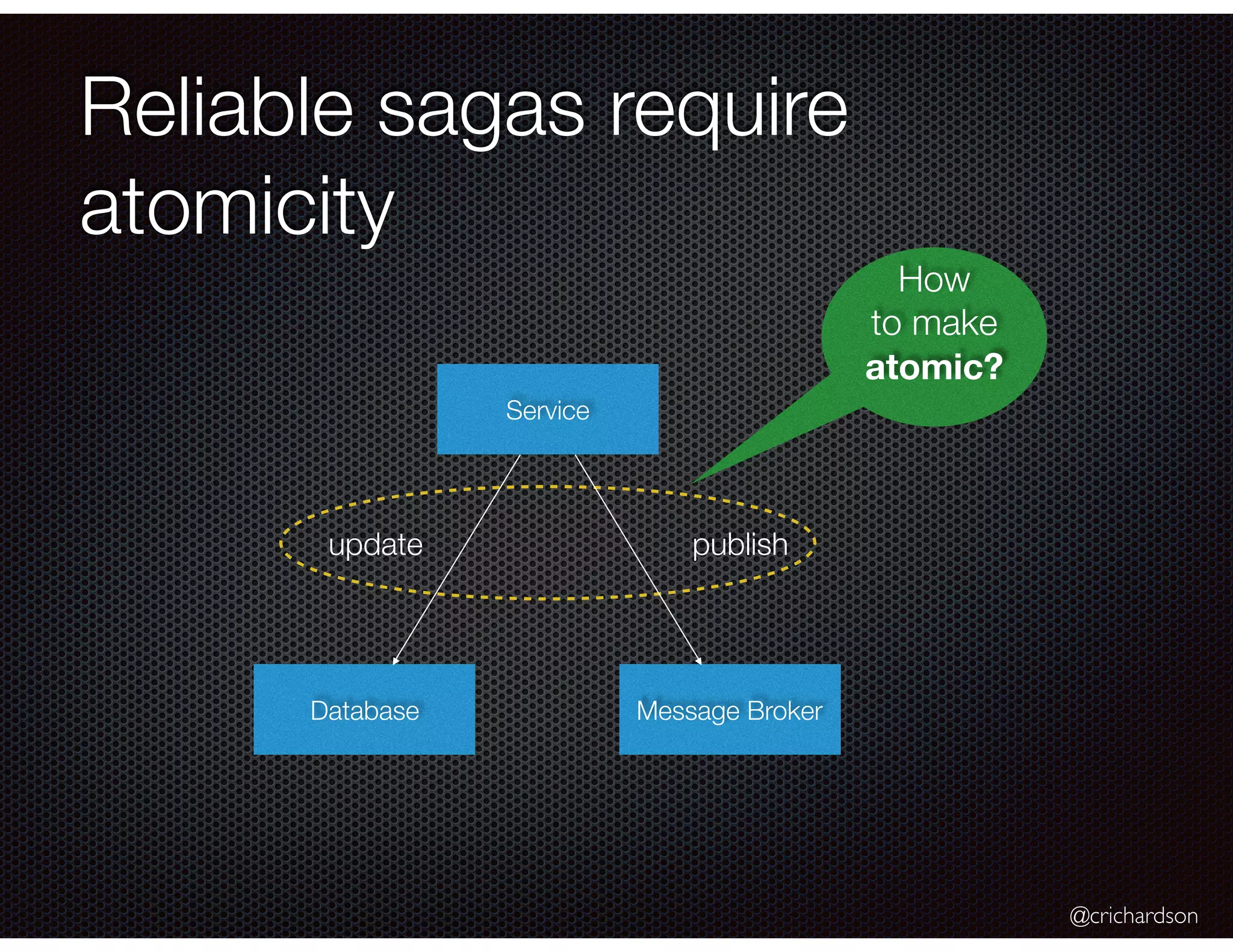

Reliable sagas require
atomicity
Service
Database Message Broker
update publish
How
to make
atomic?

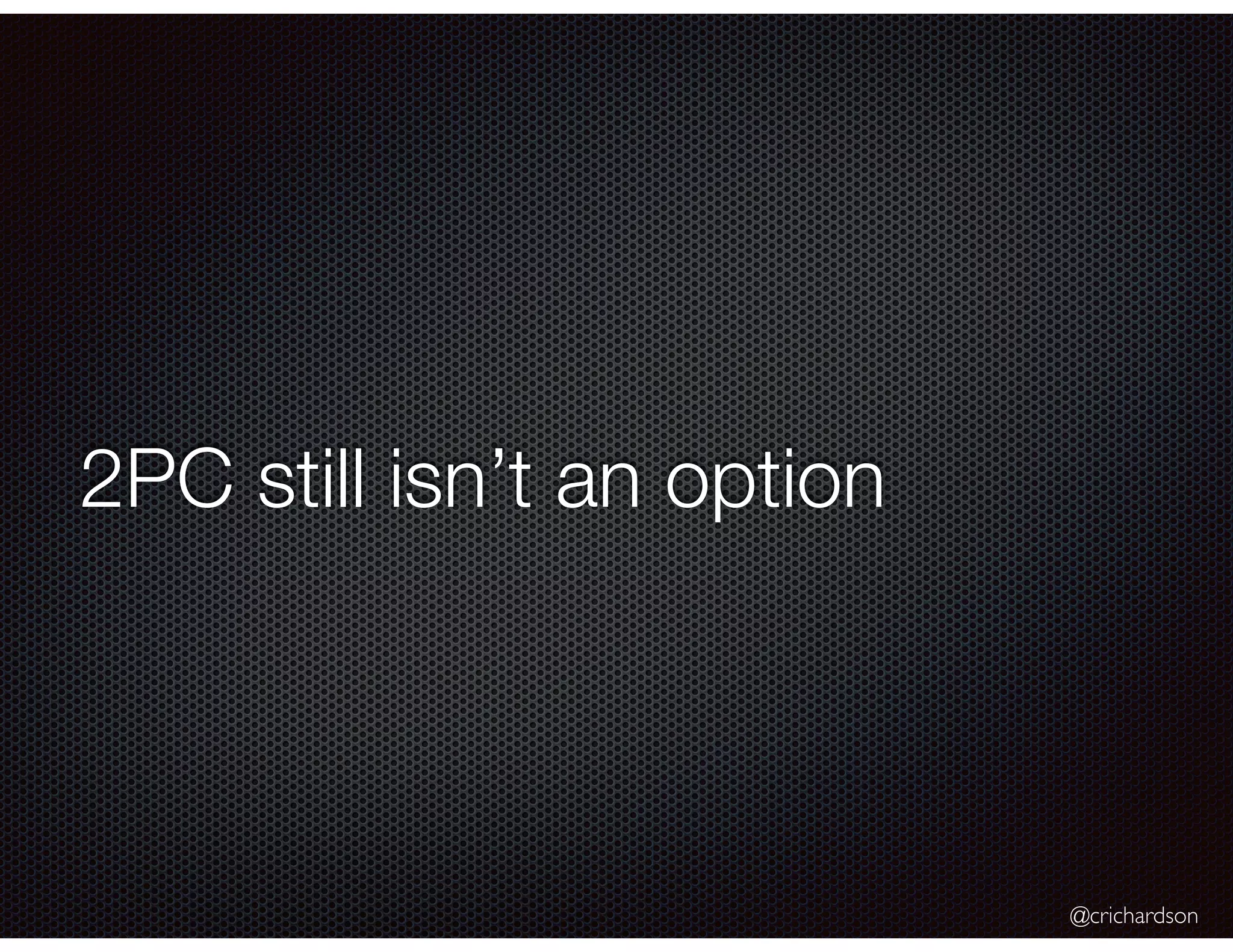

37. @crichardson

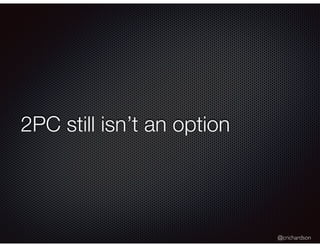

2PC still isn’t an option

38. @crichardson

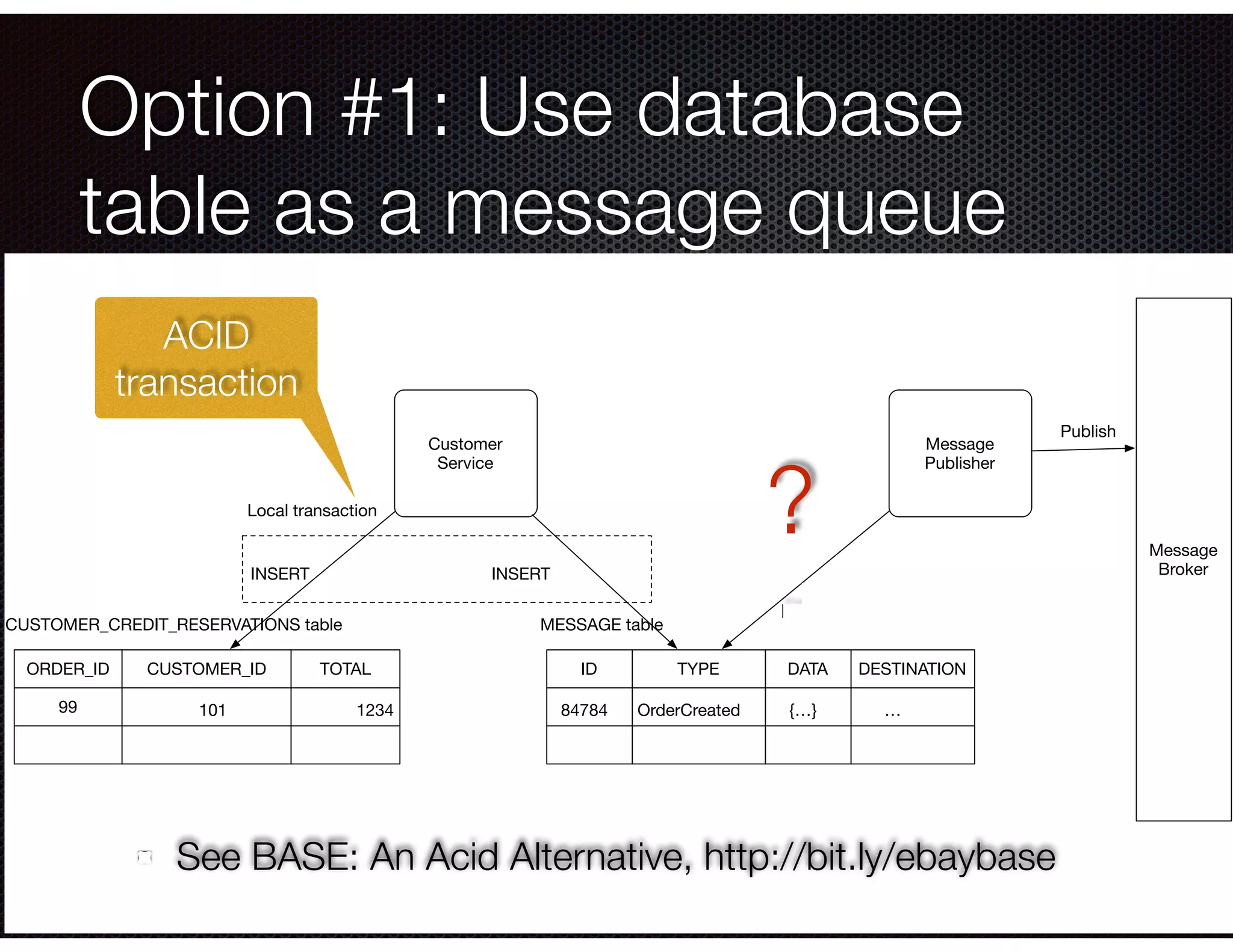

Option #1: Use database
table as a message queue
ACID
transaction
See BASE: An Acid Alternative, http://bit.ly/ebaybase
DELETE
Customer
Service
ORDER_ID CUSTOMER_ID TOTAL
99
CUSTOMER_CREDIT_RESERVATIONS table
101 1234
ID TYPE DATA DESTINATION
MESSAGE table
84784 OrderCreated {…} …
INSERT INSERT
Message
Publisher
QUERY
Message
Broker
Publish
Local transaction
?

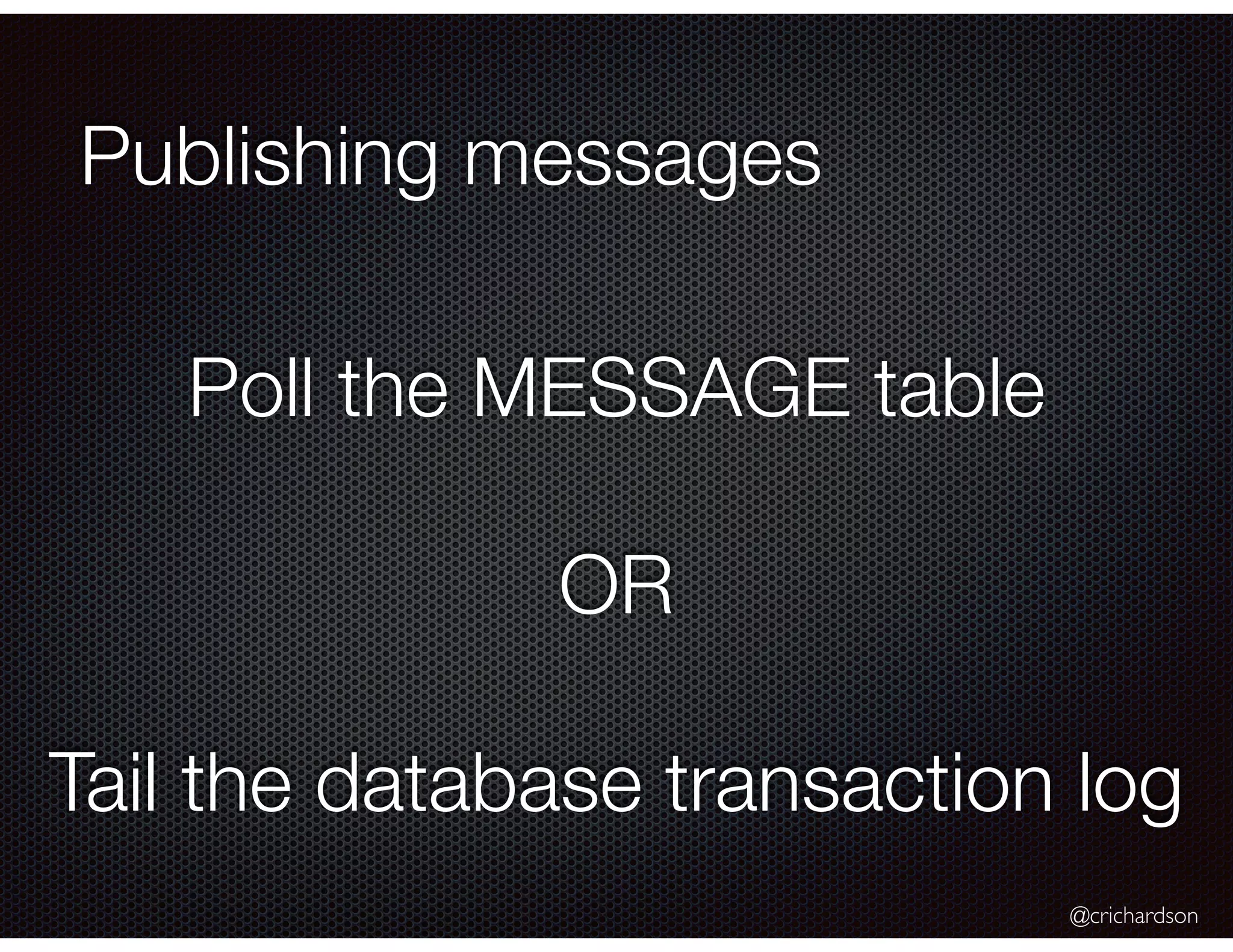

39. @crichardson
Publishing messages
Poll the MESSAGE table
OR
Tail the database transaction log

40. @crichardson

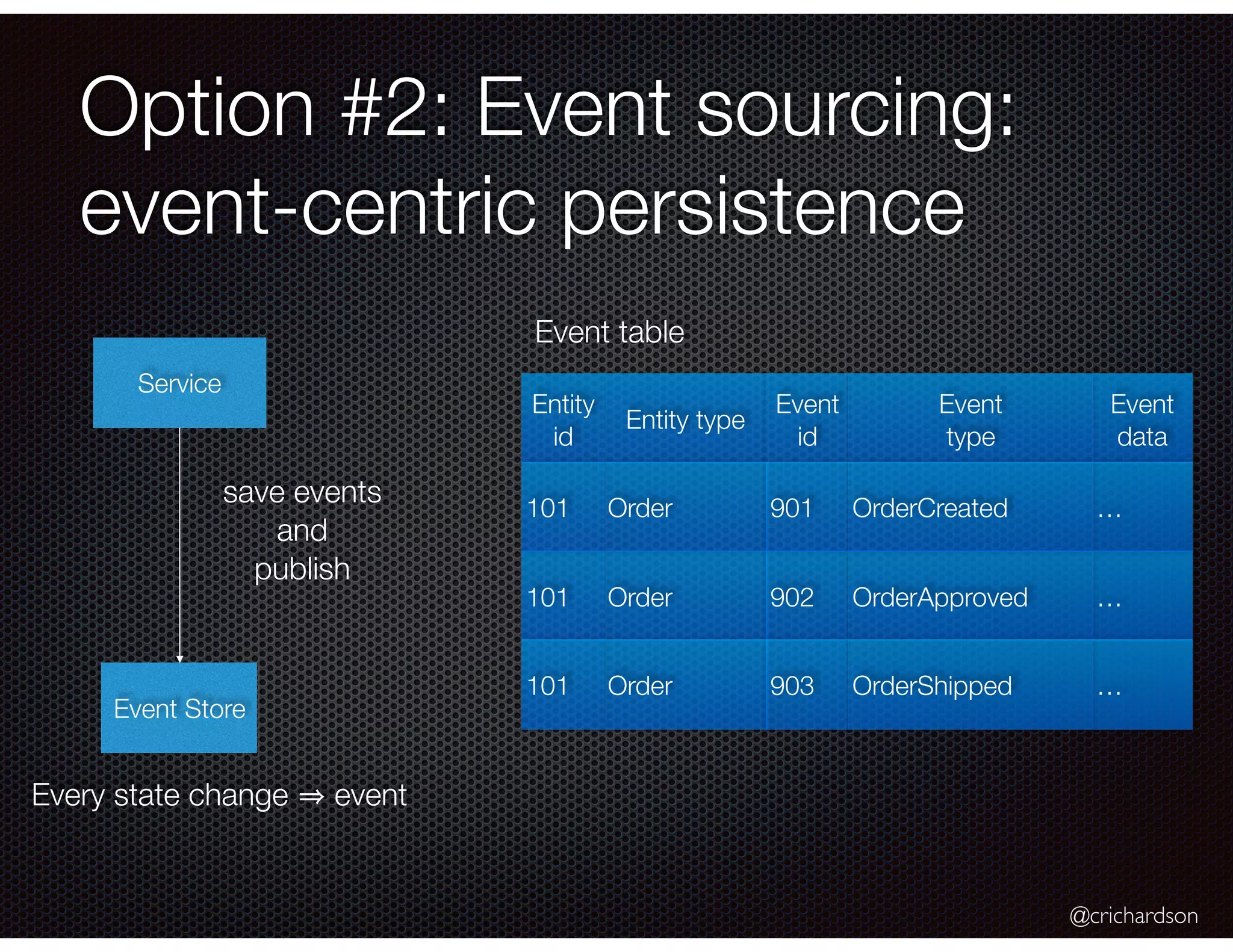

Option #2: Event sourcing:
event-centric persistence
Service
Event Store
save events
and
publish
Event table
Entity type
Event
id
Entity
id
Event
data
Order 902101 …OrderApproved
Order 903101 …OrderShipped
Event
type
Order 901101 …OrderCreated
Every state change event

41. @crichardson

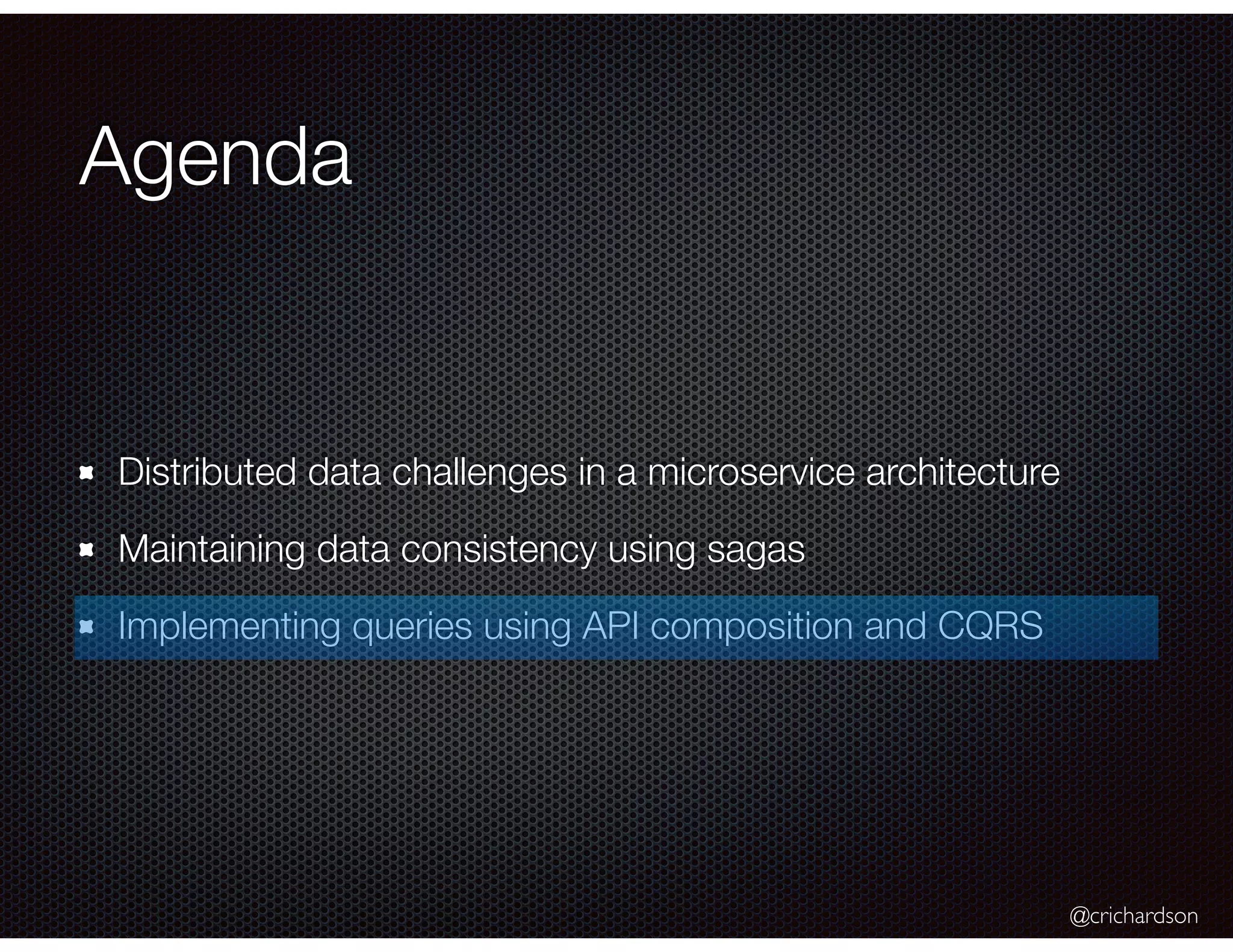

Agenda
Distributed data challenges in a microservice architecture
Maintaining data consistency using sagas
Implementing queries using API composition and CQRS

42. @crichardson

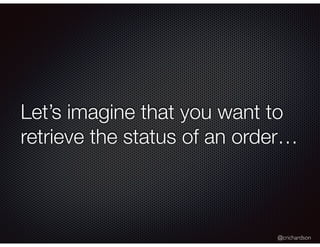

Let’s imagine that you want to
retrieve the status of an order…

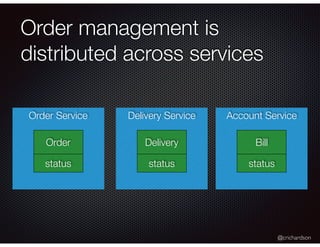

43. @crichardson
Order management is
distributed across services
Order Service
Order
status
Delivery Service
Delivery
status
Account Service
Bill
status

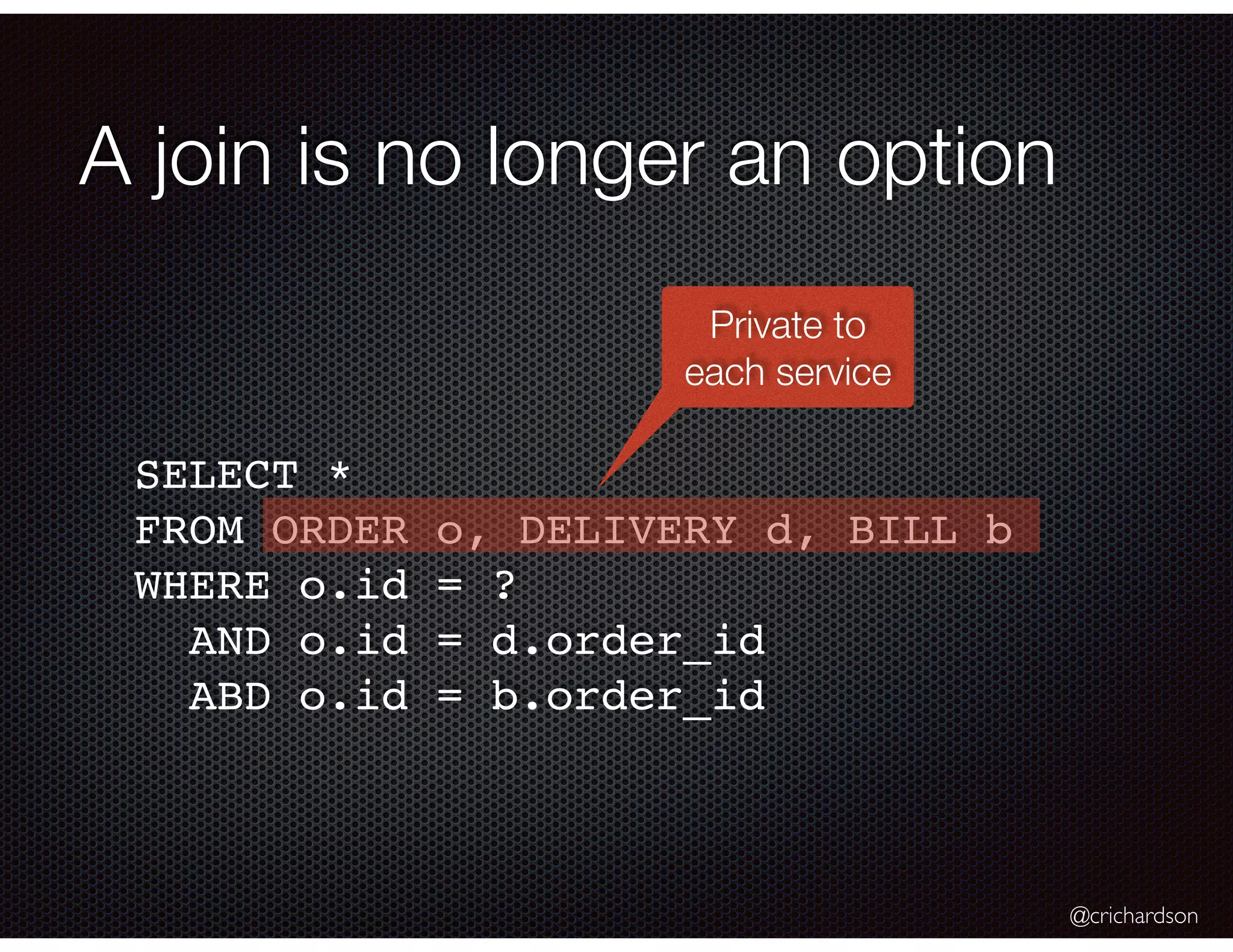

44. @crichardson
A join is no longer an option
SELECT *
FROM ORDER o, DELIVERY d, BILL b
WHERE o.id = ?
AND o.id = d.order_id
ABD o.id = b.order_id
Private to
each service

45. @crichardson

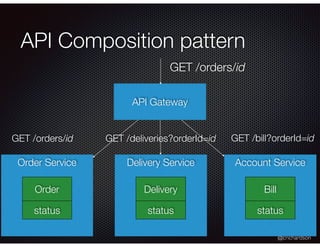

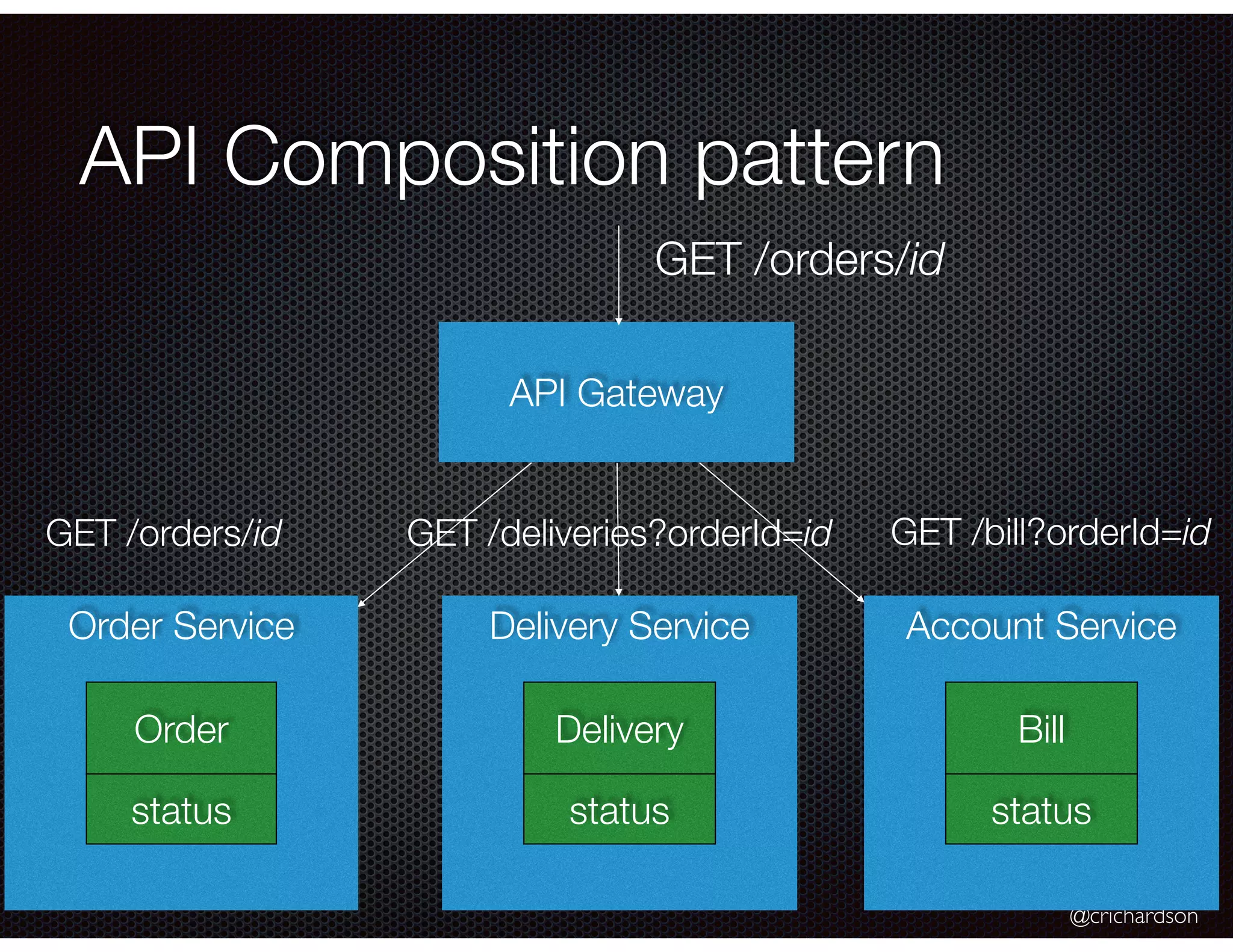

API Composition pattern
Order Service
Order
status
Delivery Service
Delivery
status
Account Service
Bill
status
API Gateway
GET /orders/id
GET /bill?orderId=idGET /orders/id GET /deliveries?orderId=id

46. @crichardson

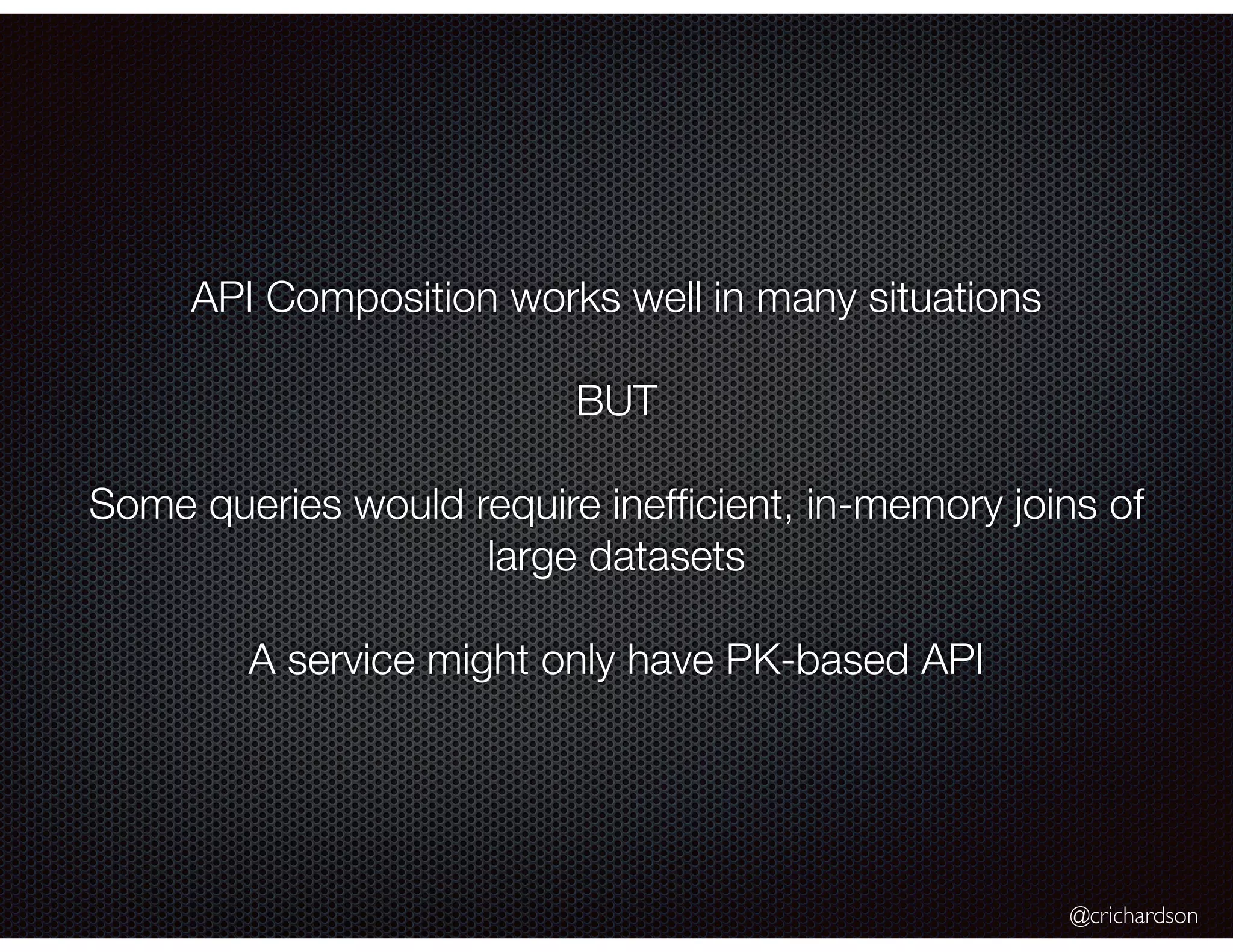

API Composition works well in many situations
BUT
Some queries would require inefficient, in-memory joins of
large datasets
A service might only have PK-based API

47. @crichardson
Find recent, valuable
customers
SELECT *
FROM CUSTOMER c, ORDER o
WHERE
c.id = o.ID
AND o.ORDER_TOTAL > 100000
AND o.STATE = 'SHIPPED'
AND c.CREATION_DATE > ?

48. @crichardson

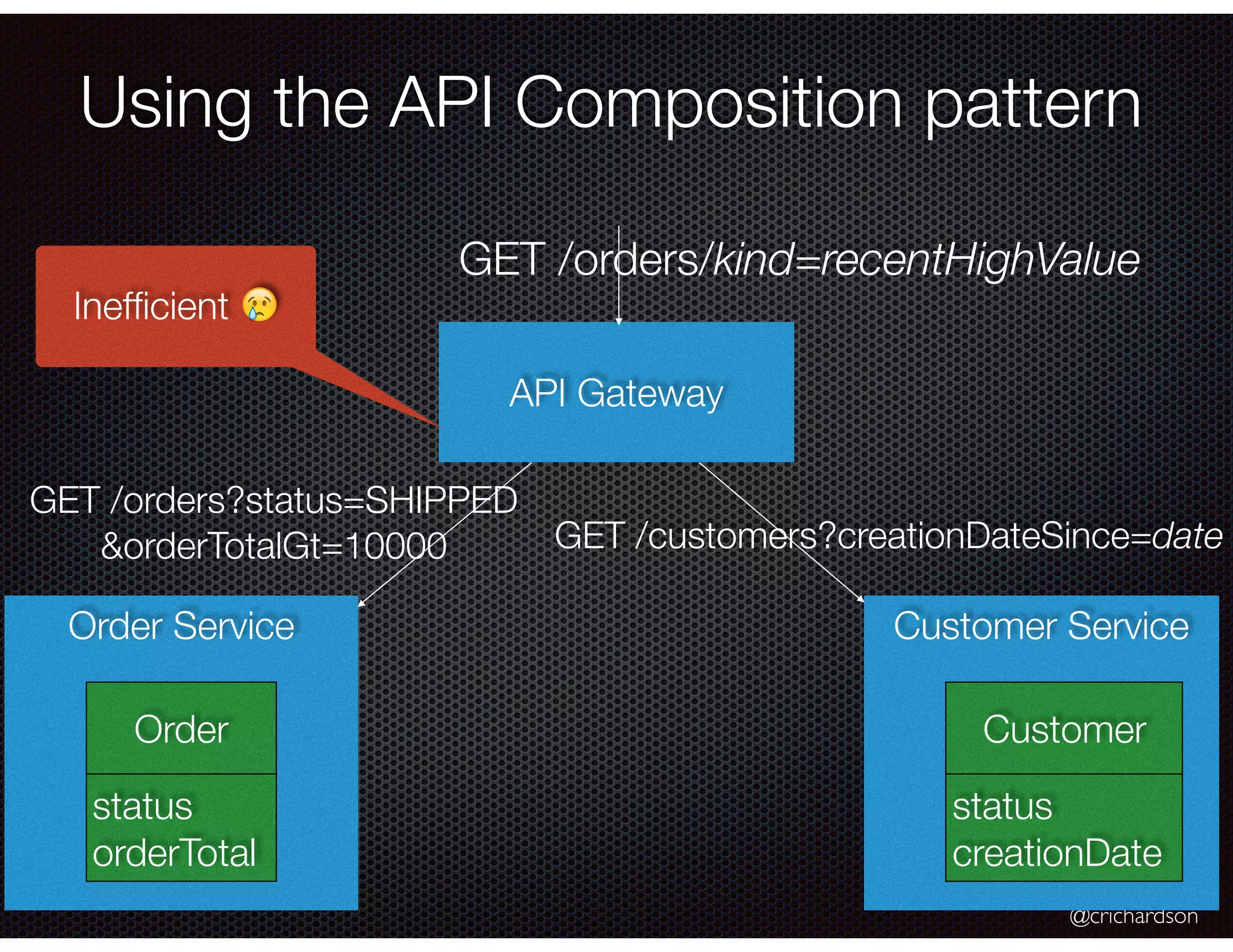

Using the API Composition pattern
Order Service
Order
status
orderTotal
Customer Service
Customer
status
creationDate
API Gateway
GET /orders/kind=recentHighValue
GET /customers?creationDateSince=date
GET /orders?status=SHIPPED
&orderTotalGt=10000
Inefficient 😢

49. @crichardson

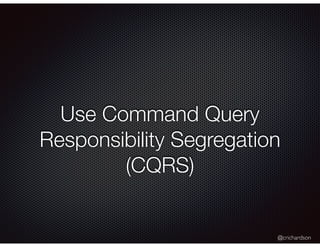

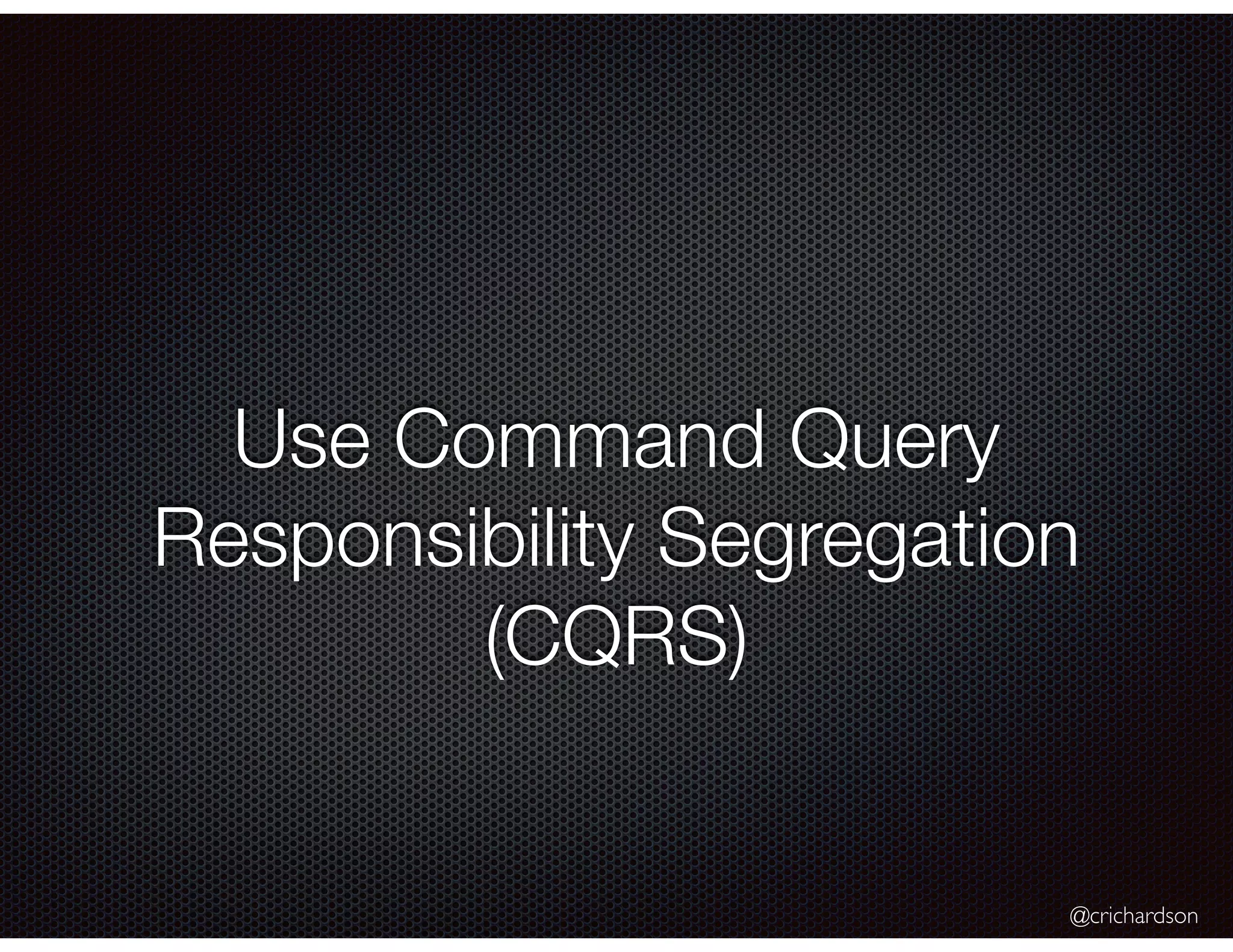

Use Command Query
Responsibility Segregation
(CQRS)

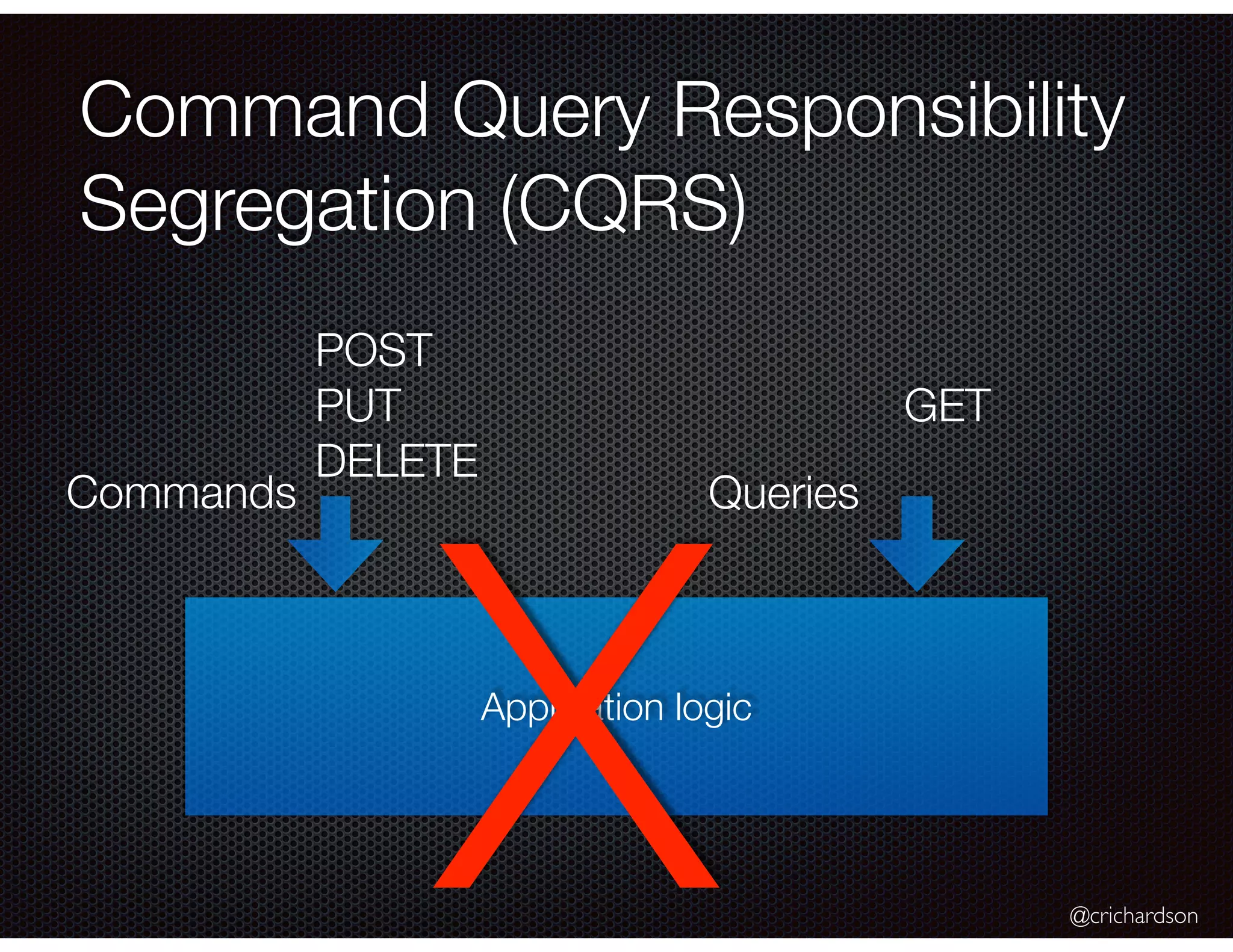

50. @crichardson
Command Query Responsibility
Segregation (CQRS)
Application logic
Commands Queries
X
POST
PUT
DELETE
GET

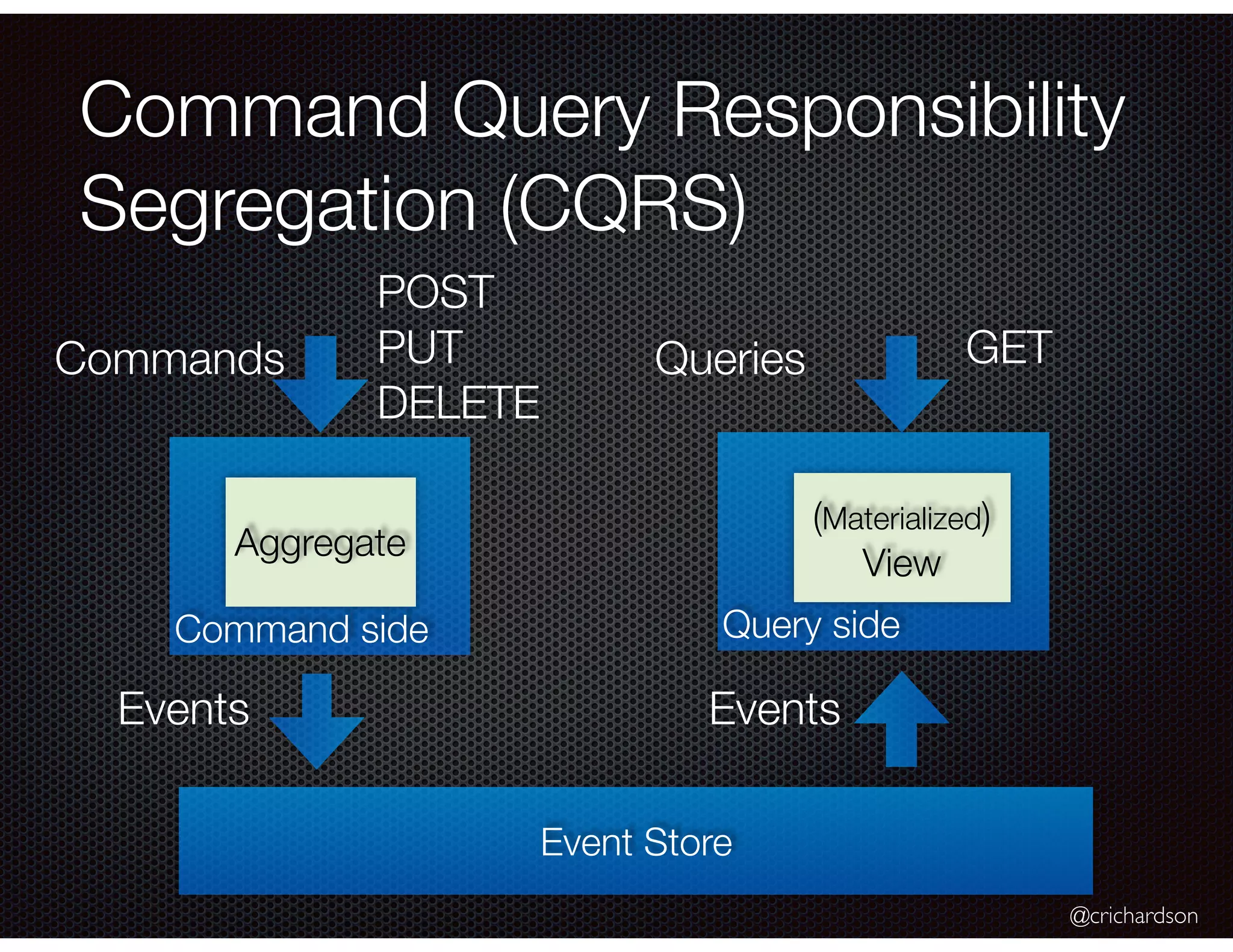

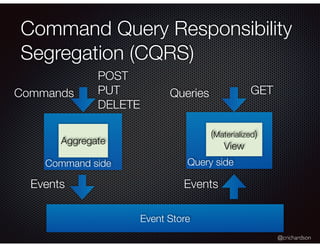

51. @crichardson
Command Query Responsibility
Segregation (CQRS)
Command side
Commands
Aggregate
Event Store
Events
Query side
Queries
(Materialized)
View
Events
POST
PUT
DELETE
GET

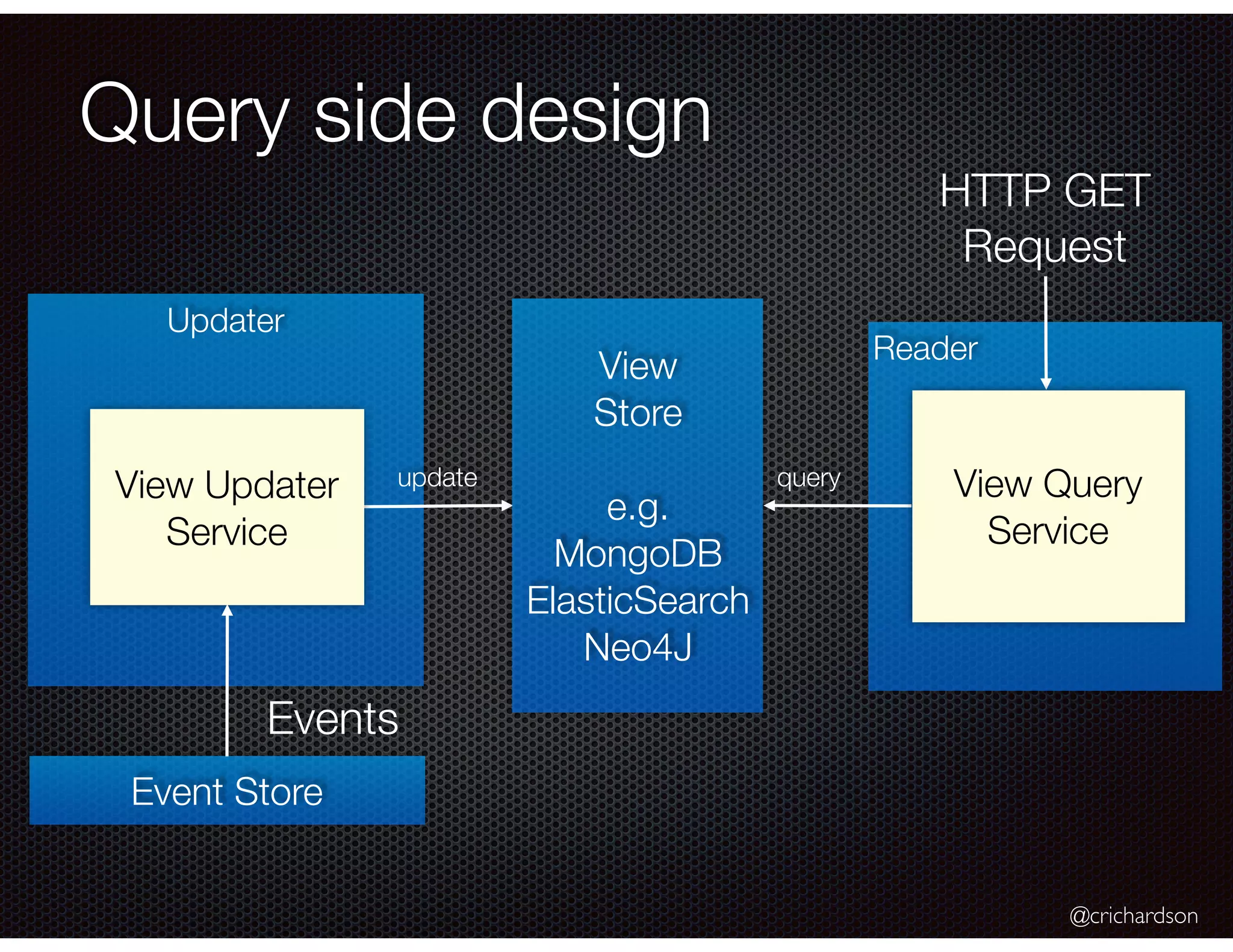

52. @crichardson
Query side design
Event Store
Updater
View Updater
Service
Events
Reader
HTTP GET
Request
View Query
Service
View
Store
e.g.
MongoDB
ElasticSearch
Neo4J
update query

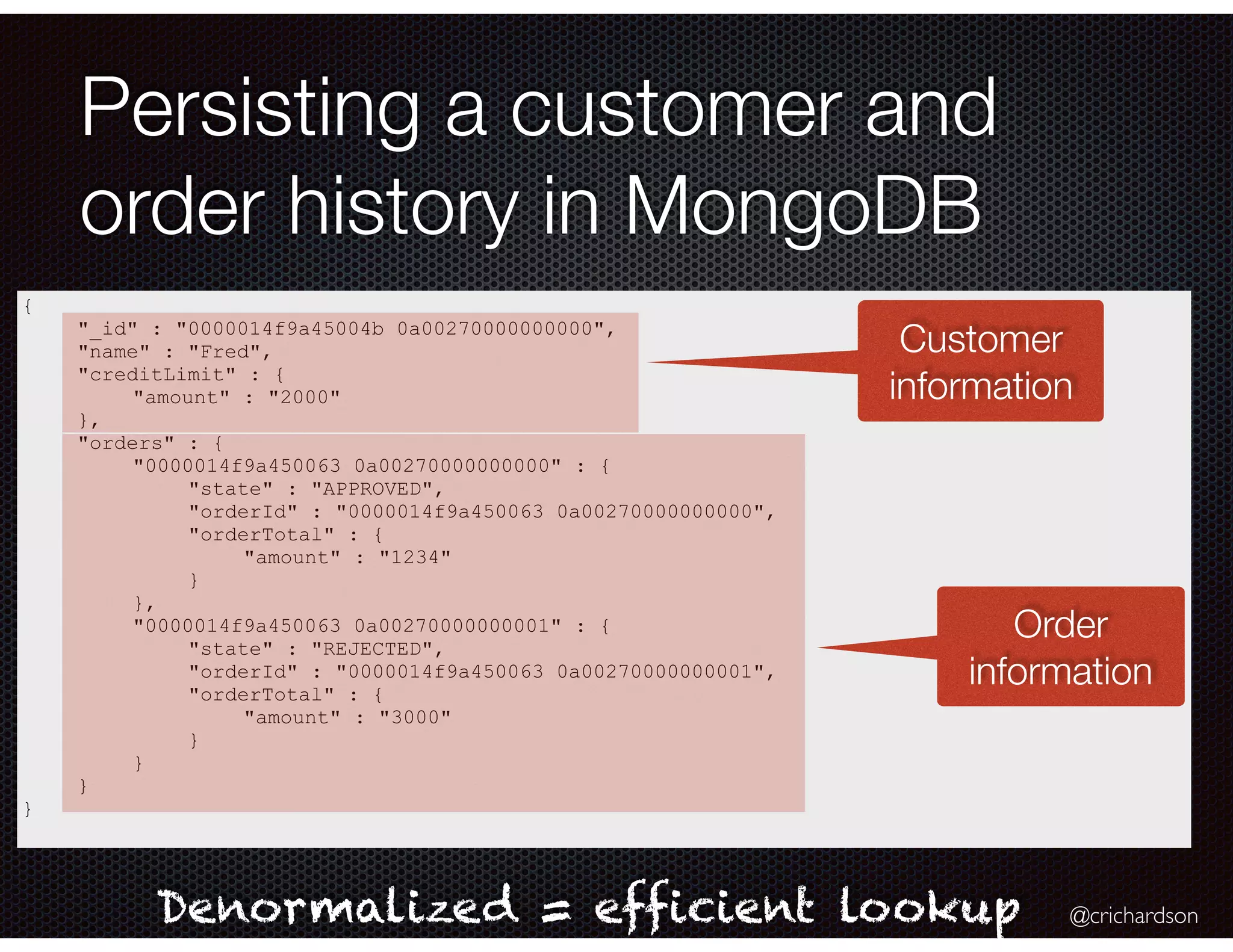

53. @crichardson

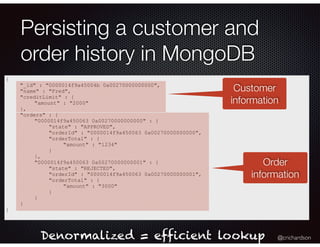

Persisting a customer and
order history in MongoDB
{
"_id" : "0000014f9a45004b 0a00270000000000",
"name" : "Fred",
"creditLimit" : {
"amount" : "2000"
},
"orders" : {
"0000014f9a450063 0a00270000000000" : {
"state" : "APPROVED",
"orderId" : "0000014f9a450063 0a00270000000000",
"orderTotal" : {
"amount" : "1234"
}
},
"0000014f9a450063 0a00270000000001" : {
"state" : "REJECTED",
"orderId" : "0000014f9a450063 0a00270000000001",
"orderTotal" : {
"amount" : "3000"
}
}
}
}
Denormalized = efficient lookup
Customer
information
Order
information

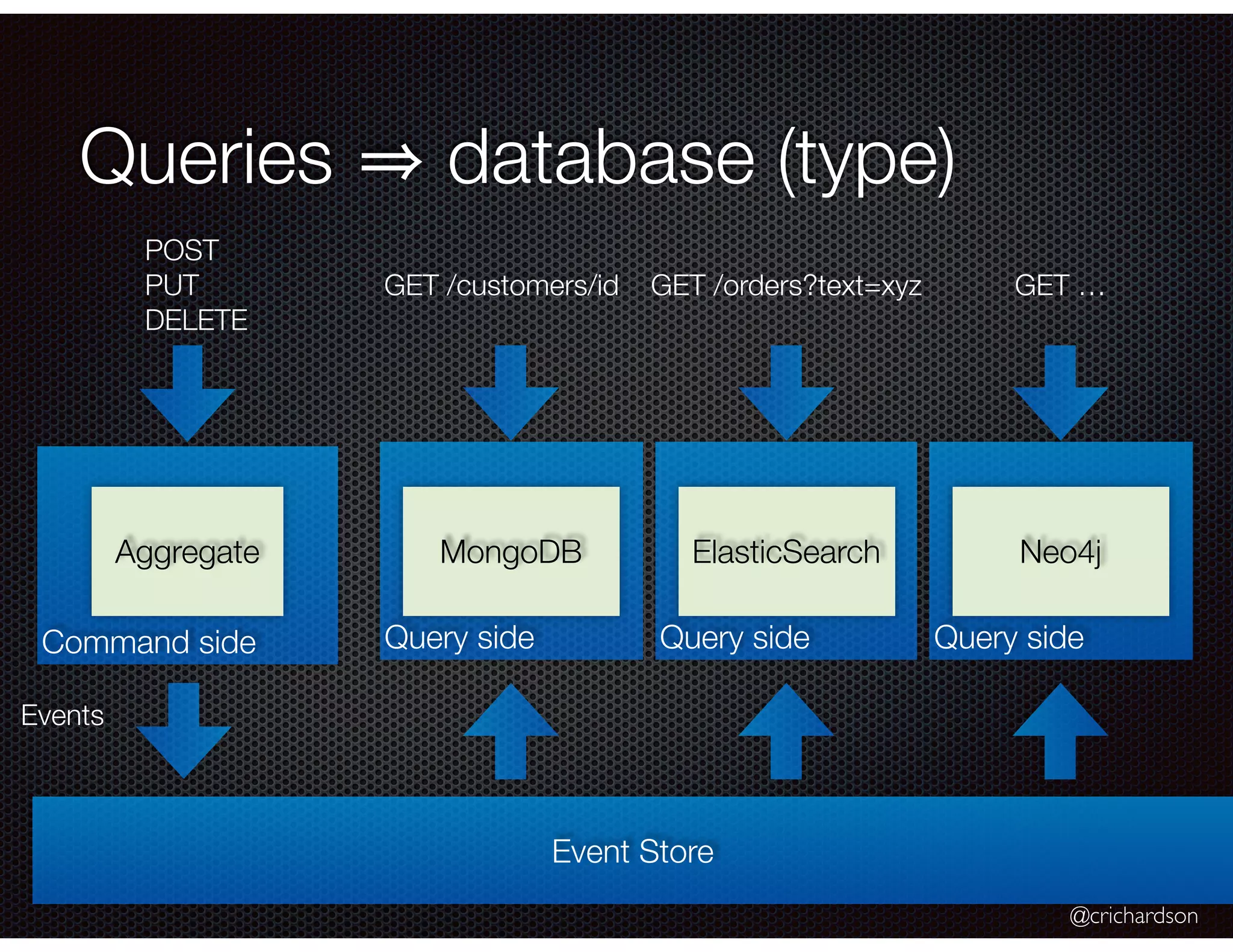

54. @crichardson
Queries database (type)
Command side
POST
PUT
DELETE
Aggregate
Event Store
Events
Query side
GET /customers/id
MongoDB
Query side
GET /orders?text=xyz
ElasticSearch
Query side
GET …
Neo4j

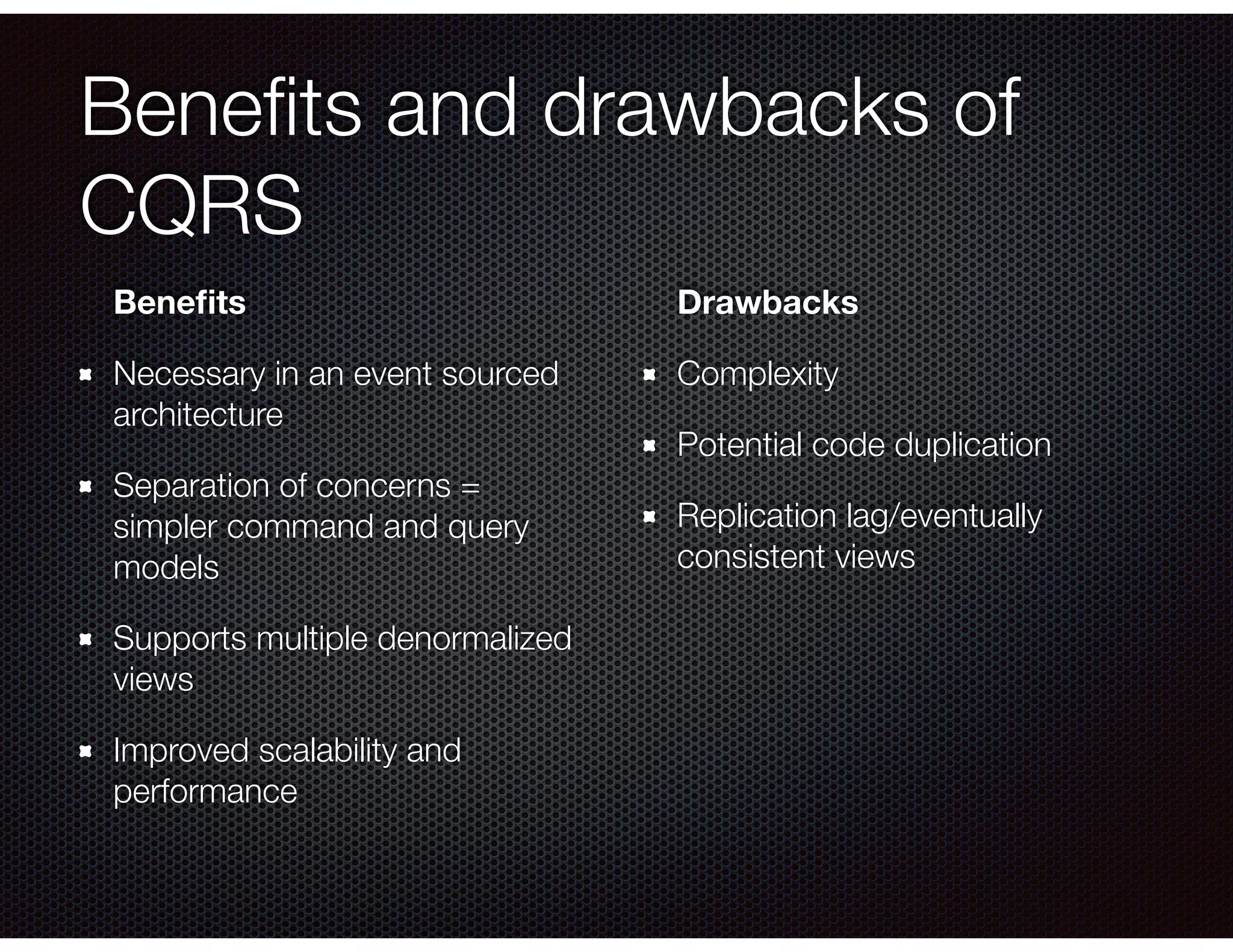

55. Benefits and drawbacks of
CQRS
Benefits
Necessary in an event sourced
architecture
Separation of concerns =
simpler command and query
models
Supports multiple denormalized
views
Improved scalability and
performance
Drawbacks
Complexity
Potential code duplication
Replication lag/eventually
consistent views

56. @crichardson

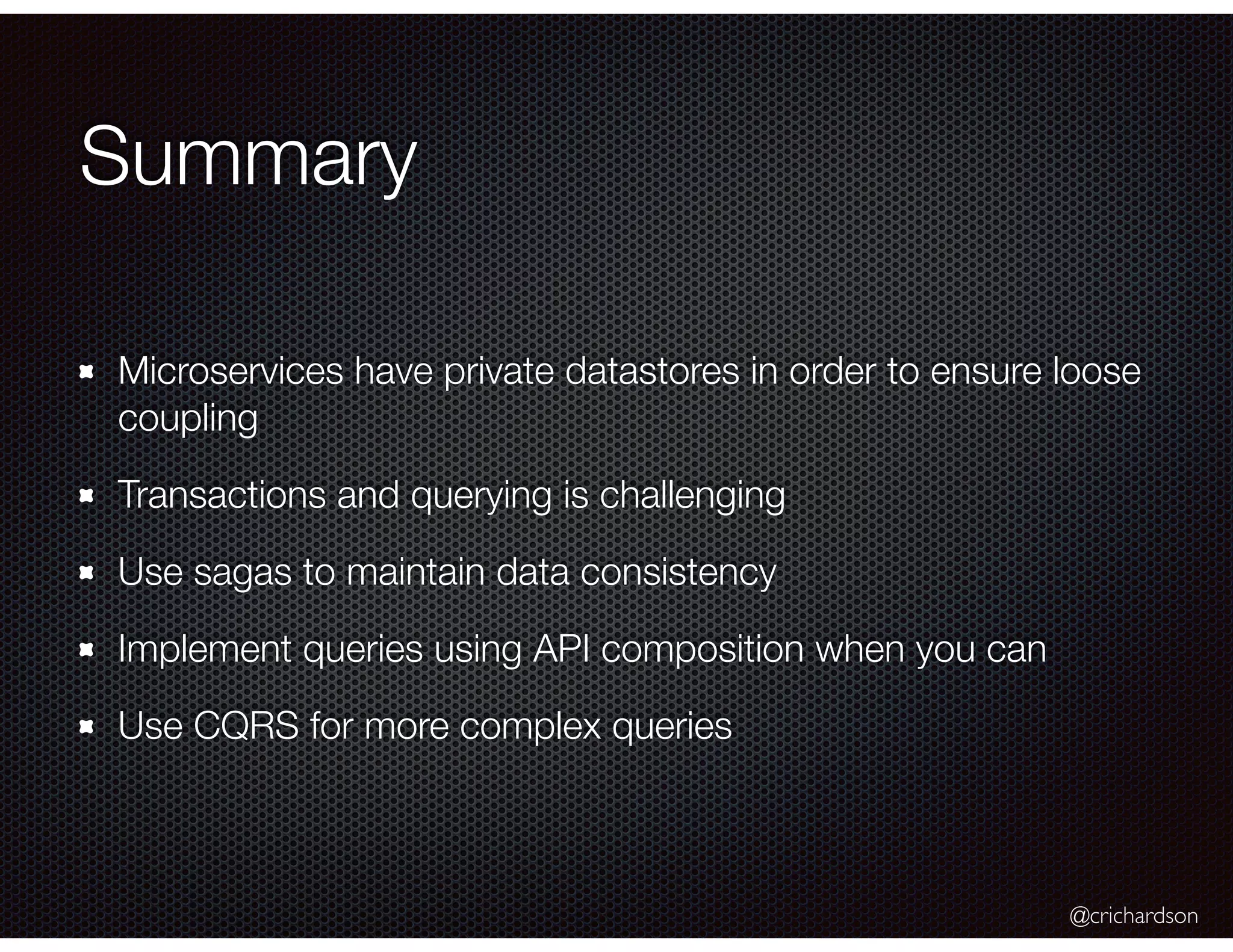

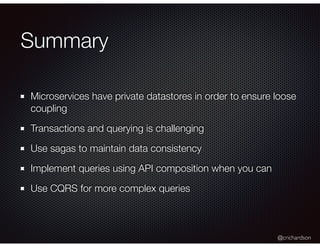

Summary
Microservices have private datastores in order to ensure loose
coupling
Transactions and querying is challenging
Use sagas to maintain data consistency
Implement queries using API composition when you can
Use CQRS for more complex queries

57. @crichardson
@crichardson chris@chrisrichardson.net
http://learnmicroservices.io
Questions?
