1. Mentor - Dr Sunita Kale (PROF)
- Sumeet (SR)
- Chandranshu (JRII) / Ajith (JRII)
DEPARTMENT OF
RADIOLOGY

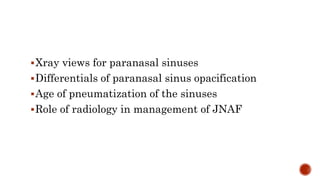

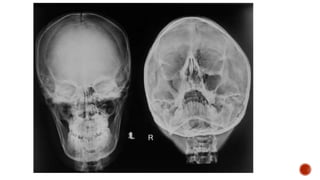

4. Xray views for paranasal sinuses

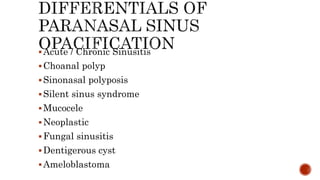

Differentials of paranasal sinus opacification

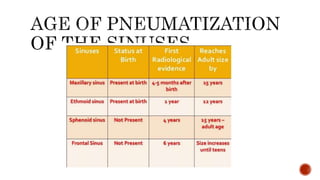

Age of pneumatization of the sinuses
Role of radiology in management of JNAF

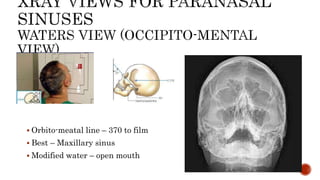

5.  Orbito-meatal line – 370 to film
 Best – Maxillary sinus
 Modified water – open mouth

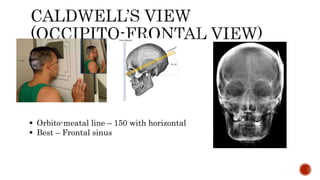

6.  Orbito-meatal line – 150 with horizontal
 Best – Frontal sinus

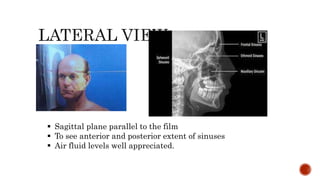

7.  Sagittal plane parallel to the film
 To see anterior and posterior extent of sinuses
 Air fluid levels well appreciated.

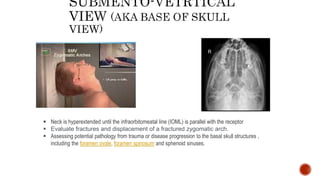

8.  Neck is hyperextended until the infraorbitomeatal line (IOML) is parallel with the receptor
 Evaluate fractures and displacement of a fractured zygomatic arch.
 Assessing potential pathology from trauma or disease progression to the basal skull structures ,
including the foramen ovale, foramen spinosum and sphenoid sinuses.

9. Acute / Chronic Sinusitis
Choanal polyp
Sinonasal polyposis
Silent sinus syndrome
Mucocele
Neoplastic
Fungal sinusitis

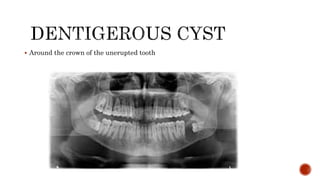

Dentigerous cyst

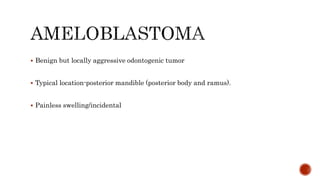

Ameloblastoma

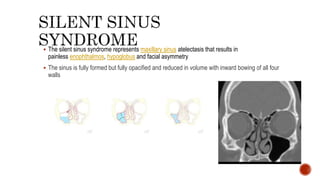

10.  The silent sinus syndrome represents maxillary sinus atelectasis that results in
painless enophthalmos, hypoglobus and facial asymmetry
 The sinus is fully formed but fully opacified and reduced in volume with inward bowing of all four
walls

11.  Complete opacification of one or more paranasal sinuses by mucus, often associated with bony
expansion due to obstruction of the nasal sinus drainage.
 Most common – Frontal sinus
 Associations
• cystic fibrosis: particularly if occurring in children
• paranasal sinus fibrous dysplasia: especially in frontal sinus

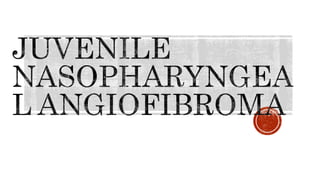

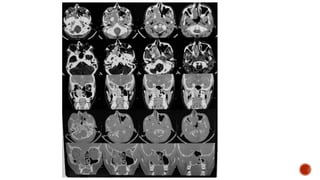

13.  Benign , locally aggressive tumor
 Origin – Spenopalatine foramen
 C/f – painless progressive unilateral nasal obstruction , epistaxis
 CT – Heterodense mass with avid enhancement , widening of pterygopalatine
fossa, bowing of posterior wall of maxillary sinus (Holman Miller sign), bony
erosion
 Main blood supply – Internal maxillary artery, branch of ECA , others – ascending
pharyngeal , palatine
 Treatment – Preop Embolization – Surgical resection

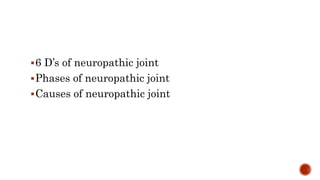

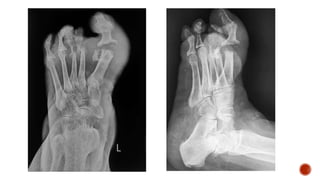

18. 6 D’s of neuropathic joint
Phases of neuropathic joint
Causes of neuropathic joint

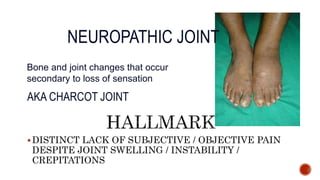

19. DISTINCT LACK OF SUBJECTIVE / OBJECTIVE PAIN
DESPITE JOINT SWELLING / INSTABILITY /
CREPITATIONS
Bone and joint changes that occur
secondary to loss of sensation
AKA CHARCOT JOINT

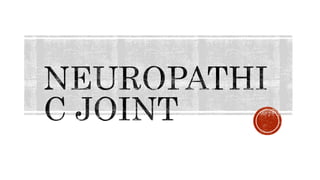

NEUROPATHIC JOINT

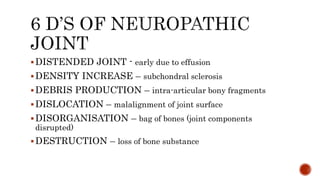

20. DISTENDED JOINT - early due to effusion
DENSITY INCREASE – subchondral sclerosis
DEBRIS PRODUCTION – intra-articular bony fragments
DISLOCATION – malalignment of joint surface
DISORGANISATION – bag of bones (joint components
disrupted)
DESTRUCTION – loss of bone substance

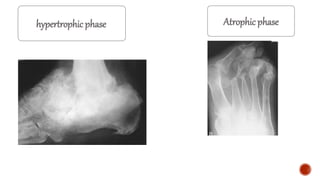

21. Atrophic phase
hypertrophic phase

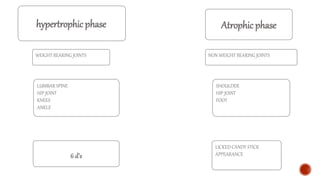

22. 6 d’s
hypertrophic phase Atrophic phase
LICKED CANDY STICK
APPEARANCE
WEIGHT BEARING JOINTS NON WEIGHT BEARING JOINTS
LUMBAR SPINE
HIP JOINT
KNEES
ANKLE
SHOULDER
HIP JOINT
FOOT

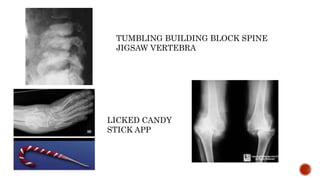

23. TUMBLING BUILDING BLOCK SPINE
JIGSAW VERTEBRA
LICKED CANDY
STICK APP

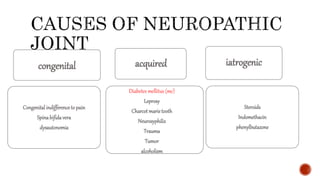

24. congenital acquired iatrogenic
Congenitalindifferenceto pain
Spinabifidavera
dysautonomia
Diabetes mellitus (mc)
Leprosy
Charcotmarietooth
Neurosyphilis
Trauma
Tumor
alcoholism
Steroids
Indomethacin
phenylbutazone

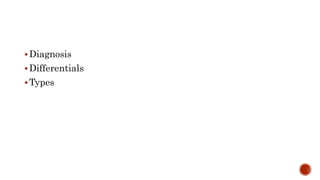

30. Diagnosis
Differentials
Types

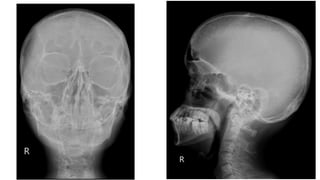

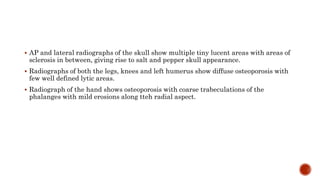

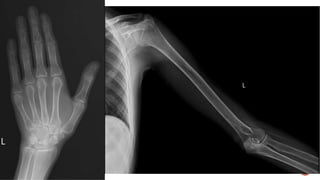

31.  AP and lateral radiographs of the skull show multiple tiny lucent areas with areas of
sclerosis in between, giving rise to salt and pepper skull appearance.
 Radiographs of both the legs, knees and left humerus show diffuse osteoporosis with
few well defined lytic areas.
 Radiograph of the hand shows osteoporosis with coarse trabeculations of the
phalanges with mild erosions along tteh radial aspect.

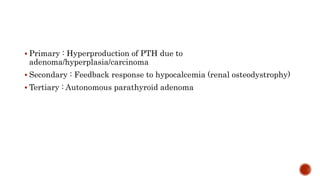

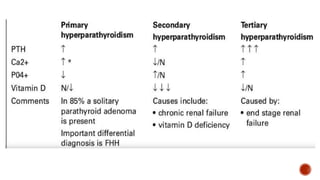

32. HYPERPARATHYROIDISM
 Primary : Hyperproduction of PTH due to
adenoma/hyperplasia/carcinoma
 Secondary : Feedback response to hypocalcemia (renal osteodystrophy)
 Tertiary : Autonomous parathyroid adenoma

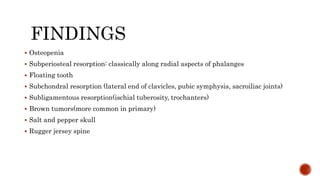

34. FINDINGS
 Osteopenia
 Subperiosteal resorption: classically along radial aspects of phalanges
 Floating tooth
 Subchondral resorption (lateral end of clavicles, pubic symphysis, sacroiliac joints)
 Subligamentous resorption(ischial tuberosity, trochanters)
 Brown tumors(more common in primary)
 Salt and pepper skull
 Rugger jersey spine

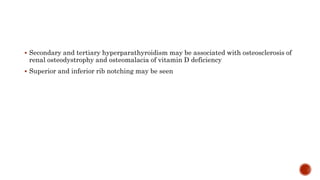

35.  Secondary and tertiary hyperparathyroidism may be associated with osteosclerosis of
renal osteodystrophy and osteomalacia of vitamin D deficiency
 Superior and inferior rib notching may be seen

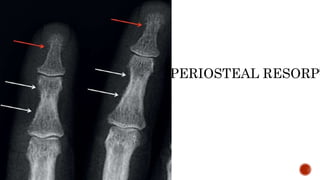

36. SUBPERIOSTEAL RESORPT

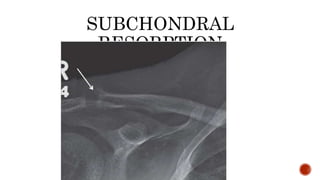

37. SUBCHONDRAL
RESORPTION

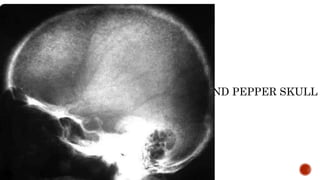

38. SALT AND PEPPER SKULL

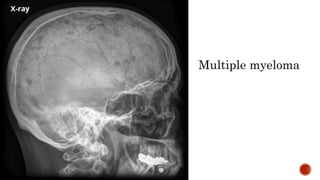

39. Multiple myeloma

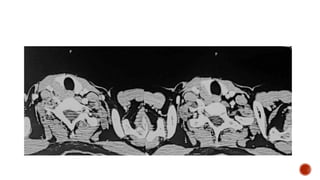

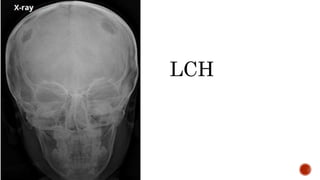

40. LCH

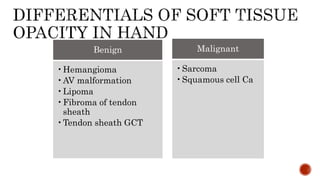

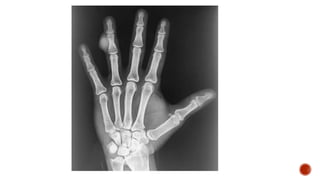

45. Benign
•Hemangioma
•AV malformation
•Lipoma
•Fibroma of tendon
sheath
•Tendon sheath GCT
Malignant
•Sarcoma
•Squamous cell Ca

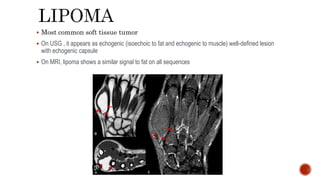

46.  Most common soft tissue tumor
 On USG , it appears as echogenic (isoechoic to fat and echogenic to muscle) well-defined lesion
with echogenic capsule
 On MRI, lipoma shows a similar signal to fat on all sequences

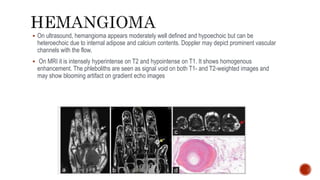

47.  On ultrasound, hemangioma appears moderately well defined and hypoechoic but can be
heteroechoic due to internal adipose and calcium contents. Doppler may depict prominent vascular
channels with the flow.
 On MRI it is intensely hyperintense on T2 and hypointense on T1. It shows homogenous
enhancement. The phleboliths are seen as signal void on both T1- and T2-weighted images and
may show blooming artifact on gradient echo images

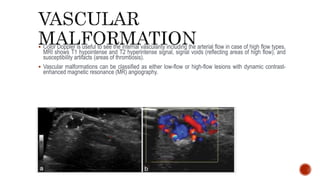

48.  Color Doppler is useful to see the internal vascularity including the arterial flow in case of high flow types.
MRI shows T1 hypointense and T2 hyperintense signal, signal voids (reflecting areas of high flow), and
susceptibility artifacts (areas of thrombosis).
 Vascular malformations can be classified as either low-flow or high-flow lesions with dynamic contrast-
enhanced magnetic resonance (MR) angiography.

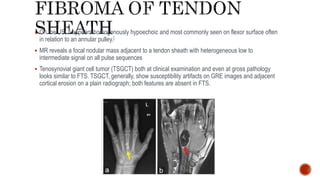

49.  On the US, it appears homogenously hypoechoic and most commonly seen on flexor surface often
in relation to an annular pulley.[
 MR reveals a focal nodular mass adjacent to a tendon sheath with heterogeneous low to
intermediate signal on all pulse sequences

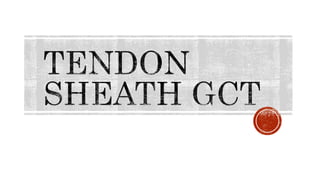

 Tenosynovial giant cell tumor (TSGCT) both at clinical examination and even at gross pathology
looks similar to FTS. TSGCT, generally, show susceptibility artifacts on GRE images and adjacent
cortical erosion on a plain radiograph; both features are absent in FTS.

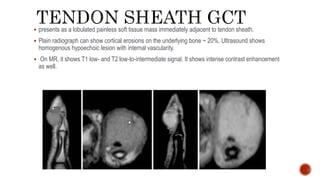

50.  presents as a lobulated painless soft tissue mass immediately adjacent to tendon sheath.
 Plain radiograph can show cortical erosions on the underlying bone ~ 20%. Ultrasound shows
homogenous hypoechoic lesion with internal vascularity.
 On MR, it shows T1 low- and T2 low-to-intermediate signal. It shows intense contrast enhancement
as well.

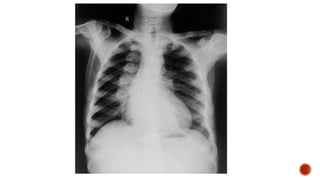

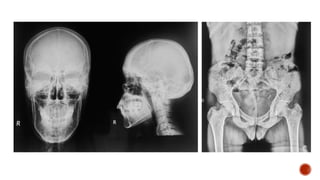

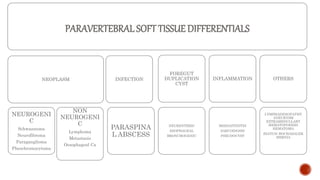

55. PARAVERTEBRAL SOFT TISSUE DIFFERENTIALS
NEOPLASM
NEUROGENI
C
Schwannoma
Neurofibroma
Paraganglioma
Pheochromocytoma
NON
NEUROGENI
C
Lymphoma
Metastasis
Oesophageal Ca
INFECTION
PARASPINA
L ABSCESS
FOREGUT
DUPLICATION
CYST
NEURENTERIC
ESOPHAGEAL
BRONCHOGENIC
INFLAMMATION
MEDIASTINITIS
SARCOIDOSIS
PSEUDOCYST
OTHERS
LYMPHADENOPATHY
ANEURYSM
EXTRAMEDULLARY
HEMATOPOEISIS
HEMATOMA
HIATUS/ BOCHADALEK
HERNIA

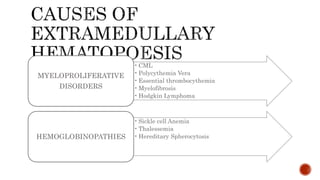

56. •CML
•Polycythemia Vera
•Essential thrombocythemia
•Myelofibrosis
•Hodgkin Lymphoma
MYELOPROLIFERATIVE
DISORDERS
•Sickle cell Anemia
•Thalessemia
•Hereditary Spherocytosis
HEMOGLOBINOPATHIES

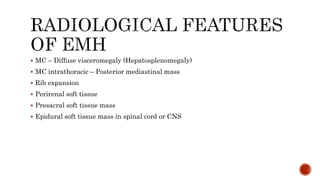

57.  MC – Diffuse visceromegaly (Hepatosplenomegaly)
 MC intrathoracic – Posterior mediastinal mass
 Rib expansion
 Perirenal soft tissue
 Presacral soft tissue mass
 Epidural soft tissue mass in spinal cord or CNS

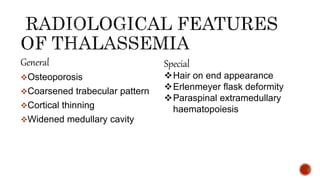

58. General
Osteoporosis
Coarsened trabecular pattern
Cortical thinning
Widened medullary cavity
Special
Hair on end appearance
Erlenmeyer flask deformity
Paraspinal extramedullary
haematopoiesis

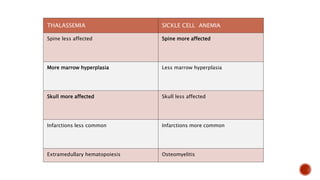

59. THALASSEMIA SICKLE CELL ANEMIA
Spine less affected Spine more affected
More marrow hyperplasia Less marrow hyperplasia
Skull more affected Skull less affected
Infarctions less common Infarctions more common
Extramedullary hematopoiesis Osteomyelitis

63.  Diagnosis
 Foot radiographic views
 Radiological signs

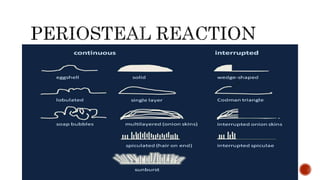

 Types of periosteal reaction

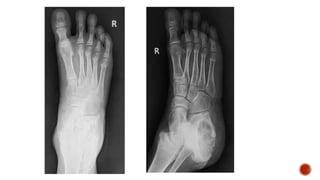

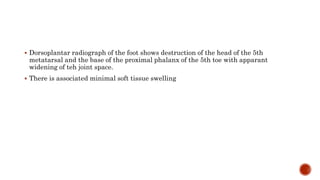

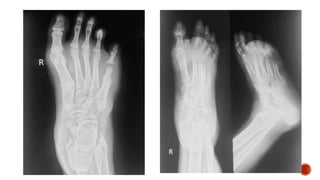

64.  Dorsoplantar radiograph of the foot shows destruction of the head of the 5th
metatarsal and the base of the proximal phalanx of the 5th toe with apparant
widening of teh joint space.
 There is associated minimal soft tissue swelling

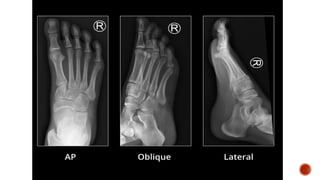

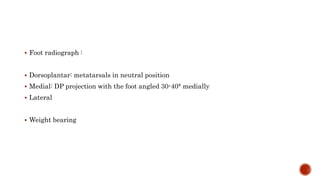

65.  Foot radiograph :
 Dorsoplantar: metatarsals in neutral position
 Medial: DP projection with the foot angled 30-40° medially
 Lateral
 Weight bearing

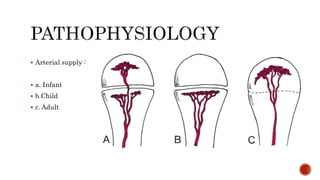

67.  Arterial supply :
 a. Infant
 b.Child
 c. Adult

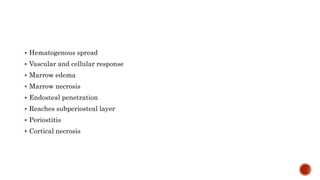

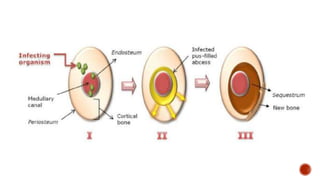

68.  Hematogenous spread
 Vascular and cellular response
 Marrow edema
 Marrow necrosis
 Endosteal penetration
 Reaches subperiosteal layer
 Periostitis
 Cortical necrosis

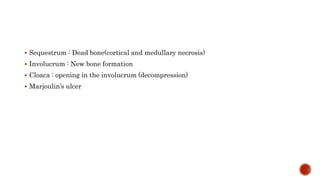

69.  Sequestrum : Dead bone(cortical and medullary necrosis)
 Involucrum : New bone formation
 Cloaca : opening in the involucrum (decompression)
 Marjoulin’s ulcer

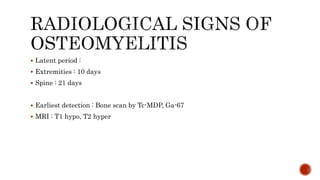

71.  Latent period :
 Extremities : 10 days
 Spine : 21 days

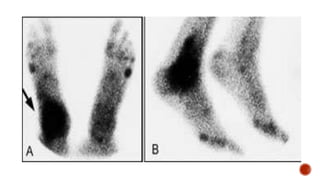

 Earliest detection : Bone scan by Tc-MDP, Ga-67
 MRI : T1 hypo, T2 hyper

73.  Soft tissue swelling
 Fat planes : Neoplasm vs infective
 Bone : Moth eateb or permeative destruction
 Periosteal reaction

74.  Pyogenic osteomyelitis : No swelling
 Fungal osteomyelitis : Exuberant soft tissue swelling

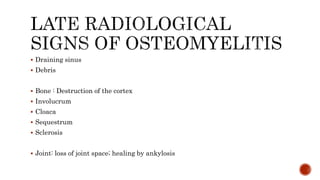

75.  Draining sinus
 Debris
 Bone : Destruction of the cortex
 Involucrum
 Cloaca
 Sequestrum
 Sclerosis
 Joint: loss of joint space; healing by ankylosis

77.  physiologic periostitis, most common cause before 6 months old
 Caffey disease
 chronic venous insufficiency
 hypertrophic osteoarthropathy
 congenital syphilis
 fluorosis
 thyroid acropachy
 hypervitaminosis A

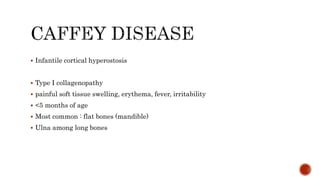

78.  Infantile cortical hyperostosis
 Type I collagenopathy
 painful soft tissue swelling, erythema, fever, irritability
 <5 months of age
 Most common : flat bones (mandible)
 Ulna among long bones

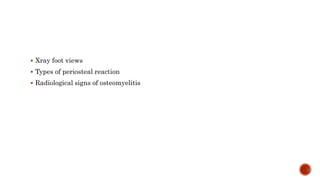

79.  Xray foot views
 Types of periosteal reaction
 Radiological signs of osteomyelitis

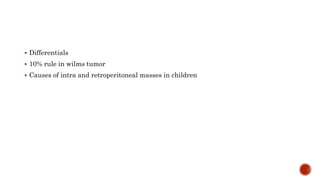

84.  Differentials
 10% rule in wilms tumor
 Causes of intra and retroperitoneal masses in children

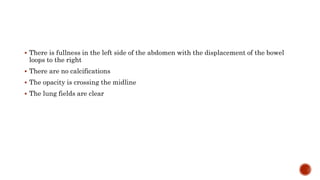

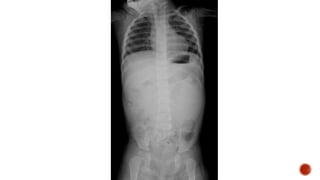

85.  There is fullness in the left side of the abdomen with the displacement of the bowel
loops to the right
 There are no calcifications
 The opacity is crossing the midline
 The lung fields are clear

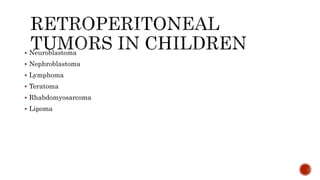

86.  Neuroblastoma
 Nephroblastoma
 Lymphoma
 Teratoma
 Rhabdomyosarcoma
 Lipoma

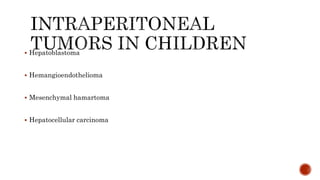

87.  Hepatoblastoma
 Hemangioendothelioma
 Mesenchymal hamartoma
 Hepatocellular carcinoma

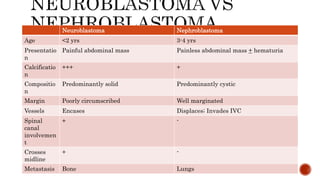

88. Neuroblastoma Nephroblastoma
Age <2 yrs 3-4 yrs
Presentatio
n
Painful abdominal mass Painless abdominal mass + hematuria
Calcificatio
n
+++ +
Compositio
n
Predominantly solid Predominantly cystic
Margin Poorly circumscribed Well marginated
Vessels Encases Displaces; Invades IVC
Spinal
canal
involvemen
t
+ -
Crosses
midline
+ -
Metastasis Bone Lungs

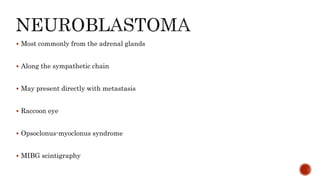

89.  Most commonly from the adrenal glands
 Along the sympathetic chain
 May present directly with metastasis
 Raccoon eye
 Opsoclonus-myoclonus syndrome
 MIBG scintigraphy

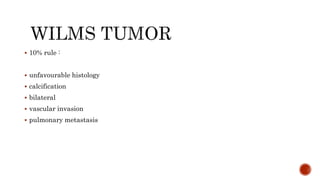

90.  10% rule :
 unfavourable histology
 calcification
 bilateral
 vascular invasion
 pulmonary metastasis

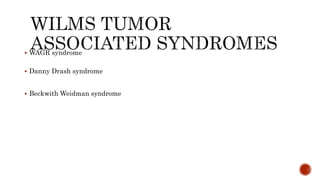

91.  WAGR syndrome
 Danny Drash syndrome
 Beckwith Weidman syndrome

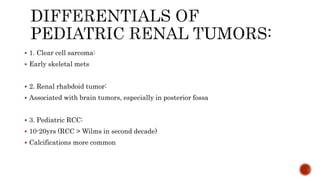

92.  1. Clear cell sarcoma:
 Early skeletal mets
 2. Renal rhabdoid tumor:
 Associated with brain tumors, especially in posterior fossa
 3. Pediatric RCC:
 10-20yrs (RCC > Wilms in second decade)
 Calcifications more common

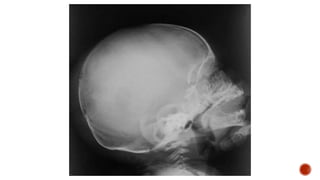

97.  Differentials

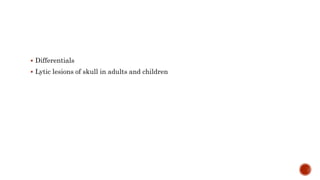

 Lytic lesions of skull in adults and children

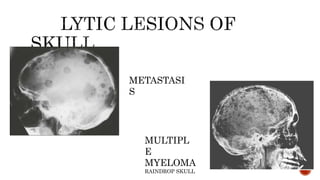

98. METASTASI
S
MULTIPL
E
MYELOMA
RAINDROP SKULL

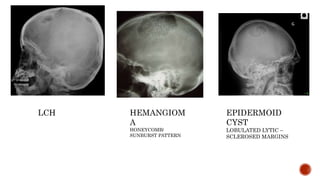

99. HEMANGIOM
A
HONEYCOMB/
SUNBURST PATTERN
EPIDERMOID
CYST
LOBULATED LYTIC –
SCLEROSED MARGINS
LCH

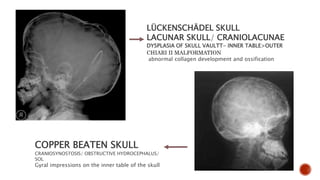

100. LÜCKENSCHÄDEL SKULL
LACUNAR SKULL/ CRANIOLACUNAE
DYSPLASIA OF SKULL VAULTT- INNER TABLE>OUTER
CHIARI II MALFORMATION
abnormal collagen development and ossification
COPPER BEATEN SKULL
CRANIOSYNOSTOSIS/ OBSTRUCTIVE HYDROCEPHALUS/
SOL
Gyral impressions on the inner table of the skull

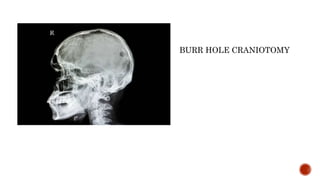

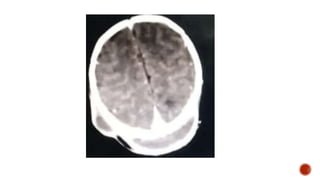

101. BURR HOLE CRANIOTOMY

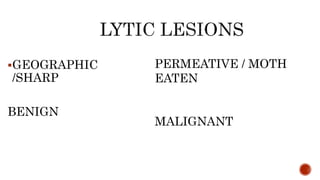

102. GEOGRAPHIC
/SHARP
BENIGN
PERMEATIVE / MOTH
EATEN
MALIGNANT

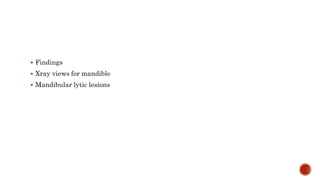

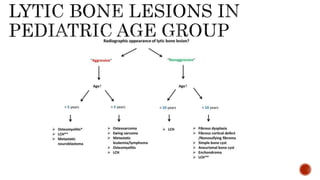

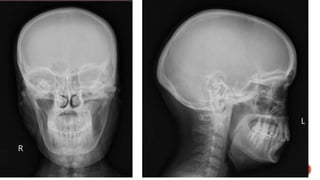

108.  Findings
 Xray views for mandible

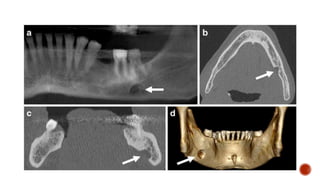

 Mandibular lytic lesions

109.  AP and lateral radiographs of the skull show a well defined lytic lesion involving
the left ramus of the mandible causing scalloping of the medial margin with
associated soft tissue swelling.

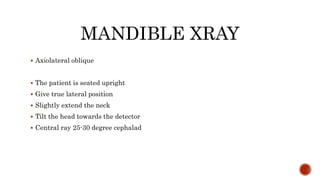

110. MANDIBLE XRAY
 Axiolateral oblique
 The patient is seated upright
 Give true lateral position
 Slightly extend the neck
 Tilt the head towards the detector
 Central ray 25-30 degree cephalad

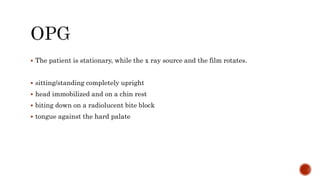

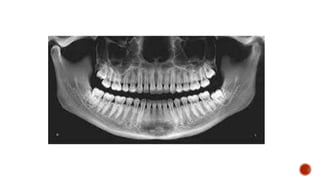

112.  The patient is stationary, while the x ray source and the film rotates.
 sitting/standing completely upright
 head immobilized and on a chin rest
 biting down on a radiolucent bite block
 tongue against the hard palate

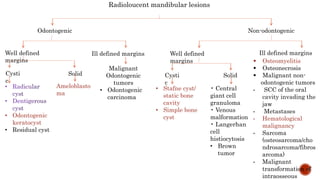

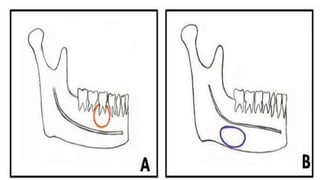

116. Radioloucent mandibular lesions
Odontogenic Non-odontogenic
Well defined
margins
Ill defined margins Well defined
margins
Ill defined margins
Cysti
c
Solid Cysti
c
Solid
• Odontogenic
keratocyst
• Residual cyst
Ameloblasto
ma
Malignant
Odontogenic
tumors
• Odontogenic
carcinoma
• Stafne cyst/
static bone
cavity
• Simple bone
cyst
• Central
giant cell
granuloma
• Venous
malformation
• Langerhan
cell
histiocytosis
• Brown
tumor
 Osteomyelitis
 Osteonecrosis
 Malignant non-
odontogenic tumors
• SCC of the oral
cavity invading the
jaw
• Metastases
• Hematological
malignancy
• Sarcoma
(osteosarcoma/cho
ndrosarcoma/fibros
arcoma)
• Malignant
transformation of
intraosseous

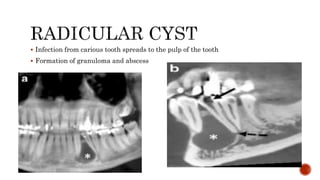

117.  Infection from carious tooth spreads to the pulp of the tooth
 Formation of granuloma and abscess

118.  Around the crown of the unerupted tooth

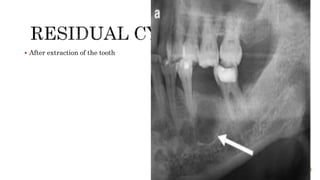

119.  After extraction of the tooth

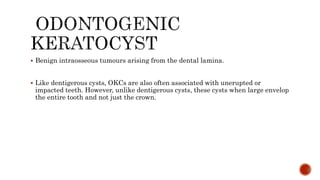

120.  Benign intraosseous tumours arising from the dental lamina.
 Like dentigerous cysts, OKCs are also often associated with unerupted or
impacted teeth. However, unlike dentigerous cysts, these cysts when large envelop
the entire tooth and not just the crown.

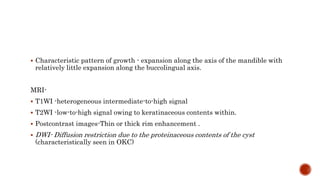

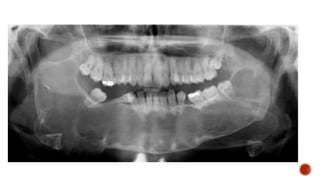

121.  Characteristic pattern of growth - expansion along the axis of the mandible with
relatively little expansion along the buccolingual axis.
MRI-
 T1WI -heterogeneous intermediate-to-high signal
 T2WI -low-to-high signal owing to keratinaceous contents within.
 Postcontrast images-Thin or thick rim enhancement .
 DWI- Diffusion restriction due to the proteinaceous contents of the cyst
(characteristically seen in OKC)

124.  Benign but locally aggressive odontogenic tumor
 Typical location-posterior mandible (posterior body and ramus).
 Painless swelling/incidental

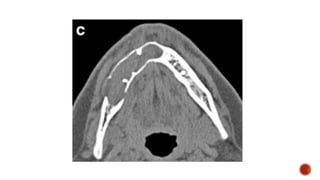

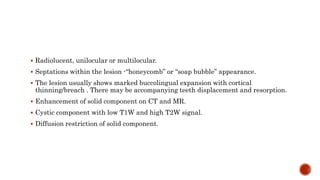

125.  Radiolucent, unilocular or multilocular.
 Septations within the lesion -“honeycomb” or “soap bubble” appearance.
 The lesion usually shows marked buccolingual expansion with cortical
thinning/breach . There may be accompanying teeth displacement and resorption.
 Enhancement of solid component on CT and MR.
 Cystic component with low T1W and high T2W signal.
 Diffusion restriction of solid component.

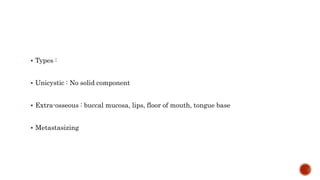

126.  Types :
 Unicystic : No solid component
 Extra-osseous : buccal mucosa, lips, floor of mouth, tongue base
 Metastasizing

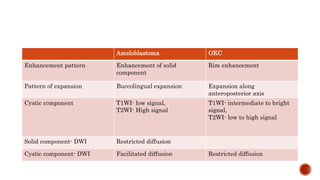

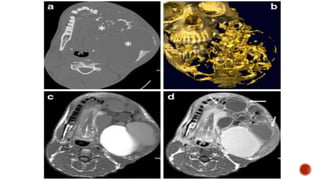

128. Ameloblastoma OKC
Enhancement pattern Enhancement of solid
component
Rim enhancement

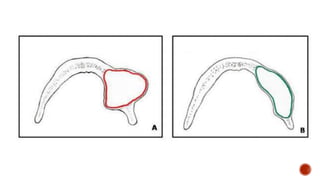

Pattern of expansion Buccolingual expansion Expansion along
anteroposterior axis
Cystic component T1WI- low signal,
T2WI- High signal
T1WI- intermediate to bright
signal,
T2WI- low to high signal
Solid component- DWI Restricted diffusion
Cystic component- DWI Facilitated diffusion Restricted diffusion

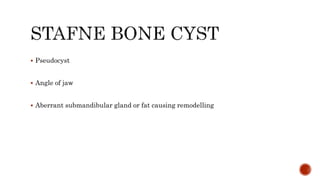

130.  Pseudocyst
 Angle of jaw
 Aberrant submandibular gland or fat causing remodelling

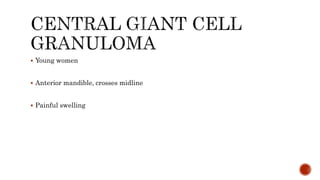

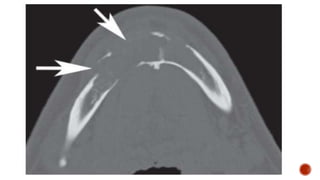

132.  Young women
 Anterior mandible, crosses midline
 Painful swelling

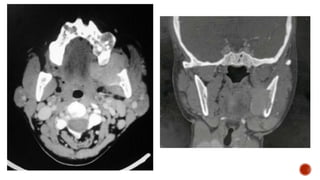

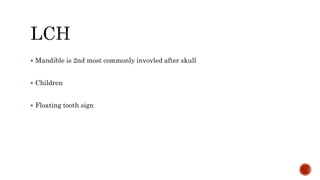

134.  Mandible is 2nd most commonly invovled after skull
 Children
 Floating tooth sign

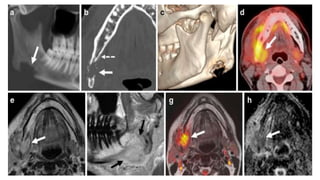

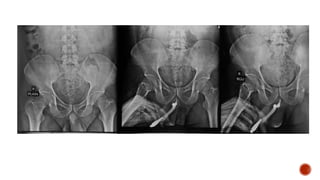

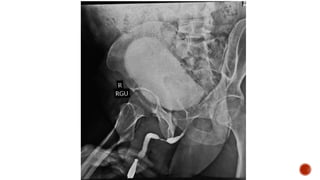

142.  Indication
 Contrast
 Technique
 Parts of male urethra

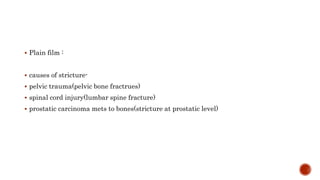

143.  Plain film :
 causes of stricture-
 pelvic trauma(pelvic bone fractrues)
 spinal cord injury(lumbar spine fracture)
 prostatic carcinoma mets to bones(stricture at prostatic level)

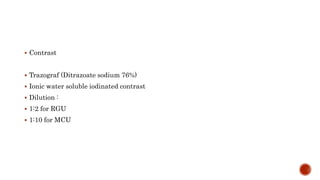

144.  Contrast
 Trazograf (Ditrazoate sodium 76%)
 Ionic water soluble iodinated contrast
 Dilution :
 1:2 for RGU
 1:10 for MCU

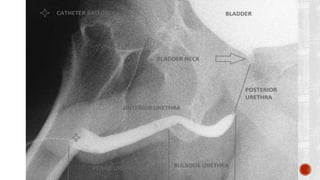

145.  Anterior :
 penile
 bulbar
 Posterior :
 membranous
 prostatic

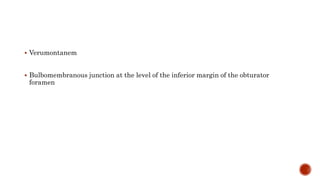

147.  Verumontanem
 Bulbomembranous junction at the level of the inferior margin of the obturator
foramen

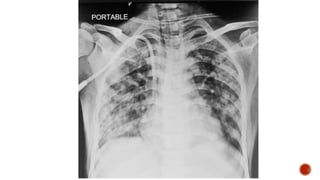

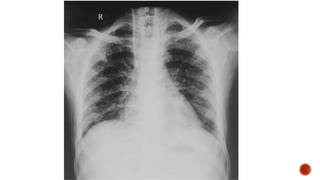

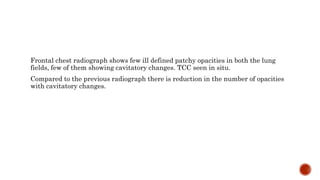

153. Frontal chest radiograph shows few ill defined patchy opacities in both the lung
fields, few of them showing cavitatory changes. TCC seen in situ.
Compared to the previous radiograph there is reduction in the number of opacities
with cavitatory changes.

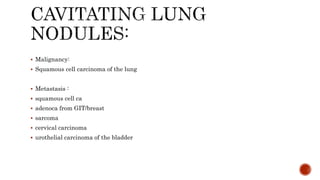

154.  Malignancy:
 Squamous cell carcinoma of the lung
 Metastasis :
 squamous cell ca
 adenoca from GIT/breast
 sarcoma
 cervical carcinoma
 urothelial carcinoma of the bladder

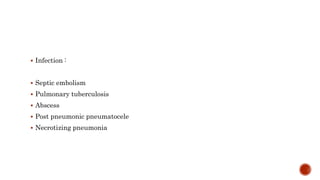

155.  Infection :
 Septic embolism
 Pulmonary tuberculosis
 Abscess
 Post pneumonic pneumatocele
 Necrotizing pneumonia

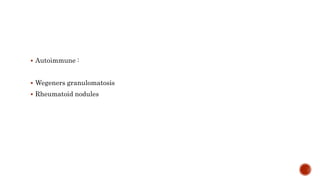

156.  Autoimmune :
 Wegeners granulomatosis
 Rheumatoid nodules

157.  Bacteremia
 Fever
 Dyspnea
 Chest pain
 Cough

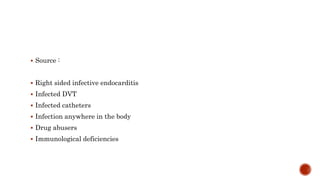

158.  Source :
 Right sided infective endocarditis
 Infected DVT
 Infected catheters
 Infection anywhere in the body
 Drug abusers
 Immunological deficiencies

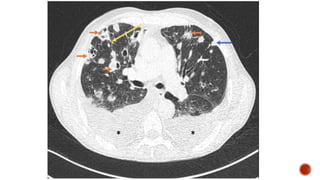

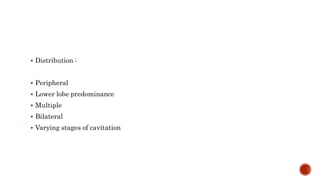

159.  Distribution :
 Peripheral
 Lower lobe predominance
 Multiple
 Bilateral
 Varying stages of cavitation

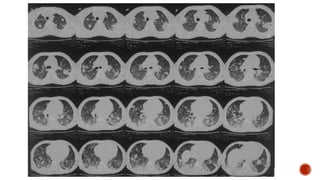

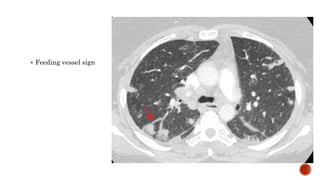

161.  Feeding vessel sign

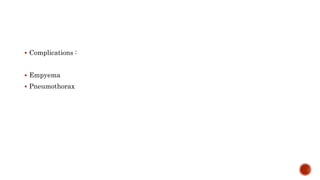

162.  Complications :
 Empyema
 Pneumothorax

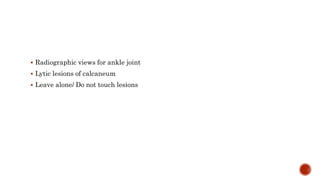

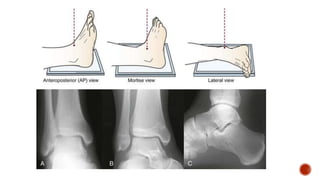

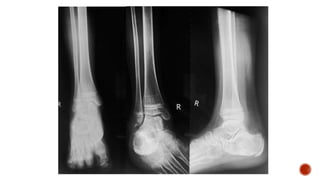

168.  Radiographic views for ankle joint
 Lytic lesions of calcaneum
 Leave alone/ Do not touch lesions

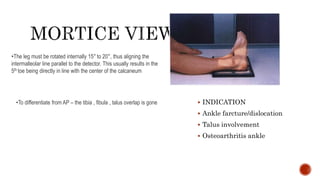

170.  INDICATION
 Ankle farcture/dislocation
 Talus involvement
 Osteoarthritis ankle
•The leg must be rotated internally 15° to 20°, thus aligning the
intermalleolar line parallel to the detector. This usually results in the
5th toe being directly in line with the center of the calcaneum
•To differentiate from AP – the tibia , fibula , talus overlap is gone

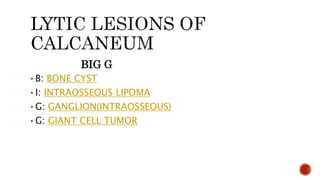

171. BIG G
• B: BONE CYST
• I: INTRAOSSEOUS LIPOMA
• G: GANGLION(INTRAOSSEOUS)
• G: GIANT CELL TUMOR

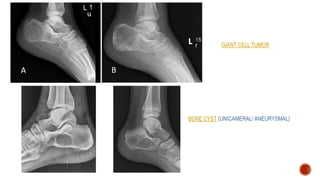

172. GIANT CELL TUMOR
BONE CYST (UNICAMERAL/ ANEURYSMAL)

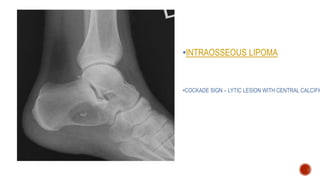

173. •INTRAOSSEOUS LIPOMA
•COCKADE SIGN – LYTIC LESION WITH CENTRAL CALCIFIC

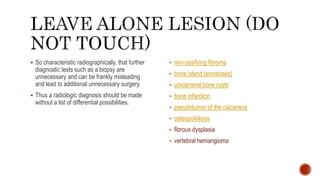

174.  So characteristic radiographically, that further
diagnostic tests such as a biopsy are
unnecessary and can be frankly misleading
and lead to additional unnecessary surgery.
 Thus a radiologic diagnosis should be made
without a list of differential possibilities.
• non-ossifying fibroma
• bone island (enostoses)
• unicameral bone cysts
• bone infarction
• pseudotumor of the calcaneus
• osteopoikilosis
• fibrous dysplasia
• vertebral hemangioma

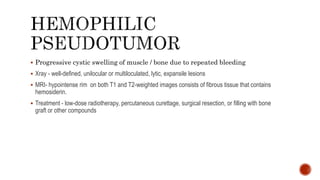

175.  Progressive cystic swelling of muscle / bone due to repeated bleeding
 Xray - well-defined, unilocular or multiloculated, lytic, expansile lesions
 MRI- hypointense rim on both T1 and T2-weighted images consists of fibrous tissue that contains
hemosiderin.
 Treatment - low-dose radiotherapy, percutaneous curettage, surgical resection, or filling with bone
graft or other compounds

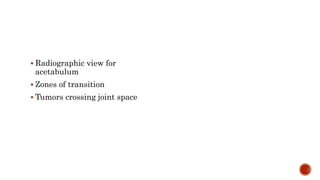

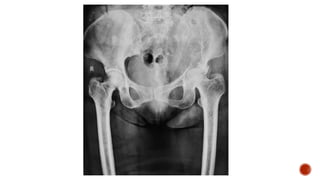

180.  Radiographic view for
acetabulum
 Zones of transition
 Tumors crossing joint space

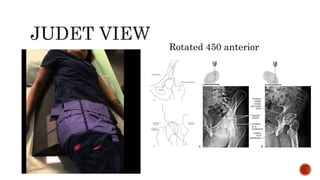

181. Rotated 450 anterior

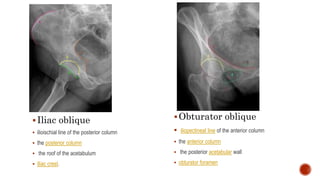

182. Iliac oblique
 ilioischial line of the posterior column
 the posterior column
 the roof of the acetabulum
 Iliac crest.
Obturator oblique
 iliopectineal line of the anterior column
 the anterior column
 the posterior acetabular wall
 obturator foramen

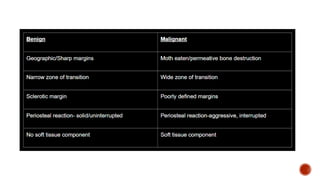

184. NARROW - BENIGN WIDE - MALIGNANT

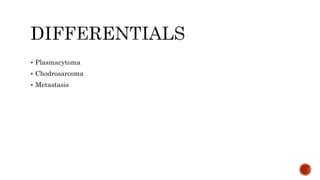

185.  Plasmacytoma
 Chodrosarcoma
 Metastasis

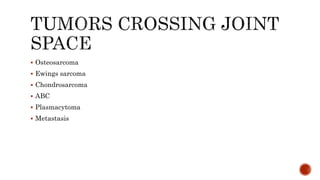

186.  Osteosarcoma
 Ewings sarcoma
 Chondrosarcoma
 ABC
 Plasmacytoma
 Metastasis

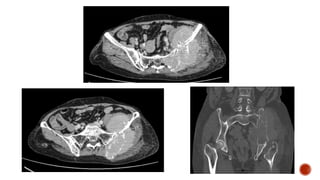

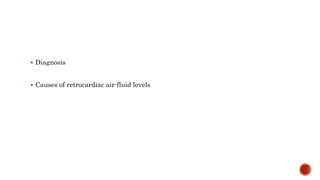

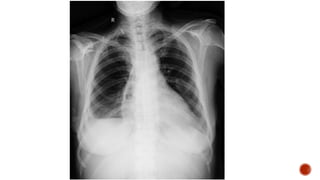

191.  Diagnosis
 Causes of retrocardiac air-fluid levels

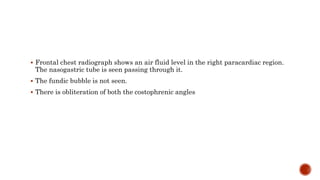

192.  Frontal chest radiograph shows an air fluid level in the right paracardiac region.
The nasogastric tube is seen passing through it.
 The fundic bubble is not seen.
 There is obliteration of both the costophrenic angles

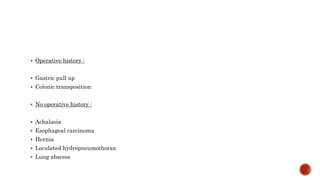

193.  Operative history :
 Gastric pull up
 Colonic transposition
 No operative history :
 Achalasia
 Esophageal carcinoma
 Hernia
 Loculated hydropneumothorax
 Lung abscess

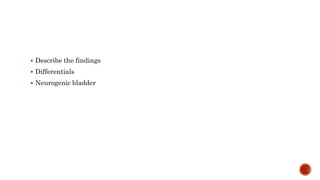

197.  Describe the findings
 Differentials
 Neurogenic bladder

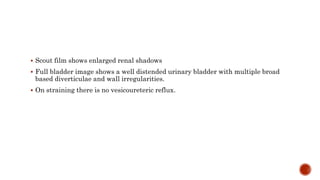

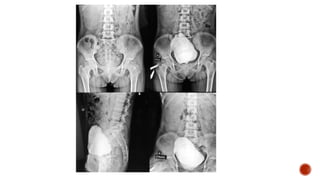

198.  Scout film shows enlarged renal shadows
 Full bladder image shows a well distended urinary bladder with multiple broad
based diverticulae and wall irregularities.
 On straining there is no vesicoureteric reflux.

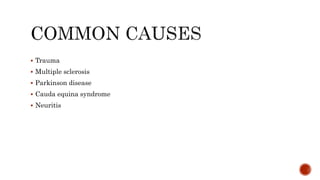

200.  Trauma
 Multiple sclerosis
 Parkinson disease
 Cauda equina syndrome
 Neuritis

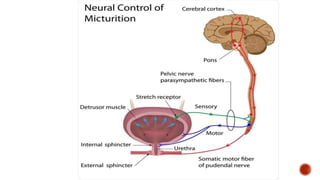

201.  Sensory : Inability to sense bladder fullness results in a large rounded and smooth
bladder. Voiding is often preserved.
 Motor : Atonic large bladder with the inability of detrusor contraction during
voiding.

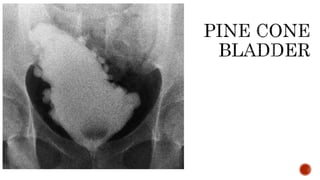

 Reflex/uninhibited : Lesions above S2 level (Christmas tree/pine cone appearance)

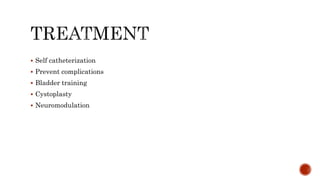

203.  Self catheterization
 Prevent complications
 Bladder training
 Cystoplasty
 Neuromodulation

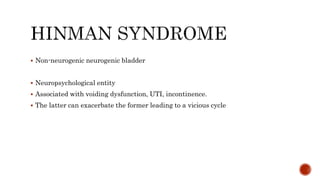

204.  Non-neurogenic neurogenic bladder
 Neuropsychological entity
 Associated with voiding dysfunction, UTI, incontinence.
 The latter can exacerbate the former leading to a vicious cycle

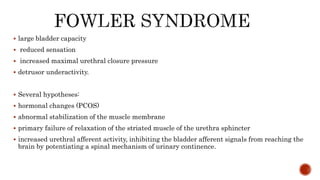

205.  large bladder capacity
 reduced sensation
 increased maximal urethral closure pressure
 detrusor underactivity.
 Several hypotheses:
 hormonal changes (PCOS)
 abnormal stabilization of the muscle membrane
 primary failure of relaxation of the striated muscle of the urethra sphincter
 increased urethral afferent activity, inhibiting the bladder afferent signals from reaching the
brain by potentiating a spinal mechanism of urinary continence.

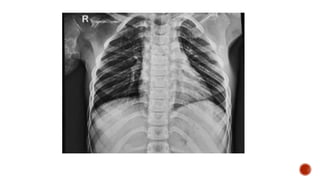

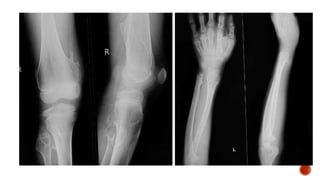

211.  Complications of osteochondroma
 Signs of malignant transformation
 Role of MRI in osteochondroma

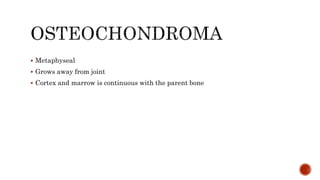

212.  Metaphyseal
 Grows away from joint
 Cortex and marrow is continuous with the parent bone

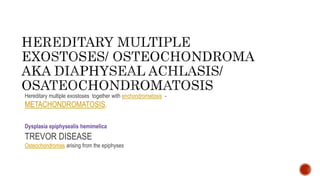

213. Hereditary multiple exostoses together with enchondromatosis -
METACHONDROMATOSIS.
Dysplasia epiphysealis hemimelica
TREVOR DISEASE
Osteochondromas arising from the epiphyses

214.  Sarcomatous transformation - mnemonic GLAD PAST 1:
• growth after skeletal maturity

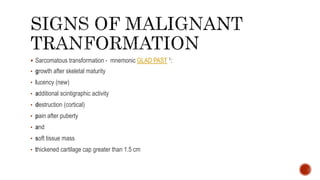

• lucency (new)
• additional scintigraphic activity
• destruction (cortical)
• pain after puberty
• and
• soft tissue mass
• thickened cartilage cap greater than 1.5 cm

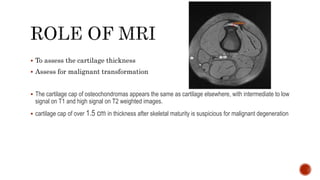

215.  To assess the cartilage thickness
 Assess for malignant transformation
 The cartilage cap of osteochondromas appears the same as cartilage elsewhere, with intermediate to low
signal on T1 and high signal on T2 weighted images.
 cartilage cap of over 1.5 cm in thickness after skeletal maturity is suspicious for malignant degeneration

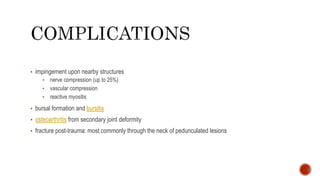

216. • impingement upon nearby structures
• nerve compression (up to 25%)
• vascular compression
• reactive myositis
• bursal formation and bursitis
• osteoarthritis from secondary joint deformity
• fracture post-trauma: most commonly through the neck of pedunculated lesions
