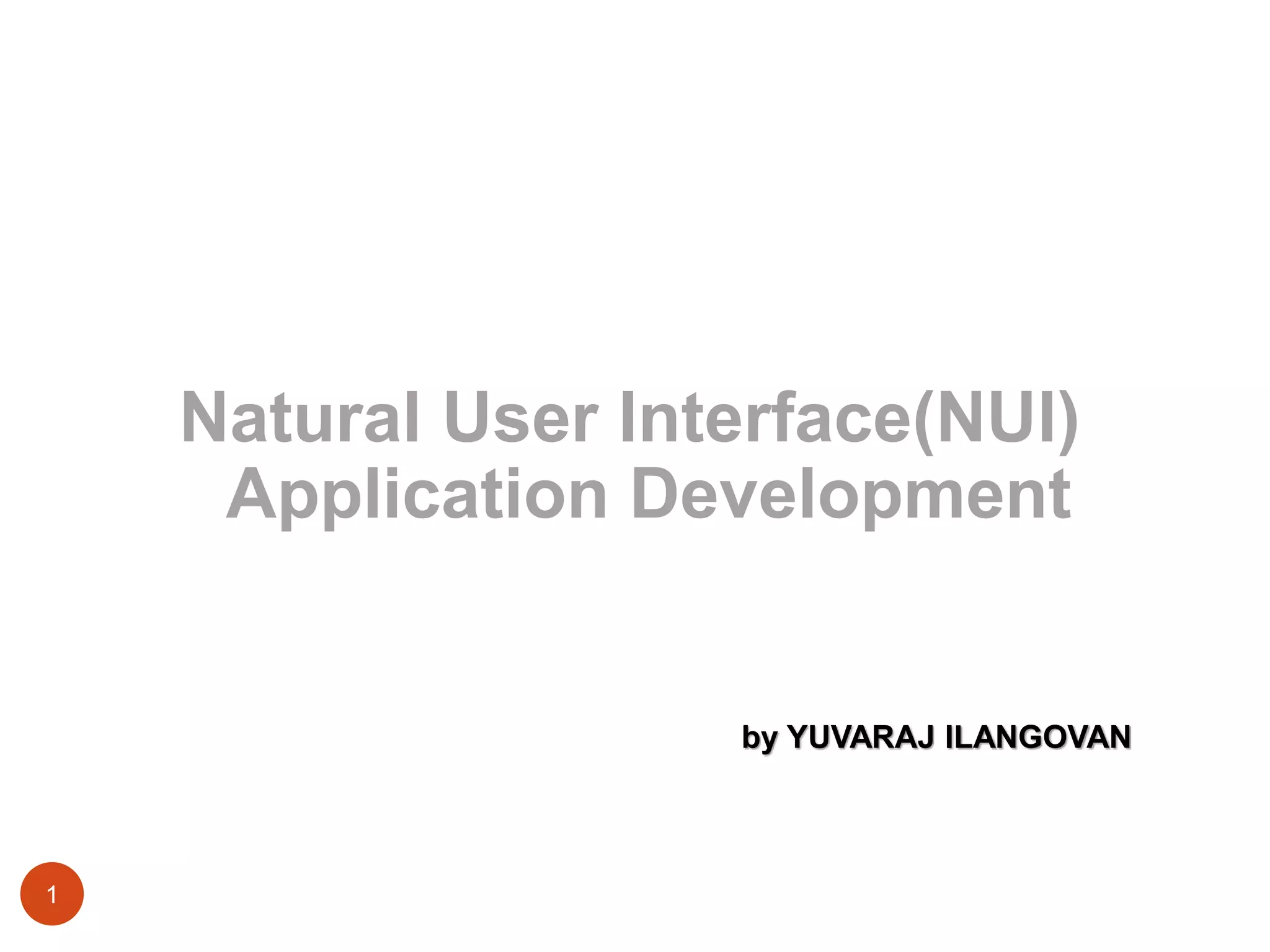

1. Natural User Interface(NUI)
Application Development
by YUVARAJ ILANGOVAN
1

2. NUI Overview - Agenda
 Understanding of Natural User Interface (NUI)
 First look of Kinect for Windows sensor
 Capabilities of Kinect for Windows Sensor Version 2
 Some features of Kinect for Windows SDK
 Components of Kinect for Windows SDK v2.0
 Business application opportunities using Kinect for Windows
 Case study – Kinect Banking POC
 Microsoft Surface computing application development
 Capabilities of Surface computing
 Business application opportunities for Surface Computing
 Sample apps on Surface and Kinect
2

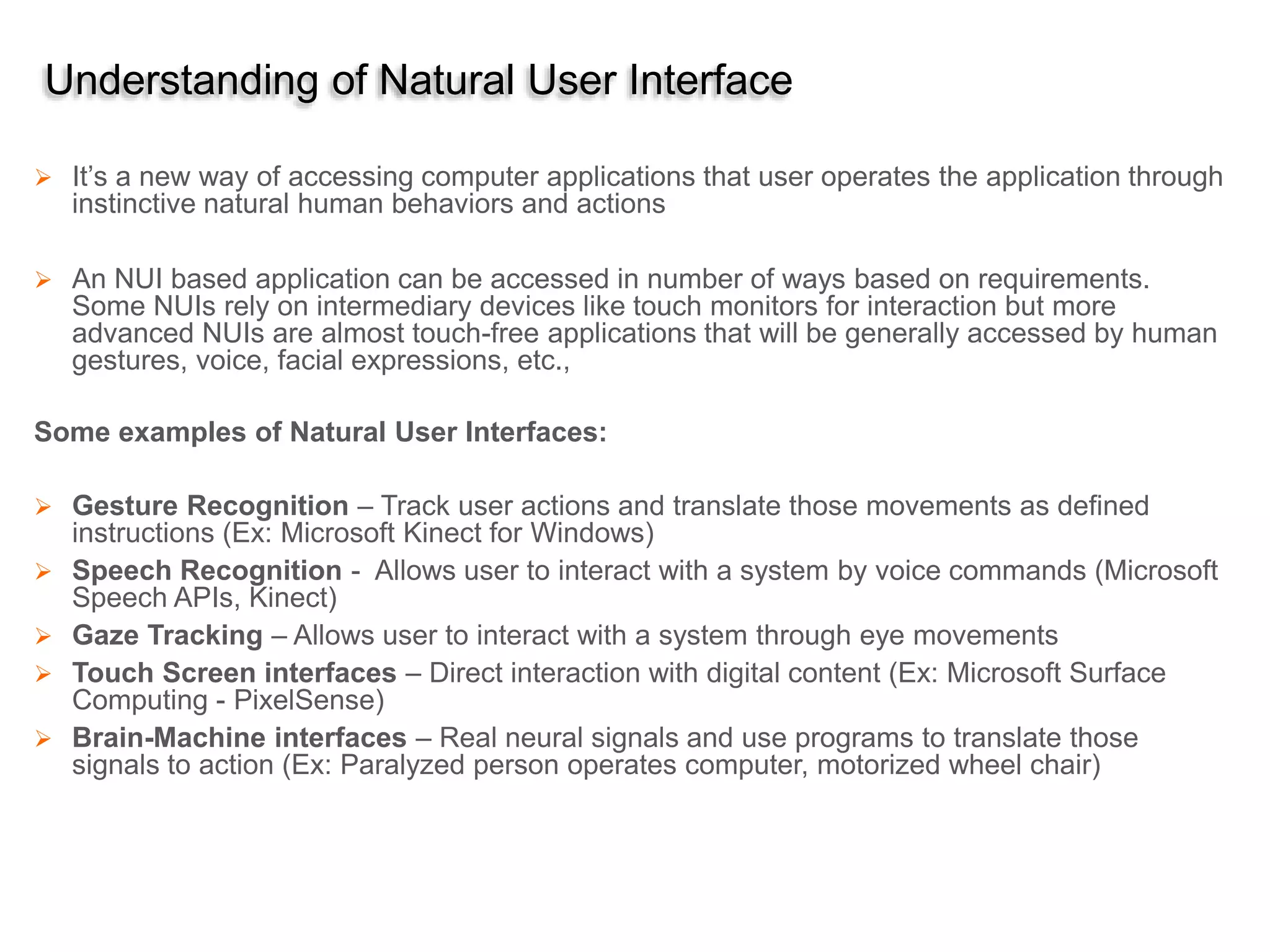

3. Understanding of Natural User Interface
 It’s a new way of accessing computer applications that user operates the application through
instinctive natural human behaviors and actions
 An NUI based application can be accessed in number of ways based on requirements.
Some NUIs rely on intermediary devices like touch monitors for interaction but more
advanced NUIs are almost touch-free applications that will be generally accessed by human
gestures, voice, facial expressions, etc.,
Some examples of Natural User Interfaces:
 Gesture Recognition – Track user actions and translate those movements as defined
instructions (Ex: Microsoft Kinect for Windows)
 Speech Recognition - Allows user to interact with a system by voice commands (Microsoft
Speech APIs, Kinect)
 Gaze Tracking – Allows user to interact with a system through eye movements
 Touch Screen interfaces – Direct interaction with digital content (Ex: Microsoft Surface
Computing - PixelSense)
 Brain-Machine interfaces – Real neural signals and use programs to translate those
signals to action (Ex: Paralyzed person operates computer, motorized wheel chair)

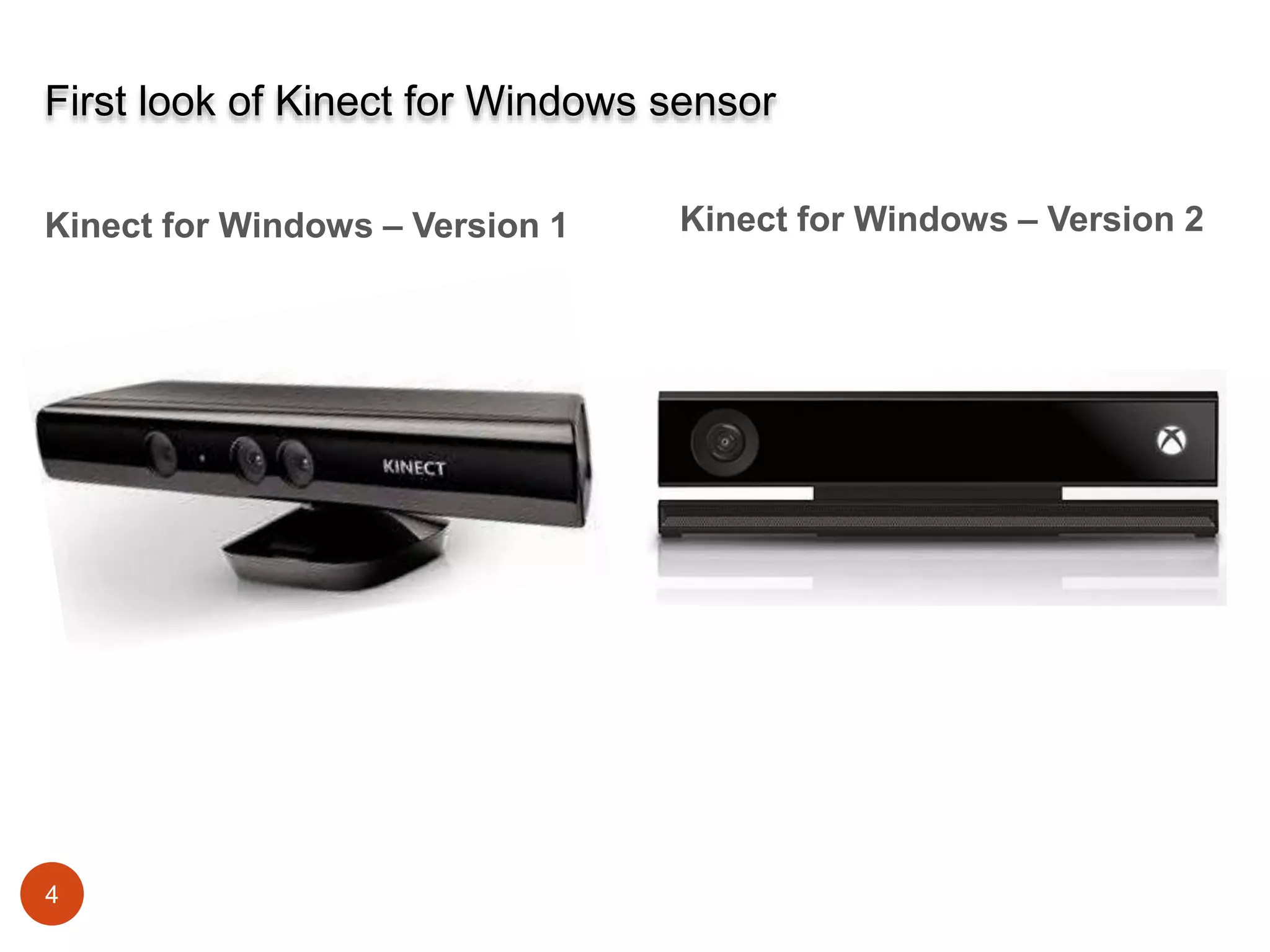

4. First look of Kinect for Windows sensor
Kinect for Windows – Version 1
4
Kinect for Windows – Version 2

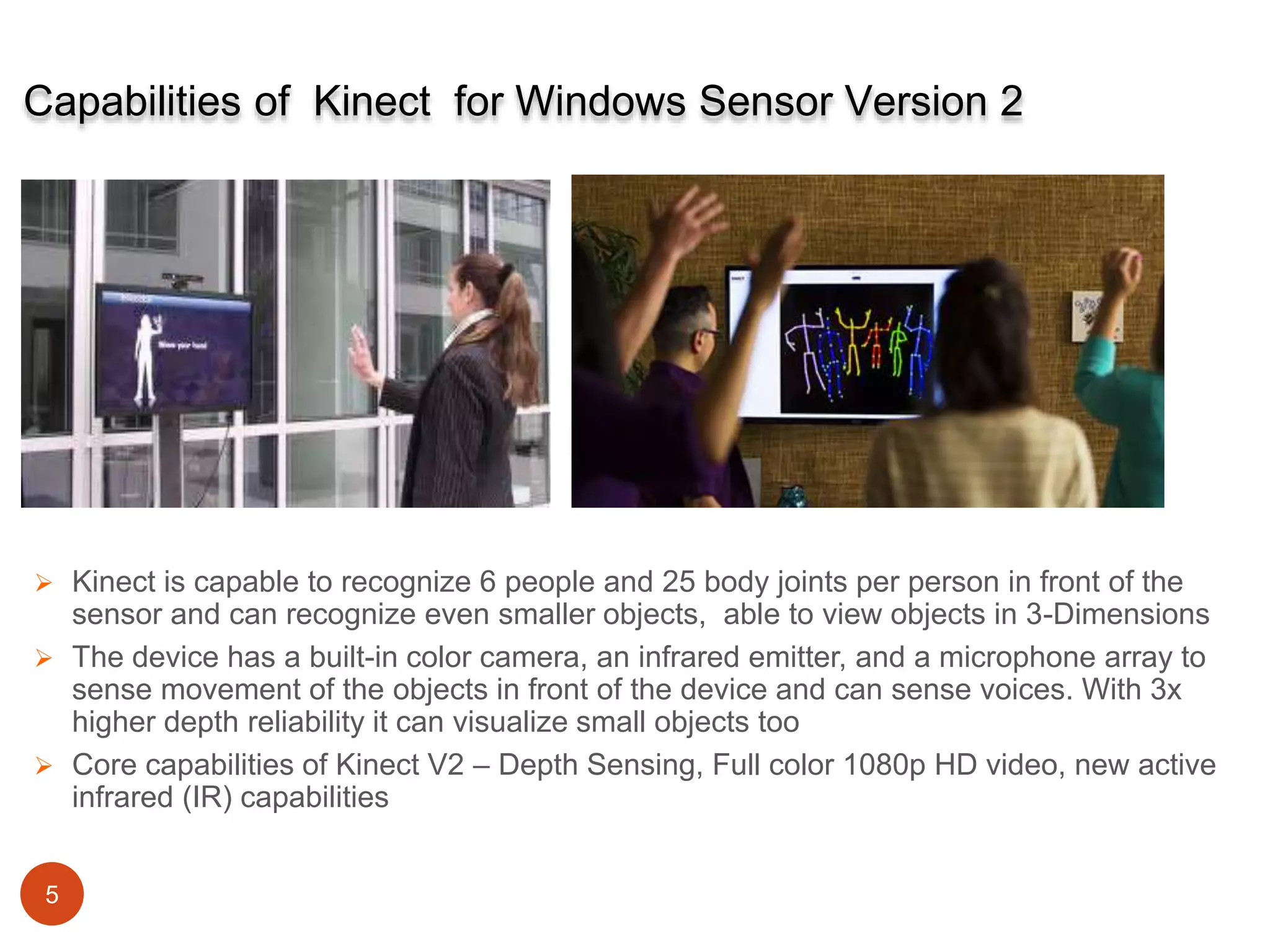

5. Capabilities of Kinect for Windows Sensor Version 2
Human Gesture Tracking
 Kinect is capable to recognize 6 people and 25 body joints per person in front of the
sensor and can recognize even smaller objects, able to view objects in 3-Dimensions
 The device has a built-in color camera, an infrared emitter, and a microphone array to
sense movement of the objects in front of the device and can sense voices. With 3x
higher depth reliability it can visualize small objects too
 Core capabilities of Kinect V2 – Depth Sensing, Full color 1080p HD video, new active
infrared (IR) capabilities
5

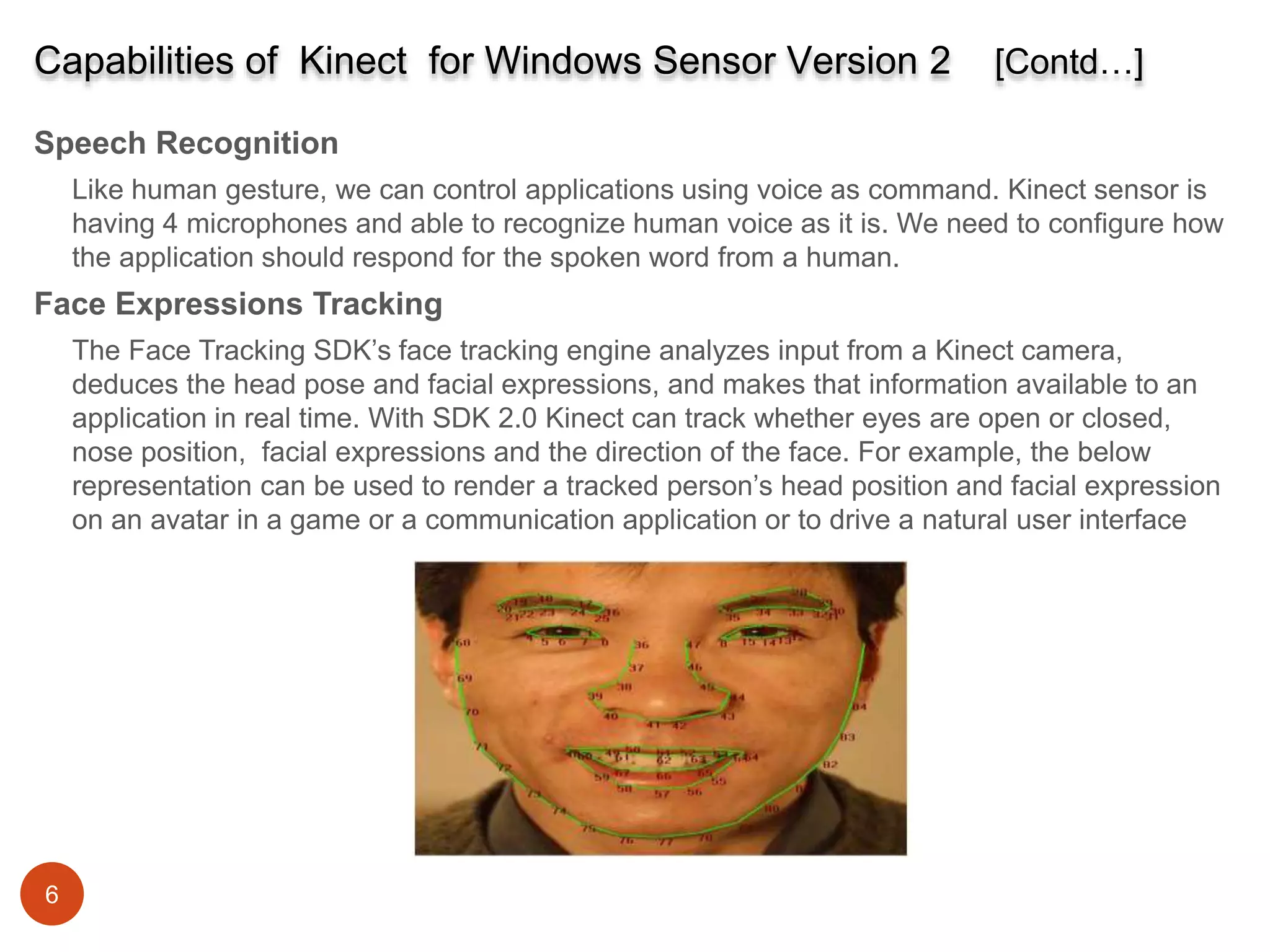

6. Capabilities of Kinect for Windows Sensor Version 2 [Contd…]
Speech Recognition
Like human gesture, we can control applications using voice as command. Kinect sensor is
having 4 microphones and able to recognize human voice as it is. We need to configure how
the application should respond for the spoken word from a human.
Face Expressions Tracking
The Face Tracking SDK’s face tracking engine analyzes input from a Kinect camera,
deduces the head pose and facial expressions, and makes that information available to an
application in real time. With SDK 2.0 Kinect can track whether eyes are open or closed,
nose position, facial expressions and the direction of the face. For example, the below
representation can be used to render a tracked person’s head position and facial expression
on an avatar in a game or a communication application or to drive a natural user interface
6

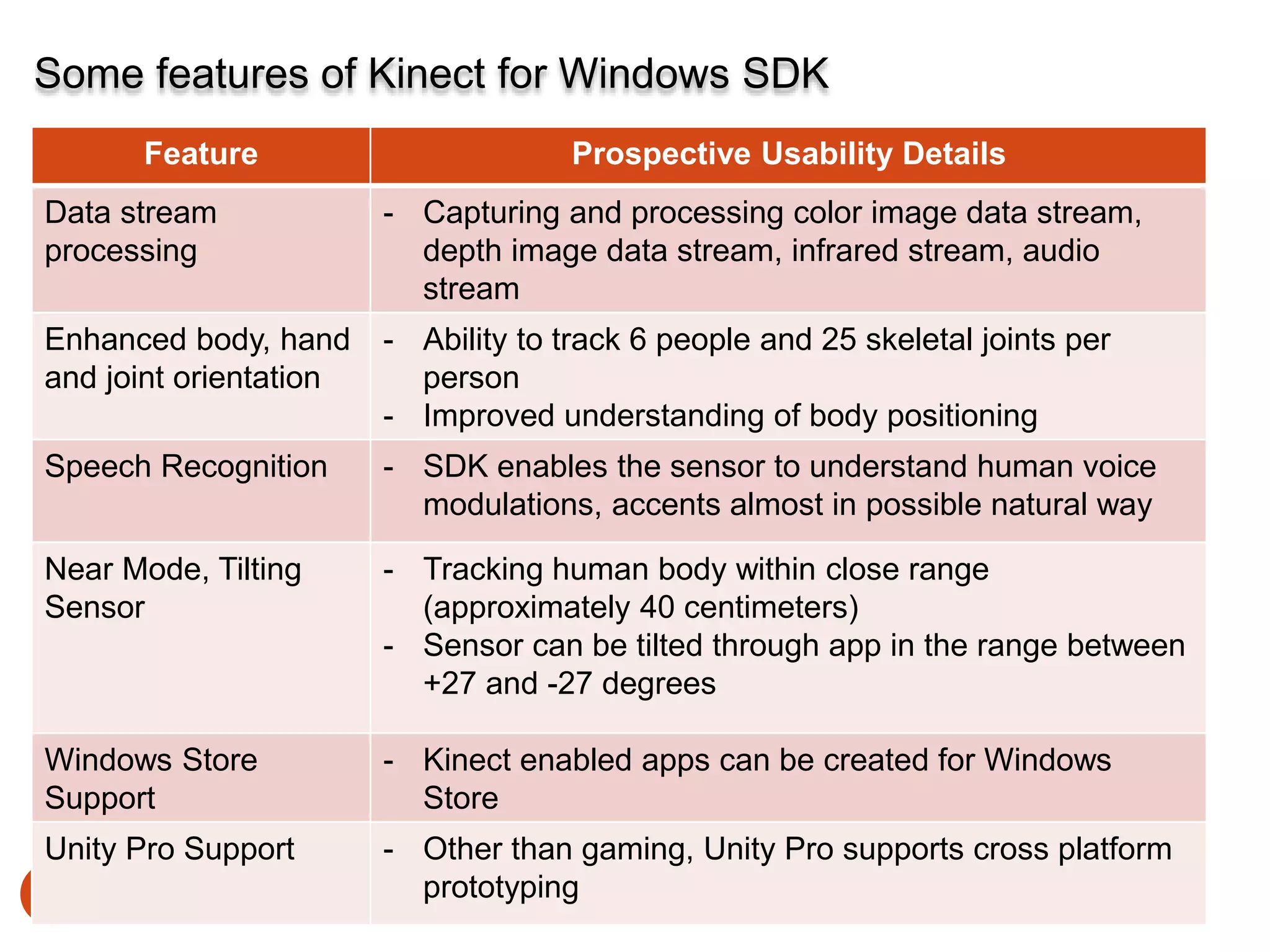

7. Some features of Kinect for Windows SDK
7
Feature Prospective Usability Details
Data stream
processing
- Capturing and processing color image data stream,
depth image data stream, infrared stream, audio
stream
Enhanced body, hand
and joint orientation
- Ability to track 6 people and 25 skeletal joints per
person
- Improved understanding of body positioning
Speech Recognition - SDK enables the sensor to understand human voice
modulations, accents almost in possible natural way
Near Mode, Tilting
Sensor
- Tracking human body within close range
(approximately 40 centimeters)
- Sensor can be tilted through app in the range between
+27 and -27 degrees
Windows Store
Support
- Kinect enabled apps can be created for Windows
Store
Unity Pro Support - Other than gaming, Unity Pro supports cross platform
prototyping

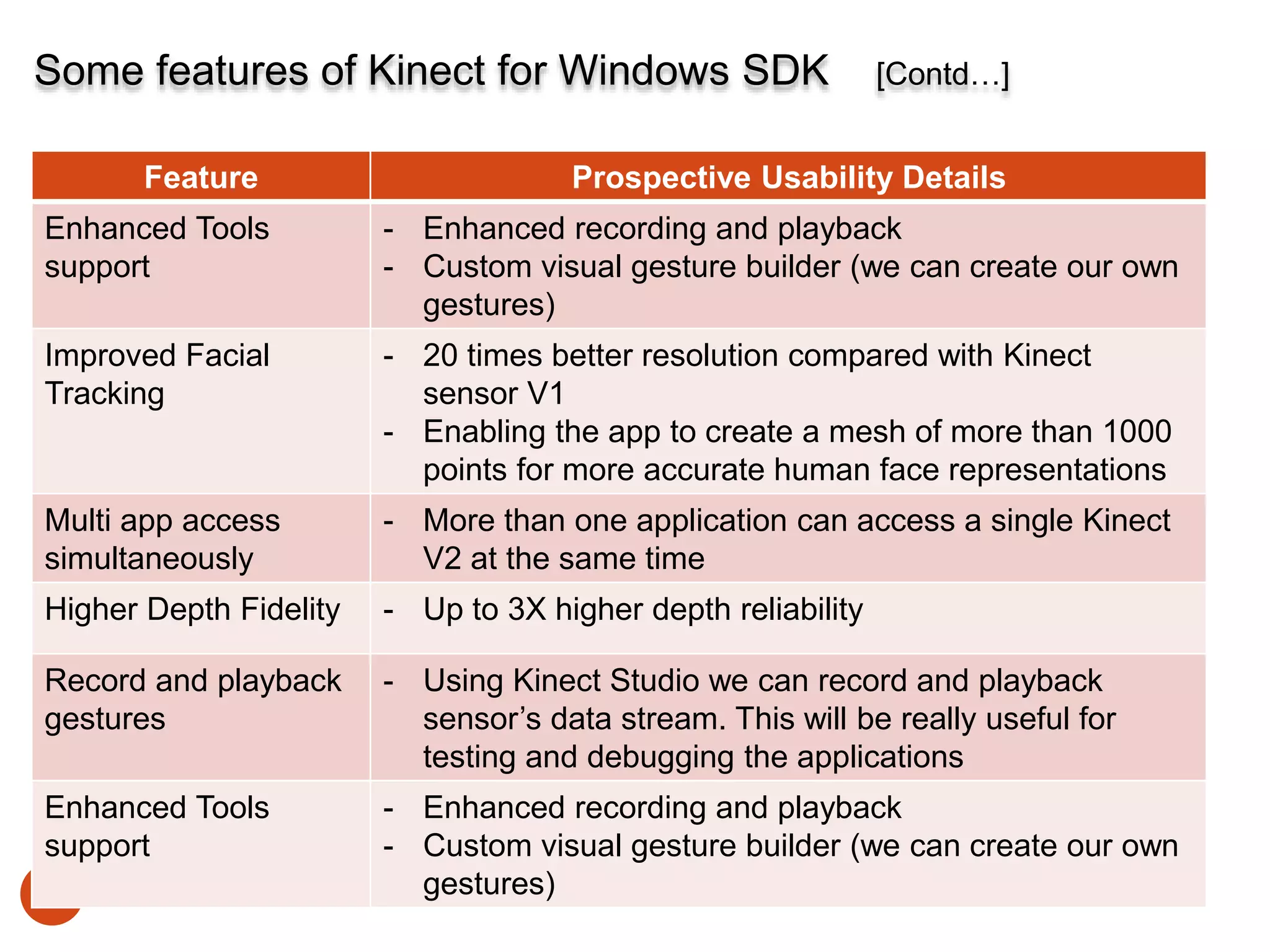

8. Some features of Kinect for Windows SDK [Contd…]
8
Feature Prospective Usability Details
Enhanced Tools
support
- Enhanced recording and playback
- Custom visual gesture builder (we can create our own
gestures)
Improved Facial
Tracking
- 20 times better resolution compared with Kinect
sensor V1
- Enabling the app to create a mesh of more than 1000
points for more accurate human face representations
Multi app access
simultaneously
- More than one application can access a single Kinect
V2 at the same time
Higher Depth Fidelity - Up to 3X higher depth reliability
Record and playback
gestures
- Using Kinect Studio we can record and playback
sensor’s data stream. This will be really useful for
testing and debugging the applications
Enhanced Tools
support
- Enhanced recording and playback
- Custom visual gesture builder (we can create our own
gestures)

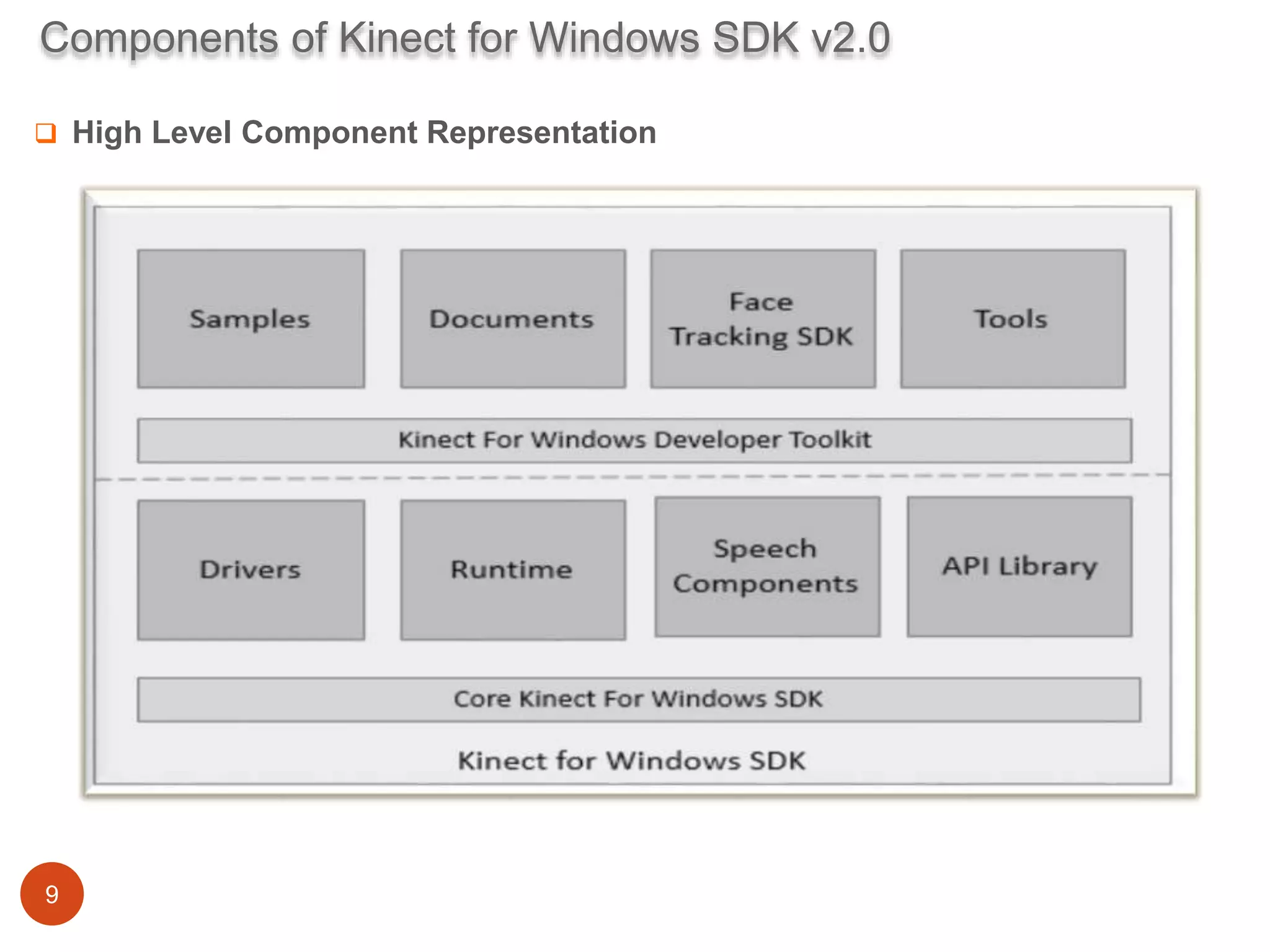

9. Components of Kinect for Windows SDK v2.0
 High Level Component Representation
9

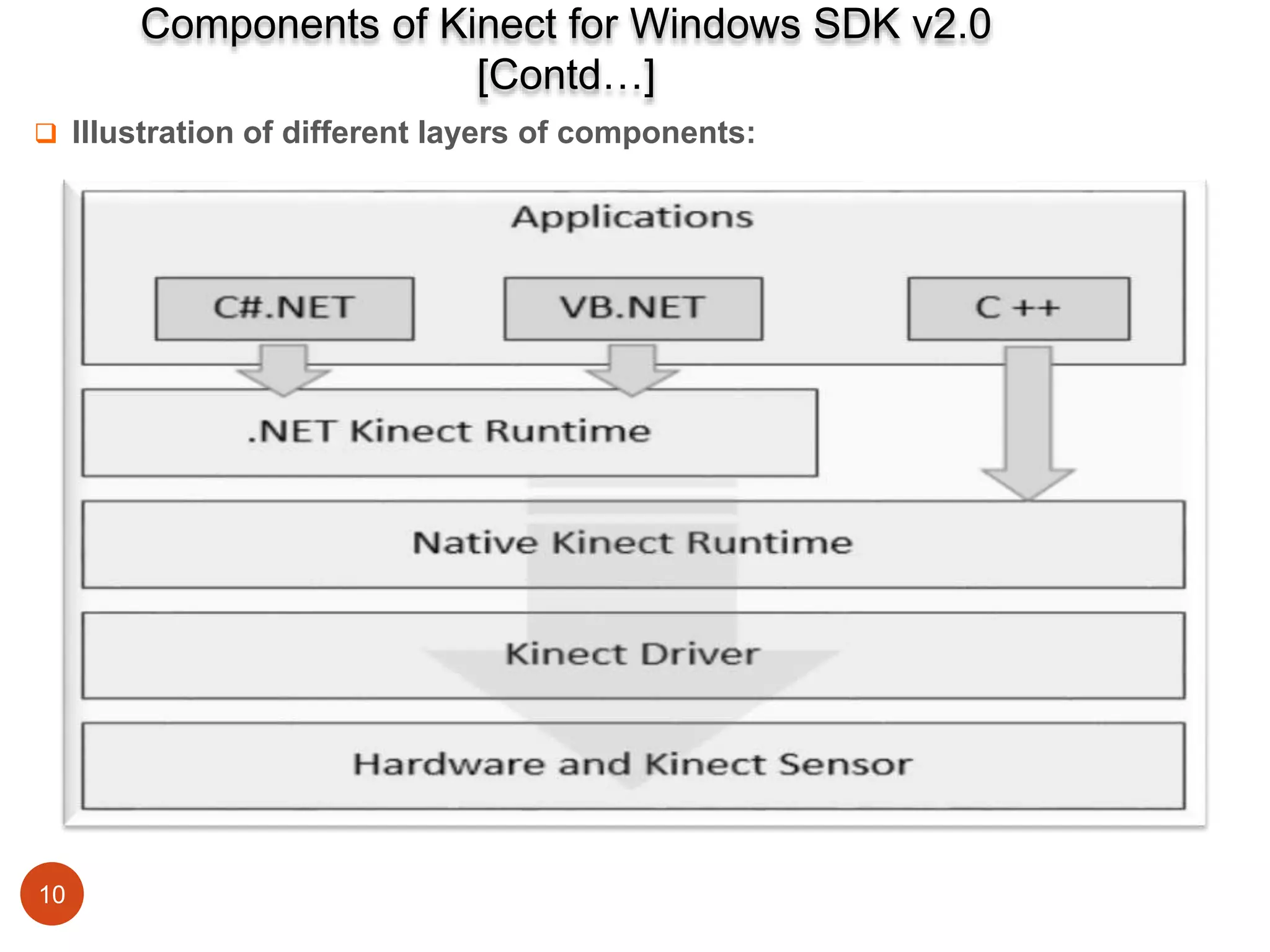

10.  Illustration of different layers of components:
10
Components of Kinect for Windows SDK v2.0
[Contd…]

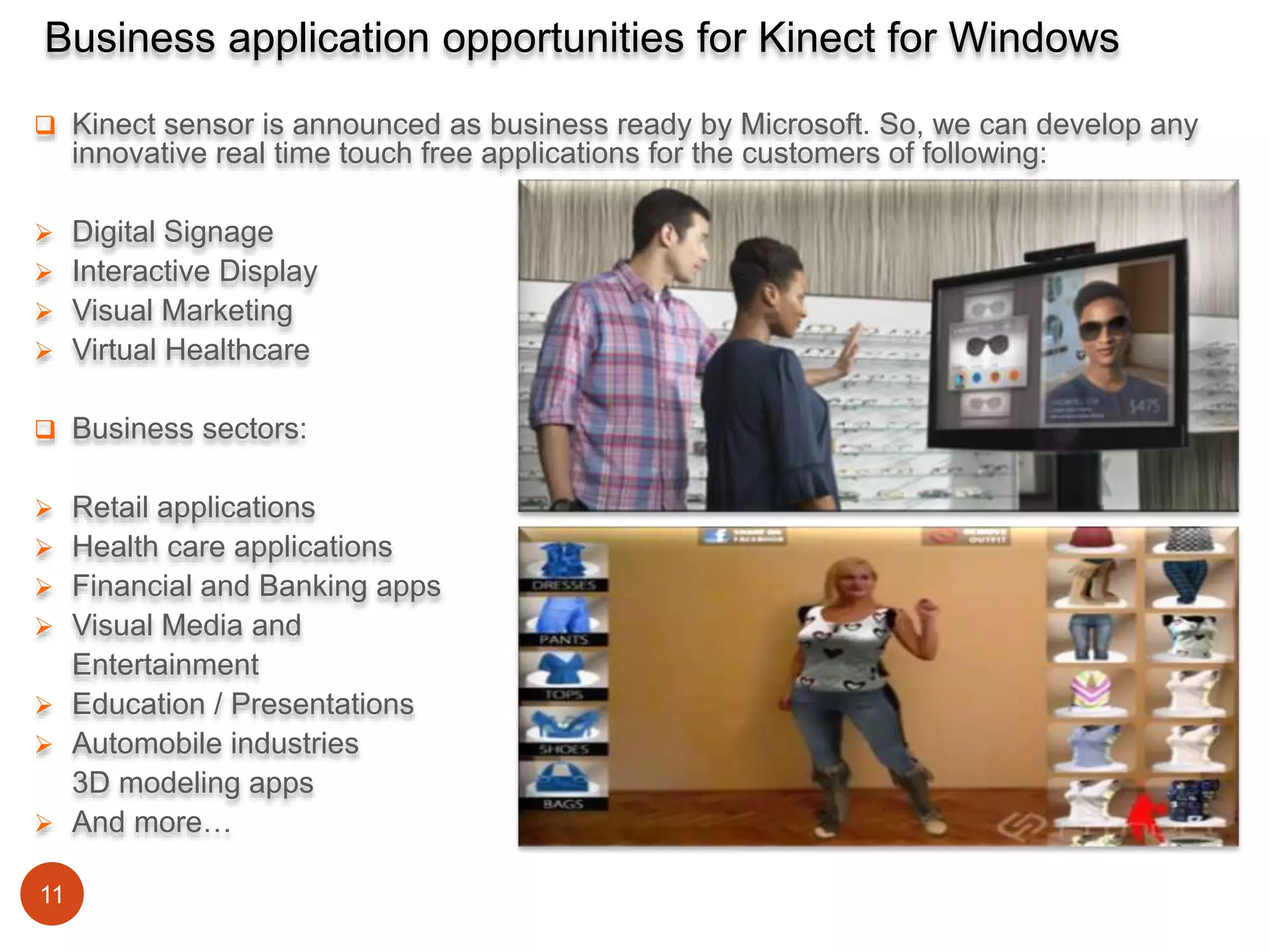

11. Business application opportunities for Kinect for Windows
 Kinect sensor is announced as business ready by Microsoft. So, we can develop any
innovative real time touch free applications for the customers of following:
 Digital Signage
 Interactive Display
 Visual Marketing
 Virtual Healthcare
 Business sectors:
 Retail applications
 Health care applications
 Financial and Banking apps
 Visual Media and
Entertainment
 Education / Presentations
 Automobile industries
3D modeling apps
 And more…
11

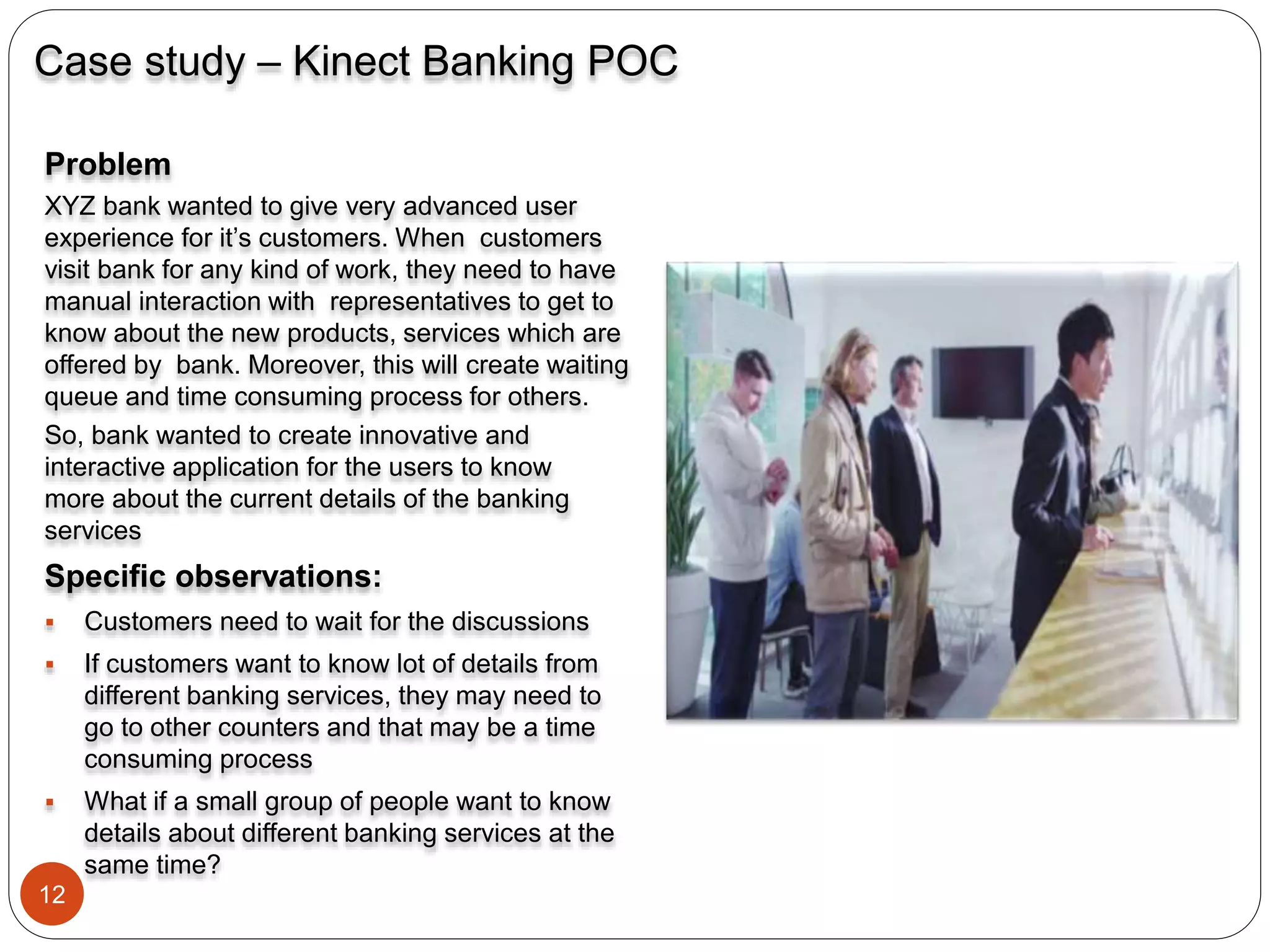

12. Confidential & Proprietary. Not for External Circulation
Case study – Kinect Banking POC
Problem
XYZ bank wanted to give very advanced user
experience for it’s customers. When customers
visit bank for any kind of work, they need to have
manual interaction with representatives to get to
know about the new products, services which are
offered by bank. Moreover, this will create waiting
queue and time consuming process for others.
So, bank wanted to create innovative and
interactive application for the users to know
more about the current details of the banking
services
Specific observations:
 Customers need to wait for the discussions
 If customers want to know lot of details from
different banking services, they may need to
go to other counters and that may be a time
consuming process
 What if a small group of people want to know
details about different banking services at the
same time?
12

13. Confidential & Proprietary. Not for External Circulation
Case study – Kinect Banking POC

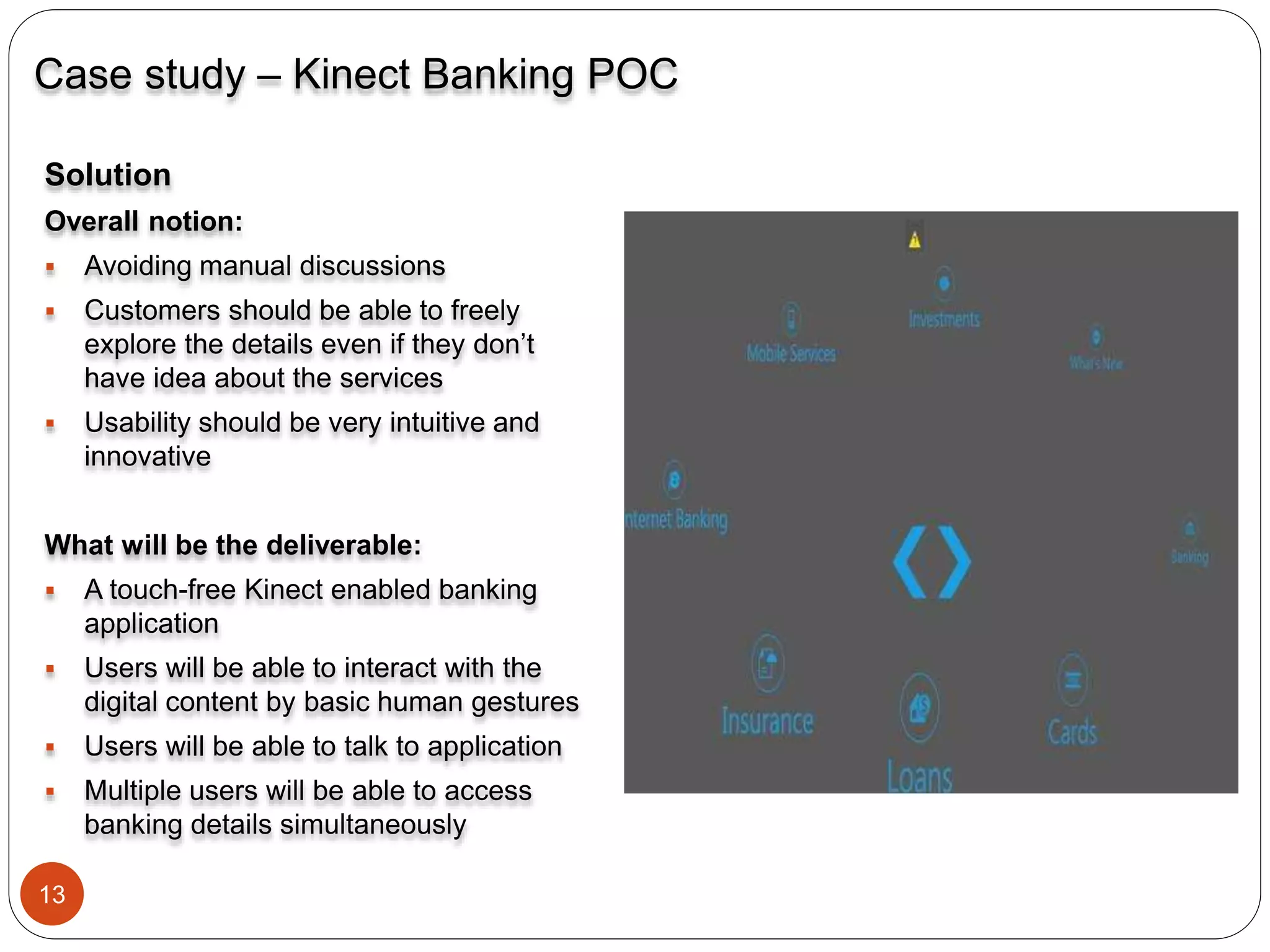

Solution
Overall notion:
 Avoiding manual discussions
 Customers should be able to freely
explore the details even if they don’t
have idea about the services
 Usability should be very intuitive and
innovative
What will be the deliverable:
 A touch-free Kinect enabled banking
application
 Users will be able to interact with the
digital content by basic human gestures
 Users will be able to talk to application
 Multiple users will be able to access
banking details simultaneously
13

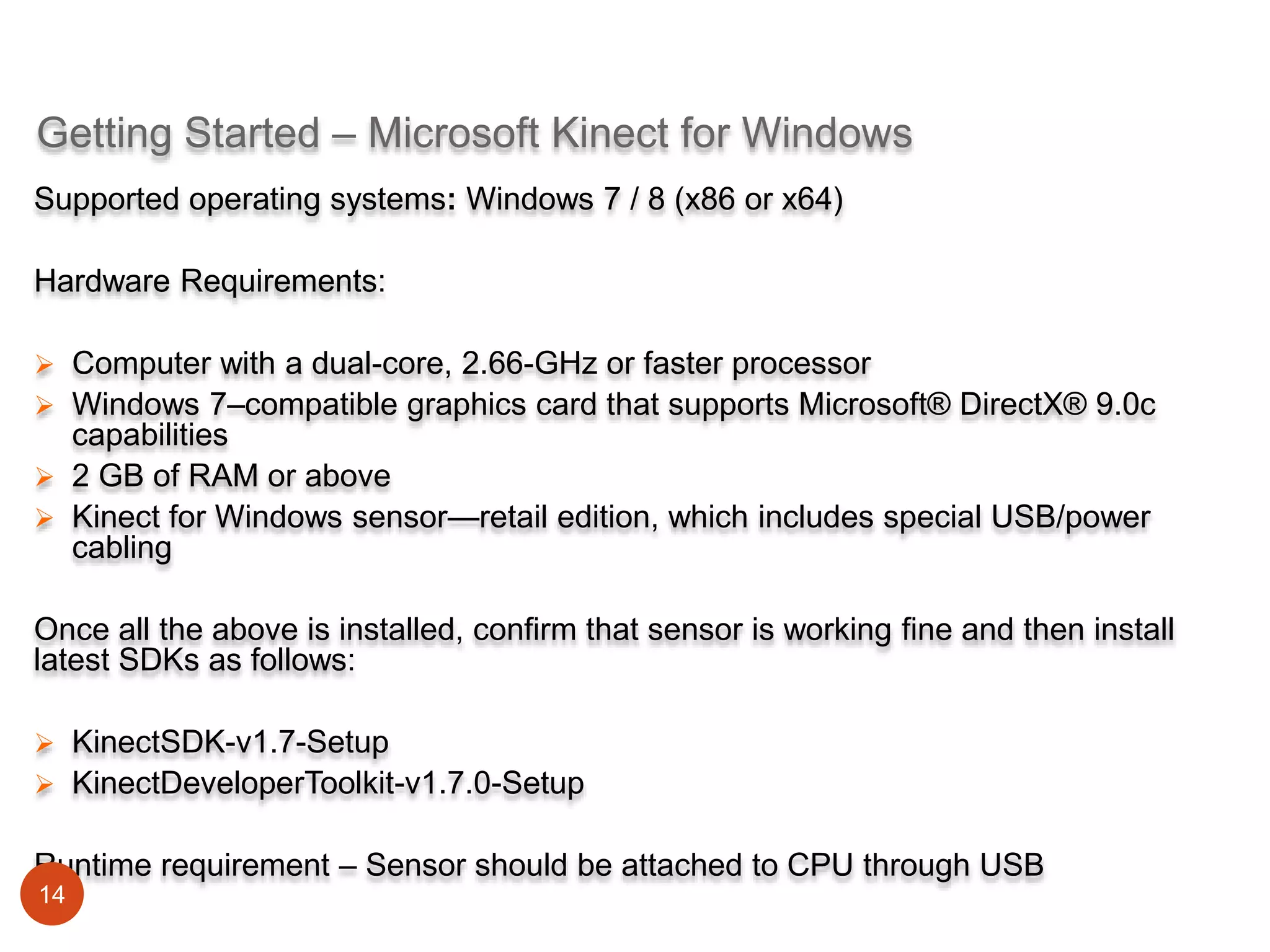

14. Getting Started – Microsoft Kinect for Windows
Supported operating systems: Windows 7 / 8 (x86 or x64)
Hardware Requirements:
 Computer with a dual-core, 2.66-GHz or faster processor
 Windows 7–compatible graphics card that supports Microsoft® DirectX® 9.0c
capabilities
 2 GB of RAM or above
 Kinect for Windows sensor—retail edition, which includes special USB/power
cabling
Once all the above is installed, confirm that sensor is working fine and then install
latest SDKs as follows:
 KinectSDK-v1.7-Setup
 KinectDeveloperToolkit-v1.7.0-Setup
Runtime requirement – Sensor should be attached to CPU through USB
14

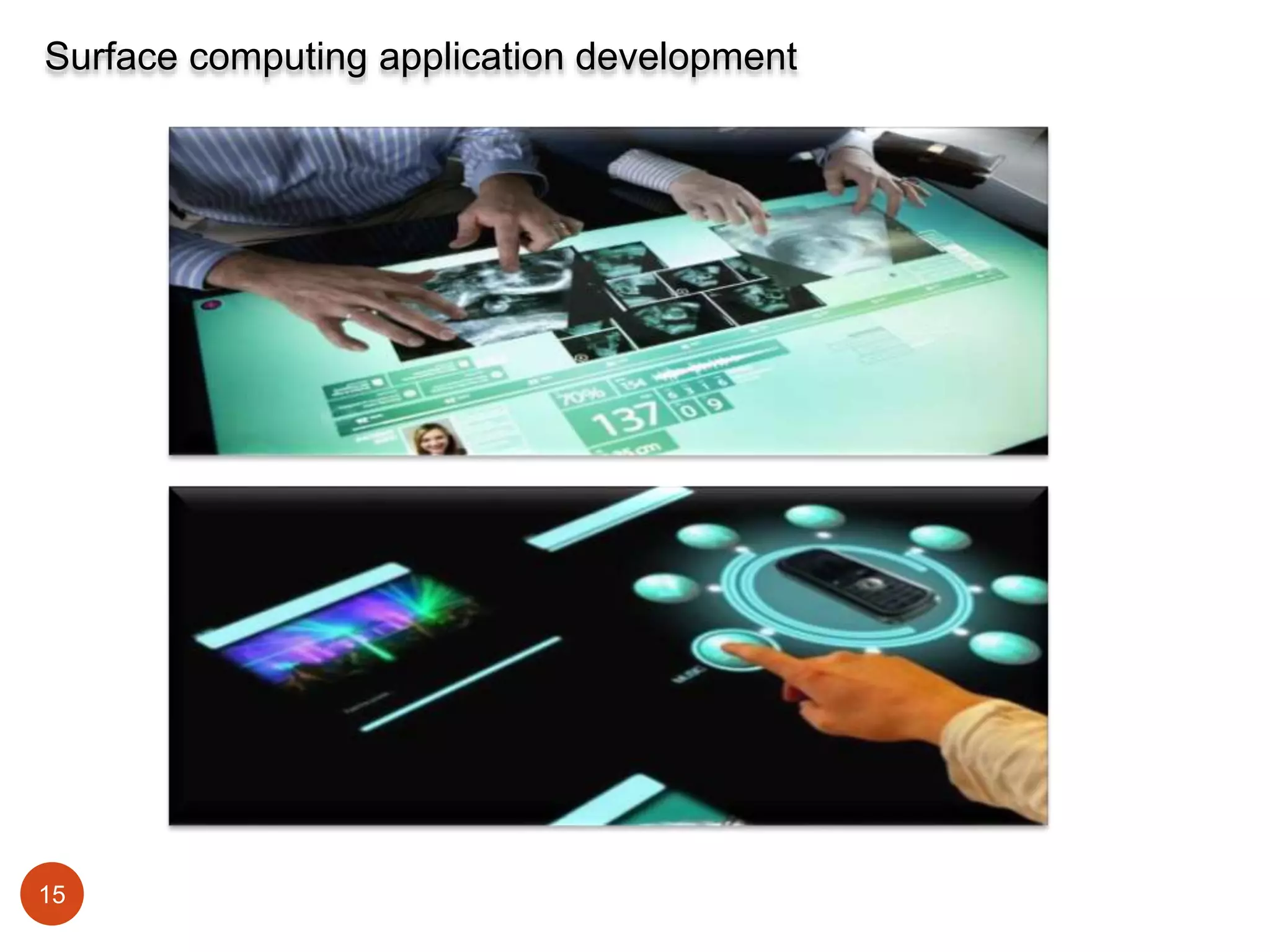

15. Surface computing application development
15

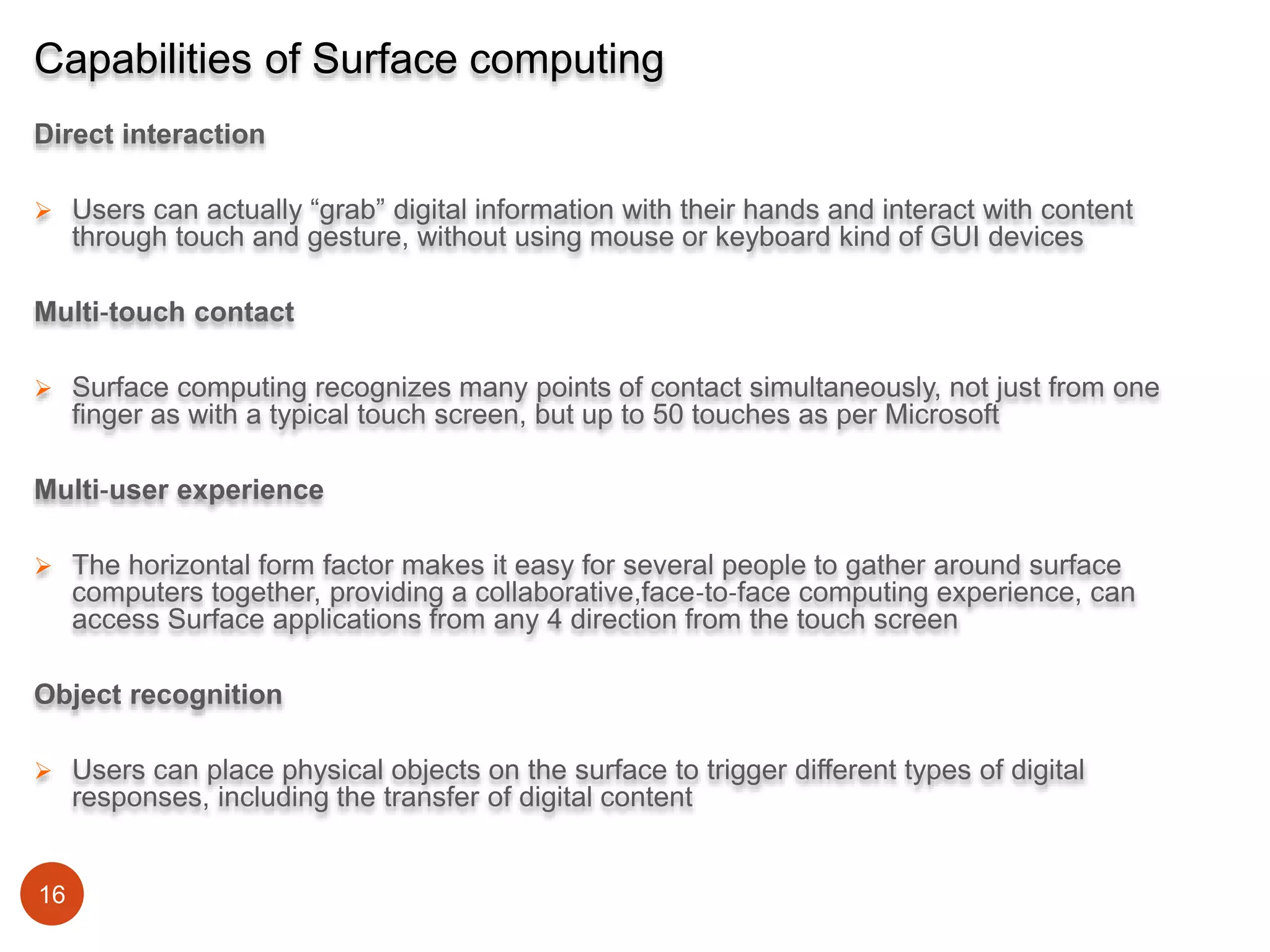

16. Capabilities of Surface computing
Direct interaction
 Users can actually “grab” digital information with their hands and interact with content
through touch and gesture, without using mouse or keyboard kind of GUI devices
Multi‐touch contact
 Surface computing recognizes many points of contact simultaneously, not just from one
finger as with a typical touch screen, but up to 50 touches as per Microsoft
Multi‐user experience
 The horizontal form factor makes it easy for several people to gather around surface
computers together, providing a collaborative,face‐to‐face computing experience, can
access Surface applications from any 4 direction from the touch screen
Object recognition
 Users can place physical objects on the surface to trigger different types of digital
responses, including the transfer of digital content
16

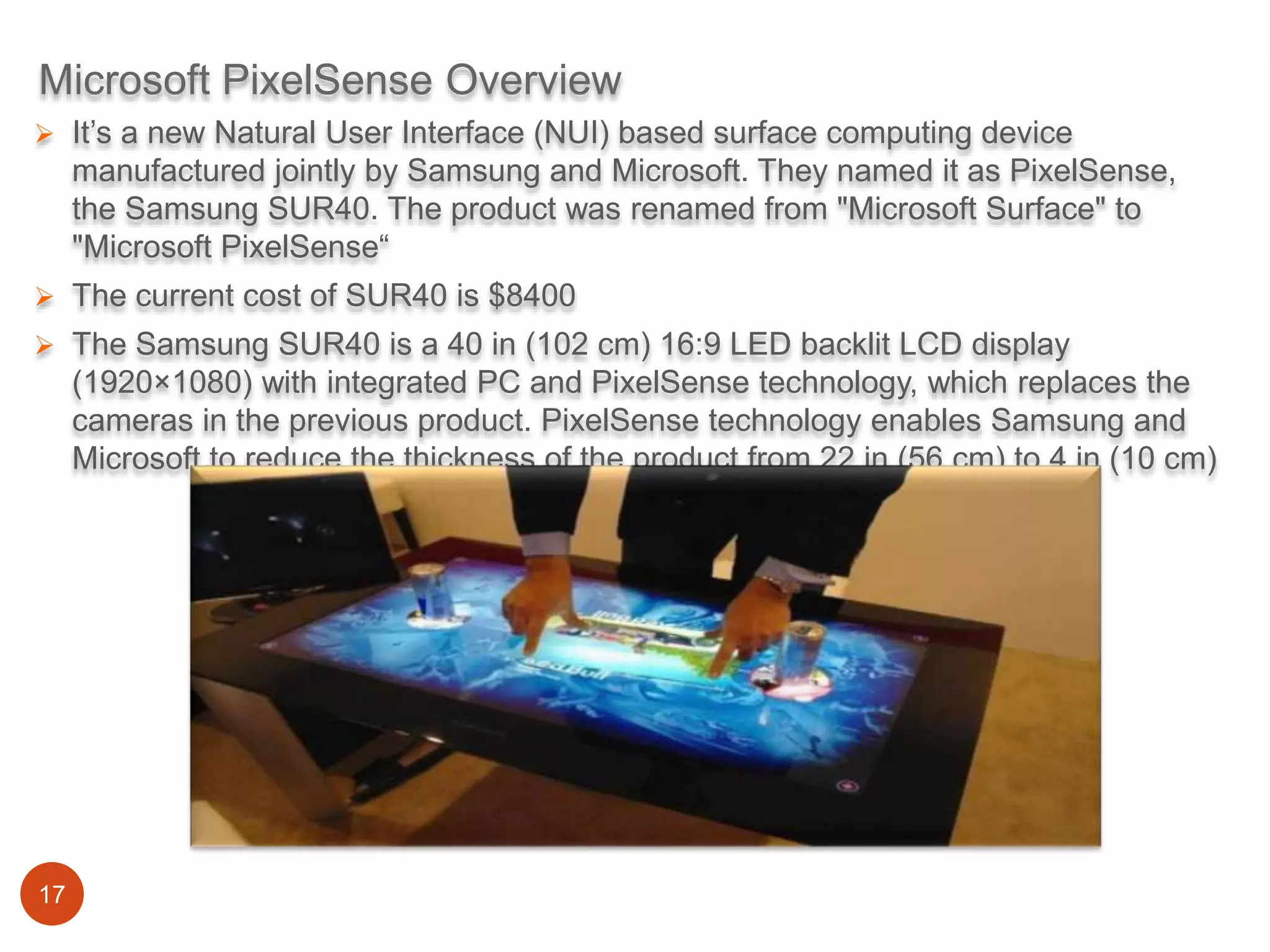

17. Microsoft PixelSense Overview
 It’s a new Natural User Interface (NUI) based surface computing device
manufactured jointly by Samsung and Microsoft. They named it as PixelSense,
the Samsung SUR40. The product was renamed from "Microsoft Surface" to
"Microsoft PixelSense“
 The current cost of SUR40 is $8400
 The Samsung SUR40 is a 40 in (102 cm) 16:9 LED backlit LCD display
(1920×1080) with integrated PC and PixelSense technology, which replaces the
cameras in the previous product. PixelSense technology enables Samsung and
Microsoft to reduce the thickness of the product from 22 in (56 cm) to 4 in (10 cm)
17

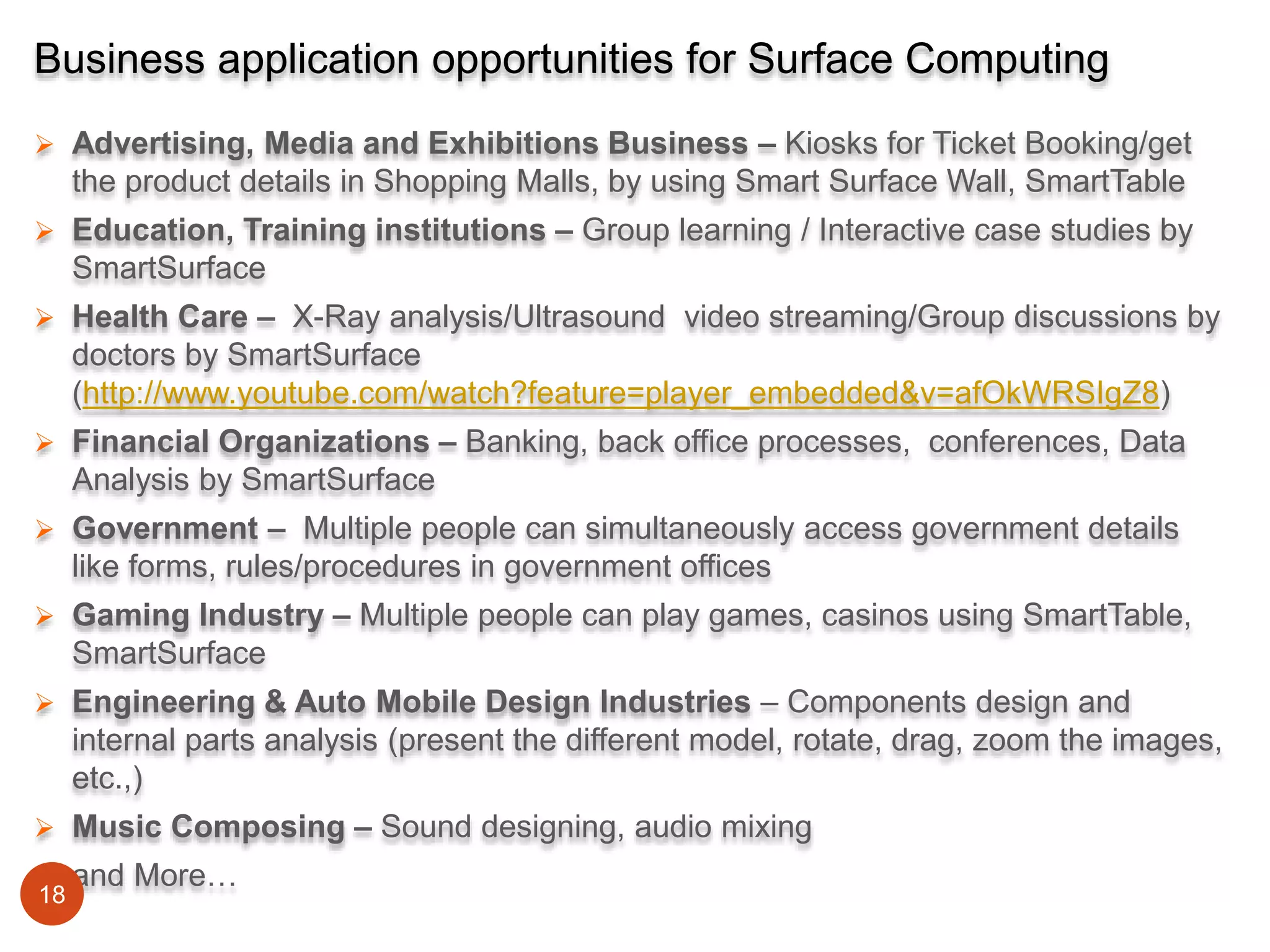

18. Business application opportunities for Surface Computing
 Advertising, Media and Exhibitions Business – Kiosks for Ticket Booking/get
the product details in Shopping Malls, by using Smart Surface Wall, SmartTable
 Education, Training institutions – Group learning / Interactive case studies by
SmartSurface
 Health Care – X-Ray analysis/Ultrasound video streaming/Group discussions by
doctors by SmartSurface
(http://www.youtube.com/watch?feature=player_embedded&v=afOkWRSIgZ8)
 Financial Organizations – Banking, back office processes, conferences, Data
Analysis by SmartSurface
 Government – Multiple people can simultaneously access government details
like forms, rules/procedures in government offices
 Gaming Industry – Multiple people can play games, casinos using SmartTable,
SmartSurface
 Engineering & Auto Mobile Design Industries – Components design and
internal parts analysis (present the different model, rotate, drag, zoom the images,
etc.,)
 Music Composing – Sound designing, audio mixing
 and More…
18

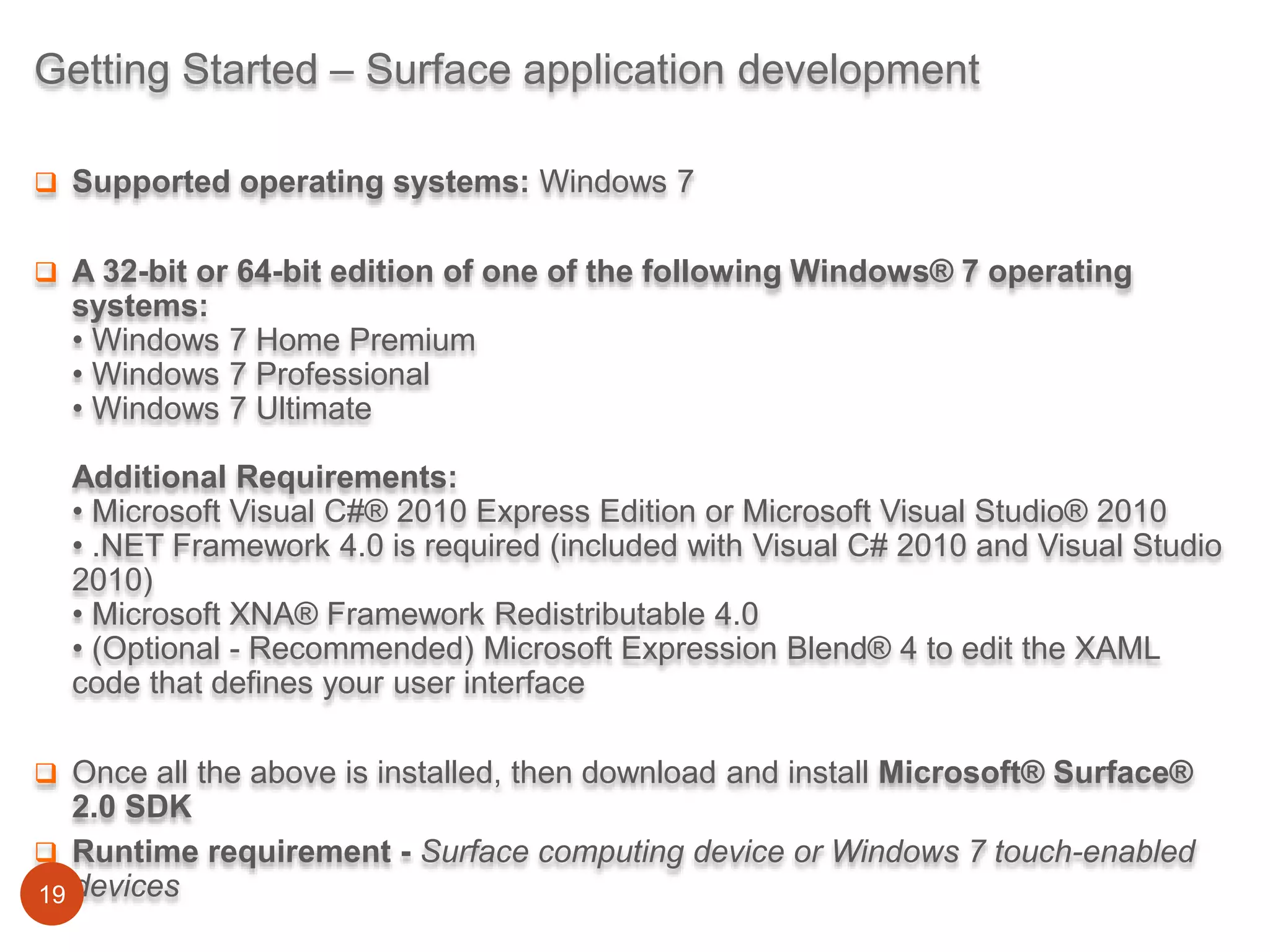

19. Getting Started – Surface application development
 Supported operating systems: Windows 7
 A 32-bit or 64-bit edition of one of the following Windows® 7 operating
systems:
• Windows 7 Home Premium
• Windows 7 Professional
• Windows 7 Ultimate
Additional Requirements:
• Microsoft Visual C#® 2010 Express Edition or Microsoft Visual Studio® 2010
• .NET Framework 4.0 is required (included with Visual C# 2010 and Visual Studio
2010)
• Microsoft XNA® Framework Redistributable 4.0
• (Optional - Recommended) Microsoft Expression Blend® 4 to edit the XAML
code that defines your user interface
 Once all the above is installed, then download and install Microsoft® Surface®
2.0 SDK
 Runtime requirement - Surface computing device or Windows 7 touch-enabled
19 devices

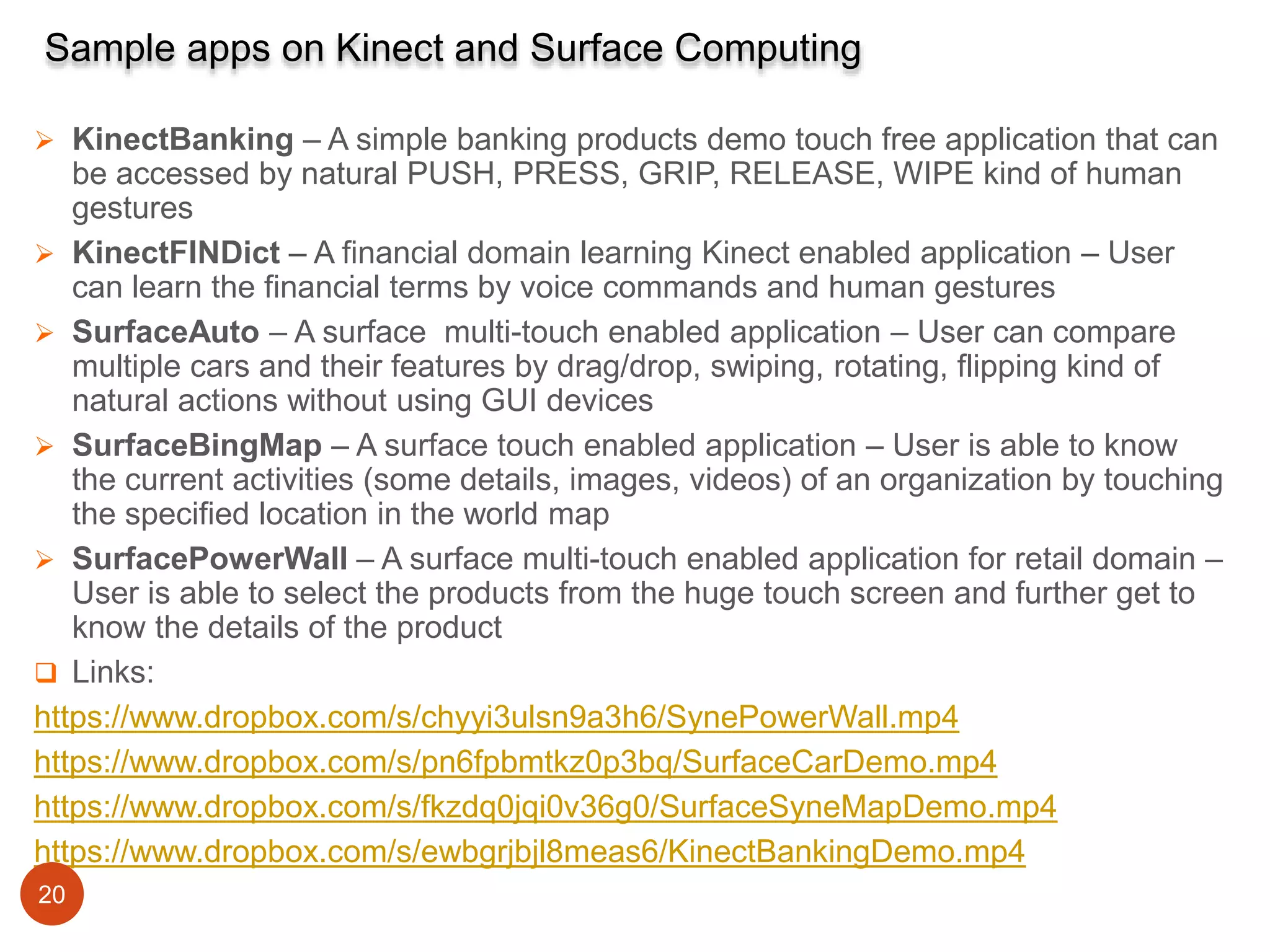

20. Sample apps on Kinect and Surface Computing
 KinectBanking – A simple banking products demo touch free application that can
be accessed by natural PUSH, PRESS, GRIP, RELEASE, WIPE kind of human
gestures
 KinectFINDict – A financial domain learning Kinect enabled application – User
can learn the financial terms by voice commands and human gestures
 SurfaceAuto – A surface multi-touch enabled application – User can compare
multiple cars and their features by drag/drop, swiping, rotating, flipping kind of
natural actions without using GUI devices
 SurfaceBingMap – A surface touch enabled application – User is able to know
the current activities (some details, images, videos) of an organization by touching
the specified location in the world map
 SurfacePowerWall – A surface multi-touch enabled application for retail domain –
User is able to select the products from the huge touch screen and further get to
know the details of the product
 Links:
https://www.dropbox.com/s/chyyi3ulsn9a3h6/SynePowerWall.mp4
https://www.dropbox.com/s/pn6fpbmtkz0p3bq/SurfaceCarDemo.mp4
https://www.dropbox.com/s/fkzdq0jqi0v36g0/SurfaceSyneMapDemo.mp4
https://www.dropbox.com/s/ewbgrjbjl8meas6/KinectBankingDemo.mp4
20

21. Thank You !
21
