- 1. AP 6562 SALES PRESENTATION PAGE 1
- 2. ENABLING APPLICATIONS WITHIN AMESH NETWORK TARGET MARKETS FOR 802.11N OUTDOORS Retail Warehouse/DC Hospitality Extension OUTDOOR YARD RETAIL EXTERNAL SERVICES SERVICES AND RETAIL AND LOT EXTENSION OUTDOOR COVERAGE PARKING LOTS Multi Use Industrial Education Networks Markets CITIES, PARKS, OUTDOOR DATA VOICE APARTMENT CAMPUS VIDEO BUILDINGS COVERAGE APPLICATIONS MORE USERS & MORE APPLICATIONS REQUIRE MORE CAPACITY PAGE 2
- 3. WHY AP 6562? • Lower cost rugged device that reduces the need for customers to place indoor units in NEMA enclosures to meet budget constraints • AP 6562 can cost effectively extend coverage from an indoor network to an outdoor coverage area – with seamless roaming • Target verticals: Retail/Warehouse/DC Hospitality Education Outdoor Hotspot Networks/Carrier Offload/ISP PAGE 3

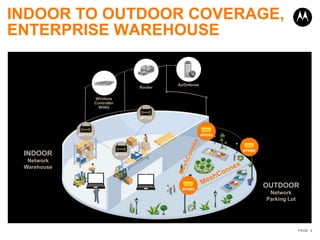

- 4. INDOOR TO OUTDOORCOVERAGE, ENTERPRISE WAREHOUSE AirDefense Router Wireless Controller WiNG AP7131 AP7131 AP6562 AP6562 INDOOR AP7131 Network Warehouse AP6562 OUTDOOR Network Parking Lot PAGE 4
- 5. YARD MANAGEMENT • OUTDOORCONNECTIVITY AND MESH WIDE AREA COVERAGE FOR LIFT TRUCKS, ETC. THROUGH THE YARD • SUPERIOR VIDEO PERFORMANCE AT THE GATE AP 6562 PROVIDES OUTDOOR YARD COVERAGE WITH HIGH DATA RATES FOR VIDEO APPLICATIONS YARD WORKERS ARE IN SYNC W/ WAREHOUSE – MORE PRODUCTIVE PAGE 5
- 6. HOSPITALITY 40% OFGUESTS SAY THAT “THEIR EXPERIENCE WITH A HOTEL’S INTERNET SERVICE AFFECTS THEIR LIKELIHOOD TO RETURN”1 DELIVER GUEST SERVICES WITH • RELIABLE GUEST ACCESS • OUTDOOR COVERAGE INCLUDING POOL AREAS AND PARKING LOT 1HotelExecutive - 2012 PAGE 6
- 7. THE CONNECTED-EVERYWHERE HOTEL 802.11nTHROUGHOUT PUBLIC LOBBY GUEST ROOMS PUBLIC ACCESS, BACKOFFICE NETWORKS WIRELESS 11n + WIRED IN EACH ROOM AP 650, AP 7131, AP 6521 AP 6511 MEETING ROOMS OUTDOOR AREAS / POOL HIGH CAP., ROAMING, LOAD BALANCE, MESH SEAMLESS WiFi COVERAGE AP 650, AP 7131, AP 6532 AP 7161/ AP 6562Outdoor Mesh PAGE 7
- 8. RETAIL – ENABLINGDIGITAL STRATEGIES SEAMLESS COVERAGE FROM OUTDOORS TO INDOOR: • Proximity Awareness • Secure access to Wi-Fi Network • Analytics to engage the shopper PAGE 8
- 9. EDUCATION ALWAYS CONNECTED… • Secure Video Surveillance • Secure Access to Network • Seamless Coverage from Indoor to Outdoor • Online Learning Access PAGE 9
- 10. CARRIER OFFLOAD DEPLOYMENT MODELS INDOOR- WLAN OUTDOOR – LOW POWER OUTDOOR – HIGH POWER • Most data use comes from • Street-level deployments using low • Co-locate with cell sites for simple, indoor spaces mounting sites low cost deployment • Cafés, restaurants, bookstores, • Manage pedestrian traffic in urban / • Use existing mounting, power sports venues high traffic areas and backhaul • Wireless switches can ease • Downtown core, parks, outdoor • Any urban environment, management of distributed sports venues especially traffic corridors, high access points. density urban areas MOTOROLA WiNG 5 CREATES A SEAMLESS INDOOR-OUTDOOR Wi-Fi™ NETWORK. PAGE 10

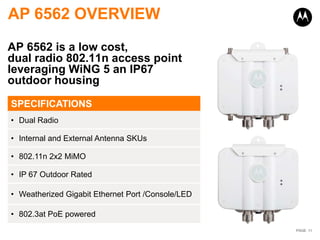

- 11. AP 6562 OVERVIEW AP6562 is a low cost, dual radio 802.11n access point leveraging WiNG 5 an IP67 outdoor housing SPECIFICATIONS • Dual Radio • Internal and External Antenna SKUs • 802.11n 2x2 MiMO • IP 67 Outdoor Rated • Weatherized Gigabit Ethernet Port /Console/LED • 802.3at PoE powered 11 PAGE 11

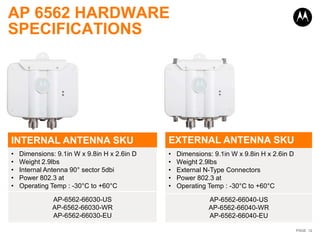

- 12. AP 6562 HARDWARE SPECIFICATIONS INTERNALANTENNA SKU EXTERNAL ANTENNA SKU • Dimensions: 9.1in W x 9.8in H x 2.6in D • Dimensions: 9.1in W x 9.8in H x 2.6in D • Weight 2.9lbs • Weight 2.9lbs • Internal Antenna 90° sector 5dbi • External N-Type Connectors • Power 802.3 at • Power 802.3 at • Operating Temp : -30°C to +60°C • Operating Temp : -30°C to +60°C AP-6562-66030-US AP-6562-66040-US AP-6562-66030-WR AP-6562-66040-WR AP-6562-66030-EU AP-6562-66040-EU PAGE 12
- 13. AP 6562 SPECIFICATIONS ENVIRONMENTAL RADIO FEATURES • OPERATING TEMPERATURE • 802.11 b/g/n -30 to +60 Degrees Celsius - Operating Frequency 2.4 – 2.483 GHz • STORAGE TEMPERATURE - Max Transmit Power 24 dBm* -30 to +60 Degrees Celsius • 802.11 a/n • OPERATING HUMIDITY - Operating Frequency 5-100% 5.25Ghz – 5.825GHz - Max Transmit Power 23 dBm* • ENCLOSURE Outdoor IP67 rated, corrosion INTERNAL VALUES resistant enclosure ASTM B117 Salt, ANTENNA Fog, And Rust resistance Radio 1: 2.4 GHz 5 dBi • WIND RATINGS Radio 2: 2.4 GHz 3 dBi 150 mph (unit bracket measurement) Radio 2: 5.0 GHz 6 dBi * TRANSMIT POWER MAY VARY BASED UPON THE DEPLOYED COUNTRY PAGE 13

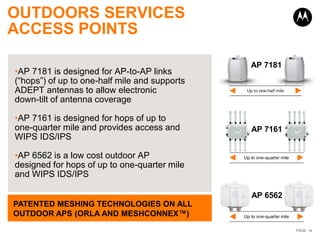

- 14. OUTDOORS SERVICES ACCESS POINTS AP 7181 •AP 7181 is designed for AP-to-AP links (“hops”) of up to one-half mile and supports ADEPT antennas to allow electronic down-tilt of antenna coverage •AP 7161 is designed for hops of up to one-quarter mile and provides access and AP 7161 WIPS IDS/IPS •AP 6562 is a low cost outdoor AP designed for hops of up to one-quarter mile and WIPS IDS/IPS AP 6562 PATENTED MESHING TECHNOLOGIES ON ALL OUTDOOR APS (ORLA AND MESHCONNEX™) PAGE 14

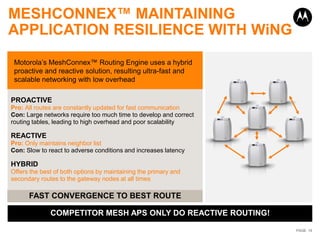

- 15. MESHCONNEX™ MAINTAINING APPLICATION RESILIENCEWITH WiNG Motorola’s MeshConnex™ Routing Engine uses a hybrid proactive and reactive solution, resulting ultra-fast and scalable networking with low overhead PROACTIVE Pro: All routes are constantly updated for fast communication Con: Large networks require too much time to develop and correct routing tables, leading to high overhead and poor scalability REACTIVE Pro: Only maintains neighbor list Con: Slow to react to adverse conditions and increases latency HYBRID Offers the best of both options by maintaining the primary and secondary routes to the gateway nodes at all times FAST CONVERGENCE TO BEST ROUTE COMPETITOR MESH APS ONLY DO REACTIVE ROUTING! PAGE 15
- 16. APPLICATION PERFORMANCE WITH ORLA •ORLA is a key decision-making element designed to select data rates that will provide the best throughput • Instead of using inherited chip design to decide whether a data rate is acceptable or not, ORLA is designed to proactively probe other rates to determine if greater throughput is available • ORLA provides improvements both on the client side of an outdoor network as well as in the backhaul ORLA MULTI-SEARCH MONOTONIC SEARCH Finds and Recovers the Best Data Rate Loses Data Rates, Slow Signal Recovery MESH WIDE Time AREA MBPS Temporary Interference NETWORKS WITH THE POWER OF OPPORTUNISTIC ORLA IN ACTION RADIO LINK ADAPTATION AP 7181 AP 7181 AP 7161 AP 7161 PAGE 16

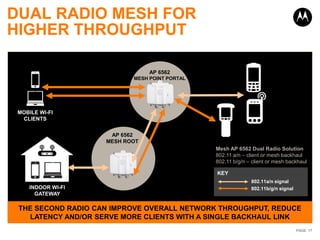

- 17. DUAL RADIO MESHFOR HIGHER THROUGHPUT AP 6562 MESH POINT PORTAL MOBILE WI-FI CLIENTS AP 6562 MESH ROOT Mesh AP 6562 Dual Radio Solution 802.11 a/n – client or mesh backhaul 802.11 b/g/n – client or mesh backhaul KEY 802.11a/n signal INDOOR WI-FI 802.11b/g/n signal GATEWAY THE SECOND RADIO CAN IMPROVE OVERALL NETWORK THROUGHPUT, REDUCE LATENCY AND/OR SERVE MORE CLIENTS WITH A SINGLE BACKHAUL LINK PAGE 17
- 18. AP 6562 KEYBENEFITS • AP 6562 can cost effectively extend coverage from an indoor network to an outdoor coverage area – with seamless roaming and WiNG 5 architecture • MeshConnex technology for fast routing to gateway node and higher data rates – better user experience for high bandwidth applications • Dual radio for voice and data or segregating critical and non-critical apps • Dual radio design allows concurrent monitoring/security sensor – eliminates the need for separate sensors • Easy to use/install with built-in antenna options for fast wall mounting • More compact and aesthetic – gives more choices for mounting location PAGE 18
- 19. THANK YOU MOTOROLA, MOTO, MOTOROLASOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2013 Motorola, Inc. All rights reserved.
