SlideShare a Scribd company logo
1 of 17
Download to read offline
1

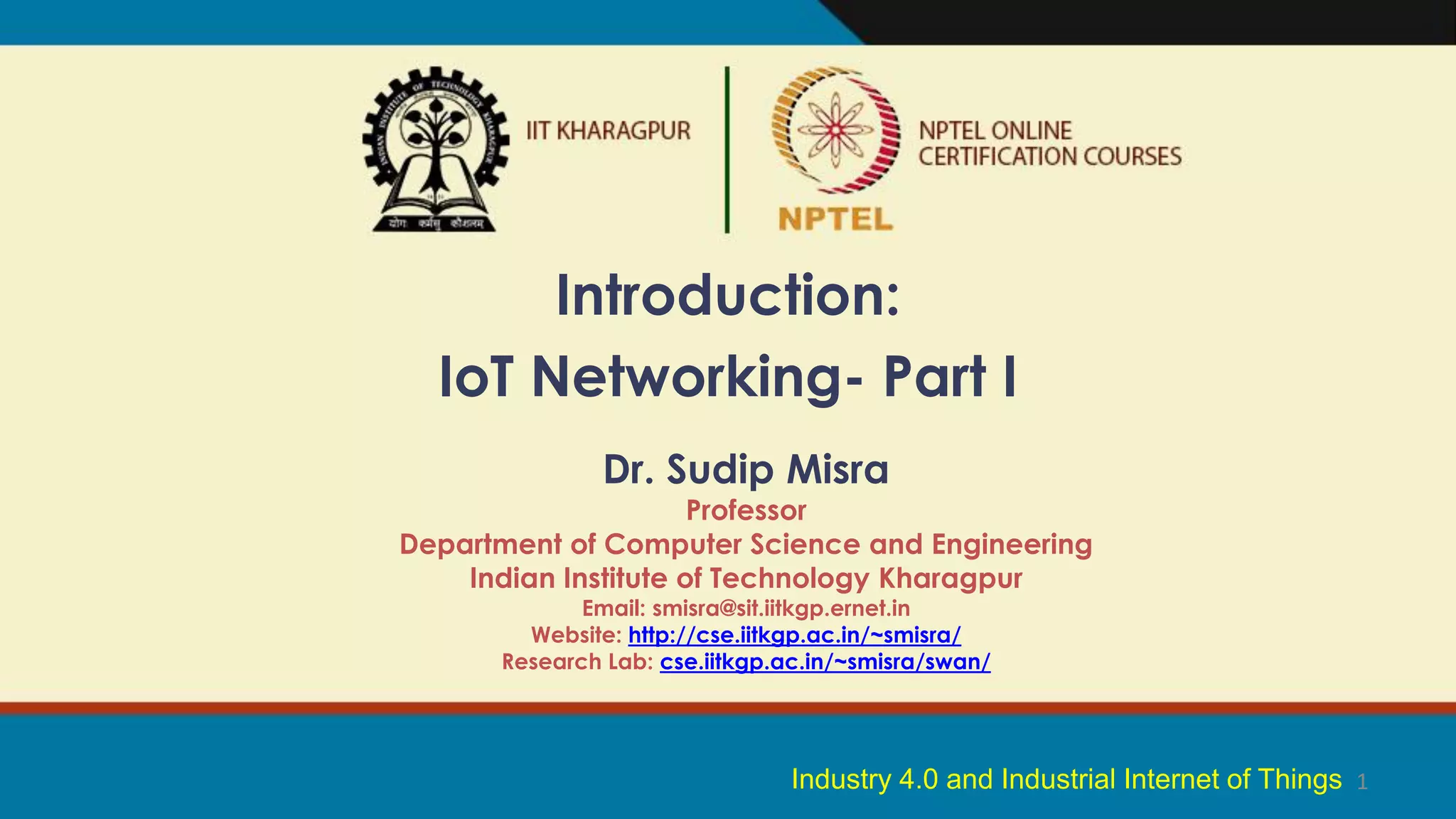

Introduction:
IoT Networking- Part I
Dr. Sudip Misra
Professor
Department of Computer Science and Engineering
Indian Institute of Technology Kharagpur
Email: smisra@sit.iitkgp.ernet.in
Website: http://cse.iitkgp.ac.in/~smisra/
Research Lab: cse.iitkgp.ac.in/~smisra/swan/
Industry 4.0 and Industrial Internet of Things

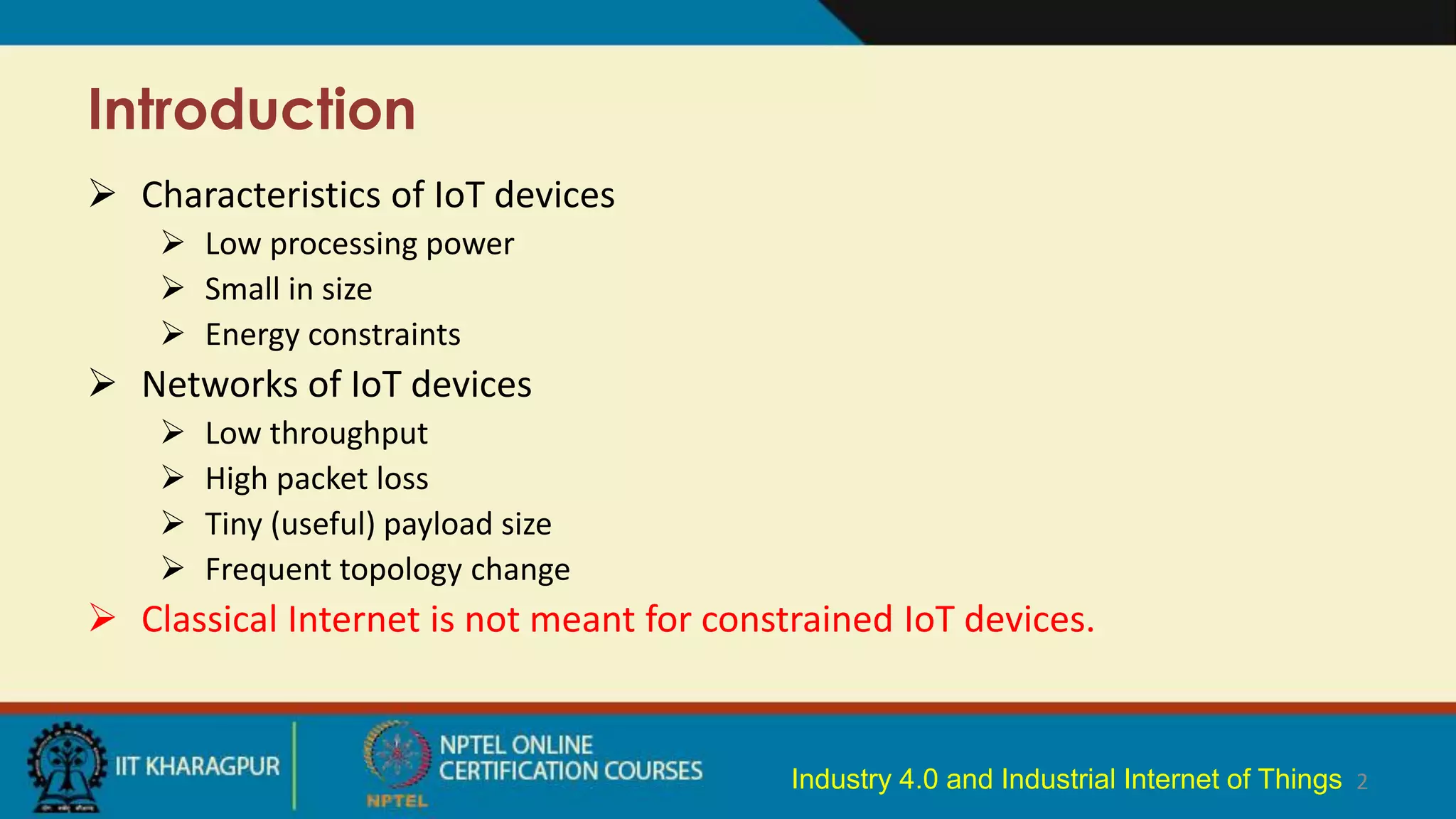

Introduction
 Characteristics of IoT devices
 Low processing power
 Small in size
 Energy constraints
 Networks of IoT devices
 Low throughput
 High packet loss
 Tiny (useful) payload size
 Frequent topology change
 Classical Internet is not meant for constrained IoT devices.
2Industry 4.0 and Industrial Internet of Things

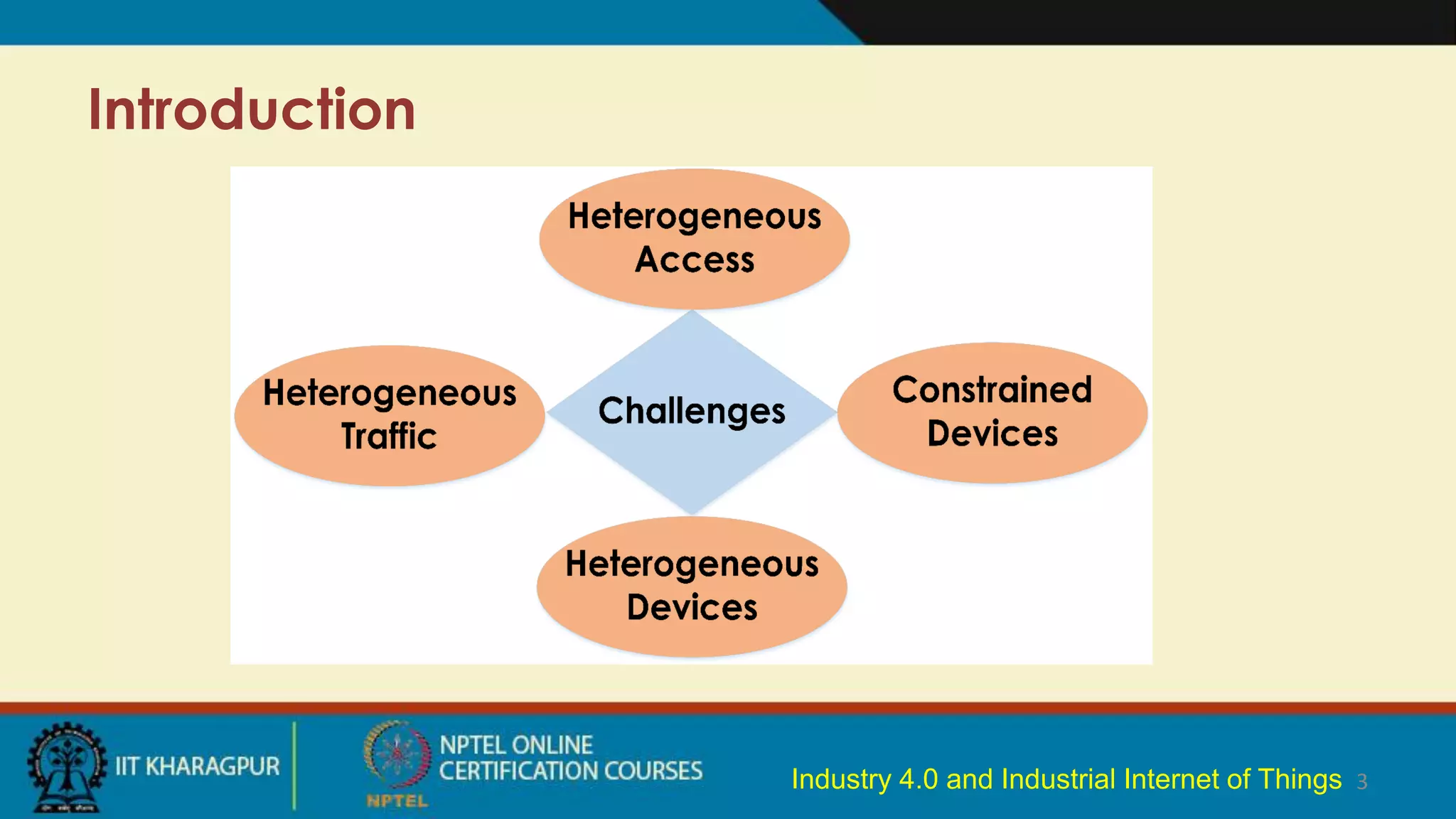

Introduction
3Industry 4.0 and Industrial Internet of Things
Introduction

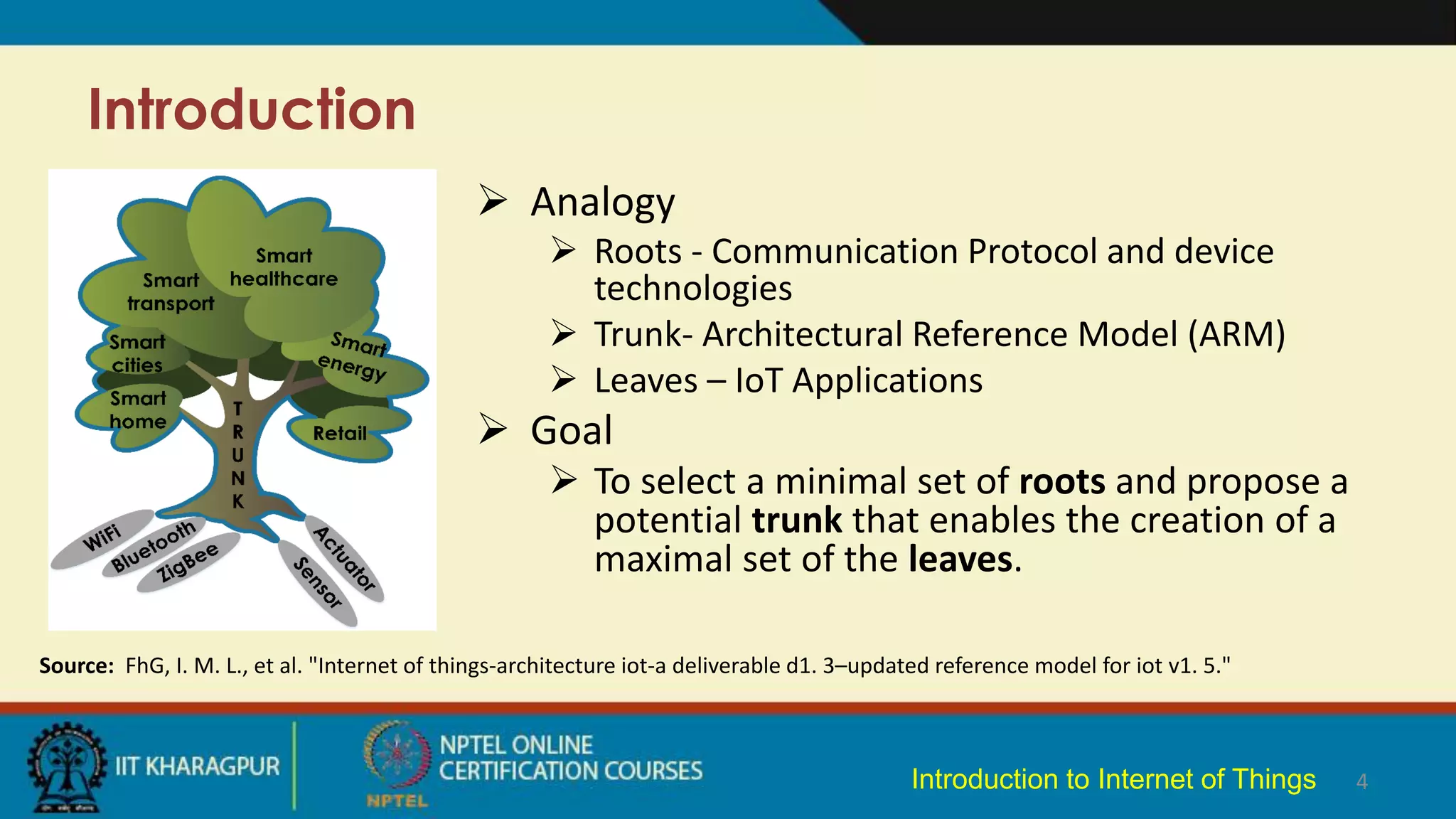

4Introduction to Internet of Things
 Analogy
 Roots - Communication Protocol and device
technologies
 Trunk- Architectural Reference Model (ARM)
 Leaves – IoT Applications
 Goal
 To select a minimal set of roots and propose a
potential trunk that enables the creation of a
maximal set of the leaves.
Source: FhG, I. M. L., et al. "Internet of things-architecture iot-a deliverable d1. 3–updated reference model for iot v1. 5."

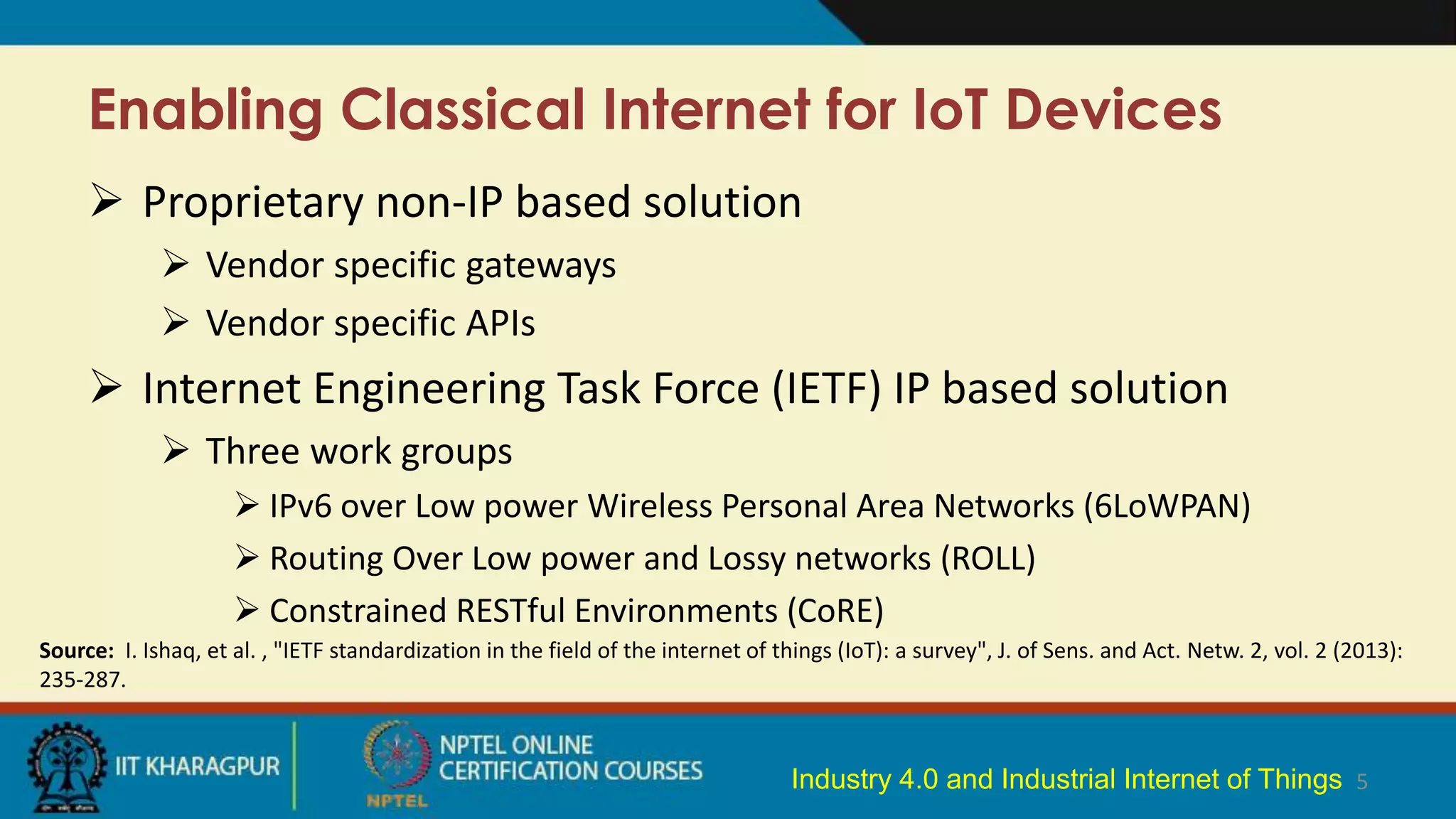

Enabling Classical Internet for IoT Devices
 Proprietary non-IP based solution
 Vendor specific gateways
 Vendor specific APIs
 Internet Engineering Task Force (IETF) IP based solution
 Three work groups
 IPv6 over Low power Wireless Personal Area Networks (6LoWPAN)
 Routing Over Low power and Lossy networks (ROLL)
 Constrained RESTful Environments (CoRE)
5Industry 4.0 and Industrial Internet of Things
Source: I. Ishaq, et al. , "IETF standardization in the field of the internet of things (IoT): a survey", J. of Sens. and Act. Netw. 2, vol. 2 (2013):
235-287.

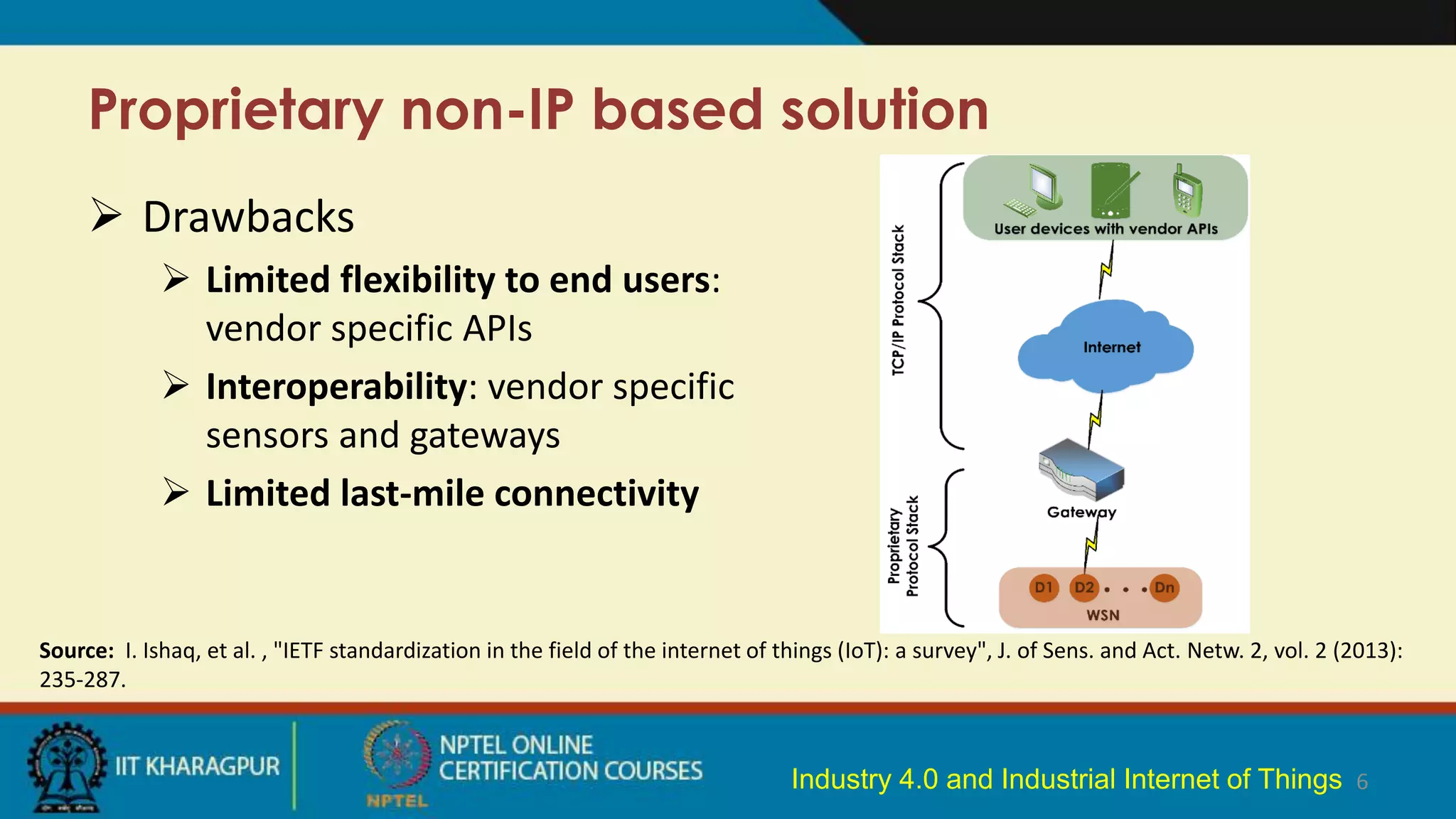

Proprietary non-IP based solution
6Industry 4.0 and Industrial Internet of Things
 Drawbacks
 Limited flexibility to end users:
vendor specific APIs
 Interoperability: vendor specific
sensors and gateways
 Limited last-mile connectivity
Source: I. Ishaq, et al. , "IETF standardization in the field of the internet of things (IoT): a survey", J. of Sens. and Act. Netw. 2, vol. 2 (2013):
235-287.

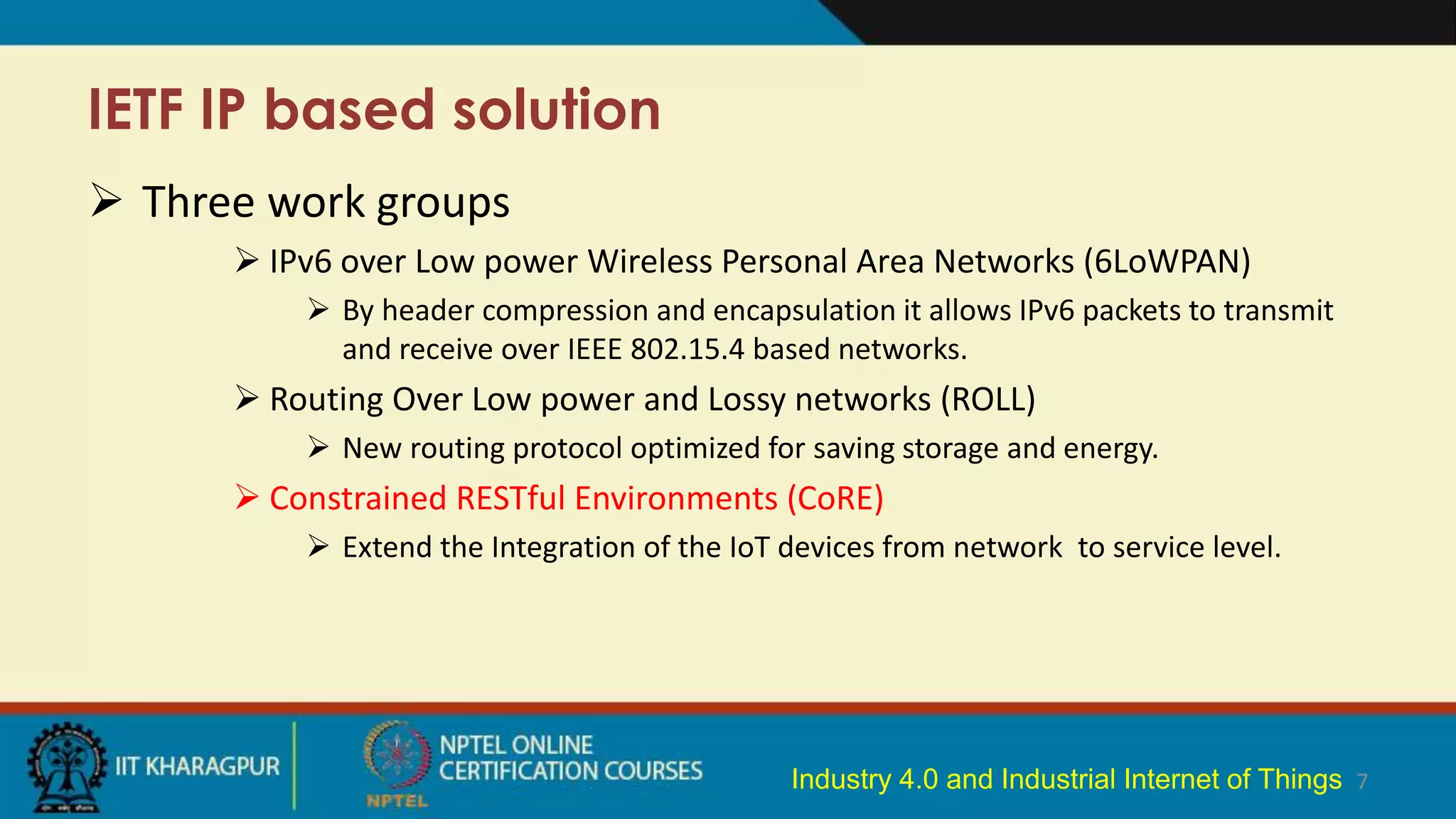

IETF IP based solution
7Industry 4.0 and Industrial Internet of Things
 Three work groups
 IPv6 over Low power Wireless Personal Area Networks (6LoWPAN)
 By header compression and encapsulation it allows IPv6 packets to transmit
and receive over IEEE 802.15.4 based networks.
 Routing Over Low power and Lossy networks (ROLL)
 New routing protocol optimized for saving storage and energy.
 Constrained RESTful Environments (CoRE)
 Extend the Integration of the IoT devices from network to service level.

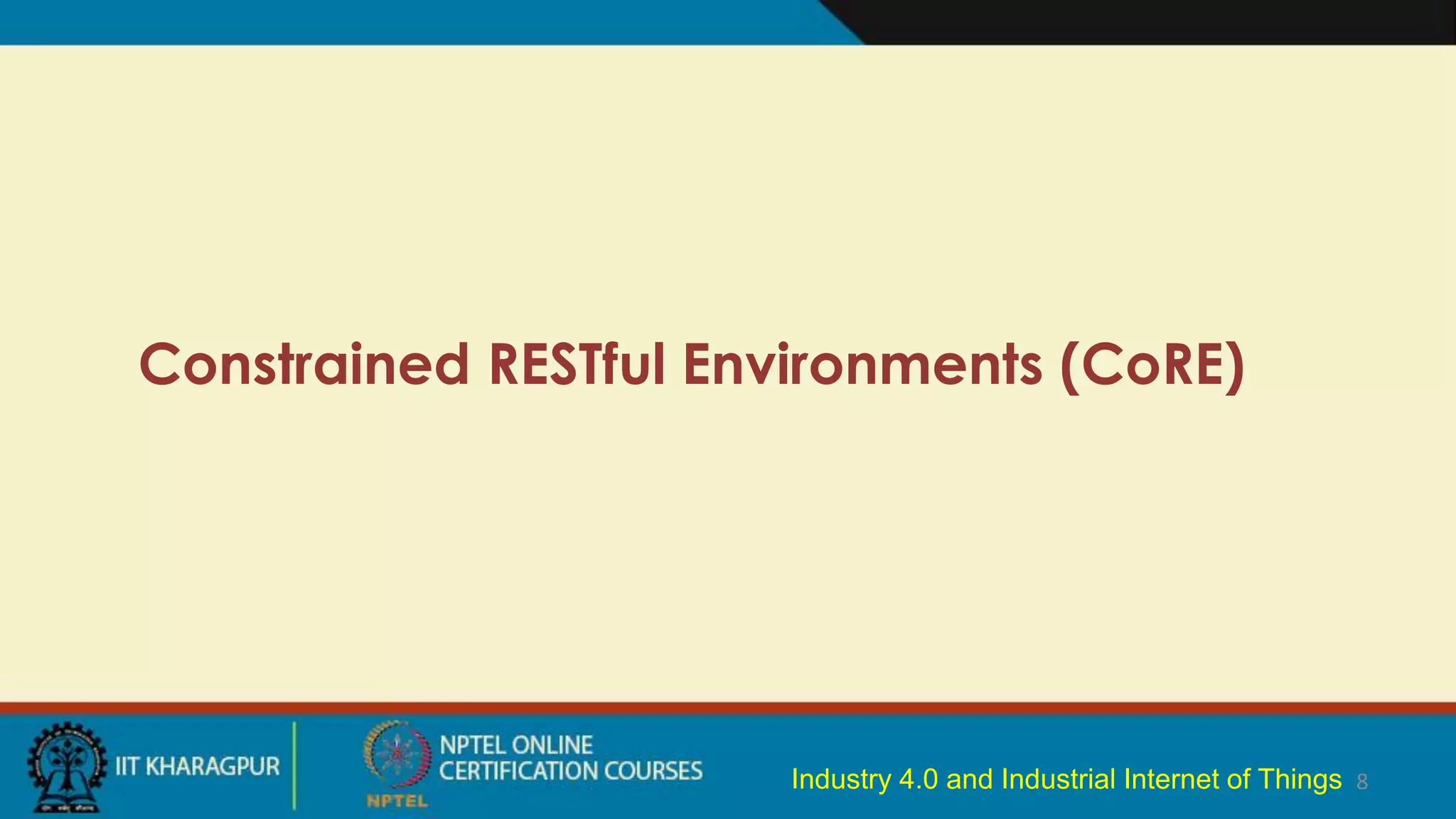

Constrained RESTful Environments (CoRE)
8Industry 4.0 and Industrial Internet of Things

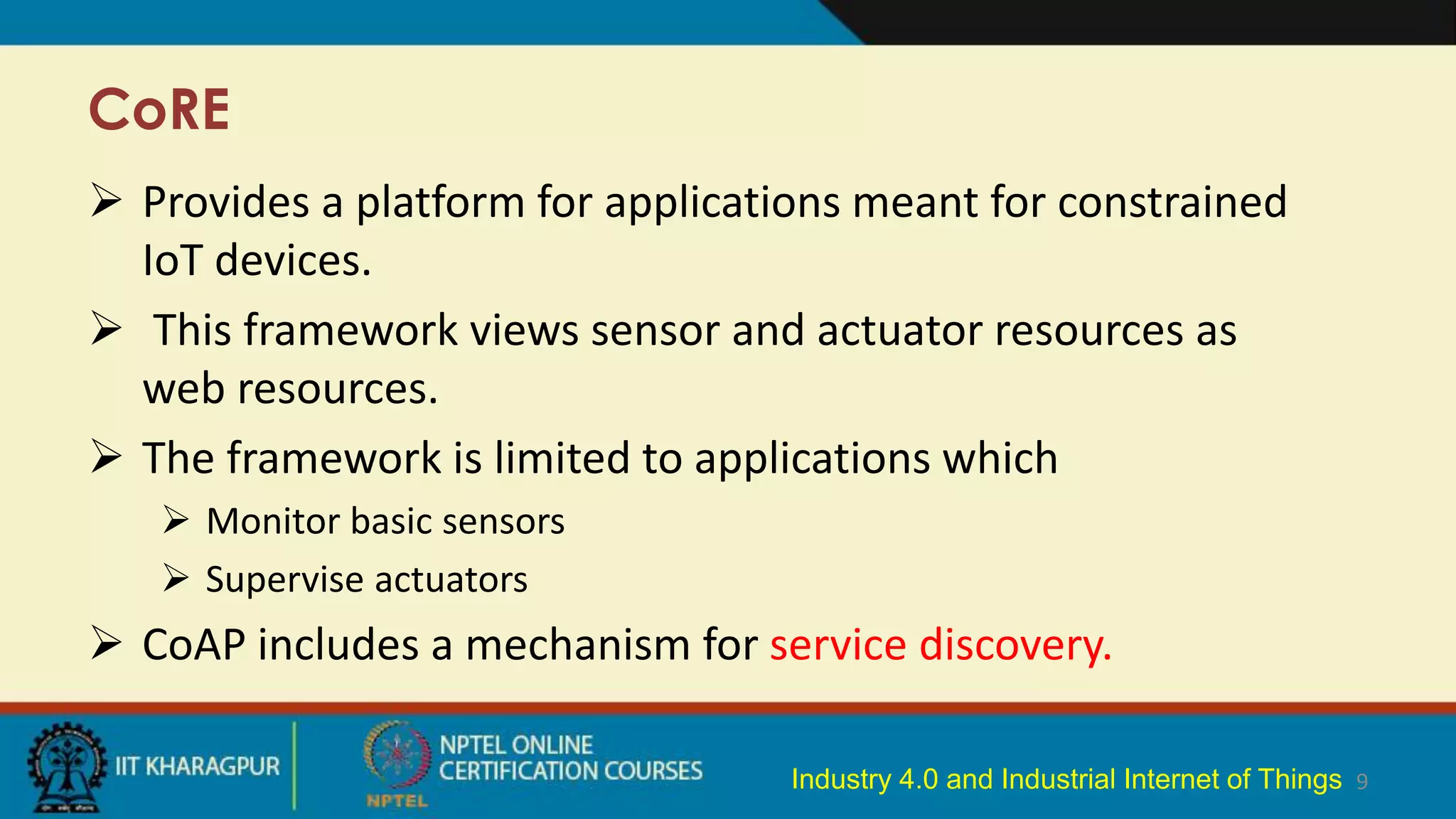

CoRE
9Industry 4.0 and Industrial Internet of Things
 Provides a platform for applications meant for constrained
IoT devices.
 This framework views sensor and actuator resources as
web resources.
 The framework is limited to applications which
 Monitor basic sensors
 Supervise actuators
 CoAP includes a mechanism for service discovery.

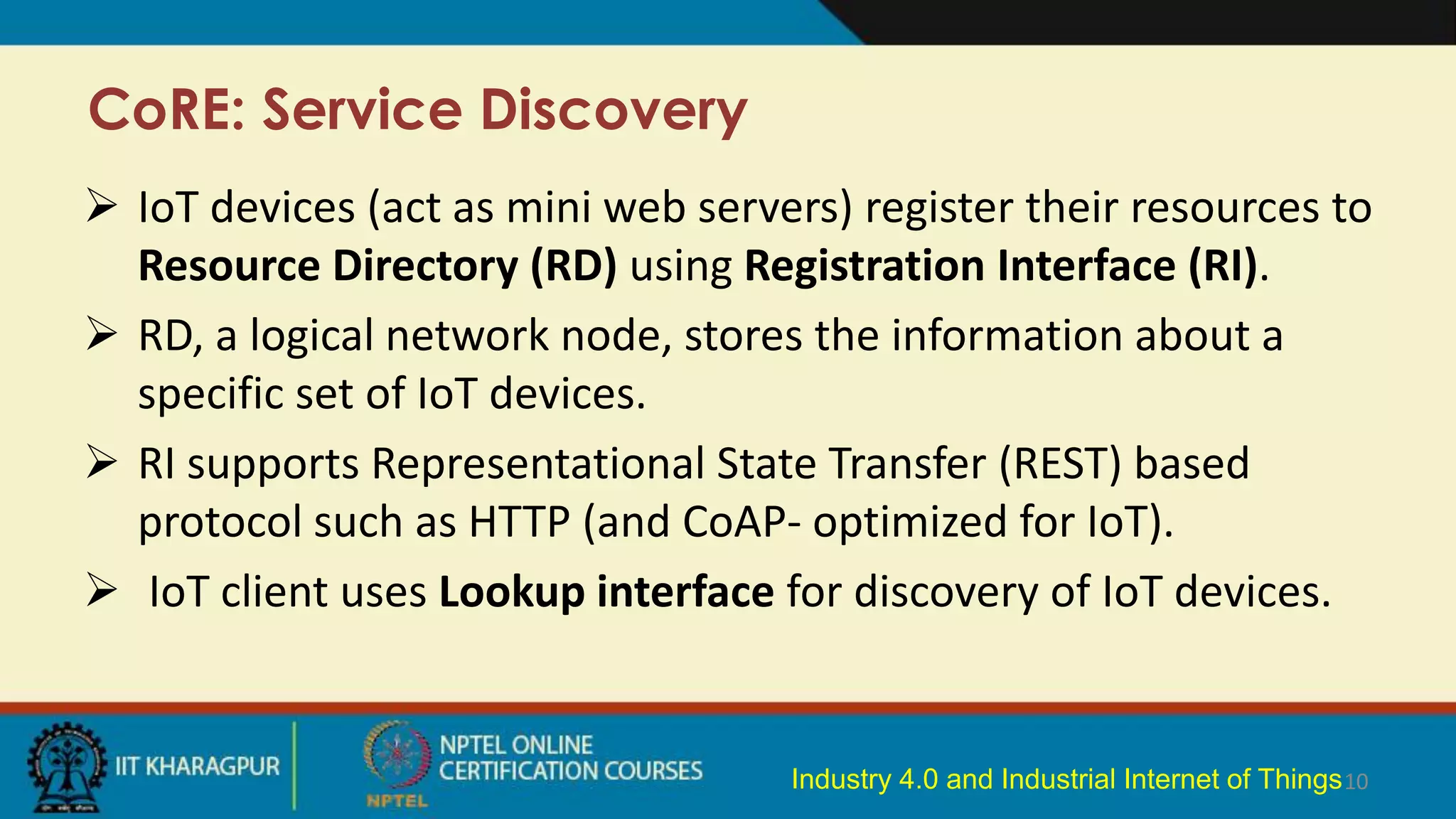

CoRE: Service Discovery
10Industry 4.0 and Industrial Internet of Things
 IoT devices (act as mini web servers) register their resources to
Resource Directory (RD) using Registration Interface (RI).
 RD, a logical network node, stores the information about a
specific set of IoT devices.
 RI supports Representational State Transfer (REST) based
protocol such as HTTP (and CoAP- optimized for IoT).
 IoT client uses Lookup interface for discovery of IoT devices.
11Industry 4.0 and Industrial Internet of Things

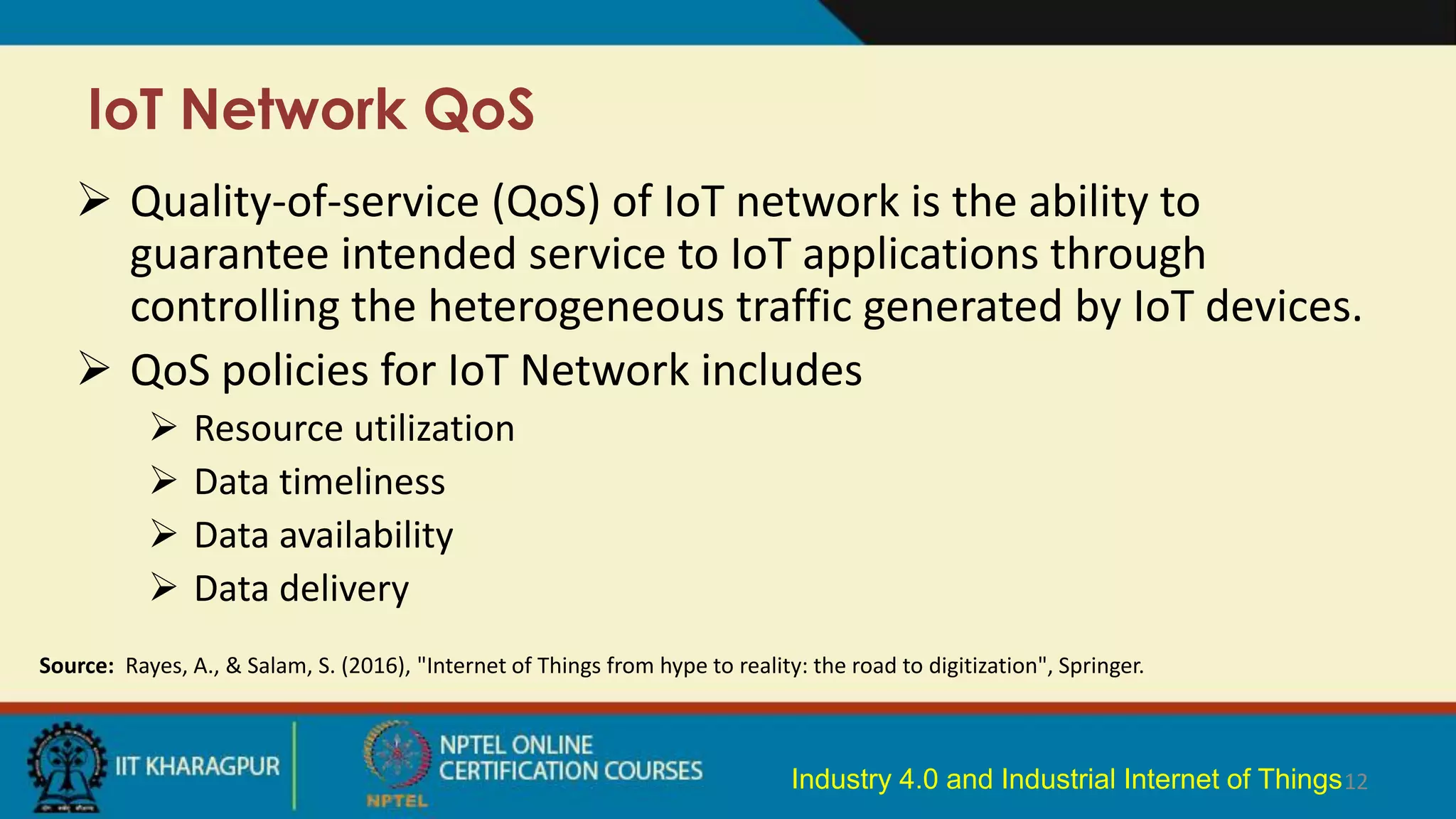

IoT Network QoS
IoT Network QoS
 Quality-of-service (QoS) of IoT network is the ability to
guarantee intended service to IoT applications through
controlling the heterogeneous traffic generated by IoT devices.
 QoS policies for IoT Network includes
 Resource utilization
 Data timeliness
 Data availability
 Data delivery
12Industry 4.0 and Industrial Internet of Things
Source: Rayes, A., & Salam, S. (2016), "Internet of Things from hype to reality: the road to digitization", Springer.

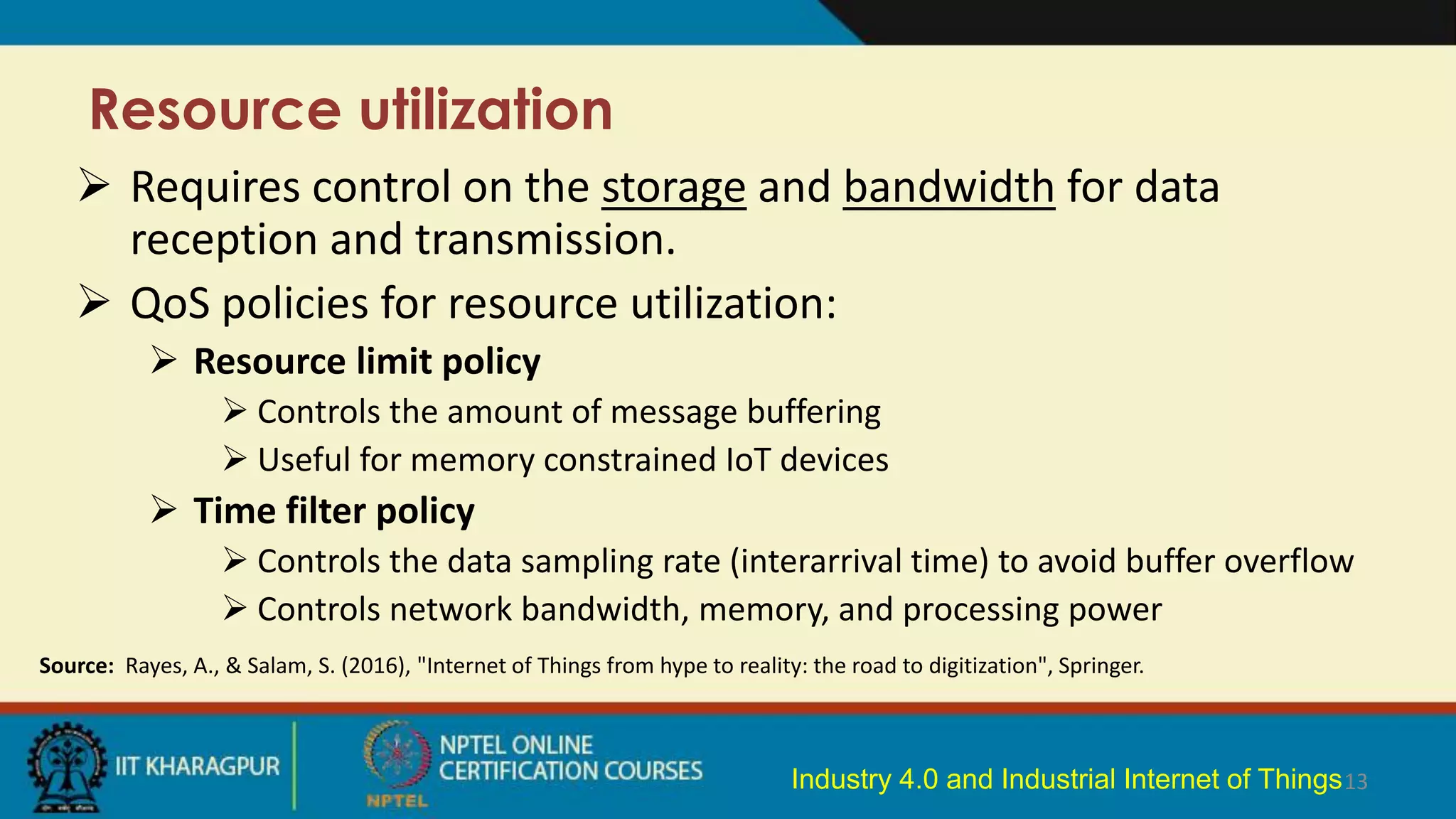

Resource utilization
 Requires control on the storage and bandwidth for data
reception and transmission.
 QoS policies for resource utilization:
 Resource limit policy
 Controls the amount of message buffering
 Useful for memory constrained IoT devices
 Time filter policy
 Controls the data sampling rate (interarrival time) to avoid buffer overflow
 Controls network bandwidth, memory, and processing power
13Industry 4.0 and Industrial Internet of Things
Source: Rayes, A., & Salam, S. (2016), "Internet of Things from hype to reality: the road to digitization", Springer.

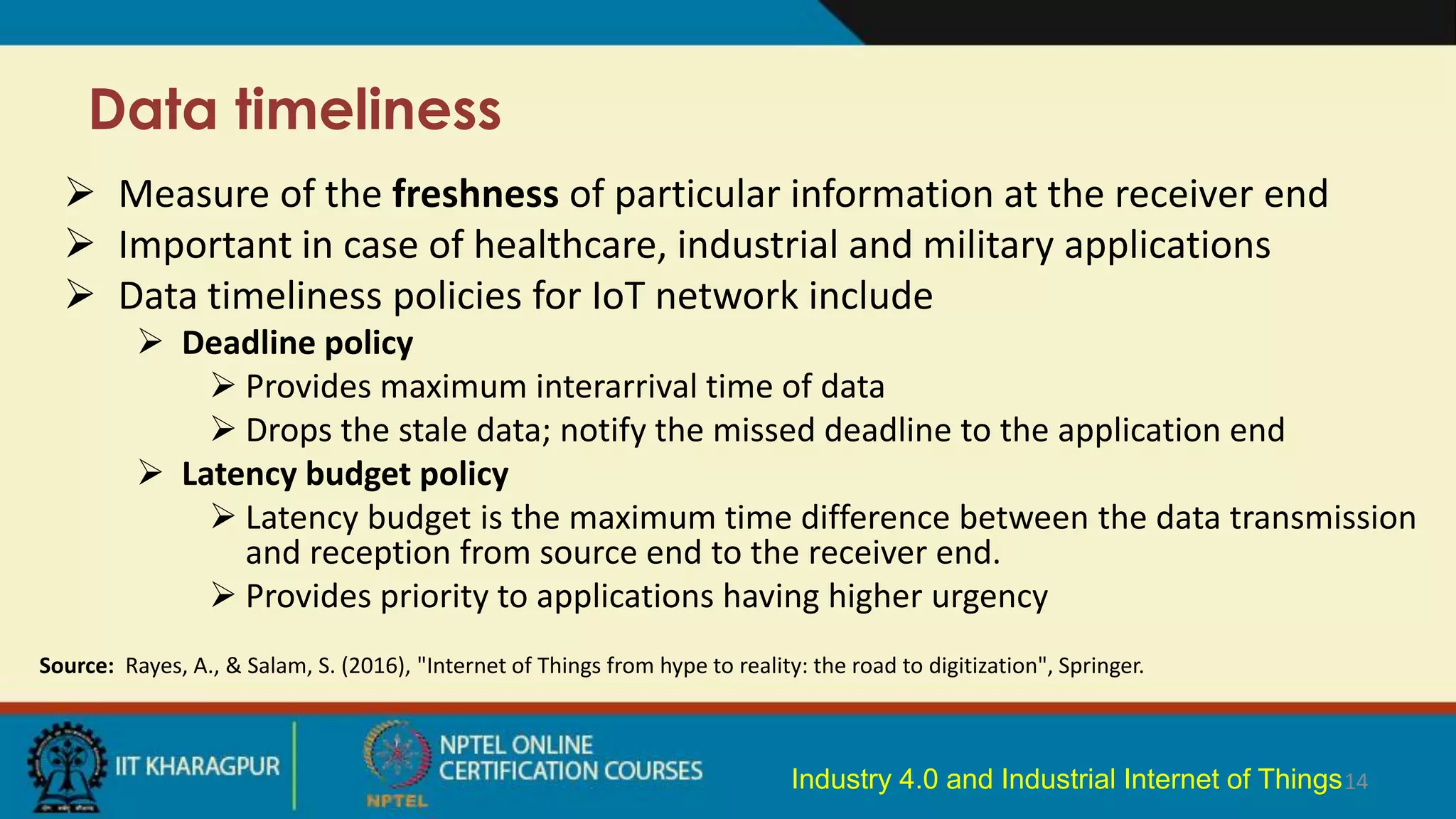

Data timeliness
 Measure of the freshness of particular information at the receiver end
 Important in case of healthcare, industrial and military applications
 Data timeliness policies for IoT network include
 Deadline policy
 Provides maximum interarrival time of data
 Drops the stale data; notify the missed deadline to the application end
 Latency budget policy
 Latency budget is the maximum time difference between the data transmission
and reception from source end to the receiver end.
 Provides priority to applications having higher urgency
14Industry 4.0 and Industrial Internet of Things
Source: Rayes, A., & Salam, S. (2016), "Internet of Things from hype to reality: the road to digitization", Springer.

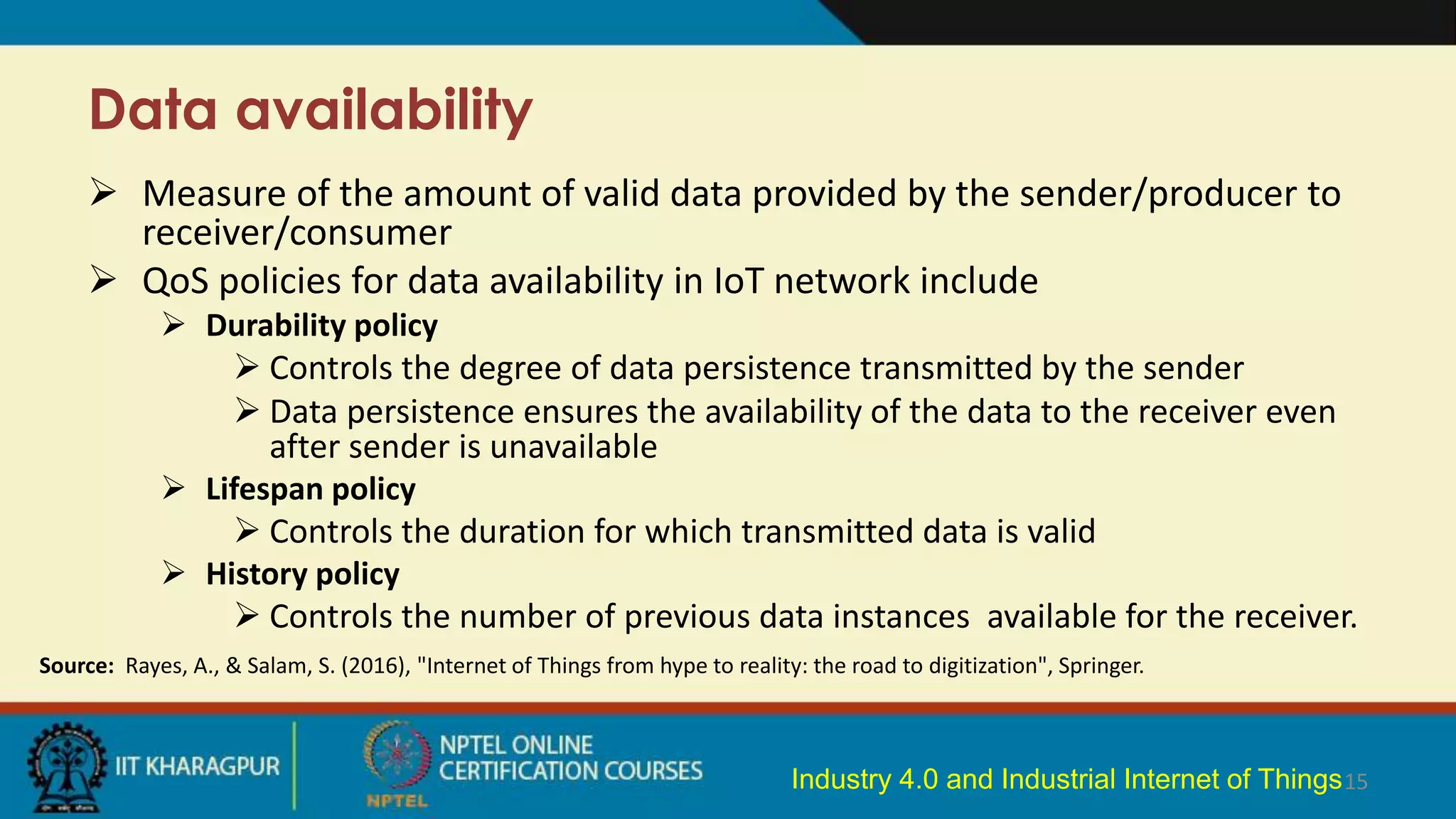

Data availability
 Measure of the amount of valid data provided by the sender/producer to
receiver/consumer
 QoS policies for data availability in IoT network include
 Durability policy
 Controls the degree of data persistence transmitted by the sender
 Data persistence ensures the availability of the data to the receiver even
after sender is unavailable
 Lifespan policy
 Controls the duration for which transmitted data is valid
 History policy
 Controls the number of previous data instances available for the receiver.
15Industry 4.0 and Industrial Internet of Things
Source: Rayes, A., & Salam, S. (2016), "Internet of Things from hype to reality: the road to digitization", Springer.

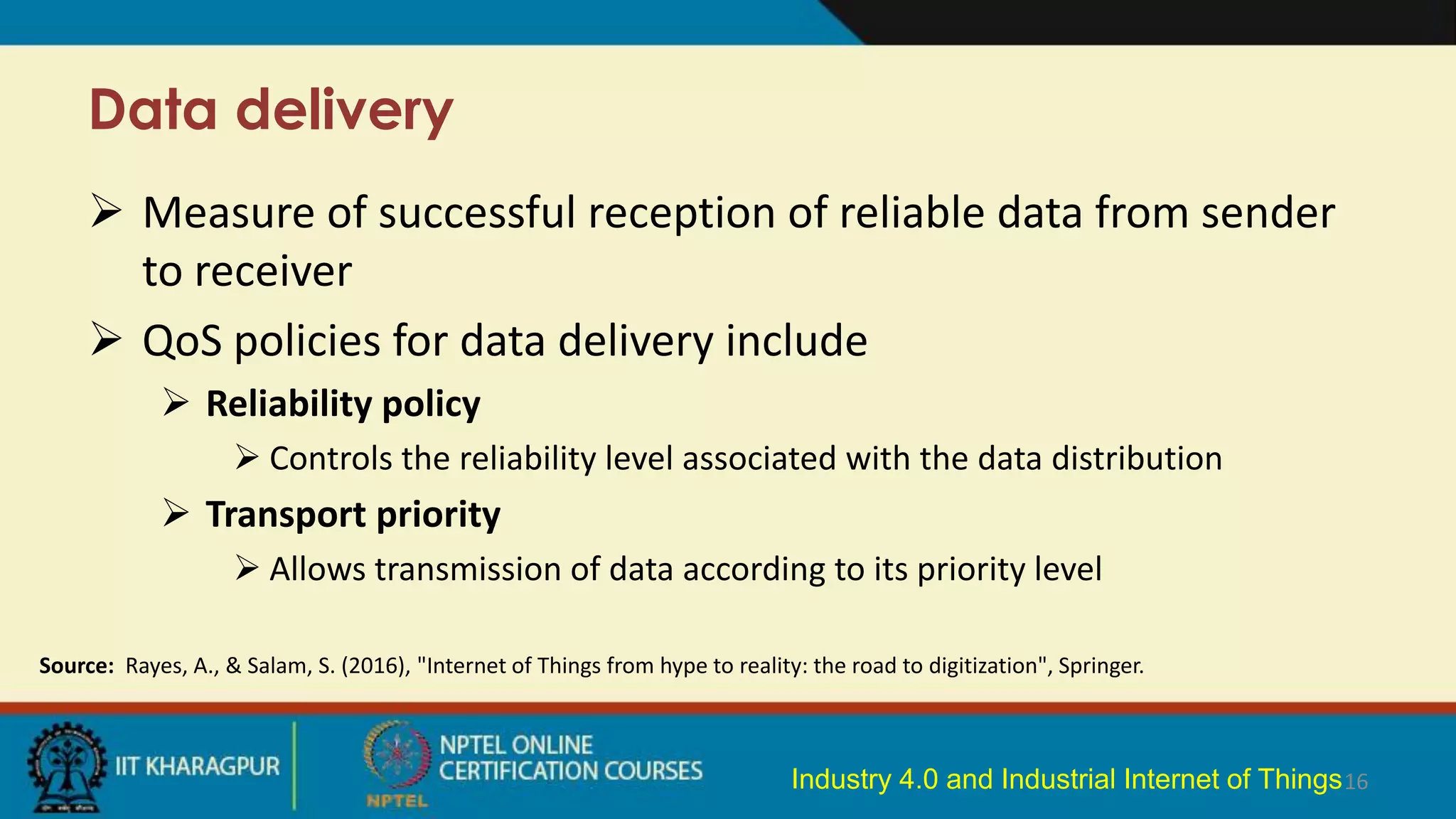

Data delivery
 Measure of successful reception of reliable data from sender
to receiver
 QoS policies for data delivery include
 Reliability policy
 Controls the reliability level associated with the data distribution
 Transport priority
 Allows transmission of data according to its priority level
16Industry 4.0 and Industrial Internet of Things
Source: Rayes, A., & Salam, S. (2016), "Internet of Things from hype to reality: the road to digitization", Springer.
17Introduction to Internet of Things

More Related Content

What's hot

What's hot (20)

Introduction to IoT Architectures and Protocols
Introduction to IoT Architectures and ProtocolsIntroduction to IoT Architectures and Protocols
Introduction to IoT Architectures and Protocols

security and privacy-Internet of things
security and privacy-Internet of thingssecurity and privacy-Internet of things
security and privacy-Internet of things

IoT and m2m
IoT and m2mIoT and m2m
IoT and m2m

IoT Connectivity
IoT Connectivity IoT Connectivity
IoT Connectivity

Syed IoT - module 5
Syed  IoT - module 5Syed  IoT - module 5
Syed IoT - module 5

Zigbee Presentation
Zigbee PresentationZigbee Presentation
Zigbee Presentation

IoT Networking Part 2
IoT Networking Part 2IoT Networking Part 2
IoT Networking Part 2

Introduction to IOT
Introduction to IOTIntroduction to IOT
Introduction to IOT

Security in IoT
Security in IoTSecurity in IoT
Security in IoT

Introduction to IoT Security
Introduction to IoT SecurityIntroduction to IoT Security
Introduction to IoT Security

Internet of Things with Cloud Computing and M2M Communication
Internet of Things with Cloud Computing and M2M CommunicationInternet of Things with Cloud Computing and M2M Communication
Internet of Things with Cloud Computing and M2M Communication

15CS81- IoT Module-2
15CS81- IoT Module-215CS81- IoT Module-2
15CS81- IoT Module-2

Fog computing in IoT
Fog computing in IoTFog computing in IoT
Fog computing in IoT

IOT System.pptx
IOT System.pptxIOT System.pptx
IOT System.pptx

Internet of things ppt
Internet of things pptInternet of things ppt
Internet of things ppt

Communication technologies
Communication technologiesCommunication technologies
Communication technologies

web communication protocols in IoT
web communication protocols in IoTweb communication protocols in IoT
web communication protocols in IoT

CoAP protocol -Internet of Things(iot)
CoAP protocol -Internet of Things(iot)CoAP protocol -Internet of Things(iot)
CoAP protocol -Internet of Things(iot)

Tutorial on IEEE 802.15.4e standard
Tutorial on IEEE 802.15.4e standardTutorial on IEEE 802.15.4e standard
Tutorial on IEEE 802.15.4e standard

IoT Cloud Overview
IoT Cloud OverviewIoT Cloud Overview
IoT Cloud Overview


Similar to IoT Networking

Io t standard_bis_arpanpal
Io t standard_bis_arpanpalIo t standard_bis_arpanpal
Io t standard_bis_arpanpalArpan Pal

Efficient End-to-End Secure Key Management Protocol for Internet of Things
Efficient End-to-End Secure Key Management Protocol for Internet of Things Efficient End-to-End Secure Key Management Protocol for Internet of Things
Efficient End-to-End Secure Key Management Protocol for Internet of Things IJECEIAES

Phoenix Data Conference - Big Data Analytics for IoT 11/4/17
Phoenix Data Conference - Big Data Analytics for IoT 11/4/17Phoenix Data Conference - Big Data Analytics for IoT 11/4/17
Phoenix Data Conference - Big Data Analytics for IoT 11/4/17Mark Goldstein

Week 8 - Module 19 - PPT- Internet of Things for Libraries.pdf
Week 8 - Module 19 - PPT- Internet of Things for Libraries.pdfWeek 8 - Module 19 - PPT- Internet of Things for Libraries.pdf
Week 8 - Module 19 - PPT- Internet of Things for Libraries.pdfMohamedAli899919

Deep Learning Approaches for Information Centric Network and Internet of Things
Deep Learning Approaches for Information Centric Network and Internet of ThingsDeep Learning Approaches for Information Centric Network and Internet of Things
Deep Learning Approaches for Information Centric Network and Internet of Thingsijtsrd

Io t a_de_techgigwebinar_04nov2016
Io t a_de_techgigwebinar_04nov2016Io t a_de_techgigwebinar_04nov2016
Io t a_de_techgigwebinar_04nov2016Dr. Aloknath De

15CS81- IoT- VTU- module 3
15CS81- IoT- VTU- module 315CS81- IoT- VTU- module 3
15CS81- IoT- VTU- module 3Syed Mustafa

TRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGS
TRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGSTRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGS
TRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGSpijans

Trustbased Routing Metric for RPL Routing Protocol in the Internet of Things.
Trustbased Routing Metric for RPL Routing Protocol in the Internet of Things.Trustbased Routing Metric for RPL Routing Protocol in the Internet of Things.
Trustbased Routing Metric for RPL Routing Protocol in the Internet of Things.pijans

TRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGS
TRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGSTRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGS
TRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGSpijans

Elements of IoT connectivity technologies
Elements of IoT connectivity technologiesElements of IoT connectivity technologies
Elements of IoT connectivity technologiesusman sarwar

INTEROPERABILITY, FLEXIBILITY AND INDUSTRIAL DESIGN REQUIREMENTS IN THE IoT
INTEROPERABILITY, FLEXIBILITY AND INDUSTRIAL DESIGN REQUIREMENTS IN THE IoTINTEROPERABILITY, FLEXIBILITY AND INDUSTRIAL DESIGN REQUIREMENTS IN THE IoT
INTEROPERABILITY, FLEXIBILITY AND INDUSTRIAL DESIGN REQUIREMENTS IN THE IoTMuhammad Ahad

Internet of things-IoT.pptx
Internet of things-IoT.pptxInternet of things-IoT.pptx
Internet of things-IoT.pptxMukulislam1

Catching the Internet of Things (IoT) Wave
Catching the Internet of Things (IoT) WaveCatching the Internet of Things (IoT) Wave
Catching the Internet of Things (IoT) WaveChuck Petras


Similar to IoT Networking (20)

Io t standard_bis_arpanpal
Io t standard_bis_arpanpalIo t standard_bis_arpanpal
Io t standard_bis_arpanpal

COMPARATIVE STUDY BETWEEN VARIOUS PROTOCOLS USED IN INTERNET OF THING
COMPARATIVE STUDY BETWEEN VARIOUS  PROTOCOLS USED IN INTERNET OF THINGCOMPARATIVE STUDY BETWEEN VARIOUS  PROTOCOLS USED IN INTERNET OF THING
COMPARATIVE STUDY BETWEEN VARIOUS PROTOCOLS USED IN INTERNET OF THING

Efficient End-to-End Secure Key Management Protocol for Internet of Things
Efficient End-to-End Secure Key Management Protocol for Internet of Things Efficient End-to-End Secure Key Management Protocol for Internet of Things
Efficient End-to-End Secure Key Management Protocol for Internet of Things

Phoenix Data Conference - Big Data Analytics for IoT 11/4/17
Phoenix Data Conference - Big Data Analytics for IoT 11/4/17Phoenix Data Conference - Big Data Analytics for IoT 11/4/17
Phoenix Data Conference - Big Data Analytics for IoT 11/4/17

Week 8 - Module 19 - PPT- Internet of Things for Libraries.pdf
Week 8 - Module 19 - PPT- Internet of Things for Libraries.pdfWeek 8 - Module 19 - PPT- Internet of Things for Libraries.pdf
Week 8 - Module 19 - PPT- Internet of Things for Libraries.pdf

7CS4_IOT_Unit-1.pdf
7CS4_IOT_Unit-1.pdf7CS4_IOT_Unit-1.pdf
7CS4_IOT_Unit-1.pdf

Deep Learning Approaches for Information Centric Network and Internet of Things
Deep Learning Approaches for Information Centric Network and Internet of ThingsDeep Learning Approaches for Information Centric Network and Internet of Things
Deep Learning Approaches for Information Centric Network and Internet of Things

Io t a_de_techgigwebinar_04nov2016
Io t a_de_techgigwebinar_04nov2016Io t a_de_techgigwebinar_04nov2016
Io t a_de_techgigwebinar_04nov2016

IOT-Monograph .docx
IOT-Monograph .docxIOT-Monograph .docx
IOT-Monograph .docx

15CS81- IoT- VTU- module 3
15CS81- IoT- VTU- module 315CS81- IoT- VTU- module 3
15CS81- IoT- VTU- module 3

TRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGS
TRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGSTRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGS
TRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGS

Trustbased Routing Metric for RPL Routing Protocol in the Internet of Things.
Trustbased Routing Metric for RPL Routing Protocol in the Internet of Things.Trustbased Routing Metric for RPL Routing Protocol in the Internet of Things.
Trustbased Routing Metric for RPL Routing Protocol in the Internet of Things.

TRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGS
TRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGSTRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGS
TRUST BASED ROUTING METRIC FOR RPL ROUTING PROTOCOL IN THE INTERNET OF THINGS

Elements of IoT connectivity technologies
Elements of IoT connectivity technologiesElements of IoT connectivity technologies
Elements of IoT connectivity technologies

Data Science for IoT
Data Science for IoTData Science for IoT
Data Science for IoT

IOT - Unit 3.pptx
IOT - Unit 3.pptxIOT - Unit 3.pptx
IOT - Unit 3.pptx

INTEROPERABILITY, FLEXIBILITY AND INDUSTRIAL DESIGN REQUIREMENTS IN THE IoT
INTEROPERABILITY, FLEXIBILITY AND INDUSTRIAL DESIGN REQUIREMENTS IN THE IoTINTEROPERABILITY, FLEXIBILITY AND INDUSTRIAL DESIGN REQUIREMENTS IN THE IoT
INTEROPERABILITY, FLEXIBILITY AND INDUSTRIAL DESIGN REQUIREMENTS IN THE IoT

Internet of things-IoT.pptx
Internet of things-IoT.pptxInternet of things-IoT.pptx
Internet of things-IoT.pptx

IoT _protocols.ppt
IoT _protocols.pptIoT _protocols.ppt
IoT _protocols.ppt

Catching the Internet of Things (IoT) Wave
Catching the Internet of Things (IoT) WaveCatching the Internet of Things (IoT) Wave
Catching the Internet of Things (IoT) Wave


More from Hitesh Mohapatra

Virtualization: A Key to Efficient Cloud Computing
Virtualization: A Key to Efficient Cloud ComputingVirtualization: A Key to Efficient Cloud Computing
Virtualization: A Key to Efficient Cloud ComputingHitesh Mohapatra

Automating the Cloud: A Deep Dive into Virtual Machine Provisioning
Automating the Cloud: A Deep Dive into Virtual Machine ProvisioningAutomating the Cloud: A Deep Dive into Virtual Machine Provisioning
Automating the Cloud: A Deep Dive into Virtual Machine ProvisioningHitesh Mohapatra

Harnessing the Power of Google Cloud Platform: Strategies and Applications
Harnessing the Power of Google Cloud Platform: Strategies and ApplicationsHarnessing the Power of Google Cloud Platform: Strategies and Applications
Harnessing the Power of Google Cloud Platform: Strategies and ApplicationsHitesh Mohapatra

Scheduling in Cloud Computing
Scheduling in Cloud ComputingScheduling in Cloud Computing
Scheduling in Cloud ComputingHitesh Mohapatra

Load balancing in cloud computing.pptx
Load balancing in cloud computing.pptxLoad balancing in cloud computing.pptx
Load balancing in cloud computing.pptxHitesh Mohapatra

ITU-T requirement for cloud and cloud deployment model
ITU-T requirement for cloud and cloud deployment modelITU-T requirement for cloud and cloud deployment model
ITU-T requirement for cloud and cloud deployment modelHitesh Mohapatra

Reviewing basic concepts of relational database
Reviewing basic concepts of relational databaseReviewing basic concepts of relational database
Reviewing basic concepts of relational databaseHitesh Mohapatra

Advanced database protocols
Advanced database protocolsAdvanced database protocols
Advanced database protocolsHitesh Mohapatra

Involvement of WSN in Smart Cities
Involvement of WSN in Smart CitiesInvolvement of WSN in Smart Cities
Involvement of WSN in Smart CitiesHitesh Mohapatra

Data Structure and its Fundamentals
Data Structure and its FundamentalsData Structure and its Fundamentals
Data Structure and its FundamentalsHitesh Mohapatra

WORKING WITH FILE AND PIPELINE PARAMETER BINDING
WORKING WITH FILE AND PIPELINE PARAMETER BINDINGWORKING WITH FILE AND PIPELINE PARAMETER BINDING
WORKING WITH FILE AND PIPELINE PARAMETER BINDINGHitesh Mohapatra

Basic commands for powershell : Configuring Windows PowerShell and working wi...
Basic commands for powershell : Configuring Windows PowerShell and working wi...Basic commands for powershell : Configuring Windows PowerShell and working wi...
Basic commands for powershell : Configuring Windows PowerShell and working wi...Hitesh Mohapatra


More from Hitesh Mohapatra (20)

Virtualization: A Key to Efficient Cloud Computing
Virtualization: A Key to Efficient Cloud ComputingVirtualization: A Key to Efficient Cloud Computing
Virtualization: A Key to Efficient Cloud Computing

Automating the Cloud: A Deep Dive into Virtual Machine Provisioning
Automating the Cloud: A Deep Dive into Virtual Machine ProvisioningAutomating the Cloud: A Deep Dive into Virtual Machine Provisioning
Automating the Cloud: A Deep Dive into Virtual Machine Provisioning

Harnessing the Power of Google Cloud Platform: Strategies and Applications
Harnessing the Power of Google Cloud Platform: Strategies and ApplicationsHarnessing the Power of Google Cloud Platform: Strategies and Applications
Harnessing the Power of Google Cloud Platform: Strategies and Applications

Scheduling in Cloud Computing
Scheduling in Cloud ComputingScheduling in Cloud Computing
Scheduling in Cloud Computing

Cloud-Case study
Cloud-Case study Cloud-Case study
Cloud-Case study

RAID
RAIDRAID
RAID

Load balancing in cloud computing.pptx
Load balancing in cloud computing.pptxLoad balancing in cloud computing.pptx
Load balancing in cloud computing.pptx

Cluster Computing
Cluster ComputingCluster Computing
Cluster Computing

ITU-T requirement for cloud and cloud deployment model
ITU-T requirement for cloud and cloud deployment modelITU-T requirement for cloud and cloud deployment model
ITU-T requirement for cloud and cloud deployment model

Leetcode Problem Solution
Leetcode Problem SolutionLeetcode Problem Solution
Leetcode Problem Solution

Leetcode Problem Solution
Leetcode Problem SolutionLeetcode Problem Solution
Leetcode Problem Solution

Trie Data Structure
Trie Data Structure Trie Data Structure
Trie Data Structure

Reviewing basic concepts of relational database
Reviewing basic concepts of relational databaseReviewing basic concepts of relational database
Reviewing basic concepts of relational database

Reviewing SQL Concepts
Reviewing SQL ConceptsReviewing SQL Concepts
Reviewing SQL Concepts

Advanced database protocols
Advanced database protocolsAdvanced database protocols
Advanced database protocols

Measures of query cost
Measures of query costMeasures of query cost
Measures of query cost

Involvement of WSN in Smart Cities
Involvement of WSN in Smart CitiesInvolvement of WSN in Smart Cities
Involvement of WSN in Smart Cities

Data Structure and its Fundamentals
Data Structure and its FundamentalsData Structure and its Fundamentals
Data Structure and its Fundamentals

WORKING WITH FILE AND PIPELINE PARAMETER BINDING
WORKING WITH FILE AND PIPELINE PARAMETER BINDINGWORKING WITH FILE AND PIPELINE PARAMETER BINDING
WORKING WITH FILE AND PIPELINE PARAMETER BINDING

Basic commands for powershell : Configuring Windows PowerShell and working wi...
Basic commands for powershell : Configuring Windows PowerShell and working wi...Basic commands for powershell : Configuring Windows PowerShell and working wi...
Basic commands for powershell : Configuring Windows PowerShell and working wi...


Recently uploaded

Hospital management system project report.pdf
Hospital management system project report.pdfHospital management system project report.pdf
Hospital management system project report.pdfKamal Acharya

HOA1&2 - Module 3 - PREHISTORCI ARCHITECTURE OF KERALA.pptx
HOA1&2 - Module 3 - PREHISTORCI ARCHITECTURE OF KERALA.pptxHOA1&2 - Module 3 - PREHISTORCI ARCHITECTURE OF KERALA.pptx
HOA1&2 - Module 3 - PREHISTORCI ARCHITECTURE OF KERALA.pptxSCMS School of Architecture

Basic Electronics for diploma students as per technical education Kerala Syll...
Basic Electronics for diploma students as per technical education Kerala Syll...Basic Electronics for diploma students as per technical education Kerala Syll...
Basic Electronics for diploma students as per technical education Kerala Syll...ppkakm

Standard vs Custom Battery Packs - Decoding the Power Play
Standard vs Custom Battery Packs - Decoding the Power PlayStandard vs Custom Battery Packs - Decoding the Power Play
Standard vs Custom Battery Packs - Decoding the Power PlayEpec Engineered Technologies

PE 459 LECTURE 2- natural gas basic concepts and properties
PE 459 LECTURE 2- natural gas basic concepts and propertiesPE 459 LECTURE 2- natural gas basic concepts and properties
PE 459 LECTURE 2- natural gas basic concepts and propertiessarkmank1

INTERRUPT CONTROLLER 8259 MICROPROCESSOR
INTERRUPT CONTROLLER 8259 MICROPROCESSORINTERRUPT CONTROLLER 8259 MICROPROCESSOR
INTERRUPT CONTROLLER 8259 MICROPROCESSORTanishkaHira1

Fundamentals of Internet of Things (IoT) Part-2
Fundamentals of Internet of Things (IoT) Part-2Fundamentals of Internet of Things (IoT) Part-2
Fundamentals of Internet of Things (IoT) Part-2ChandrakantDivate1

NO1 Top No1 Amil Baba In Azad Kashmir, Kashmir Black Magic Specialist Expert ...
NO1 Top No1 Amil Baba In Azad Kashmir, Kashmir Black Magic Specialist Expert ...NO1 Top No1 Amil Baba In Azad Kashmir, Kashmir Black Magic Specialist Expert ...
NO1 Top No1 Amil Baba In Azad Kashmir, Kashmir Black Magic Specialist Expert ...Amil baba

Digital Communication Essentials: DPCM, DM, and ADM .pptx
Digital Communication Essentials: DPCM, DM, and ADM .pptxDigital Communication Essentials: DPCM, DM, and ADM .pptx
Digital Communication Essentials: DPCM, DM, and ADM .pptxpritamlangde

Danikor Product Catalog- Screw Feeder.pdf
Danikor Product Catalog- Screw Feeder.pdfDanikor Product Catalog- Screw Feeder.pdf
Danikor Product Catalog- Screw Feeder.pdfthietkevietthinh

Convergence of Robotics and Gen AI offers excellent opportunities for Entrepr...
Convergence of Robotics and Gen AI offers excellent opportunities for Entrepr...Convergence of Robotics and Gen AI offers excellent opportunities for Entrepr...
Convergence of Robotics and Gen AI offers excellent opportunities for Entrepr...ssuserdfc773

fitting shop and tools used in fitting shop .ppt
fitting shop and tools used in fitting shop .pptfitting shop and tools used in fitting shop .ppt
fitting shop and tools used in fitting shop .pptAfnanAhmad53

Theory of Time 2024 (Universal Theory for Everything)
Theory of Time 2024 (Universal Theory for Everything)Theory of Time 2024 (Universal Theory for Everything)
Theory of Time 2024 (Universal Theory for Everything)Ramkumar k

Unsatisfied Bhabhi ℂall Girls Ahmedabad Book Esha 6378878445 Top Class ℂall G...
Unsatisfied Bhabhi ℂall Girls Ahmedabad Book Esha 6378878445 Top Class ℂall G...Unsatisfied Bhabhi ℂall Girls Ahmedabad Book Esha 6378878445 Top Class ℂall G...
Unsatisfied Bhabhi ℂall Girls Ahmedabad Book Esha 6378878445 Top Class ℂall G...Payal Garg #K09

Electromagnetic relays used for power system .pptx
Electromagnetic relays used for power system .pptxElectromagnetic relays used for power system .pptx
Electromagnetic relays used for power system .pptxNANDHAKUMARA10

Databricks Generative AI Fundamentals .pdf
Databricks Generative AI Fundamentals  .pdfDatabricks Generative AI Fundamentals  .pdf
Databricks Generative AI Fundamentals .pdfVinayVadlagattu

Augmented Reality (AR) with Augin Software.pptx
Augmented Reality (AR) with Augin Software.pptxAugmented Reality (AR) with Augin Software.pptx
Augmented Reality (AR) with Augin Software.pptxMustafa Ahmed

Introduction to Serverless with AWS Lambda
Introduction to Serverless with AWS LambdaIntroduction to Serverless with AWS Lambda
Introduction to Serverless with AWS LambdaOmar Fathy


Recently uploaded (20)

Hospital management system project report.pdf
Hospital management system project report.pdfHospital management system project report.pdf
Hospital management system project report.pdf

HOA1&2 - Module 3 - PREHISTORCI ARCHITECTURE OF KERALA.pptx
HOA1&2 - Module 3 - PREHISTORCI ARCHITECTURE OF KERALA.pptxHOA1&2 - Module 3 - PREHISTORCI ARCHITECTURE OF KERALA.pptx
HOA1&2 - Module 3 - PREHISTORCI ARCHITECTURE OF KERALA.pptx

Basic Electronics for diploma students as per technical education Kerala Syll...
Basic Electronics for diploma students as per technical education Kerala Syll...Basic Electronics for diploma students as per technical education Kerala Syll...
Basic Electronics for diploma students as per technical education Kerala Syll...

Standard vs Custom Battery Packs - Decoding the Power Play
Standard vs Custom Battery Packs - Decoding the Power PlayStandard vs Custom Battery Packs - Decoding the Power Play
Standard vs Custom Battery Packs - Decoding the Power Play

PE 459 LECTURE 2- natural gas basic concepts and properties
PE 459 LECTURE 2- natural gas basic concepts and propertiesPE 459 LECTURE 2- natural gas basic concepts and properties
PE 459 LECTURE 2- natural gas basic concepts and properties

INTERRUPT CONTROLLER 8259 MICROPROCESSOR
INTERRUPT CONTROLLER 8259 MICROPROCESSORINTERRUPT CONTROLLER 8259 MICROPROCESSOR
INTERRUPT CONTROLLER 8259 MICROPROCESSOR

Fundamentals of Internet of Things (IoT) Part-2
Fundamentals of Internet of Things (IoT) Part-2Fundamentals of Internet of Things (IoT) Part-2
Fundamentals of Internet of Things (IoT) Part-2

NO1 Top No1 Amil Baba In Azad Kashmir, Kashmir Black Magic Specialist Expert ...
NO1 Top No1 Amil Baba In Azad Kashmir, Kashmir Black Magic Specialist Expert ...NO1 Top No1 Amil Baba In Azad Kashmir, Kashmir Black Magic Specialist Expert ...
NO1 Top No1 Amil Baba In Azad Kashmir, Kashmir Black Magic Specialist Expert ...

Digital Communication Essentials: DPCM, DM, and ADM .pptx
Digital Communication Essentials: DPCM, DM, and ADM .pptxDigital Communication Essentials: DPCM, DM, and ADM .pptx
Digital Communication Essentials: DPCM, DM, and ADM .pptx

Danikor Product Catalog- Screw Feeder.pdf
Danikor Product Catalog- Screw Feeder.pdfDanikor Product Catalog- Screw Feeder.pdf
Danikor Product Catalog- Screw Feeder.pdf

Convergence of Robotics and Gen AI offers excellent opportunities for Entrepr...
Convergence of Robotics and Gen AI offers excellent opportunities for Entrepr...Convergence of Robotics and Gen AI offers excellent opportunities for Entrepr...
Convergence of Robotics and Gen AI offers excellent opportunities for Entrepr...

fitting shop and tools used in fitting shop .ppt
fitting shop and tools used in fitting shop .pptfitting shop and tools used in fitting shop .ppt
fitting shop and tools used in fitting shop .ppt

Theory of Time 2024 (Universal Theory for Everything)
Theory of Time 2024 (Universal Theory for Everything)Theory of Time 2024 (Universal Theory for Everything)
Theory of Time 2024 (Universal Theory for Everything)

Unsatisfied Bhabhi ℂall Girls Ahmedabad Book Esha 6378878445 Top Class ℂall G...
Unsatisfied Bhabhi ℂall Girls Ahmedabad Book Esha 6378878445 Top Class ℂall G...Unsatisfied Bhabhi ℂall Girls Ahmedabad Book Esha 6378878445 Top Class ℂall G...
Unsatisfied Bhabhi ℂall Girls Ahmedabad Book Esha 6378878445 Top Class ℂall G...

Electromagnetic relays used for power system .pptx
Electromagnetic relays used for power system .pptxElectromagnetic relays used for power system .pptx
Electromagnetic relays used for power system .pptx

Cara Menggugurkan Sperma Yang Masuk Rahim Biyar Tidak Hamil
Cara Menggugurkan Sperma Yang Masuk Rahim Biyar Tidak HamilCara Menggugurkan Sperma Yang Masuk Rahim Biyar Tidak Hamil
Cara Menggugurkan Sperma Yang Masuk Rahim Biyar Tidak Hamil

Databricks Generative AI Fundamentals .pdf
Databricks Generative AI Fundamentals  .pdfDatabricks Generative AI Fundamentals  .pdf
Databricks Generative AI Fundamentals .pdf

Augmented Reality (AR) with Augin Software.pptx
Augmented Reality (AR) with Augin Software.pptxAugmented Reality (AR) with Augin Software.pptx
Augmented Reality (AR) with Augin Software.pptx

Introduction to Serverless with AWS Lambda
Introduction to Serverless with AWS LambdaIntroduction to Serverless with AWS Lambda
Introduction to Serverless with AWS Lambda

Signal Processing and Linear System Analysis
Signal Processing and Linear System AnalysisSignal Processing and Linear System Analysis
Signal Processing and Linear System Analysis


IoT Networking

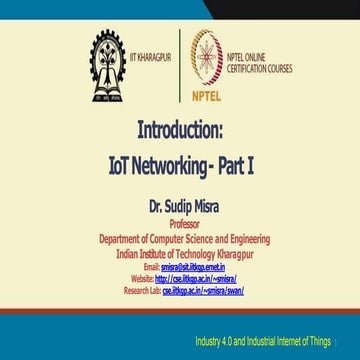

  • 1. 1 Introduction: IoT Networking- Part I Dr. Sudip Misra Professor Department of Computer Science and Engineering Indian Institute of Technology Kharagpur Email: smisra@sit.iitkgp.ernet.in Website: http://cse.iitkgp.ac.in/~smisra/ Research Lab: cse.iitkgp.ac.in/~smisra/swan/ Industry 4.0 and Industrial Internet of Things
  • 2. Introduction  Characteristics of IoT devices  Low processing power  Small in size  Energy constraints  Networks of IoT devices  Low throughput  High packet loss  Tiny (useful) payload size  Frequent topology change  Classical Internet is not meant for constrained IoT devices. 2Industry 4.0 and Industrial Internet of Things
  • 3. Introduction 3Industry 4.0 and Industrial Internet of Things
  • 4. Introduction 4Introduction to Internet of Things  Analogy  Roots - Communication Protocol and device technologies  Trunk- Architectural Reference Model (ARM)  Leaves – IoT Applications  Goal  To select a minimal set of roots and propose a potential trunk that enables the creation of a maximal set of the leaves. Source: FhG, I. M. L., et al. "Internet of things-architecture iot-a deliverable d1. 3–updated reference model for iot v1. 5."
  • 5. Enabling Classical Internet for IoT Devices  Proprietary non-IP based solution  Vendor specific gateways  Vendor specific APIs  Internet Engineering Task Force (IETF) IP based solution  Three work groups  IPv6 over Low power Wireless Personal Area Networks (6LoWPAN)  Routing Over Low power and Lossy networks (ROLL)  Constrained RESTful Environments (CoRE) 5Industry 4.0 and Industrial Internet of Things Source: I. Ishaq, et al. , "IETF standardization in the field of the internet of things (IoT): a survey", J. of Sens. and Act. Netw. 2, vol. 2 (2013): 235-287.
  • 6. Proprietary non-IP based solution 6Industry 4.0 and Industrial Internet of Things  Drawbacks  Limited flexibility to end users: vendor specific APIs  Interoperability: vendor specific sensors and gateways  Limited last-mile connectivity Source: I. Ishaq, et al. , "IETF standardization in the field of the internet of things (IoT): a survey", J. of Sens. and Act. Netw. 2, vol. 2 (2013): 235-287.
  • 7. IETF IP based solution 7Industry 4.0 and Industrial Internet of Things  Three work groups  IPv6 over Low power Wireless Personal Area Networks (6LoWPAN)  By header compression and encapsulation it allows IPv6 packets to transmit and receive over IEEE 802.15.4 based networks.  Routing Over Low power and Lossy networks (ROLL)  New routing protocol optimized for saving storage and energy.  Constrained RESTful Environments (CoRE)  Extend the Integration of the IoT devices from network to service level.
  • 8. Constrained RESTful Environments (CoRE) 8Industry 4.0 and Industrial Internet of Things
  • 9. CoRE 9Industry 4.0 and Industrial Internet of Things  Provides a platform for applications meant for constrained IoT devices.  This framework views sensor and actuator resources as web resources.  The framework is limited to applications which  Monitor basic sensors  Supervise actuators  CoAP includes a mechanism for service discovery.
  • 10. CoRE: Service Discovery 10Industry 4.0 and Industrial Internet of Things  IoT devices (act as mini web servers) register their resources to Resource Directory (RD) using Registration Interface (RI).  RD, a logical network node, stores the information about a specific set of IoT devices.  RI supports Representational State Transfer (REST) based protocol such as HTTP (and CoAP- optimized for IoT).  IoT client uses Lookup interface for discovery of IoT devices.
  • 11. 11Industry 4.0 and Industrial Internet of Things IoT Network QoS
  • 12. IoT Network QoS  Quality-of-service (QoS) of IoT network is the ability to guarantee intended service to IoT applications through controlling the heterogeneous traffic generated by IoT devices.  QoS policies for IoT Network includes  Resource utilization  Data timeliness  Data availability  Data delivery 12Industry 4.0 and Industrial Internet of Things Source: Rayes, A., & Salam, S. (2016), "Internet of Things from hype to reality: the road to digitization", Springer.
  • 13. Resource utilization  Requires control on the storage and bandwidth for data reception and transmission.  QoS policies for resource utilization:  Resource limit policy  Controls the amount of message buffering  Useful for memory constrained IoT devices  Time filter policy  Controls the data sampling rate (interarrival time) to avoid buffer overflow  Controls network bandwidth, memory, and processing power 13Industry 4.0 and Industrial Internet of Things Source: Rayes, A., & Salam, S. (2016), "Internet of Things from hype to reality: the road to digitization", Springer.
  • 14. Data timeliness  Measure of the freshness of particular information at the receiver end  Important in case of healthcare, industrial and military applications  Data timeliness policies for IoT network include  Deadline policy  Provides maximum interarrival time of data  Drops the stale data; notify the missed deadline to the application end  Latency budget policy  Latency budget is the maximum time difference between the data transmission and reception from source end to the receiver end.  Provides priority to applications having higher urgency 14Industry 4.0 and Industrial Internet of Things Source: Rayes, A., & Salam, S. (2016), "Internet of Things from hype to reality: the road to digitization", Springer.
  • 15. Data availability  Measure of the amount of valid data provided by the sender/producer to receiver/consumer  QoS policies for data availability in IoT network include  Durability policy  Controls the degree of data persistence transmitted by the sender  Data persistence ensures the availability of the data to the receiver even after sender is unavailable  Lifespan policy  Controls the duration for which transmitted data is valid  History policy  Controls the number of previous data instances available for the receiver. 15Industry 4.0 and Industrial Internet of Things Source: Rayes, A., & Salam, S. (2016), "Internet of Things from hype to reality: the road to digitization", Springer.
  • 16. Data delivery  Measure of successful reception of reliable data from sender to receiver  QoS policies for data delivery include  Reliability policy  Controls the reliability level associated with the data distribution  Transport priority  Allows transmission of data according to its priority level 16Industry 4.0 and Industrial Internet of Things Source: Rayes, A., & Salam, S. (2016), "Internet of Things from hype to reality: the road to digitization", Springer.
