1. HandlerSocket plugin for
MySQL
Jun 29, 2010 DeNA Technology Seminar @ Yoyogi
IT Platform Dept., System Management Division
DeNA Co.,Ltd.
Akira Higuchi <higuchi dot akira at dena dot jp>

2. Who am I?
 Akira Higuchi, Ph.D. in science
 IT Platform Dept., DeNA Co.,Ltd.
 system-wide performance optimization
 middleware development
 The creator of HandlerSocket plugin
 Using GNU/Linux since 1993
 Fedora: yum install KoboDeluxe
 Debian: apt-get install kobodeluxe

3. About HandlerSocket plugin

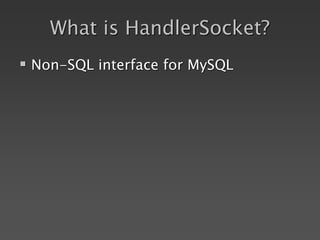

4. What is HandlerSocket?
 Non-SQL interface for MySQL

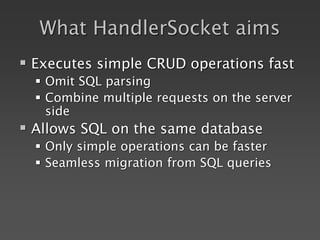

5. What HandlerSocket aims
 Executes simple CRUD operations fast
 Omit SQL parsing
 Combine multiple requests on the server
side
 Allows SQL on the same database
 Only simple operations can be faster
 Seamless migration from SQL queries

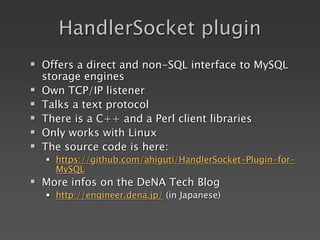

6. HandlerSocket plugin
 Offers a direct and non-SQL interface to MySQL
storage engines
 Own TCP/IP listener
 Talks a text protocol
 There is a C++ and a Perl client libraries
 Only works with Linux
 The source code is here:
 https://github.com/ahiguti/HandlerSocket-Plugin-for-
MySQL
 More infos on the DeNA Tech Blog
 http://engineer.dena.jp/ (in Japanese)

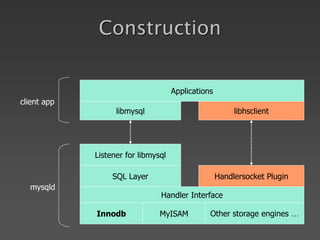

7. Construction
Handler Interface
Innodb MyISAM Other storage engines …
SQL Layer Handlersocket Plugin
Listener for libmysql
libmysql libhsclient
Applications
mysqld
client app

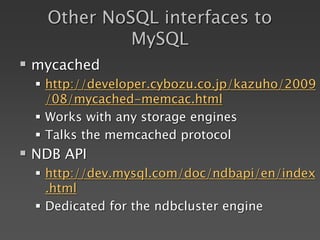

8. Other NoSQL interfaces to
MySQL
 mycached
 http://developer.cybozu.co.jp/kazuho/2009
/08/mycached-memcac.html
 Works with any storage engines
 Talks the memcached protocol
 NDB API
 http://dev.mysql.com/doc/ndbapi/en/index
.html
 Dedicated for the ndbcluster engine

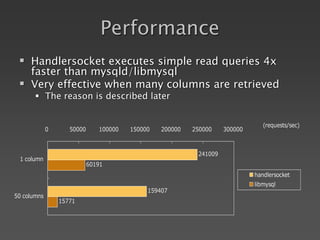

9. Performance

10. Performance
241009
159407
60191
15771
0 50000 100000 150000 200000 250000 300000
1 column
50 columns
(requests/sec)
handlersocket
libmysql
 Handlersocket executes simple read queries 4x
faster than mysqld/libmysql
 Very effective when many columns are retrieved
 The reason is described later

11. Commands supported by
HandlerSocket (for reading data)
 In pseudo-SQL...
SELECT f1, .. , fn FROM db.table
WHERE k1, ... , km = v1, ... , vm
ORDER BY index_i LIMIT offset, limit
 (k1, ... , km) are the key fields (or a
prefix) of the index_i
 =, >=, >, <=, and < can be used for a
comparator

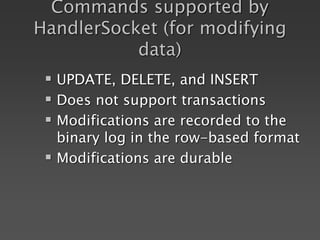

12. Commands supported by
HandlerSocket (for modifying
data)
 UPDATE, DELETE, and INSERT
 Does not support transactions
 Modifications are recorded to the
binary log in the row-based format
 Modifications are durable

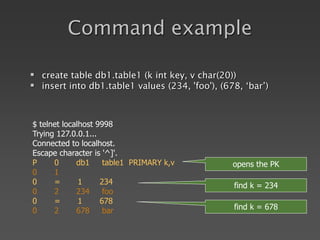

13. Command example
 create table db1.table1 (k int key, v char(20))
 insert into db1.table1 values (234, 'foo'), (678, ‘bar’)
$ telnet localhost 9998
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.
P 0 db1 table1 PRIMARY k,v
0 1
0 = 1 234
0 2 234 foo
0 = 1 678
0 2 678 bar
opens the PK
find k = 234
find k = 678

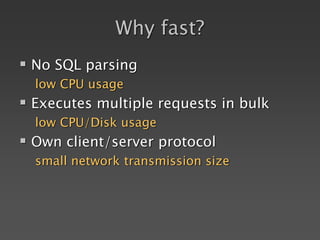

14. Why fast?
 No SQL parsing
low CPU usage
 Executes multiple requests in bulk
low CPU/Disk usage
 Own client/server protocol
small network transmission size

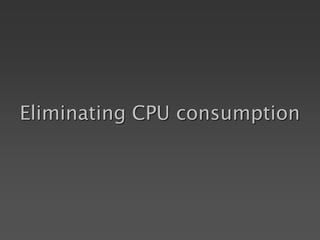

15. Eliminating CPU consumption

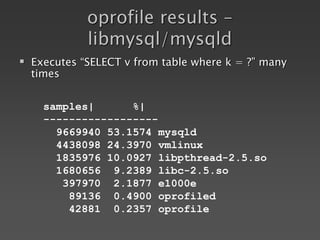

16. oprofile results –
libmysql/mysqld
 Executes “SELECT v from table where k = ?” many
times
samples| %|
------------------
9669940 53.1574 mysqld
4438098 24.3970 vmlinux
1835976 10.0927 libpthread-2.5.so
1680656 9.2389 libc-2.5.so
397970 2.1877 e1000e
89136 0.4900 oprofiled
42881 0.2357 oprofile

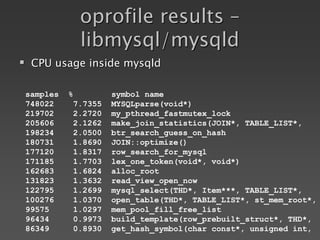

17. oprofile results –
libmysql/mysqld
samples % symbol name
748022 7.7355 MYSQLparse(void*)
219702 2.2720 my_pthread_fastmutex_lock
205606 2.1262 make_join_statistics(JOIN*, TABLE_LIST*,
198234 2.0500 btr_search_guess_on_hash
180731 1.8690 JOIN::optimize()
177120 1.8317 row_search_for_mysql
171185 1.7703 lex_one_token(void*, void*)
162683 1.6824 alloc_root
131823 1.3632 read_view_open_now
122795 1.2699 mysql_select(THD*, Item***, TABLE_LIST*,
100276 1.0370 open_table(THD*, TABLE_LIST*, st_mem_root*,
99575 1.0297 mem_pool_fill_free_list
96434 0.9973 build_template(row_prebuilt_struct*, THD*,
86349 0.8930 get_hash_symbol(char const*, unsigned int,
 CPU usage inside mysqld

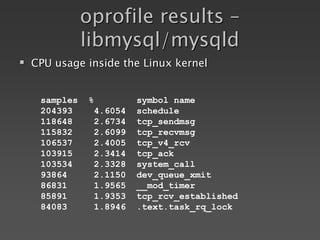

18. oprofile results –
libmysql/mysqld
samples % symbol name
204393 4.6054 schedule
118648 2.6734 tcp_sendmsg
115832 2.6099 tcp_recvmsg
106537 2.4005 tcp_v4_rcv
103915 2.3414 tcp_ack
103534 2.3328 system_call
93864 2.1150 dev_queue_xmit
86831 1.9565 __mod_timer
85891 1.9353 tcp_rcv_established
84083 1.8946 .text.task_rq_lock
 CPU usage inside the Linux kernel

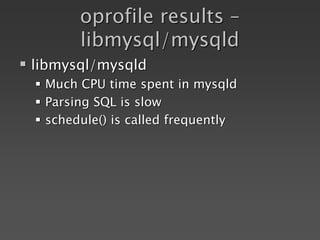

19. oprofile results –
libmysql/mysqld
 libmysql/mysqld
 Much CPU time spent in mysqld
 Parsing SQL is slow
 schedule() is called frequently

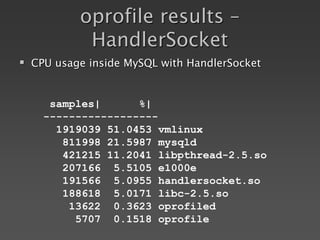

20. oprofile results –
HandlerSocket
samples| %|
------------------
1919039 51.0453 vmlinux
811998 21.5987 mysqld
421215 11.2041 libpthread-2.5.so
207166 5.5105 e1000e
191566 5.0955 handlersocket.so
188618 5.0171 libc-2.5.so
13622 0.3623 oprofiled
5707 0.1518 oprofile
 CPU usage inside MySQL with HandlerSocket

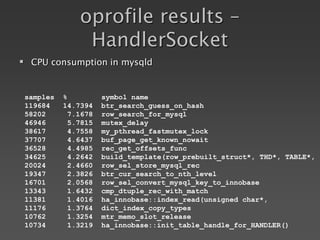

21. oprofile results –
HandlerSocket
samples % symbol name
119684 14.7394 btr_search_guess_on_hash
58202 7.1678 row_search_for_mysql
46946 5.7815 mutex_delay
38617 4.7558 my_pthread_fastmutex_lock
37707 4.6437 buf_page_get_known_nowait
36528 4.4985 rec_get_offsets_func
34625 4.2642 build_template(row_prebuilt_struct*, THD*, TABLE*,
20024 2.4660 row_sel_store_mysql_rec
19347 2.3826 btr_cur_search_to_nth_level
16701 2.0568 row_sel_convert_mysql_key_to_innobase
13343 1.6432 cmp_dtuple_rec_with_match
11381 1.4016 ha_innobase::index_read(unsigned char*,
11176 1.3764 dict_index_copy_types
10762 1.3254 mtr_memo_slot_release
10734 1.3219 ha_innobase::init_table_handle_for_HANDLER()
 CPU consumption in mysqld

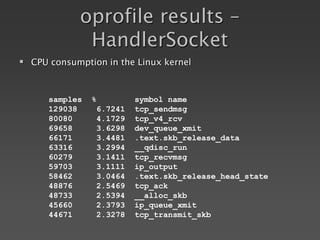

22. oprofile results –
HandlerSocket
samples % symbol name
129038 6.7241 tcp_sendmsg
80080 4.1729 tcp_v4_rcv
69658 3.6298 dev_queue_xmit
66171 3.4481 .text.skb_release_data
63316 3.2994 __qdisc_run
60279 3.1411 tcp_recvmsg
59703 3.1111 ip_output
58462 3.0464 .text.skb_release_head_state
48876 2.5469 tcp_ack
48733 2.5394 __alloc_skb
45660 2.3793 ip_queue_xmit
44671 2.3278 tcp_transmit_skb
 CPU consumption in the Linux kernel

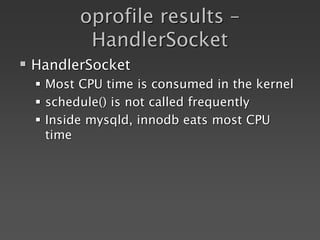

23. oprofile results –
HandlerSocket
 HandlerSocket
 Most CPU time is consumed in the kernel
 schedule() is not called frequently
 Inside mysqld, innodb eats most CPU
time

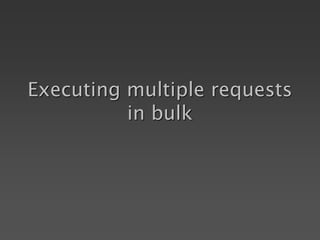

24. Executing multiple requests
in bulk

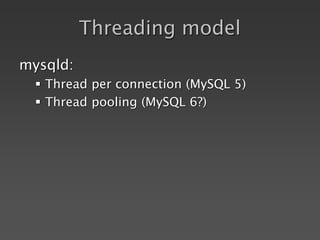

25. Threading model
mysqld:
 Thread per connection (MySQL 5)
 Thread pooling (MySQL 6?)

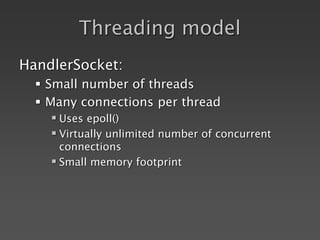

26. Threading model
HandlerSocket:
 Small number of threads
 Many connections per thread
 Uses epoll()
 Virtually unlimited number of concurrent
connections
 Small memory footprint

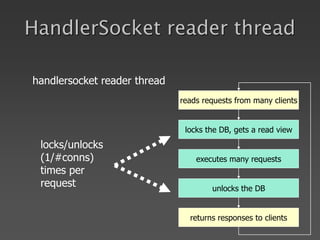

27. HandlerSocket reader thread
reads requests from many clients
locks the DB, gets a read view
executes many requests
unlocks the DB
returns responses to clients
locks/unlocks
(1/#conns)
times per
request
handlersocket reader thread

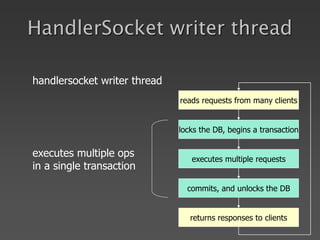

28. HandlerSocket writer thread
reads requests from many clients
locks the DB, begins a transaction
executes multiple requests
commits, and unlocks the DB
returns responses to clients
handlersocket writer thread
executes multiple ops
in a single transaction

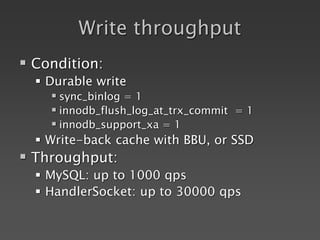

29. Write throughput
 Condition:
 Durable write
 sync_binlog = 1
 innodb_flush_log_at_trx_commit = 1
 innodb_support_xa = 1
 Write-back cache with BBU, or SSD
 Throughput:
 MySQL: up to 1000 qps
 HandlerSocket: up to 30000 qps

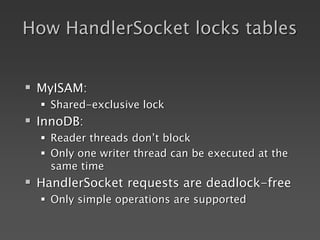

30. How HandlerSocket locks tables
 MyISAM:
 Shared-exclusive lock
 InnoDB:
 Reader threads don’t block
 Only one writer thread can be executed at the
same time
 HandlerSocket requests are deadlock-free
 Only simple operations are supported

31. Client/server protocol

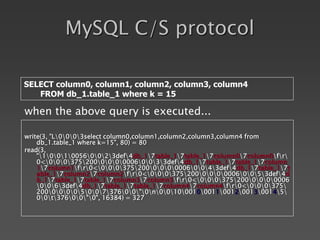

32. MySQL C/S protocol
write(3, "L0003select column0,column1,column2,column3,column4 from
db_1.table_1 where k=15", 80) = 80
read(3,
"100100560023def4db_17table_17table_17column07column0fr
0<00037520000000060033def4db_17table_17table_17column
17column1fr0<00037520000000060043def4db_17table_17t
able_17column27column2fr0<00037520000000060053def4d
b_17table_17table_17column37column3fr0<0003752000000006
0063def4db_17table_17table_17column47column4fr0<000375
2000000500737600"0n0010001000110012001300145
00t37600"0", 16384) = 327
when the above query is executed...
SELECT column0, column1, column2, column3, column4
FROM db_1.table_1 where k = 15

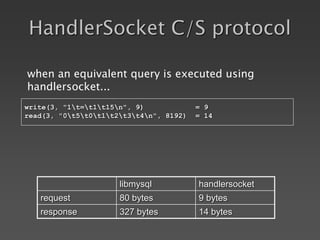

33. HandlerSocket C/S protocol
write(3, "1t=t1t15n", 9) = 9
read(3, "0t5t0t1t2t3t4n", 8192) = 14
when an equivalent query is executed using
handlersocket...
libmysql handlersocket
request 80 bytes 9 bytes
response 327 bytes 14 bytes

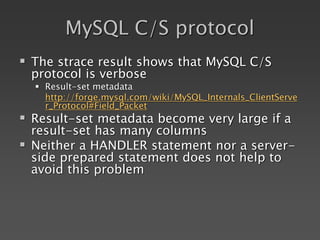

34. MySQL C/S protocol
 The strace result shows that MySQL C/S
protocol is verbose
 Result-set metadata
http://forge.mysql.com/wiki/MySQL_Internals_ClientServe
r_Protocol#Field_Packet
 Result-set metadata become very large if a
result-set has many columns
 Neither a HANDLER statement nor a server-
side prepared statement does not help to
avoid this problem

35. Client libraries

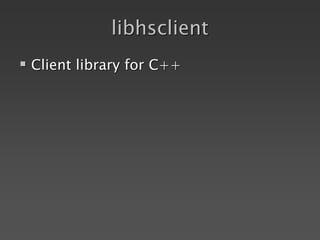

36. libhsclient
 Client library for C++

37. Net::HandlerSocket
 Client library for Perl
 Invokes libhsclient via XS
my $cli = new Net::HandlerSocket(
{host => ‘localhost’, port => 9999});
$cli->open_index(1, ‘db1’, ‘table1’, ‘PRIMARY’, ‘k,v’);
my $res = $cli->exec_multi([
[ 1, ‘=‘, [ ’33’ ], 1, 0 ],
[ 1, ‘=‘, [ ’44’ ], 1, 0, ‘U’, [ ’44’, ‘hoge’ ] ],
[ 1, ‘>=‘, [ ’55’ ], 10, 20 ],
]);

38. Configuration hints

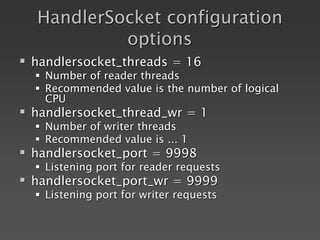

39. HandlerSocket configuration
options
 handlersocket_threads = 16
 Number of reader threads
 Recommended value is the number of logical
CPU
 handlersocket_thread_wr = 1
 Number of writer threads
 Recommended value is ... 1
 handlersocket_port = 9998
 Listening port for reader requests
 handlersocket_port_wr = 9999
 Listening port for writer requests

40. Other configuration options
 innodb_buffer_pool_size
 As large as possible
 innodb_log_file_size,
innodb_log_files_in_group
 As large as possible
 innodb_thread_concurrency = 0
 open_files_limit = 65535
 Number of file descriptors mysqld can open
 HandlerSocket can handle up to 65000
concurrent connections

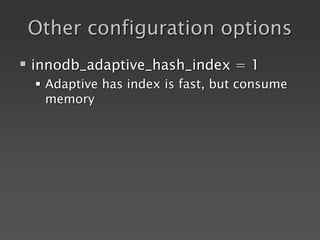

41. Other configuration options
 innodb_adaptive_hash_index = 1
 Adaptive has index is fast, but consume
memory

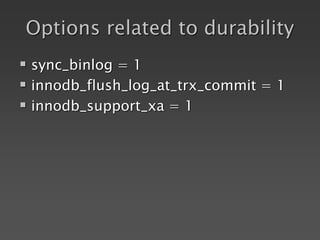

42. Options related to durability
 sync_binlog = 1
 innodb_flush_log_at_trx_commit = 1
 innodb_support_xa = 1

43. Benchmark results

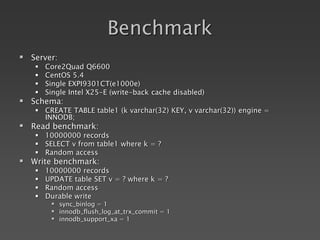

44. Benchmark
 Server:
 Core2Quad Q6600
 CentOS 5.4
 Single EXPI9301CT(e1000e)
 Single Intel X25-E (write-back cache disabled)
 Schema:
 CREATE TABLE table1 (k varchar(32) KEY, v varchar(32)) engine =
INNODB;
 Read benchmark:
 10000000 records
 SELECT v from table1 where k = ?
 Random access
 Write benchmark:
 10000000 records
 UPDATE table SET v = ? where k = ?
 Random access
 Durable write
 sync_binlog = 1
 innodb_flush_log_at_trx_commit = 1
 innodb_support_xa = 1

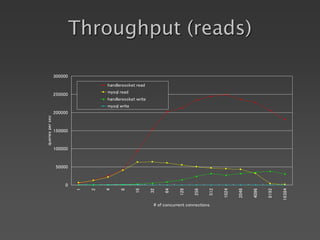

45. Throughput (reads)
0
50000
100000
150000
200000
250000
300000 1
2
4
8
16
32
64
128
256
512
1024
2048
4096
8192
16384
# of concurrent connections
queries
per
sec
handlersocket read
mysql read
handlersocket write
mysql write

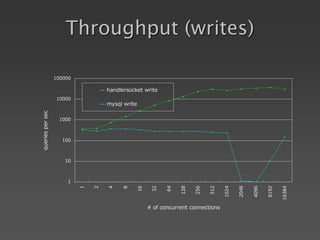

46. Throughput (writes)
1
10
100
1000
10000
100000
1
2
4
8
16
32
64
128
256
512
1024
2048
4096
8192
16384
# of concurrent connections
queries
per
sec
handlersocket write
mysql write

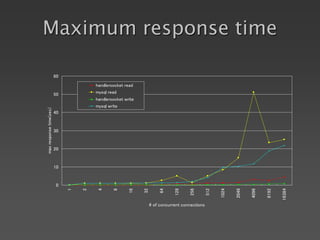

47. Maximum response time
0
10
20
30
40
50
60
1
2
4
8
16
32
64
128
256
512
1024
2048
4096
8192
16384
# of concurrent connections
max
response
time(sec)
handlersocket read
mysql read
handlersocket write
mysql write

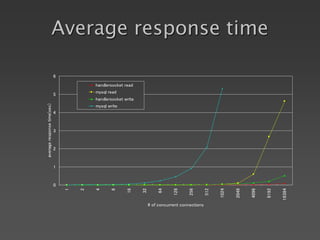

48. Average response time
0
1
2
3
4
5
6
1
2
4
8
16
32
64
128
256
512
1024
2048
4096
8192
16384
# of concurrent connections
average
response
time(sec)
handlersocket read
mysql read
handlersocket write
mysql write

49. Issues and future plans

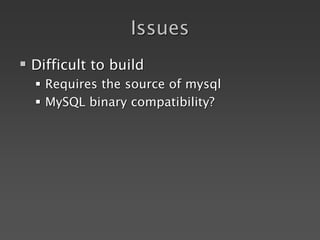

50. Issues
 Difficult to build
 Requires the source of mysql
 MySQL binary compatibility?

51. Future plans
 ‘where’ clause
 Atomic read-modify-write operations
 SQL support?
 More language bindings
