1. Let the Tiger Roar!
MongoDB 3.0
Jon Rangel
Consulting Engineer, MongoDB
jon.rangel@mongodb.com
@j0nrang3l

2. Agenda
• MongoDB 3.0
• Pluggable Storage Engine API
• Storage Engines
– MMAPv1
– WiredTiger
– WT vs MMAPv1
• Recap of Improvements

3. MongoDB 3.0
http://www.pixelresort.com/wp-content/uploads/2013/06/3point0.jpg

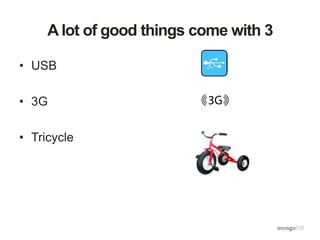

4. A lot of good things come with 3
• USB
• 3G
• Tricycle

5. MongoDB 3.0
• Pluggable Storage Engine API
• Storage Engines
• Large Replica Sets
• Big Polygon
• Security Enhancements – SCRAM
• Audit Trail
• Simplified Operations – Ops Manager
• Tools Rewrite

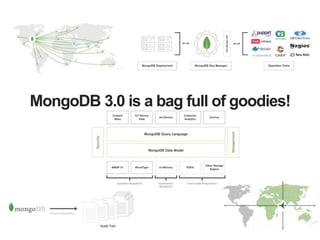

6. MongoDB 3.0 is a bag full of goodies!

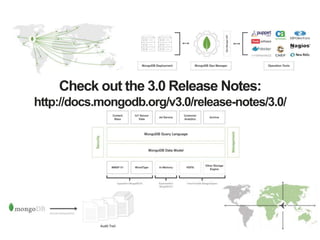

7. Check out the 3.0 Release Notes:
http://docs.mongodb.org/v3.0/release-notes/3.0/

8. Storage Engine
http://files.ecomagination.com/wp-content/uploads/2012/08/PowerHaul-Engine-Green_844x680.jpg

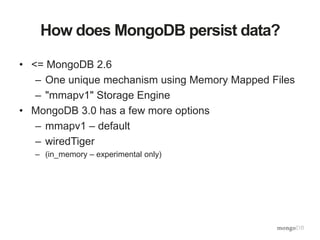

9. How does MongoDB persist data?
• <= MongoDB 2.6
– One unique mechanism using Memory Mapped Files
– "mmapv1" Storage Engine
• MongoDB 3.0 has a few more options
– mmapv1 – default
– wiredTiger
– (in_memory – experimental only)

10. Pluggable Storage Engine API
http://www.livingincebuforums.com/ipb/uploads/monthly_10_2011/post-198-0-67871200-1318223706.jpg

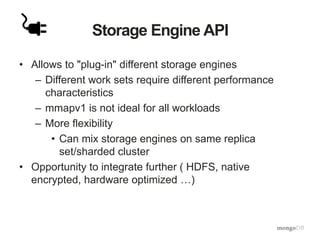

11. Storage Engine API
• Allows to "plug-in" different storage engines
– Different work sets require different performance
characteristics
– mmapv1 is not ideal for all workloads
– More flexibility
• Can mix storage engines on same replica
set/sharded cluster
• Opportunity to integrate further ( HDFS, native
encrypted, hardware optimized …)

12. MMAPv1
https://angrytechnician.files.wordpress.com/2009/05/memory.jpg

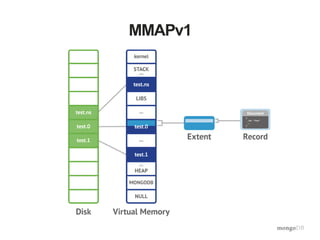

13. MMAPv1

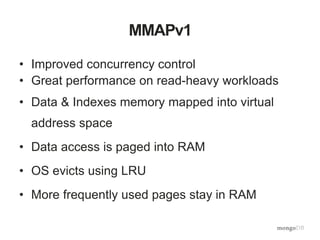

14. MMAPv1
• Improved concurrency control
• Great performance on read-heavy workloads
• Data & Indexes memory mapped into virtual
address space
• Data access is paged into RAM
• OS evicts using LRU
• More frequently used pages stay in RAM

15. WiredTiger

16. What is WiredTiger?
• Storage engine company founded by BerkeleyDB alums
• Recently acquired by MongoDB
• Available as a storage engine option in MongoDB 3.0

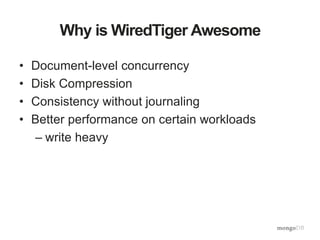

17. Why is WiredTiger Awesome
• Document-level concurrency
• Disk Compression
• Consistency without journaling
• Better performance on certain workloads
– write heavy

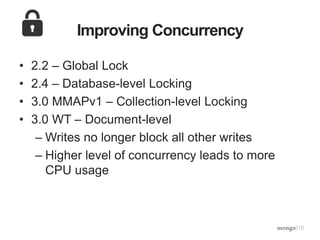

18. Improving Concurrency
• 2.2 – Global Lock
• 2.4 – Database-level Locking
• 3.0 MMAPv1 – Collection-level Locking
• 3.0 WT – Document-level
– Writes no longer block all other writes
– Higher level of concurrency leads to more
CPU usage

19. Compression
• WT uses snappy compression by default
• Data is compressed on disk
• 2 supported compression algorithms
– snappy: default. Good compression, relatively low
overhead
– zlib: Better
• Indexes are compressed using prefix
compression
– Allows compression in memory

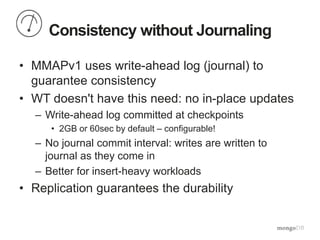

20. Consistency without Journaling
• MMAPv1 uses write-ahead log (journal) to
guarantee consistency
• WT doesn't have this need: no in-place updates
– Write-ahead log committed at checkpoints
• 2GB or 60sec by default – configurable!
– No journal commit interval: writes are written to
journal as they come in
– Better for insert-heavy workloads
• Replication guarantees the durability

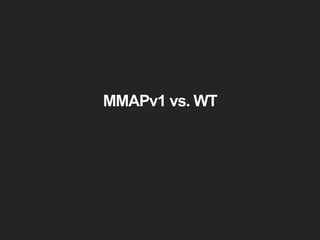

21. MMAPv1 vs. WT

22. How to run MMAPv1
• MMAPv1 is the default
jrangel@rangel:~$ mongod --dbpath data
2015-02-16T23:41:19.758+0000 I CONTROL [initandlisten] MongoDB starting : pid=66913 port=27017 dbpath=data 64-bit host=rangel
2015-02-16T23:41:19.759+0000 I CONTROL [initandlisten] db version v3.0.0-rc8
...
2015-02-16T23:41:19.759+0000 I CONTROL [initandlisten] options: { storage: { dbPath: "data" } }
2015-02-16T23:41:19.770+0000 I JOURNAL [initandlisten] journal dir=data/journal
2015-02-16T23:41:19.770+0000 I JOURNAL [initandlisten] recover : no journal files present, no recovery needed
2015-02-16T23:41:19.787+0000 I JOURNAL [durability] Durability thread started
2015-02-16T23:41:19.788+0000 I JOURNAL [journal writer] Journal writer thread started
2015-02-16T23:41:19.789+0000 I INDEX [initandlisten] allocating new ns file data/local.ns, filling with zeroes...
2015-02-16T23:41:19.819+0000 I STORAGE [FileAllocator] allocating new datafile data/local.0, filling with zeroes...
2015-02-16T23:41:19.819+0000 I STORAGE [FileAllocator] creating directory data/_tmp
2015-02-16T23:41:19.895+0000 I STORAGE [FileAllocator] done allocating datafile data/local.0, size: 64MB, took 0.076 secs
2015-02-16T23:41:19.916+0000 I NETWORK [initandlisten] waiting for connections on port 27017

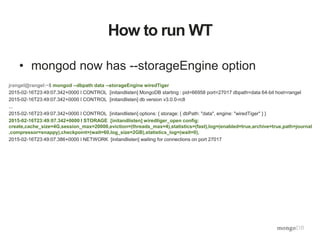

23. How to run WT
• mongod now has --storageEngine option
jrangel@rangel:~$ mongod --dbpath data --storageEngine wiredTiger
2015-02-16T23:49:07.342+0000 I CONTROL [initandlisten] MongoDB starting : pid=66958 port=27017 dbpath=data 64-bit host=rangel
2015-02-16T23:49:07.342+0000 I CONTROL [initandlisten] db version v3.0.0-rc8
...
2015-02-16T23:49:07.342+0000 I CONTROL [initandlisten] options: { storage: { dbPath: "data", engine: "wiredTiger" } }
2015-02-16T23:49:07.342+0000 I STORAGE [initandlisten] wiredtiger_open config:
create,cache_size=4G,session_max=20000,eviction=(threads_max=4),statistics=(fast),log=(enabled=true,archive=true,path=journal
,compressor=snappy),checkpoint=(wait=60,log_size=2GB),statistics_log=(wait=0),
2015-02-16T23:49:07.386+0000 I NETWORK [initandlisten] waiting for connections on port 27017

24. MMAPv1 Database Files
• MMAPv1 persists data to files per databases
– Indexes
– Data

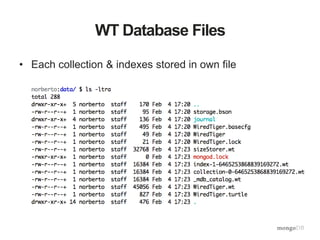

25. WT Database Files
• Each collection & indexes stored in own file

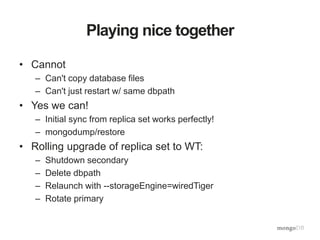

26. Playing nice together
• Cannot
– Can't copy database files
– Can't just restart w/ same dbpath
• Yes we can!
– Initial sync from replica set works perfectly!
– mongodump/restore
• Rolling upgrade of replica set to WT:
– Shutdown secondary
– Delete dbpath
– Relaunch with --storageEngine=wiredTiger
– Rotate primary

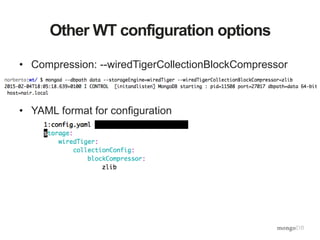

27. Other WT configuration options
• Compression: --wiredTigerCollectionBlockCompressor
• YAML format for configuration

28. Gotchas!
• No 32-bit Support
– WT is 64bit only
• system.indexes & system.namespaces
deprecated
– Explicit commands: db.getIndexes() db.getCollectionNames()

29. https://tingbudongchine.files.wordpress.com/2012/08/lemonde1.jpeg
Small Demo

30. Recap

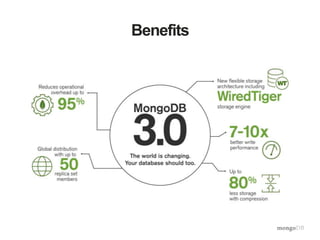

31. Benefits

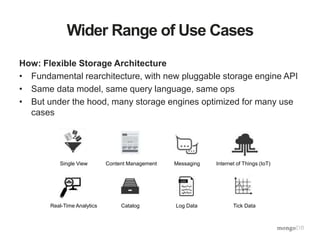

32. Wider Range of Use Cases
How: Flexible Storage Architecture
• Fundamental rearchitecture, with new pluggable storage engine API
• Same data model, same query language, same ops
• But under the hood, many storage engines optimized for many use
cases
Single View Content Management
Real-Time Analytics Catalog
Internet of Things (IoT)Messaging
Log Data Tick Data

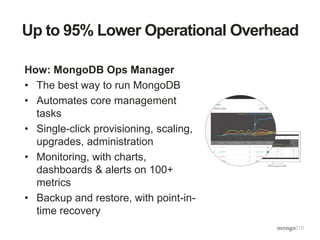

33. Up to 95% Lower Operational Overhead
How: MongoDB Ops Manager
• The best way to run MongoDB
• Automates core management
tasks
• Single-click provisioning, scaling,
upgrades, administration
• Monitoring, with charts,
dashboards & alerts on 100+
metrics
• Backup and restore, with point-in-
time recovery

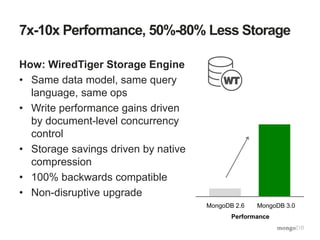

34. 7x-10x Performance, 50%-80% Less Storage
How: WiredTiger Storage Engine
• Same data model, same query
language, same ops
• Write performance gains driven
by document-level concurrency
control
• Storage savings driven by native
compression
• 100% backwards compatible
• Non-disruptive upgrade
MongoDB 3.0MongoDB 2.6
Performance

35. http://www.humanandnatural.com/data/media/178/badan_jaran_desert_oasis_china.jpg
Please go and test it!
3.0.0-RC8: https://www.mongodb.org/downloads
https://jira.mongodb.org/
http://www.tinypm.com/blog/wp-content/uploads/2015/01/hammer.jpg

36. http://www.humanandnatural.com/data/media/178/badan_jaran_desert_oasis_china.jpg
Questions?
jon.rangel@mongodb.com
@j0nrang3l

37. http://www.mandywalker.com.au/wp-content/uploads/2013/07/Wall-with-Tools.jpg
We are hiring!
http://www.mongodb.com/careers/positions/consulting-engineer-emea
