WIMAX Networks
   Concepts
         BY
        Shayan Asadbaki

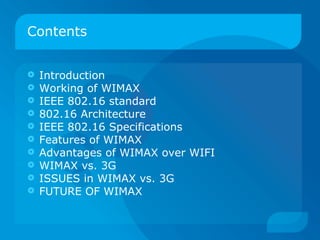

Contents


   Introduction
   Working of WIMAX
   IEEE 802.16 standard
   802.16 Architecture
   IEEE 802.16 Specifications
   Features of WIMAX
   Advantages of WIMAX over WIFI
   WIMAX vs. 3G
   ISSUES in WIMAX vs. 3G
   FUTURE OF WIMAX

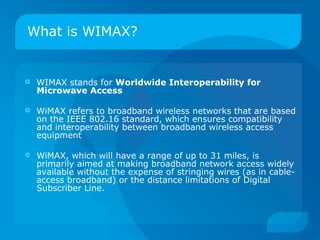

What is WIMAX?


   WIMAX stands for Worldwide Interoperability for
    Microwave Access

   WiMAX refers to broadband wireless networks that are based
    on the IEEE 802.16 standard, which ensures compatibility
    and interoperability between broadband wireless access
    equipment

   WiMAX, which will have a range of up to 31 miles, is
    primarily aimed at making broadband network access widely
    available without the expense of stringing wires (as in cable-
    access broadband) or the distance limitations of Digital
    Subscriber Line.

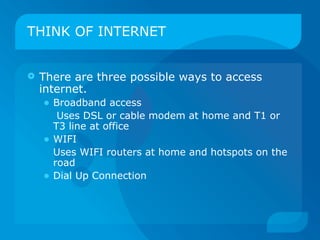

THINK OF INTERNET


   There are three possible ways to access
    internet.
    • Broadband access
         Uses DSL or cable modem at home and T1 or
        T3 line at office
    •   WIFI
        Uses WIFI routers at home and hotspots on the
        road
    •   Dial Up Connection
NEW TECHNOLOGY


   Broadband access is too expensive and WiFi
    coverage is very sparse.

   The new technology promises
    • High speed of broadband service
    • Wireless rather than wired access
    • Broad Coverage

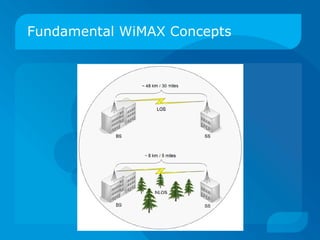

Fundamental WiMAX Concepts

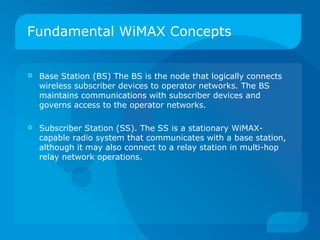

   Base Station (BS) The BS is the node that logically connects
    wireless subscriber devices to operator networks. The BS
    maintains communications with subscriber devices and
    governs access to the operator networks.

   Subscriber Station (SS). The SS is a stationary WiMAX-
    capable radio system that communicates with a base station,
    although it may also connect to a relay station in multi-hop
    relay network operations.
Fundamental WiMAX Concepts
Fundamental WiMAX Concepts

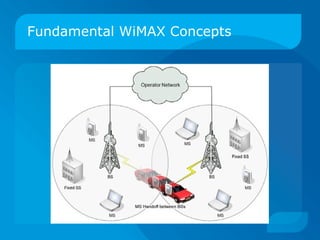

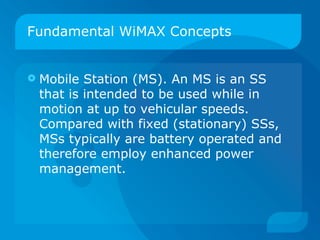

   Mobile Station (MS). An MS is an SS
    that is intended to be used while in
    motion at up to vehicular speeds.
    Compared with fixed (stationary) SSs,
    MSs typically are battery operated and
    therefore employ enhanced power
    management.
Fundamental WiMAX Concepts
Fundamental WiMAX Concepts

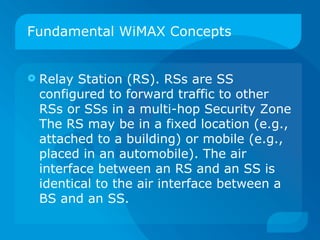

   Relay Station (RS). RSs are SS
    configured to forward traffic to other
    RSs or SSs in a multi-hop Security Zone
    The RS may be in a fixed location (e.g.,
    attached to a building) or mobile (e.g.,
    placed in an automobile). The air
    interface between an RS and an SS is
    identical to the air interface between a
    BS and an SS.
Fundamental WiMAX Concepts

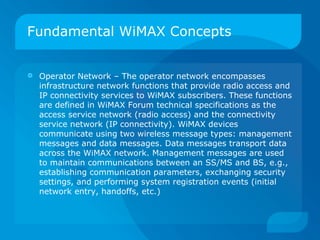

   Operator Network – The operator network encompasses
    infrastructure network functions that provide radio access and
    IP connectivity services to WiMAX subscribers. These functions
    are defined in WiMAX Forum technical specifications as the
    access service network (radio access) and the connectivity
    service network (IP connectivity). WiMAX devices
    communicate using two wireless message types: management
    messages and data messages. Data messages transport data
    across the WiMAX network. Management messages are used
    to maintain communications between an SS/MS and BS, e.g.,
    establishing communication parameters, exchanging security
    settings, and performing system registration events (initial
    network entry, handoffs, etc.)

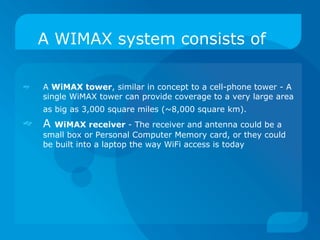

A WIMAX system consists of

   A WiMAX tower, similar in concept to a cell-phone tower - A
    single WiMAX tower can provide coverage to a very large area
    as big as 3,000 square miles (~8,000 square km).
   A  WiMAX receiver - The receiver and antenna could be a
    small box or Personal Computer Memory card, or they could
    be built into a laptop the way WiFi access is today

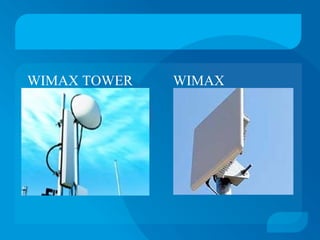

WIMAX TOWER   WIMAX
 RECEIVER

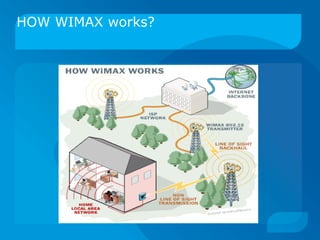

HOW WIMAX works?

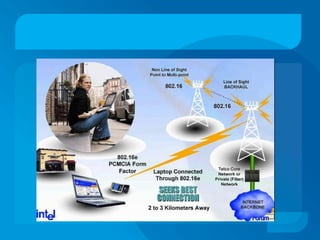

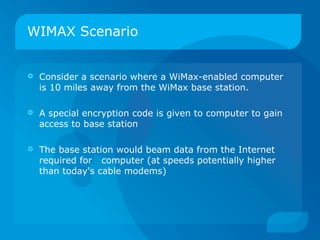

WIMAX Scenario


   Consider a scenario where a WiMax-enabled computer
    is 10 miles away from the WiMax base station.

   A special encryption code is given to computer to gain
    access to base station

   The base station would beam data from the Internet
    required for computer (at speeds potentially higher
    than today's cable modems)
WIMAX Scenario

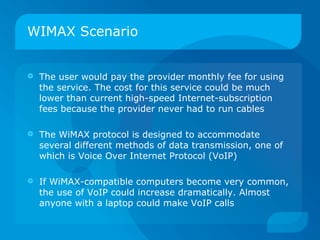

   The user would pay the provider monthly fee for using
    the service. The cost for this service could be much
    lower than current high-speed Internet-subscription
    fees because the provider never had to run cables

   The WiMAX protocol is designed to accommodate
    several different methods of data transmission, one of
    which is Voice Over Internet Protocol (VoIP)

   If WiMAX-compatible computers become very common,
    the use of VoIP could increase dramatically. Almost
    anyone with a laptop could make VoIP calls

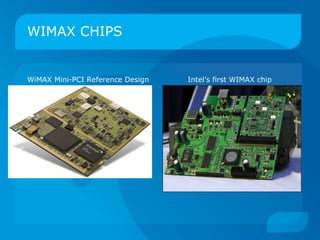

WIMAX CHIPS


WiMAX Mini-PCI Reference Design   Intel’s first WIMAX chip

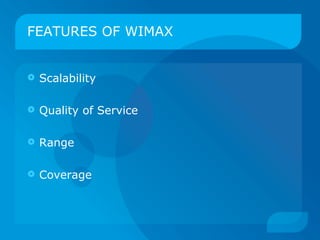

FEATURES OF WIMAX


   Scalability

   Quality of Service

   Range

   Coverage

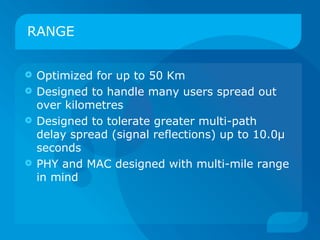

RANGE


 Optimized for up to 50 Km
 Designed to handle many users spread out
  over kilometres
 Designed to tolerate greater multi-path
  delay spread (signal reflections) up to 10.0μ
  seconds
 PHY and MAC designed with multi-mile range
  in mind

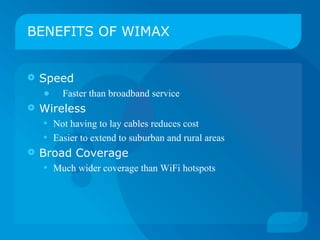

BENEFITS OF WIMAX


   Speed
    •   Faster than broadband service
   Wireless
    • Not having to lay cables reduces cost
    • Easier to extend to suburban and rural areas
   Broad Coverage
    • Much wider coverage than WiFi hotspots
Benefits to Customers


 Range of technology and service level choices from both
  fixed and wireless broadband operators
 DSL-like services at DSL prices but with portability
 Rapidly declining fixed broadband prices
 No more DSL “installation” fees from incumbent
Advantages of WiMax over 3G


 Using an assortment of proprietary and
  standards-based technologies, such as OFDM
  and W-CDMA ,WiMax has a clear advantage
  over 3G

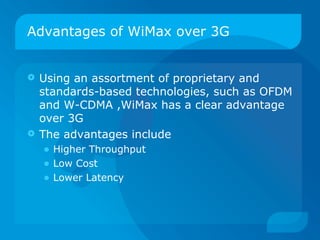

 The advantages include
    • Higher Throughput
    • Low Cost
    • Lower Latency
Advantages of WiMax over 3G
Advantages of WiMax over 3G

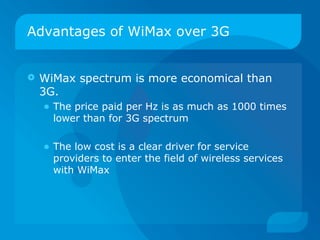

   WiMax spectrum is more economical than
    3G.
    • The price paid per Hz is as much as 1000 times
      lower than for 3G spectrum

    • The low cost is a clear driver for service
      providers to enter the field of wireless services
      with WiMax
Advantages of WiMax over 3G

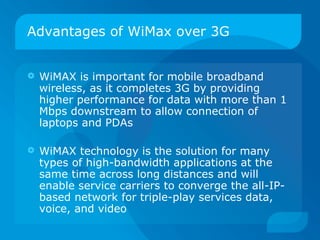

   WiMAX is important for mobile broadband
    wireless, as it completes 3G by providing
    higher performance for data with more than 1
    Mbps downstream to allow connection of
    laptops and PDAs

   WiMAX technology is the solution for many
    types of high-bandwidth applications at the
    same time across long distances and will
    enable service carriers to converge the all-IP-
    based network for triple-play services data,
    voice, and video
Advantages of WiMax over 3G


   WiMAX interoperable solutions enable
    economies of scale through integration of
    standard chipsets, making WiMAX Forum
    Certified products cost-effective at delivering
    high-capacity broadband services at large
    coverage distances in Line Of Sight and Non
    Line Of Sight conditions

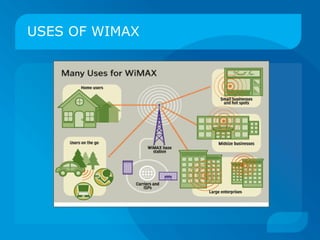

USES OF WIMAX

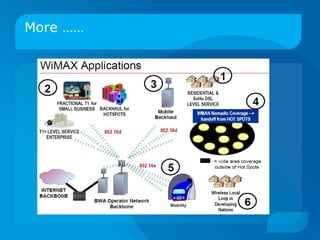

More ……
FUTURE

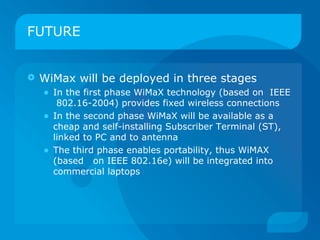

   WiMax will be deployed in three stages
    • In the first phase WiMaX technology (based on IEEE
         802.16-2004) provides fixed wireless connections
    •   In the second phase WiMaX will be available as a
        cheap and self-installing Subscriber Terminal (ST),
        linked to PC and to antenna
    •   The third phase enables portability, thus WiMAX
        (based on IEEE 802.16e) will be integrated into
        commercial laptops

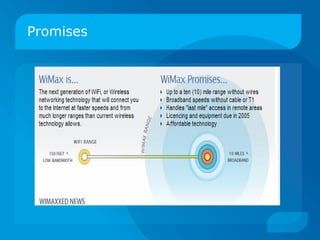

Promises

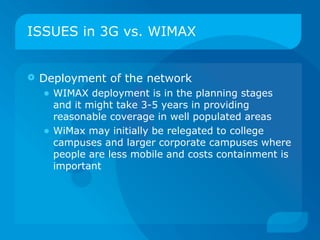

ISSUES in 3G vs. WIMAX


   Deployment of the network
    • WIMAX deployment is in the planning stages
        and it might take 3-5 years in providing
        reasonable coverage in well populated areas
    •   WiMax may initially be relegated to college
        campuses and larger corporate campuses where
        people are less mobile and costs containment is
        important
ISSUES in 3G vs. WIMAX

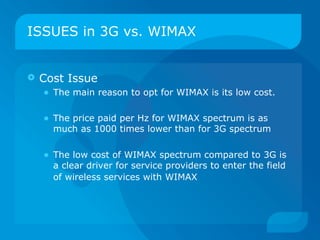

   Cost Issue
     • The main reason to opt for WIMAX is its low cost.

    • The price paid per Hz for WIMAX spectrum is as
       much as 1000 times lower than for 3G spectrum


    • The low cost of WIMAX spectrum compared to 3G is
       a clear driver for service providers to enter the field
       of wireless services with WIMAX

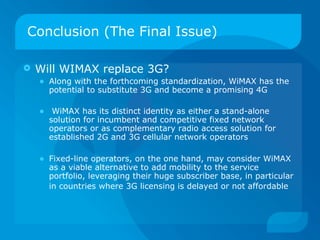

Conclusion (The Final Issue)

   Will WIMAX replace 3G?
    • Along with the forthcoming standardization, WiMAX has the
      potential to substitute 3G and become a promising 4G

    • WiMAX has its distinct identity as either a stand-alone
      solution for incumbent and competitive fixed network
      operators or as complementary radio access solution for
      established 2G and 3G cellular network operators

    • Fixed-line operators, on the one hand, may consider WiMAX
      as a viable alternative to add mobility to the service
      portfolio, leveraging their huge subscriber base, in particular
      in countries where 3G licensing is delayed or not affordable
AnyQuestions ?
   Thanks

More Related Content

What's hot

Wireless Fidelity (WiFi)
Wireless Fidelity (WiFi)Wireless Fidelity (WiFi)
Wireless Fidelity (WiFi)
Hem Pokhrel

What Is WiMax
What Is WiMaxWhat Is WiMax
What Is WiMax
Muhammad Adnan Mirza

WLAN(802.11AX - WI-FI 6) Evolution, frequency band, channels & use cases
WLAN(802.11AX - WI-FI 6) Evolution, frequency band, channels & use casesWLAN(802.11AX - WI-FI 6) Evolution, frequency band, channels & use cases
WLAN(802.11AX - WI-FI 6) Evolution, frequency band, channels & use cases
Pramod Kumar

WiFi 6 - Usher in the Era of Next-Generation Connectivity
WiFi 6 - Usher in the Era of Next-Generation ConnectivityWiFi 6 - Usher in the Era of Next-Generation Connectivity
WiFi 6 - Usher in the Era of Next-Generation Connectivity
Hughes Systique Corporation

Wireless Local Area Networks
Wireless Local Area NetworksWireless Local Area Networks
Wireless Local Area Networks
Dilum Bandara

Ieee 802.11 wireless lan
Ieee 802.11 wireless lanIeee 802.11 wireless lan
Ieee 802.11 wireless lan
Parthipan Parthi

Wimax Technology
Wimax TechnologyWimax Technology
Wimax Technology
Shafaque Ghayas Sattar

Wimax
WimaxWimax
Evolution of wireless communication systems (1 G to 5G).
Evolution of wireless communication systems (1 G to 5G).Evolution of wireless communication systems (1 G to 5G).
Evolution of wireless communication systems (1 G to 5G).
MANIRAFASHA Cedrick

wimax Ppt for seminar
wimax Ppt for seminarwimax Ppt for seminar
wimax Ppt for seminar
Pratik Anand

4 g LTE, LTE Advance
4 g LTE, LTE Advance 4 g LTE, LTE Advance
4 g LTE, LTE Advance
Sajid Marwat

4G wireless Network
4G wireless Network4G wireless Network
4G wireless Network
Masuma Akhatar

Wimax
WimaxWimax
WIRELES NETWORK
WIRELES NETWORKWIRELES NETWORK
WIRELES NETWORK
Ryma Chohan

Wireless technology
Wireless technologyWireless technology
Wireless technology
Fatma Ala'a

wireless optical communication
wireless optical communicationwireless optical communication
wireless optical communication
GNS Manikanta

Wifi ppt
Wifi pptWifi ppt
Wifi ppt
Shubham Singh

Wireless optical communication system
Wireless optical communication systemWireless optical communication system
Wireless optical communication system
vibhu25

3G Technology
3G Technology 3G Technology
802.11ac Technology Introduction
802.11ac Technology Introduction802.11ac Technology Introduction
802.11ac Technology Introduction
Rohde & Schwarz North America


What's hot (20)

Wireless Fidelity (WiFi)
Wireless Fidelity (WiFi)Wireless Fidelity (WiFi)
Wireless Fidelity (WiFi)

What Is WiMax
What Is WiMaxWhat Is WiMax
What Is WiMax

WLAN(802.11AX - WI-FI 6) Evolution, frequency band, channels & use cases
WLAN(802.11AX - WI-FI 6) Evolution, frequency band, channels & use casesWLAN(802.11AX - WI-FI 6) Evolution, frequency band, channels & use cases
WLAN(802.11AX - WI-FI 6) Evolution, frequency band, channels & use cases

WiFi 6 - Usher in the Era of Next-Generation Connectivity
WiFi 6 - Usher in the Era of Next-Generation ConnectivityWiFi 6 - Usher in the Era of Next-Generation Connectivity
WiFi 6 - Usher in the Era of Next-Generation Connectivity

Wireless Local Area Networks
Wireless Local Area NetworksWireless Local Area Networks
Wireless Local Area Networks

Ieee 802.11 wireless lan
Ieee 802.11 wireless lanIeee 802.11 wireless lan
Ieee 802.11 wireless lan

Wimax Technology
Wimax TechnologyWimax Technology
Wimax Technology

Wimax
WimaxWimax
Wimax

Evolution of wireless communication systems (1 G to 5G).
Evolution of wireless communication systems (1 G to 5G).Evolution of wireless communication systems (1 G to 5G).
Evolution of wireless communication systems (1 G to 5G).

wimax Ppt for seminar
wimax Ppt for seminarwimax Ppt for seminar
wimax Ppt for seminar

4 g LTE, LTE Advance
4 g LTE, LTE Advance 4 g LTE, LTE Advance
4 g LTE, LTE Advance

4G wireless Network
4G wireless Network4G wireless Network
4G wireless Network

Wimax
WimaxWimax
Wimax

WIRELES NETWORK
WIRELES NETWORKWIRELES NETWORK
WIRELES NETWORK

Wireless technology
Wireless technologyWireless technology
Wireless technology

wireless optical communication
wireless optical communicationwireless optical communication
wireless optical communication

Wifi ppt
Wifi pptWifi ppt
Wifi ppt

Wireless optical communication system
Wireless optical communication systemWireless optical communication system
Wireless optical communication system

3G Technology
3G Technology 3G Technology
3G Technology

802.11ac Technology Introduction
802.11ac Technology Introduction802.11ac Technology Introduction
802.11ac Technology Introduction


Similar to Wimax

Wimaxtechnology
WimaxtechnologyWimaxtechnology
Wimaxtechnology
Dawood Aqlan

Wi MAX Technology
Wi MAX TechnologyWi MAX Technology
Wi MAX Technology
vasanthimuniasamy

Wimax
WimaxWimax
Wimax
WimaxWimax
wimax
wimaxwimax
Wimax seminar topic
Wimax seminar topicWimax seminar topic
Wimax seminar topic
seva for poor people

Wi max technolgy
Wi max technolgyWi max technolgy
Wi max technolgy
Ganesh Tathe

Wimax
WimaxWimax
Wimax 2
Wimax 2Wimax 2
wimax
wimaxwimax
Wi fi and wimax
Wi fi and wimax Wi fi and wimax
Wi fi and wimax
Sanjay Hp

Wimax
WimaxWimax
Wimax
bhanutyagi

Wimax
WimaxWimax
WIMAX
WIMAXWIMAX
Wimax
WimaxWimax
Wi max by yogijicreations
Wi max by yogijicreationsWi max by yogijicreations
Wi max by yogijicreations
Yogiji Creations

Wimax and lte
Wimax and lteWimax and lte
Wimax and lte
Tushar Saxena

WiMAX Technology
WiMAX TechnologyWiMAX Technology
WiMAX Technology
Anita Mahato

Wimax
WimaxWimax
Wi max
Wi maxWi max

Similar to Wimax (20)

Wimaxtechnology
WimaxtechnologyWimaxtechnology
Wimaxtechnology

Wi MAX Technology
Wi MAX TechnologyWi MAX Technology
Wi MAX Technology

Wimax
WimaxWimax
Wimax

Wimax
WimaxWimax
Wimax

wimax
wimaxwimax
wimax

Wimax seminar topic
Wimax seminar topicWimax seminar topic
Wimax seminar topic

Wi max technolgy
Wi max technolgyWi max technolgy
Wi max technolgy

Wimax
WimaxWimax
Wimax

Wimax 2
Wimax 2Wimax 2
Wimax 2

wimax
wimaxwimax
wimax

Wi fi and wimax
Wi fi and wimax Wi fi and wimax
Wi fi and wimax

Wimax
WimaxWimax
Wimax

Wimax
WimaxWimax
Wimax

WIMAX
WIMAXWIMAX
WIMAX

Wimax
WimaxWimax
Wimax

Wi max by yogijicreations
Wi max by yogijicreationsWi max by yogijicreations
Wi max by yogijicreations

Wimax and lte
Wimax and lteWimax and lte
Wimax and lte

WiMAX Technology
WiMAX TechnologyWiMAX Technology
WiMAX Technology

Wimax
WimaxWimax
Wimax

Wi max
Wi maxWi max
Wi max


Recently uploaded

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems S.M.S.A.

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Malak Abu Hammad

Things to Consider When Choosing a Website Developer for your Website | FODUU
Things to Consider When Choosing a Website Developer for your Website | FODUUThings to Consider When Choosing a Website Developer for your Website | FODUU
Things to Consider When Choosing a Website Developer for your Website | FODUU
FODUU

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
IndexBug

Mariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceXMariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceX
Mariano Tinti

How to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptxHow to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptx
danishmna97

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024
Matthew Sinclair

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
名前 です男

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
Edge AI and Vision Alliance

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter
Daiki Mogmet Ito

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
akankshawande

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”
Claudio Di Ciccio

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices
Quotidiano Piemontese

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf
Uni Systems S.M.S.A.

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz


Recently uploaded (20)

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf

Things to Consider When Choosing a Website Developer for your Website | FODUU
Things to Consider When Choosing a Website Developer for your Website | FODUUThings to Consider When Choosing a Website Developer for your Website | FODUU
Things to Consider When Choosing a Website Developer for your Website | FODUU

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence

Mariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceXMariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceX

How to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptxHow to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptx

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar


Wimax

  • 1. WIMAX Networks Concepts BY Shayan Asadbaki
  • 2. Contents  Introduction  Working of WIMAX  IEEE 802.16 standard  802.16 Architecture  IEEE 802.16 Specifications  Features of WIMAX  Advantages of WIMAX over WIFI  WIMAX vs. 3G  ISSUES in WIMAX vs. 3G  FUTURE OF WIMAX
  • 3. What is WIMAX?  WIMAX stands for Worldwide Interoperability for Microwave Access  WiMAX refers to broadband wireless networks that are based on the IEEE 802.16 standard, which ensures compatibility and interoperability between broadband wireless access equipment  WiMAX, which will have a range of up to 31 miles, is primarily aimed at making broadband network access widely available without the expense of stringing wires (as in cable- access broadband) or the distance limitations of Digital Subscriber Line.
  • 4. THINK OF INTERNET  There are three possible ways to access internet. • Broadband access Uses DSL or cable modem at home and T1 or T3 line at office • WIFI Uses WIFI routers at home and hotspots on the road • Dial Up Connection
  • 5. NEW TECHNOLOGY  Broadband access is too expensive and WiFi coverage is very sparse.  The new technology promises • High speed of broadband service • Wireless rather than wired access • Broad Coverage
  • 6. Fundamental WiMAX Concepts  Base Station (BS) The BS is the node that logically connects wireless subscriber devices to operator networks. The BS maintains communications with subscriber devices and governs access to the operator networks.  Subscriber Station (SS). The SS is a stationary WiMAX- capable radio system that communicates with a base station, although it may also connect to a relay station in multi-hop relay network operations.
  • 8. Fundamental WiMAX Concepts  Mobile Station (MS). An MS is an SS that is intended to be used while in motion at up to vehicular speeds. Compared with fixed (stationary) SSs, MSs typically are battery operated and therefore employ enhanced power management.
  • 10. Fundamental WiMAX Concepts  Relay Station (RS). RSs are SS configured to forward traffic to other RSs or SSs in a multi-hop Security Zone The RS may be in a fixed location (e.g., attached to a building) or mobile (e.g., placed in an automobile). The air interface between an RS and an SS is identical to the air interface between a BS and an SS.
  • 11. Fundamental WiMAX Concepts  Operator Network – The operator network encompasses infrastructure network functions that provide radio access and IP connectivity services to WiMAX subscribers. These functions are defined in WiMAX Forum technical specifications as the access service network (radio access) and the connectivity service network (IP connectivity). WiMAX devices communicate using two wireless message types: management messages and data messages. Data messages transport data across the WiMAX network. Management messages are used to maintain communications between an SS/MS and BS, e.g., establishing communication parameters, exchanging security settings, and performing system registration events (initial network entry, handoffs, etc.)
  • 12. A WIMAX system consists of  A WiMAX tower, similar in concept to a cell-phone tower - A single WiMAX tower can provide coverage to a very large area as big as 3,000 square miles (~8,000 square km).  A WiMAX receiver - The receiver and antenna could be a small box or Personal Computer Memory card, or they could be built into a laptop the way WiFi access is today
  • 13. WIMAX TOWER WIMAX RECEIVER
  • 15.
  • 16. WIMAX Scenario  Consider a scenario where a WiMax-enabled computer is 10 miles away from the WiMax base station.  A special encryption code is given to computer to gain access to base station  The base station would beam data from the Internet required for computer (at speeds potentially higher than today's cable modems)
  • 17. WIMAX Scenario  The user would pay the provider monthly fee for using the service. The cost for this service could be much lower than current high-speed Internet-subscription fees because the provider never had to run cables  The WiMAX protocol is designed to accommodate several different methods of data transmission, one of which is Voice Over Internet Protocol (VoIP)  If WiMAX-compatible computers become very common, the use of VoIP could increase dramatically. Almost anyone with a laptop could make VoIP calls
  • 18. WIMAX CHIPS WiMAX Mini-PCI Reference Design Intel’s first WIMAX chip
  • 19. FEATURES OF WIMAX  Scalability  Quality of Service  Range  Coverage
  • 20. RANGE  Optimized for up to 50 Km  Designed to handle many users spread out over kilometres  Designed to tolerate greater multi-path delay spread (signal reflections) up to 10.0μ seconds  PHY and MAC designed with multi-mile range in mind
  • 21. BENEFITS OF WIMAX  Speed • Faster than broadband service  Wireless • Not having to lay cables reduces cost • Easier to extend to suburban and rural areas  Broad Coverage • Much wider coverage than WiFi hotspots
  • 22. Benefits to Customers  Range of technology and service level choices from both fixed and wireless broadband operators  DSL-like services at DSL prices but with portability  Rapidly declining fixed broadband prices  No more DSL “installation” fees from incumbent

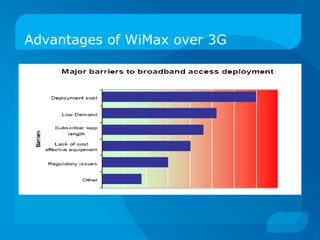

  • 23. Advantages of WiMax over 3G  Using an assortment of proprietary and standards-based technologies, such as OFDM and W-CDMA ,WiMax has a clear advantage over 3G  The advantages include • Higher Throughput • Low Cost • Lower Latency
  • 25. Advantages of WiMax over 3G  WiMax spectrum is more economical than 3G. • The price paid per Hz is as much as 1000 times lower than for 3G spectrum • The low cost is a clear driver for service providers to enter the field of wireless services with WiMax
  • 26. Advantages of WiMax over 3G  WiMAX is important for mobile broadband wireless, as it completes 3G by providing higher performance for data with more than 1 Mbps downstream to allow connection of laptops and PDAs  WiMAX technology is the solution for many types of high-bandwidth applications at the same time across long distances and will enable service carriers to converge the all-IP- based network for triple-play services data, voice, and video
  • 27. Advantages of WiMax over 3G  WiMAX interoperable solutions enable economies of scale through integration of standard chipsets, making WiMAX Forum Certified products cost-effective at delivering high-capacity broadband services at large coverage distances in Line Of Sight and Non Line Of Sight conditions

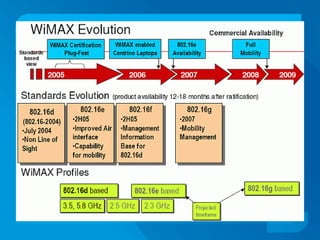

  • 30. FUTURE  WiMax will be deployed in three stages • In the first phase WiMaX technology (based on IEEE 802.16-2004) provides fixed wireless connections • In the second phase WiMaX will be available as a cheap and self-installing Subscriber Terminal (ST), linked to PC and to antenna • The third phase enables portability, thus WiMAX (based on IEEE 802.16e) will be integrated into commercial laptops
  • 31.
  • 33. ISSUES in 3G vs. WIMAX  Deployment of the network • WIMAX deployment is in the planning stages and it might take 3-5 years in providing reasonable coverage in well populated areas • WiMax may initially be relegated to college campuses and larger corporate campuses where people are less mobile and costs containment is important
  • 34. ISSUES in 3G vs. WIMAX  Cost Issue • The main reason to opt for WIMAX is its low cost. • The price paid per Hz for WIMAX spectrum is as much as 1000 times lower than for 3G spectrum • The low cost of WIMAX spectrum compared to 3G is a clear driver for service providers to enter the field of wireless services with WIMAX
  • 35. Conclusion (The Final Issue)  Will WIMAX replace 3G? • Along with the forthcoming standardization, WiMAX has the potential to substitute 3G and become a promising 4G • WiMAX has its distinct identity as either a stand-alone solution for incumbent and competitive fixed network operators or as complementary radio access solution for established 2G and 3G cellular network operators • Fixed-line operators, on the one hand, may consider WiMAX as a viable alternative to add mobility to the service portfolio, leveraging their huge subscriber base, in particular in countries where 3G licensing is delayed or not affordable

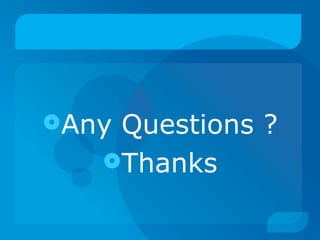

  • 36. AnyQuestions ? Thanks
