WiGig is a wireless networking technology that provides data rates up to 7Gbps, over 10 times faster than the fastest WiFi networks. It operates in the 60GHz frequency band, allowing wider channels for faster speeds. The WiGig specification defines the physical, medium access control and protocol adaptation layers to support applications like wireless docks and drives. It uses technologies like beamforming to focus signals between devices and allow robust communication at distances over 10 meters.

1. Frustrated by unsecured
Wi-Fi, a fix is on the way….
Presented by:
B. AJAY KUMAR
13W91A0424
IV-ECE

2. Contents
Introduction
WiGig alliance Logo
Need For faster Wireless Connectivity
Wi-Gig specification
Structure of Wi-Gig
 Physical Layer
 Medium Access Layer
 Protocol Adaptation Layer
Usage Models
Conclusion

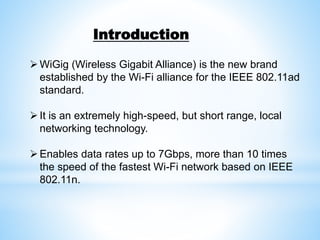

3. Introduction
WiGig (Wireless Gigabit Alliance) is the new brand
established by the Wi-Fi alliance for the IEEE 802.11ad
standard.
It is an extremely high-speed, but short range, local
networking technology.
Enables data rates up to 7Gbps, more than 10 times
the speed of the fastest Wi-Fi network based on IEEE
802.11n.

4. WiGig alliance Logo
The Wi-Fi Alliance created a
separate, unique logo for WiGig
to avoid confusion between the
standards.

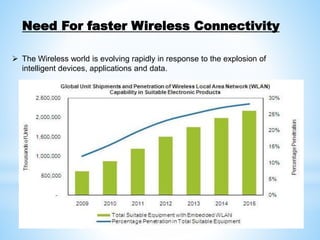

5. Need For faster Wireless Connectivity
 The Wireless world is evolving rapidly in response to the explosion of
intelligent devices, applications and data.

6.  Support for data transmission rates up to 7 Gbps
• more than 10 times the speed of the fastest Wi-Fi
networks based on IEEE 802.11n
 It operates in the unlicensed 60 GHz frequency band
• More spectrum available than the 2.4 GHz and 5 GHz
bands used by existing Wi-Fi products.
• This allows wider channels that support faster
transmission speeds
Specification

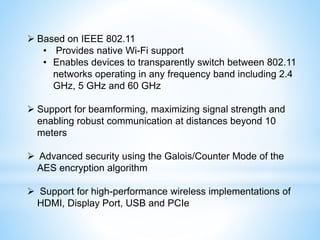

7.  Based on IEEE 802.11
• Provides native Wi-Fi support
• Enables devices to transparently switch between 802.11
networks operating in any frequency band including 2.4
GHz, 5 GHz and 60 GHz
 Support for beamforming, maximizing signal strength and
enabling robust communication at distances beyond 10
meters
 Advanced security using the Galois/Counter Mode of the
AES encryption algorithm
 Support for high-performance wireless implementations of
HDMI, Display Port, USB and PCIe

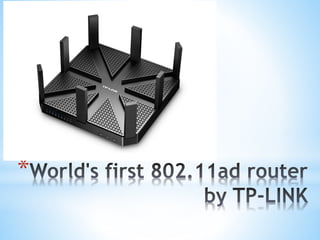

8. *

9. Structure of Wi-Gig
Physical Layer(PHY)
Enables low power and high performance WiGig
devices.
Medium Access Control (MAC) Layer
Supports Advanced usage models.
Protocol Adaption Layers(PALs)
Allows wireless implementations.

10. WiGig specification defines four channels, each 2.16 GHz wide.
 These wide channels support applications such as uncompressed
video transmission.
 Supports 2types of modulation & coding schemes(MCS).
1. Orthogonal frequency-division multiplexing (OFDM)
2. Single carrier (SC)
The schemes share common elements such as preamble and
channel coding.
This reduces implementation complexity for manufacturers of
WiGig devices.
Physical Layer (PHY)

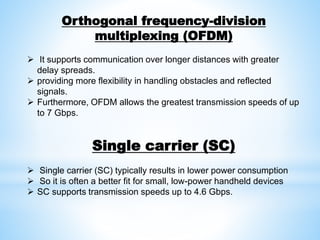

11. Orthogonal frequency-division
multiplexing (OFDM)
 It supports communication over longer distances with greater
delay spreads.
 providing more flexibility in handling obstacles and reflected
signals.
 Furthermore, OFDM allows the greatest transmission speeds of up
to 7 Gbps.
Single carrier (SC)
 Single carrier (SC) typically results in lower power consumption
 So it is often a better fit for small, low-power handheld devices
 SC supports transmission speeds up to 4.6 Gbps.

12. Medium Access Control(MAC)
layer
Network Architecture.
 Power Management.
Advanced Security.
The MAC layer of the WiGig specification
includes:
 New features that support advanced
usage models
 Facilitate integration with Wi-Fi
networks
 Reduce power consumption
 Provide strong security

13.  The specification defines a new network architecture that
enables two devices to communicate directly with each other
allowing
• New uses such as rapidly synchronizing two devices .
• Transmitting audio-visual data to a projector or TV.
Network Architecture

14. Support for beamforming is defined
within the PHY and MAC layers of
the WiGig specification.
WiGig Beamforming
Beamforming
• Devices that support beamforming
focus their signals toward each
client, concentrating the data
transmission so that more data
reaches the targeted device
instead of radiating out into the
atmosphere.
• Plasma silicon Antenna.

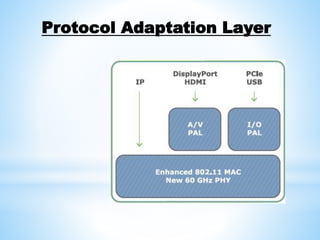

15. Protocol Adaptation Layer

16.  Defined by the WiGig Alliance to support specific data
and display standards over 60 GHz
 PALs allow wireless implementations of these standard
interfaces that run directly on the WiGig MAC and PHY
 It can be implemented in hardware
 The initial PALs are
 audio-visual (A/V), which defines support for HDMI
and DisplayPort,
 input-output (I/O), which defines support for USB and
PCIe

17. Usage Models

18. WiGig offers unrivaled raw speed, interference
resistance, good range, high capacity networking, multi-
gigabit real throughput in a handheld power envelope,
and near-wire equivalent latency.
 Given these benefits, WiGig is well-suited for a broad
range of applications, from tri-band networking (2.4/5/60
GHz) to wireless storage and edge caching to wireless
docking.
Conclusion
