This document provides an overview of PostgreSQL architecture, transactions, connection pooling, monitoring, and tips. It discusses: - PostgreSQL architecture including processes like the postmaster, background writer, and WAL writer. - Transactions and concurrency using MVCC, with snapshots of data at a point in time and increasing transaction IDs for consistency. - Connection pooling tools like PgPool and PgBouncer that help reuse connections and lower impact on the database. - Monitoring options including Graphite, Zabbix, Graphana, log insight, and specific queries for stats, sessions, replication, checkpoints, caching, and queries. - Tips like analyzing indexes, identifying duplicates, missing indexes

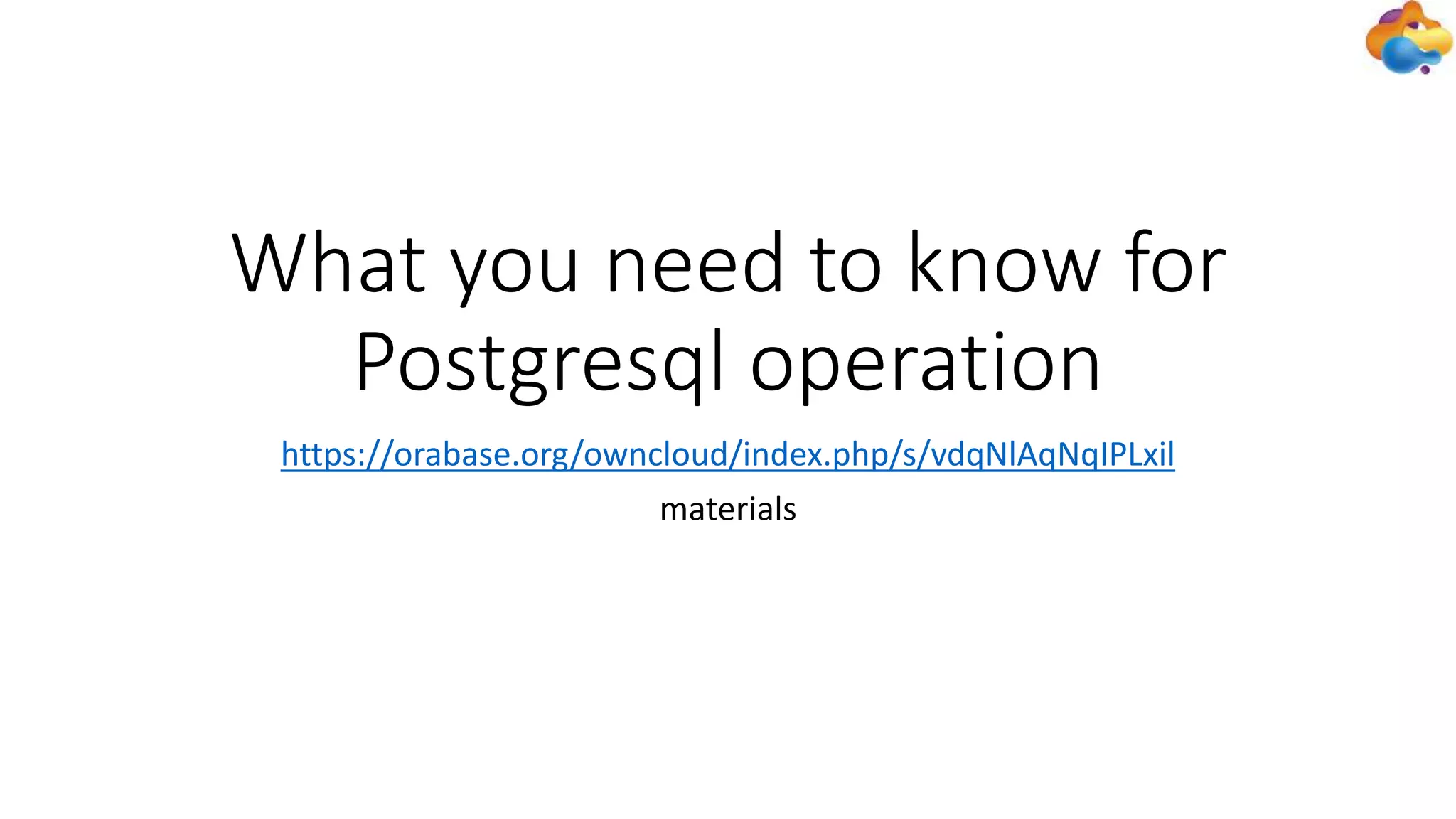

1. What you need to know for
Postgresql operation
https://orabase.org/owncloud/index.php/s/vdqNlAqNqIPLxil
materials

2. Who Am I ?
Oracle OCP 12c
OCE 11g PT
OCE 11g RAC
Senior Specialist at RT Labs
The guy on the left ^_^
PostgreSQL 9.3 Associate

3. Presentation plan
1.Architecture of Postgresql
2.Transactions and Concurrency, MVCC
3.Connection Pooling ( pgpool,pgbouncer )
4.Tips & Trics + Monitoring

4. Architectural Summary :
• PostgreSQL uses processes, not threads
• Postmaster process acts as supervisor
• Several utility processes perform background work
• postmaster starts them, restarts them if they die
• postmaster listens for new connections

5. 1. Architecture of Postgresql

6. Main Utility Processes:
• Background writer − Writes dirty data blocks to disk
• WAL writer − Flushes write-ahead log to disk
• Checkpointer process − Automatically performs a checkpoint based
on config parameters
• Autovacuum launcher − Starts Autovacuum workers as needed
• Autovacuum workers − Recover free space for reuse
• Stats Collector – collects runtime statistics

7. 1.Architecture of Postgresql
2.Transactions and Concurrency, MVCC
3.Connection Pooling ( pgpool,pgbouncer )
4.Tips & Trics + Monitoring
Presentation plan

8. What is a Transaction?
• A transaction is set of statements bundled into a single step, all-or-
nothing operation
• A transaction must possess ACID properties:
• An all-or-nothing operation (Atomicity).
• Only valid data is written to the database (Consistency).
• The intermediate states between the steps are not visible to other concurrent
transactions (Isolation).
• If some failure occurs that prevents the transaction from completing, then
none of the steps affect the database at all (Durability).

9. 2. Transactions and Concurrency, MVCC
• Snapshot of data at a point in time.
• Updates, inserts and deletes cause the creation of a new row version.
Row version stored in same page.
• MVCC uses increasing transaction IDs to achieve consistency.
• Each row has 2 transaction ids: created and expired
• Queries check:
• creation trans id is committed and < current trans counter
• row lacks expire trans id or expire was in process at query start

10. MVCC Maintenance
• MVCC creates multiple versions of a row for concurrency
• Old row versions can cause “bloat”
• Rows no longer needed are recovered for reuse/removed via
vacuuming or autovacuum
• To prevent transaction wraparound failure each table must be
vacuumed periodically
• PostgreSQL reserves a special XID as FrozenXID
• This XID is always considered older than every normal XID

11. Presentation plan
1.Architecture of Postgresql
2.Transactions and Concurrency, MVCC
3.Connection Pooling ( pgpool,pgbouncer )
4.Tips & Trics + Monitoring

12. Pgpool
• At first, developed for connection pooling
• Replication Master/Slave mode
• Load balancing
• Automatic failover on desync detection
• Online recovery
• Parallel Query

13. Pgpool

14. PgBouncer
• Lightweight connection pooler for PostgreSQL
• Any application can connect to Pgboucer as it connects with
PostgreSQL
• Pgbouncer help to lower down the connections impact on the
PostgreSQL Server
• Pgbouncer provides connection pooling thus reuse the existing
connections

15. Types of Connections
• pgbouncer supports several types of pooling when rotating
connections:
• Session pooling − A server connection is assigned to the client application for
the life of the client connection.
• Transaction pooling − A server connection is assigned to the client application
for the duration of a transaction
• Statement pooling − A server connection is assigned to the client application
for each statement

16. How Connections are Established
• An application connects to PgBouncer as if it were a PostgreSQL database
• PgBouncer then creates a connection to the actual database server, or it
reuses one of the existing connections from the pool
• Step 1: The client application attempts to connect to PostgreSQL on the port where
pgbouncer is running
• Step 2: The database name supplied by the client application must match with the
list in pgBouncer.ini
• Step 3: The user name and password supplied must match with the list in users.txt
• Step 4: If a connection with same settings is available in pool it will be assigned to
client
• otherwise a new connection object will be created
• Step 5: Once client log off the connection object return back to the pool

17. Manage pgbouncer
• Show stats, servers, clients, pools, lists, databases, fds commands can
be used.
• Manage pgbouncer by connecting to the special administration
database
• pgbouncer and issuing show help;
• $ psql -p 6543 -U someuser pgbouncer
• pgbouncer=# show help;
• NOTICE: Console usage
• DETAIL: SHOW [HELP|CONFIG|DATABASES|FDS|POOLS|CLIENTS|SERVERS|SOCKETS|LISTS|VERSION]

18. Avito link

19. quick test with pgbouncer
• Connecting to the bouncer over local unix socket, it took 31s to
perform all the queries.
• Connecting to the bouncer over localhost, it took 45s to perform all
the queries.
• Connecting to the bouncer running on the remote server, it took
1m6s
• Without using pgbouncer, it took 3m34s

20. 1.Architecture of Postgresql
2.Transactions and Concurrency, MVCC
3.Connection Pooling ( pgpool,pgbouncer )
4.Tips & Trics + Monitoring
Presentation plan

21. What can we see ?

22. What can we see ?

23. How graphite populate data
• We write function that in single pass get all information (still under
development)
• adm-get_stat_activity.sql

24. Autovacuum & DB activity monitoring
• autovacuum_count.Query=select count (*) from pg_stat_activity
where state = 'active' AND query LIKE 'autovacuum:%’
• autovacuum_max.Query=select coalesce (max(round(extract( epoch
FROM age(statement_timestamp(), state_change)))),0)
active_seconds from pg_stat_activity where state = 'active' AND
query LIKE 'autovacuum:%’
• xactcommit.Query=SELECT sum(xact_commit) FROM
pg_stat_database
• xactrollback.Query=SELECT sum(xact_rollback) FROM
pg_stat_database

25. Zabbix

26. Graphana

27. What can we see ?

28. Session activity monitoring
• active_session_cnt.Query=select count (*) from pg_stat_activity where state='active' and pid != pg_backend_pid()
• active_5s.Query=select count (*) from pg_stat_activity where state='active' and statement_timestamp() - state_change >
INTERVAL '5s' AND query not LIKE 'autovacuum:%’
• active_max.Query=select coalesce(abs(max(round(extract( epoch FROM age(statement_timestamp(), state_change))))),0)
• active_max_seconds from pg_stat_activity where state='active' AND query not LIKE 'autovacuum:%’
• idle_session_cnt.Query=select count (*) from pg_stat_activity where state='idle’
• idle_in_trans_cnt.Query=select count (*) from pg_stat_activity where state like 'idle in trans%’
• idle_in_trans_5s.Query=select count (*) from pg_stat_activity where state like 'idle in trans%' and statement_timestamp() -
state_change > INTERVAL '5s’
• idle_in_trans_max.Query=select coalesce(max(round(extract( epoch FROM age(statement_timestamp(), state_change)))),0)
max_idle_in_trans from eyes.get_pg_stat_activity() where state like ’
• idle in trans%'waiting_session_cnt.Query=select count (*) from eyes.get_pg_stat_activity() where waiting is true
• waiting_session_5s.Query=select count (*) from pg_stat_activity where waiting is true and statement_timestamp() - state_change
> INTERVAL '5s’
• waiting_session_max.Query=select coalesce (abs(max(round(extract( epoch FROM age(statement_timestamp(),
state_change))))),0)
• waiting_max from pg_stat_activity where waiting is true

29. zabbix

30. Graphana

31. Query stats ( okmeter )

32. Vmware Log Insight

33. What can we see ?

34. Database stats monitoring
• activeconn.Query=select sum(numbackends) from pg_stat_database
• tupreturned.Query=select sum(tup_returned) from pg_stat_database
• tupfetched.Query=select sum(tup_fetched) from pg_stat_database
• tupinserted.Query=select sum(tup_inserted) from pg_stat_database
• tupupdated.Query=select sum(tup_updated) from pg_stat_database
• tupdeleted.Query=select sum(tup_deleted) from pg_stat_database

35. Zabbix

36. Graphana

37. What can we see ?

38. MasterSlave stats queries
• master_or_slave.Query=select pg_is_in_recovery()::int
• slave_delay_mb.Query=select
application_name,(pg_xlog_location_diff(sent_location,
replay_location))/1024/1024 as mb_lag from pg_stat_replication as
MB_lag
• slave_delay_sec.Query=select extract(epoch FROM now() -
COALESCE(pg_last_xact_replay_timestamp(),now()))

39. MasterSlave in Graphana

40. Bgwriter +checkpoint stats
• checkpoints_timed.Query=select checkpoints_timed from
pg_stat_bgwriter
• checkpoints_req.Query=select checkpoints_req from pg_stat_bgwriter
• buffers_checkpoint.Query=select buffers_checkpoint from
pg_stat_bgwriter
• buffers_clean.Query=select buffers_clean from pg_stat_bgwriter
• maxwritten_clean.Query=select maxwritten_clean from pg_stat_bgwriter
• buffers_backend.Query=select buffers_backend from pg_stat_bgwriter
• buffers_alloc.Query=select buffers_alloc from pg_stat_bgwriter

41. zabbix

42. zabbix

43. Graphana

44. What can we see ?

45. What can we see ?

46. Tips and Tricks
• Pg_stat_statements
• Pg_stat_kcache
• pg_buffercache
• pg_stat_user_indexes,pg_stat_user_tables *etc

47. Pg_stat_statements
• Good toolset by postgresql consulting

48. Top query by avg runtime
• select
md5(query),calls,total_time,rows,shared_blks_hit,shared_blks_read,
(total_time/calls) as avg_time from pg_stat_statements order by
avg_time desc limit 5;

49. Query_stat_io_time

50. pg_stat_kcache
• Gathers statistics about real reads and writes done by the filesystem
layer.
• PostgreSQL >= 9.4
• Not yet in contrib

51. pg_stat_kcache
SELECT datname, queryid, round(total_time::numeric, 2) AS total_time, calls,
pg_size_pretty((shared_blks_hit+shared_blks_read)*8192 - reads) AS memory_hit,
pg_size_pretty(reads) AS disk_read, pg_size_pretty(writes) AS disk_write,
round(user_time::numeric, 2) AS user_time, round(system_time::numeric, 2) ASsystem_time
FROM pg_stat_statements s
JOIN pg_stat_kcache() k USING (userid, dbid, queryid)
JOIN pg_database d ON s.dbid = d.oid
WHERE datname != 'postgres' AND datname NOT LIKE 'template%’ ORDER BY total_time DESC LIMIT 10;

52. Top 10 queries

53. pg_buffercache

54. Top object in cache
SELECT c.relname ,
pg_size_pretty(count(*) * 8192) as buffered
, round(100.0 * count(*) / ( SELECT setting FROM pg_settings WHERE
name='shared_buffers')::integer,1) AS buffers_percent
, round(100.0 * count(*) * 8192 / pg_relation_size(c.oid),1) AS percent_of_relation
FROM pg_class c
JOIN pg_buffercache b ON b.relfilenode = c.relfilenode
JOIN pg_database d ON (b.reldatabase = d.oid AND d.datname = current_database())
WHERE pg_relation_size(c.oid) > 0 GROUP BY c.oid, c.relname
ORDER BY 3 DESC LIMIT 10;

55. Top object in cache example

56. Top 20 unused indexes
SELECT relid::regclass AS table,
indexrelid::regclass AS index,
pg_size_pretty(pg_relation_size(indexrelid::regclass)) AS index_size,
idx_tup_read,
idx_tup_fetch,
idx_scan
FROM pg_stat_user_indexes
JOIN pg_index USING (indexrelid)
WHERE idx_scan = 0 AND indisunique IS FALSE
order by pg_relation_size(indexrelid::regclass) desc limit 20;

57. Top 20 unused indexes examples

58. indexes on nulls
Select
pg_index.indrelid::regclass as table,
pg_index.indexrelid::regclass as index,
pg_attribute.attname as field,pg_statistic.stanullfrac,
pg_size_pretty(pg_relation_size(pg_index.indexrelid)) as indexsize,
pg_get_indexdef(pg_index.indexrelid) as indexdef
from pg_index
join pg_attribute ON pg_attribute.attrelid=pg_index.indrelid AND
pg_attribute.attnum=ANY(pg_index.indkey)
join pg_statistic ON pg_statistic.starelid=pg_index.indrelid AND
pg_statistic.staattnum=pg_attribute.attnum
where pg_statistic.stanullfrac>0.5
AND pg_relation_size(pg_index.indexrelid)>10*8192
order by pg_relation_size(pg_index.indexrelid) desc,1,2,3;

59. indexes on nulls examples

60. Duplicate indexes
SELECT pg_size_pretty(SUM(pg_relation_size(idx))::BIGINT) AS SIZE,
(array_agg(idx))[1] AS idx1, (array_agg(idx))[2] AS idx2,
(array_agg(idx))[3] AS idx3, (array_agg(idx))[4] AS idx4
FROM ( SELECT indexrelid::regclass AS idx, (indrelid::text ||E'n'|| indclass::text ||E'n'||
indkey::text ||E'n'||
COALESCE(indexprs::text,'')||E'n' || COALESCE(indpred::text,'')) AS KEY
FROM pg_index) sub
GROUP BY KEY HAVING COUNT(*)>1 ORDER BY SUM(pg_relation_size(idx)) DESC;

61. Duplicate indexes example

62. Missing index
SELECT relname, seq_scan-idx_scan AS too_much_seq, case when
seq_scan-idx_scan>0 THEN 'Missing Index?' ELSE 'OK' END,
pg_size_pretty(pg_relation_size(relname::regclass)) AS rel_size,
seq_scan, idx_scan FROM pg_stat_all_tables WHERE
schemaname='public' AND
pg_relation_size(relname::regclass)>10*1024*1024 ORDER BY
too_much_seq DESC nulls last;

63. Missing index

64. Lock dependency information

65. Write activity
SELECT s.relname,
pg_size_pretty(pg_relation_size(relid)),
coalesce(n_tup_ins,0) + 2 * coalesce(n_tup_upd,0) - coalesce(n_tup_hot_upd,0) +
coalesce(n_tup_del,0) AS total_writes,
(coalesce(n_tup_hot_upd,0)::float * 100 / (CASE WHEN n_tup_upd > 0 THEN n_tup_upd
ELSE 1 END)::float)::numeric(10,2) AS hot_rate,
(SELECT v[1]
FROM regexp_matches(reloptions::text,e'fillfactor=(d+)') AS r(v) LIMIT 1) AS fillfactor
FROM pg_stat_all_tables s
JOIN pg_class c ON c.oid=relid
ORDER BY total_writes DESC LIMIT 50;

66. Write activity example
• What is HOT

67. Usefull materials
• Postgrespro курс на русском
• Способы диагностики PostgreSQL ( yandex )
• Deep dive into postgresql statistics
• PostgreSQL meetup @ Avito (9.04.2016)
• What is HOT

68. please feel free to contact me at email:
bushmelev.aa@gmail.com
