Event-driven process chains (EPC) are modeling tools used across industries for process analysis and design, developed in 1992. EPCs always start and end with events, incorporating functions and specific rules for connections represented as graphical connectors. ARIS Express is a free tool that allows users to model EPCs easily and share their designs in the ARIS community.

1. by Eva Klein © Eva Klein

2. What is an EPC? © Eva Klein EPC stands for Event-driven process chain is used in many industries and is supported by various tools offers many ways of modeling and analyzing processes was developed in 1992 by Prof. Scheer and colleagues at the University of Saarland has an industry-wide standing … .

3. Elements of an EPC Activity (Function) Event Rules Connection © Eva Klein

4. Rules for modeling an EPC An EPC always starts and ends with an event. Multiple functions can follow each event or multiple events can follow each function BUT there must be rules in between. In an EPC, such rules are called 'OR', 'AND', or 'XOR' and are represented as graphical connectors. © Eva Klein

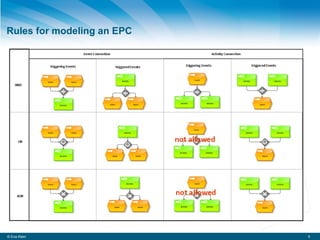

5. Rules for modeling an EPC © Eva Klein

6. EPC example 1 © Eva Klein If Event 1 and Event 2 occur, the Activity will be performed. Once the Activity is complete, Event 3 will occur.

7. EPC example 2 If Event 1 occurs, the Activity will be performend. Once the Activity is complete, either Event 2 or Event 3 will occur. © Eva Klein

8. EPC example 3 If Event 1 or Event 2 occurs, or if both occur, the Activity will be performed. Once the Activity is complete, Event 3 will occur. © Eva Klein

9. Modeling your EPC with ARIS Express ARIS Express … is a free modeling tool from the market leader Software AG supports the modeling of EPCs with the model type 'Business model' enables modelers to capture information in a fast and easy way based on Smart design © Eva Klein Download ARIS Express from ARIS Community

10. Discuss & share your models Upload your models to ARIS Community and discuss them there Embed your models with model viewer in your own blog or website … © Eva Klein
