2nd International Workshop on
Event-Driven Business Process Management
   edBPM09 – http://icep-edbpm09.fzi.de/




External and Internal Events in EPCs:
               e²EPCs



     Oliver Kopp, Matthias Wieland, Frank Leymann
          Institute of Architecture of Application Systems




                                                             kopp@iaas.uni-stuttgart.de
Motivation
            We created a development method for workflow based
            applications based on event-driven service-oriented
            architectures (SOEDA)
                      Wieland, M., Martin, D., Kopp, O., Leymann, F.: SOEDA: A
                      Methodology for Specification and Implementation of
                      Applications on a Service-Oriented Event-Driven Architecture.
                      In: BIS 2009. (2009)
            SOEDA uses MDA (Model-Driven Architecture) approach
                      Save development time by automated transformations
                      Transformation of EPCs to detailed abstract BPEL workflows
            SOEDA Methodology steps
                      Step 1: Process Definition
                      Step 2: Complex Event Extraction
                      Step 3: Process to Workflow Transformation
                      Step 4: CEP Rules Specification
                      Step 5: Executable Completion
Presented by Matthias Wieland

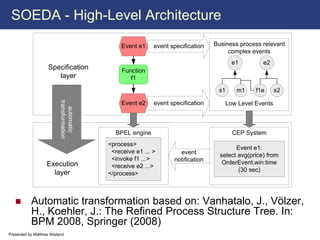

SOEDA - High-Level Architecture
                                                Event e1    event specification   Business process relevant
                                                                                       complex events
                                                                                        e1          e2
                    Specification               Function
                       layer                       f1

                                                                                   s1     m1     f1e     s2
                          transformation




                                                Event e2    event specification       Low Level Events
                             automatic




                                             BPEL engine                                CEP System
                                           <process>
                                                                                          Event e1:
                                            <receive e1 ... >        event          select avg(price) from
                                            <invoke f1 ...>        notification
                    Execution                                                        OrderEvent.win:time
                                            <receive e2 ...>
                      layer                                                                (30 sec)
                                           </process>



           Automatic transformation based on: Vanhatalo, J., Völzer,
           H., Koehler, J.: The Refined Process Structure Tree. In:
           BPM 2008, Springer (2008)
Presented by Matthias Wieland

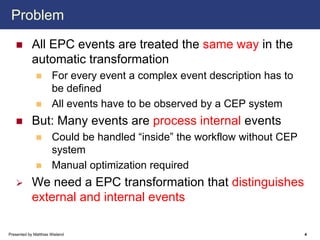

Problem

            All EPC events are treated the same way in the
            automatic transformation
                      For every event a complex event description has to
                      be defined
                      All events have to be observed by a CEP system
            But: Many events are process internal events
                      Could be handled “inside” the workflow without CEP
                      system
                      Manual optimization required
            We need a EPC transformation that distinguishes
            external and internal events

Presented by Matthias Wieland                                              4
Example
            External event,
            triggered by external system




                                           Internal event,
                                           triggered by process data
Adapted from:
Scheer, A.W. & Thomas, O. & Adam, O.:
Process Modeling Using Event-Driven Process Chains.
In: Process-Aware Information Systems: Bridging People and
Software Through Process Technology. Wiley & Sons (2005)
 Presented by Matthias Wieland                                         5
Current Transformation
     Approaches



                         6

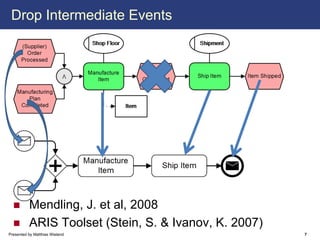

Drop Intermediate Events




          Mendling, J. et al, 2008
          ARIS Toolset (Stein, S. & Ivanov, K. 2007)
Presented by Matthias Wieland                          7
Drop Start and End Events




            Kopp, O. et al., 2006
            Specht, T. et al., 2005
            Ziemann, J. et al., 2005
Presented by Matthias Wieland          8

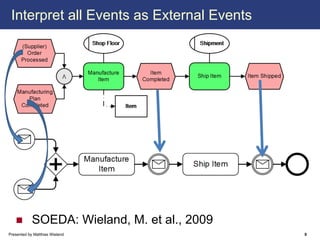

Interpret all Events as External Events




            SOEDA: Wieland, M. et al., 2009
Presented by Matthias Wieland                 9
Summary




Presented by Matthias Wieland   10
Our new Approach:
      e²EPCs



                    11

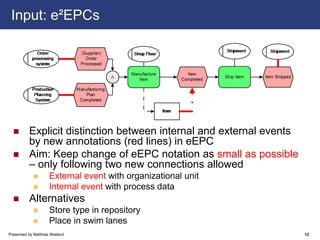

Input: e²EPCs




          Explicit distinction between internal and external events
          by new annotations (red lines) in eEPC
          Aim: Keep change of eEPC notation as small as possible
          – only following two new connections allowed
                     External event with organizational unit
                     Internal event with process data
          Alternatives
                     Store type in repository
                     Place in swim lanes
Presented by Matthias Wieland                                         12

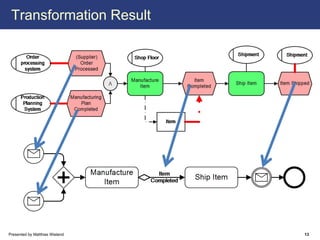

Transformation Result




Presented by Matthias Wieland   13

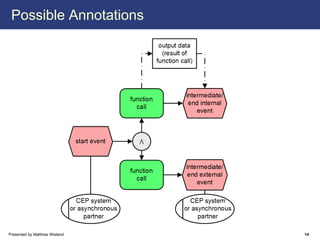

Possible Annotations




Presented by Matthias Wieland   14

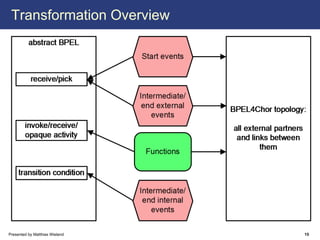

Transformation Overview




Presented by Matthias Wieland   15

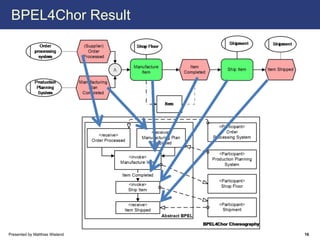

BPEL4Chor Result




Presented by Matthias Wieland   16

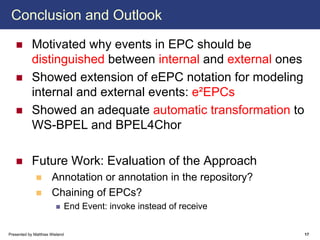

Conclusion and Outlook

            Motivated why events in EPC should be
            distinguished between internal and external ones
            Showed extension of eEPC notation for modeling
            internal and external events: e²EPCs
            Showed an adequate automatic transformation to
            WS-BPEL and BPEL4Chor

            Future Work: Evaluation of the Approach
                      Annotation or annotation in the repository?
                      Chaining of EPCs?
                                End Event: invoke instead of receive


Presented by Matthias Wieland                                          17
