DBMS: Week 13 - Transactions and Concurrency Control

1. International Islamic University H-10, Islamabad, Pakistan
Database Managements Systems
Week 13
Transactions and
Concurrency Control
Engr. Rashid Farid Chishti
http://youtube.com/rfchishti
http://sites.google.com/site/chisht
i

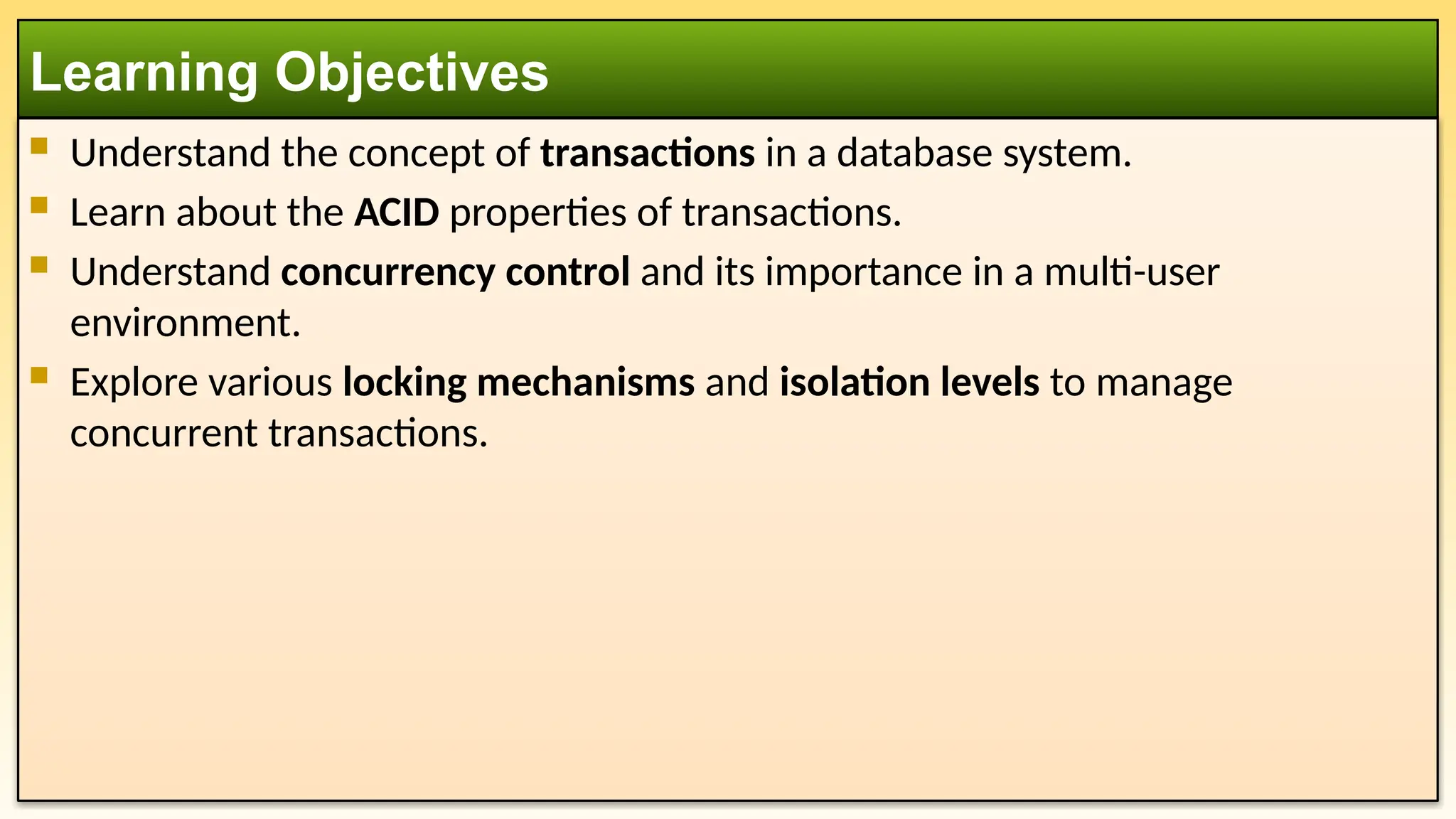

2.  Understand the concept of transactions in a database system.
 Learn about the ACID properties of transactions.
 Understand concurrency control and its importance in a multi-user
environment.
 Explore various locking mechanisms and isolation levels to manage
concurrent transactions.
Learning Objectives

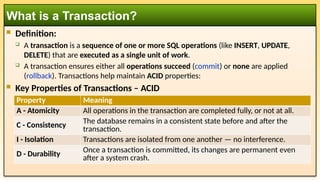

3.  Definition:
 A transaction is a sequence of one or more SQL operations (like INSERT, UPDATE,
DELETE) that are executed as a single unit of work.
 A transaction ensures either all operations succeed (commit) or none are applied
(rollback). Transactions help maintain ACID properties:
 Key Properties of Transactions – ACID
What is a Transaction?
Property Meaning
A - Atomicity All operations in the transaction are completed fully, or not at all.
C - Consistency The database remains in a consistent state before and after the
transaction.
I - Isolation Transactions are isolated from one another — no interference.
D - Durability
Once a transaction is committed, its changes are permanent even
after a system crash.

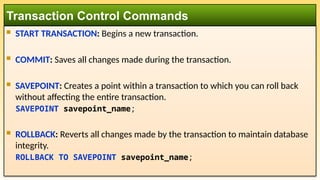

4.  START TRANSACTION: Begins a new transaction.
 COMMIT: Saves all changes made during the transaction.
 SAVEPOINT: Creates a point within a transaction to which you can roll back
without affecting the entire transaction.
SAVEPOINT savepoint_name;
 ROLLBACK: Reverts all changes made by the transaction to maintain database
integrity.
ROLLBACK TO SAVEPOINT savepoint_name;
Transaction Control Commands

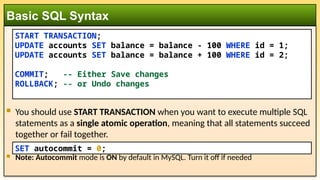

5.  You should use START TRANSACTION when you want to execute multiple SQL
statements as a single atomic operation, meaning that all statements succeed
together or fail together.
 Note: Autocommit mode is ON by default in MySQL. Turn it off if needed
Basic SQL Syntax
START TRANSACTION;
UPDATE accounts SET balance = balance - 100 WHERE id = 1;
UPDATE accounts SET balance = balance + 100 WHERE id = 2;
COMMIT; -- Either Save changes
ROLLBACK; -- or Undo changes
SET autocommit = 0;

6. DROP DATABASE IF EXISTS week_13_db;
CREATE DATABASE week_13_db;
USE week_13_db;
CREATE TABLE Customer ( -- Create a Customer Table for
Practice
id INT AUTO_INCREMENT PRIMARY KEY,
name VARCHAR(100),
email VARCHAR(100),
balance DECIMAL(10, 2) DEFAULT 0
);
SET autocommit = 0; -- Turn off auto commit
START TRANSACTION; -- Start the transaction
-- Insert a new Customer
INSERT INTO Customer (name, email, balance)
VALUES ('John', 'john@example.com', 1000.00);
COMMIT; -- Commit the transaction
Example 1: Using COMMIT and ROLLBACK
1

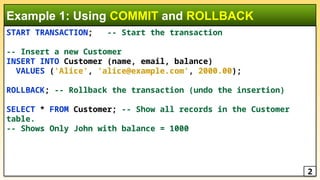

7. START TRANSACTION; -- Start the transaction
-- Insert a new Customer
INSERT INTO Customer (name, email, balance)
VALUES ('Alice', 'alice@example.com', 2000.00);
ROLLBACK; -- Rollback the transaction (undo the insertion)
SELECT * FROM Customer; -- Show all records in the Customer
table.
-- Shows Only John with balance = 1000
Example 1: Using COMMIT and ROLLBACK
2

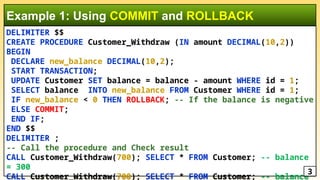

8. DELIMITER $$
CREATE PROCEDURE Customer_Withdraw (IN amount DECIMAL(10,2))
BEGIN
DECLARE new_balance DECIMAL(10,2);
START TRANSACTION;
UPDATE Customer SET balance = balance - amount WHERE id = 1;
SELECT balance INTO new_balance FROM Customer WHERE id = 1;
IF new_balance < 0 THEN ROLLBACK; -- If the balance is negative
ELSE COMMIT;
END IF;
END $$
DELIMITER ;
-- Call the procedure and Check result
CALL Customer_Withdraw(700); SELECT * FROM Customer; -- balance
= 300
CALL Customer_Withdraw(700); SELECT * FROM Customer; -- balance
Example 1: Using COMMIT and ROLLBACK
3

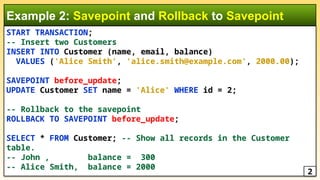

9. START TRANSACTION;
-- Insert two Customers
INSERT INTO Customer (name, email, balance)
VALUES ('Alice Smith', 'alice.smith@example.com', 2000.00);
SAVEPOINT before_update;
UPDATE Customer SET name = 'Alice' WHERE id = 2;
-- Rollback to the savepoint
ROLLBACK TO SAVEPOINT before_update;
SELECT * FROM Customer; -- Show all records in the Customer
table.
-- John , balance = 300
-- Alice Smith, balance = 2000
Example 2: Savepoint and Rollback to Savepoint
2

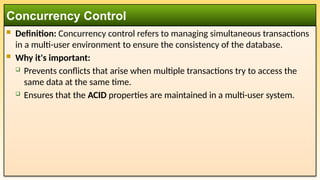

10.  Definition: Concurrency control refers to managing simultaneous transactions
in a multi-user environment to ensure the consistency of the database.
 Why it's important:
 Prevents conflicts that arise when multiple transactions try to access the
same data at the same time.
 Ensures that the ACID properties are maintained in a multi-user system.
Concurrency Control

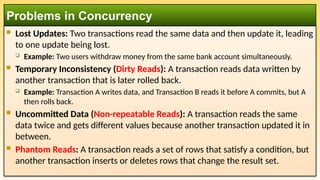

11.  Lost Updates: Two transactions read the same data and then update it, leading
to one update being lost.
 Example: Two users withdraw money from the same bank account simultaneously.
 Temporary Inconsistency (Dirty Reads): A transaction reads data written by
another transaction that is later rolled back.
 Example: Transaction A writes data, and Transaction B reads it before A commits, but A
then rolls back.
 Uncommitted Data (Non-repeatable Reads): A transaction reads the same
data twice and gets different values because another transaction updated it in
between.
 Phantom Reads: A transaction reads a set of rows that satisfy a condition, but
another transaction inserts or deletes rows that change the result set.
Problems in Concurrency

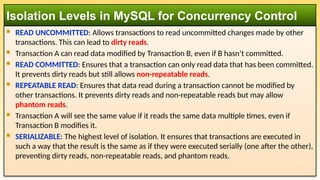

12.  READ UNCOMMITTED: Allows transactions to read uncommitted changes made by other
transactions. This can lead to dirty reads.
 Transaction A can read data modified by Transaction B, even if B hasn’t committed.
 READ COMMITTED: Ensures that a transaction can only read data that has been committed.
It prevents dirty reads but still allows non-repeatable reads.
 REPEATABLE READ: Ensures that data read during a transaction cannot be modified by
other transactions. It prevents dirty reads and non-repeatable reads but may allow
phantom reads.
 Transaction A will see the same value if it reads the same data multiple times, even if
Transaction B modifies it.
 SERIALIZABLE: The highest level of isolation. It ensures that transactions are executed in
such a way that the result is the same as if they were executed serially (one after the other),
preventing dirty reads, non-repeatable reads, and phantom reads.
Isolation Levels in MySQL for Concurrency Control

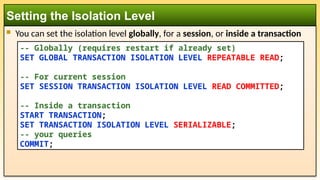

13.  You can set the isolation level globally, for a session, or inside a transaction
Setting the Isolation Level
-- Globally (requires restart if already set)
SET GLOBAL TRANSACTION ISOLATION LEVEL REPEATABLE READ;
-- For current session
SET SESSION TRANSACTION ISOLATION LEVEL READ COMMITTED;
-- Inside a transaction
START TRANSACTION;
SET TRANSACTION ISOLATION LEVEL SERIALIZABLE;
-- your queries
COMMIT;

14. Isolation Levels Summary
Isolation Level Description
Dirty
Read
Non-repeatable
Read
Phantom
Read
READ UNCOMMITTED Lowest level – allows dirty reads. Yes Yes Yes
READ COMMITTED Allows only committed data to be read. No Yes Yes
REPEATABLE READ
Ensures the same result for the same query in a
transaction (default in MySQL).
No No Yes
SERIALIZABLE
Highest level – full isolation. Transactions are
executed one after another.
No No No
Phenomenon
READ
UNCOMMITTED
READ COMMITTED REPEATABLE READ SERIALIZABLE
Dirty Read ✅ ❌ ❌ ❌
Non-repeatable
Read ✅ ✅ ❌ ❌
Phantom Read ✅ ✅ ✅ ❌

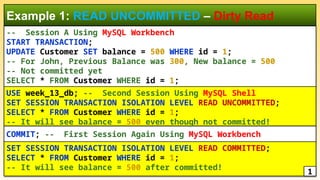

15. -- Session A Using MySQL Workbench
START TRANSACTION;
UPDATE Customer SET balance = 500 WHERE id = 1;
-- For John, Previous Balance was 300, New balance = 500
-- Not committed yet
SELECT * FROM Customer WHERE id = 1;
Example 1: READ UNCOMMITTED – Dirty Read
COMMIT; -- First Session Again Using MySQL Workbench
USE week_13_db; -- Second Session Using MySQL Shell
SET SESSION TRANSACTION ISOLATION LEVEL READ UNCOMMITTED;
SELECT * FROM Customer WHERE id = 1;
-- It will see balance = 500 even though not committed!
SET SESSION TRANSACTION ISOLATION LEVEL READ COMMITTED;
SELECT * FROM Customer WHERE id = 1;
-- It will see balance = 500 after committed!
1

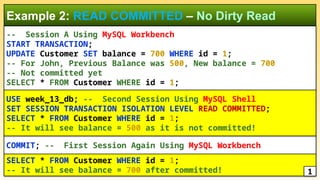

16. -- Session A Using MySQL Workbench
START TRANSACTION;
UPDATE Customer SET balance = 700 WHERE id = 1;
-- For John, Previous Balance was 500, New balance = 700
-- Not committed yet
SELECT * FROM Customer WHERE id = 1;
Example 2: READ COMMITTED – No Dirty Read
COMMIT; -- First Session Again Using MySQL Workbench
USE week_13_db; -- Second Session Using MySQL Shell
SET SESSION TRANSACTION ISOLATION LEVEL READ COMMITTED;
SELECT * FROM Customer WHERE id = 1;
-- It will see balance = 500 as it is not committed!
SELECT * FROM Customer WHERE id = 1;
-- It will see balance = 700 after committed! 1

17. -- Session A Using MySQL Workbench
SET SESSION TRANSACTION ISOLATION LEVEL READ COMMITTED;
START TRANSACTION;
-- First read of account balance
SELECT * FROM Customer WHERE id = 1;
-- Suppose it shows balance = 700
Example 3: READ COMMITTED – Non Repeatable Read
-- Session A again Using MySQL Workbench
SELECT * FROM accounts WHERE id = 1;
-- Now it shows balance = 1000
COMMIT;
USE week_13_db; -- Session B Using MySQL Shell
START TRANSACTION;
UPDATE Customer SET balance = 1000 WHERE id = 1;
COMMIT; -- Save Changes
1

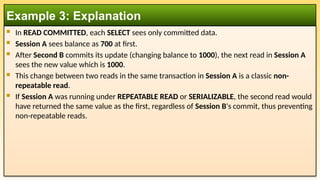

18.  In READ COMMITTED, each SELECT sees only committed data.
 Session A sees balance as 700 at first.
 After Second B commits its update (changing balance to 1000), the next read in Session A
sees the new value which is 1000.
 This change between two reads in the same transaction in Session A is a classic non-
repeatable read.
 If Session A was running under REPEATABLE READ or SERIALIZABLE, the second read would
have returned the same value as the first, regardless of Session B's commit, thus preventing
non-repeatable reads.
Example 3: Explanation

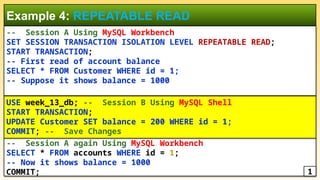

19. -- Session A Using MySQL Workbench
SET SESSION TRANSACTION ISOLATION LEVEL REPEATABLE READ;
START TRANSACTION;
-- First read of account balance
SELECT * FROM Customer WHERE id = 1;
-- Suppose it shows balance = 1000
Example 4: REPEATABLE READ
-- Session A again Using MySQL Workbench
SELECT * FROM accounts WHERE id = 1;
-- Now it shows balance = 1000
COMMIT;
USE week_13_db; -- Session B Using MySQL Shell
START TRANSACTION;
UPDATE Customer SET balance = 200 WHERE id = 1;
COMMIT; -- Save Changes
1

20. -- Session A Using MySQL Workbench
SET SESSION TRANSACTION ISOLATION LEVEL REPEATABLE READ;
START TRANSACTION;
-- See all Customers
SELECT * FROM Customer;
-- Suppose it shows two Customers John and Alice Smith
Example 5: REPEATABLE READ – Phantom Read
-- Session 1 Again
SELECT * FROM Customer;
-- Now show 3 Customers (1 new customer is phantom)
COMMIT; 1
USE week_13_db;
START TRANSACTION; -- Session 2
INSERT INTO Customer (name, email, balance)
VALUES ('David', 'david@example.com', 1000.00);
COMMIT;

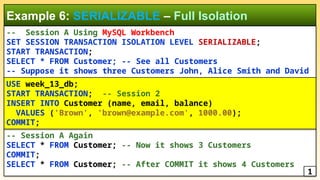

21. -- Session A Using MySQL Workbench
SET SESSION TRANSACTION ISOLATION LEVEL SERIALIZABLE;
START TRANSACTION;
SELECT * FROM Customer; -- See all Customers
-- Suppose it shows three Customers John, Alice Smith and David
Example 6: SERIALIZABLE – Full Isolation
-- Session A Again
SELECT * FROM Customer; -- Now it shows 3 Customers
COMMIT;
SELECT * FROM Customer; -- After COMMIT it shows 4 Customers
1
USE week_13_db;
START TRANSACTION; -- Session 2
INSERT INTO Customer (name, email, balance)
VALUES ('Brown', 'brown@example.com', 1000.00);
COMMIT;

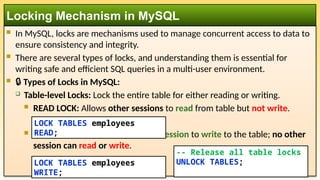

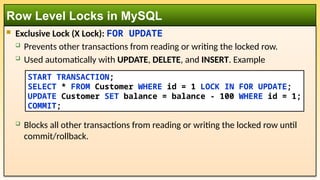

22.  In MySQL, locks are mechanisms used to manage concurrent access to data to
ensure consistency and integrity.
 There are several types of locks, and understanding them is essential for
writing safe and efficient SQL queries in a multi-user environment.
 🔒 Types of Locks in MySQL:
 Table-level Locks: Lock the entire table for either reading or writing.
 READ LOCK: Allows other sessions to read from table but not write.
 WRITE LOCK: Allows only current session to write to the table; no other
session can read or write.
Locking Mechanism in MySQL
LOCK TABLES employees
READ;
LOCK TABLES employees
WRITE;
-- Release all table locks
UNLOCK TABLES;

23. -- Session A Using MySQL Workbench
-- You now hold a read lock — you can read, but not write.
LOCK TABLES Customer READ; -- Apply READ lock to Customer
Table
SELECT * FROM Customer; -- OK it will execute
INSERT INTO Customer (name, email, balance)
VALUES ('Bilal', 'bilal@example.com', 1000.00); -- Error READ
Lock
Example 1: Table Level READ Locks
USE week_13_db; -- Session B is using MySQL Shell
SELECT * FROM Customer; -- OK it will
execute
INSERT INTO Customer (name, email, balance) -- it will wait to
unlock
VALUES ('Bilal', 'bilal@example.com', 1000.00);
SELECT * FROM Customer; -- OK it will execute
INSERT INTO Customer (name, email, balance)-- OK it will also
execute
VALUES ('Ali', 'Ali@example.com', 1000.00); 1
UNLOCK TABLES; -- Unlock all tables

24. -- Session A Using MySQL Workbench
UNLOCK TABLES; -- Unlock all tables
Example 2: Table Level WRITE Locks
USE week_13_db; -- Session B is using MySQL
Shell
SELECT * FROM Customer; -- See all Customers
SELECT * FROM Customer; -- See all Customers 1
-- Session A Again
LOCK TABLES Customer WRITE; -- This session can read and write
table
-- But Other session can not read or write this table
SELECT * FROM Customer; -- See all Customers it will wait to
unlock
INSERT INTO Customer (name, email, balance) -- it will also wait
VALUES ('Bilal', 'bilal@example.com', 1000.00);
UNLOCK TABLES; -- Unlock all tables

25. 💡 Summary
Operation Session 1 (with READ lock) Session 2
SELECT ✅ ✅
INSERT/UPDATE/DELETE ⛔ ⛔
UNLOCK TABLES ✅ -
Access after unlock ✅ ✅
Operation Session 1 (with WRITE lock) Session 2
SELECT ✅ ⛔
INSERT/UPDATE/DELETE ✅ ⛔
UNLOCK TABLES ✅ -
Access after unlock ✅ ✅

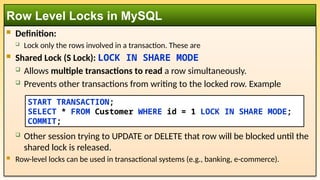

26.  Definition:
 Lock only the rows involved in a transaction. These are
 Shared Lock (S Lock): LOCK IN SHARE MODE
 Allows multiple transactions to read a row simultaneously.
 Prevents other transactions from writing to the locked row. Example
 Other session trying to UPDATE or DELETE that row will be blocked until the
shared lock is released.
 Row-level locks can be used in transactional systems (e.g., banking, e-commerce).
Row Level Locks in MySQL
START TRANSACTION;
SELECT * FROM Customer WHERE id = 1 LOCK IN SHARE MODE;
COMMIT;

27.  Exclusive Lock (X Lock): FOR UPDATE
 Prevents other transactions from reading or writing the locked row.
 Used automatically with UPDATE, DELETE, and INSERT. Example
 Blocks all other transactions from reading or writing the locked row until
commit/rollback.
Row Level Locks in MySQL
START TRANSACTION;
SELECT * FROM Customer WHERE id = 1 LOCK IN FOR UPDATE;
UPDATE Customer SET balance = balance - 100 WHERE id = 1;
COMMIT;

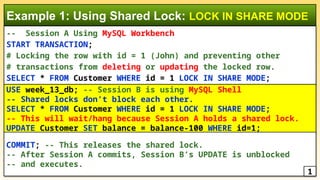

28. -- Session A Using MySQL Workbench
START TRANSACTION;
# Locking the row with id = 1 (John) and preventing other
# transactions from deleting or updating the locked row.
SELECT * FROM Customer WHERE id = 1 LOCK IN SHARE MODE;
Example 1: Using Shared Lock: LOCK IN SHARE MODE
USE week_13_db; -- Session B is using MySQL Shell
-- Shared locks don’t block each other.
SELECT * FROM Customer WHERE id = 1 LOCK IN SHARE MODE;
-- This will wait/hang because Session A holds a shared lock.
UPDATE Customer SET balance = balance-100 WHERE id=1;
COMMIT; -- This releases the shared lock.
-- After Session A commits, Session B’s UPDATE is unblocked
-- and executes.
1

29. -- Session A Using MySQL Workbench
START TRANSACTION;
# Locking the row with id = 1 (John) exclusively. Now no other
session can update, delete, or even shared-lock that row until
Session A commits.
SELECT * FROM Customer WHERE id = 1 FOR UPDATE;
Example 2: Using Exclusive Lock FOR UPDATE
USE week_13_db; -- Session B is using MySQL Shell
-- This will wait/hang because FOR UPDATE lock in Session A is
-- exclusive. It prevents Session B from even reading the row
with
-- a shared lock.
SELECT * FROM Customer WHERE id = 1 FOR UPDATE; -- it will wait
-- Still blocked due to the FOR UPDATE lock.
UPDATE Customer SET balance = 300 WHERE id = 1;
COMMIT; -- Now Session B’s blocked queries will resume and
succeed. 1

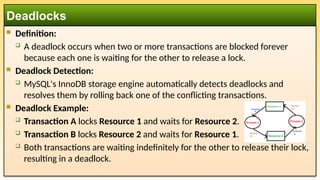

30.  Definition:
 A deadlock occurs when two or more transactions are blocked forever
because each one is waiting for the other to release a lock.
 Deadlock Detection:
 MySQL's InnoDB storage engine automatically detects deadlocks and
resolves them by rolling back one of the conflicting transactions.
 Deadlock Example:
 Transaction A locks Resource 1 and waits for Resource 2.
 Transaction B locks Resource 2 and waits for Resource 1.
 Both transactions are waiting indefinitely for the other to release their lock,
resulting in a deadlock.
Deadlocks

31.  Always access tables/rows in the same order in all transactions.
 Keep transactions short and fast.
 Use appropriate indexes so that row searches are quick and predictable.
 Use SELECT ... FOR UPDATE or LOCK IN SHARE MODE consistently to explicitly
lock rows in known order.
 Handle deadlocks in application code:
 Retry the transaction if it fails due to a deadlock.
How to Prevent Deadlocks
ERROR 1213 (40001): Deadlock found when trying to get lock; try restarting transaction

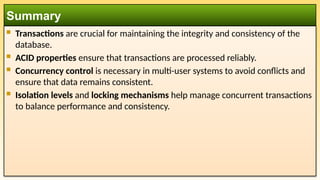

32.  Transactions are crucial for maintaining the integrity and consistency of the
database.
 ACID properties ensure that transactions are processed reliably.
 Concurrency control is necessary in multi-user systems to avoid conflicts and
ensure that data remains consistent.
 Isolation levels and locking mechanisms help manage concurrent transactions
to balance performance and consistency.
Summary
