Just quick overview of streams conception and thoughts about future use on the client side

1. Vladimir Shevchuk
skype: dosandk
github.com/dosandk
https://goo.gl/av8ScJ
Streams for Web
Lightning talk
1

2. 2
Part 1: Streams. Basic conception

3. 3

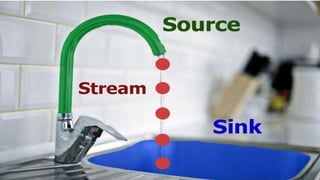

4. 4

5. 5
But what ARE streams?

6. 6

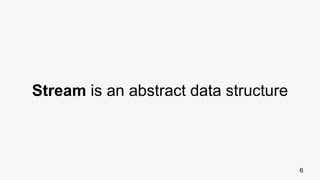

Stream is an abstract data structure

7. 7

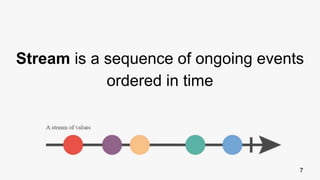

Stream is a sequence of ongoing events
ordered in time

8. 8

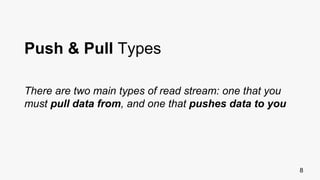

Push & Pull Types
There are two main types of read stream: one that you
must pull data from, and one that pushes data to you

9. 9Push Stream Pull Stream

10. 10
Bacon.js
RxJS
Highland.js
Libraries for working with streams

11. 11

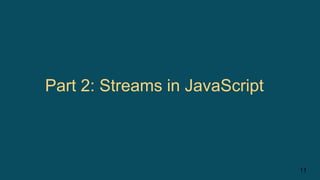

Part 2: Streams in JavaScript

12. 12
Generators!
Generators are reusable and pausable functions
or ... pull streams

13. 13

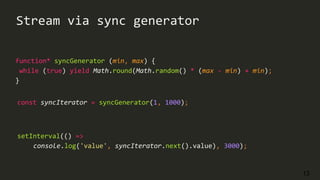

Stream via sync generator
function* syncGenerator (min, max) {
while (true) yield Math.round(Math.random() * (max - min) + min);
}
setInterval(() =>
console.log('value', syncIterator.next().value), 3000);
const syncIterator = syncGenerator(1, 1000);

14. 14

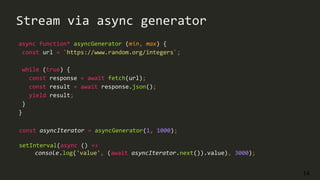

Stream via async generator
async function* asyncGenerator (min, max) {
const url = `https://www.random.org/integers`;
while (true) {
const response = await fetch(url);
const result = await response.json();
yield result;
}
}
const asyncIterator = asyncGenerator(1, 1000);
setInterval(async () =>
console.log('value', (await asyncIterator.next()).value), 3000);

15. 15

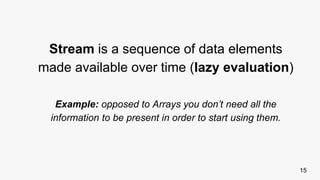

Stream is a sequence of data elements
made available over time (lazy evaluation)
Example: opposed to Arrays you don’t need all the
information to be present in order to start using them.

16. 16

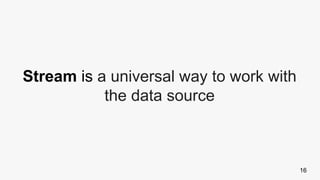

Stream is a universal way to work with
the data source

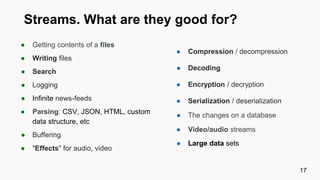

17. Streams. What are they good for?
● Getting contents of a files
● Writing files
● Search
● Logging
● Infinite news-feeds
● Parsing: CSV, JSON, HTML, custom
data structure, etc
● Buffering
● "Effects" for audio, video
17
● Compression / decompression
● Decoding
● Encryption / decryption
● Serialization / deserialization
● The changes on a database
● Video/audio streams
● Large data sets

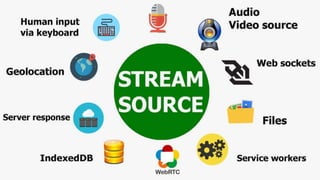

18. 18

19. 19

20. 20

21. 21

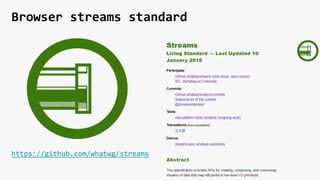

https://github.com/whatwg/streams
Browser streams standard

22. 22

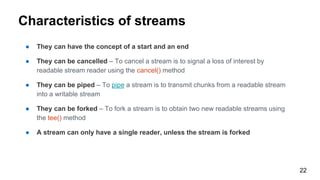

Characteristics of streams
● They can have the concept of a start and an end
● They can be cancelled – To cancel a stream is to signal a loss of interest by
readable stream reader using the cancel() method
● They can be piped – To pipe a stream is to transmit chunks from a readable stream
into a writable stream
● They can be forked – To fork a stream is to obtain two new readable streams using
the tee() method
● A stream can only have a single reader, unless the stream is forked

23. 23

24. 24

25. 25

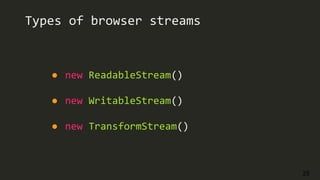

Types of browser streams
● new ReadableStream()
● new WritableStream()
● new TransformStream()

26. 26

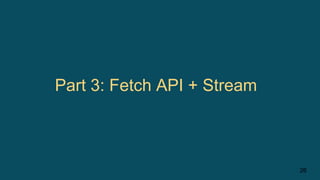

Part 3: Fetch API + Stream

27. 27

28. Readable Stream
28
const mushrooms = readable.read();

29. 29
const makeRequest = async () => {
const url = 'https://jsonplaceholder.typicode.com/photos/';
const response = await fetch(url);
const reader = response.body.getReader();
read (reader);
};
Readable Example

30. 30

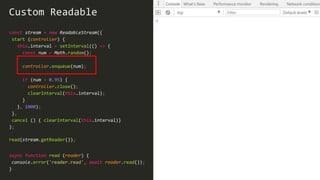

const stream = new ReadableStream({
start (controller) {
this.interval = setInterval(() => {
const num = Math.random();
controller.enqueue(num);
if (num > 0.95) {
controller.close();
clearInterval(this.interval);
}
}, 1000);
},
cancel () { clearInterval(this.interval)}
);
Custom Readable
read(stream.getReader());
async function read (reader) {
console.error('reader.read', await reader.read());
}

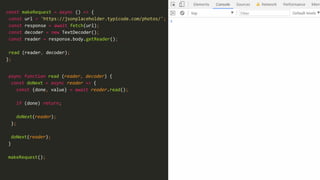

31. 31
const makeRequest = async () => {
const url = 'https://jsonplaceholder.typicode.com/photos/';
const response = await fetch(url);
const decoder = new TextDecoder();
const reader = response.body.getReader();
read (reader, decoder);
};
async function read (reader, decoder) {
const doNext = async reader => {
const {done, value} = await reader.read();
if (done) return;
doNext(reader);
};
doNext(reader);
}
makeRequest();

32. 32

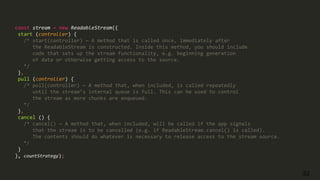

const stream = new ReadableStream({
start (controller) {
/* start(controller) — A method that is called once, immediately after
the ReadableStream is constructed. Inside this method, you should include
code that sets up the stream functionality, e.g. beginning generation
of data or otherwise getting access to the source.
*/
},
pull (controller) {
/* pull(controller) — A method that, when included, is called repeatedly
until the stream’s internal queue is full. This can be used to control
the stream as more chunks are enqueued.
*/
},
cancel () {
/* cancel() — A method that, when included, will be called if the app signals
that the stream is to be cancelled (e.g. if ReadableStream.cancel() is called).
The contents should do whatever is necessary to release access to the stream source.
*/
}
}, countStrategy);

33. 33
Writable Stream
writable.write(mushrooms);
A writable stream is a destination into which you can write data

34. 34

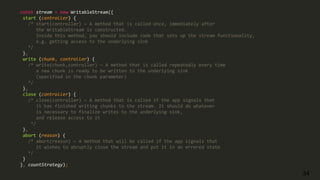

const stream = new WritableStream({
start (controller) {
/* start(controller) — A method that is called once, immediately after
the WritableStream is constructed.
Inside this method, you should include code that sets up the stream functionality,
e.g. getting access to the underlying sink
*/
},
write (chunk, controller) {
/* write(chunk,controller) — A method that is called repeatedly every time
a new chunk is ready to be written to the underlying sink
(specified in the chunk parameter)
*/
},
close (controller) {
/* close(controller) — A method that is called if the app signals that
it has finished writing chunks to the stream. It should do whatever
is necessary to finalize writes to the underlying sink,
and release access to it
*/
},
abort (reason) {
/* abort(reason) — A method that will be called if the app signals that
it wishes to abruptly close the stream and put it in an errored state
*/
}
}, countStrategy);

35. 35

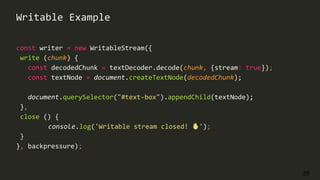

const writer = new WritableStream({
write (chunk) {
const decodedChunk = textDecoder.decode(chunk, {stream: true});
const textNode = document.createTextNode(decodedChunk);
document.querySelector("#text-box").appendChild(textNode);
},
close () {
console.log('Writable stream closed! 🔥');
}
}, backpressure);
Writable Example

36. 36

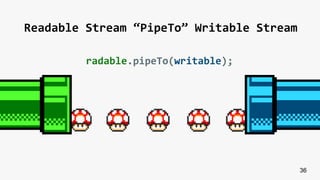

Readable Stream “PipeTo” Writable Stream
radable.pipeTo(writable);

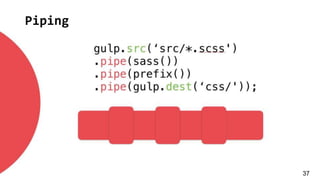

37. Piping
37

38. 38

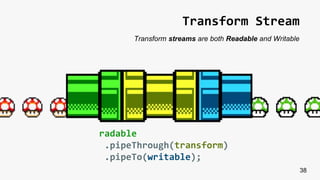

Transform Stream
radable
.pipeThrough(transform)
.pipeTo(writable);
Transform streams are both Readable and Writable

39. 39

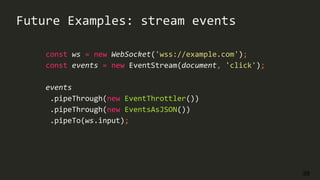

Future Examples: stream events
const ws = new WebSocket('wss://example.com');
const events = new EventStream(document, 'click');
events
.pipeThrough(new EventThrottler())
.pipeThrough(new EventsAsJSON())
.pipeTo(ws.input);

40. 40

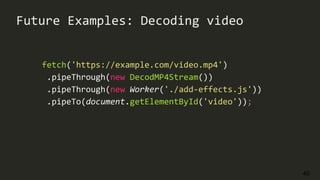

Future Examples: Decoding video
fetch('https://example.com/video.mp4')
.pipeThrough(new DecodMP4Stream())
.pipeThrough(new Worker('./add-effects.js'))
.pipeTo(document.getElementById('video'));

41. 41

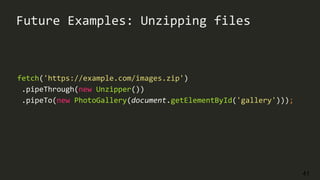

Future Examples: Unzipping files
fetch('https://example.com/images.zip')
.pipeThrough(new Unzipper())
.pipeTo(new PhotoGallery(document.getElementById('gallery')));

42. 42

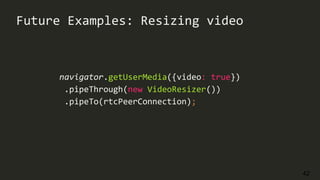

Future Examples: Resizing video
navigator.getUserMedia({video: true})
.pipeThrough(new VideoResizer())
.pipeTo(rtcPeerConnection);

43. 43
Backpressure

44. 44

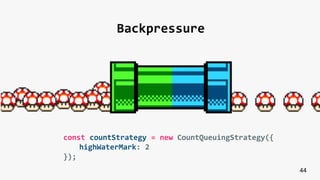

Backpressure
const countStrategy = new CountQueuingStrategy({
highWaterMark: 2
});

45. 45

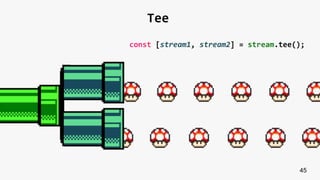

Tee
const [stream1, stream2] = stream.tee();

46. 46

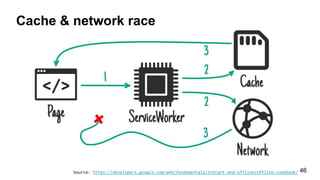

Cache & network race
Source: https://developers.google.com/web/fundamentals/instant-and-offline/offline-cookbook/

47. 47

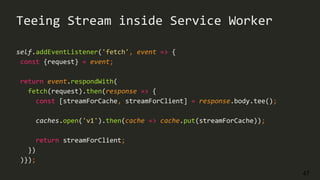

self.addEventListener('fetch', event => {
const {request} = event;
return event.respondWith(
fetch(request).then(response => {
const [streamForCache, streamForClient] = response.body.tee();
caches.open('v1').then(cache => cache.put(streamForCache));
return streamForClient;
})
)});
Teeing Stream inside Service Worker

48. 48

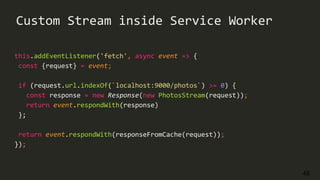

Custom Stream inside Service Worker
this.addEventListener('fetch', async event => {
const {request} = event;
if (request.url.indexOf(`localhost:9000/photos`) >= 0) {
const response = new Response(new PhotosStream(request));
return event.respondWith(response)
};
return event.respondWith(responseFromCache(request));
});

49. 49

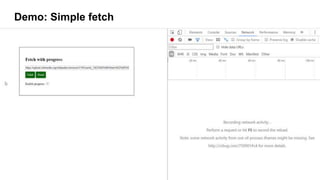

Demo: Simple fetch

50. 50

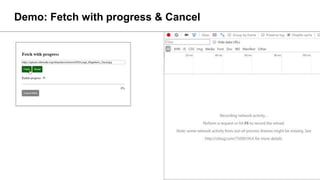

Demo: Fetch with progress & Cancel

51. 51

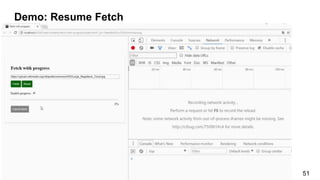

Demo: Resume Fetch

52. 52

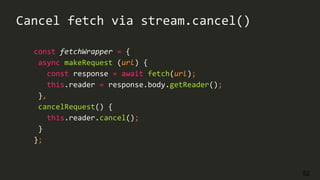

const fetchWrapper = {
async makeRequest (url) {
const response = await fetch(url);
this.reader = response.body.getReader();
},
cancelRequest() {
this.reader.cancel();
}
};
Cancel fetch via stream.cancel()

53. 53

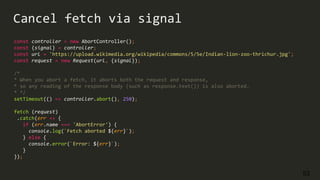

const controller = new AbortController();
const {signal} = controller;
const url = 'https://upload.wikimedia.org/wikipedia/commons/5/5e/Indian-lion-zoo-thrichur.jpg';
const request = new Request(url, {signal});
/*
* When you abort a fetch, it aborts both the request and response,
* so any reading of the response body (such as response.text()) is also aborted.
* */
setTimeout(() => controller.abort(), 250);
fetch (request)
.catch(err => {
if (err.name === 'AbortError') {
console.log(`Fetch aborted ${err}`);
} else {
console.error(`Error: ${err}`);
}
});
Cancel fetch via signal

54. 54

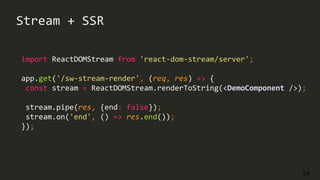

import ReactDOMStream from 'react-dom-stream/server';
app.get('/sw-stream-render', (req, res) => {
const stream = ReactDOMStream.renderToString(<DemoComponent />);
stream.pipe(res, {end: false});
stream.on('end', () => res.end());
});
Stream + SSR

55. 55

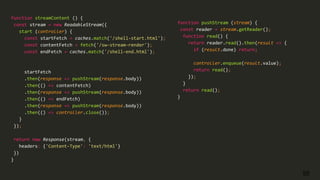

function streamContent () {
const stream = new ReadableStream({
start (controller) {
const startFetch = caches.match('/shell-start.html');
const contentFetch = fetch('/sw-stream-render');
const endFetch = caches.match('/shell-end.html');
startFetch
.then(response => pushStream(response.body))
.then(() => contentFetch)
.then(response => pushStream(response.body))
.then(() => endFetch)
.then(response => pushStream(response.body))
.then(() => controller.close());
}
});
return new Response(stream, {
headers: {'Content-Type': 'text/html'}
})
}
function pushStream (stream) {
const reader = stream.getReader();
function read() {
return reader.read().then(result => {
if (result.done) return;
controller.enqueue(result.value);
return read();
});
}
return read();
}

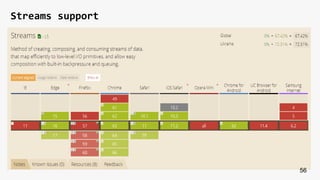

56. Streams support
56

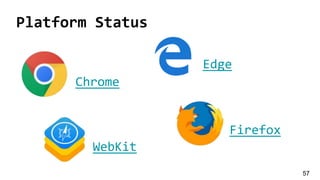

57. Platform Status
57
WebKit
Edge
Chrome
Firefox

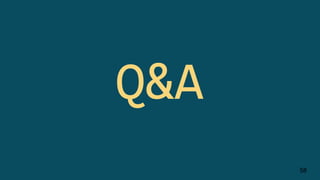

58. Q&A
58
